Содержание
- 1. Covers 2HP
- 2. Frames I 2HP
- 3. Frames II 2HP
- 4. Paper Cassette I 2HP
- 5. Paper Cassette II 2HP
- 6. Primary Unit 2HP
- 7. Paper Conveying I 2HP
- 8. Paper Conveying II 2HP
- 9. Paper Conveying III 2HP
- 10. Transfer Unit 2HP
- 11. Imaging Unit 2HP
- 12. Fuser Unit & LSU 2HP
- 13. Driving Unit I 2HP
- 14. Driving Unit II 2HP
- 15. Cooling Unit 2HP
- 16. Paper Exit 2HP
- 17. MPT Assy 2HP
- 18. Table Bypass 2HP
- 19. MPT Bypass Assy 2HP
- 20. Electrical Components I 2HP
- 21. Electrical Components II 2HP
- 22. Controller Box 2HP
- 23. Options 2HP
- 24. Parts Packing 2HP

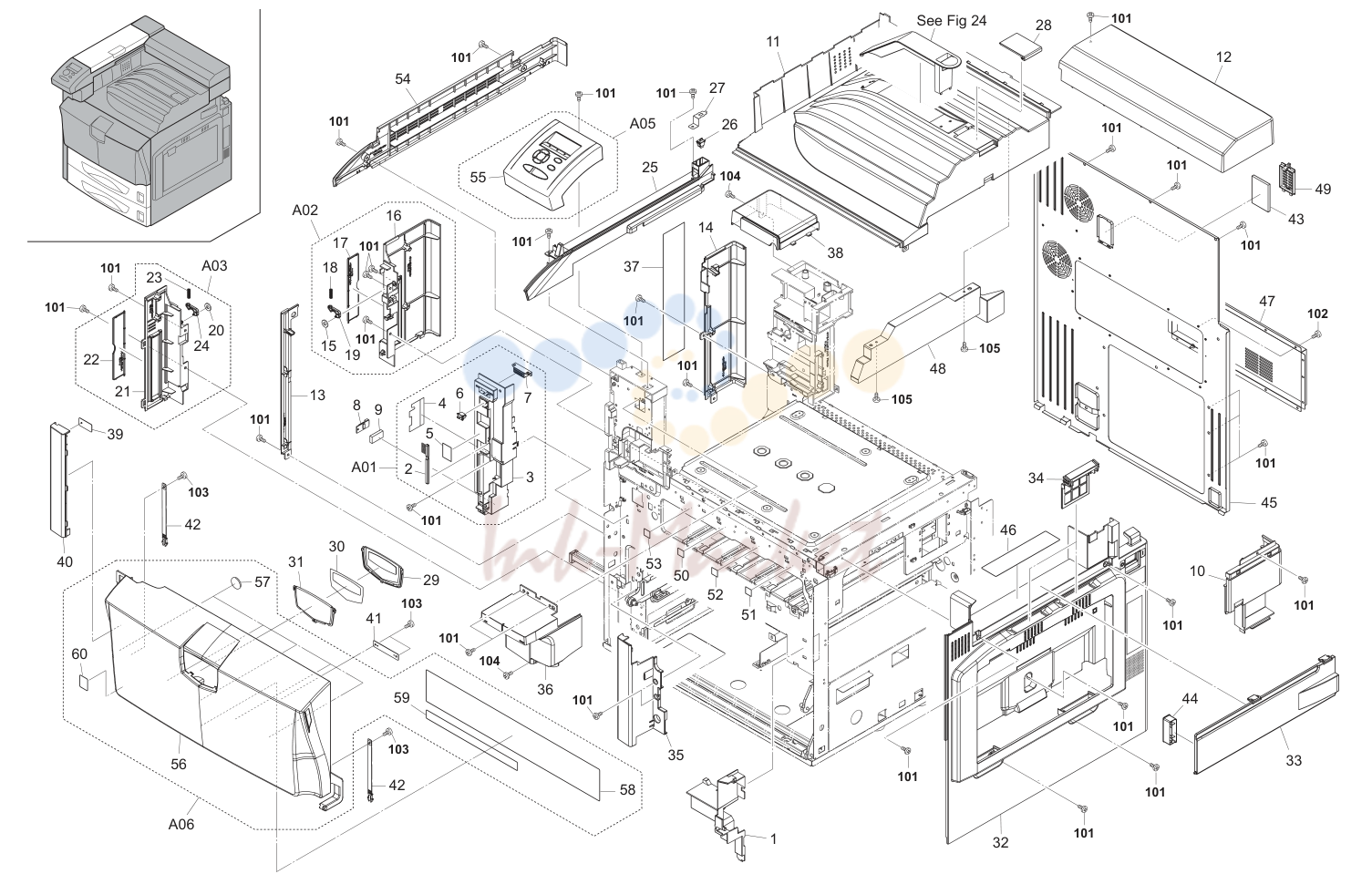

1. Covers 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | •2BL16220 5AAVBRUSH036 BRUSH CLEANER 1 1 1 50 4AK73740 5MVVL221WN33 LABEL CONTAINER T1 | ||
| 3 | •302FZ04210 2FZ04210 COVER INNER LEFT 1 1 1 51 4AK73750 5MVVL221WN34 LABEL CONTAINER T2 | ||
| 4 | •302FZ04640 2FZ04640 SHEET HARNESS LEFT 1 1 1 52 4AK73760 5MVVL221WN35 LABEL CONTAINER T3 | ||
| 5 | •302GR34181 2GR34181 LABEL SEP CLEANING 1 1 1 53 4AK73770 5MVVL221WN36 LABEL CONTAINER T4 | ||
| 7 | •60804120 MAGNET CATCH 1 1 1 (cid:27) A05 302HP93020 2HP93020 PARTS,OPERATION ASSY FS,SP | ||
| 9 | 302FZ04730 запросить цену → | 2FZ04730 | SPACER SENSOR 1 1 1 (cid:27) A06 302FZ80070 2FZ80070 FORNT COVER A ASSY SP |
| 15 | •2BG22990 CUT WASHER 4 1 1 1 60 •302G634070 2G634070 LABEL ENERGY STAR | ||
| 16 | •302FZ04160 2FZ04160 COVER LEFT REAR | ||
| 17 | •302FZ04240 2FZ04240 LID COVER LEFT | ||
| 18 | •5MMW261SD004 3B706550 SPRING COVER R /40283V0069 A4 | ||
| 19 | •5MVX421DN003 2BL06490 LOCK COVER R /40283V0068 A4 | ||
| 20 | •2BG22990 CUT WASHER 4 1 1 1 101 B1A54080 +BIND TAP-TITE S SCREW M4X08 | ||
| 21 | •302FZ04150 2FZ04150 COVER LEFT FRONT 1 1 1 102 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T | ||
| 22 | •302FZ04240 2FZ04240 LID COVER LEFT 1 1 1 103 BAA63080 +TP TAP-TITE P SCREW M3X08 | ||
| 23 | •5MMW261SD004 3B706550 SPRING COVER R /40283V0069 A4 1 1 1 104 5MBTPB4010PW++R B1A64100 BIND T.T SCREW(+) / M4 X 10 CRFREE P-T | ||
| 24 | •5MVX421DN003 2BL06490 LOCK COVER R /40283V0068 A4 1 1 1 105 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 27 | 302HP04140 запросить цену → | 2HP04140 | EARTH PUSH SWITCH |
| 28 | 302HP04160 запросить цену → | 2HP04160 | STOPPER PAPER |
| 30 | 302FZ04610 запросить цену → | 2FZ04610 | SHEET EMBLEM |
| 41 | 5MMS626SD003 запросить цену → | 2BM04100 | PLATE MAGCHATCH |
| 42 | 302FZ04490 запросить цену → | 2FZ04490 | STRAP COVER FRONT |
| 43 | 302FZ33240 запросить цену → | 2FZ33240 | FILTER DUCT PU |
| 44 | 303JT39020 запросить цену → | 3JT39020 | COVER CF |
| 47 | 302FZ04881 запросить цену → | 2FZ04881 | COVER REAR MOTOR |

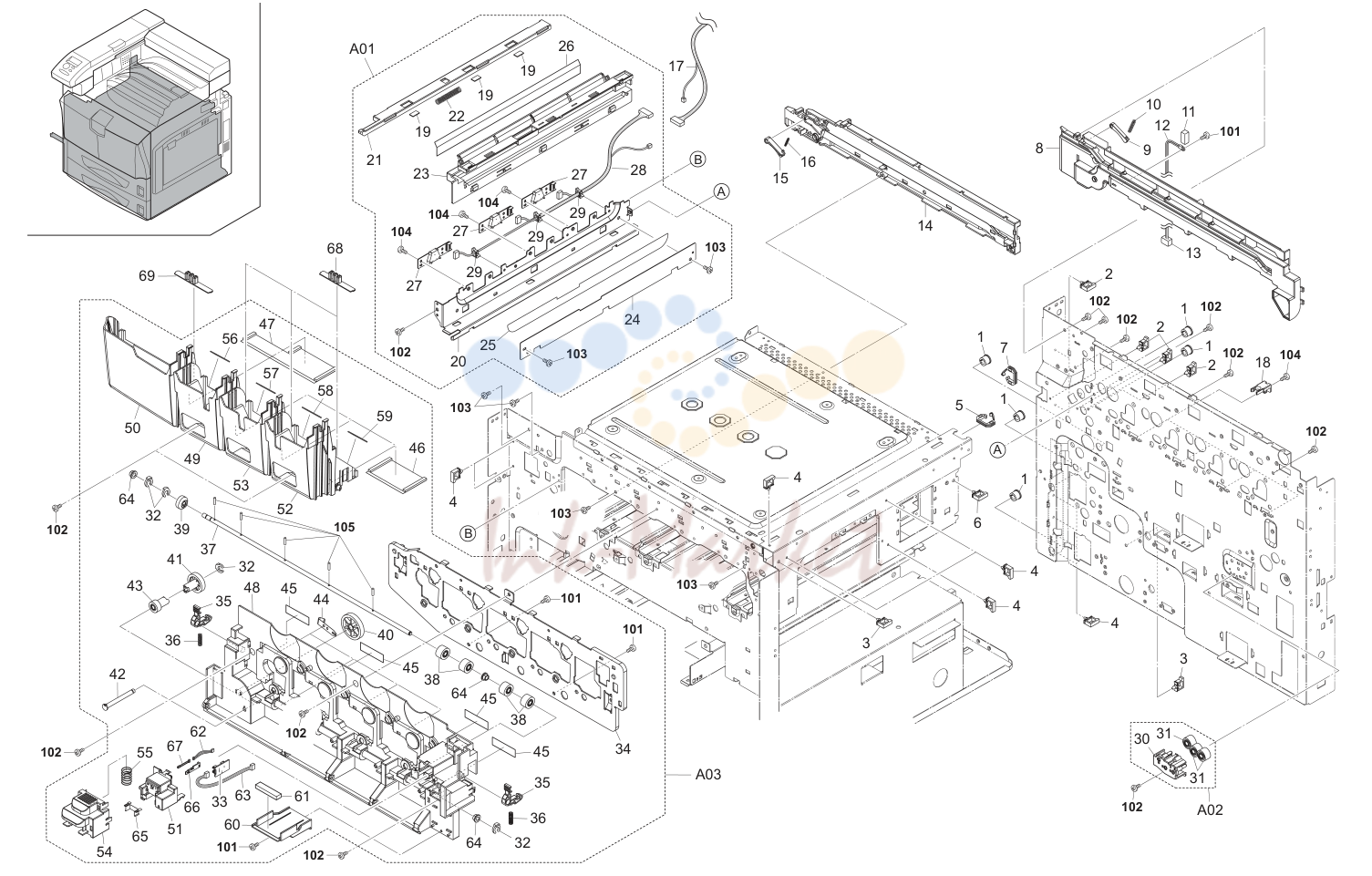

2. Frames I 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 7YZM110004++H01 YZ037960 ACCESS.BUSHING 5 5 5 48 •302FZ04510 2FZ04510 COVER INNER MIDDLE | ||
| 2 | 7YZM610008++H01 YZ037940 ACCESS.SADDLE 5 5 5 49 •302FZ04540 2FZ04540 TRAY CONTAINER Y | ||
| 3 | 7YZM610001++H01 YZ010230 ACCESS SADDLE 2 2 2 50 •302FZ04550 2FZ04550 TRAY CONTAINER BK | ||
| 4 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE 10 10 10 51 •302FZ04571 2FZ04571 COVER FULL SENSOR | ||
| 5 | 7YZM210003++H01 YZ037970 ACCESS.EDGING 1 1 1 52 •302FZ04590 2FZ04590 TRAY CONTAINER M | ||
| 6 | 7YZM610002++H01 YZ010240 ACCESS SADDLE 1 1 1 53 •302FZ04600 2FZ04600 TRAY CONTAINER C | ||
| 7 | 7YZM210002++H01 YZ004730 ACCESS.EDGING 1 1 1 54 •302FZ04780 2FZ04780 LEVER LOCK WASTE | ||
| 8 | 302FZ02160 запросить цену → | 2FZ02160 | RAIL IMAGE REAR 1 1 1 55 •302FZ04790 2FZ04790 SPRING LOCK WASTE |
| 9 | 302FZ02290 запросить цену → | 2FZ02290 | STOPPER IMAGE UNIT R 1 1 1 56 •302FZ04890 2FZ04890 SEAL TRAY BK |
| 10 | 302FZ02300 запросить цену → | 2FZ02300 | SPRING STOPPER 1 1 1 57 •302FZ04900 2FZ04900 SEAL TRAY Y |
| 11 | 302FZ39890 запросить цену → | 2FZ39890 | PAD WIRE A 1 1 1 58 •302FZ04910 2FZ04910 SEAL TRAY C |
| 13 | 7YCC02B1001+H01 YC014610 CONNECTOR 1 1 1 60 •302FZ04940 2FZ04940 TRAY WASTE | ||
| 14 | 302FZ02150 запросить цену → | 2FZ02150 | RAIL IMAGE FRONT 1 1 1 61 •302FZ04950 2FZ04950 SPONGE TRAY WASTE |
| 15 | 302FZ02280 запросить цену → | 2FZ02280 | STOPPER IMAGE UNIT F 1 1 1 62 •302FZ46310 2FZ46310 WIRE WASTE TONER SENSOR |
| 16 | 302FZ02300 запросить цену → | 2FZ02300 | SPRING STOPPER 1 1 1 63 •302FZ46710 2FZ46710 WIRE TONER SENSOR JOINT |
| 17 | 302FZ46040 запросить цену → | 2FZ46040 | WIRE ID SENSOR 1 1 1 64 •3CY07080 BUSHING |
| 19 | •2BG16590 FELT TC CLN 3 3 3 67 •7QPPT491F+++H01 NAEFJ010 TRANSISTOR PHOTO PT491FE0000F | ||
| 20 | •302FZ02170 2FZ02170 RAIL DRUM LEFT 1 1 1 68 302HP02170 2HP02170 STOPPER CONTAINER PF | ||
| 21 | •302FZ02190 2FZ02190 SHUTTER ID SENSOR 1 1 1 68 302HP02150 2HP02150 STOPPER CONTAINER PE | ||
| 22 | •302FZ02200 2FZ02200 SPRING SHUTTER ID SENSOR 1 1 1 69 302HP02180 2HP02180 STOPPER CONTAINER BK PF | ||
| 23 | •302FZ02710 2FZ02710 GUIDE TC R 1 1 1 69 302HP02160 2HP02160 STOPPER CONTAINER BK PE | ||
| 24 | •302FZ02770 2FZ02770 PLATE ID SENSOR | ||
| 25 | •302FZ02780 2FZ02780 SHEET ID SENSOR | ||
| 26 | •302FZ24020 2FZ24020 SHEET TRANSFER R | ||
| 27 | •302FZ45080 2FZ45080 ID SENSOR | ||
| 28 | •302FZ46321 2FZ46321 WIRE ID SENSOR UNIT | ||
| 29 | •7YZM610007++H01 YZ023340 ACCESS.SADDLE 3 3 3 101 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 30 | •302FZ07500 2FZ07500 BRACKET MPT GEAR 1 1 1 103 5MBTPB4010PW++R B1A64100 BIND T.T SCREW(+) / M4 X 10 CRFREE P-T | ||
| 31 | •302FZ07510 2FZ07510 GEAR JOINT MPT 3 3 3 104 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T | ||
| 32 | •2BC06980 STOPPER | ||
| 33 | •302FZ01280 2FZ01280 PRINTED W.BOARD TONER FULL ASSY | ||
| 34 | •302FZ02120 2FZ02120 RETAINER PU | ||
| 35 | •302FZ02410 2FZ02410 LEVER RETAINER | ||
| 36 | •302FZ02420 2FZ02420 SPRING RETAINER | ||
| 37 | •302FZ02810 2FZ02810 SHAFT SWEEP DRIVE | ||
| 38 | •302FZ02820 2FZ02820 GEAR SWEEP Z15 | ||
| 39 | •302FZ02830 2FZ02830 GEAR SWEEP Z23 | ||
| 40 | •302FZ02840 2FZ02840 GEAR SWEEP Z49 Z24 | ||
| 41 | •302FZ02850 2FZ02850 GEAR SWEEP Z28 | ||
| 42 | •302FZ02860 2FZ02860 SHAFT FEED SWEEP | ||
| 43 | •302FZ02870 2FZ02870 GEAR SWEEP Z20 | ||
| 44 | •302FZ02900 2FZ02900 PLATE DRUM EARTH | ||
| 45 | •302FZ02910 2FZ02910 TAPE RETAINER | ||
| 46 | •302FZ02920 2FZ02920 SHEET TRAY CL | ||
| 47 | •302FZ02930 2FZ02930 SHEET TRAY BK |

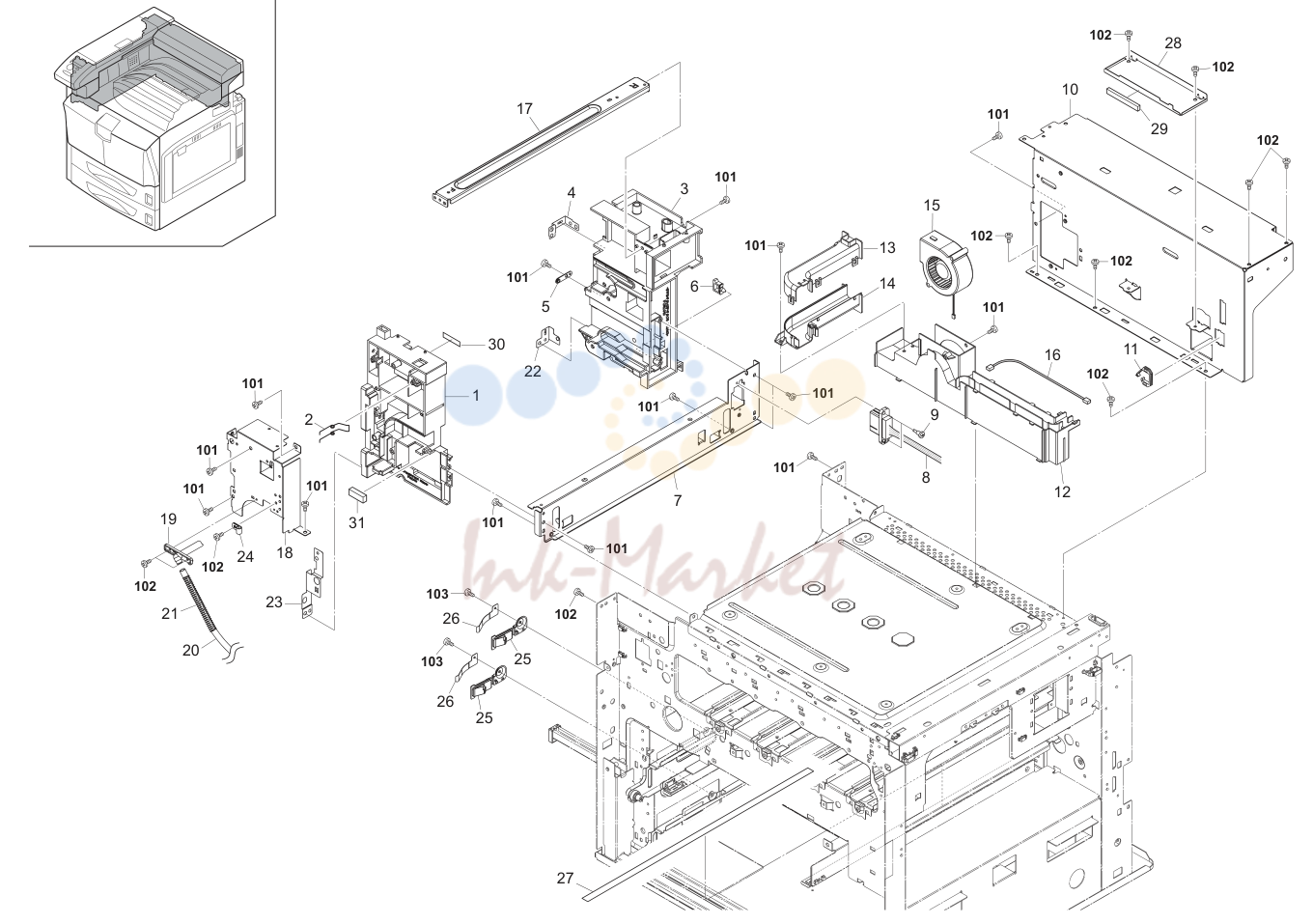

3. Frames II 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 302HP02010 запросить цену → | 2HP02010 | FRAME FUSER F 1 1 1 101 5MBTPB4010PW++R B1A64100 BIND T.T SCREW(+) / M4 X 10 CRFREE P-T |
| 2 | 302FZ02510 запросить цену → | 2FZ02510 | SPRING EARTH EXIT 1 1 1 102 B1A54080 +BIND TAP-TITE S SCREW M4X08 |
| 3 | 302HP02020 запросить цену → | 2HP02020 | FRAME FUSER R 1 1 1 103 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T |
| 4 | 302HP02080 запросить цену → | 2HP02080 | PLATE EARTH EXIT |
| 5 | 302FZ02720 запросить цену → | 2FZ02720 | PLATE FUSER |
| 6 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 7 | 302FZ02250 запросить цену → | 2FZ02250 | FRAME FUSER UNIT CENTER |
| 8 | 302FZ46290 запросить цену → | 2FZ46290 | WIRE FUSER PRI |
| 9 | 2BG02410 запросить цену → | SCREW A | |
| 10 | 302HP02050 запросить цену → | 2HP02050 | STAY REAR |
| 11 | 7YZM210002++H01 YZ004730 ACCESS.EDGING | ||
| 12 | 302FZ33120 запросить цену → | 2FZ33120 | DUCT PU UPPER REAR |
| 13 | 302FZ33210 запросить цену → | 2FZ33210 | DUCT PU LOWER |
| 14 | 302FZ33220 запросить цену → | 2FZ33220 | DUCT PU UPPER |
| 16 | 302FZ46670 запросить цену → | 2FZ46670 | WIRE LSU FAN |
| 17 | 302HP02060 запросить цену → | 2HP02060 | STAY UPPER LEFT |
| 18 | 302HP02040 запросить цену → | 2HP02040 | PLATE FRAME FUSER F |
| 19 | 302FZ33280 запросить цену → | 2FZ33280 | JOINT TUBE B |
| 20 | 302FZ33350 запросить цену → | 2FZ33350 | TUBE COOLING EXIT |
| 21 | 302FZ33390 запросить цену → | 2FZ33390 | SPRING TUBE |
| 22 | 302HP02090 запросить цену → | 2HP02090 | PLATE EARTH FUSER |
| 23 | 302HP02100 запросить цену → | 2HP02100 | PLATE EARTH FRAME F |
| 24 | M7005010 запросить цену → | CLAMP,EMT-3N(TAKEUCHI) | |
| 25 | 302GR02221 запросить цену → | 2GR02221 | LEVER LOCK CASSETTE |
| 26 | 302GR02230 запросить цену → | 2GR02230 | SPRING LEVER |
| 27 | 302FZ24170 запросить цену → | 2FZ24170 | SHEET RAIL BYPASS |
| 28 | 302FZ39490 запросить цену → | 2FZ39490 | SHIELD LSU WIRE |
| 29 | 7ZG65TAV+080H01 ZG046700 SHIELD GASKET | ||
| 30 | 302HP02110 запросить цену → | 2HP02110 | SHEET FRAME F |
| 31 | 302HP02120 запросить цену → | 2HP02120 | PAD FRAME F |

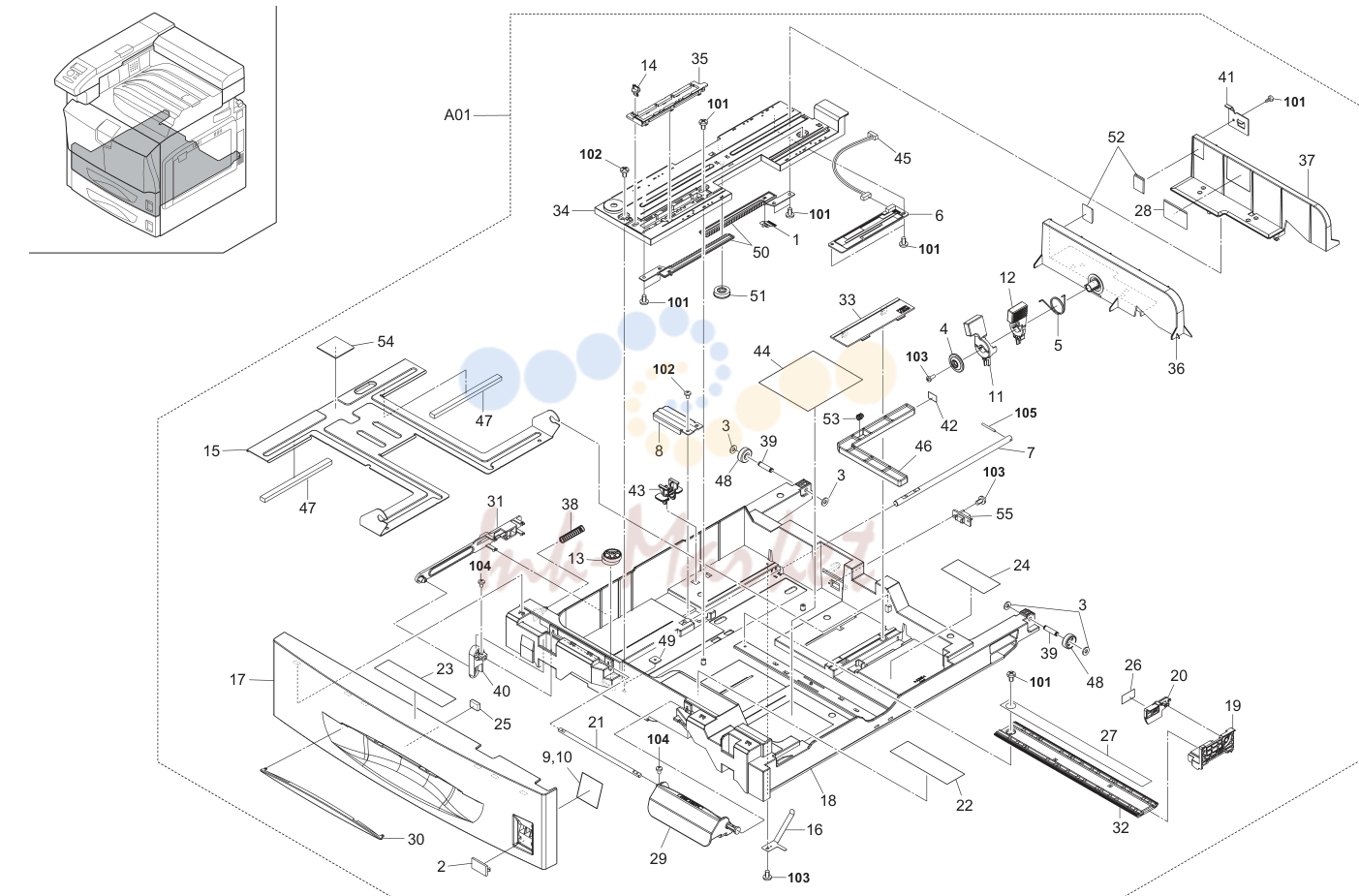

4. Paper Cassette I 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | •2C904550 CUT WASHER 5 4 4 4 53 •66106080 SPRING,PAD | ||
| 4 | •2FB07050 PIN CURSOR 1 1 1 54 •66107100 PAD,CASSETTE | ||
| 5 | •2FB07060 SPRING CURSOR 1 1 1 (cid:27) 55 •7YCC08B2046+H01 YC026110 CONNECTOR | ||
| 7 | •302AR07041 2AR07041 SHAFT,WORK PLATE | ||
| 8 | •302BC06091 2BC06091 WORK PLATE,LIFT CASSETTE | ||
| 11 | •302FB07032 2FB07032 LEVER CURSOR A 1 1 1 101 BAA63080 +TP TAP-TITE P SCREW M3X08 | ||
| 12 | •302FB07042 2FB07042 LEVER CURSOR B 1 1 1 102 B4B04080 +TP-A SCREW M4X08(TRIVALENT CHROMATIN | ||
| 13 | •302FB07340 2FB07340 ADJUSTING PLATE CASSETTE 1 1 1 103 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 14 | •302FB07420 2FB07420 PIN CASSETTE 1 1 1 104 B1B03050 +BIND SCREW M3X05(TRIVALENT CHROMAT | ||
| 15 | •302FG07091 2FG07091 BASE CASSETTE 1 1 1 105 5MBP2514WXSP E0025250 SPRING PIN /M2.5 X 14 S-BLK | ||
| 16 | •302FG07200 2FG07200 GROUND PLATE,CASSETTE | ||
| 18 | •302FZ09011 2FZ09011 CASSETTE | ||
| 21 | •302FZ09070 2FZ09070 SHAFT HANDLE | ||
| 22 | •302FZ09090 2FZ09090 LABEL CASSETTE OPERATION | ||
| 24 | •302FZ09111 2FZ09111 LABEL CURSOR OPERATION | ||
| 31 | •302GR09051 2GR09051 LEVER CASSETTE | ||
| 32 | •302GR09060 2GR09060 RAIL CURSOR R | ||
| 33 | •302GR09070 2GR09070 LID PAPER SIZE | ||
| 34 | •302GR09080 2GR09080 RAIL CURSOR A | ||
| 35 | •302GR09090 2GR09090 SUPPORT PLATE | ||
| 38 | •302GR09120 2GR09120 SPRING LEVER CASSETTE | ||
| 39 | •302GR09130 2GR09130 SHAFT PULLEY | ||
| 41 | •302GR09160 2GR09160 STOPPER PAPER | ||
| 42 | •302GR09210 2GR09210 SEAL DETECTION PLATE | ||
| 43 | •302GR09990 2GR09990 LIFT LOCK | ||
| 45 | •302GR46450 2GR46450 WIRE CASSETTE UNIT | ||
| 46 | •33907170 DETECTION PLATE,PAPER SIZE | ||
| 47 | •33907210 CUSHION,CASSETTE WORK PLATE | ||
| 48 | •34907150 PULLEY,CASSETTE | ||
| 49 | •3CY06030 RETAINER M4 |

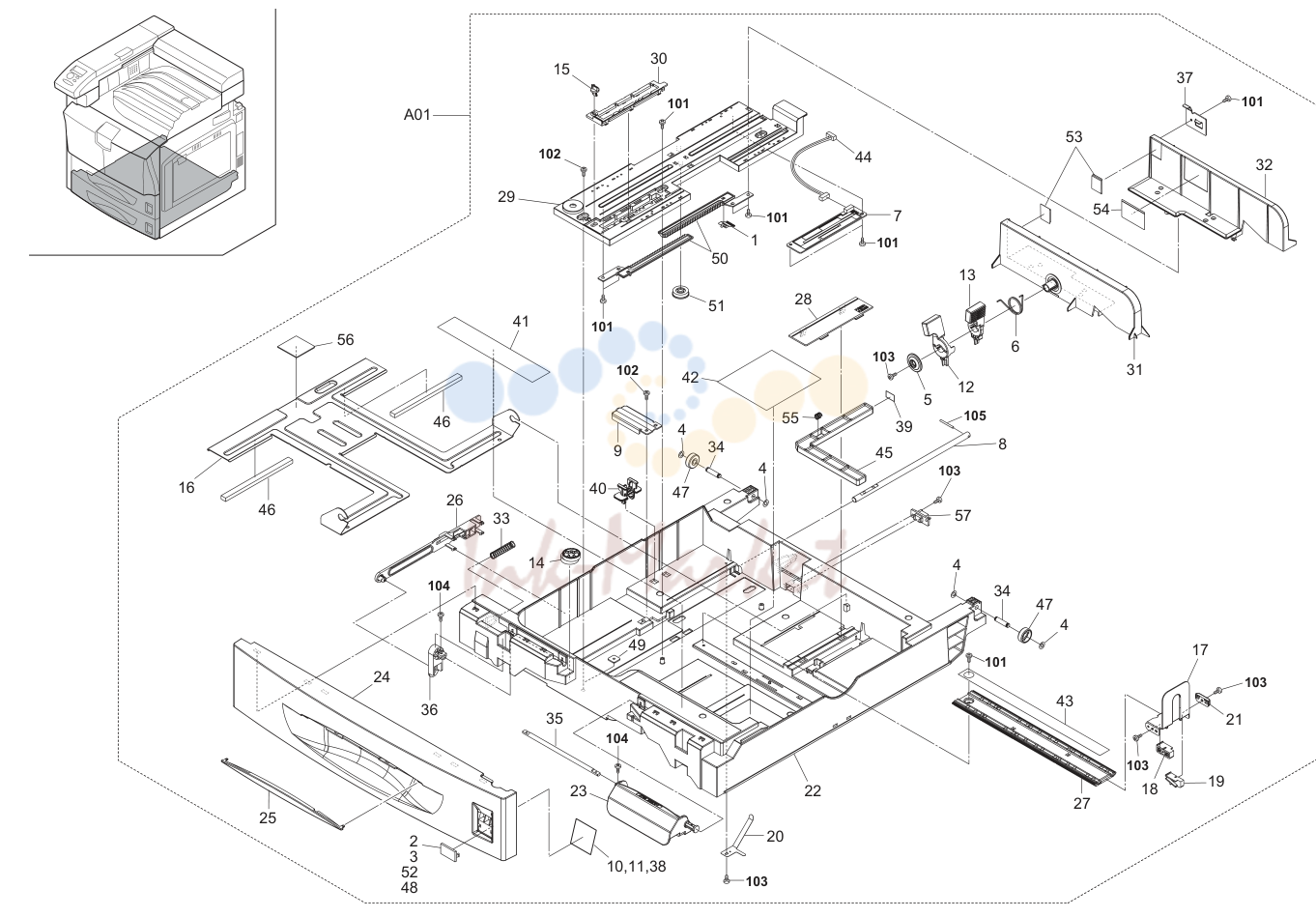

5. Paper Cassette II 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 4 | •2C904550 CUT WASHER 5 4 4 4 (cid:27) 54 •61705110 LABEL,PAPER UPPER LIMIT | ||
| 5 | •2FB07050 PIN CURSOR 1 1 1 55 •66106080 SPRING,PAD | ||
| 6 | •2FB07060 SPRING CURSOR 1 1 1 56 •66107100 PAD,CASSETTE | ||
| 8 | •302AR07041 2AR07041 SHAFT,WORK PLATE | ||
| 9 | •302BC06091 2BC06091 WORK PLATE,LIFT CASSETTE | ||
| 12 | •302FB07032 2FB07032 LEVER CURSOR A | ||
| 13 | •302FB07042 2FB07042 LEVER CURSOR B 1 1 1 101 BAA63080 +TP TAP-TITE P SCREW M3X08 | ||
| 14 | •302FB07340 2FB07340 ADJUSTING PLATE CASSETTE 1 1 1 102 B4B04080 +TP-A SCREW M4X08(TRIVALENT CHROMATIN | ||
| 15 | •302FB07420 2FB07420 PIN CASSETTE 1 1 1 103 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 16 | •302FG07091 2FG07091 BASE CASSETTE 1 1 1 104 B1B03050 +BIND SCREW M3X05(TRIVALENT CHROMATI | ||
| 20 | •302FG07200 2FG07200 GROUND PLATE,CASSETTE | ||
| 22 | •302GR09011 2GR09011 CASSETTE | ||
| 26 | •302GR09051 2GR09051 LEVER CASSETTE | ||
| 27 | •302GR09060 2GR09060 RAIL CURSOR R | ||
| 28 | •302GR09070 2GR09070 LID PAPER SIZE | ||
| 29 | •302GR09080 2GR09080 RAIL CURSOR A | ||
| 30 | •302GR09090 2GR09090 SUPPORT PLATE | ||
| 33 | •302GR09120 2GR09120 SPRING LEVER CASSETTE | ||
| 34 | •302GR09130 2GR09130 SHAFT PULLEY | ||
| 37 | •302GR09160 2GR09160 STOPPER PAPER | ||
| 39 | •302GR09210 2GR09210 SEAL DETECTION PLATE | ||
| 40 | •302GR09990 2GR09990 LIFT LOCK | ||
| 44 | •302GR46450 2GR46450 WIRE CASSETTE UNIT | ||
| 45 | •33907170 DETECTION PLATE,PAPER SIZE | ||
| 46 | •33907210 CUSHION,CASSETTE WORK PLATE | ||
| 47 | •34907150 PULLEY,CASSETTE | ||
| 49 | •3CY06030 RETAINER M4 |

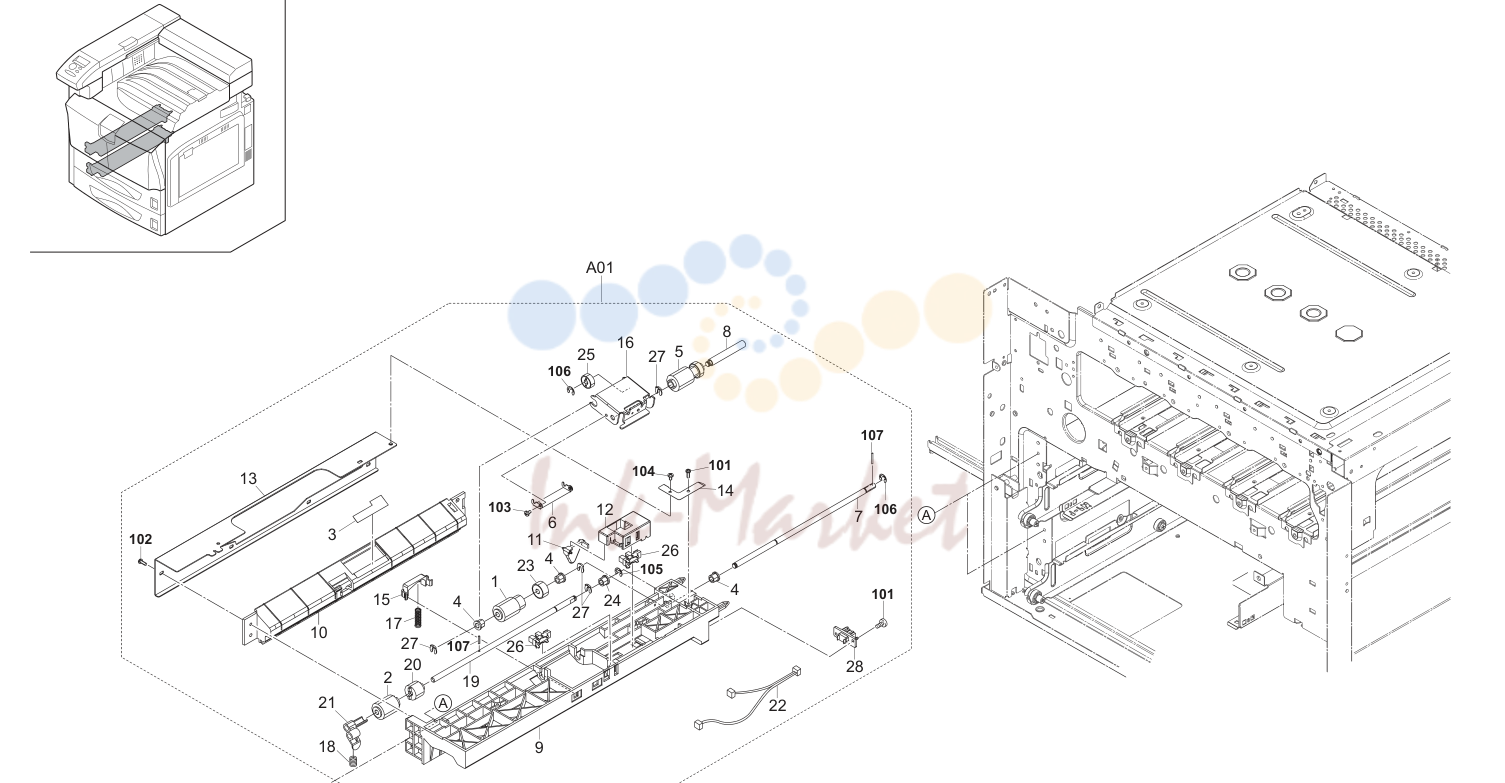

6. Primary Unit 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | •2AR07660 GUIDE FILM,SEPARATION PULLEY 2 2 2 104 B1B03050 +BIND SCREW M3X05(TRIVALENT CHROMATI | ||
| 4 | •2BC06520 BUSHING 6,REGISTRATION 6 6 6 105 D1A00400 STOP RING E-4(TRIVALENT CHROMATING) | ||
| 6 | •2BL07900 PLATE LEADING FEED 2 2 2 107 E5120080 SPRING PIN H7A 2X8 SUS | ||
| 7 | •302AR07251 2AR07251 SHAFT,PAPER FEED 2 2 2 108 B1A54080 +BIND TAP-TITE S SCREW M4X08 | ||
| 8 | •302AR07271 2AR07271 SHAFT,LEADING FEED | ||
| 9 | •302FG07251 2FG07251 UPPER HOUSING,PAPER FEED | ||
| 10 | •302FG07260 2FG07260 LOWER HOUSING,PAPER FEED | ||
| 11 | •302FG07290 2FG07290 ACTUATOR,PAPER EMPTY | ||
| 12 | •302FG07300 2FG07300 HOLDER,ACTUATOR | ||
| 13 | •302FG07310 2FG07310 REINFORCEMENT PRIMARY PAPER FEED | ||
| 14 | •302FG07330 2FG07330 GROUND PLATE,PRIMARY PAPER FEED | ||
| 15 | •302GR06060 2GR06060 HOLDER PICK | ||
| 16 | •302GR06070 2GR06070 SUPPORT PLATE FEED | ||
| 17 | •302GR06080 2GR06080 SPRING PICK | ||
| 18 | •302GR06091 2GR06091 SPRING SEPARATION | ||
| 19 | •302GR06100 2GR06100 SHAFT SEPARATION | ||
| 21 | •302GR06200 2GR06200 LEVER SEPARATION RELEASE | ||
| 22 | •302GR46430 2GR46430 WIRE PRIMARY FEED UNIT1 | ||
| 24 | •34806040 LOWER BUSHING,PAPER FEED | ||
| 27 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 |

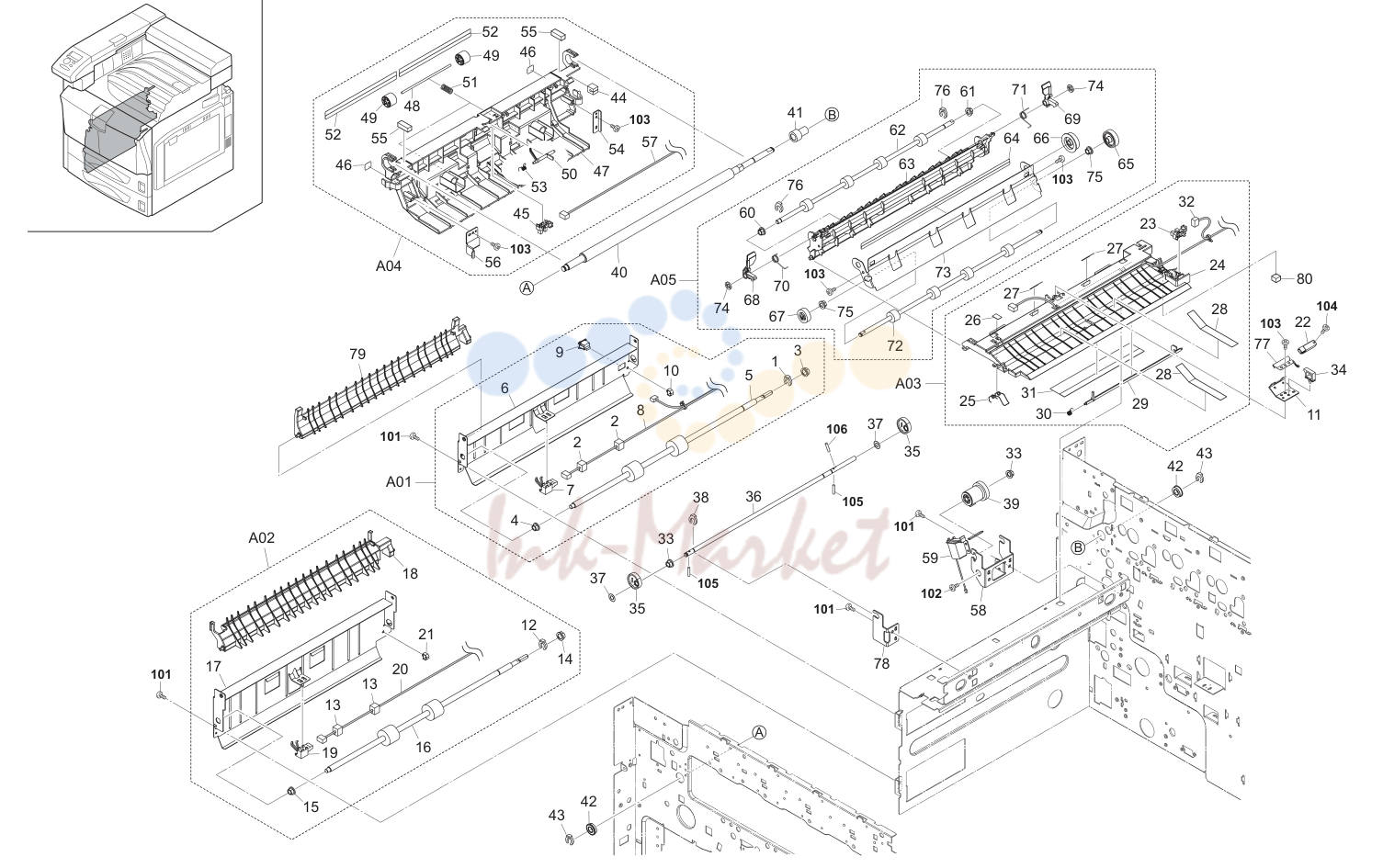

7. Paper Conveying I 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BC06910 STOPPER 6 1 1 1 48 •302FZ22140 2FZ22140 SHAFT MIDDLE L | ||
| 2 | •2BG06500 SPONGE WIRE A 2 2 2 (cid:27) 49 •302FZ22150 2FZ22150 PULLEY MIDDLE | ||
| 3 | •2BG22950 BUSH 8 EW 1 1 1 (cid:27) 50 •302FZ22160 2FZ22160 ACTUATOR REGIST | ||
| 4 | •2BG22960 BUSH 6 1 1 1 51 •302FZ22340 2FZ22340 SPRING MIDDLE | ||
| 6 | •302FZ22800 2FZ22800 GUIDE FEED LOW 1ST 1 1 1 53 •302FZ22620 2FZ22620 SPRING ACTUATOR REGIST | ||
| 8 | •302FZ46540 2FZ46540 WIRE FEED SW UP 1 1 1 (cid:27) 55 •302FZ24160 2FZ24160 PAD REGIST | ||
| 10 | •7YZM610007++H01 YZ023340 ACCESS.SADDLE 1 1 1 57 •302FZ46350 2FZ46350 WIRE REG JAM | ||
| 11 | 302FZ22940 запросить цену → | 2FZ22940 | PLATE SENS MIDDLE 1 1 1 58 302FZ02690 2FZ02690 MOUNT SOLENOID |
| 12 | •2BC06910 STOPPER 6 1 1 1 (cid:27) A05 302FZ94240 2FZ94240 PARTS,GUIDE MIDDLE R ASS'Y SP | ||
| 13 | •2BG06500 SPONGE WIRE A 2 2 2 60 •2BG22960 BUSH | ||
| 14 | •2BG22950 BUSH 8 EW 1 1 1 61 •2BG22970 BUSH 6 EW | ||
| 15 | •2BG22960 BUSH 6 1 1 1 (cid:27) 62 •302FZ94540 2FZ94540 PARTS,ROLLER MIDDLE R SP | ||
| 17 | •302FZ22810 2FZ22810 GUIDE FEED LOW 2ND 1 1 1 (cid:27) 64 •302FZ22460 2FZ22460 SHEET MIDDLE BYPASS | ||
| 20 | •302FZ46550 2FZ46550 WIRE FEED SW LOW 1 1 1 (cid:27) 67 •302FZ22490 2FZ22490 GEAR MIDDLE Z19S | ||
| 21 | •7YZM610007++H01 YZ023340 ACCESS.SADDLE 1 1 1 (cid:27) 68 •302FZ22500 2FZ22500 LEVER MIDDLE F | ||
| 25 | •302FZ22630 2FZ22630 SPRING EARTH MIDDLE 1 1 1 (cid:27) 73 •302FZ22860 2FZ22860 GUIDE MIDDLE BYPASS | ||
| 26 | •302FZ22760 2FZ22760 STOPPER EARTH MIDDLE 1 1 1 74 •302FZ22980 2FZ22980 STOPPER MID | ||
| 27 | •302FZ22781 2FZ22781 SHEET GUIDE LOW A 2 2 2 75 •302FZ24090 2FZ24090 BUSH TC EW | ||
| 28 | •302FZ22790 2FZ22790 SHEET GUIDE LOW B 2 2 2 76 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 30 | •302FZ22870 2FZ22870 SPRING ACTUATOR BYPASS 1 1 1 78 302FZ02700 2FZ02700 MOUNT SHAFT CAM | ||
| 32 | •302FZ46330 2FZ46330 WIRE FEED JAM 1 1 1 80 302FZ22700 2FZ22700 STOPPER CORD | ||
| 33 | 2BG22960 запросить цену → | BUSH | |
| 34 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 35 | 302FZ02671 запросить цену → | 2FZ02671 | CAM SHAFT BLADE |
| 36 | 302FZ02682 запросить цену → | 2FZ02682 | SHAFT CLN LSU |
| 37 | 2BG22990 запросить цену → | CUT WASHER | |
| 38 | 5MVX111DN003 запросить цену → | 2A806250 | RING STOPPER /A-49 FEED A4 1 1 1 101 B1A54080 +BIND TAP-TITE S SCREW M4X08 |
| 39 | 302FZ02741 запросить цену → | 2FZ02741 | CLUTCH LSU CLEANING 1 1 1 102 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T |
| 42 | 302FZ21300 запросить цену → | 2FZ21300 | BEARING 688AZZ 2 2 2 105 5MBP2012WPLD E5120120 PARALLEL PIN / M2 X 12 SUS-DP |
| 43 | 2BC06910 запросить цену → | STOPPER 6 2 2 2 106 5MBP2012WXSP E0020120 SPRING PIN / M2 X 12 S-BLK | |
| 44 | •2BG06500 SPONGE WIRE A |

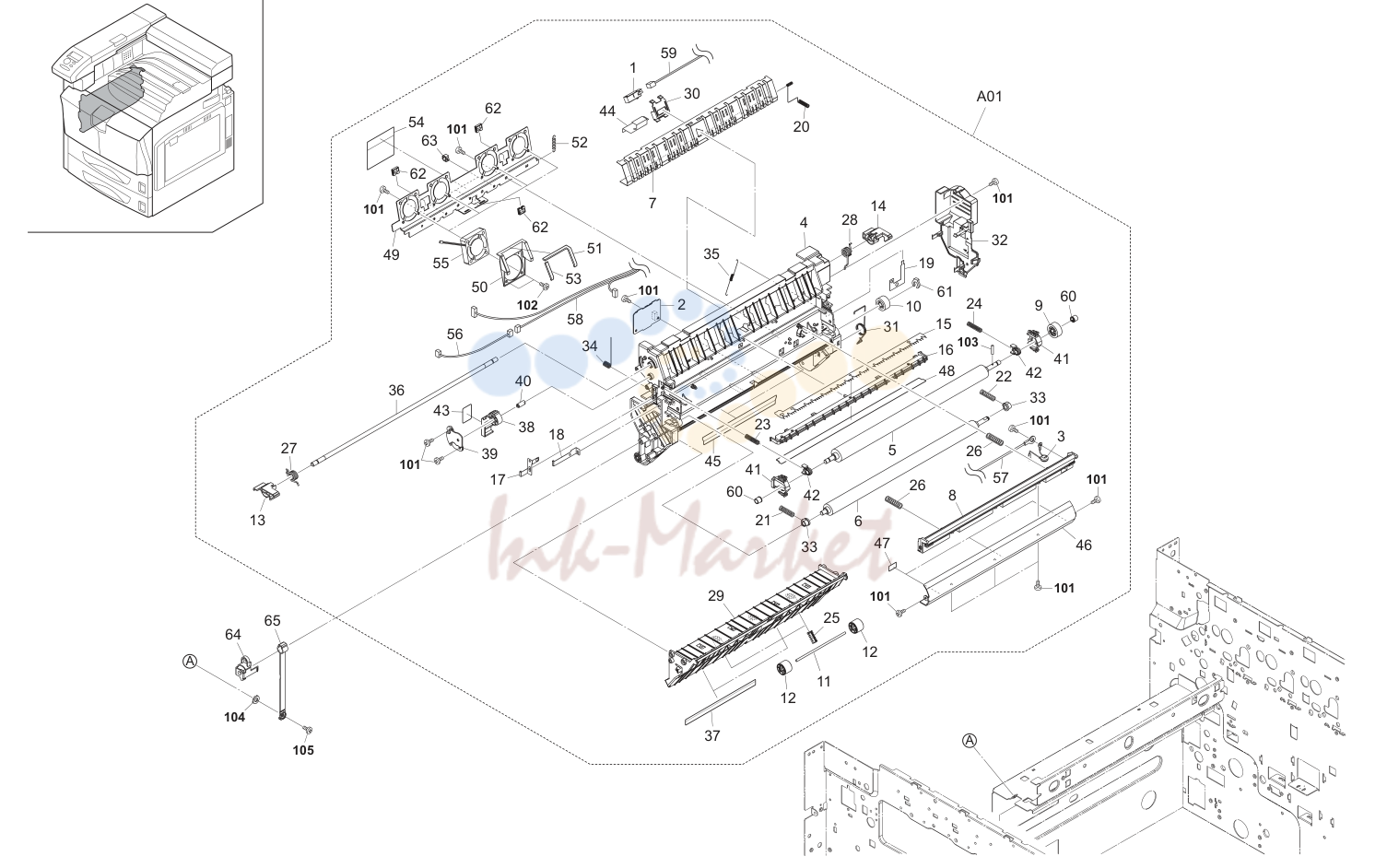

8. Paper Conveying II 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 4 | •302FZ22012 2FZ22012 BASE CONVEYING 1 1 1 54 •302FZ24560 2FZ24560 SHEET FAN PWD | ||
| 7 | •302FZ22071 2FZ22071 GUIDE CONVEYING 1 1 1 57 •302FZ46861 2FZ46861 WIRE TC GUIDE | ||
| 11 | •302FZ22140 2FZ22140 SHAFT MIDDLE L 2 2 2 61 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 15 | •302FZ22201 2FZ22201 PLATE DISCHARGER 1 1 1 65 302FZ24060 2FZ24060 BAND CONVEYING | ||
| 16 | •302FZ22211 2FZ22211 HOLDER DISCHARGER | ||
| 17 | •302FZ22220 2FZ22220 CONTACT TRANSFER | ||
| 18 | •302FZ22230 2FZ22230 CONTACT DISCHARGE | ||
| 19 | •302FZ22241 2FZ22241 PLATE EARTH REGIST | ||
| 20 | •302FZ22250 2FZ22250 SPRING EARTH CONVEYING | ||
| 21 | •302FZ22300 2FZ22300 SPRING REGIST F 1 1 1 101 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 22 | •302FZ22310 2FZ22310 SPRING REGIST R 1 1 1 102 7BB100316H BB040730 +BIND TAP-TITE S SCREW M3X16 CRFREE | ||
| 23 | •302FZ22320 2FZ22320 SPRING TRANSFER F 1 1 1 103 E5120140 PARALLEL PIN H7A 2X14 SUS | ||
| 24 | •302FZ22330 2FZ22330 SPRING TRANSFER R 1 1 1 104 7BC60050A060H01 BC048710 TOOTHED LOCK WASHER M5X10X0.6T | ||
| 25 | •302FZ22340 2FZ22340 SPRING MIDDLE 2 2 2 105 B1A54080 +BIND TAP-TITE S SCREW M4X08 | ||
| 26 | •302FZ22350 2FZ22350 SPRING GUIDE TRANSFER | ||
| 27 | •302FZ22360 2FZ22360 SPRING CONVEYING F | ||
| 28 | •302FZ22370 2FZ22370 SPRING CONVEYING R | ||
| 29 | •302FZ22400 2FZ22400 GUIDE MIDDLE L | ||
| 30 | •302FZ22411 2FZ22411 HOLDER SENS FEED | ||
| 31 | •302FZ22540 2FZ22540 SPRING EARTH CONVEYING UNIT | ||
| 32 | •302FZ22550 2FZ22550 COVER PWB FEED | ||
| 33 | •302FZ22560 2FZ22560 BUSH REGIST | ||
| 34 | •302FZ22570 2FZ22570 SPRING CONTACT DISCHARGER | ||
| 35 | •302FZ22580 2FZ22580 SPRING LEFT CONV | ||
| 36 | •302FZ22660 2FZ22660 SHAFT HOOK CONVEYING | ||
| 37 | •302FZ22720 2FZ22720 SHEET MIDDLE L | ||
| 38 | •302FZ22880 2FZ22880 LEVER CONVEYING | ||
| 39 | •302FZ22890 2FZ22890 COVER LEVER CONVEY | ||
| 40 | •302FZ22900 2FZ22900 SHAFT LEVER CONVEY | ||
| 41 | •302FZ22911 2FZ22911 STOPPER BUSH TRANSFER | ||
| 42 | •302FZ22920 2FZ22920 BUSH TRANSFER B F | ||
| 43 | •302FZ22960 2FZ22960 LABEL JAM FEED A1 | ||
| 44 | •302FZ22991 2FZ22991 SHEET SENS CONVEY | ||
| 45 | •302FZ24010 2FZ24010 SHEET REGIST L | ||
| 46 | •302FZ24100 2FZ24100 GUIDE TC UP | ||
| 47 | •302FZ24140 2FZ24140 SPACER TC GUIDE | ||
| 48 | •302FZ24240 2FZ24240 SHEET DISCHARGER | ||
| 49 | •302FZ24500 2FZ24500 PLATE CONV FAN |

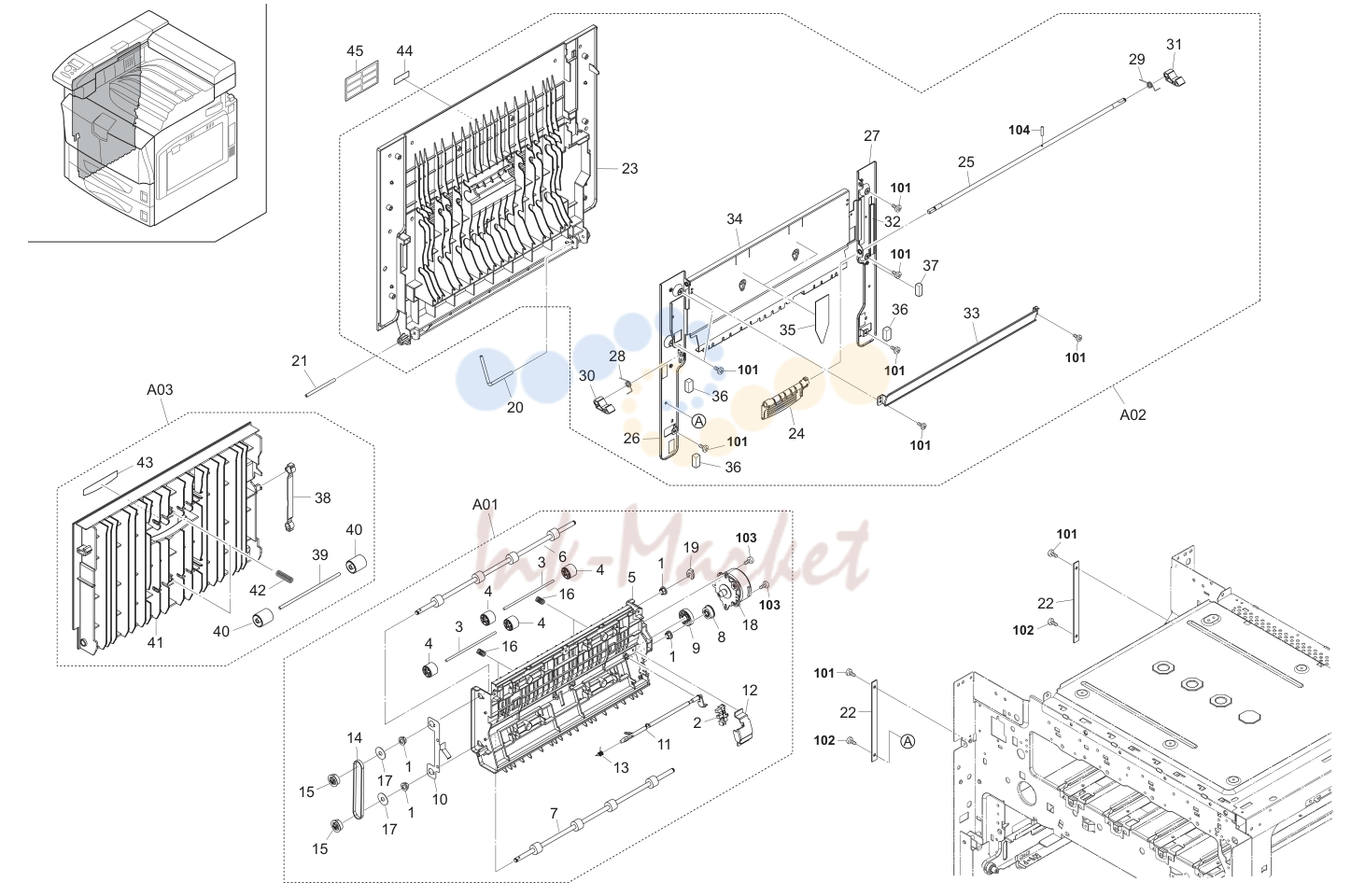

9. Paper Conveying III 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BG22970 BUSH 6 EW 4 4 4 102 7BB000404H BB046770 +BIND SCREW M4X4 CRFREE | ||
| 3 | •302FZ22140 2FZ22140 SHAFT MIDDLE L 4 4 4 104 E5120100 SPRING PIN H7A 2X10 SUS | ||
| 5 | •302FZ29012 2FZ29012 FRAME DU | ||
| 10 | •302FZ29061 2FZ29061 PLATE EARTH DU | ||
| 12 | •302FZ29080 2FZ29080 RETAINER ACTUATOR DU | ||
| 13 | •302FZ29090 2FZ29090 SPRING ACT DU | ||
| 16 | •302FZ29130 2FZ29130 SPRING DU | ||
| 17 | •302FZ29140 2FZ29140 COLLAR DU PULLEY | ||
| 19 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 20 | 302FZ04310 запросить цену → | 2FZ04310 | SHAFT LEFT COVER |
| 21 | 302FZ04420 запросить цену → | 2FZ04420 | SHAFT LEFT COVER B |
| 22 | 302FZ04990 запросить цену → | 2FZ04990 | BAND LEFT COVER |
| 25 | •302FZ04330 2FZ04330 SHAFT HOOK | ||
| 26 | •302FZ04360 2FZ04360 PLATE LEFT COVER F | ||
| 27 | •302FZ04370 2FZ04370 PLATE LEFT COVER R | ||
| 28 | •302FZ04390 2FZ04390 SPRING LEFT COVER F | ||
| 29 | •302FZ04400 2FZ04400 SPRING LEFT COVER R | ||
| 32 | •302FZ04980 2FZ04980 PLATE LEFT COVER D | ||
| 33 | •302HP28180 2HP28180 GUIDE DU R | ||
| 34 | •302HP28300 2HP28300 PLATE LEFT COVER E | ||
| 35 | •302HP28440 2HP28440 SHEET LEFT PLATE | ||
| 36 | •7ZG65TSV+020H01 ZG046810 SHIELD GASKET | ||
| 37 | •7ZGSTG77+014H01 ZG045150 SHIELD GASKET | ||
| 38 | •2BG06480 BAND B | ||
| 39 | •302BG06152 2BG06152 SHAFT FEED B | ||
| 40 | •302BG06162 2BG06162 PULLEY FEED | ||
| 41 | •302FZ04350 2FZ04350 COVER FEED LOW | ||
| 42 | •302FZ04760 2FZ04760 SPRING FEED LOW | ||
| 43 | •302GR34040 2GR34040 LABEL LEFT COVER A |

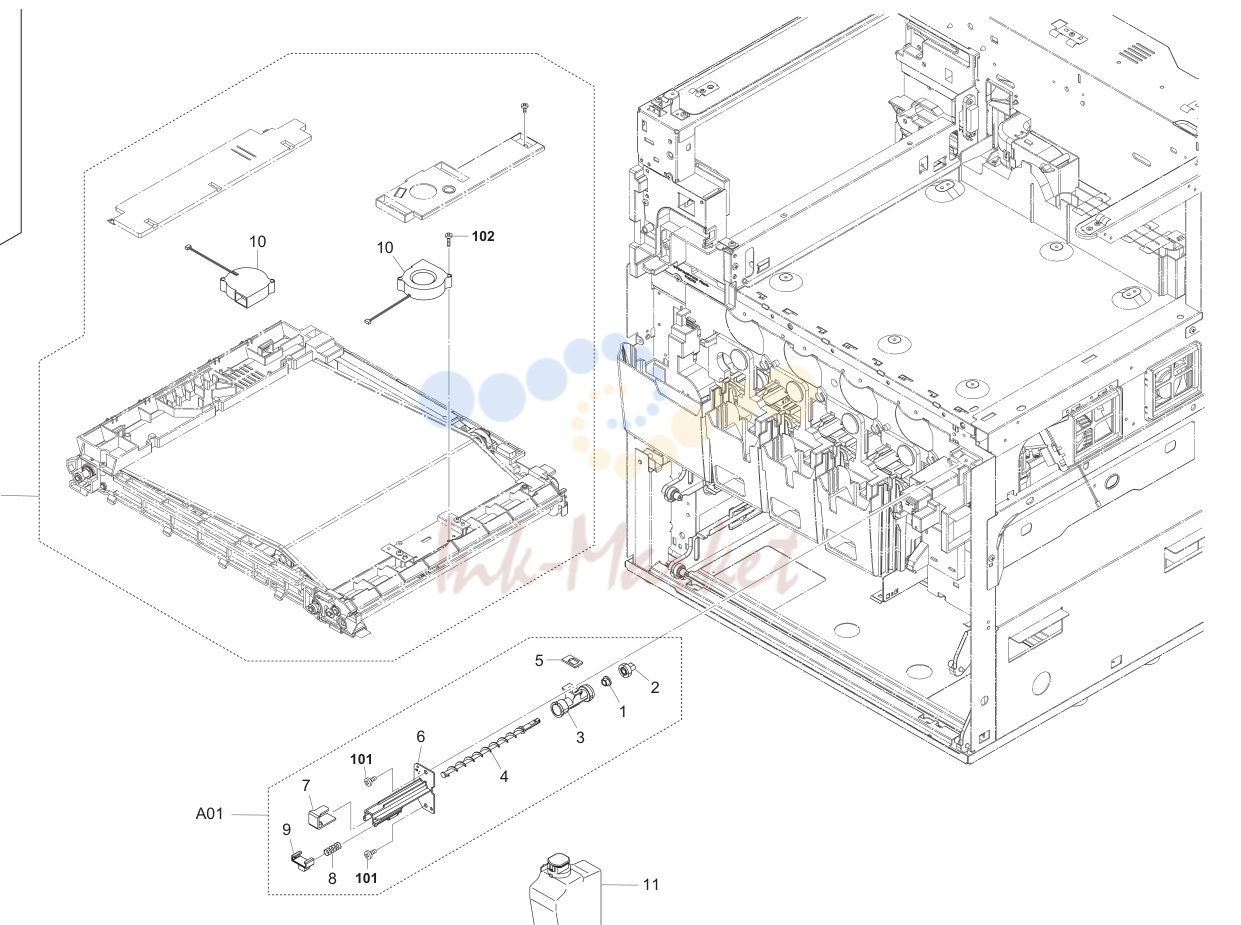

10. Transfer Unit 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BG22960 BUSH 6 1 1 1 102 7BB100420H BB040740 +BIND TAP-TITE S SCREW M4X20 CRFREE | ||
| 2 | •2C916180 GEAR Z15 REGIST | ||
| 3 | •302FZ23600 2FZ23600 PIPE JOINT ICL | ||
| 4 | •302FZ23610 2FZ23610 SCREW WT ICL | ||
| 5 | •302FZ23640 2FZ23640 SEAL PIPE WT ICL | ||
| 6 | •302FZ23650 2FZ23650 PIPE WT ICL | ||
| 7 | •302FZ23710 2FZ23710 SEAL SHUTTER ICL | ||
| 8 | •5MMW465LD003 2D915380 SPRING SHUTTER WASTE/A-80 A4 | ||
| 9 | •5MVX332DB020 2BS08510 SHUTTER WASTE /43587J2027 A4 | ||
| 11 | 302FZ00700 запросить цену → | 2FZ00700 | WASTE BOTTLE ASS'Y |

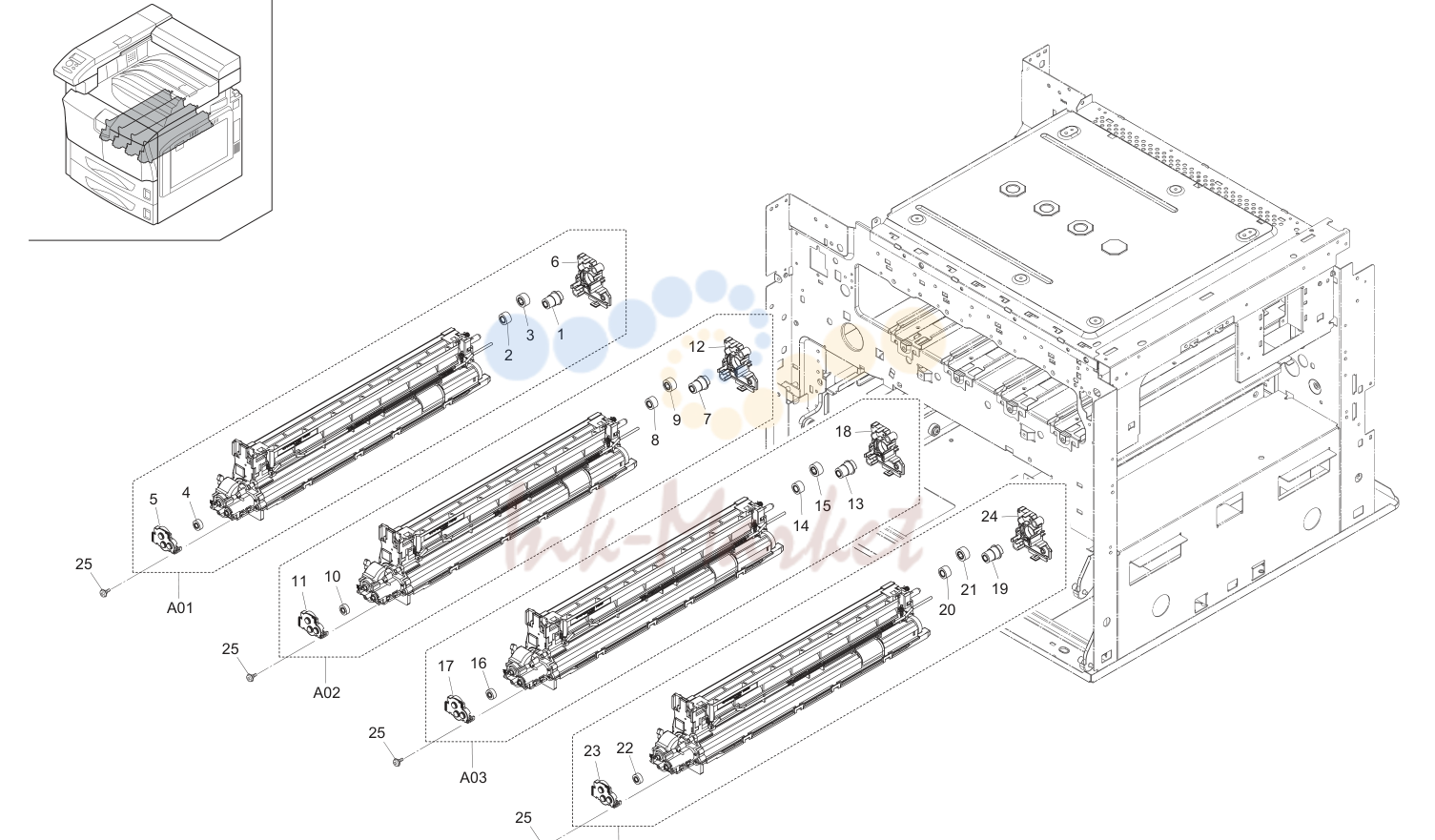

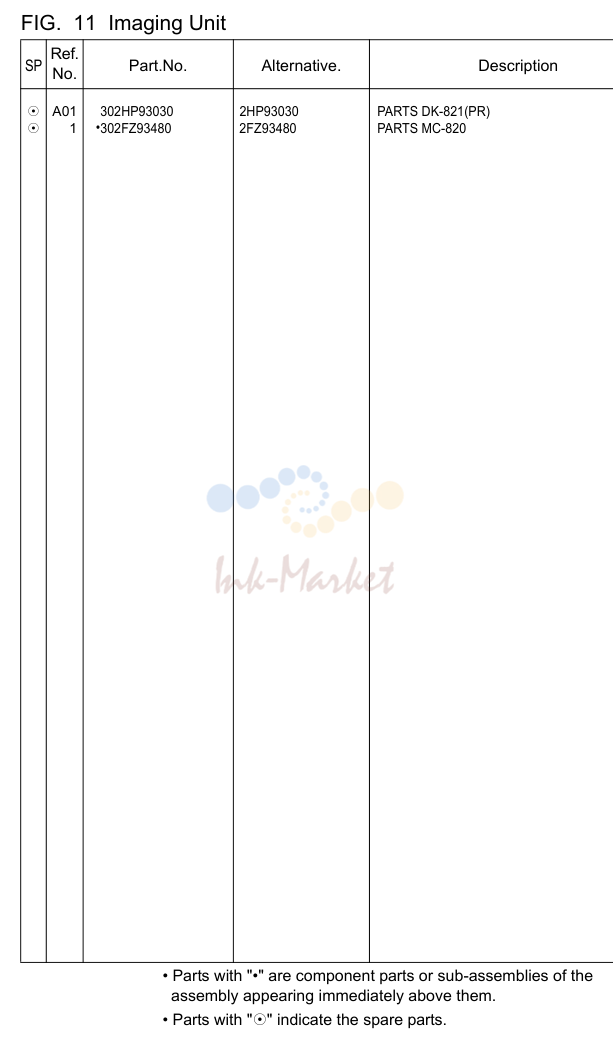

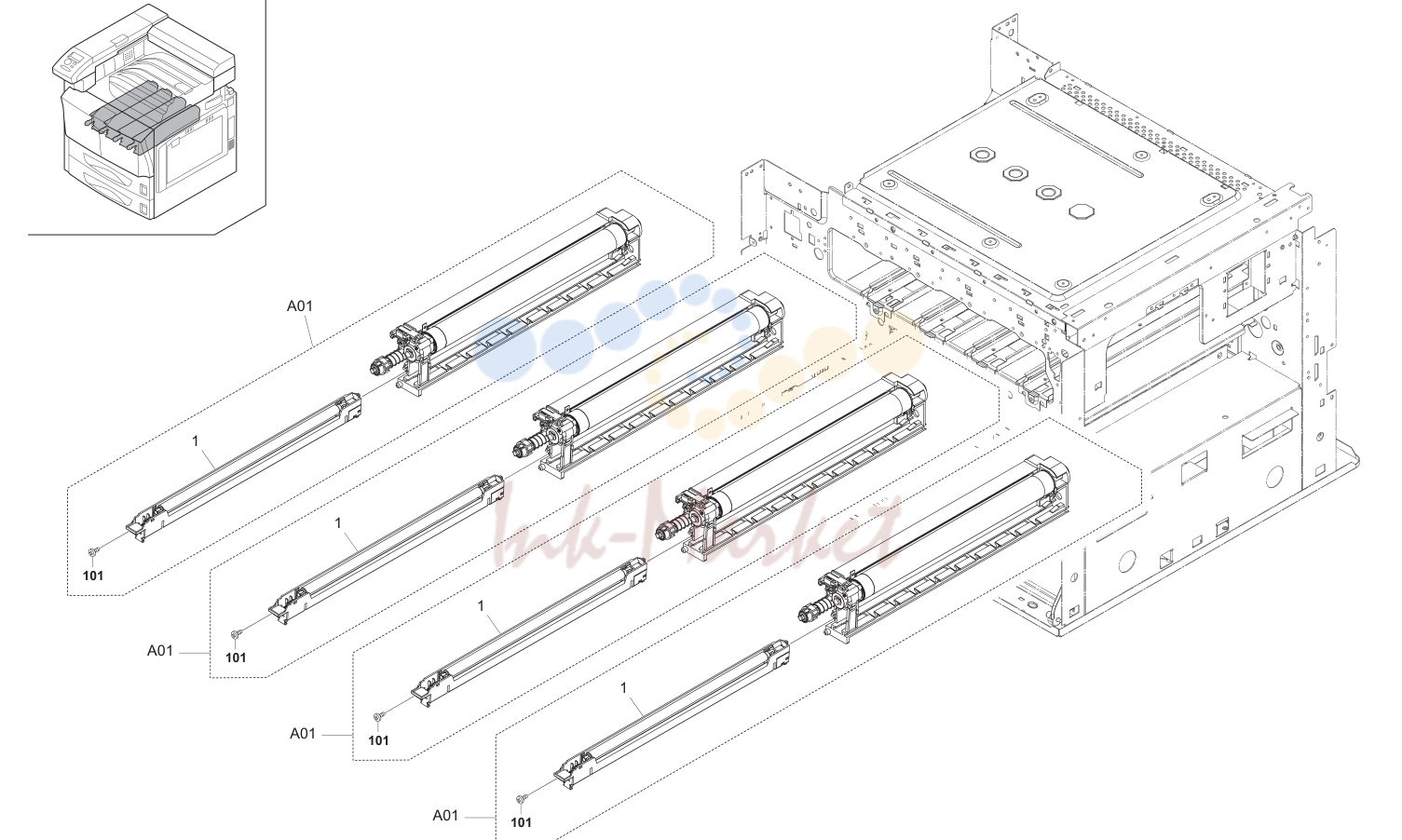

11. Imaging Unit 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 5 | •302FZ14300 2FZ14300 COVER FRONT DLP | ||
| 6 | •302FZ14310 2FZ14310 COVER REAR BK DLP | ||
| 11 | •302FZ14300 2FZ14300 COVER FRONT DLP | ||
| 12 | •302FZ14420 2FZ14420 COVER REAR Y DLP | ||
| 17 | •302FZ14300 2FZ14300 COVER FRONT DLP | ||
| 18 | •302FZ14430 2FZ14430 COVER REAR C DLP | ||
| 23 | •302FZ14300 2FZ14300 COVER FRONT DLP | ||
| 24 | •302FZ14440 2FZ14440 COVER REAR M DLP | ||
| 25 | 302FZ14840 запросить цену → | 2FZ14840 | STUD SCREW M4 |

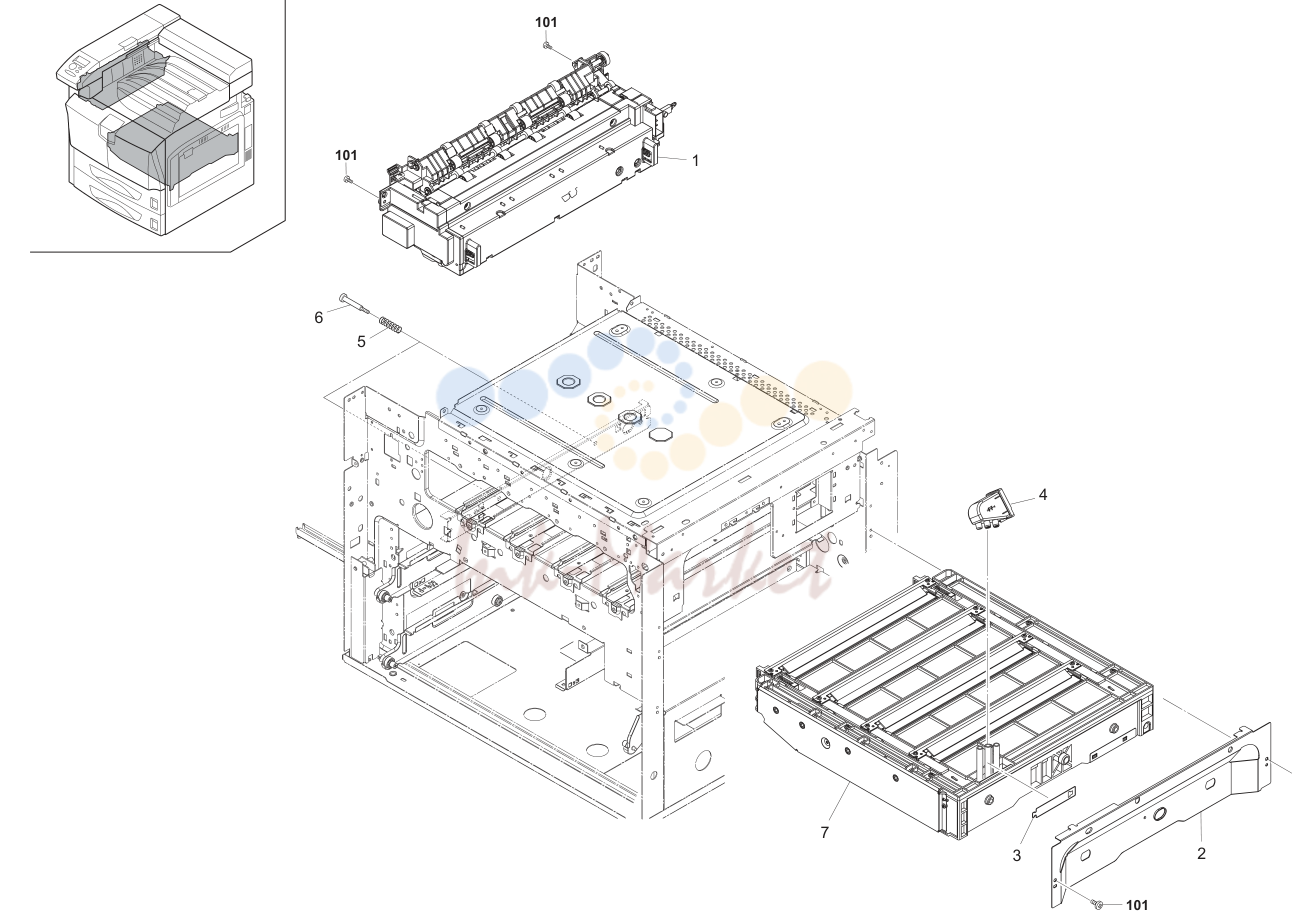

12. Fuser Unit & LSU 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302FZ02540 запросить цену → | 2FZ02540 | MOUNT LSU RIGHT |
| 3 | 302FZ03020 запросить цену → | 2FZ03020 | SHEET BAND TUBE |
| 5 | 302FZ20040 запросить цену → | 2FZ20040 | SPRING LSU |
| 6 | 302FZ20030 запросить цену → | 2FZ20030 | PIN LSU |

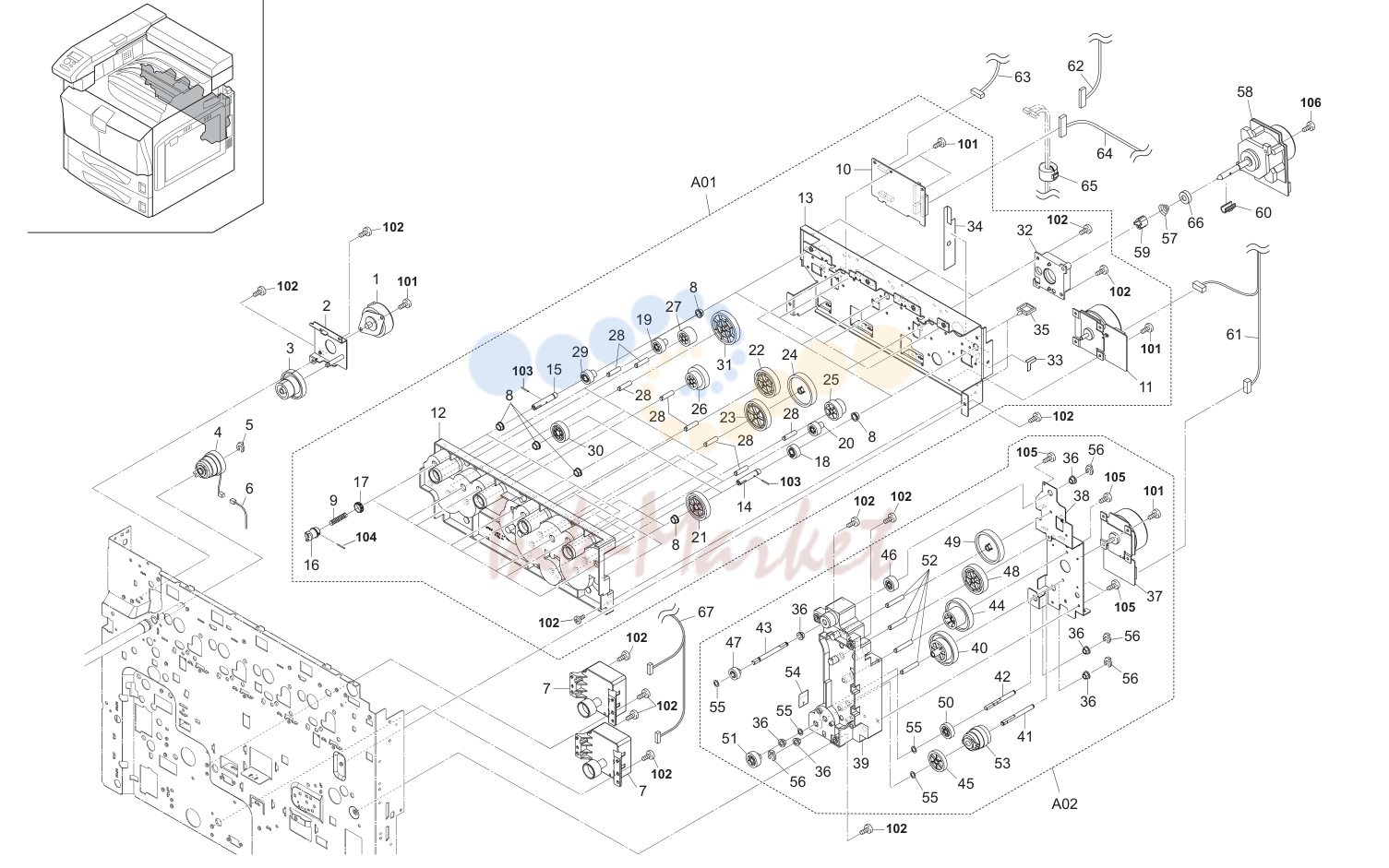

13. Driving Unit I 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302FZ31150 запросить цену → | 2FZ31150 | PLATE DRIVE TC 1 1 1 (cid:27) 50 •302FZ31540 2FZ31540 GEAR Z26L BYPASS |
| 5 | 2BC06980 запросить цену → | STOPPER 5 1 1 1 (cid:27) 53 •302FZ31820 2FZ31820 CLUTCH FEED | |
| 6 | 302FZ46761 запросить цену → | 2FZ46761 | WIRE REG CLT JOINT 1 1 1 54 •302FZ32060 2FZ32060 SEAL MPF CL |
| 8 | •2BC06510 BUSHING 8 16 16 16 57 302BG22021 2BG22021 SPRING JOINT D | ||
| 9 | •2BG22530 SPRING COUPLING DLP 8 8 8 (cid:27) 58 302FZ93440 2FZ93440 PARTS MOTOR DRUM | ||
| 12 | •302FZ31080 2FZ31080 HOLDER DRUM DRIVE 1 1 1 61 302FZ46080 2FZ46080 WIRE DLP MOTOR | ||
| 13 | •302FZ31092 2FZ31092 PLATE DRUM DRIVE 1 1 1 62 302FZ46191 2FZ46191 WIRE DRUM MOTOR SIG | ||
| 14 | •302FZ31180 2FZ31180 SHAFT DLP DRIVE 4 4 4 63 302FZ46850 2FZ46850 WIRE TRNS MOT JOINT | ||
| 15 | •302FZ31190 2FZ31190 SHAFT CLN DRIVE 4 4 4 64 302FZ46831 2FZ46831 WIRE DRM MOT A | ||
| 17 | •302FZ31280 2FZ31280 COLLAR DLP COUPLING 8 8 8 66 2FG20310 BEARING PRESS ROLLER | ||
| 28 | •302FZ31720 2FZ31720 PIN MAIN DRIVE 15 15 15 105 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 32 | •302FZ32050 2FZ32050 HOLDER DRUM MOTOR | ||
| 33 | •302FZ39800 2FZ39800 SHEET DLP MOTOR | ||
| 34 | •302FZ39960 2FZ39960 SHEET MAIN DRIVE R | ||
| 35 | •7YZM610004++H01 YZ012210 ACCESS SADDLE | ||
| 36 | •2BG22960 BUSH | ||
| 38 | •302FZ31100 2FZ31100 PLATE MPF DRIVE | ||
| 39 | •302FZ31110 2FZ31110 HOLDER MPF DRIVE | ||
| 41 | •302FZ31160 2FZ31160 SHAFT MPF CL | ||
| 42 | •302FZ31220 2FZ31220 SHAFT BYPASS DRIVE | ||
| 43 | •302FZ31230 2FZ31230 SHAFT BRS DRIVE |

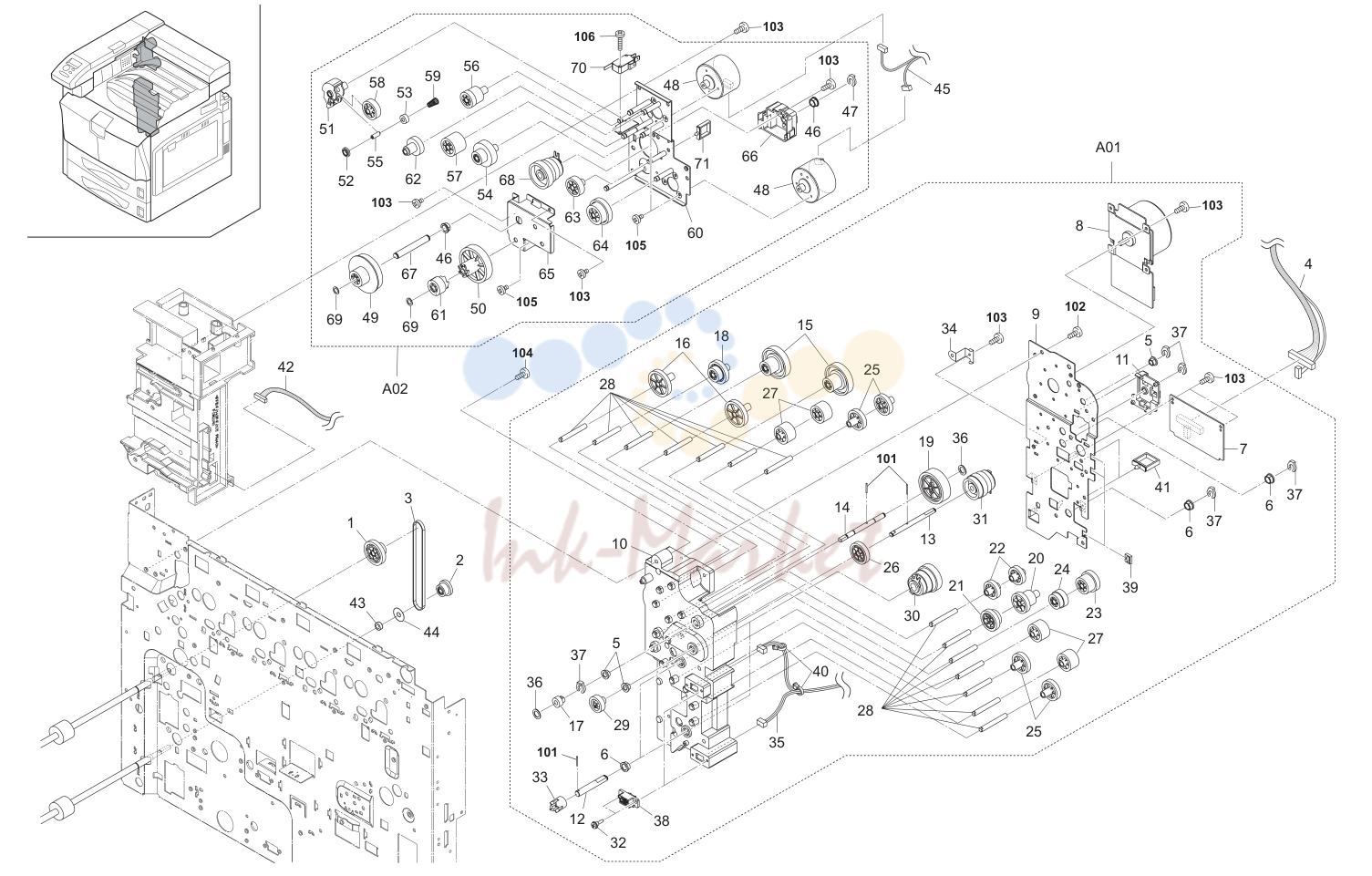

14. Driving Unit II 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 4 | 302FZ46020 запросить цену → | 2FZ46020 | WIRE JOINT 1 1 1 (cid:27) 52 •302FZ31680 2FZ31680 PULLEY EXIT DRIVE |
| 5 | •2BG22960 BUSH 6 3 3 3 (cid:27) 54 •302FZ31700 2FZ31700 GEAR EXIT Z63 Z21 | ||
| 6 | •2BG22980 BUSH 8 4 4 4 55 •302FZ31750 2FZ31750 PIN EXIT | ||
| 9 | •302FZ31120 2FZ31120 PLATE FEED DRIVE 1 1 1 (cid:27) 58 •302FZ31780 2FZ31780 GEAR EXIT Z48 | ||
| 10 | •302FZ31130 2FZ31130 HOLDER FEED DRIVE 1 1 1 59 •302FZ31790 2FZ31790 SPRING EXIT | ||
| 11 | •302FZ31170 2FZ31170 HOLDER CLUTCH 1 1 1 60 •302FZ31860 2FZ31860 MOUNT FUSER DRIVE | ||
| 12 | •302FZ31200 2FZ31200 SHAFT FEED DRIVE 2 2 2 (cid:27) 61 •302FZ31870 2FZ31870 GEAR Z20 FUSER | ||
| 13 | •302FZ31210 2FZ31210 SHAFT FEED 2 DRIVE 1 1 1 (cid:27) 62 •302FZ31910 2FZ31910 GEAR EXIT Z45Z22 | ||
| 14 | •302FZ31240 2FZ31240 SHAFT LSU DRIVE 1 1 1 (cid:27) 63 •302FZ31920 2FZ31920 GEAR Z30 FUSER | ||
| 28 | •302FZ31740 2FZ31740 PIN DRIVE FEED 14 14 14 101 5MBP2012WXSP E0020120 SPRING PIN / M2 X 12 S-BLK | ||
| 32 | •302FZ31840 2FZ31840 STUD SCREW 435 4 4 4 105 B4A03030 +TP-A SCREW M3X03(TRIVALENT CHRO MATI | ||
| 33 | •302FZ32070 2FZ32070 COUPLING PAPER FEED 2 2 2 106 5MBTPB3014TW++R B1A53140 BIND T.T SCREW(+) / M3 X 14 CRFREE S-T | ||
| 34 | •302FZ39720 2FZ39720 PLATE EARTH FEED | ||
| 35 | •302FZ46100 2FZ46100 WIRE PRE FEED | ||
| 36 | •5MVS665KB001 2BM40060 CUT WASHER | ||
| 37 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 38 | •7YCC08B2046+H02 YC026130 CONNECTOR | ||
| 39 | •7YZM210006++H01 YZ038000 ACCESS.EDGING | ||
| 40 | •7YZM410001++H01 YZ037950 ACCESS.BAND | ||
| 41 | •7YZM610003++H01 YZ010250 ACCESS SADDLE | ||
| 42 | 302FZ46050 запросить цену → | 2FZ46050 | WIRE TRANSFER |
| 43 | 3HL10170 запросить цену → | COLLAR EJECT | |
| 44 | 302FZ29140 запросить цену → | 2FZ29140 | COLLAR DU PULLEY |
| 45 | 302FZ46411 запросить цену → | 2FZ46411 | WIRE EXIT MOT |
| 46 | •2BC06510 BUSHING | ||
| 47 | •2BC06980 STOPPER |

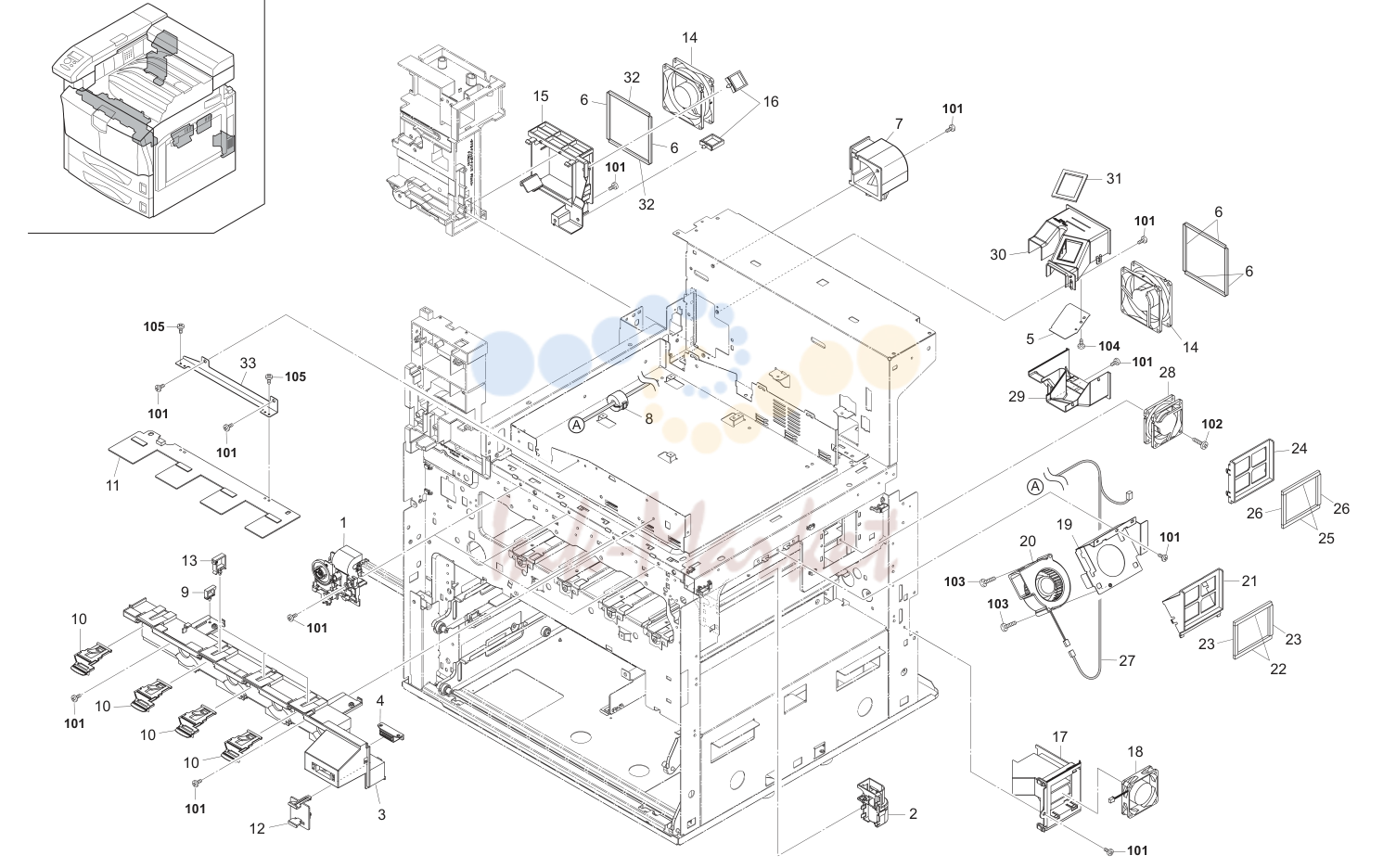

15. Cooling Unit 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | 302FZ04520 запросить цену → | 2FZ04520 | COVER INNER UPPER 1 1 1 103 7BB100435H BB041540 BIND T,T SCREW(+)/M4X35 CRFREE S-T |
| 4 | 60804120 запросить цену → | MAGNET CATCH 1 1 1 104 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | |
| 5 | 302FZ33370 запросить цену → | 2FZ33370 | PLATE DUCT EXIT 1 1 1 105 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T |
| 6 | 302FZ33400 запросить цену → | 2FZ33400 | SEAL BRACKET FAN C |
| 7 | 302HP02030 запросить цену → | 2HP02030 | DUCT EXIT |
| 8 | 3HK27050 запросить цену → | CORE 8-16X10 | |
| 9 | 7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 13 | 7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 15 | 302FZ33230 запросить цену → | 2FZ33230 | BRACKET FAN D |
| 16 | 7YZM610003++H01 YZ010250 ACCESS SADDLE | ||
| 17 | 302FZ33190 запросить цену → | 2FZ33190 | BRACKET FAN C |
| 19 | 302FZ02640 запросить цену → | 2FZ02640 | MOUNT FAN |
| 21 | 302FZ33140 запросить цену → | 2FZ33140 | BRACKET FAN A |
| 22 | 302FZ33170 запросить цену → | 2FZ33170 | SEAL BRACKET FAN A |
| 23 | 302FZ33180 запросить цену → | 2FZ33180 | SEAL BRACKET FAN B |
| 24 | 302FZ33150 запросить цену → | 2FZ33150 | BRACKET FAN B |
| 25 | 302FZ33170 запросить цену → | 2FZ33170 | SEAL BRACKET FAN A |
| 26 | 302FZ33180 запросить цену → | 2FZ33180 | SEAL BRACKET FAN B |
| 27 | 302FZ46091 запросить цену → | 2FZ46091 | WIRE FRONT SIDE |
| 30 | 302FZ33020 запросить цену → | 2FZ33020 | DUCT EXIT UPPER |
| 31 | 302FZ33380 запросить цену → | 2FZ33380 | SEAL DUCT EXIT |
| 32 | 302FZ33410 запросить цену → | 2FZ33410 | SEAL BRACKET FAN D |
| 33 | 302FZ02880 запросить цену → | 2FZ02880 | BRACKET PWB RFID |

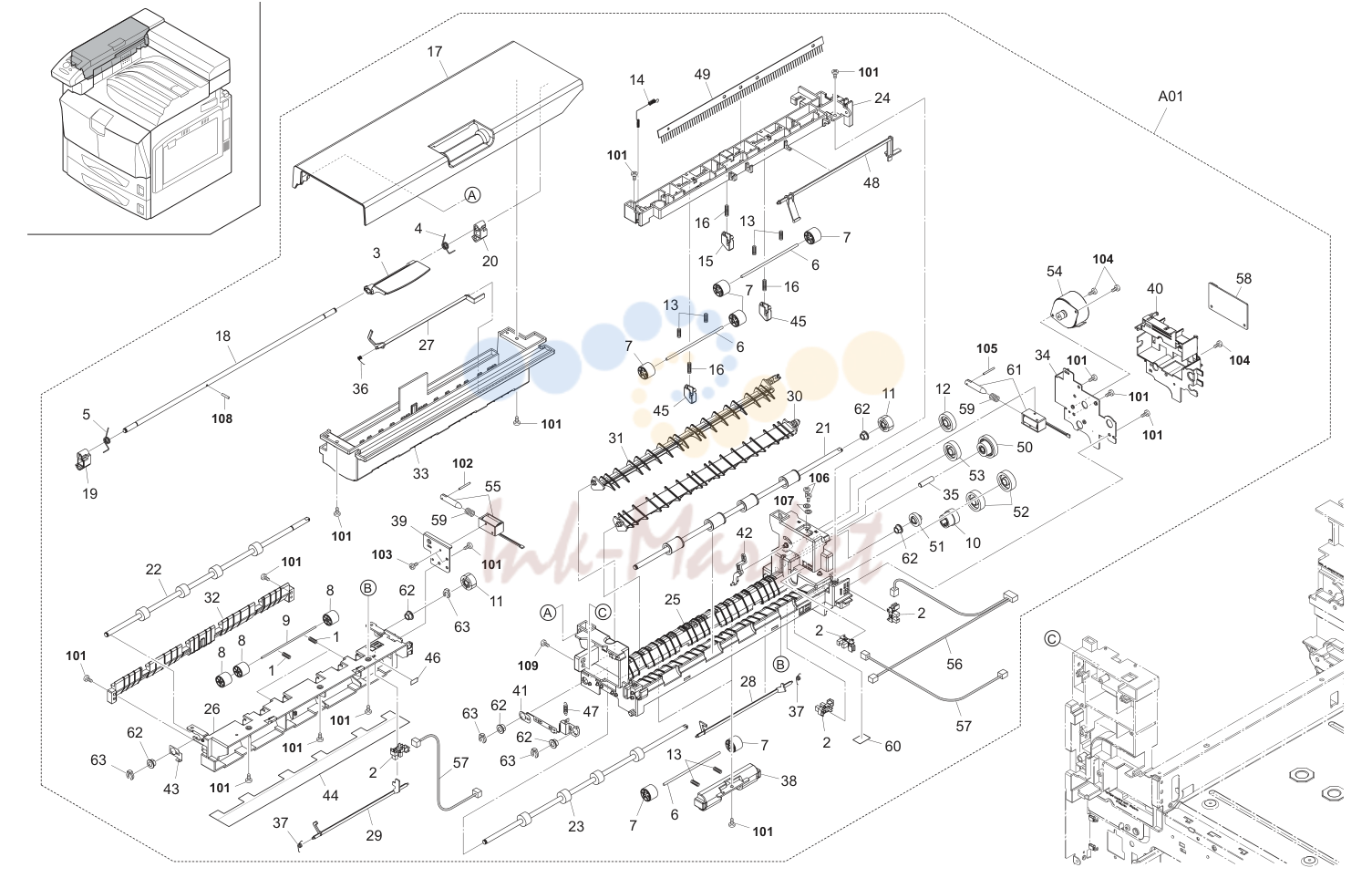

16. Paper Exit 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BG20890 SPRING FUSER EXIT 4 4 4 (cid:27) 51 •302HP31040 2HP31040 GEAR Z20 DU | ||
| 4 | •302FZ04390 2FZ04390 SPRING LEFT COVER F 1 1 1 (cid:27) 54 •302HP44010 2HP44010 MOTOR EXIT | ||
| 5 | •302FZ04400 2FZ04400 SPRING LEFT COVER R 1 1 1 (cid:27) 55 •302HP44020 2HP44020 SOLENOID EXIT | ||
| 6 | •302FZ22140 2FZ22140 SHAFT MIDDLE L 4 4 4 56 •302HP46030 2HP46030 WIRE EXIT FULL | ||
| 8 | •302FZ25360 2FZ25360 PULLEY FUSER EXIT 6 6 6 (cid:27) 58 •303KN94010 3KN94010 PARTS,PRINTED W.BOARD JOB,SP | ||
| 9 | •302FZ25380 2FZ25380 SHAFT EXIT PULLEY 2 2 2 59 •303KN16180 3KN16180 SPRING SOL A | ||
| 13 | •302FZ28110 2FZ28110 SPRING EXIT PULLEY A 8 8 8 63 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 14 | •302FZ28120 2FZ28120 SPRING EARTH | ||
| 15 | •302FZ28260 2FZ28260 EXIT PUSH | ||
| 16 | •302FZ28270 2FZ28270 SPRING EXIT PUSH | ||
| 18 | •302HP04100 2HP04100 SHAFT HOOK | ||
| 19 | •302HP04110 2HP04110 HOOK LID F 1 1 1 101 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 20 | •302HP04120 2HP04120 HOOK LID R 1 1 1 102 E0120200 SPRING PIN 2X20(SUS) | ||
| 23 | •302HP28050 2HP28050 ROLLER EXIT OUT 1 1 1 105 7BP012520+++H01 E5125200 SPRING PIN 2.5X20(SUS) | ||
| 24 | •302HP28060 2HP28060 FRAME EXIT UPPER 1 1 1 106 B1B03040 +BIND SCREW M3X04(TRIVALENT CHROMATI | ||
| 25 | •302HP28070 2HP28070 FRAME EXIT LOW 1 1 1 107 7BC000306550H01 BC042940 WASHER M3X6.5X0.5T | ||
| 26 | •302HP28080 2HP28080 FRAME EXIT ENTRANCE 1 1 1 108 E5120100 SPRING PIN H7A 2X10 SUS | ||
| 27 | •302HP28100 2HP28100 ACTUATOR EXIT L 1 1 1 109 5MBTPB4010PW++R B1A64100 BIND T.T SCREW(+) / M4 X 10 CRFREE P-T | ||
| 30 | •302HP28130 2HP28130 GUIDE CHANGE R | ||
| 31 | •302HP28140 2HP28140 GUIDE CHANGE L | ||
| 32 | •302HP28150 2HP28150 GUIDE ENTRANCE | ||
| 33 | •302HP28190 2HP28190 FRAME EXIT MIDDLE | ||
| 34 | •302HP28220 2HP28220 PLATE EXIT DRIVE | ||
| 35 | •302HP28230 2HP28230 SHAFT GEAR EXIT | ||
| 36 | •302HP28240 2HP28240 SPRING ACT EXIT L | ||
| 37 | •302HP28250 2HP28250 SPRING ACT EXIT R | ||
| 38 | •302HP28260 2HP28260 HOLDER EXIT PULLEY | ||
| 39 | •302HP28280 2HP28280 PLATE EXIT SOL | ||
| 40 | •302HP28290 2HP28290 COVER PWB | ||
| 41 | •302HP28320 2HP28320 PLATE EARTH EXIT | ||
| 42 | •302HP28330 2HP28330 ARM SOLENOID | ||
| 43 | •302HP28360 2HP28360 PLATE EARTH EXIT B | ||
| 44 | •302HP28370 2HP28370 SHEET EXIT | ||
| 45 | •302HP28380 2HP28380 EXIT PUSH | ||
| 46 | •302HP28390 2HP28390 SEAL ACT | ||
| 47 | •302HP28400 2HP28400 SPRING EXIT EARTH | ||
| 48 | •302HP28430 2HP28430 ACTUATOR EXIT FULL | ||
| 49 | •302HP28450 2HP28450 STATIC ELIMINATOR PR |

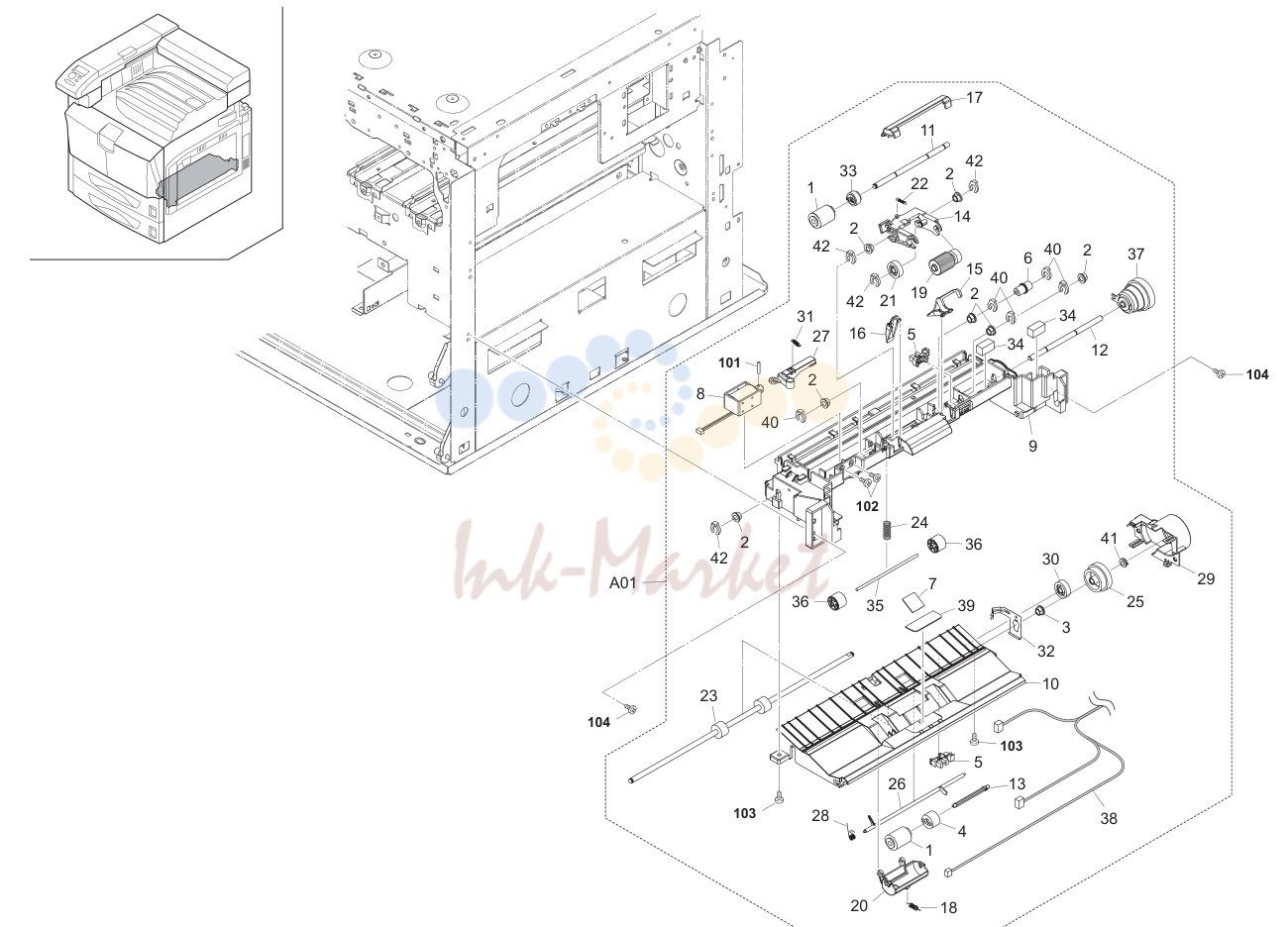

17. MPT Assy 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | •2BG22960 BUSH 6 7 7 7 103 5MBTPB4010PW++R B1A64100 BIND T.T SCREW(+) / M4 X 10 CRFREE P-T | ||
| 3 | •2BG22970 BUSH 6 EW 1 1 1 104 B1A54080 +BIND TAP-TITE S SCREW M4X08 | ||
| 6 | •302FB06151 2FB06151 JOINT DRIVE | ||
| 9 | •302FZ08011 2FZ08011 BASE MPT | ||
| 10 | •302FZ08020 2FZ08020 LOWER GUIDE MPT | ||
| 11 | •302FZ08030 2FZ08030 SHAFT FEED MPT | ||
| 12 | •302FZ08040 2FZ08040 SHAFT FEED JOINT MPT | ||
| 13 | •302FZ08050 2FZ08050 SHAFT SEPARATE MPT | ||
| 14 | •302FZ08070 2FZ08070 HOLDER MPT LF | ||
| 15 | •302FZ08090 2FZ08090 PAPER STOPPER MPT F | ||
| 16 | •302FZ08100 2FZ08100 PAPER STOPPER MPT R | ||
| 17 | •302FZ08110 2FZ08110 LEVER STOPPER RELEASE | ||
| 18 | •302FZ08120 2FZ08120 SPRING SEPARATE PULLEY | ||
| 20 | •302FZ08160 2FZ08160 HOLDER SEPARATE MPT | ||
| 22 | •302FZ08190 2FZ08190 SPRING HOLDER MPT | ||
| 24 | •302FZ08290 2FZ08290 SPRING MID MPT | ||
| 27 | •302FZ08320 2FZ08320 LEVER MPT SOLENOID | ||
| 28 | •302FZ08350 2FZ08350 SPRING ACTUATOR MPT | ||
| 29 | •302FZ08360 2FZ08360 COVER MPT DRIVE | ||
| 31 | •302FZ08430 2FZ08430 SPRING SOLENOID MPT | ||
| 32 | •302FZ08440 2FZ08440 PLATE EARTH MPT ROLL | ||
| 34 | •302FZ08460 2FZ08460 PAD WIRE | ||
| 35 | •302FZ22140 2FZ22140 SHAFT MIDDLE L | ||
| 38 | •302FZ46520 2FZ46520 WIRE MPF UNIT | ||
| 40 | •5MVL177DN001 2FB06810 RING STOPPER | ||
| 41 | •5MVM176XN001 2BM14330 BUSH D1234 | ||
| 42 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 |

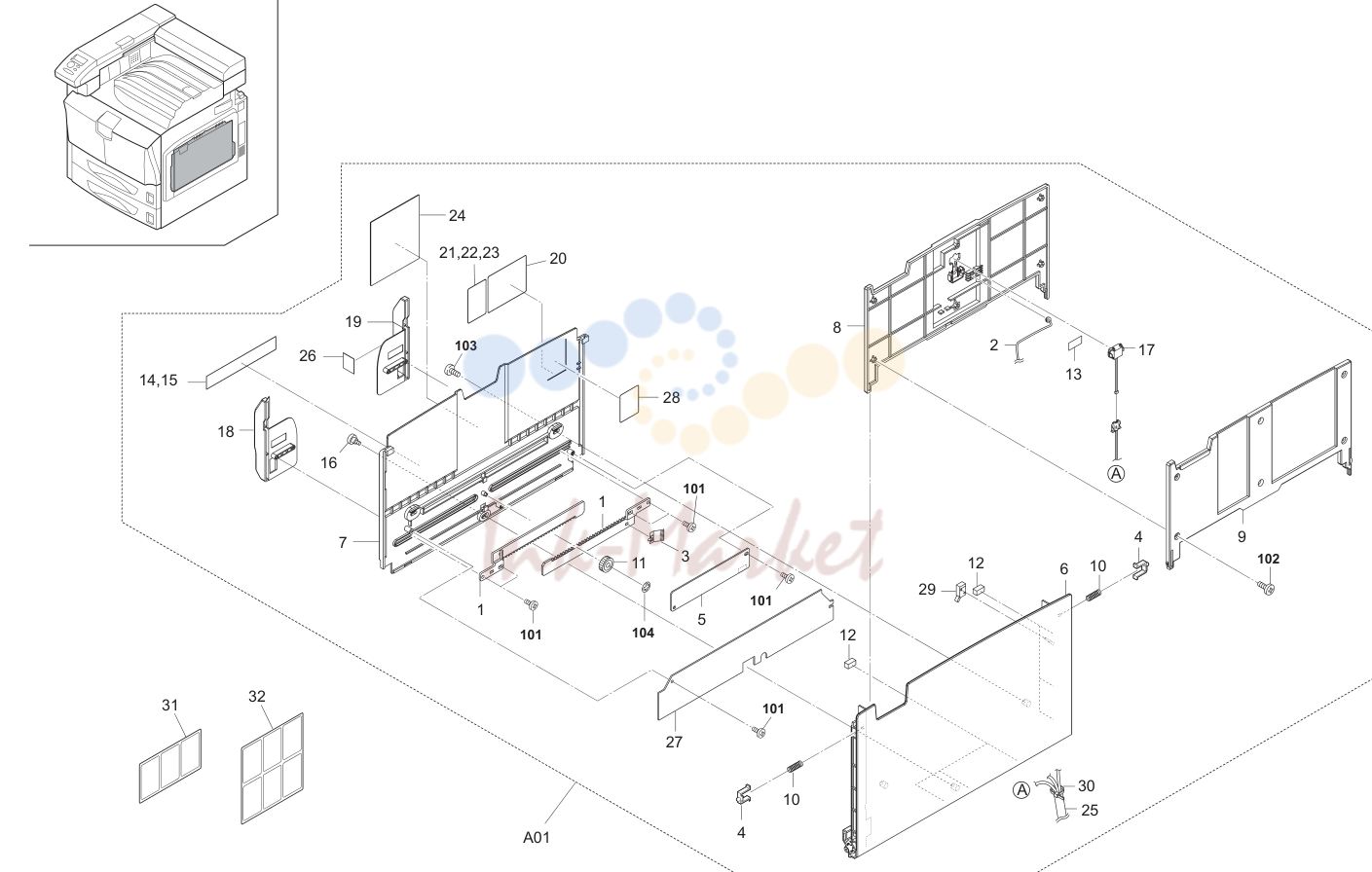

18. Table Bypass 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | •2BC07340 LEFT WIRE B,LIFT 1 1 1 103 BAB64080 +TP TAP-TITE P SCREW M4X8 | ||
| 4 | •2FB07330 STOPPER BYPASS TABLE | ||
| 6 | •302BC43134 2BC43134 TABLE A,BYPASS(G E) | ||
| 7 | •302BC43146 2BC43146 TABLE B,BYPASS(G E) | ||
| 8 | •302BC43152 2BC43152 TABLE C,BYPASS(G E) | ||
| 9 | •302BC43161 2BC43161 TABLE D,BYPASS(G E) | ||
| 10 | •302FB17700 2FB17700 SPRING BYPASS TEBLE | ||
| 12 | •302FB17720 2FB17720 SPONGE BYPASS TABLE | ||
| 13 | •302FB17730 2FB17730 SEAL BYPASS TABLE | ||
| 16 | •302FB17800 2FB17800 PIN BYPASS TABLE | ||
| 20 | •302FZ08470 2FZ08470 LABEL MP CAUTION PIC V | ||
| 21 | •302FZ08480 2FZ08480 LABEL MP CAUTION J V | ||
| 22 | •302FZ08490 2FZ08490 LABEL MP CAUTION E V | ||
| 23 | •302FZ08530 2FZ08530 LABEL MP CAUTION TW V | ||
| 25 | •302FZ46840 2FZ46840 WIRE BYPASS TRAY | ||
| 27 | •33906900 COVER,CURSOR | ||
| 28 | •3C007060 PAD,LIFT | ||
| 30 | •7YZM420001++H01 YZ042730 ACCESS.BAND | ||
| 31 | 302FZ08510 запросить цену → | 2FZ08510 | LABEL MP CAUTION 3 V |
| 32 | 302FZ08520 запросить цену → | 2FZ08520 | LABEL MP CAUTION 6 V |

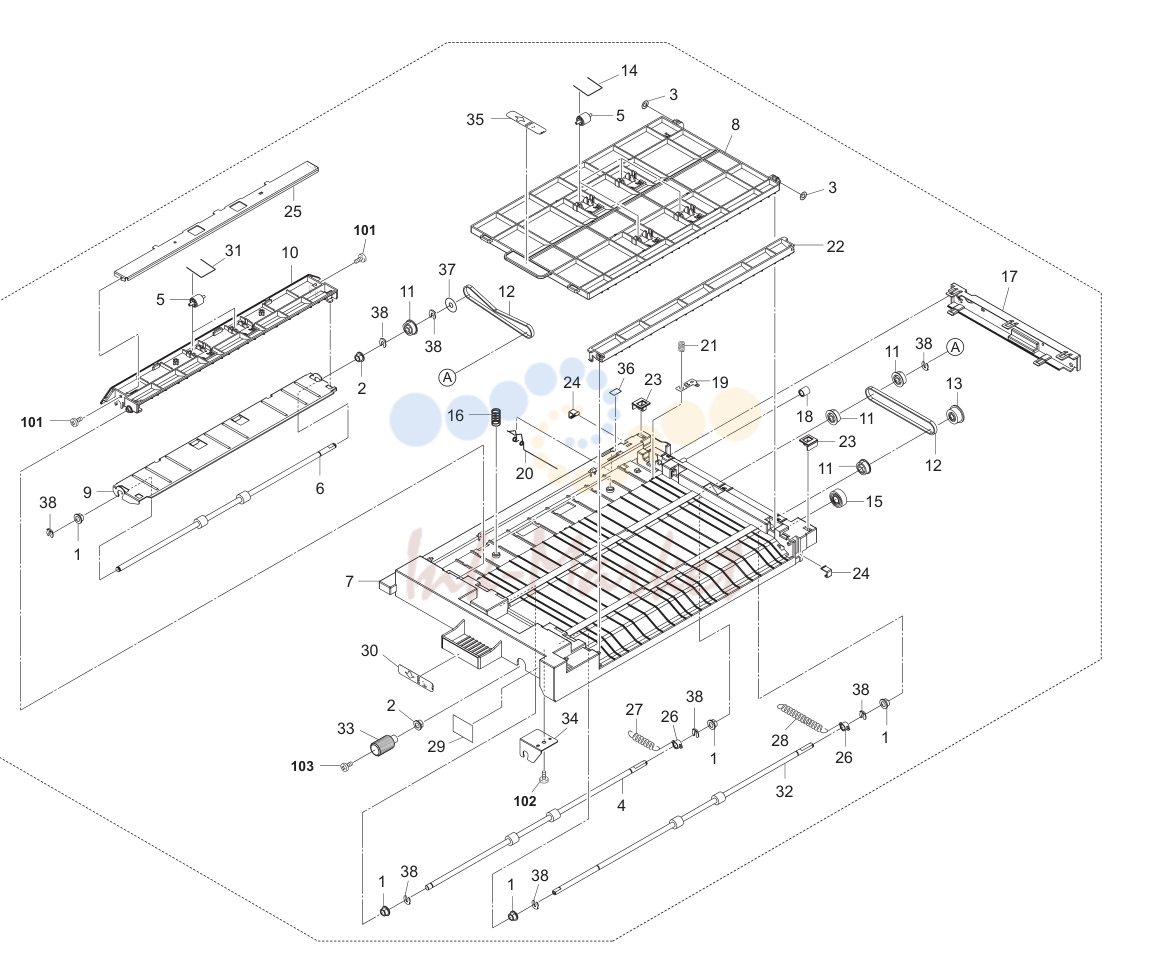

19. MPT Bypass Assy 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BG22960 BUSH 6 5 5 5 102 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 2 | •2BG22970 BUSH 6 EW 2 2 2 103 B4B03050 +TP-A SCREW M3X05(TRIVALENT CHROMATIN | ||
| 3 | •2BG22990 CUT WASHER | ||
| 5 | •302FZ07020 2FZ07020 PULLEY MPT BYPASS | ||
| 7 | •302FZ07040 2FZ07040 BASE MPT BYPASS | ||
| 8 | •302FZ07050 2FZ07050 COVER MPT BYPASS | ||
| 9 | •302FZ07060 2FZ07060 GUIDE BYPASS RIGHT | ||
| 10 | •302FZ07070 2FZ07070 COVER BYPASS OUT | ||
| 14 | •302FZ07110 2FZ07110 SPRING BYPASS PULLEY | ||
| 16 | •302FZ07130 2FZ07130 SPRING BYPASS MOTION | ||
| 17 | •302FZ07140 2FZ07140 COVER MPT REAR | ||
| 19 | •302FZ07180 2FZ07180 PLATE EARTH MPT | ||
| 20 | •302FZ07190 2FZ07190 SPRING EARTH BYPASS | ||
| 21 | •302FZ07210 2FZ07210 SPRING EARTH BYPASS JOINT | ||
| 22 | •302FZ07230 2FZ07230 GUIDE BYPASS IN | ||
| 23 | •302FZ07240 2FZ07240 SLIDER BYPASS A | ||
| 24 | •302FZ07250 2FZ07250 SLIDER BYPASS B | ||
| 25 | •302FZ07300 2FZ07300 PLATE GUIDE MPT | ||
| 26 | •302FZ07310 2FZ07310 BUSH CONTACT MPT B | ||
| 27 | •302FZ07320 2FZ07320 SPRING EARTH MPT A | ||
| 28 | •302FZ07330 2FZ07330 SPRING EARTH MPT B | ||
| 29 | •302FZ07350 2FZ07350 LABEL JAM BYPASS B2 | ||
| 30 | •302FZ07360 2FZ07360 LABEL JAM BYPASS B3 | ||
| 31 | •302FZ07380 2FZ07380 SPRING BYPASS PULLEY B | ||
| 33 | •302FZ07400 2FZ07400 LEVER JAM BYPASS | ||
| 34 | •302FZ07410 2FZ07410 MOUNT LEVER BYPASS | ||
| 35 | •302FZ07420 2FZ07420 LABEL JAM BYPASS B4 | ||
| 36 | •302FZ22760 2FZ22760 STOPPER EARTH MIDDLE | ||
| 37 | •302FZ29140 2FZ29140 COLLAR DU PULLEY | ||
| 38 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 |

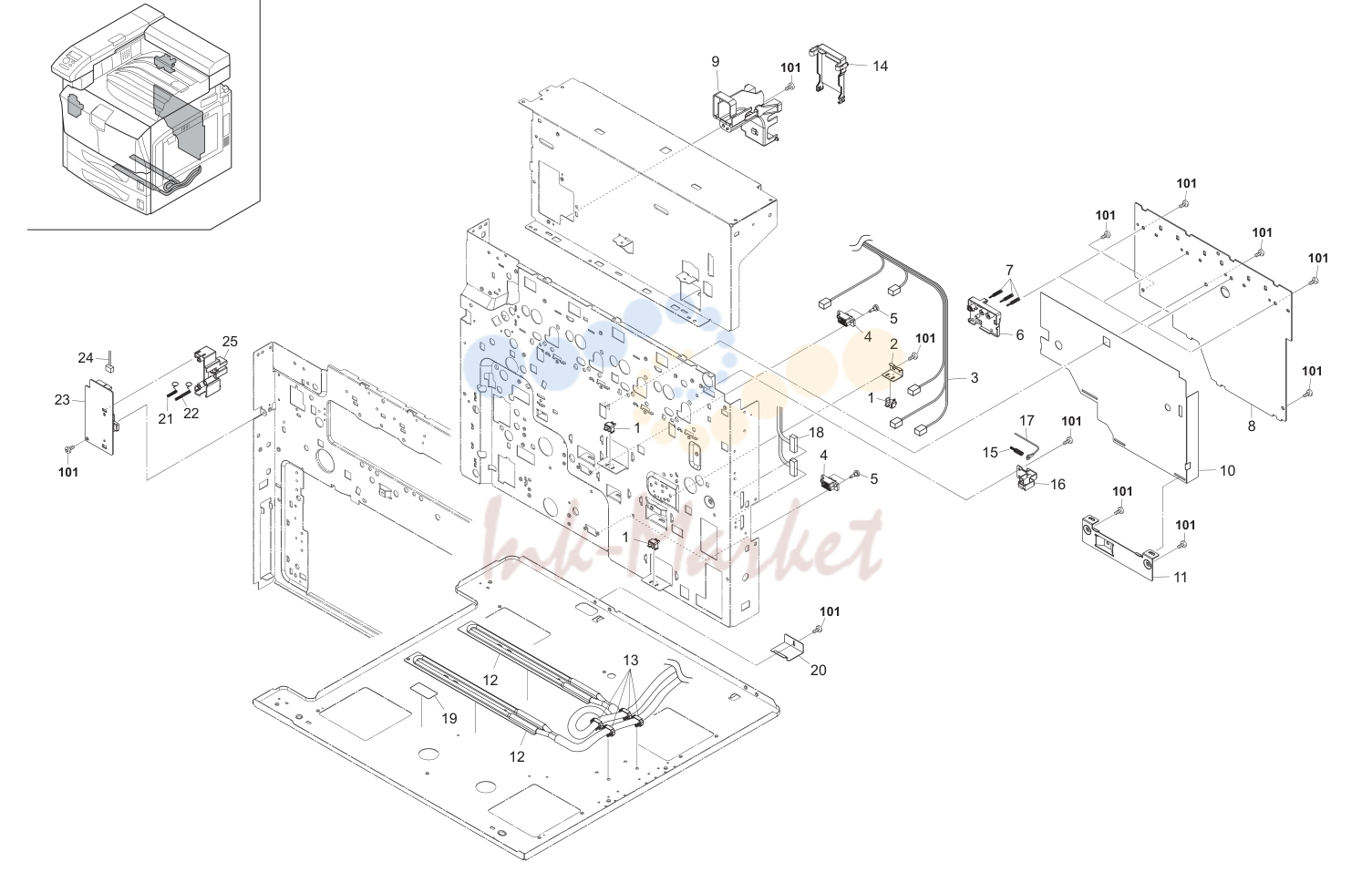

20. Electrical Components I 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302FZ02610 запросить цену → | 2FZ02610 | MOUNT CASSETTE SW |
| 3 | 302HP46050 запросить цену → | 2HP46050 | WIRE FEED JOINT |
| 4 | 7YCC08B2046+H02 YC026130 CONNECTOR | ||
| 5 | 302FZ03070 запросить цену → | 2FZ03070 | RETAINING PIN DRAWER |
| 6 | 302FZ39110 запросить цену → | 2FZ39110 | MOUNT HV TERMINAL |
| 9 | 302FZ39210 запросить цену → | 2FZ39210 | GUIDE WIRE MAIN |
| 10 | 302FZ39900 запросить цену → | 2FZ39900 | SHEET PWB |
| 11 | 302FZ39920 запросить цену → | 2FZ39920 | MOUNT HV LOWER |
| 13 | 7YZM610001++H01 YZ010230 ACCESS SADDLE | ||
| 14 | 302FZ39220 запросить цену → | 2FZ39220 | GUIDE WIRE SUB |
| 15 | 302FZ39530 запросить цену → | 2FZ39530 | SPRING ICL |
| 16 | 302FZ39580 запросить цену → | 2FZ39580 | TERMINAL ICL |
| 17 | 302FZ46270 запросить цену → | 2FZ46270 | WIRE CLEANING |
| 18 | 302FZ46030 запросить цену → | 2FZ46030 | WIRE MPF |
| 19 | 20305130 запросить цену → | LABEL L,HIGH TEMPERATURE CAUTION(EXP) | |
| 20 | 302GR39190 запросить цену → | 2GR39190 | COVER CONN |
| 24 | 302FZ46130 запросить цену → | 2FZ46130 | WIRE HVU |
| 25 | 302FZ39610 запросить цену → | 2FZ39610 | HOLDER HV2 TC |

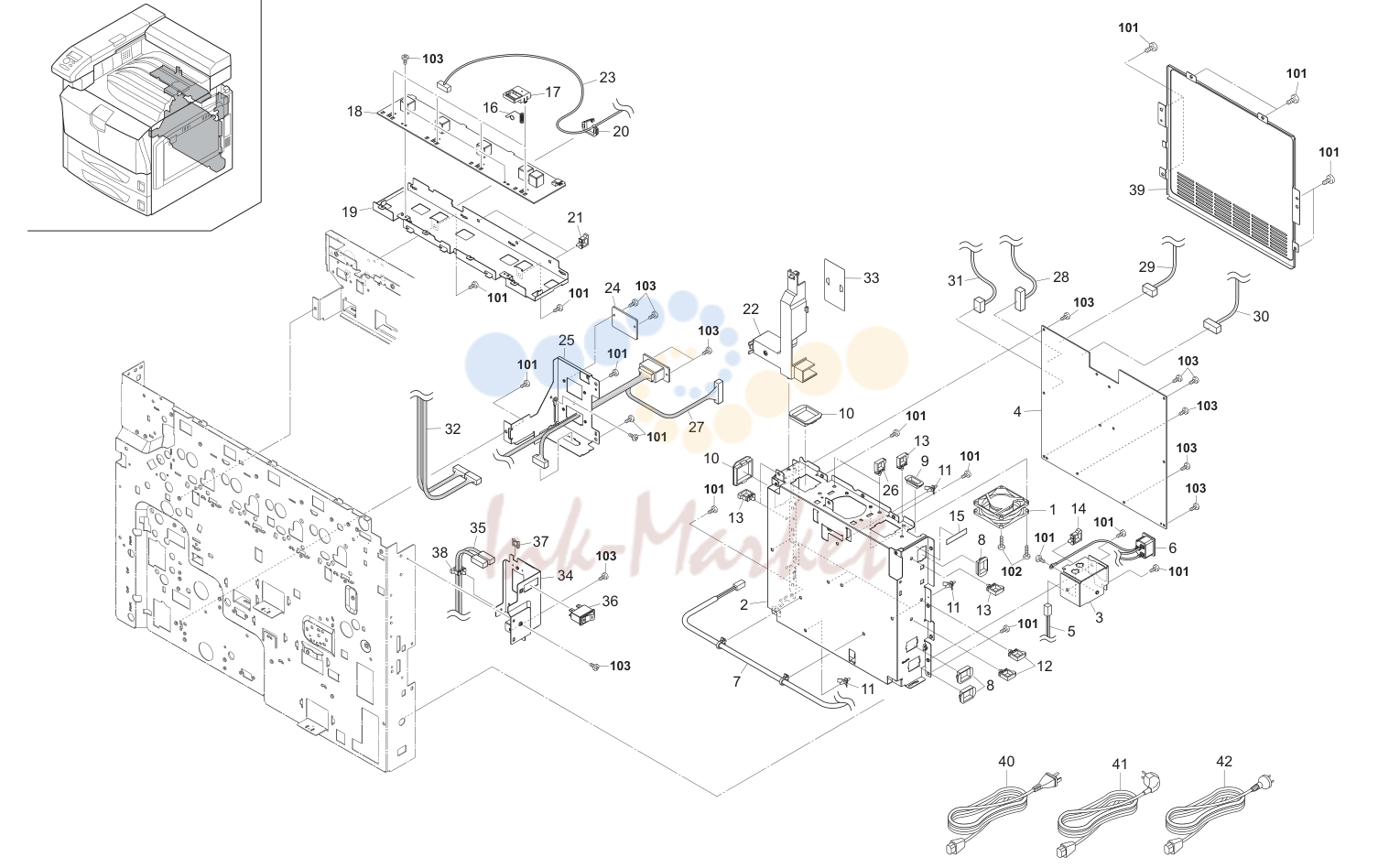

21. Electrical Components II 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302FZ39051 запросить цену → | 2FZ39051 | SHIELD BOX 1 1 1 102 7BB100330H B1B53300 +BIND TAP-TITE S SCREW M3X30 CRFREE |
| 3 | 302FZ39550 запросить цену → | 2FZ39550 | BRACKET INLET 1 1 1 103 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T |
| 5 | 302FZ46430 запросить цену → | 2FZ46430 | WIRE CASSETTE HEATER |
| 6 | 302FZ46660 запросить цену → | 2FZ46660 | WIRE INLET ASS'Y |
| 7 | 302FZ46730 запросить цену → | 2FZ46730 | WIRE OP HEATER |
| 8 | 7YZM210002++H01 YZ004730 ACCESS.EDGING | ||
| 9 | 7YZM210003++H01 YZ037970 ACCESS.EDGING | ||
| 10 | 7YZM210004++H01 YZ037980 ACCESS.EDGING | ||
| 11 | 7YZM510007++H01 YZ042780 ACCESS.SPACER | ||
| 12 | 7YZM610001++H01 YZ010230 ACCESS SADDLE | ||
| 13 | 7YZM610003++H01 YZ010250 ACCESS SADDLE | ||
| 14 | 7YZM610004++H01 YZ012210 ACCESS SADDLE | ||
| 15 | 302FZ39940 запросить цену → | 2FZ39940 | SHEET PS BOX |
| 17 | 302FZ39570 запросить цену → | 2FZ39570 | TERMINAL TC1 |
| 19 | 302FZ39590 запросить цену → | 2FZ39590 | MOUNT TRANSFER HV |
| 20 | 7YZM210003++H01 YZ037970 ACCESS.EDGING | ||
| 21 | 7YZM610001++H01 YZ010230 ACCESS SADDLE | ||
| 22 | 302FZ39870 запросить цену → | 2FZ39870 | GUIDE WIRE LOWER |
| 23 | 302FZ46120 запросить цену → | 2FZ46120 | WIRE HVU |
| 24 | 302FB26290 запросить цену → | 2FB26290 | LID VENDOR |
| 25 | 302FZ39071 запросить цену → | 2FZ39071 | MOUNT OPTION IF |
| 26 | 7YZM610015++H01 YZ046900 ACCESS.SADDLE | ||
| 27 | 302FZ46742 запросить цену → | 2FZ46742 | WIRE OP DESK |
| 28 | 302FZ46220 запросить цену → | 2FZ46220 | WIRE LVU ENGINE |
| 29 | 302FZ46240 запросить цену → | 2FZ46240 | WIRE LVU CONTROLLER |
| 30 | 302FZ46170 запросить цену → | 2FZ46170 | WIRE FUSER |
| 31 | 302FZ46210 запросить цену → | 2FZ46210 | WIRE INTERLOCK SWITCH |
| 32 | 302FZ46392 запросить цену → | 2FZ46392 | WIRE OPTION SIGNAL |
| 33 | 302FZ39880 запросить цену → | 2FZ39880 | SHEET WIRE LOWER |
| 34 | 302FZ39731 запросить цену → | 2FZ39731 | PLATE MAIN SW |
| 35 | 302FZ46260 запросить цену → | 2FZ46260 | WIRE MSW |
| 37 | 7YZM210006++H01 YZ038000 ACCESS.EDGING | ||
| 38 | 7YZM610003++H01 YZ010250 ACCESS SADDLE | ||
| 39 | 302HP04170 запросить цену → | 2HP04170 | COVER TOP B |
| 40 | 3019527401 запросить цену → | 19527401 | POWER CORD(120) |
| 41 | 2AR27800 запросить цену → | POWER CORD(230) | |
| 42 | 3029927232 запросить цену → | 29927232 | POWER CODE AS(240) |

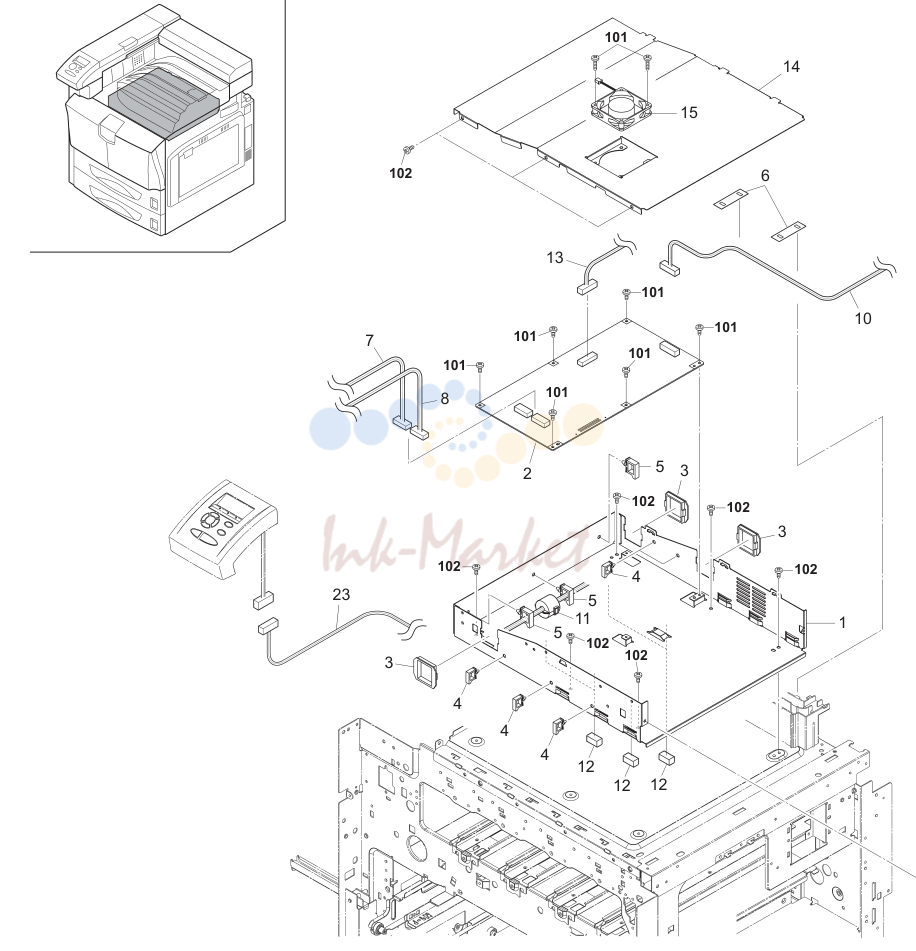

22. Controller Box 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 302FZ39010 запросить цену → | 2FZ39010 | CONTROLLER BOX 1 1 1 101 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T |
| 3 | 7YZM210004++H01 YZ037980 ACCESS.EDGING | ||
| 4 | 7YZM610003++H01 YZ010250 ACCESS SADDLE | ||
| 5 | 7YZM610005++H01 YZ012220 ACCESS SADDLE | ||
| 6 | 302FZ39840 запросить цену → | 2FZ39840 | SHEET WIRE |
| 7 | 302FZ46150 запросить цену → | 2FZ46150 | WIRE DRUM-DLP KY |
| 8 | 302FZ46140 запросить цену → | 2FZ46140 | WIRE DRUM-DLP CM |
| 10 | 302FZ46071 запросить цену → | 2FZ46071 | WIRE APC |
| 11 | 2AV27440 запросить цену → | CORE 15-26X13 | |
| 12 | 7ZGSSTG31020H01 запросить цену → | ZG046820 | SHIELD GASKET |
| 13 | 302HP46020 запросить цену → | 2HP46020 | WIRE EXIT |
| 14 | 302FZ39020 запросить цену → | 2FZ39020 | COVER CONTROLLER |
| 16 | •2DA26520 GUIDE CF | ||
| 17 | •2DD26070 PLATE OPTION | ||
| 18 | •302FZ39060 2FZ39060 PLATE CONTROLLER | ||
| 19 | •5MMT263SN012++R 2D903100 SCREW OP / M3 X 8 CRFREE A4 | ||
| 20 | •5MVB743SL004 2BL26210 RAIL OPTION A /B-05 CONT BOX A2 | ||
| 21 | •5MVB743SL005 2BL26220 RAIL OPTION B /B-05 CONT BOX A2 | ||
| 23 | 302HP46010 запросить цену → | 2HP46010 | WIRE PANNEL |

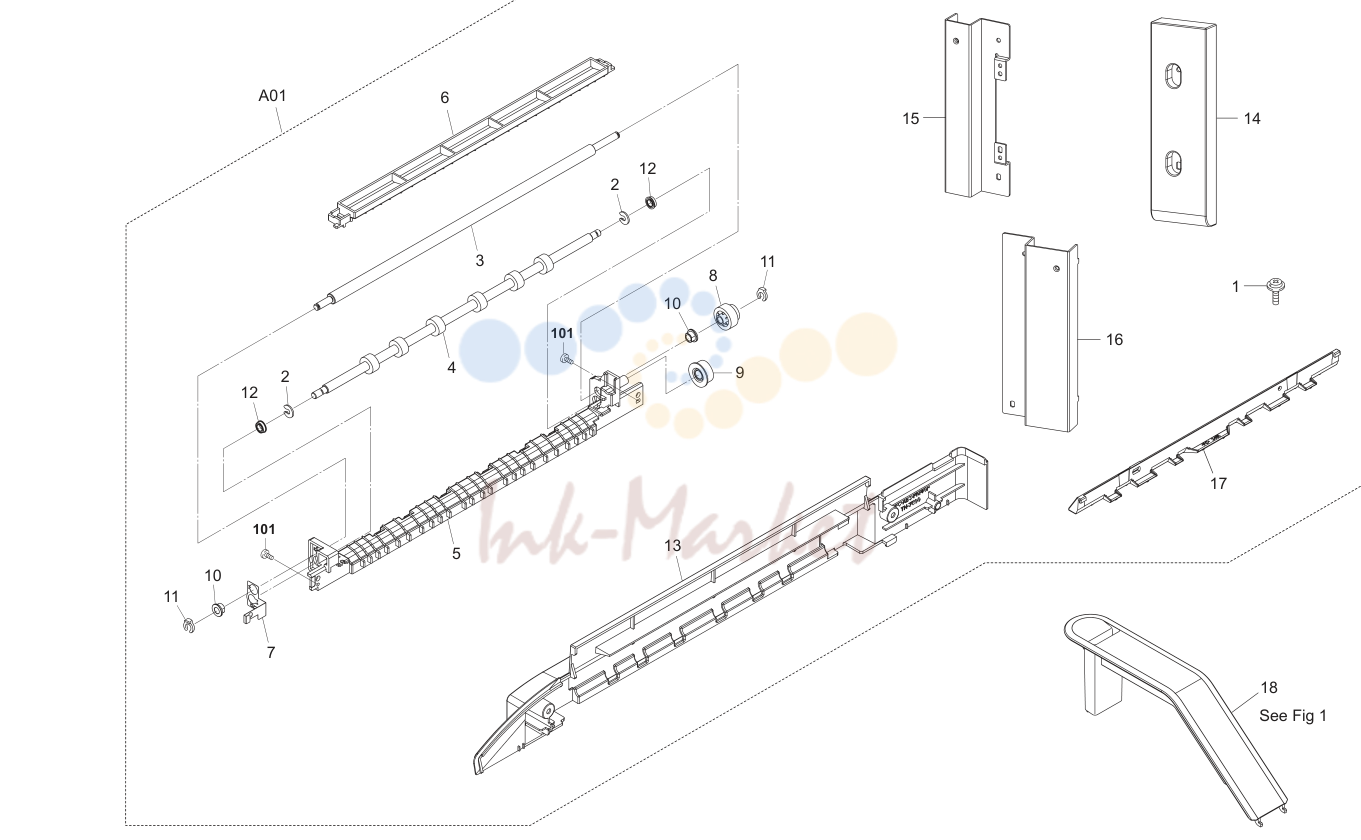

23. Options 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BG12430 STUD SCREW SC | ||
| 2 | •302FB09830 2FB09830 CUT WASHER | ||
| 5 | •302HP28090 2HP28090 FRAME EXIT OP | ||
| 6 | •302HP28160 2HP28160 GUIDE EXIT OP | ||
| 7 | •302HP28210 2HP28210 PLATE EARTH OP ROLL | ||
| 10 | •3CY07080 BUSHING | ||
| 11 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 12 | •68822330 BEARING,DRIVE | ||
| 15 | •303KN02040 3KN02040 RETAINER FINISHER FL | ||
| 16 | •303KN02050 3KN02050 RETAINER FINISHER RL | ||
| 17 | •303KN04040 3KN04040 GUIDE INSERT |

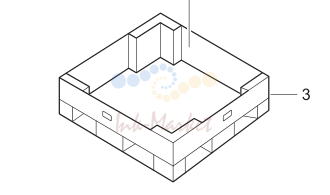

24. Parts Packing 2HP
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 302HP50010 запросить цену → | 2HP50010 | OUTER CASE FS |
| 2 | 302HP50070 запросить цену → | 2HP50070 | INNER FRAME |
| 3 | 302HP52010 запросить цену → | 2HP52010 | BASE ASSY |
комментарии
