Konica Minolta magicolor 4695MF — каталог запчастей со схемами

Konica Minolta magicolor 4695MF — ниже интерактивный каталог запчастей по узлам со взрыв-схемами из сервис-мануала. По каждой детали указан оригинальный артикул; позиции, доступные к заказу, отмечены ссылкой на карточку товара, остальные — кнопкой «запросить цену».

Запчасти по узлам (со схемами)

Взрыв-схемы по каждому узлу с артикулами. Детали, доступные к заказу, ведут на карточку товара; остальные — на форму запроса цены.

Содержание

1. INFORMATION FOR PARTS GUIDE MANUAL
2. DIAGRAM OF MAIN PARTS SECTION
3. EXTERNAL PARTS
4. IR SECTION
5. IR SECTION
6. IR SECTION
7. MAIN FRAME SECTION
8. T/C RAIL SECTION
9. I/U CONTACT SECTION
10. I/U RAIL SECTION
11. WASTE TONER TRANSPORT SECTION
12. TRANSFER BELT UNIT
13. PRINT HEAD SECTION

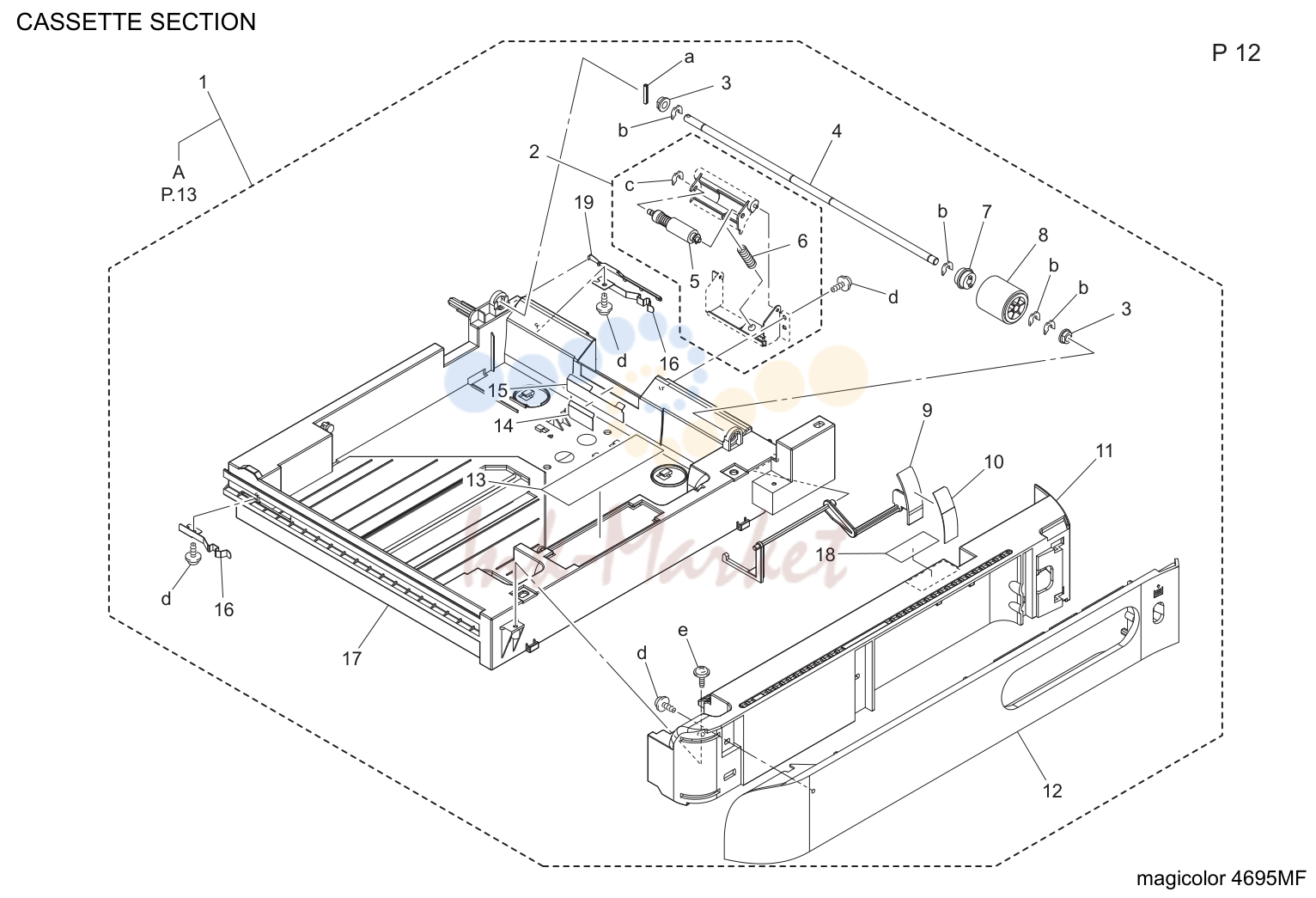

14. CASSETTE SECTION

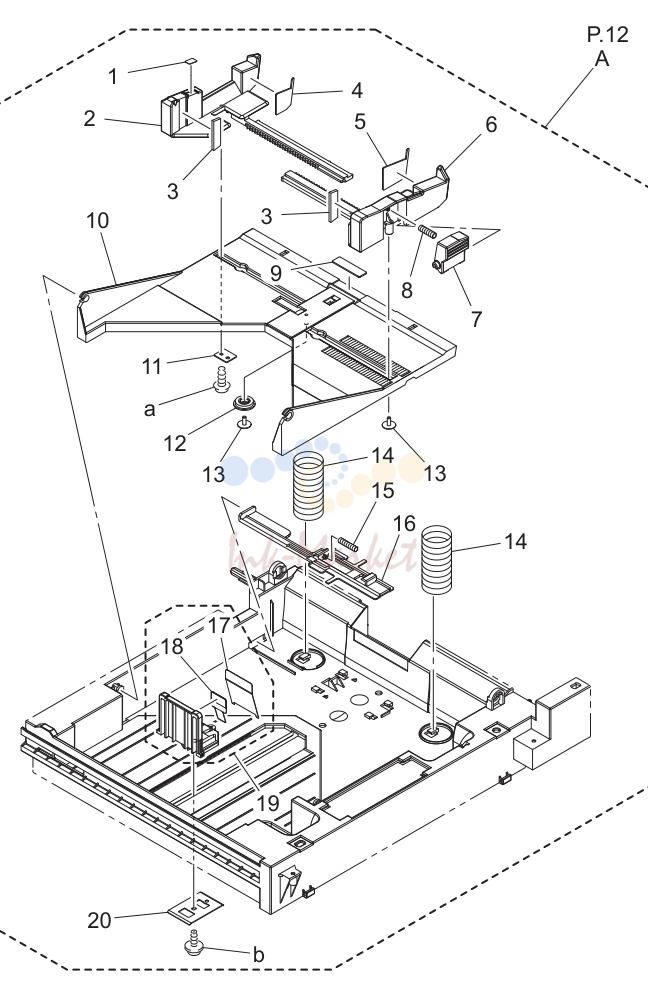

15. CASSETTE SECTION

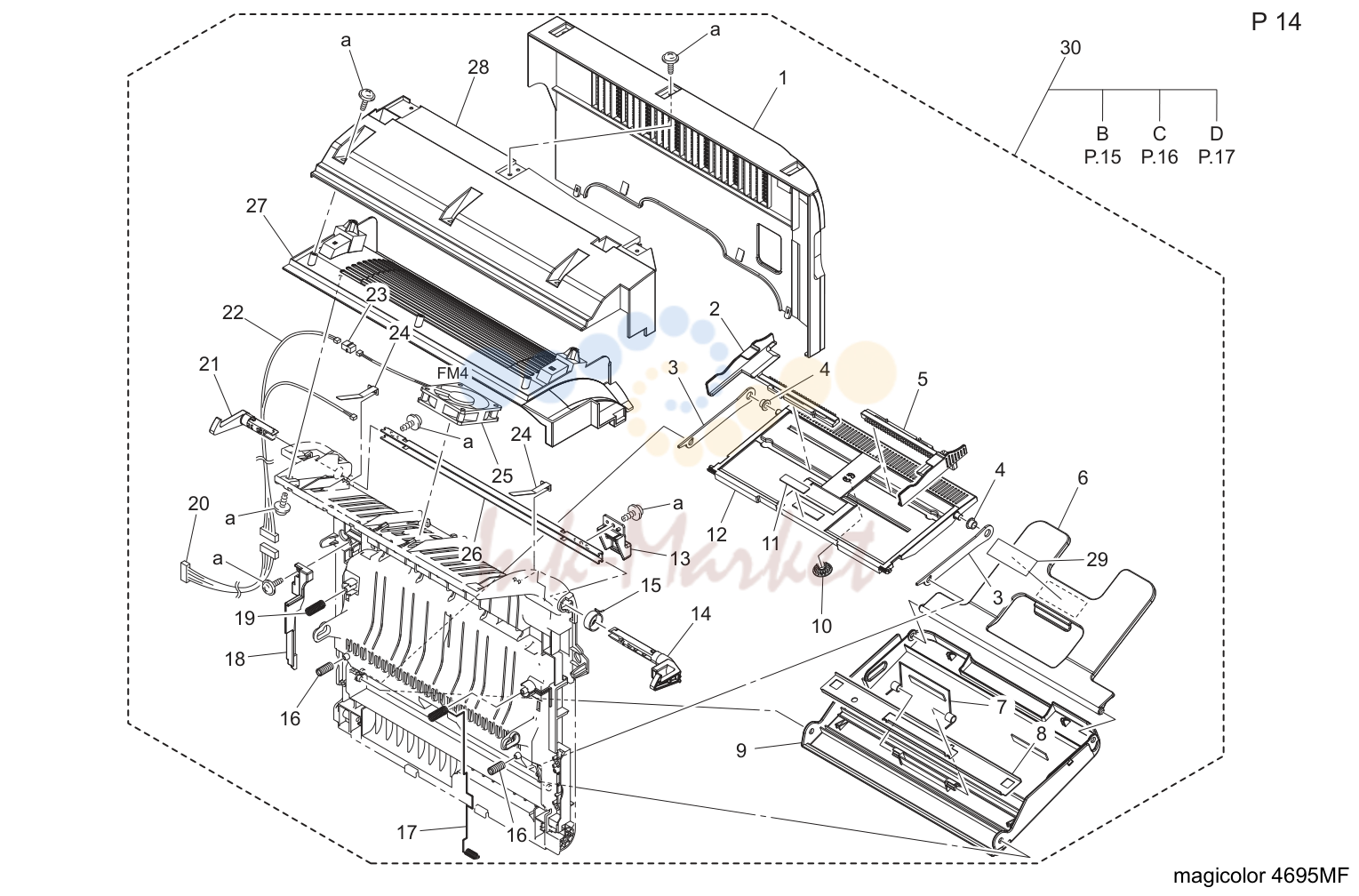

16. VERTICAL CONVEYANCE SECTION

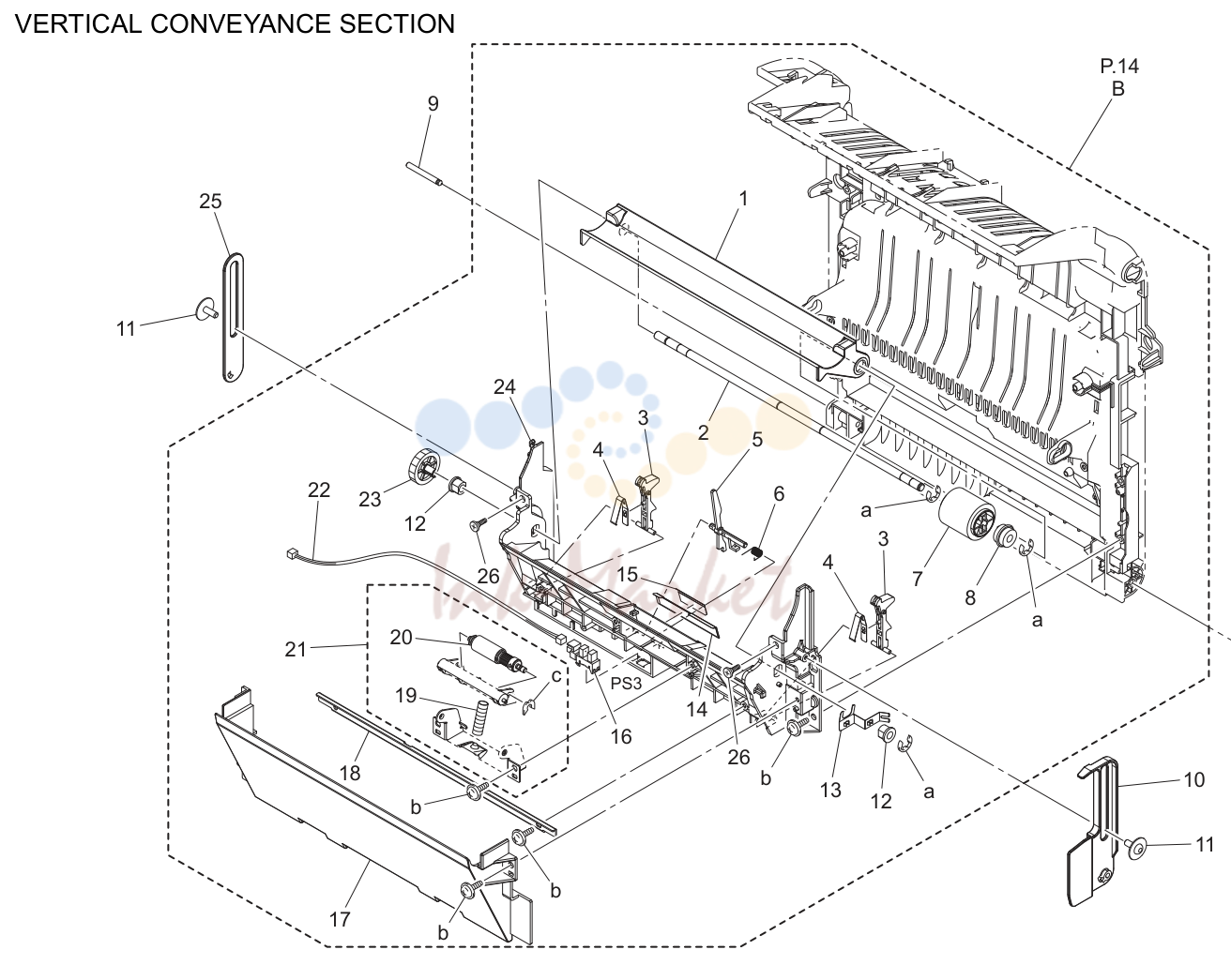

17. VERTICAL CONVEYANCE SECTION

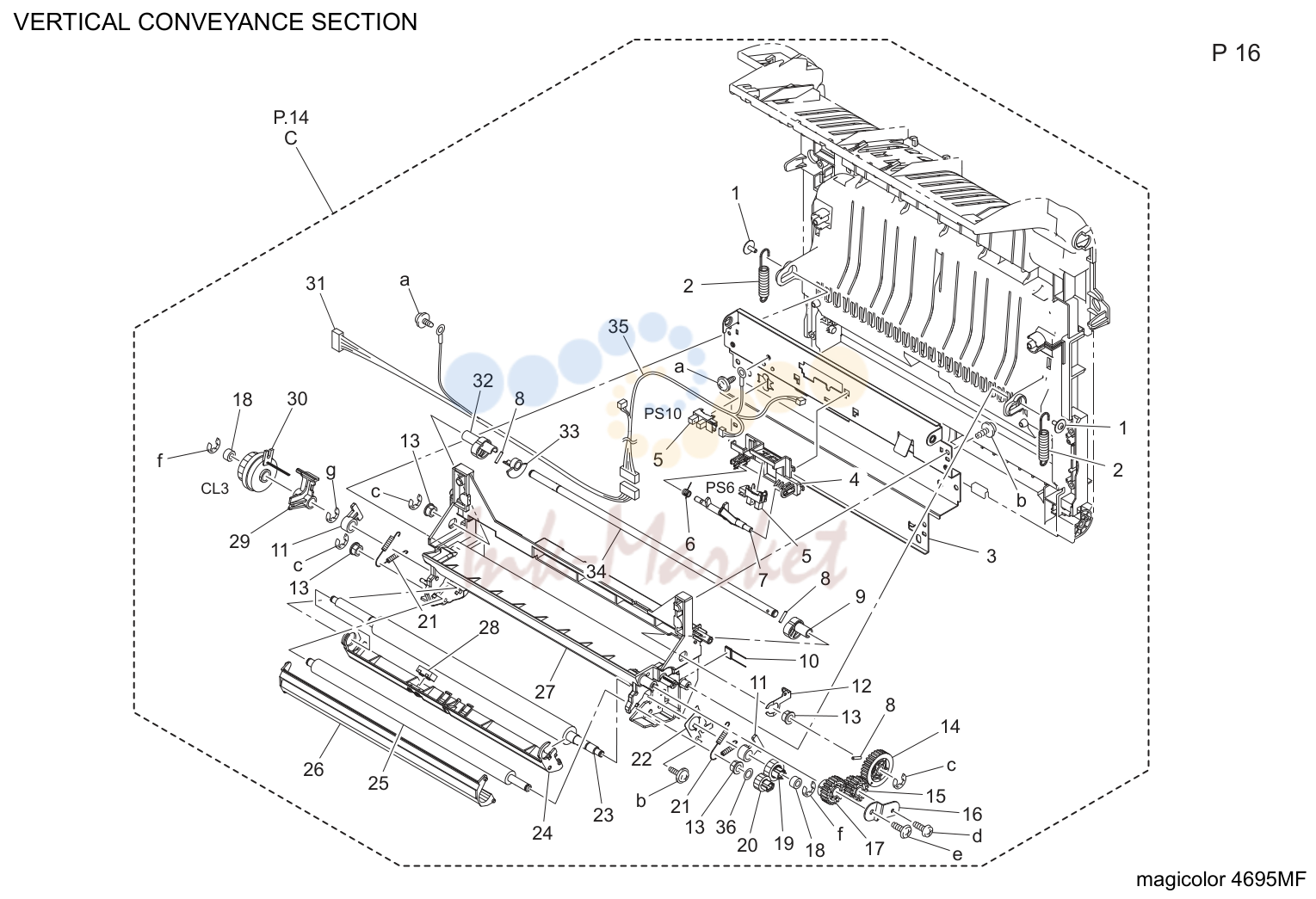

18. VERTICAL CONVEYANCE SECTION

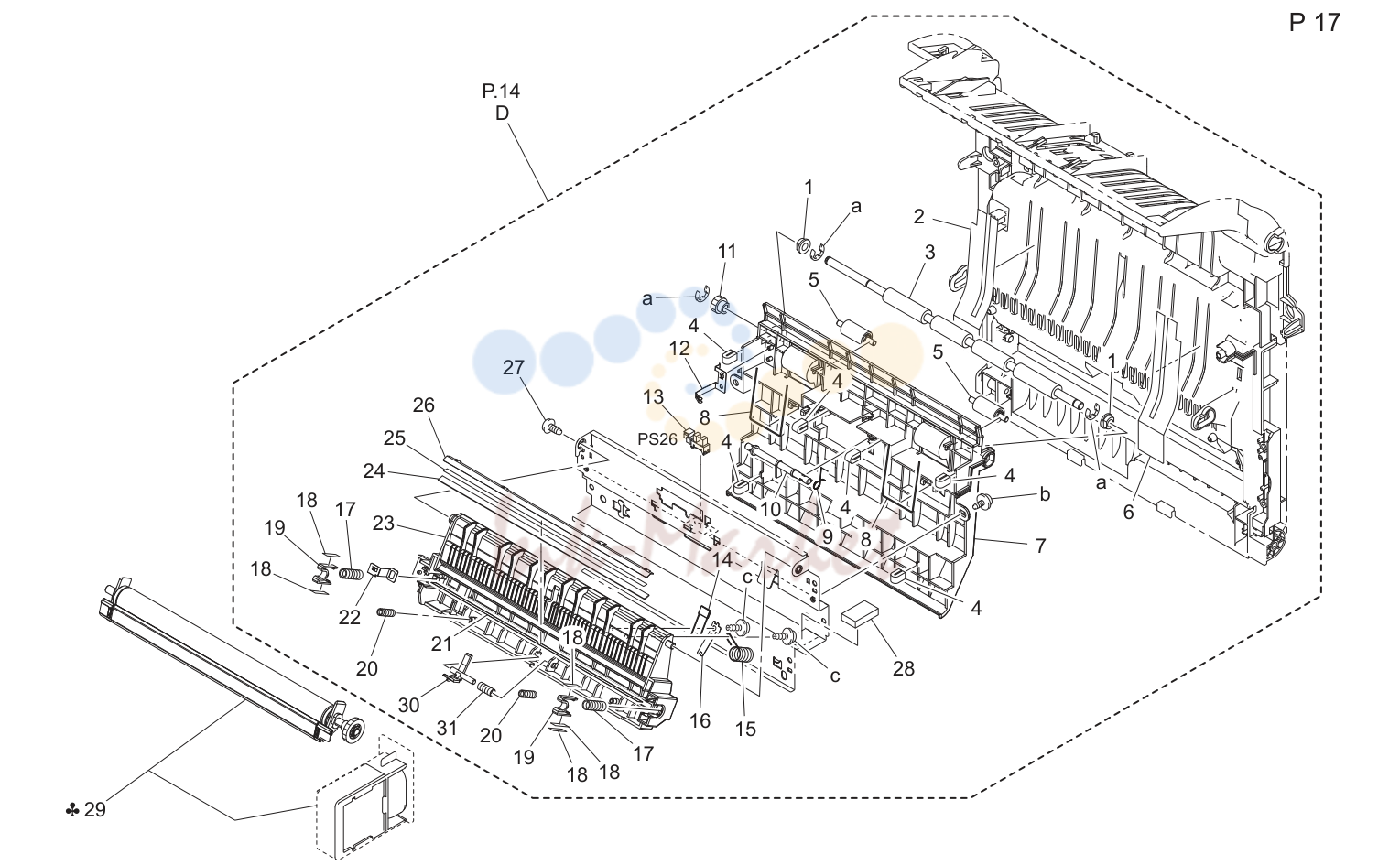

19. VERTICAL CONVEYANCE SECTION

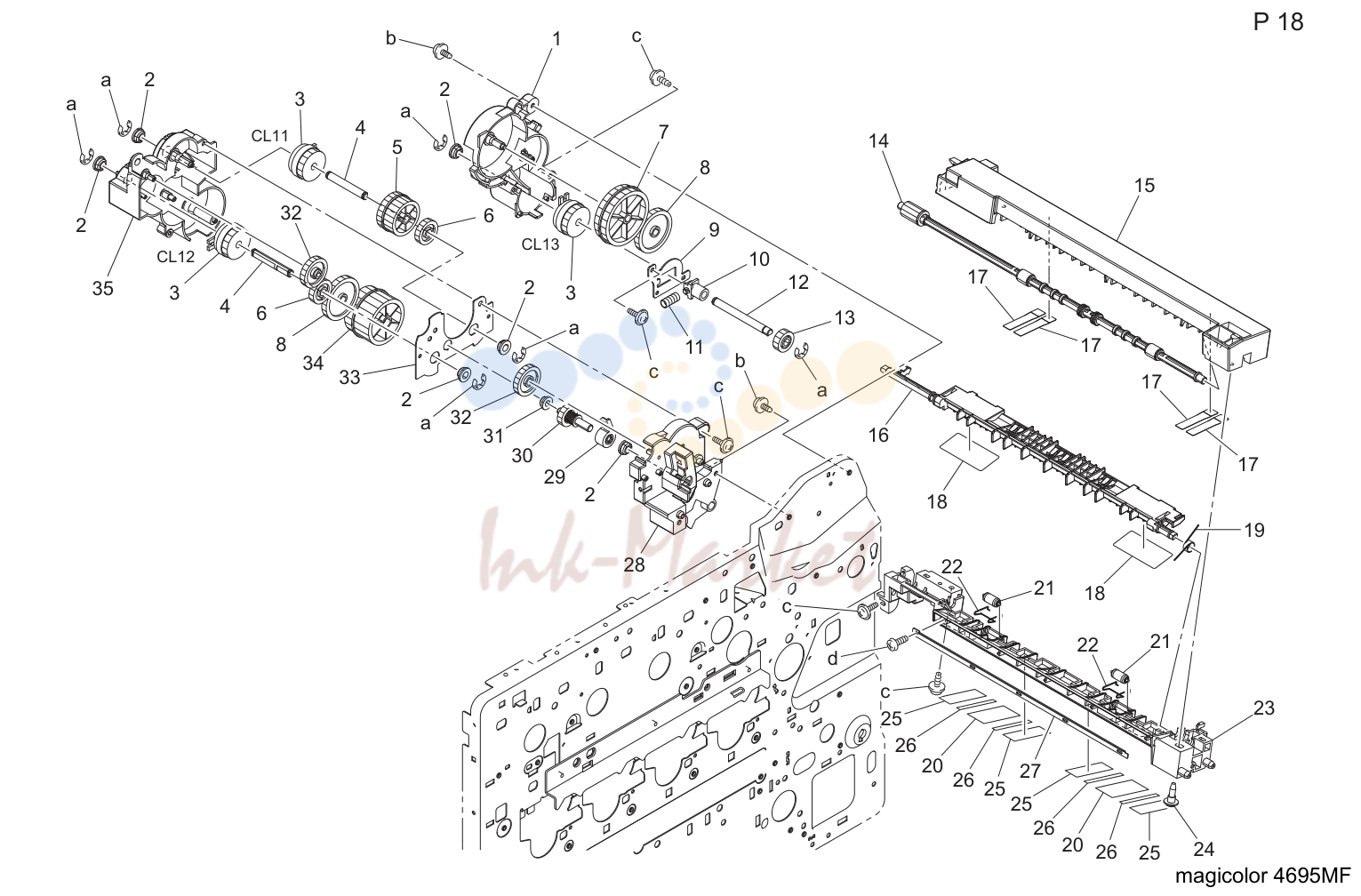

20. SWITCH BACK SECTION

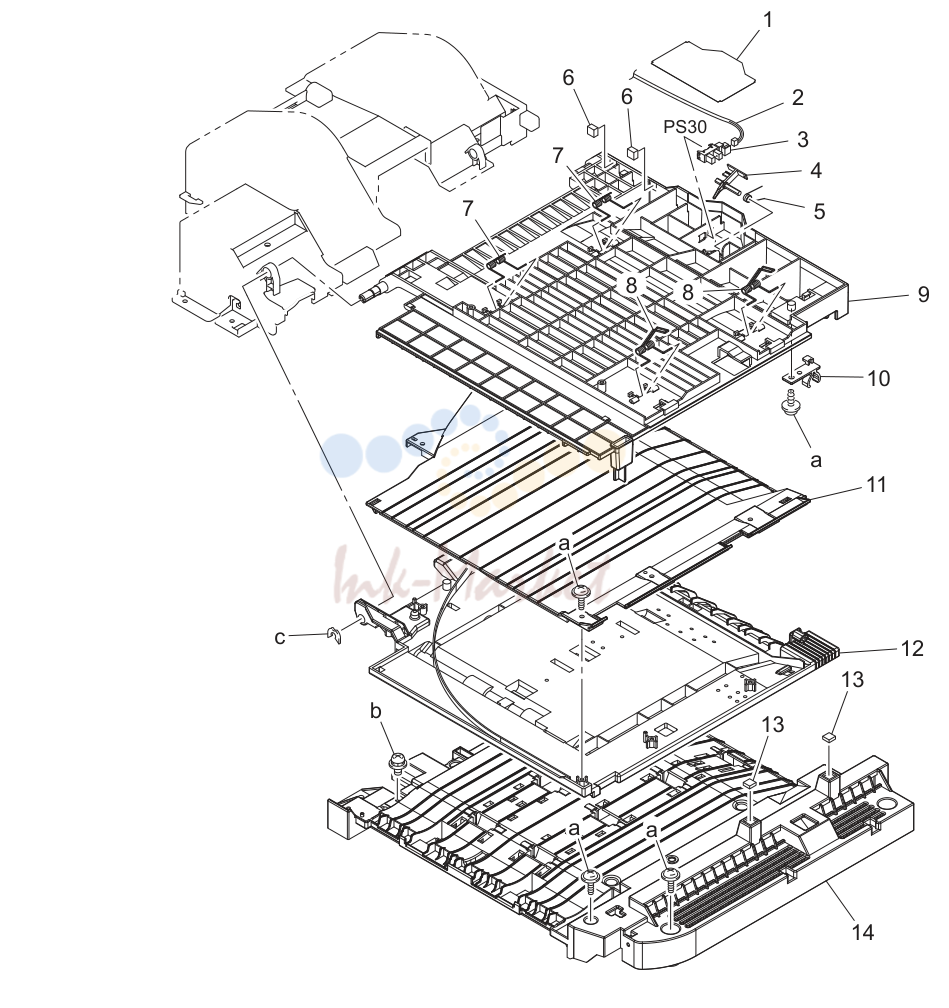

21. HORIZONTAL TRANSPORT UNIT

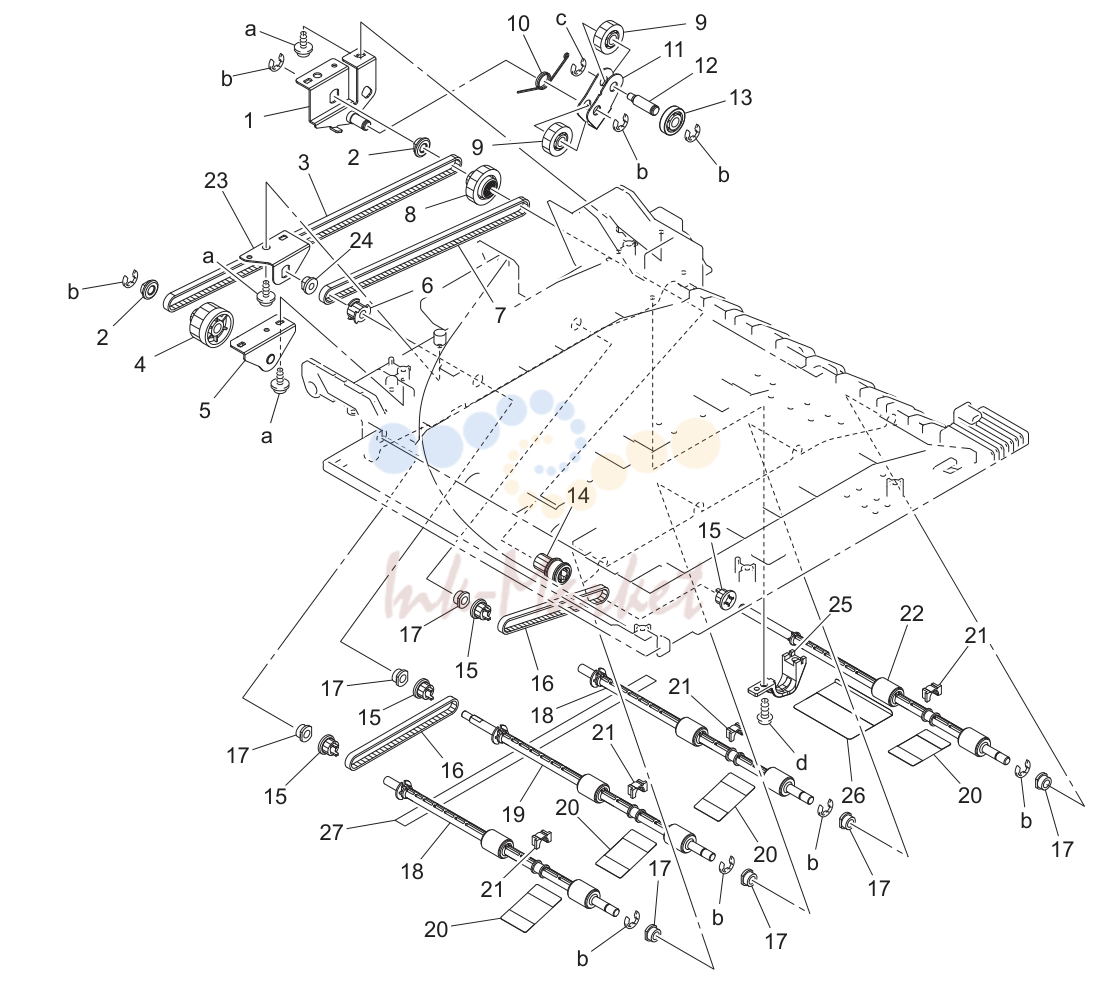

22. HORIZONTAL TRANSPORT UNIT

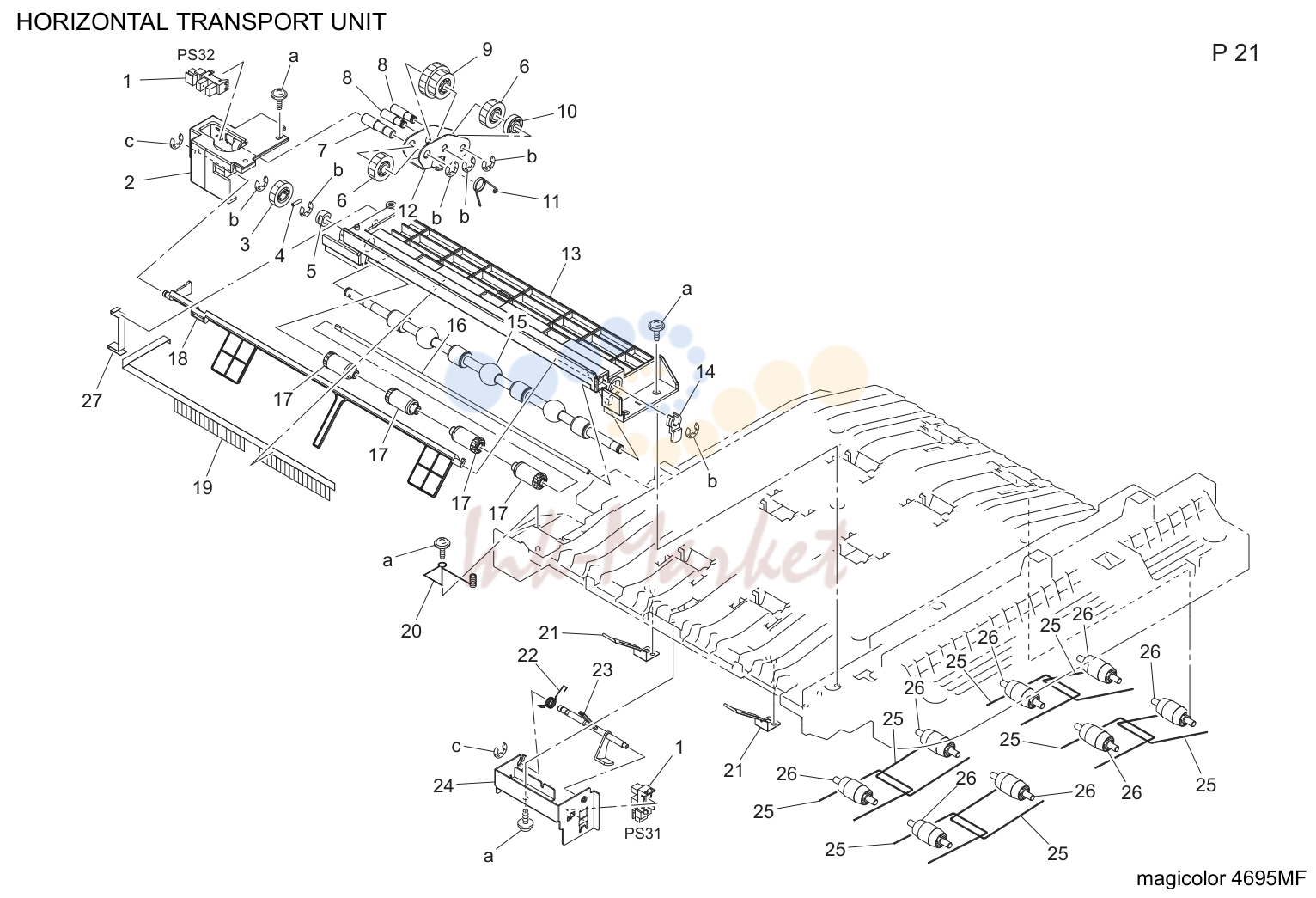

23. HORIZONTAL TRANSPORT UNIT

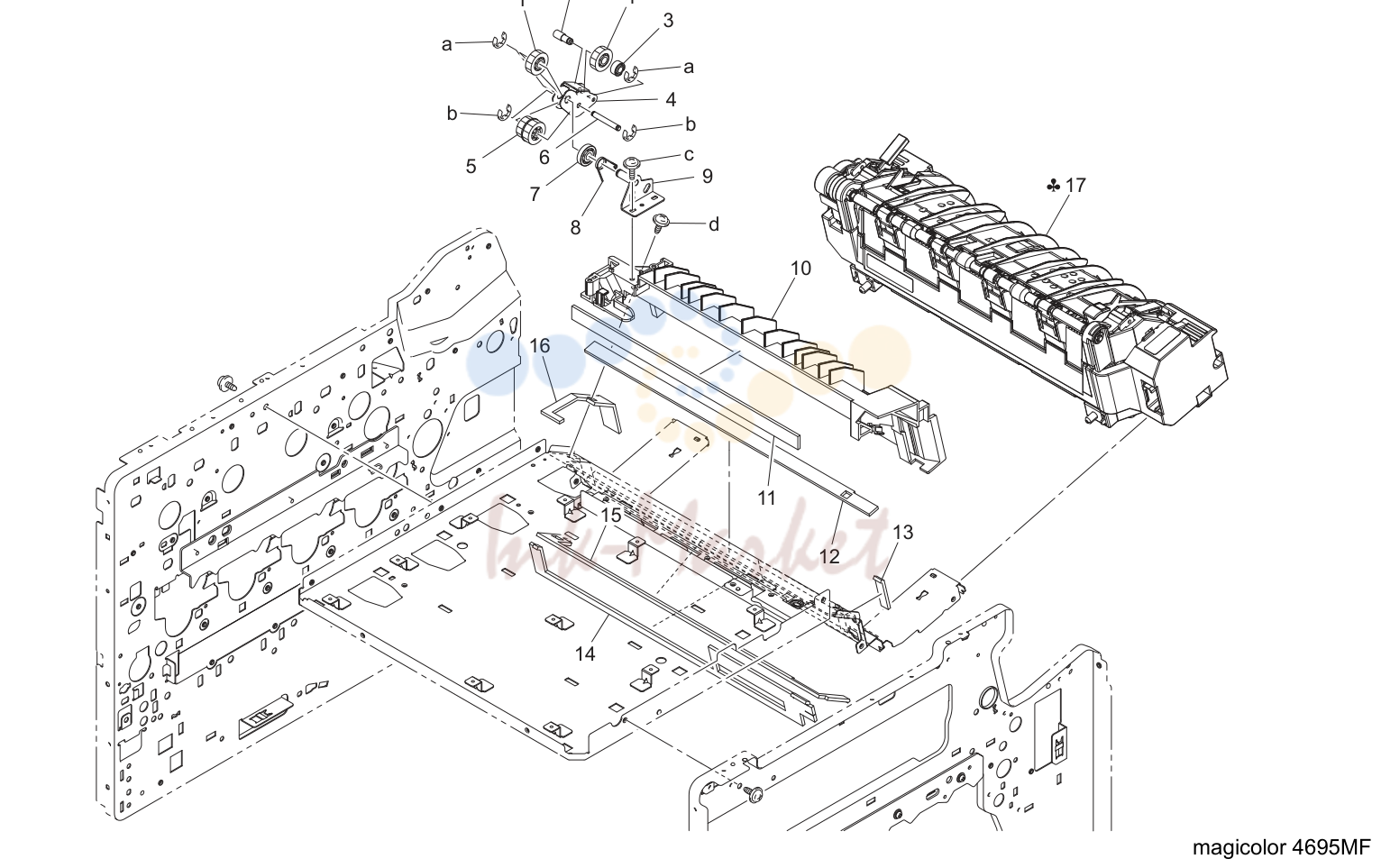

24. FUSING SECTION

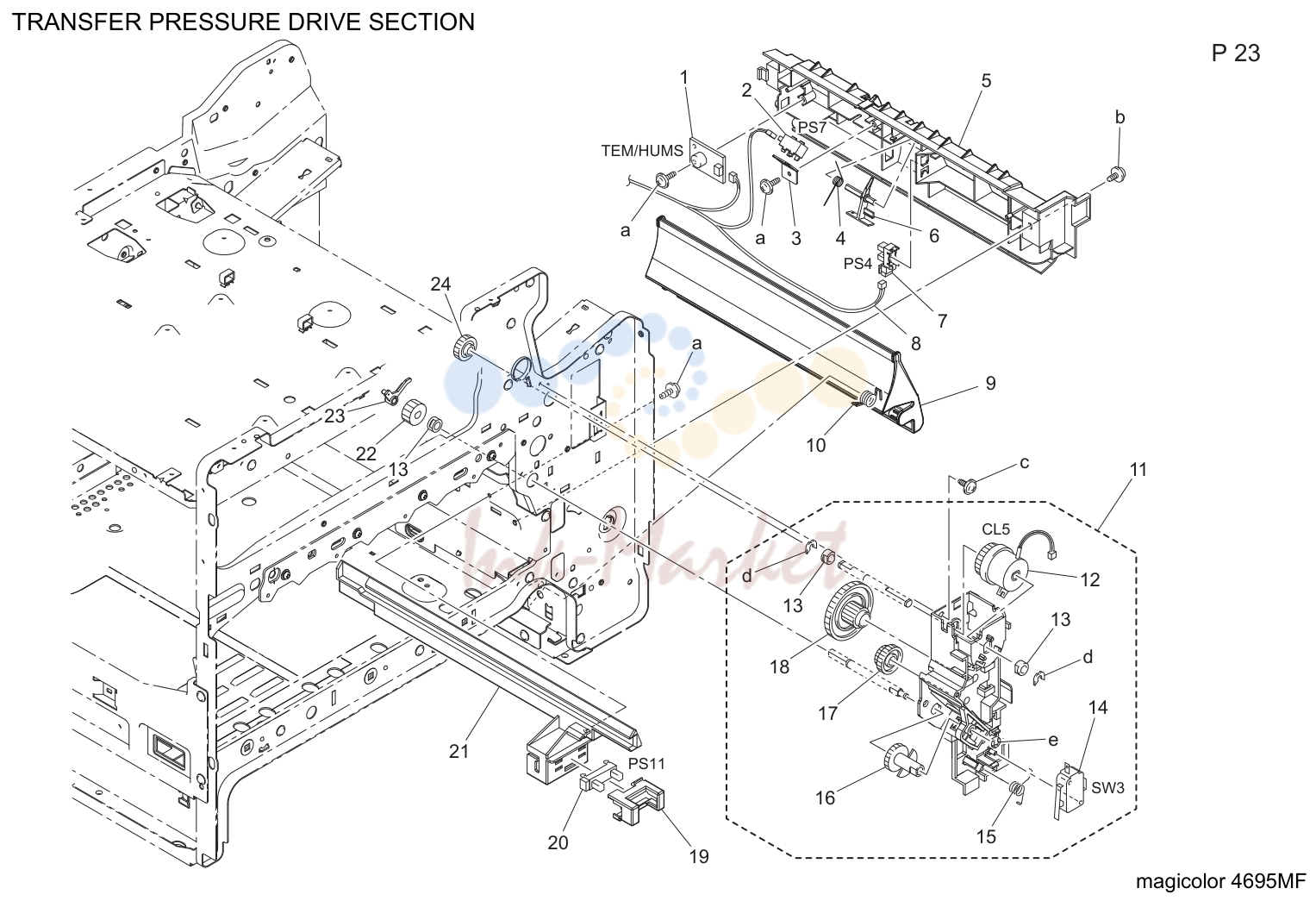

25. TRANSFER PRESSURE DRIVE SECTION

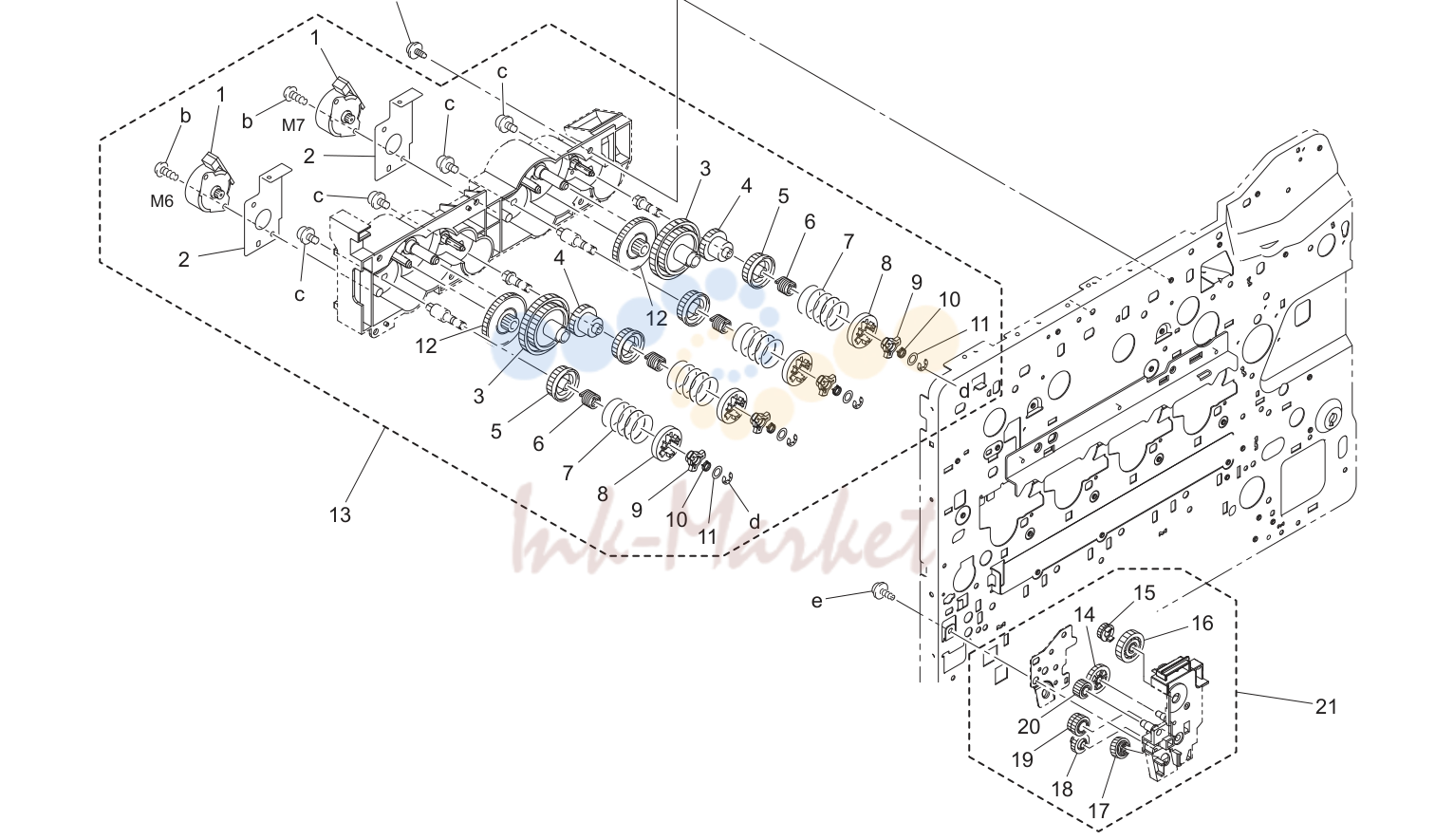

26. HOPPER DRIVE SECTION

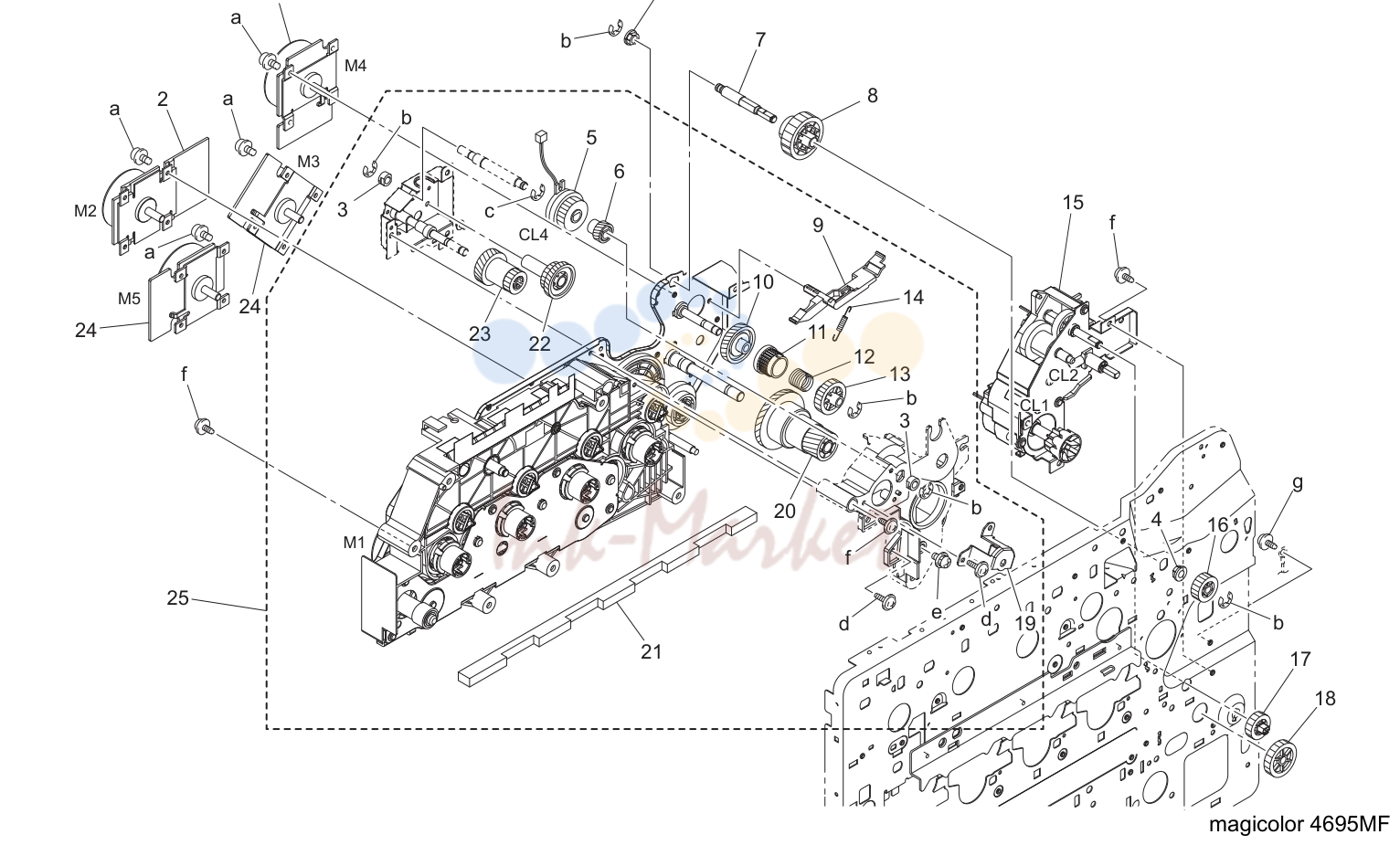

27. MAIN DRIVE SECTION

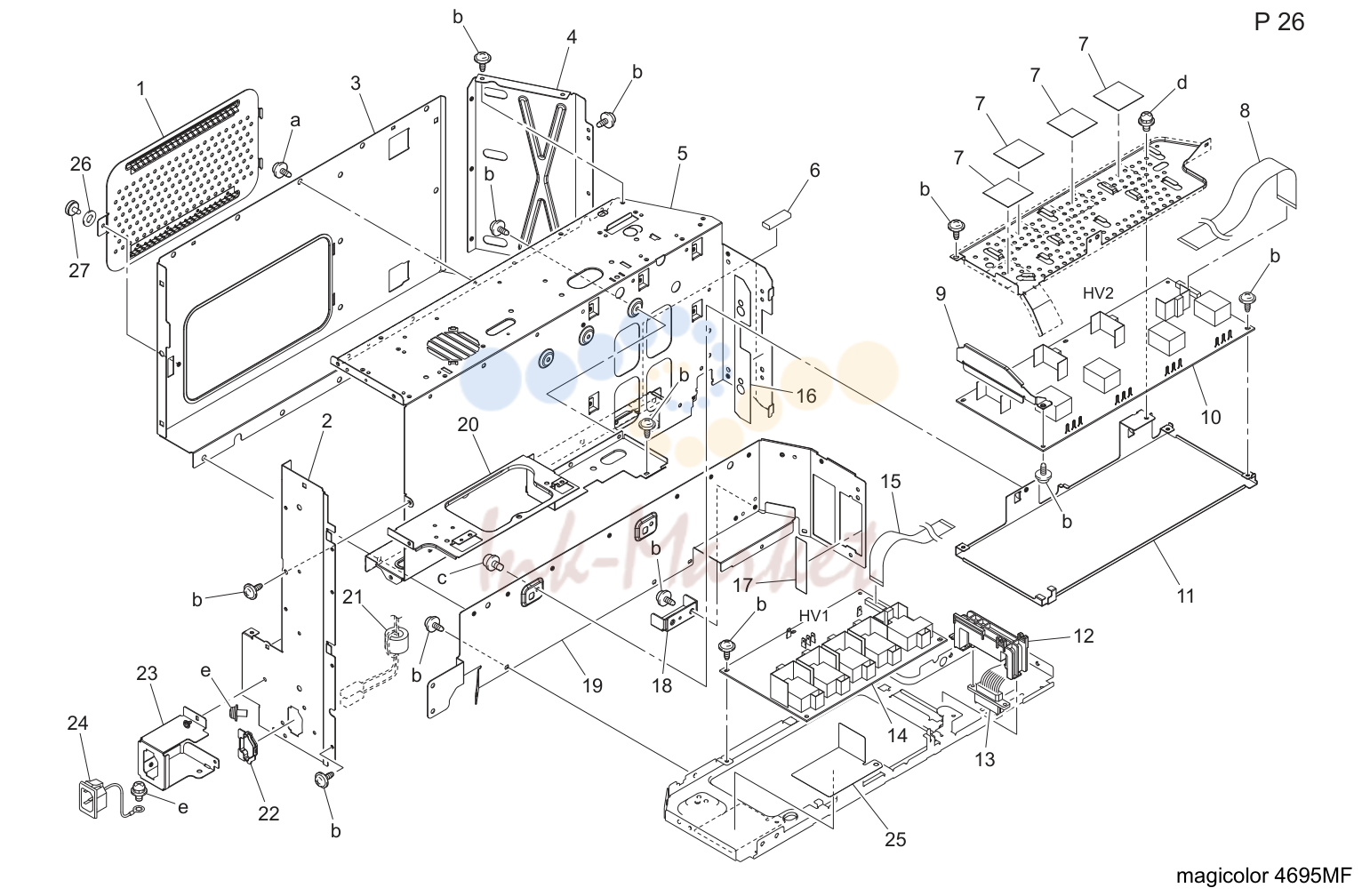

28. ELECTRICAL COMPONENTS
29. ELECTRICAL COMPONENTS
30. ADF UNIT
31. ADF TRANSPORT SECTION
32. ADF TRANSPORT SECTION
33. ADF TRANSPORT SECTION
34. ADF TRANSPORT SECTION
35. ADF TRANSPORT SECTION
36. ADF TRANSPORT SECTION
37. ADF TRANSPORT SECTION
38. ADF TRAY SECTION
39. ADF FRAME SECTION
40. WIRING ACCESSORIES AND JIGS
41. ACCESSORY PARTS
42. MAINTENANCE LIST 1/1

1. INFORMATION FOR PARTS GUIDE MANUAL

№	Артикул	Наименование
1		When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures.
2		For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and
3		In order to maintain safety of the product, some specific parts composed of this product are set up as "essential safety parts".
4		The assigned parts number for the "essential safety parts" is indicated as "SP00-****".
5		means that there are exclusive parts for each destination.
6		Revision Mark
7		All rights reserved. (any reprints or quotations are prohibited.)
1		PRINTER COLOR magicolor 4695MF
2		PAPER FEEDER SPCU
3		OTHER OPTION Hard Disk Kit
4		OTHER OPTION CF Adaptor

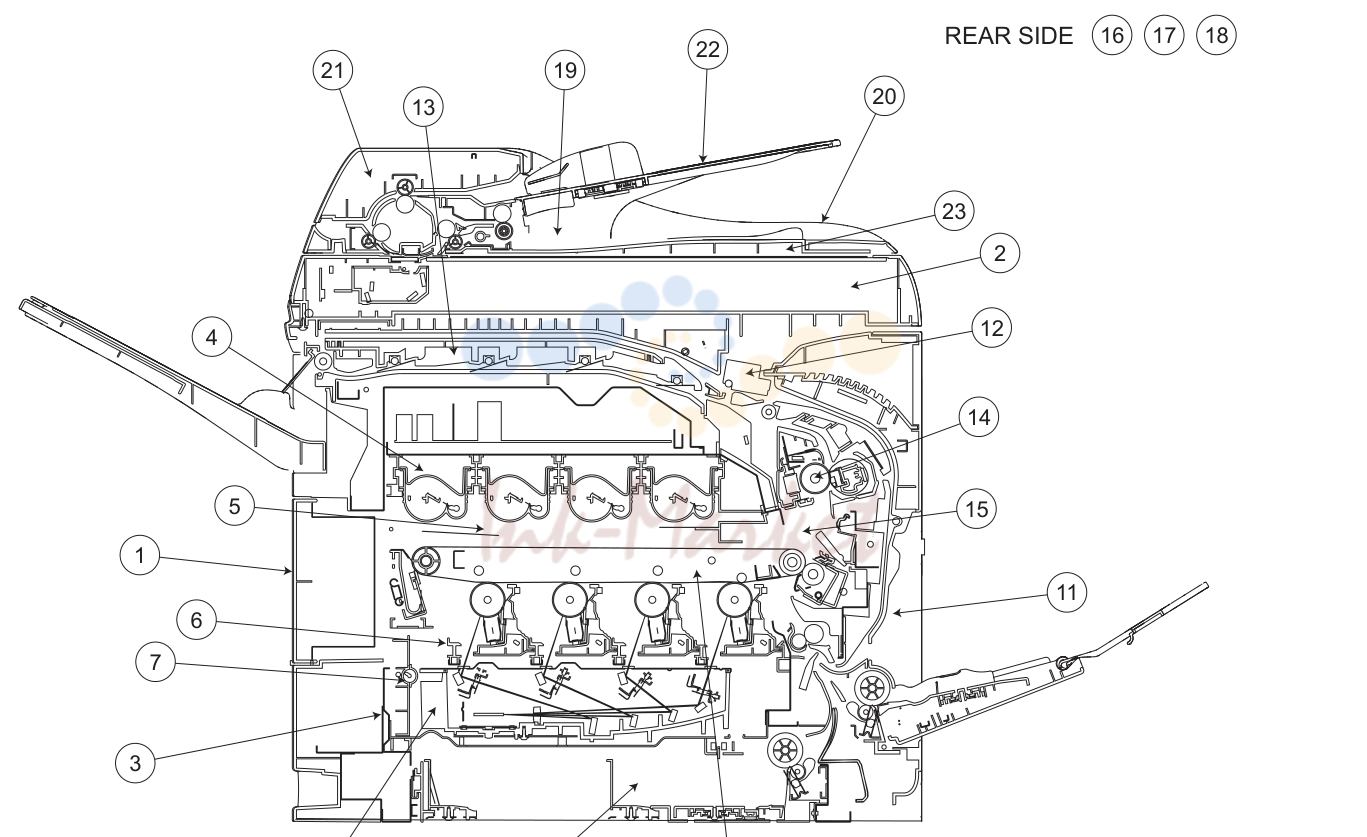

2. DIAGRAM OF MAIN PARTS SECTION

№	Артикул	Наименование
1		EXTERNAL PARTS P1
2		IR SECTION P2 P3 P4
3		MAIN FRAME SECTION P5
4		T/C RAIL SECTION P6
5		I/U CONTACT SECTION P7
6		I/U RAIL SECTION P8
7		WASTE TONER TRANSPORT SECTION P9
8		TRANSFER BELT UNIT P10
9		PRINT HEAD SECTION P11
10		CASSETTE SECTION P12 P13
11		VERTICAL CONVEYANCE SECTION P14 P15 P16 P17
12		SWITCH BACK SECTION P18
13		HORIZONTAL TRANSPORT UNIT P19 P20 P21
14		FUSING SECTION P22
15		TRANSFER PRESSURE DRIVE SECTION P23
16		HOPPER DRIVE SECTION P24
17		MAIN DRIVE SECTION P25
18		ELECTRICAL COMPONENTS P26 P27
19		ADF UNIT P28
20		ADF TRANSPORT SECTION P29 P30 P31 P32 P33 P34 P35
21		ADF TRAY SECTION P36
22		ADF FRAME SECTION P37
23		WIRING P38 P39 P40
24		WIRING ACCESSORIES AND JIGS P41
25		ACCESSORY PARTS P42

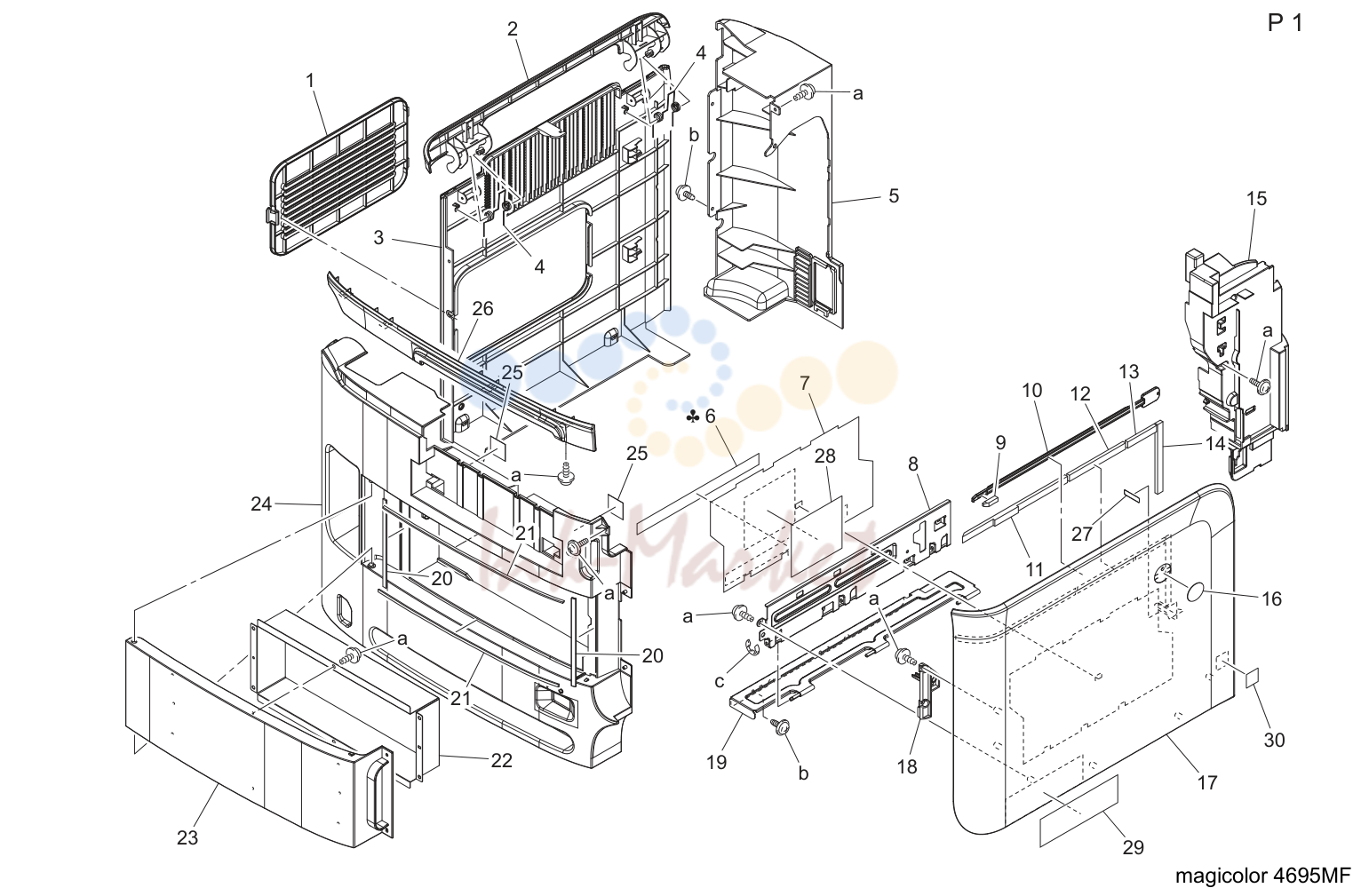

3. EXTERNAL PARTS

№	Артикул	Наименование
1		A0FD 1530 00 Door C 1 a-V153
2		A0FD 1653 01 Cover C 1 b-V137
3		A0FD 1611 02 Rear Cover C 1 c-V217
4		A0FD 1654 00 Torsion spring C
5		A0FD 1603 01 Cover C
6		A00F 9422 00 Label Consumables Reorder B,H C
6		A00F 9423 00 Label Consumables Reorder C C
6		A00F 9424 00 Label Consumables Reorder D1,D3,K C
6		A00F 9425 00 Label Consumables Reorder J C
7		A00F 9401 00 Label I/U Set C
8		A00F 1630 02 Reinforce plate D
9		4138 2018 02 CLEANING PAD S
10		A011 1901 00 CLANING MATERIAL D
11		A0FD 1659 00 Seal C
12		A0FD 1660 00 Seal C
13		A0FD 1662 00 Seal C
14		A0FD 1661 00 Seal C
15		A0FD 1606 02 Cover D
16		A00J 9455 00 Logo Mark C
17		A0FD 1604 02 Front Cover C
18		4138 1034 02 LEVER C
19		A00F 1618 03 Hinge D
20		A0FD 1657 00 Seal C
21		A0FD 1658 00 Seal C
22		A0FD 1655 00 Bracket D
23		A0FD 1651 01 Cover C
24		A0FD 1602 01 Left Cover C
25		A0FD 1656 00 Seal C
26		A0FD 1652 01 Cover C
27		A011 1635 00 SEAL C
28		A0FD 9451 00 Label Adjustment C
29		A0FD 9402 00 Label magicolor4695MF C
30		A011 9462 00 Label Emperon D

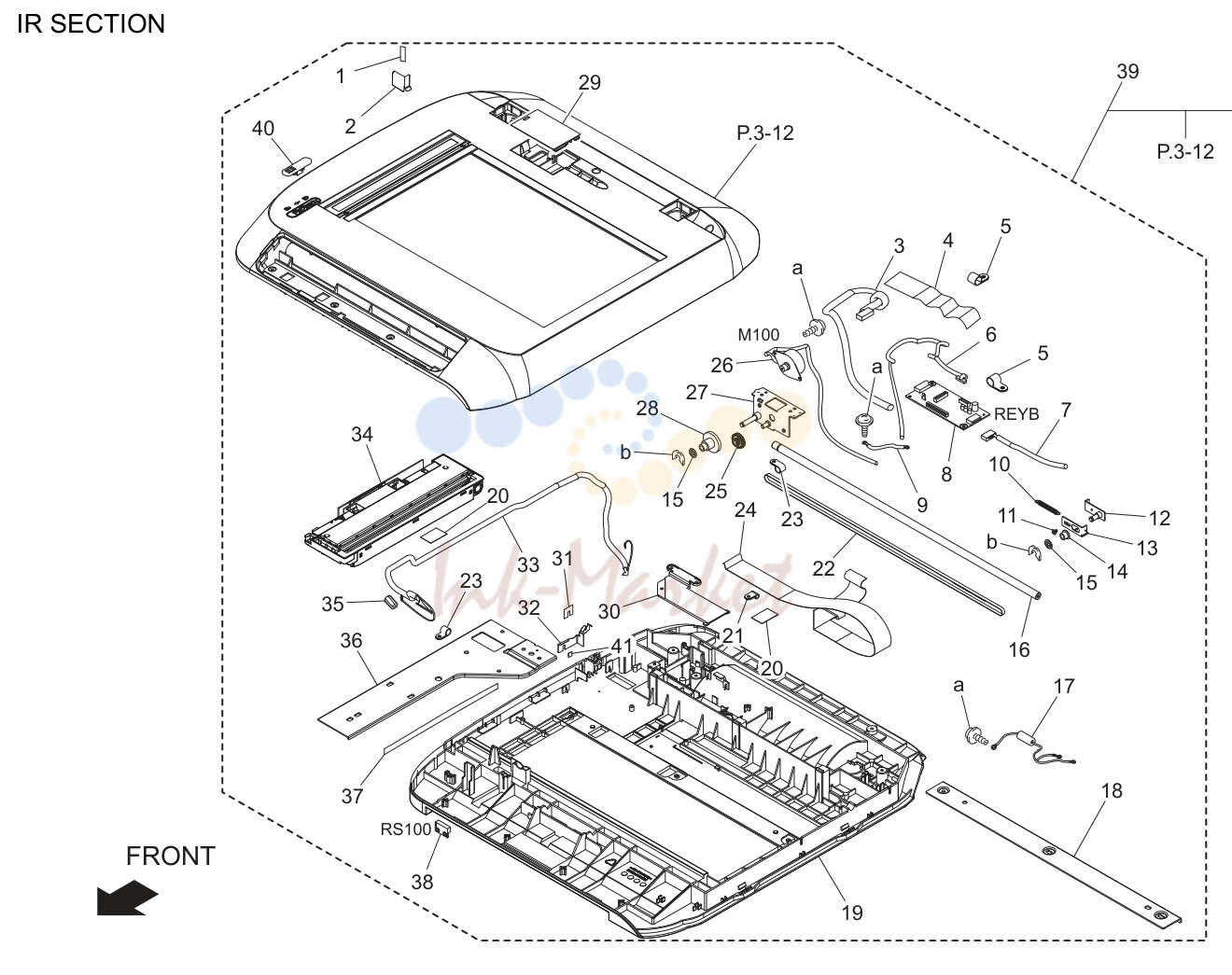

4. IR SECTION

№	Артикул	Наименование
1		A0FD PP82 00 Tape C 1 a-V153
2		A0FD PP81 00 Plate Spring C 1 b-V217
3		A0FD PP6U 01 Wiring D
4		A0FD PP1D 00 Tape D
5		A0FD PP6G 00 Code clamp D
6		A0FD PP1N 01 Wiring D
7		A0FD PP1M 01 Wiring D
8		A0FD PP2R 00 PWB ASSY C
9		A0FD PP50 00 Ground D
10		A0FD PP29 00 Tension Spring C
11		1492 1045 01 SCREW C
12		A0FD PP6C 00 Bracket D
13		A0FD PP1T 00 Bracket D
14		A0FD PP5W 00 Roll C
15		A0FD PP6J 00 Collar D
16		A0FD PP6F 00 Shaft D
17		A0FD PP3M 01 Ground D
18		A0FD PP6P 01 Bracket D
19		A0FD PP06 00 Frame D
20		A0FD PP83 00 Tape C
21		A0FD PP1Q 00 Code clamp D
22		A0FD PP6T 00 Timing Belt C
23		A0FD PP0D 00 Code clamp D
24		A0FD PP0F 01 Flatcable D
25		A0FD PP4T 00 Gear 19/40T C
26		A0FD PP6S 00 Motor C
27		A0FD PP6R 00 Bracket D
28		A0FD PP0K 00 Gear 16/51T C
29		A0FD PP0R 00 Cover/ADF C
30		A0FD PP6B 00 Cover D
31		A0FD PP80 00 Tape C
32		A0FD PP79 00 Plate Spring C
33		A0FD PP1E 01 Wiring D
34		A0FD PP5N 00 Exposure unit I
35		A0FD PP84 00 Ferritr Core D
36		A0FD PP3N 00 Bracket D
37		A0FD PP78 00 Tape C
38		A0FD PP08 00 Reed Switch C
39		A0FD R702 00 OPTICAL UNIT S
40		A0FD PP6V 00 Lever C
41		A0FD PP86 00 SEAL C

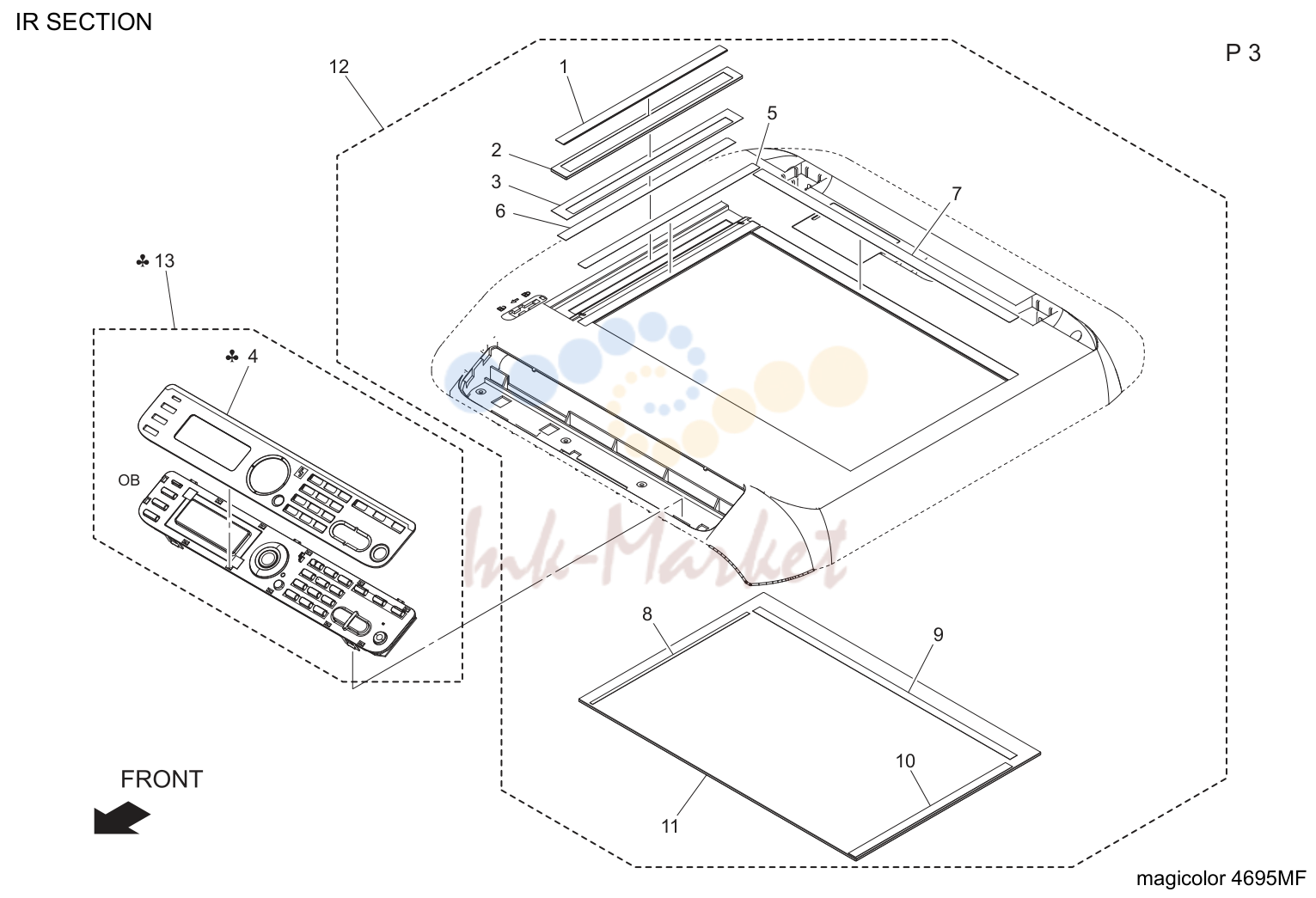

5. IR SECTION

№	Артикул	Наименование
1		A0FD PP85 00 Plate C
2		A0FD PP05 00 Original Glass/ADF C
3		A0FD PP6Q 00 Tape C
4		A0FD PP73 00 Panel Sheet(EN) B,C,D1,D3,H,K C
4		A0FD PP75 00 Panel Sheet(CN) J C
5		A0FD PP5X 01 Scale/CD C
6		A0FD PP51 00 Sheet C
7		A0FD PP07 01 Scale/FD C
8		A0FD PP00 00 Tape C
9		A0FD PP0P 00 Tape C
10		A0FD PP0S 00 Tape C
11		A0FD PP04 00 Original Glass C
12		A0FD PP5P 00 Cover/IR C
13		A0FD M706 02 Panel assembly B,C,D1,D3,H,K I
13		A0FD M707 02 Panel assembly J I

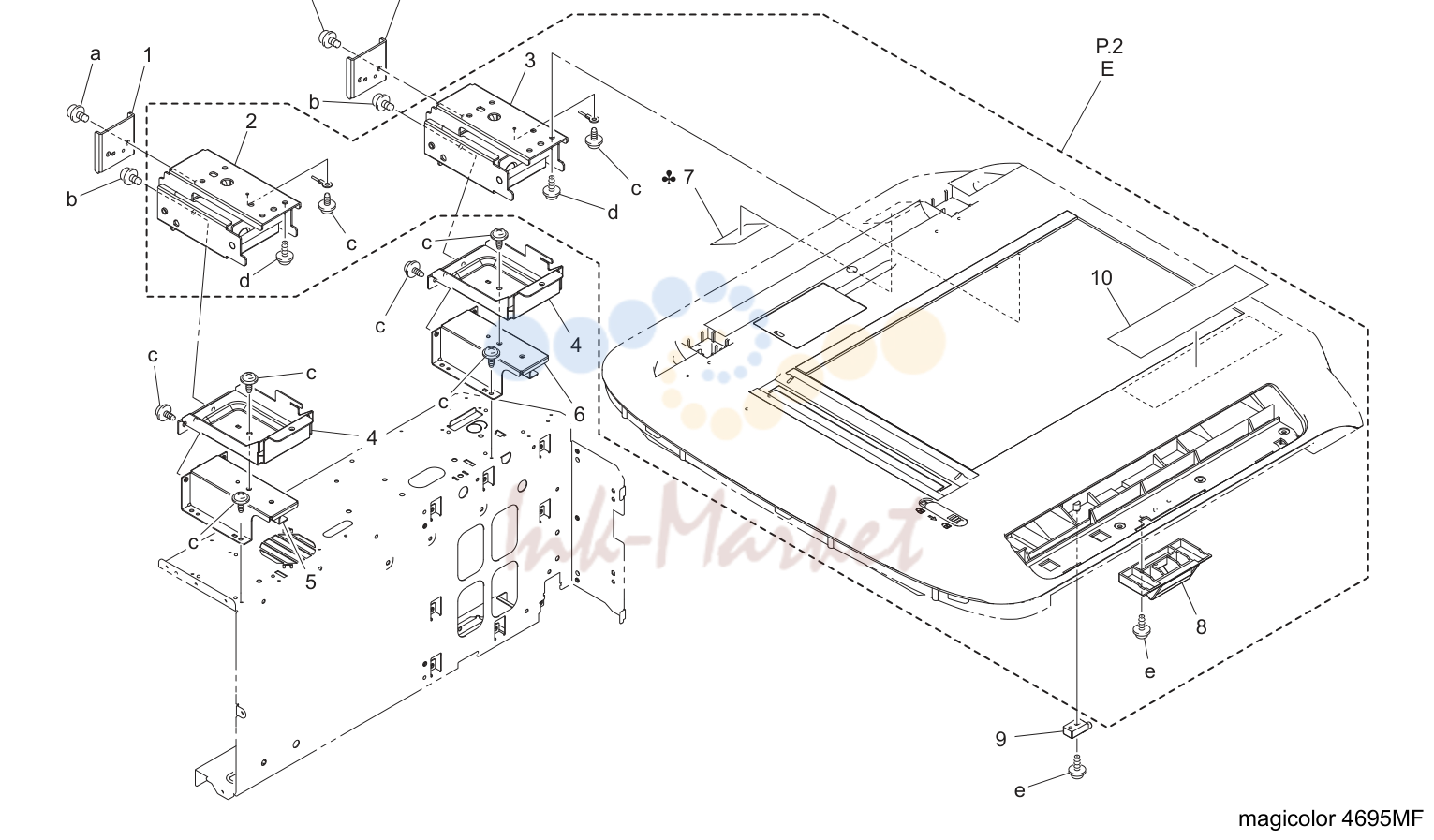

6. IR SECTION

№	Артикул	Наименование
1		A0FD 1262 00 Stopper D 2 a-V116
2		A0FD 1260 01 Hinge C 1 b-V116
3		A0FD 1261 01 Hinge C 1 c-V137
4		A0FD 1252 00 Bracket D 2 e-V153
5		A0FD 1257 00 Bracket D
6		A0FD 1256 00 Bracket D
7		4556 9439 00 Label B,H C
8		A0FD 1281 00 Holder C
9		A0FD 8946 00 Holder D
10		A00J 9401 00 Label Legal Restiriction C

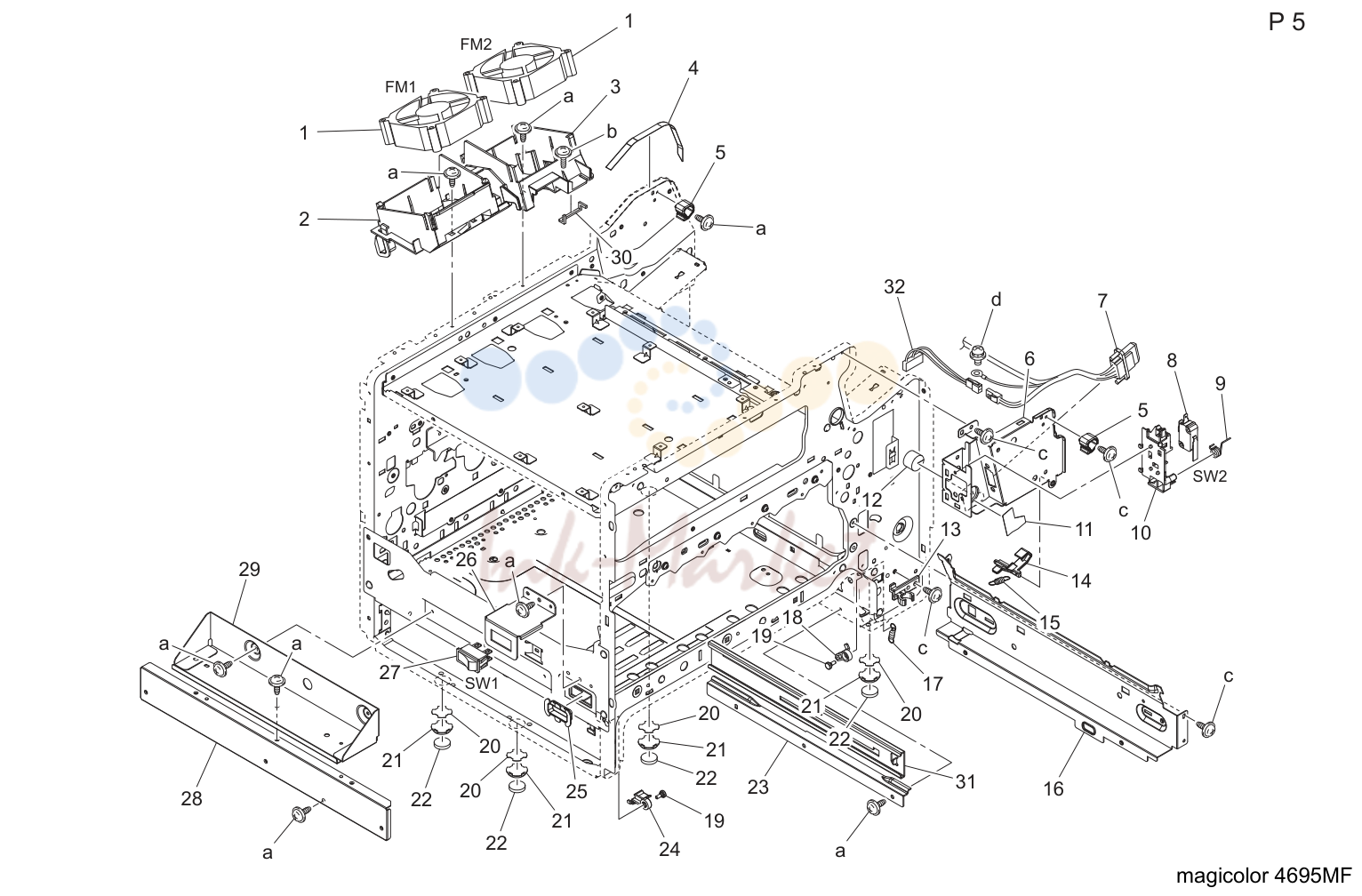

7. MAIN FRAME SECTION

№	Артикул	Наименование
1		A011 M104 00 FAN MOTOR C 2 a-V137
2		A00F 1308 00 Duct D 1 b-V153
3		A0FD 1204 00 Duct D 1 c-V144
4		A00F 1624 00 Seal C
5		A00F 1084 00 Holder C
6		A00F 1008 01 Reinforce plate D
7		A0FD N102 00 Fixing Wiring /3 D
8		9J06 M601 00 MICRO SWITCH C
9		4138 2248 01 TORSION SPRING C
10		4138 2247 02 BRACKET D
11		A00F 1117 01 Seal C
12		A00F 1118 00 Seal C
13		4002 3123 03 HOLDER D
14		A00F 1011 00 Lever C
15		A00F 1012 00 Tension spring C
16		4138 2034 02 RAIL D
17		A00F 1023 00 Tension spring C
18		A00F 1021 00 Claw C
19		4036 5765 01 SHOULDER SCREW C
20		A0FD 1231 00 Tape D
21		A0FD 1230 00 Spacer D
22		4128 2019 01 RUBBER FOOT D
23		A00F 1022 00 Rail D
24		A00F 1020 00 Claw C
25		A0FD 1560 00 Edge cover D
26		A0FD 1526 00 Bracket D
27		0993 6303 01 SWITCH C
28		A0FD 1227 00 Bracket D
29		A0FD 1220 00 Reinforce plate D
30		A00F 1145 00 Seal C
31		A00F 6205 01 Rail D
32		A0FD N103 00 Fixing Wiring /4 D

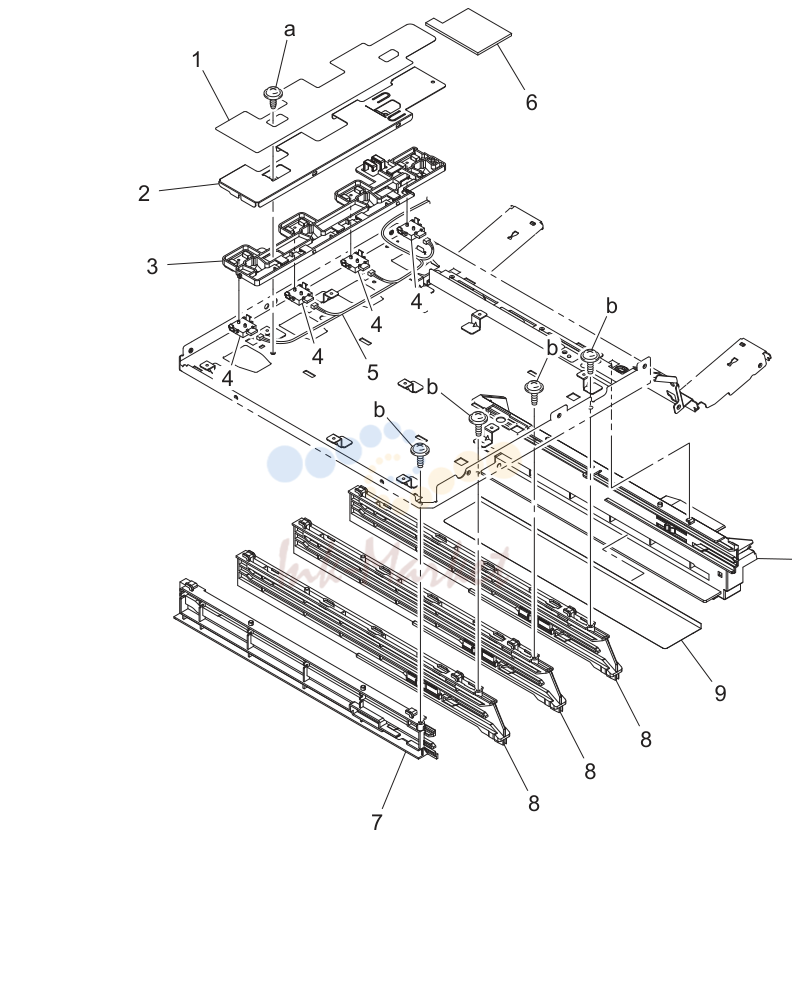

8. T/C RAIL SECTION

№	Артикул	Наименование
1		A0FD 1508 01 Seal D 1 a-V137
2		A0FD 1509 00 Cover D 1 b-V153
3		A011 1304 01 BRACKET C 1 c-V217
4		4136 6751 01 CONNECTOR PIN D
5		A011 N110 00 WIRE HARNESS ASSY D
6		A00F 1134 00 Seal C
7		A011 1101 01 RAIL D
8		A011 1102 01 RAIL D
9		A011 1116 02 Protection C
10		A00F 1103 01 Rail D
11		A011 N10G 00 WIRE HARNESS ASSY D
12		4138 0104 02 PWB ASSY I
13		4138 2246 01 EARTH GROUND D
14		9335 1300 61 PHOTO INTERRUPTER B
15		A00F 9402 00 Label I/U Position D
16		4138 2088 02 COVER D
17		A00F 1013 00 Lever C
18		A00F 1302 00 Cover D
19		A0FD 1202 00 Duct D
20		A0FD 1280 00 Shaft D
21		A0FD 1277 01 Torsion Spring C
22		A0FD 1279 00 Tension spring C
23		A0FD 1276 00 Lever C
24		A0FD 1278 00 Bracket D
25		A00F 9403 01 Label T/C Position C

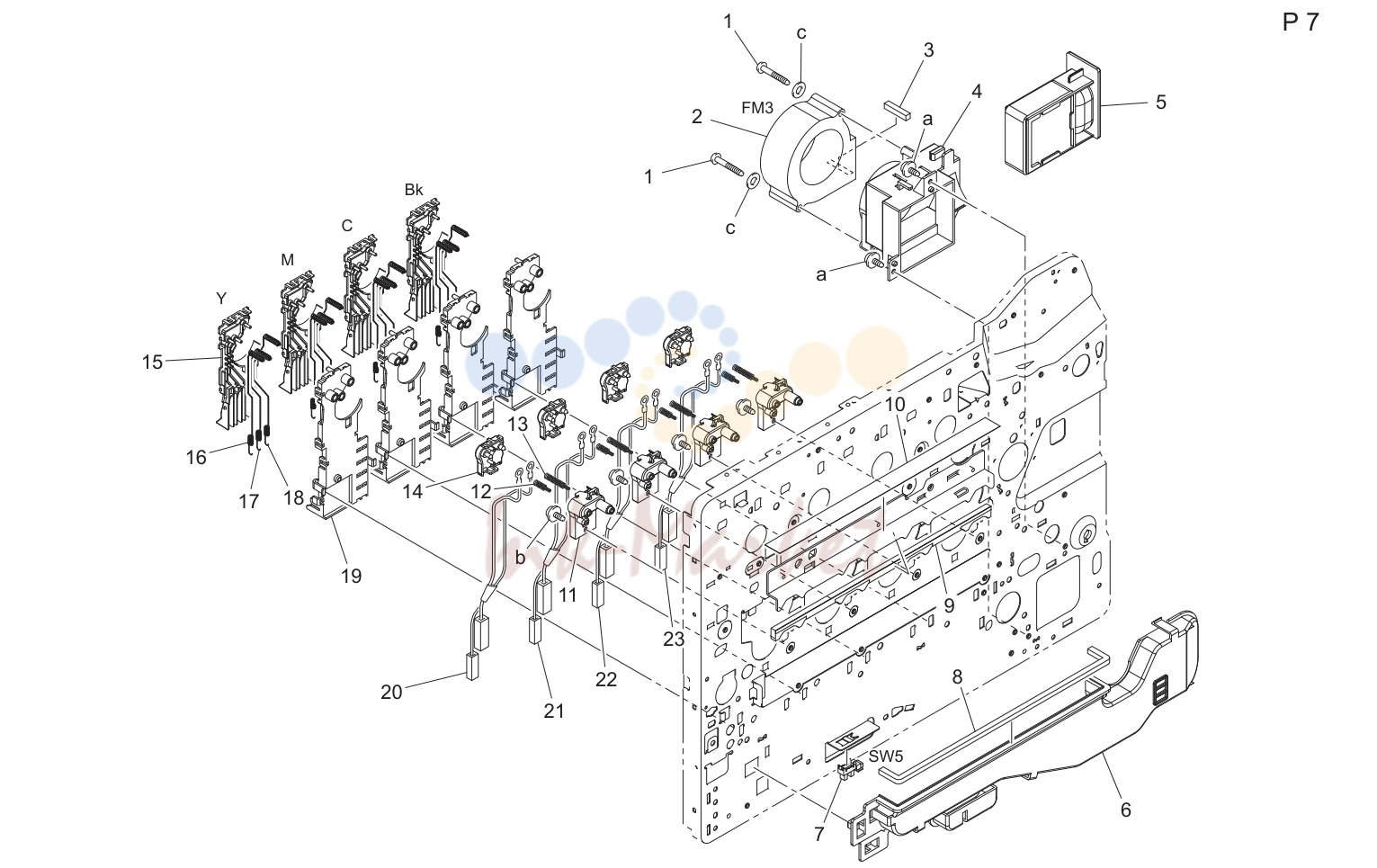

9. I/U CONTACT SECTION

№	Артикул	Наименование
1		4120 4614 01 SCREW C 2 a-V144
2		9313 1300 51 FAN MOTOR B 1 b-V137
3		4138 2117 01 SEAL D 1 c-V207
4		A00F 1121 01 Holder D
5		A00F R706 00 Filter C
6		A00F 1120 00 Duct D
7		9335 1300 61 PHOTO INTERRUPTER B
8		4138 2056 01 SEAL D
9		4138 2106 01 SEAL D
10		4138 2105 01 SEAL D
11		A011 4600 01 HOLDER D
12		4138 2236 02 PRESSURE SPRING C
13		A011 4604 00 PRESSURE SPRING C
14		A011 4601 00 HOLDER D
15		A011 4603 00 COVER C
16		4138 2225 01 CONTACT D
17		4138 2224 01 CONTACT D
18		4138 2226 01 CONTACT D
19		A011 4602 00 HOLDER D
20		A011 N10P 00 WIRE HARNESS ASSY D
21		A011 N10W 00 WIRE HARNESS ASSY D
22		A011 N10X 00 WIRE HARNESS ASSY D
23		A011 N10Y 00 WIRE HARNESS ASSY D

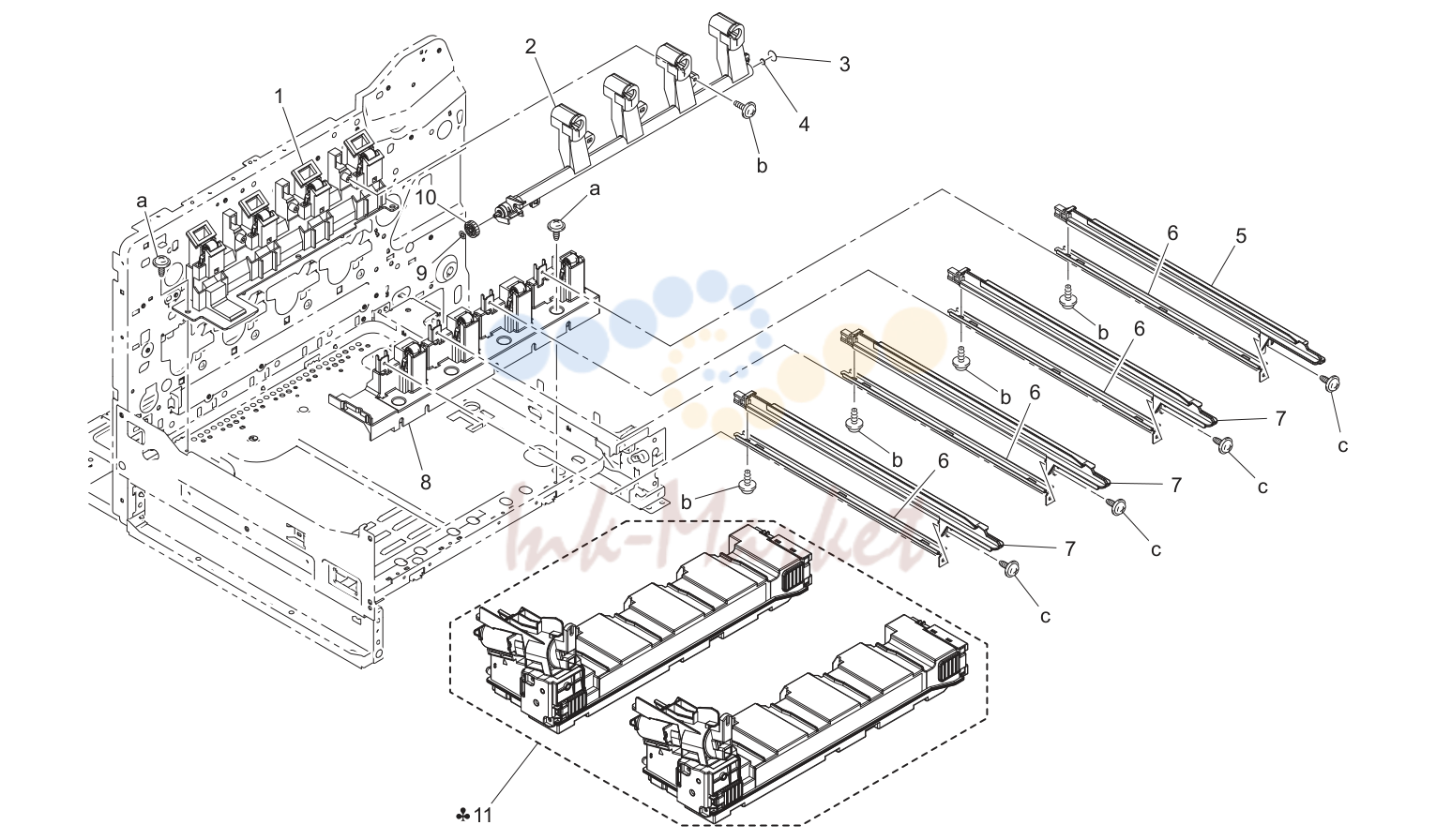

10. I/U RAIL SECTION

№	Артикул	Наименование
1		A011 A120 00 HOLDER ASSY C 1 a-V144
2		A011 A360 01 HOLDER ASSY D 1 b-V153
3		A011 3616 00 SEAL C 1 c-V137
4		A011 3646 00 SEAL C
5		A011 1107 00 RAIL D
6		A011 1109 00 REINFORCE PLATE D
7		A011 1106 00 RAIL D
8		A011 A110 00 HOLDER ASSY C
9		0910 3620 01 STOP RING D
10		A011 3608 00 GEAR 19T C
11		A06X 010 Waste Toner Bottle B,H A
11		A06X 0Y0 Waste Toner Bottle C,D1,D3,J,K A

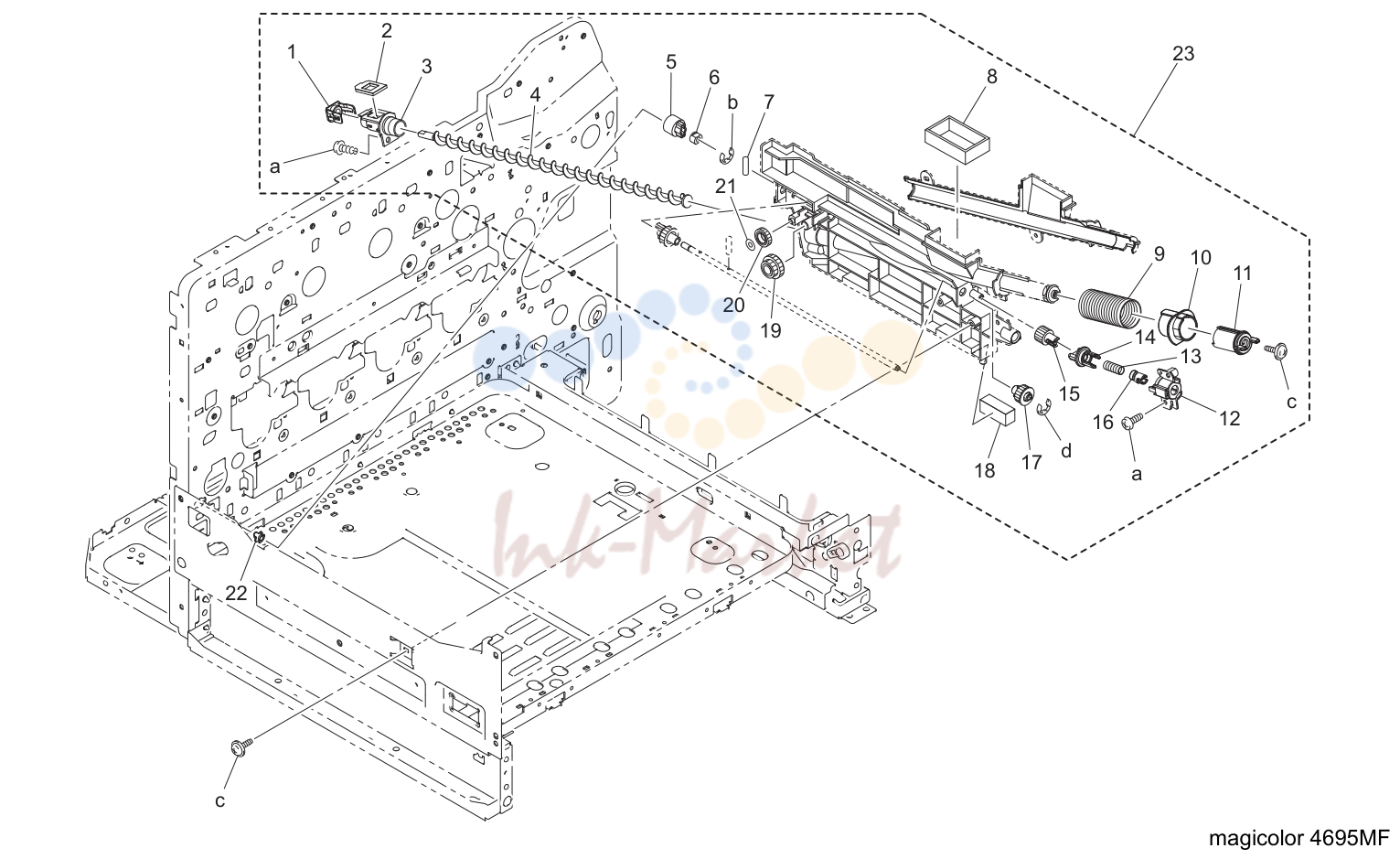

11. WASTE TONER TRANSPORT SECTION

№	Артикул	Наименование
1		A011 3622 01 COVER C 1 a-V145
2		A011 3626 00 SEAL C 1 b-V217
3		A011 A361 00 BUSHING ASSY C 1 c-V153
4		A011 3618 00 SCREW D
5		A011 3603 00 GEAR 16T C
6		4004 5339 01 BUSHING C
7		1067 2501 01 PIN C
8		A011 3642 01 SEAL C
9		A011 3621 00 PRESSURE SPRING C
10		A011 3634 00 SHUTTER D
11		A011 3633 00 SHUTTER D
12		A011 3627 00 HOLDER D
13		A011 3631 00 PRESSURE SPRING C
14		A011 3629 00 JOINT C
15		A011 3611 00 GEAR 14T C
16		A011 3628 00 COUPLING C
17		A011 3604 00 GEAR 16T C
18		A011 3648 00 MEMBER C
19		A011 3606 00 GEAR 16/20T C
20		A011 3607 00 GEAR 17T C
21		1372 2808 02 STOP RING C
22		A00F 3643 00 Bushing C
23		A011 R707 00 WASTE TONER DRAWING UP ASSY C

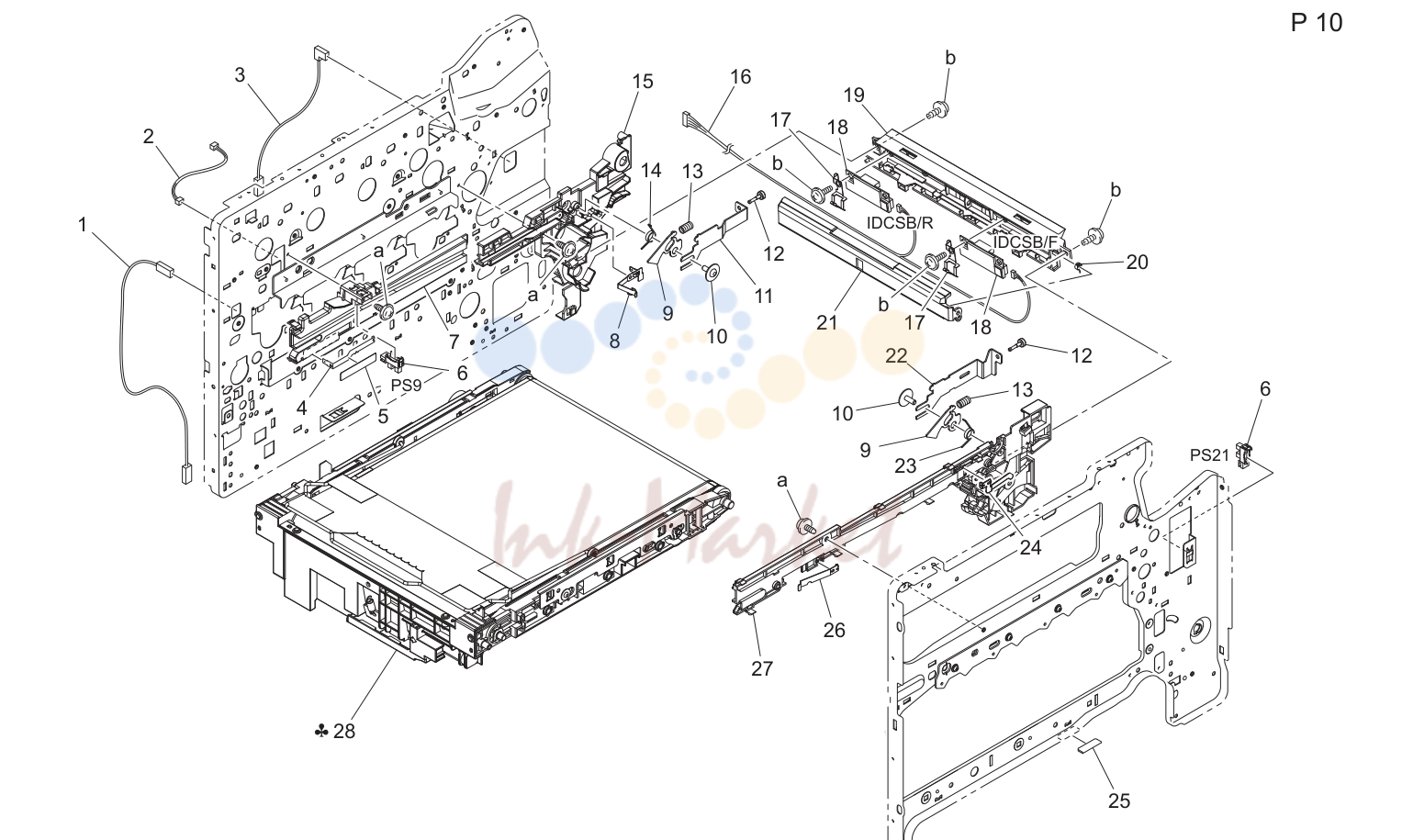

12. TRANSFER BELT UNIT

№	Артикул	Наименование
1		A011 N10Q 00 WIRE HARNESS ASSY D 1 a-V137
2		4138 6840 01 WIRE HARNESS ASSY D 1 b-V153
3		4138 6839 01 WIRE HARNESS ASSY D
4		4138 2217 01 CONTACT D
5		4138 2113 01 GUIDE PLATE D
6		9335 1300 61 PHOTO INTERRUPTER B
7		4138 2019 02 RAIL D
8		A00F 1432 00 Contact C
9		4138 2022 02 STOP PLATE D
10		4163 5293 01 SCREW C
11		A00F 1083 00 Guide plate D
12		4138 2098 01 SCREW D
13		4138 2094 01 PRESSURE SPRING C
14		4138 2096 01 TORSION SPRING C
15		A00F 1081 01 Rail D
16		A00F N10E 00 Sensor Wiring /2 D
17		A011 7006 00 EARTH GROUND D
18		A011 M500 00 PHOTO SENSING ELEMENT B
19		A011 7003 00 GUIDE D
20		4138 3559 01 TORSION SPRING C
21		A00F 7031 00 Cover D
22		A00F 1082 00 Guide plate D
23		4138 2095 02 TORSION SPRING C
24		4138 2035 01 CONTACT D
25		A00F 1024 00 Guide C
26		4138 2099 01 PLATE SPRING D
27		A00F 1080 01 Rail D
28		A06X 011 TRANSFER BELT UNIT B,H A
28		A06X 0Y1 TRANSFER BELT UNIT C,D1,D3,J,K A

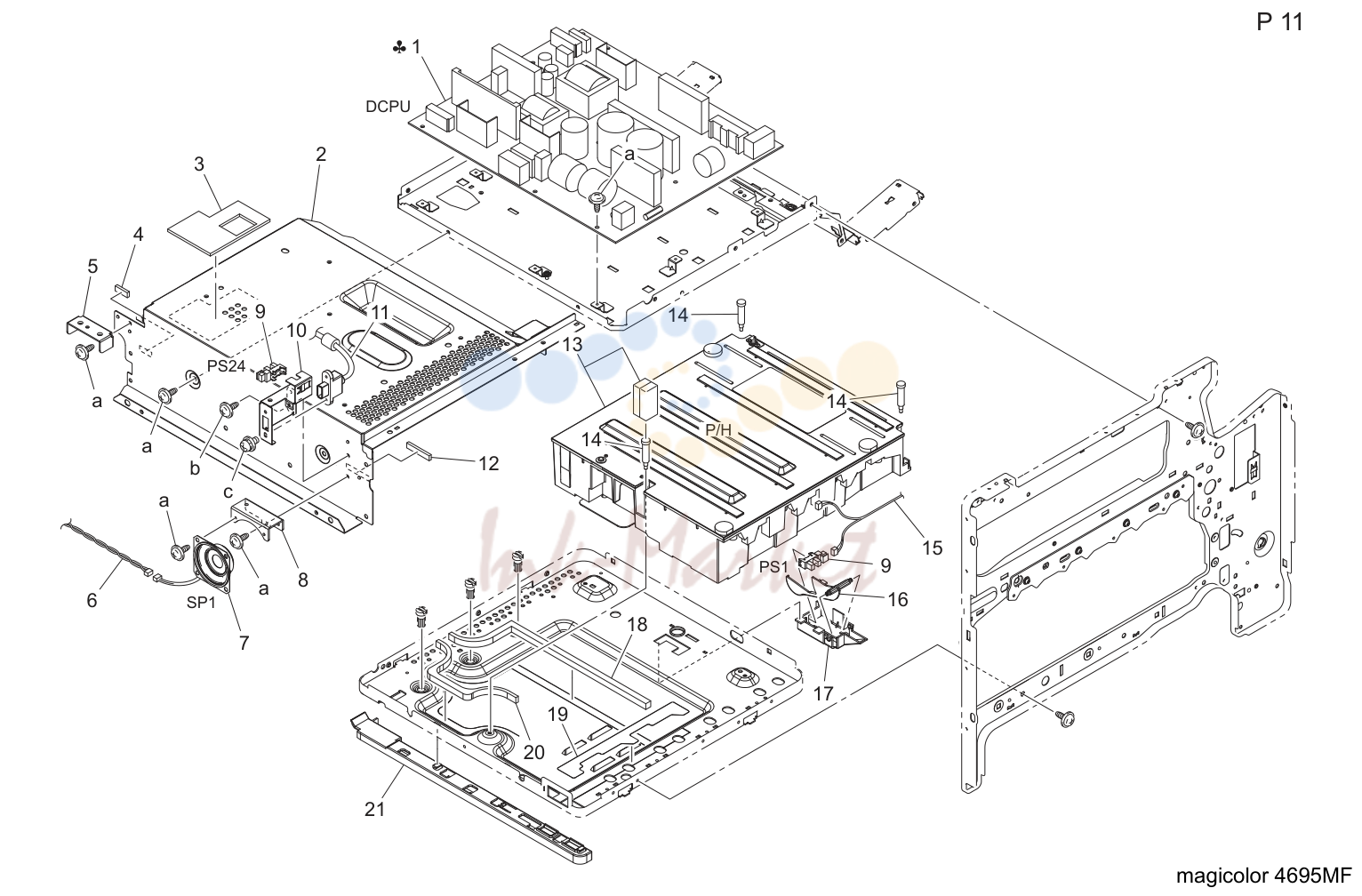

13. PRINT HEAD SECTION

№	Артикул	Наименование
1		A0FD M400 00 Power supply /230V C,D1,D3,J,K I 1 a-V137
1		A0FD M401 00 Power supply /100V B,H I 1 b-V144
2		A0FD 1200 01 Reinforce Plate D 1 c-V116
3		A0FD 1205 00 Seal C
4		A00F 1138 00 Seal C
5		A0FD 1226 00 Reinforce plate D
6		A0FD N108 01 Relay harness D
7		9373 2200 11 LOUDSPEAKER D
8		A0FD 1528 00 Bracket D
9		9335 1300 61 PHOTO INTERRUPTER B
10		A0FD 1527 01 Bracket D
11		A0FD N107 01 Relay harness D
12		A00F 1137 00 Seal C
13		A00F R705 00 Print Head Assy I
14		4138 2103 01 SHOULDER SCREW D
15		A00F N10K 00 Sensor Wiring /4 D
16		4138 3072 01 ACTUATOR C
17		4138 3071 02 BRACKET D
18		4138 2064 01 SEAL C
19		A011 1113 00 SEAL C
20		4138 2063 01 SEAL C
21		A011 1303 01 COVER C

14. CASSETTE SECTION

№	Артикул	Наименование
1		A0FD R700 00 250 Sheet Tray Assy S 1 a-V232
2		A011 R716 00 SEPARATION ROLLER ASSY C 1 b-V218
3		4131 3003 01 BUSHING C 2 c-V218
4		4138 3031 01 SHAFT D 1 e-V153
5		4034 0151 01 SEPARATION ROLLER A
6		4138 3254 01 PRESSURE SPRING C
7		4030 3034 01 CLUTCH C
8		4138 3032 02 ROLLER B
9		A00F 6281 01 Lever C
10		A00F 6206 01 Label Paper Stack C
11		A0FD 6201 01 Cover C
12		A0FD 6202 00 Handle C
13		A00F 9404 00 Label Paper Supply C
14		4131 3057 02 GUIDE C
15		4131 3056 01 GUIDE PLATE C
16		A00F 6214 02 Plate Spring C
17		A00F 6201 01 Cassette D
18		4138 7316 01 LABEL D
19		A00F 6211 00 Guide D

15. CASSETTE SECTION

№	Артикул	Наименование
1		A00F 6223 01 Guide C 1 a-V167
2		A00F 6222 01 Regulating plate C 1 b-V153
3		4138 3027 01 BRAKE C
4		4138 3029 01 GUIDE D
5		A00F 6228 00 Guide C
6		A00F 6221 01 Regulating plate C
7		A00F 6226 00 Lever C
8		4011 3011 01 PRESSURE SPRING C
9		4687 3281 01 FRICTION SHEET C
10		A00F 6241 01 Lifting plate C
11		A00F 6227 00 Stopper D
12		4138 3092 01 GEAR 14T C
13		4163 5293 01 SCREW C
14		A00F 6242 00 Pressure spring C
15		1164 3062 01 PRESSURE SPRING C
16		A00F 6243 00 Lever C
17		4138 3026 01 GUIDE C
18		4021 3036 01 GUIDE C
19		A00F R901 00 Regulating plate Assy C
20		A00F 6225 00 Set plate D

16. VERTICAL CONVEYANCE SECTION

№	Артикул	Наименование
1		A0FD 1607 01 Cover C 1 a-V153
2		A00F 5611 00 Regulating plate C
3		4138 3205 01 LEVER C
4		4120 3019 01 COLLAR C
5		A00F 5610 00 Regulating plate C
6		A00F 5603 00 Tray C
7		4138 3252 01 TORSION SPRING C
8		4138 3253 01 REINFORCE PLATE D
9		A00F 5602 01 Tray C
10		4131 3027 02 GEAR 14T C
11		4138 3255 01 FRICTION SHEET C
12		A00F 5651 01 Lifting plate C
13		A00F 7113 00 Lever C
14		A00F 7106 00 Lever C
15		A00F 7111 00 Torsion spring C
16		4131 4052 01 PRESSURE SPRING C
17		A00F 7166 00 Earth ground C
18		A00F 7102 01 Cover D
19		A00F 7165 00 Pressure spring C
20		A00F N114 03 Sensor Wiring /9 D
21		A00F 7107 00 Lever C
22		A00F N115 01 Sensor Wiring /10 D
23		V818 6000 15 PLUG HOUSING D
24		A00F 7171 00 Plate spring C
25		9J06 M100 00 FAN MOTOR C
26		A00F 7105 00 Bracket D
27		A0FD 1219 00 Guide C
28		A0FD 1221 02 Holder C
29		4138 7316 01 LABEL D
30		A0FD R701 00 Vertical Transport Assy S

17. VERTICAL CONVEYANCE SECTION

№	Артикул	Наименование
1		A00F 5631 00 Guide plate C 1 a-V217
2		4138 3232 02 SHAFT D 1 b-V153
3		4138 3236 02 STOPPER D 2 c-V218
4		4138 3237 01 PLATE SPRING D
5		A00F 5633 00 Actuator C
6		A00F 5634 01 Torsion spring C
7		4138 3032 02 ROLLER B
8		4030 3034 01 CLUTCH C
9		4138 3510 01 SHAFT D
10		A00F 7116 01 Stopper C
11		4163 5293 01 SCREW C
12		4138 3244 01 BUSHING C
13		A00F 5642 00 Earth ground C
14		4131 3056 01 GUIDE PLATE C
15		4131 3057 02 GUIDE C
16		9335 1300 61 PHOTO INTERRUPTER B
17		A00F 5604 01 Guide C
18		A00F 5605 00 Reinforce plate D
19		4138 3254 01 PRESSURE SPRING C
20		4034 0151 01 SEPARATION ROLLER A
21		A011 R715 00 SEPARATION ROLLER ASSY C
22		A00F N10N 01 Sensor Wiring /7 D
23		4138 3241 01 GEAR 25T C
24		A00F 5601 03 Frame C
25		A00F 7117 00 Stopper C
26		4131 2320 01 SHOULDER SCREW C

18. VERTICAL CONVEYANCE SECTION

№	Артикул	Наименование
1		4163 5293 01 SCREW C 2 a-V144
2		A00F 7120 00 Tension spring C 2 b-V153
3		A00F 7002 03 Bracket D 1 c-V217
4		A00F 7008 01 Bracket C 1 e-V145
5		9335 1300 61 PHOTO INTERRUPTER B 2 f-V217
6		A00F 7009 00 Torsion spring C 1 g-V217
7		A00F 7003 00 Actuator C
8		1144 5200 01 PIN D
9		A00F 7022 00 Cam C
10		V800 5003 00 FIXED POWER RESISTORS D
11		4138 3523 01 BUSHING C
12		A00F 7021 01 Earth ground D
13		4138 3532 02 BUSHING C
14		A00F 7018 00 Gear 28T C
15		A00F 7017 01 Gear 15/20T C
16		A00F 7025 00 Bracket C
17		A00F 7016 01 Gear 21T C
18		4138 3528 02 ROLL C
19		4138 3524 01 GEAR 20T C
20		4138 3525 02 GEAR 15T C
21		4138 3533 01 TENSION SPRING C
22		A00F 7026 00 Earth ground D
23		4138 3521 02 ROLLER C
24		4138 3527 02 GUIDE D
25		4138 3522 03 ROLLER C
26		A00F 7012 01 Guide plate C
27		A00F 7011 02 Holder C
28		9335 1910 21 SOLID STATE SWITCH C
29		A011 7001 00 SPACER D
30		A011 M200 00 CLUTCH C
31		A00F N10C 02 Conveyance Wiring /1 D
32		A00F 7019 00 Cam C
33		A00F 7023 00 Shield plate D
34		A00F 7020 00 Shaft D
35		A00F N119 01 Conveyance Wiring /3 D
36		4138 7001 00 WASHER C

19. VERTICAL CONVEYANCE SECTION

№	Артикул	Наименование
1		4131 3003 01 BUSHING C 2 a-V217
2		A00F 7123 01 Guide C 1 b-V137
3		A00F 8102 00 Roller C 1 c-V153
4		A00F 1138 00 Seal C
5		4538 3732 01 ROLL D
6		A00F 7121 01 Guide C
7		A00F 8141 02 Holder C
8		4538 3734 01 SPRING D
9		A00F 8152 01 Torsion spring C
10		A00F 8151 00 Actuator C
11		A00F 8124 00 Gear 14T C
12		A00F 8106 00 Plate spring C
13		9335 1300 61 PHOTO INTERRUPTER B
14		9455 1076 01 RESISTOR D
15		A00F 7029 00 Pressure spring C
16		A00F 7027 00 Plate spring C
17		A00F 7005 00 Pressure spring C
18		A00F 7013 00 Spacer C
19		A00F 7014 00 Bushing C
20		A00F 5106 00 Pressure spring C
21		A00F 7024 00 Seal C
22		A00F 7006 00 Contact C
23		A00F 7001 14 Holder C
24		A00F 7007 01 Neutralizing member C
25		A00F 7028 00 Tape C
26		A00F 7004 00 Plate spring D
27		0957 2026 01 SCREW D
28		A00F 7030 00 Brake C
29		A06X 0Y4 Transfer Roller C,D1,D3,J,K A
29		A06X 014 Transfer Roller B,H A
30		A00F 7032 00 Claw D
31		A00F 7033 00 Pressure Spring C

20. SWITCH BACK SECTION

№	Артикул	Наименование
1		A00F 8114 01 Housing D 1 a-V217
2		A00F 8130 00 Bushing C 6 b-V144
3		A00F M200 00 Clutch C 3 c-V153
4		A00F 8128 00 Shaft D
5		A00F 8118 00 Gear 36/37T C
6		A00F 8119 00 Gear 24T C
7		A00F 8121 00 Gear 45/46T C
8		A00F 8117 00 Gear 35T C
9		A00F 8133 00 Bracket C
10		A00F 8132 00 Bushing C
11		4138 2568 01 PRESSURE SPRING C
12		A00F 8129 00 Shaft D
13		A00F 8123 00 Gear 20T C
14		A00F 8101 01 Roller C
15		A0FD 8143 00 Guide C
16		A0FD 8162 00 Guide plate C
17		A00F 8157 00 Guide C
18		A0FD 8152 00 Guide C
19		A00F 8147 01 Torsion spring C
20		A0FD 8146 02 Guide C
21		4139 3910 01 ROLL C
22		A00F 8103 00 Spring C
23		A0FD 8144 01 Holder C
24		A00J 8995 00 Shoulder screw C
25		A0FD 8151 00 Guide C
26		A0FD 8147 02 Guide C
27		A0FD 8148 00 Bracket D
28		A00F 8113 00 Holder D
29		A00F 8145 00 Lever C
30		A00F R707 00 Gear Assy C
31		A00F 8131 00 Roll C
32		A00F 8120 00 Gear 30T C
33		A00F 8111 00 Bracket D
34		A00F 8116 00 Gear 37/38T C
35		A00F 8112 00 Holder D

21. HORIZONTAL TRANSPORT UNIT

№	Артикул	Наименование
1		A0FD 8945 00 Seal C 1 a-V153
2		A0FD N106 00 Sensor Wiring /15 D 1 b-V116
3		9335 1300 61 PHOTO INTERRUPTER B 1 c-V218
4		4138 3561 01 ACTUATOR C
5		4138 3562 01 TORSION SPRING C
6		A00F 8153 00 Cushion C
7		A0FD 8941 00 Torsion spring C
8		A0FD 8944 01 Torsion Spring C
9		A0FD 8907 02 Guide C
10		4002 3123 03 HOLDER D
11		A0FD 8906 00 Guide D
12		A0FD 8905 01 Guide C
13		A0FD 1254 00 Cushion C
14		A0FD 8904 03 Guide C

22. HORIZONTAL TRANSPORT UNIT

№	Артикул	Наименование
1		A0FD G716 00 AXLE PLATE(LEVEL CONVEYANCE DRIVE2) D 1 a-V153
2		A0FD 8922 00 Bushing D 2 b-V217
3		A0FD 8931 00 Timing belt 500L C 1 c-V217
4		A0FD 8926 00 Gear 16/20T C
5		A0FD G715 00 AXLE PLATE(LEVEL CONVEYANCE DRIVE1) D
6		A0FD 8923 00 Pulley 16T C
7		A0FD 8930 00 Timing belt 354L C
8		A0FD 8920 00 Gear 16/21T C
9		A0FD 8909 00 Gear 17T C
10		A0FD 8935 00 Torsion spring C
11		A0FD 8914 00 Lever C
12		A0FD 8917 00 Shaft D
13		A0FD 8918 00 Ring C
14		A0FD 8919 01 Pulley 16T C
15		A0FD 8925 00 Pulley 15T C
16		A0FD 8929 00 Timing belt 190L C
17		A01F 6927 00 BUSHING C
18		A0FD 8902 00 Roller C
19		A0FD 8903 01 Roller C
20		A0FD 8940 00 Guide D
21		A01F 6928 00 BUSHING C
22		A0FD 8901 00 Roller C
23		A0FD 8949 00 Bracket D
24		4643 5244 01 BUSHING C
25		A0FD 8948 00 Bushing C
26		A0FD 8970 00 Guide C
27		A0FD 8972 00 Guide C

23. HORIZONTAL TRANSPORT UNIT

№	Артикул	Наименование
1		9335 1300 61 PHOTO INTERRUPTER B 2 a-V153
2		A0FD 8960 01 Cover D 1 b-V217
3		4138 5879 01 Gear 16T D 1 c-V217
4		1067 2501 01 PIN C
5		1200 3121 09 BUSHING C
6		A0FD 8909 00 Gear 17T C
7		A0FD 8936 00 Shaft D
8		A0FD 8937 00 Shaft D
9		A0FD 8927 00 Gear 17/22T C
10		A0FD 8938 00 Ring C
11		A0FD 8934 00 Torsion spring C
12		A0FD 8939 00 Lever C
13		A0FD 8952 02 Guide C
14		4138 5882 01 BUSHING C
15		A0FD 8951 00 Roller C
16		4138 5875 01 SHAFT C
17		4138 5873 04 ROLL C
18		A0FD 8956 01 Lever C
19		A0FD 8962 01 Neutralizing Brush D
20		A0FD 8963 00 Pressure spring C
21		4138 5876 02 PLATE SPRING D
22		A0FD 8957 00 Torsion spring C
23		A0FD 8955 00 Lever C
24		A0FD 8958 00 Bracket D
25		A0FD 8947 00 Spring D
26		A01F 6948 00 Roll C
27		A0FD 8964 00 Tape C

24. FUSING SECTION

№	Артикул	Наименование
1		A0FD 8909 00 Gear 17T C 2 a-V217
2		A0FD 8910 00 Shaft D 1 b-V217
3		A0FD 8915 00 Ring C 1 c-V153
4		A0FD 8913 00 Lever C
5		A0FD 8908 00 Gear 15/17T C
6		A0FD 8911 00 Shaft D
7		A0FD 8918 00 Ring C
8		A0FD 8934 00 Torsion spring C
9		A0FD G717 00 AXLE PLATE(LEVEL CONVEYANCE DRIVE3) D
10		A0FD 1207 01 Duct D
11		A0FD 1208 00 Seal C
12		A00F 1131 00 Seal C
13		A00F 1130 00 Seal C
14		A00F 1141 00 Seal C
15		A00F 1140 01 Seal C
16		A00F 1132 00 Seal C
17		A06X 016 Fusing Unit 120V B,H A
17		A06X 0Y6 Fusing Unit 230V C,D1,D3,J,K A

25. TRANSFER PRESSURE DRIVE SECTION

№	Артикул	Наименование
1		9372 5300 11 HUMIDITY CONVERTION EL. B 1 a-V153
2		9335 1100 31 PHOTO INTERRUPTER I 1 b-V144
3		A00F 7154 00 Bracket C 1 c-V137
4		4138 3562 01 TORSION SPRING C 1 e-V217
5		A00F 7151 02 Guide C
6		4138 3561 01 ACTUATOR C
7		9335 1300 61 PHOTO INTERRUPTER B
8		A00F N10D 00 Sensor Wiring /1 D
9		A00F 7152 00 Guide C
10		A00F 7153 00 Torsion spring C
11		A00F R702 00 Transfer Pressure Drive Assy S
12		9322 1300 61 CLUTCH I
13		4036 4730 01 BUSHING C
14		9J06 M601 00 MICRO SWITCH C
15		4138 2252 02 TORSION SPRING C
16		4138 3556 01 GEAR 24T C
17		4138 3584 01 GEAR 18/25T C
18		4138 3583 01 GEAR 19/44T C
19		A011 1114 00 COVER C
20		9335 1400 51 SOLID STATE SWITCH B
21		A011 1108 00 RAIL D
22		A00F 2145 01 Gear 15T C
23		A00F 2147 00 Lever C
24		4138 3582 01 GEAR 17T C

26. HOPPER DRIVE SECTION

№	Артикул	Наименование
1		9314 1300 41 MOTOR B 2 a-V137
2		4138 5414 01 HEAT SINK D 2 b-V145
3		4138 5403 01 GEAR 45/96T C 2 c-V116
4		4138 5404 01 GEAR 30T C 2 e-V153
5		A011 2121 00 GEAR 30T C
6		A011 2122 00 TOSION SPRING C
7		4138 5412 02 PRESSURE SPRING C
8		4138 5406 01 JOINT C
9		A011 2123 01 GEAR D
10		A011 2129 00 TORSION SPRING D
11		4131 4128 01 WASHER C
12		4138 5402 01 GEAR 22/108T C
13		A011 R704 00 HOPPER DRIVE ASSY S
14		A011 3601 00 GEAR 28T C
15		A011 3639 00 GEAR 14T C
16		A011 3600 00 GEAR 30T C
17		A011 3632 00 GEAR 17T C
18		A011 3609 00 GEAR 17T C
19		A011 3610 00 GEAR 17/17T C
20		A011 3602 00 GEAR 15T C
21		A011 R701 00 WASTE TONER DRIVE ASSY C

27. MAIN DRIVE SECTION

№	Артикул	Наименование
1		A02F M102 00 Brushless motor /30 C 1 a-V116
2		A011 M100 00 BRUSHLESS MOTOR B 1 b-V217
3		4036 4730 01 BUSHING C 2 c-V217
4		A00F 2139 00 Bearing C 2 e-V116
5		A011 M200 00 CLUTCH C 1 f-V144
6		A011 2114 00 GEAR 28T C 1 g-V137
7		A0FD 2142 00 Shaft D
8		A00F 2140 00 Gear 34/18T C
9		A00F 2143 00 Lever C
10		A011 2113 00 GEAR 58T C
11		4138 2570 01 RATCHET C
12		4138 2571 01 TORSION SPRING C
13		4138 2543 01 GEAR 26T C
14		4138 2573 01 TENSION SPRING C
15		A00F R701 00 Paper Take-Up Drive Assy C
16		A0FD 2141 00 Gear 19T C
17		4138 2523 01 GEAR 19T C
18		4138 2534 01 GEAR 27T C
19		4138 2601 01 HOLD PLATE D
20		A00F 2106 00 Gear 42/112T C
21		A011 1035 00 SEAL C
22		4138 2584 01 GEAR 21 66T C
23		4138 2551 01 GEAR 17 50T C
24		A02E M100 00 Brushless motor C
25		A00F R700 00 Main Drive Assy C

28. ELECTRICAL COMPONENTS

№	Артикул	Наименование
1		A0FD 1531 00 Shield box C 1 a-V144
2		A00F 1413 01 Shield D 1 b-V137
3		A0FD 1505 01 Shield D 1 c-V116
4		A0FD 1502 01 Bracket D 1 e-V116
5		A0FD 1500 03 Bracket D
6		A00F 1419 00 Conductive member D
7		A011 1361 00 Seal C
8		4138 6834 01 WIRE HARNESS ASSY D
9		A011 1315 00 SHIELD D
10		A011 M402 12 HV TRANSFORMER I
11		A00F 1431 00 Bracket D
12		4138 2240 01 BRACKET D
13		A00F N10H 01 Paperfeed Wiring /3 D
14		A011 M403 01 HV TRANSFORMER I
15		4138 6844 01 WIRE HARNESS ASSY D
16		A00F 1623 00 Seal C
17		A00F 1418 00 Seal C
18		A0FD 1226 00 Reinforce plate D
19		A0FD 1501 00 Bracket D
20		A00F 1411 01 Bracket D
21		A011 M700 01 FERRITE CORE D
22		A0FD 1561 00 Edge cover D
23		A0FD 1525 01 Bracket D
24		A0FD N100 00 Power supply Wiring /3 D
25		A00F 1403 00 Shield C
26		A0FD 1532 00 Washer D
27		4139 2328 01 SHOULDER SCREW C

Полный список запчастей доступен по запросу.

Источник: Инк-Маркет.ру.
