Konica Minolta bizhub c 451 — ниже интерактивный каталог запчастей по узлам со взрыв-схемами из сервис-мануала. По каждой детали указан оригинальный артикул; позиции, доступные к заказу, отмечены ссылкой на карточку товара, остальные — кнопкой «запросить цену».
Запчасти по узлам (со схемами)
Взрыв-схемы по каждому узлу с артикулами. Детали, доступные к заказу, ведут на карточку товара; остальные — на форму запроса цены.
Содержание
- 1. INFORMATION FOR PARTS GUIDE MANUAL
- 2. DIAGRAM OF MAIN PARTS SECTION
- 3. EXTERNAL PARTS
- 4. EXTERNAL PARTS
- 5. EXTERNAL PARTS
- 6. EXTERNAL PARTS
- 7. CONTROL PANEL
- 8. CONTROL PANEL
- 9. IR COVER

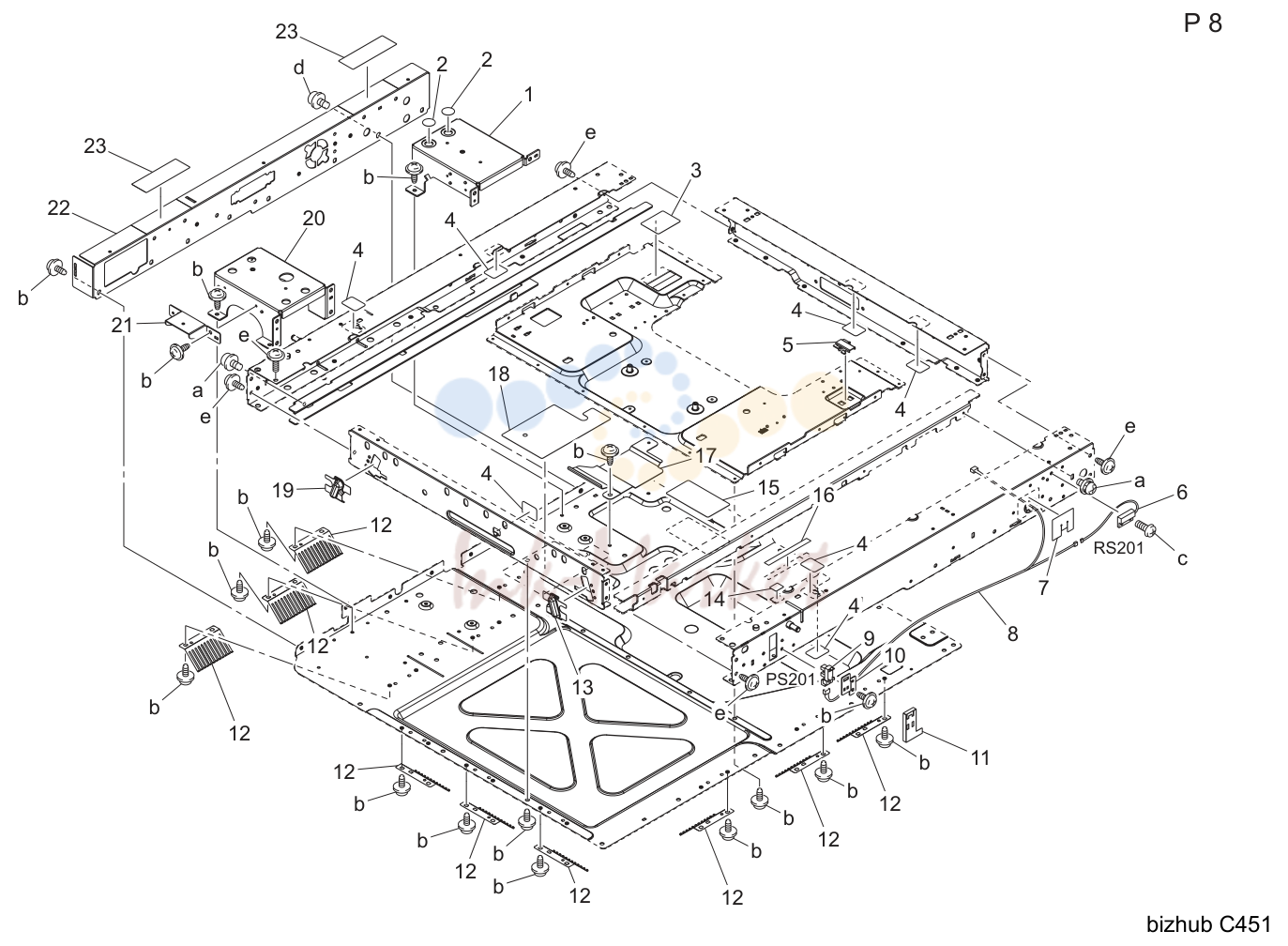

- 10. IR FRAME

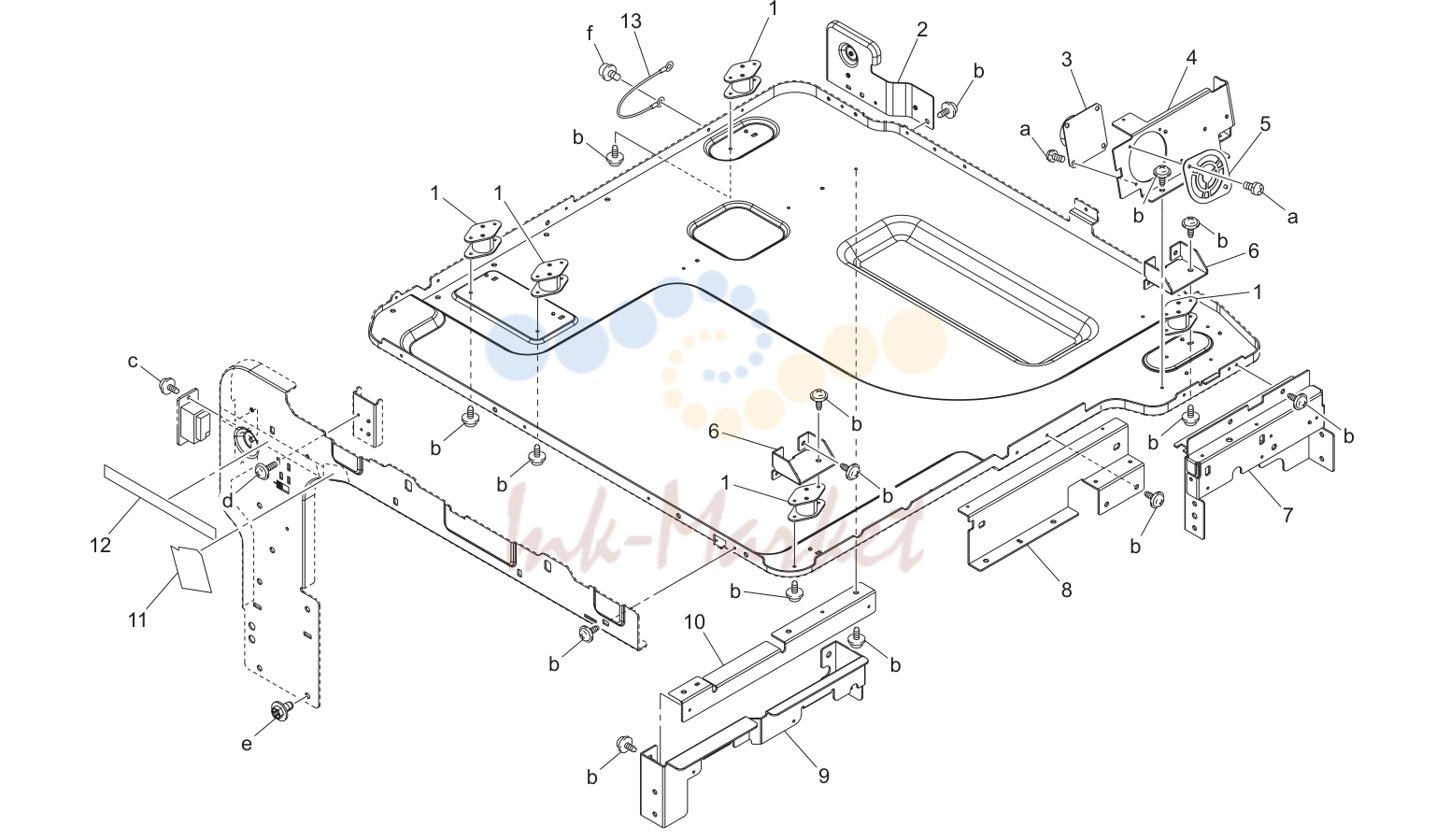

- 11. IR FRAME

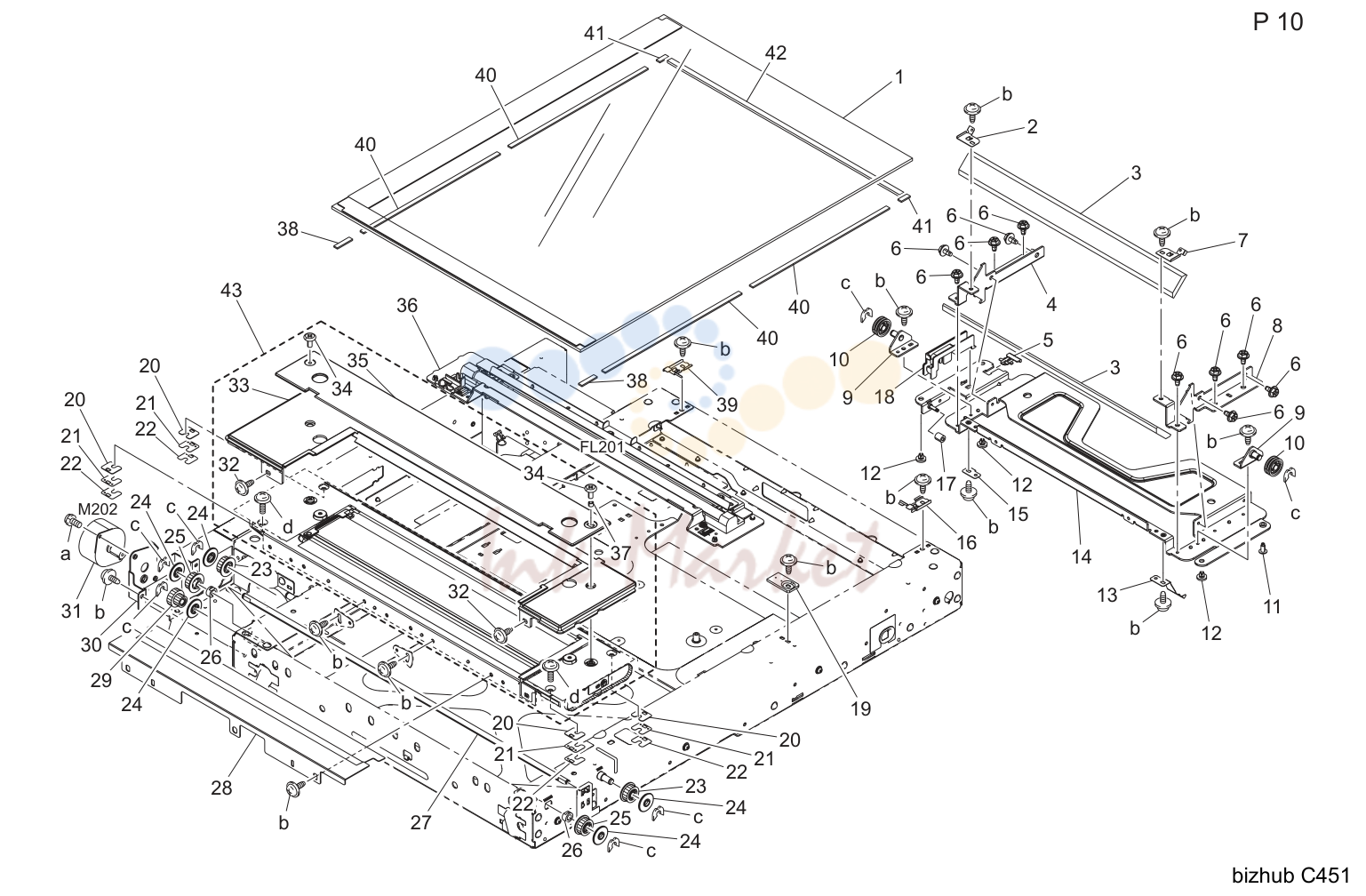

- 12. SCANNER SECTION

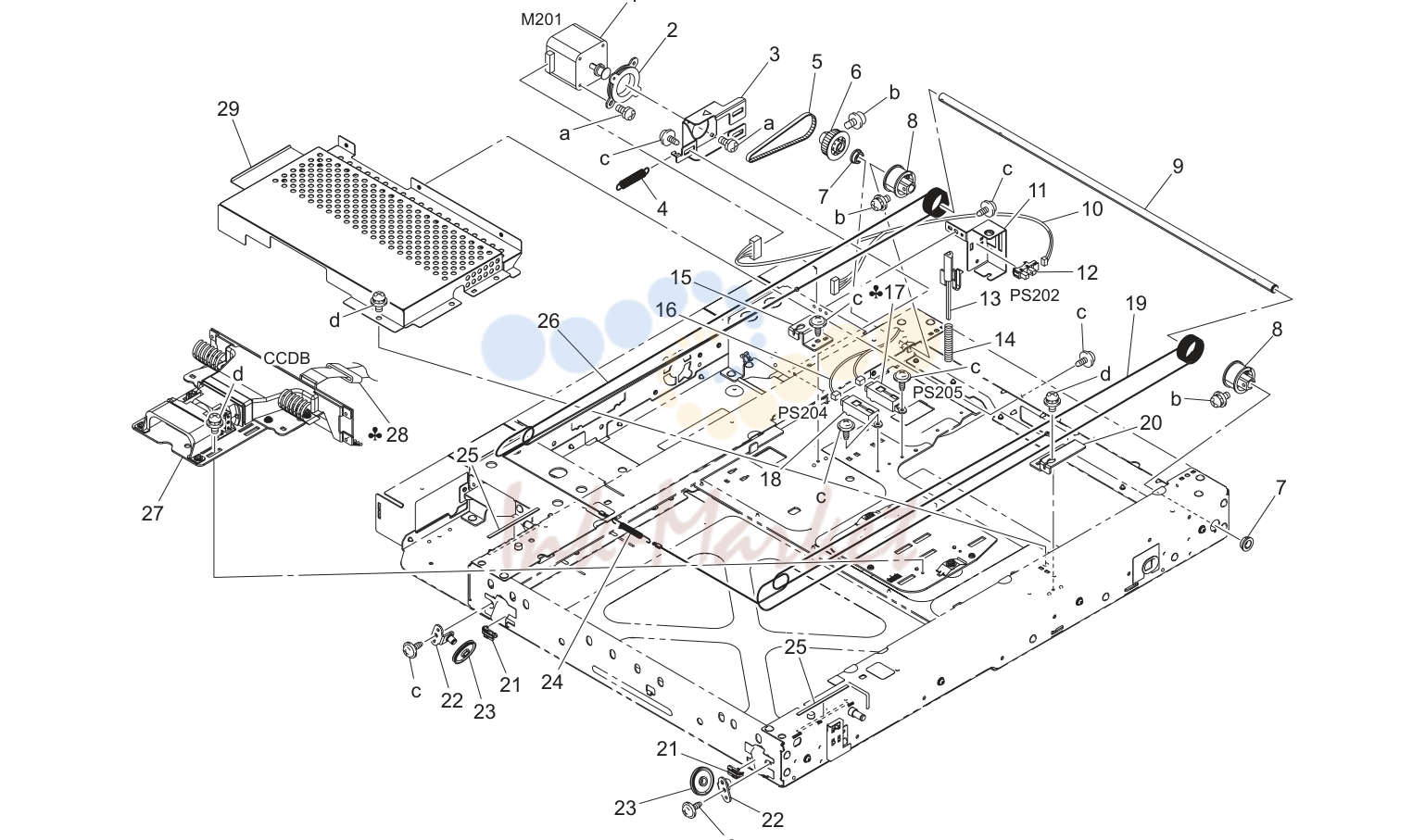

- 13. CCD UNIT/SCANNER DRIVE

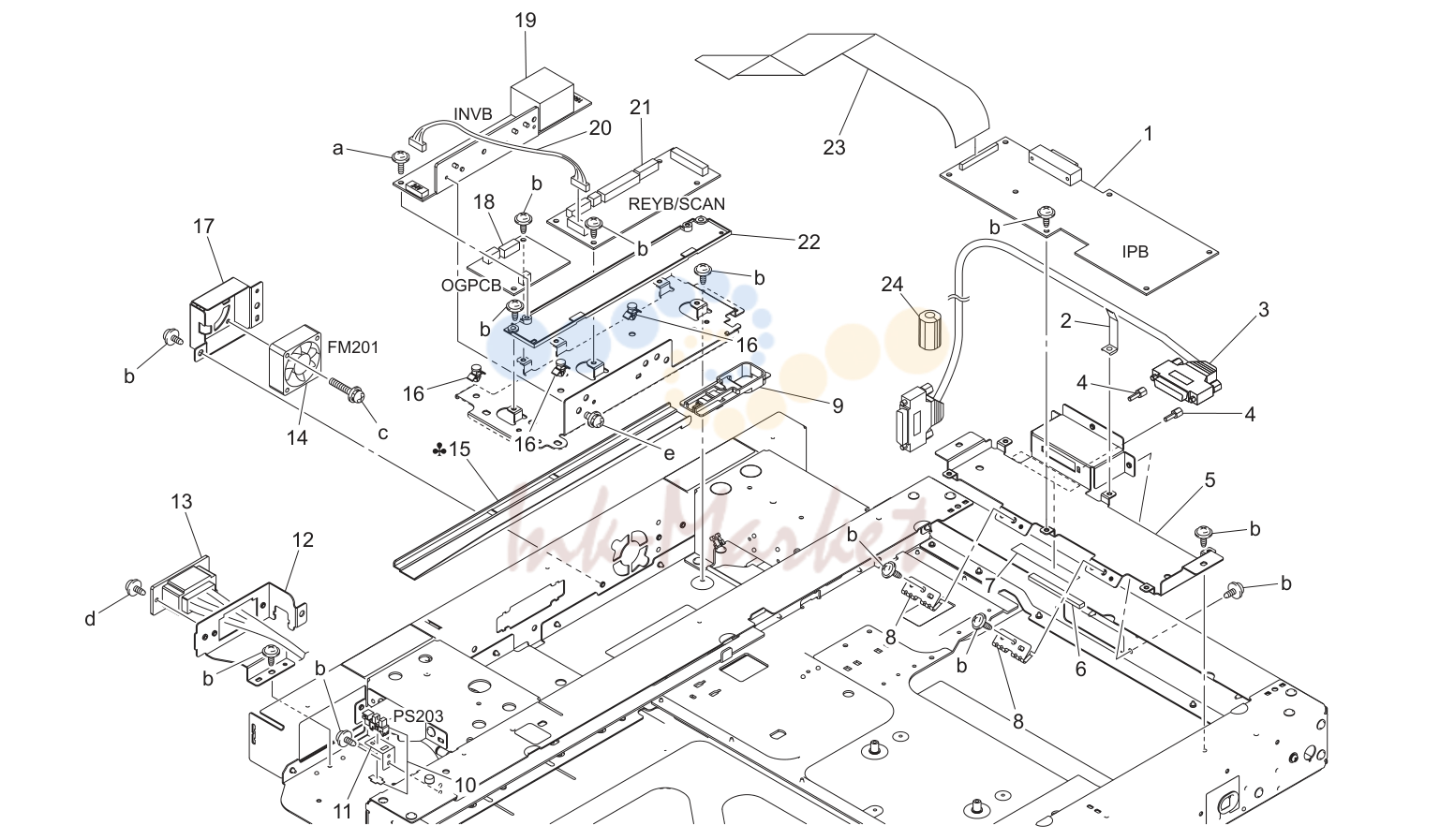

- 14. IR BOARD SECTION

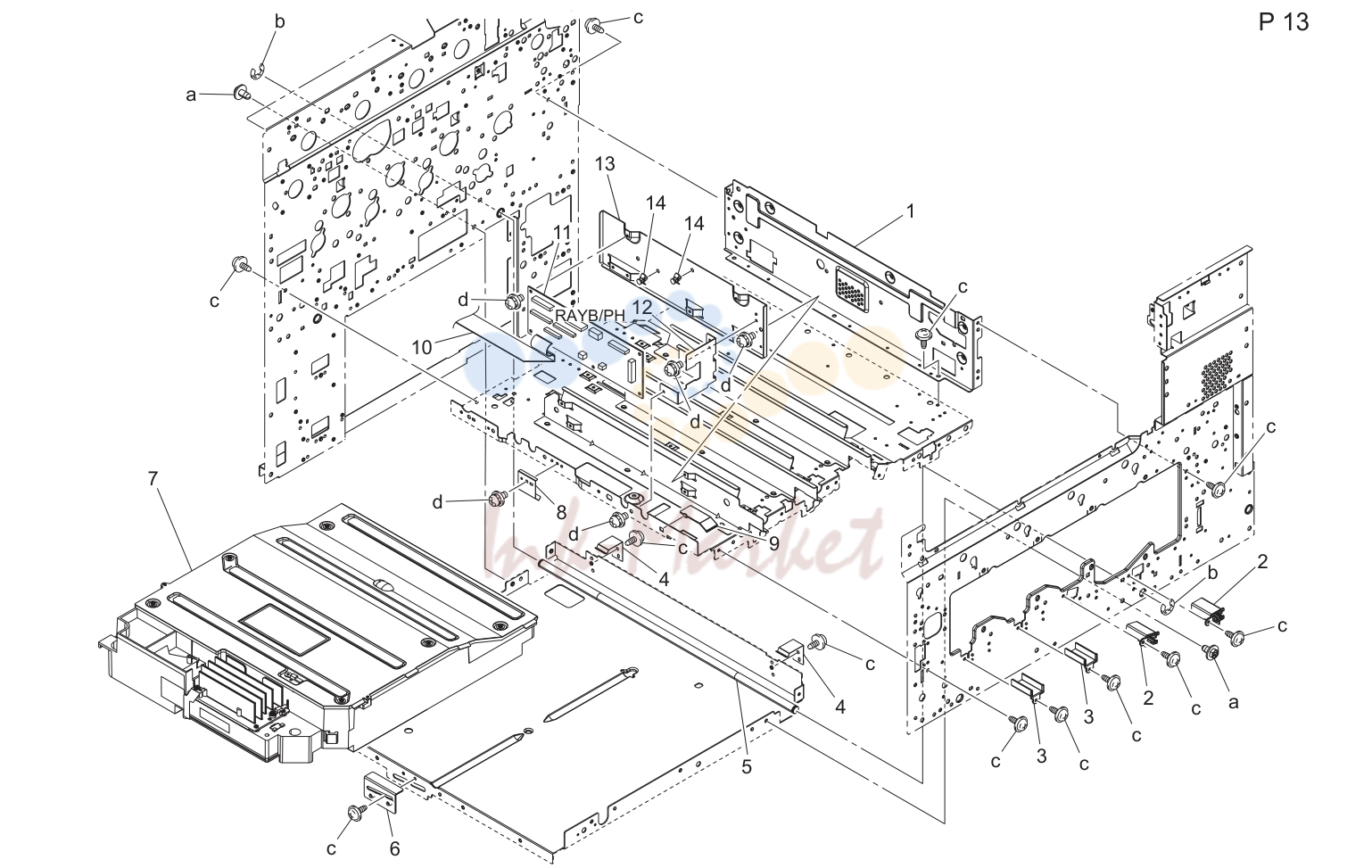

- 15. PH UNIT

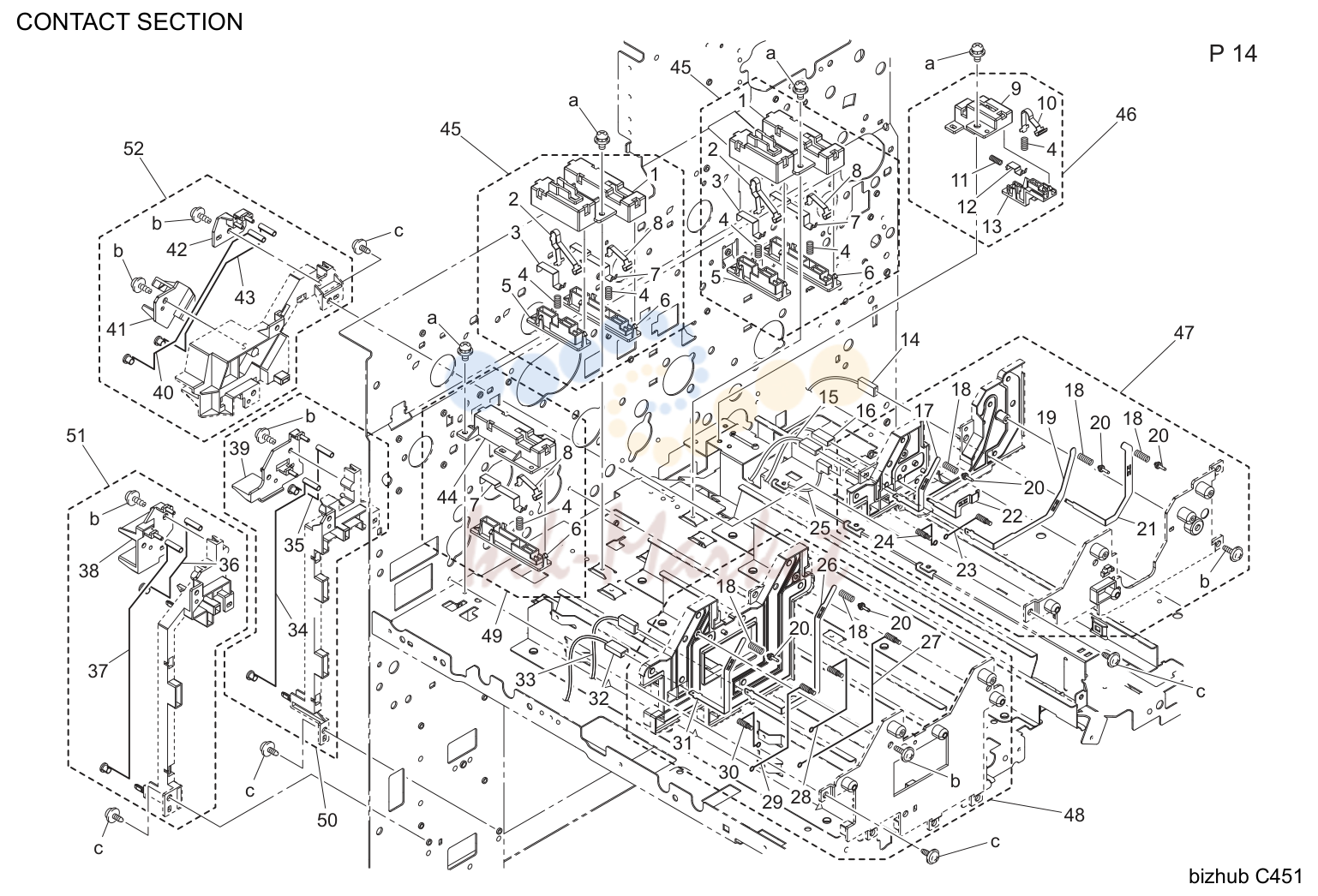

- 16. CONTACT SECTION

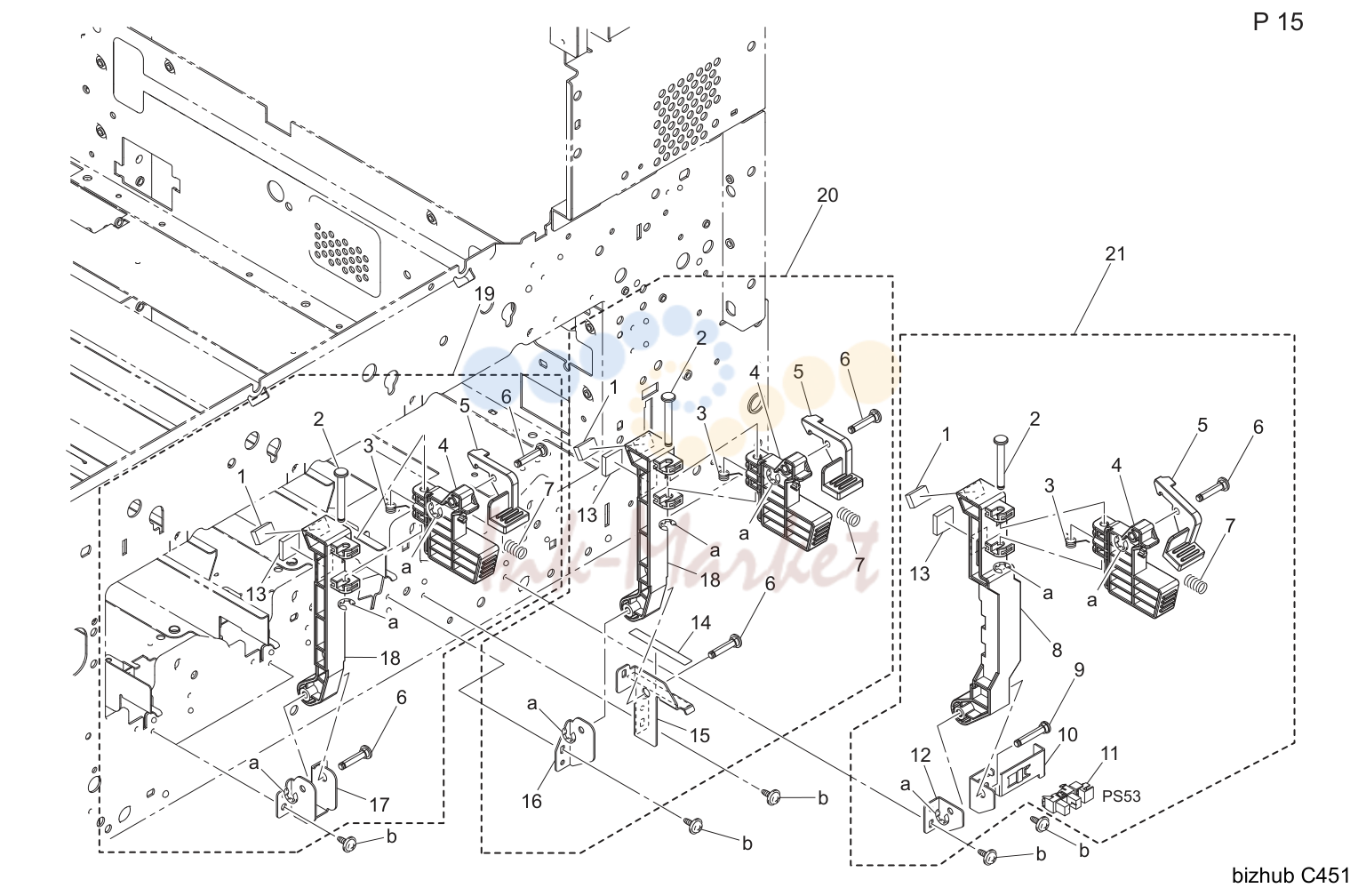

- 17. I/U LOCK LEVER

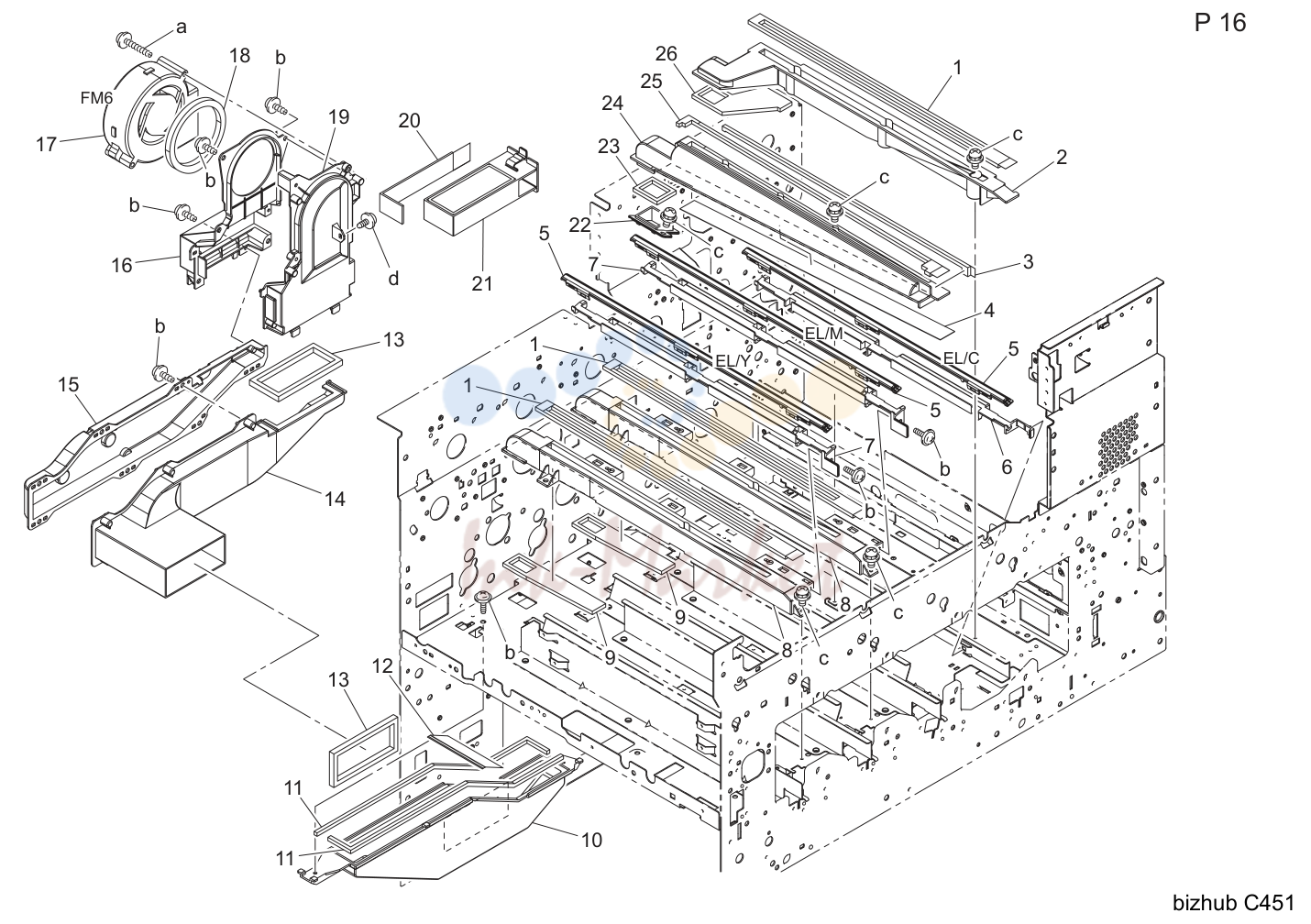

- 18. OZONE DUCT

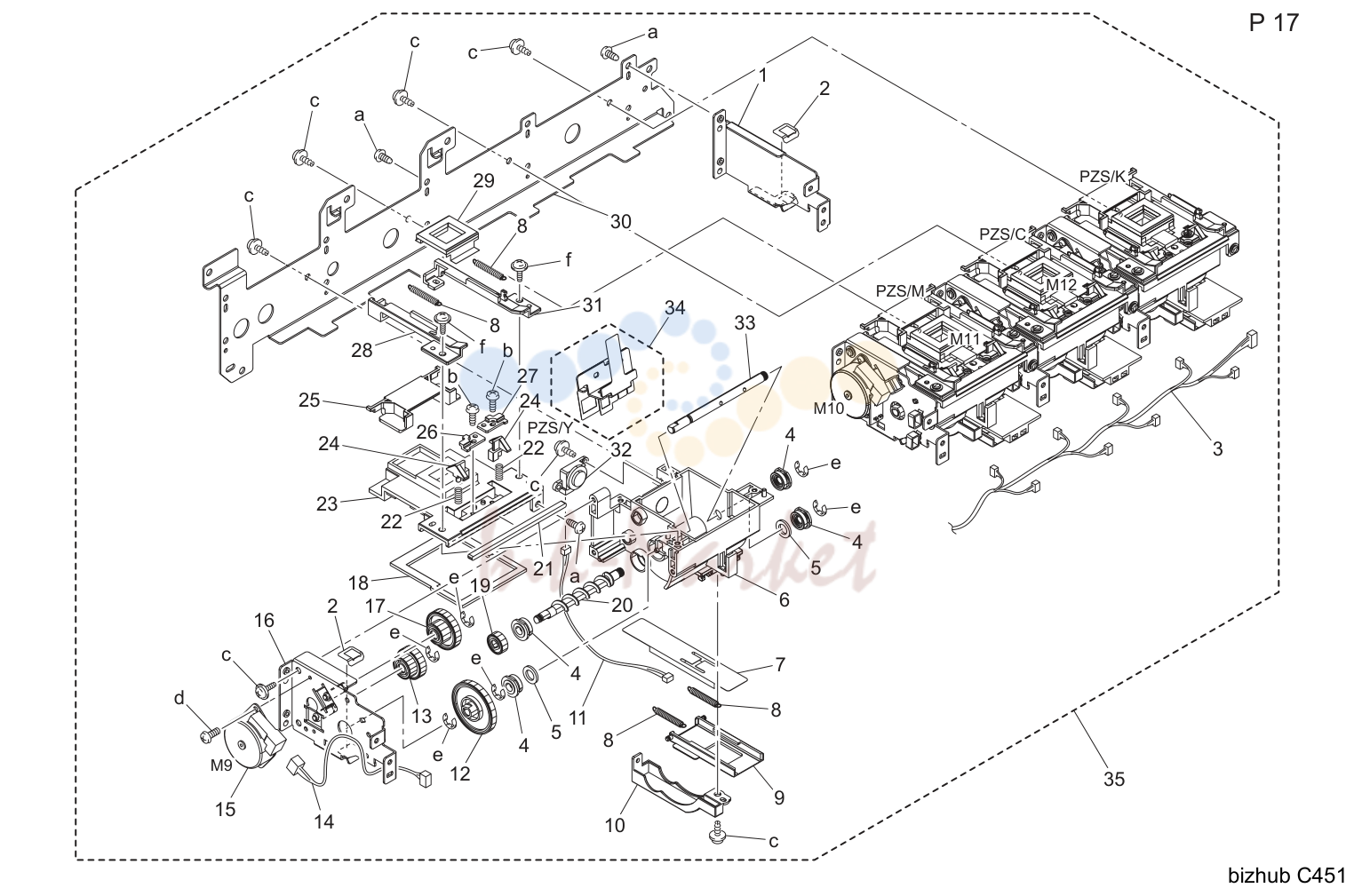

- 19. TONER SUPPLY SECTION

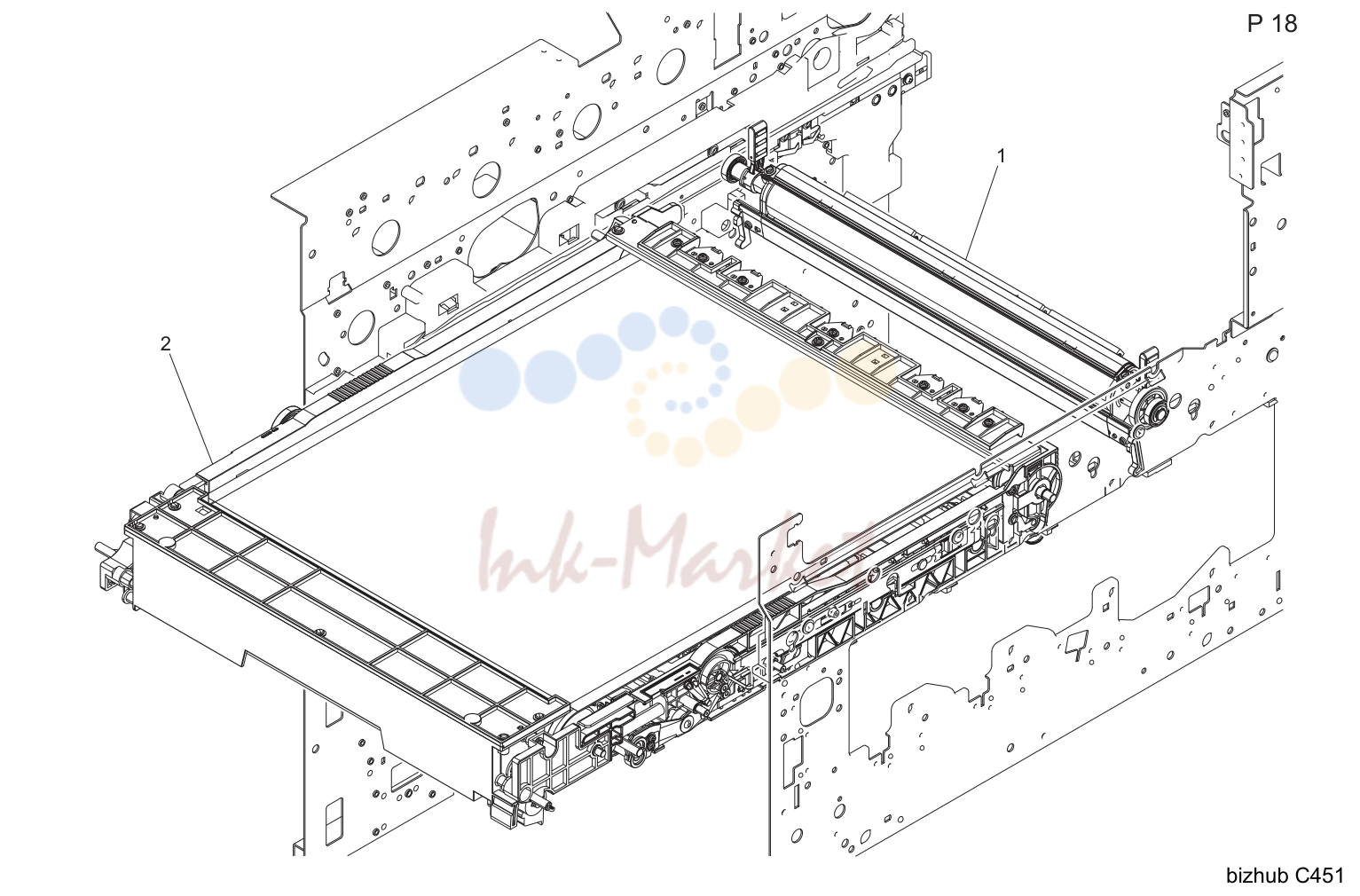

- 20. TRANSFER UNIT

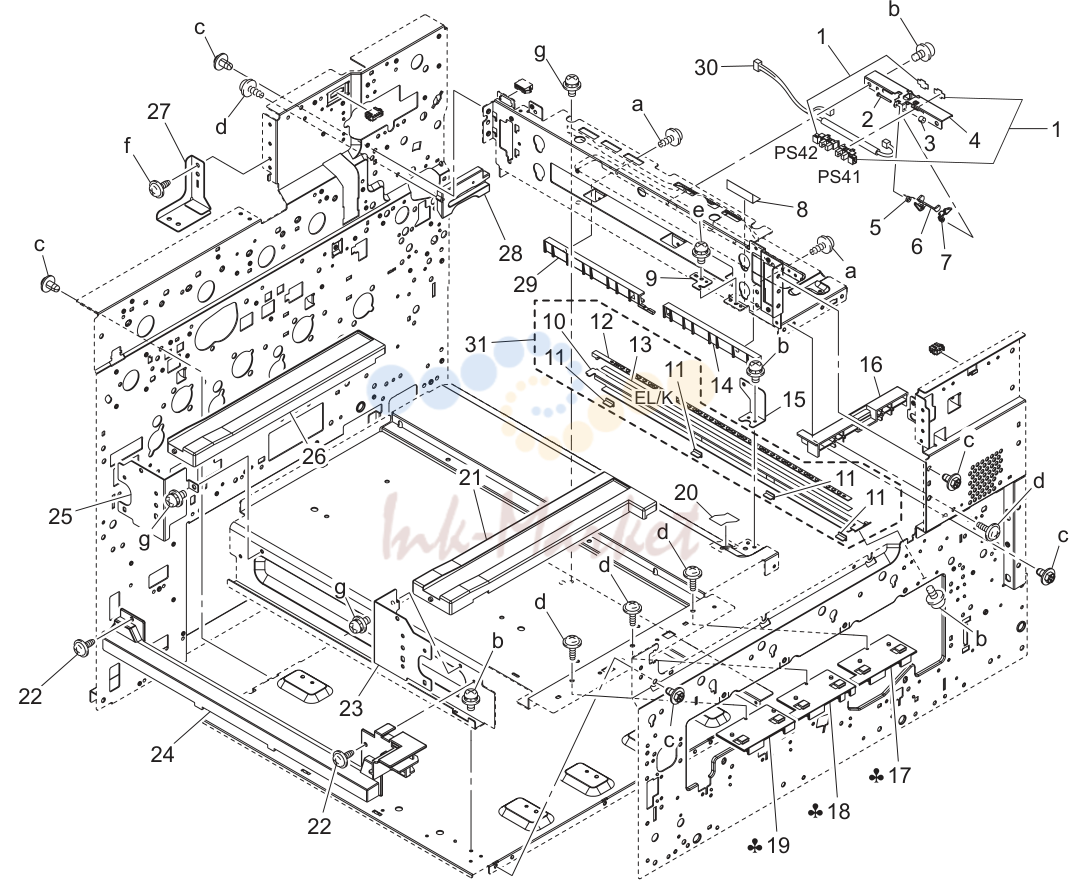

- 21. ERASE LAMP

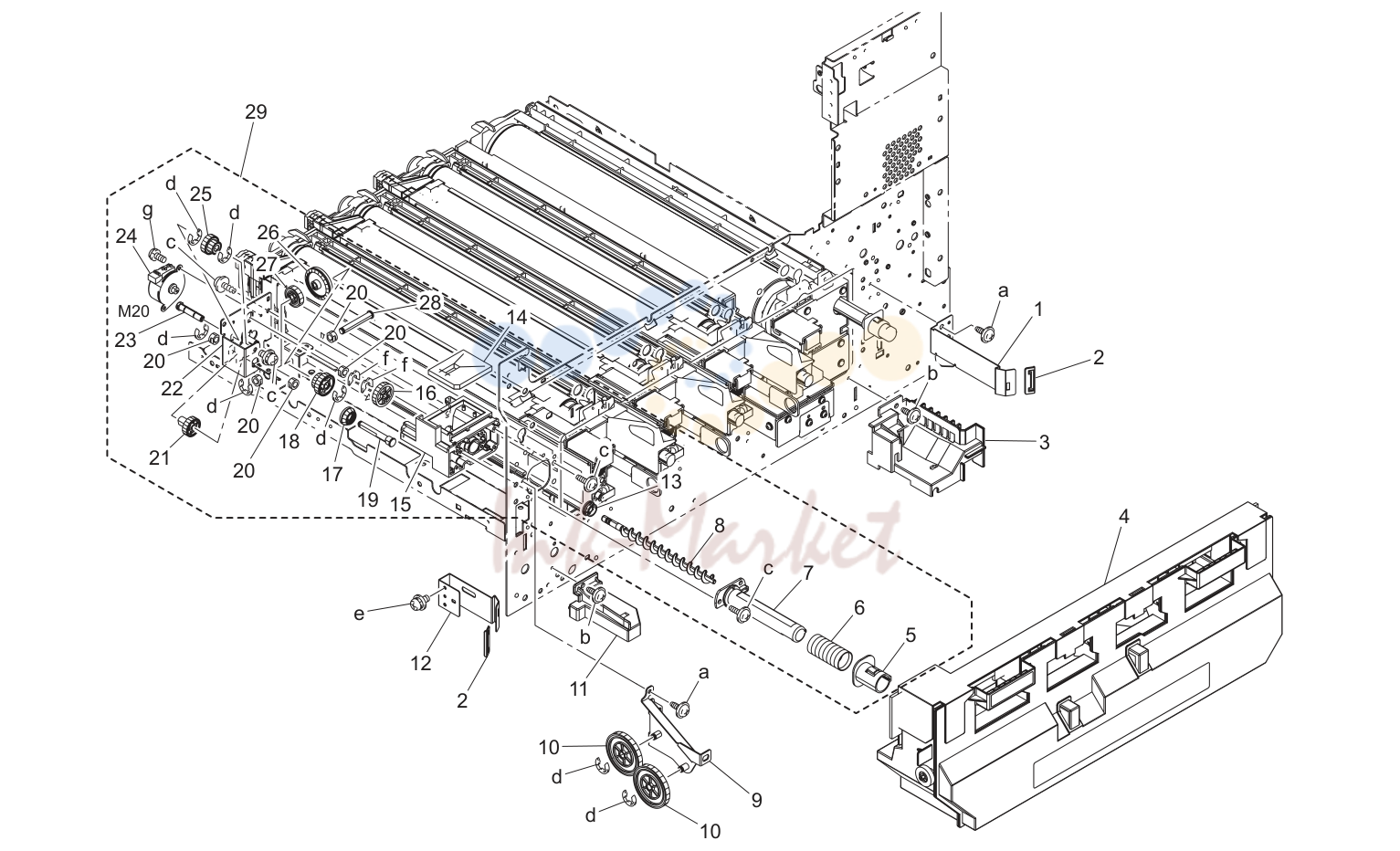

- 22. TONER COLLECT SECTION

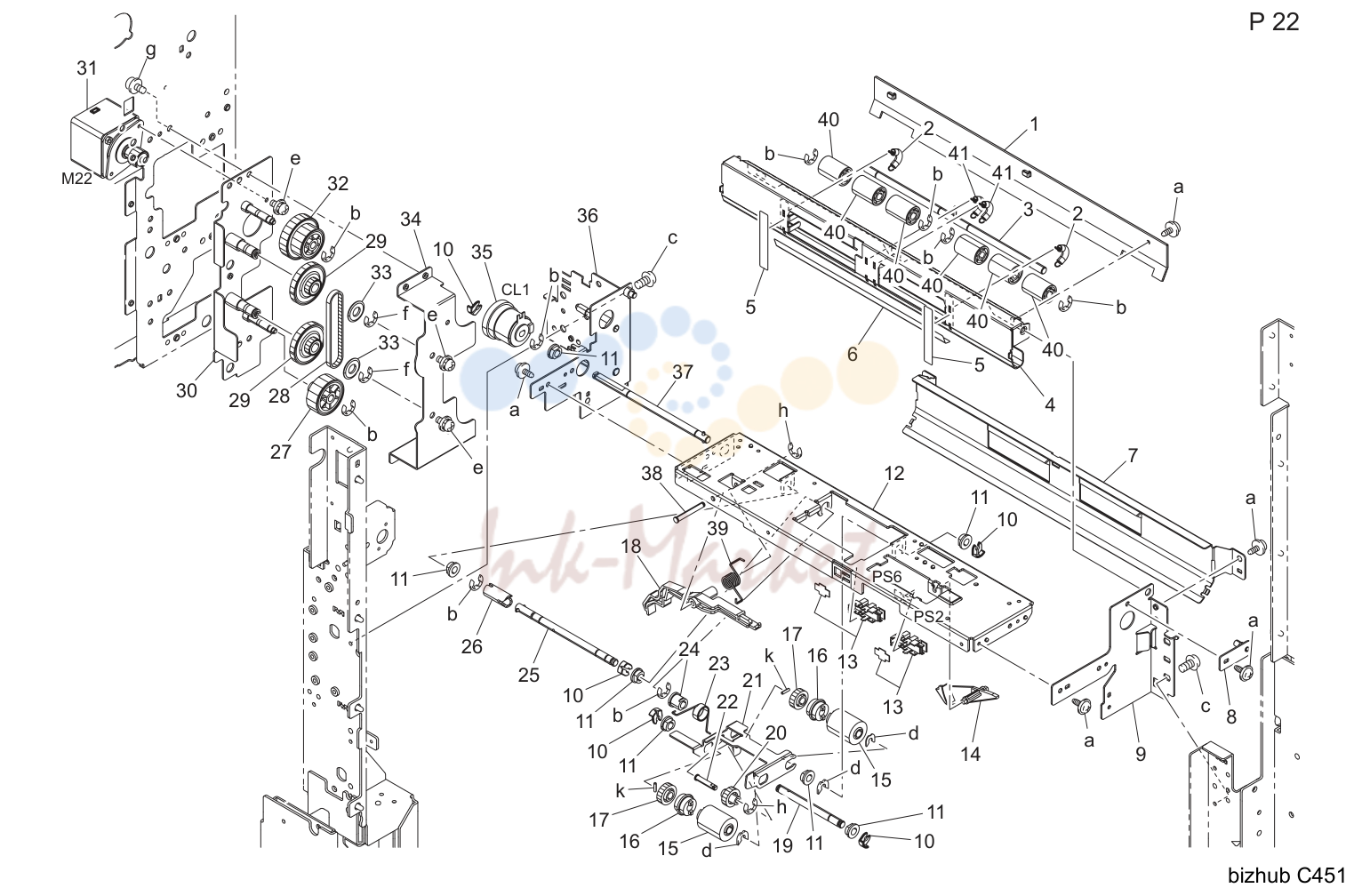

- 23. 1ST PAPER FEED

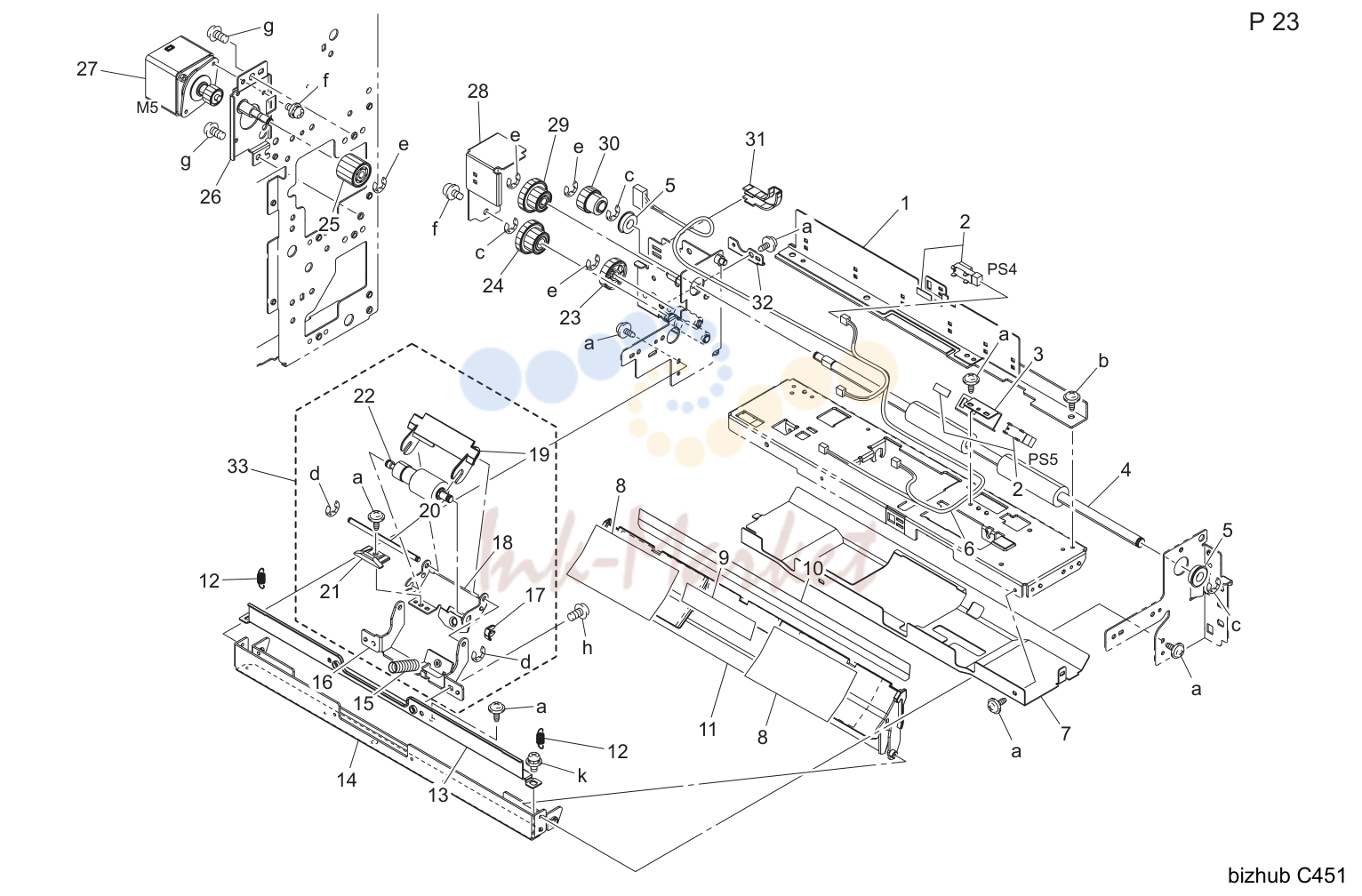

- 24. 1ST PAPER FEED
- 25. 2ND PAPER FEED
- 26. 2ND PAPER FEED
- 27. CASSETTE ASSY
- 28. CASSETTE ASSY
- 29. CASSETTE RAIL
- 30. SIZE DETECTING SECTION
- 31. 1000-SHEET PAPER FEED SECTION
- 32. 1000-SHEET PAPER FEED SECTION
- 33. LCC DRIVE
- 34. LEVEL CONVEYANCE SECTION
- 35. LEVEL CONVEYANCE SECTION
- 36. 1500-SHEET PAPER FEED SECTION
- 37. 1500-SHEET PAPER FEED SECTION
- 38. LCC CASSETTE RAIL
- 39. LCC LENGTH CONVEYANCE SECTION
- 40. 1000-SHEET TRAY
- 41. 1500-SHEET TRAY
- 42. CASSETTE TRAY
- 43. MANUAL FEED TRAY UNIT
- 44. MANUAL FEED TRAY UNIT
- 45. MANUAL FEED TRAY UNIT
- 46. MANUAL FEED TRAY UNIT
- 47. PAPER EXIT CONVEYANCE SECTION
- 48. PAPER EXIT CONVEYANCE SECTION
- 49. PAPER EXIT CONVEYANCE SECTION
- 50. REGISTRATION SENSOR
- 51. ROTATION DETECTING SENSOR
- 52. FUSING SECTION
- 53. bizhub C451
- 54. bizhub C451
- 55. PAPER EXIT SECTION
- 56. REVERSAL UNIT
- 57. REVERSAL UNIT
- 58. MAIN DRIVE UNIT
- 59. FUSING DRIVE UNIT
- 60. BOTTLE DRIVE SECTION
- 61. EJECT DRIVE SECTION
- 62. MAIN FRAME
- 63. I/U FRAME SECTION
- 64. REAR FAN SECTION
- 65. REAR FAN SECTION
- 66. DOOR SAFE SWITCH
- 67. HIGH VOLTAGE UNIT
- 68. MAIN POWER SUPPLY UNIT
- 69. SHIELD BOX
- 70. SHIELD BOX
- 71. REAR ELECTRICAL SECTION
- 72. IH POWER SUPPLY
- 73. WIRING
- 74. WIRING ACCESSORIES AND JIGS
- 75. ACCESSORY PARTS
- 76. MAINTENANCE LIST 1/1
1. INFORMATION FOR PARTS GUIDE MANUAL
| № | Артикул | Наименование |
|---|---|---|
| 1 | When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures. | |
| 2 | For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and | |
| 3 | In order to maintain safety of the product, some specific parts composed of this product are set up as "essential safety parts". | |
| 4 | The assigned parts number for the "essential safety parts" is indicated as "SP00-****". | |
| 5 | means that there are exclusive parts for each destination. | |
| 6 | Revision Mark | |
| 7 | All rights reserved. (any reprints or quotations are prohibited.) | |
| 1 | DIGITAL MFP COLOR bizhub C451 | |
| 2 | DOCUMENT FEEDER DF-611 | |
| 3 | FAX CONTROLLER FK-502 | |
| 4 | OTHER OPTION EK-602 | |
| 5 | PAPER FEEDER LU-301 | |
| 6 | SORTER/FINISHER FS-519 | |
| 7 | OTHER OPTION OT-602 | |
| 8 | SORTER/FINISHER MT-502 | |
| 9 | SORTER/FINISHER SD-505 | |
| 10 | PUNCH UNIT PK-510 | |
| 11 | OTHER OPTION OT-503 |

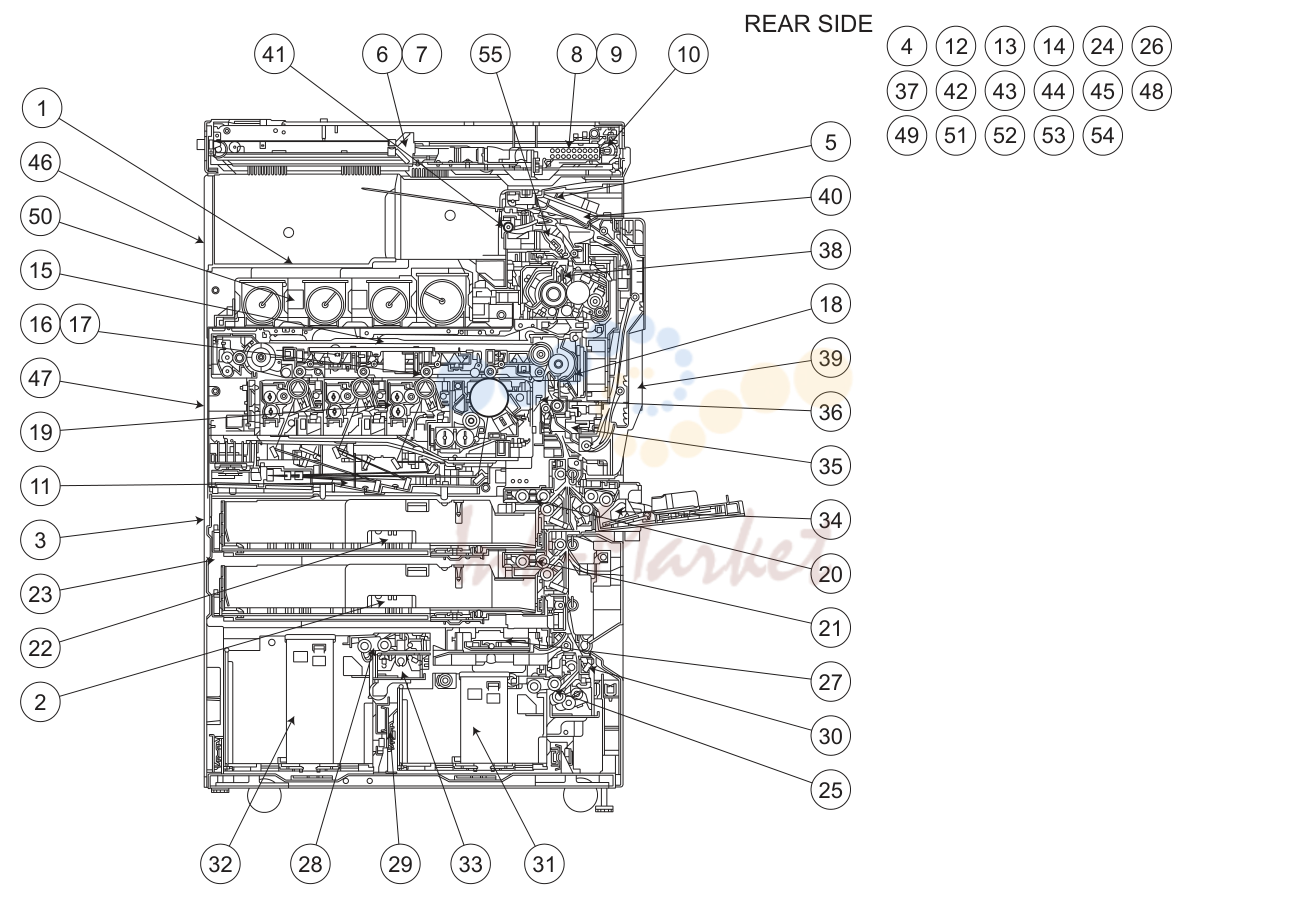

2. DIAGRAM OF MAIN PARTS SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | EXTERNAL PARTS P1 | |
| 2 | EXTERNAL PARTS P2 | |
| 3 | EXTERNAL PARTS P3 | |
| 4 | EXTERNAL PARTS P4 | |
| 5 | CONTROL PANEL P5 P6 | |
| 6 | IR COVER P7 | |
| 7 | IR FRAME P8 P9 | |
| 8 | SCANNER SECTION P10 | |
| 9 | CCD UNIT/SCANNER DRIVE P11 | |
| 10 | IR BOARD SECTION P12 | |
| 11 | PH UNIT P13 | |
| 12 | CONTACT SECTION P14 | |
| 13 | I/U LOCK LEVER P15 | |
| 14 | OZONE DUCT P16 | |
| 15 | TONER SUPPLY SECTION P17 | |
| 16 | TRANSFER UNIT P18 | |
| 17 | TRANSFER RAIL SECTION P19 | |
| 18 | ERASE LAMP P20 | |
| 19 | TONER COLLECT SECTION P21 | |
| 20 | 1ST PAPER FEED P22 P23 | |
| 21 | 2ND PAPER FEED P24 P25 | |
| 22 | CASSETTE ASSY P26 P27 | |
| 23 | CASSETTE RAIL P28 | |
| 24 | SIZE DETECTING SECTION P29 | |
| 25 | 1000-SHEET запросить цену → | PAPER FEED SECTION P30 P31 |
| 26 | LCC DRIVE P32 | |
| 27 | LEVEL CONVEYANCE SECTION P33 P34 | |
| 28 | 1500-SHEET запросить цену → | PAPER FEED SECTION P35 P36 |
| 29 | LCC CASSETTE RAIL P37 | |
| 30 | LCC LENGTH CONVEYANCE SECTION P38 | |
| 31 | 1000-SHEET запросить цену → | TRAY P39 |
| 32 | 1500-SHEET запросить цену → | TRAY P40 |
| 33 | CASSETTE TRAY P41 | |
| 34 | MANUAL FEED TRAY UNIT P42 P43 P44 P45 | |
| 35 | PAPER EXIT CONVEYANCE SECTION P46 P47 P48 | |
| 36 | REGISTRATION SENSOR P49 | |
| 37 | ROTATION DETECTING SENSOR P50 | |
| 38 | FUSING SECTION P51 | |
| 39 | ADU P52 P53 | |
| 40 | PAPER EXIT SECTION P54 | |
| 41 | REVERSAL UNIT P55 P56 | |
| 42 | MAIN DRIVE UNIT P57 | |
| 43 | FUSING DRIVE UNIT P58 | |
| 44 | BOTTLE DRIVE SECTION P59 | |
| 45 | EJECT DRIVE SECTION P60 | |
| 46 | MAIN FRAME P61 | |
| 47 | I/U FRAME SECTION P62 | |
| 48 | REAR FAN SECTION P63 | |
| 49 | REAR FAN SECTION P64 | |
| 50 | DOOR SAFE SWITCH P65 | |
| 51 | HIGH VOLTAGE UNIT P66 | |
| 52 | MAIN POWER SUPPLY UNIT P67 | |
| 53 | SHIELD BOX P68 P69 | |
| 54 | REAR ELECTRICAL SECTION P70 | |
| 55 | IH POWER SUPPLY P71 | |
| 56 | WIRING P72 P73 P74 | |
| 57 | WIRING ACCESSORIES AND JIGS P75 | |
| 58 | ACCESSORY PARTS P76 |

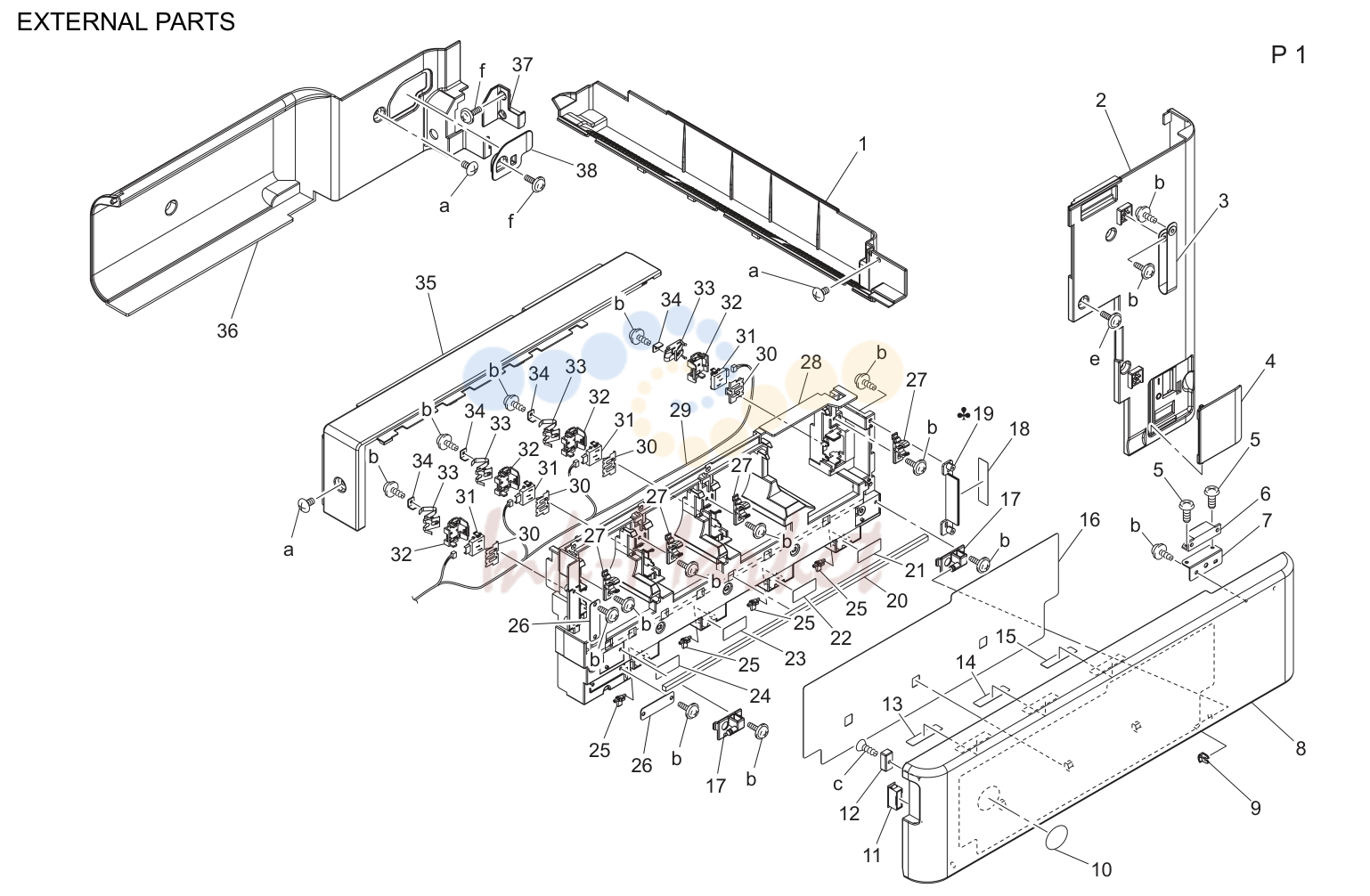

3. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1635 02 Paper exit Cover /Right C 1 a-V114 | |
| 2 | A00J 1604 02 Cover /Front C 1 b-V153 | |
| 3 | 4120 1014 02 BAND C 1 c-V147 | |
| 4 | A00J 1636 01 Cover C 1 f-V121 | |
| 5 | 4038 1051 01 SCREW C | |
| 6 | 4425 3366 01 MAGNET CATCH D | |
| 7 | A00J 1660 01 Mounting Plate /D C | |
| 8 | A00J 1602 01 Open/close Cover C | |
| 9 | 56AA 4049 0 SHAFT STOPPER 4 C | |
| 10 | A00J 9455 00 Logo Mark C | |
| 11 | 4030 1040 02 CATCH D | |
| 12 | 9326 2820 11 MAGNET D | |
| 13 | A00J 9408 01 Label Y C | |
| 14 | A00J 9409 01 Label M C | |
| 15 | A00J 9410 01 Label C C | |
| 16 | A00J 9403 03 Label TC Change C | |
| 17 | A00J 1647 00 Open/close Shaft C | |
| 18 | A00J 9411 01 Label K C | |
| 19 | A00K 4070 01 REGULATING BLOCK /BLACK A,A1 C | |
| 19 | A00K 4071 01 REGULATING BLOCK /BLACK B,G2 C | |
| 19 | A00K 4072 01 REGULATING BLOCK /BLACK C,D1,D3,F1,F2,G1,I,J,K C | |
| 20 | A00J 4074 00 SEAL C | |
| 21 | A00J 9407 00 Label K C | |
| 22 | A00J 9406 00 Label C C | |
| 23 | A00J 9405 00 Label M C | |
| 24 | A00J 9404 00 Label Y C | |
| 25 | 4036 5325 02 PAWL D | |
| 26 | 4038 1014 01 SUCTION PLATE D | |
| 27 | A00J 4075 00 Holder D | |
| 28 | A00J 1651 03 Cover /Inside D | |
| 29 | A00J N10G 01 Toner Relay harness /2 D | |
| 30 | 4038 2282 03 PLATE SPRING D | |
| 31 | 4136 6751 01 CONNECTOR PIN D | |
| 32 | 4038 2281 04 HOLDER D | |
| 33 | A00J 4046 01 Plate spring C | |
| 34 | A00J 4047 00 Spacer C | |
| 35 | A00J 1601 00 Paper exit Cover /Front C | |
| 36 | A00J 1634 01 Paper exit Cover /Rear C | |
| 37 | A00J 1664 00 Paper exit Cover /Right C | |
| 38 | A00J 1663 00 Paper exit Cover /Rear C |

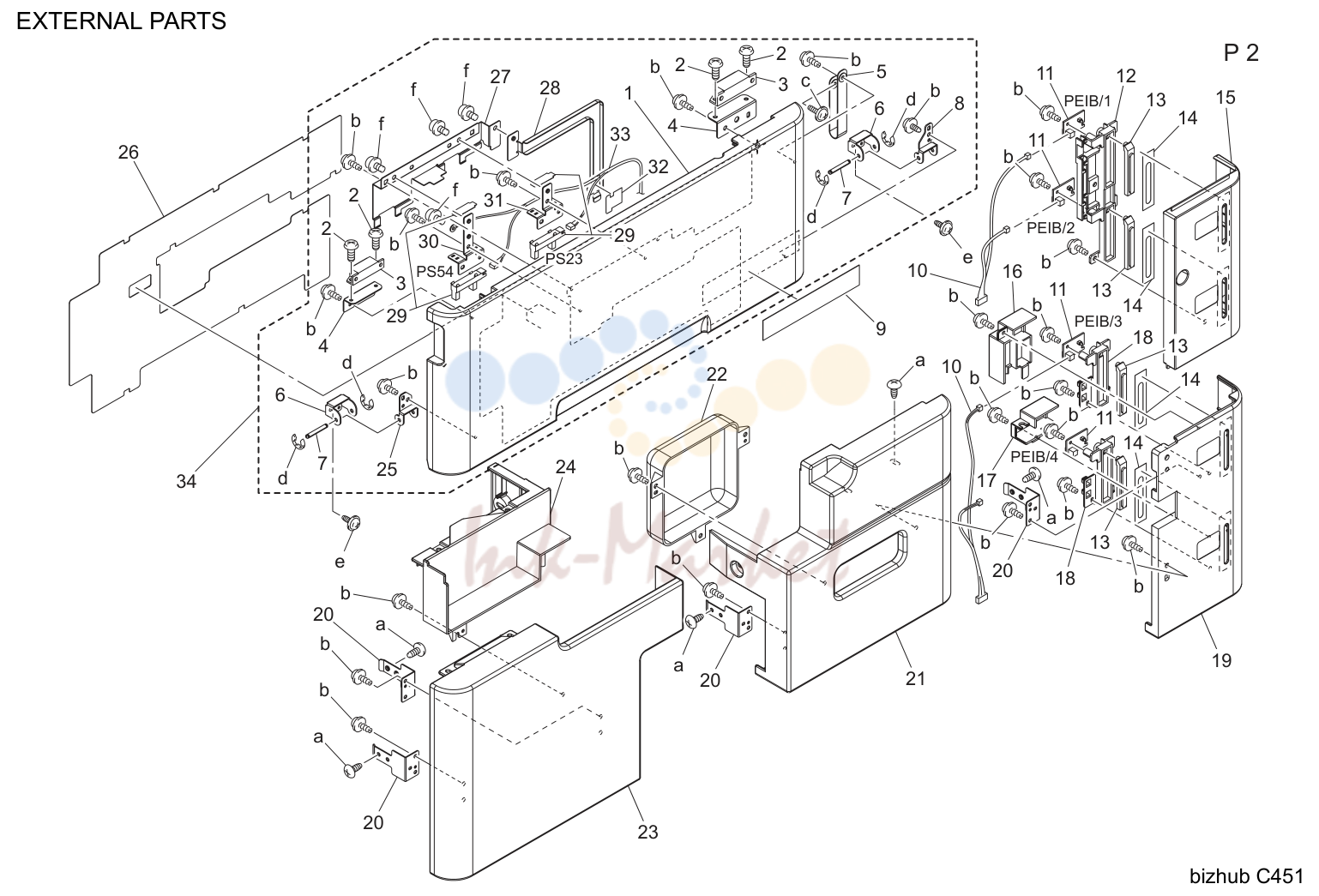

4. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1603 01 Open/close Cover /Front C 1 a-V114 | |
| 2 | 4038 1051 01 SCREW C 4 b-V153 | |
| 3 | 4425 3366 01 MAGNET CATCH D 2 c-V153 | |
| 4 | A00J 1626 00 Mounting Plate /B D 2 e-V137 | |
| 5 | 4120 1014 02 BAND C 1 f-V116 | |
| 6 | A00J 1621 00 Hinge C | |
| 7 | A00J 1623 00 Open/close Shaft C | |
| 8 | A00J 1624 00 Hinge /Right C | |
| 9 | A00K 9433 00 Label bizhub C451 C | |
| 10 | A00J N10D 00 INDICATING RELAY HARNESS/1 D | |
| 11 | A00J H00D 00 PWB Assembly LED1 C | |
| 12 | A00J 1683 00 Light blocking Cover D | |
| 13 | A00J 1681 02 Lens /A C | |
| 14 | A00J 1688 01 Light blocking Plate C | |
| 15 | A00J 1608 01 Cover Cassette /Right C | |
| 16 | A00J 1687 00 Cover D | |
| 17 | A00J 1686 00 Cover D | |
| 18 | A00J 1684 00 Light blocking Cover C | |
| 19 | A00J 1611 02 Cover LCC Info C | |
| 20 | A00J 1645 00 Mounting Plate D | |
| 21 | A00J 1610 00 Cover LCC Right C | |
| 22 | A00J 1650 00 Cover LCC Right C | |
| 23 | A00J 1609 00 Cover LCC Left C | |
| 24 | A00J 1649 02 Cover LCC Left C | |
| 25 | A00J 1622 00 Hinge /Left C | |
| 26 | A00J 9440 03 Label IU Change C | |
| 27 | A00J 1641 00 Cover D | |
| 28 | A00J 1640 01 Cover D | |
| 29 | 4037 0901 01 PHOTO INTERRUPTER B | |
| 30 | A00J 1625 00 Mounting Plate /A D | |
| 31 | A00J 1648 00 Mounting Plate /C D | |
| 32 | A00J 1670 00 PROTECTION SEAL C | |
| 33 | A00J N124 02 Toner Relay harness /5 D | |
| 34 | A00J R727 00 FRONT COVER ASSY C |

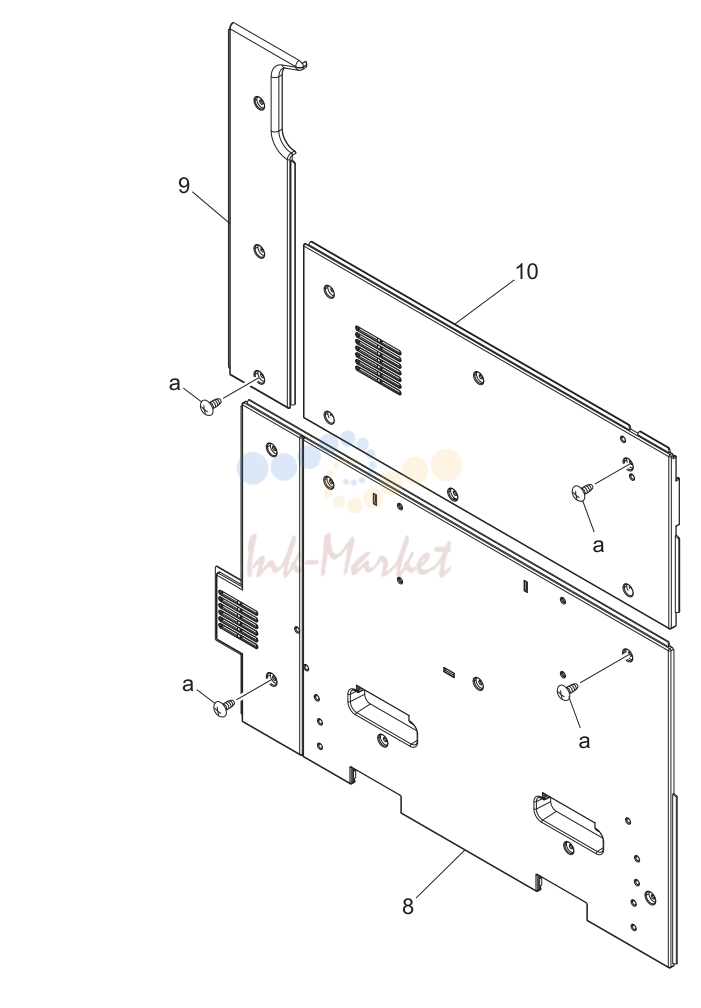

5. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1654 00 Cover /Inside D 1 a-V114 | |
| 2 | A00J 1627 02 Cover /Right rear C 1 b-V121 | |
| 3 | A00J 1628 02 COVER /RIGHT REAR C | |
| 4 | A00J 1642 00 Cover C | |
| 5 | A00J 1643 00 Cover C | |
| 6 | A00J 1629 01 Cover /Right front C | |
| 7 | A00J 1613 01 Cover Handle /Right C | |
| 8 | A00J 1606 03 Cover /Left C | |
| 9 | A00J 1614 00 Cover /Left rear C | |
| 10 | A00J 1605 00 Cover /Left front C |

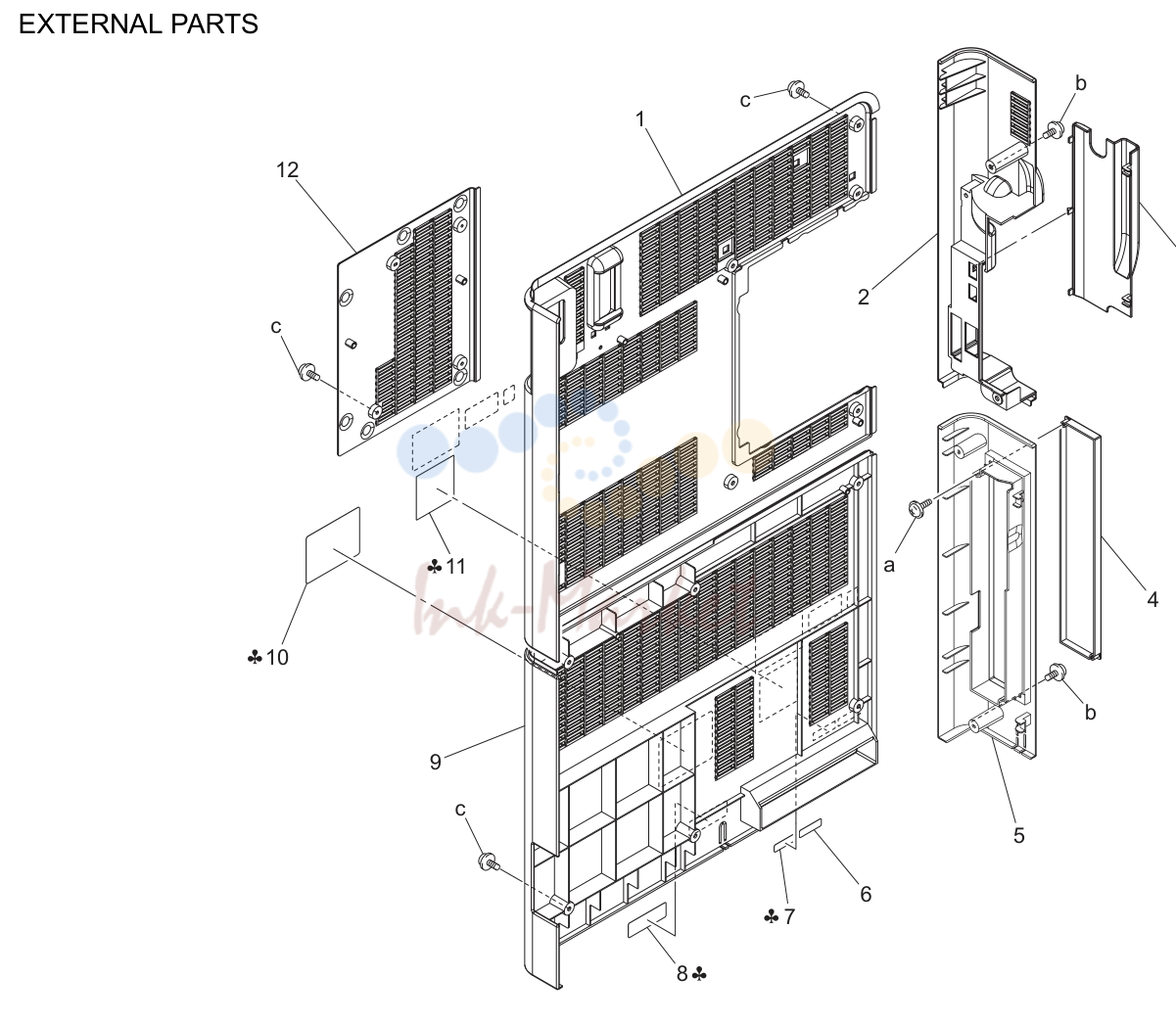

6. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1616 04 Cover /Rear C 1 a-V153 | |
| 2 | A00J 1619 03 Cover/Rear C 1 b-V121 | |
| 3 | A00J 1656 02 Cover C 1 c-V121 | |
| 4 | A00J 1657 00 Cover C | |
| 5 | A00J 1620 02 Cover /Rear C | |
| 6 | A00J 9454 00 Label Dehumidifier SW. C | |
| 7 | A00J 9452 01 Label 220-240V 0.65A C,D1,D3,F2,G1,I,J,K C | |
| 7 | A00J 9453 01 Label 100-127V 1.3A B,G2,F1 C | |
| 8 | A00J 9458 00 Label Controller A,A1 C | |
| 9 | A00J 1618 01 Cover /Rear C | |
| 10 | A00J 9457 00 Label Caution A,A1 C | |
| 11 | A00J 9450 00 Label Only connect C,D1,D3,F2,G1,I,J,K C | |
| 12 | A00J 1644 00 Cover C |

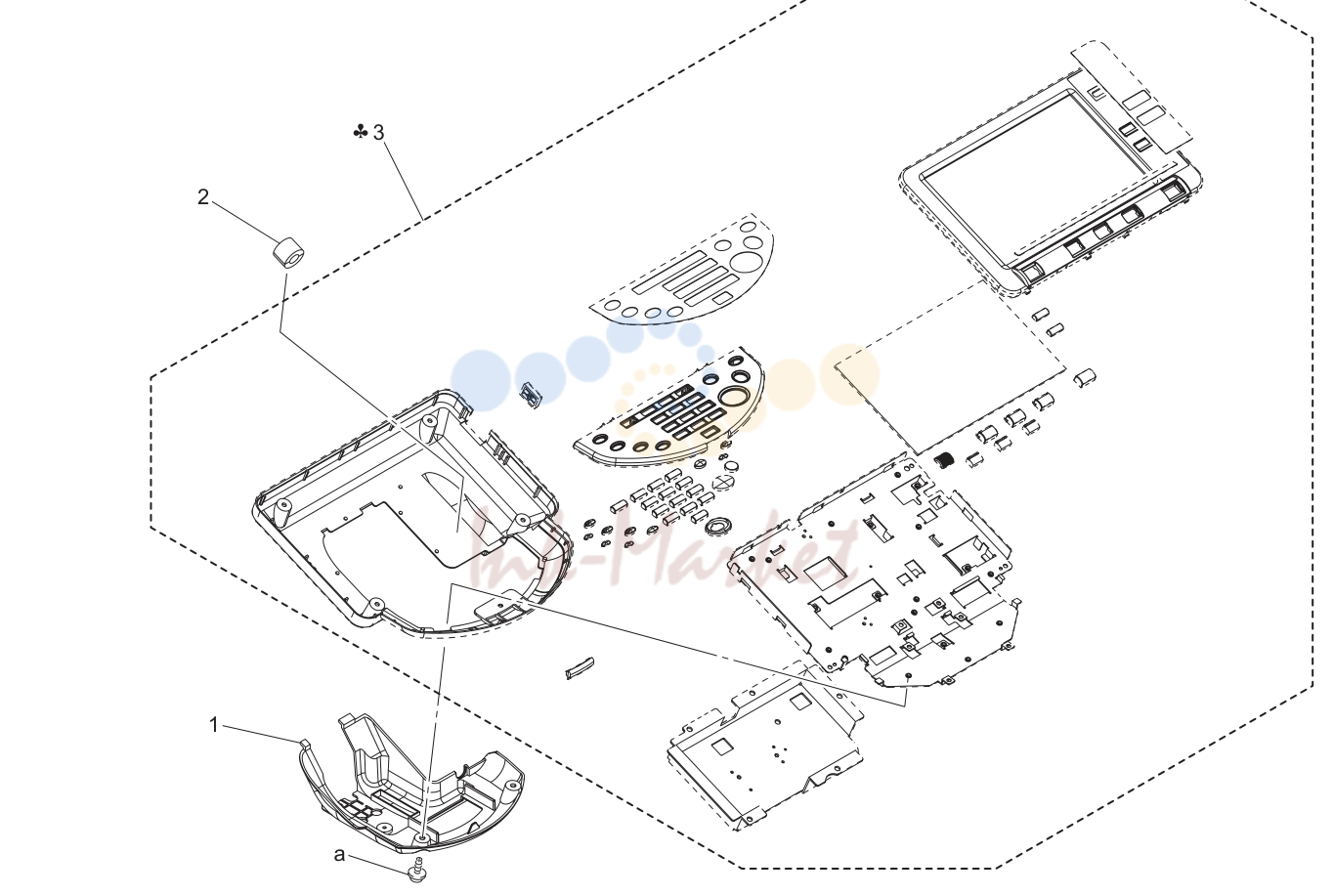

7. CONTROL PANEL
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1694 03 Cover Panel Lower C 1 a-V121 | |
| 2 | 9326 1810 51 FERRITE CORE D | |
| 3 | A00J M700 03 Panel assembly A,A1 I | |
| 3 | A00J M701 03 Panel assembly B,D1,D3,F1,F2,G1,G2,I,K I | |
| 3 | A00J M702 03 Panel assembly C I | |
| 3 | A00J M703 01 Panel assembly J I |

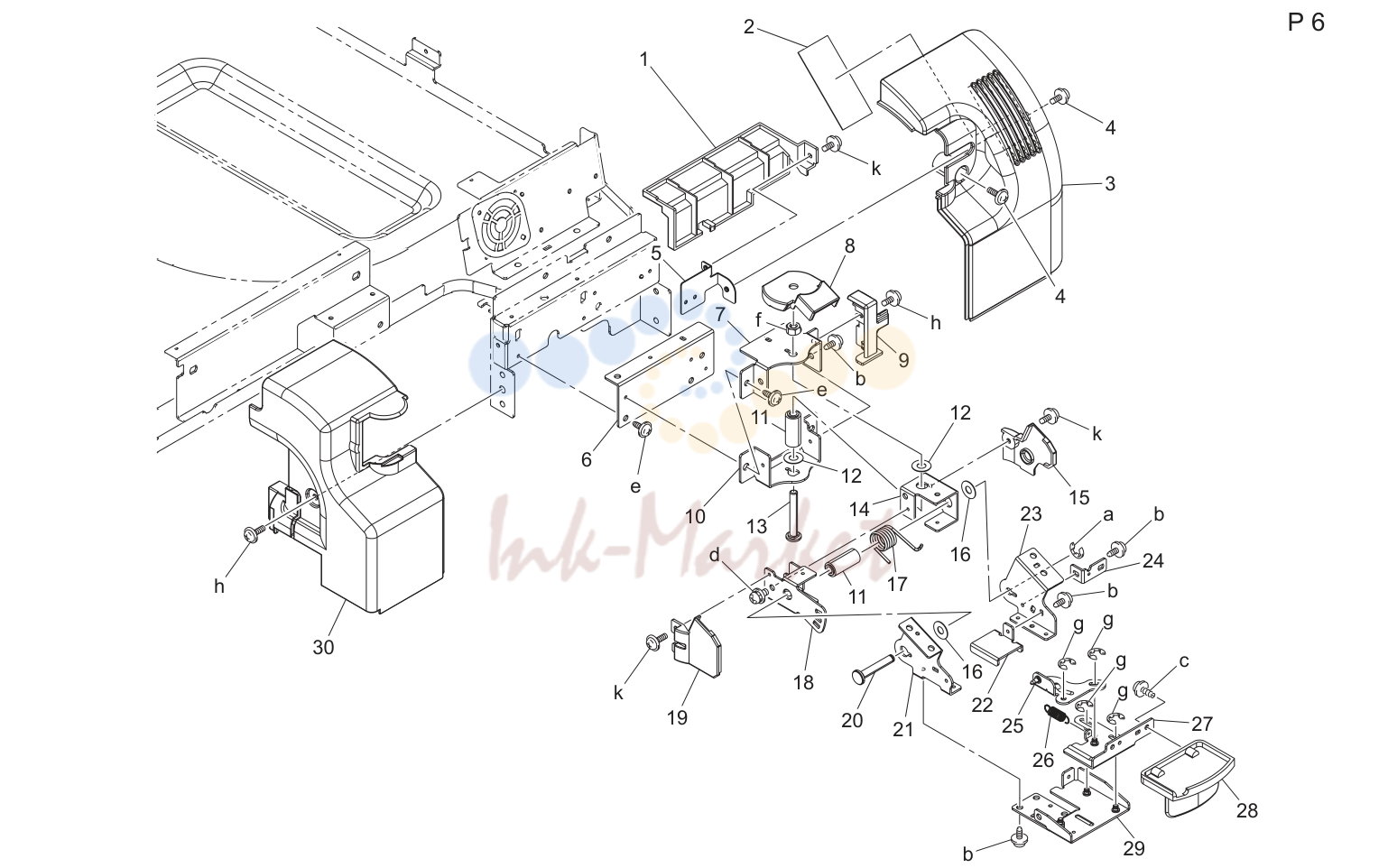

8. CONTROL PANEL
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1676 01 Read Cover /Front D 1 a-V217 | |
| 2 | A00J 1665 00 Filter C 1 b-V137 | |
| 3 | A00J 1674 02 Read Cover /Front C 1 c-V153 | |
| 4 | 4154 3804 01 SCREW C 2 e-V137 | |
| 5 | A00J 1690 01 Mounting Plate D 1 f-V195 | |
| 6 | A00J 1920 00 Mounting Plate D 1 g-V217 | |
| 7 | A00J 1911 00 Mounting Plate D 1 h-V121 | |
| 8 | A00J 1677 00 Cover C | |
| 9 | A00J 1695 02 Cover C | |
| 10 | A00J 1912 00 Mounting Plate D | |
| 11 | A00J 1917 00 Collar D | |
| 12 | A00J 1919 00 Washer C | |
| 13 | A00J 1918 00 Support Screw C | |
| 14 | A00J 1914 00 Arm C | |
| 15 | A00J 1679 00 Cover C | |
| 16 | A00J 1929 00 Washer C | |
| 17 | A00J 1927 00 Torsion Spring C | |
| 18 | A00J 1913 00 Arm C | |
| 19 | A00J 1680 00 Cover C | |
| 20 | A00J 1928 00 Support Shaft D | |
| 21 | A00J 1916 00 Mounting Plate D | |
| 22 | A00J 1930 01 REINFORCE PLATE C | |
| 23 | A00J 1915 01 Mounting Plate D | |
| 24 | A00J 1924 00 Mounting Plate D | |
| 25 | A00J 1922 01 Lever D | |
| 26 | A00J 1926 00 Pulling Spring C | |
| 27 | A00J 1923 01 Lever C | |
| 28 | A00J 1925 00 Handle C | |
| 29 | A00J 1921 01 Mounting Plate D | |
| 30 | A00J 1675 01 Read Cover /Front C |

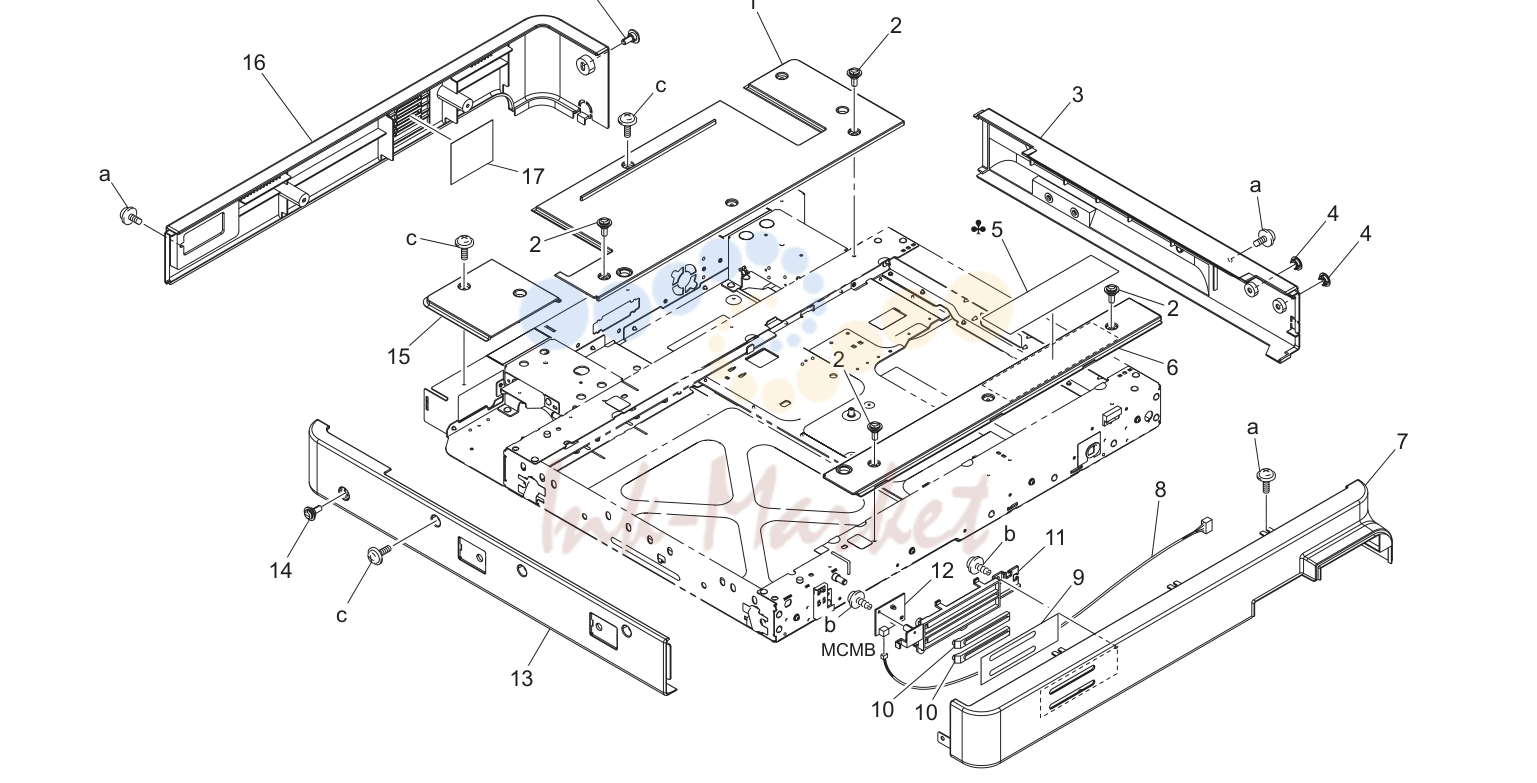

9. IR COVER
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1672 02 Read Cover /Upper C 1 a-V121 | |
| 2 | A00J 1692 00 Shoulder screw C 4 b-V153 | |
| 3 | A00J 1633 02 Read Cover /Right C 1 c-V121 | |
| 4 | A00J 1691 00 Cover C | |
| 5 | A00J 9401 00 Label Legal Restiriction B,G2,F1,,C,D1,D3,F2,G1,I,J, C | |
| 5 | A00J 9402 00 Label A,A1 C | |
| 6 | A00J 1671 02 Read Cover /Upper C | |
| 7 | A00J 1630 02 Read Cover /Front C | |
| 8 | A00J N11H 01 Indicating Relay Harness /3 D | |
| 9 | A00J 1689 02 Light blocking Plate C | |
| 10 | A00J 1682 02 Lens /B C | |
| 11 | A00J 1685 02 Light blocking Cover /C D | |
| 12 | A00J H00E 00 PWB Assembly LED2 I | |
| 13 | A00J 1632 03 Read Cover /Left C | |
| 14 | A00J 1693 00 Shoulder screw C | |
| 15 | A00J 1678 00 Read Cover /Upper C | |
| 16 | A00J 1631 02 Read Cover /Rear C | |
| 17 | 4025 2285 02 FILTER C |
10. IR FRAME
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 2620 00 Frame D 1 a-V115 | |
| 2 | A00J 2626 00 Seal C 2 b-V137 | |
| 3 | A00J 2625 00 Protection Seal C 1 c-V111 | |
| 4 | 4581 1625 01 SEAL C 7 e-V121 | |
| 5 | A00J 2644 00 Holder D | |
| 6 | 9334 2610 12 REED SWITCH C | |
| 7 | A00J 2628 00 Seal C | |
| 8 | A00J N143 00 SCANNER WIRING/3 D | |
| 9 | 9335 1400 61 SOLID STATE SWITCH B | |
| 10 | A00J 2622 00 Mounting Plate D | |
| 11 | A00J 2647 00 Seal C | |
| 12 | A00J 2623 00 Plate spring C | |
| 13 | A00J 2629 01 Seal C | |
| 14 | 9J06 1635 00 SEAL C | |
| 15 | A00J 2624 00 Protection Seal C | |
| 16 | A00J 2648 00 Tape C | |
| 17 | A00J 2642 01 Mounting Plate D | |
| 18 | A00J 2646 00 Seal C | |
| 19 | A00J 2630 01 Seal C | |
| 20 | A00J 2619 01 Frame D | |
| 21 | A00J 2641 00 Mounting Plate D | |
| 22 | A00J 2621 03 Frame D | |
| 23 | A00J 1667 00 Seal C |
11. IR FRAME
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 2637 00 Vibrationproof Rubber C 5 a-V115 | |
| 2 | A00J 2639 01 MOUNTING PLATE D 1 b-V137 | |
| 3 | 9373 2200 11 LOUDSPEAKER D 1 c-V137 | |
| 4 | A00J 2638 02 Mounting Plate D 1 e-A00J | |
| 5 | A00J 2645 00 Electrostaticproof Plate D 1 f-V116 | |
| 6 | A00J 2636 00 Mounting Plate D | |
| 7 | A00J 2632 04 FRAME D | |
| 8 | A00J 2640 01 Mounting Plate D | |
| 9 | A00J 2633 01 Frame D | |
| 10 | A00J 2634 00 Mounting Plate /Right rear D | |
| 11 | A00J 1668 00 Seal C | |
| 12 | A00J 1666 00 Seal C | |
| 13 | A00J N148 00 Scanner Wiring /8 D |
12. SCANNER SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J R708 00 ORIGINAL GLASS ASSY C 1 a-V115 | |
| 2 | A00J 2736 01 Holding Plate spring C 1 b-V137 | |
| 3 | A00J 2732 01 Mirror C 2 c-V218 | |
| 4 | A00J 2734 01 Mounting Plate D | |
| 5 | A00J 2743 00 Cover C | |
| 6 | A00J 2744 01 Screw C | |
| 7 | A00J 2735 01 Plate spring C | |
| 8 | A00J 2733 01 Mounting Plate D | |
| 9 | A00J 2742 01 Mounting Plate D | |
| 10 | A00J 2739 00 Pulley C | |
| 11 | 4002 1481 01 BUSHING C | |
| 12 | 4002 1480 01 BUSHING C | |
| 13 | A00J 2737 01 Holding Plate spring D | |
| 14 | A00J 2731 01 Frame D | |
| 15 | A00J 2738 01 Holding Plate spring D | |
| 16 | A00J 2651 00 Holding Plate C | |
| 17 | A00J 2740 00 Pulley C | |
| 18 | A00J 2741 00 Guide Part C | |
| 19 | A00J 2653 00 Regulating Plate C | |
| 20 | A00J 2903 00 Spacer C | |
| 21 | A00J 2908 00 Spacer t0.2 C | |
| 22 | A00J 2909 00 Spacer t0.1 C | |
| 23 | A00J 2888 00 Pulley 37T C | |
| 24 | A00J 2906 00 Flange C | |
| 25 | A00J 2886 00 Pulley 37T C | |
| 26 | 1200 3121 09 BUSHING C | |
| 27 | A00J 2884 00 Shaft D | |
| 28 | A00J R707 00 SHEET ASSY C | |
| 29 | A00J 2887 00 Pulley 26/34T C | |
| 30 | A00J 2897 01 Mounting Plate D | |
| 31 | A00J M12B 01 Stepping motor C | |
| 32 | 4036 1410 01 SHOULDER SCREW C | |
| 33 | A00J 2882 03 Cover C | |
| 34 | A00J 2907 00 Screw D | |
| 35 | A00J 2892 00 Cover C | |
| 36 | A00J R709 00 FIRST SLIDER ASSY C | |
| 37 | 9J06 1589 00 COLLAR C | |
| 38 | A00J 2658 00 Seal C | |
| 39 | A00J 2652 00 Holding Plate C | |
| 40 | 9J06 1620 01 SEAL C | |
| 41 | A00J 2655 00 Seal C | |
| 42 | A00J 2654 00 Seal C | |
| 43 | A00J R706 00 GLASS MOVEMENT UNIT C |
13. CCD UNIT/SCANNER DRIVE
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J M12A 00 Stepping motor C 1 a-V115 | |
| 2 | A00J 2767 00 Vibrationproof Rubber C 1 b-V116 | |
| 3 | A00J 2766 00 Mounting Plate D 1 c-V137 | |
| 4 | 4002 1458 01 TENSION SPRING C | |
| 5 | A00J 2756 00 Belt 200L C | |
| 6 | A00J 2755 00 Pulley 84T C | |
| 7 | A00J 2762 00 Bearing C | |
| 8 | A00J 2753 00 Pulley C | |
| 9 | A00J 2754 00 Shaft D | |
| 10 | A00J N142 01 Scanner Wiring /2 D | |
| 11 | A00J 2801 00 Mounting Plate D | |
| 12 | 4037 0903 01 PHOTO INTERRUPTER B | |
| 13 | A00J 2802 00 Lever C | |
| 14 | 4036 1720 01 PRESSURE SPRING C | |
| 15 | A00J 2761 00 Mounting Plate D | |
| 16 | A00J N144 01 Scanner Wiring /4 D | |
| 17 | 9335 1400 81 SOLID STATE SWITCH B,G2,F1,,C,D1,D3,F2,G1,I,JK C | |
| 18 | 9335 1400 81 SOLID STATE SWITCH C | |
| 19 | A00J 2751 00 Wire /Front C | |
| 20 | A00J 2760 00 Mounting Plate D | |
| 21 | A00J 2763 00 Guide Part C | |
| 22 | A00J 2759 01 Mounting Plate D | |
| 23 | A00J 2758 00 Pulley C | |
| 24 | A00J 2768 00 Pulling Spring C | |
| 25 | A00J 2905 00 Seal C | |
| 26 | A00J 2752 00 Wire /Rear C | |
| 27 | A00J R705 00 LENS CCD ASSY I | |
| 28 | 9326 1200 21 FERRITE CORE B,G2,F1,,C,D1,D3,F2,G1,I,JK D | |
| 29 | A00J 2785 01 Cover D |
14. IR BOARD SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J H011 00 PWB Assembly C I 1 a-V153 | |
| 2 | A00J 2820 00 Ground Plate C 1 b-V137 | |
| 3 | A00J N140 01 INTERFACE CABLE D 1 c-V116 | |
| 4 | A00J 1396 00 Screw C 2 e-V116 | |
| 5 | A00J 2814 00 Mounting Plate D | |
| 6 | A00J M901 00 Gasket C | |
| 7 | A00J 2821 00 Tape C | |
| 8 | A00J 2819 00 Ground Plate C | |
| 9 | A00J 2812 00 Guide Part C | |
| 10 | 4037 0903 01 PHOTO INTERRUPTER B | |
| 11 | A00J 2889 00 Mounting Plate C | |
| 12 | A00J 2818 02 Mounting Plate D | |
| 13 | A00J N141 01 Scanner Wiring /1 D | |
| 14 | 9313 1500 21 FAN MOTOR C | |
| 15 | A00J 2813 00 Guide Part B,G2,F1,,C,D1,D3,F2,G1,I,JK C | |
| 15 | A00J 2813 00 Guide Part A,A1 C | |
| 16 | V502 0100 41 BUSHING D | |
| 17 | A00J 2815 00 Mounting Plate D | |
| 18 | 9J07 0104 02 PWB-ID C | |
| 19 | A00J M410 00 Inverter unit I | |
| 20 | A00J N147 00 SCANNER WIRING/7 D | |
| 21 | A00J H00A 02 PWB Assembly IF I | |
| 22 | 4036 1353 04 INSULATING MEMBER C | |
| 23 | A00J N146 00 SCANNER WIRING/6 D | |
| 24 | 9326 1910 21 FERRITE CORE D |
15. PH UNIT
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1012 01 Support Plate D 1 a-A00J | |
| 2 | A00J 1056 01 Guide Post C 2 b-V217 | |
| 3 | A00J 1057 00 Guide Post C 2 c-V137 | |
| 4 | A00J 1036 00 Plate spring /Right D | |
| 5 | A00J 1023 01 Shaft D | |
| 6 | A00J R7A0 00 POSITIONING PLATE / PH D | |
| 7 | A00J R741 00 P/H ASSY I | |
| 8 | A00J 1037 00 Plate spring /Left D | |
| 9 | A00J 1359 00 Holder C | |
| 10 | A00J N12G 02 Control Relay harness /2 D | |
| 11 | A00J H003 00 PWB Assembly J I | |
| 12 | A00J 1375 00 Mounting Plate D | |
| 13 | A00J 1374 00 Mounting Plate D | |
| 14 | V502 0100 26 SUPPORT D |
16. CONTACT SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1129 00 Cover C 2 a-V116 | |
| 2 | A00J 1113 00 Contact /Front C 2 b-V153 | |
| 3 | A00J 1116 00 Contact /Middle C 2 c-V137 | |
| 4 | A00J 1159 00 Compressing Spring C | |
| 5 | A00J 1123 00 Holder C | |
| 6 | A00J 1122 00 Holder /Color C | |
| 7 | A00J 1109 00 Developing Contact /Middle C | |
| 8 | A00J 1108 00 Developing Contact /Front C | |
| 9 | A00J 1130 00 Cover /Cyan C | |
| 10 | A00J 1114 00 Contact /Cyan C | |
| 11 | A00J 1194 00 Compressing Spring /Cyan C | |
| 12 | A00J 1117 00 Contact /Cyan C | |
| 13 | A00J 1124 00 Holder /Cyan C | |
| 14 | A00J N137 00 CHANGING WIRING/2 D | |
| 15 | A00J N132 00 Chaging Wiring /C D | |
| 16 | A00J N136 00 CHANGING WIRING D | |
| 17 | A00J 1155 00 Charging Contact /Cyan C | |
| 18 | 4004 2317 01 PRESSURE SPRING C | |
| 19 | A00J 1156 00 Charging Contact /B C | |
| 20 | 4036 2311 01 PIN D | |
| 21 | A00J 1121 00 Contact /B C | |
| 22 | A00J 1120 00 Contact /Cyan C | |
| 23 | A00J 1188 00 Developing Contact /B C | |
| 24 | A00J 1187 00 Developing Contact /Cyan C | |
| 25 | A00J N133 00 Chaging Wiring /K D | |
| 26 | A00J 1168 00 Charging Contact /Magenta C | |
| 27 | A00J 1174 00 Contact /Magenta C | |
| 28 | A00J 1173 00 Developing Contact /Magenta C | |
| 29 | A00J 1172 00 Contact /Yellow C | |
| 30 | A00J 1171 00 Developing Contact /Yellow C | |
| 31 | A00J 1154 00 Charging Contact /Yellow C | |
| 32 | A00J N131 00 Chaging Wiring /M D | |
| 33 | A00J N130 00 Chaging Wiring /Y D | |
| 34 | A00J 1183 00 Contact /Magenta C | |
| 35 | A00J 1181 00 Developing Contact /Magenta C | |
| 36 | A00J 1180 00 Developing Contact /Yellow C | |
| 37 | A00J 1182 00 Contact /Yellow C | |
| 38 | A00J 1184 00 Cover /Yellow C | |
| 39 | A00J 1185 00 Cover /Magenta C | |
| 40 | A00J 1189 00 Developing Contact /Cyan C | |
| 41 | A00J 1193 00 Guide Cover C | |
| 42 | A00J 1192 00 Cover /B C | |
| 43 | A00J 1190 00 Developing Contact /B C | |
| 44 | A00J 1128 00 COVER /YELLOW C | |
| 45 | A00J R733 00 TERMINAL 2 ASSY C | |
| 46 | A00J R732 00 TERMINAL 1 ASSY C | |
| 47 | A00J R736 00 TERMINAL 5 ASSY C | |
| 48 | A00J R735 00 TERMINAL 4 ASSY C | |
| 49 | A00J R734 00 TERMINAL 3 ASSY C | |
| 50 | A00J R739 00 TERMINAL M ASSY C | |
| 51 | A00J R738 00 TERMINAL Y ASSY C | |
| 52 | A00J R740 00 TERMINAL CK ASSY C |
17. I/U LOCK LEVER
| № | Артикул | Наименование |
|---|---|---|
| 1 | 4004 1829 02 CUSHION C 4 a-V217 | |
| 2 | A00J 1210 00 Swing Shaft D 4 b-V137 | |
| 3 | A00J 1214 00 Torsion Spring C | |
| 4 | A00J 1209 00 Knob C | |
| 5 | A00J 1202 00 Claw C | |
| 6 | A00J 1203 00 Support Shaft D | |
| 7 | A00J 1215 00 Compressing Spring C | |
| 8 | A00J 1211 00 Lever /Black C | |
| 9 | A00J 1204 00 Support Shaft /Black D | |
| 10 | A00J 1208 00 Mounting Plate /Black D | |
| 11 | 9335 1300 61 PHOTO INTERRUPTER B | |
| 12 | A00J 1207 00 Mounting Plate /Black D | |
| 13 | A00J 1212 00 Cushion /Lower C | |
| 14 | A00J 9413 00 Label C | |
| 15 | A00J 1213 00 Mounting Plate /Cyan D | |
| 16 | A00J 1205 00 Mounting Plate /Left D | |
| 17 | A00J 1206 00 Mounting Plate /Right D | |
| 18 | A00J 1201 00 Lever /Color C | |
| 19 | A00J R701 00 IU-YM LOCK LEVER C | |
| 20 | A00J R702 00 IU-C LOCK LEVER C | |
| 21 | A00J R703 00 IU-BK LOCK LEVER C |
18. OZONE DUCT
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 1146 00 Seal C 3 a-V153 | |
| 2 | A00J 1136 00 Ozone Duct /B D 1 b-V153 | |
| 3 | A00J 1144 00 Seal /A C 1 c-V116 | |
| 4 | A00J 1143 00 Seal /Cyan C | |
| 5 | 4037 6061 01 ERASE ASSY C | |
| 6 | A00J 1196 00 Positioning Holder /Cyan C | |
| 7 | A00J 1195 00 Positioning Holder /Yellow C | |
| 8 | A00J 1134 00 Ozone Duct D | |
| 9 | A00J 1147 00 Seal C | |
| 10 | A00J 1138 00 Ozone Duct /Inside D | |
| 11 | A00J 1162 00 Seal /Upper C | |
| 12 | A00J 1161 00 Seal /Lower C | |
| 13 | A00J 1150 00 Seal /Inside C | |
| 14 | A00J 1164 00 Ozone Duct /Front D | |
| 15 | A00J 1163 01 Ozone Duct /Rear D | |
| 16 | A00J 1197 00 Ozone Duct /A D | |
| 17 | 9313 1400 41 FAN MOTOR C | |
| 18 | 4036 2485 01 SEAL C | |
| 19 | A00J 1198 02 OZONE DUCT /B D | |
| 20 | A00J 1165 00 Seal C | |
| 21 | A00J R731 00 OZONE FILTER C | |
| 22 | A00J 1170 00 Duct /Cyan C | |
| 23 | A00J 1148 00 Seal /Cyan C | |
| 24 | A00J 1135 00 Ozone Duct /Cyan D | |
| 25 | A00J 1145 00 Seal /B C | |
| 26 | A00J 1149 00 Seal /B C |
19. TONER SUPPLY SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 4066 00 Panel /P D 1 a-V118 | |
| 2 | A00J 4052 00 Seal C 5 b-V145 | |
| 3 | A00J N123 00 TONER RELAY HARNESS/4 D 1 c-V153 | |
| 4 | 65AA 3250 1 SCREW BEARING B C 16 e-V217 | |
| 5 | A00J 4023 00 Seal C 8 f-V153 | |
| 6 | A00J 4001 01 Supply Casing D | |
| 7 | 4036 5349 03 SEAL D | |
| 8 | 4036 5348 01 TENSION SPRING C | |
| 9 | 4036 5347 02 SHUTTER D | |
| 10 | A00J 4054 00 Cover /Lower C | |
| 11 | A00J N121 00 TONER RELAY HARNESS/3 D | |
| 12 | A00J 4017 00 Gear 45T C | |
| 13 | A00J 4018 00 Gear 38/35T C | |
| 14 | A00J N12K 01 Toner Relay Harness /8 D | |
| 15 | A00J M121 00 Stepping motor C | |
| 16 | A00J R7A1 00 DRIVEPANEL/H D | |
| 17 | A00J 4019 00 Gear 17/44T C | |
| 18 | A00J 4022 00 Seal /A C | |
| 19 | A00J 4016 00 Gear 22T C | |
| 20 | A00J 4005 00 Supply Roller C | |
| 21 | A00J 4073 00 SEAL C | |
| 22 | A00J 4014 01 Spring /A C | |
| 23 | A00J 4003 00 Cover /Upper D | |
| 24 | A00J 4012 00 Regulating Claw C | |
| 25 | A00J 4004 01 Shutter /H C | |
| 26 | A00J 4068 01 Receiving Block /Left C | |
| 27 | A00J 4069 01 Receiving Block /Right C | |
| 28 | A00J 4056 00 Guide Cover /Left C | |
| 29 | A00J 4009 00 Seal /S C | |
| 30 | A00J 4025 00 Mounting Plate /T D | |
| 31 | A00J 4055 00 Guide Cover /Right C | |
| 32 | 40AA 8803 1 LEVEL DETECTION SENSOR C | |
| 33 | A00J 4006 00 Agitating Shaft D | |
| 34 | A00J R744 00 AGITAING PANEL C | |
| 35 | A00J R711 00 HOPPER UNIT C |
20. TRANSFER UNIT
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 5233 01 Holding Plate C 1 a-V217 | |
| 2 | A00J R7A2 00 PLATE / REAR D 1 b-V116 | |
| 3 | A00J N12M 03 Sensor Relay harness /6 D 1 c-V153 | |
| 4 | A00J R7A3 00 LOCK PLATE / REAR D 1 e-V137 | |
| 5 | A00J 5232 00 Connecting Plate C 1 f-V153 | |
| 6 | A00J N13C 00 Transfer Wiring D 1 g-V153 | |
| 7 | A00J N13D 00 Separating Wiring /E D 1 h-V153 | |
| 8 | A00J R7A4 00 SLIDE PLATE / REAR D | |
| 9 | A00J 5244 02 Cover /4 C | |
| 10 | 4036 2311 01 PIN D | |
| 11 | A00J 5203 00 Contact /Black C | |
| 12 | A00J 5227 00 Contact /Cyan C | |
| 13 | A00J 5226 00 Contact /Black C | |
| 14 | A00J 5223 00 Contact C | |
| 15 | A00J 5225 00 Contact C | |
| 16 | A00J 5224 00 Contact C | |
| 17 | A00J 5222 00 Contact C | |
| 18 | A00J 5201 02 Transfer Rail /Front D | |
| 19 | A00J 5216 01 Plate spring /1 D | |
| 20 | A00J R7A5 00 LOCK PLATE / FRONT D | |
| 21 | A00J 5240 01 Holding Plate C | |
| 22 | A00J R7A6 00 PLATE / FRONT D | |
| 23 | A00J 5239 00 Connecting Plate D | |
| 24 | A00J R7A7 00 SLIDE PLATE / FRONT D | |
| 25 | A00J 5217 01 Plate spring /2 D | |
| 26 | A00J 5204 00 Contact /Cyan C | |
| 27 | A00J 5206 00 Contact /Yellow C | |
| 28 | A00J 5202 03 Transfer Rail /Rear D | |
| 29 | A00J 5208 00 Contact C | |
| 30 | A00J 5209 00 Contact C | |
| 31 | A00J N13E 00 SEPARATING WIRING/1 D | |
| 32 | A00J N13F 00 SEPARATING WIRING/2 D | |
| 33 | A00J 5243 00 Cover /3 D | |
| 34 | A00J 5205 00 Contact /Magenta C | |
| 35 | A00J 5242 01 Cover /2 D | |
| 36 | A00J R900 00 PHOTO INTERRUPTER B | |
| 37 | A00J N10M 00 SENSOR RELAY HARNESS/8 D | |
| 38 | A00J N10E 01 Sensor Relay Harness /1 D | |
| 39 | A00J 5241 01 Cover /1 D |
21. ERASE LAMP
| № | Артикул | Наименование |
|---|---|---|
| 1 | 4037 0906 01 PHOTO INTERRUPTER B 2 a-V153 | |
| 2 | 9J07 8900 00 SHAFT D 1 b-V116 | |
| 3 | 1134 3041 01 COLLAR D 1 c-A00J | |
| 4 | A00J 1039 02 Sensor Holder D 1 e-V116 | |
| 5 | A00J 1034 01 Torsion Spring C 1 f-V137 | |
| 6 | A00J 1040 02 Actuator C 1 g-V116 | |
| 7 | A00J 1075 00 Actuator C | |
| 8 | A00J 1073 00 Film C | |
| 9 | A00J 1047 00 Mounting Plate D | |
| 10 | A00J 1450 00 Mounting Plate D | |
| 11 | A00J 1451 01 Mounting Plate C | |
| 12 | A00J M303 01 LED array I | |
| 13 | A00J 1452 00 Light blocking Part C | |
| 14 | A00J 1028 01 Guide Plate /Front C | |
| 15 | A00J 1070 01 Mounting Plate D | |
| 16 | A00J 1025 00 Guide Plate /Front D | |
| 17 | A00J 4049 01 Regulating Block /Cyan A,A1 C | |
| 17 | A00J 4060 01 Regulating Block /Cyan B,G2 C | |
| 17 | A00J 4063 01 Regulating Block /Cyan C,D1,D3,F1,F2,G1,I,J,K C | |
| 18 | A00J 4050 01 Regulating Block /Magenta A,A1 C | |
| 18 | A00J 4061 01 Regulating Block /Magenta B,G2 C | |
| 18 | A00J 4064 01 Regulating Block /Magenta C,D1,D3,F1,F2,G1,I,J,K C | |
| 19 | A00J 4051 01 Regulating Block /Yellow A,A1 C | |
| 19 | A00J 4062 01 Regulating Block /Yellow B,G2 C | |
| 19 | A00J 4065 01 Regulating Block /Yellow C,D1,D3,F1,F2,G1,I,J,K C | |
| 20 | A00J 1074 01 Sheet C | |
| 21 | A00K 1066 01 RAIL /FRONT C | |
| 22 | 4154 3804 01 SCREW C | |
| 23 | A00K 1068 01 Mounting Plate /Front D | |
| 24 | A00J 1371 03 Cover D | |
| 25 | A00K 1069 01 Mounting Plate /Rear D | |
| 26 | A00K 1067 00 RAIL /REAR C | |
| 27 | A00J 1071 00 Reinforce Plate D | |
| 28 | A00J 1026 00 Guide Plate /Rear D | |
| 29 | A00J 1029 01 Guide Plate /Rear C | |
| 30 | A00J N12H 01 Sensor Relay harness /5 D | |
| 31 | A00J R737 00 ERASER LAMP ASSY C |
22. TONER COLLECT SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 3648 00 Fixing Plate /Right D 1 a-V137 | |
| 2 | A00J 3650 00 Knob C 2 b-V137 | |
| 3 | A00J 3660 00 Guide Part /Right D 1 c-V153 | |
| 4 | A0AT WY0 Waste Toner Box A 1 e-V116 | |
| 5 | A00J 3611 00 Collection Shutter C 1 f-V218 | |
| 6 | A00J 3612 00 Compressing Spring C 1 g-V115 | |
| 7 | A00J 3617 00 Collection Pipe C | |
| 8 | A00J 3608 00 Conveyance Screw C | |
| 9 | A00J R7A8 00 FIXING PLATE D | |
| 10 | A00J 3629 00 Gear 42T C | |
| 11 | A00J 3661 00 Guide Part /Left D | |
| 12 | A00J 3649 00 Fixing Plate /Left D | |
| 13 | 65AA 3250 1 SCREW BEARING B C | |
| 14 | A00J 3654 01 Sealing Shutter C | |
| 15 | A00J 3607 00 Collection Casing C | |
| 16 | A00J 3610 00 Gear 38T C | |
| 17 | A00J 3627 00 Gear 20T C | |
| 18 | A00J 3630 00 Gear 38/35T C | |
| 19 | A00J 3619 00 Drive Shaft /2 D | |
| 20 | 4131 2537 01 BUSHING C | |
| 21 | A00J 3625 00 Gear 30T C | |
| 22 | A00J 3609 00 Mounting Plate /ASSY D | |
| 23 | A00J 3620 00 Drive Shaft /3 D | |
| 24 | A00J M121 00 Stepping motor C | |
| 25 | A00J 3624 00 Gear 30/20T C | |
| 26 | A00J 3628 00 Gear 40T C | |
| 27 | A00J 3626 00 Gear 18T C | |
| 28 | A00J 3618 00 Drive Shaft /1 D | |
| 29 | A00J R710 00 TONER COLLECTION C |
23. 1ST PAPER FEED
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 5660 00 Holder C 1 a-V137 | |
| 2 | A00J 5662 00 Pulling Spring /Upper C 2 b-V217 | |
| 3 | A00J 5661 00 Idler Shaft /Upper D 1 c-V118 | |
| 4 | A00J 5712 03 Guide Plate C 1 e-V116 | |
| 5 | A00J 5667 00 Guide Sheet /2 C 2 f-V217 | |
| 6 | A00J 5757 01 Guide Sheet C 1 g-V116 | |
| 7 | A00J 5706 11 Guide Plate C 1 h-V217 | |
| 8 | A00J R7A9 00 MOUNTING PLATE / SUPPORT D | |
| 9 | A00J 5701 12 Frame /Front D | |
| 10 | 56AA 4049 0 SHAFT STOPPER 4 C | |
| 11 | 4131 3003 01 BUSHING C | |
| 12 | A00J 5604 00 Paper feed Frame D | |
| 13 | 4037 0906 01 PHOTO INTERRUPTER B | |
| 14 | 4030 3016 12 ACTUATOR C | |
| 15 | A00J 5636 00 Roller A | |
| 16 | A00J 5635 00 Clutch C | |
| 17 | 4425 3013 01 GEAR 30T C | |
| 18 | 4030 3011 03 LEVER C | |
| 19 | A00J 5640 00 Shaft /P D | |
| 20 | 4030 3008 01 GEAR 29T C | |
| 21 | A00J 5601 00 Paper feed Holder D | |
| 22 | 4040 3097 01 SHAFT D | |
| 23 | A00J 5603 02 Torsion Spring C | |
| 24 | 1065 3086 01 BUSHING C | |
| 25 | A00J 5602 00 Paper feed Shaft D | |
| 26 | A00J 5870 00 Paper feed Coupling C | |
| 27 | A00J 5624 00 Gear 28T C | |
| 28 | A00J 5628 00 Timing belt 160L C | |
| 29 | A00J 5623 00 Gear 22/32T C | |
| 30 | A00J R7AA 00 MOUNTING PLATE / PAPER FEED DRIVE D | |
| 31 | A00J M120 00 Stepping motor C | |
| 32 | A00J 5622 00 Gear 24/42T C | |
| 33 | A00J 5663 00 Washer C | |
| 34 | A00J 5625 01 Mounting Plate /1 D | |
| 35 | A00J M200 00 Clutch C | |
| 36 | A00J R7AB 00 FRAME / PAPER FEED 1 D | |
| 37 | A00J 5643 00 Paper feed Shaft /2 D | |
| 38 | A00J 5665 00 Shaft D | |
| 39 | A00J 5668 00 Torsion Spring C | |
| 40 | 4030 3122 01 ROLL C | |
| 41 | A00J 5669 00 Pulling Spring /Middle C |
24. 1ST PAPER FEED
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 5619 00 Reinforce Plate /1 D 1 a-V137 | |
| 2 | 4037 0902 01 PHOTO INTERRUPTER B 2 b-V137 | |
| 3 | 4348 3049 01 BRACKET D 1 c-V217 | |
| 4 | A00J 5707 11 Drive Roller C 1 e-V217 | |
| 5 | A00V 2406 00 BALL BEARING C 2 f-V116 | |
| 6 | A00J N118 02 Paperfeed Relay harness /3 D 1 g-V118 | |
| 7 | A00J 5605 02 Guide Plate D 1 h-V118 | |
| 8 | A00J 5671 00 Guide Sheet /A C | |
| 9 | A00J 5670 00 Guide Sheet /B C | |
| 10 | A00J 5672 00 Guide Part C | |
| 11 | A00J 5743 01 Guide Part D | |
| 12 | 4030 3125 01 TENSION SPRING C | |
| 13 | A00J 5613 00 Reinforce Plate D | |
| 14 | A00J 5612 00 Mounting Plate D | |
| 15 | A00J 5617 00 Compressing Spring C | |
| 16 | A00J 5646 00 Mounting Plate /S D | |
| 17 | 56AA 4049 0 SHAFT STOPPER 4 C | |
| 18 | A00J 5647 00 Holder /S D | |
| 19 | A00J 5748 00 Guide Roller /Rear C | |
| 20 | 4030 3039 01 SHAFT D | |
| 21 | 4030 3078 01 LEVER C | |
| 22 | A00J A566 00 Fieldroller / 1 A | |
| 23 | A00J 5654 00 Conveyance Gear /3 28T C | |
| 24 | A00J 5653 00 Conveyance Gear /2 21/31T C | |
| 25 | A00J 5704 00 Gear 24T C | |
| 26 | A00J R7AC 00 FRAME/DRIVE MOTOR D | |
| 27 | A00J M120 00 Stepping motor C | |
| 28 | A00J 5633 00 Drive Holder /1 D | |
| 29 | A00J 5655 00 Conveyance Gear /4 20/31T C | |
| 30 | A00J 5744 00 Gear 22T C | |
| 31 | A00J 5634 00 Wiring Cover /1 D | |
| 32 | A00J 5987 00 Positioning Plate /Rear D | |
| 33 | A00J R716 00 ROLLER UNIT C |
Полный список запчастей доступен по запросу.
комментарии
