Konica Minolta bizhub c 250 — каталог запчастей со схемами

Konica Minolta bizhub c 250 — ниже интерактивный каталог запчастей по узлам со взрыв-схемами из сервис-мануала. По каждой детали указан оригинальный артикул; позиции, доступные к заказу, отмечены ссылкой на карточку товара, остальные — кнопкой «запросить цену».

Запчасти по узлам (со схемами)

Взрыв-схемы по каждому узлу с артикулами. Детали, доступные к заказу, ведут на карточку товара; остальные — на форму запроса цены.

Содержание

1. INFORMATION FOR PARTS GUIDE MANUAL
2. DIAGRAMS OF MAIN PARTS SECTION
3. EXTERNAL PARTS
4. CONTROL PANEL
5. IR COVER
6. SCANNER DRIVE SECTION
7. SCANNER DRIVE SECTION
8. OPTICAL SECTION
9. IR FRAME
10. MAIN FRAME
11. INNER COVER SECTION
12. MPT PAPER TAKE-UP SECTION

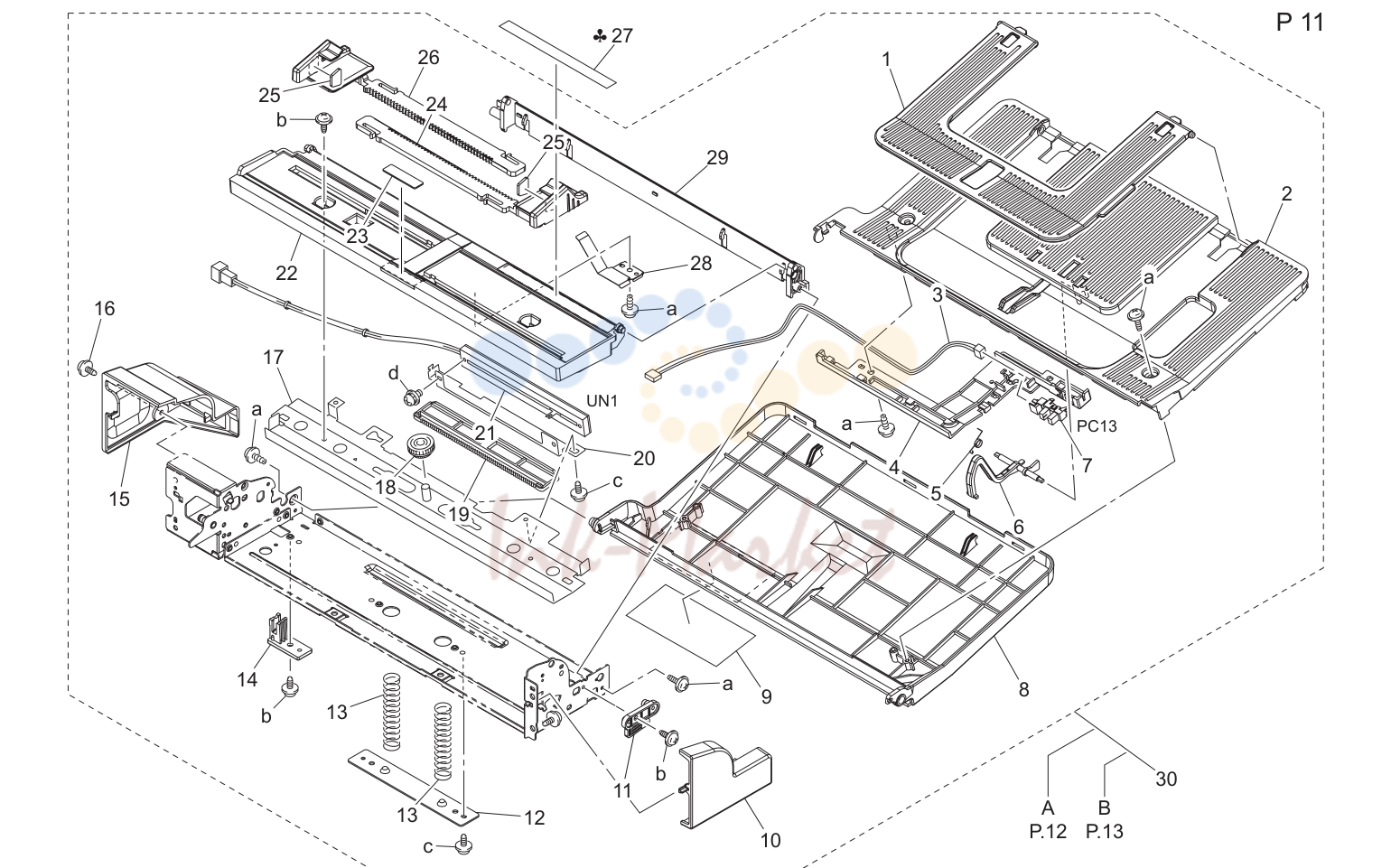

13. MANUAL FEED SECTION

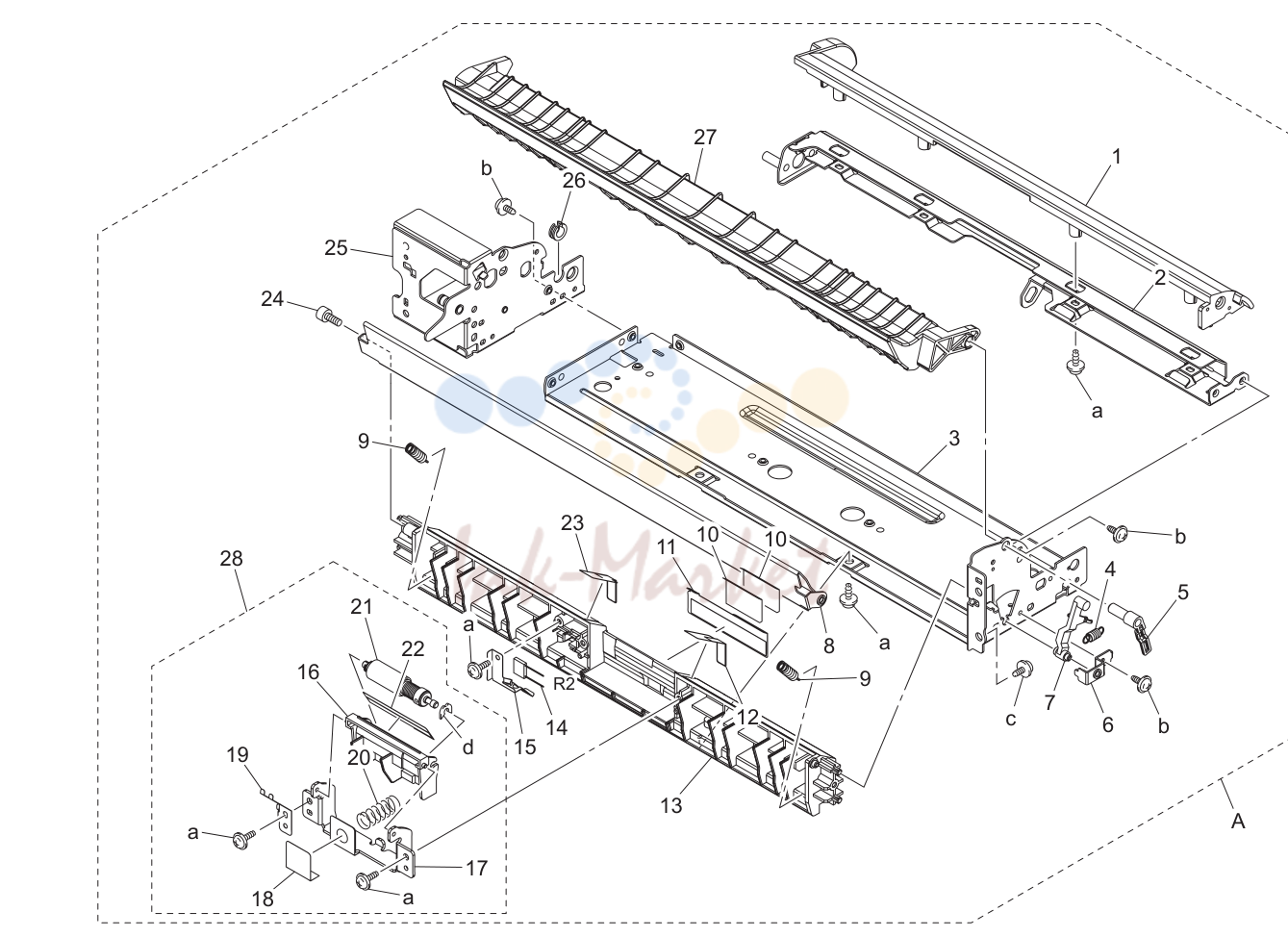

14. MANUAL FEED SECTION

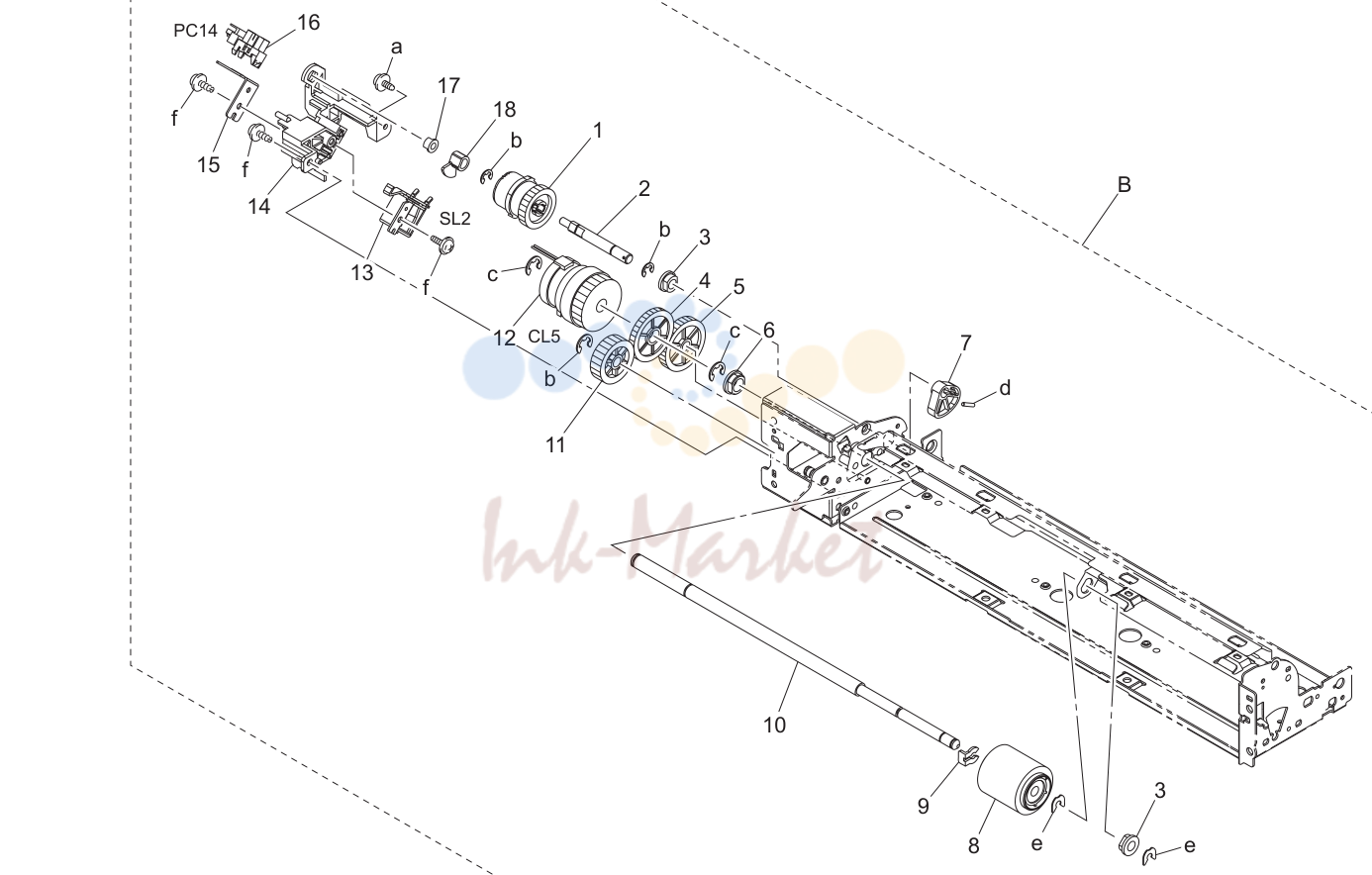

15. MANUAL FEED SECTION

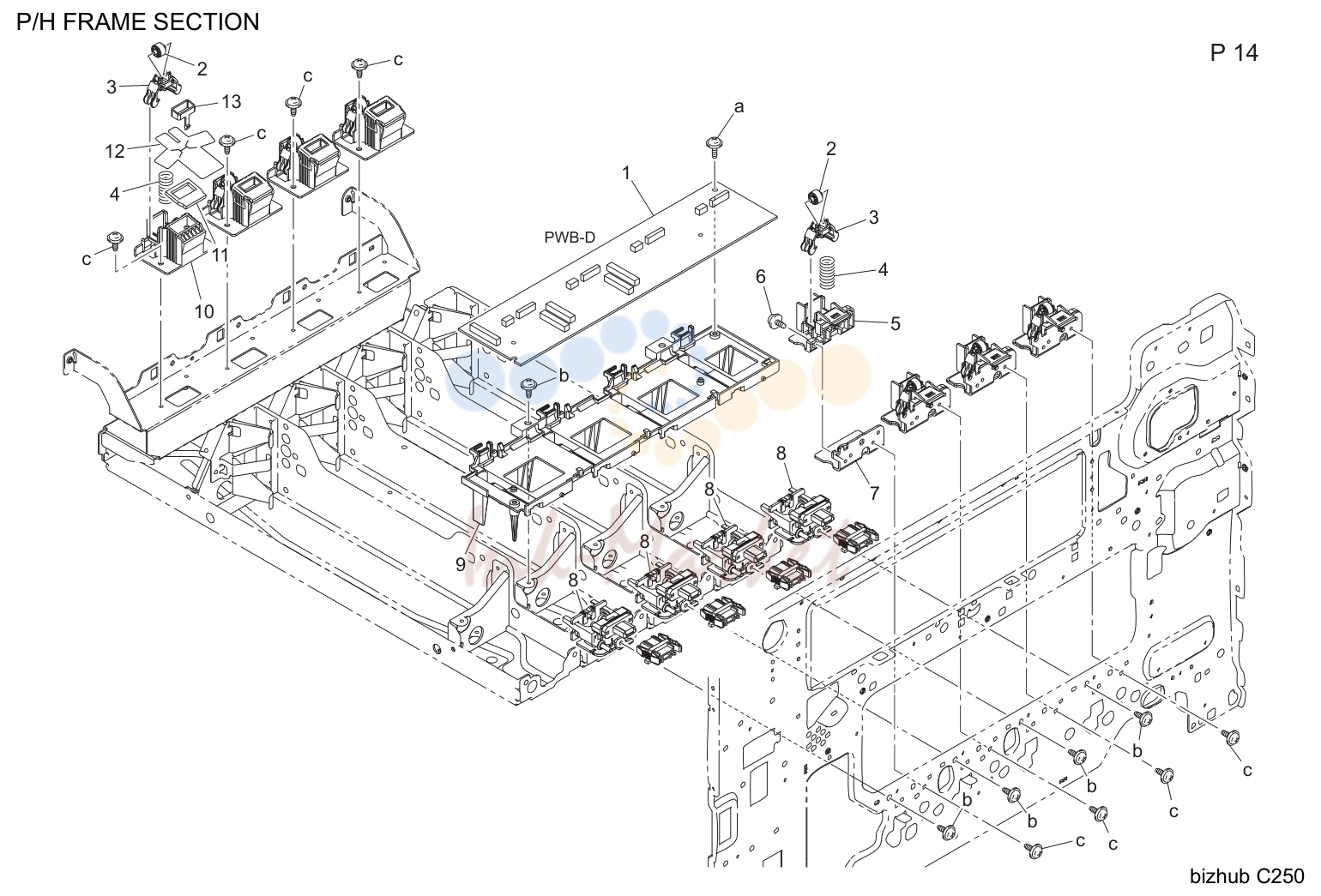

16. P/H FRAME SECTION

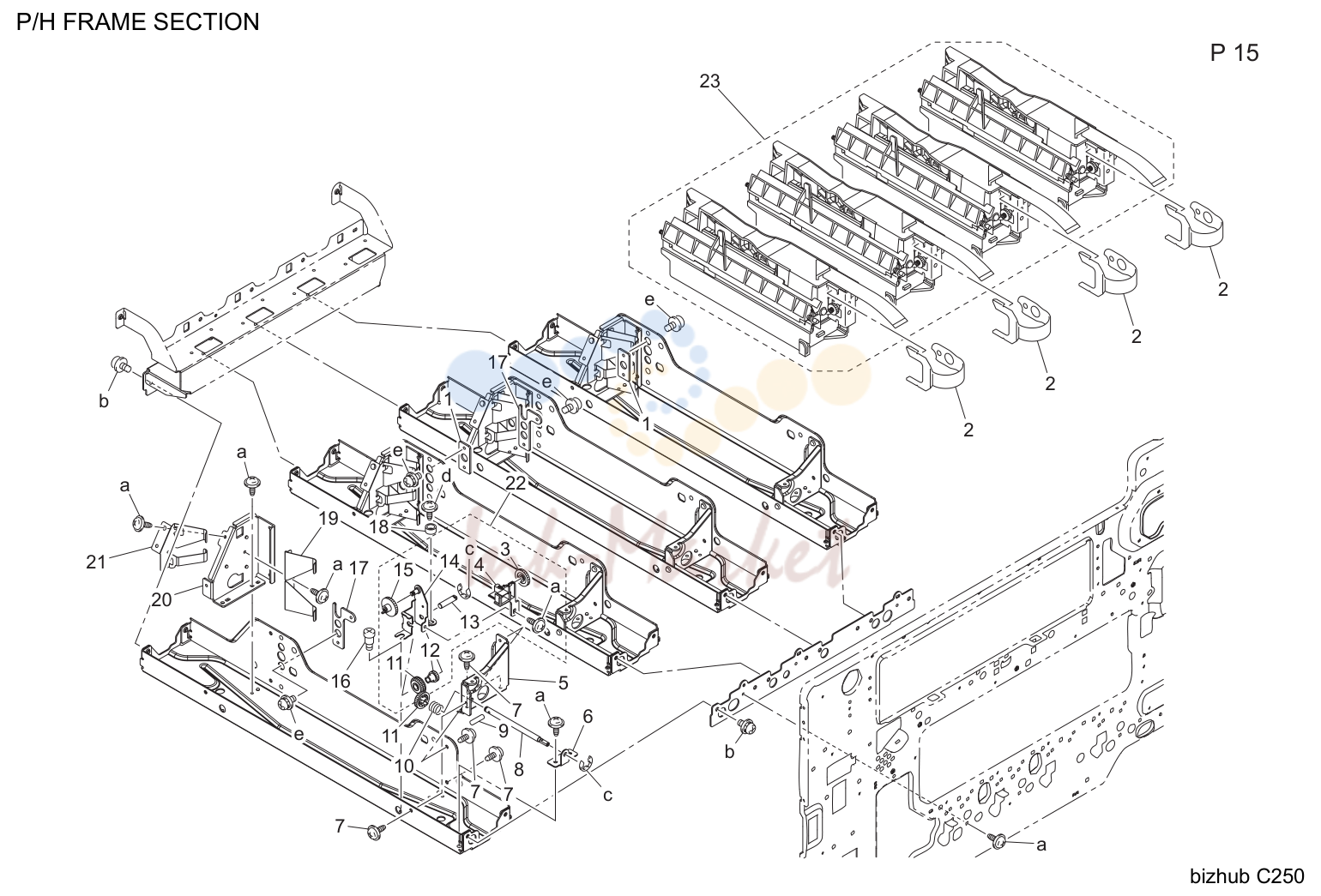

17. P/H FRAME SECTION

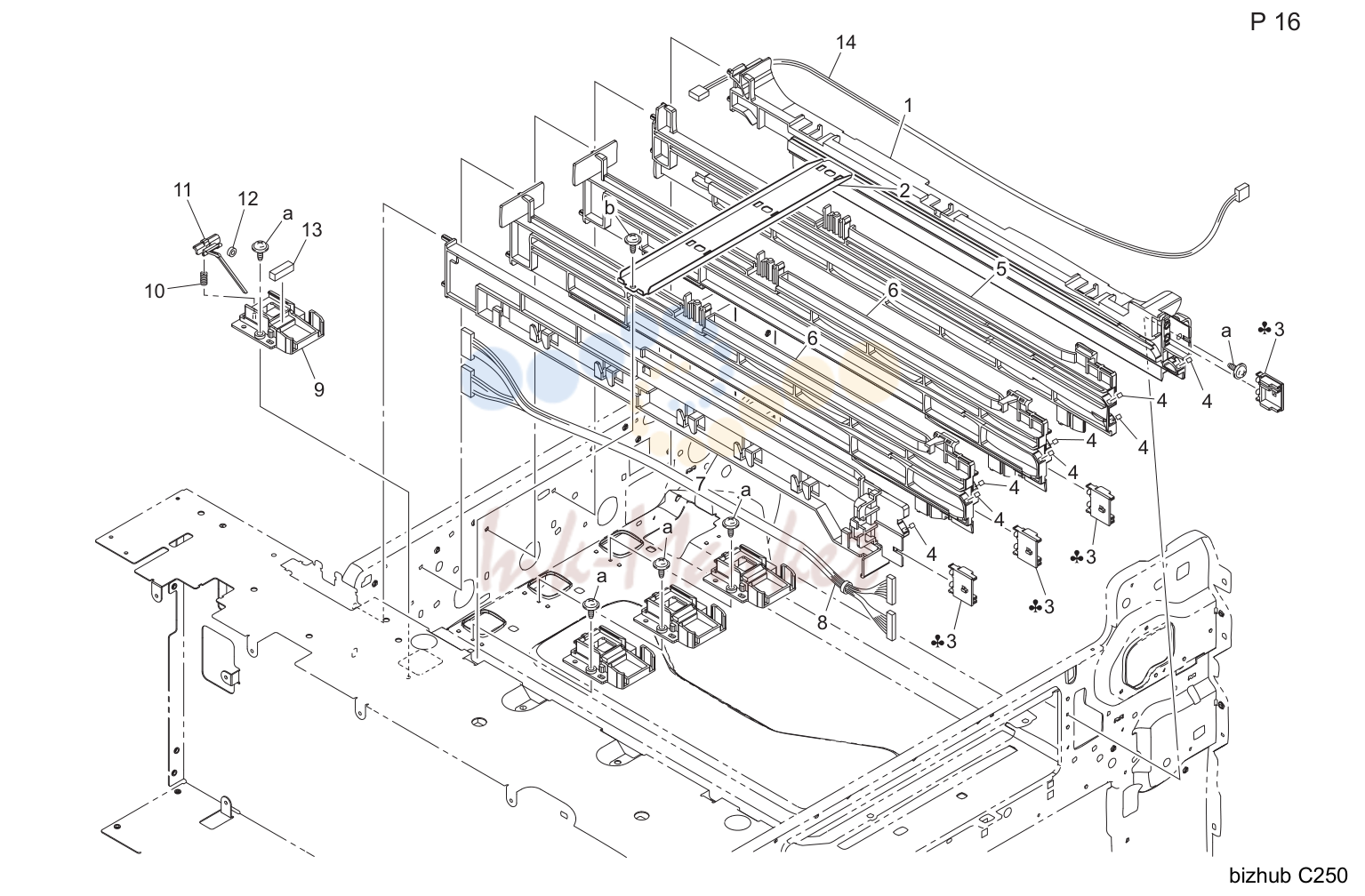

18. T/C RAIL SECTION

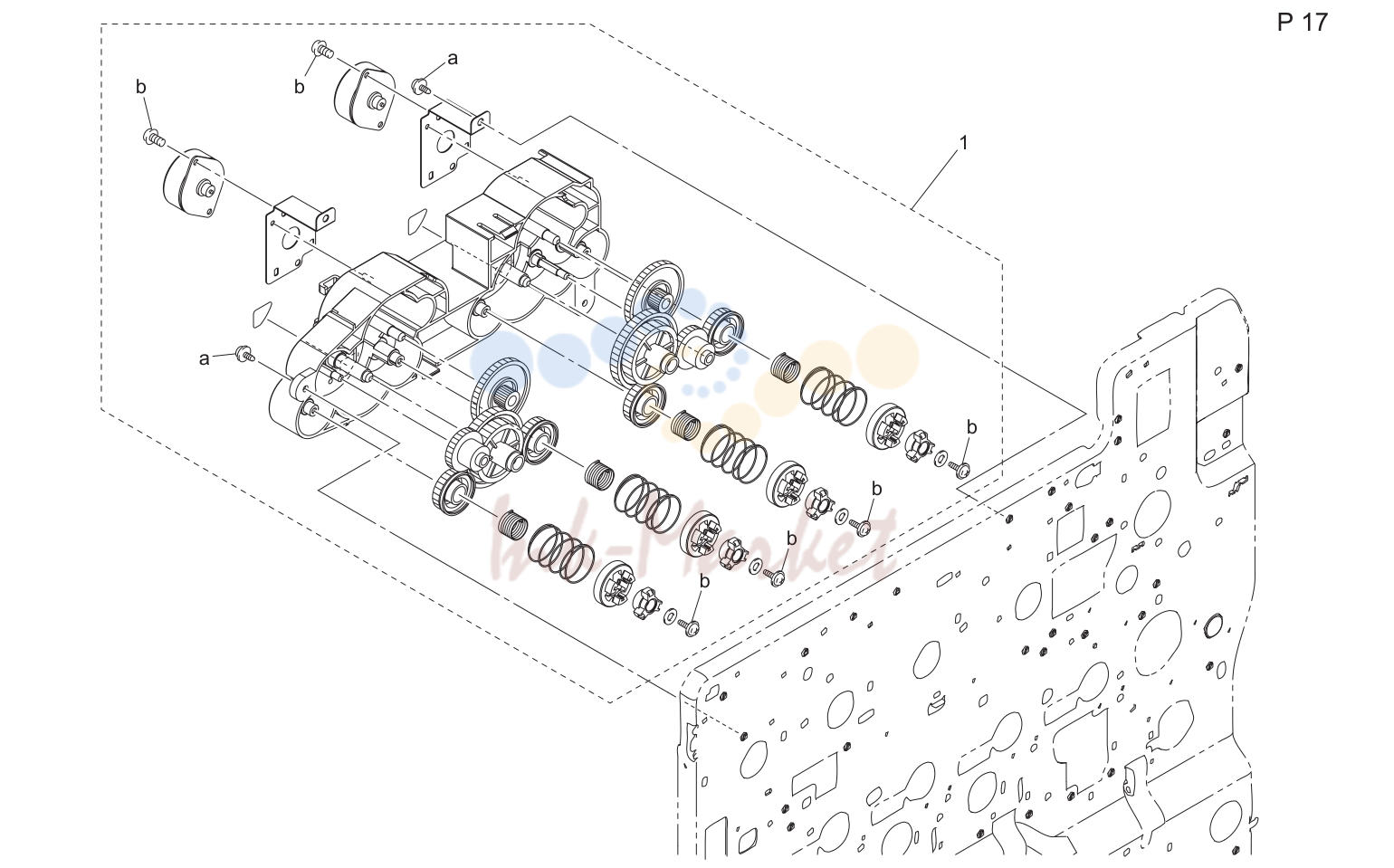

19. HOPPER DRIVE SECTION

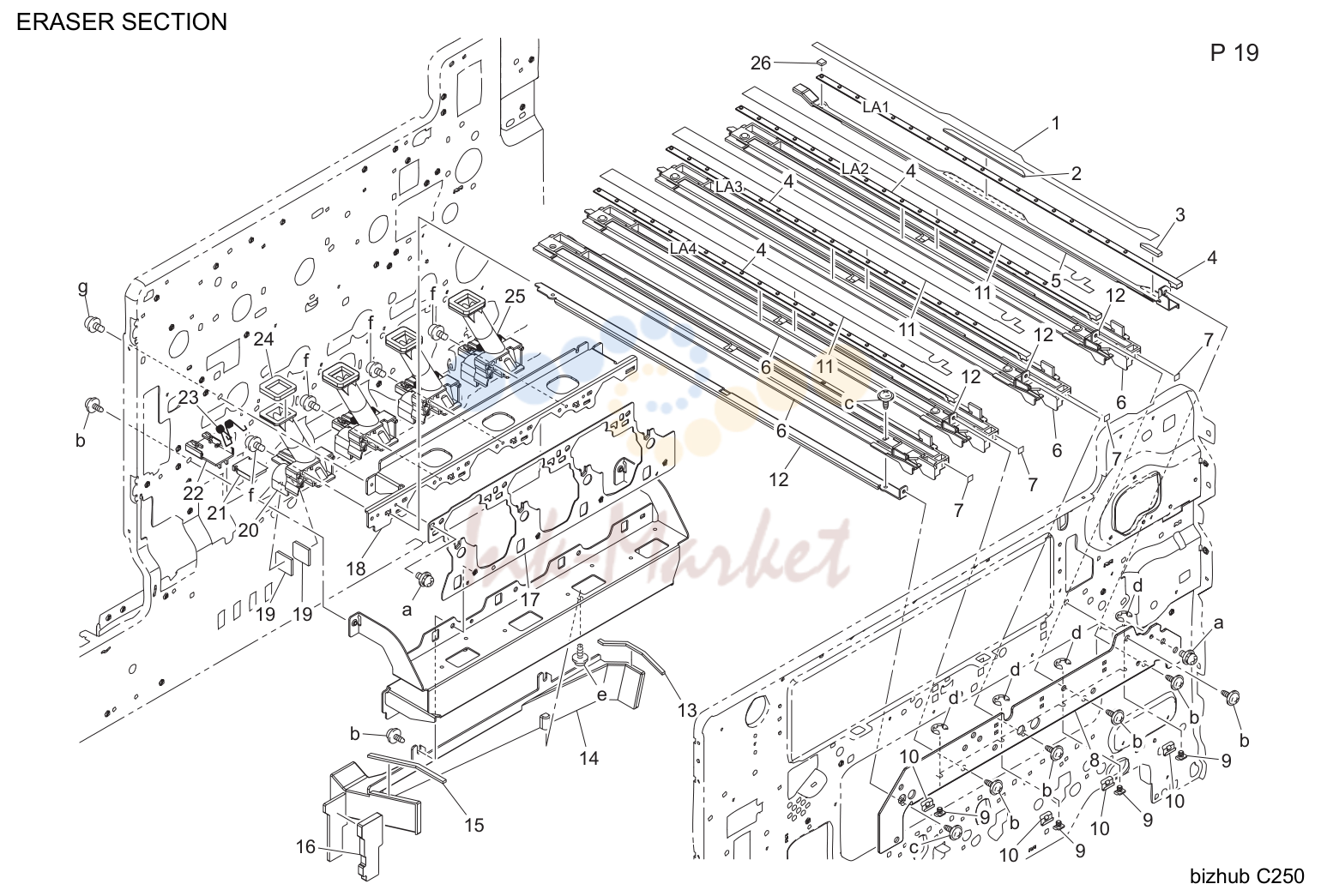

20. ERASER SECTION

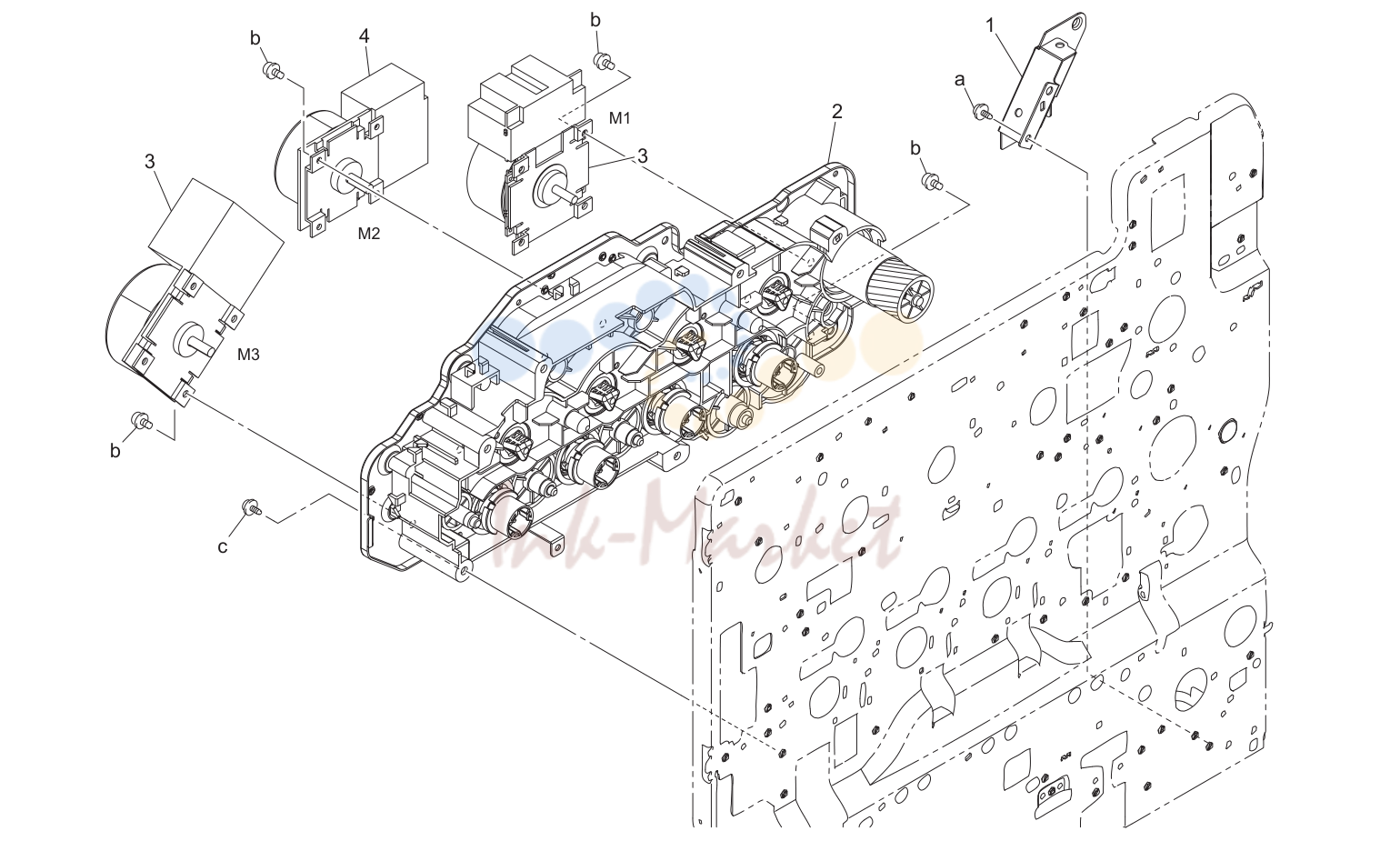

21. DEVELOPMENT DRIVE SECTION

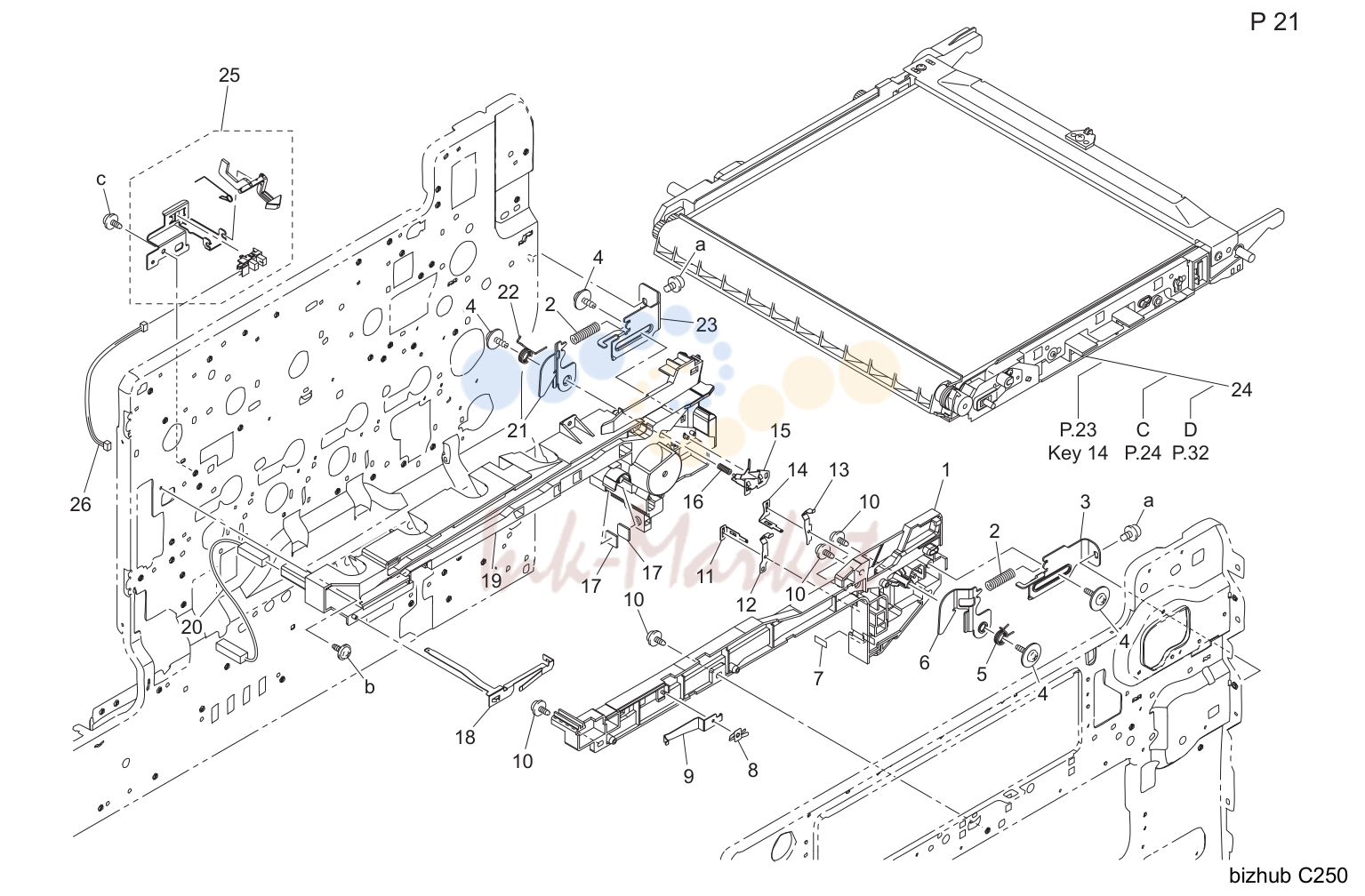

22. TRANSFER BELT SECTION

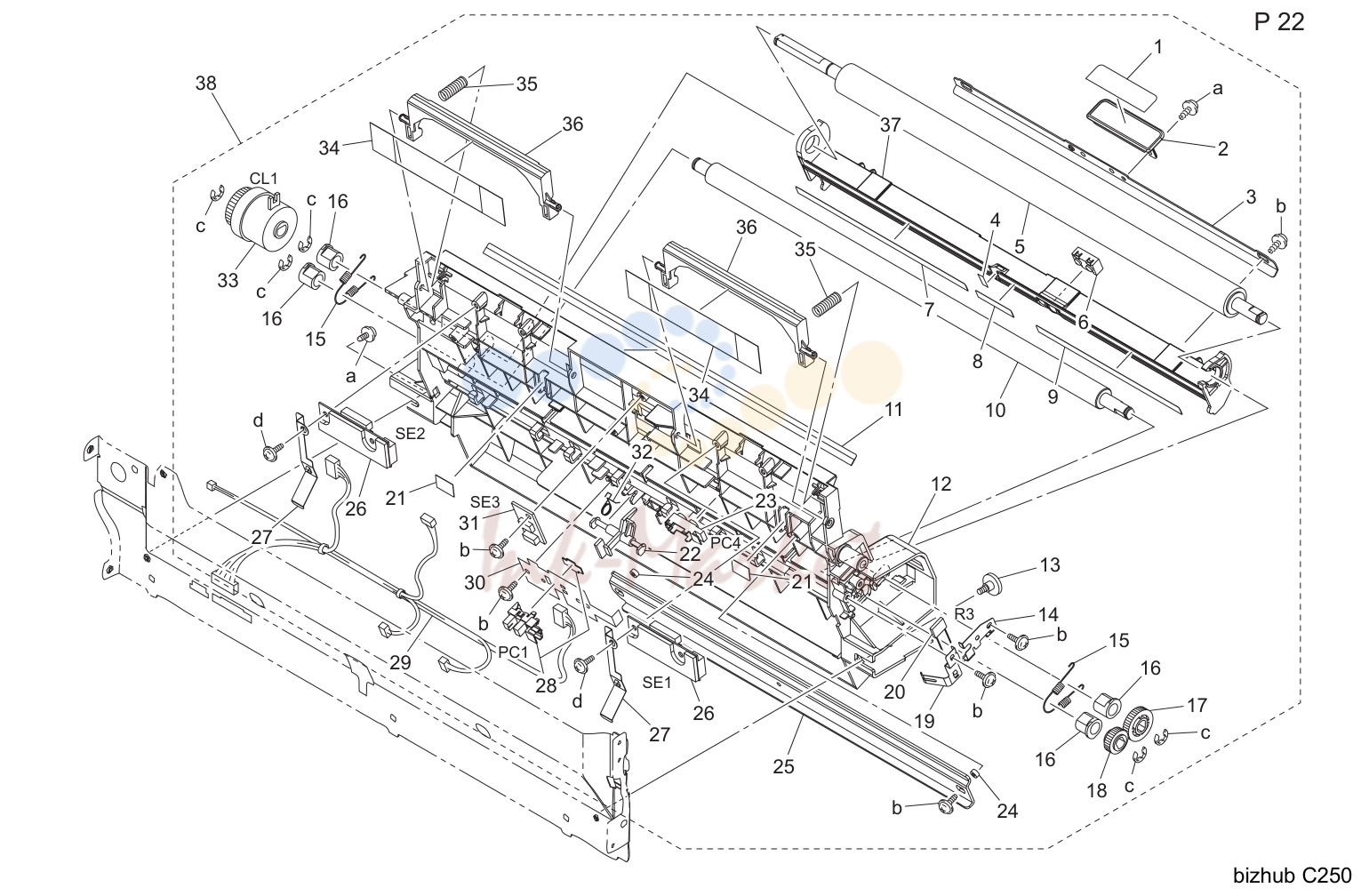

23. PAPER TRANSPORT SECTION

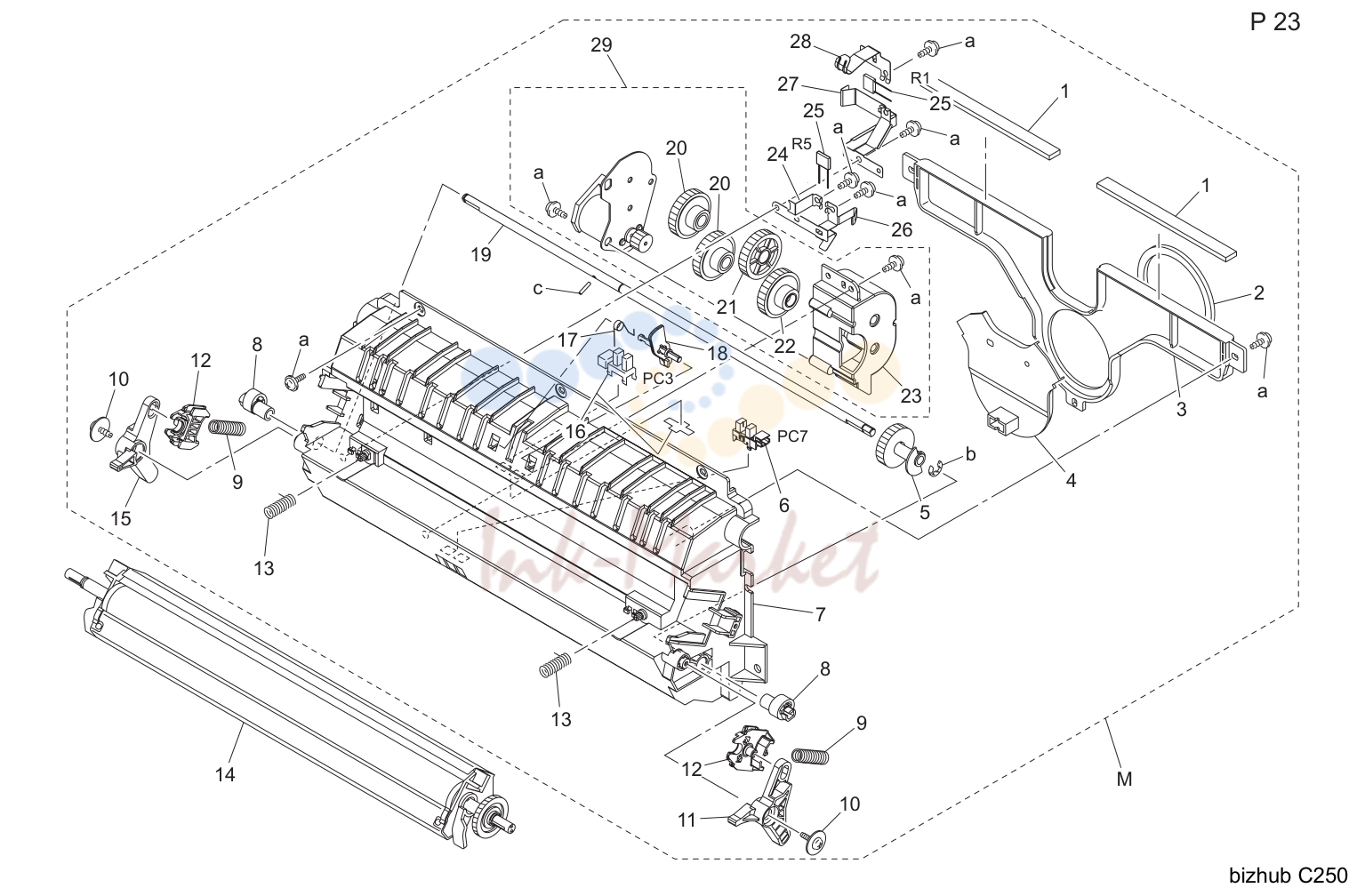

24. TRANSFER SECTION

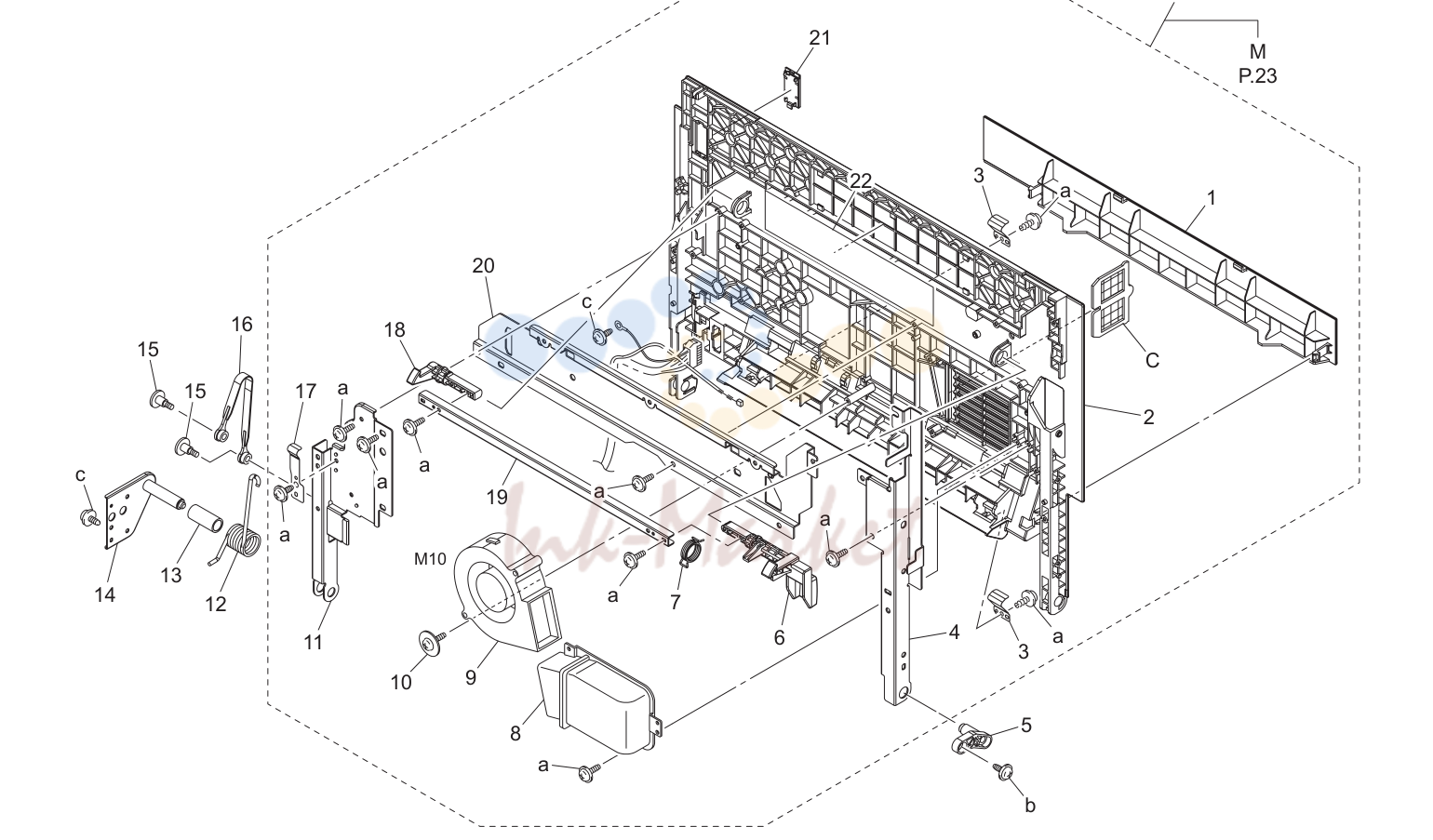

25. RIGHT DOOR SECTION

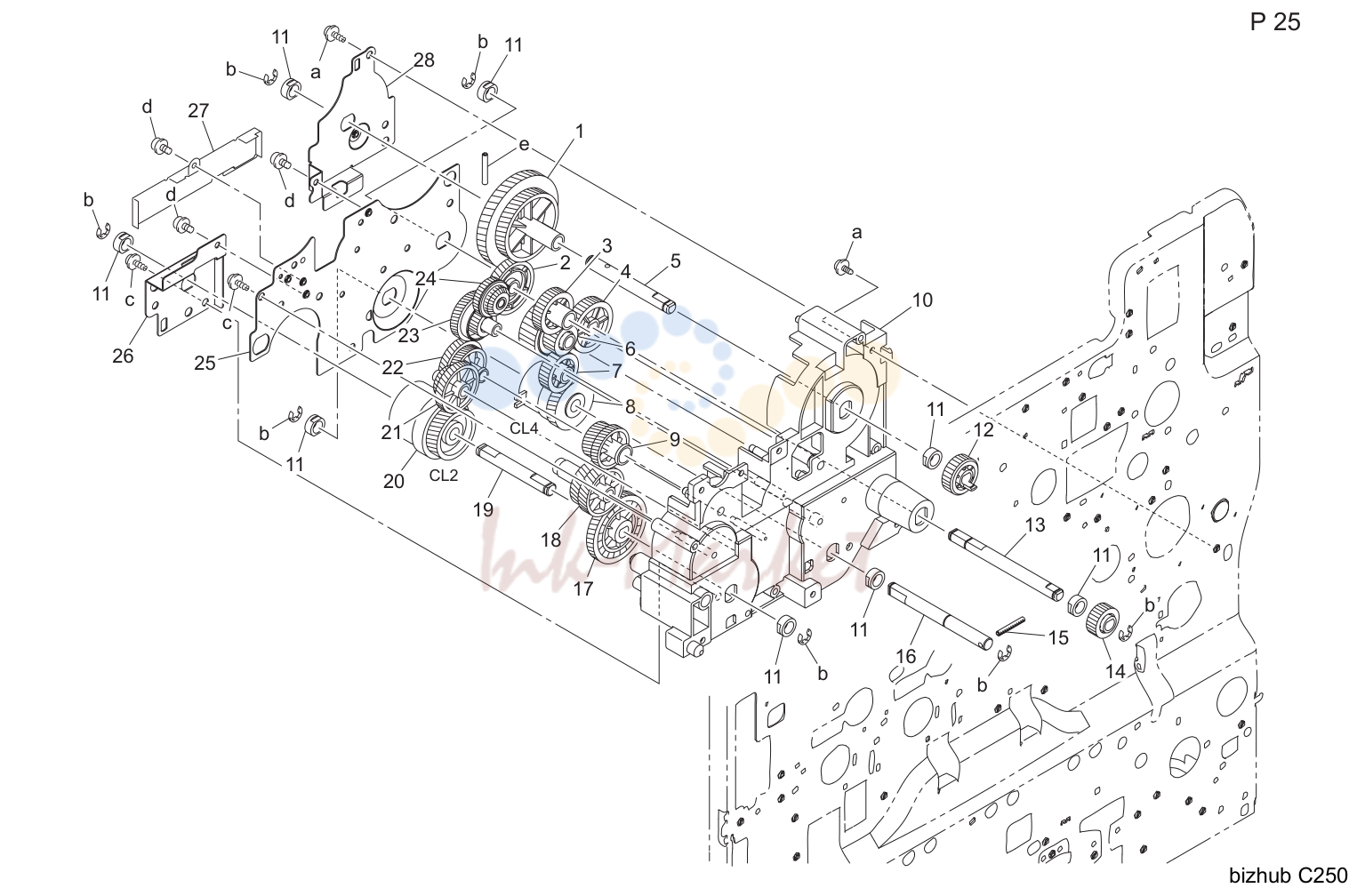

26. TRANSPORT DRIVE SECTION

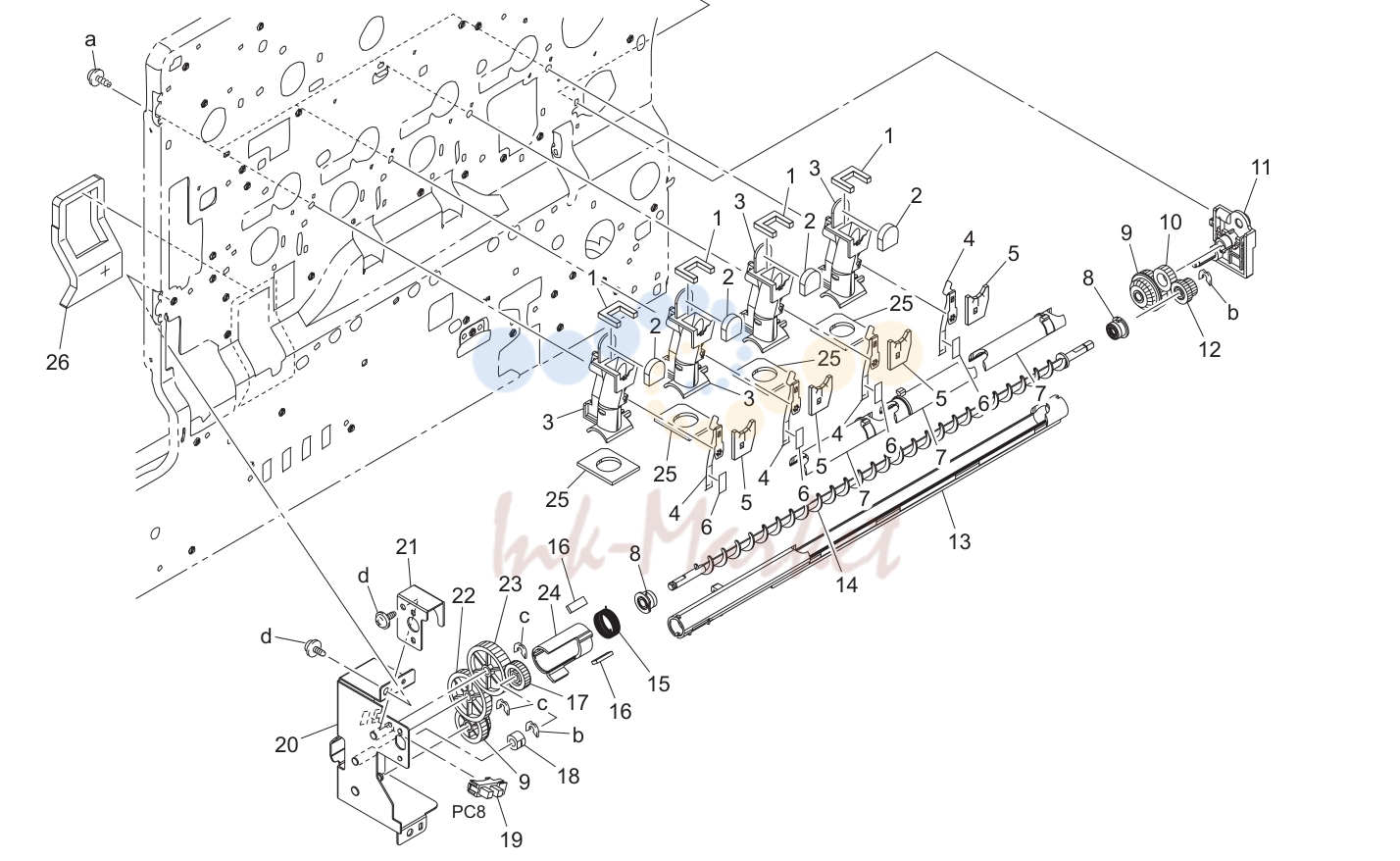

27. WASTE TONER TRANSPORT SECTION

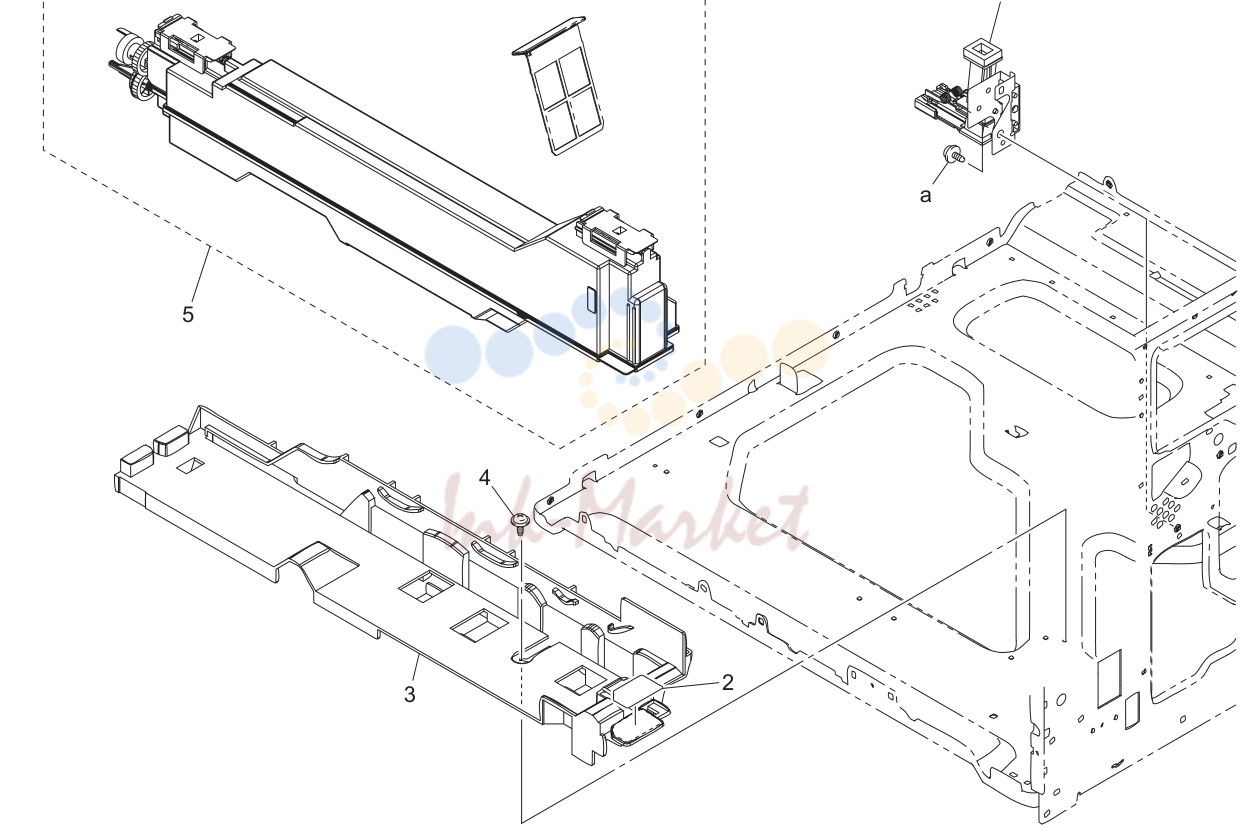

28. WASTE TONER BOX SECTION

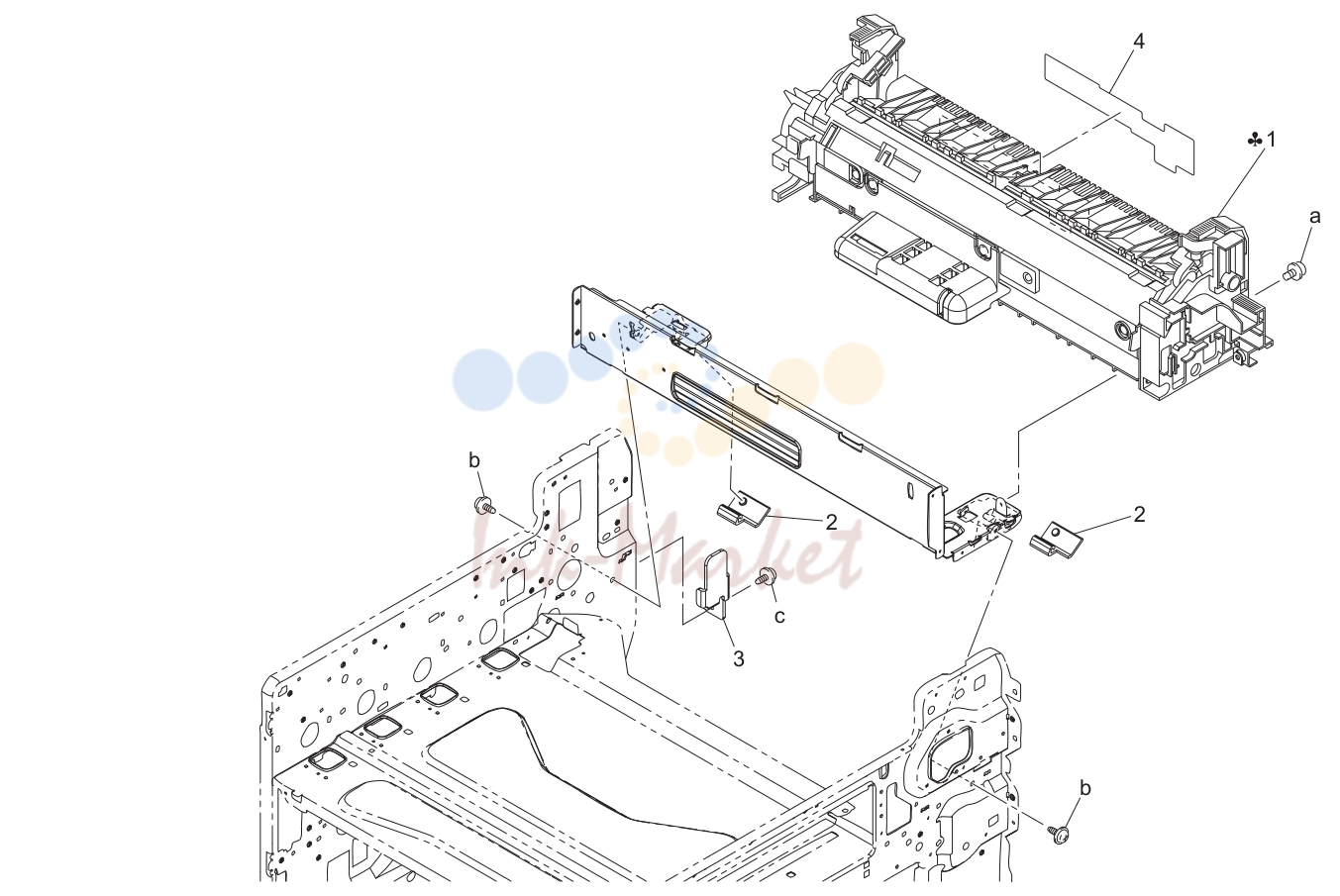

29. FUSING SECTION

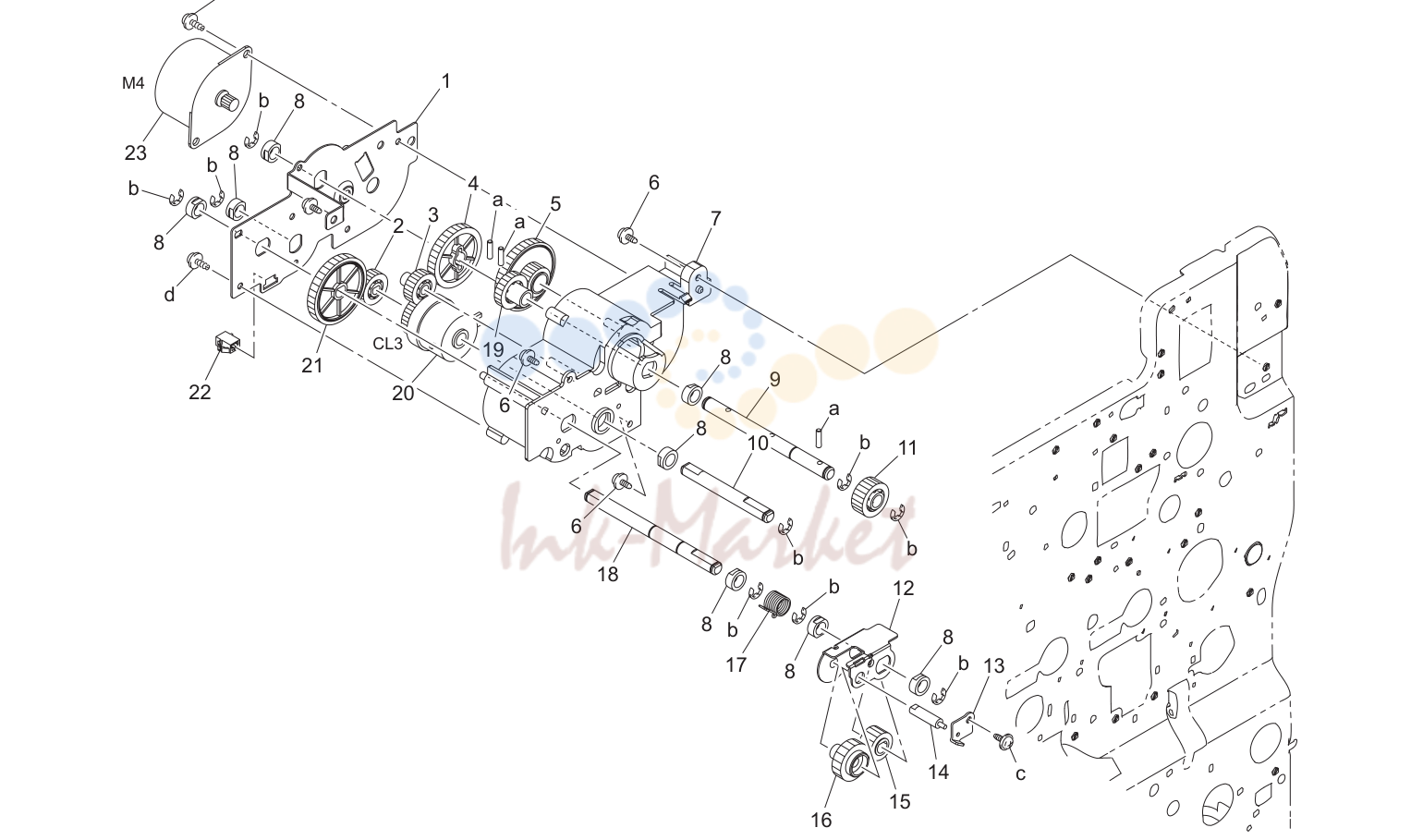

30. FUSING DRIVE SECTION

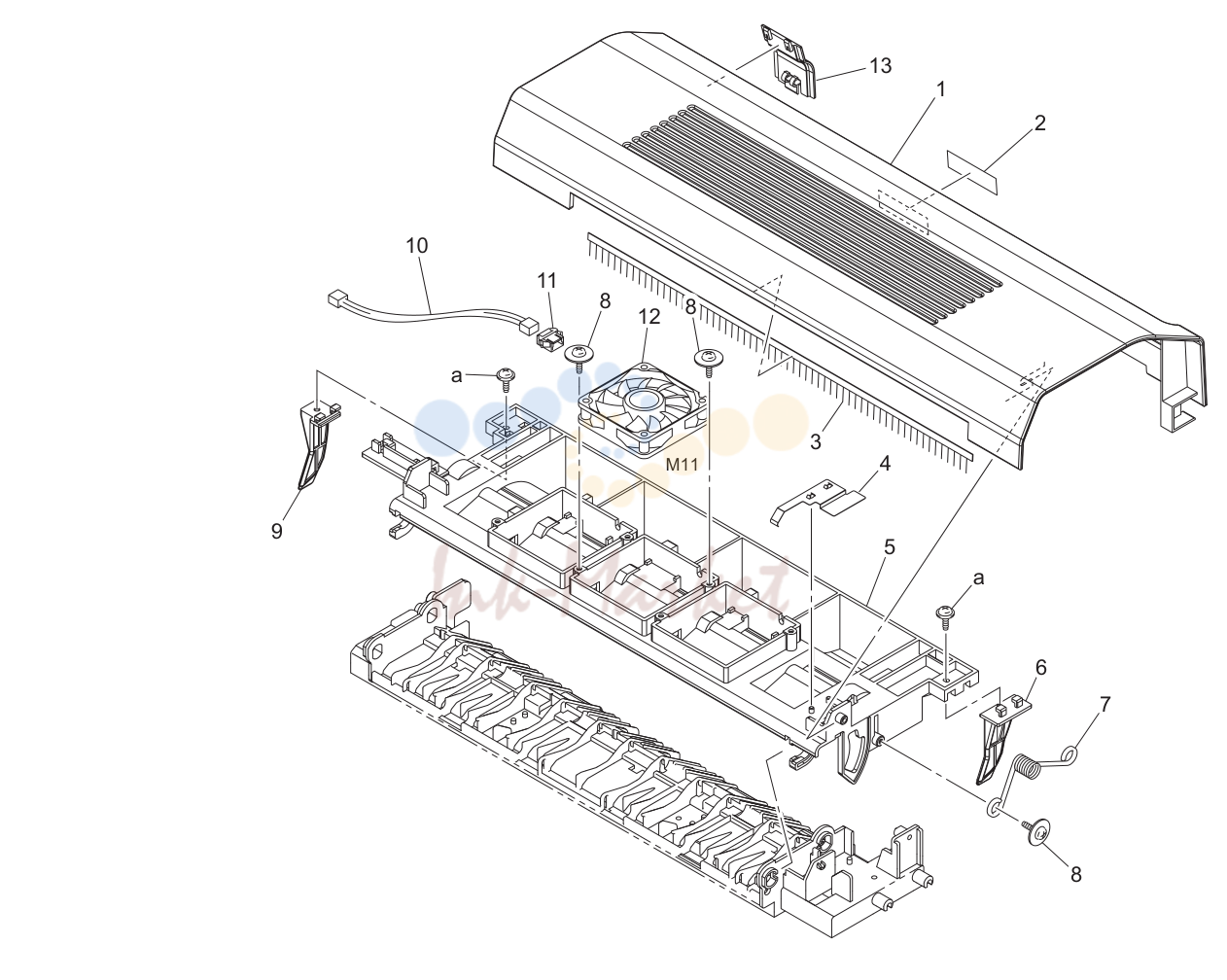

31. PAPER EXIT SECTION
32. PAPER EXIT DRIVE SECTION
33. REAR DUCT SECTION
34. POWER UNIT
35. ELECTRICAL COMPONENTS
36. MPT CASSETTE TRAY SECTION
37. MPT CASSETTE PAPER TAKE-UP SECTION
38. 2ND CASSETTE PAPER TAKE-UP SECTION
39. 2ND CASSETTE PAPER TAKE-UP SECTION
40. 2ND CASSETTE PAPER TAKE-UP SECTION
41. 2ND CASSETTE FRAME
42. 2ND CASSETTE DRIVE SECTION
43. 2ND CASSETTE
44. 2ND CASSETTE
45. WIRING ACCESSORIES AND JIGS
46. ACCESSORY PARTS
47. MAINTENANCE LIST 1/1

1. INFORMATION FOR PARTS GUIDE MANUAL

№	Артикул	Наименование
1		When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures.
2		For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and
3		In order to maintain safety of the product, some specific parts composed of this product are set up as "essential safety parts".
4		The assigned parts number for the "essential safety parts" is indicated as "SP00-****".
5		means that there are exclusive parts for each destination.
6		Revision Mark
7		All rights reserved. (any reprints or quotations are prohibited.)
1		DIGITAL MFP COLOR bizhub C250
2		DOCUMENT FEEDER DF-601
3		OTHER OPTION OC-501
4		DUPLEX AD-503
5		OTHER OPTION MK-706
6		FAX CONTROLLER FK-502
7		PAPER FEEDER PC-103
8		PAPER FEEDER PC-203
9		PAPER FEEDER PC-403
10		SORTER/FINISHER FS-603
11		PUNCH UNIT PK-501/PK-4/PK131
12		SORTER/FINISHER FS-501
13		STACKER JS-601

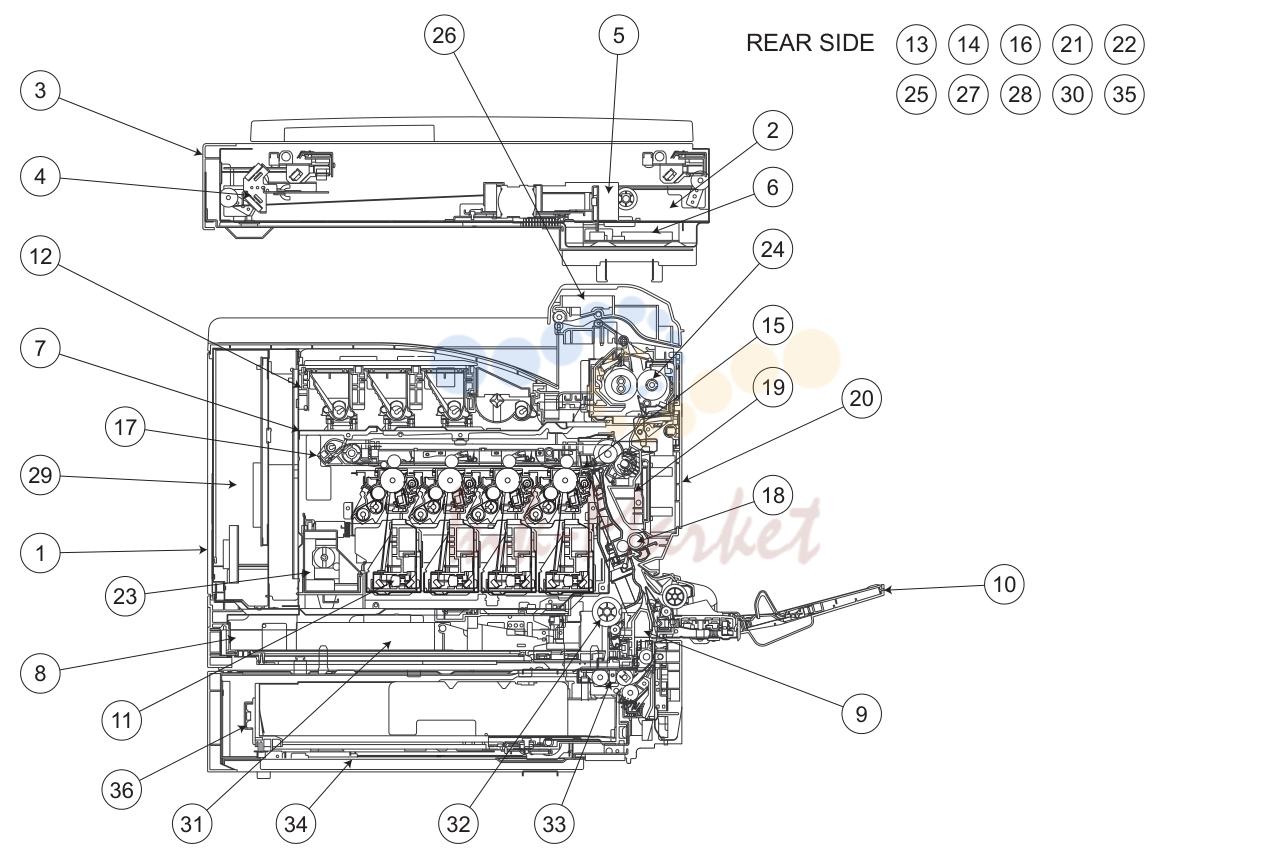

2. DIAGRAMS OF MAIN PARTS SECTION

№	Артикул	Наименование
1		EXTERNAL PARTS P1
2		CONTROL PANEL P2
3		IR COVER P3
4		SCANNER DRIVE SECTION P4 P5
5		OPTICAL SECTION P6
6		IR FRAME P7
7		MAIN FRAME P8
8		INNER COVER SECTION P9
9		MPT PAPER TAKE-UP SECTION P10
10		MANUAL FEED SECTION P11 P12 P13
11		P/H FRAME SECTION P14 P15
12		T/C RAIL SECTION P16
13		HOPPER DRIVE SECTION P17
14		CONTACT SECTION P18
15		ERASER SECTION P19
16		DEVELOPMENT DRIVE SECTION P20
17		TRANSFER BELT SECTION P21
18		PAPER TRANSPORT SECTION P22
19		TRANSFER SECTION P23
20		RIGHT DOOR SECTION P24
21		TRANSPORT DRIVE SECTION P25
22		WASTE TONER TRANSPORT SECTION P26
23		WASTE TONER BOX SECTION P27
24		FUSING SECTION P28
25		FUSING DRIVE SECTION P29
26		PAPER EXIT SECTION P30
27		PAPER EXIT DRIVE SECTION P31
28		REAR DUCT SECTION P32
29		POWER UNIT P33
30		ELECTRICAL COMPONENTS P34
31		MPT CASSETTE TRAY SECTION P35
32		MPT CASSETTE PAPER TAKE-UP SECTION P36
33		2ND CASSETTE PAPER TAKE-UP SECTION P37 P38 P39
34		2ND CASSETTE FRAME P40
35		2ND CASSETTE DRIVE SECTION P41
36		2ND CASSETTE P42 P43
37		WIRING P44 P45 P46 P47
38		WIRING ACCESSORIES AND JIGS P48
39		ACCESSORY PARTS P49

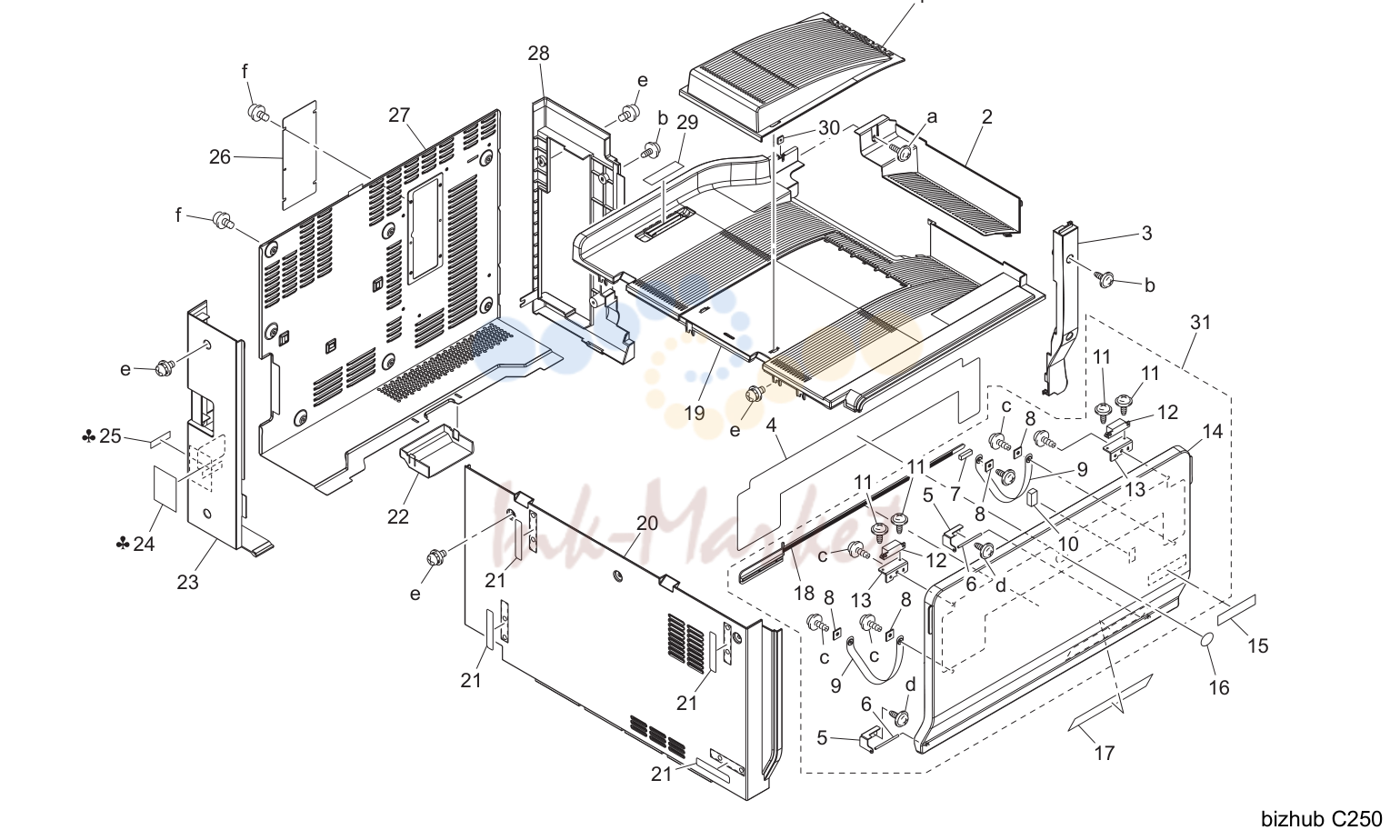

3. EXTERNAL PARTS

№	Артикул	Наименование
1		4038 1020 03 TRAY TOP C 1 a-9739
2		4038 1039 02 TOP COVER LIGHT C 1 b-9735
3		4038 1008 03 RIGHT COVER C 1 c-9739
4		4038 7301 03 LABEL REMOVE C 1 e-9646
5		4038 1010 01 HINGE C 2 f-9646
6		1136 1019 01 SHAFT D
7		4038 2084 03 CLEANING PAD C
8		1053 3103 01 SET PLATE D
9		4643 1020 02 BAND C
10		4025 1018 01 SEAL C
11		4038 1049 01 SCREW C
12		4475 2603 01 MAGNET CATCH D
13		4038 1046 01 BRACKET D
14		4038 1022 05 FRONT DOOR D
15		4038 7326 01 LABEL bizhub C250 C
16		4030 7500 01 LABEL LOGO MARK C
17		4038 7315 02 LABEL CH CLEAN D
18		4038 2083 01 CLANING MATERIAL D
19		4038 1021 05 TOP COVER C
20		4038 1024 04 LEFT COVER UPPER C
21		4036 1011 01 LABEL HIDE C
22		4038 1035 01 REAR COVER C
23		4038 1027 03 LEFT COVER REAR C
24		4037 7406 01 LABEL EARTH CAUTION C,D1,D3,F2,G1,I,K C
25		4038 7341 01 LABEL OUTLET A C
26		4037 1006 01 COVER D
27		4038 1023 04 REAR COVER D
28		4038 1029 04 RIGHT COVER REAR C
29		4038 1048 01 SEAL C
30		4036 4909 01 PLATE NUT D
31		4038 0775 00 COVER ASSY S

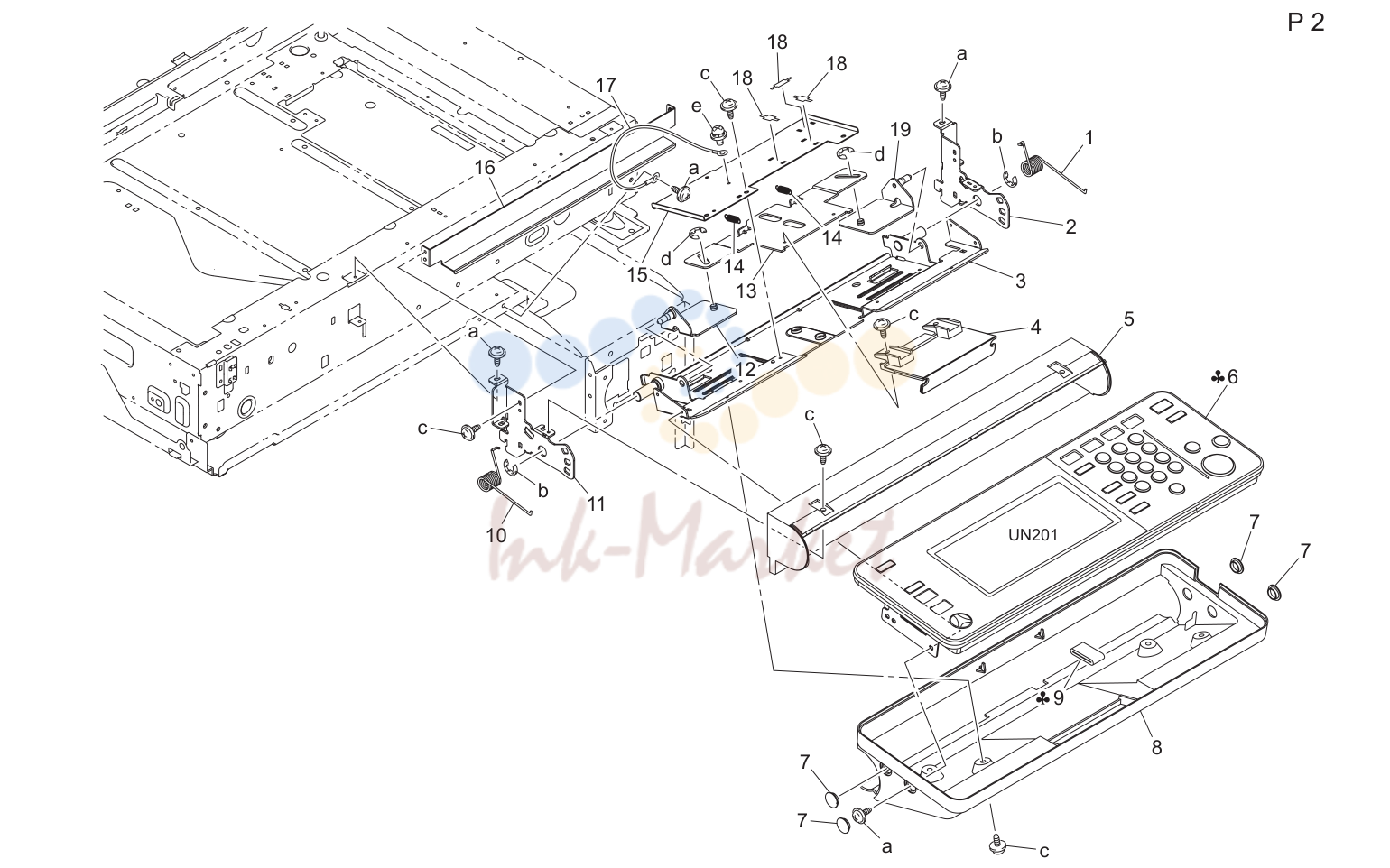

4. CONTROL PANEL

№	Артикул	Наименование
1		4581 1382 01 TORSION SPRING C 1 a-9735
2		4038 1386 01 HOLD PLATE D 1 b-9721
3		4038 1385 01 BRACKET D 1 c-9735
4		4036 1381 03 LEVER C 1 e-9646
5		4038 1399 02 COVER C
6		4038 6058 02 CONTROL PANEL ASSY J I
6		4038 6059 02 CONTROL PANEL ASSY H I
6		4038 6052 02 CONTROL PANEL ASSY B,D1,D3,F1,F2,G1,G2,I,K I
6		4038 6053 02 CONTROL PANEL ASSY C I
6		4038 6051 02 CONTROL PANEL ASSY A I
7		4038 1406 02 CAP C
8		4038 1398 01 COVER C
9		9326 1001 11 FERRITE CORE C,D1,D3,F2,G1,H,I,J,K D
10		4581 1379 01 TORSION SPRING C
11		4038 1380 01 HOLD PLATE D
12		4038 1390 01 POSITIONING PLATE D
13		4038 1383 01 COUPLING D
14		4581 1389 01 TENSION SPRING C
15		4038 1387 01 BRACKET D
16		4038 1388 01 BRACKET D
17		4036 6862 01 WIRE HARNESS ASSY D
18		4581 1316 01 SEAL C
19		4038 1384 01 POSITIONING PLATE D

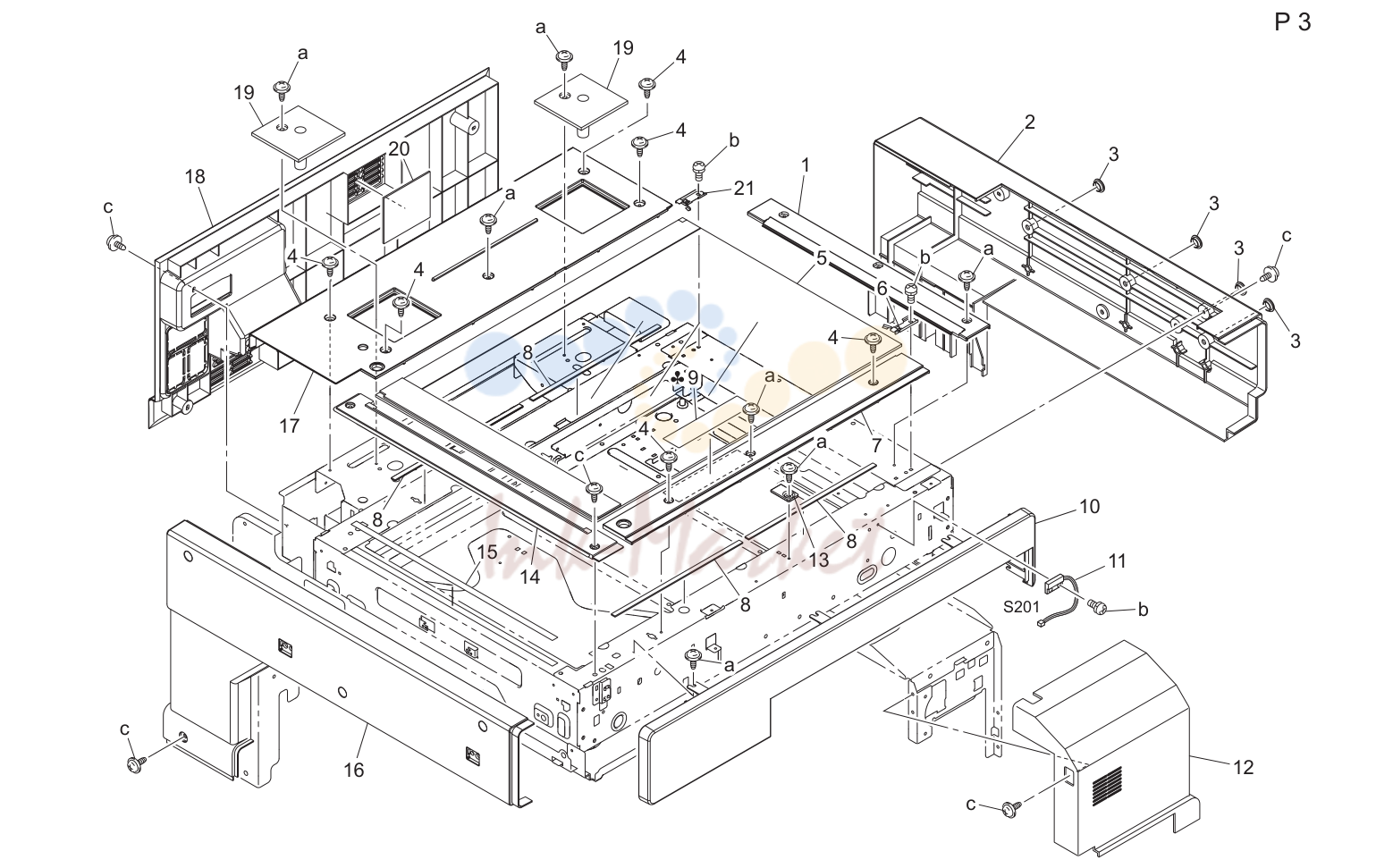

5. IR COVER

№	Артикул	Наименование
1		4036 1611 01 GUIDE C 1 a-9735
2		4038 1395 03 RIGHT COVER IR C 1 b-9644
3		4038 1041 02 CAP C 4 c-9735
4		4036 1410 01 SHOULDER SCREW C
5		4037 0752 00 ORIGINAL GLASS C
6		4581 1605 03 SET PLATE C
7		4036 1392 02 COVER C
8		4036 1620 01 SEAL C
9		4036 7343 01 LABEL REGAL RESTRICTION B,C,D1,D3,F1,F2,G1,G2,H,I,J C
9		4036 7342 01 LABEL REGAL RESTRICTION A C
10		4038 1391 02 FRONT COVER IR C
11		9334 2610 11 REED SWITCH C
12		4038 1393 03 FRONT COVER C
13		4581 1318 01 REGULATING PLATE D
14		4036 1404 03 COVER C
15		4581 1621 02 SEAL C
16		4038 1396 01 LEFT COVER IR C
17		4036 1394 02 UPPER COVER IR C
18		4038 1405 05 REAR COVER IR C
19		4036 1397 01 COVER D
20		4025 2285 02 FILTER C
21		4581 1610 01 SET PLATE C

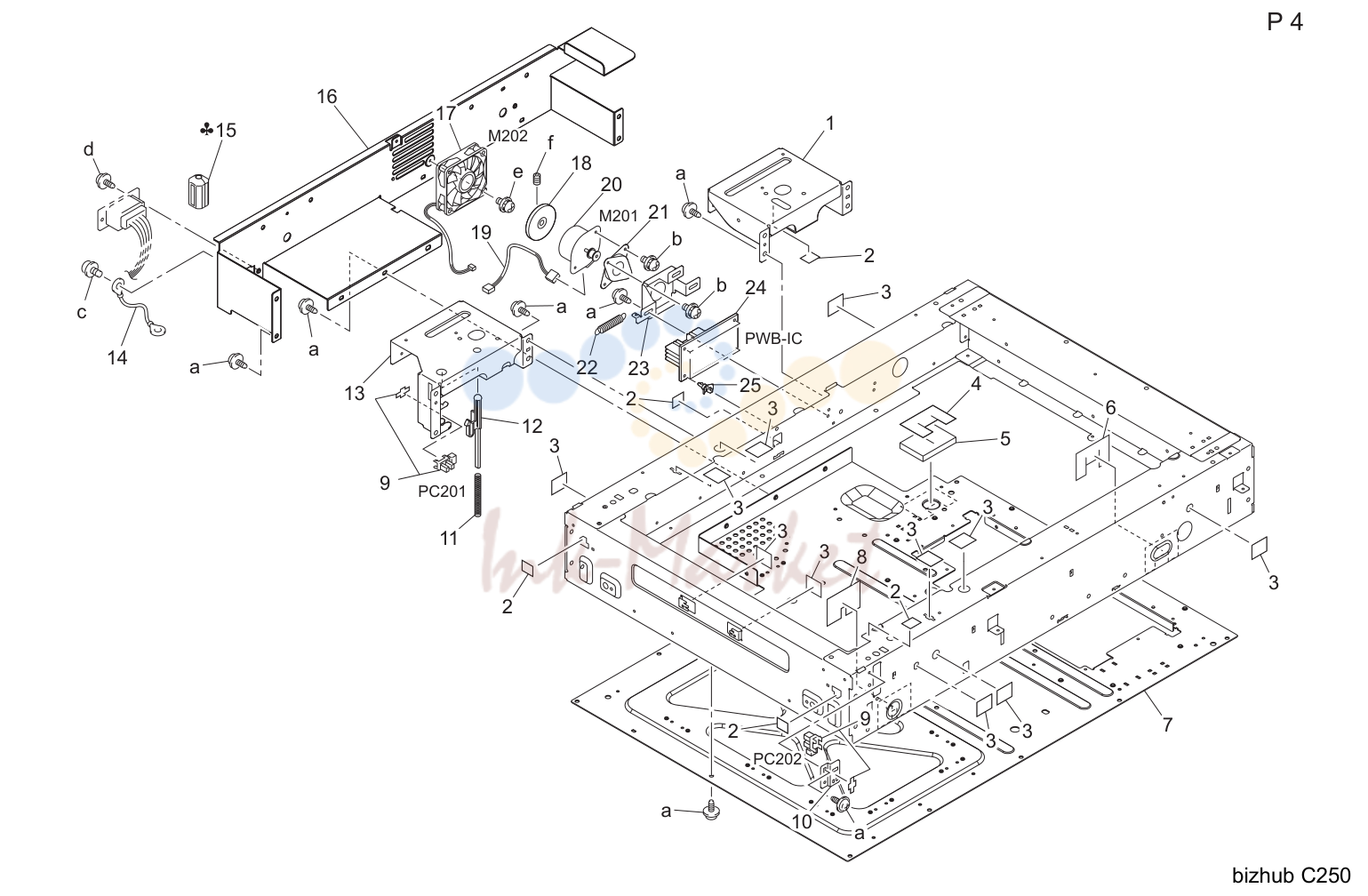

6. SCANNER DRIVE SECTION

№	Артикул	Наименование
1		4036 1369 01 FRAME D 1 a-9735
2		4581 1627 01 SEAL D 5 b-9646
3		4581 1625 01 SEAL D 11 c-9646
4		4038 1513 01 SEAL C 1 e-9646
5		4038 1512 01 SEAL C 1 f-9684
6		4036 1632 02 SEAL D
7		4038 1301 01 FRAME D
8		4036 1631 01 SEAL D
9		4037 0903 01 PHOTO INTERRUPTER B
10		4036 1328 01 BRACKET D
11		4036 1720 01 PRESSURE SPRING D
12		4037 1721 02 LEVER D
13		4036 1370 01 FRAME D
14		4036 6860 01 WIRE HARNESS ASSY D
15		9326 1810 21 FERRITE CORE C,D1,D3,F2,G1,H,I,J,K D
16		4036 1371 04 REINFORCE PLATE D
17		9313 1300 41 FAN MOTOR C
18		4005 1320 01 DUMPER C
19		4038 6863 01 WIRE HARNESS ASSY D
20		9314 1910 81 MOTOR C
21		4002 1471 01 CUSHION C
22		4002 1458 01 TENSION SPRING C
23		4038 1457 01 BRACKET D
24		4038 0115 01 PWB ASSY I
25		9384 1900 57 PWB SUPPORT 9.53H D

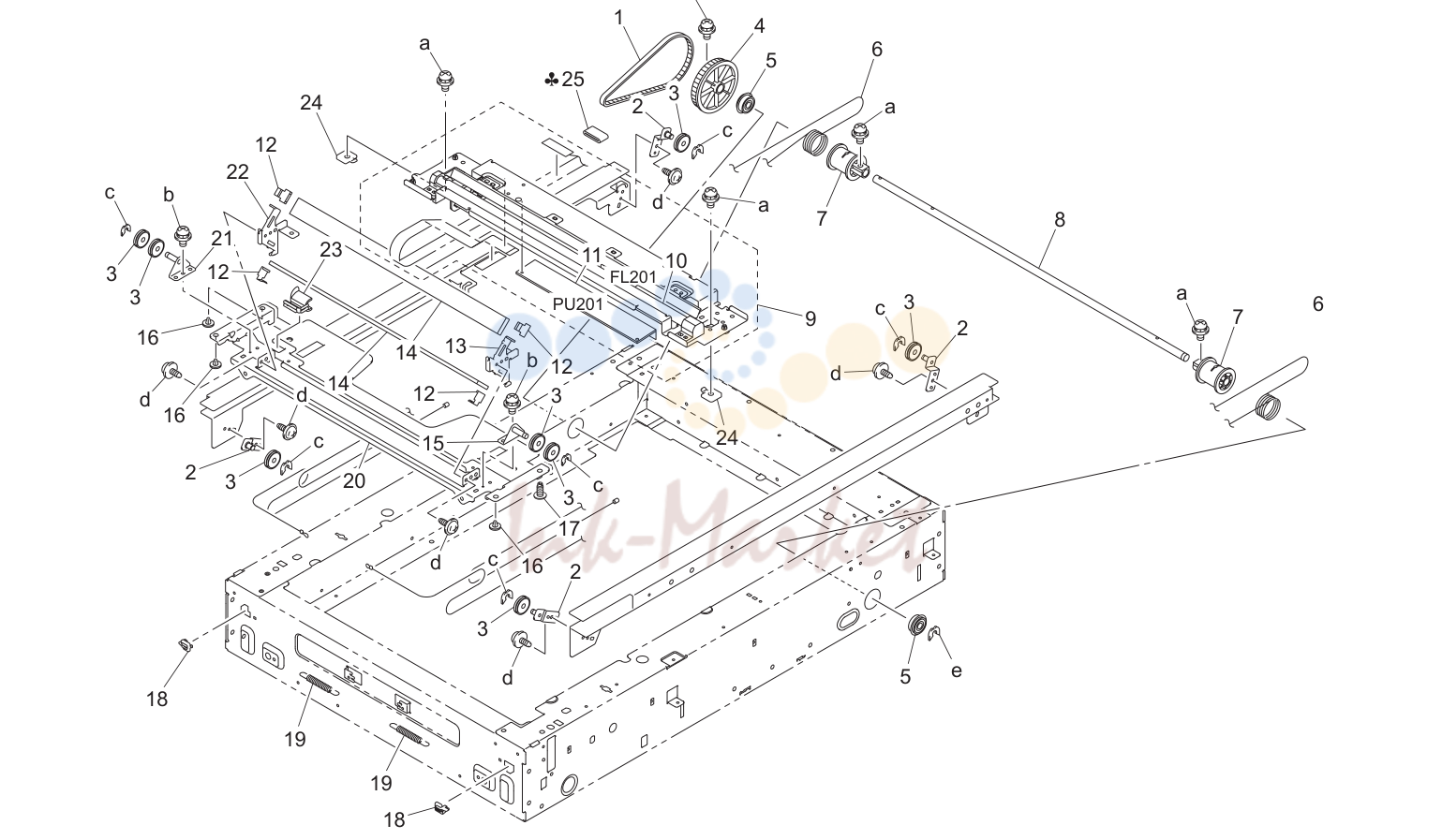

7. SCANNER DRIVE SECTION

№	Артикул	Наименование
1		4038 1454 01 TIMING BELT 251L C 1 a-9646
2		4005 0201 01 BRACKET ASSY D 4 b-9646
3		4005 1464 01 PULLEY C 8 c-4425
4		4581 1453 01 PULLEY C 1 e-1066
5		4002 1456 01 BALL BEARING C
6		4036 1451 02 WIRE C
7		4581 1452 01 PULLEY C
8		4581 1455 01 SHAFT D
9		4038 0768 00 FIRST SLIDER ASSY I
10		9351 3300 11 LAMP I
11		9325 4400 21 INVERTOR C
12		4002 1423 01 HOLDER D
13		4581 1427 01 HOLD PLATE D
14		4002 1422 02 MIRROR C
15		4036 1425 01 BRACKET D
16		4002 1480 01 BUSHING D
17		4002 1481 01 BUSHING D
18		1139 1612 01 GUIDE D
19		4581 1640 02 SPRING C
20		4038 1421 02 FRAME D
21		4005 0203 01 BRACKET ASSY D
22		4581 1428 01 HOLD PLATE D
23		4581 1429 01 GUIDE D
24		4581 3806 01 SET PLATE D
25		9326 1001 11 FERRITE CORE C,D1,D3,F2,G1,H,I,J,K D

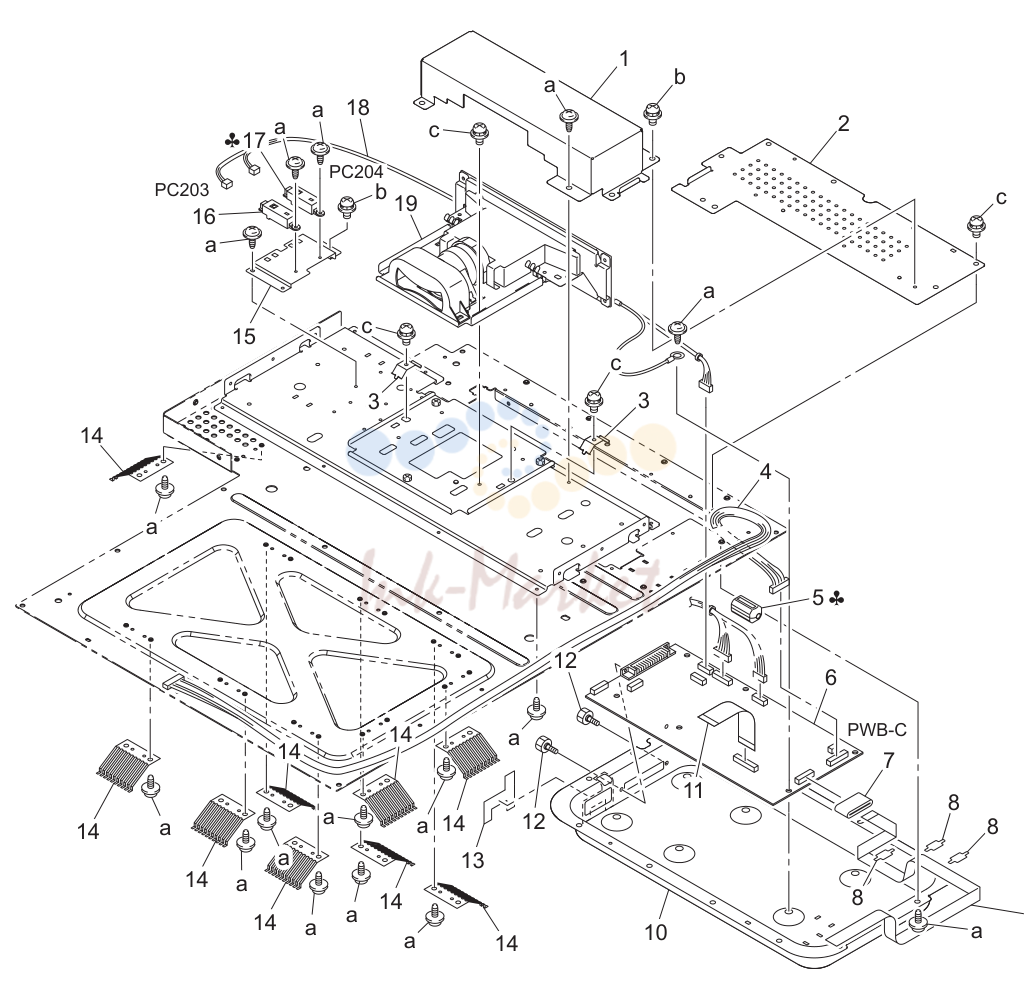

8. OPTICAL SECTION

№	Артикул	Наименование
1		4036 1582 01 COVER D 1 a-9735
2		4036 1366 01 COVER D 1 b-9646
3		4581 1579 01 PLATE SPRING D 2 c-9646
4		4037 6853 01 WIRE HARNESS ASSY D
5		9326 1200 61 FERRITE CORE C,D1,D3,F2,G1,H,I,J,K D
6		4038 0113 03 PWB-C I
7		9326 1001 11 FERRITE CORE D
8		4581 1316 01 SEAL C
9		4038 6858 01 WIRE HARNESS ASSY D
10		4036 1374 02 PLATE D
11		4036 6857 01 WIRE HARNESS ASSY D
12		4581 2269 02 SHOULDER SCREW C
13		4036 1633 01 SEAL D
14		4038 1510 01 PLATE SPRING D
15		4037 1590 01 BRACKET D
16		9335 1400 81 SOLID STATE SWITCH C
17		9335 1400 81 SOLID STATE SWITCH D1,D3,F1,F2,G1,I,K C
17		9335 1400 81 SOLID STATE SWITCH A,B,C,G2,H,J(OPTION) C
18		4037 6854 01 WIRE HARNESS ASSY D
19		4038 0769 00 LENS/CCD ASSY I

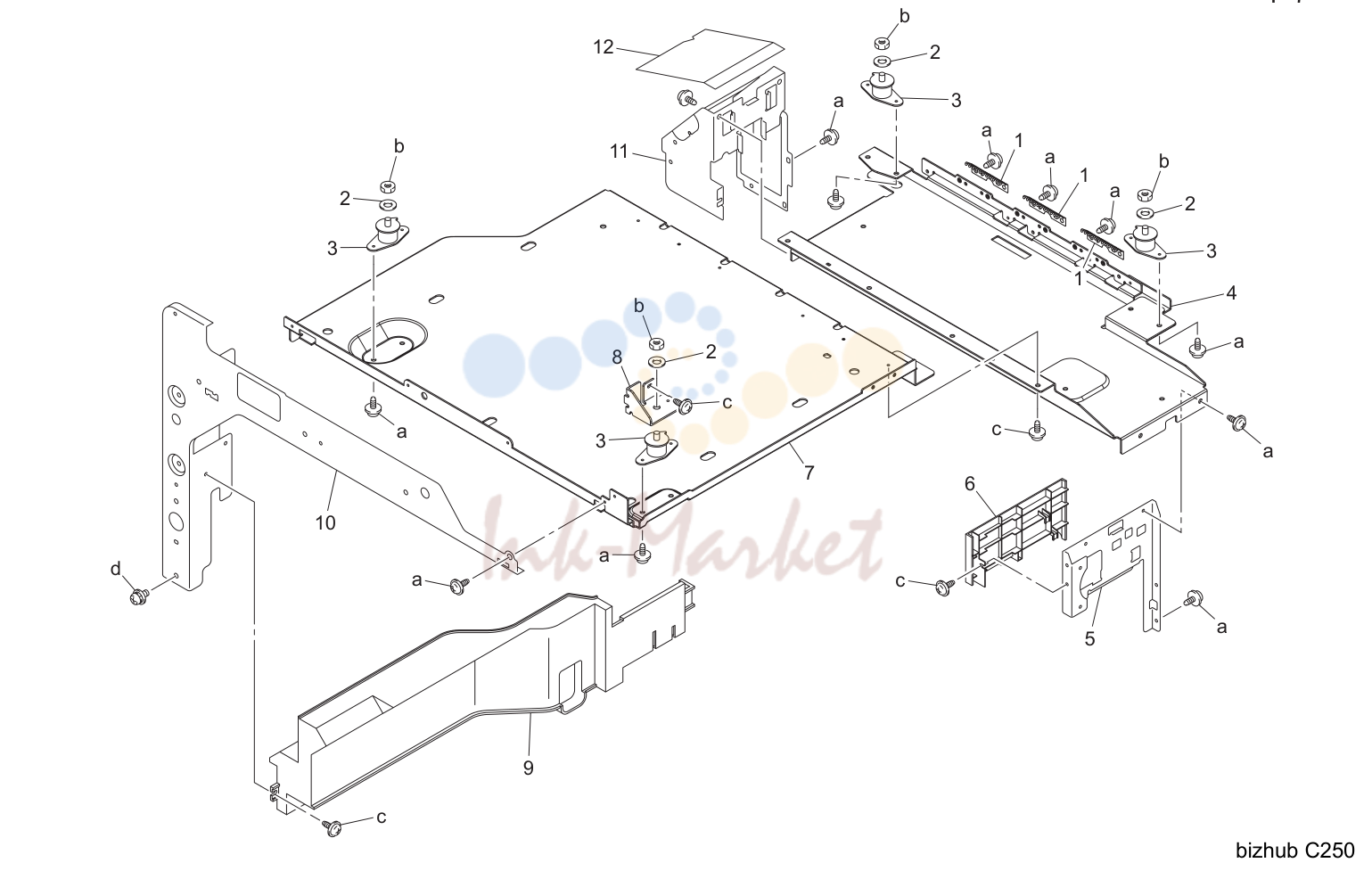

9. IR FRAME

№	Артикул	Наименование
1		4036 1509 01 PLATE SPRING D 3 a-9735
2		4036 1506 01 SPACER C 4 b-9660
3		4038 1515 01 CUSHION C 4 c-9735
4		4038 0180 01 HOLD PLATE ASSY D
5		4038 1500 01 HOLD PLATE D
6		4038 1402 01 COVER D
7		4038 1504 02 HOLD PLATE D
8		4038 1508 02 BRACKET D
9		4038 1403 02 COVER D
10		4038 1503 03 HOLD PLATE D
11		4038 1501 02 HOLD PLATE D
12		4038 1516 01 SEAL D

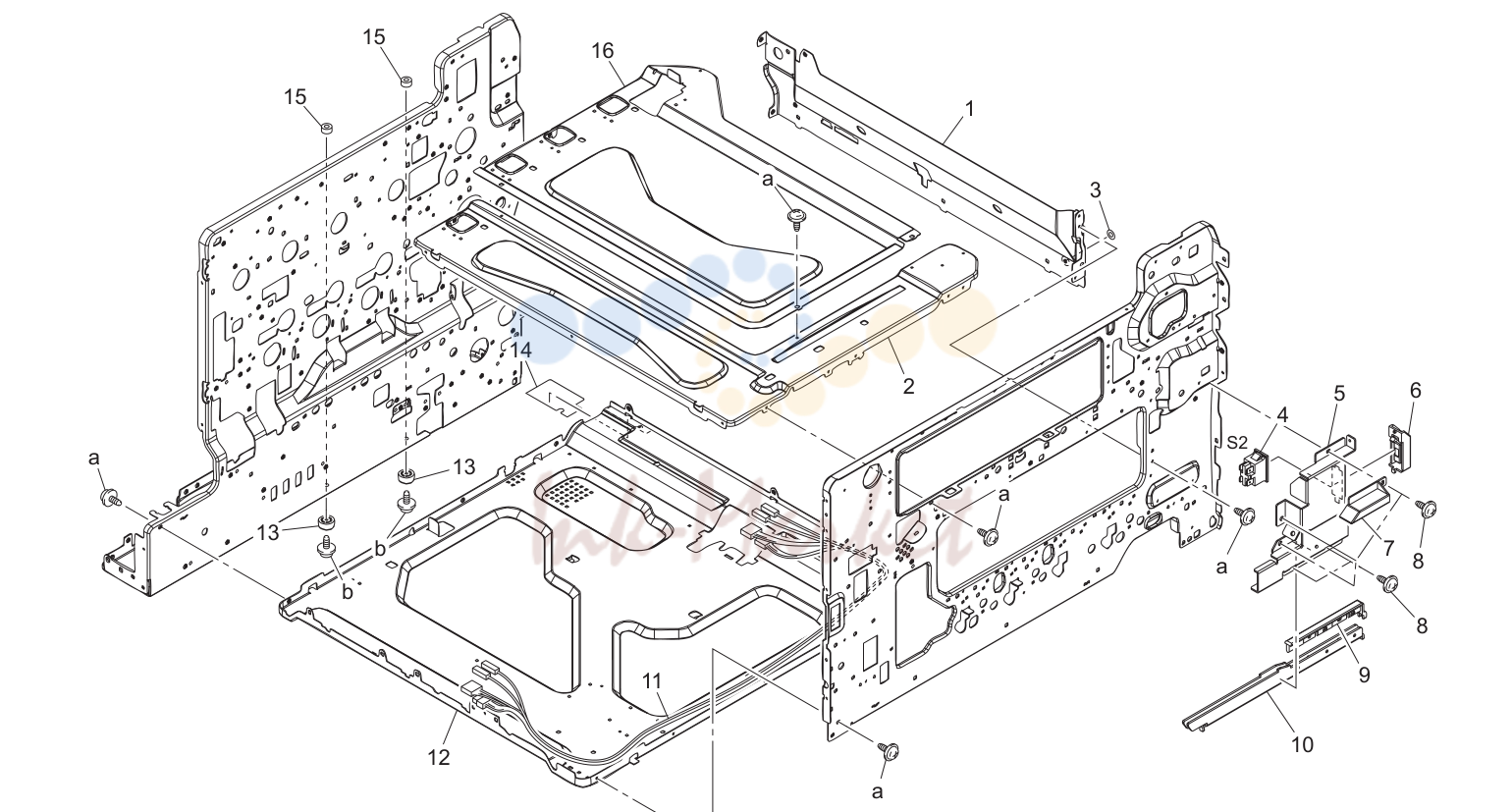

10. MAIN FRAME

№	Артикул	Наименование
1		4038 2006 04 FRAME D 1 a-9735
2		4038 2090 02 BASE FRAME D 1 b-9735
3		4038 3595 01 SPACER D
4		9332 1710 41 SWITCH C
5		4038 2065 04 BRACKET D
6		4128 2215 01 COVER D
7		4038 2066 01 COVER D
8		4154 3804 01 SCREW C
9		4038 2036 01 CAP C
10		4038 2073 01 REINFORCE PLATE D
11		4038 6809 03 WIRE HARNESS ASSY D
12		4038 2004 06 BASE FRAME D
13		0996 3055 01 RUBBER FOOT D
14		4038 2097 02 SEAL C
15		1154 4670 01 PROTECTION C
16		4038 2003 02 BASE FRAME D

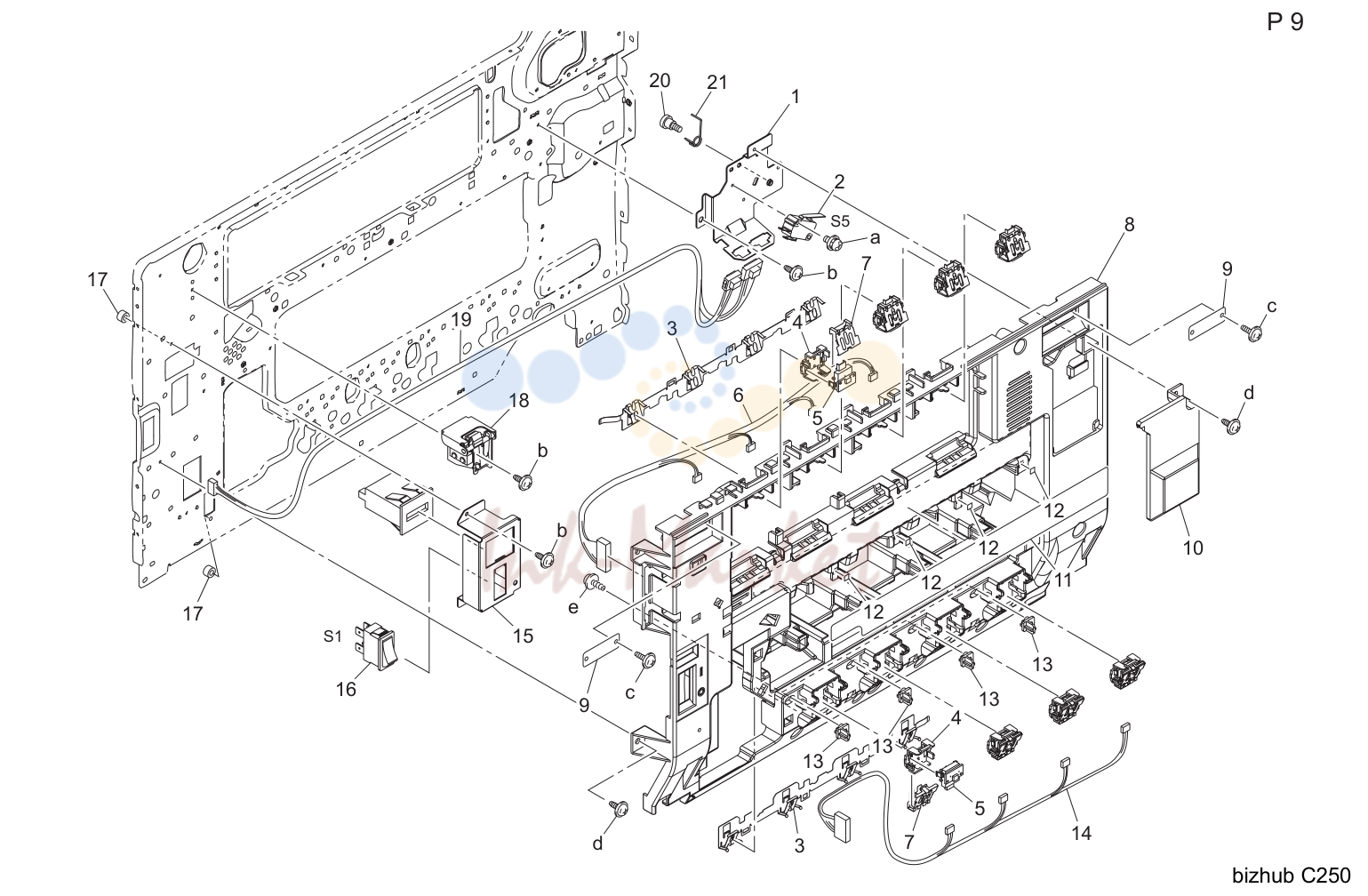

11. INNER COVER SECTION

№	Артикул	Наименование
1		4038 2265 03 BRACKET D 1 a-9646
2		9331 2200 21 MICRO-SWITCH C 1 b-9735
3		4038 2283 02 PLATE SPRING D 2 c-9739
4		4038 2281 03 HOLDER D 8 e-9739
5		4136 6751 01 CONNECTOR PIN D
6		4038 6815 02 WIRE HARNESS ASSY D
7		4038 2282 03 PLATE SPRING D
8		4038 1101 06 COVER C
9		4038 1014 01 SUCTION PLATE D
10		4038 1102 02 COVER C
11		4038 7308 01 LABEL D
12		4038 7309 01 LABEL D
13		4038 1105 01 HOLDER D
14		4038 6816 01 WIRE HARNESS ASSY D
15		4038 2305 01 BRACKET D
16		9332 5400 11 SEESAW-SWITCH B
17		1154 4670 01 PROTECTION C
18		4131 0326 01 FRONT COVER SW ASSY C
19		4038 6811 02 WIRE HARNESS ASSY D
20		4038 2287 01 SHOULDER SCREW C
21		4038 2266 01 TORSION SPRING C

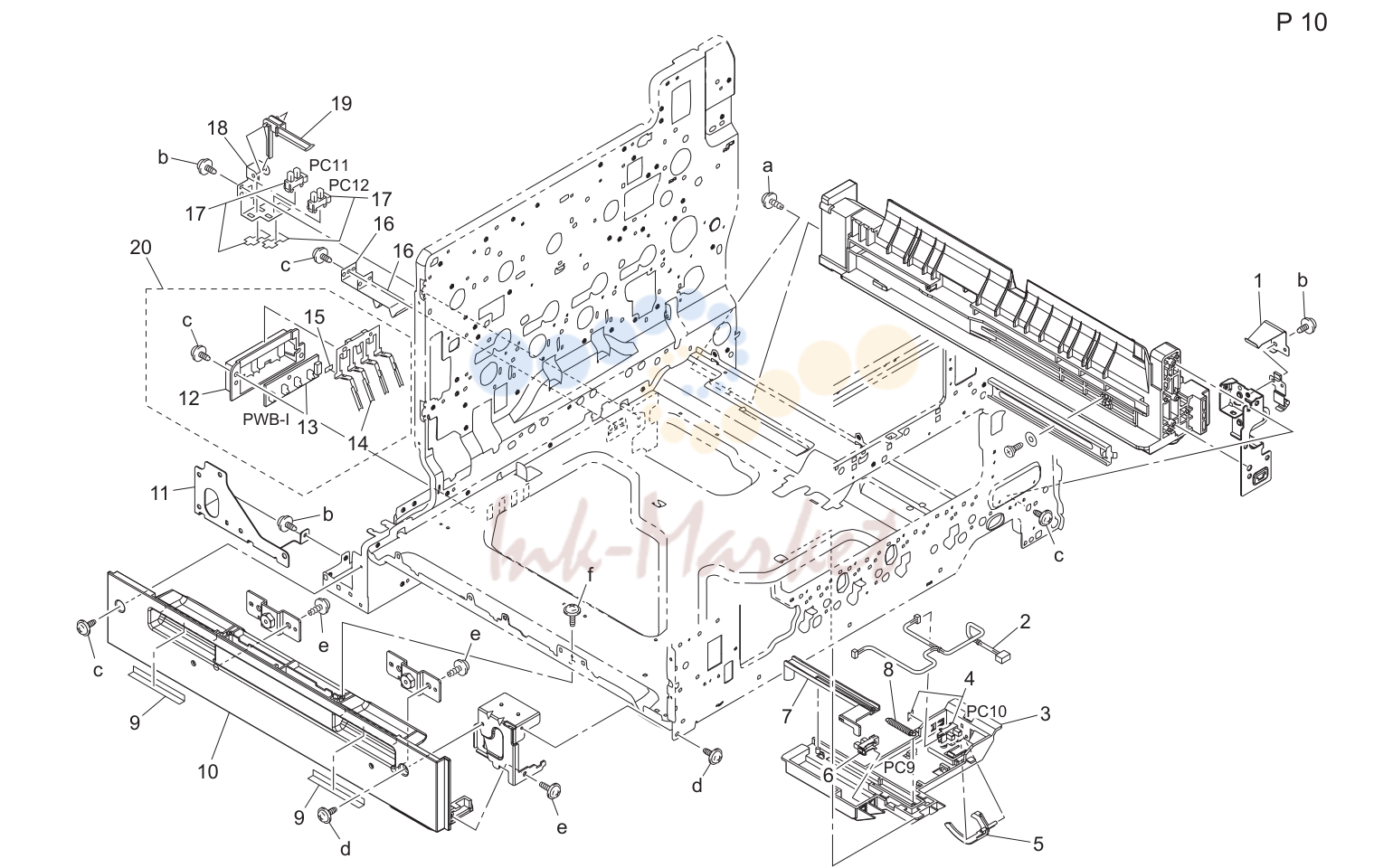

12. MPT PAPER TAKE-UP SECTION

№	Артикул	Наименование
1		4038 3541 01 PLATE SPRING D 1 a-9739
2		4038 6829 01 WIRE HARNESS ASSY D 1 b-9735
3		4004 3062 06 HOLDER D 1 c-9735
4		4038 0902 01 PHOTO INTERRUPTER B 1 e-9739
5		1164 3027 01 ACTUATOR C 1 f-9739
6		9335 1400 61 SOLID STATE SWITCH B
7		4004 3061 01 ACTUATOR C
8		4004 3063 01 TENSION SPRING C
9		4038 2162 01 CUSHION C
10		4038 2008 02 RAIL C
11		4038 2408 01 REINFORCE PLATE D
12		1164 3022 02 HOLDER D
13		4037 0104 01 PWB-I C
14		1164 3020 03 LEVER C
15		4004 3052 01 SPACER D
16		1164 3054 01 PLATE SPRING C
17		4037 0904 01 PHOTO INTERRUPTER B
18		4004 3011 01 BRACKET D
19		4004 3012 01 LEVER C
20		4038 0772 00 SIZE DETECTING PWB ASSY C

13. MANUAL FEED SECTION

№	Артикул	Наименование
1		4038 3203 01 TRAY D 1 a-9739
2		4038 3235 01 COVER D 1 b-9735
3		4038 6834 03 WIRE HARNESS ASSY D 1 c-9735
4		4038 3229 01 GUIDE D
5		4038 3234 01 TORSION SPRING D
6		4038 3233 02 ACTUATOR D
7		9335 1300 61 PHOTO INTERRUPTER B
8		4038 3202 02 TRAY D
9		4038 7354 01 LABEL CAUTION D
10		4038 3212 02 COVER C
11		4038 3215 01 HOLD PLATE D
12		4038 3253 01 HOLD PLATE D
13		4038 3252 01 PRESSURE SPRING D
14		4038 3256 01 GUIDE D
15		4038 3213 01 COVER C
16		4154 3804 01 SCREW C
17		4038 0252 03 BRACKET ASSY D
18		4030 3412 01 GEAR 13/18T C
19		4030 3460 02 RACK C
20		4038 3272 01 BRACKET D
21		4038 6845 01 WIRE HARNESS ASSY D
22		4038 3251 02 LIFTING PLATE D
23		4687 3281 01 FRICTION SHEET C
24		4038 3222 03 REGULATING PLATE D
25		4038 3286 01 BRAKE D
26		4038 3221 03 REGULATING PLATE D
27		4038 7352 01 SCALE INCH B,F1,G2,H C
27		4038 7351 01 SCALE METRIC A,C,D1,D3,F2,G1,I,J,K C
28		4038 3255 01 BRAKE D
29		4038 3214 02 HOLDER D
30		4038 0763 00 MANUAL FEED TRAY UNIT S

14. MANUAL FEED SECTION

№	Артикул	Наименование
1		4038 3205 01 COVER D 1 a-9739
2		4038 3207 03 BRACKET D 1 b-9735
3		4038 3208 02 FRAME D 1 c-9735
4		4038 3217 01 TENSION SPRING D
5		4038 3216 03 LEVER D
6		4038 3220 01 HOLD PLATE D
7		4038 3218 01 LEVER D
8		4038 3228 03 GUIDE D
9		4038 3263 01 TENSION SPRING D
10		4030 3403 01 GUIDE C
11		4030 3402 01 GUIDE PLATE C
12		4038 3268 02 GUIDE D
13		4038 3204 04 GUIDE D
14		9455 8076 01 RESISTOR D
15		4038 3266 01 EARTH GROUND D
16		4038 3261 02 HOLDER D
17		4038 3262 03 BRACKET D
18		4038 3270 01 GUIDE D
19		4038 3265 01 EARTH GROUND D
20		4030 3475 01 PRESSURE SPRING C
21		4034 0151 01 SEPARATION ROLLER A
22		4038 3267 01 GUIDE D
23		4038 3269 02 GUIDE D
24		4038 3281 01 SHOULDER SCREW D
25		4038 0251 03 FRAME ASSY D
26		1031 4403 01 RING D
27		4038 3231 02 GUIDE D
28		4038 0765 00 ROLLER ASSY S

15. MANUAL FEED SECTION

№	Артикул	Наименование
1		4038 3260 01 CLUTCH ASSY C 1 a-9735
2		4038 3240 01 SHAFT D 1 b-9721
3		1274 2611 01 BUSHING C 2 c-9721
4		4038 3246 01 GEAR 30T D 1 e-4425
5		4038 3247 01 GEAR 30T D 1 f-9739
6		4131 3532 02 BUSHING C
7		4038 3236 01 CAM D
8		4131 3001 01 ROLLER A
9		4142 3217 01 STOP RING D
10		4038 3232 01 SHAFT D
11		1075 2565 01 GEAR 25T C
12		9322 1200 31 CLUTCH C
13		9321 2400 61 SOLENOID C
14		4038 3244 02 BRACKET D
15		4038 3249 02 BRACKET D
16		9335 1300 61 PHOTO INTERRUPTER B
17		4004 5339 01 BUSHING C
18		4038 3237 01 SHIELD PLATE D

16. P/H FRAME SECTION

№	Артикул	Наименование
1		4038 0105 03 PWB-D I 1 a-9739
2		4038 2094 01 ROLL C 8 b-9735
3		4038 2016 02 LIFTING PLATE D 8 c-9735
4		4038 2017 01 PRESSURE SPRING C
5		4038 2018 03 HOLDER D
6		4154 3804 01 SCREW C
7		4038 2061 01 BRACKET D
8		4038 0766 00 CONNECTOR ASSY C
9		4038 2249 02 HOLDER D
10		4038 2060 02 HOLDER D
11		4038 2067 01 SEAL C
12		4038 2051 01 SEAL C
13		4038 2086 01 COLLAR C

17. P/H FRAME SECTION

№	Артикул	Наименование
1		4038 2096 03 BRACKET D 2 a-9735
2		4038 1906 03 PLATE SPRING D 4 b-9646
3		4038 2189 01 GEAR 27T D 4 c-9721
4		4038 2187 04 GUIDE D 4 e-9646
5		4038 2044 02 REINFORCE PLATE D
6		4038 2194 01 BRACKET D
7		4106 2063 01 SCREW C
8		4038 2193 03 SHAFT D
9		1067 2501 01 PIN C
10		4038 2196 01 PRESSURE SPRING C
11		4038 2191 02 GEAR 16T C
12		4038 2190 03 GEAR 16T D
13		4038 2192 02 SHAFT D
14		4038 0211 04 BRACKET ASSY D
15		4038 2188 02 GEAR 30T C
16		4038 2184 01 SHOULDER SCREW C
17		4038 2095 03 BRACKET D
18		4038 2179 01 WASHER C
19		4038 2042 01 SPRING D
20		4038 2043 03 BRACKET D
21		4038 2180 01 CONTACT D
22		4038 0758 00 SKEW ADJUSTMENT ASSY S
23		4038 0778 00 PRINT HEAD UNIT I

18. T/C RAIL SECTION

№	Артикул	Наименование
1		4038 2019 01 RAIL D 1 a-9735
2		4038 2038 02 SET PLATE D 1 b-9735
3		4038 2174 03 PAWL B,G2 D
3		4038 2175 02 PAWL C,D1,D3,F1,F2,G1,H,I,J,K D
3		4038 2173 02 PAWL A D
4		4038 7316 01 LABEL D
5		4038 2020 02 RAIL D
6		4038 2021 03 RAIL D
7		4038 2022 02 RAIL D
8		4038 6813 01 WIRE HARNESS ASSY D
9		4038 2107 03 GUIDE D
10		4038 2109 01 PRESSURE SPRING C
11		4038 2108 01 STIRRING MEMBER D
12		4038 2150 01 SEAL C
13		4038 2110 02 SEAL C
14		4038 6840 01 WIRE HARNESS ASSY D

19. HOPPER DRIVE SECTION

№	Артикул	Наименование
1		4038 2275 01 HOLDER D 1 a-9739
2		4038 0760 00 IU CONTACT PLATE ASSY C 1 b-9735
3		4038 2233 02 HOLDER D 4 c-9646
4		4154 3804 01 SCREW C
5		4038 2313 01 HOLDER C
6		4038 2206 02 HOLDER D
7		4038 2274 01 HOLDER D
8		4038 2255 01 COVER D
9		4038 2222 01 CONTACT D
10		4038 2277 01 CONTACT D
11		4038 2276 01 CONTACT D
12		4038 2225 02 CONTACT D
13		4038 2232 01 COVER D
14		4038 6203 02 HV TRANSFORMER I

20. ERASER SECTION

№	Артикул	Наименование
1		4038 2199 02 SHIELD PLATE D 1 a-9646
2		4038 2182 01 BRACKET D 1 b-9735
3		4038 2181 01 BRACKET D 1 c-9735
4		9353 2400 11 LED PILOT LAMP C 4 e-9739
5		4038 2015 02 BRACKET D 1 f-9646
6		4038 2014 07 RAIL D 4 g-9646
7		4038 7309 01 LABEL D
8		4038 2011 03 BRACKET D
9		4038 2069 01 SLIDER D
10		4038 2072 03 PLATE SPRING C
11		4038 2198 02 SHIELD PLATE C
12		4038 2040 01 REINFORCE PLATE D
13		4038 2056 02 SEAL C
14		4038 2052 02 DUCT D
15		4038 2053 02 SEAL C
16		4038 2081 02 SEAL C
17		4038 2091 03 REINFORCE PLATE D
18		4038 2012 03 BRACKET D
19		4038 2151 02 SEAL C
20		4038 2106 01 PIPE D
21		4038 2104 02 SEAL C
22		4038 2103 04 SHUTTER D
23		4038 2105 03 TORSION SPRING C
24		4038 2102 01 SEAL C
25		4038 2101 01 PIPE D
26		4038 2183 01 BRACKET D

21. DEVELOPMENT DRIVE SECTION

№	Артикул	Наименование
1		4038 3517 02 REINFORCE PLATE D 1 a-9735
2		4038 0757 00 DRIVE ASSY C 1 b-9646
3		9314 2400 41 MOTOR B 2 c-9735
4		9314 2300 61 MOTOR B

22. TRANSFER BELT SECTION

№	Артикул	Наименование
1		4038 2023 07 RAIL D 1 a-9646
2		4038 2029 01 PRESSURE SPRING C 2 b-9735
3		4038 2046 01 LEVER C 1 c-9735
4		4163 5293 01 SCREW C
5		4038 2048 01 TORSION SPRING C
6		4038 2047 02 ARM D
7		4038 3594 01 SPACER D
8		4038 2080 01 CONTACT D
9		4038 2045 01 PLATE SPRING D
10		4154 3804 01 SCREW C
11		4038 2077 02 CONTACT D
12		4038 2152 02 CONTACT D
13		4038 2153 02 CONTACT D
14		4038 2078 02 CONTACT D
15		4038 2205 02 CONTACT D
16		4038 2207 01 PRESSURE SPRING C
17		4038 2151 02 SEAL C
18		4038 2217 01 CONTACT D
19		4038 2024 02 RAIL D
20		4038 6836 01 WIRE HARNESS ASSY D
21		4038 2027 01 ARM D
22		4038 2028 01 TORSION SPRING C
23		4038 2026 01 LEVER D
24		4038 0777 00 TRANSFER KIT A
25		4038 0761 00 SWITCH ASSY C
26		4038 6835 01 WIRE HARNESS ASSY D

23. PAPER TRANSPORT SECTION

№	Артикул	Наименование
1		4038 7303 01 LABEL M1 D 1 a-9735
2		4038 3532 01 HANDLE D 1 b-9739
3		4038 3529 02 REINFORCE PLATE D 1 c-9721
4		4038 3539 01 GUIDE D
5		4038 3501 01 ROLLER D
6		9335 1400 21 SOLID STATE SWITCH C
7		4038 3537 01 GUIDE D
8		4038 3538 01 GUIDE D
9		4038 3536 01 GUIDE D
10		4038 3502 02 ROLLER D
11		4038 3540 03 GUIDE D
12		4038 3526 04 GUIDE D
13		4038 3535 02 SHOULDER SCREW C
14		4038 3530 01 EARTH GROUND D
15		4038 3525 01 TENSION SPRING D
16		4025 3572 01 BUSHING D
17		4004 3503 02 GEAR 20T D
18		4004 3504 02 GEAR 14T D
19		4038 3567 01 PLATE SPRING D
20		9455 8076 01 RESISTOR D
21		4128 3522 01 SEAL D
22		4038 3562 01 ACTUATOR D
23		9335 1400 11 PRISM I
24		4038 3593 01 WASHER D
25		4038 3592 01 REINFORCE PLATE D
26		9372 1300 12 PHOTO SENSING ELEMENT B
27		4038 3531 02 EARTH GROUND D
28		4037 0906 01 PHOTO INTERRUPTER B
29		4038 6830 02 WIRE HARNESS ASSY D
30		4038 3561 03 BRACKET D
31		9372 5400 31 HUMIDITY CONVERTION EL. C
32		1164 3527 02 TORSION SPRING C
33		9322 1300 21 CLUTCH B
34		4038 3556 01 SEAL D
35		4038 3559 01 PRESSURE SPRING D
36		4038 3558 02 COVER D
37		4038 3527 03 GUIDE D
38		4038 0751 00 TRANSPORT UNIT S

24. TRANSFER SECTION

№	Артикул	Наименование
1		4038 3548 01 SEAL D 2 a-9739
2		4038 3549 01 SEAL D 1 b-9721
3		4038 3546 02 DUCT D 1 c-9752
4		4038 3547 01 DUCT D
5		4038 3580 01 GEAR 34T D
6		9335 1300 61 PHOTO INTERRUPTER B
7		4038 3557 04 HOLDER D
8		4038 3553 01 CAM D
9		4038 4611 01 PRESSURE SPRING C
10		4163 5293 01 SCREW C
11		4038 3551 01 LEVER D
12		4038 3542 02 HOLDER D
13		4038 4620 01 PRESSURE SPRING C
14		4038 0776 00 ROLLER ASSY B
15		4038 3552 01 LEVER D
16		4037 0906 01 PHOTO INTERRUPTER B
17		4038 3564 01 TORSION SPRING C
18		4038 3563 01 ACTUATOR C
19		4038 3572 01 SHAFT D
20		4038 3586 01 GEAR 17/39T D
21		4038 3582 01 GEAR 39T D
22		4038 3583 01 GEAR 17/39T D
23		4038 3588 01 HOLDER D
24		4038 3566 01 CONTACT D
25		9455 8076 01 RESISTOR D
26		4038 3569 01 CONTACT C
27		4038 3565 01 CONTACT C
28		4038 3568 02 CONTACT C
29		4038 0774 00 MOTOR ASSY S

25. RIGHT DOOR SECTION

№	Артикул	Наименование
1		4038 3515 02 COVER C 1 a-9739
2		4038 3506 08 RIGHT DOOR D 1 b-9735
3		4038 3520 01 PLATE SPRING D 2 c-9735
4		4038 3518 01 REINFORCE PLATE D
5		4038 3516 01 SHAFT D
6		4038 3508 01 PAWL D
7		4038 3591 01 TORSION SPRING C
8		4038 3545 01 DUCT D
9		9313 1000 72 FAN MOTOR C
10		4163 5293 01 SCREW C
11		4038 3519 02 REINFORCE PLATE D
12		4038 3512 01 TORSION SPRING C
13		4038 3534 01 COLLAR C
14		4038 0210 01 BRACKET ASSY D
15		4038 3511 02 SHOULDER SCREW C
16		4038 3523 01 STOPPER D
17		4038 3571 02 CONTACT D
18		4038 3507 01 PAWL D
19		4038 3505 01 BRACKET D
20		4038 3522 01 REINFORCE PLATE D
21		4038 3521 01 COVER D
22		4038 7302 01 LABEL JAM D
23		4038 0752 00 DOOR ASSY S

26. TRANSPORT DRIVE SECTION

№	Артикул	Наименование
1		4038 2513 01 GEAR 83/115T C 1 a-9735
2		4038 2520 01 GEAR 65T C 1 b-9721
3		4038 2529 01 GEAR 26T C 1 c-9739
4		4038 2599 01 GEAR 32T C 1 e-9754
5		4038 2524 01 SHAFT D
6		4038 2531 01 GEAR 32/18T C
7		4038 2532 01 GEAR 24T C
8		9322 1400 21 CLUTCH C
9		4038 2551 01 GEAR 49/44T C
10		4038 2526 01 HOLDER D
11		4658 3516 01 BUSHING C
12		4038 2519 01 GEAR 22T C
13		4038 2535 01 SHAFT D
14		4038 2598 01 GEAR 18T C
15		4038 2699 01 PIN C
16		4038 2515 01 SHAFT D
17		4038 2514 01 GEAR 50T C
18		4038 2549 01 GEAR 37/50T C
19		4038 2523 01 SHAFT D
20		9322 1300 31 CLUTCH C
21		4038 2517 01 GEAR 22/38T C
22		4038 2508 01 GEAR 55/31T C
23		4038 2578 01 GEAR 20/56T C
24		4004 2545 01 GEAR 18/30T C
25		4038 2539 01 HOLD PLATE D
26		4038 2536 01 HOLD PLATE D
27		4038 2253 01 SHIELD D
28		4038 2597 01 HOLD PLATE D

27. WASTE TONER TRANSPORT SECTION

№	Артикул	Наименование
1		4038 2118 01 SEAL C 4 a-9739
2		4038 2076 01 SEAL C 4 b-4425
3		4038 2116 03 PIPE D 4 c-4425
4		4038 2131 02 STIRRING PLATE D
5		4038 2117 02 SEAL C
6		4038 2025 01 CUSHION C
7		4038 2115 02 LID D
8		4004 5607 02 BUSHING C
9		4004 2545 01 GEAR 18/30T C
10		4038 2579 01 GEAR 18T C
11		4038 2586 01 HOLDER D
12		4004 5612 01 GEAR 18T C
13		4038 2111 01 PIPE D
14		4038 2112 02 SCREW D
15		4038 2114 01 TORSION SPRING C
16		4038 2143 01 SEAL C
17		4038 2142 01 GEAR 16T C
18		4038 2120 02 BUSHING C
19		9335 1300 61 PHOTO INTERRUPTER B
20		4038 0203 02 BRACKET ASSY D
21		4038 2089 01 STOP PLATE D
22		4038 2140 01 GEAR 32/30T C
23		4038 2130 01 GEAR 32T C
24		4038 2113 02 SHUTTER D
25		4038 2119 01 SEAL C
26		4038 2062 01 SEAL C

28. WASTE TONER BOX SECTION

№	Артикул	Наименование
1		4038 0759 00 TONER PIPE C 1 a-9735
2		4038 7311 01 LABEL WASTE TONER D
3		4038 2013 04 RAIL D
4		4154 3804 01 SCREW C
5		4065 611 WASTE TONER BOX A

29. FUSING SECTION

№	Артикул	Наименование
1		4038 0754 00 FUSING UNIT 100-127V B,F1,G2,H A 1 a-9646
1		4038 0755 00 FUSING UNIT 220-240V C,D1,D3,F2,G1,I,J,K A 1 b-9735
1		4038 0753 00 FUSING UNIT 100V A A 1 c-9735
2		4038 2082 03 HOLDER D
3		4038 3735 01 BRACKET D
4		4038 7319 02 LABEL JAM LEVER C

30. FUSING DRIVE SECTION

№	Артикул	Наименование
1		4038 2556 01 BRACKET D 1 a-9752
2		4038 2592 01 GEAR 18T C 1 b-9721
3		4038 2591 01 GEAR 18T C 1 c-9735
4		4038 2540 01 GEAR 37T C
5		4038 2538 01 GEAR 81/17T C
6		4154 3804 01 SCREW C
7		4038 2557 01 HOLDER D
8		4658 3516 01 BUSHING C
9		4038 2573 01 SHAFT D
10		4038 2596 01 SHAFT D
11		4038 2574 01 GEAR 20T C
12		4038 2576 01 BRACKET D
13		4038 2577 01 BRACKET D
14		4038 2588 01 SHAFT D
15		4038 2580 01 GEAR 16T C
16		4038 2575 01 GEAR 22T C
17		4038 2600 02 TORSION SPRING C
18		4038 2587 01 SHAFT D
19		4038 2541 01 GEAR 20T C
20		9322 1300 21 CLUTCH B
21		4038 2593 02 GEAR 41T C
22		9383 2210 11 CONNECTOR 2P D
23		9314 1400 71 MOTOR C

31. PAPER EXIT SECTION

№	Артикул	Наименование
1		4038 5881 05 COVER C 1 a-9739
2		4038 7304 01 LABEL EXIT COVER C
3		4038 5856 01 NEUTRALIZING BRUSH D
4		4038 5886 03 EARTH GROUND D
5		4038 5883 03 GUIDE D
6		4038 5894 03 LEVER C
7		4038 5896 02 TORSION SPRING C
8		4163 5293 01 SCREW C
9		4038 5895 03 LEVER C
10		4038 6835 01 WIRE HARNESS ASSY D
11		9383 2210 41 CONNECTOR 3P D
12		9313 1300 41 FAN MOTOR C
13		4038 5852 02 COVER C

Полный список запчастей доступен по запросу.

Источник: Инк-Маркет.ру.
