Konica Minolta bizhub c 220 280 360 — ниже интерактивный каталог запчастей по узлам со взрыв-схемами из сервис-мануала. По каждой детали указан оригинальный артикул; позиции, доступные к заказу, отмечены ссылкой на карточку товара, остальные — кнопкой «запросить цену».
Запчасти по узлам (со схемами)
Взрыв-схемы по каждому узлу с артикулами. Детали, доступные к заказу, ведут на карточку товара; остальные — на форму запроса цены.
Содержание
- 1. INFORMATION FOR PARTS GUIDE MANUAL
- 2. DIAGRAM OF MAIN PARTS SECTION
- 3. EXTERNAL PARTS
- 4. EXTERNAL PARTS
- 5. EXTERNAL PARTS
- 6. IR COVER
- 7. CONTROL PANEL
- 8. CCD UNIT/ SCANNER SECTION
- 9. SCANNER DRIVE SECTION

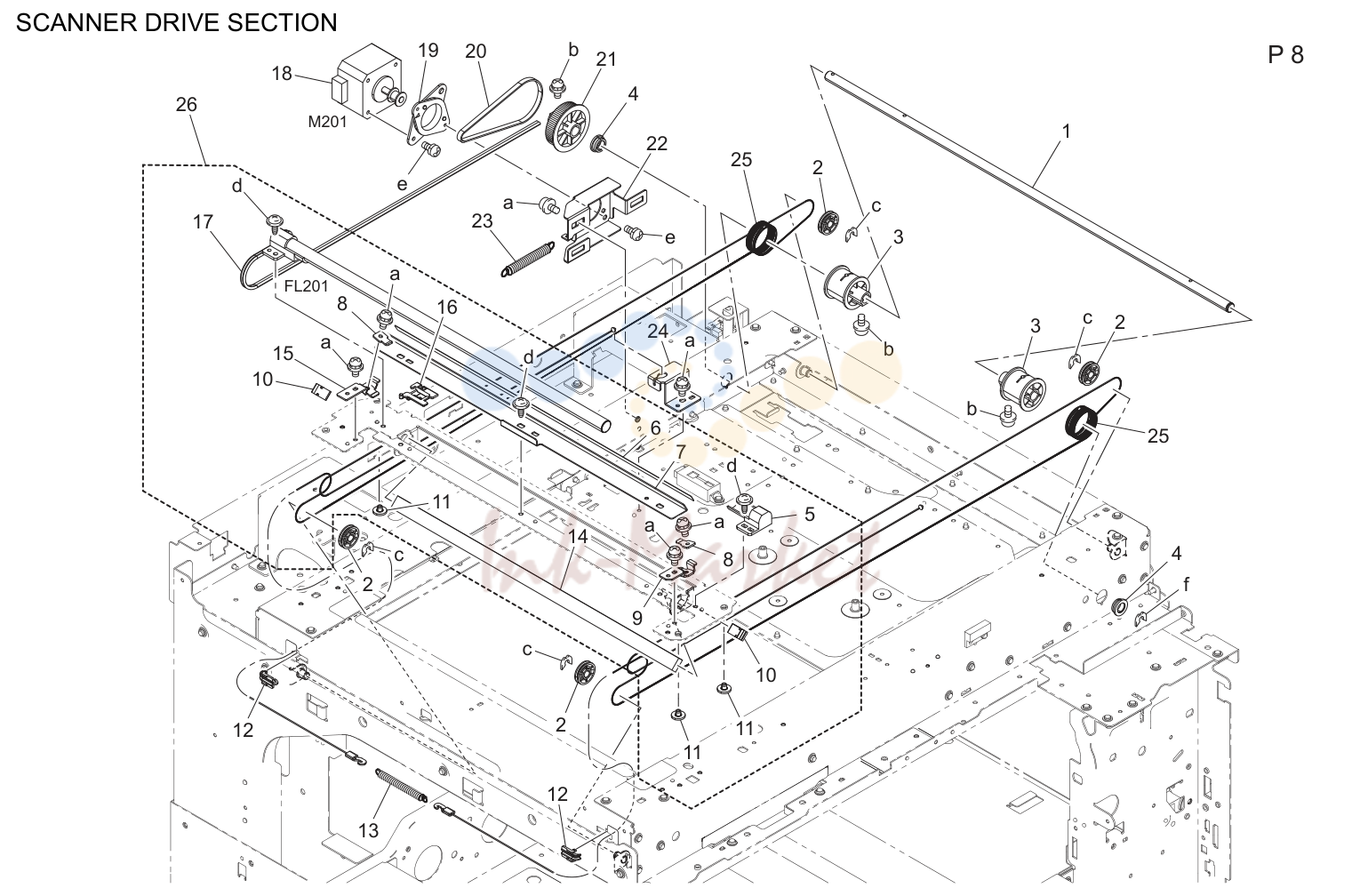

- 10. SCANNER DRIVE SECTION

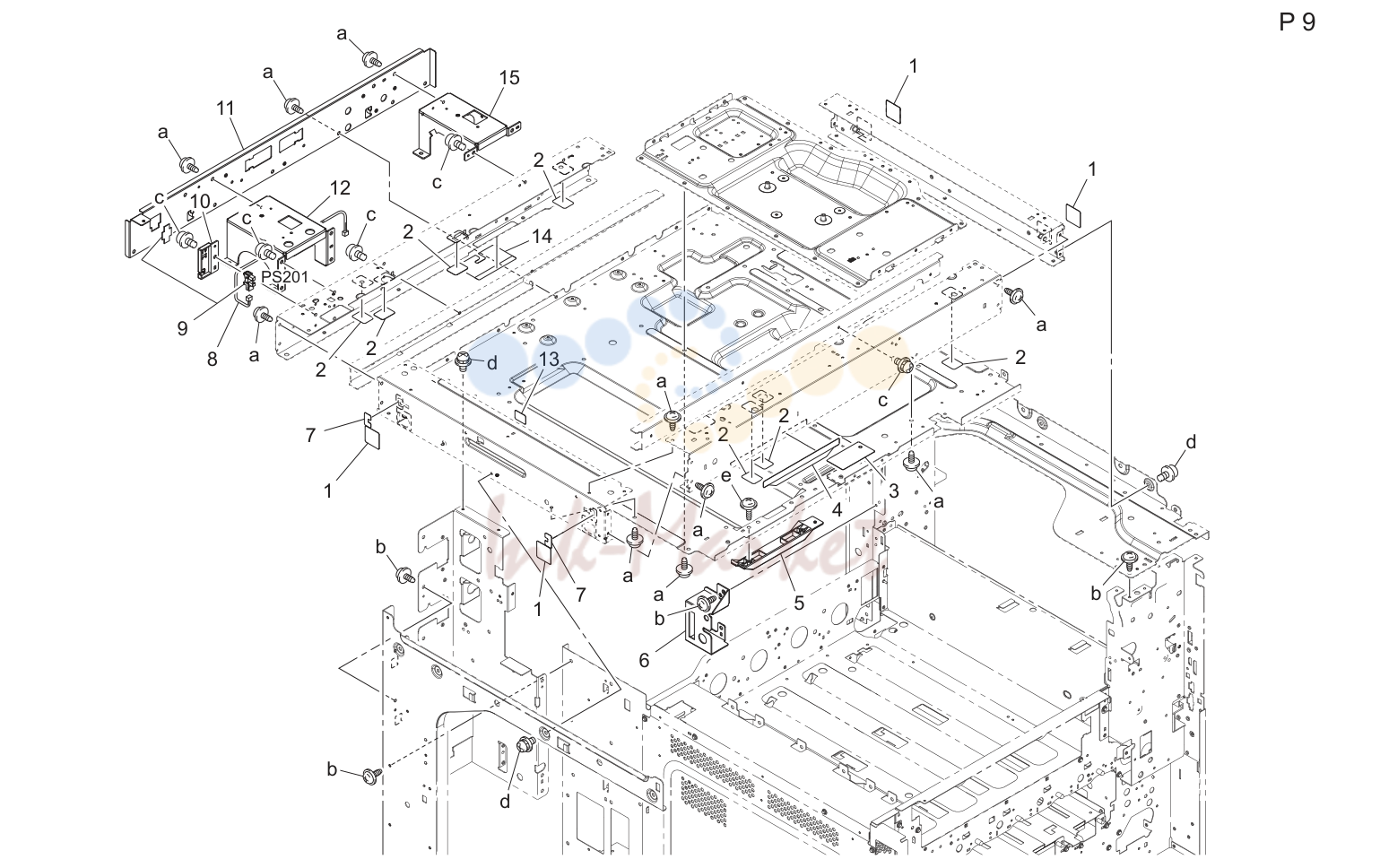

- 11. IR FRAME

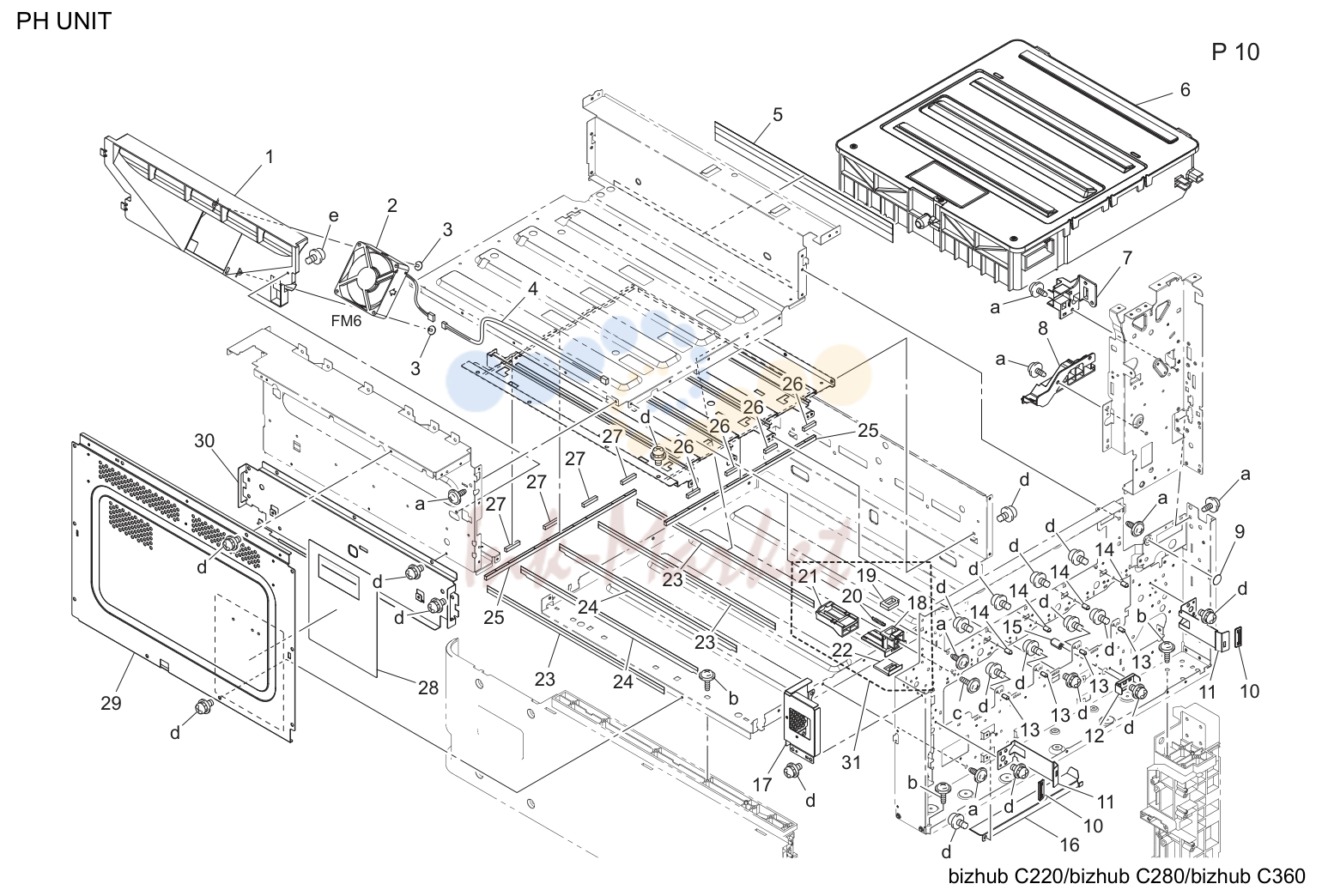

- 12. PH UNIT

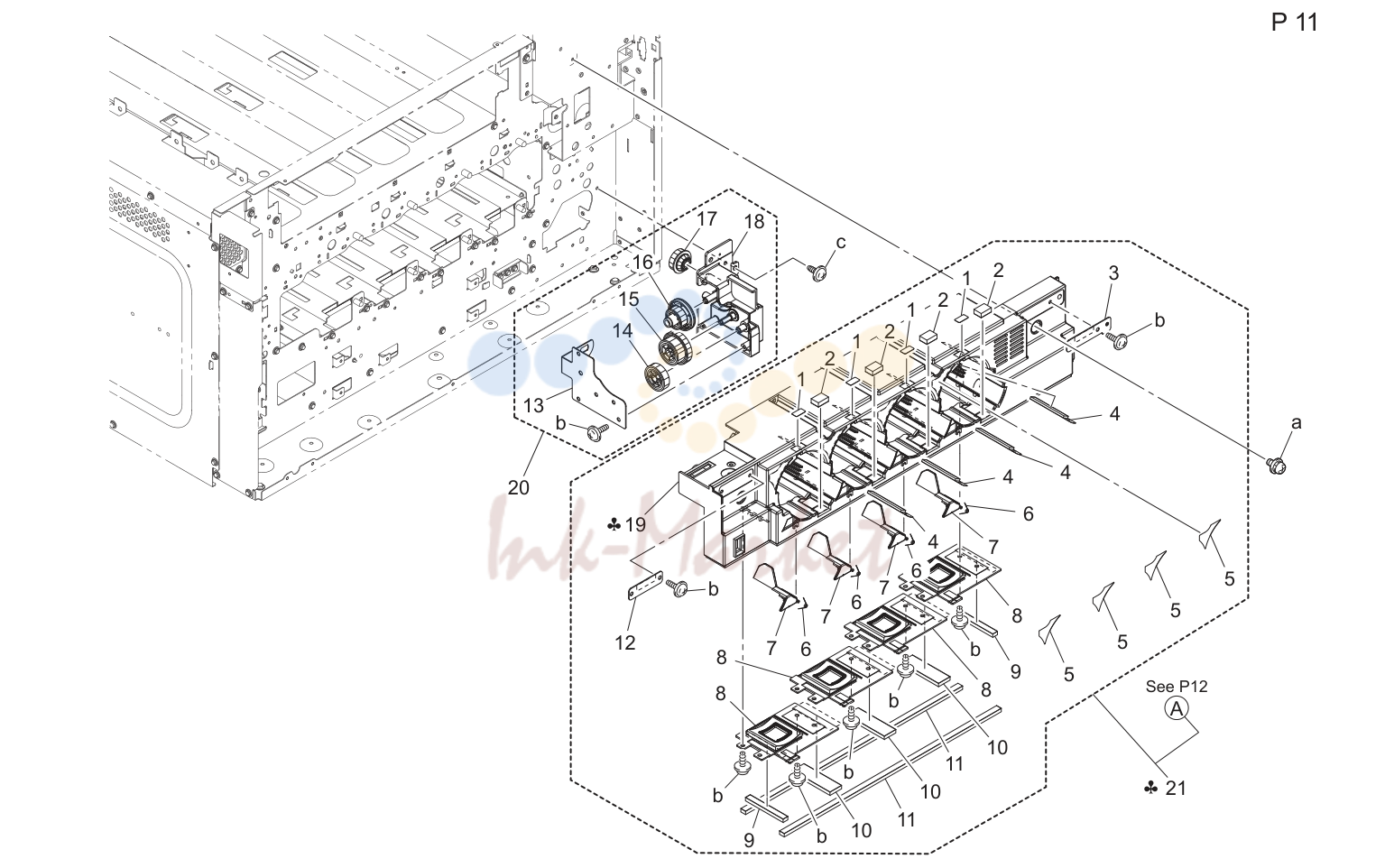

- 13. TONER SUPPLY SECTION

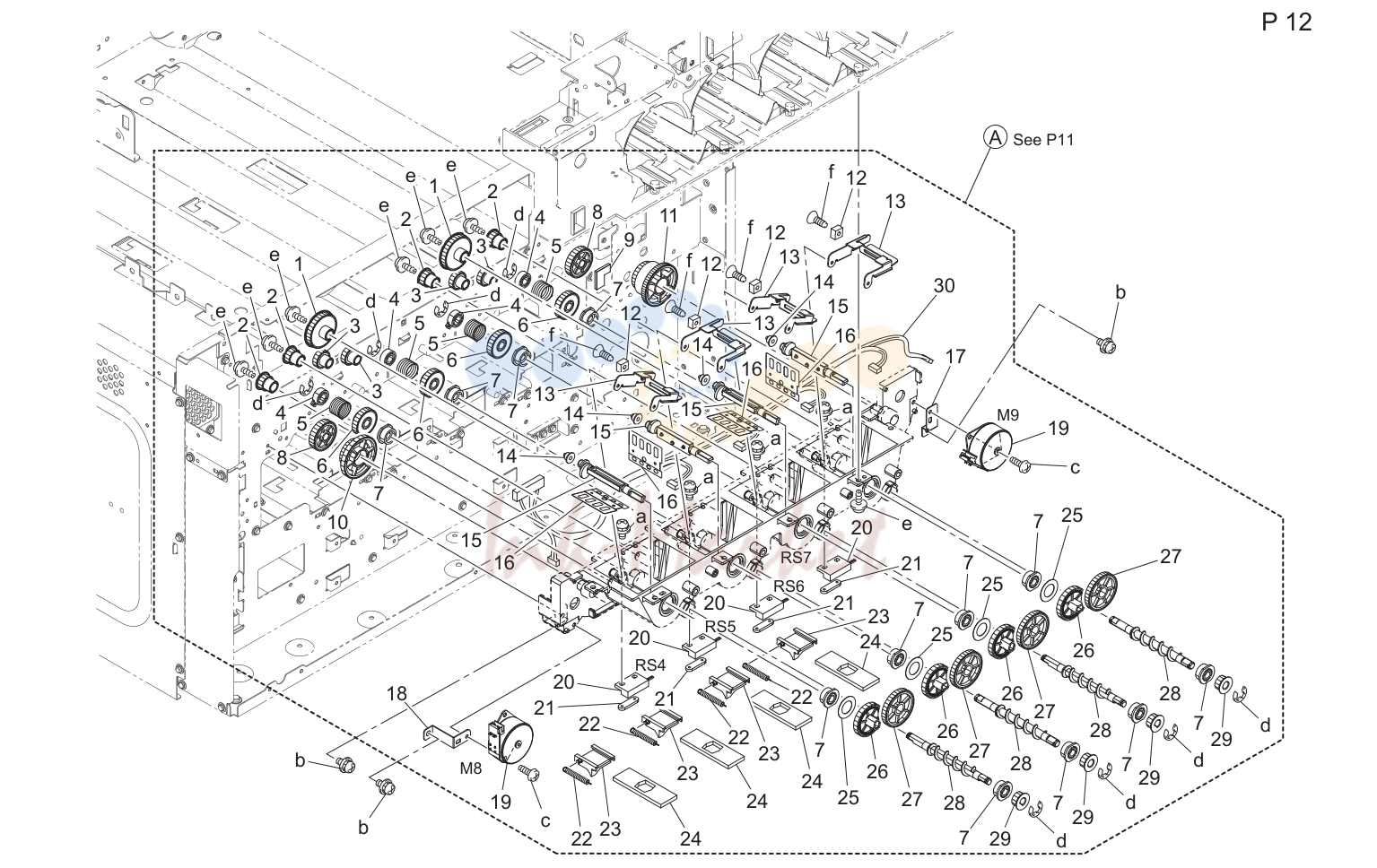

- 14. TONER SUPPLY SECTION

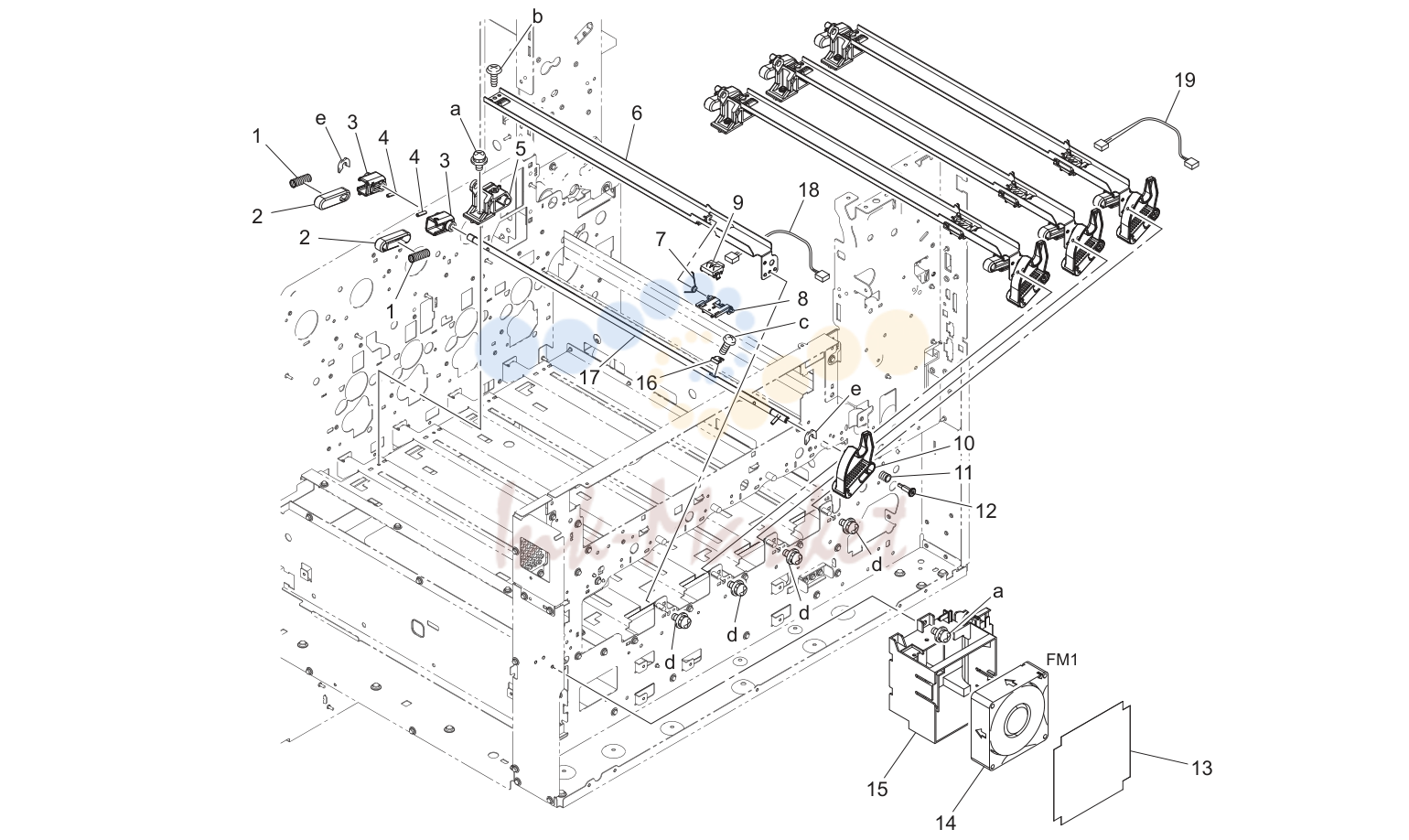

- 15. D/C RAIL SECTION

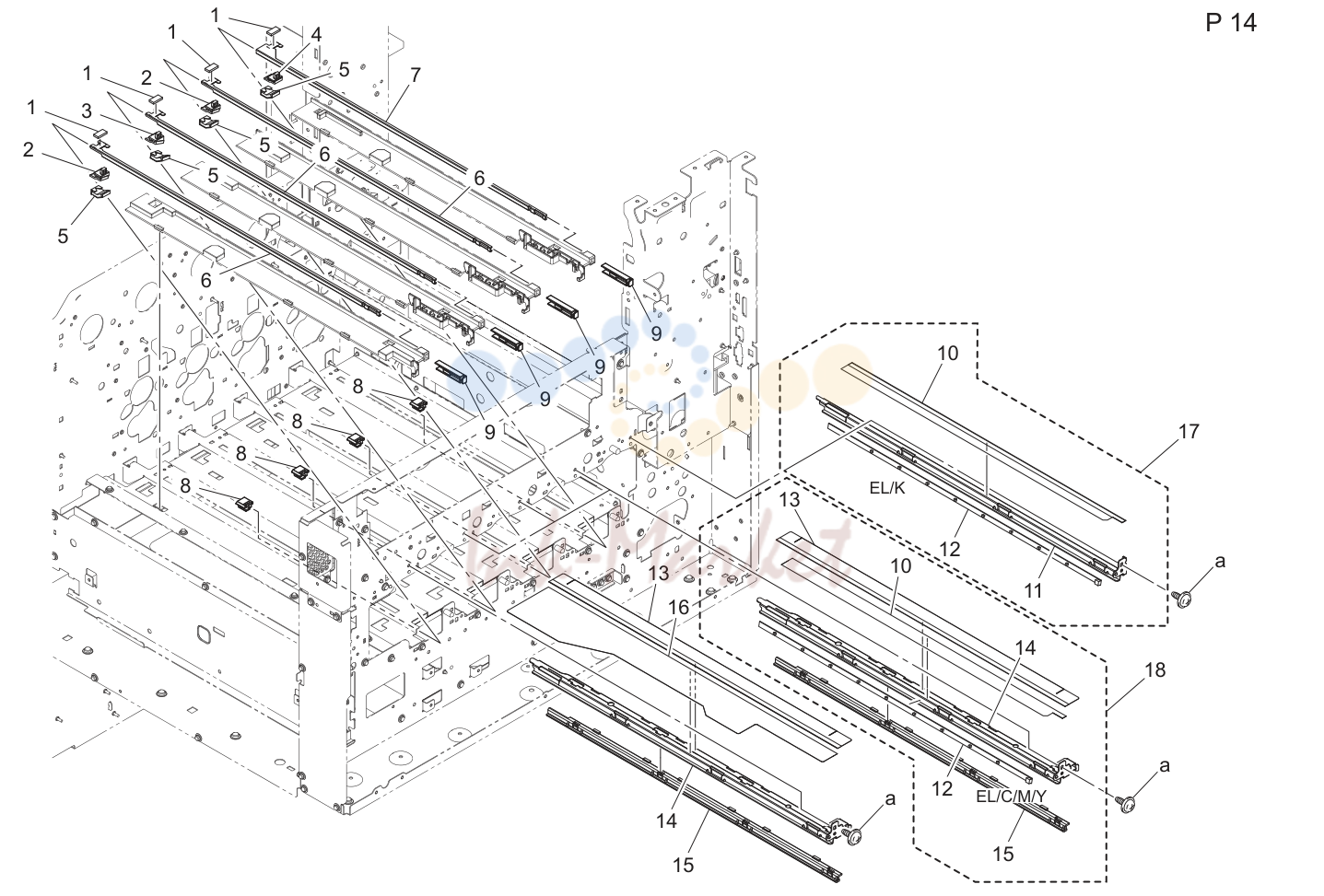

- 16. ERASE LAMP SECTION

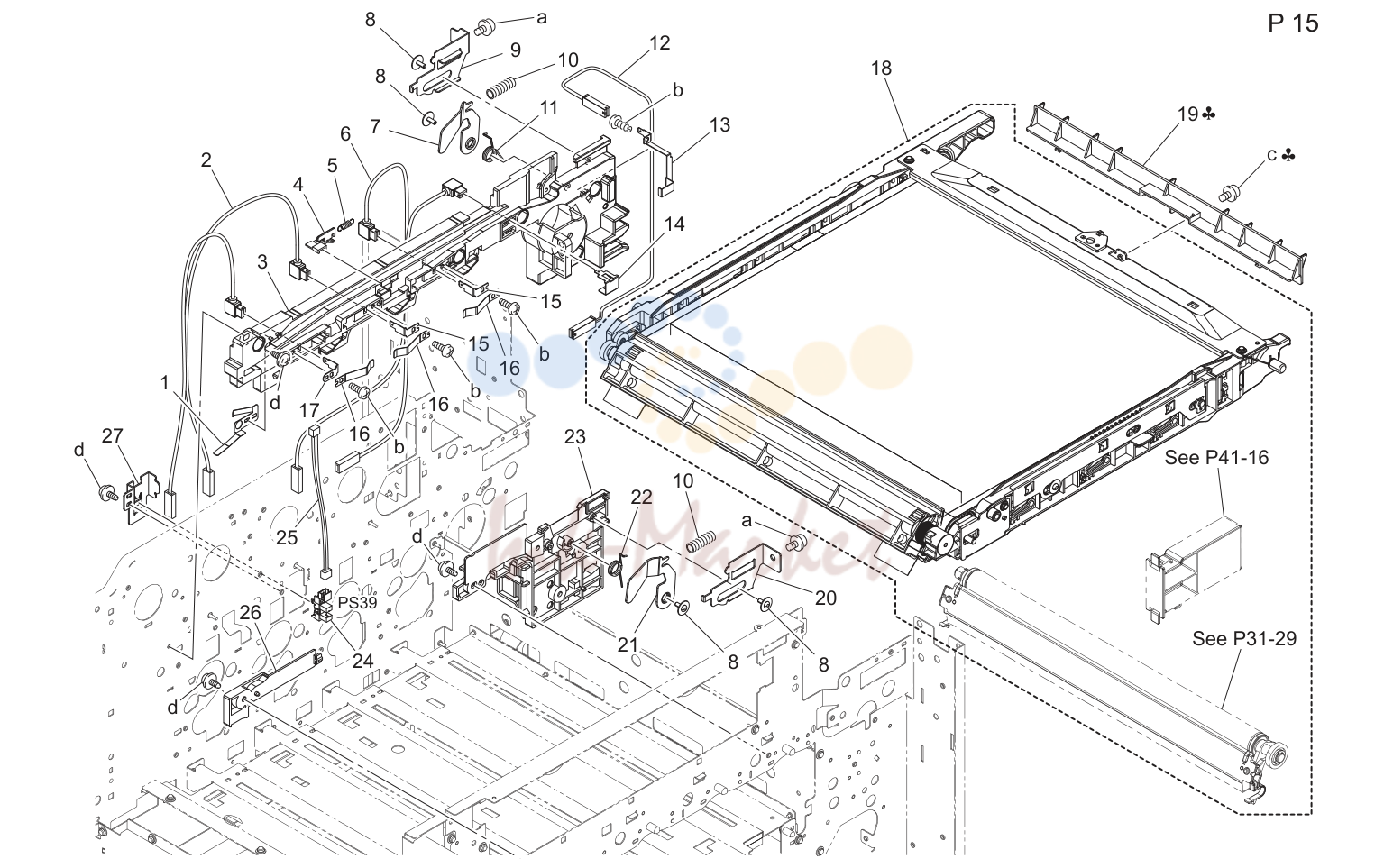

- 17. TRANSFER BELT UNIT

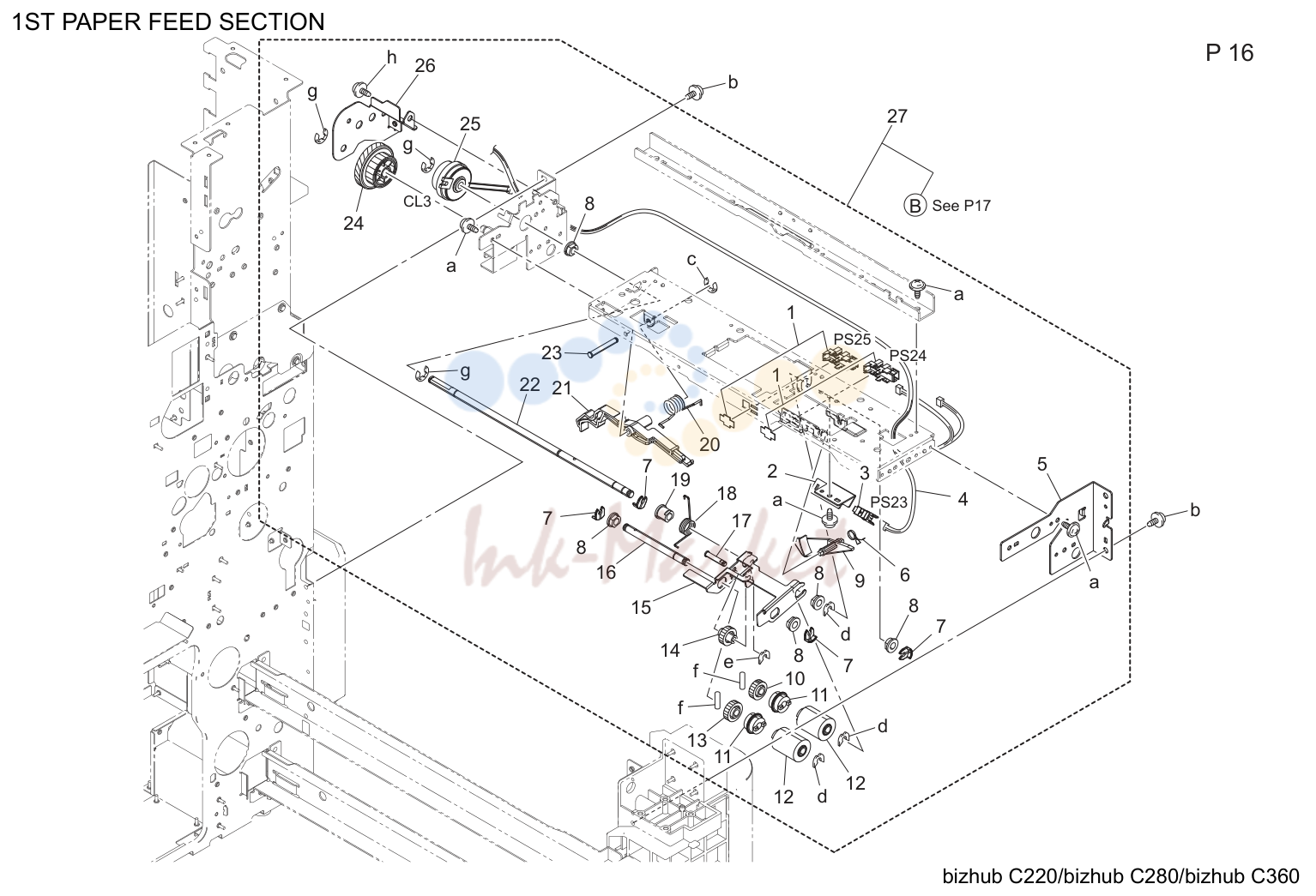

- 18. 1ST PAPER FEED SECTION

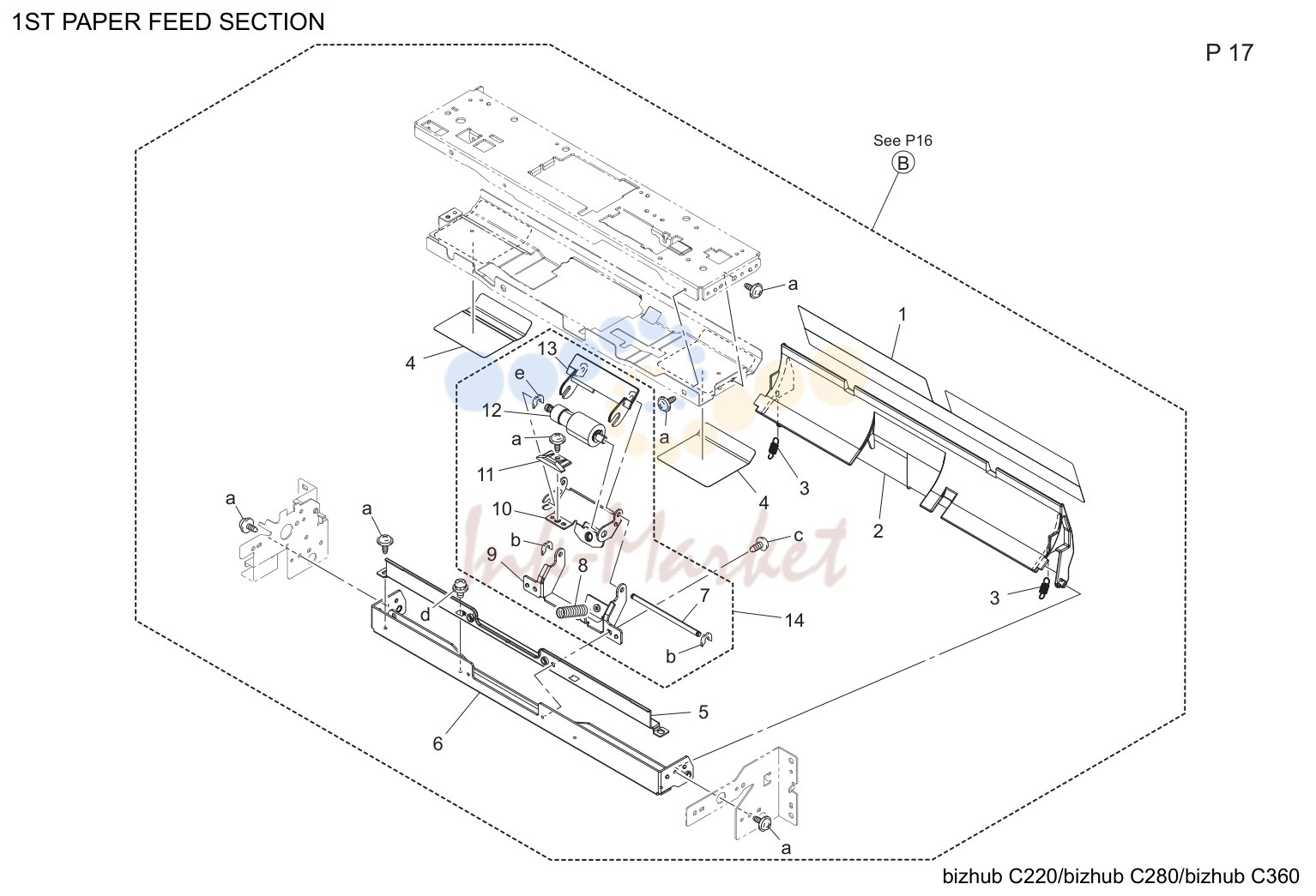

- 19. 1ST PAPER FEED SECTION

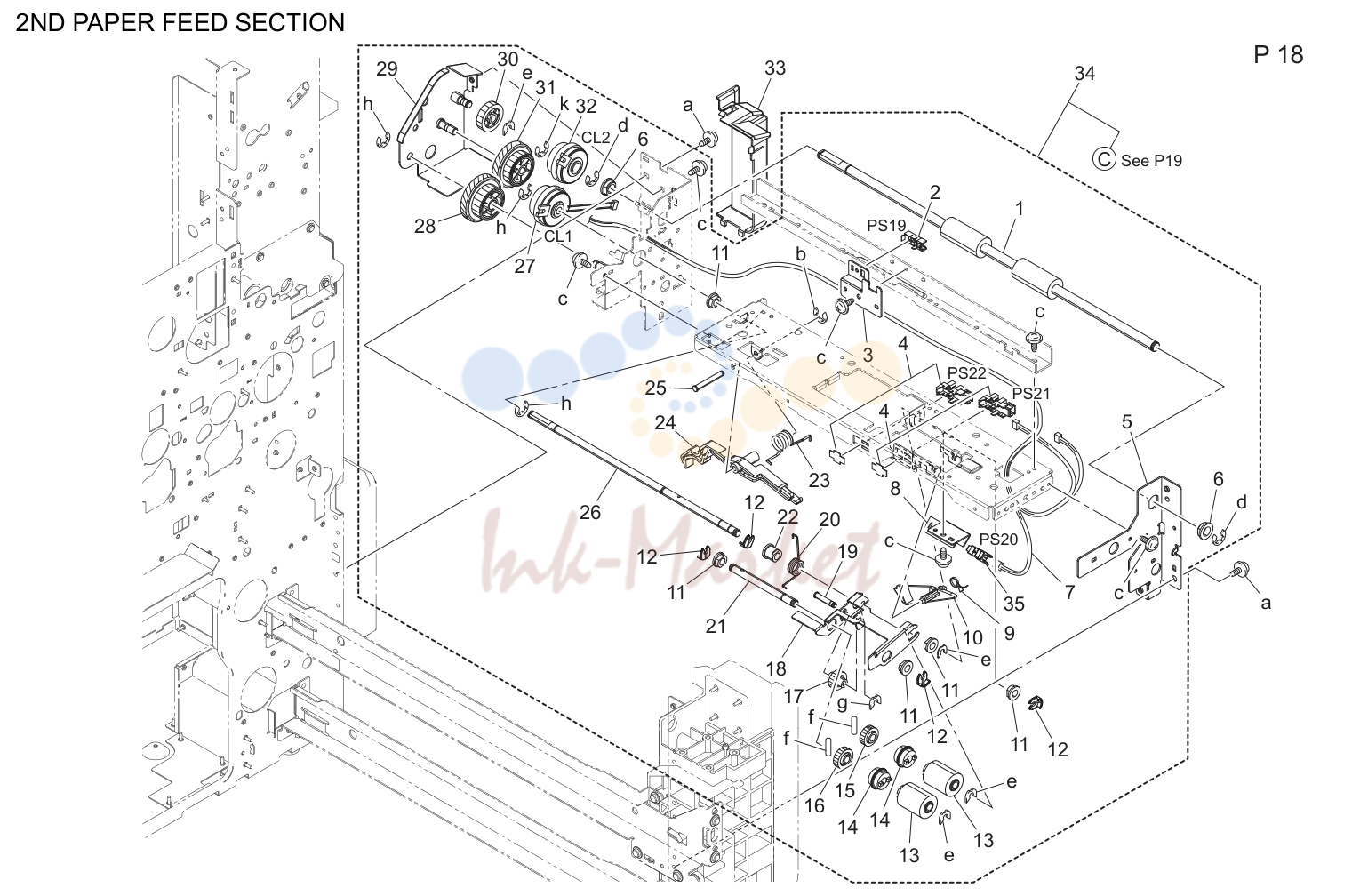

- 20. 2ND PAPER FEED SECTION

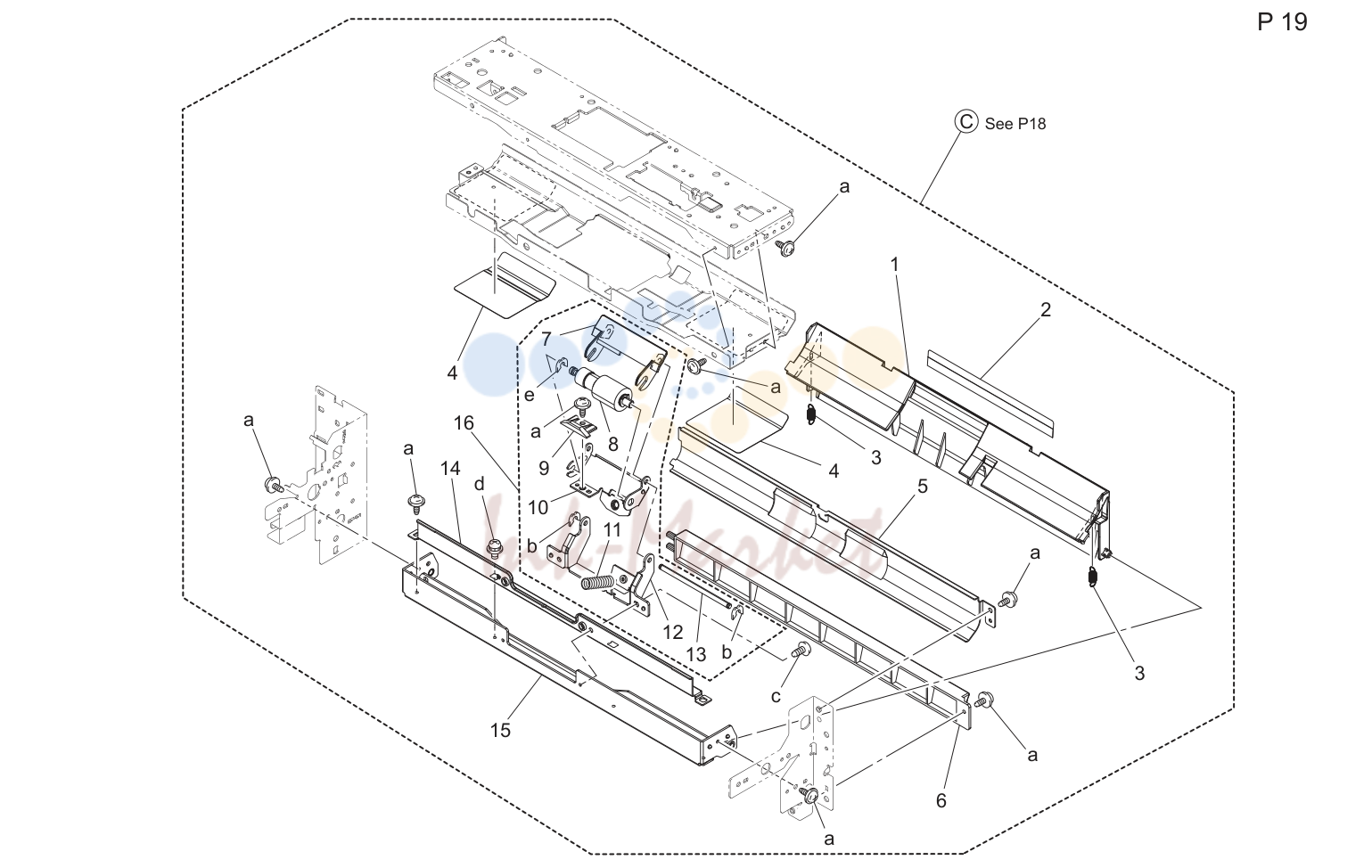

- 21. 2ND PAPER FEED SECTION

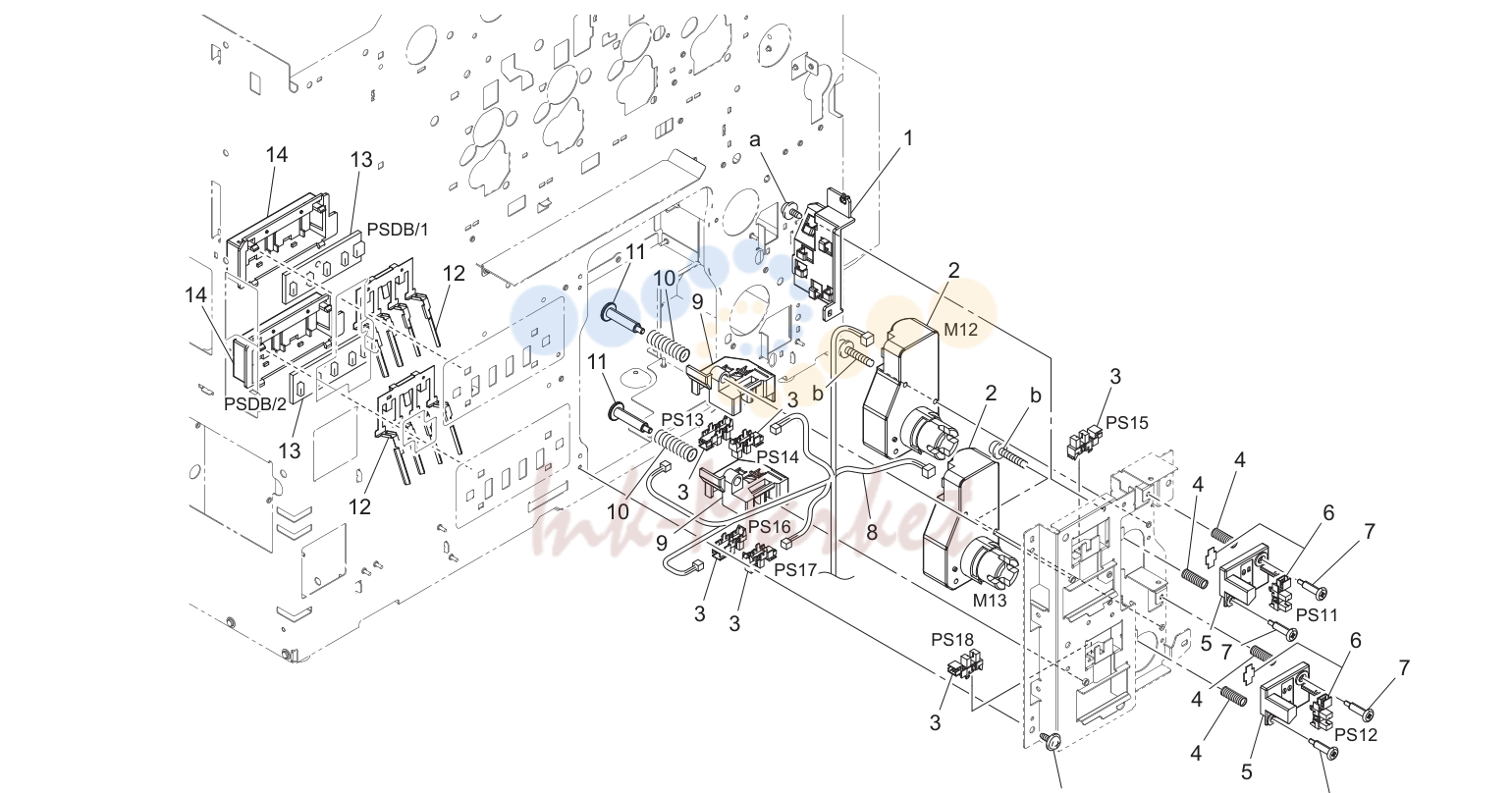

- 22. PAPER FEED DRIVE

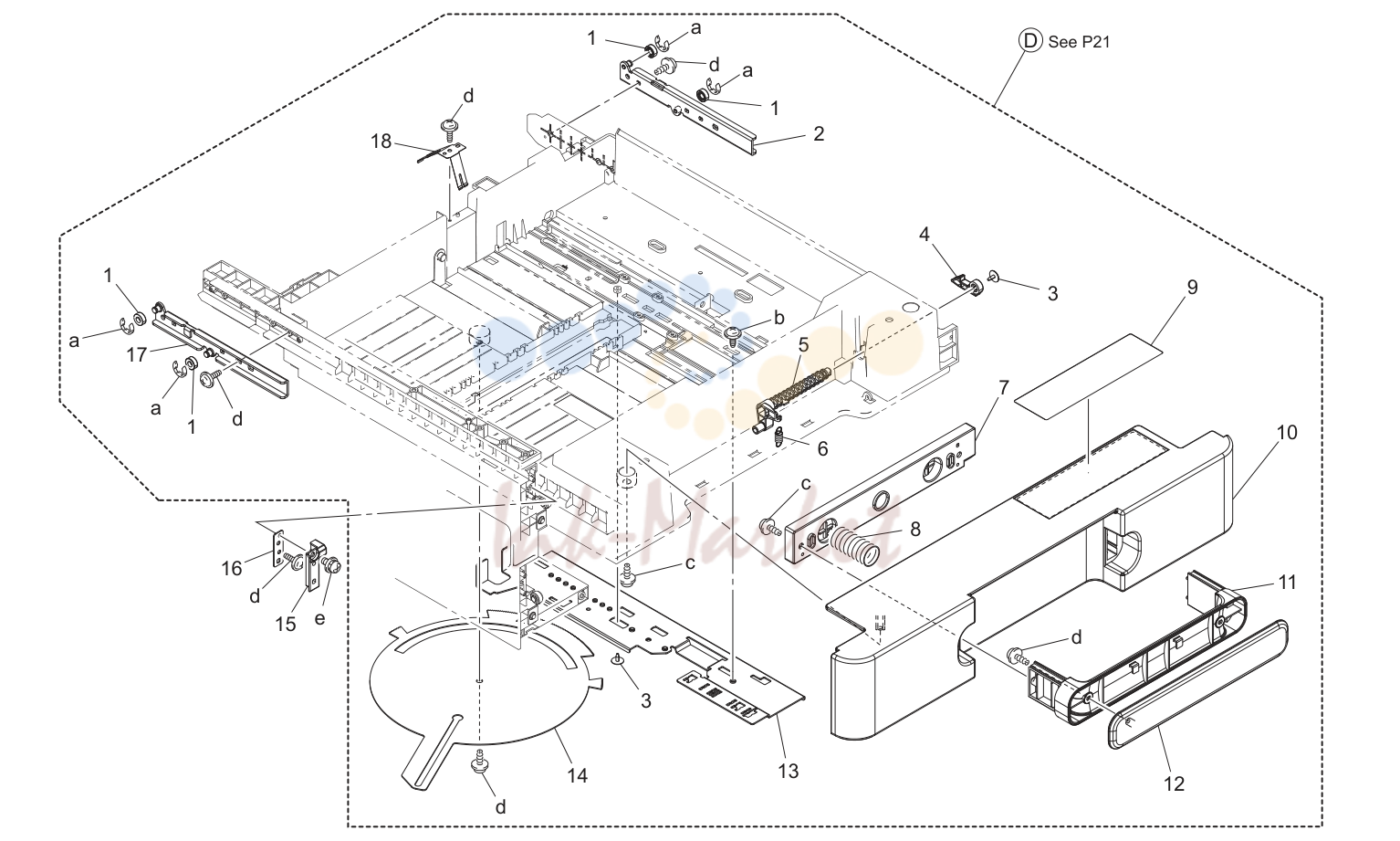

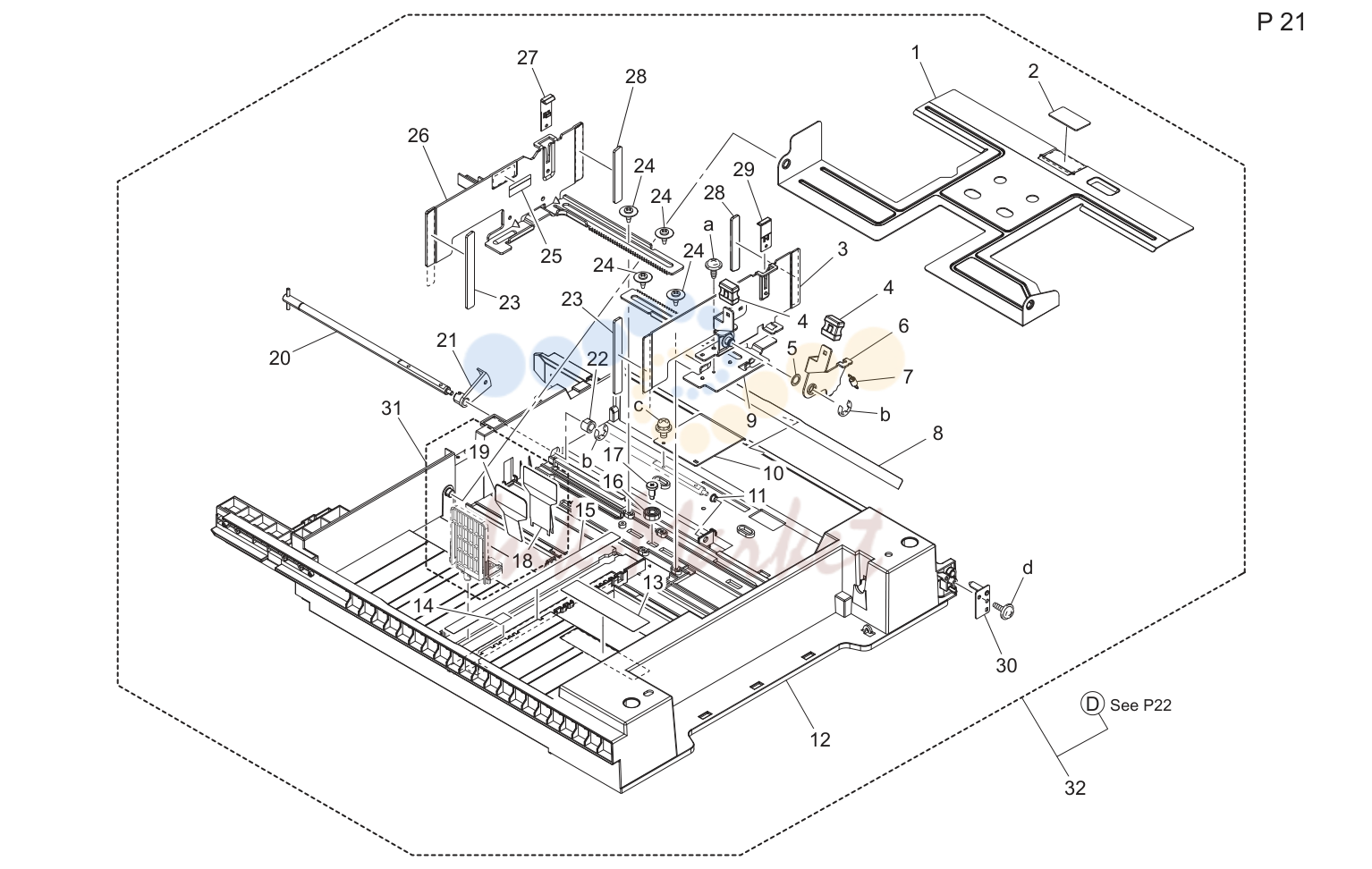

- 23. 1ST CASSETTE SECTION
- 24. 1ST CASSETTE SECTION

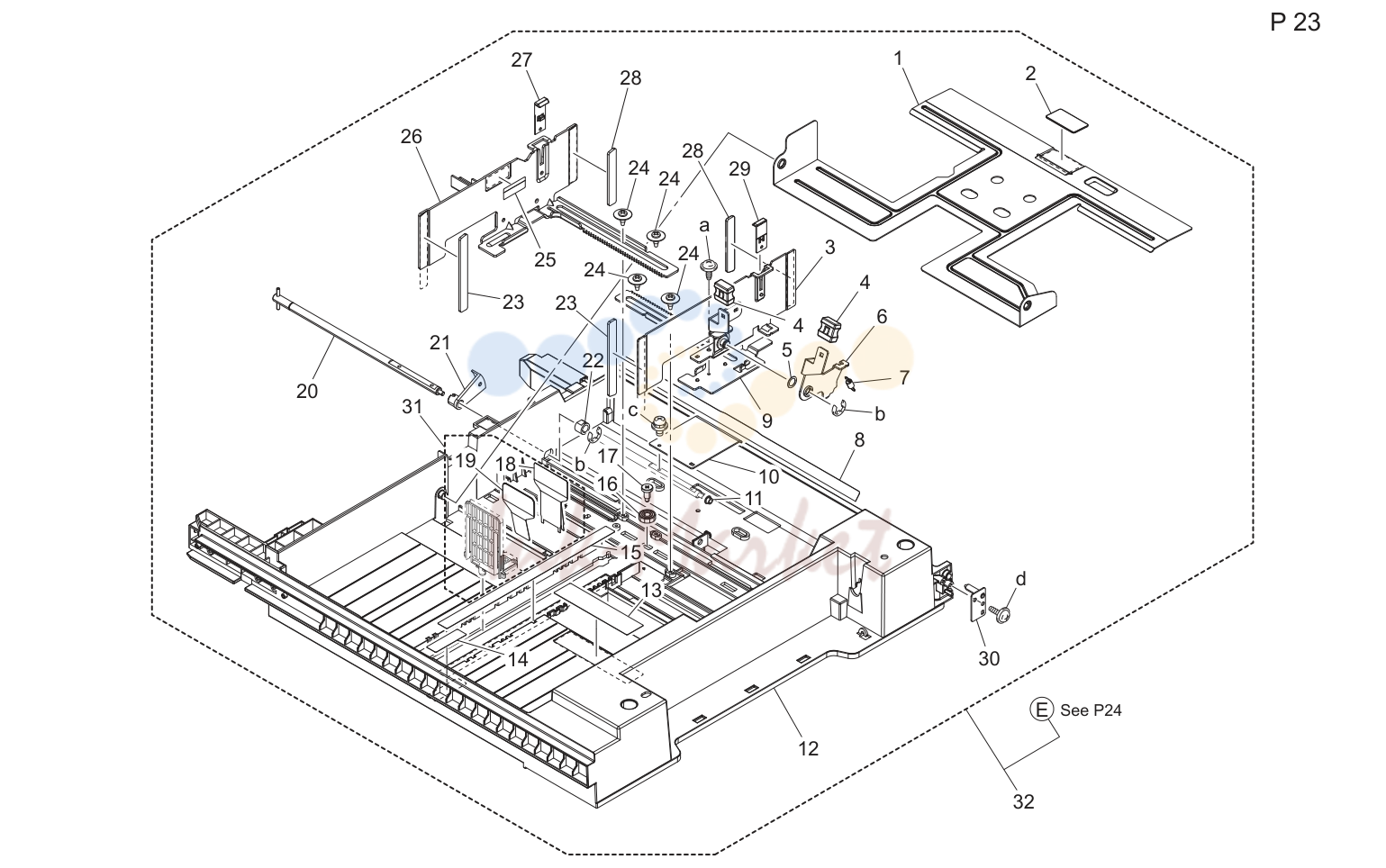

- 25. 2ND CASSETTE SECTION

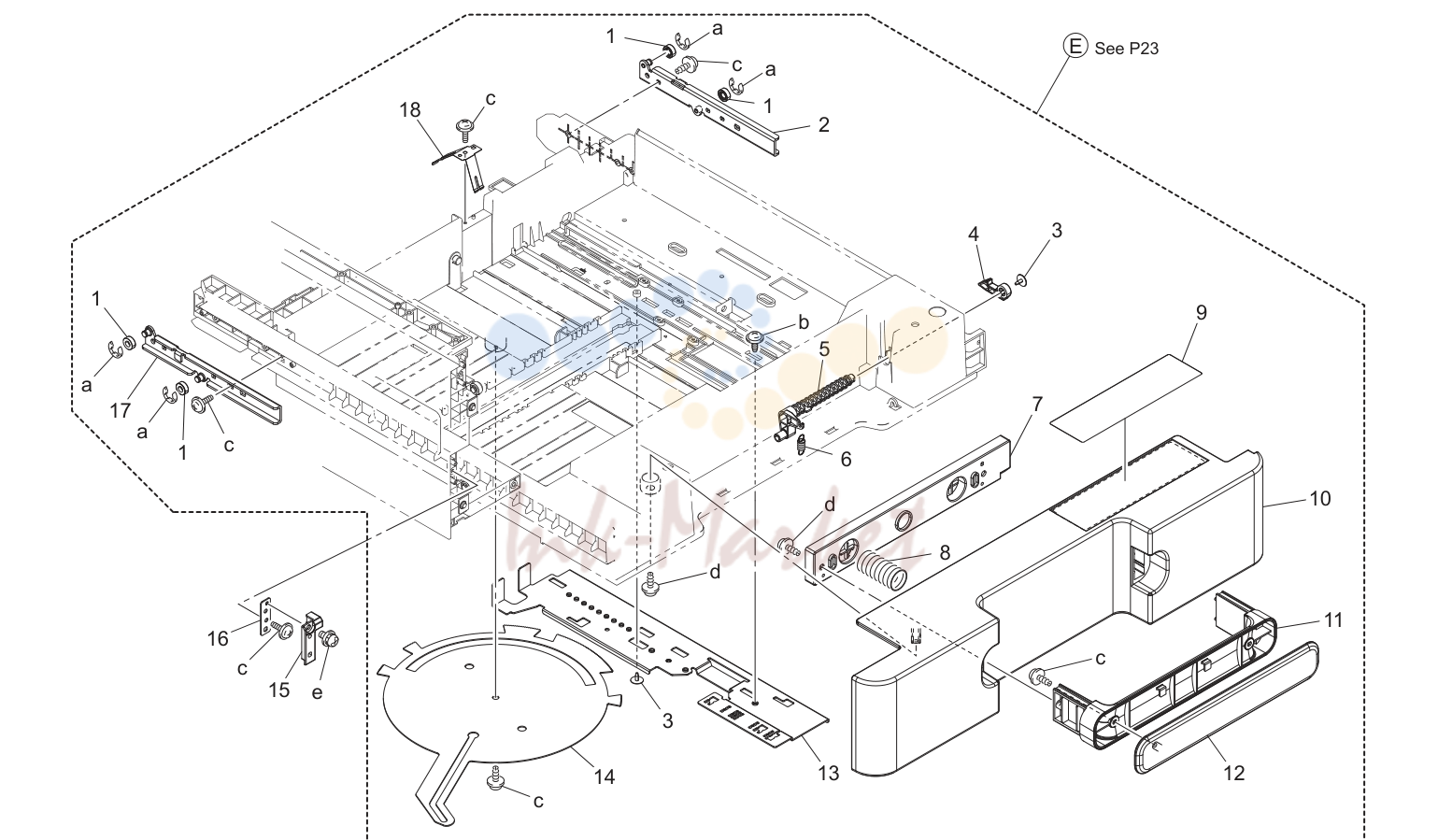

- 26. 2ND CASSETTE SECTION

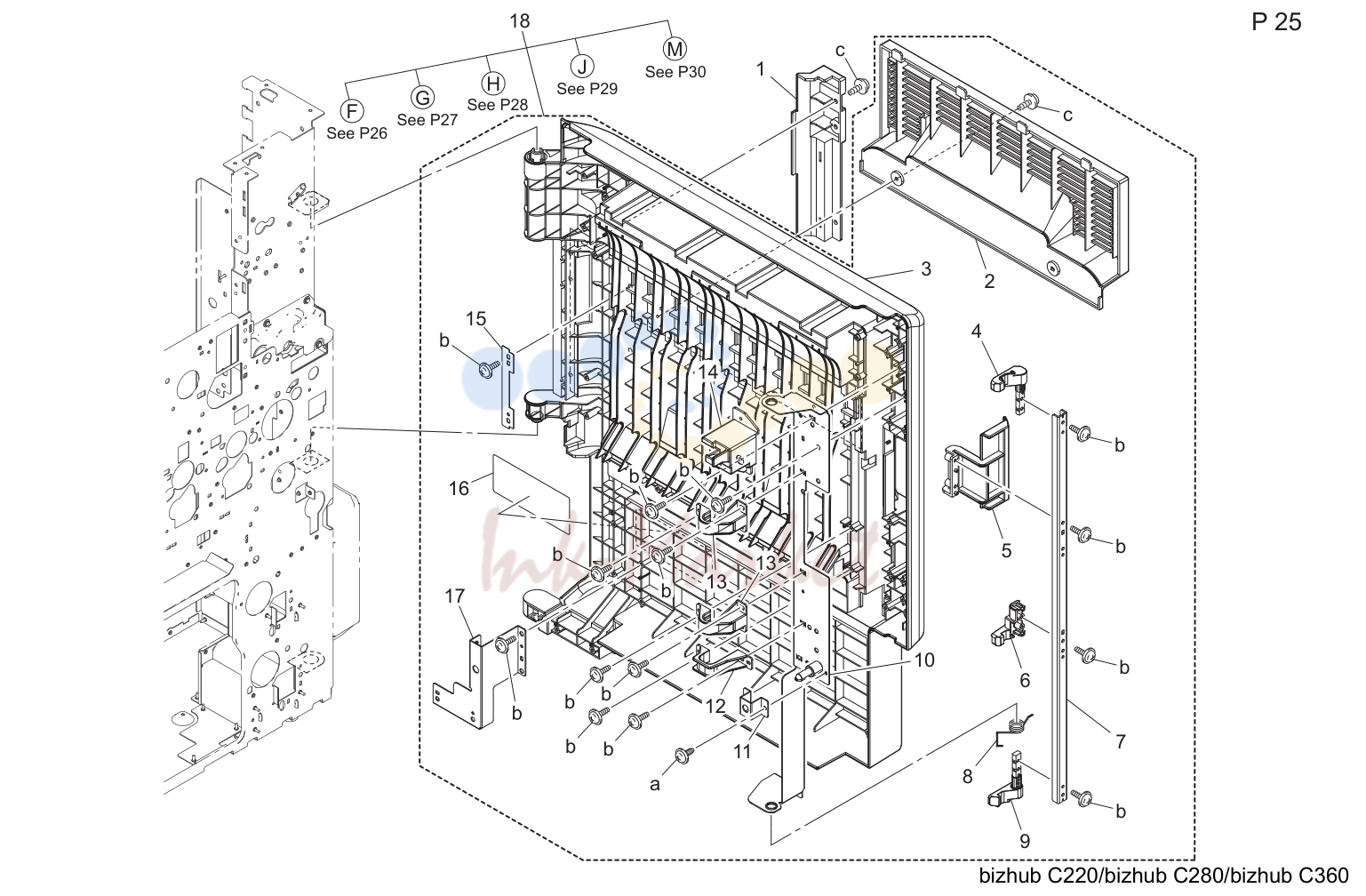

- 27. VERTICAL CONVEYANCE DOOR SECTION

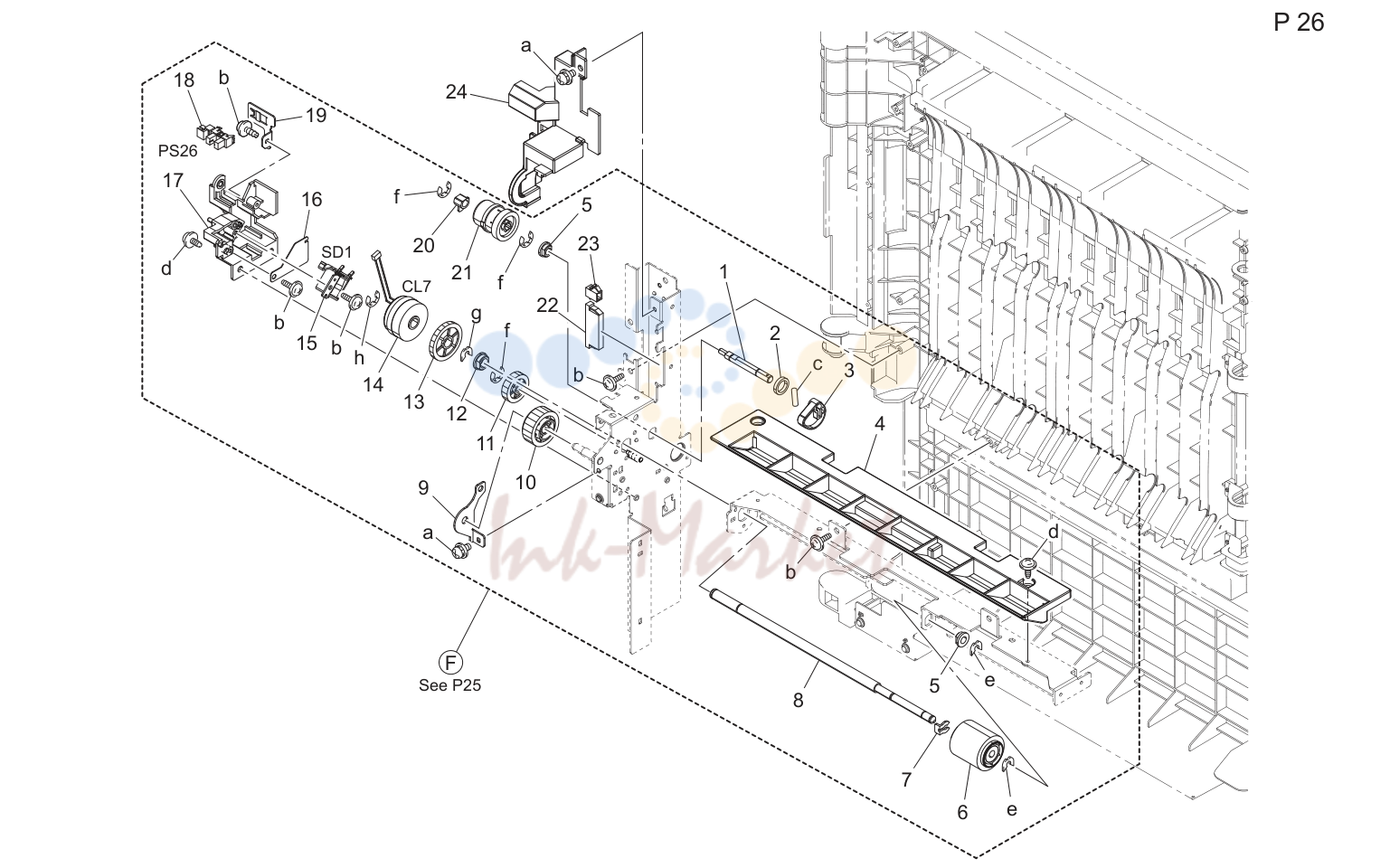

- 28. VERTICAL CONVEYANCE DOOR SECTION
- 29. VERTICAL CONVEYANCE DOOR SECTION
- 30. VERTICAL CONVEYANCE DOOR SECTION
- 31. MANUAL FEED TRAY UNIT
- 32. MANUAL FEED TRAY UNIT
- 33. VERTICAL CONVEYANCE SECTION
- 34. VERTICAL CONVEYANCE SECTION
- 35. VERTICAL CONVEYANCE SECTION
- 36. FUSING SECTION/ WASTE TONER BOX
- 37. PAPER EXIT SECTION
- 38. MAIN DRIVE SECTION
- 39. FUSING DRIVE SECTION
- 40. BOTTLE DRIVE SECTION
- 41. CASSETTE RAIL SECTION
- 42. MAIN POWER SUPPLY UNIT
- 43. HIGH VOLTAGE UNIT
- 44. REAR FAN SECTION
- 45. SHIELD BOX
- 46. WIRING ACCESSORIES AND JIGS
- 47. MAINTENANCE LIST 1/1
1. INFORMATION FOR PARTS GUIDE MANUAL
| № | Артикул | Наименование |
|---|---|---|
| 1 | When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures. | |
| 2 | For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and | |
| 3 | In order to maintain safety of the product, some specific parts composed of this product are set up as "essential safety parts". | |
| 4 | The assigned parts number for the "essential safety parts" is indicated as "SP00-****". | |
| 5 | means that there are exclusive parts for each destination. | |
| 6 | Revision Mark | |
| 7 | All rights reserved. (any reprints or quotations are prohibited.) | |
| 1 | DIGITAL MFP COLOR bizhub C220/bizhub C280/bizhub C360 | |
| 2 | DOCUMENT FEEDER DF-617 | |
| 3 | OTHER OPTION OC-509 | |
| 4 | OTHER OPTION MK-713 | |
| 5 | FAX CONTROLLER FK-502 | |
| 6 | OTHER OPTION EK-604 | |
| 7 | FAX CONTROLLER FK-502 | |
| 8 | OTHER OPTION EK-605 | |
| 9 | OTHER OPTION VI-505 | |
| 10 | OTHER OPTION IC-412 | |
| 11 | PAPER FEEDER PC-107 | |
| 12 | PAPER FEEDER PC-207 | |
| 13 | PAPER FEEDER PC-408 | |
| 14 | OTHER OPTION HT-507 | |
| 15 | SORTER/FINISHER FS-527 | |
| 16 | SORTER/FINISHER SD-509 | |
| 17 | PUNCH UNIT PK-517 | |
| 18 | STACKER JS-603 | |
| 19 | SORTER/FINISHER FS-529 | |
| 20 | STACKER JS-505 | |
| 21 | OTHER OPTION MK-720 |

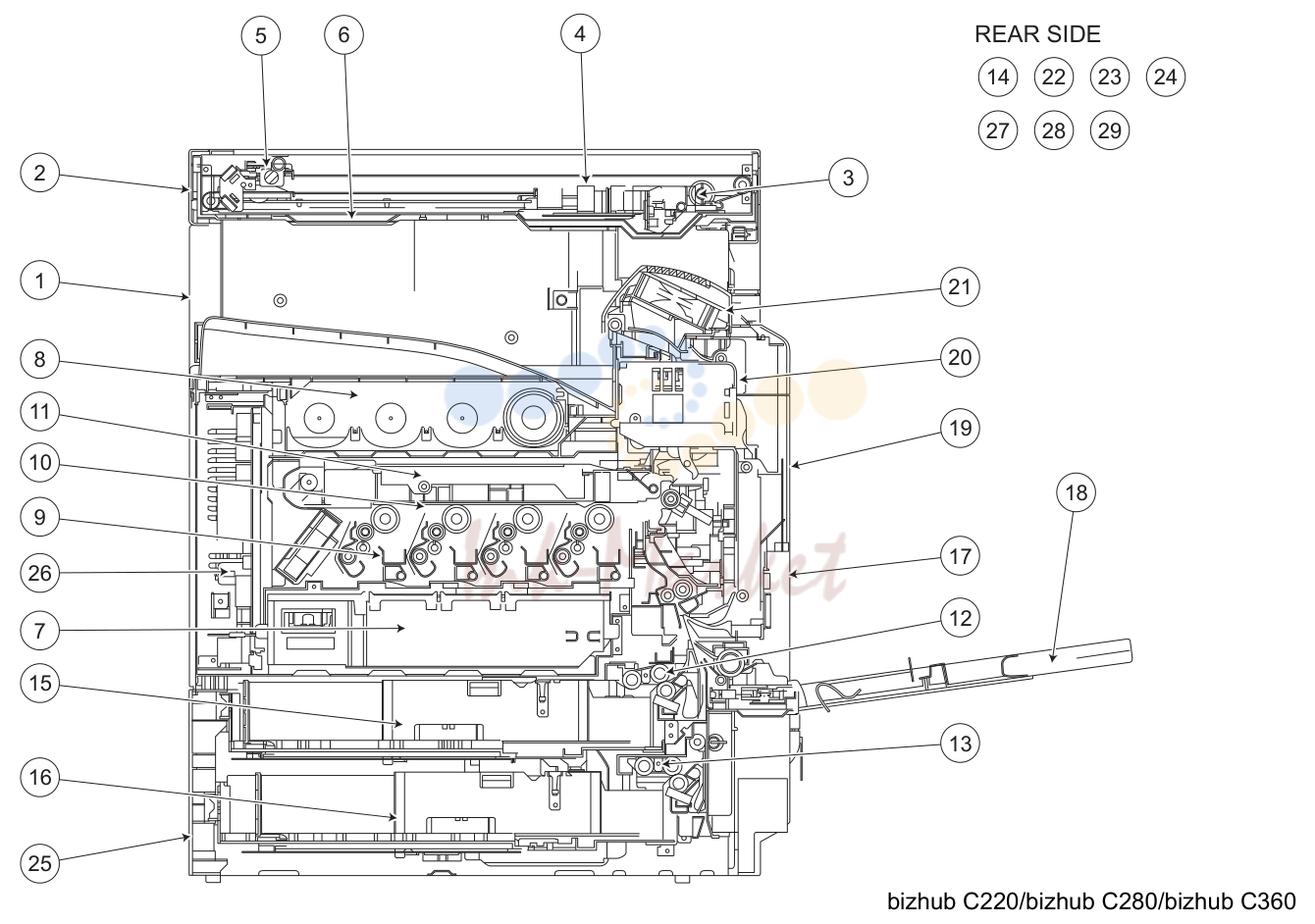

2. DIAGRAM OF MAIN PARTS SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | EXTERNAL PARTS P1 P2 P3 | |
| 2 | IR COVER P4 | |
| 3 | CONTROL PANEL P5 | |
| 4 | CCD UNIT/ SCANNER SECTION P6 | |
| 5 | SCANNER DRIVE SECTION P7 P8 | |
| 6 | IR FRAME P9 | |
| 7 | PH UNIT P10 | |
| 8 | TONER SUPPLY SECTION P11 P12 | |
| 9 | D/C RAIL SECTION P13 | |
| 10 | ERASE LAMP SECTION P14 | |
| 11 | TRANSFER BELT UNIT P15 | |
| 12 | 1ST PAPER FEED SECTION P16 P17 | |
| 13 | 2ND PAPER FEED SECTION P18 P19 | |
| 14 | PAPER FEED DRIVE P20 | |
| 15 | 1ST CASSETTE SECTION P21 P22 | |
| 16 | 2ND CASSETTE SECTION P23 P24 | |
| 17 | VERTICAL CONVEYANCE DOOR SECTION P25 P26 P27 P28 | |
| 18 | MANUAL FEED TRAY UNIT P29 P30 | |
| 19 | VERTICAL CONVEYANCE SECTION P31 P32 P33 | |
| 20 | FUSING SECTION/ WASTE TONER BOX P34 | |
| 21 | PAPER EXIT SECTION P35 | |
| 22 | MAIN DRIVE SECTION P36 | |
| 23 | FUSING DRIVE SECTION P37 | |
| 24 | BOTTLE DRIVE SECTION P38 | |
| 25 | CASSETTE RAIL SECTION P39 | |
| 26 | MAIN POWER SUPPLY UNIT P40 | |
| 27 | HIGH VOLTAGE UNIT P41 | |
| 28 | REAR FAN SECTION P42 | |
| 29 | SHIELD BOX P43 | |
| 30 | WIRING P44 P45 P46 P47 | |
| 31 | WIRING ACCESSORIES AND JIGS P48 | |
| 32 | ACCESSORY PARTS P49 |

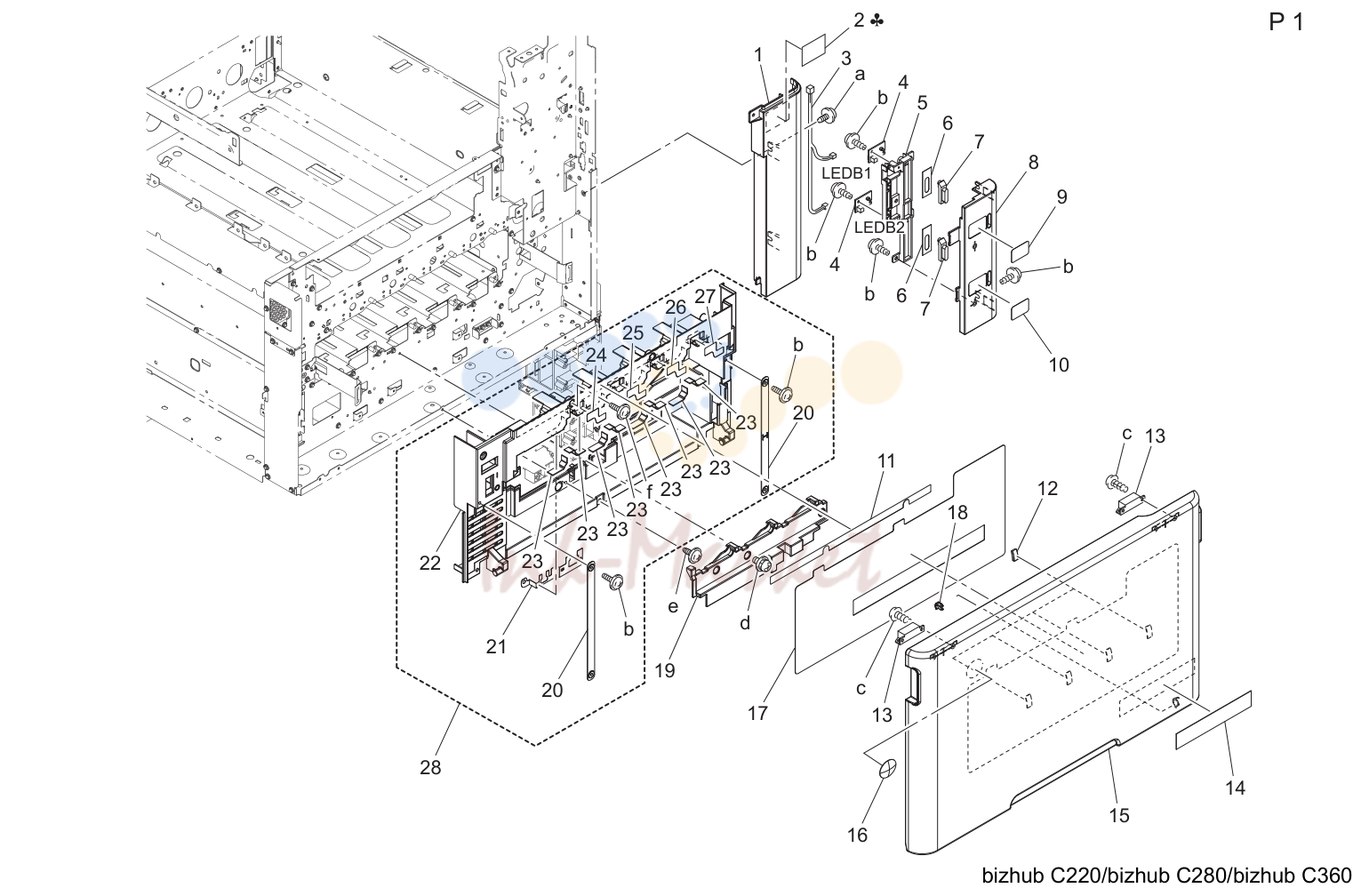

3. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1603 00 Cover D 1 a-V137 | |
| 2 | A0ED 9465 00 Label A,A1 D 1 b-V153 | |
| 3 | A0ED N10C 00 Indicating Wiring D 1 c-V149 | |
| 4 | A00J H00D 00 PWB Assembly LED1 C 2 e-V137 | |
| 5 | A00J 1683 00 Light blocking Cover D 1 f-V153 | |
| 6 | A0ED 1627 00 Light blocking Plate C | |
| 7 | A0ED 1626 00 Lens C | |
| 8 | A0ED 1604 00 Cover C | |
| 9 | A02E 9418 00 Label Number 1 C | |
| 10 | A02E 9419 00 Label Number 2 C | |
| 11 | A0ED 9408 00 Label Toner 3 {bizhub C360} D | |
| 11 | A0ED 9409 00 Label Toner 3 {bizhub C280/C220} D | |
| 12 | A0ED 1632 00 Cushion C | |
| 13 | 4475 2603 02 MAGNET CATCH D | |
| 14 | A0ED 9418 00 Label bizhub C360 {bizhub C360} C | |
| 14 | A0ED 9419 00 Label bizhub C280 {bizhub C280} D | |
| 14 | A0ED 9420 00 Label bizhub C220 {bizhub C220} D | |
| 15 | A0ED 1602 01 Open/close Cover /Front C | |
| 16 | A00J 9455 00 Logo Mark C | |
| 17 | A0ED 9405 02 Label Replace C | |
| 18 | 56AA 4049 0 SHAFT STOPPER 4 C | |
| 19 | A0ED 3618 01 Cover D | |
| 20 | A0ED 1624 01 Band D | |
| 21 | A0ED 1675 00 Contact D | |
| 22 | A0ED 1673 01 Cover D | |
| 23 | A0ED 1674 00 Protection Part C | |
| 24 | A0ED 9411 00 Label DR Y D | |
| 25 | A0ED 9412 00 Label DR M D | |
| 26 | A0ED 9413 00 Label DR C D | |
| 27 | A0ED 9414 00 Label DR K D | |
| 28 | A0ED F164 02 Cover (2nd Front) S |

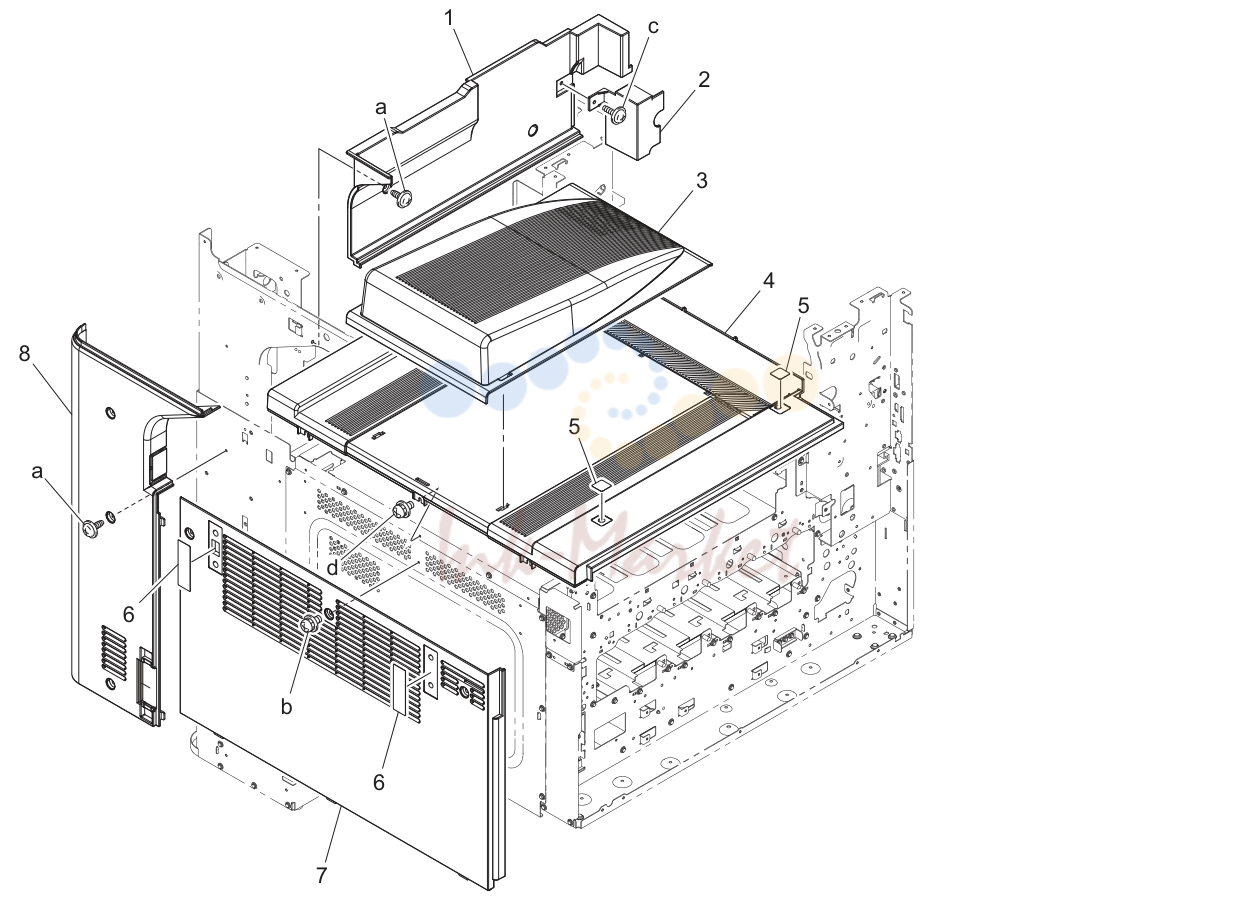

4. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1622 00 Read Cover /Rear C 1 a-V137 | |
| 2 | A0ED 1628 00 Read Cover /Rear D 1 b-V116 | |
| 3 | A0ED 1610 01 Tray C 1 c-V153 | |
| 4 | A0ED 1601 00 Cover /Upper C | |
| 5 | A0ED 1630 00 Seal C | |
| 6 | A02E 1616 00 Seal C | |
| 7 | A0ED 1607 00 Cover /Left C | |
| 8 | A0ED 1608 00 Cover /Left C |

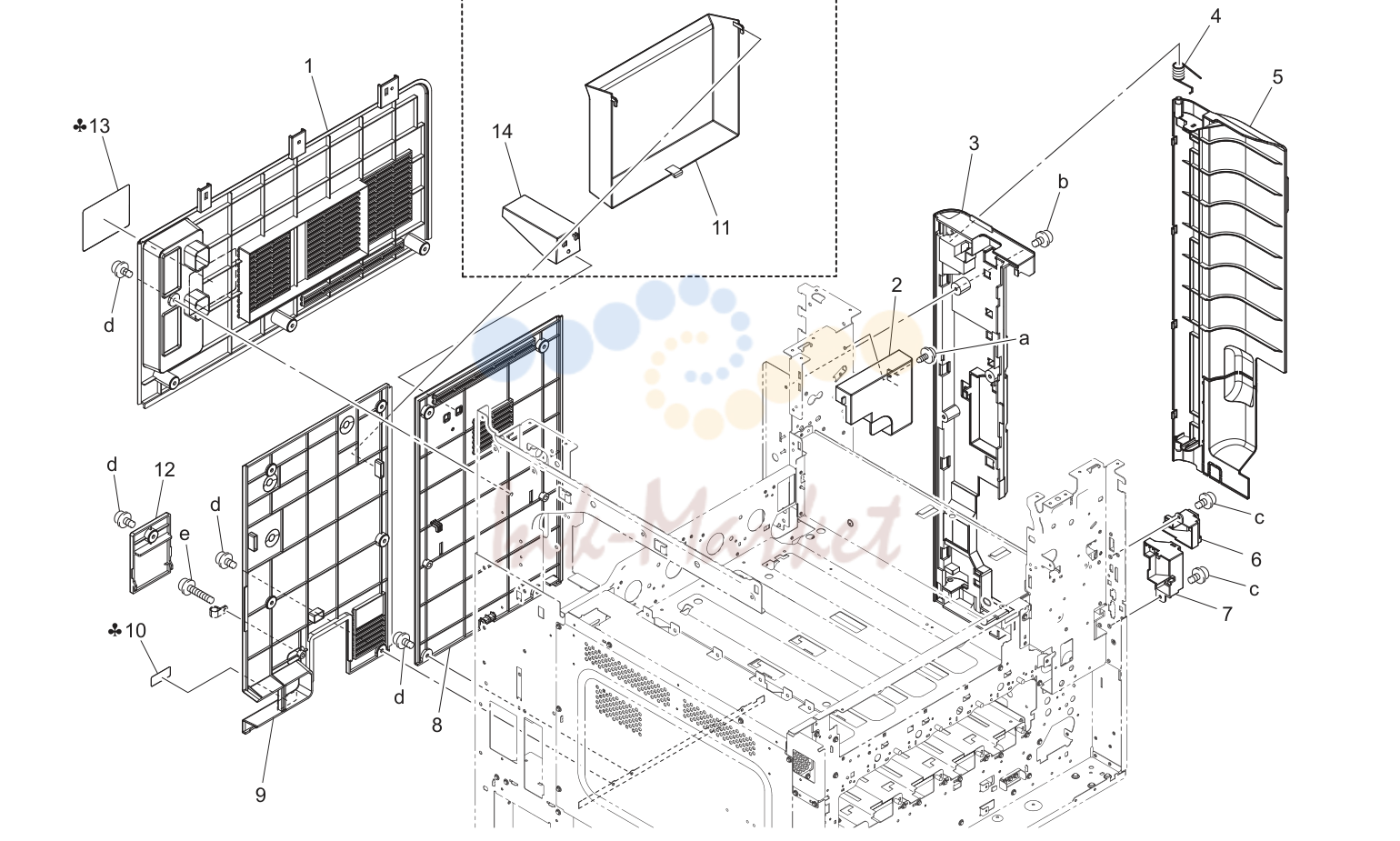

5. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1621 00 Cover Rear Upper D 1 a-V137 | |
| 2 | A0ED 1623 00 Read Cover D 1 b-V116 | |
| 3 | A0ED 1618 01 Cover Right Rear C 1 c-V116 | |
| 4 | A0ED 1617 02 Torsion Coil spring D 1 e-V116 | |
| 5 | A0ED 1609 03 Cover Right Open C | |
| 6 | A0ED 1629 01 Cover D | |
| 7 | A0ED 1612 01 Cover D | |
| 8 | A0ED 1606 01 Cover Rear R C | |
| 9 | A0ED 1605 00 Cover Rear L C | |
| 10 | A00J 9452 01 Label 220-240V 0.65A C,D1,D3,E,F2,G1,I,J,K C | |
| 10 | A02E 1499 00 Label A,A1 C | |
| 11 | A0ED 1662 00 Holder C | |
| 12 | A0ED 1625 00 Cover C | |
| 13 | A00J 9450 00 Label Only connect C,D1,D3,E,F2,G1,I,K C | |
| 13 | A00J 9457 00 Label Caution A,A1,B,F1,G2,H,{bizhub C360 C | |
| 14 | A0ED 1661 00 Installing Spacer D |

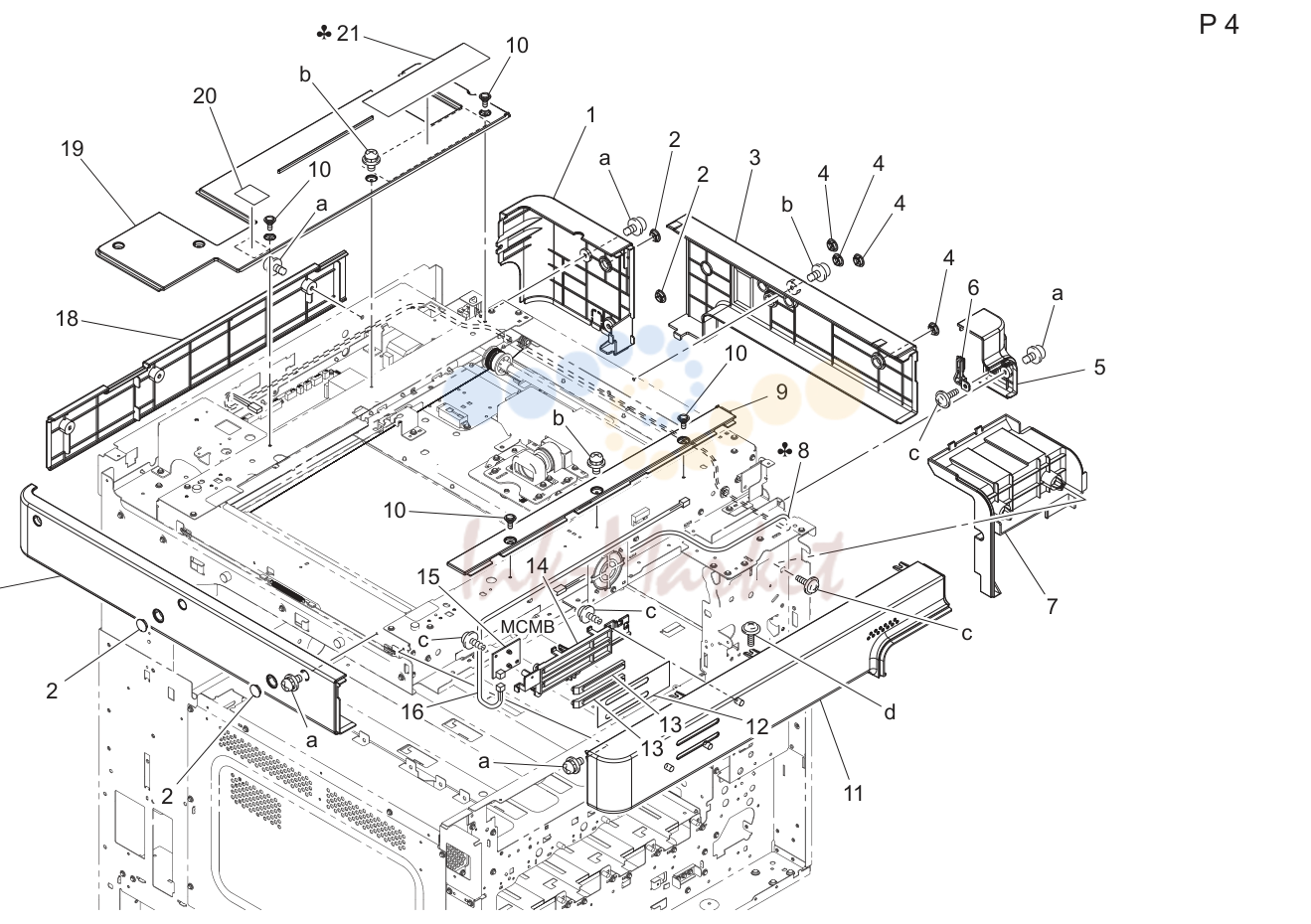

6. IR COVER
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1705 00 Read Cover /Right rear C 1 a-V116 | |
| 2 | A02E 1677 00 Cover C 4 b-V116 | |
| 3 | A0ED 1704 01 Read Cover /Right C 1 c-V153 | |
| 4 | A00J 1691 00 Cover C | |
| 5 | A0ED 1711 00 Read Cover F C | |
| 6 | A0ED 1715 00 Read Cover C | |
| 7 | A0ED 1712 00 Read Cover C | |
| 8 | A0ED N147 00 Scanner Wiring /7 A,A1 D | |
| 9 | A0ED 1706 00 Read Cover Upper F C | |
| 10 | A00J 1692 00 Shoulder screw C | |
| 11 | A0ED 1701 00 Read Cover /Front C | |
| 12 | A00J 1689 02 Light blocking Plate C | |
| 13 | A00J 1682 02 Lens /B C | |
| 14 | A00J 1685 02 Light blocking Cover /C D | |
| 15 | A00J H00E 00 PWB Assembly LED2 I | |
| 16 | A0ED N145 00 Scanner Wiring /5 D | |
| 17 | A0ED 1703 00 Read Cover /Left C | |
| 18 | A0ED 1702 00 Read Cover /Rear C | |
| 19 | A0ED 1707 00 Read Cover Upper R C | |
| 20 | A0ED 9403 00 Label Print Side C | |
| 21 | A00J 9401 00 Label Legal Restiriction B,G2 C | |
| 21 | A00J 9402 00 Label A,A1 C | |
| 21 | A00J 9401 00 Label Legal Restiriction C,D1,D3,E,F1,F2,G1,H,I,J,K C |

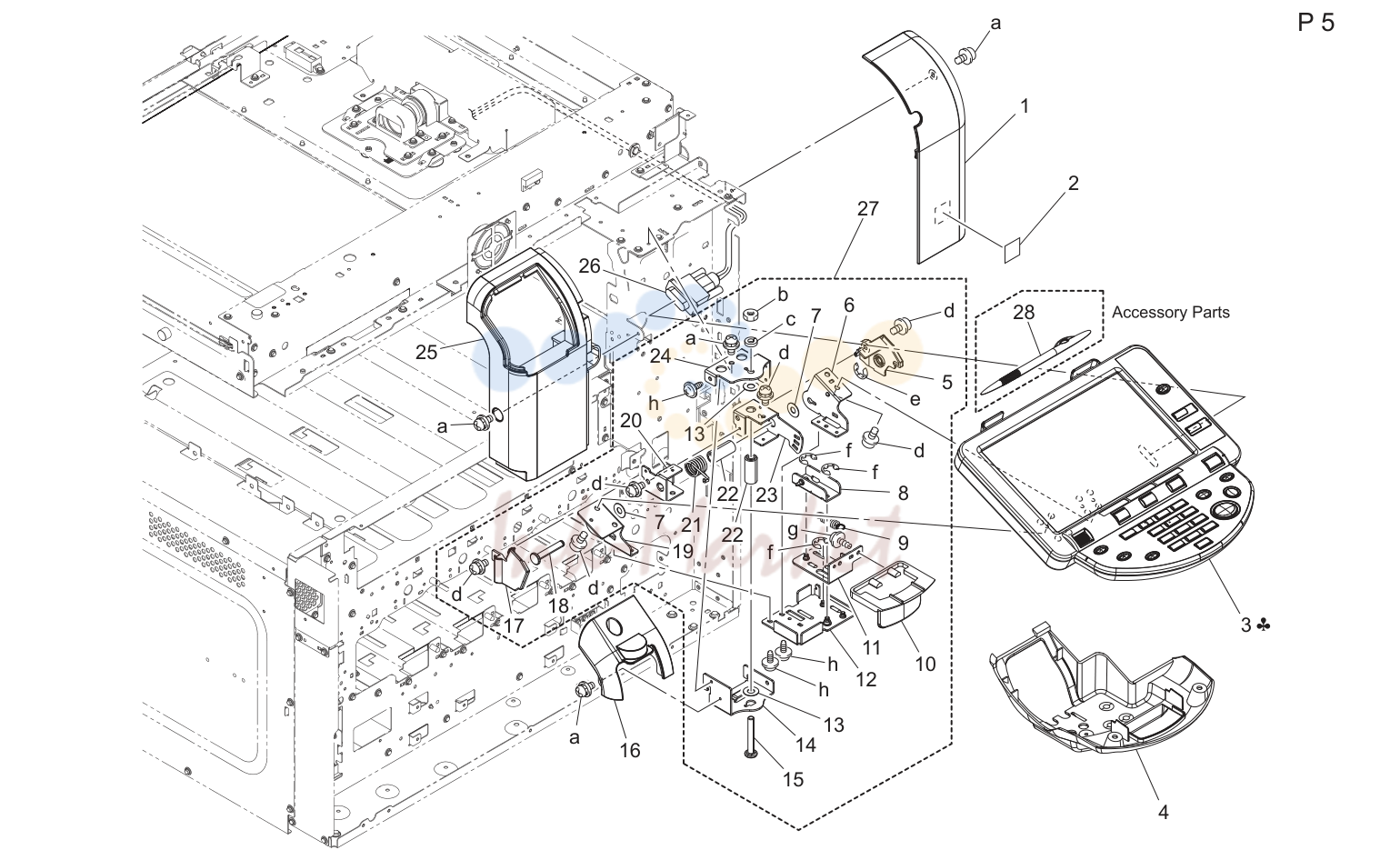

7. CONTROL PANEL
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1714 01 Read Cover C 1 a-V116 | |
| 2 | A011 9462 00 Label Emperon D 1 b-V195 | |
| 3 | A0P0 M705 01 Panel assembly A,A1 I 1 c-V205 | |
| 3 | A0P0 M706 01 Panel assembly B,D1,D3,E,F1,F2,G1,G2,I,K I 1 e-V217 | |
| 3 | A0P0 M707 01 Panel assembly C I 1 f-V217 | |
| 3 | A0P0 M708 00 Panel assembly J I 1 g-V153 | |
| 3 | A0P0 M709 00 Panel assembly H I 1 h-V137 | |
| 4 | A0ED 1694 00 Cover C | |
| 5 | A0P0 1679 00 Cover C | |
| 6 | A0ED 1915 00 Mounting Plate D | |
| 7 | A00J 1929 00 Washer C | |
| 8 | A0ED 1922 00 Lever C | |
| 9 | A0ED 1926 00 Pulling Spring C | |
| 10 | A0ED 1925 01 Handle C | |
| 11 | A0ED 1923 00 Lever C | |
| 12 | A0ED 1921 00 Mounting Plate C | |
| 13 | A00J 1919 00 Washer C | |
| 14 | A0ED 1912 00 Mounting Plate C | |
| 15 | A00J 1918 00 Support Screw C | |
| 16 | A0ED 1716 00 Read Cover C | |
| 17 | A0P0 1680 00 Cover D | |
| 18 | A00J 1928 00 Support Shaft D | |
| 19 | A0ED 1916 00 Mounting Plate C | |
| 20 | A0P0 1913 00 Arm D | |
| 21 | A0P0 1927 01 Torsion Spring D | |
| 22 | A00J 1917 00 Collar D | |
| 23 | A0P0 1914 00 Arm D | |
| 24 | A0ED 1911 00 Mounting Plate C | |
| 25 | A0ED 1710 01 Read Cover /Right front C | |
| 26 | A0ED N11B 01 Ope.unit Cable C | |
| 27 | A0ED R702 00 Mounting Plate (Control Panel) Assy C | |
| 28 | A0PD 1602 00 Pen C |

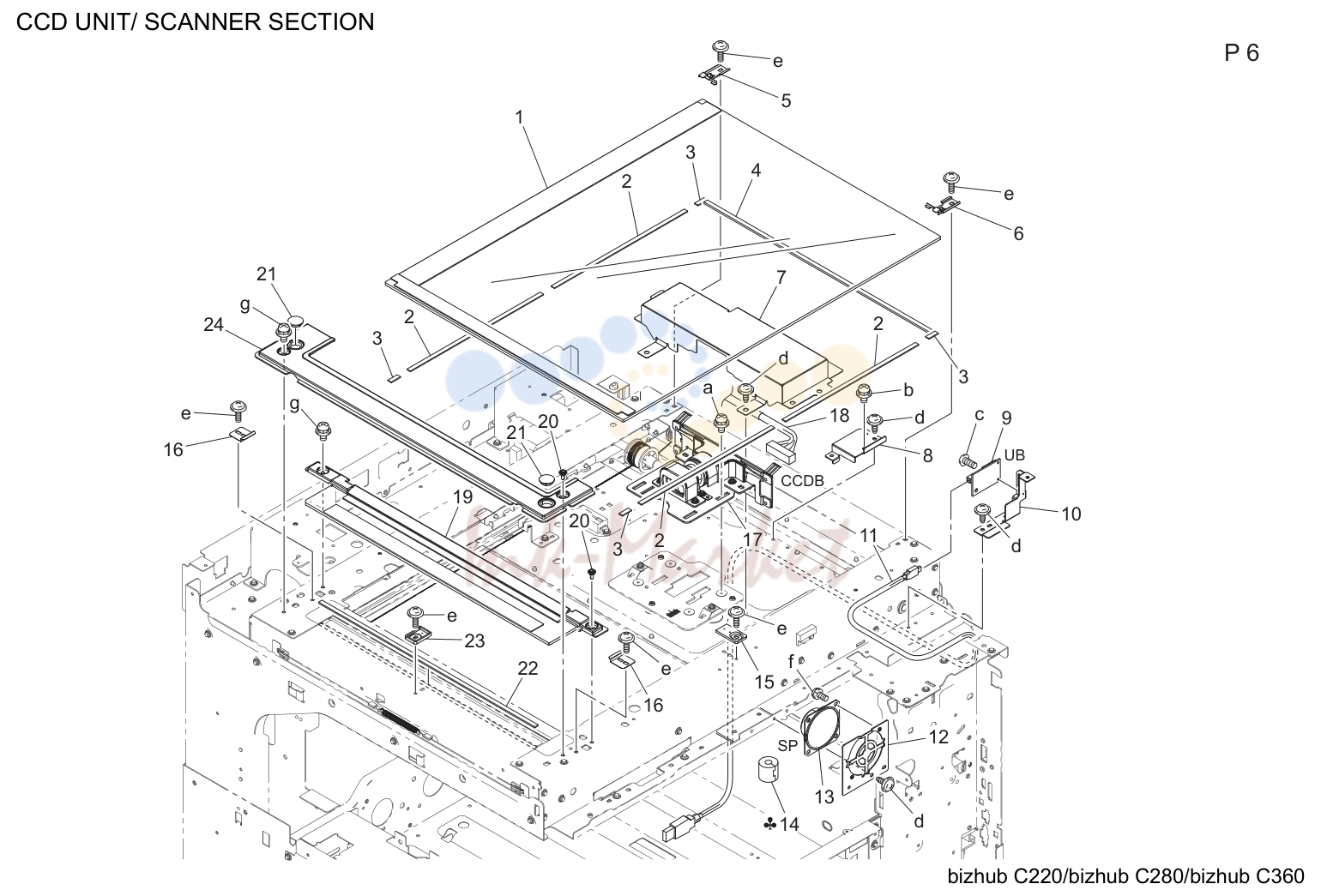

8. CCD UNIT/ SCANNER SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED R727 00 Original Glass Assy C 1 a-V116 | |
| 2 | A0ED 2684 00 Seal C 4 b-V116 | |
| 3 | A0ED 2685 00 Seal C 4 c-V111 | |
| 4 | A0ED 2673 00 Cushion C 1 e-V121 | |
| 5 | A0ED 2683 00 Holding Plate D 1 f-V115 | |
| 6 | A0ED 2682 00 Holding Plate D 1 g-V116 | |
| 7 | A0ED 2786 00 Cover D | |
| 8 | A0ED 2817 00 Mounting Plate D | |
| 9 | A0P0 H025 00 PWB assembly(PWB-UCN ASSY) D | |
| 10 | A0ED 2818 00 Mounting Plate D | |
| 11 | A0P0 N153 00 Cable C | |
| 12 | A0ED 2819 00 Mounting Plate D | |
| 13 | 4040 M401 00 LOUDSPEAKER D | |
| 14 | 9326 1810 51 FERRITE CORE C,D1,D3,E,F2,,G1,H,I,J,K D | |
| 15 | A00J 2653 00 Regulating Plate C | |
| 16 | A0ED 2688 00 Holding Plate D | |
| 17 | A0ED R725 00 CCD Lens I | |
| 18 | A0ED N140 00 Interface Cable C | |
| 19 | A0ED R726 00 Slit Glass Assy C | |
| 20 | A00J 1692 00 Shoulder screw C | |
| 21 | A00J 1691 00 Cover C | |
| 22 | A0ED 2681 00 Cushion C | |
| 23 | A0ED 2687 00 Regulating Plate D | |
| 24 | A0ED 2675 00 Cover C |

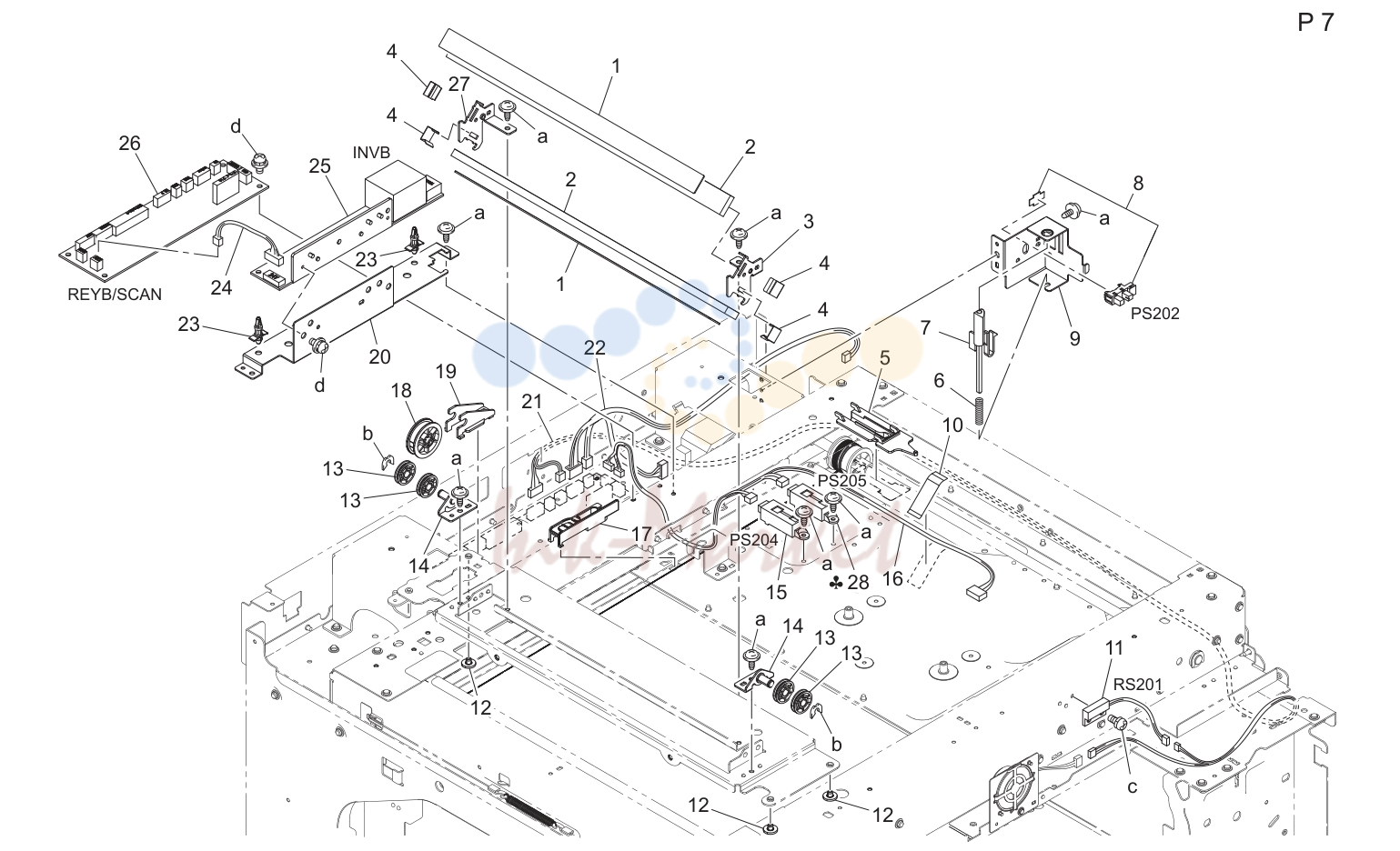

9. SCANNER DRIVE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 2742 00 Vibrationproof Plate D 2 a-V137 | |
| 2 | A0ED 2732 00 Mirror D 2 b-V218 | |
| 3 | A0ED 2733 00 Mounting Plate D 1 c-V115 | |
| 4 | A0ED 2741 00 Plate spring D | |
| 5 | A0ED 2816 00 Guide D | |
| 6 | 4036 1720 01 PRESSURE SPRING C | |
| 7 | A00J 2802 00 Lever C | |
| 8 | 4037 0903 01 PHOTO INTERRUPTER B | |
| 9 | A0ED 2801 00 Mounting Plate D | |
| 10 | 4036 3075 01 TAPE D | |
| 11 | 9334 2610 12 REED SWITCH C | |
| 12 | A0ED 2710 00 Bushing C | |
| 13 | A0ED 2736 00 Pulley C | |
| 14 | A0ED 2737 00 Mounting Plate D | |
| 15 | 9335 1400 81 SOLID STATE SWITCH C | |
| 16 | A0ED N144 00 Scanner Wiring /4 D | |
| 17 | A0ED 2812 00 Guide D | |
| 18 | A0ED 2739 00 Pulley D | |
| 19 | A0ED 2740 00 Guide Part D | |
| 20 | A0ED 2811 00 Mounting Plate D | |
| 21 | A0ED N143 01 Scanner Wiring /3 D | |
| 22 | A0ED N141 00 Scanner Wiring /1 D | |
| 23 | V502 0100 33 spacer D | |
| 24 | A0ED N146 00 Scanner Wiring /6 D | |
| 25 | A0ED M410 00 Inverter unit I | |
| 26 | A0ED H01A 01 PWB Assembly (PWB-IF ASSY) I | |
| 27 | A0ED 2734 00 Mounting Plate D | |
| 28 | 9335 1400 81 SOLID STATE SWITCH D1,D3,E,F1,F2,G1,I,K C |
10. SCANNER DRIVE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 2754 00 Shaft D 1 a-V116 | |
| 2 | A0ED 2736 00 Pulley C 4 b-V116 | |
| 3 | A0ED 2753 01 Pulley D 2 c-V218 | |
| 4 | A0ED 2765 00 Bearing D 2 e-V115 | |
| 5 | A0ED 2705 00 Holder D 1 f-V218 | |
| 6 | A02E 2708 00 Seal D | |
| 7 | A0ED 2704 00 Mounting Plate D | |
| 8 | A0ED 2709 00 Pressing Plate D | |
| 9 | A0ED 2708 00 Mounting Plate D | |
| 10 | A0ED 2703 00 Plate spring D | |
| 11 | A0ED 2710 00 Bushing C | |
| 12 | A00J 2763 00 Guide Part C | |
| 13 | A0ED 2763 01 Pulling Spring D | |
| 14 | A0ED 2702 00 Mirror D | |
| 15 | A0ED 2707 00 Mounting Plate D | |
| 16 | A0ED 2706 00 Guide D | |
| 17 | A0ED M310 00 Lamp C | |
| 18 | A02E M10A 00 Stepping motor C | |
| 19 | A0P0 2767 00 Vibrationproof Rubber D | |
| 20 | A0ED 2756 00 Belt 210L D | |
| 21 | A0ED 2755 01 Pulley 117T D | |
| 22 | A0ED 2760 00 Mounting Plate D | |
| 23 | A0ED 2757 00 Pulling Spring D | |
| 24 | A0ED 2762 00 Mounting Plate D | |
| 25 | A0ED 2751 00 Wire D | |
| 26 | A0ED R728 00 1st Slider Assy I |
11. IR FRAME
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 2625 00 Seal C 4 a-V137 | |
| 2 | 4581 1625 01 SEAL C 7 b-V137 | |
| 3 | A0ED 2632 00 Seal C 1 c-V116 | |
| 4 | A0ED 2624 00 Seal C 1 e-V153 | |
| 5 | A0ED 2623 00 Cover D | |
| 6 | A0ED 2662 00 Mounting Plate D | |
| 7 | A0ED 2627 00 Seal C | |
| 8 | A0ED N142 00 Scanner Wiring /2 D | |
| 9 | 4037 0903 01 PHOTO INTERRUPTER B | |
| 10 | A0ED 2622 00 Cover D | |
| 11 | A0ED 2621 00 Frame D | |
| 12 | A0ED 2619 00 Frame C | |
| 13 | A0ED 2626 00 Seal C | |
| 14 | A0ED 2630 00 Seal D | |
| 15 | A0ED 2620 00 Frame C |
12. PH UNIT
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1420 00 Duct D 1 a-V137 | |
| 2 | 9J03 M100 00 FAN MOTOR B 1 b-V153 | |
| 3 | 4163 5293 01 SCREW C 2 c-V153 | |
| 4 | A0ED N10J 00 Cooling Wiring /2 D 1 e-V116 | |
| 5 | A0ED 1081 00 Seal D | |
| 6 | A0ED R708 00 Print Head Assy(Amur1/2) {bizhub C360/C280} I | |
| 6 | A0ED R709 00 Print Head Assy(Amur3) {bizhub C220} I | |
| 7 | A0ED 1028 00 Holder D | |
| 8 | A0ED 1026 00 Guide D | |
| 9 | A0ED 1459 00 Seal D | |
| 10 | A00J 3650 01 Knob C | |
| 11 | A0ED 3603 01 Fixing Plate D | |
| 12 | A0ED 1022 00 Positioning Plate D | |
| 13 | A0ED 1032 01 Pin D | |
| 14 | A0ED 1031 00 Pin D | |
| 15 | A0ED 1021 00 Pin D | |
| 16 | A0ED 1076 00 Rail D | |
| 17 | A0ED 1074 00 Reinforce Plate D | |
| 18 | A0ED 3630 00 Pipe D | |
| 19 | A0ED 3634 00 Seal C | |
| 20 | A0ED 3632 00 Pulling Coil spring D | |
| 21 | A0ED 3631 00 Shutter D | |
| 22 | A0ED 3633 00 Seal C | |
| 23 | A0ED 1087 00 Seal D | |
| 24 | A0ED 1088 00 Seal D | |
| 25 | A0ED 1084 00 Seal D | |
| 26 | A0ED 1085 00 Seal D | |
| 27 | A0ED 1086 00 Seal D | |
| 28 | A0ED 1093 00 Seal D | |
| 29 | A0ED 1012 00 Cover D | |
| 30 | A0ED 1011 00 Mounting Plate D | |
| 31 | A0ED F360 00 Waste Toner Pipe C |
13. TONER SUPPLY SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 9407 00 Label Toner 2 D 4 a-V116 | |
| 2 | A0ED 4056 01 Seal D 4 b-V153 | |
| 3 | A0ED 4057 00 Suction Plate D 1 c-V144 | |
| 4 | A0ED 4055 01 Spacer D | |
| 5 | A0ED 9406 00 Label Toner 1 D | |
| 6 | A0ED 4054 00 Torsion Coil spring D | |
| 7 | A0ED 4053 00 Detecting Plate D | |
| 8 | A0ED 4051 01 Cover D | |
| 9 | A0ED 4026 01 Seal D | |
| 10 | A0ED 4009 01 Seal D | |
| 11 | A0ED 4008 01 Seal D | |
| 12 | 4038 1014 01 SUCTION PLATE D | |
| 13 | A0ED 2452 00 Hold Plate D | |
| 14 | A0ED 2579 00 Gear 16T D | |
| 15 | A0ED 2454 00 Gear 32/16T D | |
| 16 | A0ED 2451 00 Gear 40/20T D | |
| 17 | A0ED 2450 00 Gear 20/20T D | |
| 18 | A0ED 2586 01 Holder D | |
| 19 | A0ED 4050 00 Cover B,F1,G2,{bizhub C360} D | |
| 19 | A0ED 4060 00 Cover B,G2,{bizhub C280/C220} D | |
| 19 | A0ED 4061 00 Cover A,A1,{bizhub C360} D | |
| 19 | A0ED 4062 00 Cover A,A1,{bizhub C280/C220} D | |
| 19 | A0ED 4063 00 Cover C,{bizhub C360} D | |
| 19 | A0ED 4064 00 Cover C,{bizhub C280/C220} D | |
| 19 | A0ED 4065 00 Cover D1,D3,E,F2,G1,H,I,J,K,{bizh D | |
| 19 | A0ED 4066 00 Cover D1,D3,E,F1,F2,G1,H,I,J,K,{b D | |
| 20 | A0ED R707 00 Waste Toner Drive Assy S | |
| 21 | A0ED R710 00 Sub Hopper Assy(Amur1JP) A,A1,{bizhub C360} S | |
| 21 | A0ED R711 00 Sub Hopper Assy(Amur1US) B,F1,G2,{bizhub C360} S | |
| 21 | A0ED R712 00 Sub Hopper Assy(Amur1EU) C,{bizhub C360} S | |
| 21 | A0ED R713 00 Sub Hopper Assy(Amur2/3JP) A,A1,{bizhub C280/C220} S | |
| 21 | A0ED R714 00 Sub Hopper Assy(Amur2/3US) B,G2,{bizhub C280/C220} S | |
| 21 | A0ED R715 00 Sub Hopper Assy(Amur2/3EU) C,{bizhub C280/220} S | |
| 21 | A0ED R737 00 Sub Hopper Assy(Amur1 other) D1,D3,E,F2,G1,H,I,J,K,{bizh S | |
| 21 | A0ED R739 00 Sub Hopper(Amur2/3 Others) D1,D3,E,F1,F2,G1,H,I,J,K,{b S |
14. TONER SUPPLY SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 4021 00 Gear 47T D 2 a-V116 | |
| 2 | A0ED 4019 00 Gear 19T D 4 b-V116 | |
| 3 | A0ED 4020 00 Gear 23T D 4 c-V145 | |
| 4 | A0ED 4016 00 Guide C 4 e-V153 | |
| 5 | 4038 5411 01 SPRING C 4 f-V112 | |
| 6 | A0ED 4015 00 Gear 36T C | |
| 7 | 4163 5102 01 BUSHING C | |
| 8 | A0ED 4018 00 Gear 40T D | |
| 9 | A0ED 4028 01 Seal D | |
| 10 | A0ED 4025 00 Gear 37/37T D | |
| 11 | A0ED 4017 00 Gear 37/88T D | |
| 12 | 9326 2900 06 MAGNET D | |
| 13 | A0ED 4005 00 Detecting Plate D | |
| 14 | A0ED 4006 00 Pin D | |
| 15 | A0ED 4003 00 Agitating Shaft D | |
| 16 | A0ED 4004 00 Agitating Part D | |
| 17 | A0ED 4024 00 Ground Plate D | |
| 18 | A0ED 4023 00 Ground Plate D | |
| 19 | A02E M104 00 Stepping motor C | |
| 20 | 9334 2710 11 SWITCH C | |
| 21 | 4011 5339 01 PLATE NUT D | |
| 22 | 4036 5348 01 TENSION SPRING C | |
| 23 | A0ED 4010 00 Shutter D | |
| 24 | A0ED 4011 01 Seal D | |
| 25 | A0ED 4007 00 Seal D | |
| 26 | A0ED 4013 00 Gear 33T D | |
| 27 | A0ED 4014 00 Gear 20/51T D | |
| 28 | A0ED 4002 01 Supply Roller D | |
| 29 | A0ED 4012 00 Gear 17T D | |
| 30 | A0ED N108 01 Toner Drive harness D |
15. D/C RAIL SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1037 00 Compressing Coil spring C 8 a-V116 | |
| 2 | A0ED 1036 00 Slide Lever C 8 b-V149 | |
| 3 | A0ED 1050 00 Holder C 8 c-V111 | |
| 4 | 9752 3012 50 PIN V 8 e-V217 | |
| 5 | A0ED 1060 00 Support Holder C | |
| 6 | A0ED 1006 00 Rail D | |
| 7 | A0ED 1057 00 Torsion Coil spring C | |
| 8 | A0ED 1048 01 Holder C | |
| 9 | A0ED M600 01 Relay Connector C | |
| 10 | A0ED 1034 00 Lever C | |
| 11 | A0ED 1052 00 Compressing Coil spring C | |
| 12 | A0ED 1053 00 Shoulder screw C | |
| 13 | A0ED 1409 00 Filter C | |
| 14 | 9J03 M100 00 FAN MOTOR B | |
| 15 | A0ED 1410 00 Duct D | |
| 16 | A0ED 1058 00 Lever D | |
| 17 | A0ED 1033 00 Shaft D | |
| 18 | A0ED N10P 01 Photoconductor Wiring /C D | |
| 19 | A0ED N117 00 Photoconductor Wiring /K D |
16. ERASE LAMP SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1090 01 Seal C 4 a-V137 | |
| 2 | A0ED 1067 00 Holder C | |
| 3 | A0ED 1068 00 Holder C | |
| 4 | A0ED 1069 00 Holder C | |
| 5 | A0ED 1070 00 Pad C | |
| 6 | A0ED 1071 00 Stay D | |
| 7 | A0ED 1072 00 Stay D | |
| 8 | A0ED 1083 00 Holder C | |
| 9 | A0ED 1082 00 Knob D | |
| 10 | A0ED 1055 00 Light blocking Part D | |
| 11 | A0ED 1043 01 Rail D | |
| 12 | A0ED M304 00 Neutralizing LED array D | |
| 13 | A0ED 1073 00 Seal D | |
| 14 | A0ED 1005 01 Rail D | |
| 15 | A0ED 1054 00 Rail D | |
| 16 | A0ED 1089 00 Seal D | |
| 17 | A0ED R700 00 Eraser (Black) Assy C | |
| 18 | A0ED R701 00 Eraser (YMC) Assy C |
17. TRANSFER BELT UNIT
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 1120 00 Contact C 1 a-V116 | |
| 2 | A0ED N10U 01 Transfer Wiring /Y D 1 b-V145 | |
| 3 | A0ED 1102 00 Rail C 1 c-V116 | |
| 4 | A0ED 1108 00 Detecting Plate C | |
| 5 | A0ED 1109 00 Pulling Coil spring C | |
| 6 | A0ED N10W 01 Transfer Wiring /K D | |
| 7 | A0ED 1106 00 Arm /Rear D | |
| 8 | 4163 5293 01 SCREW C | |
| 9 | A0ED 1107 00 Lever /Rear C | |
| 10 | A0ED 1110 00 Compressing Coil spring C | |
| 11 | A0ED 1112 00 Torsion Coil spring /R D | |
| 12 | A0ED N10X 00 Transfer Wiring /2 D | |
| 13 | A0ED 1119 00 Contact D | |
| 14 | A0ED 1114 00 Contact /K D | |
| 15 | A0ED 1117 00 Contact D | |
| 16 | A0ED 1115 00 Contact /Color D | |
| 17 | A0ED 1118 00 Contact D | |
| 18 | A0ED R716 00 Intermediate Image Transfer Kit A | |
| 19 | A0ED 5084 00 Guide A,A1 C | |
| 20 | A0ED 1105 00 Lever /Front C | |
| 21 | A0ED 1104 00 Arm /Front D | |
| 22 | A0ED 1111 00 Torsion Coil spring /F D | |
| 23 | A0ED 1101 00 Rail D | |
| 24 | 9335 1300 61 PHOTO INTERRUPTER B | |
| 25 | A0ED N10B 01 Connecting Detection harness D | |
| 26 | A0ED 1103 00 Rail D | |
| 27 | A0ED 1121 00 Mounting Plate D |
18. 1ST PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | 4037 0906 01 PHOTO INTERRUPTER B 2 a-V137 | |
| 2 | A0ED 5609 00 Mounting Plate {bizhub C360/C280} D 1 b-V137 | |
| 3 | A0ED M501 00 Photoreflector {bizhub C360/C280} I 1 c-V217 | |
| 4 | A0ED N10F 00 Paperfeed Wiring /1 {bizhub C360/C280} D 1 e-V218 | |
| 4 | A0ED N11D 00 Paperfeed Wiring /1 {bizhub C220} D 1 f-V237 | |
| 5 | A0ED 5601 00 Frame /Front D 1 g-V217 | |
| 6 | A02E 5612 00 Torsion spring C 1 h-V144 | |
| 7 | 56AA 4049 0 SHAFT STOPPER 4 C | |
| 8 | 4131 3003 01 BUSHING C | |
| 9 | 4030 3016 12 ACTUATOR C | |
| 10 | 4425 3013 01 GEAR 30T C | |
| 11 | A02E 5611 00 Clutch C | |
| 12 | A00J 5636 00 Roller A | |
| 13 | 4425 3016 01 GEAR 32T C | |
| 14 | 4030 3008 01 GEAR 29T C | |
| 15 | A00J 5601 00 Paper feed Holder D | |
| 16 | A00J 5640 00 Shaft /P D | |
| 17 | 4040 3097 01 SHAFT D | |
| 18 | A00J 5603 02 Torsion Spring C | |
| 19 | 1065 3086 01 BUSHING C | |
| 20 | A00J 5668 01 Torsion Spring C | |
| 21 | A02E 5613 00 Lever C | |
| 22 | A0ED 5605 00 Shaft D | |
| 23 | A02E 5608 00 Shaft D | |
| 24 | A0ED 5661 00 Gear 26/36T C | |
| 25 | A02E M202 00 Clutch C | |
| 26 | A0ED 5651 00 Mounting Plate D | |
| 27 | A0ED R731 00 Paper Feed Assy (1st) {bizhub C360/C280} S | |
| 27 | A0ED R732 00 Paper Feed Assy (1st)3 {bizhub C220} S |
19. 1ST PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 5685 00 Guide C 1 a-V137 | |
| 2 | A0ED 5684 00 Guide Plate D 1 b-V218 | |
| 3 | 4030 3125 01 TENSION SPRING C 2 c-V136 | |
| 4 | A0ED 5612 00 Guide D 2 e-V218 | |
| 5 | A02E 5610 00 Reinforce plate C | |
| 6 | A0ED 5638 00 Mounting Plate D | |
| 7 | 4030 3039 01 SHAFT D | |
| 8 | 4030 3017 03 PRESSURE SPRING C | |
| 9 | 4030 3014 01 BRACKET D | |
| 10 | 4030 3013 01 HOLDER C | |
| 11 | 4030 3078 01 LEVER C | |
| 12 | A02E F566 00 Separation Roller Assy A | |
| 13 | A02E 5636 00 Guide D | |
| 14 | A02E R729 00 Separation Roller Assy C |
20. 2ND PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 5781 00 Drive Roller D 1 a-V137 | |
| 2 | A0ED M501 00 Photoreflector I 1 b-V217 | |
| 3 | A0ED 5711 00 Mounting Plate D 1 c-V137 | |
| 4 | 4037 0906 01 PHOTO INTERRUPTER B 2 e-V218 | |
| 5 | A0ED 5701 00 Frame /Front D 1 f-V237 | |
| 6 | 4131 3532 02 BUSHING C 2 g-V218 | |
| 7 | A0ED N10G 01 Paperfeed Wiring /2 {bizhub C360/C280} D 1 h-V217 | |
| 7 | A0ED N11E 01 Paperfeed Wiring /2 {bizhub C220} D | |
| 8 | A0ED 5609 00 Mounting Plate {bizhub C360/C280} D | |
| 9 | A02E 5612 00 Torsion spring C | |
| 10 | 4030 3016 12 ACTUATOR C | |
| 11 | 4131 3003 01 BUSHING C | |
| 12 | 56AA 4049 0 SHAFT STOPPER 4 C | |
| 13 | A00J 5636 00 Roller A | |
| 14 | A02E 5611 00 Clutch C | |
| 15 | 4425 3013 01 GEAR 30T C | |
| 16 | 4425 3016 01 GEAR 32T C | |
| 17 | 4030 3008 01 GEAR 29T C | |
| 18 | A00J 5601 00 Paper feed Holder D | |
| 19 | 4040 3097 01 SHAFT D | |
| 20 | A00J 5603 02 Torsion Spring C | |
| 21 | A00J 5640 00 Shaft /P D | |
| 22 | 1065 3086 01 BUSHING C | |
| 23 | A00J 5668 01 Torsion Spring C | |
| 24 | A02E 5613 00 Lever C | |
| 25 | A02E 5608 00 Shaft D | |
| 26 | A0ED 5605 00 Shaft D | |
| 27 | A02E M202 00 Clutch C | |
| 28 | A0ED 5661 00 Gear 26/36T C | |
| 29 | A0ED G571 00 Caulking (Mounting Plate Drive Reinfor D | |
| 30 | A02E 5954 00 Gear 22T C | |
| 31 | A0ED 5662 00 Gear 26/35T C | |
| 32 | A02E M200 00 Clutch C | |
| 33 | A0ED 5790 00 Cover D | |
| 34 | A0ED R733 00 Paper Feed Assy (2nd) {bizhub C360/C280} S | |
| 34 | A0ED R734 00 Paper Feed Assy (2nd)3 {bizhub C220} S | |
| 35 | A0ED M501 00 Photoreflector {bizhub C360/C280} I |
21. 2ND PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 5784 00 Guide Plate D 1 a-V137 | |
| 2 | A0ED 5785 00 Guide D 1 b-V218 | |
| 3 | 4030 3125 01 TENSION SPRING C 2 c-V136 | |
| 4 | A0ED 5612 00 Guide D 2 e-V218 | |
| 5 | A0ED 5782 00 Guide Plate D | |
| 6 | A02E 5843 00 Guide plate C | |
| 7 | A02E 5636 00 Guide D | |
| 8 | A02E F566 00 Separation Roller Assy A | |
| 9 | 4030 3078 01 LEVER C | |
| 10 | 4030 3013 01 HOLDER C | |
| 11 | 4030 3017 03 PRESSURE SPRING C | |
| 12 | 4030 3014 01 BRACKET D | |
| 13 | 4030 3039 01 SHAFT D | |
| 14 | A02E 5610 00 Reinforce plate C | |
| 15 | A0ED 5638 00 Mounting Plate D | |
| 16 | A02E R729 00 Separation Roller Assy C |
22. PAPER FEED DRIVE
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 6277 00 Guide D 1 a-V137 | |
| 2 | 9J06 M103 00 MOTOR B 2 b-V116 | |
| 3 | 9335 1300 61 PHOTO INTERRUPTER B | |
| 4 | A0ED 6276 00 Compressing Coil spring D | |
| 5 | 4030 3083 01 HOLDER D | |
| 6 | 4037 0906 01 PHOTO INTERRUPTER B | |
| 7 | 4030 3224 02 SHOULDER SCREW C | |
| 8 | A0ED N10E 00 Paperfeed Wiring /Rear D | |
| 9 | A0ED 6275 00 Holder C | |
| 10 | 4002 3110 01 PRESSURE SPRING C | |
| 11 | 4002 3131 01 SHOULDER SCREW C | |
| 12 | 4030 3091 01 LEVER C | |
| 13 | 4037 0104 01 PWB ASSY C | |
| 14 | 4011 3012 01 HOLDER D |
23. 1ST CASSETTE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 6205 00 Lifting Plate C 1 a-V137 | |
| 2 | 4030 3226 01 FRICTION SHEET C 1 b-V217 | |
| 3 | A0ED F621 00 Caulking(Regulating Plate/ASSY) C 1 c-V116 | |
| 4 | 4037 3204 01 KNOB C | |
| 5 | 4011 3021 01 WASHER C | |
| 6 | A0ED 6213 00 Lever D | |
| 7 | A0ED 6214 00 Pulling Coil spring D | |
| 8 | A0ED 6202 00 Guide C | |
| 9 | A0ED 6211 01 Rack /Front C | |
| 10 | 4030 3206 01 LEVER D | |
| 11 | 0992 3014 01 BUSHING C | |
| 12 | A0ED 6201 02 Paper feed Cassette D | |
| 13 | A02E 9415 00 Label Cd C | |
| 14 | A02E 9413 00 Label Fd C | |
| 15 | A00J 9422 02 Label FD C | |
| 16 | A02E 6224 00 Gear 14T C | |
| 17 | A0ED 6206 01 Shoulder screw D | |
| 18 | 4030 3228 12 GUIDE C | |
| 19 | A02E 6223 00 Guide plate C | |
| 20 | A0ED 6216 00 Shaft D | |
| 21 | 4030 3207 01 ACTUATOR C | |
| 22 | A0ED 6204 00 Bushing D | |
| 23 | A02E 6233 00 Cushion C | |
| 24 | 4163 5293 01 SCREW C | |
| 25 | 4002 7306 01 LABEL CARRYING CAPACITY C | |
| 26 | A0ED 6209 01 Regulating Plate /Rear C | |
| 27 | A0ED 6210 00 Guide C | |
| 28 | A02E 6227 00 Cushion C | |
| 29 | 4537 3317 01 GUIDE D | |
| 30 | A0ED F622 00 Caulking(Mounting Plate cassette) C | |
| 31 | A02E R734 00 Regulating Plate Assy C | |
| 32 | A0ED R735 11 1st Cassette Assy S |
24. 1ST CASSETTE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 6234 00 Roll D 4 a-V217 | |
| 2 | A0ED 6231 00 Reinforce Plate /Right rear D 1 b-V144 | |
| 3 | 4163 5293 01 SCREW C 2 c-V153 | |
| 4 | A0ED 6255 00 Lock Lever C 1 e-V116 | |
| 5 | A0ED 6257 00 Release Lever C | |
| 6 | A0ED 6258 00 Pulling Coil spring D | |
| 7 | A0ED 6253 01 Holder D | |
| 8 | A0ED 6254 00 Compressing Coil spring D | |
| 9 | A0ED 9401 00 Label Paper D | |
| 10 | A0ED 6251 02 Cover C | |
| 11 | A0ED 6252 01 Handle C | |
| 12 | A0ED 6250 00 Cover C | |
| 13 | A0ED 6219 01 Mounting Plate D | |
| 14 | 4002 3108 01 LEVER C | |
| 15 | A0ED 6242 00 Stopper C | |
| 16 | A0ED 6241 00 Mounting Plate D | |
| 17 | A0ED 6232 00 Reinforce Plate /Left rear D | |
| 18 | A0ED 6221 00 Ground Plate D |
25. 2ND CASSETTE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 6205 00 Lifting Plate C 1 a-V137 | |
| 2 | 4030 3226 01 FRICTION SHEET C 1 b-V217 | |
| 3 | A0ED F621 00 Caulking(Regulating Plate/ASSY) C 1 c-V116 | |
| 4 | 4037 3204 01 KNOB C | |
| 5 | 4011 3021 01 WASHER C | |
| 6 | A0ED 6213 00 Lever D | |
| 7 | A0ED 6214 00 Pulling Coil spring D | |
| 8 | A0ED 6202 00 Guide C | |
| 9 | A0ED 6211 01 Rack /Front C | |
| 10 | 4030 3206 01 LEVER D | |
| 11 | 0992 3014 01 BUSHING C | |
| 12 | A0ED 6301 02 Paper feed Cassette D | |
| 13 | A00J 9421 02 Label CD C | |
| 14 | A00J 9423 02 Label FD C | |
| 15 | A00J 9422 02 Label FD C | |
| 16 | A02E 6224 00 Gear 14T C | |
| 17 | A0ED 6206 01 Shoulder screw D | |
| 18 | 4030 3228 12 GUIDE C | |
| 19 | A02E 6223 00 Guide plate C | |
| 20 | A0ED 6216 00 Shaft D | |
| 21 | 4030 3207 01 ACTUATOR C | |
| 22 | A0ED 6204 00 Bushing D | |
| 23 | A02E 6233 00 Cushion C | |
| 24 | 4163 5293 01 SCREW C | |
| 25 | 4002 7306 01 LABEL CARRYING CAPACITY C | |
| 26 | A0ED 6209 01 Regulating Plate /Rear C | |
| 27 | A0ED 6210 00 Guide C | |
| 28 | A02E 6227 00 Cushion C | |
| 29 | 4537 3317 01 GUIDE D | |
| 30 | A0ED F622 00 Caulking(Mounting Plate cassette) C | |
| 31 | A02E R734 00 Regulating Plate Assy C | |
| 32 | A0ED R736 11 2nd Cassette Assy S |
26. 2ND CASSETTE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 6234 00 Roll D 4 a-V217 | |
| 2 | A0ED 6231 00 Reinforce Plate /Right rear D 1 b-V144 | |
| 3 | 4163 5293 01 SCREW C 2 c-V153 | |
| 4 | A0ED 6255 00 Lock Lever C 1 e-V116 | |
| 5 | A0ED 6257 00 Release Lever C | |
| 6 | A0ED 6258 00 Pulling Coil spring D | |
| 7 | A0ED 6353 01 Holder D | |
| 8 | A0ED 6254 00 Compressing Coil spring D | |
| 9 | A0ED 9401 00 Label Paper D | |
| 10 | A0ED 6351 02 Cover C | |
| 11 | A0ED 6252 01 Handle C | |
| 12 | A0ED 6250 00 Cover C | |
| 13 | A0ED 6219 01 Mounting Plate D | |
| 14 | A02E 6214 00 Lever C | |
| 15 | A0ED 6242 00 Stopper C | |
| 16 | A0ED 6241 00 Mounting Plate D | |
| 17 | A0ED 6232 00 Reinforce Plate /Left rear D | |
| 18 | A0ED 6221 00 Ground Plate D |
27. VERTICAL CONVEYANCE DOOR SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0ED 7142 00 Cover D 1 a-V137 | |
| 2 | A0ED 7116 00 Cover Door Upper C 1 b-V153 | |
| 3 | A0ED 7106 00 Door /Right D 1 c-V153 | |
| 4 | A0ED 7121 00 Lock Claw C | |
| 5 | A0ED 7108 00 Lever C | |
| 6 | A0ED 7104 00 Claw C | |
| 7 | A0ED 7103 00 Mounting Plate D | |
| 8 | A0ED 7105 00 Torsion Coil spring D | |
| 9 | A0ED 5988 00 Lock Claw C | |
| 10 | A0ED G812 00 Caulking (Reinforce Plate Door Front) D | |
| 11 | A0ED 7147 00 Reinforce Plate D | |
| 12 | A0ED 7120 00 Holder D | |
| 13 | A0ED 7110 00 Positioning Plate D | |
| 14 | A0ED 7100 00 Lever D | |
| 15 | A0ED 7145 00 Seal D | |
| 16 | A0ED 9400 00 Caution Label D | |
| 17 | A0ED 5938 00 Connecting Plate D | |
| 18 | A0ED R722 11 Door Assy(Vertical Transport) S |
28. VERTICAL CONVEYANCE DOOR SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 5953 02 Shaft D 1 a-V116 | |
| 2 | A0ED 5989 00 Spacer C 1 b-V153 | |
| 3 | A02E 5960 02 Cam C 1 c-V233 | |
| 4 | A0ED 5912 00 Cover D 1 e-V218 | |
| 5 | A02E 5963 00 Bushing C 2 f-V217 | |
| 6 | A02E 5947 00 Feed Roller A 1 g-V218 | |
| 7 | 4142 3217 01 STOP RING C 1 h-V217 | |
| 8 | A02E 5957 00 Shaft D | |
| 9 | A0ED 5916 00 Reinforce Plate D | |
| 10 | A0ED 5955 00 Gear 28T C | |
| 11 | A02E 5954 00 Gear 22T C | |
| 12 | 4131 3532 02 BUSHING C | |
| 13 | A02E 5961 00 Gear 30T C | |
| 14 | A02E M201 00 Clutch C | |
| 15 | 9J06 M200 00 SOLENOID C | |
| 16 | A0ED 5978 00 Cover D | |
| 17 | A0ED 5952 00 Mounting Plate D | |
| 18 | 9335 1300 61 PHOTO INTERRUPTER B | |
| 19 | A0ED 5956 00 Mounting Plate D | |
| 20 | A0ED 5965 00 Light blocking Plate D | |
| 21 | A02E 5951 00 Clutch assy C | |
| 22 | V651 0100 42 WtoW Connector D | |
| 23 | V651 0100 01 connector D | |
| 24 | A0ED 5977 00 Cover D |
Полный список запчастей доступен по запросу.
комментарии
