Konica Minolta bizhub c 203 253 353 — ниже интерактивный каталог запчастей по узлам со взрыв-схемами из сервис-мануала. По каждой детали указан оригинальный артикул; позиции, доступные к заказу, отмечены ссылкой на карточку товара, остальные — кнопкой «запросить цену».
Запчасти по узлам (со схемами)
Взрыв-схемы по каждому узлу с артикулами. Детали, доступные к заказу, ведут на карточку товара; остальные — на форму запроса цены.
Содержание
- 1. INFORMATION FOR PARTS GUIDE MANUAL
- 2. DIAGRAM OF MAIN PARTS SECTION
- 3. EXTERNAL PARTS
- 4. EXTERNAL PARTS
- 5. INNER COVER SECTION
- 6. CONTROL PANEL
- 7. IR COVER
- 8. CCD UNIT

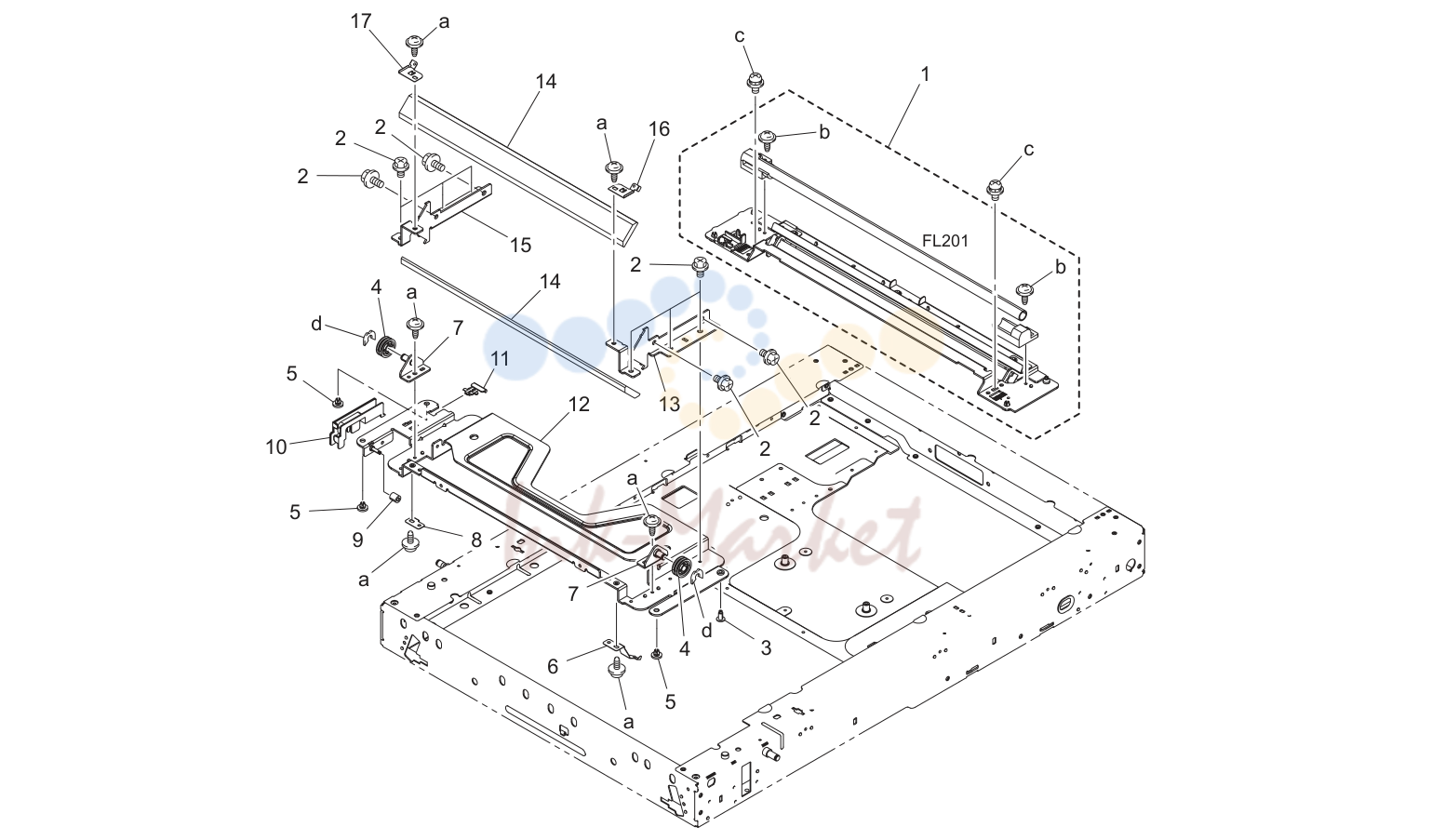

- 9. SCANNER SECTION

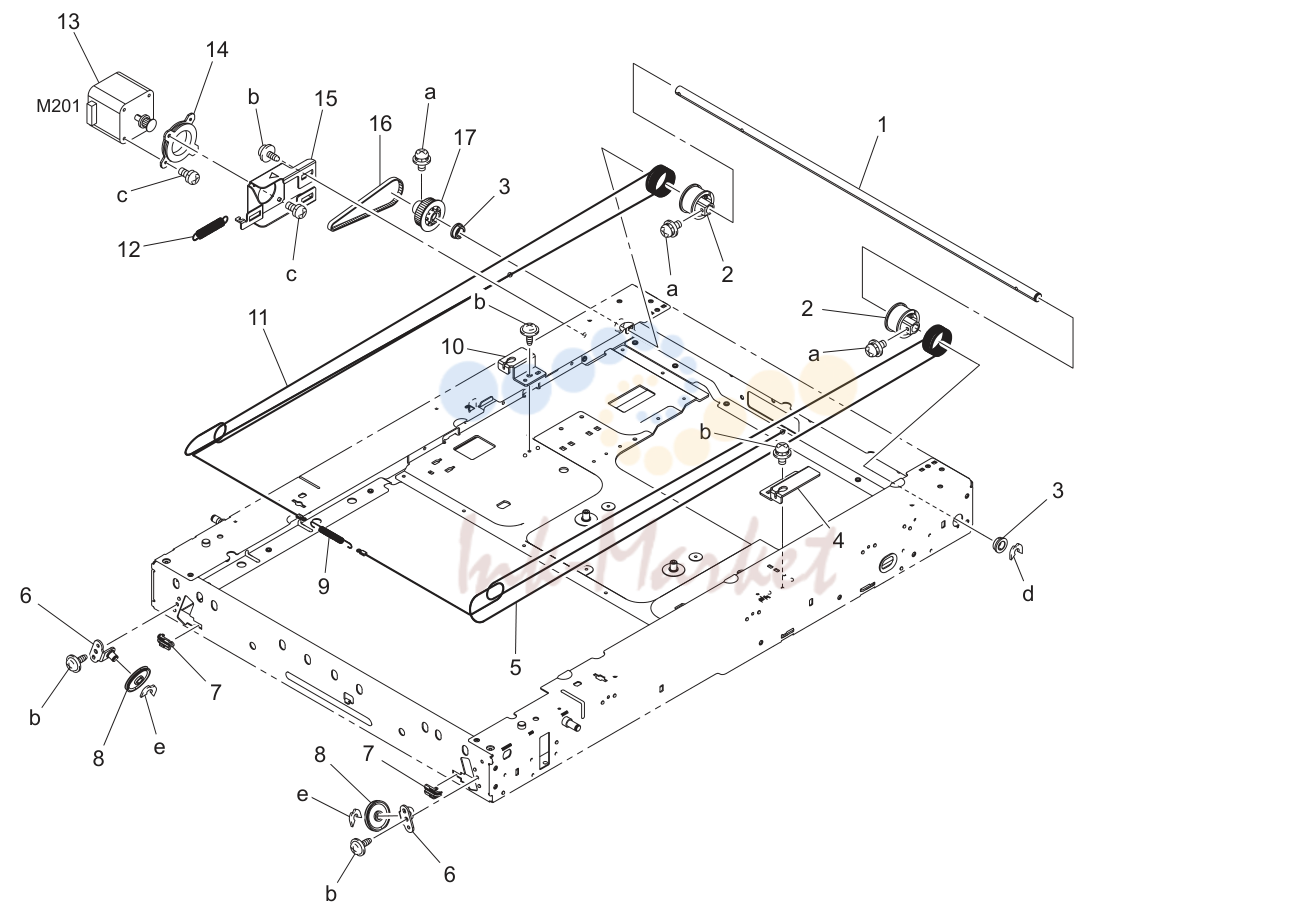

- 10. SCANNER DRIVE SECTION

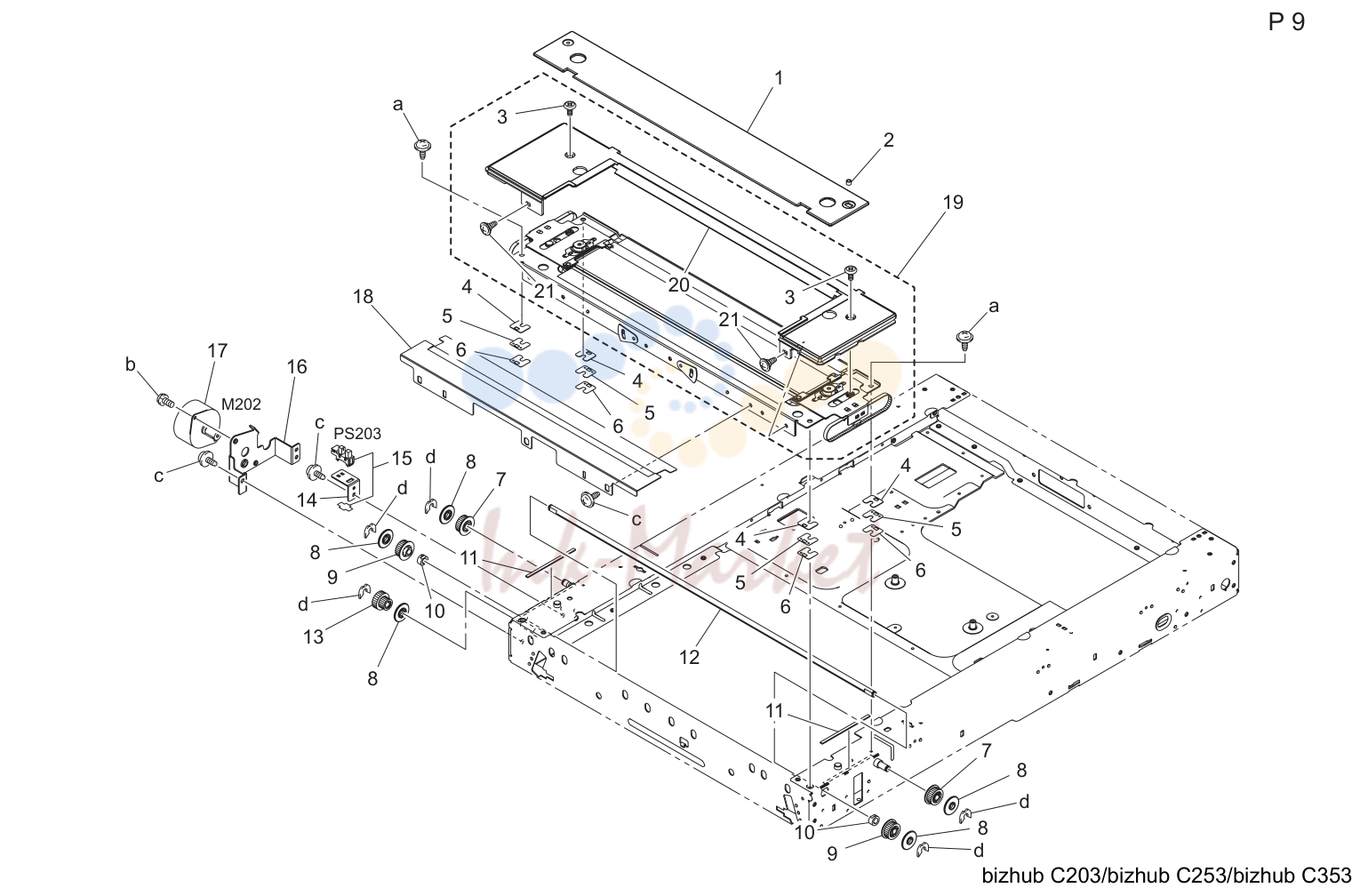

- 11. GLASS SHIFTING UNIT

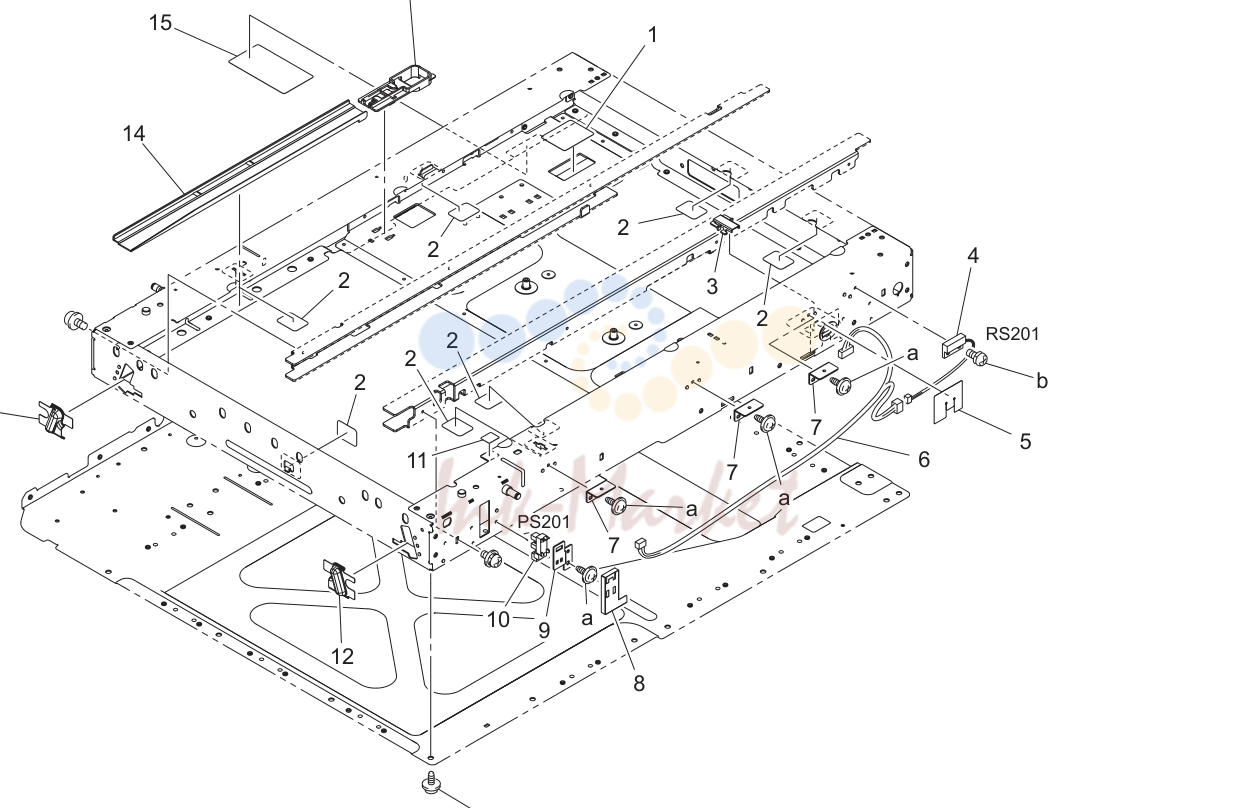

- 12. IR FRAME SECTION

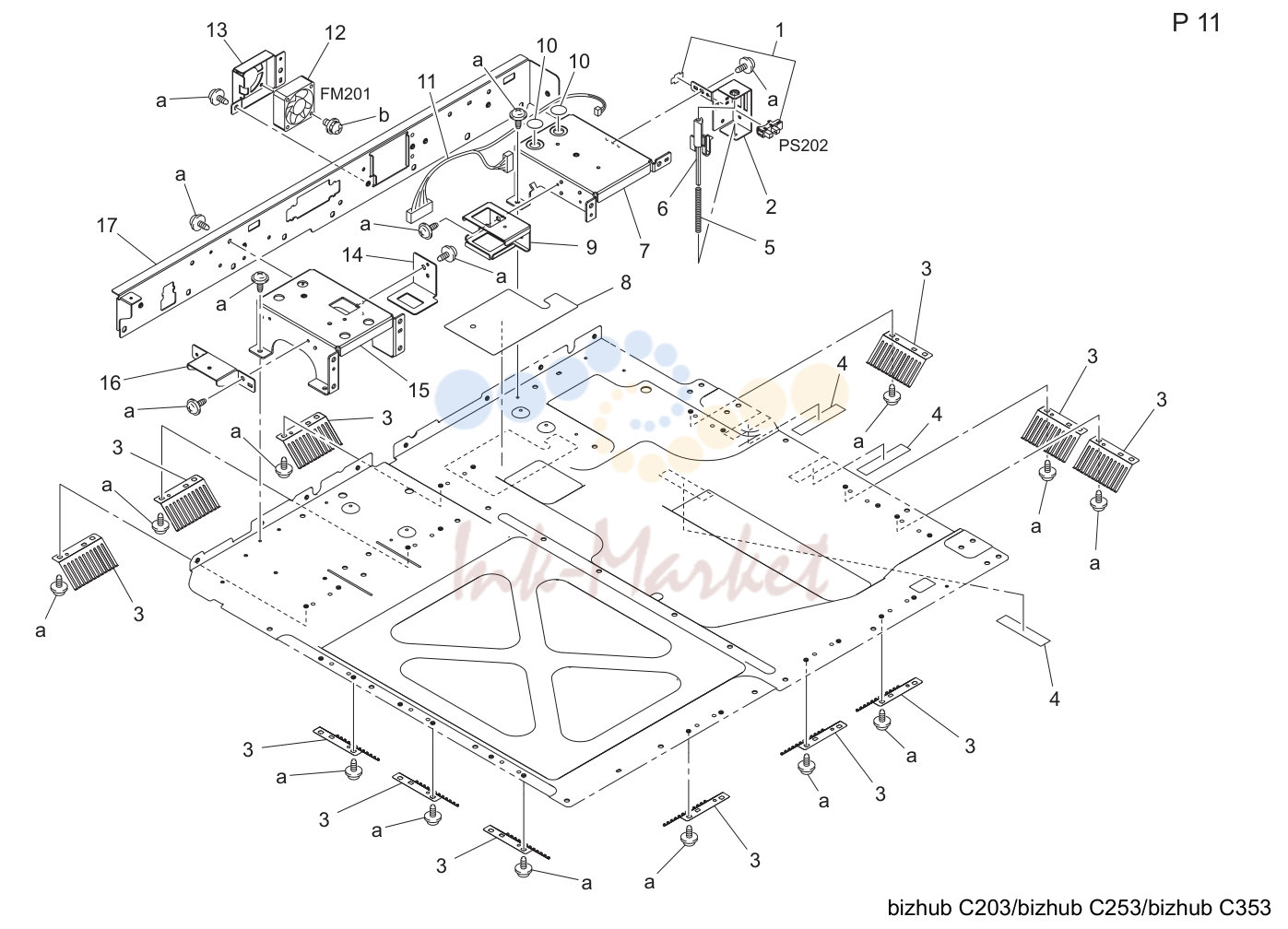

- 13. IR FRAME SECTION

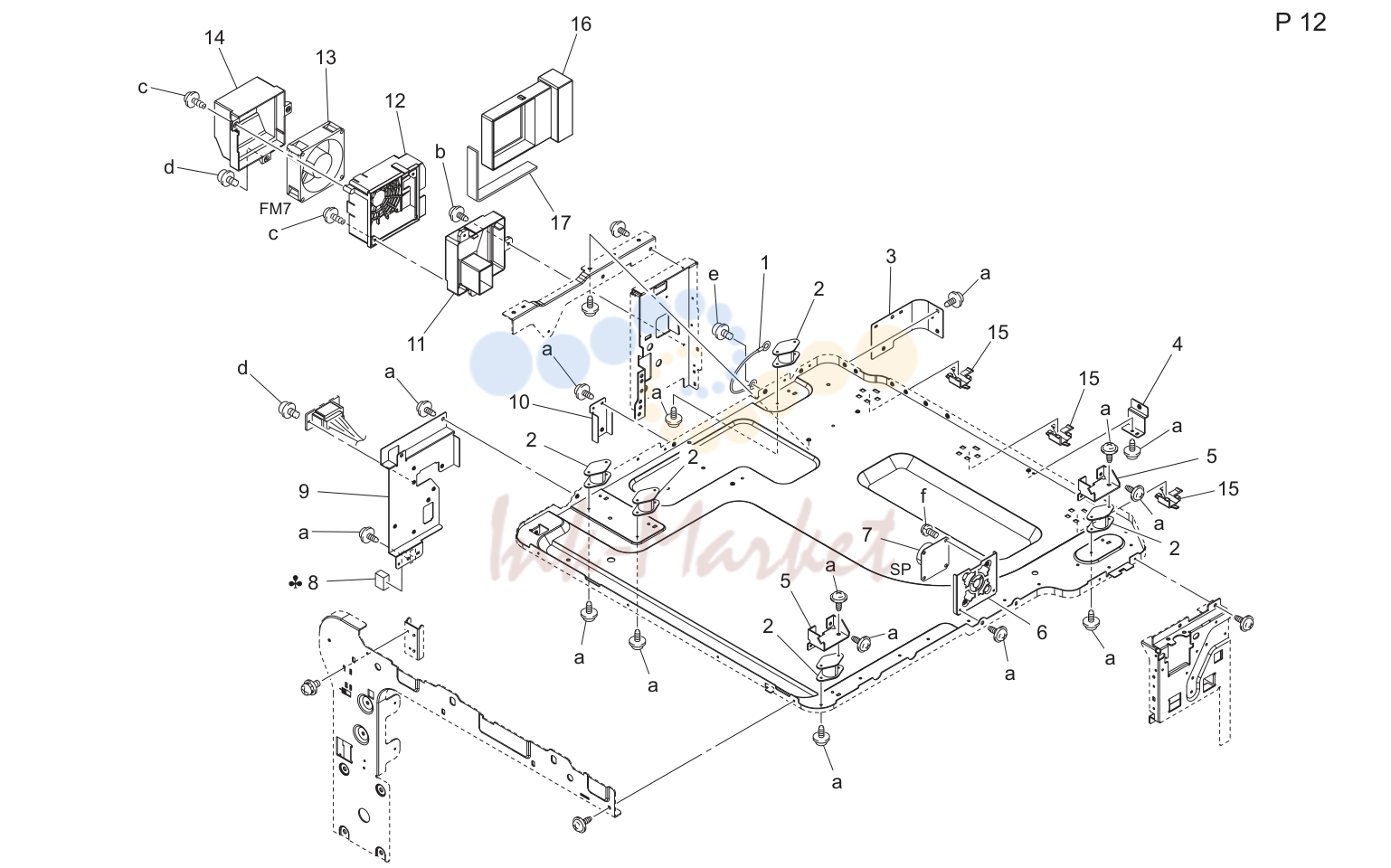

- 14. IR FRAME SECTION

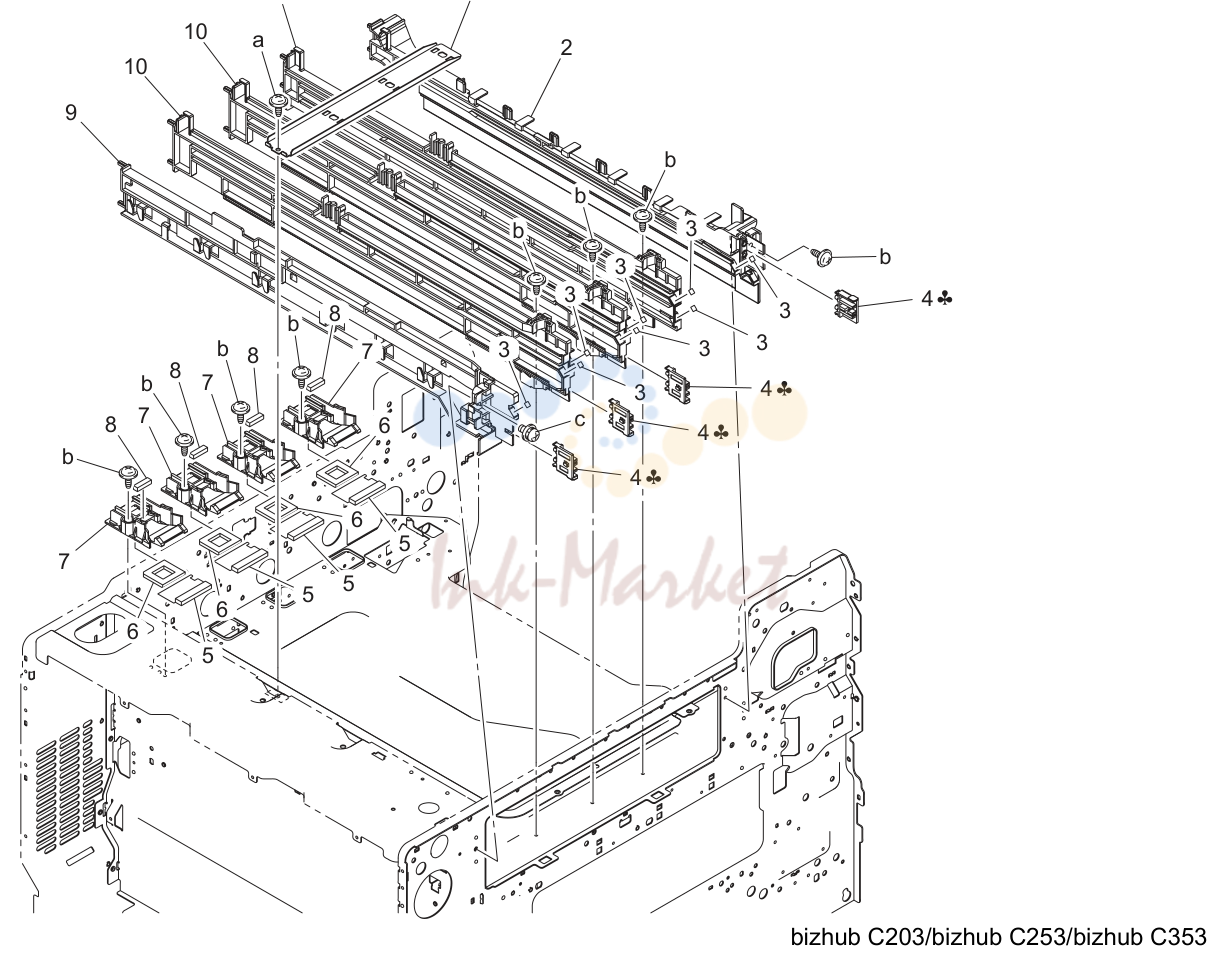

- 15. T/C RAIL SECTION

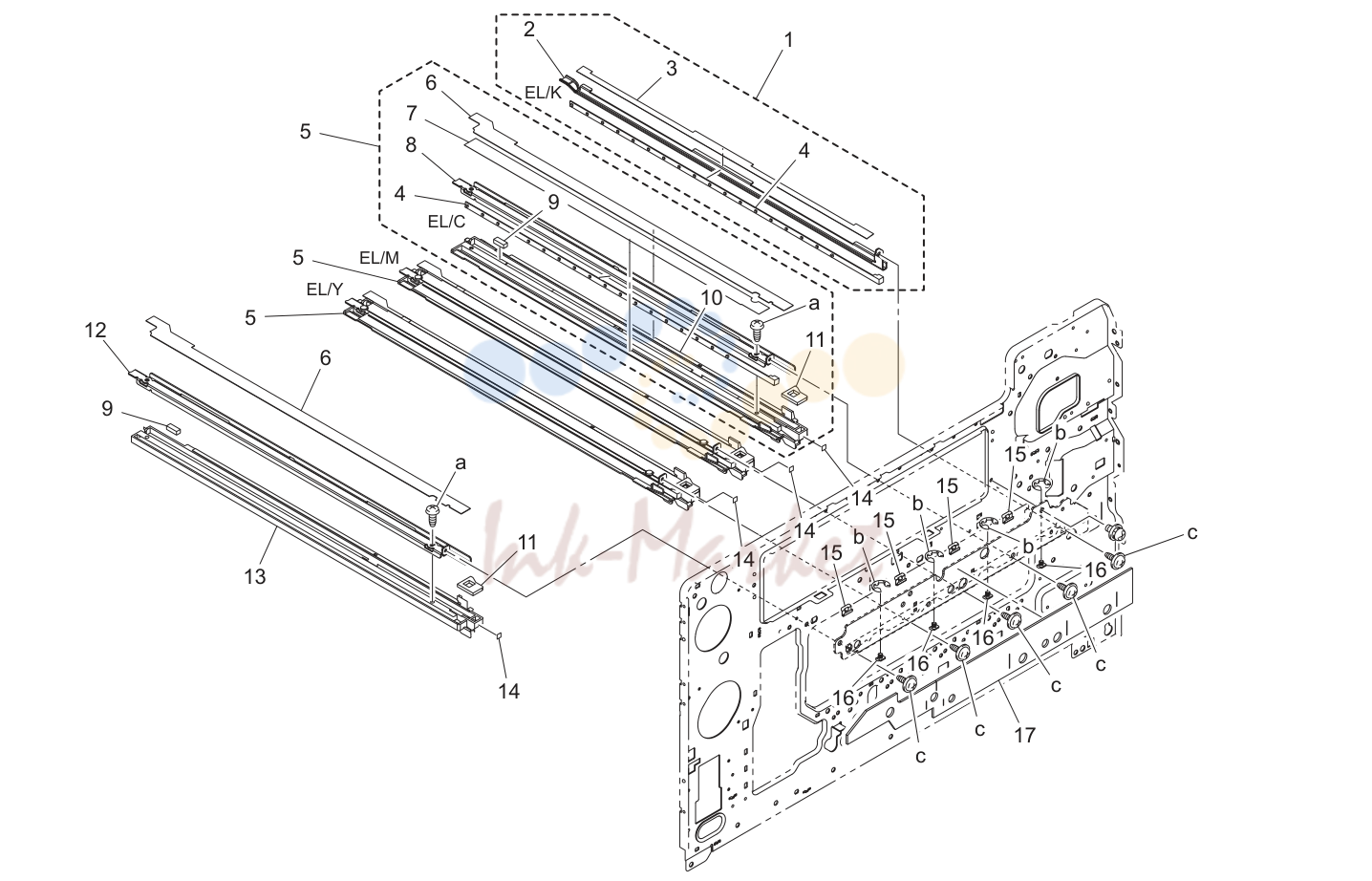

- 16. ERASE LAMP SECTION

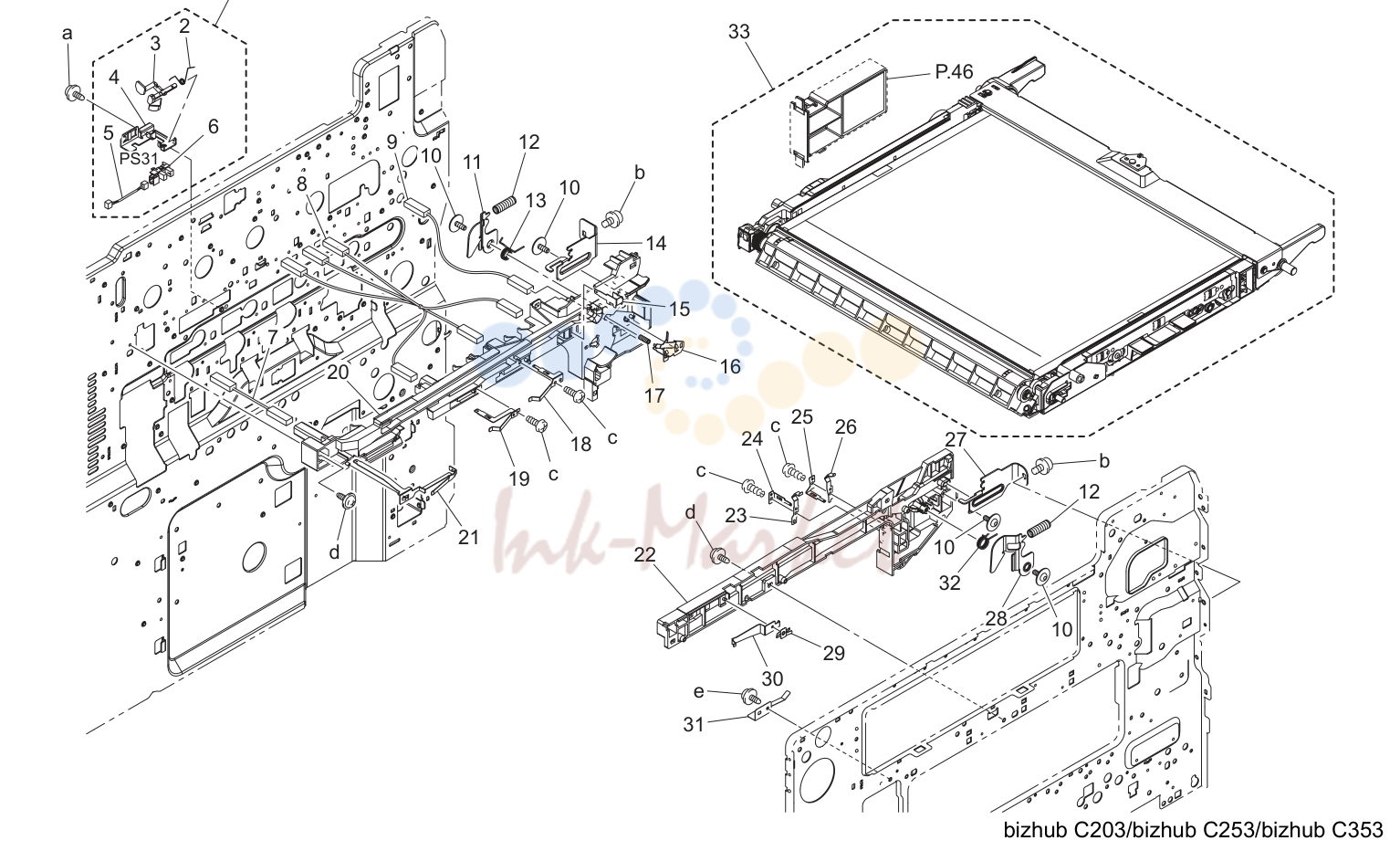

- 17. TRANSFER BELT UNIT

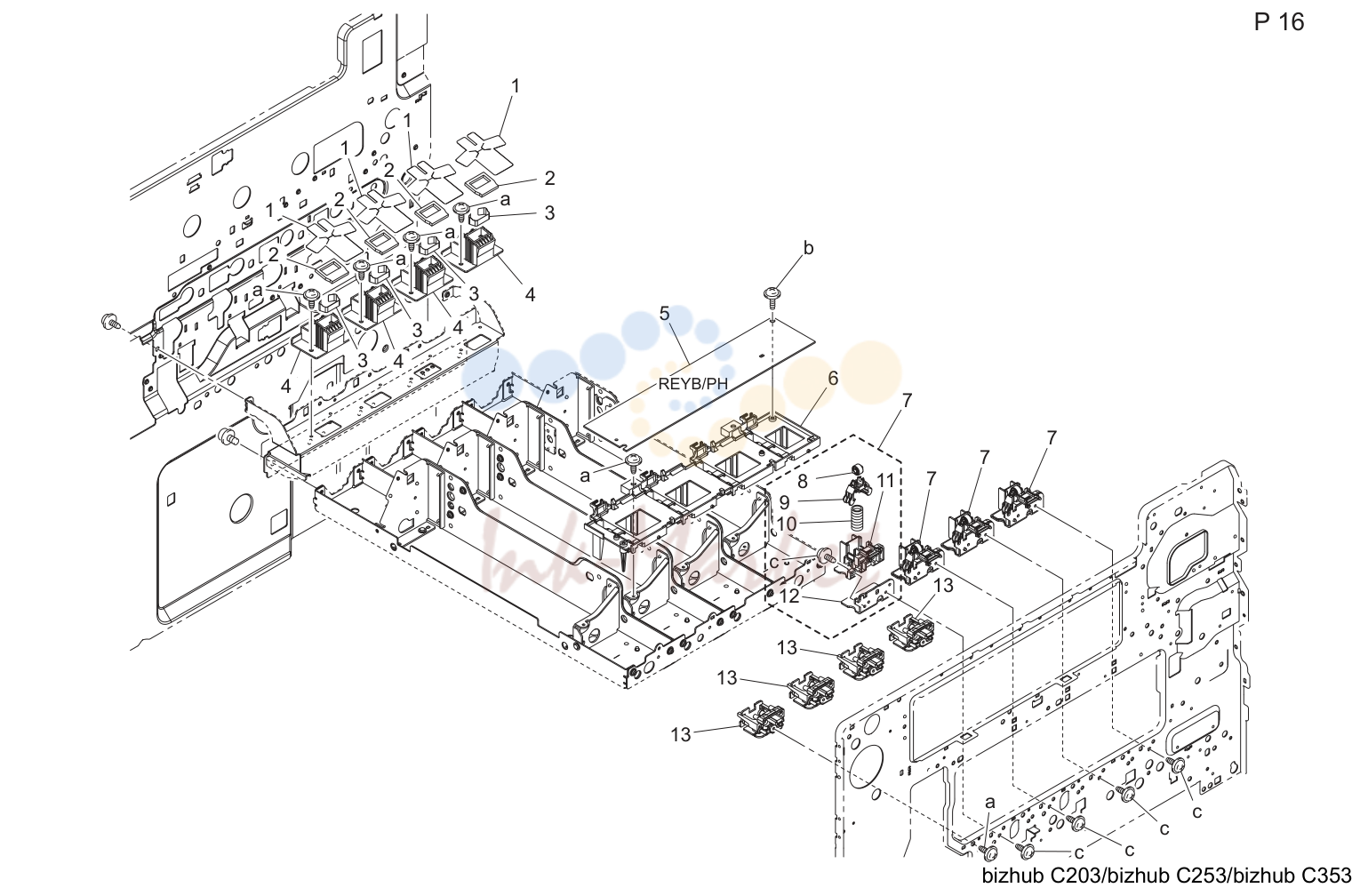

- 18. P/H FRAME SECTION

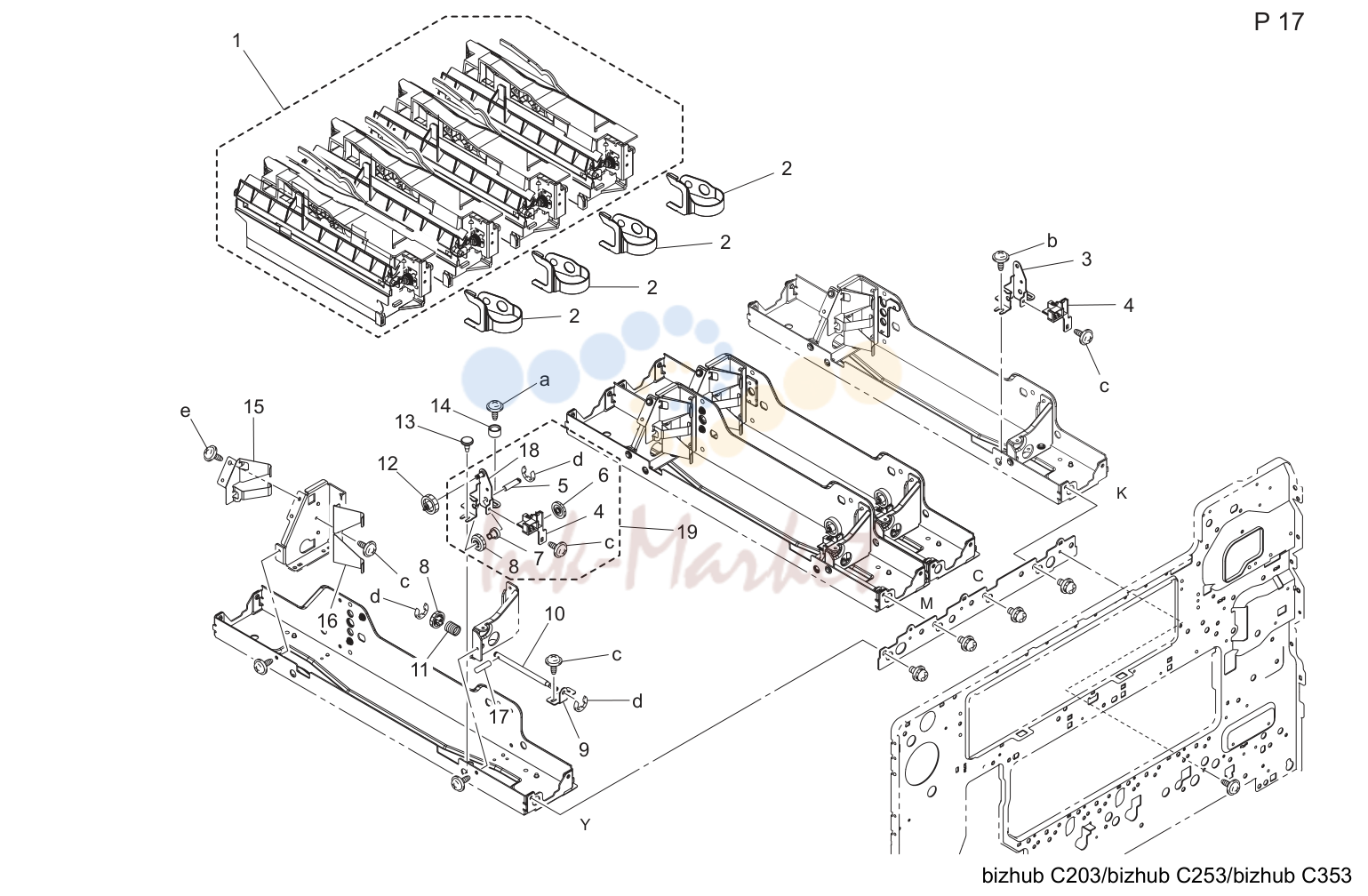

- 19. PRINT HEAD SECTION

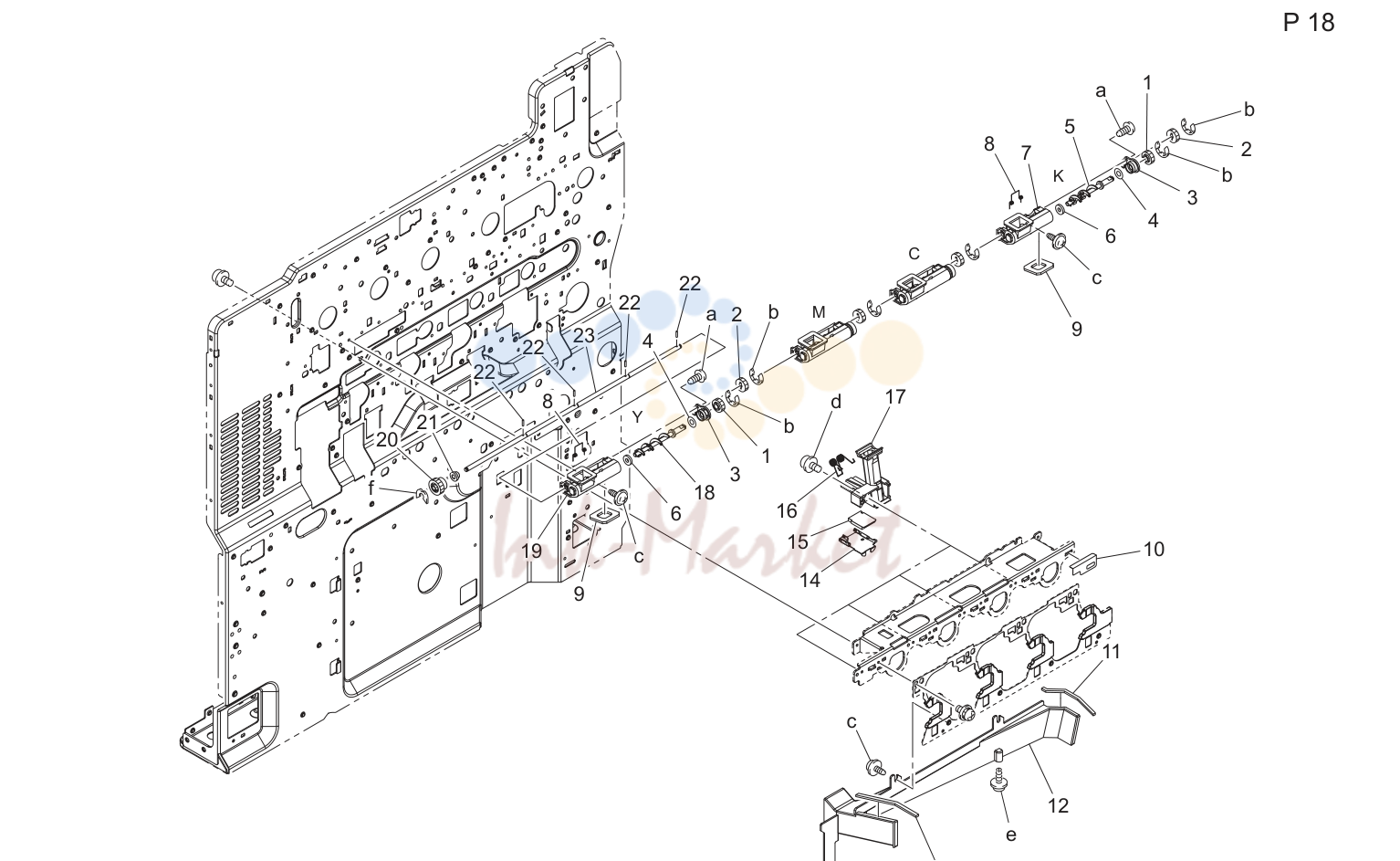

- 20. TONER CONVEYANCE SECTION

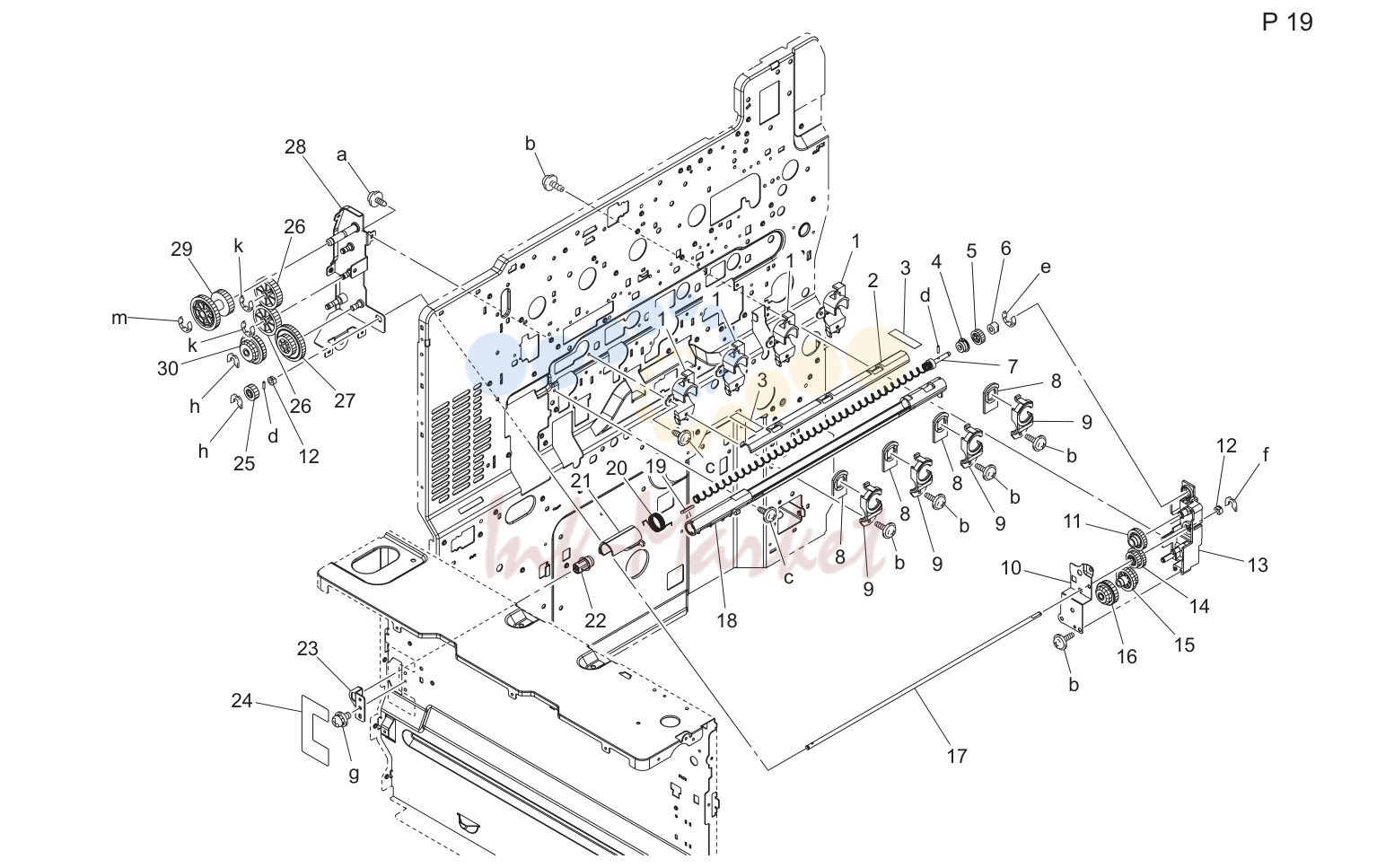

- 21. TONER CONVEYANCE SECTION

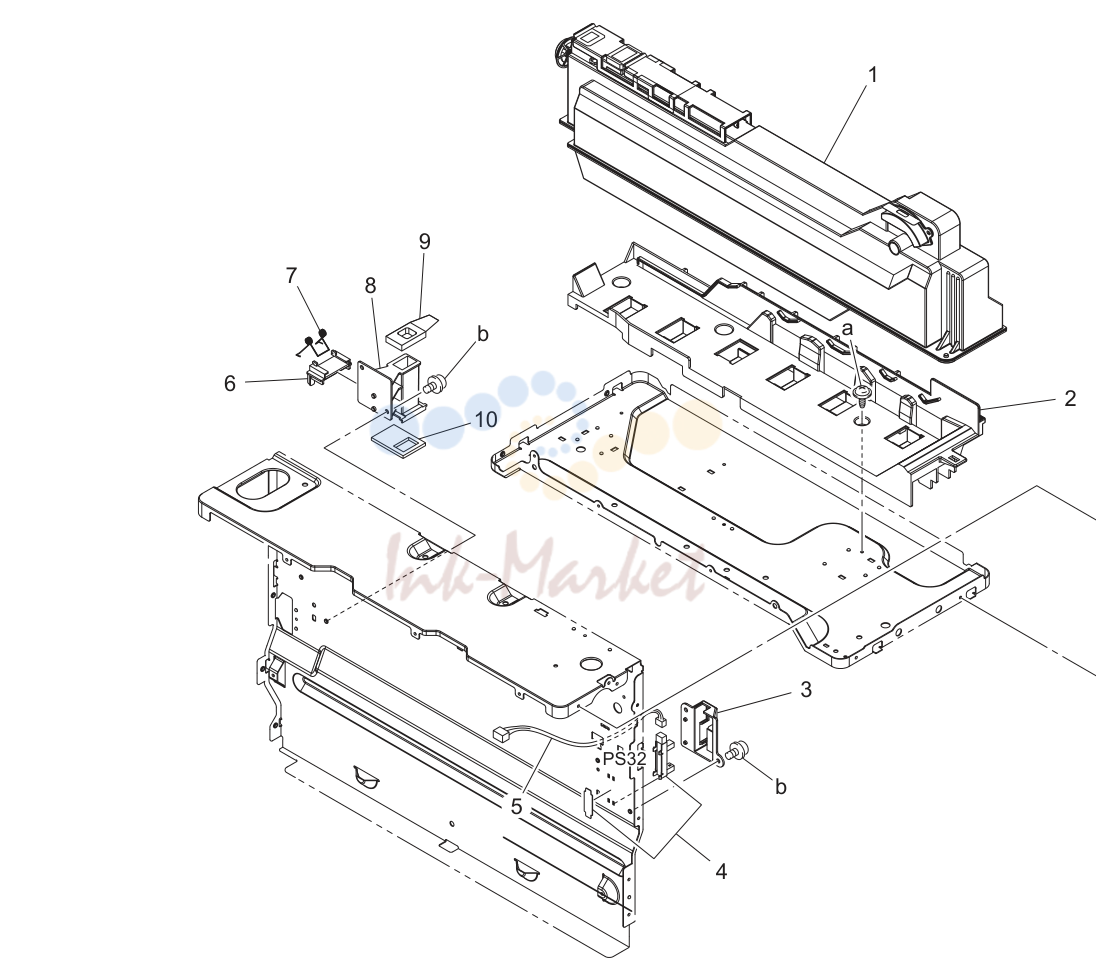

- 22. TONER COLLECTING SECTION

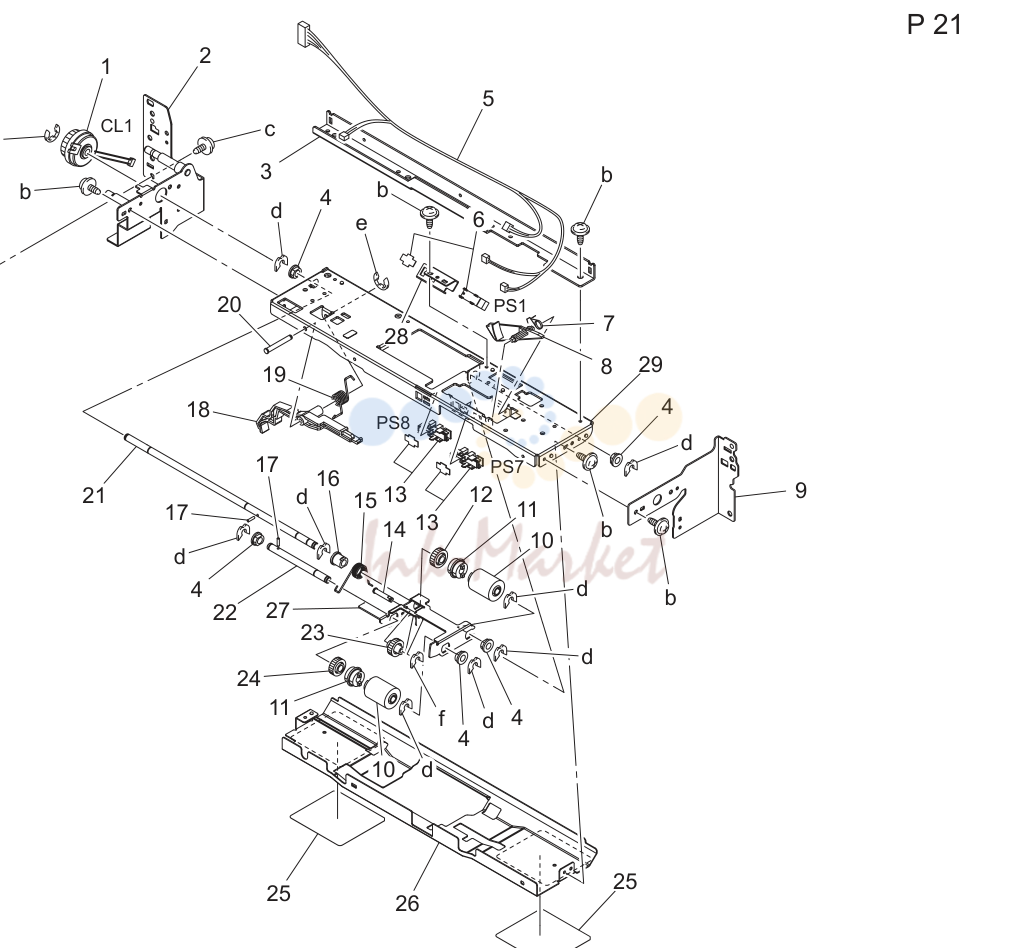

- 23. 1ST PAPER FEED SECTION

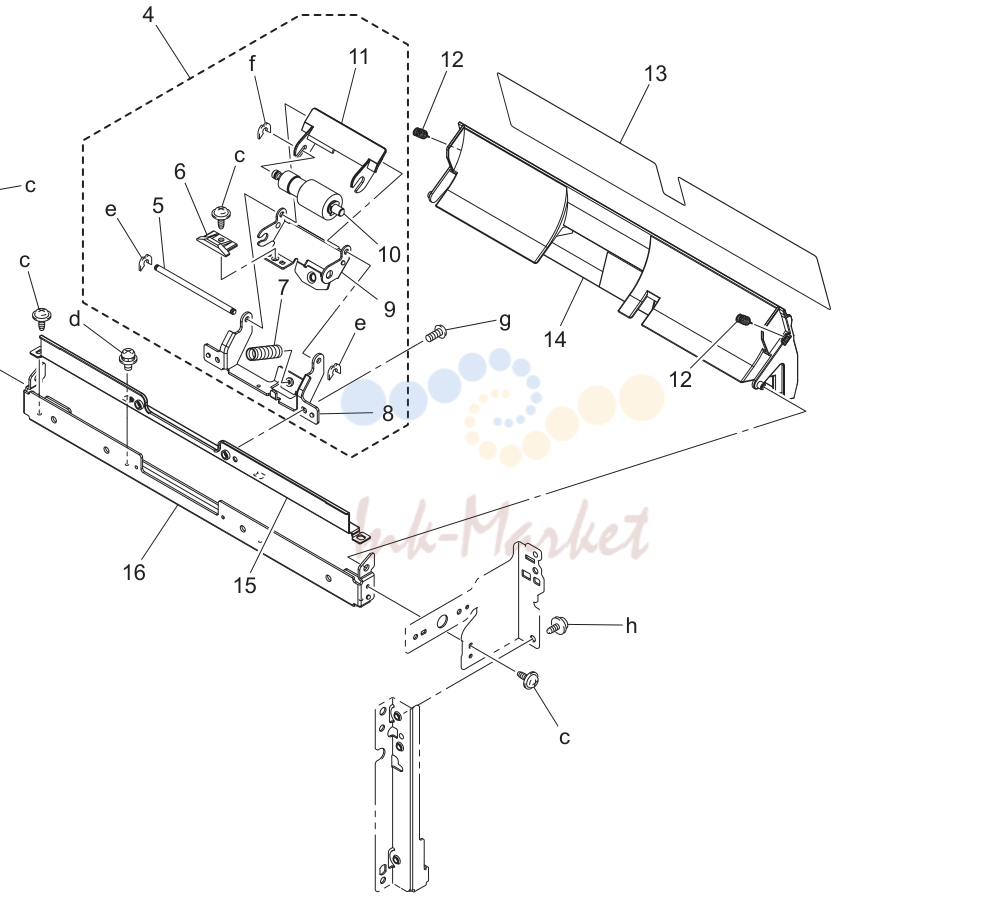

- 24. 1ST PAPER FEED SECTION

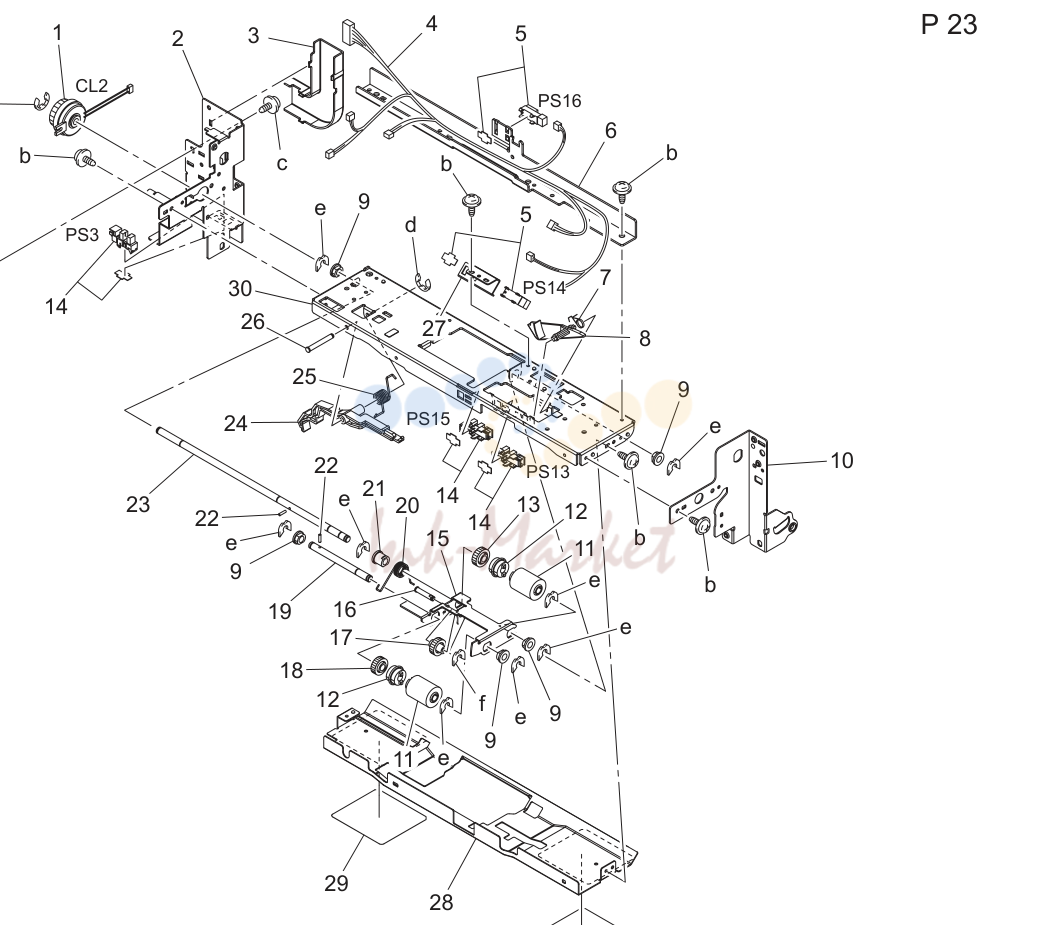

- 25. 2ND PAPER FEED SECTION

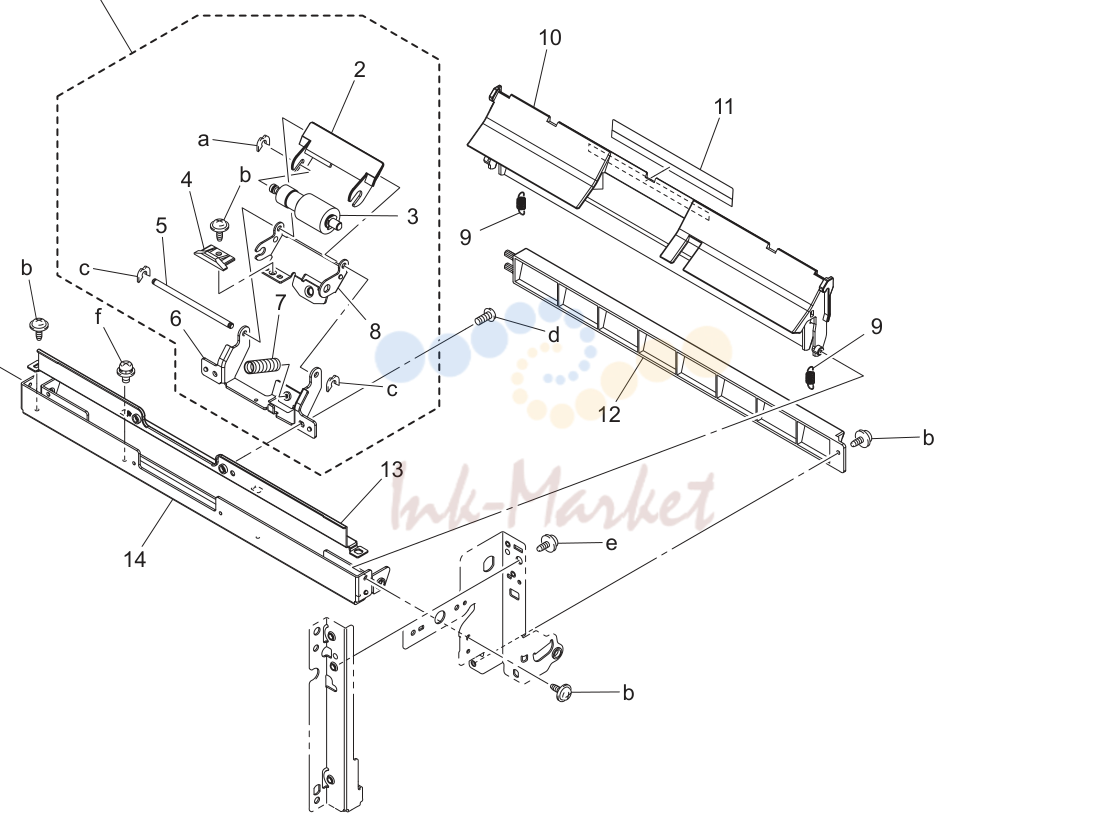

- 26. 2ND PAPER FEED SECTION

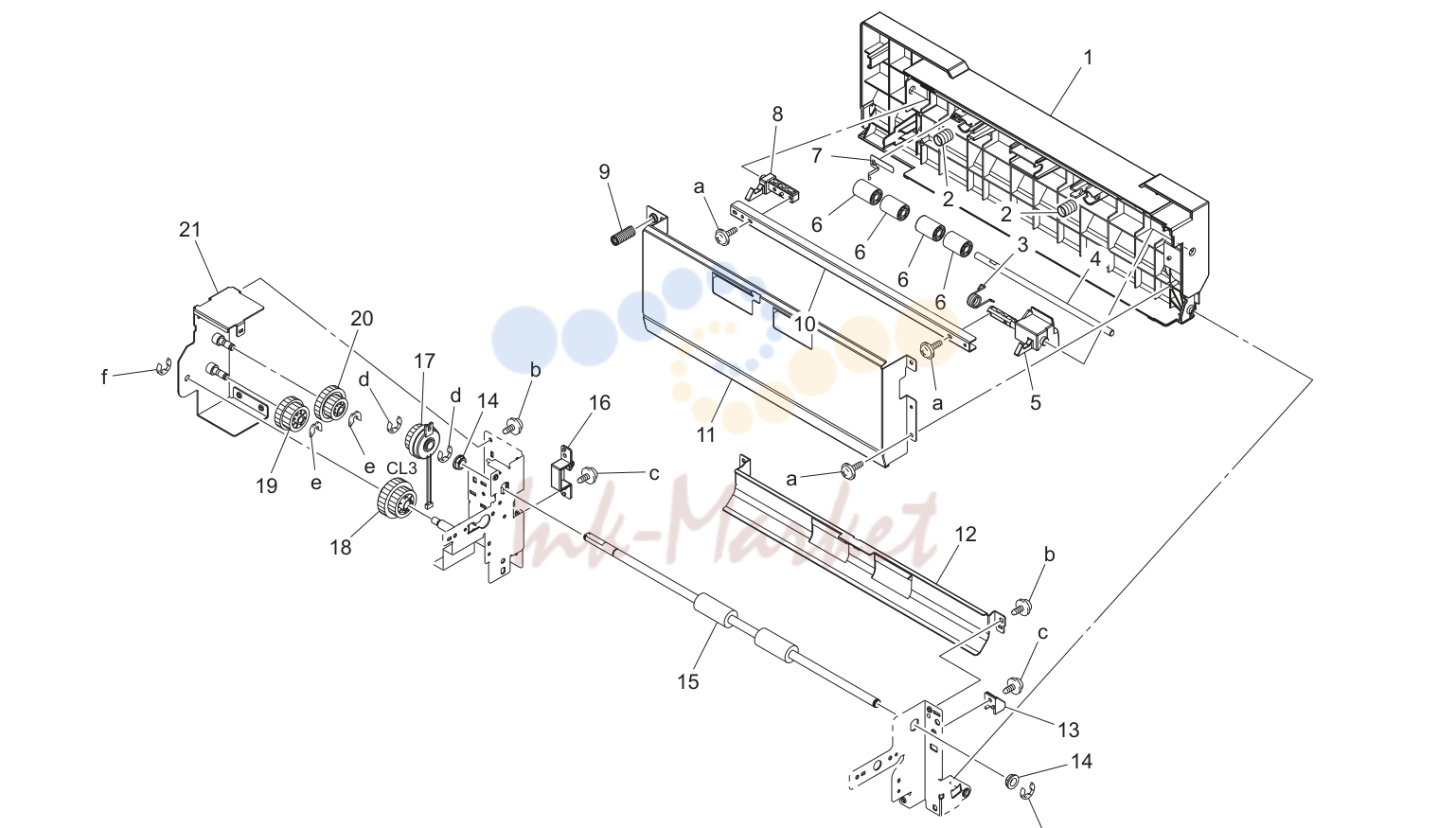

- 27. 2ND PAPER FEED SECTION

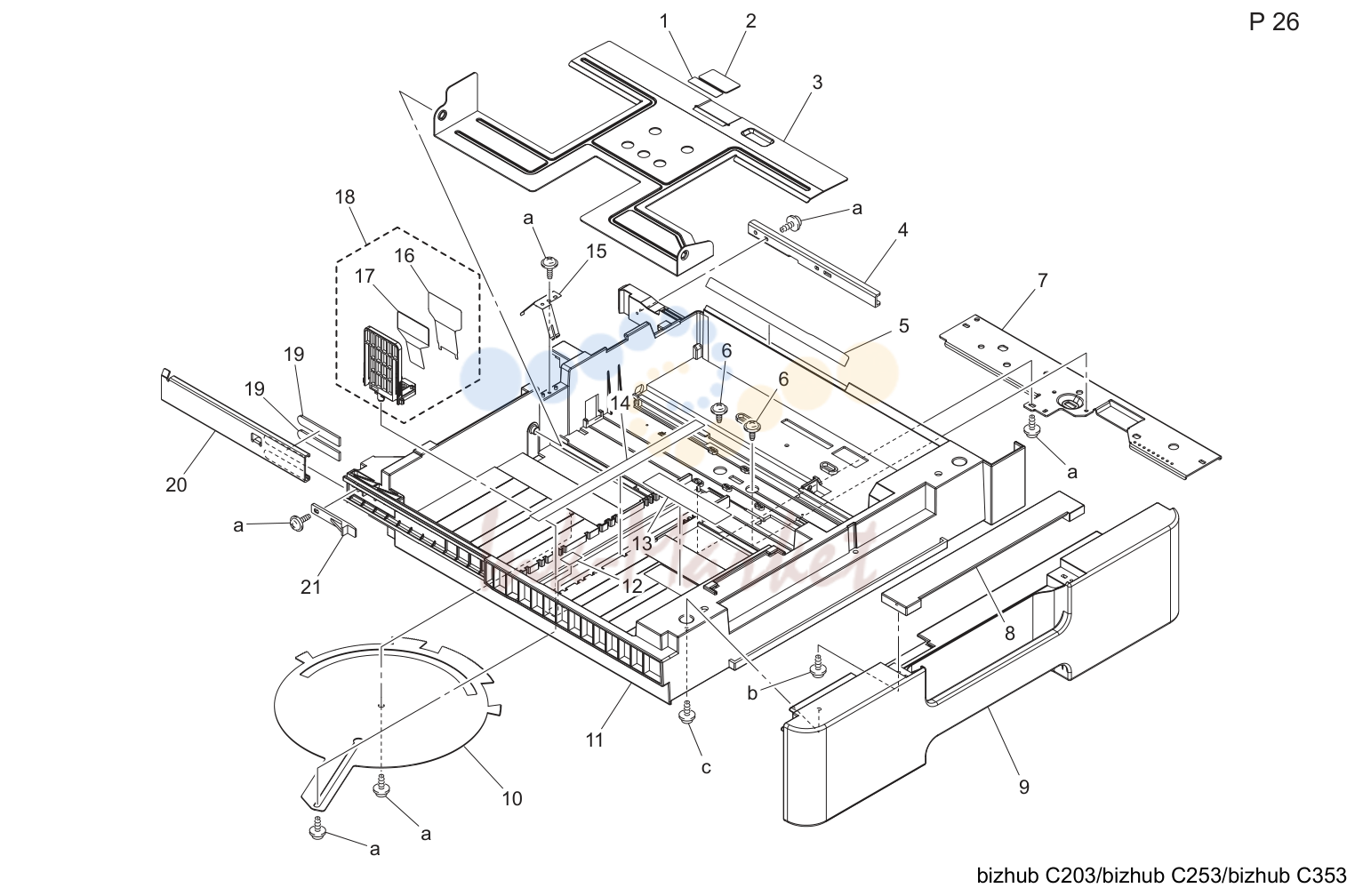

- 28. 1ST CASSETTE SECTION

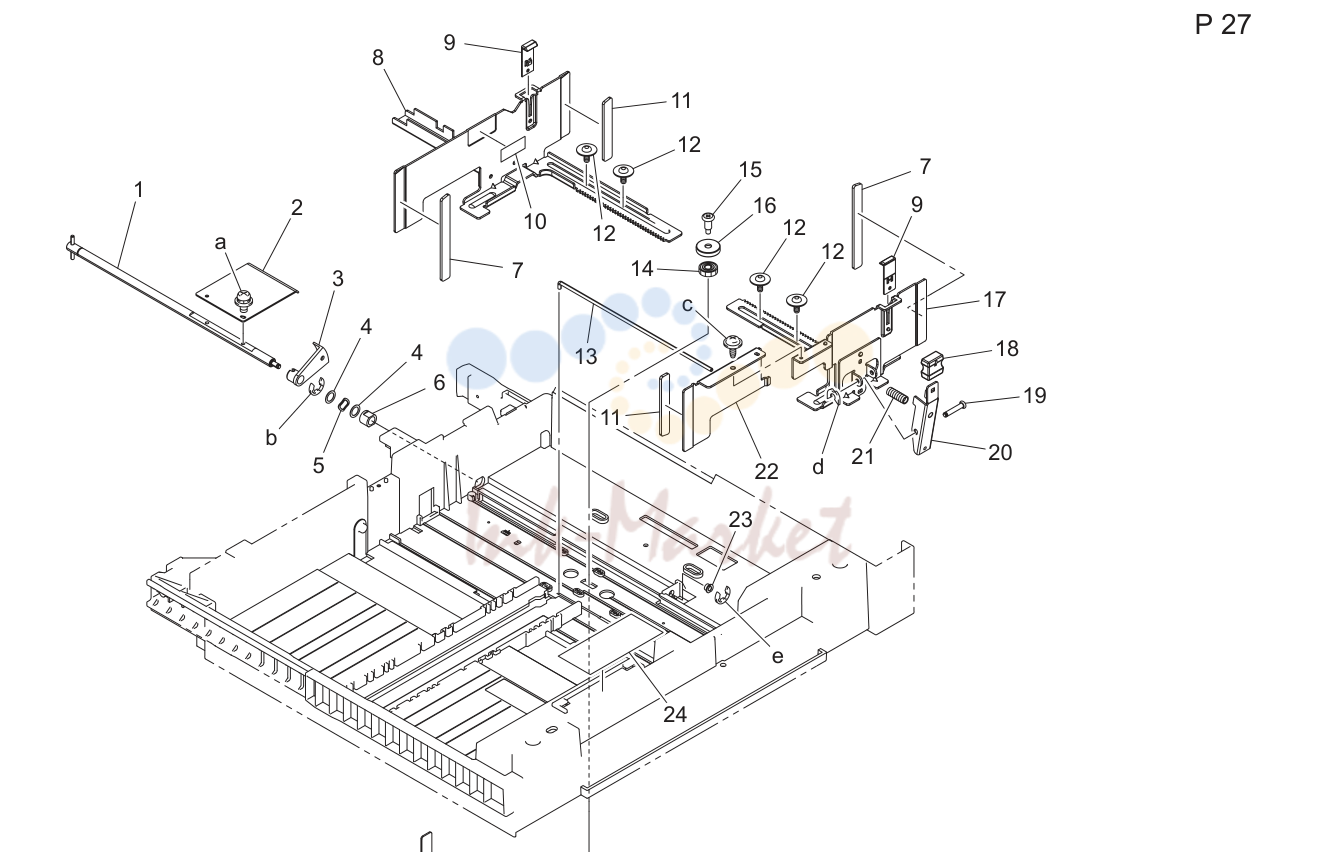

- 29. 1ST CASSETTE SECTION

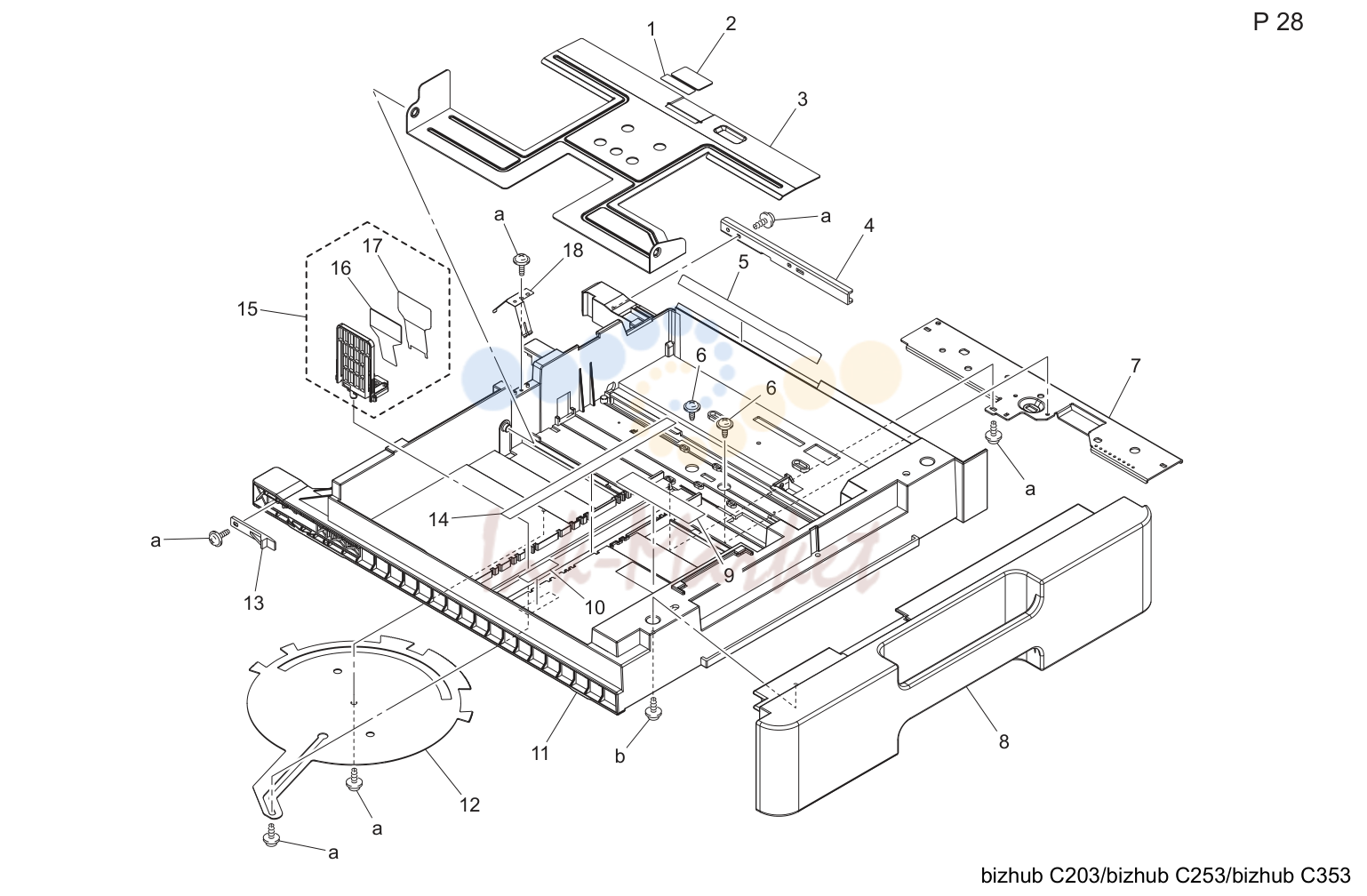

- 30. 2ND CASSETTE SECTION
- 31. 2ND CASSETTE SECTION
- 32. MANUAL FEED TRAY UNIT
- 33. MANUAL FEED TRAY UNIT
- 34. MANUAL FEED TRAY UNIT
- 35. MANUAL FEED TRAY UNIT
- 36. ADU/VERTICAL CONVEYANCE SECTION
- 37. ADU/VERTICAL CONVEYANCE SECTION
- 38. ADU/VERTICAL CONVEYANCE SECTION
- 39. ADU/VERTICAL CONVEYANCE SECTION
- 40. ADU/VERTICAL CONVEYANCE SECTION
- 41. FUSING SECTION
- 42. PAPER EXIT SECTION
- 43. PAPER EXIT SECTION
- 44. MAIN DRIVE SECTION
- 45. FEED/TRANSPORT DRIVE SECTION
- 46. FUSING DRIVE SECTION
- 47. MAIN FRAME SECTION
- 48. LOWER FRAME SECTION
- 49. SIZE DETECTING SECTION
- 50. HIGH VOLTAGE UNIT
- 51. MAIN POWER SUPPLY UNIT
- 52. REAR ELECTRICAL SECTION
- 53. REAR FAN SECTION
- 54. SHIELD BOX SECTION
- 55. WIRING ACCESSORIES AND JIGS
- 56. ACCESSORY PARTS
- 57. MAINTENANCE LIST 1/1
1. INFORMATION FOR PARTS GUIDE MANUAL
| № | Артикул | Наименование |
|---|---|---|
| 1 | When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures. | |
| 2 | For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and | |
| 3 | In order to maintain safety of the product, some specific parts composed of this product are set up as "essential safety parts". | |
| 4 | The assigned parts number for the "essential safety parts" is indicated as "SP00-****". | |
| 5 | means that there are exclusive parts for each destination. | |
| 6 | Revision Mark | |
| 7 | All rights reserved. (any reprints or quotations are prohibited.) | |
| 1 | DIGITAL MFP COLOR bizhub C203/bizhub C253/bizhub C353 | |
| 2 | DOCUMENT FEEDER DF-611 | |
| 3 | OTHER OPTION OC-507 | |
| 4 | OTHER OPTION MK-711 | |
| 5 | OTHER OPTION VI-504 | |
| 6 | FAX CONTROLLER FK-502 | |
| 7 | OTHER OPTION EK-603 | |
| 8 | OTHER OPTION MK-713 | |
| 9 | PAPER FEEDER PC-104 | |
| 10 | PAPER FEEDER PC-204 | |
| 11 | PAPER FEEDER PC-405 | |
| 12 | SORTER/FINISHER FS-519 | |
| 13 | OTHER OPTION OT-602 | |
| 14 | PUNCH UNIT PK-515 | |
| 15 | SORTER/FINISHER MT-502 | |
| 16 | SORTER/FINISHER SD-505 | |
| 17 | STACKER JS-505 |

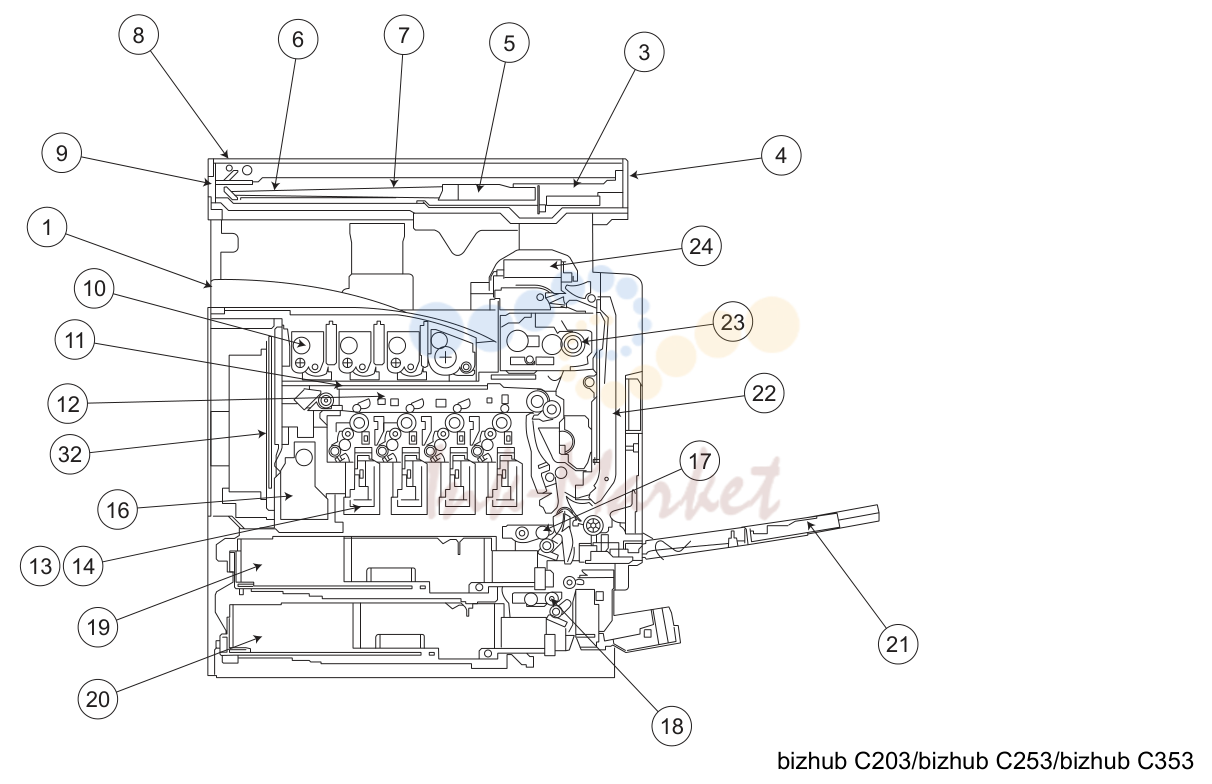

2. DIAGRAM OF MAIN PARTS SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | EXTERNAL PARTS P1 P2 | |
| 2 | INNER COVER SECTION P3 | |
| 3 | CONTROL PANEL P4 | |
| 4 | IR COVER P5 | |
| 5 | CCD UNIT P6 | |
| 6 | SCANNER SECTION P7 | |
| 7 | SCANNER DRIVE SECTION P8 | |
| 8 | GLASS SHIFTING UNIT P9 | |
| 9 | IR FRAME SECTION P10 P11 P12 | |
| 10 | T/C RAIL SECTION P13 | |
| 11 | ERASE LAMP SECTION P14 | |
| 12 | TRANSFER BELT UNIT P15 | |
| 13 | P/H FRAME SECTION P16 | |
| 14 | PRINT HEAD SECTION P17 | |
| 15 | TONER CONVEYANCE SECTION P18 P19 | |
| 16 | TONER COLLECTING SECTION P20 | |
| 17 | 1ST PAPER FEED SECTION P21 P22 | |
| 18 | 2ND PAPER FEED SECTION P23 P24 P25 | |
| 19 | 1ST CASSETTE SECTION P26 P27 | |
| 20 | 2ND CASSETTE SECTION P28 P29 | |
| 21 | MANUAL FEED TRAY UNIT P30 P31 P32 P33 | |
| 22 | ADU/VERTICAL CONVEYANCE SECTION P34 P35 P36 P37 P38 | |
| 23 | FUSING SECTION P39 | |
| 24 | PAPER EXIT SECTION P40 P41 | |
| 25 | MAIN DRIVE SECTION P42 | |
| 26 | FEED/TRANSPORT DRIVE SECTION P43 | |
| 27 | FUSING DRIVE SECTION P44 | |
| 28 | MAIN FRAME SECTION P45 | |
| 29 | LOWER FRAME SECTION P46 | |
| 30 | SIZE DETECTING SECTION P47 | |
| 31 | HIGH VOLTAGE UNIT P48 | |
| 32 | MAIN POWER SUPPLY UNIT P49 | |
| 33 | REAR ELECTRICAL SECTION P50 | |
| 34 | REAR FAN SECTION P51 | |
| 35 | SHIELD BOX SECTION P52 | |
| 36 | WIRING P53 P54 P55 P56 P57 P58 | |
| 37 | WIRING ACCESSORIES AND JIGS P59 | |
| 38 | ACCESSORY PARTS P60 |

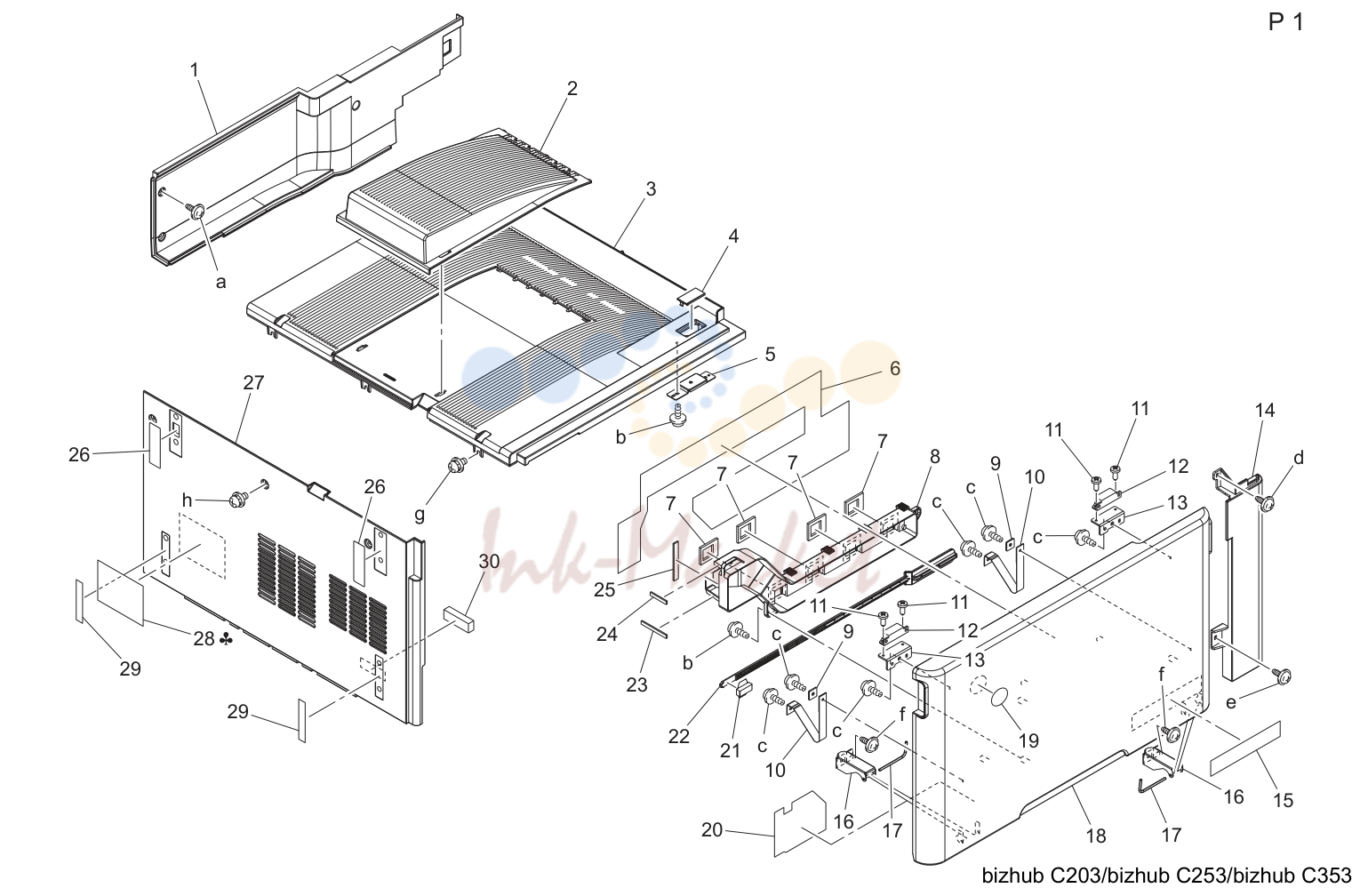

3. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 1658 00 Cover C 1 a-V137 | |
| 2 | A02E 1620 00 Tray C 1 b-V153 | |
| 3 | A02E 1621 00 Top cover C 1 c-V153 | |
| 4 | A02E 1637 00 Cover C 1 e-V137 | |
| 5 | A02E 1615 00 Bracket D 1 f-V137 | |
| 6 | A02E 9401 00 Label Remove/Clean C 1 g-V116 | |
| 7 | A02E 1164 00 Seal C 4 h-V116 | |
| 8 | A02E 1160 00 Duct D | |
| 9 | 1053 3103 01 SET PLATE C | |
| 10 | A02E 1612 00 Band C | |
| 11 | 4038 1051 01 SCREW C | |
| 12 | 4475 2603 02 MAGNET CATCH D | |
| 13 | 4038 1046 01 BRACKET D | |
| 14 | A02E 1623 00 Cover C | |
| 15 | A02E 9422 02 Label Bizhub C353 {bizhub C353} C | |
| 15 | A02E 9423 02 Label Bizhub C253 {bizhub C253} C | |
| 15 | A02E 9424 02 Label Bizhub C203 {bizhub C203} C | |
| 16 | A02E 1610 00 Hinge C | |
| 17 | A02E 1613 00 Shaft D | |
| 18 | A02E 1622 01 Front cover C | |
| 19 | A00J 9455 00 Logo Mark C | |
| 20 | A02E 9404 00 Label Waste Toner Remove C | |
| 21 | 4038 2084 06 CLEANING PAD C | |
| 22 | 4038 2083 02 CLANING MATERIAL C | |
| 23 | A02E 1162 00 Seal C | |
| 24 | A02E 1165 00 Seal C | |
| 25 | A02E 1163 00 Seal C | |
| 26 | A02E 1616 00 Seal C | |
| 27 | A02E 1624 02 Left cover C | |
| 28 | A00J 9450 00 Label Only connect C,D1,D3,F2,G1,I,K C | |
| 28 | A00J 9457 00 Label Caution A,A1,B,F1,G2,H C | |
| 29 | A02E 1611 00 Label Mask C | |
| 30 | A02E 1168 00 Seal {bizhub C203} C |

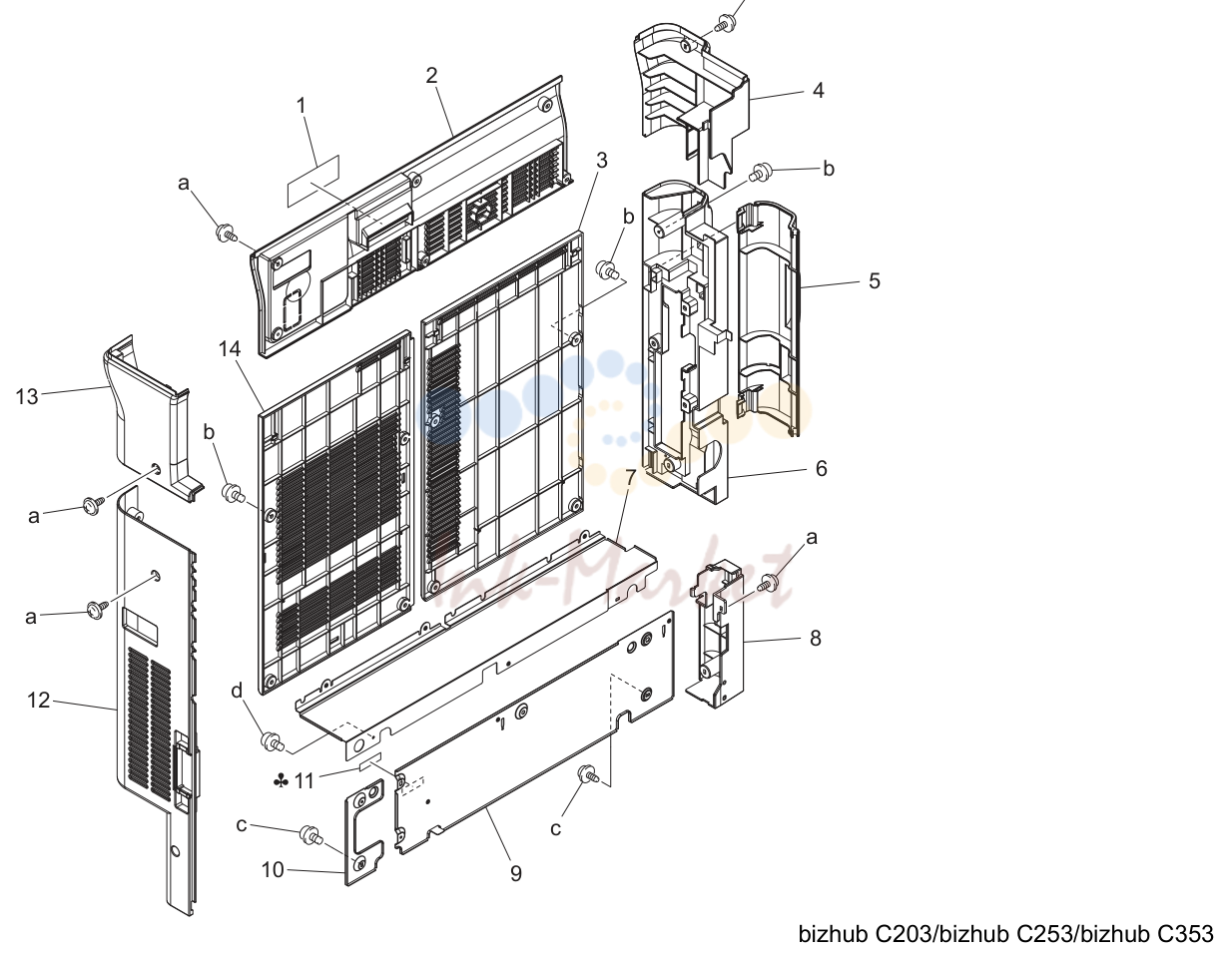

4. EXTERNAL PARTS
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 1143 00 Seal C 1 a-V137 | |
| 2 | A02E 1657 01 Cover C 1 b-V116 | |
| 3 | A02E 1644 00 Cover C 1 c-V116 | |
| 4 | A02E 1687 00 Cover C | |
| 5 | A02E 1636 00 Cover C | |
| 6 | A02E 1629 00 Cover C | |
| 7 | A02E 1646 00 Cover C | |
| 8 | A02E 1630 00 Cover C | |
| 9 | A02E 1632 00 Cover C | |
| 10 | A02E 1633 00 Cover C | |
| 11 | A00J 9452 01 Label 220-240V 0.65A C,D1,D3,F2,G1,I,J,K C | |
| 12 | A02E 1628 00 Cover C | |
| 13 | A02E 1686 00 Cover C | |
| 14 | A02E 1643 00 Cover C |

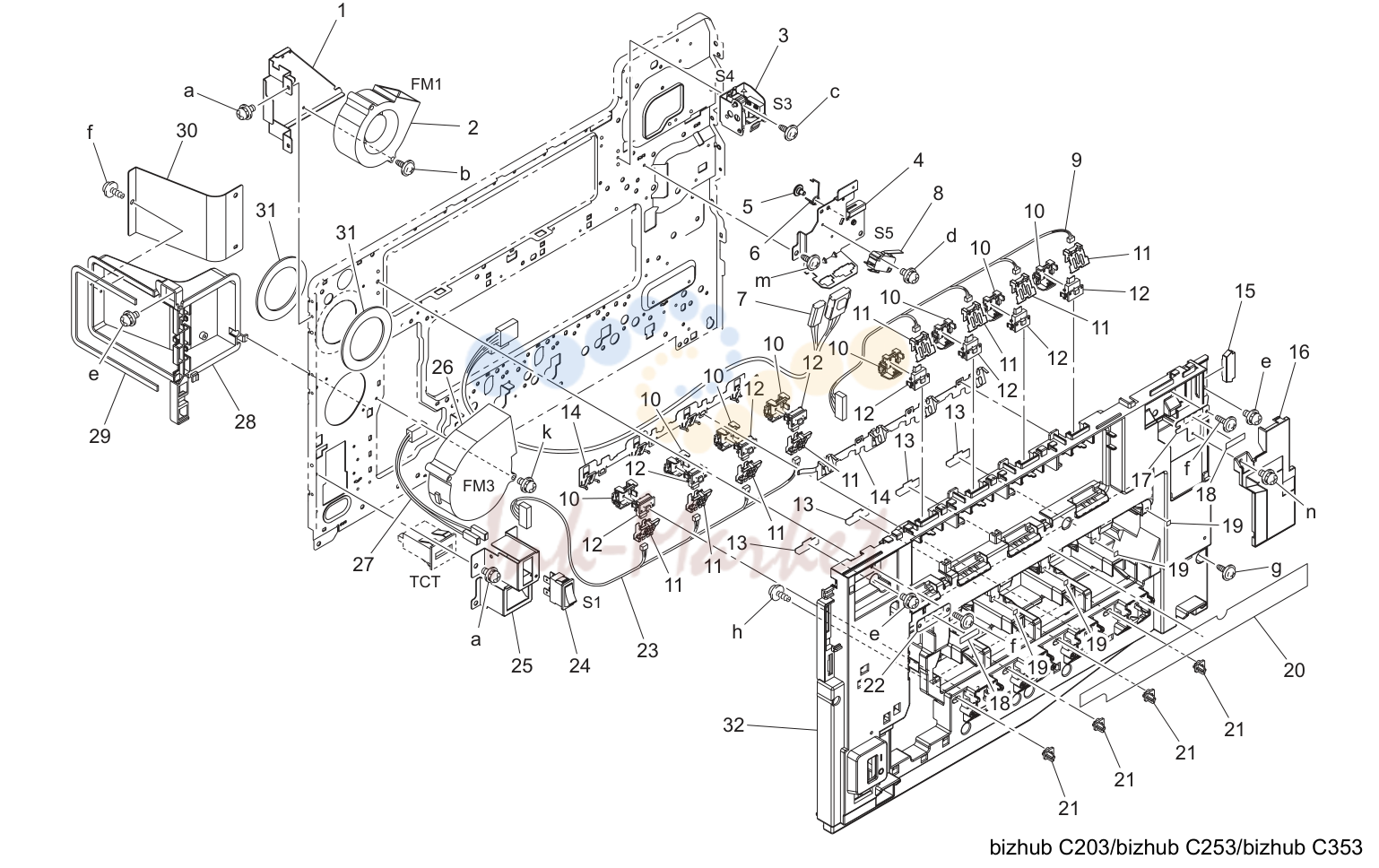

5. INNER COVER SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 1203 01 Bracket D 1 a-V116 | |
| 2 | 9313 1300 51 FAN MOTOR B 1 b-V137 | |
| 3 | A02E R709 00 Frint Cover Switch Assy C 1 c-V137 | |
| 4 | A02E 1381 00 Bracket D 1 e-V116 | |
| 5 | 4038 2287 02 SHOULDER SCREW C 1 f-V153 | |
| 6 | A02E 1384 00 Torsion spring C 1 g-V137 | |
| 7 | A02E N122 01 Heater Relay harness D 1 h-V153 | |
| 8 | 9J06 M601 00 MICRO SWITCH C | |
| 9 | A02E N10N 01 Supply Detection harness D 1 n-V116 | |
| 10 | 4038 2281 04 HOLDER C | |
| 11 | 4038 2282 03 PLATE SPRING C | |
| 12 | V816 3000 02 CONNECTOR PIN D | |
| 13 | 9J06 2460 01 COVER C | |
| 14 | 4038 2283 02 PLATE SPRING C | |
| 15 | V651 0100 40 CONNECTOR D | |
| 16 | A02E 1702 00 Cover C | |
| 17 | A02E 1614 01 Suction plate D | |
| 18 | A02E 1618 00 Spacer C | |
| 19 | A02E 9403 00 Label Iu C | |
| 20 | A02E 9402 00 Label Tc/Iu D | |
| 21 | A02E 1703 00 Holder D | |
| 22 | 4038 1014 01 SUCTION PLATE D | |
| 23 | A02E N119 02 Photoconductor Detection harness D | |
| 24 | 4038 M600 00 SEESAW-SWITCH C | |
| 25 | A02E 1383 00 Bracket D | |
| 26 | 9313 1000 72 FAN MOTOR C | |
| 27 | A02E N123 00 AC Power source harness D | |
| 28 | A02E 1161 02 Duct D | |
| 29 | A02E 1167 00 Seal C | |
| 30 | A02E 1166 00 Heat sink D | |
| 31 | A02E 1205 00 Seal C | |
| 32 | A02E 1701 00 Cover D |

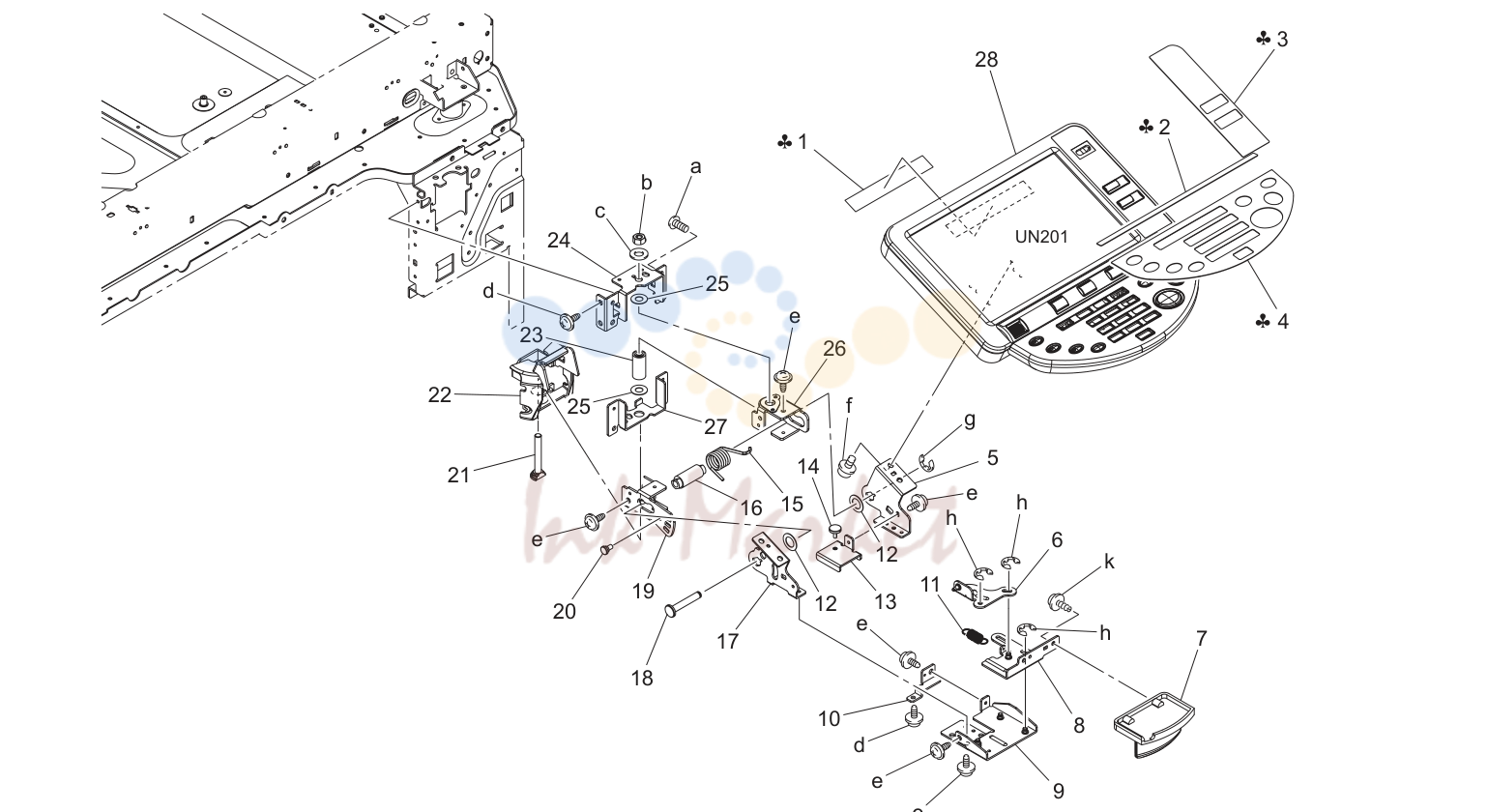

6. CONTROL PANEL
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 9494 00 Panel sheet B,G2 C 1 a-V136 | |
| 2 | A02E 9481 00 Panel sheet A,A1 C 1 b-V195 | |
| 2 | A02E 9482 00 Panel sheet B,G2,F1 C 1 c-V205 | |
| 2 | A02E 9483 00 Panel sheet C,D1,D3,F2,G1,I,K C 1 e-V137 | |
| 2 | A02E 9484 00 Panel sheet J C 1 f-V116 | |
| 2 | A02E 9485 00 Panel sheet H C 1 g-V217 | |
| 3 | A02E 9486 00 Panel sheet A,A1 C 1 h-V217 | |
| 3 | A02E 9487 00 Panel sheet B,G2,F1 C | |
| 3 | A02E 9488 00 Panel sheet J C | |
| 3 | A02E 9489 00 Panel sheet H C | |
| 4 | A02E 9490 00 Panel sheet A,A1 C | |
| 4 | A02E 9491 00 Panel sheet B,G2,F1 C | |
| 4 | A02E 9492 00 Panel sheet J C | |
| 4 | A02E 9493 00 Panel sheet H C | |
| 5 | A02E 1915 01 Bracket D | |
| 6 | A02E 1922 01 Lever C | |
| 7 | A02E 1925 00 Handle C | |
| 8 | A02E 1923 01 Lever C | |
| 9 | A02E 1921 01 Bracket D | |
| 10 | A02E 1924 00 Bracket D | |
| 11 | A02E 1926 01 Pulling Spring C | |
| 12 | A02E 1930 00 Washer C | |
| 13 | A02E 1932 01 Reinforce Plate D | |
| 14 | A02E 1933 00 Shoulder screw C | |
| 15 | A02E 1927 01 Torsion Spring C | |
| 16 | A02E 1931 01 Collar D | |
| 17 | A02E 1916 01 Bracket D | |
| 18 | A02E 1928 01 Stay D | |
| 19 | A02E 1913 02 Arm D | |
| 20 | A02E 1934 00 Shoulder screw C | |
| 21 | A02E 1918 00 Stay D | |
| 22 | A02E 1683 00 Cover C | |
| 23 | A02E 1917 01 Collar D | |
| 24 | A02E 1911 00 Bracket D | |
| 25 | A00J 1919 00 Washer C | |
| 26 | A02E 1914 02 Arm D | |
| 27 | A02E 1912 00 Bracket D | |
| 28 | A02E M700 01 Panel assembly {bizhub C253} I | |
| 28 | A02E M710 02 Panel assembly {bizhub C353/C203} I |

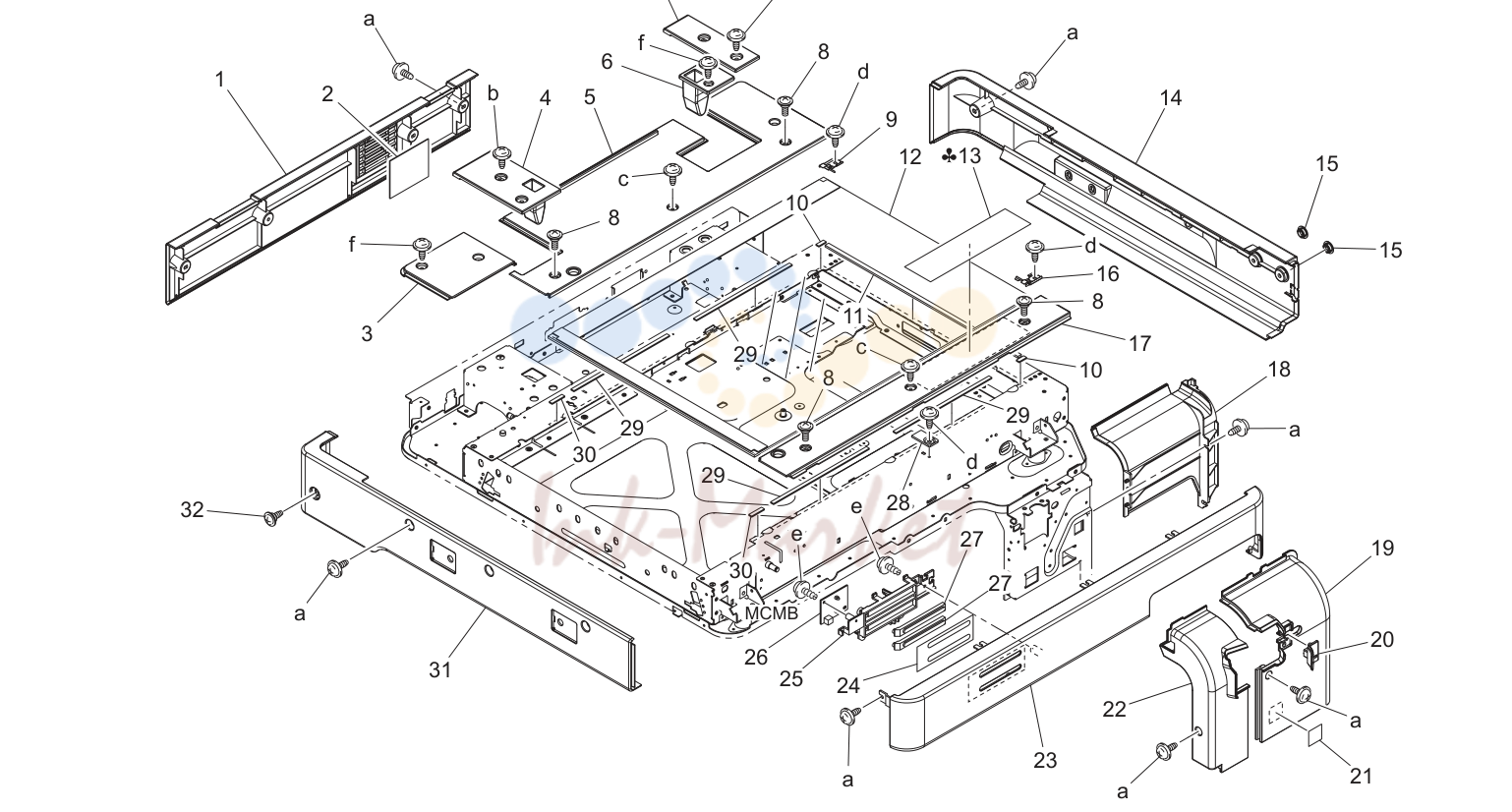

7. IR COVER
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 1671 00 Cover C 1 a-V137 | |
| 2 | 4025 2285 02 FILTER C 1 b-V121 | |
| 3 | A02E 1676 00 Cover C 1 c-V137 | |
| 4 | A02E 1691 01 Cover C 1 e-V153 | |
| 5 | A02E 1675 00 Cover C 1 f-V137 | |
| 6 | A02E 1690 01 Cover C | |
| 7 | A02E 1692 00 Cover C | |
| 8 | A02E 1679 00 Shoulder screw C | |
| 9 | A02E 2652 00 Holding Plate C | |
| 10 | A02E 2655 00 Seal C | |
| 11 | A02E 2654 00 Seal C | |
| 12 | A02E R726 00 Original Glass Assy C | |
| 13 | A00J 9401 00 Label Legal Restiriction B,C,D1,D3,F1,F2,G1,G2,H,I,J C | |
| 13 | A00J 9402 00 Label A,A1 C | |
| 14 | A02E 1673 00 Cover C | |
| 15 | A02E 1677 00 Cover C | |
| 16 | A02E 2651 00 Holding Plate C | |
| 17 | A02E 1674 00 Read Cover /Upper C | |
| 18 | A02E 1682 00 Cover C | |
| 19 | A02E 1680 00 Cover C | |
| 20 | A02E 1693 00 Cover C | |
| 21 | A011 9462 00 Label D | |
| 22 | A02E 1681 00 Cover C | |
| 23 | A02E 1670 01 Cover C | |
| 24 | A02E 1689 00 Shield plate C | |
| 25 | A02E 1698 01 Cover C | |
| 26 | A00J H00E 00 PWB Assembly LED2 I | |
| 27 | A00J 1682 02 Lens /B C | |
| 28 | A02E 2653 00 Regulating Plate C | |
| 29 | 9J06 1620 01 SEAL C | |
| 30 | A02E 2658 00 Seal C | |
| 31 | A02E 1672 01 Cover C | |
| 32 | 4036 1410 01 SHOULDER SCREW C |

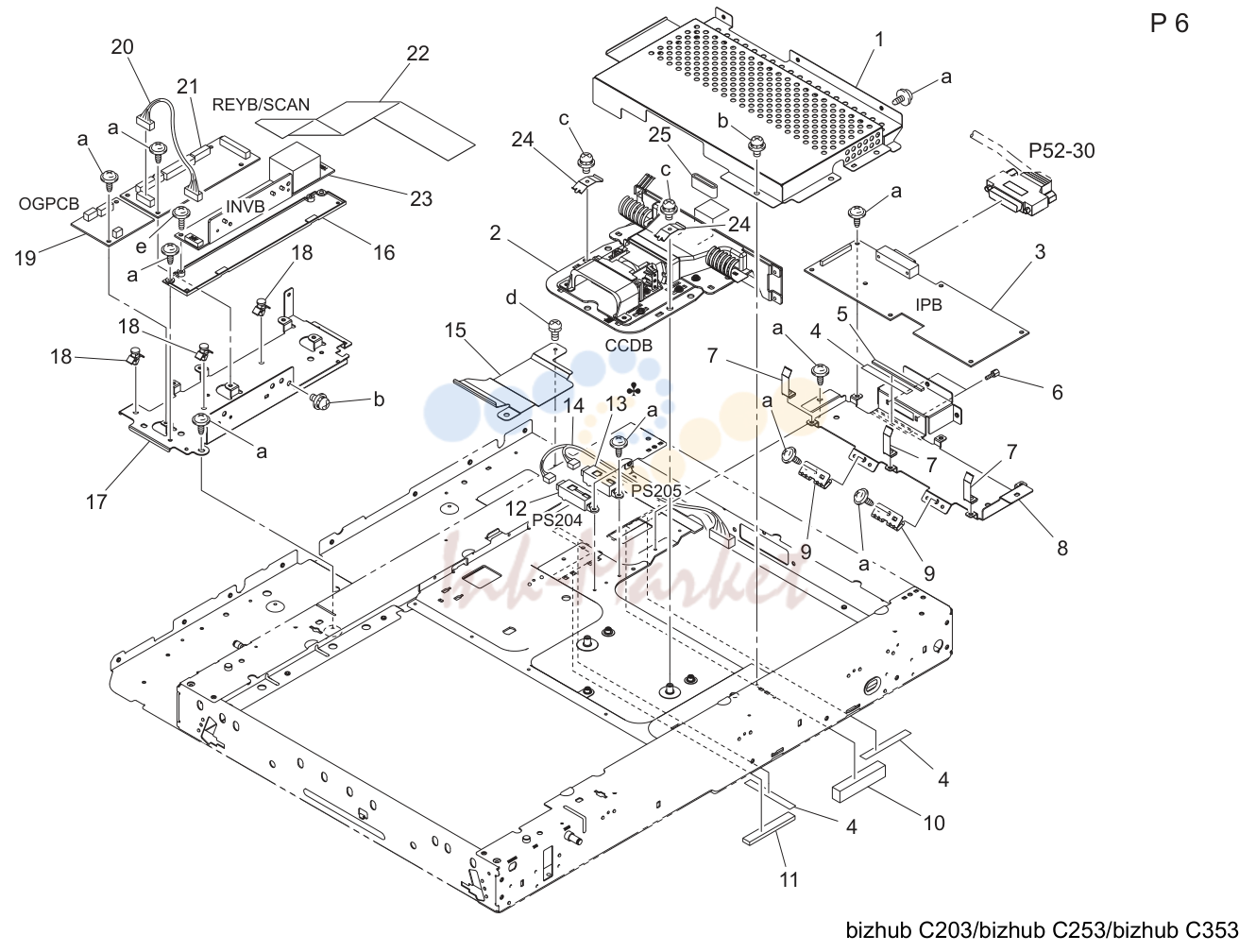

8. CCD UNIT
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 2785 00 Cover D 1 a-V137 | |
| 2 | A02E R724 00 CCD Lens Assy I 1 b-V116 | |
| 3 | A02E H311 00 PWB assembly(PWB-C ASSY) I 1 c-V116 | |
| 4 | A02E 2821 00 Tape C 3 e-V153 | |
| 5 | A00J M901 00 Gasket C | |
| 6 | A00J 1396 00 Screw C | |
| 7 | A02E 2820 00 Ground Plate D | |
| 8 | A02E 2814 01 Mounting Plate D | |
| 9 | A02E 2819 00 Ground Plate D | |
| 10 | A02E M70H 00 Gasket C | |
| 11 | A02E M70J 00 Gasket C | |
| 12 | 9335 1400 81 SOLID STATE SWITCH C | |
| 13 | 9335 1400 81 SOLID STATE SWITCH B,C,D1,D3,F1,F2,G1,G2,H,I,J C | |
| 14 | A00J N144 01 Scanner Wiring /4 D | |
| 15 | A02E 2642 00 Mounting Plate D | |
| 16 | 4036 1353 04 INSULATING MEMBER C | |
| 17 | A02E 2811 00 Mounting Plate D | |
| 18 | V502 0100 41 BUSHING D | |
| 19 | 9J07 0104 02 PWB-ID C | |
| 20 | A00J N147 00 SCANNER WIRING/7 D | |
| 21 | A00J H00A 02 PWB Assembly IF I | |
| 22 | A02E N152 00 Scanner Wiring /12 C | |
| 23 | A00J M410 00 Inverter unit I | |
| 24 | 4581 1579 01 PLATE SPRING D | |
| 25 | 9326 1200 21 FERRITE CORE D |
9. SCANNER SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E R723 00 1st Slider Assy C 1 a-V137 | |
| 2 | A02E 2744 00 Screw C 10 b-V137 | |
| 3 | 4002 1481 01 BUSHING C 1 c-V116 | |
| 4 | A02E 2739 00 Pulley C | |
| 5 | 4002 1480 01 BUSHING C | |
| 6 | A02E 2737 00 Holding Plate spring D | |
| 7 | A02E 2742 00 Mounting Plate D | |
| 8 | A02E 2738 00 Holding Plate spring D | |
| 9 | A02E 2740 00 Pulley C | |
| 10 | A02E 2741 00 Guide Part D | |
| 11 | A02E 2743 00 Cover D | |
| 12 | A02E 2731 00 Frame D | |
| 13 | A02E 2733 01 Mounting Plate D | |
| 14 | A00J 2732 01 Mirror C | |
| 15 | A02E 2734 01 Mounting Plate D | |
| 16 | A02E 2735 00 Plate spring D | |
| 17 | A02E 2736 00 Holding Plate spring D |
10. SCANNER DRIVE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 2754 00 Shaft D 1 a-V116 | |
| 2 | A02E 2753 00 Pulley C 2 b-V137 | |
| 3 | A00J 2762 00 Bearing C 2 c-V115 | |
| 4 | A02E 2760 00 Mounting Plate D 1 e-V218 | |
| 5 | A00J 2751 00 Wire /Front C | |
| 6 | A02E 2759 00 Mounting Plate D | |
| 7 | A02E 2763 00 Guide Part D | |
| 8 | A02E 2758 00 Pulley C | |
| 9 | A00J 2768 00 Pulling Spring C | |
| 10 | A02E 2761 00 Mounting Plate D | |
| 11 | A00J 2752 00 Wire /Rear C | |
| 12 | 4002 1458 01 TENSION SPRING C | |
| 13 | A02E M10A 00 Stepping motor C | |
| 14 | A00J 2767 00 Vibrationproof Rubber C | |
| 15 | A02E 2766 00 Mounting Plate D | |
| 16 | A02E 2756 00 Belt 210L C | |
| 17 | A02E 2755 00 Pulley 84T C |
11. GLASS SHIFTING UNIT
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 2892 00 Cover C 1 a-V121 | |
| 2 | 9J06 1589 00 COLLAR C 1 b-V115 | |
| 3 | A02E 2907 00 Screw C 2 c-V137 | |
| 4 | A02E 2903 00 Spacer (0.5) C | |
| 5 | A02E 2908 00 Spacer (0.2) C | |
| 6 | A02E 2909 00 Spacer (0.1) C | |
| 7 | A02E 2888 00 Pulley 37T C | |
| 8 | A02E 2906 00 Flange C | |
| 9 | A02E 2886 00 Pulley 37T C | |
| 10 | 1200 3121 09 BUSHING C | |
| 11 | A02E 2905 00 Seal C | |
| 12 | A02E 2884 00 Shaft D | |
| 13 | A02E 2887 00 Pulley 26/34T C | |
| 14 | A02E 2889 00 Mounting Plate D | |
| 15 | 4037 0903 01 PHOTO INTERRUPTER B | |
| 16 | A02E 2897 00 Mounting Plate D | |
| 17 | A00J M12B 01 Stepping motor C | |
| 18 | A02E R731 00 Sheet Assy C | |
| 19 | A02E R725 00 Glass Shifting Unit C | |
| 20 | A02E 2882 00 Cover C | |
| 21 | 4036 1410 01 SHOULDER SCREW C |
12. IR FRAME SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 2625 00 Protection Seal C 1 a-V137 | |
| 2 | 4581 1625 01 SEAL C 7 b-V115 | |
| 3 | A02E 2644 00 Holder D | |
| 4 | 9334 2610 12 REED SWITCH C | |
| 5 | A02E 2628 00 Seal C | |
| 6 | A02E N153 00 Scanner Wiring /13 D | |
| 7 | A02E 2643 00 Bracket D | |
| 8 | A02E 2647 00 Seal C | |
| 9 | A02E 2622 00 Mounting Plate D | |
| 10 | 9335 1400 61 SOLID STATE SWITCH B | |
| 11 | 9J06 1635 00 SEAL C | |
| 12 | A02E 2629 00 Seal C | |
| 13 | A02E 2630 00 Seal C | |
| 14 | A00J 2813 00 Guide Part C | |
| 15 | A02E 2624 00 Protection Seal C | |
| 16 | A02E 2812 00 Guide Part D |
13. IR FRAME SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | 4037 0903 01 PHOTO INTERRUPTER B 1 a-V137 | |
| 2 | A02E 2801 00 Mounting Plate D 1 b-V116 | |
| 3 | A02E 2623 00 Plate spring D | |
| 4 | A02E 2822 00 Tape C | |
| 5 | 4036 1720 01 PRESSURE SPRING C | |
| 6 | A02E 2802 00 Lever C | |
| 7 | A02E 2620 00 Frame D | |
| 8 | A02E 2646 00 Seal C | |
| 9 | A02E 2627 01 Bracket D | |
| 10 | A02E 2648 00 Seal C | |
| 11 | A02E N151 01 Scanner Wiring /11 D | |
| 12 | 9313 1500 21 FAN MOTOR C | |
| 13 | A02E 2815 00 Mounting Plate D | |
| 14 | A02E 2626 01 Bracket D | |
| 15 | A02E 2619 01 Frame D | |
| 16 | A02E 2641 00 Mounting Plate D | |
| 17 | A02E 2621 00 Frame D |
14. IR FRAME SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J N148 00 Scanner Wiring /8 D 1 a-V137 | |
| 2 | A00J 2637 00 Vibrationproof Rubber C 5 b-V137 | |
| 3 | A02E 2640 00 Bracket D 1 c-V153 | |
| 4 | A02E 2649 00 Bracket D 1 e-V116 | |
| 5 | A02E 2636 00 Bracket D 2 f-V115 | |
| 6 | A02E 2638 00 Bracket D | |
| 7 | 9373 2200 11 LOUDSPEAKER D | |
| 8 | A02E M70K 00 Gasket C,D1,D3,F2,G1,H,I,J,K C | |
| 9 | A02E 1473 00 Bracket D | |
| 10 | A02E 1659 00 Bracket D | |
| 11 | A02E 1153 00 Duct D | |
| 12 | A02E 1151 00 Duct D | |
| 13 | 9J03 M100 00 FAN MOTOR B | |
| 14 | A02E 1154 00 Duct D | |
| 15 | A02E 2639 00 Cord clamp D | |
| 16 | A02E 1156 00 Holder C | |
| 17 | 4038 2098 01 SEAL C |
15. T/C RAIL SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | 4038 2038 02 SET PLATE D 1 a-V137 | |
| 2 | A02E 1019 02 Rail D 1 b-V137 | |
| 3 | 4038 7316 01 LABEL D 8 c-V116 | |
| 4 | A02E 1060 01 Claw A,A1{bizhub C353} D | |
| 4 | A02E 1061 01 Claw C{bizhub C353} D | |
| 4 | A02E 1062 01 Claw B,G2{bizhub C353} D | |
| 4 | A02E 1064 00 Claw D1,D3,F1,F2,G1,H,I,J,K{bizh D | |
| 4 | A02E 1066 00 Claw A,A1{bizhub C253/C203} D | |
| 4 | A02E 1067 00 Claw C{bizhub C253/C203} D | |
| 4 | A02E 1068 00 Claw B,G2{bizhub C253/C203} D | |
| 4 | A02E 1070 00 Claw D1,D3,F1,F2,G1,H,I,J,K{bizh D | |
| 5 | A02E 3662 01 Seal C | |
| 6 | A02E 3661 00 Seal C | |
| 7 | A02E 3660 01 Guide D | |
| 8 | 4038 2110 03 SEAL C | |
| 9 | A02E 1022 00 Rail D | |
| 10 | A02E 1023 01 Rail D | |
| 11 | A02E 1024 01 Rail D |
16. ERASE LAMP SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E R706 00 Eraser Assy Black C 1 a-V145 | |
| 2 | A02E 1033 00 Bracket D 1 b-V217 | |
| 3 | A02E 1053 00 Shield plate C 1 c-V137 | |
| 4 | A02E M304 00 LED array C | |
| 5 | A02E R707 00 Eraser Assy YMC C | |
| 6 | A02E 1054 00 Cover C | |
| 7 | A02E 1051 00 Shield plate C | |
| 8 | A02E 1035 00 Reinforce plate D | |
| 9 | 9J06 2472 00 SEAL C | |
| 10 | A02E 1034 00 Rail D | |
| 11 | 9J06 2461 01 SEAL C | |
| 12 | A02E 1035 00 Reinforce plate D | |
| 13 | A02E 1037 00 Rail D | |
| 14 | A02E 9403 00 Label Iu C | |
| 15 | 4038 2072 04 PLATE SPRING C | |
| 16 | 4038 2069 01 SLIDER C | |
| 17 | A02E 1204 00 Seal C |
17. TRANSFER BELT UNIT
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E R708 00 Transfer Detection Assy C 1 a-V137 | |
| 2 | A02E 1123 00 Torsion spring C 1 b-V116 | |
| 3 | A02E 1122 01 Actuator C 1 c-V145 | |
| 4 | A02E 1121 00 Bracket D 1 e-4106 | |
| 5 | A02E N114 00 Connecting Detection harness D | |
| 6 | 9335 1300 61 PHOTO INTERRUPTER B | |
| 7 | A02E N131 00 Transfer Wiring /14 D | |
| 8 | A02E N132 01 Transfer Wiring /13 D | |
| 9 | A02E N130 00 Transfer Wiring /2 D | |
| 10 | 4163 5293 01 SCREW C | |
| 11 | 4038 2027 01 ARM C | |
| 12 | 4038 2029 01 PRESSURE SPRING C | |
| 13 | 4038 2028 01 TORSION SPRING C | |
| 14 | 4038 2026 01 LEVER C | |
| 15 | A02E 1103 00 Contact C | |
| 16 | 4038 2205 02 CONTACT C | |
| 17 | 4038 2207 01 PRESSURE SPRING C | |
| 18 | A02E 1104 00 Contact C | |
| 19 | A02E 1105 00 Contact C | |
| 20 | A02E 1102 00 Rail D | |
| 21 | A02E 1107 00 Contact C | |
| 22 | A02E 1101 00 Rail D | |
| 23 | 4038 2152 13 CONTACT C | |
| 24 | 4038 2077 13 CONTACT C | |
| 25 | 4038 2078 13 CONTACT C | |
| 26 | 4038 2153 13 CONTACT C | |
| 27 | 4038 2046 01 LEVER C | |
| 28 | 4038 2047 02 ARM C | |
| 29 | 4038 2080 01 CONTACT C | |
| 30 | 4038 2045 01 PLATE SPRING D | |
| 31 | A02E 1108 00 Contact C | |
| 32 | 4038 2048 01 TORSION SPRING C | |
| 33 | A02E R730 00 Transfer Belt Kit A |
18. P/H FRAME SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | 4038 2051 01 SEAL C 4 a-V137 | |
| 2 | A02E 1179 00 Seal C 4 b-V153 | |
| 3 | 9J06 2086 01 PLATE SPRING D 4 c-4154 | |
| 4 | A02E 1055 00 Holder D | |
| 5 | A02E H003 00 PWB assembly (PWB-PH ASSY) I | |
| 6 | A02E 1330 00 Holder D | |
| 7 | A02E R704 00 PU Lifting Plate Assy C | |
| 8 | 4038 2094 01 ROLL C | |
| 9 | 4038 2016 02 LIFTING PLATE D | |
| 10 | A02E 1058 00 Pressure spring C | |
| 11 | 4038 2018 03 HOLDER D | |
| 12 | 4038 2061 01 BRACKET D | |
| 13 | A02E R705 00 ATDC Connector Assy C |
19. PRINT HEAD SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E R701 00 Print Head Assy {bizhub C353} I 1 a-4154 | |
| 1 | A02E R702 00 Print Head Assy {bizhub C253/C203} I 1 b-4106 | |
| 2 | 4038 1906 04 PLATE SPRING C 4 c-V137 | |
| 3 | A02E 1048 00 Bracket D 1 e-V137 | |
| 4 | 4038 2187 04 GUIDE D | |
| 5 | 4038 2192 02 SHAFT D | |
| 6 | 4038 2189 01 GEAR 27T C | |
| 7 | 4038 2190 03 GEAR 16T C | |
| 8 | 4038 2191 02 GEAR 16T C | |
| 9 | 4038 2194 01 BRACKET D | |
| 10 | 4038 2193 03 SHAFT D | |
| 11 | 4038 2196 01 PRESSURE SPRING C | |
| 12 | 4038 2188 02 GEAR 30T C | |
| 13 | 4038 2184 01 SHOULDER SCREW C | |
| 14 | 4038 2179 01 WASHER C | |
| 15 | 4038 2180 01 CONTACT D | |
| 16 | 4038 2042 01 SPRING D | |
| 17 | 1067 2501 01 PIN C | |
| 18 | A02E G100 00 Mounting Plate D | |
| 19 | A02E R703 00 Skew Adjustment Assy C |
20. TONER CONVEYANCE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 3676 00 Gear 15T C 4 a-V165 | |
| 2 | A02E 3677 00 Gear 14T C 4 b-V217 | |
| 3 | A02E 3682 01 Bearing C 4 c-V137 | |
| 4 | A02E 3687 00 Washer C 4 e-V153 | |
| 5 | A02E 3674 01 Screw D 1 f-V218 | |
| 6 | A02E 3684 00 Seal C | |
| 7 | A02E 3673 00 Transport Pipe K D | |
| 8 | A02E 3681 00 Torsion spring C | |
| 9 | A02E 3679 01 Seal C | |
| 10 | A02E 1047 00 Insulating member C | |
| 11 | 4038 2056 02 SEAL C | |
| 12 | 4038 2052 02 DUCT D | |
| 13 | 4038 2053 02 SEAL C | |
| 14 | A02E 3603 00 Shutter C | |
| 15 | A02E 3604 00 Seal C | |
| 16 | A02E 3602 00 Torsion spring C | |
| 17 | A02E 3601 01 Pipe D | |
| 18 | A02E 3671 01 Screw D | |
| 19 | A02E 3670 00 Transport Pipe CMY D | |
| 20 | A02E 3637 00 Gear 18T C | |
| 21 | A02E 3683 00 Bushing C | |
| 22 | A02E 3678 00 Pin C | |
| 23 | A02E 3680 00 Shaft D |
21. TONER CONVEYANCE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 3616 01 Holder D 4 a-V137 | |
| 2 | A02E 3615 00 Cover D 1 b-V153 | |
| 3 | A02E 3619 00 Seal C 2 c-V137 | |
| 4 | A02E 3614 00 Bushing C 1 e-V217 | |
| 5 | A02E 3626 00 Gear 22T C 1 f-V218 | |
| 6 | A02E 3625 00 Bushing C 1 g-V116 | |
| 7 | A02E 3613 00 Coil C 1 h-V218 | |
| 8 | A02E 3617 00 Seal C | |
| 9 | A02E 3618 00 Guide D | |
| 10 | A02E 2452 01 Hold plate D | |
| 11 | A02E 2451 00 Gear 35T C | |
| 12 | 4004 5339 01 BUSHING C | |
| 13 | A02E 2586 01 Holder D | |
| 14 | A02E 2450 00 Gear 26/34T C | |
| 15 | A02E 2579 00 Gear 30/30T C | |
| 16 | 4004 2545 01 GEAR 18/30T C | |
| 17 | A02E 2453 00 Shaft D | |
| 18 | A02E 3611 01 Pipe D | |
| 19 | 4038 2143 01 SEAL C | |
| 20 | 4038 2114 01 TORSION SPRING C | |
| 21 | A02E 3628 00 Shutter D | |
| 22 | A02E 3631 00 Cap D | |
| 23 | A02E 3634 00 Bracket D | |
| 24 | A02E 1481 00 Seal C | |
| 25 | A02E 3627 00 Gear 18T C | |
| 26 | A02E 3635 00 Gear 41T C | |
| 27 | A02E 3622 00 Gear 27/48T C | |
| 28 | A02E G210 00 Caulking (Drive) D | |
| 29 | A02E 3636 00 Gear 32/43T C | |
| 30 | A02E 3630 00 Gear 22/37T C |
22. TONER COLLECTING SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A0DT WY0 THAMES WASTE TONER BOTTLE A 1 a-4154 | |
| 2 | A02E 3650 01 Rail D 1 b-V116 | |
| 3 | A02E 3651 00 Cover D | |
| 4 | 4037 0901 01 PHOTO INTERRUPTER B | |
| 5 | A02E N10G 00 Sensor Wiring /3 D | |
| 6 | A02E 3641 01 Shutter C | |
| 7 | A02E 3644 01 Torsion spring C | |
| 8 | A02E 3640 01 Pipe D | |
| 9 | A02E 3643 00 Seal C | |
| 10 | A02E 3642 01 Seal C |
23. 1ST PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E M202 00 Clutch C 1 a-V217 | |
| 2 | A02E G560 00 Caulking Rear Frame/Paper Feed D 1 b-V137 | |
| 3 | A02E 5606 00 Bracket D 1 c-V137 | |
| 4 | 4131 3003 01 BUSHING C 5 e-V217 | |
| 5 | A02E N105 00 Conveyance Wiring /1 D 1 f-V218 | |
| 6 | A02E R904 00 Photo Interrupter I | |
| 7 | A02E 5612 00 Torsion spring C | |
| 8 | 4030 3016 12 ACTUATOR C | |
| 9 | A02E 5601 01 Frame D | |
| 10 | A00J 5636 00 Roller A | |
| 11 | A02E 5611 00 Clutch C | |
| 12 | 4425 3013 01 GEAR 30T C | |
| 13 | 4037 0906 01 PHOTO INTERRUPTER B | |
| 14 | 4040 3097 01 SHAFT D | |
| 15 | 4030 3030 01 TORSION SPRING C | |
| 16 | 1065 3086 01 BUSHING C | |
| 17 | 1067 2501 01 PIN C | |
| 18 | A02E 5613 00 Lever C | |
| 19 | A02E 5614 00 Torsion spring C | |
| 20 | A02E 5608 00 Shaft D | |
| 21 | A02E 5605 00 Shaft D | |
| 22 | 4030 3003 01 SHAFT D | |
| 23 | 4030 3008 01 GEAR 29T C | |
| 24 | 4425 3016 01 GEAR 32T C | |
| 25 | A02E 5755 01 Guide C | |
| 26 | A02E 5604 00 Guide plate C | |
| 27 | A02E 5607 00 Holder D | |
| 28 | A02E 5609 00 Bracket D | |
| 29 | A02E 5603 00 Frame D |
24. 1ST PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 5691 01 Bracket D 1 a-V116 | |
| 2 | A02E 5696 00 Gear 18T C 1 b-V217 | |
| 3 | A02E 5693 01 Gear 26/34T C 1 c-V137 | |
| 4 | A02E R729 00 Separation Roller Assy C 1 e-V218 | |
| 5 | 4030 3039 01 SHAFT D 1 f-V218 | |
| 6 | 4030 3078 01 LEVER C 1 g-V136 | |
| 7 | 4030 3017 03 PRESSURE SPRING C 1 h-V137 | |
| 8 | 4030 3014 01 BRACKET D | |
| 9 | 4030 3013 01 HOLDER D | |
| 10 | A02E F566 00 Roller assy A | |
| 11 | A02E 5636 00 Guide D | |
| 12 | 4030 3125 01 TENSION SPRING C | |
| 13 | A02E 5635 00 Guide C | |
| 14 | A02E 5632 00 Guide D | |
| 15 | A02E 5610 00 Reinforce plate C | |
| 16 | A02E 5631 00 Bracket D |
25. 2ND PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E M202 00 Clutch C 1 a-V217 | |
| 2 | A02E G570 00 Caulking Rear Frame/Paper Feed2 D 1 b-V137 | |
| 3 | A02E 5753 00 Cover D 1 c-V137 | |
| 4 | A02E N106 02 Conveyance Wiring /2 D 1 e-V218 | |
| 5 | A02E R904 00 Photo Interrupter I 2 f-V218 | |
| 6 | A02E 5791 00 Bracket D | |
| 7 | A02E 5612 00 Torsion spring C | |
| 8 | 4030 3016 12 ACTUATOR C | |
| 9 | 4131 3003 01 BUSHING C | |
| 10 | A02E 5751 03 Frame D | |
| 11 | A00J 5636 00 Roller A | |
| 12 | A02E 5611 00 Clutch C | |
| 13 | 4425 3013 01 GEAR 30T C | |
| 14 | 4037 0906 01 PHOTO INTERRUPTER B | |
| 15 | A02E 5607 00 Holder D | |
| 16 | 4040 3097 01 SHAFT D | |
| 17 | 4030 3008 01 GEAR 29T C | |
| 18 | 4425 3016 01 GEAR 32T C | |
| 19 | 4030 3003 01 SHAFT D | |
| 20 | 4030 3030 01 TORSION SPRING C | |
| 21 | 1065 3086 01 BUSHING C | |
| 22 | 1067 2501 01 PIN C | |
| 23 | A02E 5605 00 Shaft D | |
| 24 | A02E 5613 00 Lever C | |
| 25 | A02E 5614 00 Torsion spring C | |
| 26 | A02E 5608 00 Shaft D | |
| 27 | A02E 5609 00 Bracket D | |
| 28 | A02E 5754 00 Guide plate C | |
| 29 | A02E 5755 01 Guide C | |
| 30 | A02E 5603 00 Frame D |
26. 2ND PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E R729 00 Separation Roller Assy C 1 a-V218 | |
| 2 | A02E 5636 00 Guide D 1 b-V137 | |
| 3 | A02E F566 00 Roller assy A 1 c-V218 | |
| 4 | 4030 3078 01 LEVER C 1 e-V137 | |
| 5 | 4030 3039 01 SHAFT D 1 f-V116 | |
| 6 | 4030 3014 01 BRACKET D | |
| 7 | 4030 3017 03 PRESSURE SPRING C | |
| 8 | 4030 3013 01 HOLDER D | |
| 9 | 4030 3125 01 TENSION SPRING C | |
| 10 | A02E 5772 00 Guide C | |
| 11 | 4030 3105 01 GUIDE C | |
| 12 | A02E 5843 00 Guide plate C | |
| 13 | A02E 5610 00 Reinforce plate C | |
| 14 | A02E 5771 00 Bracket D |
27. 2ND PAPER FEED SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 5871 02 Door C 1 a-V153 | |
| 2 | 4030 3123 01 PRESSURE SPRING C 2 b-V137 | |
| 3 | 4348 3058 01 TORSION SPRING C 1 c-V137 | |
| 4 | 4348 3071 01 SHAFT D 1 e-V218 | |
| 5 | A02E 5875 00 Claw C 1 f-V217 | |
| 6 | 4030 3122 01 ROLL C | |
| 7 | A02E 5874 00 Earth ground D | |
| 8 | A02E 5876 00 Claw C | |
| 9 | A02E 5879 01 Pressure spring C | |
| 10 | 4348 3054 01 BRACKET D | |
| 11 | A02E 5872 00 Guide plate C | |
| 12 | A02E 5842 01 Guide plate C | |
| 13 | A02E 5880 00 Holder D | |
| 14 | 4131 3532 02 BUSHING C | |
| 15 | A02E 5841 00 Roller C | |
| 16 | A02E 5881 00 Holder D | |
| 17 | A02E M200 00 Clutch C | |
| 18 | A02E 5693 01 Gear 26/34T C | |
| 19 | A02E 5804 00 Gear 23/28T C | |
| 20 | A02E 5805 00 Gear 20/31T C | |
| 21 | A02E G571 00 Caulking (Drive Reinforce) D |
28. 1ST CASSETTE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 6234 00 FRICTION PLATE C 1 a-V153 | |
| 2 | 4030 3226 01 FRICTION SHEET C 1 b-V153 | |
| 3 | A02E 6218 00 Lifting plate C 1 c-V153 | |
| 4 | A02E 6206 00 Reinforce plate D | |
| 5 | A02E 6213 00 Guide C | |
| 6 | 4498 3834 01 SCREW C | |
| 7 | A02E 6219 00 Bracket D | |
| 8 | A02E 6207 00 Cover C | |
| 9 | A02E 6202 00 Cover C | |
| 10 | 4002 3108 01 LEVER C | |
| 11 | A02E 6201 04 Cassette D | |
| 12 | A02E 9413 00 Label Fd C | |
| 13 | A02E 9415 00 Label Cd C | |
| 14 | A00J 9422 02 Label FD C | |
| 15 | 4030 3223 03 Earth ground C | |
| 16 | 4030 3228 12 GUIDE C | |
| 17 | A02E 6223 00 Guide plate C | |
| 18 | A02E R734 00 Regulating Plate Assy C | |
| 19 | A02E 6234 00 Brake C | |
| 20 | A02E 6226 00 Rail D | |
| 21 | 4498 3469 01 STOPPER D |
29. 1ST CASSETTE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A02E 6216 00 Shaft D 1 a-V116 | |
| 2 | 4030 3206 01 LEVER D 1 b-V217 | |
| 3 | 4030 3207 01 ACTUATOR C 1 c-4106 | |
| 4 | 4011 3021 01 WASHER C 2 e-V217 | |
| 5 | 4011 3020 01 WASHER C | |
| 6 | 1274 3603 01 BUSHING C | |
| 7 | A02E 6233 00 Cushion C | |
| 8 | A02E 6209 00 Regulating plate C | |
| 9 | 4537 3317 01 GUIDE D | |
| 10 | 4002 7306 01 LABEL CARRYING CAPACITY C | |
| 11 | A02E 6227 00 Cushion C | |
| 12 | 4163 5293 01 SCREW C | |
| 13 | A00J 6222 00 Lock Shaft C | |
| 14 | A02E 6224 00 Gear 14T C | |
| 15 | 4030 3214 02 SHOULDER SCREW C | |
| 16 | 4030 3215 01 GUIDE D | |
| 17 | A02E 6208 01 Regulating plate C | |
| 18 | 4037 3204 01 KNOB C | |
| 19 | 4498 3826 01 SHAFT D | |
| 20 | 4128 3823 01 LEVER C | |
| 21 | 4498 3825 01 PRESSURE SPRING C | |
| 22 | A02E 6210 00 Reinforce plate C | |
| 23 | 0992 3014 01 BUSHING C | |
| 24 | A02E 9412 00 Label Paper Supply C | |
| 25 | A02E 6220 00 Bracket D |
30. 2ND CASSETTE SECTION
| № | Артикул | Наименование |
|---|---|---|
| 1 | A00J 6234 00 FRICTION PLATE C 1 a-V153 | |
| 2 | 4030 3226 01 FRICTION SHEET C 1 b-V153 | |
| 3 | A02E 6218 00 Lifting plate C | |
| 4 | A02E 6206 00 Reinforce plate D | |
| 5 | A02E 6213 00 Guide C | |
| 6 | 4498 3834 01 SCREW C | |
| 7 | A02E 6219 00 Bracket D | |
| 8 | A02E 6302 00 Cover C | |
| 9 | A00J 9421 02 Label CD C | |
| 10 | A00J 9423 02 Label FD C | |
| 11 | A02E 6301 03 Cassette D | |
| 12 | A02E 6214 00 Lever C | |
| 13 | 4498 3469 01 STOPPER D | |
| 14 | A00J 9422 02 Label FD C | |
| 15 | A02E R734 00 Regulating Plate Assy C | |
| 16 | A02E 6223 00 Guide plate C | |
| 17 | 4030 3228 12 GUIDE C | |
| 18 | 4030 3223 03 Earth ground C |
Полный список запчастей доступен по запросу.
комментарии
