HP LaserJet Enterprise M806 / Flow MFP M830 — монохромные лазерные аппараты A3 корпоративного класса. M806 — принтер, M830 — многофункциональное устройство (МФУ) с потоковым сканером. Высокая скорость и ресурс, общая платформа и запчасти.
Ключевые характеристики
| Тип | Монохромный лазерный, A3 (M830 — МФУ) |
| Скорость | до 55–56 стр/мин |
| Картридж | 87A / 87X (CF287A / CF287X) |
| Назначение | высокотиражная корпоративная монохромная печать A3 |
Расходные материалы
Основной расходник — картридж CF287A / CF287X (87A/87X). В каталоге — картриджи 87A/87X, термоблоки, ролики и запчасти по узлам (ниже).
Запчасти по узлам (со схемами)
Взрыв-схемы по каждому узлу с артикулами. Детали, доступные к заказу, ведут на карточку товара; остальные — на форму запроса цены.
Содержание
- 1. Assembly locations
- 2. Figure 2-2 Base product (no optional trays or accessories)
- 3. Figure 2-6 Booklet maker only covers
- 4. Document feeder assemblies (M830)
- 5. Scanner assemblies (M830)
- 6. Covers
- 7. Internal assemblies
- 8. Internal assemblies (2 of 4)
- 9. Internal assemblies (3 of 4)
- 10. Internal assemblies (4 of 4)
- 11. 3500-sheet paper feeder (HCI)
- 12. 3500-sheet paper deck components
- 13. Figure 2-18 3500-sheet paper feeder (2 of 2)
- 14. Stapler stacker/booklet maker
- 15. Booklet maker covers
- 16. Finisher main body (1 of 3)
- 17. Finisher main body (2 of 3)

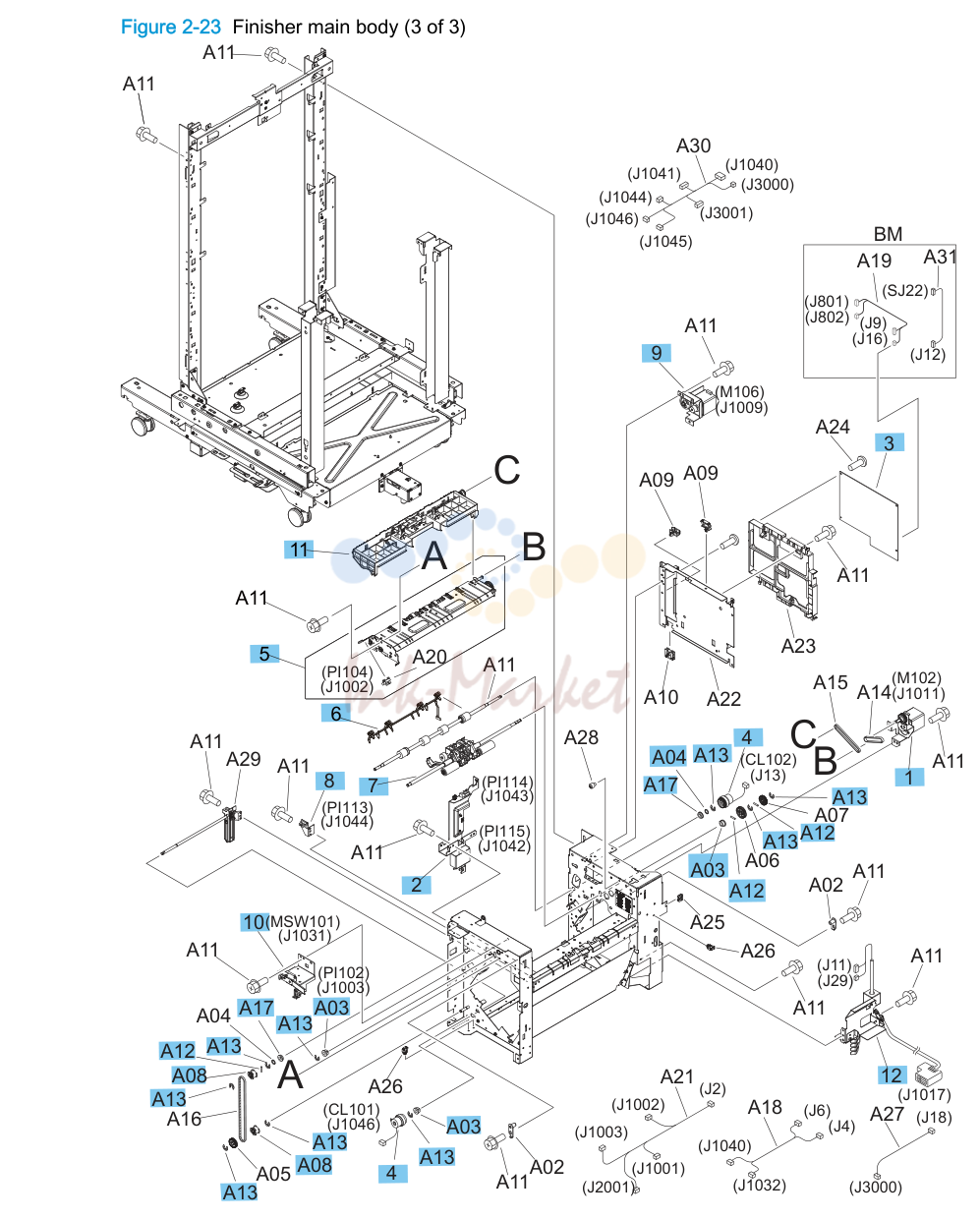

- 18. Finisher main body (3 of 3)

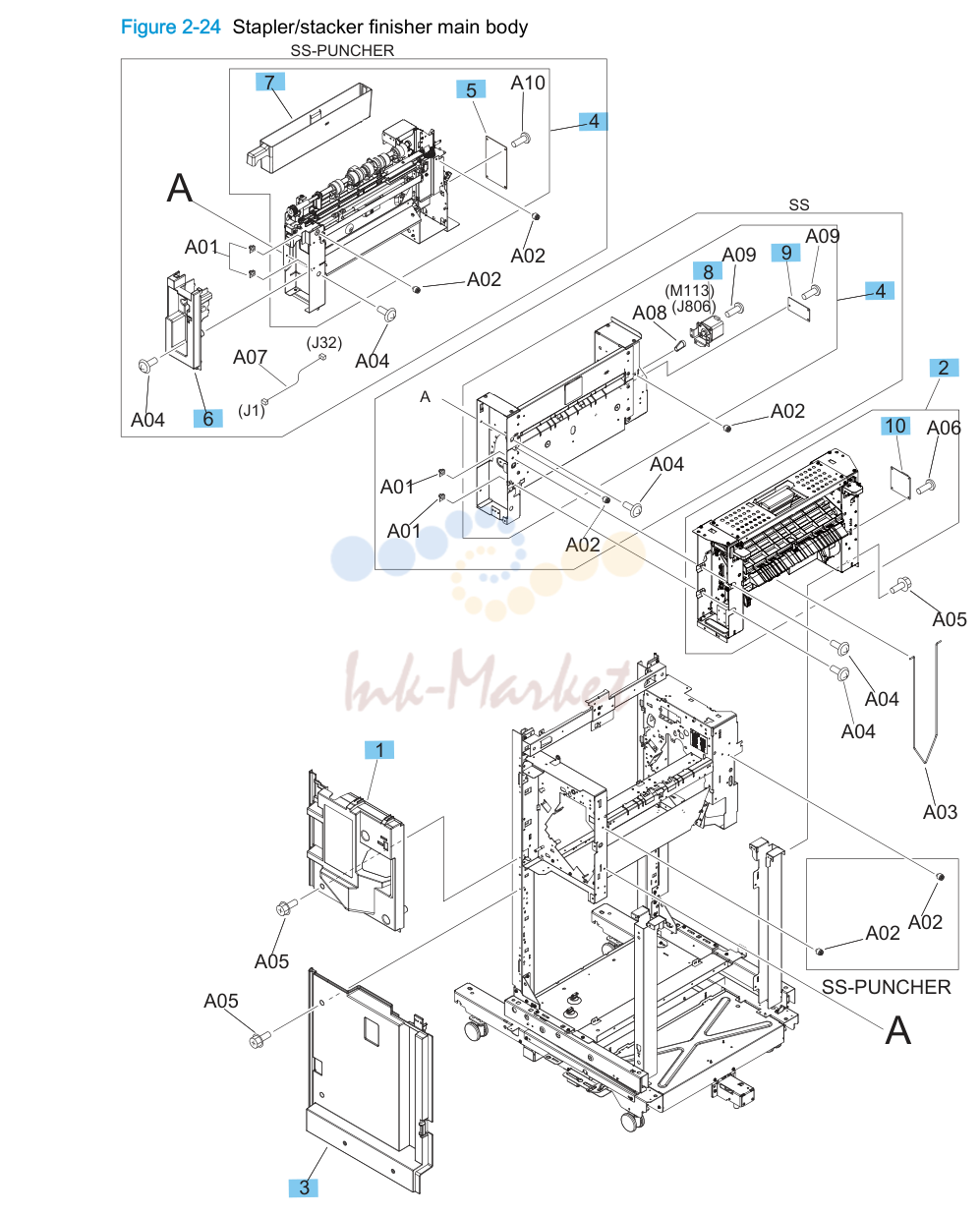

- 19. Stapler/stacker finisher main body

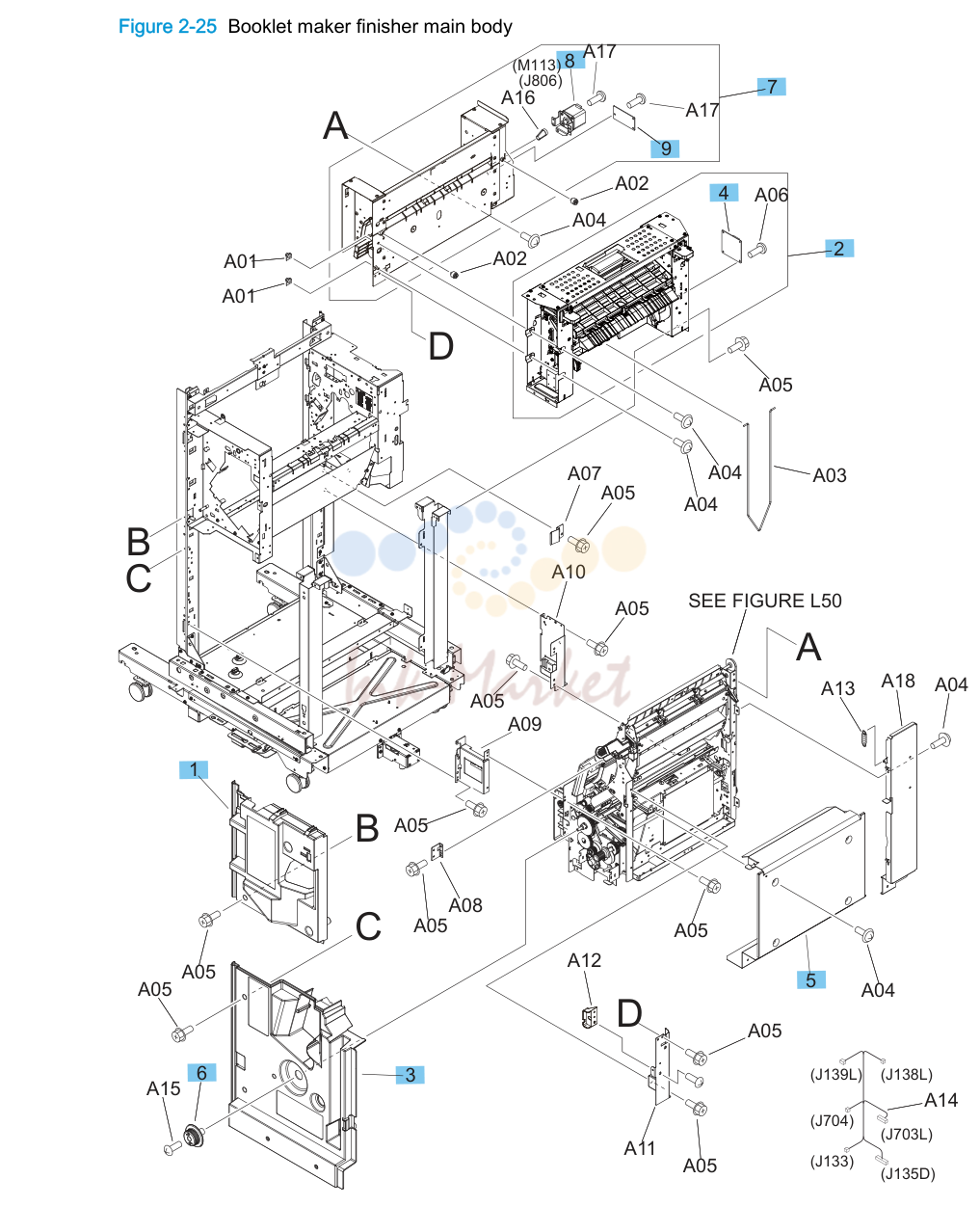

- 20. Booklet maker finisher main body

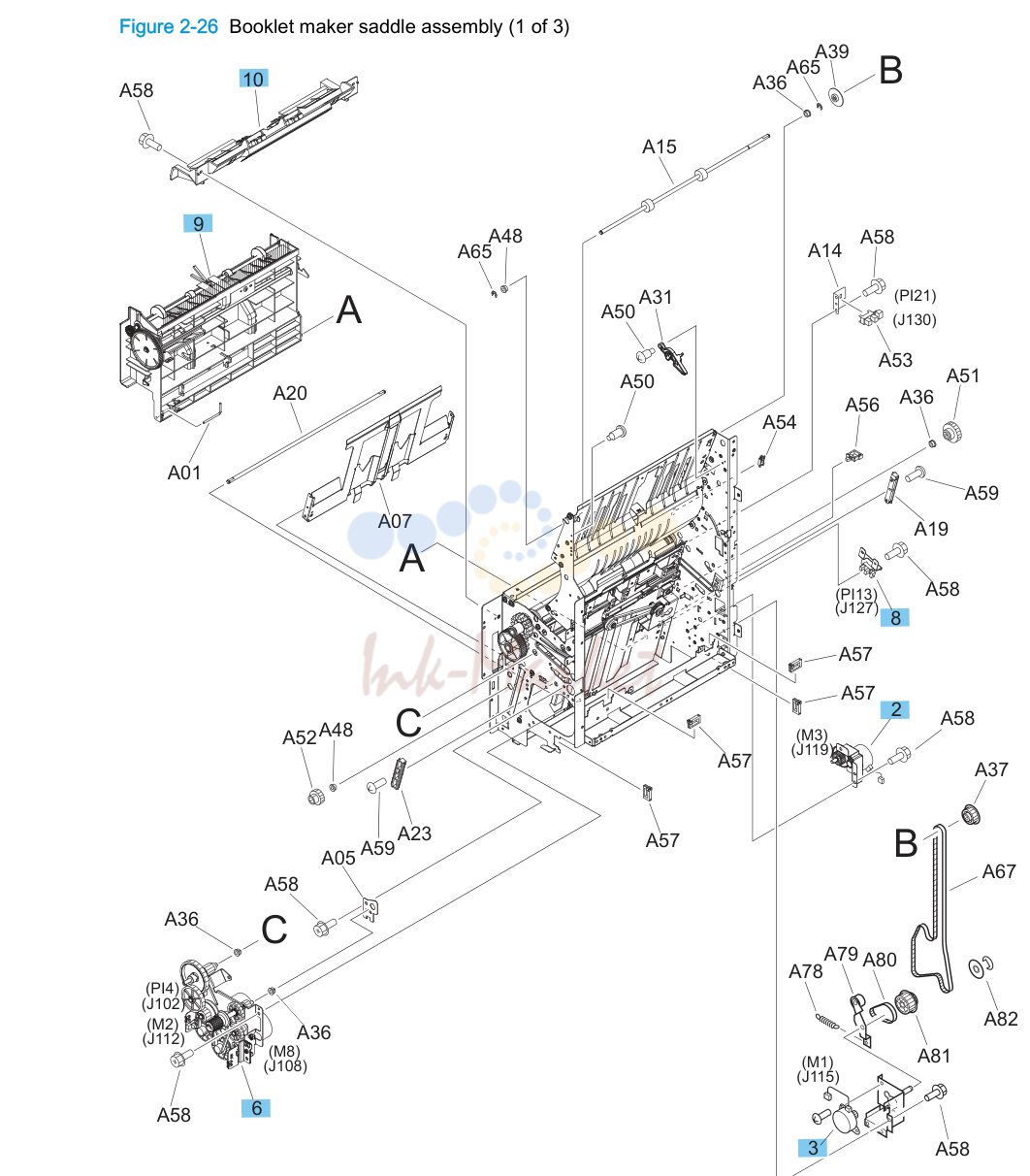

- 21. Booklet maker saddle assembly
1. Assembly locations
| № | Артикул | Наименование |
|---|---|---|
| 1 | Scanner assembly 4 ADF output bin | |
| 2 | Hardware Integration Pocket (HIP) cover 5 Control-panel assembly | |
| 3 | Automatic document feeder (ADF) |

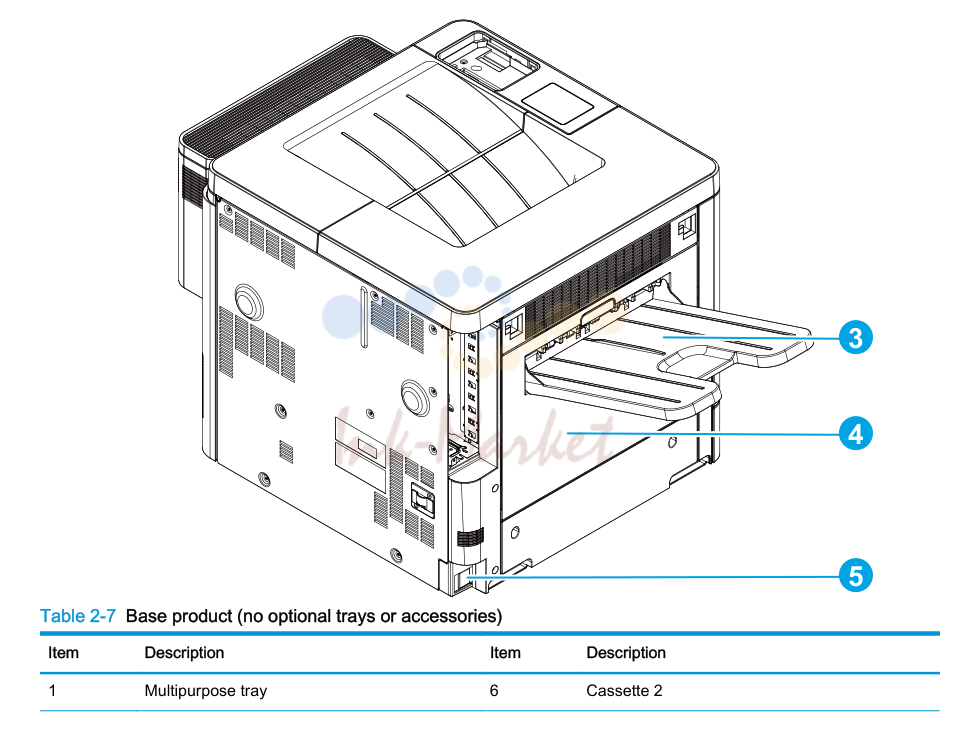

2. Figure 2-2 Base product (no optional trays or accessories)
| № | Артикул | Наименование |
|---|---|---|
| 2 | Right door 7 Cassette | |
| 3 | Face-up tray 8 Front door | |
| 4 | Left door 9 Power switch | |
| 5 | Power receptacle 10 Hardware Integration Pocket (HIP) cover (M806 | |
| 1 | Document feeder assembly | |
| 2 | Scanner assembly | |
| 560 | Chapter 2 Parts and diagrams ENWW | |
| 1 | Connector 4 Positioning pin | |
| 2 | Paper path assembly 5 Right cassette | |
| 3 | Right door 6 Left cassette | |
| 1 | Open/closed stepped cover 10 Rear cover | |
| 2 | Upper stepped cover 11 Bin cable cover | |
| 3 | Lower stepped cover 12 Pre-reverse cover | |
| 4 | Upper (top) cover 13 Front foot cover | |
| 5 | Punch cover 14 Front cover (door) | |
| 6 | Upper reverse cover 15 Height wall assembly | |
| 7 | Rear reverse cover 16 Lower bin assembly | |
| 8 | Right cover 17 Upper bin assembly | |
| 9 | Rear foot cover 18 Stack wall upper assembly and upper wall guide | |
| 562 | Chapter 2 Parts and diagrams ENWW |

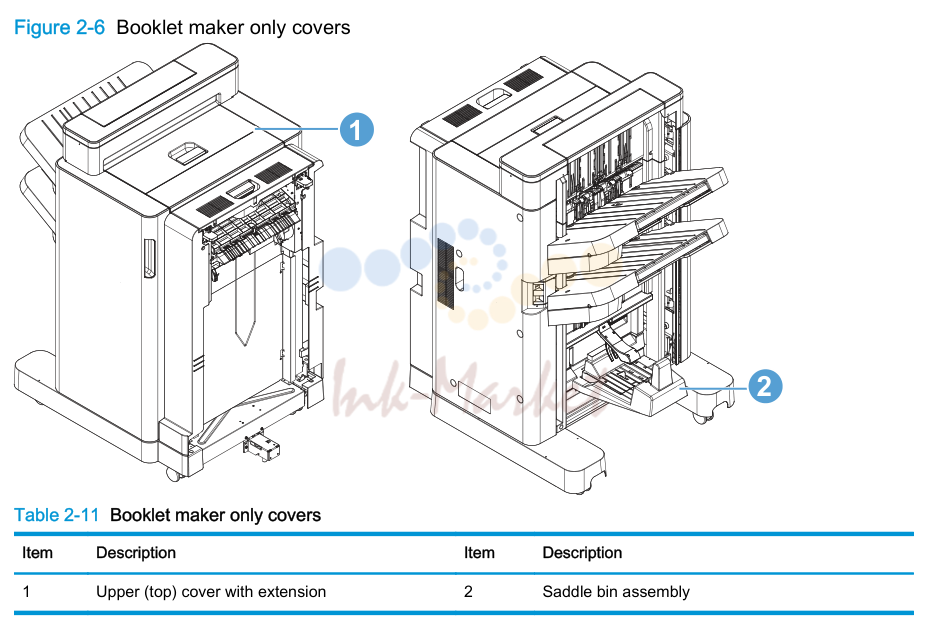

3. Figure 2-6 Booklet maker only covers
| № | Артикул | Наименование |
|---|---|---|
| 1 | Kit, ADF whole unit, A3 (includes white backing kit) (M830) CF367-67920 | |
| 2 | Kit, scanner whole unit (includes white backing kit) (M830) CF367-67919 | |
| 3 | Cover, control panel access (M830) 5042-9118 | |
| 4 | Kit, control panel (without keyboard) (M830) 5851-5952 | |
| 5 | Cover, HIP (M830) 5851-5361 | |
| 6 | Cover, USB (M830) 5851-5360 |

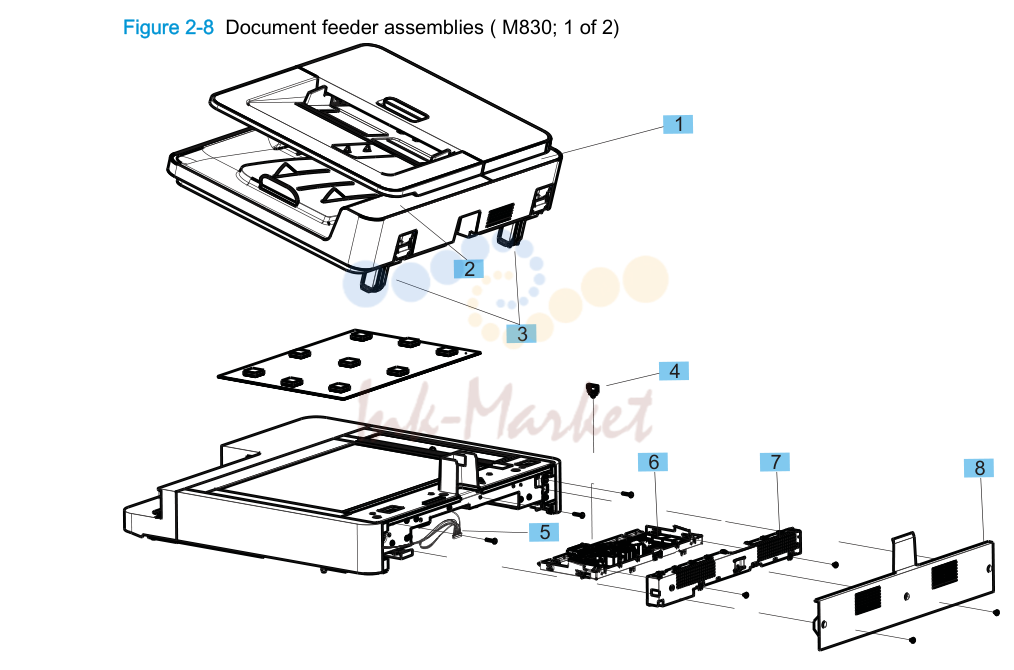

4. Document feeder assemblies (M830)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Cover, rear, left ADF (M830) A8T68-40067 | |
| 2 | Cover, rear, right ADF (M830) A8T68-40066 | |
| 3 | Assembly, ADF hinge (M830) A8T68-60025 | |
| 4 | Clip, ISA cable (M830) 5851-4725 | |
| 5 | Cable, power, integrated scan assembly (M830) CF367-60127 | |
| 6 | Scanner control board (SCB; M830) CF367-60002 | |
| 7 | Cage, back, SCB cover (M830) CF367-00018 | |
| 8 | Cover, back, scanner (M830) CF368-60142 | |
| 1 | Cover, ADF roller (M830) A8T68-40072 | |
| 2 | Kit, ADF roller (M830) C1P70-67901 | |
| 3 | Background selector for backside scan (M830) A8T68-60021 |

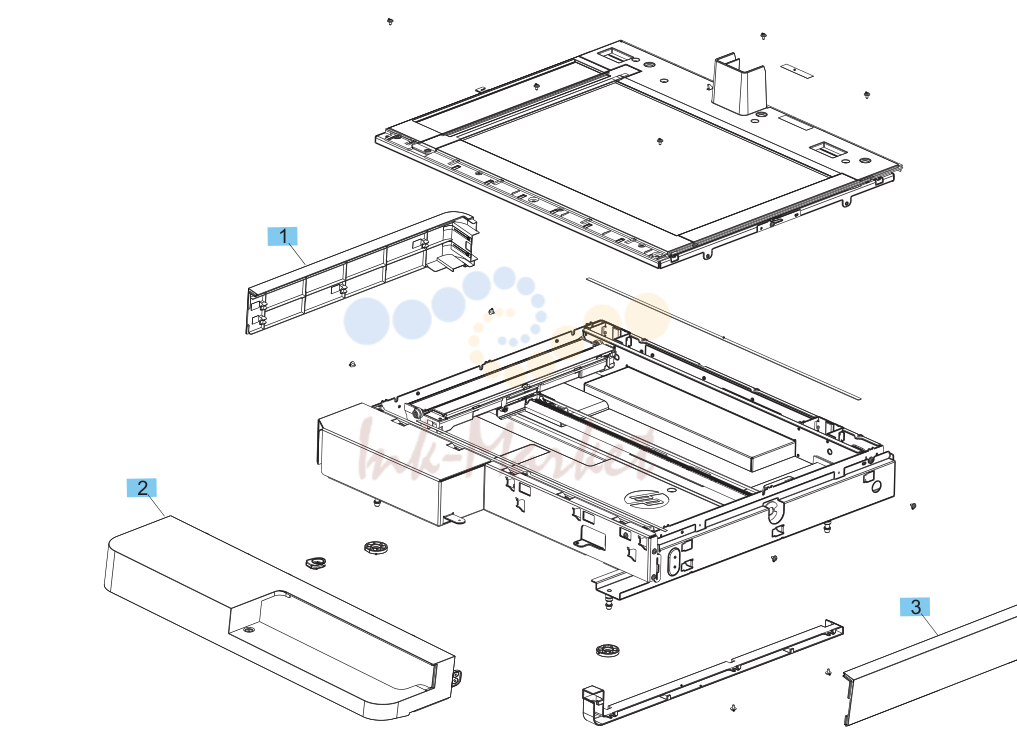

5. Scanner assemblies (M830)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Cover, left, scanner (M830) CF367-40003 | |
| 2 | Cover, front, scanner (M830) CF367-40002 | |
| 3 | Cover, right, scanner (M830) CF367-40004 |

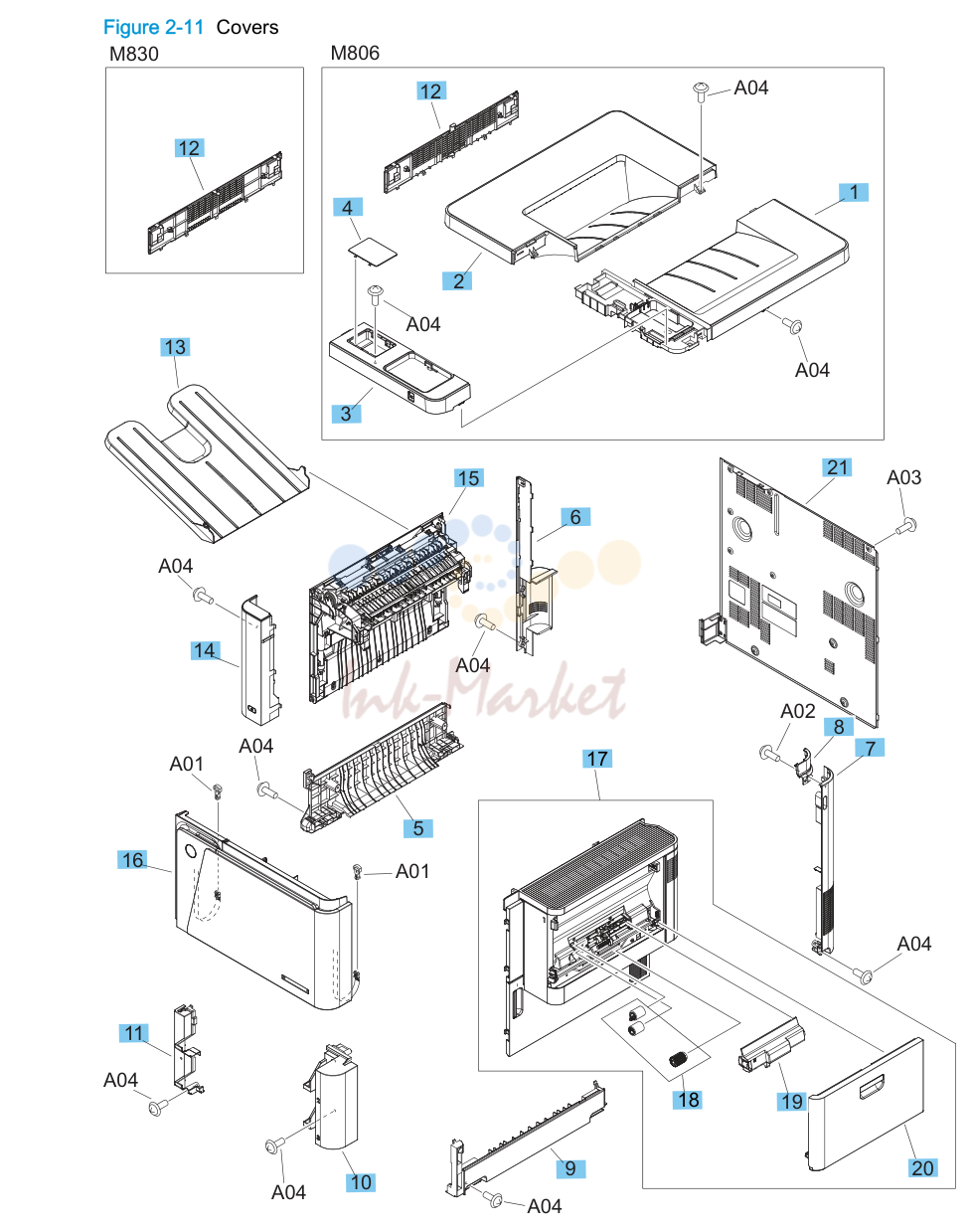

6. Covers
| № | Артикул | Наименование |
|---|---|---|
| 1 | Cover, top right (M806) RC3-3945-000CN | |
| 2 | Cover, top left (M806) RC3-3946-000CN | |
| 3 | Cover, operation panel, top (M806) RC3-3947-000CN | |
| 4 | Cover, hip (M806) RC3-3948-000CN | |
| 5 | Cover, left lower RC3-3949-000CN | |
| 6 | Cover, corner, left rear RC3-3952-000CN | |
| 7 | Cover,right rear corner,lower RC3-3954-000CN | |
| 8 | Cover,right rear corner,upper RC3-3955-000CN | |
| 9 | Cover, right lower RC3-3956-000CN | |
| 10 | Cover, corner, right front RC3-3957-000CN | |
| 11 | Cover, corner, left front RC3-3958-000CN | |
| 12 | Cover, left upper (M806) RC3-3979-000CN | |
| 12 | Cover, left upper (M830) RC3-4589-000CN | |
| 13 | Tray, face-up RC3-3985-000CN | |
| 14 | Front left lower cover assembly RM1-9722-000CN | |
| 15 | Left door assembly RM1-9736-000CN | |
| 16 | Kit, front door assembly CF367-67909 | |
| 17 | Right door assembly RM1-9769-000CN | |
| 18 | Kit, tray 2-X roller CF367-67903 | |
| 19 | Roller cover assembly RM1-9809-000CN | |
| 20 | Multi-purpose tray (Tray 1) assembly RM1-9774-000CN | |
| 21 | Rear cover assembly RM1-9787-000CN |

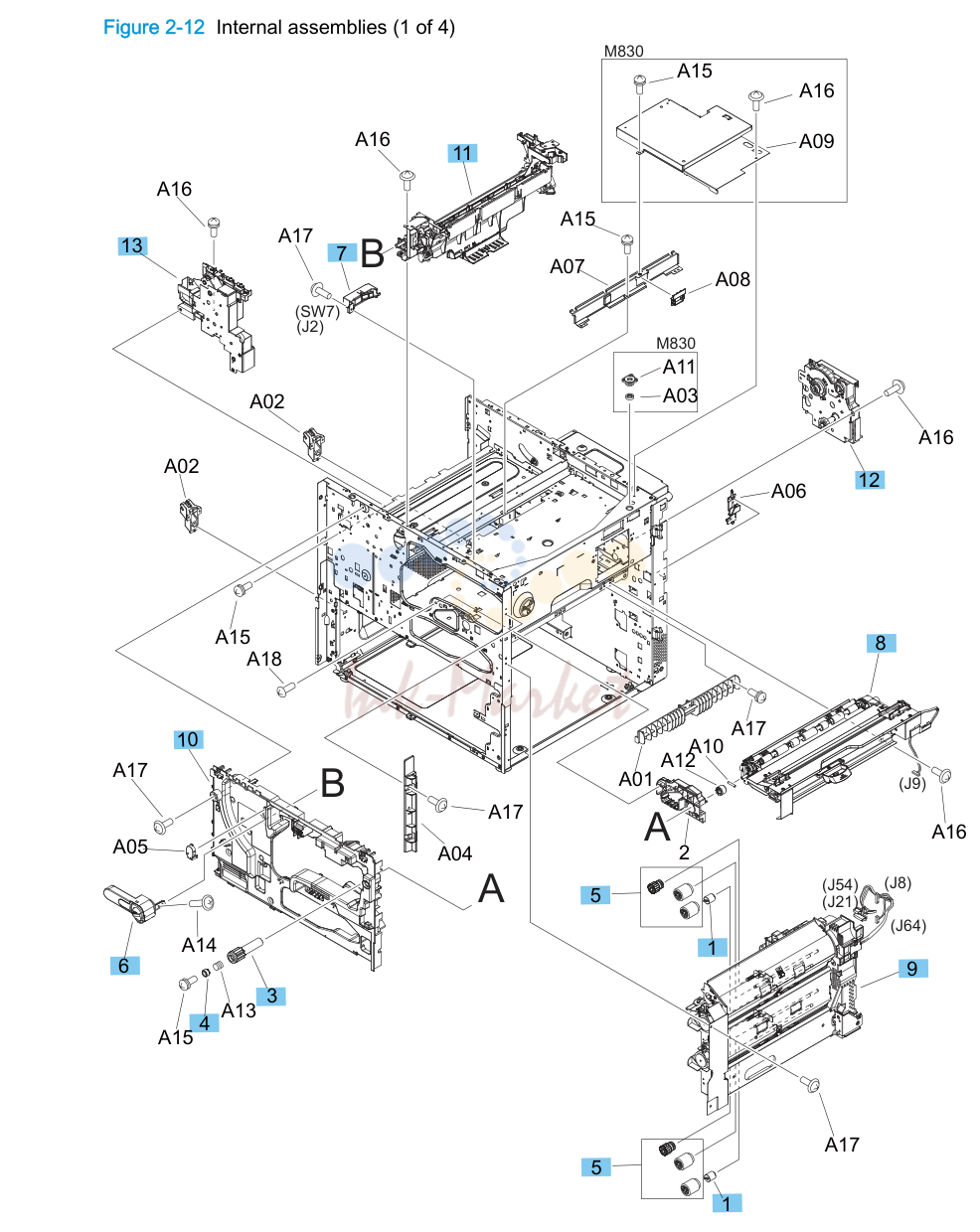

7. Internal assemblies
| № | Артикул | Наименование |
|---|---|---|
| 1 | Limiter, torque RB2-5759-000CN | |
| 2 | Guide, cartridge, front RC3-3968-000CN | |
| 3 | Dial, jam dispose RC3-4269-000CN | |
| 4 | Lid, jam dispose dial RC4-2004-000CN | |
| 5 | Kit, tray 2 roller CF367-67903 | |
| 6 | Control lever assembly RG5-5746-030CN | |
| 7 | Right door switch assembly RM1-9725-000CN | |
| 8 | Registration assembly RM1-9742-000CN | |
| 9 | Paper pickup assembly RM1-9745-000CN | |
| 10 | Front inner cover assembly RM1-9760-000CN | |
| 11 | Cartridge lifter assembly RM1-9775-000CN | |
| 12 | Drum drive assembly RM1-9784-000CN | |
| 13 | Fusing drive assembly RM1-9788-000CN |

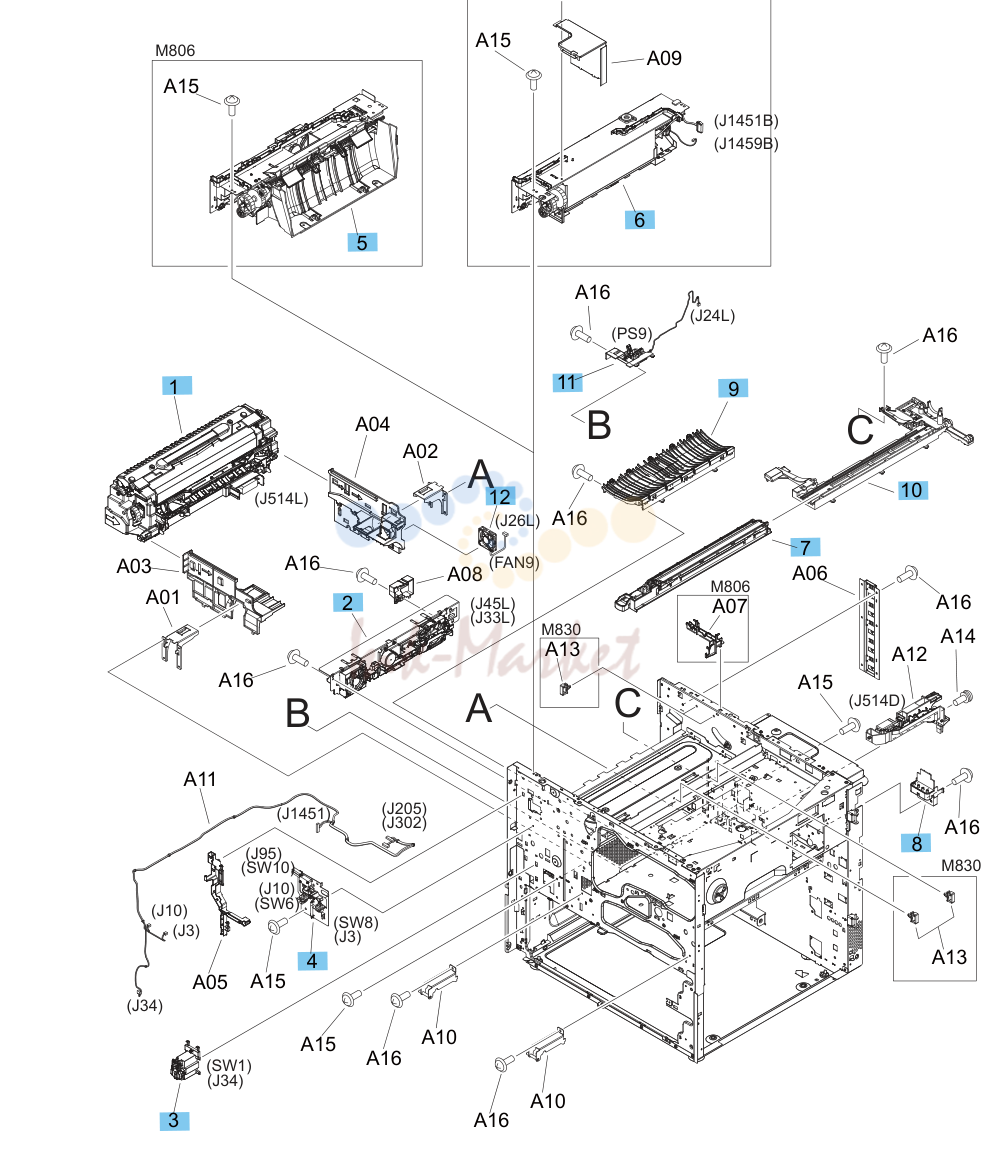

8. Internal assemblies (2 of 4)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Kit, fuser assembly, 110V CF367-67905 | |
| 1 | Kit, fuser assembly, 220V CF367-67906 | |
| 2 | Cooling unit assembly RM1-9720-000CN | |
| 3 | Power switch assembly RM1-9723-000CN | |
| 4 | Interlock assembly RM1-9724-000CN | |
| 5 | Face-down paper delivery assembly (M806) RM1-9732-000CN | |
| 6 | Paper delivery fan assembly (M830) RM1-9734-000CN | |
| 7 | Kit, transfer roller assembly CF367-67907 | |
| 8 | Cartridge contact assembly RM1-9758-000CN | |
| 9 | Transfer paper feed assembly RM1-9705-000CN | |
| 10 | Transfer holder assembly RM1-9706-000CN | |
| 11 | Sensor unit, loop RM1-9707-000CN | |
| 12 | Fan RK2-5004-000CN |

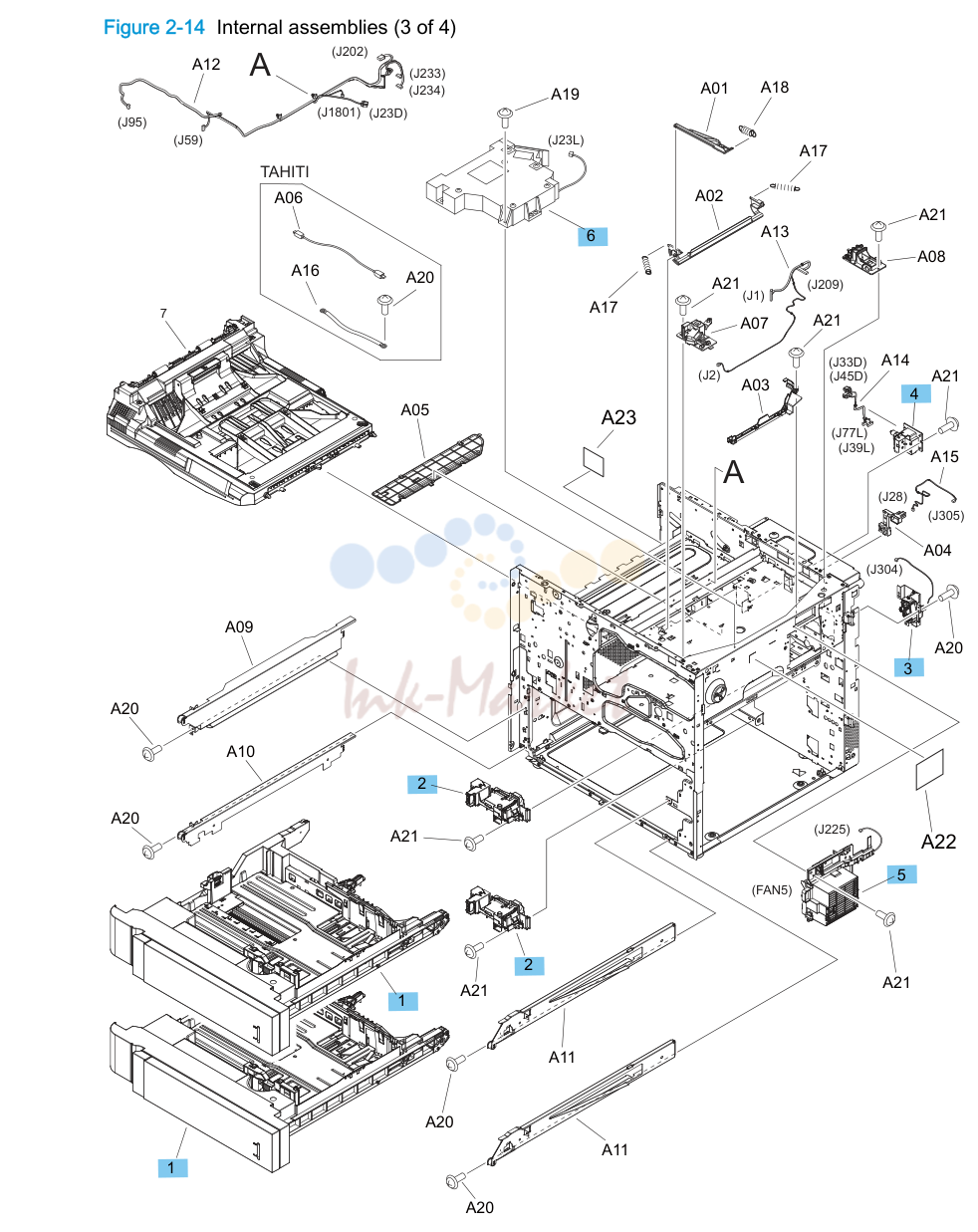

9. Internal assemblies (3 of 4)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Cassette assembly RM1-9726-000CN | |
| 2 | Auto close assembly RM1-9757-000CN | |
| 3 | Tag assembly RM1-9759-000CN | |
| 4 | Fixing bias contact assembly RM1-9762-000CN | |
| 5 | Cartridge fan assembly RM1-9768-000CN | |
| 6 | Laser scanner assembly RM2-5207-000CN |

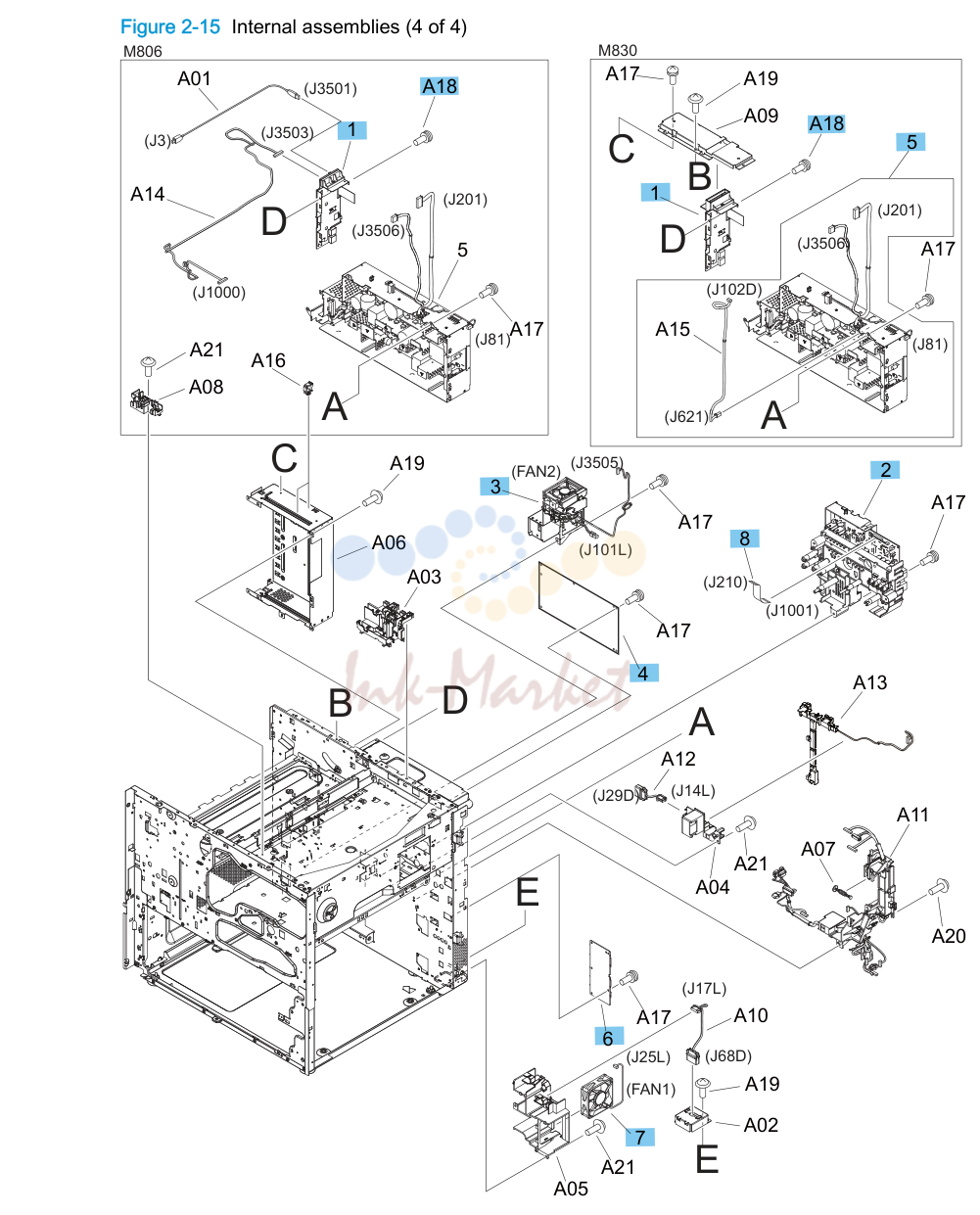

10. Internal assemblies (4 of 4)
| № | Артикул | Наименование |
|---|---|---|
| 1 | ICB PCA assembly (M806) RM1-9764-000CN | |
| 1 | ICB PCA assembly (M830) RM1-9765-000CN | |
| 2 | High voltage power supply RM1-9767-000CN | |
| 3 | Option connector assembly RM1-9778-000CN | |
| 4 | DC controller PCA assembly RM2-0540-000CN | |
| 5 | Low-voltage power supply, 110-127V (M806) RM2-0544-000CN | |
| 5 | Low-voltage power supply, 220-240V (M806) RM2-0545-000CN | |
| 5 | Low-voltage power supply, 110-127V (M830) RM2-0548-000CN | |
| 5 | Low-voltage power supply, 220-240V (M830) RM2-0549-000CN | |
| 6 | Driver PCA assembly RM2-0558-000CN | |
| 7 | Fan RK2-4997-000CN | |
| 8 | Cable, flexible flat RK2-5013-000CN |

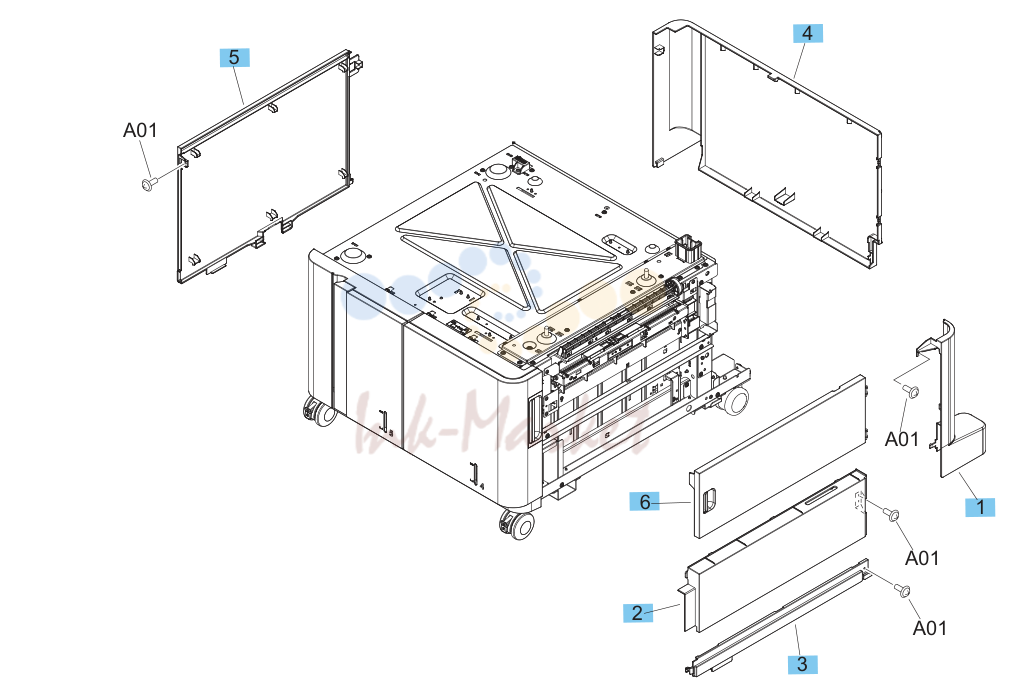

11. 3500-sheet paper feeder (HCI)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Cover, corner, right rear RC3-4715-000CN | |
| 2 | Cover, right center RC3-4716-000CN | |
| 3 | Cover, right lower RC3-4717-000CN | |
| 4 | Cover, rear RC3-4718-000CN | |
| 5 | Cover, left RC3-4719-000CN | |
| 6 | Right door assembly RM1-9577-000CN | |
| 7 | Paper path connection assembly RG5-6227-040CN |

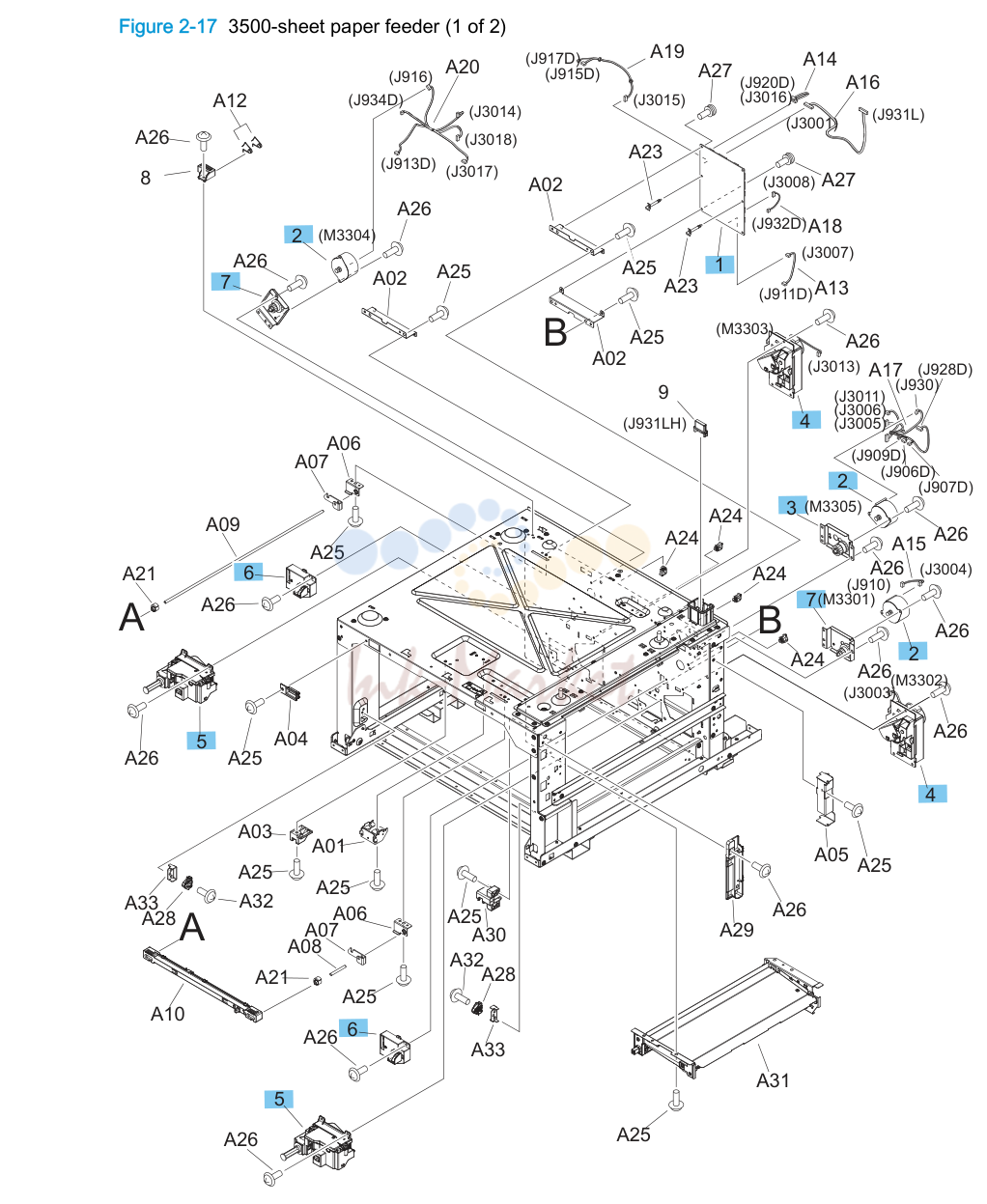

12. 3500-sheet paper deck components
| № | Артикул | Наименование |
|---|---|---|
| 1 | Controller PCA assembly RM2-0567-000CN | |
| 2 | Motor, stepping, DC RK2-1331-000CN | |
| 3 | Crossing drive assembly RM1-9582-000CN | |
| 4 | Lifter drive assembly RM1-8879-000CN | |
| 5 | Auto close assembly RM1-8880-000CN | |
| 6 | Paper remnant detect assembly RM1-9579-000CN | |
| 7 | Paper pick-up drive assembly RM1-9581-000CN |

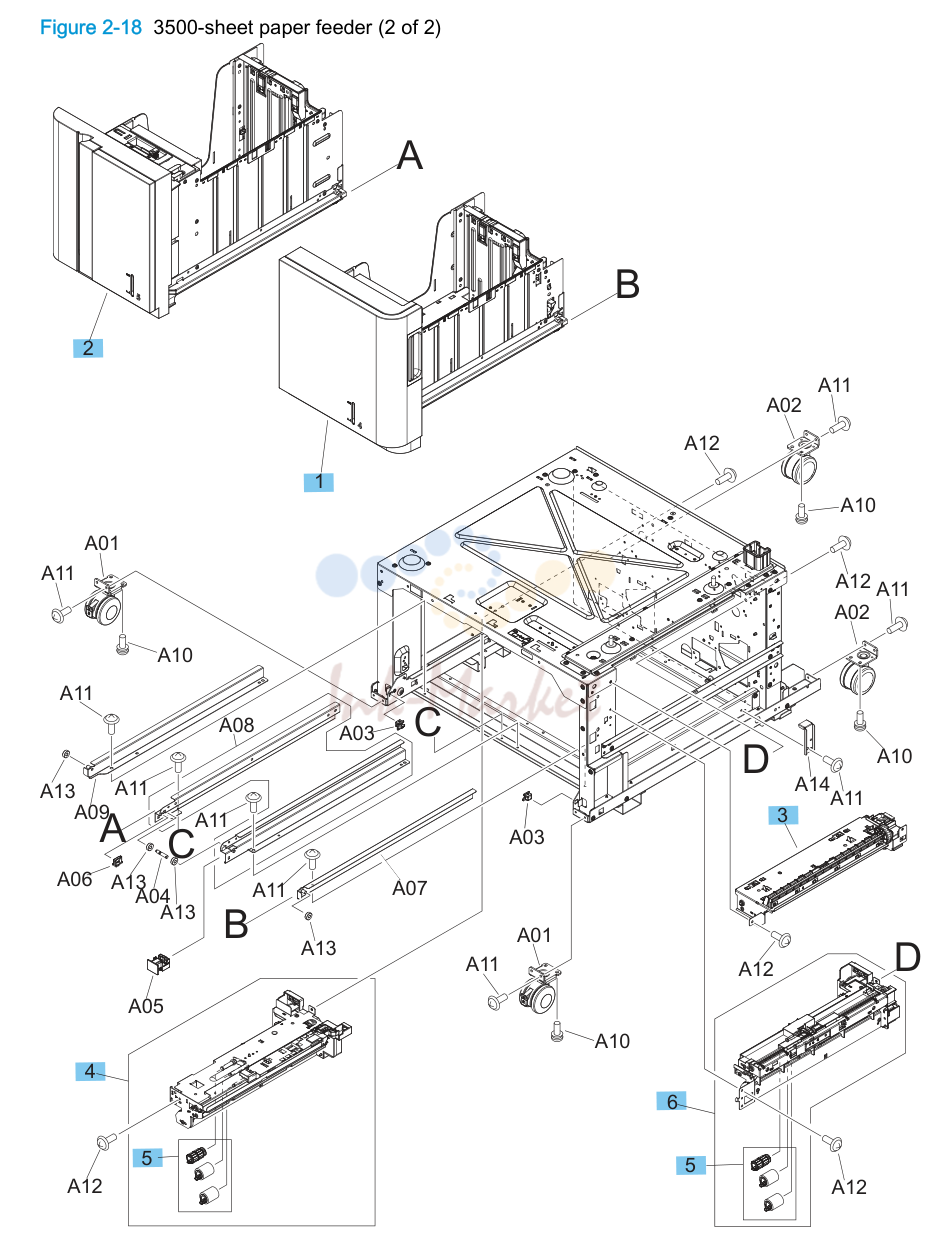

13. Figure 2-18 3500-sheet paper feeder (2 of 2)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Kit, HCI right tray CZ244-67903 | |
| 2 | Kit, HCI left tray CZ244-67904 | |
| 3 | Crossing paper feed assembly RM1-9883-000CN | |
| 4 | Paper pick-up assembly RM2-0708-000CN | |
| 5 | Kit, tray 2-x roller CF367-67903 | |
| 6 | Paper pickup paper feed assembly RM2-0709-000CN |

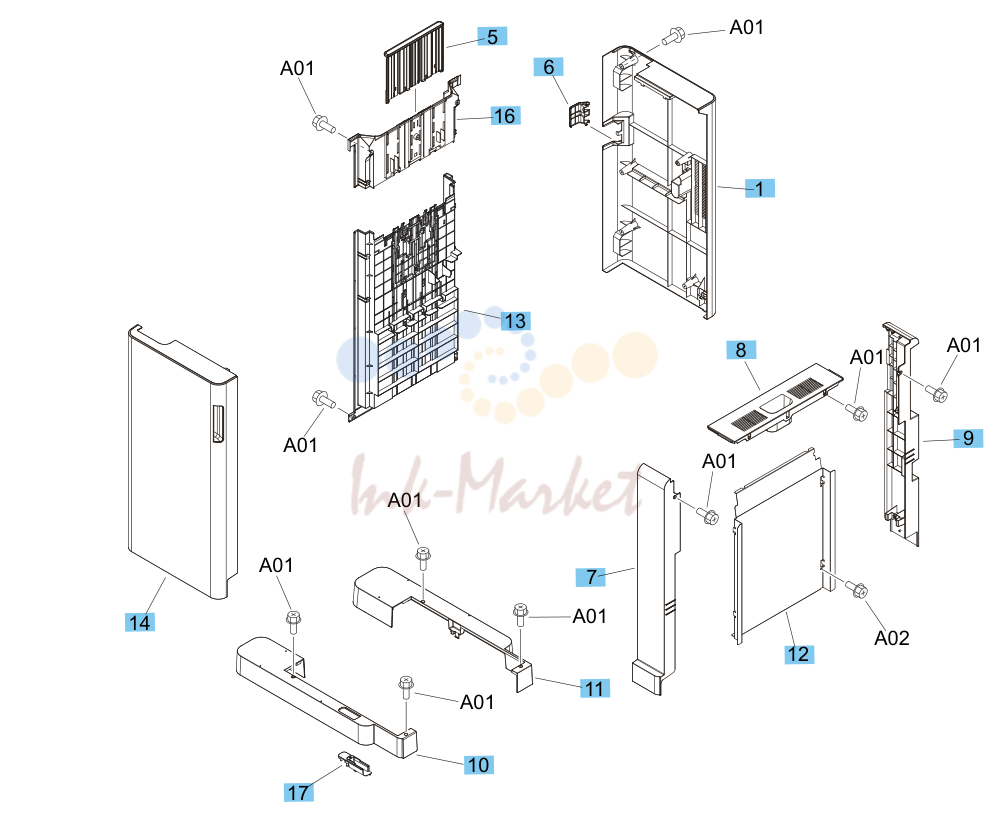

14. Stapler stacker/booklet maker
| № | Артикул | Наименование |
|---|---|---|
| 1 | Cover, rear RC4-2444-000CN | |
| 2 | Cover, stepped, lower RC4-2447-000CN | |
| 3 | Cover, stepped, upper RC4-2448-000CN | |
| 4 | Cover, open/close stepped RC4-2449-000CN | |
| 5 | Guide, wall, upper RC4-2455-000CN | |
| 6 | Cover, tray cable RC4-2462-000CN | |
| 7 | Cover, pre-reverse RC4-2519-000CN | |
| 8 | Cover, reverse, upper RC4-2520-000CN | |
| 9 | Cover, reverse, rear RC4-2521-000CN | |
| 10 | Cover, foot, front RM2-6056-000CN | |
| 11 | Cover, foot, rear RM2-6057-000CN | |
| 12 | Cover, right RC4-2565-000CN | |
| 13 | Height wall lower assembly RM2-5853-000CN | |
| 14 | Front cover assembly RM2-5320-000CN | |
| 15 | Upper cover assembly (stapler/stacker) RM2-5322-000CN | |
| 15 | Upper cover assembly (stapler/stacker, hole puncher) RM2-5535-000CN | |
| 16 | Stack wall upper assembly RM2-5343-000CN | |
| 17 | Handle, lock release RC4-2584-000CN | |
| 18 | Punch upper cover assembly (stapler/stacker, hole puncher) RM2-5515-000CN |

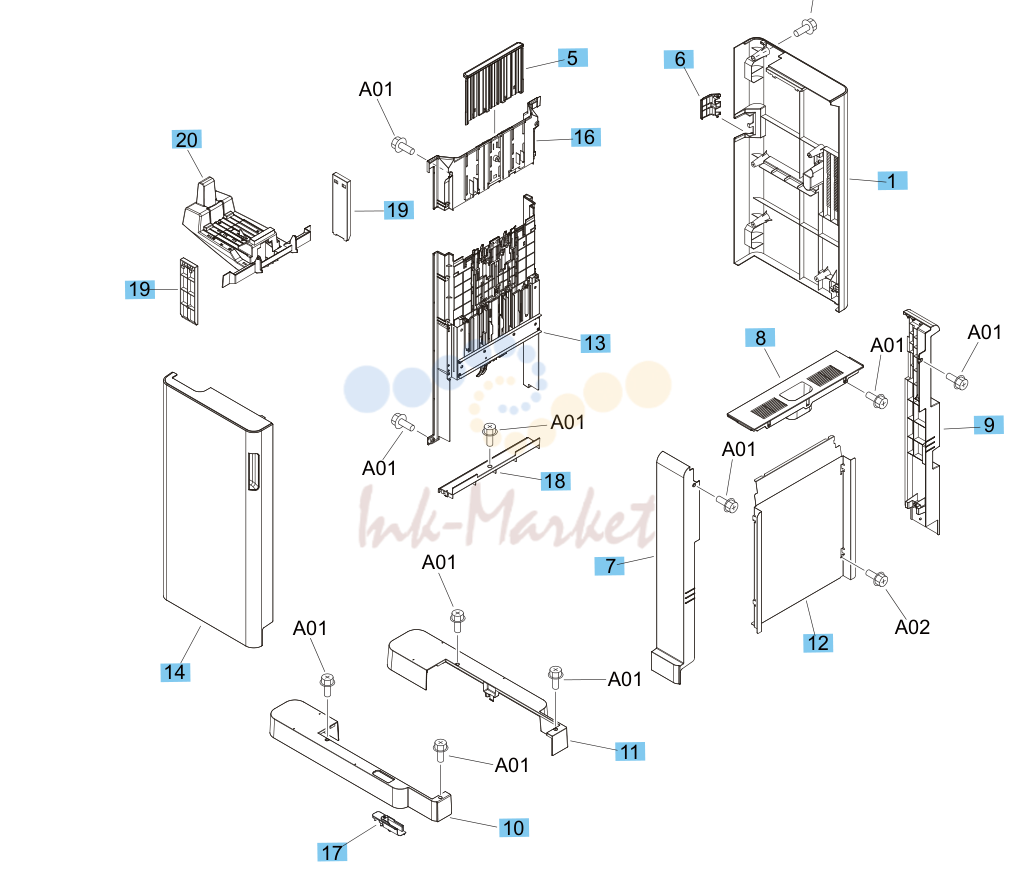

15. Booklet maker covers
| № | Артикул | Наименование |
|---|---|---|
| 1 | Cover, rear RC4-2444-000CN | |
| 2 | Cover, stepped, lower RC4-2447-000CN | |
| 3 | Cover, stepped, upper RC4-2448-000CN | |
| 4 | Cover, open/close stepped RC4-2449-000CN | |
| 5 | Guide, wall, upper RC4-2455-000CN | |
| 6 | Cover, tray cable RC4-2462-000CN | |
| 7 | Cover, pre-reverse RC4-2519-000CN | |
| 8 | Cover, reverse, upper RC4-2520-000CN | |
| 9 | Cover, reverse, rear RC4-2521-000CN | |
| 10 | Cover, foot, front RM2-6056-000CN | |
| 11 | Cover, foot, rear RM2-6057-000CN | |
| 12 | Cover, right RC4-2565-000CN | |
| 13 | Height wall center assembly RM2-5852-000CN | |
| 14 | Front cover assembly RM2-5320-000CN | |
| 15 | Upper cover assembly RM2-5322-000CN | |
| 16 | Stack wall upper assembly RM2-5343-000CN | |
| 17 | Handle, lock release RC4-2584-000CN | |
| 18 | Guide, left lower RC4-2467-000CN | |
| 19 | Cover, saddle delivery inner RC4-2471-000CN | |
| 20 | Saddle tray assembly RM2-5318-000 |

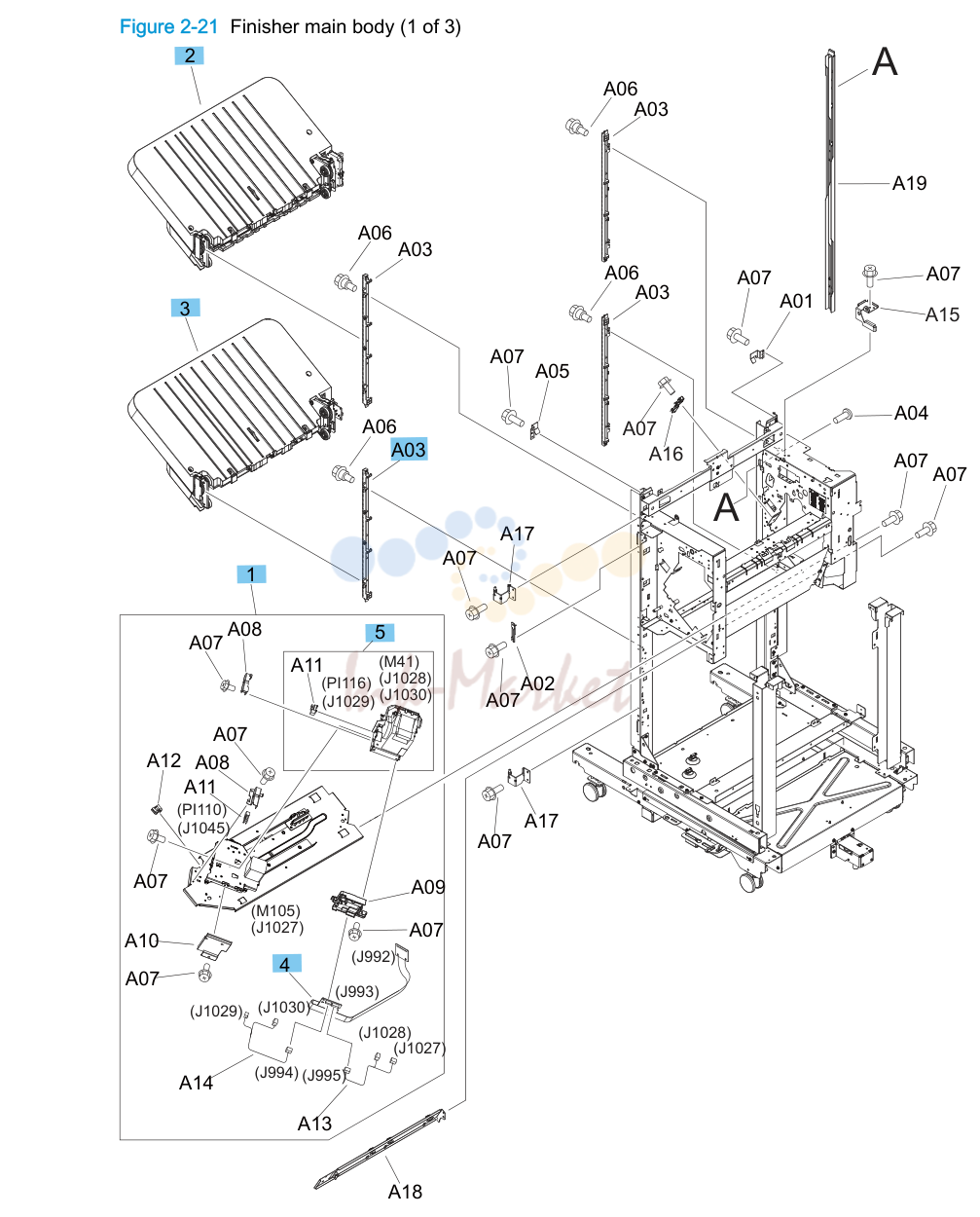

16. Finisher main body (1 of 3)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Staple assembly 4G3-0938-000CN | |
| 2 | Stack upper tray assembly RM2-5324-000CN | |
| 3 | Stack lower tray assembly RM2-5339-000CN | |
| 4 | Cable, staple connecting 4G3-1777-000CN | |
| 5 | Staple sub assembly 4G3-0939-000CN |

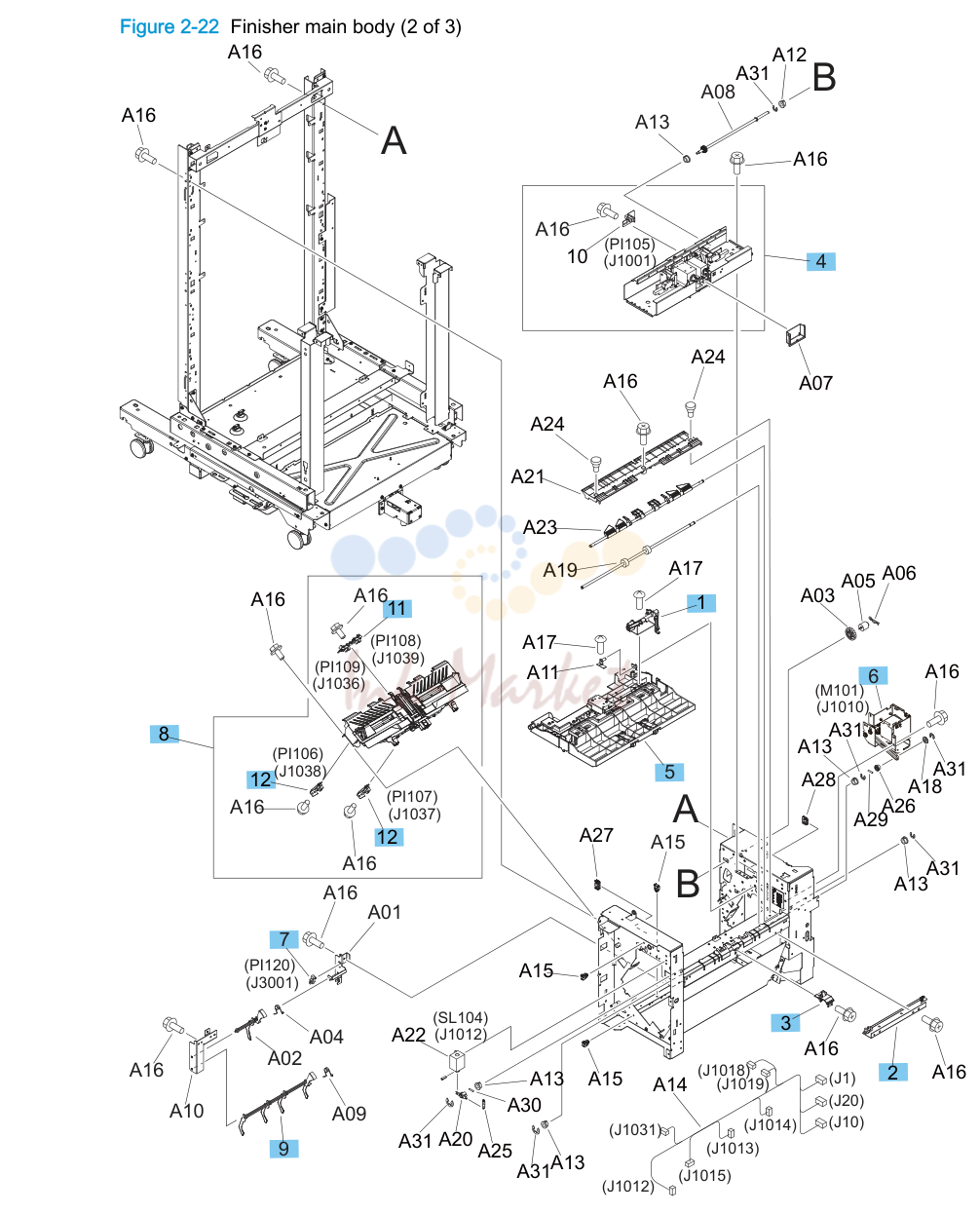

17. Finisher main body (2 of 3)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Upper cover lock assembly 4G3-0210-000CN | |
| 2 | Entrance sensor bracket assembly FM2-0717-000CN | |
| 3 | Entrance sensor flag assembly RM2-5849-000CN | |
| 4 | Upper cross-member assembly FM0-1882-000CN | |
| 5 | Entrance upper guide assembly (booklet maker) RM2-6024-000CN | |
| 5 | Entrance upper guide assembly (stapler stacker) FM0-1683-000CN | |
| 6 | Paper feed motor assembly FM0-1889-000CN | |
| 7 | Photo interrupter tlp1242 WG8-5593-000CN | |
| 8 | Operation tray assembly RM2-5309-000CN | |
| 9 | Flag, paper sensing sensor FC5-5004-000CN | |
| 10 | Swing H.P. sensor assembly 4G3-1564-000CN | |
| 11 | Assist sensor assembly FM2-1396-000CN | |
| 12 | Adjust guide H.P. sensor assembly FM2-1393-000CN |
18. Finisher main body (3 of 3)
| № | Артикул | Наименование |
|---|---|---|
| 1 | Stack ejection motor assembly 4G3-0769-000CN | |
| 2 | Paper face sensor assembly 4G3-0934-000CN | |
| 3 | Main controller PCB assembly RM2-7595-000CN | |
| 4 | Clutch, electromagnetic 4H3-0370-000CN | |
| 5 | Return roller assembly FM0-2403-000CN | |
| 6 | Paper detect holder assembly, up FM0-2429-000CN | |
| 7 | Pressure roller assembly FM2-0730-000CN | |
| 8 | Shutter H.P. sensor assembly FM2-1401-000CN | |
| 9 | Press motor assembly FM2-1409-000CN | |
| 10 | Sensor/switch assembly FM2-1417-000CN | |
| 11 | Swing guide assembly RM2-5307-000CN | |
| 12 | Interface cable assembly RM2-5539-000CN |
19. Stapler/stacker finisher main body
| № | Артикул | Наименование |
|---|---|---|
| 1 | Inner cover upper assembly RM2-5305-000CN | |
| 2 | Reverse assembly RM2-5490-000CN | |
| 3 | Cover, inner, lower RC4-2526-000CN | |
| 4 | Paper pass assembly RM2-5334-000CN | |
| 4 | Punch hole assembly (stapler/stacker 2/3 hole punch) RM2-5455-000CN | |
| 4 | Punch hole assembly stapler/stacker 3/4 hole punch RM2-5456-000CN | |
| 5 | Punch controller PCB assembly RM2-7742-000CN | |
| 6 | Punch inner cover assembly (stapler/stacker, hole puncher) RM2-5516-000CN | |
| 7 | Box, dust (stapler/stacker, hole puncher) RL2-1249-000CN | |
| 8 | Saddle motor assembly (stapler/stacker) FM2-0737-000CN | |
| 9 | Driver PCA assembly (stapler/stacker) RM2-7590-000CN | |
| 10 | Reverse driver PCA assembly RM2-7597-000CN |
20. Booklet maker finisher main body
| № | Артикул | Наименование |
|---|---|---|
| 1 | Inner cover upper assembly RM2-5305-000 | |
| 2 | Reverse assembly RM2-5490-000 | |
| 3 | Cover, inner, lower assembly RM2-5479-000CN | |
| 4 | Reverse driver PCA assembly RM2-7597-000 | |
| 5 | Cover, right FB3-7958-040CN | |
| 6 | Knob FB3-7881-000CN | |
| 7 | Saddle paper feed assembly RM2-5351-000CN | |
| 8 | Saddle motor assembly FM2-0737-000 | |
| 9 | Driver PCA assembly RM2-7590-000 |
21. Booklet maker saddle assembly
| № | Артикул | Наименование |
|---|---|---|
| 1 | Inner side plate assembly 4G3-0671-000CN | |
| 2 | Guide motor assembly 4G3-0725-000CN | |
| 3 | Saddle feed motor assembly 4H3-0369-000CN | |
| 4 | Saddle guide assembly 4G3-1940-000CN | |
| 5 | Saddle stapler assembly 4G3-2721-000CN | |
| 6 | Motor mount assembly FM0-1686-000CN | |
| 7 | Rear end sensor assembly FM2-0763-000CN | |
| 8 | Guide sensor assembly FM6-2283-000CN | |
| 9 | Saddle paper delivery assembly RM2-5332-000CN | |
| 10 | Upper delivery guide assembly RM2-5349-000CN | |
| 11 | Delivery switch mount assembly RM2-5633-000CN | |
| 12 | Saddle controller PCA assembly RM2-7604-000CN |
комментарии
