Содержание
- 1. FIG. Q01 MOUNTING HARDWARE 5FG
- 2. FIG. Q11 INTERNAL COMPONENTS 1 5FG
- 3. FIG. Q12 INTERNAL COMPONENTS 2 5FG
- 4. FIG. Q20 STACK MOTOR DRIVER ASSEMBLY 5FG
- 5. FIG. Q22 DRIVE ASSEMBLY 5FG
- 6. FIG. Q24 BUNDLE SUPPORT COVER ASSEMBLY 5FG
- 7. FIG. Q30 DISPOSE ASSEMBLY 5FG
- 8. FIG. Q32 PAPER FEEDER ASSEMBLY 5FG
- 9. FIG. Q35 FOLD ASSEMBLY (1/3) 5FG
- 10. FIG. Q35 FOLD ASSEMBLY (2/3) 5FG
- 11. FIG. Q35 FOLD ASSEMBLY (3/3) 5FG

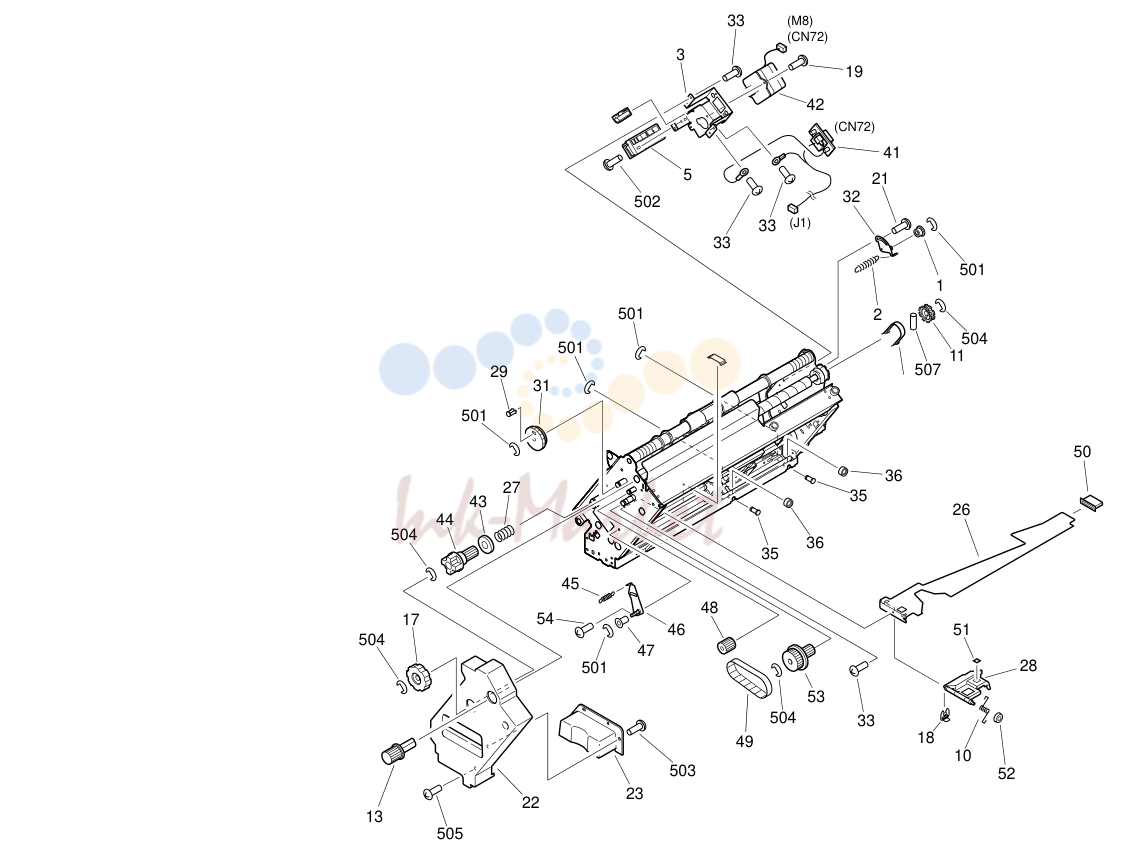

- 12. FIG. Q40 STAPLE ASSEMBLY (1/2) 5FG

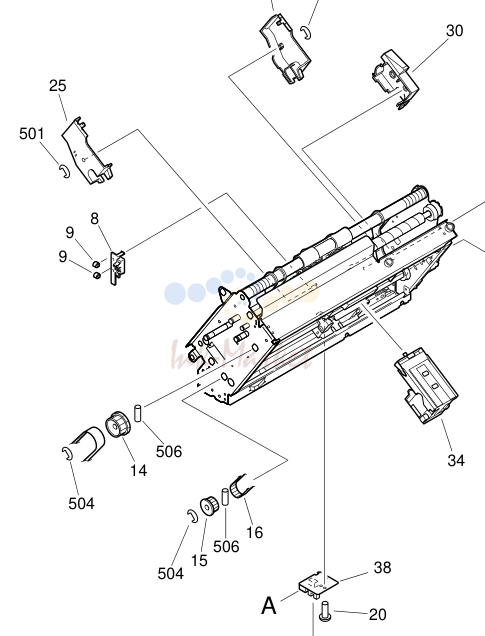

- 13. FIG. Q40 STAPLE ASSEMBLY (2/2) 5FG

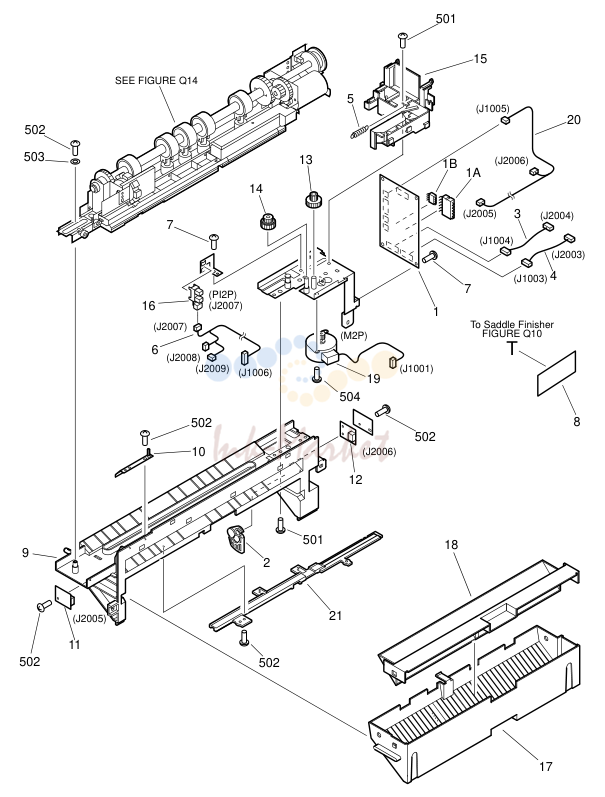

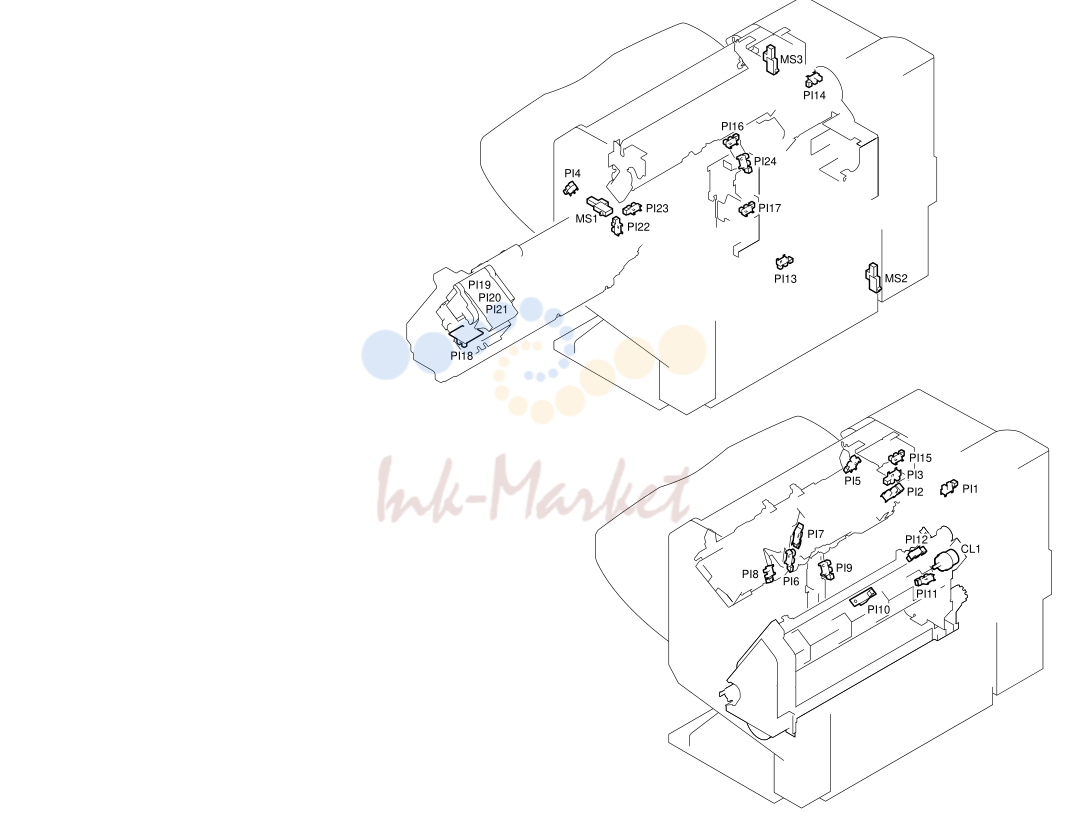

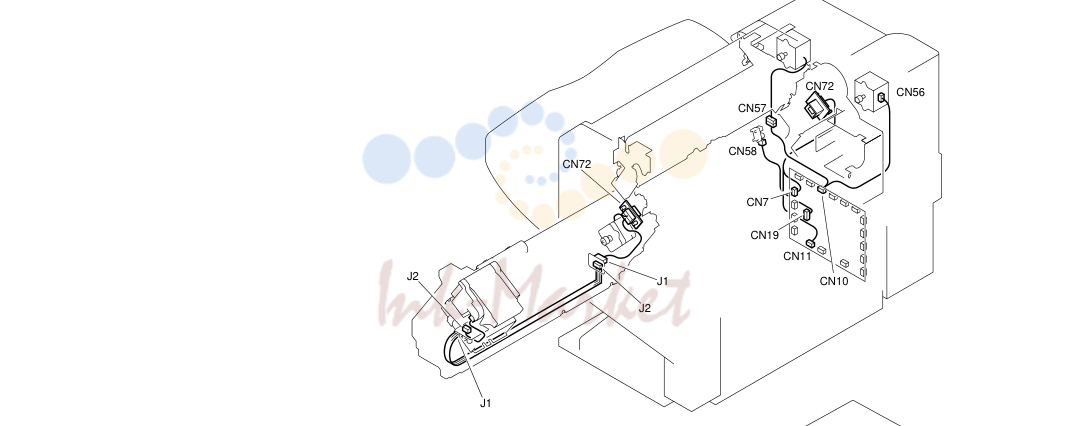

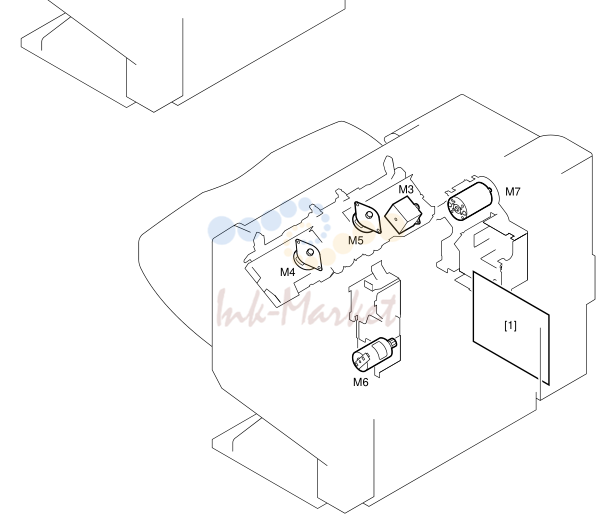

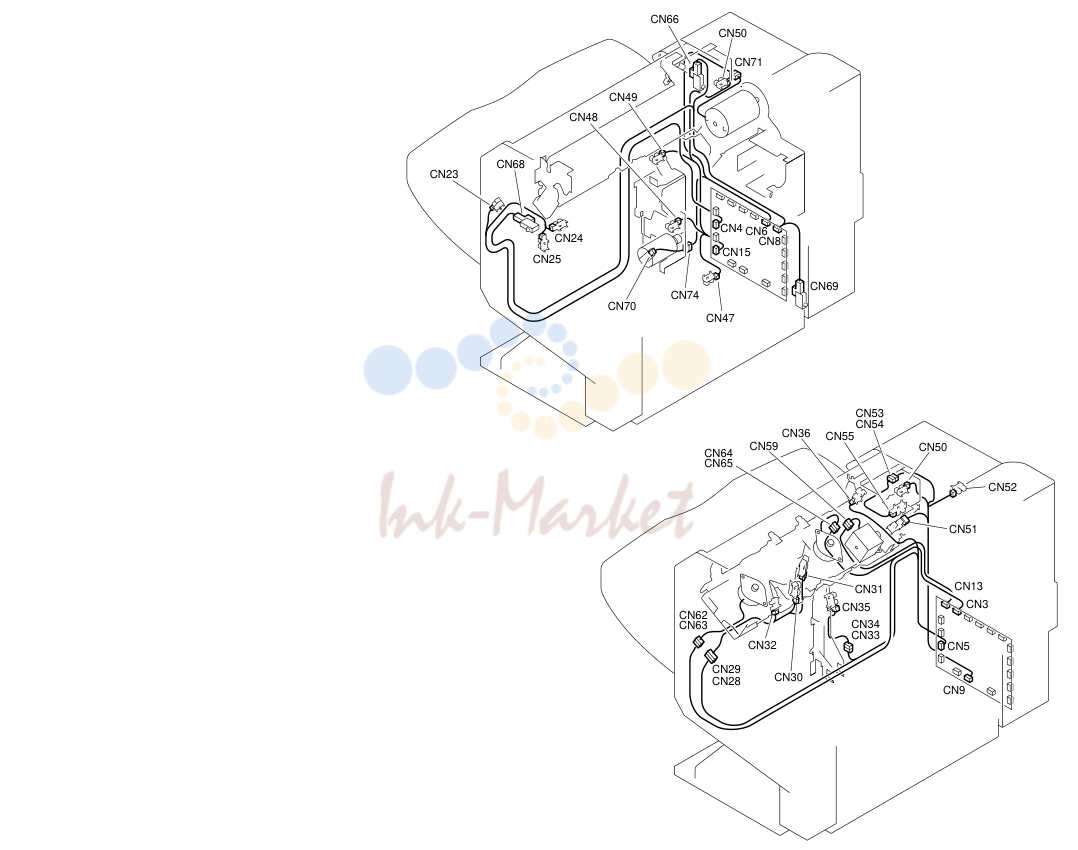

- 14. FIG. QB1 LIST OF CONNECTORS (1/2) 5FG

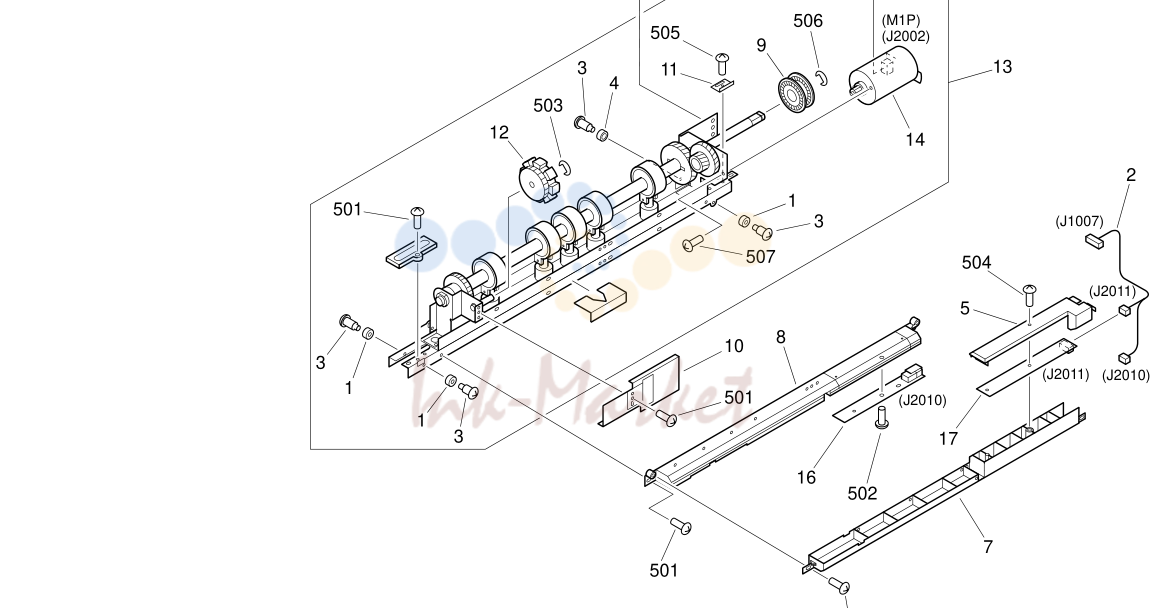

- 15. FIG. Q14 PUNCHER TOTAL ASSEMBLY 5FG

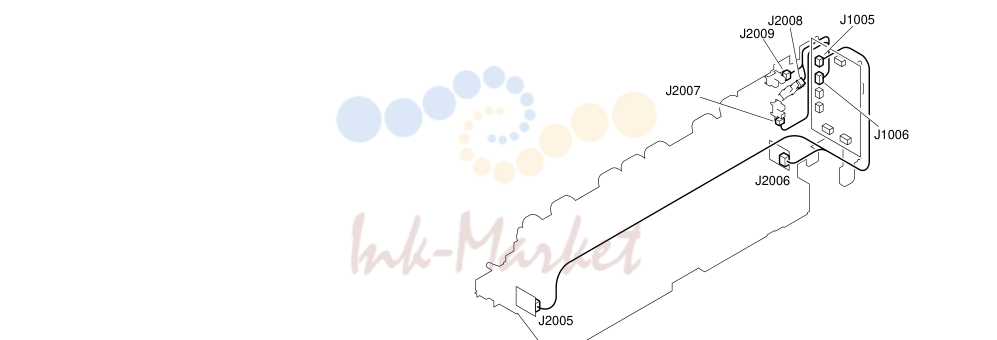

- 16. FIG. QB1P LIST OF CONNECTORS (PUNCHER) 5FG

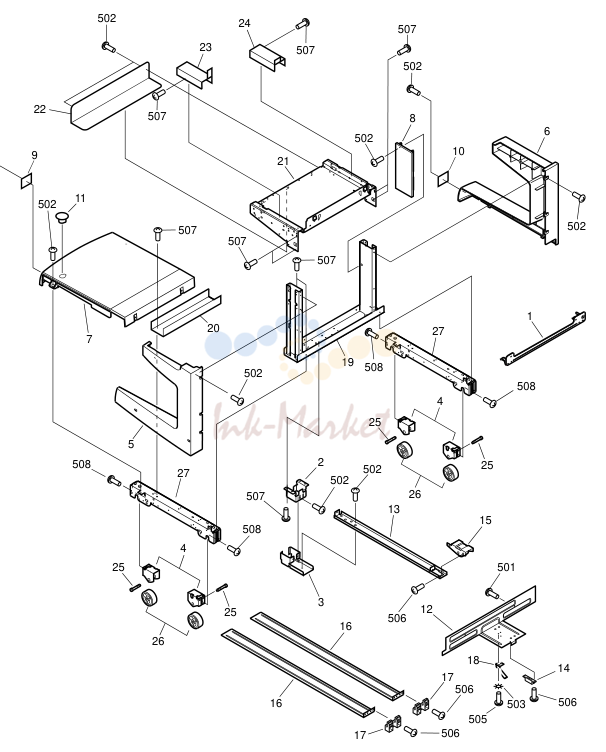

1. FIG. Q01 MOUNTING HARDWARE 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 5FG02010 запросить цену → | BASE,LATCH | |
| 2 | 5FG02020 запросить цену → | RETAINER A,RAIL | |
| 3 | 5FG02030 запросить цену → | RETAINER B,RAIL | |
| 4 | 5FG02040 запросить цену → | BRACKET,CASTER | |
| 12 | 5FG02050 запросить цену → | GUIDE A,RAIL | |
| 13 | 5FG02060 запросить цену → | GUIDE B,RAIL | |
| 14 | 5C120620 запросить цену → | SLIDE CHOU | |
| 15 | 5C120700 запросить цену → | PULLEY MOUNT UNIT(KM) | |
| 16 | 5C120750 запросить цену → | CASTER RAIL | |
| 17 | 5FG11680 запросить цену → | SPACER RAIL | |
| 18 | 5C120930 запросить цену → | SPRING,GROUNDING | |
| 19 | 5FG11690 запросить цену → | ASSY,STAND | |
| 20 | 5FG11700 запросить цену → | STAY,STAND | |
| 21 | 5FG11710 запросить цену → | SUTAND BEES | |
| 22 | 5FG11720 запросить цену → | SUTAND KABA | |
| 24 | 5FG11730 запросить цену → | SUTANDBURAKETO(BAKU) | |
| 25 | 5FG11740 запросить цену → | SUTAND | |
| 26 | 5FG11750 запросить цену → | SUTAND, | |
| 27 | 5FG11760 запросить цену → | FUT | |
| 501 | 5FG13710 запросить цену → | SCREW MACH,TRUSS HEAD.M4X10 | |
| 502 | 5C119790 запросить цену → | BIND(N)M4X6 | |
| 503 | 59916200 запросить цену → | WASHER,TOOTHED LOCK | |
| 505 | 5C120660 запросить цену → | SCREW,BIND M4X4 | |
| 507 | 5FG11860 запросить цену → | SCREW M4X7 | |
| 508 | 5FG12340 запросить цену → | SCREW M4X8 | |
| 24 | 15 To F I P G u U n R ch E e Q r U 13 nit (JS1) | ||
| 27 | TO FIGURE Q11 | ||
| 502 | TO FIGURE Q12 | ||
| 502 | 28 TO FIGURE Q11 | ||
| 33 | TO FIGURE Q11 | ||
| 5 | 5FG13700 запросить цену → | CABLE,INTERFACE 1 1 1 46 5FG11990 SHEET | |
| 6 | 5FG11770 запросить цену → | CLIP 2 2 2 47 5FG13720 SPACER | |
| 13 | 5FG11780 запросить цену → | FIAG,PAPER SENSING REAR 1 1 1 503 5AH14100 SCREW,TAPPING,TRUSS HEAD,M3X6 | |
| 14 | 5FG11790 запросить цену → | SPRING,TENSION 1 1 1 504 5FG13760 SCREW M4X6 | |
| 15 | 5FG11800 запросить цену → | LATCH,UPPER PANEL 2 2 2 505 5C118090 TAPPING M4X6 | |
| 18 | 5FG11810 запросить цену → | SPRING,TORSION | |
| 19 | 5FG11820 запросить цену → | SPRING,TORSION | |
| 20 | 5FG11830 запросить цену → | HOLDER,ROLLER | |
| 24 | 5FG11840 запросить цену → | BAND PANEL | |
| 25 | 5FG11850 запросить цену → | SUPPORT,PANEL BAND,2 | |
| 28 | 5FG11860 запросить цену → | SCREW M4X7 | |
| 29 | 5FG11870 запросить цену → | PLATE GROUNDING | |
| 32 | 5FG11880 запросить цену → | FLAG BASE TRAY | |
| 35 | 5FG11890 запросить цену → | SPRING,TENSION | |
| 36 | 5FG11900 запросить цену → | SPRING,TENSION | |
| 37 | 5FG11910 запросить цену → | CLIP,SHAFT | |
| 38 | 5FG11920 запросить цену → | CLIP,SHAFT | |
| 39 | 5FG11930 запросить цену → | GUIDO,DUMMY PUNCHER PAPER | |
| 40 | 5FG11940 запросить цену → | LABEL STAPLE REMOVING |

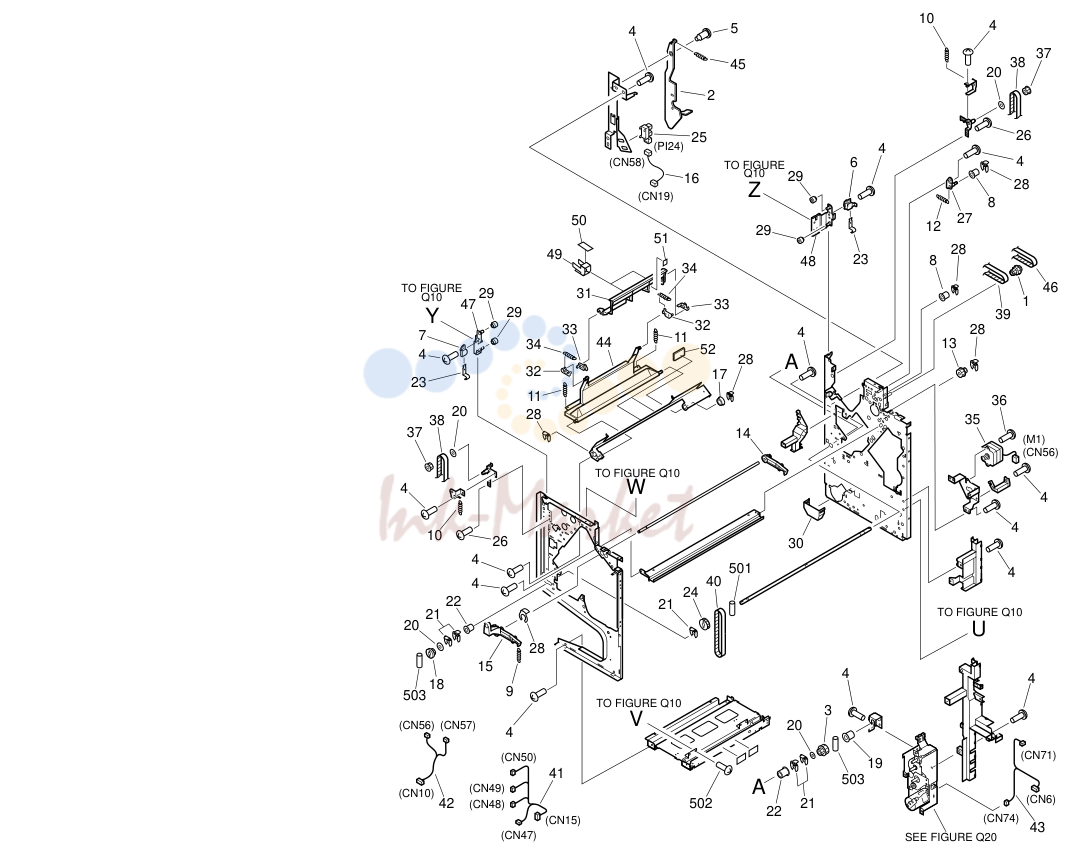

2. FIG. Q11 INTERNAL COMPONENTS 1 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 5FG12230 запросить цену → | LEVER STACK 1 1 1 42 5FG12430 CABLE,FEED PADDLE MOTOR | |
| 4 | 5FG11860 запросить цену → | SCREW M4X7 14 14 14 44 5FG12450 ARM,STOPPER | |
| 5 | 57306720 запросить цену → | SCREW STEPPED M3 1 1 1 45 5FG11890 SPRING,TENSION | |
| 6 | 5FG12240 запросить цену → | HOLDER BELT REAR 1 1 1 ' 46 5C117320 TIMING BELT50 | |
| 7 | 5FG12250 запросить цену → | HOLDER BELT FRONT 1 1 1 47 5FG12480 TRAY FRONT KUMI | |
| 8 | 5FG10490 запросить цену → | ROLLER,TENSIONER 2 2 2 48 5FG12490 TRAY REAR KUMI | |
| 9 | 5FG12260 запросить цену → | SPRING TENSION 1 1 1 49 5FG13640 SUPPORT,KARRU | |
| 14 | 5FG12270 запросить цену → | LATCH 1 1 1 1 502 5AH10870 SCREW,TAPPING,PAN HEAD,M4X10 | |
| 15 | 5FG12280 запросить цену → | LATCH (2) 1 1 1 502 5C117780 B TIGHT | |
| 16 | 5FG12290 запросить цену → | CABLE STACK SENSOR 1 1 1 503 5FG12470 PIN,DOWEL | |
| 17 | 5FG12300 запросить цену → | BUSHING | |
| 20 | 5FG12310 запросить цену → | FLANGE | |
| 23 | 5FG12330 запросить цену → | SPRING LEAF | |
| 26 | 5FG12340 запросить цену → | SCREW M4X8 | |
| 27 | 5FG12350 запросить цену → | PLATE PAPER FEED TENSIONER | |
| 29 | 5FG12360 запросить цену → | CAP MOTOR | |
| 30 | 5FG12370 запросить цену → | ROLLER RAIL | |
| 31 | 5FG12380 запросить цену → | GUIDO STOPPER | |
| 32 | 5FG12390 запросить цену → | LINK,1 | |
| 33 | 5FG12400 запросить цену → | LINK,2 | |
| 36 | 5FG12410 запросить цену → | SCREW,W/WASHER,M3X6 |

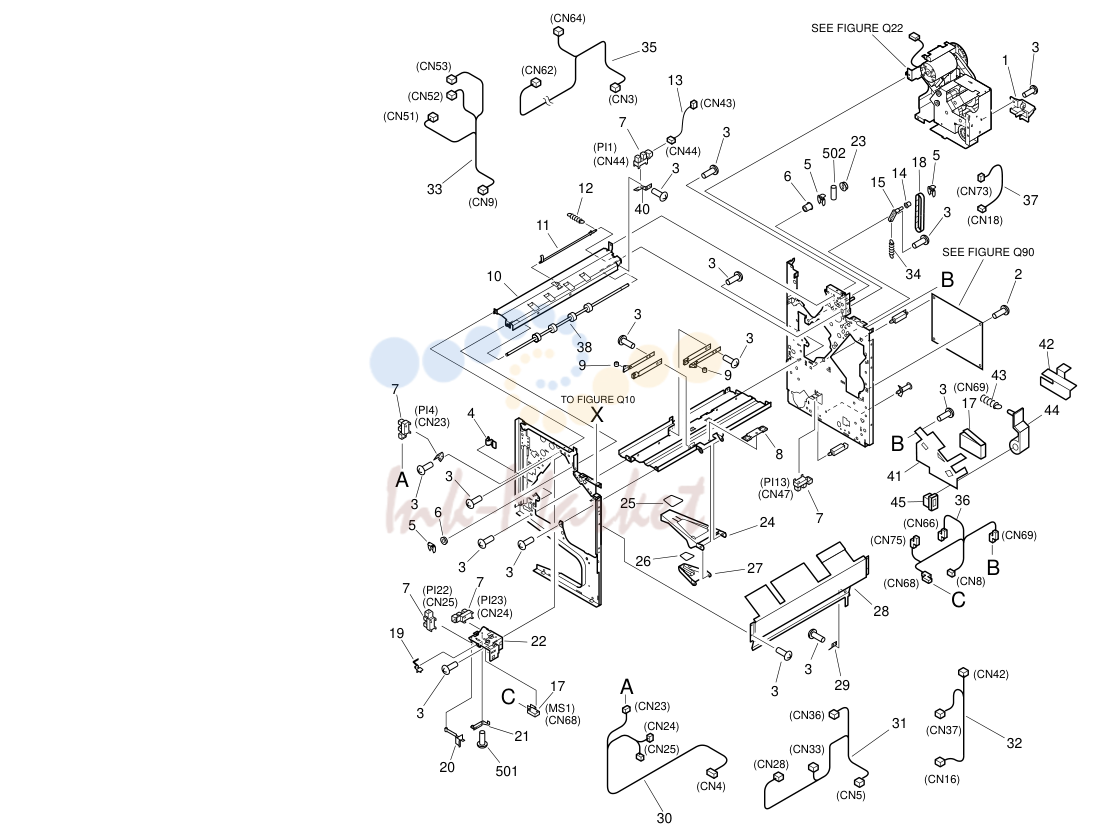

3. FIG. Q12 INTERNAL COMPONENTS 2 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 5FG12340 запросить цену → | SCREW M4X8 2 2 2 44 5FG13830 LEVER, | |
| 3 | 5FG11860 запросить цену → | SCREW M4X7 15 15 15 45 5FG13840 GUIDE,PIN | |
| 4 | 5FG12000 запросить цену → | PLATE,STAPLER FRAME STOPPER 1 1 1 501 5AH10870 SCREW,TAPPING,PAN HEAD,M4X10 | |
| 8 | 5FG12010 запросить цену → | COVER BLANKING | |
| 9 | 5FG12020 запросить цену → | ROLLER FRAME TRAY | |
| 10 | 5FG12030 запросить цену → | GUIDE PAPER LOWER | |
| 13 | 5FG12040 запросить цену → | CABLE SENSOR | |
| 14 | 5FG10490 запросить цену → | ROLLER,TENSIONER | |
| 15 | 5FG12050 запросить цену → | PLATE PAPER FEED TENSIONER,2 | |
| 17 | 5FG11240 запросить цену → | MICROSWITCH | |
| 21 | 5FG12060 запросить цену → | HOLDER LEVER SUPPORT | |
| 22 | 5FG12070 запросить цену → | HOLDER,SENSOR/MICROSWITCH | |
| 23 | 5FG12080 запросить цену → | GEAR,24T | |
| 24 | 5FG12090 запросить цену → | GUIDE,PAPER WEIGHT,1 | |
| 25 | 5FG12100 запросить цену → | PLATE,WEIGHT,1 | |
| 26 | 5FG12110 запросить цену → | PLATE,WEIGHT,2 | |
| 27 | 5FG12120 запросить цену → | GUIDE,PAPER WEIGHT,2 | |
| 28 | 5FG12130 запросить цену → | PANEL,FRAME COVER | |
| 29 | 5FG12140 запросить цену → | SPRING,LEAF,GROUNDING | |
| 30 | 5FG12150 запросить цену → | CABLE,FRONT DOOR SENSOR | |
| 31 | 5FG12160 запросить цену → | CABLE,LEVER TRAY SENSOR | |
| 32 | 5FG12170 запросить цену → | CABLE SENSOR (2) | |
| 33 | 5FG12180 запросить цену → | CABLE,SENSOR,3 | |
| 34 | 5FG12190 запросить цену → | SPRING TENSION | |
| 35 | 5FG12200 запросить цену → | CABLE,JOG MOTOR | |
| 36 | 5FG12210 запросить цену → | CABLE,SWITCH | |
| 37 | 5FG12220 запросить цену → | CABLE,BIND CLUTCH | |
| 40 | 5FG13790 запросить цену → | SENSOR | |
| 41 | 5FG13800 запросить цену → | HOLDER,JOINT,SW | |
| 42 | 5FG13810 запросить цену → | LEAF,GROUNDING |

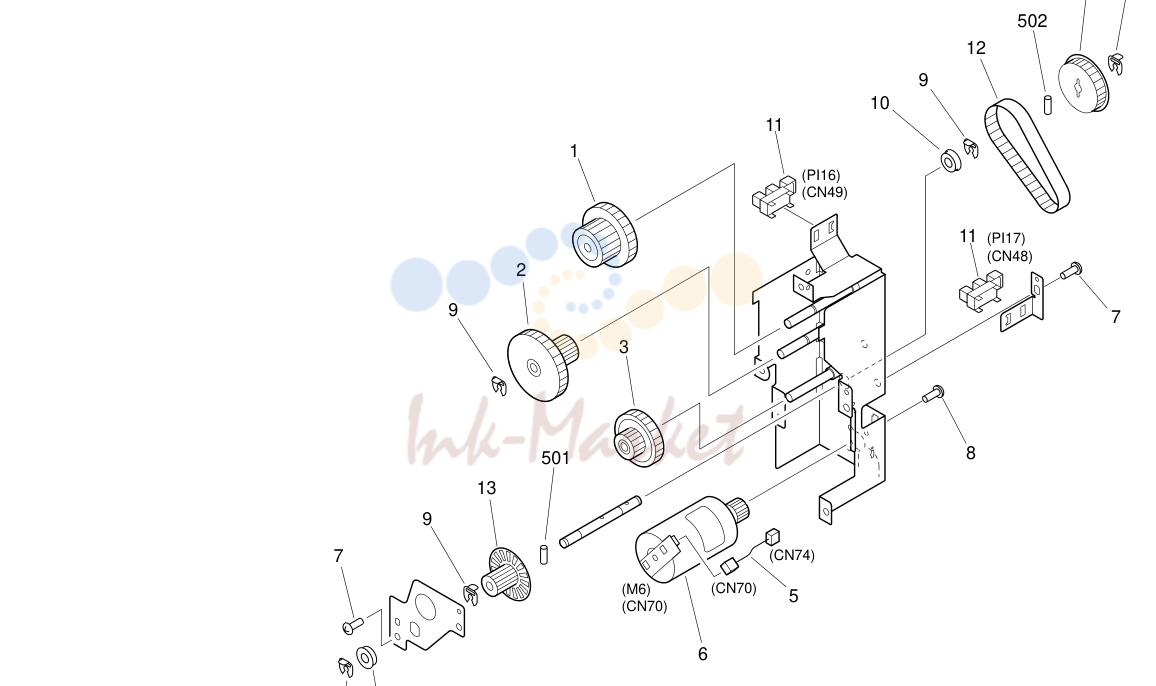

4. FIG. Q20 STACK MOTOR DRIVER ASSEMBLY 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 5 | •5FG12500 CABLE,SHIFT MOTOR | ||
| 7 | •5FG11860 SCREW M4X7 | ||
| 8 | •5FG12410 SCREW,W/WASHER,M3X6 | ||
| 13 | •5FG12520 FIAG,CLOCK SENSOR |

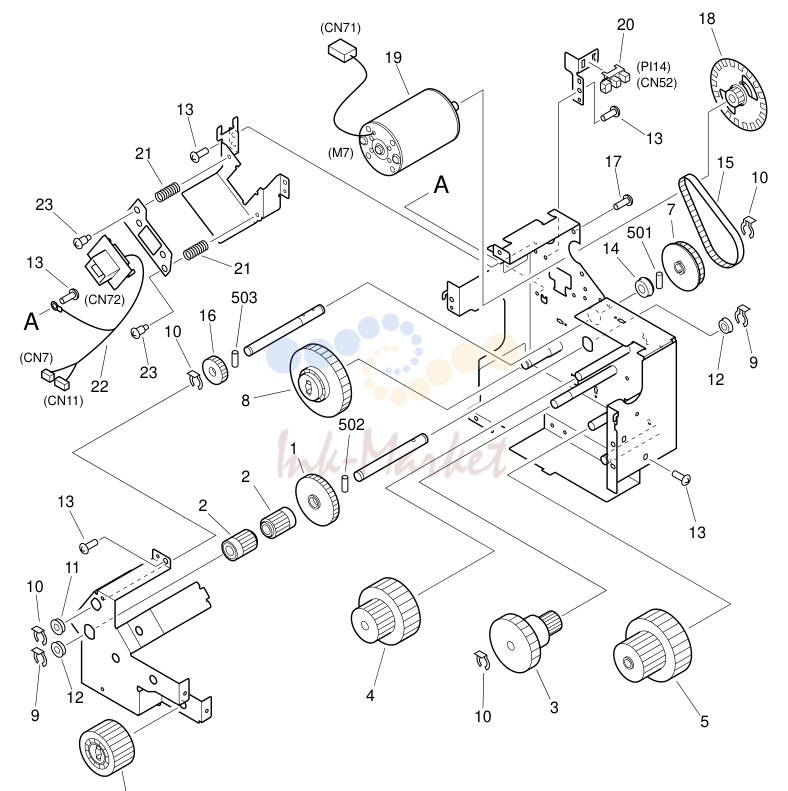

5. FIG. Q22 DRIVE ASSEMBLY 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 13 | •5FG11860 SCREW M4X7 | ||
| 17 | •5FG12540 SCREW,M4X6 | ||
| 22 | •5FG12550 CABLE,STEPLER | ||
| 23 | •5FG12560 SCREW,STEPPED,M4 |

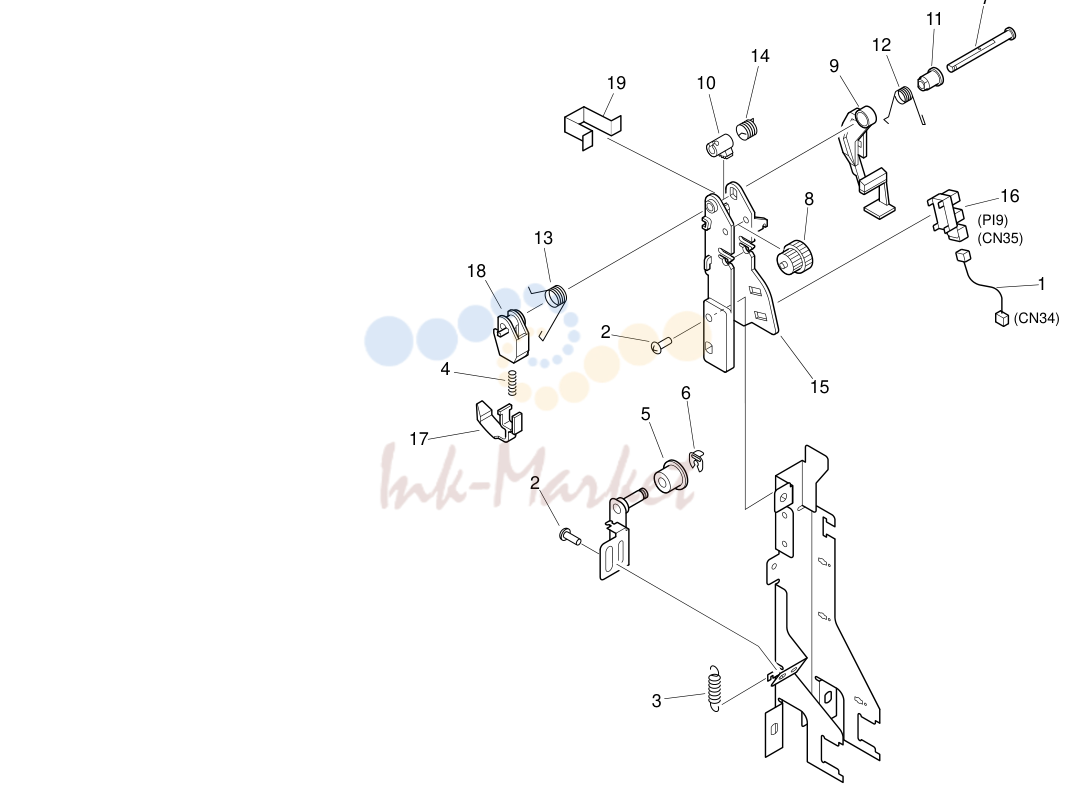

6. FIG. Q24 BUNDLE SUPPORT COVER ASSEMBLY 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •5FG12040 CABLE SENSOR | ||
| 2 | •5FG11860 SCREW M4X7 | ||
| 6 | •5FG11770 CLIP | ||
| 7 | •5FG12580 SHAFT,SUPPORT | ||
| 9 | •5FG12590 FIAG,PAPER SENSOR | ||
| 15 | •5FG12010 COVER BLANKING | ||
| 17 | •5FG12620 SUPPORT,PAPER | ||
| 18 | •5FG12630 HOLDER,PAPER SUPPORT | ||
| 19 | •5FG13850 TENSION,HOLDERGEAR |

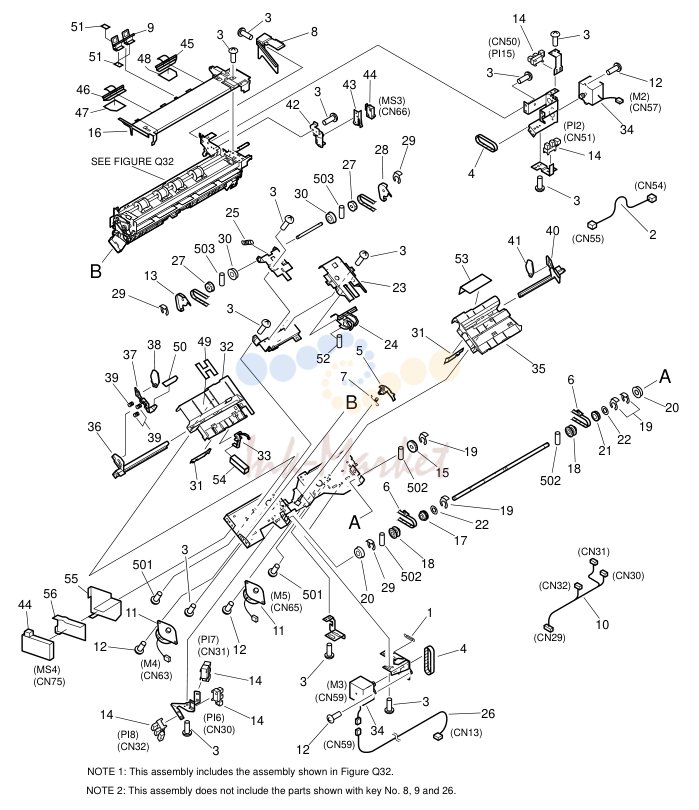

7. FIG. Q30 DISPOSE ASSEMBLY 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | •5FG12040 CABLE SENSOR 1 1 1 42 •5FG12760 HOLDER,MICROSWITCH | ||
| 3 | •5FG11860 SCREW M4X7 18 18 18 43 •5FG12770 COVER,MICROSWITCH | ||
| 8 | •5FG12640 COVER,DISPOSE 1 1 1 48 •5FG13690 SHEET,DW,R | ||
| 9 | •5FG12650 DEFLECTOR,WEIGHT 1 1 1 49 •5FG13890 SHEET DISPOSE,TRAY | ||
| 10 | •5FG12660 CABLE,TRAY 1 1 1 50 •5FG13900 SHEET SEIGO | ||
| 12 | •5FG12410 SCREW,W/WASHER,M3X6 6 6 6 52 •5FG13920 WEIGHT,PAPER,SENSOR | ||
| 13 | •5FG12670 GUIDE,TRAY,FRONT 1 1 1 53 •5FG13660 COVER,PAPER,GUIDE | ||
| 22 | •5FG12680 FLANGE | ||
| 23 | •5FG12690 SUPPORT,SENSOR FLAG | ||
| 26 | •5FG12700 CABLE,EJECT MOTOR | ||
| 28 | •5FG12710 GUIDE,TRAY,REAR | ||
| 29 | •5FG11770 CLIP | ||
| 31 | •5FG12720 SPRING,LEAT | ||
| 32 | •5FG13560 GUIDE,PAPER FEED,FRONT | ||
| 35 | •5FG12730 GUIDE,PAPER FEED,REAR | ||
| 36 | •5FG12740 RACK,ADJUSTMENT,FRONT |

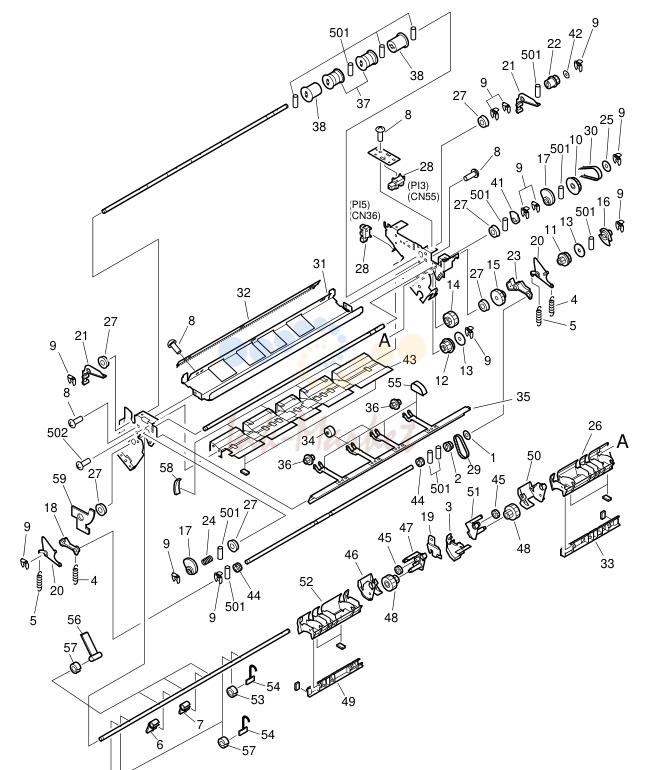

8. FIG. Q32 PAPER FEEDER ASSEMBLY 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •5FG12780 FLANGE 1 1 1 43 •5FG13590 GUIDE,PAPER,LOWER | ||
| 3 | •5FG12790 GUIDE,PAPER AUXILIARY 1 1 1 ' 45 •5FG10150 GEAR,14T | ||
| 8 | •5FG11860 SCREW M4X7 4 4 4 50 •5FG14840 HOLDER,ROLLER,REAR | ||
| 13 | •5FG12800 FLANGE 2 2 2 55 •5FG13960 JUMP,GUIDE | ||
| 18 | •5FG12810 ARM,LINK(1) 1 1 1 ' 501 •5AH10890 PIN,DOWEL | ||
| 19 | •5FG12820 SUPPORT,PADDLE SHAFT 1 1 1 502 •5AH10870 SCREW,TAPPING,PAN HEAD,M4X10 | ||
| 20 | •5FG12830 ARM,LINK(2) | ||
| 21 | •5FG12840 ARM LINK (3) | ||
| 23 | •5FG12850 ARM,LINK(4) | ||
| 25 | •5FG12860 FLANGE | ||
| 26 | •5FG12870 GUIDE,SAFTY,REAR | ||
| 31 | •5FG12880 GUIDE,PAPER OUTLET,UPPER | ||
| 33 | •5FG12890 GUIDE,SAFTY,REAR | ||
| 35 | •5FG12900 ROLLER,PAPER OUTLET |

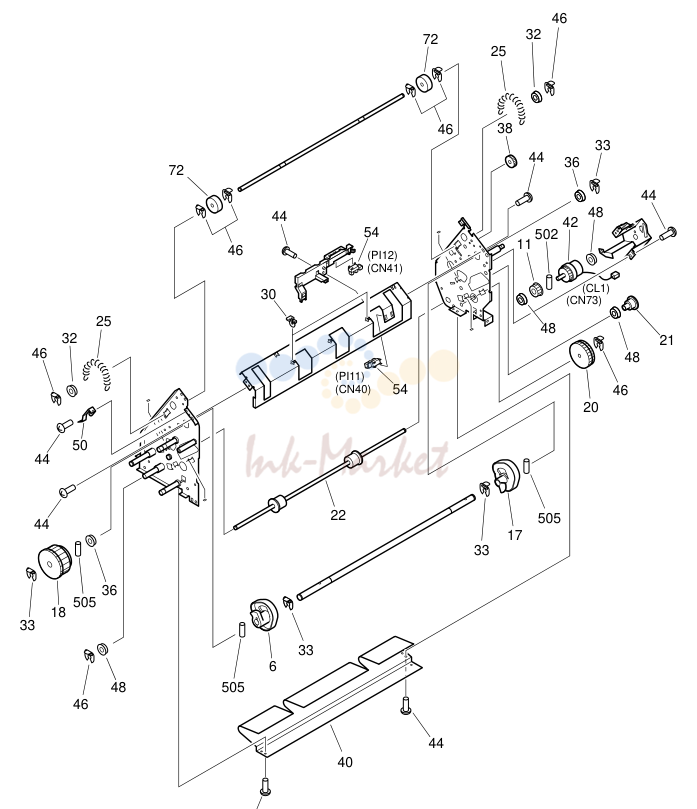

9. FIG. Q35 FOLD ASSEMBLY (1/3) 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •5FG12980 GUIDE,SWING,FRONT 1 1 1 43 •5FG13100 SCREW,STEPPED,M3 | ||
| 2 | •5FG12990 GUIDE,SWING REAR 1 1 1 44 •5FG11860 SCREW M4X7 | ||
| 8 | •5FG13620 FLANGE 1 1 1 50 •5FG13130 SPRING,LEAF | ||
| 10 | •5FG13000 PIN,SADDLE,SLIDER 2 2 2 ' 52 •5FG11560 ROLLER,FOLD | ||
| 15 | •5FG13010 HOLDER,ROLLER 2 2 2 57 •5FG13170 GUIDE,DELIVERY PAPER | ||
| 29 | •5FG13020 PULLEY,27T 1 1 1 71 •5FG13310 SHAFT,LINK | ||
| 30 | •5FG13030 HOOK,SPRING 4 4 4 ' 72 •5FG11530 ROLLER | ||
| 31 | •5FG13040 WASHER 2 2 2 ' 73 •5FG10810 SPRING,TENSION | ||
| 32 | •5FG13050 BUSHING 2 2 2 ' 74 •5FG11420 ROLLER,SADDLE | ||
| 35 | •5FG13060 SCREW 1 1 1 77 •5FG13340 LINK,COVER | ||
| 36 | •5FG10850 BUSHING 8 8 8 501 •5FG13350 SCREW,MACH,TRUSS HEAD,M4X10 | ||
| 37 | •5FG13070 ROLLER,LINK 2 2 2 ' 502 •5AH14160 PIN,DOWEL | ||
| 40 | •5FG13080 GUIDE,PAPER DELIVERY,LOWER 1 1 1 ' 505 •5C114200 PARALLEL PIN | ||
| 41 | •5FG13090 CABLE,CONNECTING 1 1 1 ' 506 •5FG12570 PIN,DOWEL |

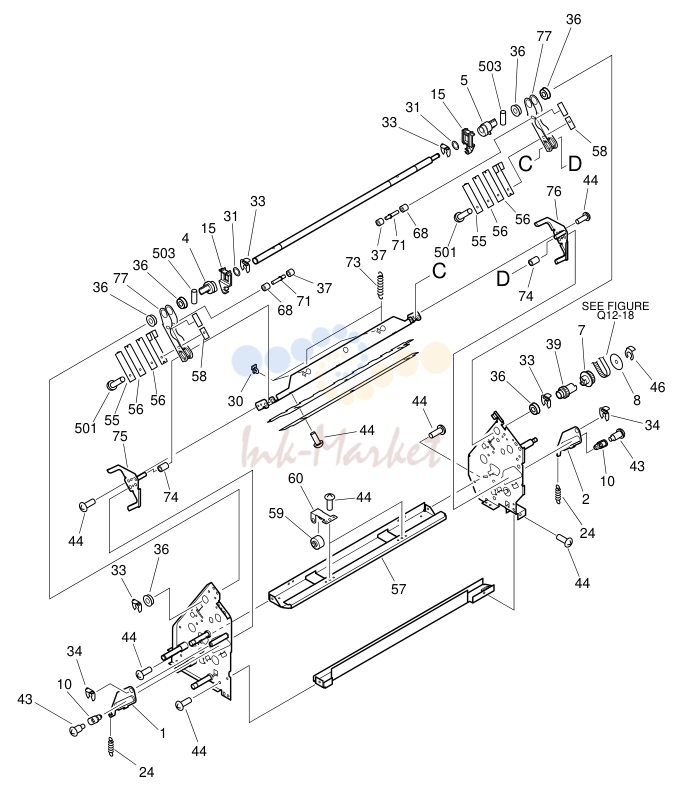

10. FIG. Q35 FOLD ASSEMBLY (2/3) 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •5FG12980 GUIDE,SWING,FRONT 1 1 1 43 •5FG13100 SCREW,STEPPED,M3 | ||
| 2 | •5FG12990 GUIDE,SWING REAR 1 1 1 44 •5FG11860 SCREW M4X7 | ||
| 8 | •5FG13620 FLANGE 1 1 1 50 •5FG13130 SPRING,LEAF | ||
| 10 | •5FG13000 PIN,SADDLE,SLIDER 2 2 2 ' 52 •5FG11560 ROLLER,FOLD | ||
| 15 | •5FG13010 HOLDER,ROLLER 2 2 2 57 •5FG13170 GUIDE,DELIVERY PAPER | ||
| 29 | •5FG13020 PULLEY,27T 1 1 1 71 •5FG13310 SHAFT,LINK | ||
| 30 | •5FG13030 HOOK,SPRING 4 4 4 ' 72 •5FG11530 ROLLER | ||
| 31 | •5FG13040 WASHER 2 2 2 ' 73 •5FG10810 SPRING,TENSION | ||
| 32 | •5FG13050 BUSHING 2 2 2 ' 74 •5FG11420 ROLLER,SADDLE | ||
| 35 | •5FG13060 SCREW 1 1 1 77 •5FG13340 LINK,COVER | ||
| 36 | •5FG10850 BUSHING 8 8 8 501 •5FG13350 SCREW,MACH,TRUSS HEAD,M4X10 | ||
| 37 | •5FG13070 ROLLER,LINK 2 2 2 ' 502 •5AH14160 PIN,DOWEL | ||
| 40 | •5FG13080 GUIDE,PAPER DELIVERY,LOWER 1 1 1 ' 505 •5C114200 PARALLEL PIN | ||
| 41 | •5FG13090 CABLE,CONNECTING 1 1 1 ' 506 •5FG12570 PIN,DOWEL |

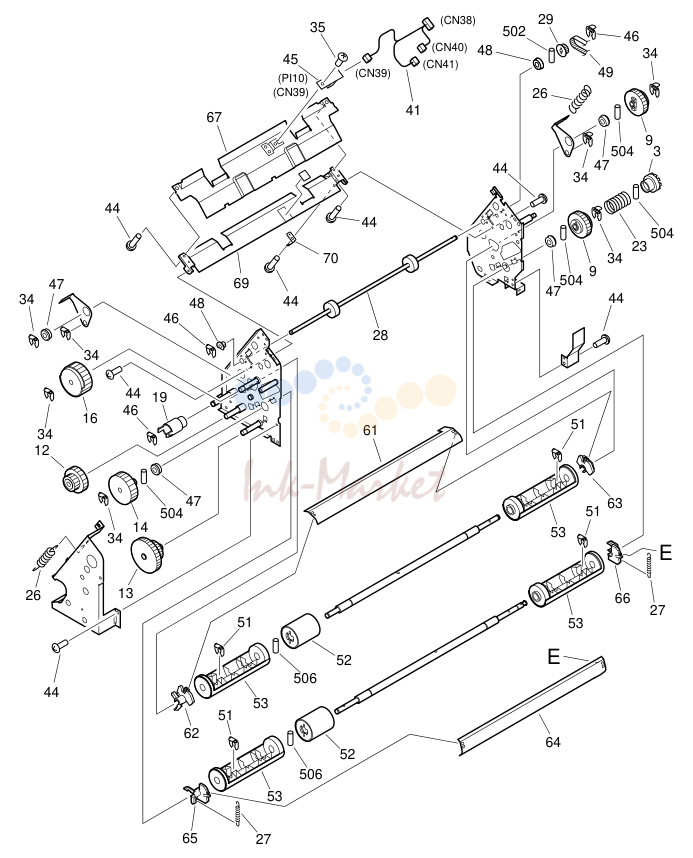

11. FIG. Q35 FOLD ASSEMBLY (3/3) 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •5FG12980 GUIDE,SWING,FRONT 1 1 1 43 •5FG13100 SCREW,STEPPED,M3 | ||
| 2 | •5FG12990 GUIDE,SWING REAR 1 1 1 44 •5FG11860 SCREW M4X7 | ||
| 8 | •5FG13620 FLANGE 1 1 1 50 •5FG13130 SPRING,LEAF | ||
| 10 | •5FG13000 PIN,SADDLE,SLIDER 2 2 2 ' 52 •5FG11560 ROLLER,FOLD | ||
| 15 | •5FG13010 HOLDER,ROLLER 2 2 2 57 •5FG13170 GUIDE,DELIVERY PAPER | ||
| 29 | •5FG13020 PULLEY,27T 1 1 1 71 •5FG13310 SHAFT,LINK | ||
| 30 | •5FG13030 HOOK,SPRING 4 4 4 ' 72 •5FG11530 ROLLER | ||
| 31 | •5FG13040 WASHER 2 2 2 ' 73 •5FG10810 SPRING,TENSION | ||
| 32 | •5FG13050 BUSHING 2 2 2 ' 74 •5FG11420 ROLLER,SADDLE | ||
| 35 | •5FG13060 SCREW 1 1 1 77 •5FG13340 LINK,COVER | ||
| 36 | •5FG10850 BUSHING 8 8 8 501 •5FG13350 SCREW,MACH,TRUSS HEAD,M4X10 | ||
| 37 | •5FG13070 ROLLER,LINK 2 2 2 ' 502 •5AH14160 PIN,DOWEL | ||
| 40 | •5FG13080 GUIDE,PAPER DELIVERY,LOWER 1 1 1 ' 505 •5C114200 PARALLEL PIN | ||
| 41 | •5FG13090 CABLE,CONNECTING 1 1 1 ' 506 •5FG12570 PIN,DOWEL |
12. FIG. Q40 STAPLE ASSEMBLY (1/2) 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | •5FG13360 COVER,MOTOR 1 1 1 43 •5FG14110 FLANGE | ||
| 4 | •5FG13370 FRAME,COUPLING 1 1 1 44 •5FG14120 GEAR | ||
| 5 | •5FG13380 SUPPORT,CAM STOPPER,1 1 1 1 45 •5FG14130 SPRING,TENSION | ||
| 8 | •5FG13390 HOLDER,STAPLE GUIDE ROLLER 1 1 1 48 •5FG10940 GEAR,18T/66T | ||
| 9 | •5FG13400 ROLLER,STAPLE GUIDE 2 2 2 49 •5FG14160 BELT,TIMING | ||
| 10 | •5FG13410 SPRING,TORSION 1 1 1 50 •5FG14170 GUIDO | ||
| 16 | •5FG13420 BELT,TIMING 1 1 1 502 •5FG14210 SCREW,MACH,TRUSS HEAD,M3X6 | ||
| 17 | •5FG04260 HANDLE B,JAM RELEASE 1 1 1 503 •5AH10870 SCREW,TAPPING,PAN HEAD,M4X10 | ||
| 18 | •5FG13430 CLIP 1 1 1 504 •5AG10080 RING,E | ||
| 19 | •5FG12410 SCREW,W/WASHER,M3X6 2 2 2 505 •5C119790 BIND(N)M4X6 | ||
| 20 | •5FG13440 SCREW,W/WASHER,M3X6 1 1 1 506 •5FG14220 PIN,DOWEL | ||
| 21 | •5FG13450 SCREW,M3X6 1 1 1 507 •5FG12470 PIN,DOWEL | ||
| 23 | •5FG04270 COVER,HANDLE | ||
| 24 | •5FG13460 COVER,SIDE,RIGHT | ||
| 25 | •5FG13470 COVER,SIDE,LEFT | ||
| 26 | •5FG13480 GUIDE,PAPER | ||
| 28 | •5FG13490 GUIDE,PAPER,SUB | ||
| 29 | •5FG13500 PIN,MARKER | ||
| 30 | •5FG14010 COVER,GEAR | ||
| 31 | •5FG14020 GEAR,42T | ||
| 32 | •5FG14030 PLATE,TENSIONER | ||
| 33 | •5FG14040 SCREW,TAPPING,M3X6 | ||
| 34 | •5FG11630 STAPLE CARTRIDGE UNIT | ||
| 35 | •5FG14050 PIN,SLIDE | ||
| 36 | •5FG11580 ROLLER | ||
| 37 | •5FG14060 STAPLER BASE PCP ASSEMBLY | ||
| 38 | •5FG14070 STAPLER IN PCB ASSEMBLY | ||
| 39 | •5FG14080 CABLE,STAPLER |
13. FIG. Q40 STAPLE ASSEMBLY (2/2) 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | •5FG13360 COVER,MOTOR 1 1 1 43 •5FG14110 FLANGE | ||
| 4 | •5FG13370 FRAME,COUPLING 1 1 1 44 •5FG14120 GEAR | ||
| 5 | •5FG13380 SUPPORT,CAM STOPPER,1 1 1 1 45 •5FG14130 SPRING,TENSION | ||
| 8 | •5FG13390 HOLDER,STAPLE GUIDE ROLLER 1 1 1 48 •5FG10940 GEAR,18T/66T | ||
| 9 | •5FG13400 ROLLER,STAPLE GUIDE 2 2 2 49 •5FG14160 BELT,TIMING | ||
| 10 | •5FG13410 SPRING,TORSION 1 1 1 50 •5FG14170 GUIDO | ||
| 16 | •5FG13420 BELT,TIMING 1 1 1 502 •5FG14210 SCREW,MACH,TRUSS HEAD,M3X6 | ||
| 17 | •5FG04260 HANDLE B,JAM RELEASE 1 1 1 503 •5AH10870 SCREW,TAPPING,PAN HEAD,M4X10 | ||
| 18 | •5FG13430 CLIP 1 1 1 504 •5AG10080 RING,E | ||
| 19 | •5FG12410 SCREW,W/WASHER,M3X6 2 2 2 505 •5C119790 BIND(N)M4X6 | ||
| 20 | •5FG13440 SCREW,W/WASHER,M3X6 1 1 1 506 •5FG14220 PIN,DOWEL | ||
| 21 | •5FG13450 SCREW,M3X6 1 1 1 507 •5FG12470 PIN,DOWEL | ||
| 23 | •5FG04270 COVER,HANDLE | ||
| 24 | •5FG13460 COVER,SIDE,RIGHT | ||
| 25 | •5FG13470 COVER,SIDE,LEFT | ||
| 26 | •5FG13480 GUIDE,PAPER | ||
| 28 | •5FG13490 GUIDE,PAPER,SUB | ||
| 29 | •5FG13500 PIN,MARKER | ||
| 30 | •5FG14010 COVER,GEAR | ||
| 31 | •5FG14020 GEAR,42T | ||
| 32 | •5FG14030 PLATE,TENSIONER | ||
| 33 | •5FG14040 SCREW,TAPPING,M3X6 | ||
| 34 | •5FG11630 STAPLE CARTRIDGE UNIT | ||
| 35 | •5FG14050 PIN,SLIDE | ||
| 36 | •5FG11580 ROLLER | ||
| 37 | •5FG14060 STAPLER BASE PCP ASSEMBLY | ||
| 38 | •5FG14070 STAPLER IN PCB ASSEMBLY | ||
| 39 | •5FG14080 CABLE,STAPLER |
14. FIG. QB1 LIST OF CONNECTORS (1/2) 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | •5FG14380 SHUTTER,PUNCHER | ||
| 3 | •5FG14390 CABLE,POWER CONNECTING | ||
| 4 | •5FG14400 CABLE,INTERFACE | ||
| 5 | •5FG14410 SPRING,TENSION | ||
| 6 | •5FG14420 CABLE,SENSOR | ||
| 7 | •5FG11860 SCREW M4X7 | ||
| 8 | •5FG14430 LABEL,PUNCH DIAL | ||
| 9 | •5FG14440 MOUNT,PUNCHER | ||
| 10 | •5FG14450 COVER,HARNESS | ||
| 15 | •5FG14500 DUCT,PUNCHER | ||
| 20 | •5FG14540 CABLE,DUST SENSOR | ||
| 21 | •5FG14550 COVER,PUNCHER BASE | ||
| 22 | •5FG14590 SPONGE,DUST BOX | ||
| 23 | •5FG14600 SHEET | ||
| 501 | •5FG14560 SCREW,MACH,TRUSS HEAD,M4X6 | ||
| 502 | •5AH09510 SCREW,TP | ||
| 503 | •5FG14570 SHIM | ||
| 504 | •5FG14580 SCREW,W/WASHER,M3X6 |
15. FIG. Q14 PUNCHER TOTAL ASSEMBLY 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 5FG14620 запросить цену → | ROLLER,PUNCHER | |
| 2 | 5FG14630 запросить цену → | CABLE,REGISTRATION SENSOR | |
| 3 | 58002380 запросить цену → | SCREW,STEPPED M3 | |
| 4 | 5C119720 запросить цену → | GROUND PULLEY | |
| 5 | 5FG14640 запросить цену → | COVER,REGISTRATION | |
| 7 | 5FG14650 запросить цену → | HOLDER,SENSOR,UPPER | |
| 8 | 5FG14660 запросить цену → | HOLDER,SENSOR,LOWER | |
| 9 | 5FG14670 запросить цену → | PLATE,SENSOR FLAG | |
| 11 | 5FG14690 запросить цену → | RACK,SLIDE | |
| 12 | 5FG14700 запросить цену → | KNOB,JAM CLEARING | |
| 15 | 5FG14760 запросить цену → | CABLE,MOTOR | |
| 501 | 5FG14790 запросить цену → | SCREW,MACH,TRUSS HEAD,M3X6 | |
| 502 | 5AH14100 запросить цену → | SCREW,TAPPING,TRUSS HEAD,M3X6 | |
| 503 | 5AH08970 запросить цену → | RING,E | |
| 504 | 5FG14800 запросить цену → | SCREW,TAPPING,TRUSS HEAD,M3X12 | |
| 505 | 5FG14810 запросить цену → | SCREW,W/WASHER,M3X8 | |
| 506 | 5AG10080 запросить цену → | RING,E | |
| 507 | 5FG14820 запросить цену → | SCREW,MACH,TRUSS HEAD,M3X5 | |
| 508 | 5FG14830 запросить цену → | SCREW,MACH,TRUSS HEAD,M4X8 |
16. FIG. QB1P LIST OF CONNECTORS (PUNCHER) 5FG
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1-3 | Parkhead Place, | ||
| 8 | Beacontree Plaza Phone: (01) 86338-0 | ||
| 162 | 50 Vällingby, Sweden | ||
| 121 | Genting Lane, 3rd Level, | ||
| 225 | Sand Road, P.O. Box 40008, |
комментарии
