| Производитель | AVISION |
| Формат | A4 |
| Тип устройства | Сканер |

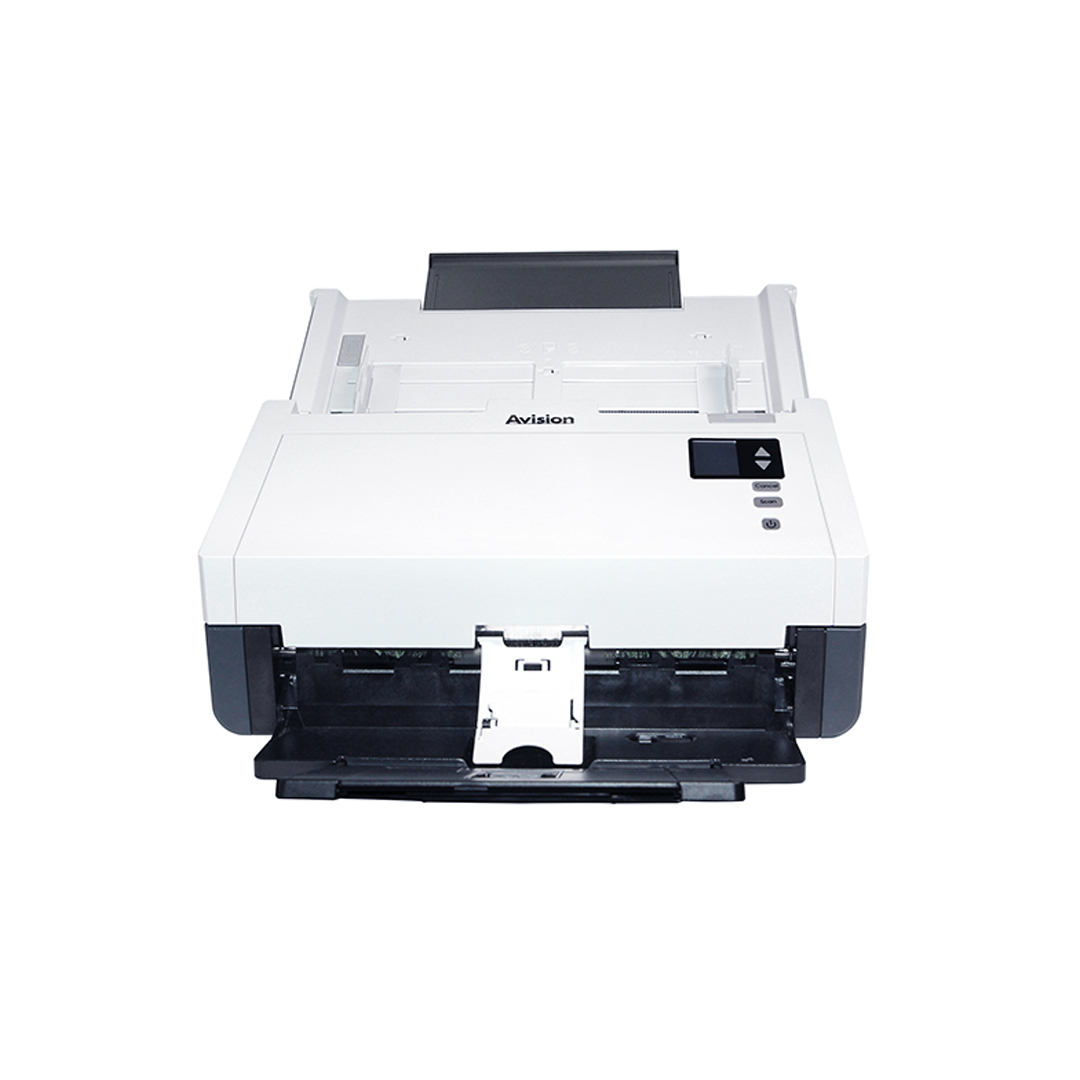

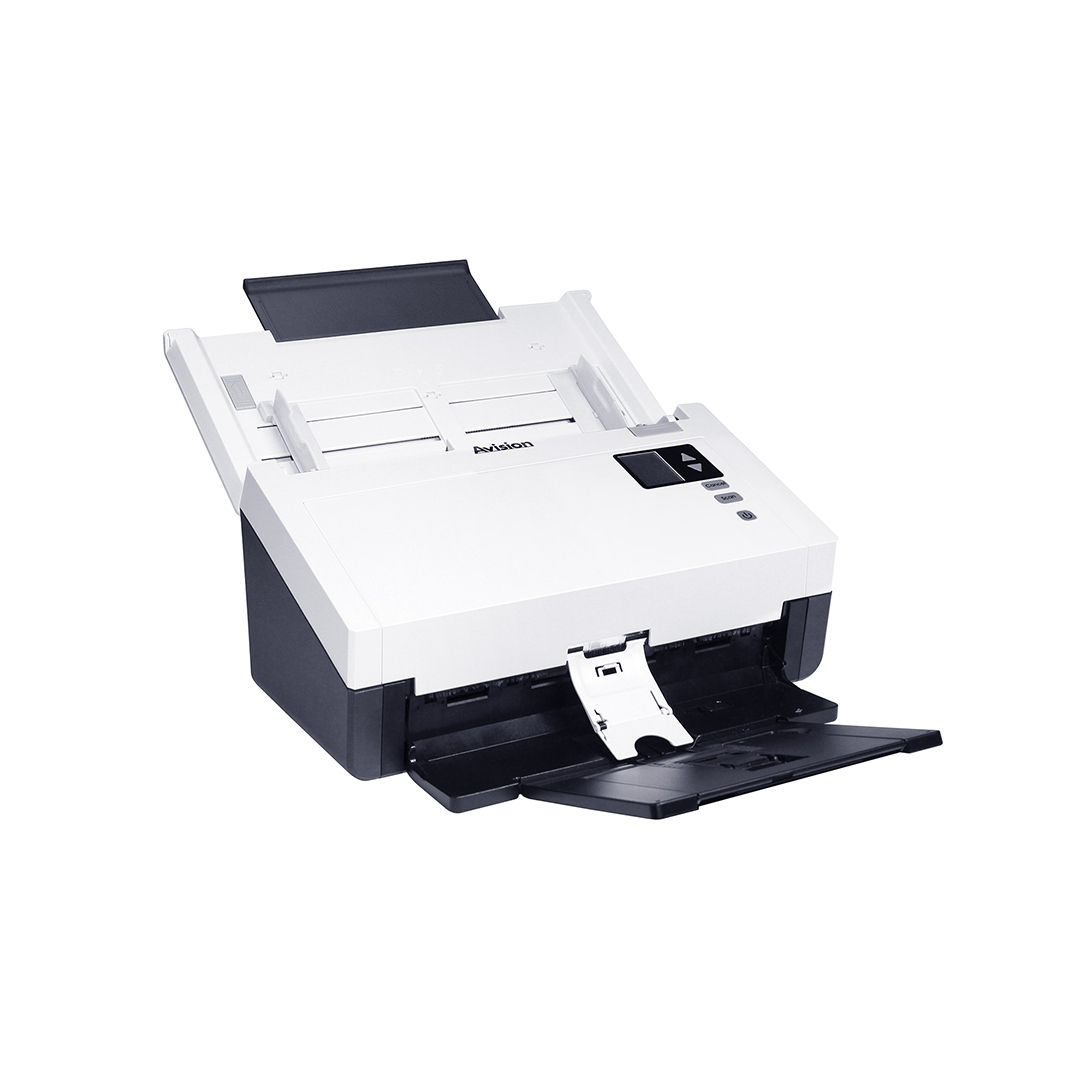

The AD345G series is 60 page-per-minute, duplex scanner that are fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock are necessary. Embedded with Avision-developed image processor , the scanned image can be automatically cropped, straightened, and optimized with enhanced speed.
| General Specification | |
| Technology |
Contact Image Sensor (CIS) |
|---|---|
| Light Source |
LED |
| Document feeding mode |
ADF |
| Optical Resolution (dpi) |
600 |
| Output Resolution (dpi) |
1200 |
| File Formats |
BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML |
| Halftone Patterns |
Dither and Error Diffusion |
| Grayscale mode |
16-bit input 8-bit output |
| Color mode |
48-bit input 24-bit output |
| Memory Size |
512MB SDRAM |
| Dimensions (WxDxH) |
Maximum：316 x 680 x 239 mm ( 12.4 x 26.8 x 9.4 in. ), Minimum：316 x 191 x 168 mm ( 12.4 x 7.5 x 6.6 in. ) |
| Weight |
4.3 kg ( 9.5 lb. ) |
| Interface |
USB3.2 Gen1x1 |
| Power Consumption |
Operation < 38 W；Ready < 6 W；Sleep < 1.8 W；Off < 0.2 W |
| Acoustical Noise |
Operation < 52 dB；Ready < 25 dB |
| Recommended Daily Volume |
Up to 10,000 sheets |
| OS Support |
Win 7, Win 8, Win 10 |
| Bundled Software |
TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver |
| Features | |
| Ultrasonic paper jam detection |
Yes |
| Long Paper Mode |
Up to 200 dpi Color Duplex 240 in. ( 6096 mm )；Up to 300 dpi Color Duplex 218 in. ( 5540 mm )；Up to 600 dpi Color Duplex 59 in. ( 1500 mm ) |
| Card Scan |
Embossed card ( Thickness 1.25 mm ) |
| Scan Size | |
| ADF Minimum |
50 x 50 mm |
| ADF Maximum |
216 x 356 mm ( Legal )( 8.5 x 14 in. ) |
| ADF Capacity |
100 sheets ( A4 : 80 g/m² or 20 lb. ) |
| Paper Weight (Thickness ) |
27g ~ 413 g/m² ( 7 to 110 lb ) |
| Scanning Speed | |
| B/W @ 200dpi, A4 |
Simplex : 60 ppm；Duplex :120 ipm |
| B/W @ 300dpi, A4 |
Simplex : 60 ppm；Duplex : 120 ipm |
| Color @ 200dpi, A4 |
Simplex : 60 ppm；Duplex : 120 ipm |
| Color @ 300dpi, A4 |
Simplex : 45 ppm；Duplex : 90 ipm |
* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.
Дополнительные лотки формата А3 для МФУ Avision AM7630i, AM7640i
Photoconductor Drum
Photoconductor Drum
AVISION Тонер-картридж для AM7630i/AM7640i 20K

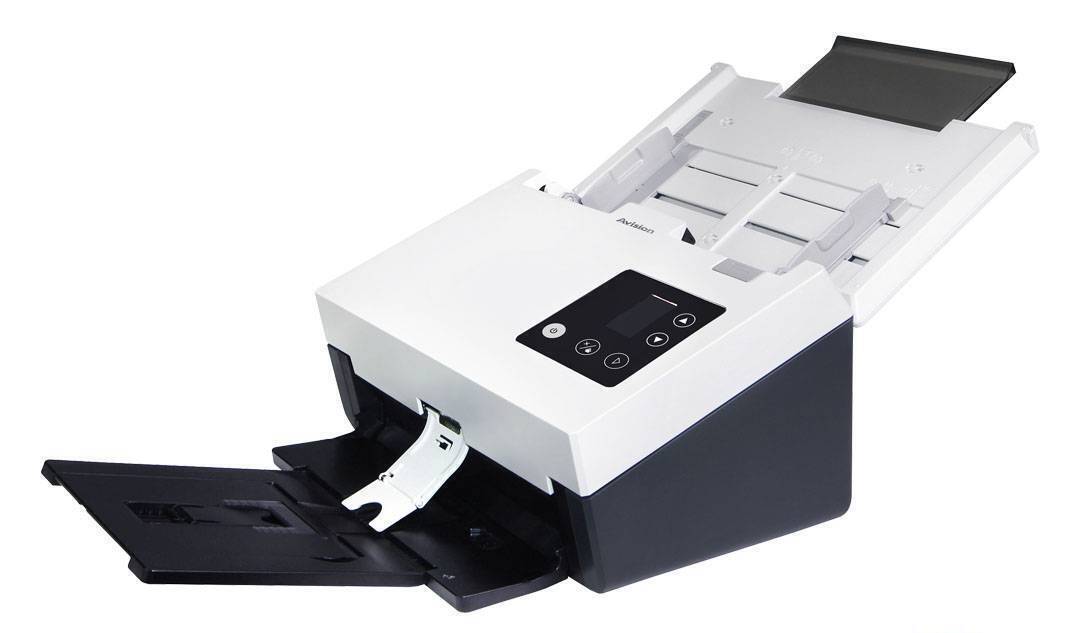

Enhanced with innovative features, the Avision AD345GF offers high throughput of 60 ppm and 120 ipm in a compact footprint conserving both space and budget. Unlike common sheet-fed scanners which provide only the auto document feeder and can not accommodate irregular sizes and weights of paper, the AD345GF harmoniously combines the benefits of the fast scan rate of the ADF and the convenience of the flatbed unit to meet customer’s diverse requirements.
What is best, with Avision’s advanced image processor , the scanned image can be automatically cropped, straightened, and optimized with enhanced speed.
The AD345G series is 60 page-per-minute, duplex scanner that are fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock are necessary. Embedded with Avision-developed image processor , the scanned image can be automatically cropped, straightened, and optimized with enhanced speed.
