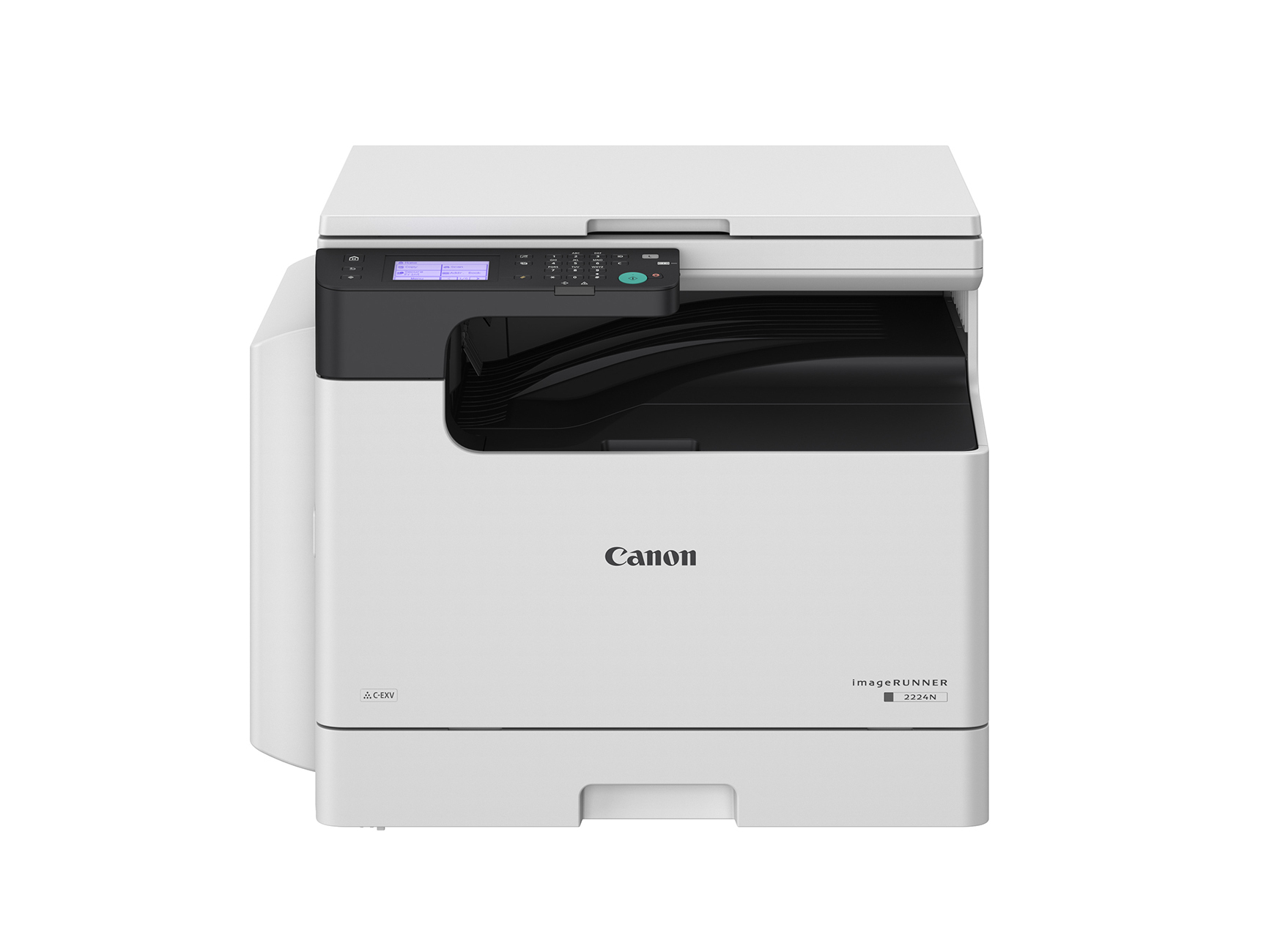

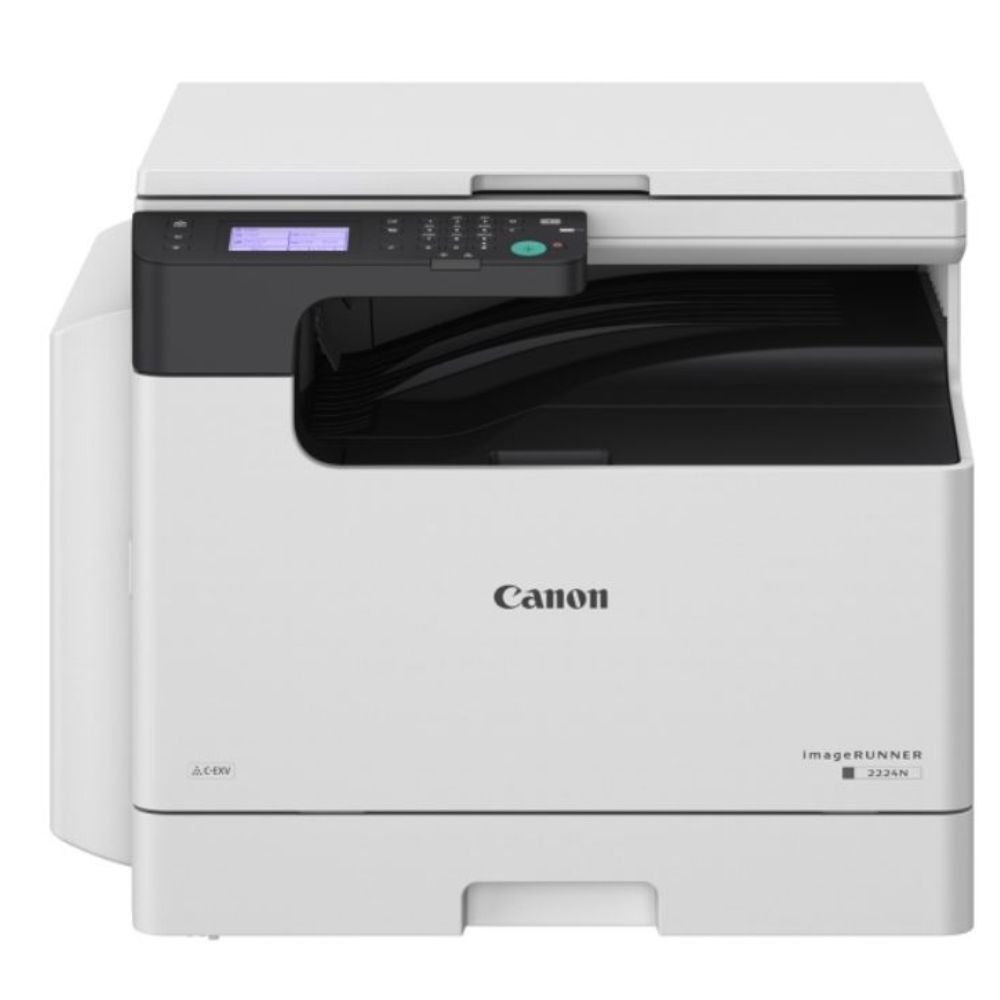

Canon imageRUNNER 2224N — идеальный выбор черно-белого многофункционального устройства для небольших офисов при ограниченном бюджете. Копирование, печать и сканирование формата А3 в одном компактном устройстве.
Встроенное руководство по настройке позволяет пользователю самостоятельно запустить аппарат и максимально быстро начать работать. Больший объем памяти, возможность полноценно работать по сети, реализовать двустороннюю печать делают Canon imageRUNNER 2224N незаменимым помощником в современном офисе.
Сенсорный экран в 3,5 дюйма интуитивно прост и максимально доступен. Сканирование в электронную почту и преобразование в формат PDF с высоким сжатием и функцией поиска востребовано в современном офисе.
Данное устройство соответствует требованиям стандарта ENERGY STAR®, имеет один из самых низких показателей TEC² в отрасли и потребляет не более 2 Вт в спящем режиме.
| Machine type: | A3 Monochrome Laser Multifunctional |
| Core functions: | iR 2224iF: Print, Copy, Scan, Send, and Fax iR 2224N: Print, Copy, Scan, and optional Send iR 2224: Print, Copy, and Scan |
| Processor: | 1.6GHz Dual Core Processor |
| Control Panel: | 8.9 cm/3.5 inch monochrome Touch panel |
| Memory: | Standard: 1.0GB RAM |
| Storage: | Standard: 2GB eMMC |
| Interface Connection: | iR2224iF/2224N: NETWORK Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Device) x1 iR2224: USB 2.0 (device) x1 |
| Paper Supply Capacity (A4, 80gsm): | Standard: 350 sheets Maximum: 600 sheets (with Cassette Feeding Module-AK1) |
| Paper output capacity (A4, 80gsm): | Standard: 250 sheets Maximum: 250 sheets |
| Finishing capabilities: | Collate, Group |
| Supported media types: | Multi-purpose Tray: Thin, Plain, Recycled, Thick, Color, Bond, Transparency, Label, Pre-punched, Envelope Paper Cassette: Plain, Recycled, Color, Pre-punched |
| Supported media sizes: | Multi-purpose tray: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelope (COM10, Monarch, DL, ISO-C5) Custom size: Min. 95.0 x 148.0mm up tp 297.0 x 431.8mm Paper Cassette: Standard size: A3, A4, A4R, A5R, B4, B5, B5R |
| Supported media weights: | Multi-purpose tray: 60 to 157 gsm Paper Cassettes: 64 to 90 gsm Duplex: 60 to 90 gsm |
| Warm-up Time: | From Power On: 13 Seconds or Less* * Time from device power-on, until copy ready (not print reservation) Quick start mode: N/A From Sleep Mode: 4.3 Seconds or Less |
| Dimensions (W x D x H): | iR 2224iF/2224N (with DADF): 627 x 607 x 606 mm iR 2224/2224N (with Platen cover): 627 x 589 x 502 mm |
| Installation Space(W x D): | 1065 x 1285 mm |
| Weight: | Standard: iR 2224iF: Approx. 37.5 kg without toner iR 2224N: Approx. 31.6 kg witout toner iR 2224: Approx. 32.3 kg including toner |
| Print Speed (BW): | 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) 2-sided: Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up tp 7.8ppm (A4R) |
| Print Resolution (dpi): | Up to 1,200 x 1,200 |
| Page description languages: | iR2224iF/2224N Standard: UFRII, PCL6/PCL5 iR2224 Standard: UFRII |
| Printing from mobile and cloud Application: | iR2224iF/2224N only: Apple AirPrint, Canon PRINT Business, Mopria, Canon Print Service. A range of software solutions is available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information |
| OS Standard Printing: | Android/Windows® 10/Chrome OS/macOS (11.2.2)/ iOS/iPadOS |
| Fonts: | PCL fonts: 45 Roman, 10 Bitmap fonts Print Features Watermark, Header/Footer, Page Layout, Two-sided Printing*, Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Print Date * Std on 2224iF, Opt on 2224N only |
| Operating System: | UFRII: Windows®8.1 / Windows®10 / Windows®11 / Windows®Server2012 / Windows®Server2012 R2 / Windows®Server2016 / Windows®Server2019 / Windows®Server2022 PCL: Windows®8.1 / Windows®10 / Windows®11 / Windows®Server2012 / Windows®Server2012 R2 / Windows®Server2016 / Windows®Server2019 / Windows®Server2022 PPD: Windows®8.1/Windows®10/Windows®11 As of Nov 2022 |
| Copy Speed: | DADF: 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) 2-sided: Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R) |
| First-Copy-Out Time (BW): | Platen: Approx. 7.4 seconds or less (A4) |
| Copy resolution (dpi): | 600x 600 |
| Multiple Copies: | up to 999 copies |
| Copy Density: | Automatic or Manual (9 Levels) |
| Magnification: | 25% - 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400% |
| Copy Features: | Preset R/E Ratios by Area, Two-Sided*, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Copy Passport * Std on 2224iF, Opt on 2224N only |
| Type: | iR 2424iF: Standard Duplexing Automatic Document Feeder [2-sided to 2-sided] iR 2424N: Standard Platen Cover and optional Duplexing Automatic Document Feeder [2-sided to 2-sided] iR 2424: Standard Platen Cover |
| Document Feeder Paper Capacity: | 50 Sheets (80sm) |
| Acceptable Originals and weights: | Platen: Sheet, Book Document Feeder sheet media weight: 1-sided/2-sided continuous scanning: 52 to 105 gsm (BW/CL) Only 1-sheet feeding is supported in 37-52 and 105-128 gsm |
| Supported media sizes: | Platen: max. scanning size: 297.0 x 432.0 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 128.0 x 148.0 mm to 297.0 x 432.0 mm |
| "Scan Speed (ipm: BW/CL; A4) ": | DADF: 1-sided Scanning: 35/25 (300 dpi, send), 25 (600 dpi, copy) 2-sided Scanning: 12/8 (300 dpi, send), 8 (600 dpi, copy) |
| Scan Resolution (dpi): | Scan for Copy: up to 600 x 600 Scan for Send: (Push) up to 300 x 600, (Pull) up to 600 x 600 Scan for Fax: up to 200 x 400 |
| Pull Scan Specifications: | ScanGear MF For both TWAIN and WIA Windows®8.1/ Windows®10/ Windows®11 macOS (10.12 or later) |
| Scan Method: | Push scan, Pull scan, Scan to Network |
| Standard/Optional: | iR 2224iF: Standard iR 2224N: Optional |
| Destination: | Standard: E-mail(SMTP), SMB3.0 |
| Address Book/Speed dials: | LDAP (50)/Local (300)/Speed dial (296) |
| Send resolution (dpi): | Push: 300 x 600 (SMB/FTP/Email) Pull: 50 x 50, 75 x 75, 150 x 150, 200 x 200, 300 x 300, 400 x 400*, 600 x 600* * color mode is black and white only |
| Communication protocol: | File: SMB3.0 (TCP/IP) Email: SMTP (send) |
| File Format: | Standard: TIFF, JPEG*, PDF, PDF (Compact) * Single Page Only |
| Universal Send Features: | Original Type Selection, Two-sided Original, Different-size Originals, Density Adjustment, Sharpness, Preview, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report |
| Optional/ standard: | iR 2224iF: Standard iR 2224/iR2224N: n/a |
| Maximum Number of Connection Lines: | 1 |
| Modem Speed: | SuperG3: 33.6kbps, G3: 14.4kbps |
| Compression Method: | MH, MR, MMR, JBIG |
| Resolution (dpi): | 200 x 400 (Superfine), 200 x 200 (Fine), 200 x 100 (Normal) |
| Sending/Recording Receiving Size: | Sending: A3, A4, A4R, A5*2, A5R*2,B4, B5*1, B5R*2, Receiving: A3, A4, A4R, A5R, B4, B5, B5R, *1 Sent as B4 *2 Sent as A4 |
| FAX memory: | Up to 512 pages |
| Speed dials: | Max. 296 |
| Group dials/destinations: | Max. 299 dials |
| Sequential broadcast: | Max. 310 addresses |
| Memory backup: | Yes |
| Fax Features: | Sender's Name (TTI), Direct Send, TX Report, Sequential Broadcasting |
| Authentication and Access Control: | Department ID Authentication (Department ID and PIN Login, Function Level Login) |
| Document Security: | Print Security (SecurePrint), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History) |
| Network Security: | TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP Address Filtering), Enabling/ Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN |
| Device Security: | Standard HDD/SSD Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193) |
| Device Management and Auditing: | Administrator Password, Digital Certificate and Key Management*, Security Policy Setting* * iR 2224iF/2224N only |
| Operating Environment: | Temperature: 10 to 30 °C Humidity: 20 to 80% RH (Relative Humidity) |
| Power source: | 220-240V 50/60Hz (2.8A) |
| Power consumption: | Maximum: Approx. 1,500 W Standby: Approx. 15.5 Sleep mode: Approx. 0.9 W Typical Electricity Consumption (TEC)*: iR2224: 0.26kWh iR2224N/iR2224iF: 0.28kWh * As per US Energy Star 3.0 For detailed information relating to Lot26 regulation, please go to: https://www.canon-europe.com/for_work/lot26/ |
| Noise levels (BW/CL): | Sound Power Level (LWA,m) Active (1-sided): 6.7B*, Kv: 0.3B* Sound Pressure Level (LpAm) Bystander's position: Active (1-sided): 55 dB* * Reference value: measured only one unit with ISO7779, described with ISO9296:2017 |
| Toner Cartridge/s: | C-EXV 42 TONER BK EUR |
| Toner (Estimated Yield @ 5% Coverage): | Black: 10,200 impressions (A4) |
| Remote management tools: | iWEMC eMaintenance |
| Scanning software: | ScanGear |
| Optimisation tools: | Canon Driver Configuration Tool |
| Document Publishing: | iW Desktop |
| Feeder Options: | Cassette Feeding Module-AK1 Paper Capacity: 250 sheets x 1 (80 gsm) Paper Type: Plain, Recycled, Color, Pre-punched Paper Size: A3, A4, A4R, A5, B4, B5 ,B5R Custom Size: - Paper Weight: 64 to 90 gsm Power Source: Main Unit Dimensions (W x D x H): 581 x 575 x 92 mm Weight: Approx. 5.8 kg |
| Duplex Unit-E1: | Enables automatic double-sided printing* * iR 2224N only |
| DADF-AY2: | Duplexing Automatic Document Feeder [2-sided to 2-sided]* * iR 2224N only |
| SEND OPTIONS: | CLR SEND KIT-AC1 |
| FAX ACCESSORIES: | HANDSET-K1 |
