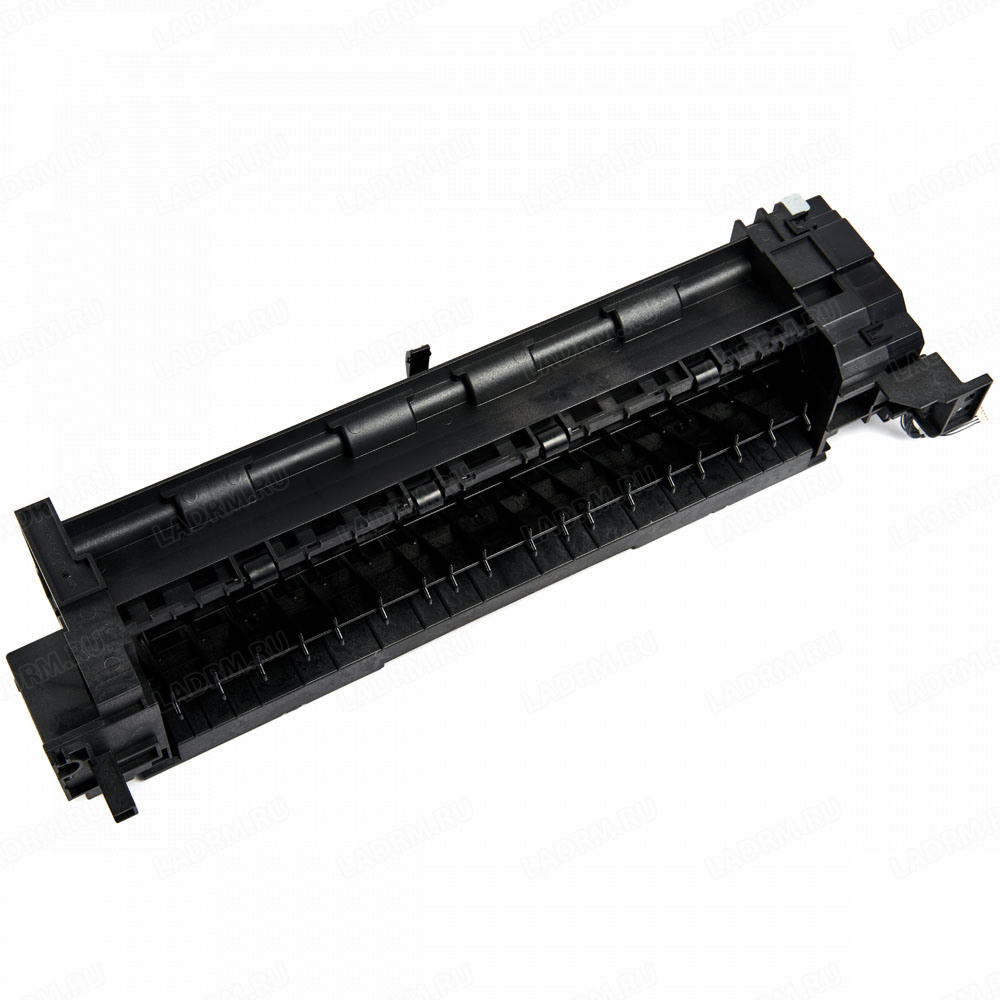

Узел выхода в сборе Kyocera PARTS EXIT UNIT B SP 302LH94272 / 302LC94031

Артикул: 302LH94271 / 302LH94270 / 302LC94031 / 302LC94030

Состав:

• •2FM02210 5MVM274DN002 PULLEY MID /B-11 FRAME A4

• •2FM02320 5MVG144DN003 GEAR FD Z31 /B-11 FRAME A4

• •2FM04150 5MVM163DN005 CAP SPRING /B-11 ENCLOSURE A4

• •302F929260 2F929260 PULLEY DU LOW

• •302FZ28270 2FZ28270 SPRING EXIT PUSH

• •302H024370 2H024370 BUSH 6 EW

• •302H728080 2H728080 GEAR Z23S EXIT

• •302HN28120 2HN28120 SPRING PULLEY A

• •302JF22010 2JF22010 PULLEY MIDDLE

• •302K928190 2K928190 SPRING-TORSION SWITCHBACK

• •302K994300 2K994300 PARTS MOTOR PM FEED SP

• •302K994370 2K994370 PARTS SOLENOID FEED SHIFT SP

• •302LC94350 2LC94350 PARTS ROLLER?EXIT SP

• •302LC94360 2LC94360 PARTS GEAR Z40R Z14S IDLE SP

• •302LC28091 2LC28091 ACTUATOR EXIT SENSOR

• •302LC28100 2LC28100 SPRING-COMPRESSION

• •302LC28110 2LC28110 SPRING-EXTENSION

• •302LC28150 2LC28150 SPRING-COMPRESSION
• •302LC28210 2LC28210 ACTUATOR SWITCHBACK

• •302LC46360 2LC46360 WIRE EXIT

• •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4

• •63212210 63212210 STATIC ELIMINATOR,EJECT

• •7NXGP1A173LCH01 NX115300 SENSOR OPT.

• •302LC28240 2LC28240 SPRING SWITCHBACK

• •302LC28011 2LC28011 FRAME EXIT LOWER

• •302LC28041 2LC28041 GUIDE CHANGE UPPER

• •302LC28051 2LC28051 GUIDE CHANGE LOWER

• •302LC28140 2LC28140 PLATE EARTH EXIT

• •302LC28030 2LC28030 GUIDE EXIT MIDDLE

• •303JY28280 3JY28280 CUSHION EJECT GUIDE B

• •302K324460 2K324460 SHAFT FEED

• •302FZ28260 2FZ28260 EXIT PUSH

• •302LH94290 2LH94290 PARTS ROLLER EXIT SP

• •302LC28220 2LC28220 GUIDE ACTUATOR

• •303MA16560 3MA16560 SHAFT GEAR BELT

• •302LC28060 2LC28060 PLATE EXIT F

• •302LC28120 2LC28120 COVER EXIT FRONT

• •302LC28022 2LC28022 FRAME EXIT UPPER

• •302LH28010 2LH28010 GUIDE EXIT PUSH
• •302LC28230 2LC28230 STAY EXIT LOW

Совместимость:

• KYOCERA TASKalfa 3500i

• KYOCERA TASKalfa 4500i

• KYOCERA TASKalfa 5500i

• KYOCERA TASKalfa 3501i

• KYOCERA TASKalfa 4501i

• KYOCERA TASKalfa 5501i

• KYOCERA TASKalfa 3051ci

• KYOCERA TASKalfa 3551ci

• KYOCERA TASKalfa 4551ci

• KYOCERA TASKalfa 5551ci
