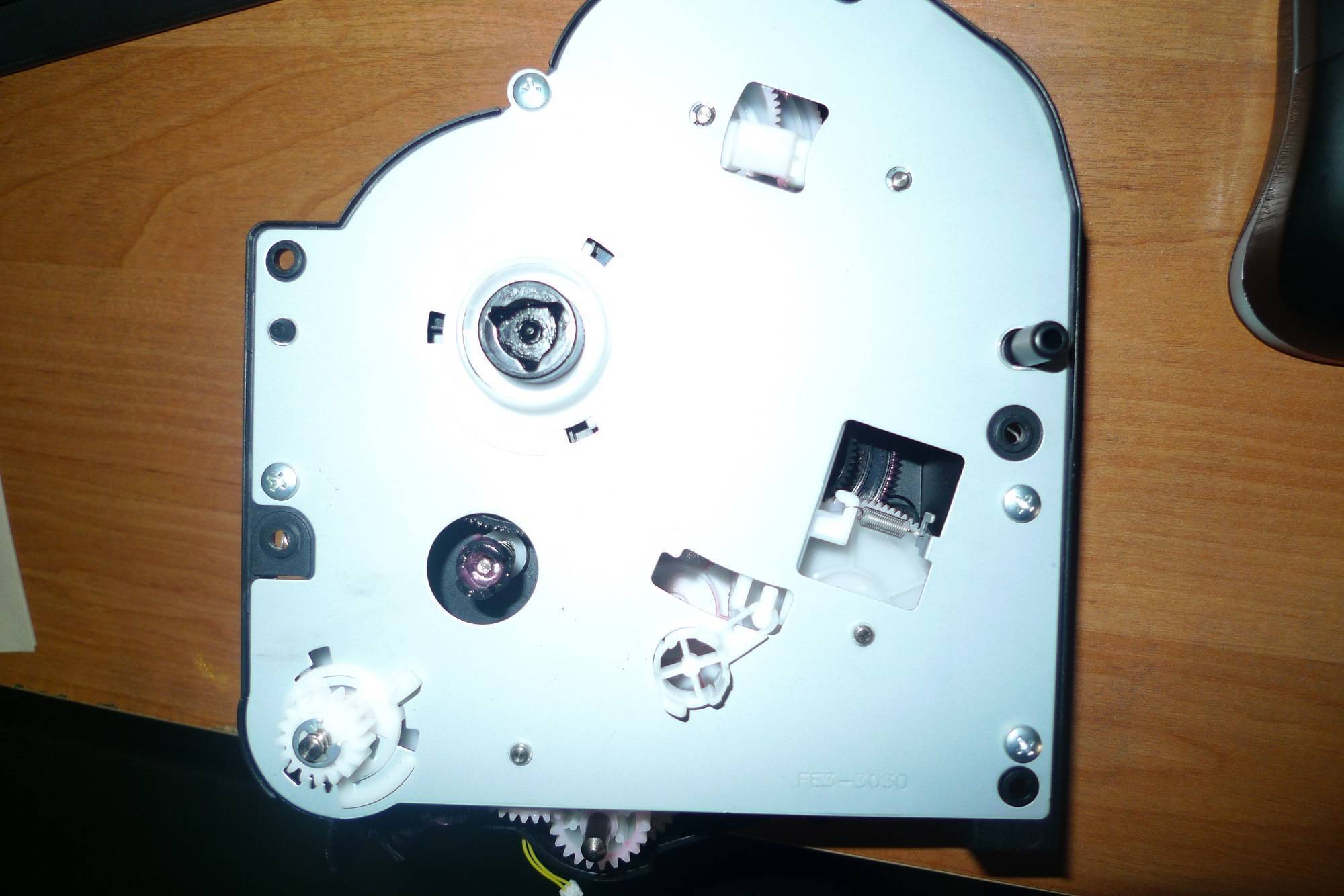

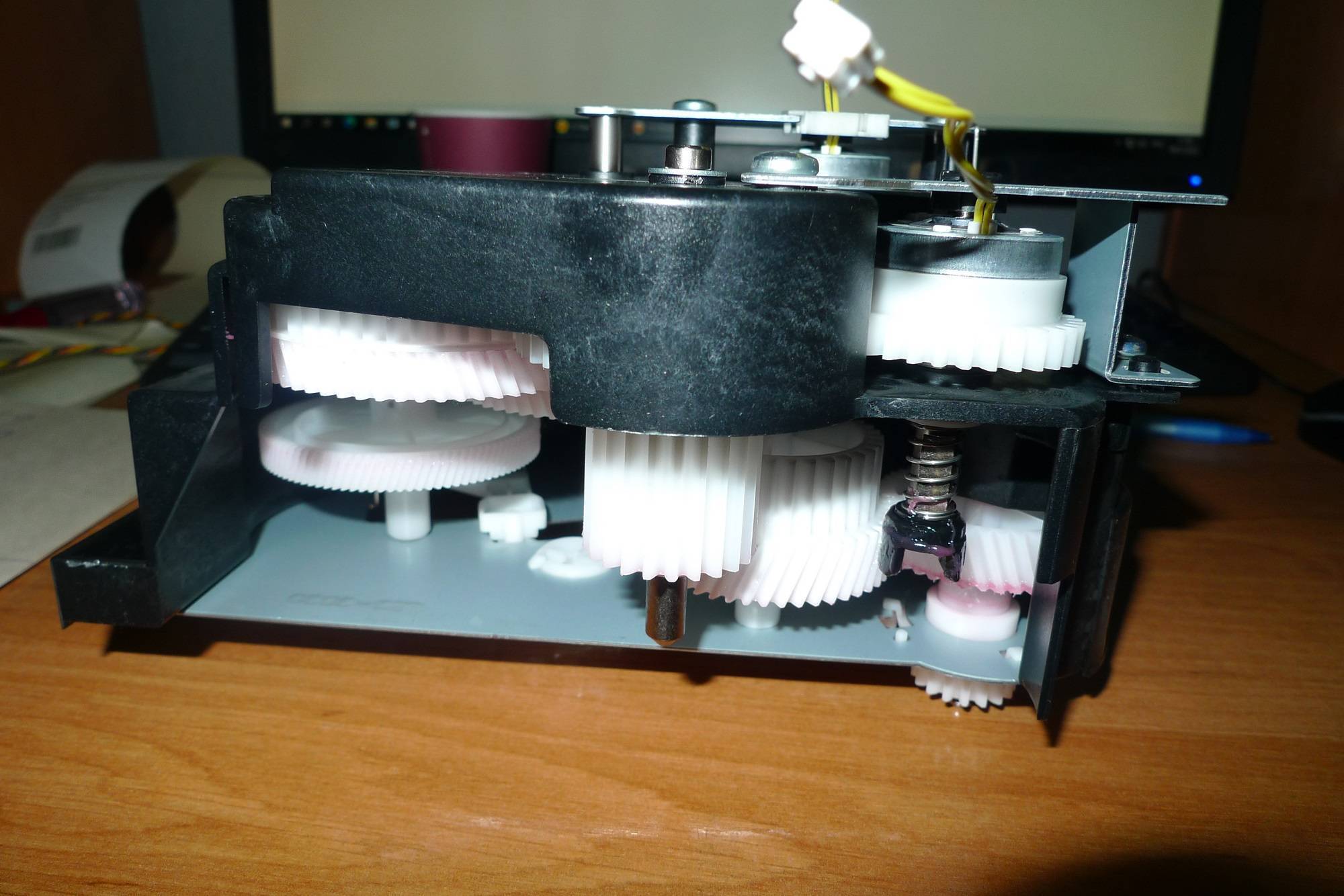

MAIN DRIVE ASSEMBLY

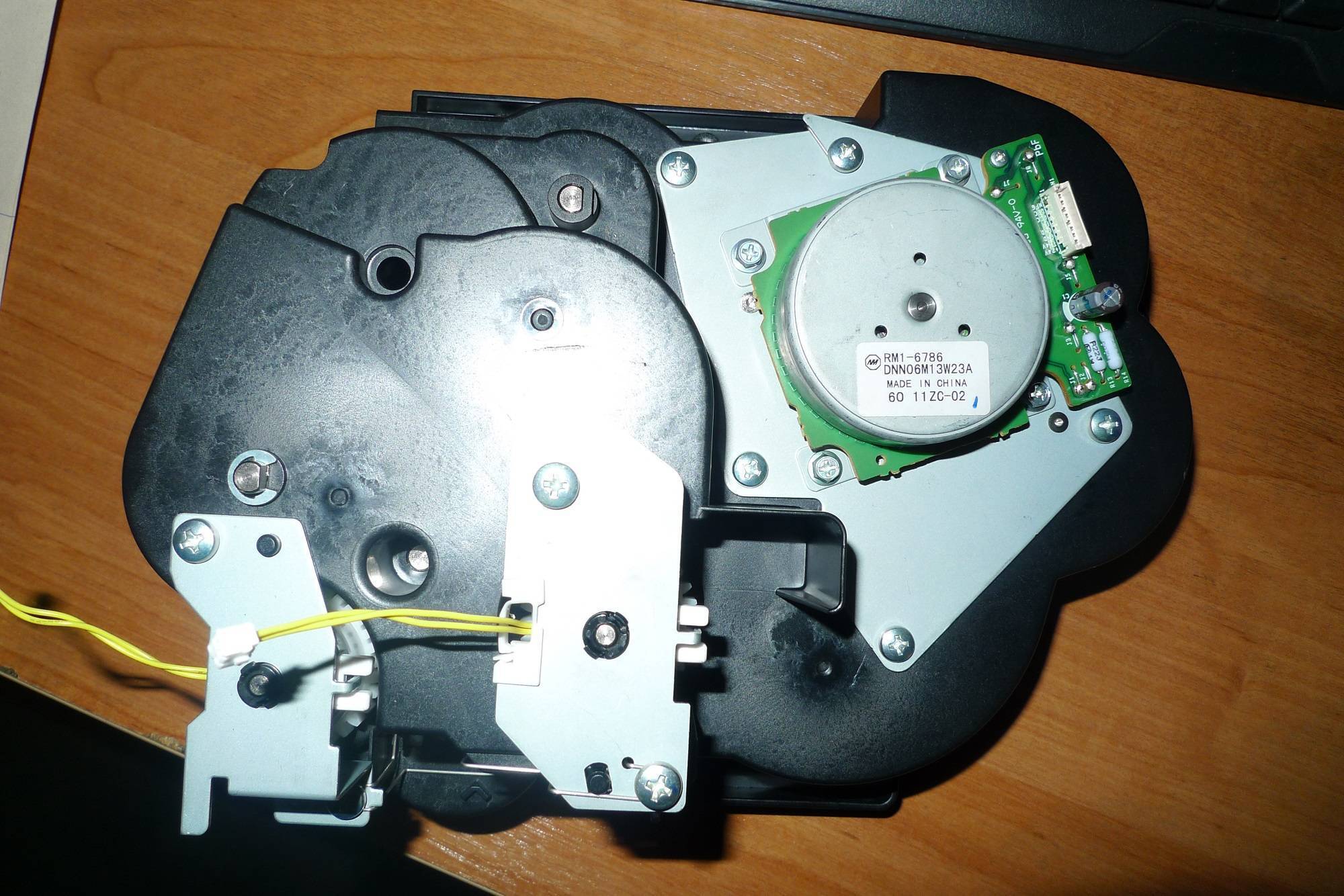

В состав входит мотор FM1-B328/RM1-6786
1 FE3-3002-000 1 GEAR, 17T
2 FE3-3003-000 1 BUSHING
3 FE3-3009-000 1 FRAME, MAIN DRIVE
4 FE3-3010-000 1 GEAR, 57T/113T
5 FE3-3011-000 1 GEAR, 107T
6 FE3-3012-000 1 GEAR, 59T
7 FE3-3013-000 1 SPRING, COMPRESSION
8 FE3-3014-000 1 GEAR, 53T/103T
9 FE3-3015-000 1 GEAR, 101T
10 FE3-3016-000 1 GEAR, 29T
11 FE3-3017-000 1 GEAR, 48T/59T
12 FE3-3018-000 1 GEAR, 23T/42T
13 FE3-3019-000 1 GEAR, 36T/50T
14 FE3-3020-000 1 GEAR, 67T
15 FE3-3021-000 1 GEAR, 55T
16 FE3-3023-000 1 GEAR, 42T
17 FE3-3027-000 2 COUPLING
18 FE3-3031-000 1 BUSHING
19 FE3-3032-000 1 CABLE, GROUNDING
20 FE3-3045-000 2 BUSHING
21 FE3-3048-000 1 CABLE, GROUNDING
22 FE3-3053-000 1 SHAFT, TRANSMISSION
23 FE3-3059-000 2 SPRING, COMPRESSION
24 FE3-3061-000 1 LEVER, RELEASE
25 FE3-3062-000 1 COUPLING
26 FE3-3074-000 1 SPRING, TENSION
27 FK4-0529-000 2 CLUTCH, ELECTROMAGNETIC CL202,CL203
28 FM1-B328-000 1 MOTOR UNIT, DC M202
29 FS1-1205-000 2 BUSHING
30 FU6-0788-000 1 GEAR, 161T
31 RB2-1850-000 1 PIN
32 XA9-1386-000 4 SCREW,RS,M3X8
