Zebra TTP 8000 — каталог запчастей со схемами

Содержание

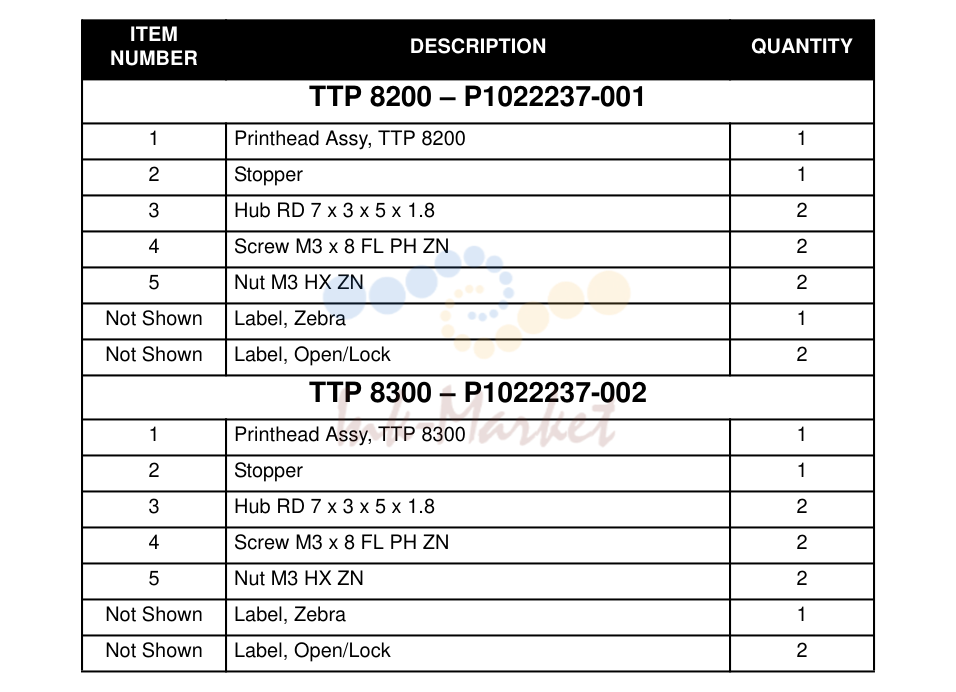

№	Артикул	Альт. артикул	Описание
1			Printhead Assy, TTP
2			Stopper
3			Hub RD 7 x 3 x 5 x 1.8
4			Screw M3 x 8 FL PH ZN
5			Nut M3 HX ZN
1			Printhead Assy, TTP
2			Stopper
3			Hub RD 7 x 3 x 5 x 1.8
4			Screw M3 x 8 FL PH ZN
5			Nut M3 HX ZN
1			Thermal Printhead, 203 dpi, 216 mm
2			Compression Springs 0.75 x 5 x
3			Screw
4			Screw
5			Hub
1			Thermal Printhead, 300 dpi, 216 mm
2			Compression Springs 0.75 x 5 x
3			Screw
4			Screw
5			Hub

№	Артикул	Альт. артикул	Описание
1			Platen Roller Assembly
2			Circlip RS
3			Bearing
4			Screw M3 x 5 PN TX ZN
2			Circlip RS
3			Bearing
4			Screw M3 x 5 PN TX ZN
5			Platen Roller Assembly, 300 dpi
6			Cylindrical Pin
7			Gear Wheel
1			Presenter Module Assy
2			Cable Clamp
3			Cable Tie, Locking
1			Presenter Module Vertical Assy
2			Cable Clamp
3			Cable Tie, Locking

№	Артикул	Альт. артикул	Описание
1			Presenter Top Assy
2			Shaft RD 3 x
3			Circlip RS 2.3
4			Snap Lock
5			Snap Lock Stop
1			Presenter Top Assy
2			Shaft RD 3 x
3			Circlip RS 2.3

№	Артикул	Альт. артикул	Описание
1			Cutter Blade, Fixed
2			Screw M2.5 x 4 PN TX ZN
3			Cutter Blade, Moving
4			Split Pin
1			Stepper Motor with Pin
2			Screw M4 x 8 PN PH ZN
1			Stepper Motor
2			Screw M4 x 8 PN PH ZN
3			Knurled Pin
4			Gear Wheel, Motor
5			Nut M4 HX ZN
1			Catch Lever
2			Catch Lever Bearing
3			Screw M3 x 10 PN PH ZN
1			Opto Sensor Assy
2			Screw, M2 x 6 PN PH ZN
3			Spacer
4			Cable Tie, Locking
