Содержание
- 1. ZXP8 Spare Parts Catalog __________________________________________
- 2. ZXP8 Spare Parts Catalog __________________________________________
- 3. ZXP8 Spare Parts Catalog __________________________________________
- 4. ZXP8 Spare Parts Catalog __________________________________________
- 5. ZXP8 Spare Parts Catalog __________________________________________

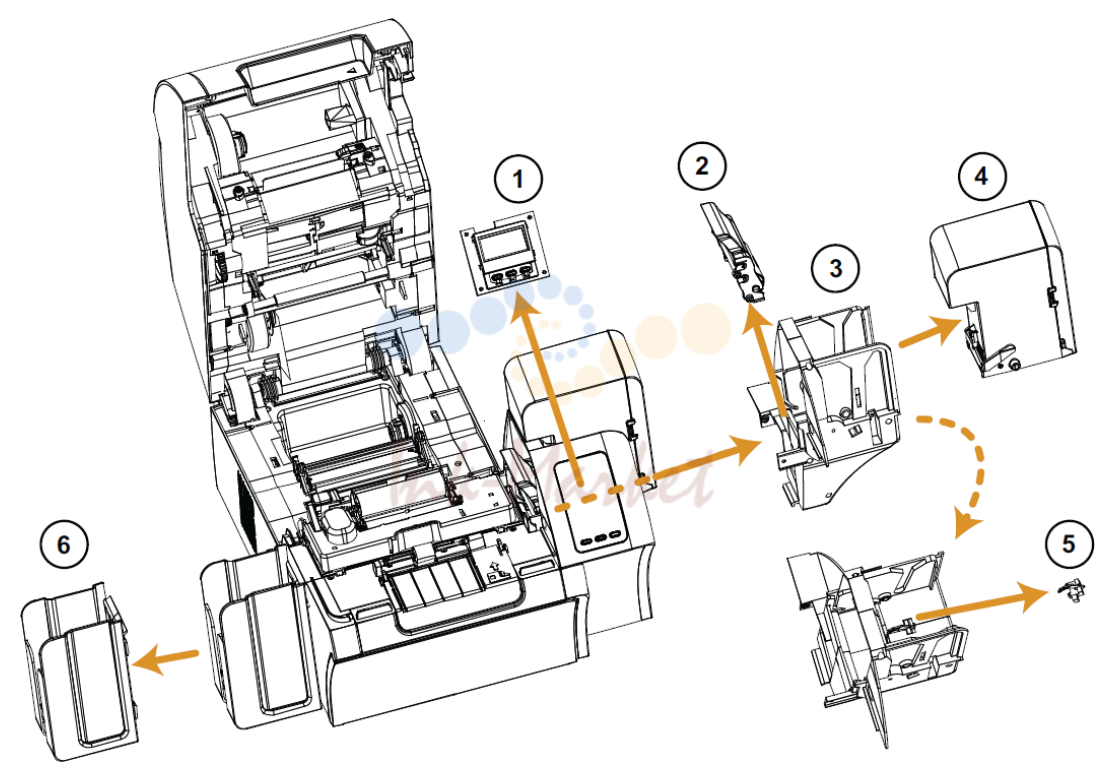

1. ZXP8 Spare Parts Catalog __________________________________________
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Kit Operator Control Panel ZXP8 105936G-012 | ||
| 2 | Kit Cleaning Cartridge Assembly ZXP8 105936G-033 | ||
| 3 | Kit Card Feeder Assembly ZXP8 105936G-031 | ||
| 4 | Kit Card Feeder Box (holds 150 cards) ZXP8 105936G-032 | ||
| 5 | Kit Card Infeed Sensor ZXP8 105936G-034 | ||
| 6 | Kit Output Hopper Assembly ZXP8 105936G-035 | ||
| 1 | Kit Transfer Station Assembly ZXP8 105936G-109 | ||
| 2 | Kit Halogen Bulbs (Qty 2) ZXP8 105936G-110 | ||
| 3 | Kit Platen Roller ZXP8 105936G-039 | ||
| 4 | Kit Printhead Assembly ZXP8 105936G-003 | ||
| 5 | Kit Power Cable for Printhead ZXP8 105936G-040 | ||
| 6 | Kit Data Cable for Printhead ZXP8 105936G-017 | ||
| 7 | Kit Y Roller ZXP8 105936G-036 | ||
| 9 | Kit Idler Cover ZXP8 105936G-114 | ||
| 10 | Kit Tricolor Sensor ZXP8 105936G-024 | ||
| 11 | Kit Card Detector Emitter ZXP8 105936G-315 | ||
| 12 | Kit Media Authentication Coupler PCBA ZXP8 105936G-028 | ||
| 13 | Kit INTM Payout Assembly ZXP8 105936G-006 | ||
| 14 | Kit Gap Sensor with cable INTM Take Up ZXP8 105936G-018 | ||
| 15 | Kit INTM Take Up Assembly ZXP8 105936G-005 | ||
| 1 | Kit Ribbon Tape Up Assembly ZXP8 105936G-002 | ||
| 2 | Kit Ribbon Payout Drive Assembly ZXP8 105936G-001 | ||
| 3 | Kit Mag Encoder ZXP8 105936G-043 | ||
| 4 | Kit Card Transport Assembly ZXP8 105936G-029 | ||
| 5 | Kit Card Edge Detector ZXP8 105936G-315 | ||
| 1 | Kit Gap Sensor with cable INTM Take Up ZXP8 105936G-018 | ||
| 2 | Kit Media Authentication Coupler PCBA ZXP8 105936G-028 | ||
| 3 | Kit Transfer Output and Belt ZXP8 105936G-004 | ||
| 4 | Kit Media Authentication PCBA ZXP8 105936G-027 | ||
| 5 | Kit Printhead Lift Motor ZXP8 105936G-011 | ||
| 1 | Kit Printhead Lift Motor ZXP8 105936G-011 | ||
| 2 | Kit Ribbon Take Up Sensor ZXP8 105936G-030 | ||
| 3 | Kit Door Switch ZXP8 105936G-026 | ||
| 4 | Kit EMI Line Filter ZXP8 105936G-020 | ||
| 5 | Kit Printhead Fan ZXP8 105936G-022 | ||
| 6 | Kit Gap Sensor with cable ZXP8 105936G-018 | ||
| 7 | Kit Pulley 48T ZXP8 105936G-075 | ||
| 1 | Kit Flash Blower ZXP8 105936G-007 | ||
| 2 | Kit Flash Blower Filter ZXP8 105936G-008 | ||
| 3 | Kit Halogen Lamp Control PCBA ZXP8 105936G-025 | ||
| 4 | Kit Rear Cooling Fan ZXP8 105936G-023 | ||
| 5 | Kit Entire Blower Assembly (includes blower and filter) ZXP8 105936G-064 | ||
| 1 | Kit Main PCBA Mexico for Printer Part Number Z8x-xxxxxxxxMXxx 105936G-019MX01 | ||
| 2 | Kit Power Supply ZXP8 105936G-021 | ||
| 3 | Kit Feet for Printer ZXP8 105936G-013 | ||
| 4 | Kit Ethernet PCBA ZXP8 105936G-055 | ||
| 5 | Kit Printhead Fan ZXP8 105936G-022 |
2. ZXP8 Spare Parts Catalog __________________________________________
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Kit Latch for Upper Laminator Cassette ZXP8 105936G-505 | ||
| 2 | Kit Latch for Lower Laminator Cassette ZXP8 105936G-506 | ||
| 3 | Kit Thumb Drive Wheel ZXP8 105936G-507 | ||
| 4 | Kit Laminator Door Latch ZXP8 105936G-529 |

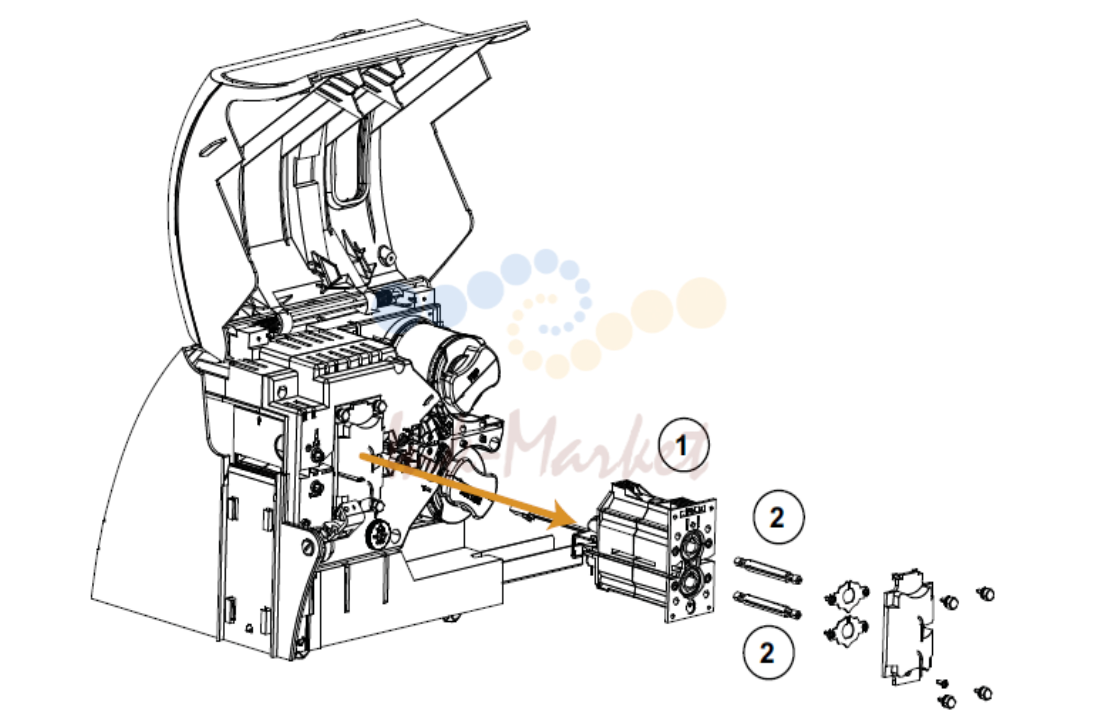

3. ZXP8 Spare Parts Catalog __________________________________________
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Kit Spindle for Upper Cassette ZXP8 105936G-527 | ||
| 2 | Kit Upper Cassette ZXP8 105936G-546 | ||
| 3 | Kit Lower Cassette ZXP8 105936G-547 | ||
| 4 | Kit Spindle for Lower Cassette ZXP8 105936G-528 | ||
| 1 | Kit Exit Roller Assembly ZXP8 105936G-526 | ||
| 2 | Kit Thermopile Module (Same module for upper and lower) ZXP8 105936G-518 | ||
| 3 | Kit Laminate Roller ZXP8 105936G-523 | ||
| 4 | Kit Upper Cutter Assembly ZXP8 105936G-522 | ||
| 5 | Kit Lower Cutter Assembly ZXP8 105936G-508 | ||
| 6 | Kit Static Brush (60mm) ZXP8 105936G-515 | ||
| 1 | Kit Platen Overrun ZXP8 105936G-525 | ||
| 2 | Kit Flexible Ribbed Roller ZXP8 105936G-521 | ||
| 3 | Kit Card Staging Nip Roller ZXP8 105936G-524 | ||
| 1 | Kit Card Exit Sensor ZXP8 105936G-534 | ||
| 2 | Kit Card Laminate Sensor ZXP8 105936G-533 | ||
| 3 | Kit Card Entry Sensor ZXP8 105936G-532 |

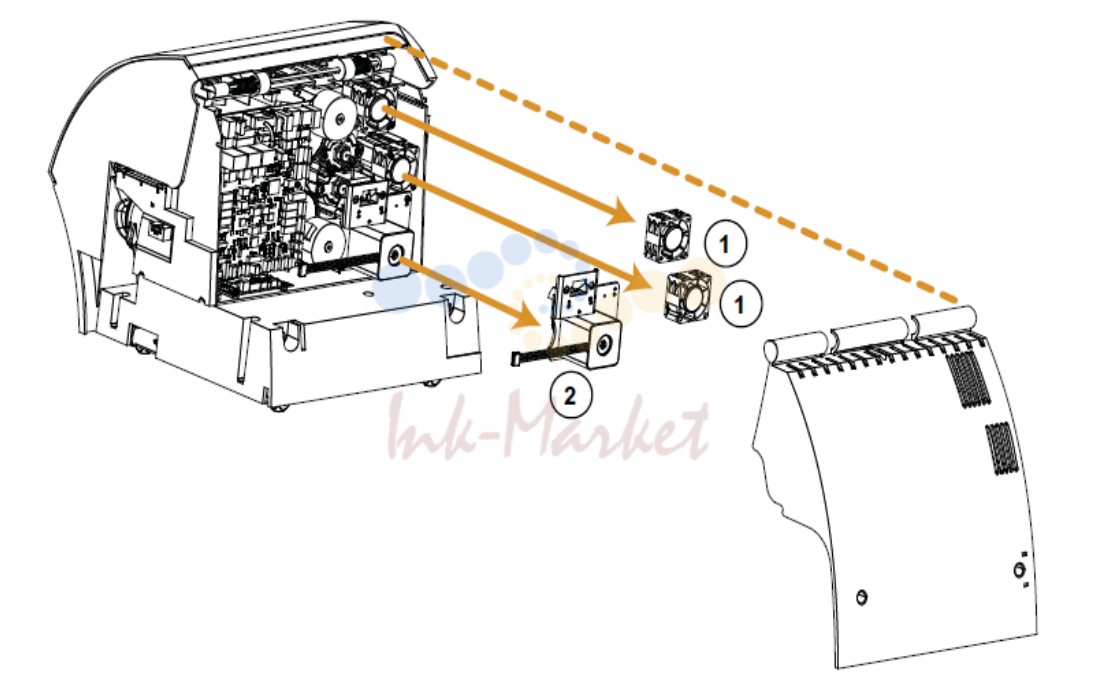

4. ZXP8 Spare Parts Catalog __________________________________________
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Kit Laminator Door Sensor ZXP8 105936G-537 | ||
| 2 | Kit Laminator Main Controller PCBA ZXP8 105936G-560 | ||
| 3 | Kit Cruciform Assembly ZXP8 105936G-501 | ||
| 1 | Kit Upper Laminator Control Motor ZXP8 105936G-512 | ||
| 2 | Kit Lower Laminator Control Motor ZXP8 105936G-513 | ||
| 3 | Kit Staging Motor ZXP8 105936G-514 | ||
| 4 | Kit Media Authentication PCBA ZXP8 105936G-520 |

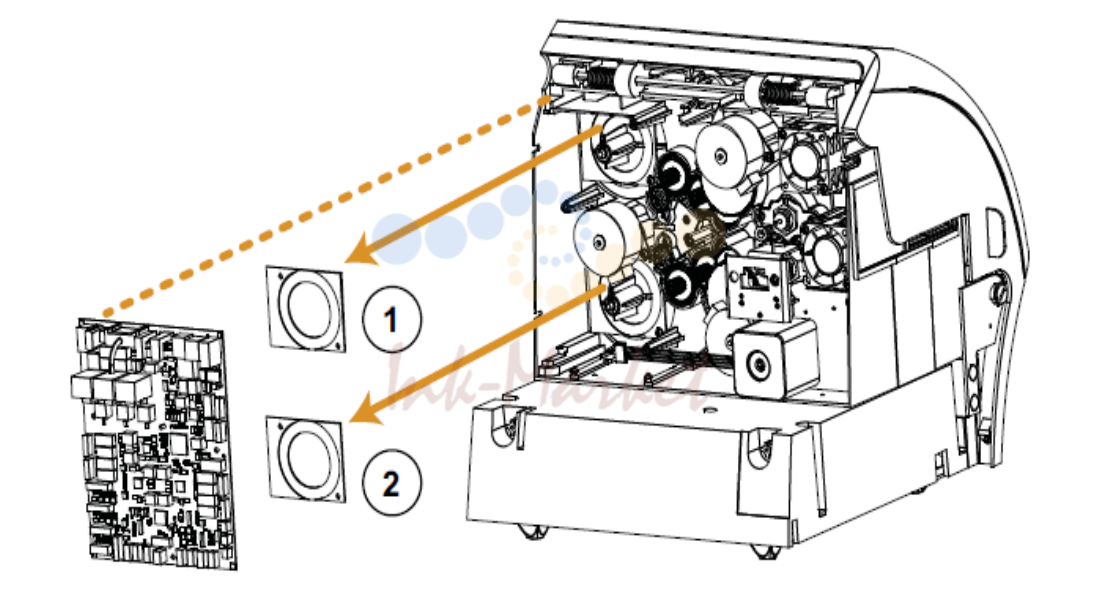

5. ZXP8 Spare Parts Catalog __________________________________________
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 105936-046 запросить цену → | Kit Torque Adjustment ZXP8 | |
| 2 | 105936-047 запросить цену → | Kit INTM Payout ZXP8 | |
| 3 | 105936-048 запросить цену → | Kit INTM Takeup ZXP8 | |
| 4 | 105936-056 запросить цену → | Kit PCBA Removal ZXP8 | |
| 5 | 105936-057 запросить цену → | Kit Cable Routing ZXP8 |
