Zebra KR203 — каталог запчастей со схемами

Содержание

№	Артикул	Альт. артикул	Описание

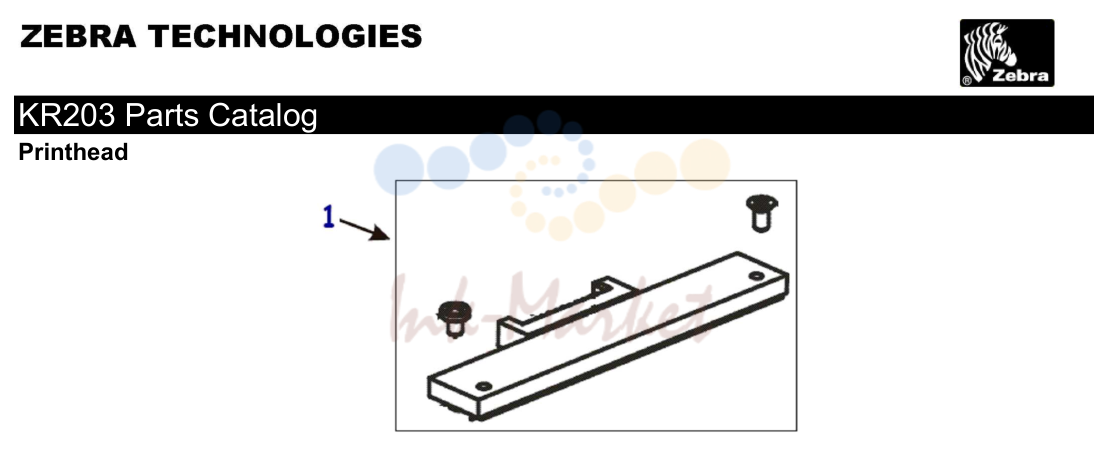

1			Kit Printhead KR Series P1015397
1			Kit Platen Roller KR Series (Qty of 3) P1015402
1			Kit Feed Rollers KR203 (Qty of 3) P1027718
1			Kit Main Logic Board KR203 P1027720
1			Kit Media Sensor Black Mark KR203 P1027721
1			Kit Presenter Media Sensor KR203 (Qty of 2) P1027722
1			Kit Cutter and Presenter Motor (The same type of motor drives the cutter and P1019863
2			Kit Drive Motor (The drive motor is different from the cutter/presenter motor) KR P1019866
1			Kit Drive Gears for Drive System KR Series & TTP2000 P1014137
1			Kit Drive System Hardware KR Series P1019867
1			Kit Media Guide Roller Assembly KR203 P1027719
1			Kit Cutter Blades KR203 (1 each) P1029776
1			Kit Cover Plate Assembly KR203 P1027723
