Xerox WorkCentre PE 120 — каталог запчастей со схемами

Содержание

1. Parts List
2. Parts List
3. Parts List
4. Parts List
5. Parts List
6. Parts List
7. Parts List
8. Parts List
9. Parts List

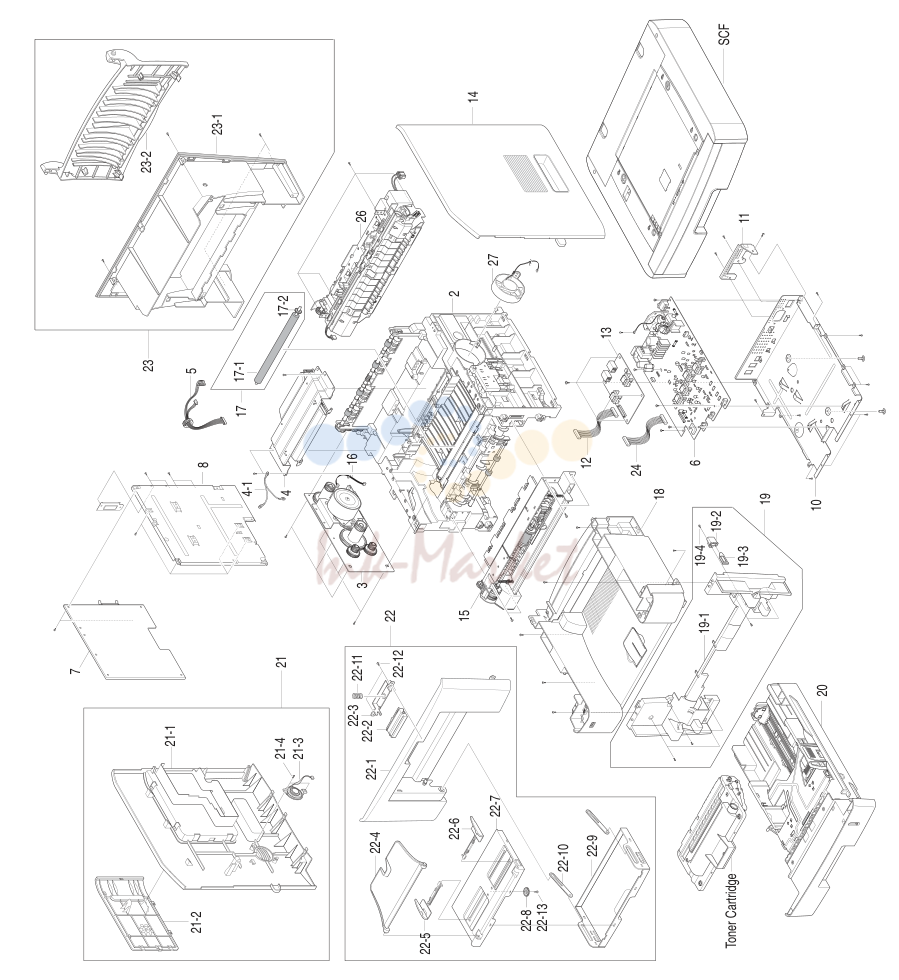

1. Parts List

№	Артикул	Альт. артикул	Описание
0			WorkCentre PE120/120i SYSTEM 1 N/S
1			ELA HOU-SCAN 1 N/S
1-1			ELA HOU-ADF 1 002N02331
1-2			ELA HOU-OPE (XEROX CONTROL PANEL) 1 002N02332
1-3			COVER-M-OPE FRONT 1 N/S
1-4			ELA HOU PLATEN 1 002N02333
2			ELA HOU-UNIT FRAME 110_V 1 002N02353 110 V
3			ELA HOU RX DRIVE (see PL 8.2) 1 007N01270
4			UNIT LSU (Laser) 1 122N00228
4-1			CBF HARNESS-LSU GROUND 1 N/S
5			CBF-HARNESS LSU 1 152N11572
7			PBA MAIN-MAIN CONTROLLER 4 IN 1 1 140N62941
8			SHIELD-P-CONTROLLER 1 N/S
9			BRACKET-P-DUMMY CTRL 1 N/S
10			MEA UNIT-SHIELD ENGINE 1 N/S
11			BRACKET-P-INLET 1 030N00654
12			CBF HARNESS-HIGH LIU 1 152N11573
13			PBA LIU USA/Canada/Eastern Europe/Saudi 1 140N62943
13			PBA LIU Western Europe 1 140N62947
13			PBA LIU Australia 1 140N62948
13			PBA LIU South Africa 1 140N62949
14			COVER-M-SIDE-R 1 002N02334
15			ELA UNIT-MP 1 002N02085
16			CBF-HARNESS-MOTOR 1 152N11577
17			MEA ETC-TR 1 002N02079
17-1			ROLLER TRANSFER R2 1 N/S
17-2			GEAR TRANSFER 1 N/S
18			MEA UNIT-COVER MIDDLE 1 002N02335
19			MEA UNIT COVER MID FRONT 1 002N02336
19-1			COVER M MID FRONT 1 N/S
19-2			CAP M SUB ACTUATOR 1 N/S
19-3			PMO M SUB ACTUATOR 1 N/S
19-4			SCREW TAPTITE 1 N/S
20			MEA UNIT-CASSETTE (USA) 1 050N00451 USA
21			ELA HOU COVER SIDE L 1 002N02337
21-1			COVER SIDE L 1 N/S
21-2			COVER DIMM 1 N/S
21-3			SPEAKER 1 N/S
21-4			SCREW TAPTITE
22			MEA COVER FRONT 1 002N02336
22-1			COVER M FRONT 1 N/S
22-2			KNOB M LOCKER 1 N/S
22-3			HOLER M LOCKER 1 N/S
22-4			TRAY M EXIT MP 1 N/S
22-5			ADJUST M MP L 1 N/S
22-6			ADJUST M MP R 1 N/S
22-7			TRAY M COVER MP 1 N/S
22-8			GEAR PINION 1 N/S
22-9			TRAY M CASE MP 1 N/S
22-10			TRAY M LINK MP 2 N/S
22-11			SPRING CIS (2) 1 N/S
22-12			SCREW TAPTITE 2 N/S
22-13			SCREW TAPTITE 1 N/S
23			MEA UNIT COVER REAR 1 002N02338
23			MEA UNIT COVER REAR, 3 IN 1 1 002N02339
23-1			COVER M REAR 1 N/S
23-2			COVER FACE UP 1 N/S
24			CBF HARNESS-ENGINE 1 152N11574
25			CBF HARNESS MODULAR JACK 1 152N02000
26			ELA HOU-FUSER 110_V 1 126N00233 110 V
26			ELA HOU-FUSER 220_V 1 126N00232 220 V
27			FAN DC 1 127N07328
8-4			WorkCentre PE 120/120i
0			ELA UNIT- DRIVE 1 N/S
1			BRACKET-GEAR MAIN 1 N/S
2			GEAR-RDCN 53/26 1 N/S
3			GEAR-RDCN 113/33 1 N/S
4			GEAR-RDCN 57/18 2 N/S
5			WASHER-PLAIN 2 N/S
6			BRACKET-MOTOR MAIN R2 1 N/S
7			GEAR-RDCN 103/41 1 N/S
8			GEAR-RDCN 90/31 1 N/S
9			MOTOR STEP-MAIN 1 N/S

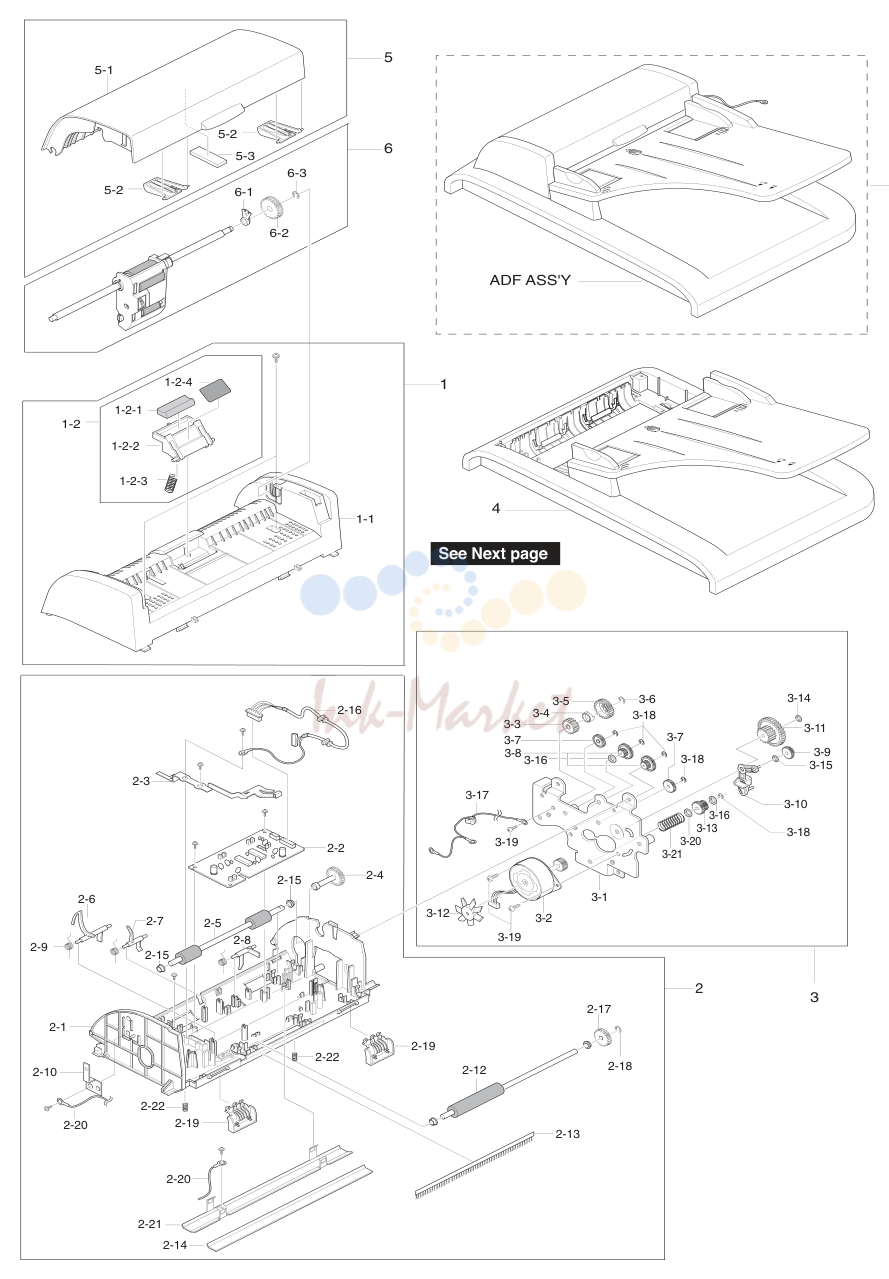

2. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA HOU ADF - SYSTEM 1 N/S
1			MEA UNIT ADF UPPER 1 022N02094
1			-1 COVER ADF UPPER 1 N/S
1-2			MEA UNIT HOLDER ADF 1 019N00809
2			ELA HOU ADF LOWER 1 002N02340
2-1			COVER M ADF LOWER
2-2			PBA SUB ADF 1 N/S
2-3			GROUND P ADF 1 N/S
2-4			SHAFT M FEED GEAR 38 1 N/S
2-5			ROLLER DRIVE 1 N/S
2-6			PMO ACT EMPTY ADF 1 N/S
2-7			PMO ACTUATOR REGI SENSOR 1 N/S
2-8			PMO ACTUATOR SCAN SENSOR 1 N/S
2-9			SPRING ETC TORSION DOC (CC2-F) 3 N/S
2-10			IPR GROUND ROLLER 1 N/S
2-12			ROLELR EXIT 1 N/S
2-13			MEC BRUSH ANTISTATIC 1 N/S
2-14			PPR WHITE BAR SHEET 1 N/S
2-15			BMO BUSH 4 N/S
2-16			CBF HARNESS ADF 1 N/S
2-17			GEAR AGITATOR 2 1 N/S
2-18			RING C 1 N/S
2-19			GUIDE STACKER SUB 2 N/S
2-20			CBF HARNESS ADF ROLLER GRD 1 N/S
2-21			IPR BRKT WHITE BAR 1 N/S
2-22			SPRING ETC WHITE BAR 1 N/S
3			ELA HOU ADF MOTOR 1 002N02341
3-1			BRACKET GEAR ADF 1 N/S
3-2			MOTOR STEP ADF 1 N/S
3-3			GEAR CLUTCH 29 1 N/S
3-4			PMO WHIT CHUTCH SUB 29 1 N/S
3-5			GEAR CLUTCH 39 1 N/S
3-6			RING C 1 N/S
3-7			GEAR IDLE 35 ADF 2 N/S
3-8			GEAR 40/21 ADF 1 N/S
3-9			GEAR SWING 31/20 ADF 1 N/S
3-10			LINK M SWING ADF 1 N/S
3-11			GEAR 58/25 ADF 1 N/S
3-12			IMPELLER ADF 1 N/S
3-13			GEAR REMOVE ADF 1 N/S
3-14			WASHER PLAIN 1 N/S
3-15			IPR WASHER WAVE 1 N/S
3-16			WASHER PLAIN 2 N/S
8-8			WorkCentre PE 120/120i
3-17			CBR HARNESS ADF GND 1 N/S
3-18			RING E 6 N/S
3-19			SCREW TAPTITE
3-20			WASHER PLAIN 1 N/S
3-21			SPRING ETC 1 N/S
4			MEA COVER PLATEN
4-1			COVER M PLATEN 4 IN 1 1 002N02342
4-2			SHEET WHITE SPONGE 1 019N00810
4-3			MEA TX STACKER (ADF Feed Tray Assembly) 1 050N00452
4-4			SPRING ETC FEED 6 009N01489
4-5			PMO ROLL PINCH 2 022N01511
4-6			ICT SHAFT PINCH - (SHAFT STACKER) 1 006N01218
4-7			MEA UNIT HINGE 2 003N00888
4-8			RPR ROLLER EXIT IDLE 2 022N02019
4-9			SHAFT IDLE FEED 2 006N01252
5			MEA UNIT COVER OPEN 1 002N02343
5-1			COVER M ADF OPEN 1 N/S
5-2			PMO GUIDE PAPER 2 N/S
5-3			DAMPER PICKUP ADF 1 N/S
6			MEA UNIT PICKUP 1 130N01364
6-1			STOPPER M PICKUP ADF 1 N/S
6-2			GEAR ADF 38 1 N/S
6-3			RING C 1 N/S

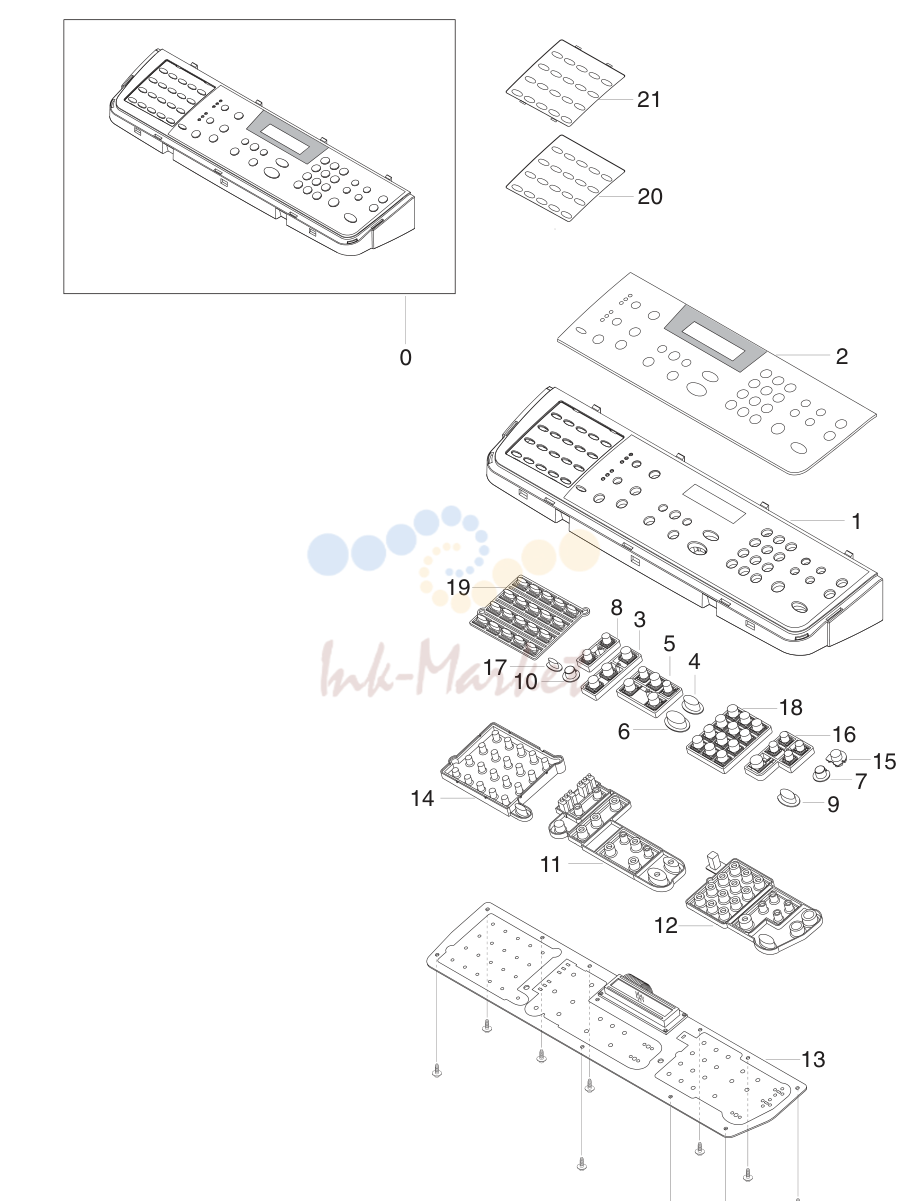

3. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA HOU OPE 4 IN 1 1 N/S
1			COVER M OPE 1 N/S
2			SHEET OVERLAY OPE 4 IN 1 1 ea
3			KEY M COPY 1 N/S
4			KEY M STOP 1 N/S
5			KEY M START 1 N/S
6			KEY M START 1 N/S
7			KEY M TOLL SAVE 1 N/S
8			KEY M RESOLUTION 1 N/S
9			KEY M DIRECT PRINT 1 N/S
10			KEY M SCAN TO 1 N/S
11			RUBBER COPY/SCROLL 1 N/S
12			RUBBER TEL/FAX 1 N/S
13			PBA SUB OPE 4 IN 1 1 140N62950
14			RUBBER ONE TOUCH 1 N/S
15			KEY M TONER SAVE 1 N/S
16			KEY M FAX 1 N/S
17			KEY M SHIFT 1 N/S
18			KEY M TEL 1 N/S
19			PMO KEY OT 1 N/S
20			LABEL (P) ONE TOUCH 1 N/S
21			MPR COVER ADDRESS 1 N/S

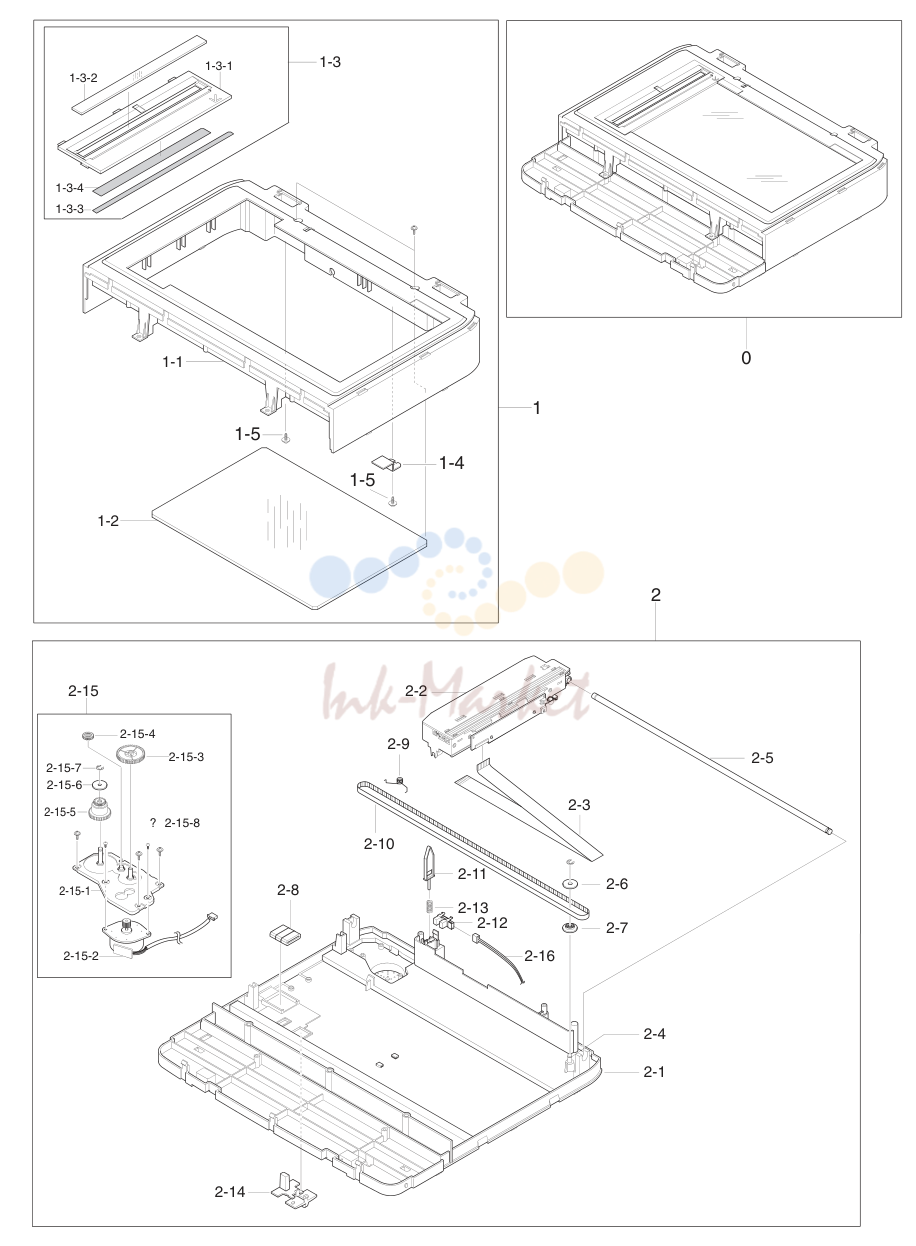

4. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA HOU PLATEN
1			MEA UNIT SCAN UPPER
1-1			COVER M SCAN UPPER 1 002N02344
1-2			GLASS SCAN 1 118N00500
1-3			MEA SCAN DUMMY (Constant Velocity (CVT) 1 002N02354
1-4			IPR HOLDER GLASS 2 N/S
1-5			SCREW TAPPING 2 N/S
2			ELA HOU SCAN LOWER 1 002N02345
2-1			COVER SCAN LOWER 1 N/S
2-2			ELA HOU CCD MODULE 1 002N02346
2-3			CBF SIGNAL CCD FFC (Scanner Ribbon 1 117N01665
2-4			ICT INSERT SHAFT 1 N/S
2-5			ICT SHAFT CCD 1 N/S
2-6			PMO HOLER BELT 1 N/S
2-7			PMO PULLEY 1 N/S
2-8			ELA UNIT CORE 3 N/S
2-9			SPRING ETC BELT 1 N/S
2-10			BELT TIMING GEAR 1 109N00542
2-11			PMO LEVER SENSOR 1 011N00473
2-12			PHOTO INTERRUPTER 1 130N01274
2-13			SPRING CS 1 N/S
2-14			HOLDER CCD 1 N/S
2-15			ELA HOU SCAN MOTOR 1 101N01345
2-16			CBF HARNESS PLATEN 1 N/S
0			ELA HOU COVER MIDDLE 1 N/S
1			COVER M MIDDLE 1 N/S
2			COVER REAR UPPER 1 N/S
3			PMO STACKER RX 1 N/S
4			BUSH F/DOWN 1 N/S
5			CBF HARNESS OPE 1 152N11575
6			PBA SUB USB HOST 1 140N62944
8-14			WorkCentre PE 120/120i

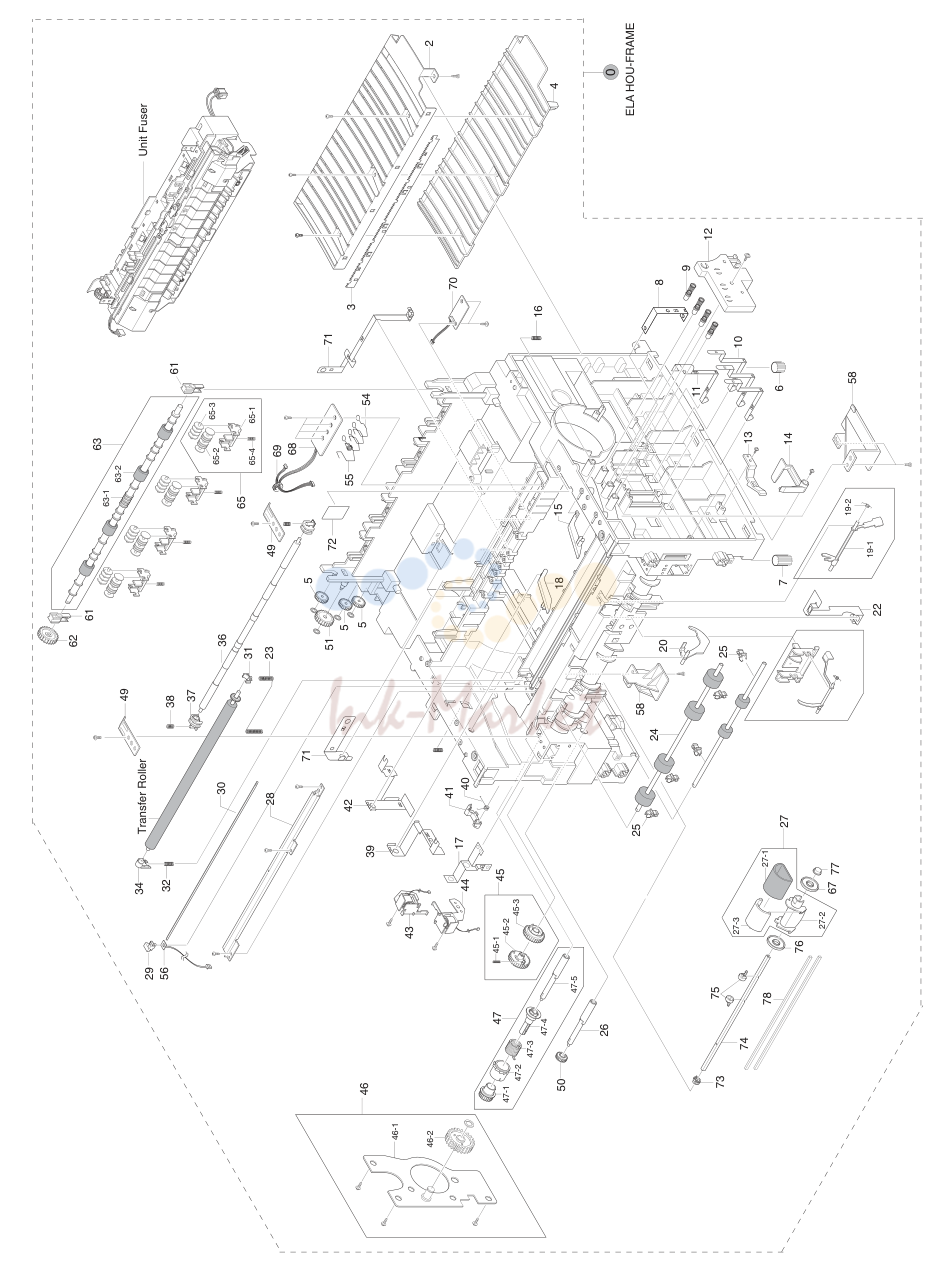

5. Parts List

№	Артикул	Описание
0		ELA UNIT-FRAME 110V 1 002N02353 110V
0		ELA UNIT-FRAME 220V 1 002N02352 220V
1		FRAME-BASE R2 1 N/S
2		GUIDE-P-TR 1 038N00407
3		PLATE-P-SAW 1 015N00500
4		GUIDE-M-TR RIB 1 038N00408
6		FOOT-BACK 2 N/S
7		FOOT-FRONT 2 N/S
8		GROUND-GUDIE TR R2 1 N/S
9		MEC-TERMINAL 4 N/S
10		PLATE-TERMINAL CON R2 3 N/S
11		PLATE-TERMINAL CR R2 1 N/S
12		HOUSING-TERMINAL R2 1 101N01346
13		PMO-LOCKER CST 2 120N00427
14		PMO-ACTUATOR CVR OPEN 1 120N00423
15		PMO-PLATE GUIDE DEVE_R 1 032N00390
16		SPRING ETC-GUIDE DEVE 2 N/S
17		GROUND-PUSH BUSHING 1 N/S
18		PMO-PLATE GUIDE DEVE_L 1 032N00391
19		PMO-ACT FEED R2 1 022N02092
20		PMO-ACTUATOR EMPTY 1 120N00425
21-1		PMO-ACT MANUAL (Switch Actuator for MPT) 1 120N00453
22		GROUND-EARTH TR R2 1 N/S
23		GROUND-TERMINAL TR 1 116N00240
24		ROLLER-FEED ROLLER 1 1 022N02080
25		PMO-BUSHING FEED 5 016N00274
26		SHAFT-FEED 1 006N01253
27		MEA UNIT-PICKUP 1 022N02084
27-1		SPRING-ROLLER PICK_UP 1 N/S
27-2		HOUSING-PICK UP_R2 1 N/S
27-3		HOUSING-PICK UP2_R2 1 N/S
28		IPR-P-EARTH TRANSFER 1 117N01616
29		HOLDER-PTL R2 1 N/S
30		LENS-PTL 1 062N00246
31		PMO-BUSHING_TR(L) 1 016N00254
32		SPRING ETC-TR L HAWK 1 N/S
33		ROLLER-FEED 1 022N01607
34		BUSH-M-TR L 1 016N00261
35		GROUND-FUSER R2 1 N/S
36		SHAFT-FEED IDLE 1 N/S
37		BUSH-M-FEED IDLE 2 N/S
38		SPRING ETC-TR 2 N/S
40		SPRING-TS 1 N/S
41		CAM-M-PICK_UP 1 008N01738
42		GROUND-DRIVE R2
8-16		WorkCentre PE 120/120i
43		SOLENOID-FEED R2 1 121N01077
44		SOLENOID-HB (MANUAL) 1 700N00094
45		MEA UNIT-GEAR PICKUP 1 007N01271
45-1		GEAR-PICK UP B_R2 1 N/S
45-2		GEAR-PICK UP A_R2 1 N/S
45-3		SPRING-CS 1 N/S
46		MEA UNIT-BRACKET FEED 1 030N00690
46-1		BRACKET-FEED R2 1 N/S
46-2	GEAR-Z35 запросить цену →	IDLE 1 N/S
47		MEA UNIT-CLUTCH 1 022N01609
47-1		GEAR-FEED 1 1 N/S
47-2		PMO-COLLAR_SPRING 1 N/S
47-3		SPRING-TS 1 N/S
47-4		PMO-HUB CLUTCH 1 N/S
47-5		SHAFT-FEED 1 N/S
48		ELA HOU-FUSER 110V 1 126N00214 110V
48		ELA HOU-FUSER 220V 1 126N00215 220V
49		PLATE-PUSH BUSHING (GUIDE P PAPER) 2 038N00451
50		GEAR-FEED 2 1 N/S
51		GEAR-IDLE 23 1 N/S
52		SPRING-TS 1 N/S
53		SPRING-TS 1 N/S
54		IPR-P-TERMINAL DEVE KEY 3 N/S
55		GROUND TERMINAL DEVE 1 N/S
56		PBA SUB -PTL 1 140N62945
58		HOLDER-TERMINAL R2 1 N/S
59		HOLDER ACT MANUAL R2 1 N/S
61		HOLDER-BEARING, EXIT 2 019N00811
62		GEAR-EXIT F/DOWN 1 N/S
63		ROLLER-EXIT F/DOWN 1 022N02093
64		RMO-RUBBER EXIT 4 N/S
65		MEA RACK-EXIT ROLLER 4 022N02081
65-1		PMO-HOLDER EXIT ROLL 1 N/S
65-2		PMO-ROLLER FD F 1 N/S
65-3		PMO-ROLLER FD R 1 N/S
65-4		SPRING ETC-EXIT ROLL FD 1 N/S
66		GUIDE-SUB FRONT 1 N/S
69		CBF HARNESS CRUM2 1 152N11576
68		PBA SUB CRUM 1 140N62946
70		PBA SUB-EXIT SENSOR 1 130N01360
72		LABEL(R)-HOT CAUTION,KME 1 N/S
73		BUSH M PICK UP L 1 N/S
74		SHAFT P PICK UP 1 006N01254
75		STOPPER PICK UP R2 2 003N00945
76		PMO IDLE PICK UP 2 N/S
77		BUSH M PICK UP R 1 N/S
78		SHAFT CORE 2 006N01255

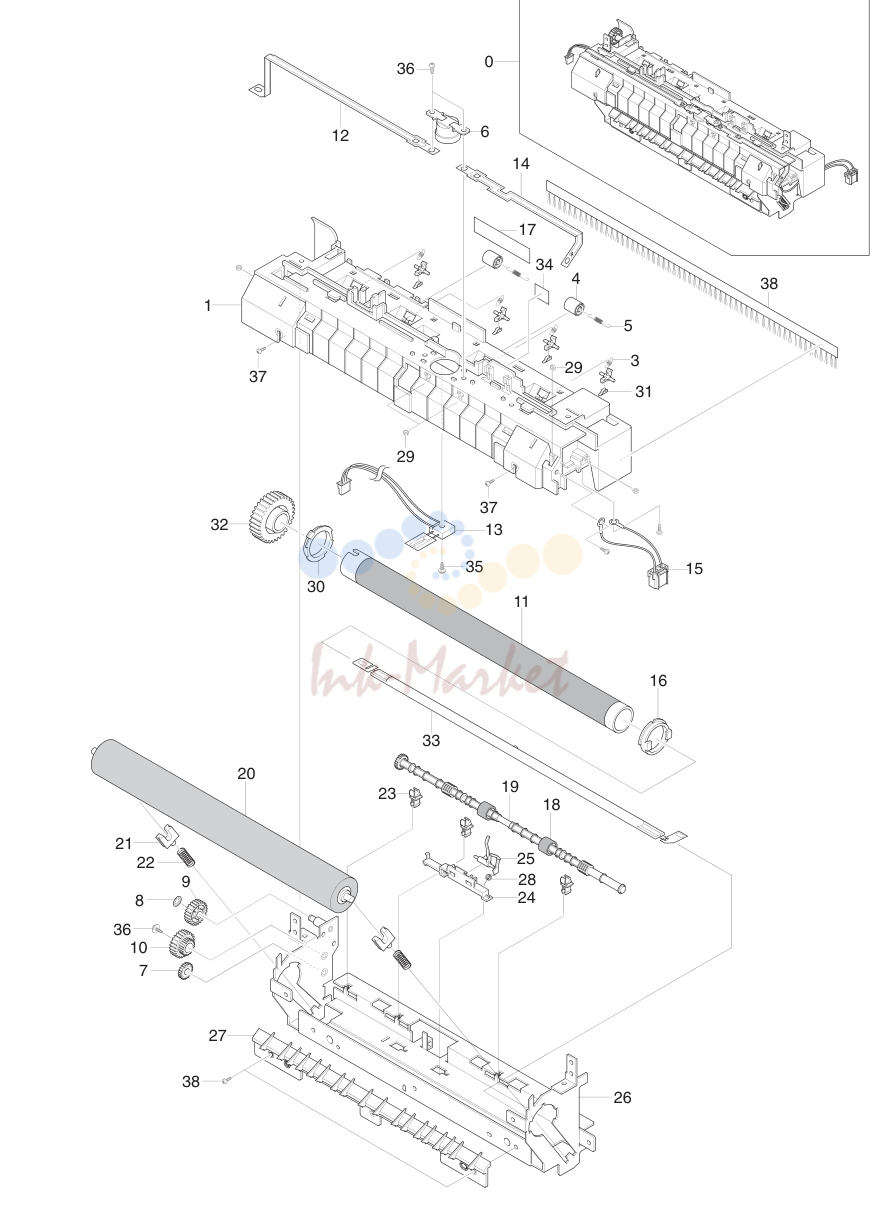

6. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA HOU-FUSER 110V 1 126N00214 110V
0			ELA HOU-FUSER 220V 1 126N00215 220V
1			COVER-FUSER R2
2			HOLDER-PLATE CLAW R2
3			SPRING ETC-CLAW
4			PMO-ROLLER_EXIT
5			SPRING ETC-FUSER EXIT
8			GEAR-IDLE
9			RING-E
10			GEAR-RDCN 25/15
11			ROLLER-HEATER
12			ELECTRODE-LFET R2
13			THERMISTOR-NTC
14			ELECTRODE-RIGHT R2
15			CBF HARNESS-FUSER 110V 1 WHITE
16			BUSH-HR R_R2
17			LABEL(P)-CAUTION, HOT_FUSER
18			RMO-RUBBER_EXIT
19			ROLLER-M-EXIT F/UP
20			ROLLER-PRESSURE
21			BEARING-PRESSURE/R
22			SPRING-CS
23			PMO-BUSHING TX
24			HOLDER-ACTUATOR
25			PMO-ACTUATOR EXIT R2 1 120N00445
26			FRAME-FUSER R2
27			GUIDE-INPUT R2
28			SPRING-TS
29			NUT-HEXAGON
30			BUSH-HR L_R2
31			PLATE-P-CLAW
32			GEAR-FUSER R2
33			LAMP-HALOGEN 110V 1 122N00231 110V
33			LAMP-HALOGEN 220V 1 122N00229 220V
34			LABEL(R)-HV FUSER
35			SCREW-TAPTIEE
36			SCREW-ASS'Y MACH
37			SCREW-TAPTIEE
38			BRUSH-ANTISTAIC

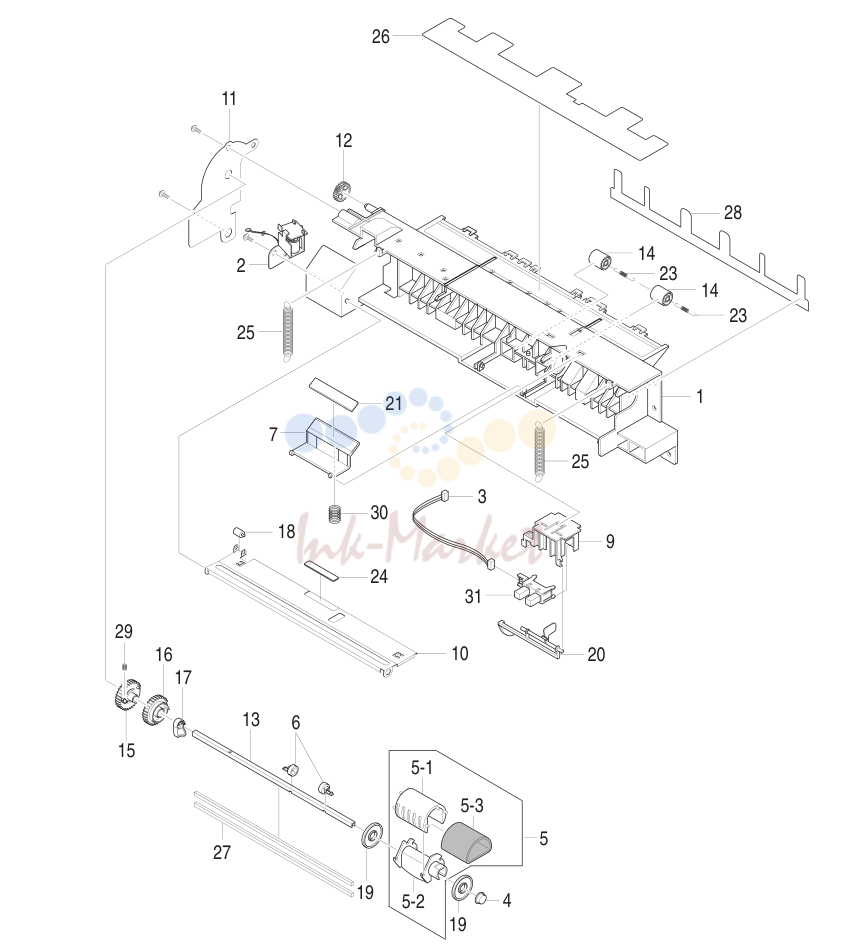

7. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA UNIT-MP 1 022N02085
2			SOLENOID-MP 1 121N01078
3			CBF HARNESS-MPF SEN 1 N/S
4			BUSH-M-PICK-UP R 1 N/S
5			MEA UNIT PICK UP MP 1 130N01366
5-1			HOUSING-M-PICK UP2_R2 1 N/S
5-2			HOUSING-M-PICK UP2_R2 1 N/S
5-3			SPONGE ROLLER PICK UP 1 N/S
6			STOPPER-M-PICK UP_R2 2 N/S
7			HOLDER-M-PAD_MP 1 N/S
9			HOLDER-M-SENSOR_MP 1 N/S
10			PLATE-P-KNOCK UP_MP 1 N/S
11			BRACKET-P-PICK UP_MP 1 N/S
12			GEAR-IDLE 23 1 N/S
13			SHAFT-P-PICK_UP 1 N/S
14			ROLLER-M-IDLE FEED 2 N/S
15			GEAR-M-PICK UP_MP 1 N/S
16			GEAR-M-HOLDER_MP 1 N/S
17			CAM-M-PICK UP_MP 1 N/S
18			PMO-ROLLER CAM_MP 1 N/S
19			PMO-IDLE PICK UP 2 N/S
20			PMO-M-ACT EMPTY MP (Switch Actuator for 1 120N00454
21			RPR-FRICTION PAD 1 019N00742
23			SPRING-ETC-EXIT ROLL FD 2 N/S
24			RPR-PAD CASSETTE 1 N/S
25			SPRING-ES 2 N/S
26			SHEET GUIDE PAPER R2 1 N/S
27			SHAFT-P-CORE 2 N/S
28			SHEET GUIDE MP 1 N/S
29			SPRING-CS 1 N/S
30			SPRING-ES 1 N/S
31			PHOTO INTERRUPTER 1 N/S

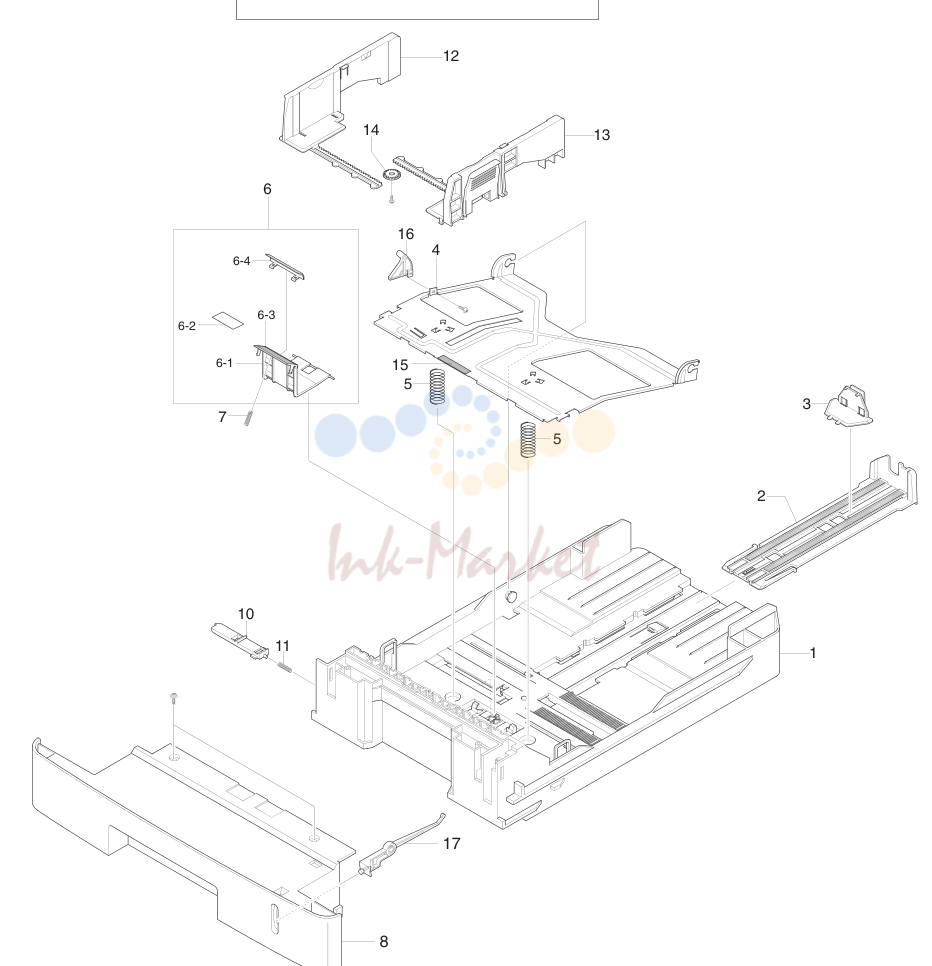

8. Parts List

№	Артикул	Альт. артикул	Описание
0			MEA UNIT-CASSETTE, USA
1			FRAME-M-CASSETTE 1 N/S
2			GUIDE-M-EXTENSION LARGE 1 N/S
3			GUIDE-EXTENSION SMALL 1 N/S
4			PLATE-P-KNOCK_UP 1 N/S
5			SPRING-CS 2 N/S
6			MEA UNIT-HOLDER PAD 1 N/S
6-1			HOLDER-M-PAD 1 N/S
6-2			SHEET-HOLDER PAD R2 1 N/S
6-3			RPR-FRICTION PAD 1 N/S
6-4			IPR-PLATE PAD 1 N/S
7			SPRING ETC-EXIT ROLL FD 1 N/S
8			COVER-SUB CASSETTE R2 1 N/S
10			PMO-PLATE_LOCKER 1 N/S
11			SPRING ETC-LOCKER,PLATE 1 N/S
12			ADJUST-M-CASSETTE_L 1 N/S
13			ADJUST-M-CASSETTE_R 1 N/S
14			GEAR-PINION 1 N/S
15			RPR-PAD CASSETTE 1 N/S
16			CAM-KNOCK UP 1 N/S
17			INDICATOR CST PAPER 1 N/S

9. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA HOU-SCF
1			COVER-M-FRONT SCF R2 1 002N02347
2			COVER-M-LEFT SCF 1 002N02348
3			COVER-M-RIGHT SCF 1 002N02349
4			COVER-M-REAR SCF 1 002N02350
5			FRAME-M-SCF 1 N/S
6			HOUSING-M-PICKUP _R2 1 N/S
8			SPONGE-ROLLER PICK_UP 1 N/S
9			SHAFT-P-CORE 2 N/S
10			PMO BUSHING FEED 2 N/S
11			BUSH M-PICK_UP L 1 N/S
12			BUSH M-PICK_UP R 1 N/S
13			SHAFT-P-PICK_UP 1 N/S
14			PMO-IDLE PICK_UP 2 N/S
15			ROLLER-FEED 1 N/S
16			PMO-BUSHING TX 2 N/S
17			PMO-GEAR PICK_UP A 1 N/S
18			PMO-GEAR PICK_UP B 1 N/S
19			SPRING-CS 1 N/S
20			RING-CS 1 N/S
21			CAM-M-PICK_UP 1 N/S
22			SHAFT-FEED 1 N/S
23			GEAR-FEED 2 1 N/S
24			SPRING-TS 1 N/S
25			PCB-SENSOR 1 130N01367
26			PBA SUB-SCF 1 140N62874
27			CBF HARNESS-SCF GND 2 N/S
28			CBF HARNESS-SCF 1 N/S
29			COVER-M-SIMM R2 1 N/S
30			SHEET-COVER SENSOR 1 N/S
31			PMO-ACTUATOR EMPTY 1 120N00425
32			IPR-GND TOP 1 N/S
33			SOLENOID-HB (MANUAL) 1 N/S
34			PMO-LOCKER CST 2 N/S
35			FOOT-BACK 2 N/S
36			FOOT-FRONT 2 N/S
37			SCREW-ASS'Y TAPT 1 N/S
38			SCREW-TAPTITE
39			ELA HOU-MOTOR SCF 1 002N02351
39-1			BRKT-P-MOTOR SCF
39-2			BRKT-P-GEAR SCF
39-3			BRKT-M-FEED SCF
39-4			GEAR 61/47 IDLE
39-5			GEAR 59 IDLE
39-6			GEAR 35 IDLE
39-7			GEAR-RDCN 57/18
39-8			GEAR-IDLE 23 1 N/S
39-9			MOTOR STEP(SCF) 1 N/S
39-10			SCREW-MACHINE 5 N/S
39-11			CORE-FERRITE 1 N/S
39-12			CABLE TIE 1 N/S
40			BUSH CABLE 1 N/S
42			MEA CASSETTE 1 N/S
43			MEC BRUSH ANTISTATIC .25 N/S
44			SHEET BRUSH 1 N/S
45			GUIDE CAM KNOCK UP 1 N/S
8-26			WorkCentre PE 120/120i

Источник: Инк-Маркет.ру.

← Все статьи
