Содержание
- 1. 1.3 Plate Composition 5.1.4 Terminology and Symbols
- 2. Item Parts No Description A.C.
- 3. PL 8.1 Drum Cartridge,Toner

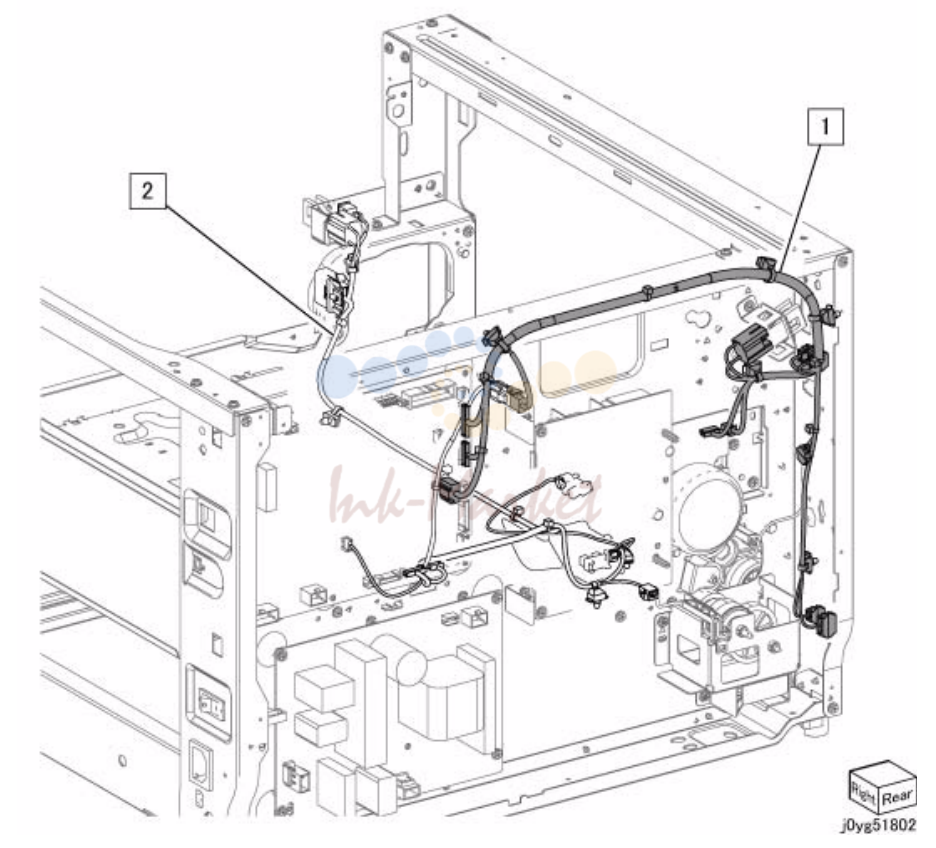

- 4. PL 18.2 Wire Harness

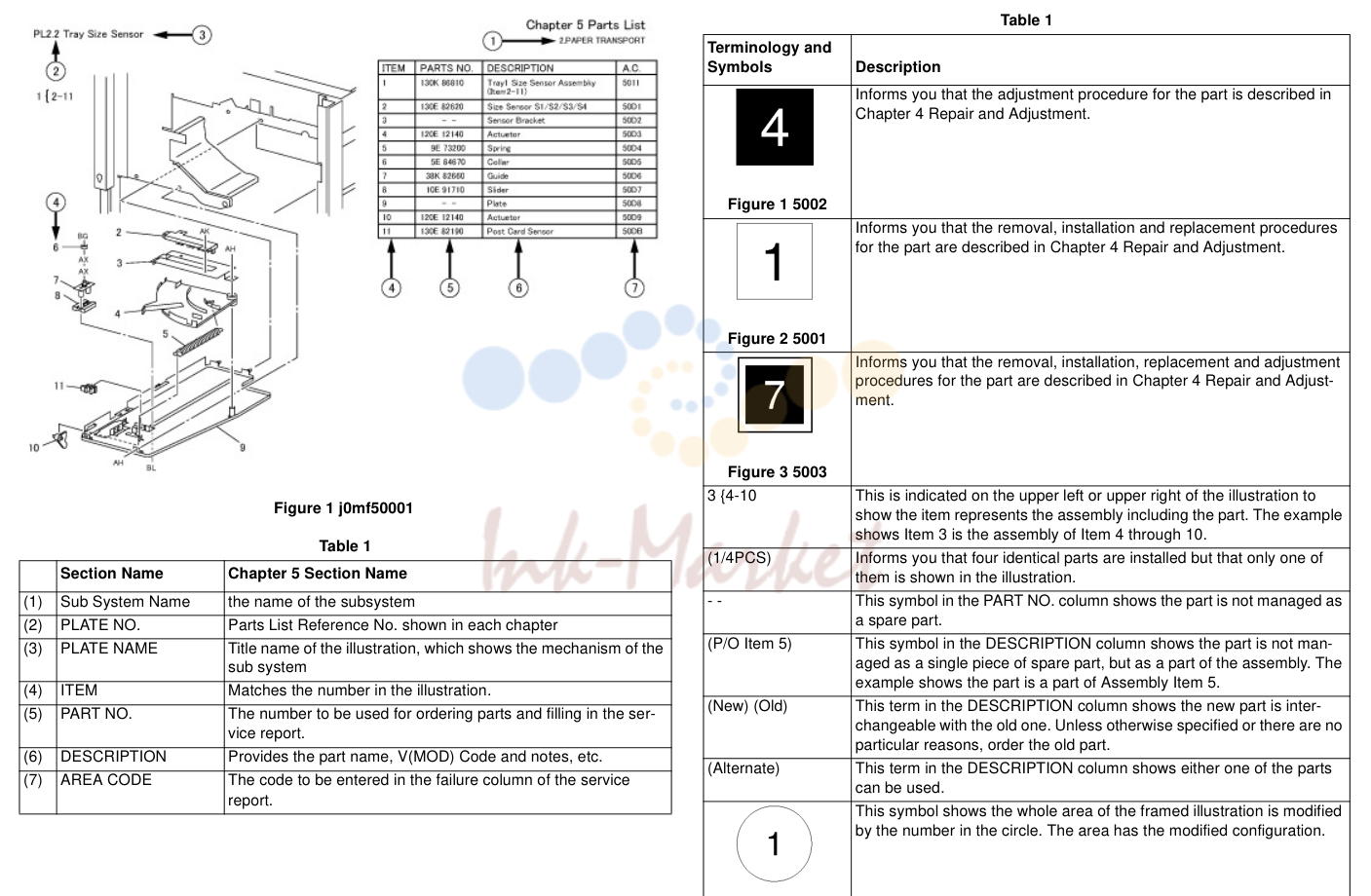

1. 1.3 Plate Composition 5.1.4 Terminology and Symbols
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - IIT (PL 1.2) 11AA | ||
| 2 | 898E 68450 ID Label 11B1 | ||
| 3 | 848E 87121 Platen Cover (REP 99.1.1)2001 | ||
| 4 | 036K 92150 Counter Balance (REP 99.1.1)2005 | ||
| 5 | 004K 03410 Platen Cushion | ||
| 6 | - Code Label 11B2 | ||
| 7 | 848K 69520 Platen Cover (Item 3,4) (REP | ||
| 1 | - IIT Base Frame (PL 1.3) 11C1 | ||
| 2 | 848K 68890 Top Cover (with Platen Glass) (REP | ||
| 3 | - Data Plate 11C2 | ||
| 4 | - IIT Front Cover 11C3 | ||
| 5 | - CVT Plate 11C4 | ||
| 6 | 868E 80610 Conductor 11C5 | ||
| 7 | - Lead Regi. Label 11C6 | ||
| 8 | - Side Regi. Label 11C7 | ||
| 1 | - Carriage Drive and Motor (PL 1.4) | ||
| 2 | 049K 17900 Pulley Bracket 11D2 | ||
| 3 | 020E 49550 Pulley 11D3 | ||
| 4 | 005E 33440 Flange 11D4 | ||
| 5 | 023E 27860 IIT Carriage Belt (REP 1.3.2)11D5 | ||
| 6 | - Shaft 11D6 | ||
| 7 | 809E 58300 Spring 11D7 | ||
| 8 | - IIT Base Frame 11D8 | ||
| 9 | 848K 68874 IIT Carriage (PL 1.5) (REP 1.3.1) | ||
| 10 | 117K 47661 CCD Cable 11DB | ||
| 11 | 952K 03781 Sensor Wire Harness (REP 99.1.1) | ||
| 12 | 930W 00123 IIT Registration Sensor 11DD | ||
| 13 | 117K 47680 UI Cable 11DE | ||
| 1 | - Drive Bracket 11E1 | ||
| 2 | 127K 66721 Carriage Motor (REP 1.4.1, REP | ||
| 3 | 807E 40871 Helical Gear 11E2 | ||
| 4 | 807E 40880 Helical Gear 11E3 | ||
| 5 | 807E 40890 Gear Pulley 11E4 | ||
| 6 | 005E 33441 Flange 11E5 | ||
| 7 | 952K 03771 Motor Wire Harness (REP 99.1.1) | ||
| 1 | - Lens Housing 11F1 | ||
| 2 | 960K 64290 LED Lamp PWB (REP 1.5.1)11F2 | ||
| 3 | - LED Bracket 11F3 | ||
| 4 | 117K 47740 LED Cable 11F4 | ||
| 1 | 848K 76080 Control Panel 75B1 | ||
| 2 | 868E 80430 Middle B Key 75B2 | ||
| 3 | 868E 80440 Middle C Key 75B3 | ||
| 4 | 803E 15311 Info Stop Key 75B4 | ||
| 5 | 868E 81080 LED Lens 75B5 | ||
| 6 | 803E 15300 Start Key 75B6 | ||
| 7 | 803E 13260 Stop Key 75B7 | ||
| 8 | 868E 80461 Right A Key 75B8 | ||
| 9 | 803E 13270 Reset Key 75B9 | ||
| 10 | 868E 80450 Ten Key 75BB | ||
| 11 | 123E 91650 LCD Display (REP 1.6.1)75BC | ||
| 12 | 803E 13280 ID Key 75BD | ||
| 13 | 868E 80420 Middle A Key 75BE | ||
| 14 | - UI Label 75BF | ||
| 15 | 960K 62200 UI PWB 75BG |

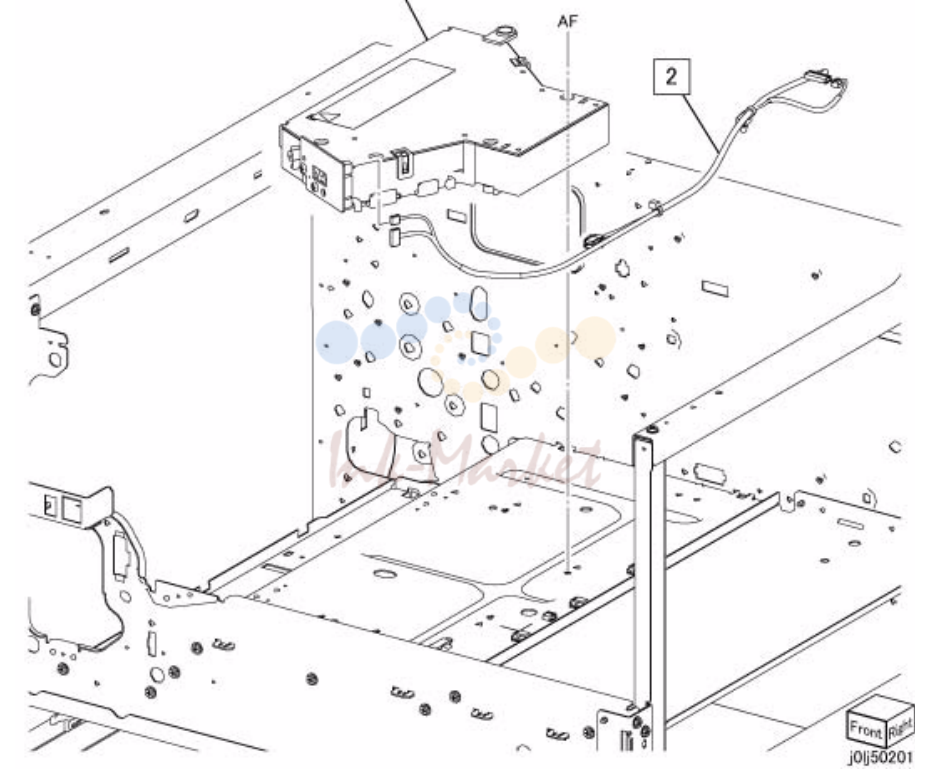

2. Item Parts No Description A.C.
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 127K 66260 Main Drive Motor (Alternate) (REP | ||
| 2 | 007K 18870 Main Drive Housing (PL 3.2) (REP | ||
| 3 | 049K 17710 Stud Bracket 30B2 | ||
| 4 | 807E 39260 Helical Gear 30B3 | ||
| 1 | 005K 83610 Drum Coupling and Gear30C1 | ||
| 2 | 807E 39180 Helical Gear (76/33T) (Identification | ||
| 3 | 807E 39200 Helical Gear (63/18T) (Identification | ||
| 4 | 807E 39230 Helical Gear (25T) (Identification | ||
| 5 | 807E 39250 Helical Gear (63T) (Identification | ||
| 6 | 807E 39220 Helical Gear (36T) (Identification | ||
| 7 | 807E 39210 Helical Gear (45T) (Identification | ||
| 8 | 807E 39240 Helical Gear (43T) (Identification | ||
| 9 | 807E 39580 Helical Gear (44/27T) (Identification | ||
| 10 | 848K 67530 Main Drive Housing (Item 11-16) | ||
| 11 | - Main Drive Housing (P/O Item 10) | ||
| 12 | 848E 84830 Conductor Cover 30CD | ||
| 13 | 130E 16130 BCR Conductor 30CE | ||
| 14 | 130E 16140 Deve. Conductor 30CF | ||
| 15 | 130E 16150 BTR Conductor 30CG | ||
| 16 | 130E 16160 HV Conductor 30CH | ||
| 1 | 054E 50270 NOHAD Duct 33B1 | ||
| 2 | 127E 86170 NOHAD Fan (REP 4.1.1)3301 | ||
| 3 | - Fusing Unit Plate 33B2 | ||
| 4 | - Laser Housing 33B3 | ||
| 1 | 054K 48390 BTR Chute (Item 2-8) 41B1 | ||
| 2 | - BTR Chute (P/O Item 1) 41B2 | ||
| 3 | - DTS Eliminator (P/O Item 1)41B3 | ||
| 4 | 809E 99860 BTR Spring (Rear) 41B4 | ||
| 5 | 809E 99870 BTR Spring (Front) 41B5 | ||
| 6 | - Float Spring (P/O Item 1)41B6 | ||
| 7 | - DTS Conductor (P/O Item 1)41B7 | ||
| 8 | - Film Chute (P/O Item 1) 41B8 | ||
| 9 | 059K 79560 BTR Roll (REP 6.1.1) | ||
| 1 | - Fusing Unit Stud Plate 43B1 | ||
| 2 | - Adjust Plate 43B2 | ||
| 3 | - Stud Screw 43B3 | ||
| 4 | - Fusing Unit Rear Bracket43B4 | ||
| 5 | 126K 30553 220V-Fusing Unit (REP 7.1.1, REP | ||
| 6 | 848E 83410 Connector Cover 43B5 | ||
| 7 | 952K 01220 220V-Fusing Unit Wire Harness |

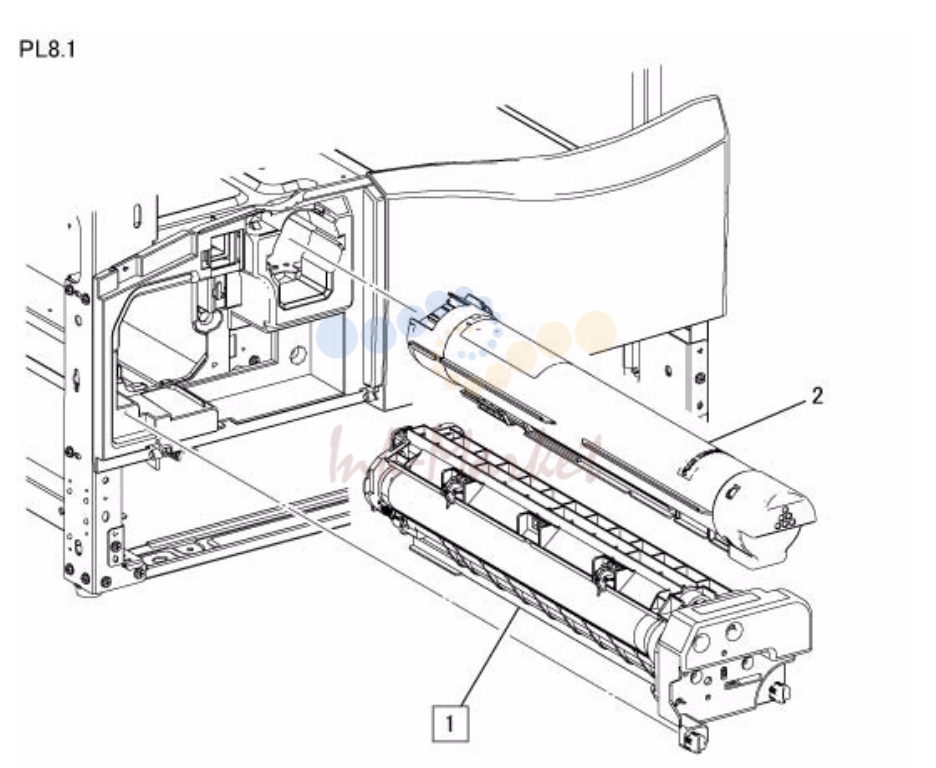

3. PL 8.1 Drum Cartridge,Toner
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 007K 18750 Dispense Drive (PL 8.3) (REP | ||
| 2 | 032K 08100 Drum Cartridge Guide 45C2 | ||
| 3 | 094K 93270 Cartridge Guide (Item 4-7) (REP | ||
| 4 | 032K 08080 Cartridge Guide 45C3 | ||
| 5 | 032E 35502 Shutter Guide 45C4 | ||
| 6 | 055E 58451 Dispenser Shutter 45C5 | ||
| 7 | - Guide Seal (P/O Item 3) 45C6 | ||
| 8 | 127K 66870 Toner Dispense Motor(REP 99.1.1) | ||
| 9 | 807E 39410 Gear (21/21T) 45C8 | ||
| 10 | - Clamp 45C9 | ||
| 1 | - Dispense Drive Housing 45D1 | ||
| 2 | 005E 25160 Dispenser Coupling 45D2 | ||
| 3 | - Gear (45T) 45D3 | ||
| 4 | - Gear (55/19T) 45D4 | ||
| 5 | 807E 31531 Gear (54T) 45D5 | ||
| 6 | - Gear (47/17T) 45D6 | ||
| 7 | - Gear (45T) 45D7 | ||
| 8 | - Gear (96/20T) 45D8 | ||
| 9 | 809E 79130 Spring 45D9 | ||
| 1 | 050K 69380 Tray 1 (PL 9.2) (REP 9.1.2)5010 | ||
| 2 | 802K 63710 Tray 1 No Paper Sensor | ||
| 3 | - Drive Bracket 50B1 | ||
| 4 | 013E 41230 Bearing 50B2 | ||
| 5 | 054K 48460 L/H Chute 50B3 | ||
| 6 | 005K 83551 Tray 1 Coupling and Gear50B4 | ||
| 7 | 006K 89940 Shaft and Gear 50B5 | ||
| 8 | 121K 52340 Tray 1 Feed Clutch (REP 9.1.1, | ||
| 9 | 807E 40920 Helical Gear (28T) 50B7 | ||
| 10 | 032E 40350 Harness Guide 50B8 | ||
| 11 | 014E 45350 Spacer 50B9 | ||
| 12 | 013E 41230 Bearing 50BB | ||
| 13 | - Tray Support Bracket 50BC | ||
| 14 | - Instruction Label 50BD | ||
| 15 | - Label (No.1) 50BE | ||
| 16 | 003E 60952 Tray Front Stopper 50BF | ||
| 1 | - Tray Housing 50C1 | ||
| 2 | 848E 84351 Tray Cover 50C2 | ||
| 3 | 815K 09820 Bottom Plate 50C3 | ||
| 4 | 029E 32810 Pivot 50C4 | ||
| 5 | 807E 02270 Pinion Gear 50C5 | ||
| 6 | 038K 21331 Side Front Guide 50C6 | ||
| 7 | 038K 21340 Side Rear Guide 50C7 | ||
| 8 | 038E 27123 End Guide 50C8 | ||
| 9 | 809E 54160 Spring 50C9 | ||
| 10 | 003E 60941 Stopper 50CB | ||
| 11 | 809E 54170 Spring 50CC | ||
| 12 | 059K 33051 Tray 1Feed Roll and Shaft (Item | ||
| 13 | - Shaft (P/O Item 12) 50CE | ||
| 14 | 059K 32773 Tray 1Feed Roll (REP 9.2.1)5032 | ||
| 15 | 013E 25881 Bearing 50CF | ||
| 16 | 006E 79021 Retard Shaft 50CG | ||
| 17 | 019K 09420 Tray 1Retard Pad (REP 9.2.1)5033 | ||
| 18 | 809E 27650 Spring 50CH | ||
| 19 | 849E 24550 Ground Plate 50CJ | ||
| 20 | - Paper Guide 50CK | ||
| 21 | 803E 15701 Stopper 50CL | ||
| 22 | 848E 85990 Inner Cover 50CM | ||
| 23 | - Bearing Cover 50CN | ||
| 24 | - Spacer 50CP | ||
| 1 | 050K 64422 Tray 2 (PL 10.2)(REP 99.1.1)50D1 | ||
| 2 | - Label (No.2) 50D2 | ||
| 3 | 110K 11680 Tray 2 Paper Size Switch(REP | ||
| 4 | 014E 51110 Tray Spacer 50D4 | ||
| 5 | 003E 61510 Tray Stopper 50D5 | ||
| 6 | 059K 79620 Tray 2 Feeder (PL 10.3) (REP | ||
| 7 | 054K 27520 Feed Out Chute 50D6 | ||
| 8 | - Label (Instruction) 50D7 | ||
| 9 | 014E 59990 Slide Lock (Alternate) 50D8 | ||
| 10 | 826E 07210 Docking Screw 50D9 | ||
| 11 | - Cover 50DB | ||
| 12 | - Holder 50DC | ||
| 13 | - Feeder Connector Cover50DD | ||
| 1 | - Tray 2 (Item 3,5-26) 50E1 | ||
| 2 | 802E 85381 Tray Cover 50E2 | ||
| 3 | - Front Side Guide (P/O Item 7)50E3 | ||
| 4 | 893E 09490 Label (Max) 50E4 | ||
| 5 | 849E 06322 Bottom Plate 50E5 | ||
| 6 | 019K 07150 Bottom Pad 50E6 | ||
| 7 | 038K 87113 Front Side Guide Assembly (Item 3, | ||
| 8 | 019E 71680 Tray Pad 50E8 | ||
| 9 | 038E 26550 Rear Side Guide 50E9 | ||
| 10 | 120E 22040 Side Guide Actuator 50EB | ||
| 11 | 120E 22081 Guide Actuator 50EC | ||
| 12 | 809E 41880 Spring 50ED | ||
| 13 | 807E 13521 Pinion Gear 50EE | ||
| 14 | 038E 26533 End Guide 50EF | ||
| 15 | 809E 47091 Spring 50EG | ||
| 16 | 120E 22051 End Guide Actuator 50EH | ||
| 17 | 012E 11090 Link 50EJ | ||
| 18 | - Coupling Gear (13T) 50EK | ||
| 19 | - Gear (13T/60T) 50EL | ||
| 20 | - Sector Gear 50EM | ||
| 21 | - Bracket 50EN | ||
| 22 | - Lift Up Shaft 50EP | ||
| 23 | - Stopper 50EQ | ||
| 24 | - Seal 50ER | ||
| 25 | - Tray 50ES | ||
| 26 | - Slide Lock (P/O Item 7) 50ET | ||
| 27 | 604K20541 запросить цену → | Gear Kit (Contains 1 each of items | |
| 1 | - Upper Frame 50G1 | ||
| 2 | 127K 38171 Tray 2 Feed/Lift Up Motor5091 | ||
| 3 | - Bracket 50G2 | ||
| 4 | 014E 44770 Spacer 50G3 | ||
| 5 | 807E 00390 Gear (31T) 50G4 | ||
| 6 | 809E 50531 Spring 50G5 | ||
| 7 | 005K 83081 Oneway Clutch 50G6 | ||
| 8 | 007K 85730 Oneway Gear 50G7 | ||
| 9 | 807E 00800 Gear (13T) 50G8 | ||
| 10 | 013E 26530 Bearing 50G9 | ||
| 11 | - Shaft 50GB | ||
| 12 | 054E 23461 Front Chute 50GC | ||
| 13 | 120E 22481 Actuator 50GD | ||
| 14 | - Tray 2 Nudger Level Sensor50GE | ||
| 15 | - Tray 2 No Paper Sensor 50GF | ||
| 16 | 962K 19692 Wire Harness 50GG | ||
| 17 | - Gear (28T/21T) 50GH | ||
| 18 | 007E 78900 Gear (29T) 50GJ | ||
| 19 | 809E 51070 Spring 50GK | ||
| 20 | - Tray 2 Feed Roll (REP 10.3.1)5042 | ||
| 21 | 005K 05890 Oneway Clutch 50GL | ||
| 22 | 005K 06760 Oneway Gear (22T) 50GM | ||
| 23 | - Shaft 50GN | ||
| 24 | 054E 23170 Chute 50GP | ||
| 25 | 809E 42531 Spring 50GQ | ||
| 26 | 005K 07010 Friction Clutch (Alternate)50GR | ||
| 27 | - Support Assembly 50GS | ||
| 28 | - Tray 2 Retard Roll (REP 10.3.1) | ||
| 29 | 014E 45030 Spacer 50GT | ||
| 30 | 007E 79380 Gear (33T) 50GV | ||
| 31 | - Support Assembly 50GW | ||
| 32 | - Tray 2 Nudger Roll (REP 10.3.1) | ||
| 33 | 807E 00070 Gear (25T) 50H1 | ||
| 34 | 413W 11660 Bearing 50H2 | ||
| 35 | 807E 00410 Gear (34T) 50H3 | ||
| 36 | 011E 14771 Lever 50H4 | ||
| 37 | 013E 92890 Bearing 50H5 | ||
| 38 | 028E 94160 Washer 50H6 | ||
| 39 | - Lower Frame 50H7 | ||
| 40 | 019E 56680 Holder 50H8 | ||
| 41 | 809E 51080 Spring 50H9 | ||
| 42 | - Rail 50HB | ||
| 43 | - Screw 50HC | ||
| 44 | 604K20360 ✓ в наличии | Roll KIt (Contains 3 each of items | |
| 1 | 802K 57025 Left Cover Assembly (Item 2- | ||
| 2 | 003E 59630 Latch 50J2 | ||
| 3 | 003E 59640 Hook 50J3 | ||
| 4 | 011E 14481 Handle 50J4 | ||
| 5 | - Left Cover (P/O Item 1) 50J5 | ||
| 6 | 054E 23421 Chute 50J6 | ||
| 7 | 120E 22240 Actuator 50J7 | ||
| 8 | 809E 54501 Spring 50J8 | ||
| 9 | - Shaft (P/O Item 1) 50J9 | ||
| 10 | 809E 54590 Spring 50JB | ||
| 11 | 013E 26100 Bearing 50JC | ||
| 12 | 059E 99241 Pinch Roll | ||
| 13 | 110E 12220 STM Left Cover Switch 50JD | ||
| 14 | 030K 75511 Bracket Assembly 50JE | ||
| 1 | - Chute 50K1 | ||
| 2 | 802E 54672 Cover 50K2 | ||
| 3 | 130K 64121 Feed Out Sensor 2 50K3 | ||
| 4 | 952K 08150 Wire Harness 50K4 | ||
| 5 | 059K 26251 Takeaway Roll | ||
| 6 | 413W 11860 Bearing 50K5 | ||
| 1 | 960K 62110 STM PWB (REP 10.6.1, REP | ||
| 2 | 121K 31530 STM Takeaway Roll Clutch(REP | ||
| 3 | - Bracket 50L3 | ||
| 4 | 006E 78490 Shaft 50L4 | ||
| 5 | 413W 77359 Bearing 50L5 | ||
| 6 | 007E 78260 Gear 50L6 | ||
| 7 | 007K 18460 STM Takeaway Motor (REP 10.6.2, | ||
| 8 | 007E 79830 Gear 50L8 | ||
| 9 | 007E 79840 Gear 50L9 | ||
| 10 | 007E 79850 Gear 50LB | ||
| 11 | 952K 03070 Wire Harness(REP 99.1.1)50LC | ||
| 12 | - Gasket 50LD | ||
| 13 | 413W 11860 Bearing 50LE | ||
| 14 | 252W 29450 Nylon Washer(8) (t1) 50LF | ||
| 1 | 802E 54731 Top Cover 50M1 | ||
| 2 | 802E 56590 Left Cover 50M2 | ||
| 3 | 802E 56601 Rear Cover 50M3 | ||
| 4 | - Foot 50M4 | ||
| 5 | - Foot (Rear Left) 50M5 | ||
| 6 | - Cover 50M6 | ||
| 7 | 849E 34880 Docking Bracket 50M7 | ||
| 8 | 826E 07210 Docking Screw 50M8 | ||
| 9 | 032E 38920 Cap 50M9 | ||
| 1 | - Front Cover 50N1 | ||
| 2 | - Left Cover 50N2 | ||
| 3 | - Rear Cover 50N3 | ||
| 4 | - Right Cover 50N4 | ||
| 5 | - Caster (S) 50N5 | ||
| 6 | - Caster 50N6 | ||
| 7 | - Hinge 50N7 | ||
| 8 | - Screw 50N8 | ||
| 9 | - Foot 50N9 | ||
| 10 | - Foot Cover 50NB | ||
| 11 | - Stopper 50NC | ||
| 12 | - Pipe Cover 50ND | ||
| 13 | - Docking Screw 50NE | ||
| 1 | - Clamp 51B1 | ||
| 2 | 059K 75570 MSI (PL 13.2) (REP 13.1.1)51AA | ||
| 3 | - Instruction Label (P/O Item 6)51B2 | ||
| 4 | - Size Label (P/O Item 6) 51B3 | ||
| 5 | - Max Label (P/O Item 6) 51B4 | ||
| 6 | 604K 80730 MSI Label Kit (Item 3-5) 51B5 | ||
| 1 | 059K 75580 MSI Lower Feeder (PL 13.3)51C1 | ||
| 2 | 050K 69580 MSI Tray | ||
| 3 | 801E 22262 MSI Top Cover 51C2 | ||
| 4 | 803E 13171 Paper Stopper 51C3 | ||
| 5 | 120E 34130 No Paper Actuator 51C4 | ||
| 6 | 899E 01350 Spring 51C5 | ||
| 7 | 848E 87781 Gear Cover 51C6 | ||
| 1 | - MSI Lower Frame 51D1 | ||
| 2 | 019E 84002 Nudger Holder 51D2 | ||
| 3 | 022K 77450 MSI Feed Roll (REP 13.3.1)5132 | ||
| 4 | 022K 77460 MSI Nudger Roll (REP 13.3.1)5131 | ||
| 5 | 007K 18660 Oneway Clutch Gear (30T)51D3 | ||
| 6 | 807E 39610 Gear (33T) 51D4 | ||
| 7 | 807E 39600 Gear (46T) 51D5 | ||
| 8 | 806E 37300 Shaft 51D6 | ||
| 9 | 803E 13180 Stopper Paper Lock 51D7 | ||
| 10 | - Shaft 51D8 | ||
| 11 | 005K 83510 Friction Clutch 51D9 | ||
| 12 | 005K 83520 Oneway Clutch 51DB | ||
| 13 | 121K 52220 MSI Feed Clutch(REP 99.1.1)5136 | ||
| 14 | 807E 39620 Gear (18T) 51DC | ||
| 15 | 413W 11660 Bearing 51DD | ||
| 16 | - KL-Clip 51DE | ||
| 17 | 019E 84010 Bottom Pad 51DF | ||
| 18 | 019K 12820 MSI Retard Pad (REP 13.3.2)5233 | ||
| 19 | 899E 01340 Spring 51DG | ||
| 20 | 930W 00123 MSI No Paper Sensor 51DH | ||
| 21 | 962K 68851 MSI Wire Harness(REP 99.1.1) | ||
| 22 | 848E 85862 Connector Cover(REP 99.1.1) | ||
| 23 | 848E 85940 MSI Lower Cover 51DL | ||
| 24 | 815E 77090 Ground Plate 51DM | ||
| 1 | 110E 94770 L/H Cover Interlock Switch52B1 | ||
| 2 | 868E 77060 Switch Bracket 52B2 | ||
| 3 | 032E 40060 Latch Guide 52B3 | ||
| 4 | - Front Hinge 52B4 | ||
| 5 | - Rear Hinge 52B5 | ||
| 6 | 848E 83270 Hinge Front Cover 52B6 | ||
| 7 | 848E 83290 Hinge Rear Cover 52B7 | ||
| 8 | 848K 64890 Simplex L/H Cover (PL 14.2) (REP | ||
| 1 | - L/H Cover 52C1 | ||
| 2 | 054K 48270 Registration Pinch Chute52C2 | ||
| 3 | 011E 26670 Front Latch Lever 52C3 | ||
| 4 | 815E 75070 Latch Plate 52C4 | ||
| 5 | 011E 26691 Rear Latch Lever(REP 99.1.1) | ||
| 6 | 868E 78150 Front Latch Support 52C6 | ||
| 7 | 809E 99540 Spring 52C7 | ||
| 8 | 054E 49700 L/H Cover Upper Chute 52C8 | ||
| 9 | 868E 77080 L/H Cover Support 52C9 | ||
| 10 | 898E 45921 Caution Label 52CB | ||
| 1 | - L/H Cover 52D1 | ||
| 2 | 054E 50031 Duplex In Chute 52D2 | ||
| 3 | 054K 48500 Registration Pinch Chute52D3 | ||
| 4 | 062E 16500 Conductor 52D4 | ||
| 5 | 054E 49741 L/H Cover Lower Chute 52D5 | ||
| 6 | 868E 78150 Front Latch Support 52D6 | ||
| 7 | 011E 26670 Front Latch Lever 52D7 | ||
| 8 | 011E 26691 Rear Latch Lever(REP 99.1.1) | ||
| 9 | 815E 75070 Latch Plate 52D9 | ||
| 10 | 809E 99540 Spring 52DB | ||
| 11 | 868E 77080 L/H Cover Support 52DC | ||
| 12 | 898E 45921 Caution Label 52DD | ||
| 1 | 054E 49711 L/H Cover Upper Chute 52E1 | ||
| 2 | - L/H Cover Upper Lower Chute | ||
| 3 | 038E 27201 Paper Guid 52E3 | ||
| 4 | - Duplex Inner Chute 52E4 | ||
| 5 | 059K 74950 Duplex Roll 1 52E5 | ||
| 6 | 059K 74960 Duplex Roll 2 52E6 | ||
| 7 | 059E 04010 Pinch Roll | ||
| 8 | 809E 75530 Spring 52E7 | ||
| 9 | 013E 40060 Bearing 52E8 | ||
| 10 | - Gear Bracket 52E9 | ||
| 11 | 020E 45140 Pulley 52EB | ||
| 12 | 121K 52130 Duplex Clutch(REP 99.1.1)5252 | ||
| 13 | 807E 40930 Helical Gear 52EC | ||
| 14 | - Duplex Clutch Shaft 52ED | ||
| 15 | 023E 27800 Belt | ||
| 16 | 807E 39430 Swing Helical Gear (27T)52EE | ||
| 17 | 868E 77401 Swing Bracket 52EF | ||
| 18 | 806E 37111 Swing Shaft 52EG | ||
| 19 | 809E 99740 Spring 52EH | ||
| 20 | - Helical Gear (24T) 52EJ | ||
| 21 | - Helical Gear (19T) 52EK | ||
| 22 | - Helical Gear (17T) 52EL | ||
| 23 | - Helical Gear (28T) 52EM | ||
| 24 | 413W 11460 Bearing 52EN | ||
| 25 | 809E 75530 Spring 52EP | ||
| 1 | 059K 74900 Registration Chute (Item 2-8) (REP | ||
| 2 | - Registration Chute (P/O Item 1) | ||
| 3 | 120E 34050 Actuator 53B1 | ||
| 4 | 059E 98590 Idler Roll 53B2 | ||
| 5 | 809E 99570 Spring 53B3 | ||
| 6 | - Paper Guide (P/O Item 1)53B4 | ||
| 7 | 930W 00123 Registration Sensor | ||
| 8 | - Film Chute (P/O Item 1) 53B5 | ||
| 9 | 059K 74891 Registration Roll (REP 15.1.2)5313 | ||
| 10 | 013E 40990 Bearing 53B6 | ||
| 11 | 121K 52340 Registration Clutch (REP 99.1.1) | ||
| 12 | 807E 40940 Helical Gear 53B8 | ||
| 13 | 032E 41320 Harness Guide 53B9 | ||
| 1 | 848K 68380 Exit Cover (REP 17.1.1) 54B1 | ||
| 2 | 059K 74910 Exit Roll (REP 17.1.2) | ||
| 3 | 413W 14460 Bearing (d:4mm) 54B2 | ||
| 4 | 413W 11660 Bearing (d:6mm) 54B3 | ||
| 5 | 807E 39150 Helical Gear (Duplex) 54B4 | ||
| 6 | 848E 83330 Gear Housing 54B5 | ||
| 7 | 807E 39130 Helical Gear (43T) 54B6 | ||
| 8 | 807E 39140 Helical Gear (41T) 54B7 | ||
| 9 | 127K 66210 Inverter Motor (REP 99.1.1)5251 | ||
| 10 | - Bind Head Screw 54B8 | ||
| 11 | 952K 01160 Motor Wire Harness(REP 99.1.1) | ||
| 1 | 913W 02321 AC Inlet (REP 99.1.1) 72B1 | ||
| 2 | 910W 00703 Main Power Switch 72B2 | ||
| 3 | 105E 20470 HVPS (REP 18.1.2, REP 99.1.1) | ||
| 4 | - HVPS Bracket 72B3 | ||
| 5 | 952K 01140 HVPS Wire Harness(REP 99.1.1) | ||
| 6 | 952K 01190 LVPS Wire Harness (Signal) (REP | ||
| 7 | 952K 01200 LVPS Wire Harness (Power) (REP | ||
| 8 | 120E 34060 PWB Support 72B7 | ||
| 9 | 960K 67870 ESS/MCU PWB (REP 18.1.1, REP | ||
| 10 | 105E 20480 220V-LVPS (REP 18.1.3)7310 | ||
| 11 | 117K 47570 220V-Inlet Wire Harness | ||
| 12 | 117K 47580 220V-Inlet Wire Harness | ||
| 13 | 117K 47611 220V-Ground Wire (REP 99.1.1) | ||
| 14 | 952K 01230 220V-Power Switch Wire Harness | ||
| 15 | - Screw 72BD | ||
| 16 | - Power Cord (220V) | ||
| 17 | - USB Cable 72BE | ||
| 18 | - IIT Cable Spacer 72BF | ||
| 19 | 101K 66581 Connector Bracket 72BG |
4. PL 18.2 Wire Harness
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 848K 68290 Top Cover (Item 2,3) (REP 19.1.2) | ||
| 2 | - Top Cover (P/O Item 1) 60AA | ||
| 3 | 054E 50280 Duct 32B1 | ||
| 4 | - Front Cover (P/O Item 15) (REP | ||
| 5 | 848E 84570 Fusing Unit Cover 32B3 | ||
| 6 | 848E 84611 Right Cover 32B4 | ||
| 7 | - Logo Plate (P/O Item 15)32B5 | ||
| 8 | - Name Plate (WorkCentre 5021) (P/ | ||
| 9 | - Name Plate (WorkCentre 5019) (P/ | ||
| 10 | - CRU Instruction Label (P/O Item | ||
| 11 | 848E 85850 Connector Blank Cover 32B9 | ||
| 12 | 110E 12981 Front Cover Switch | ||
| 13 | 110E 94770 Front Cover Interlock Switch32BB | ||
| 14 | 113E 47530 Drawer Connector 32BC | ||
| 15 | 848K 76560 Front Cover Kit (Item 4,7,10)32BD | ||
| 16 | 604K 80740 Name Plate Kit (Item 8,9)32BE | ||
| 1 | - Rear Cover (REP 19.2.1)32C1 | ||
| 2 | 848E 84630 Rear Lower Cover 32C2 | ||
| 3 | - STM Connector Cover 32C3 | ||
| 4 | 848E 87321 Left Rear Cover 32C4 | ||
| 5 | 868E 69740 Bracket 32C5 | ||
| 6 | - Blind Cover 32C6 | ||
| 7 | - Data Plate 32C7 | ||
| 8 | - Thumbscrew 32C8 | ||
| 9 | - STM Caution Label 32C9 | ||
| 1 | 004K 03410 DADF Platen Cushion (REP 56.1.2) | ||
| 2 | 059K 75711 DADF (PL 56.2) (REP 56.1.1)22AA | ||
| 3 | - Label 22B2 | ||
| 1 | - DADF Base Frame (PL 56.3)(REP | ||
| 2 | 059K 75730 DADF Feeder Assembly (Navi 2.3) | ||
| 3 | 848E 86411 DADF Rear Cover (REP 56.2.2) | ||
| 4 | 848E 86430 DADF Front Cover (REP 56.2.1) | ||
| 5 | 848E 86450 Registration Pinch Cover 22C5 | ||
| 6 | 803E 13310 Tray Stopper 22C6 | ||
| 7 | 068K 67551 Hinge Bracket (Front) 22C7 | ||
| 8 | 049K 17810 Hinge Bracket (Rear) 22C8 | ||
| 9 | 059K 75750 Upper Feeder (PL 56.4) (REP | ||
| 10 | - Clamp 22CB | ||
| 11 | 120E 34270 Actuator 22CC | ||
| 12 | 809E 50792 Spring 22CD | ||
| 13 | 930W 00121 DADF Open Sensor 22CE | ||
| 14 | - Data Plate 22CF | ||
| 15 | - Clamp 22CG | ||
| 16 | 960K 62441 DADF PWB (REP 56.2.3, REP | ||
| 17 | 952K 03540 DADF I/F Wire Harness(REP | ||
| 1 | - DADF Base Frame 22D1 | ||
| 2 | 036K 92141 Left Counter Balance (REP 56.3.1, | ||
| 3 | 036K 92130 Right Counter Balance (REP | ||
| 4 | 809E 86290 CVT Spring 22D4 | ||
| 5 | - CVT Chute 22D5 | ||
| 6 | 803E 13340 CVT Stopper 22D6 | ||
| 7 | 059E 98711 Registration Pinch Roll (Short) | ||
| 8 | 059E 98701 Registration Pinch Roll (Long)22D8 | ||
| 9 | - Gate Pad 22D9 | ||
| 10 | 035K 85280 Seal (Chute 1) 22DB | ||
| 11 | 035K 85290 Seal (Chute 2) 22DC | ||
| 12 | 035K 85320 Seal (Chute 3) 22DD | ||
| 13 | 035K 85330 Seal (Chute 4) 22DE | ||
| 14 | 035K 85341 Seal (Chute 5) 22DF | ||
| 15 | 035K 85380 Seal (B1) 22DG | ||
| 16 | 035K 85390 Seal (B2) 22DH | ||
| 17 | 035K 85400 Seal (B3) 22DJ | ||
| 18 | - Shaft 22DK | ||
| 19 | 899E 01591 Spring (Hook:C,O) 22DL | ||
| 20 | 899E 01911 Spring (Hook:C,C) 22DM | ||
| 1 | 054E 50182 Upper Feeder Chute 22E1 | ||
| 2 | 059K 75770 Feed Roll Nudger Roll Assembly | ||
| 3 | - Upper Feeder Cover 22E3 | ||
| 4 | 059K 75760 Takeaway Pinch Roll 22E4 | ||
| 5 | - Bracket 22E5 | ||
| 6 | 897E 24000 Jam Label 22E6 | ||
| 7 | 815E 76300 Ground Plate 22E7 | ||
| 8 | 809E 50720 Spring 22E8 | ||
| 9 | 011K 04260 Handle Lever 22E9 | ||
| 10 | 120E 34242 Actuator (Document Set)22EB | ||
| 11 | 120E 34250 Stopper Actuator 22EC | ||
| 12 | 899E 01541 Spring 22ED | ||
| 13 | 012E 18310 Set Link 22EE | ||
| 14 | 413W 85459 Bearing 22EF | ||
| 15 | 899E 01550 Spring 22EG | ||
| 1 | - Housing 22F1 | ||
| 2 | - Pulley (Feed) 22F2 | ||
| 3 | - Pulley (Nudger) 22F3 | ||
| 4 | 423W 05354 Belt 22F4 | ||
| 5 | - Shaft (Feed) 22F5 | ||
| 6 | - Shaft (Nudger) 22F6 | ||
| 7 | - DADF Feed Roll (P/O Item 14) | ||
| 8 | - DADF Nudger Roll (P/O Item 14) | ||
| 9 | 413W 85459 Bearing 22F9 | ||
| 10 | 807E 40760 Helical Gear 22FB | ||
| 11 | - Brake 22FC | ||
| 12 | - Brake Holder 22FD | ||
| 13 | - Housing 22FE | ||
| 14 | 604K 80750 DADF Feed/Nudger Roll Kit (Item | ||
| 1 | 032E 40210 Harness Guide (REP 56.6.1)22G1 | ||
| 2 | 110K 17140 DADF Feeder Cover Interlock | ||
| 3 | 127K 66690 DADF Feed Motor (REP 56.6.2) | ||
| 4 | 930W 00121 DADF Document Set Sensor 22G4 | ||
| 5 | 952K 03531 Wire Harness (Sensor)(REP | ||
| 6 | 952K 03510 Wire Harness (Motor/Clutch)(REP | ||
| 7 | 117K 38960 Ground Wire 22G7 | ||
| 1 | 012E 18260 Release Link 22H1 | ||
| 2 | 013E 41200 Set Bearing 22H2 | ||
| 3 | 012E 18270 Exit Link 22H3 | ||
| 4 | 020E 46551 Pulley 22H4 | ||
| 5 | 121K 52310 DADF Feed Clutch (REP 99.1.1) | ||
| 6 | 121K 52310 DADF Takeaway Clutch (REP | ||
| 7 | - Roll 22H7 | ||
| 8 | 121K 52470 Exit Nip Release Solenoid (REP | ||
| 9 | 423W 32055 DADF Drive Belt (REP 56.7.1) | ||
| 10 | - Tension Bracket 22HB | ||
| 11 | 049K 18190 Clutch Gear and Bracket22HC | ||
| 12 | 413W 85459 Bearing 22HD | ||
| 13 | 807E 40790 Gear (42T) 22HE | ||
| 14 | 807E 40800 Gear (40/24T) 22HF | ||
| 15 | 807E 40830 Gear Pulley 22HG | ||
| 16 | 807E 40840 Gear (19T) 22HH | ||
| 17 | 868E 80570 Bracket 22HJ | ||
| 18 | 899E 01573 Washer 22HK | ||
| 19 | 012E 18290 Link 22HL | ||
| 20 | 899E 01581 Spring 22HM | ||
| 21 | - KL-Clip 22HN | ||
| 1 | 803E 13330 Knob Handle 22J1 | ||
| 2 | 807E 41000 Gear 22J2 | ||
| 3 | 868E 80540 Bracket 22J3 | ||
| 4 | 807E 40780 Gear (27T) 22J4 | ||
| 5 | 807E 40840 Gear (19T) 22J5 | ||
| 6 | 815E 76320 Ground Plate 22J6 | ||
| 7 | 815E 76340 Ground Plate 22J7 | ||
| 1 | 050K 69650 Document Tray (PL 56.11) (REP | ||
| 2 | 054K 48570 Invert Chute (PL 56.12) (REP | ||
| 3 | 054K 48580 Retard Chute (PL 56.13) (REP | ||
| 4 | 054K 49150 Floating Chute 22K3 | ||
| 5 | - Spring 22K4 | ||
| 1 | 059K 75780 DADF Registration Roll 22L1 | ||
| 2 | 059K 75790 DADF Takeaway Roll (REP | ||
| 3 | 059K 75800 DADF Out Roll 22L3 | ||
| 4 | 059K 75810 DADF Exit Roll 22L4 | ||
| 5 | 049K 17820 Sensor Bracket (PL 56.14) (REP | ||
| 6 | 413W 11660 Bearing 22L6 | ||
| 7 | - DADF Feeder Frame 22L7 | ||
| 8 | - KL-Clip 22L8 | ||
| 9 | 930W 00121 DADF Invert Sensor 22L9 | ||
| 1 | - Upper Tray 22M1 | ||
| 2 | - Tray Cover 22M2 | ||
| 3 | 868E 80501 Sensor Bracket 22M3 | ||
| 4 | 930W 00121 DADF Tray Set Guide Sensor | ||
| 5 | 930W 00121 DADF Tray Set Guide Sensor | ||
| 6 | 930W 00121 DADF Tray Set Guide Sensor | ||
| 7 | 032K 05861 Scatter Guide 22M7 | ||
| 8 | 038E 42770 Front Side Guide 22M8 | ||
| 9 | 038E 42750 Rear Side Guide 22M9 | ||
| 10 | 848E 88020 Harness Cover 22MB | ||
| 11 | 807E 30471 Pinion Gear 22MC | ||
| 12 | 809E 51860 Rack Spring 22MD | ||
| 13 | 120E 34210 Actuator 22ME | ||
| 14 | 807E 37830 Rack Gear (Front) 22MF | ||
| 15 | 807E 40750 Rack Gear (Rear) 22MG | ||
| 16 | 930W 00121 Document Tray Size Sensor | ||
| 17 | 930W 00121 Document Tray Size Sensor 222MJ | ||
| 18 | 952K 03520 Tray Wire Harness(REP 99.1.1) | ||
| 1 | - Invert Chute 22N1 | ||
| 2 | 120E 34220 Actuator (Pre Regi.) 22N2 | ||
| 3 | 809E 50792 Spring 22N3 | ||
| 4 | 035K 82730 Seal (Long) 22N4 | ||
| 5 | 035K 82740 Seal (Short) 22N5 | ||
| 6 | - Pad 22N6 | ||
| 7 | 120E 34230 Actuator (Invert) 22N7 | ||
| 8 | 050E 25313 Invert Gate 22N8 | ||
| 1 | 054E 50170 Retard Chute 22P1 | ||
| 2 | 848K 68730 DADF Retard Pad (REP 56.13.1) | ||
| 3 | 035K 84270 Rear Seal 22P3 | ||
| 4 | 035K 84260 Front Seal 22P4 | ||
| 5 | - Label 22P5 | ||
| 6 | - Pad 22P6 | ||
| 7 | 899E 01520 Spring 22P7 | ||
| 8 | 050E 28270 Set Gate 22P8 | ||
| 9 | 899E 01510 Spring 22P9 | ||
| 10 | - Shaft 22PB | ||
| 11 | 019E 84131 Rear Holder 22PC | ||
| 12 | 019E 84120 Front Holder 22PD | ||
| 13 | 059E 08661 Pinch Roll 22PE | ||
| 14 | 899E 01531 Spring 22PF | ||
| 15 | 413W 11460 Bearing 22PG | ||
| 16 | 012E 18280 Link 22PH | ||
| 1 | 032E 40221 Sensor Bracket 22Q1 | ||
| 2 | 930W 00121 DADF Regi. Sensor 22Q2 | ||
| 3 | 930W 00121 DADF Pre Regi. Sensor 22Q3 | ||
| 4 | 120E 34260 Actuator (Regi.) 22Q4 | ||
| 5 | 809E 50792 Spring 22Q5 | ||
| 1 | J Paper 57B1 1 Problem Mishandling (covered by User Guide) | ||
| 2 | JD Paper 57B2 2 Problem Mishandling (beyond User Guide) | ||
| 3 | C2 Paper 57B3 3 Operational Error (covered by User Guide) | ||
| 4 | Plain (XEROX) 5711 4 Operational Error (beyond User Guide) | ||
| 5 | Plain (Other makers) 57B4 5 No Reproduction after Power ON/OFF | ||
| 6 | Recycled Paper (XEROX) 5712 6 Interference with Peripheral | ||
| 7 | Recycled Paper (Other makers) 57B5 7 Power at Customer Site | ||
| 8 | Heavyweight 57B6 8 Not Reproduced at Call | ||
| 9 | Tracing Paper 5714 9 No Reproduction after Power ON/OFF (Reproduced at Call) | ||
| 10 | Transparency Paper 5713 10 Not Cause/Location Identified 908A | ||
| 11 | Transparency Paper (Other makers) 57B7 | ||
| 12 | Tack Film 57B8 | ||
| 13 | Labels 57B9 | ||
| 14 | Postcard 57BB | ||
| 15 | Tab Stock Paper 57BC | ||
| 16 | Hole Punched Paper 57BD | ||
| 17 | Heavyweight 2 57BE | ||
| 18 | Heavyweight 1 Side 2 57BF | ||
| 19 | Heavyweight 2 Side 2 57BG | ||
| 20 | Coated Paper 57BH | ||
| 21 | Coated Paper Side 2 57BJ | ||
| 1 | Toner (K) 409K 1 Side Regi Adjustment (Tray 1) 77B1 | ||
| 2 | Side Regi Adjustment (Tray 2) 77B2 | ||
| 3 | Side Regi Adjustment (MSI) 77B5 | ||
| 4 | Lead Regi Adjustment (Tray 1) 77C5 | ||
| 5 | Lead Regi Adjustment (Tray 2) 77C6 | ||
| 6 | Lead Regi Adjustment (MSI) 77C9 | ||
| 7 | White Ref Adjustment 771M | ||
| 8 | IIT Calibration | ||
| 9 | CCD Calibration 77CD | ||
| 10 | Light Axis Fluctuation Correction 77CE | ||
| 11 | ROS Write Timing 77F7 | ||
| 12 | Border Erase Adjustment 77B6 | ||
| 13 | Calibration 77B7 | ||
| 14 | MAX SET UP (Image Quality Adjustment) | ||
| 15 | ATC SENSOR SET UP 77B8 | ||
| 16 | TRC Adjustment 77B9 | ||
| 17 | ADC/AGC SETUP 77BB | ||
| 18 | Tone UP/DOWN Adjustment 77BC | ||
| 19 | NVM Initialization (IIT/IPS) 702A | ||
| 20 | NVM Initialization (SYS-System) 77BE | ||
| 21 | NVM Initialization (SYS-User) 702D | ||
| 22 | NVM Initialization (IOT) 77BF | ||
| 23 | NVM Initialization (ALL) 77BG | ||
| 24 | Lead Edge Border Erase Adjustment 77BH | ||
| 25 | Trail Edge Border Erase Adjustment 77BJ | ||
| 26 | Side Erase Adjustment 77BK | ||
| 27 | FS R/E Adjustment 77BL | ||
| 28 | SS R/E Adjustment 77BM | ||
| 29 | Temperature Adjustment | ||
| 30 | Fixed R/E Change 77C1 | ||
| 31 | Buzzer Level 77C2 | ||
| 32 | Download (Reinstall) 77E1 | ||
| 33 | Download (Version UP) 77E2 | ||
| 34 | Other NVM Changes | ||
| 35 | Other Diag. Adjustment 77BN | ||
| 36 | Auto Gradation Correction 77F1 | ||
| 37 | ATC Sensor Setup 77F3 | ||
| 38 | Tone Up/Down 77F5 | ||
| 39 | Secondary Traansfer Output Adjustment 77F6 | ||
| 1 | Full/Harf Parallel Adjutment 1050 1 Photo Originals 572B | ||
| 2 | Printed Originals 572C | ||
| 3 | Maps and Low Contrast Originals 572D | ||
| 4 | Paste-up Originals 572E | ||
| 5 | Dirty/areased Originals 572F | ||
| 6 | Colored Originals 572G | ||
| 7 | Other Originals 572H | ||
| 1 | Accessories Related 80AA 1 User Environment 90AA | ||
| 2 | EP-SV unit 80AB 2 Problems at remort station when data is sent (storage destination | ||
| 3 | Cable between M/C and EP-SV 80AC of Push-Scan etc, PC/server etc) | ||
| 4 | Cable between EP-SV and Related product 80AD 3 Problems at sent station when data is received (PC/server etc) | ||
| 5 | TEL line for EP-SV 80AE 4 Problems at Timer Server | ||
| 6 | AC Adaptor for EP-SV 80AF 5 Problems at Router | ||
| 6 | Problems at HUB | ||
| 7 | Problems at USB Device (Commercial item) | ||
| 8 | Problems at Memory Media (Commercial item) 906B | ||
| 9 | Problems at Wireless LAN 906C | ||
| 10 | Network-related Services SW | ||
| 11 | DocuHouseAccouthgService/ApeosWareAccouthgService | ||
| 12 | CentreWareDeviceService/ApeosWareDeviceService | ||
| 13 | DocuShare | ||
| 14 | FreeFlow related (XDOD) | ||
| 15 | Print/Scan Driver 907B | ||
| 16 | XDOM 907C | ||
| 17 | External Access Kit 906D |
