Xerox WC PE16 — каталог запчастей со схемами

Содержание

1. EXPLODED VIEW & PA RTS LIST
2. EXPLODED VIEW & PA RTS LIST
3. EXPLODED VIEW & PA RTS LIST
4. EXPLODED VIEW & PA RTS LIST
5. EXPLODED VIEW & PA RTS LIST
6. EXPLODED VIEW & PA RTS LIST
7. EXPLODED VIEW & PA RTS LIST
8. EXPLODED VIEW & PA RTS LIST

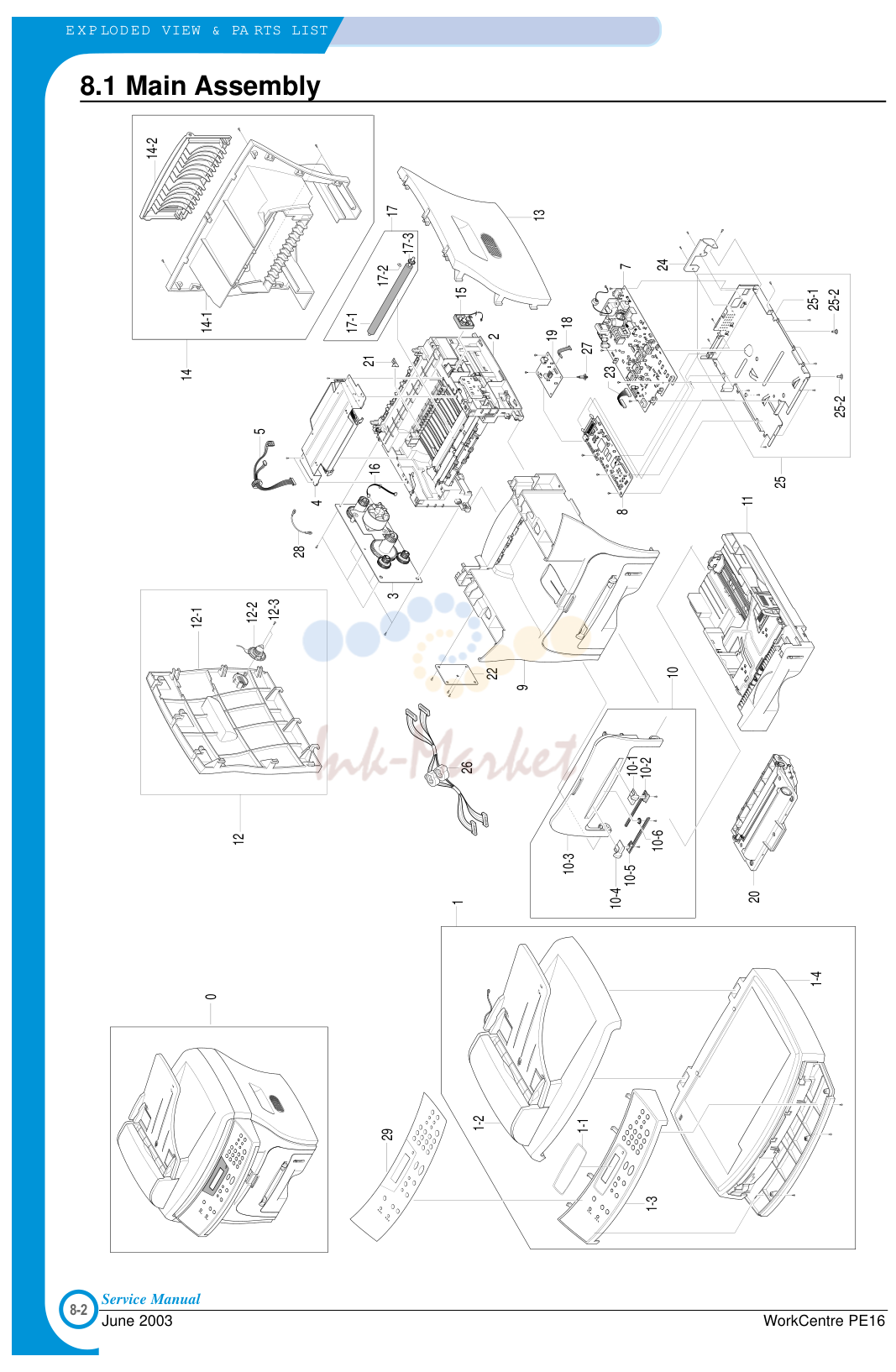

1. EXPLODED VIEW & PA RTS LIST

№	Артикул	Альт. артикул	Описание
0			WorkCentre PE16
1			ELAHOU-UNITSCAN 500 N
1-1			COVER-LCD WINDOW * 1 Not Spared
1-2			ELAHOU-ADF 101 N
1-3			AS-ELAHOU-OPE(XEROX) 101 N
1-4			ELAHOU-PLATEN 101 N
3			ELAUNIT-RX DRIVE 126 N
4			UNIT-LSU 122 N
5			CBF HARNESS-LSU 152 N
7			SMPS-SMPS(V1)+HVPS 105 N 02005 1 110V
8			PBAMAIN-MAIN 140 N
9			MEAUNIT-COVER MIDDLE 101 N
10			MEAUNIT-COVER FRONT(XEROX) 101 N
10-1			ADJUST-M-MANUAL_R * 1 Not Spared
10-2			ADJUSTRACK-M-MANUAL * 2 Not Spared
10-3			COVER-M_FRONT(ROCKY) * 1 Not Spared
10-4			ADJUST-M-MANUAL_L * 1 Not Spared
10-5			GEAR-RACK_PINION * 1 Not Spared
11			MEAUNIT-CASSETTE, USA 050 N
12			ELAHOU-COVER SIDE L 101 N
12-1			COVER-M-SIDE L * 1 Not Spared
12-2			SPEAKER * 1 Not Spared
12-3			SCREW-TAPTITE * 2 Not Spared
13			COVER-M-SIDE R 002 N
14			MEAUNIT-COVER REAR 002 N
14-1			COVER-M-REAR * 1 Not Spared
14-2			COVER-M-FACE UP * 1 Not Spared
15			FAN-DC 127 N
16			CBF HARNESS-MOTOR 152 N
17			MEAETC-TR 022 N
17-1			ROLLER-TRANSFER ROLLER 022 N
17-2			GEAR-TRANSFER * 1 Not Spared
17-3			PPR-SPACER_TR * 1 Not Spared
18			CBF SIGNAL-LIU 140 N
19			PBA-LIU_USA/CANADA 140 N
20			ELA-TONER UNIT * 1 Not Spared
21			PLATE-P-CHANNEL 015 N
22			PBASUB-CONN 140 N
23			CBF HARNESS-ENGINE 152 N
24			“BRACKET-P-INLET, ROCKY” 030 N
25			MEAUNIT-SHIELD ENGINE 055 N
25-1			“SHIELD-ENGINE, ROCKY” * 1 Not Spared
25-2			SUPPORTER * 2 Not Spared
26			CBF HARNESS-SCAN 152 N
27			SUPPORTER 030 N
28			CBF-HARNESS-DUPLEX GND 152 N
29			SHEET-OVERLAY(XEROX) 002 N

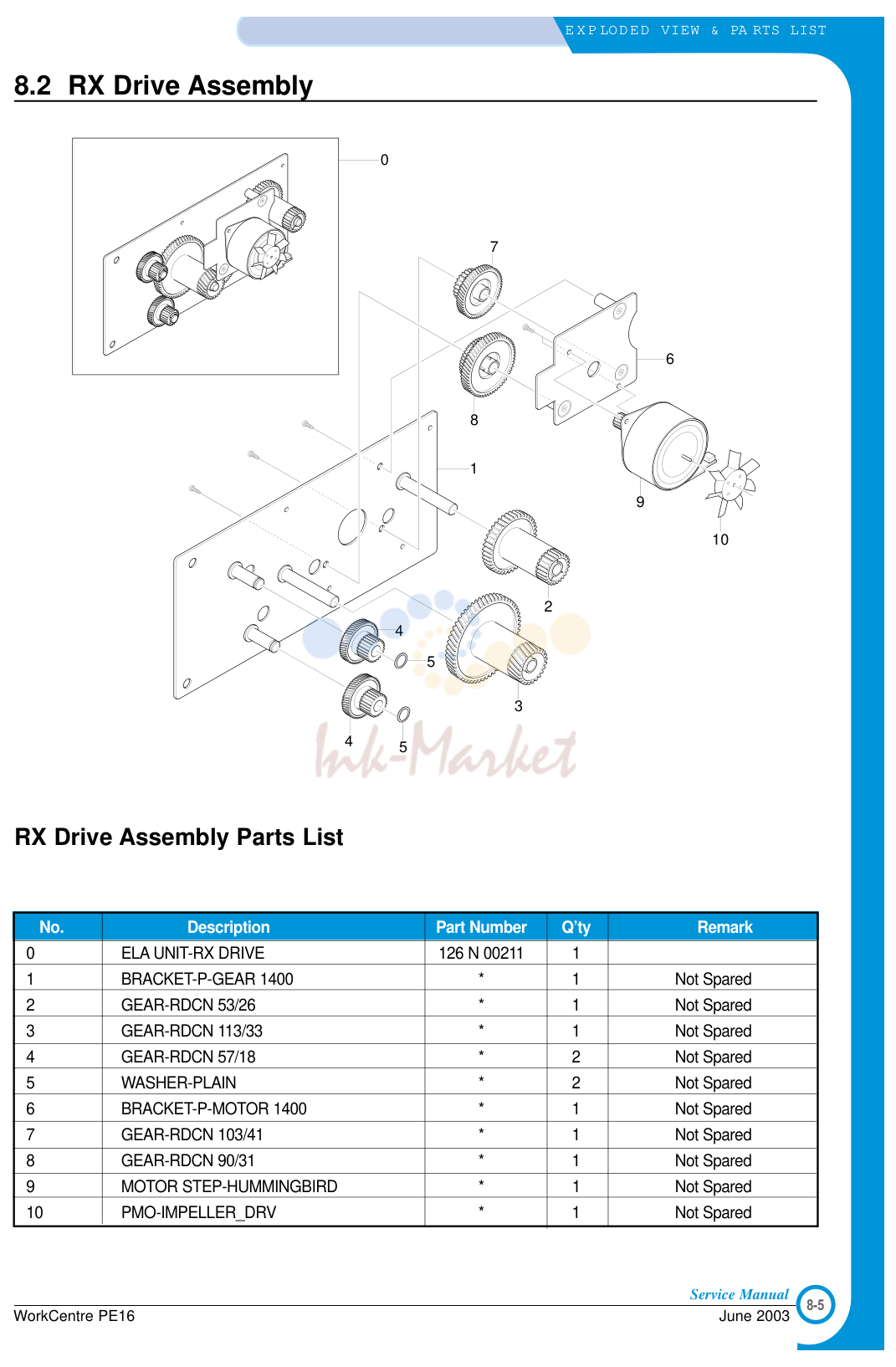

2. EXPLODED VIEW & PA RTS LIST

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-RX DRIVE 126 N
1			BRACKET-P-GEAR 1400 * 1 Not Spared
2			GEAR-RDCN 53/26 * 1 Not Spared
3			GEAR-RDCN 113/33 * 1 Not Spared
4			GEAR-RDCN 57/18 * 2 Not Spared
5			WASHER-PLAIN * 2 Not Spared
6			BRACKET-P-MOTOR 1400 * 1 Not Spared
7			GEAR-RDCN 103/41 * 1 Not Spared
8			GEAR-RDCN 90/31 * 1 Not Spared
9			MOTOR STEP-HUMMINGBIRD * 1 Not Spared
10			PMO-IMPELLER_DRV * 1 Not Spared

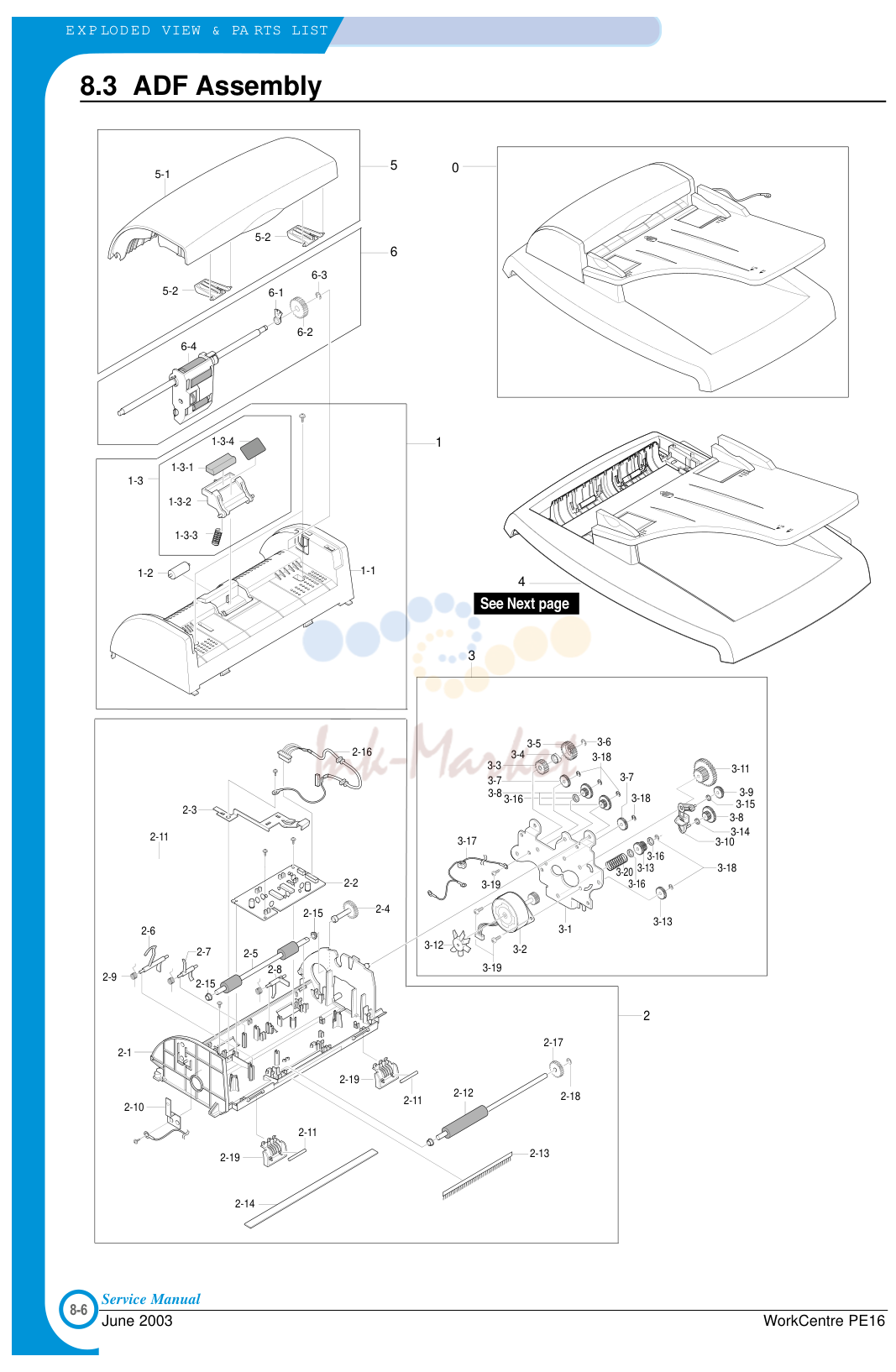

3. EXPLODED VIEW & PA RTS LIST

№	Артикул	Описание
0		ELAHOU-ADF 101 N
1		MEAUNIT-ADF UPPER 500 N
1-1		COVER-M-ADF UPPER 002 N
1-2		ROLLER-M-ADF IDLE 022 N
1-3		MEAUNIT-HOLDER ADF 500 N
2		ELAHOU-ADF LOWER 101 N
2-1		COVER-M-ADF LOWER * 1 Not Spared
2-2		PBASUB-ADF * 1 Not Spared
2-3		GROUND-P-ADF * 1 Not Spared
2-4		SHAFT-M-FEED GEAR 38 * 1 Not Spared
2-5		ROLLER-DRIVE * 1 Not Spared
2-6		PMO-ACTUATOR DOC SENSOR * 1 Not Spared
2-7		PMO-ACTUATOR REGI SENSOR * 1 Not Spared
2-8		PMO-ACTUATOR SCAN SENSOR * 1 Not Spared
2-9		SPRING ETC-TORSION DOC (CC2-F) * 3 Not Spared
2-10		IPR-GROUND_ROLLER * 1 Not Spared
2-11		SHAFT-IDLE FEED * 2 Not Spared
2-12		ROLLER-EXIT * 1 Not Spared
2-13		MEC-BRUSH ANTISTATIC * 1 Not Spared
2-14		SHEET-WHITE BAR * 1 Not Spared
2-15		PMO-BUSH * 4 Not Spared
2-16		CBF HARNESS-ADR * 1 Not Spared
2-17	GEAR-AGITATOR-2 запросить цену →	* 1 Not Spared
2-18		RING-C * 1 Not Spared
2-19		GUIDE-STACKER SUB * 2 Not Spared
3		ELAHOU-ADF MOTOR 101 N
3-1		BRACKET-GEAR * 1 Not Spared
3-2		MOTOR BLOWER-ADF * 1 Not Spared
3-3		GEAR-CLUTCH 29 * 1 Not Spared
3-4		PMO-WHITE CLUTCH SUB 29 * 1 Not Spared
3-5		GEAR-CLUTCH 39 * 1 Not Spared
3-6		RING-C * 1 Not Spared
3-7		GEAR-IDLE 35 ADF * 3 Not Spared
3-8		GEAR-40/21 ADF * 3 Not Spared
3-9		GEAR-SWING 31/20 ADF * 1 Not Spared
3-10		LINK-M-SWING ADF * 1 Not Spared
3-11		GEAR-58/25 ADF * 1 Not Spared
3-12		IMPELLER-ADF * 1 Not Spared
3-13		GEAR-REMOVE ADF * 1 Not Spared
3-14		WASHER-PLAIN * 2 Not Spared
3-15		IPR-WASHER WAVE * 1 Not Spared
3-16		WASHER-PLAIN * 3 Not Spared
3-17		CBF HARNESS-MOTOR GND * 1 Not Spared
3-18		RING-E * 6 Not Spared
3-19		SCREW-TAPTITE * 3 Not Spared
3-20		SPRING ETC PAD * 1 Not Spared
4		MEAUNIT-COVER PLATEN * 1 Not Spared
4-1		COVER-M-PLATEN(4IN1) 002 N
4-2		SHEET-WHITE SPONGE * 1 Not Spared
4-3		MEA-TX STACKER(XEROX) * 1 Not Spared
4-4		SPRING ETC-FEED * 6 Not Spared
4-5		PMO-ROLLPINCH 022 N
4-6		SHAFT-STACKER 006 N
4-7		MEAUNIT-HINGE 003 N
4-8		RPR-ROLLER EXITIDLE 022 N
4-9		ICT-SHAFTPINCH 006 N
5		MEAUNIT-COVER OPEN 002 N
5-1		COVER-M-OPEN * 1 Not Spared
5-2		PMO-GUIDE PAPER * 2 Not Spared
6		MEAUNIT-PICKUP 130 N
6-1		PMO-BUSHING WHITE * 1 Not Spared
6-2		GEAR-ADF 38 * 1 Not Spared
6-3		RING-C * 1 Not Spared
6-4		ADF-ROLLER 022 N

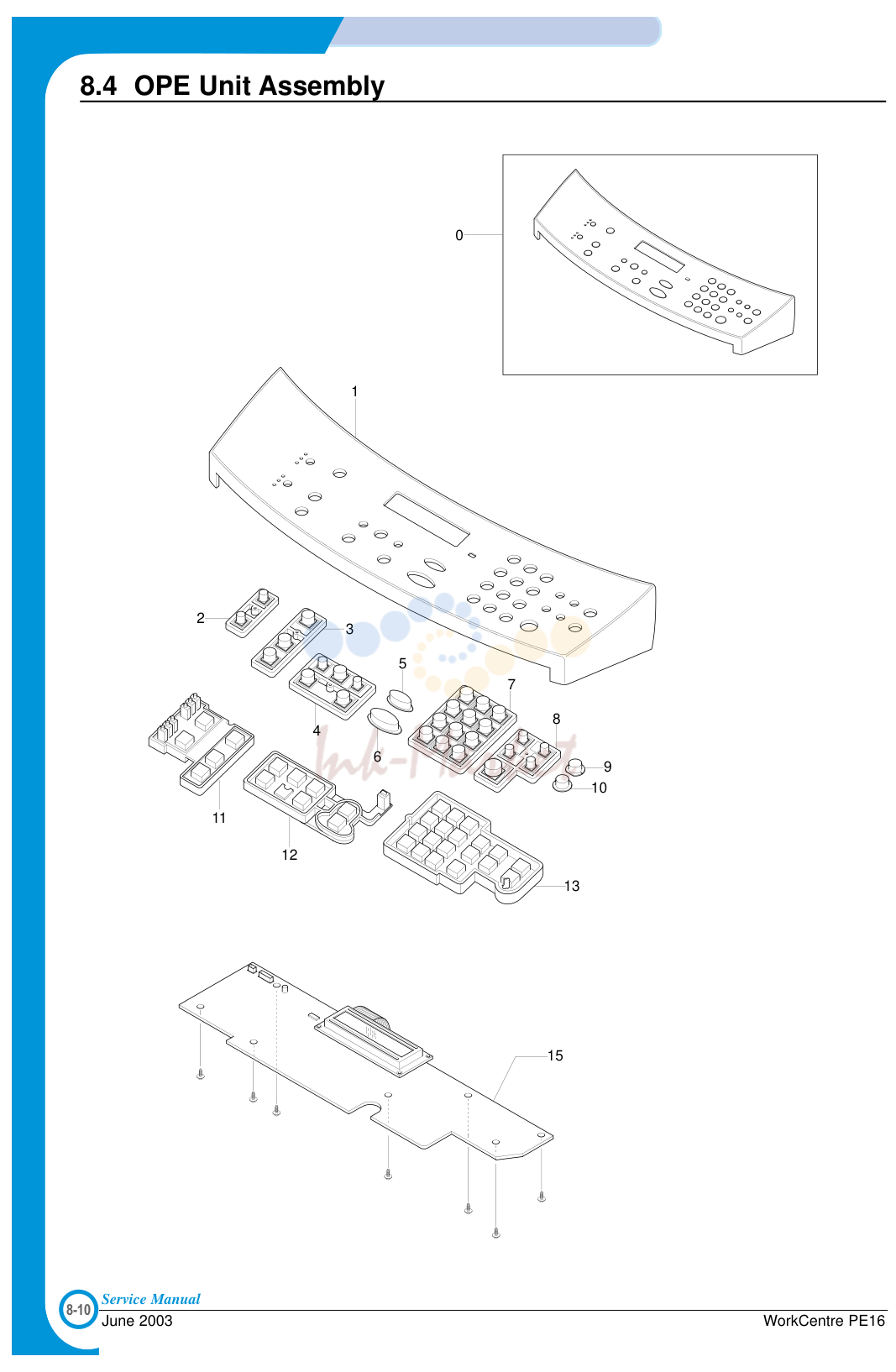

4. EXPLODED VIEW & PA RTS LIST

№	Артикул	Альт. артикул	Описание
0			ELAHOU-OPE 101 N
1			COVER-M-OPE(4IN1) 002 N
2			KEY-M-RESOLUTION 003 N
3			KEY-M-COPY 003 N
4			KEY-M-SCROLL 003 N
5			KEY-M-STOP 003 N
6			KEY-M-START 003 N
7			KEY-M-TEL 003 N
8			KEY-M-FAX 003 N
9			KEY-M-TONER SAVE 003 N
10			KEY-M-TOLLSAVE 003 N
11			RUBBER-COPY 003 N
12			RUBBER-SCROLL 003 N
13			RUBBER-TEL/FAX 003 N
15			PBASUB-OPE 140 N

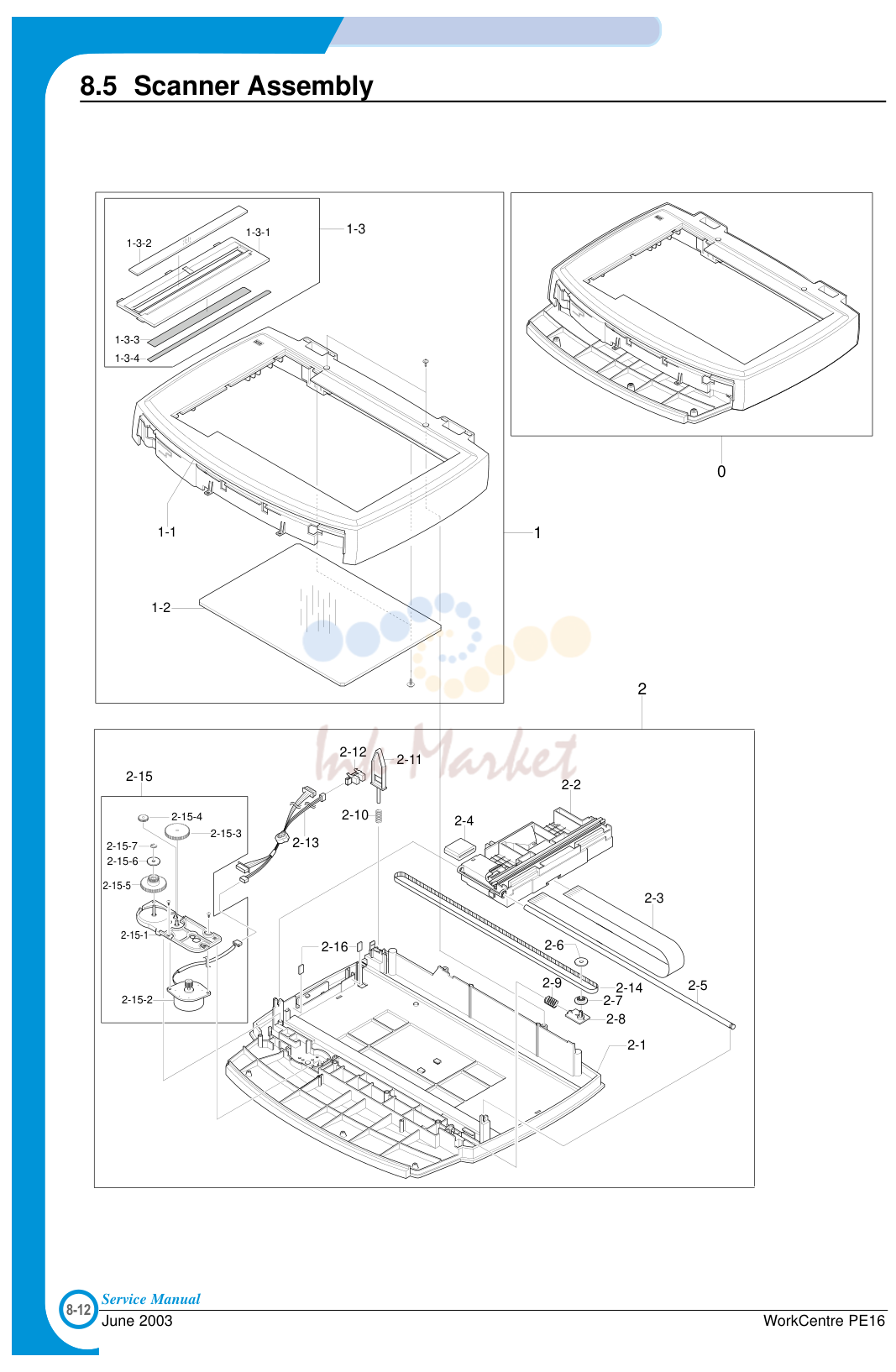

5. EXPLODED VIEW & PA RTS LIST

№	Артикул	Описание
0		ELAHOU-PLATEN 101 N
1		MEAUNIT-SCAN UPPER * 1 Not Spared
1-1		COVER-M-SCAN UPPER 002 N
1-2		GLASS-SCAN 118 N
1-3		MEAUNIT-SCAN DUMMY 500 N
2		ELAHOU-SCAN LOWER 101 N
2-1		COVER-M-SCAN LOWER * 1 Not Spared
2-2		ELAHOU-CCD MODULE 101 N
2-3		CBF SIGNAL-CCD FFC 130 N
2-4		ELAUNIT-CORE * 2 Not Spared
2-5		ICT-SHAFTCCD 130 N
2-6		PMO-HOLDER BELT * 1 Not Spared
2-7		PMO-PULLEY * 1 Not Spared
2-8		PMO-HOLDER BELT * 1 Not Spared
2-9		SPRING ETC-BELT * 1 Not Spared
2-10		SPRING-CS * 1 Not Spared
2-11		PMO-LEVER SENSOR 130 N
2-12		PHOTO-INTERRUPTER 130 N
2-13		CBF HARNESS-OPE/FLAT_COVER 101 N
2-14		BELT-TIMING GEAR 109 N
2-15		ELAHOU-SCAN MOTOR 101 N
2-16		DUMPER-CCD * 2 Not Spared
0		MEAUNIT-COVER MIDDLE 101 N
1		COVER-M-MIDDLE * 1 Not Spared
2		PMO-STACKER_RX(XEROX) * 1 Not Spared
3		RING-CS * 2 Not Spared
4		GEAR-IDLE 23 * 1 Not Spared
5	PMO-GEAR_EXIT_DRV16 запросить цену →	* 1 Not Spared
6		GEAR-EXITF/DOWN * 1 Not Spared
7		MEC-BEARING,EXIT 013 N
8		ROLLER-EXITF/DOWN * 1 Not Spared
9		RMO-RUBBER EXIT * 4 Not Spared
10		PMO-BUSHING_F/DOWN * 1 Not Spared
11		SPRING-CS * 4 Not Spared
12		HOLDER-M-EXITF/DOWN * 4 Not Spared
13		PMO-ROLLER_EXIT,MAIN * 4 Not Spared
14		PMO-ROLLER_EXIT,FR * 4 Not Spared
15		WASHER-PLAIN * 2 Not Spared
16		COVER-M-REAR UPPER * 1 Not Spared
17		ROLLER-M_DECURL * 6 Not Spared

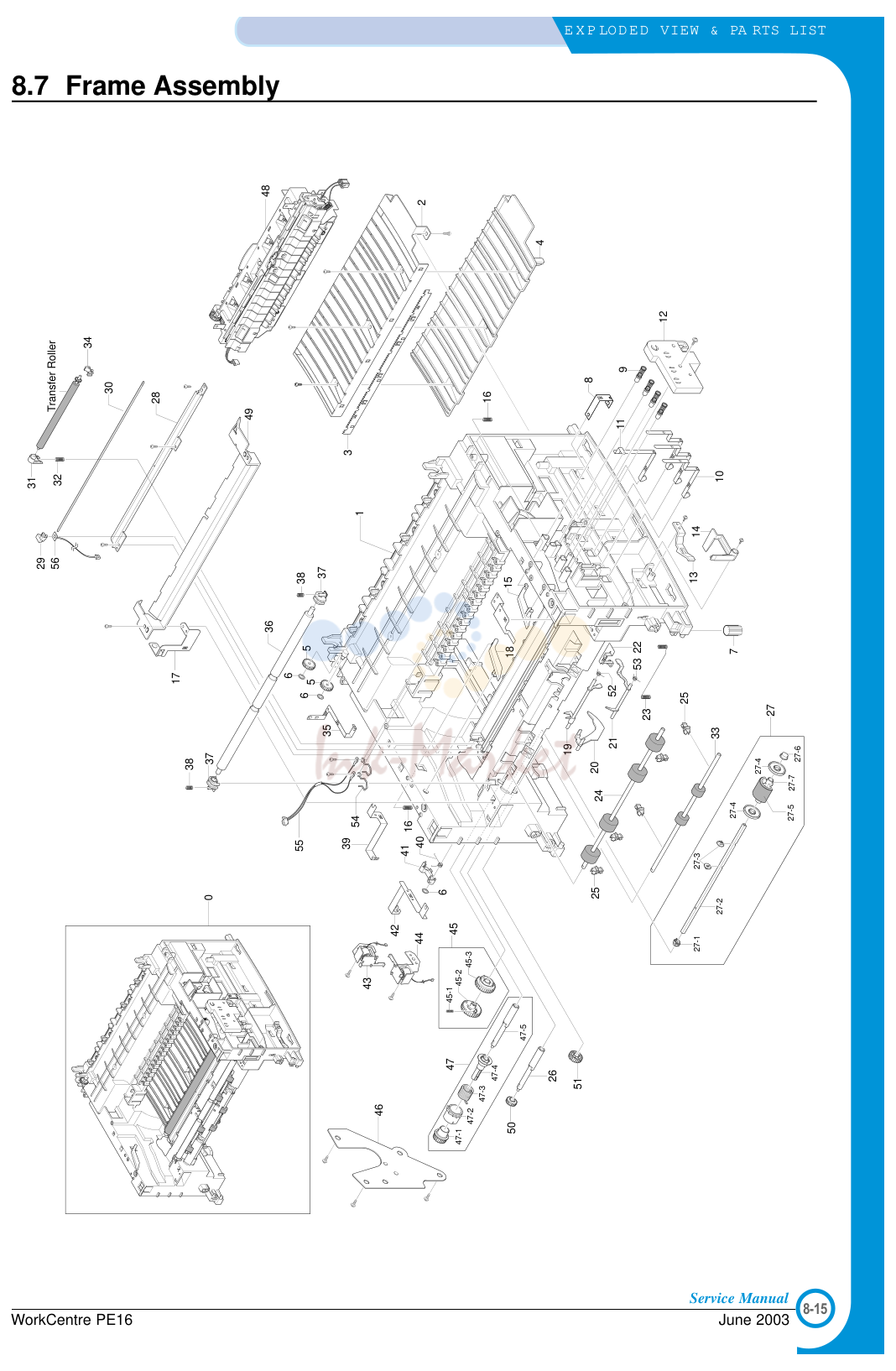

6. EXPLODED VIEW & PA RTS LIST

№	Артикул	Описание
1		FRAME-M-BASE * 1 Not Spared
2		GUIDE-P-TR 038 N
3		PLATE-P-SAW 015 N
4		GUIDE-M-TR RIB 038 N
5	PMO-GEAR_EXIT_DRV16 запросить цену →	* 2 Not Spared
6		RING-CS * 3 Not Spared
7		RMO-RUBBER_FOOT * 2 Not Spared
8		IPR-P-GROUND_TR * 1 Not Spared
9		MEC-TERMINAL * 4 Not Spared
10		IPR-P-TERMINALCON * 3 Not Spared
11		IPR-P-TERMINALCR * 1 Not Spared
12		HOUSING-TERMINAL 101 N
13		PMO-LOCKER CST 120 N
14		PMO-ACTUATOR CVR OPEN 120 N
15		PMO-PLATE GUIDE DEVE_R 032 N
16		SPRING ETC-GUIDE DEVE * 2 Not Spared
17		IPR-P-GROUND_GUIDE PAPER * 1 Not Spared
18		PMO-PLATE GUIDE DEVE_L 032 N
19		PMO-ACTUATOR FEED 120 N
20		PMO-ACTUATOR EMPTY 120 N
21		PMO-ACTUATOR MANUAL 700 N
22		IPR-P-GROUND_EARTH TR * 1 Not Spared
23		SPRING-ETC 009 N
24		ROLLER-FEED ROLLER 1 * 1 Not Spared
25		PMO-BUSHING FEED * 5 Not Spared
26		SHAFT-FEED * 1 Not Spared
27		AS-PICK UP 022 N
27-1		BUSH-M-PICK_UPL * 1 Not Spared
27-2		SHAFT-P-PICK_UP * 1 Not Spared
27-3		STOPPER-PICK_UP * 2 Not Spared
27-4		PMO-IDLE PICK_UP * 2 Not Spared
27-5		SPONGE-ROLLER PICK_UP 022 N
27-6		BUSH-M-PICK_UPR * 1 Not Spared
27-7		HOUSING-M-PICK_UP * 1 Not Spared
28		IPR-P-EARTH TRANSFER 117 N
29		HOLDER-PTL * 1 Not Spared
30		LENS-PTL 062 N
31		BUSH-M-TR L 016 N
32		SPRING ETC-TR LHAWK * 1 Not Spared
33		ROLLER-FEED 022 N
34		PMO-BUSHING_TR(L) 016 N
35		IPR-P-GROUND_FUSER * 1 Not Spared
36		SHAFT-FEED IDLE * 1 Not Spared
37		BUSH-M-FEED IDLE * 2 Not Spared
38		SPRING ETC-TR * 2 Not Spared
40		SPRING-TS * 1 Not Spared
41		CAM-M-PICK_UP 008 N
42		IPR-P-GROUND_DRIVE * 1 Not Spared
43		SOLENOID-HB (PICK-UP) 121 N
44		SOLENOID-HB (MANUAL) 700 N
45		AS-GEAR PICK_UP 007 N
45-1		PMO-GEAR PICK_UPB * 1 Not Spared
45-2		PMO-GEAR PICK_UPA * 1 Not Spared
45-3		SPRING-CS * 1 Not Spared
46		BRACKET-P-FEED 030 N
47		MEAUNIT-CLUTCH 022 N
47-1		GEAR-FEED 1 * 1 Not Spared
47-2		PMO-COLLAR_SPRING * 1 Not Spared
47-3		SPRING-TS * 1 Not Spared
47-4		PMO-HUB CLUTCH * 1 Not Spared
47-5		SHAFT-FEED * 1 Not Spared
48		ELAHOU-FUSER 110V, ROCKY 126 N 00214 1 110V
49		GUIDE-P-PAPER 038 N
50		GEAR-FEED 2 * 1 Not Spared
51		GEAR-IDLE 23 * 1 Not Spared
52		SPRING-TS * 1 Not Spared
53		SPRING-TS * 1 Not Spared
54		IPR-P-TERMINALDEVE KEY * 2 Not Spared
55		CBF HARNESS-OPC_FUSE * 1 Not Spared
56		PBAMAIN-PTL 140 N

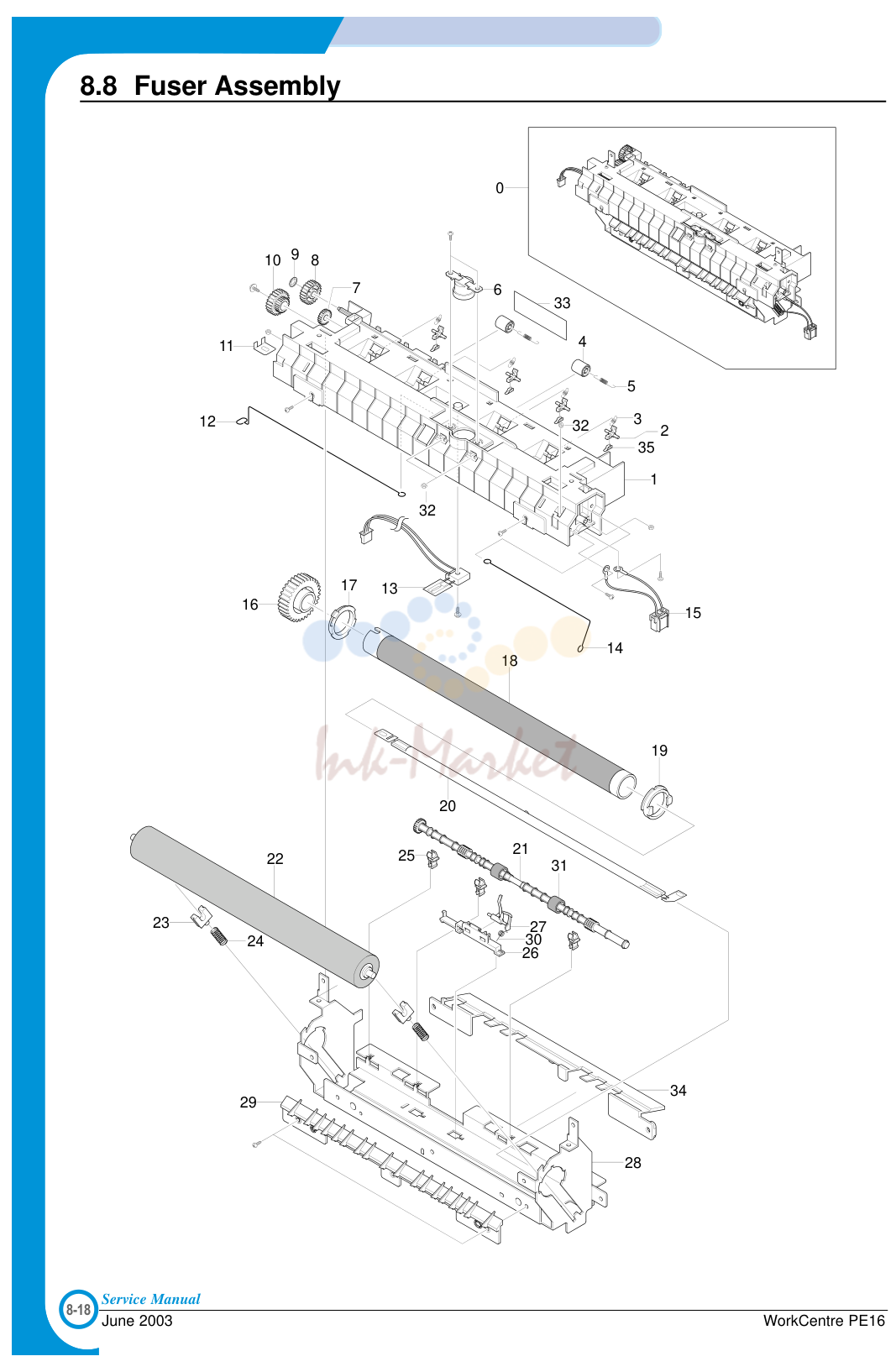

7. EXPLODED VIEW & PA RTS LIST

№	Артикул	Описание
0		AS-FUSER 110V 126 N 00214 1 110V
1		COVER-M-FUSER * 1 Not Spared
2		HOLDER-M-PLATE CLAW * 4 Not Spared
3		SPRING ETC-CLAW * 4 Not Spared
4		PMO-ROLLER EXIT * 2 Not Spared
5		SPRING ETC-FUSER EXIT * 2 Not Spared
7	PMO-GEAR_EXIT_DRV16 запросить цену →	* 1 Not Spared
8		GEAR-IDLE 23 * 1 Not Spared
9		RING-CS * 1 Not Spared
10		GEAR-RDCN 25/15 007 N
11		IPR-ELECTRODE_LAMP * 1 Not Spared
12		ELECTRODE-WIRE_L * 1 Not Spared
13		THERMISTOR-NTC 130 N
14		ELECTRODE-WIRE_R * 1 Not Spared
15		CBF HARNESS-FUSER 110V 152 N 11464 1 110V (WHITE)
16		GEAR-FUSER, Z37 007 N
17		BUSH-M-HR L * 1 Not Spared
18		ROLLER-HEAT 022 N
19		BUSH-M-HR R 016 N
20		LAMP-HALOGEN 122 N 00231 1 110V
21		ROLLER-M-EXITF/UP * 1 Not Spared
22		ROLLER-PRESSURE 022 N
23		BEARING-PRESSURE/R * 2 Not Spared
24		SPRING-CS * 2 Not Spared
25		PMO-BUSHING TX * 3 Not Spared
26		HOLDER-ACTUATOR * 1 Not Spared
27		PMO-ACTUATOR_EXIT 120 N
28		IPR-P-FRAME_FUSER * 1 Not Spared
29		GUIDE-M-INPUT * 1 Not Spared
30		SPRING-TS * 1 Not Spared
31		RMO-RUBBER_EXIT * 2 Not Spared
32		NUT-HEXAGON * 5 Not Spared
33		LABEL(P)-CAUTION, HOT_FUSER * 1 Not Spared
34		COVER-M-EXITLOWER * 1 Not Spared
35		PLATE-P-CLAW * 4 Not Spared

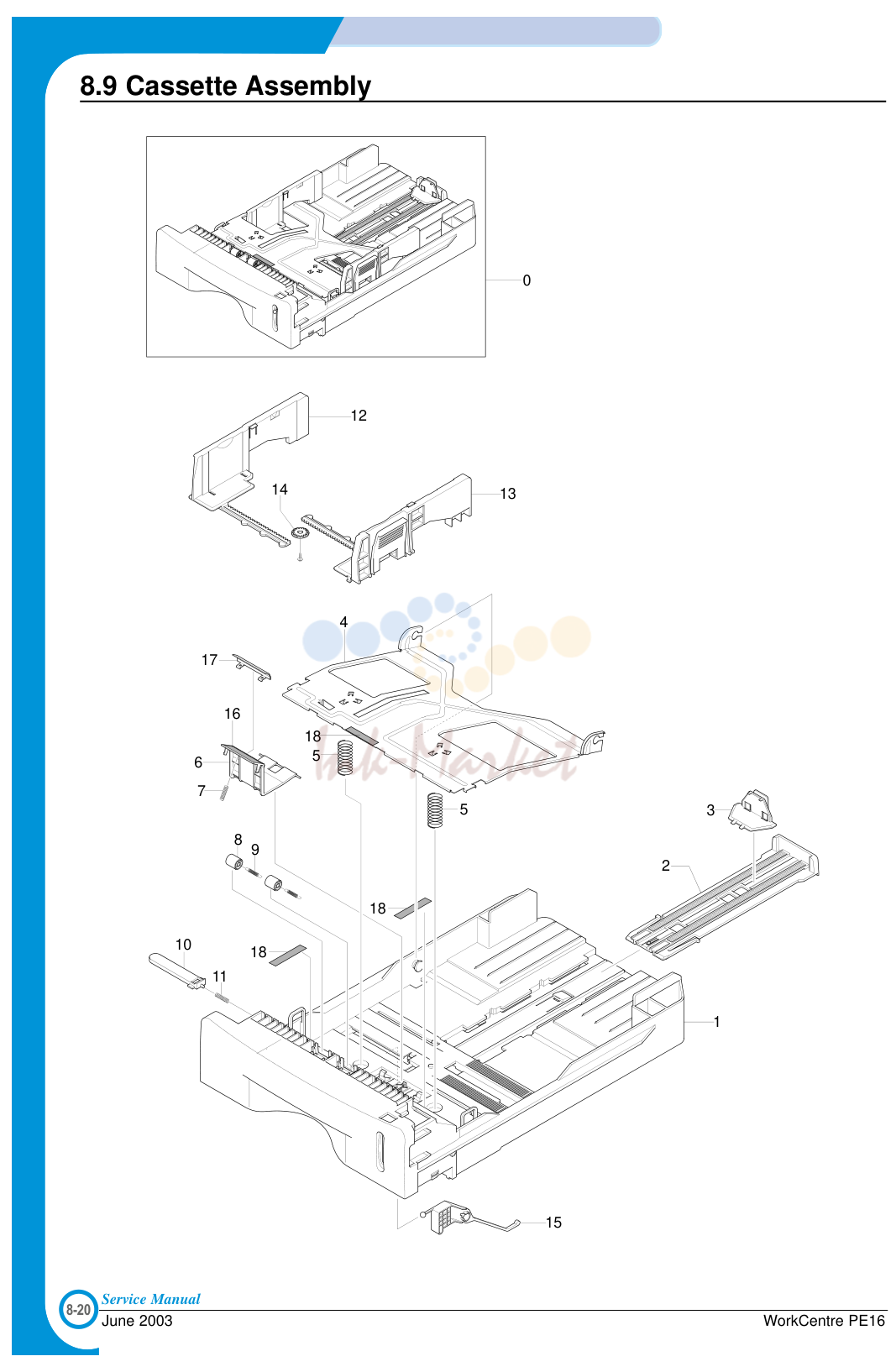

8. EXPLODED VIEW & PA RTS LIST

№	Артикул	Альт. артикул	Описание
0			MEAUNIT-CASSETTE, USA 050 N
1			FRAME-M_CASSETTE * 1 Not Spared
2			PMO-EXTENSION LARGE * 1 Not Spared
3			PMO-EXTENSION SMALL * 1 Not Spared
4			PLATE-P-KNOCK_UP * 1 Not Spared
5			SPRING-CS * 2 Not Spared
6			HOLDER-M-PAD * 1 Not Spared
7			SPRING ETC-EXITROLLFD * 1 Not Spared
8			ROLLER-M-IDLE FEED * 2 Not Spared
9			SPRING-ES * 2 Not Spared
10			PMO-PLATE_LOCKER * 1 Not Spared
11			SPRING ETC-LOCKER,PLATE * 1 Not Spared
12			ADJUST-M-CASSETTE_L * 1 Not Spared
13			ADJUST-M-CASSETTE_R * 1 Not Spared
14			GEAR-PINION * 1 Not Spared
15			INDICATOR-M-LEVER INDICATOR 018 N
16			RPR-FRICTION PAD 019 N
17			IPR-PLATE PAD * 1 Not Spared
18			RPR-PAD CASSETTE * 3 Not Spared
