Xerox WC M15 M15i WC Pro 412 — каталог запчастей со схемами

Содержание

• 1. Перечень запасных частей
• 2. Перечень запасных частей
• 3. Перечень запасных частей
• 4. Перечень запасных частей
• 5. Перечень запасных частей
• 6. Перечень запасных частей
• 7. Перечень запасных частей
• 8. Перечень запасных частей
• 9. Перечень запасных частей
• 10. Перечень запасных частей
• 11. Перечень запасных частей
• 12. Перечень запасных частей

1. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
1			AS-SCANNER ASS’Y 062N00242 1 835P/XAA
2			MEA UNIT-COVER PA EXIT ASS’Y 002N02107
2-2			PMO-COVER PAPER EXIT 002N02108
6			ELA ETC-SHIELD SMPS LOWER 055N00272 1 110V
16			MEC-UNIT EXIT ASS’Y 500N00100
19			PBA MAIN-MAIN B’D 140N06056 1 FAXCENTRE F12
26			MEA UNIT GUIDE CST PA ASS’Y 032N00376
38			CBF HARNESS-INLET(KOR) 152N01987
54			MEA ETC-COVER REAR ASS’Y 1 NOT SPARED
54-1			PMO-GUIDE-EXIT-OPEN 032N00377
54-2			PMO-COVER REAR 002N02091
56			NPR-NAME/PLATE XRX 015N00436
8-36			7/03 WorkCentre Pro 412, FaxCentre F12 &

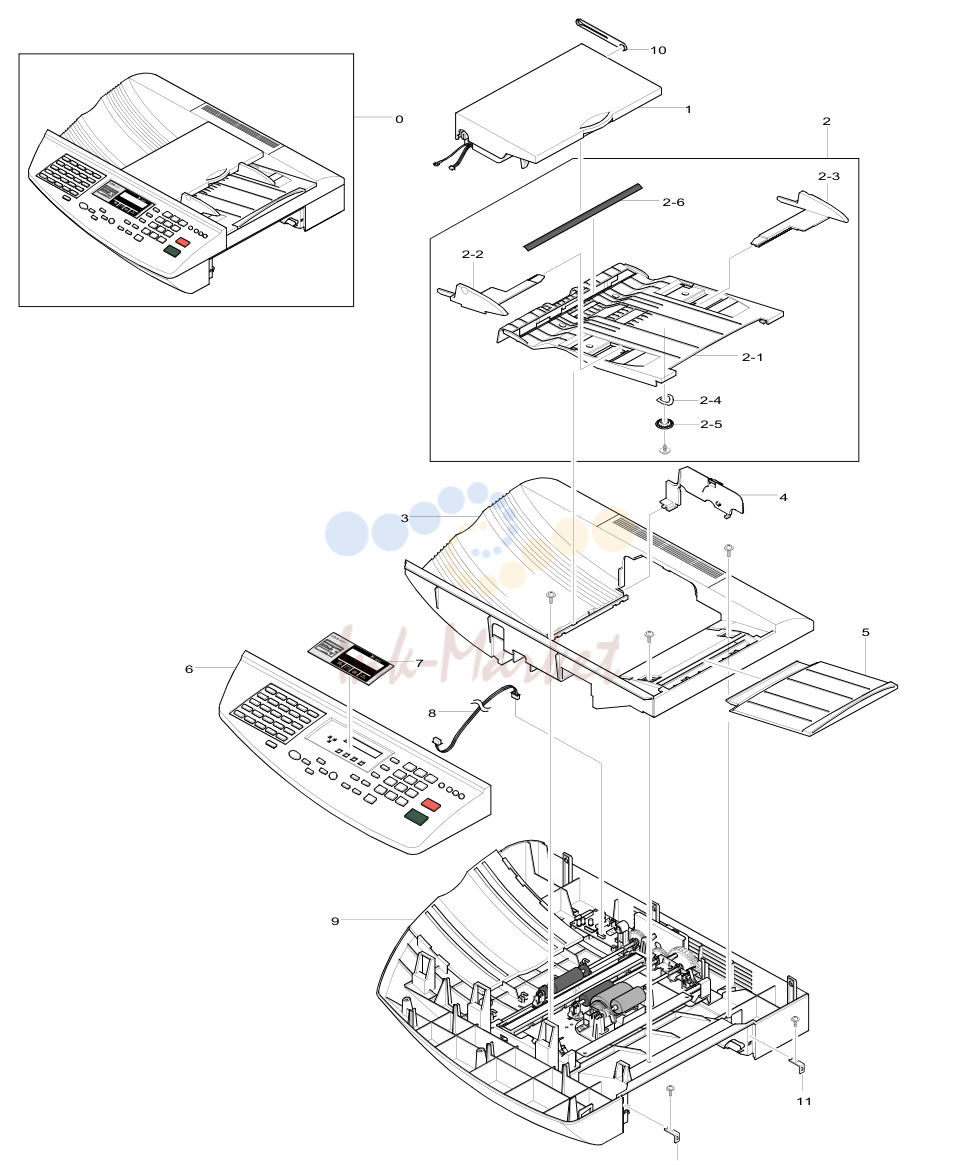

2. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
0			AS SCANNER ASS’Y 1 NOT SPARED
1			ELA HOU-ADF UPPER ASS'Y 002N02092
2			MEA HOU-GUIDE LOWER ASS'Y 002N02093
2-1			PMO-GUIDE LOWER 032N00378
2-2			PMO-GUIDE DOC R 032N00379
2-3			PMO-GUIDE DOC L 032N00380
2-4			IPR-WASHER SPRING CU 009N01406
2-5			GEAR-PINION 007N01178
2-6			PPR-FILM CIS 063N00095
3			PMO-HOUSING UPPER ADF 002N02094
4			PMO-COVER GEAR 002N02095
5			PMO-TRAY INPUT DOC 050N00411
6			AS ELA HOU-OPE ASS’Y 1 NOT SPARED
7			PCT-COVER LCD 002N02096
8			CBF HARNESS-OPE 1 NOT SPARED
9			AS-HOU LOWER ASS’Y 002N02097
10			PMO-TRAY LINK, MP 1 NOT SPARED
11			IPR B/K JOINT COVER 002N02098
8-38			7/03 WorkCentre Pro 412, FaxCentre F12 &

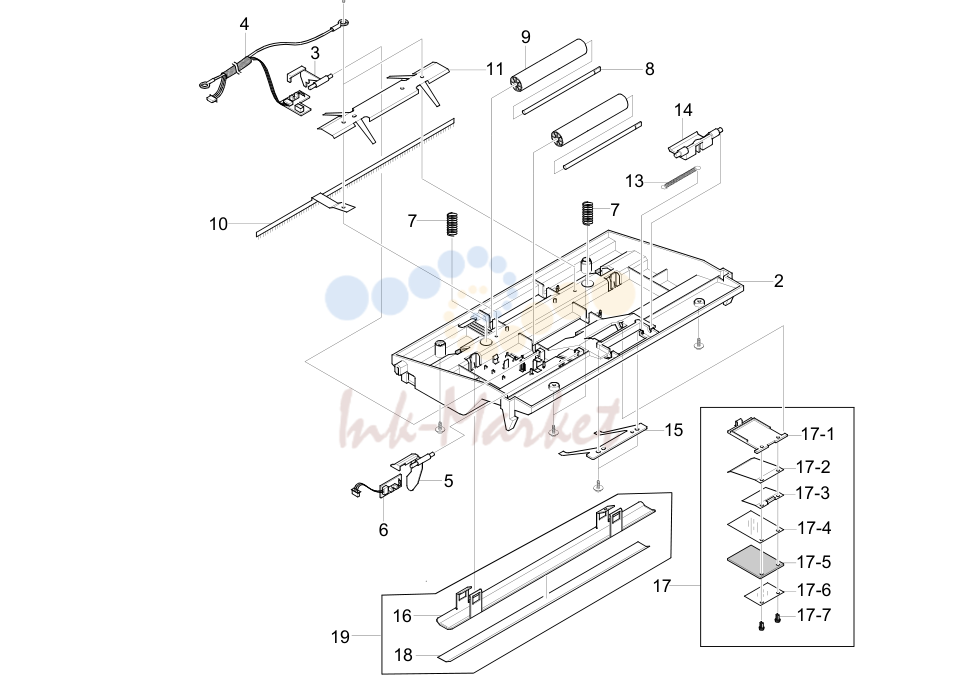

3. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
1			PMO-COVER TOP 002N02099
2			PMO-GUIDE UPPER 032N00376
3			PMO-ACTUATOR SCAN 120N00411
4			CBF HARNESS-ADF POS SCAN ASS'Y 152N01988
5			PMO-ACTUATOR DOC 120N00412
6			PBA SUB-ADF DET SEN 1 NOT SPARED
7			SPRING ETC-PICK UP MP 009N01407
8			ICT-SHAFT IDLE ROLLER 022N01559
9			MEC IDLE ROLLER 022N01560
10			MEC-BRUSH ANTISTATIC 1 NOT SPARED
11			IPR-SPRING IDLE ROLLER 022N01561
12			IPR-GROUND EXTENSION 001N00396
13			SPRING ETC-PAPER OUT 009N01408
14			PMO-HOLDER PICK UP 019N00660
15			PMO-SPRING ADF SET 009N01409
16			IPR-BRKT WHITE BAR 1 NOT SPARED
17			MEA HOU-PRESSER ADF ASSY 002N02100
17-1			PMO-HOLDER ADF 1 NOT SPARED
17-2			IPR-SPRING ADF1 1 NOT SPARED
17-3			IPR-SPRING ADF2 1 NOT SPARED
17-4			PPR-FILM ADF2 1 NOT SPARED
17-5			SILICON/RUBBER-PAD ADF 1 NOT SPARED
17-6			PPR-FILM ADF1 1 NOT SPARED
17-7			RIVET-SNAP 2 NOT SPARED
18			PPR-WHITE BAR SHEET 1 NOT SPARED
19			IPR-WHITEBAR 025N00079
8-40			7/03 WorkCentre Pro 412, FaxCentre F12 &

4. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
1			PMO-HOUSING LOWER ADF 002N02101
2			PMO-TRAY EXIT DOC 050N00412
3			AS-SCAN PBA 140N06057
4			CBF HARNESS-MAIN-ENGINE 152N01989
5			AS-ADF LOWER ASSY 022N01562
5-1			CONTACT IMAGE SENSOR 130N01251
5-2			GEAR-PICK UP IDEL 38 007N01179
5-3			IPR-LOKER TX 130N01252
5-4			CBF HARNESS-COVER SW 152N01990
5-5			CBF FLAT CBL-FFC 117N01593
5-6			IPR-BRKT BASE 030N00630
5-7			IPR-BRKT CIS 030N00631
5-8			IPR-GROUND SHAFT 006N01183
5-9			PMO-FRAME SIDE L 001N00397
5-10			PMO-FRAME SIDE R 001N00398
5-11			PMO-BRACKET PICK UP 030N00632
5-12			PMO-HOLDER SHAFT 019N00661
5-13			MEA HOU-PICK UP ASS’Y 002N02102
5-14			MEA HOU-ROLLER SCAN ASS’Y 002N02103
5-15			MEA ETC-ROLLER EXIT ASS’Y 022N01563
8-42			7/03 WorkCentre Pro 412, FaxCentre F12 &

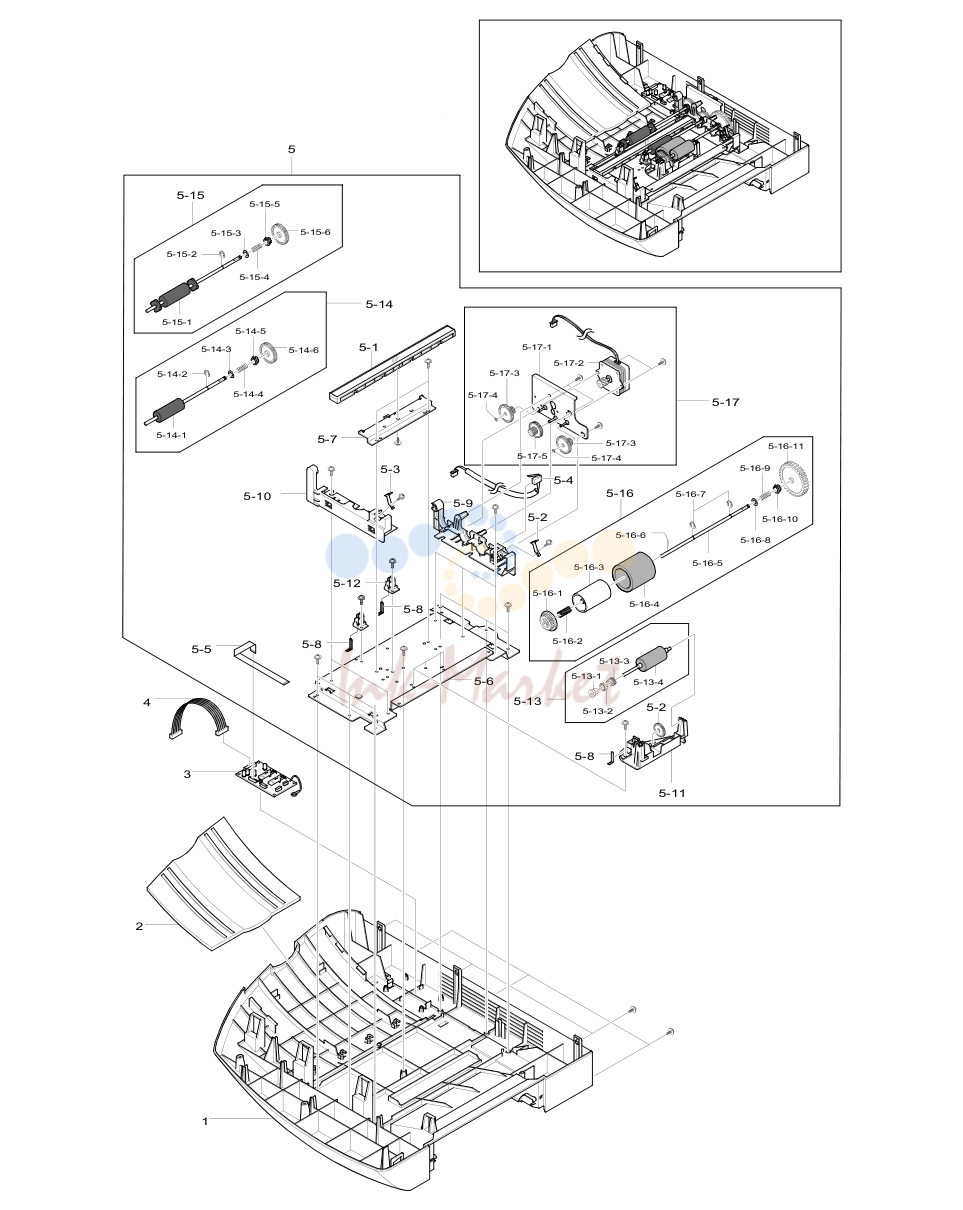

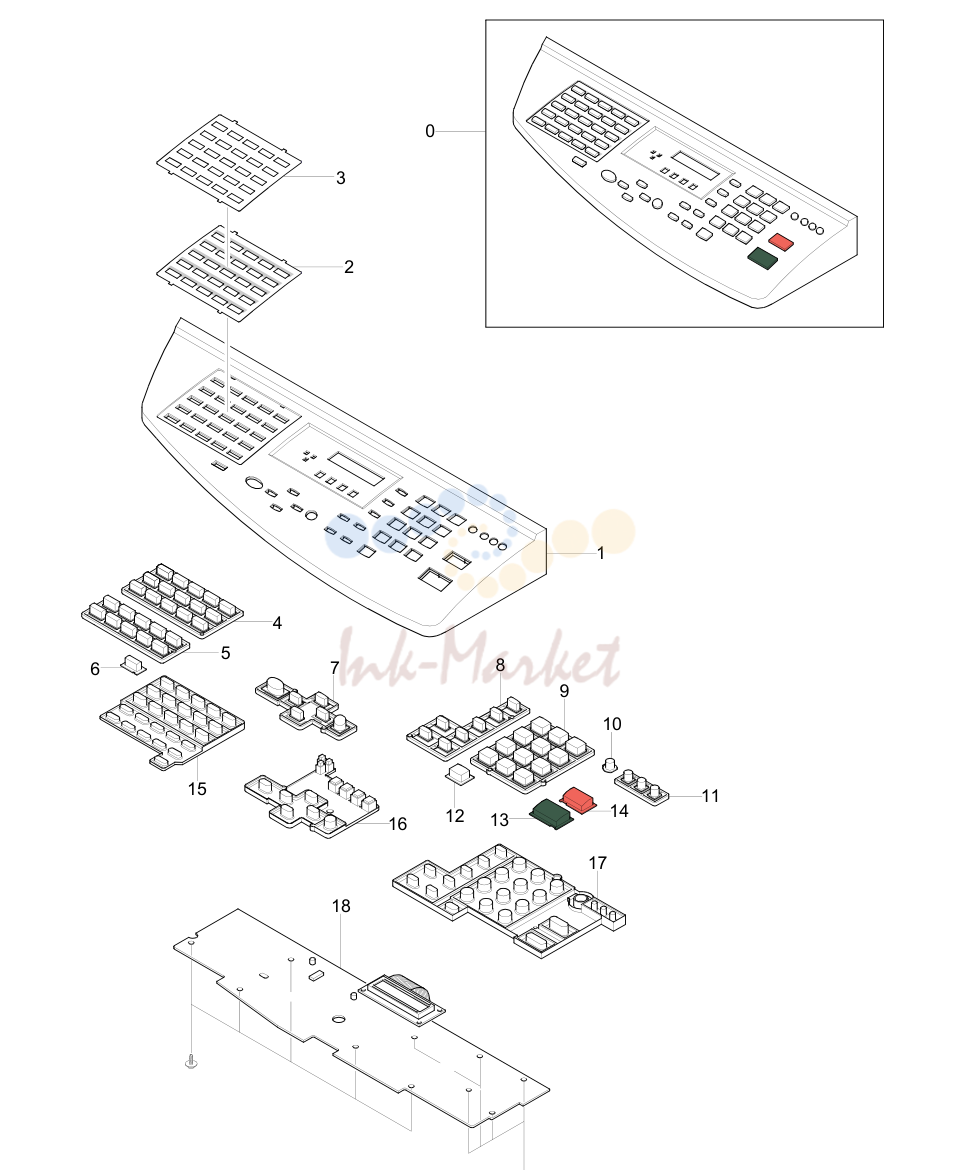

5. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
0			AS-OPE-ASS’Y 002N02105
1			PMO-OPE COVER 002N02106
2			PCT-PAPER MEMORY 091N00691
3			PCT-CARD MEMORY 091N00692
4			PMO-KEY MEMORY(A) 029N00306
5			PMO-KEY MEMORY(B) 029N00307
6			PMO-KEY SHIFT 029N00308
7			PMO-KEY SCROLL 029N00322
8			PMO-KEY FUNCTION 029N00310
9			PMO-KEY TEL 029N00311
10			PMO-KEY SAVE(T) 029N00312
11			PMO-KEY SAVE 029N00313
12			PMO-KEY OHD 029N00323
13			PMO-KEY START 029N00315
14			PMO-KEY STOP 029N00316
15			RMO-KEY RUBBER MEMORY 029N00317
16			RMO-KEY RUBBER NAVI 029N00318
17			RMO-KEY RUBBER TEL 029N00319
18			AS-OPE PBA 140N06058
8-46			7/03 WorkCentre Pro 412, FaxCentre F12 &

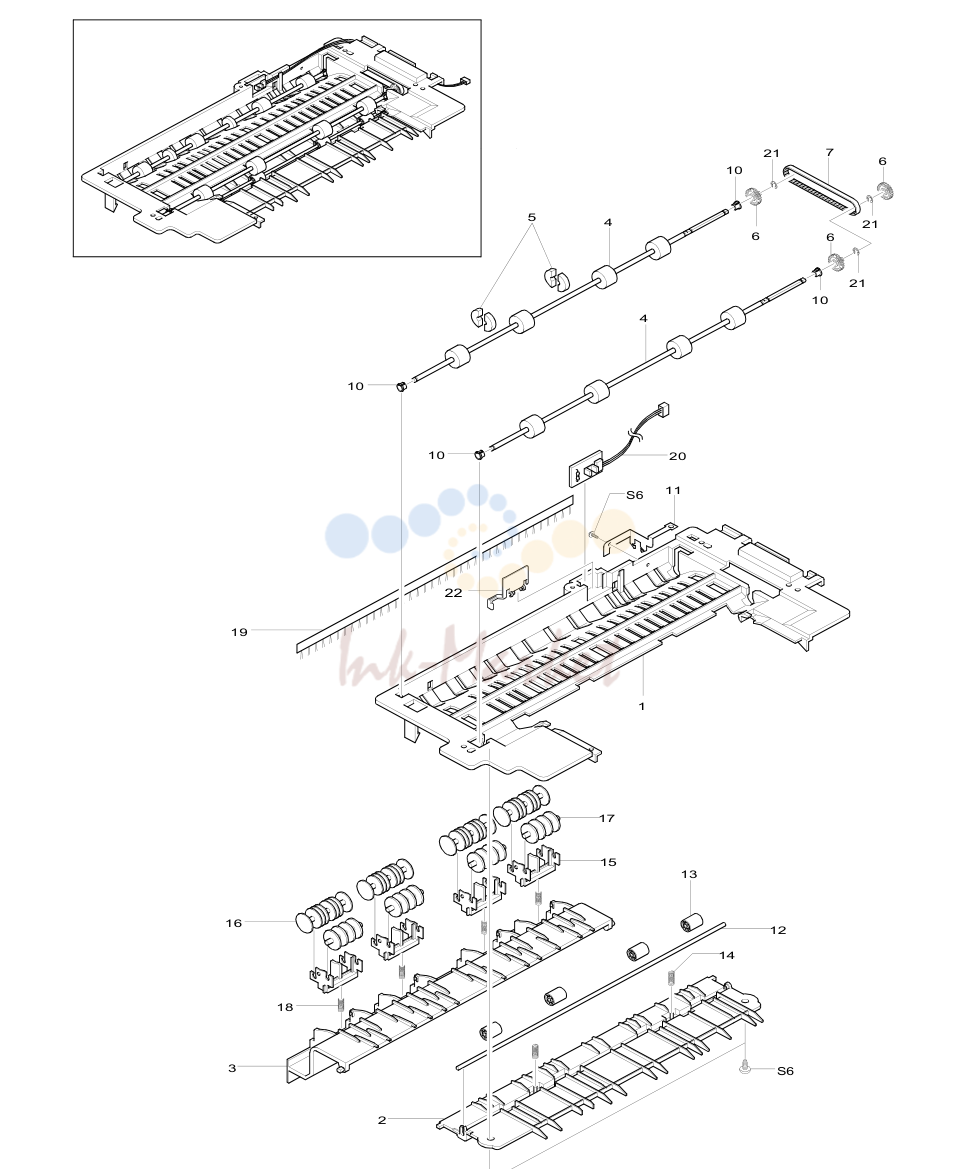

6. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
20			PBA SUB-BIN-FULL SENSOR 130N01253
22			PMO-LEVER STACKING 011N00475
8-48			7/03 WorkCentre Pro 412, FaxCentre F12 &

7. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
15			IPR-GROUND PLATE SCF 015N00485
16			CBF HARNESS SCF 152N01991
8-50			7/03 WorkCentre Pro 412, FaxCentre F12 &

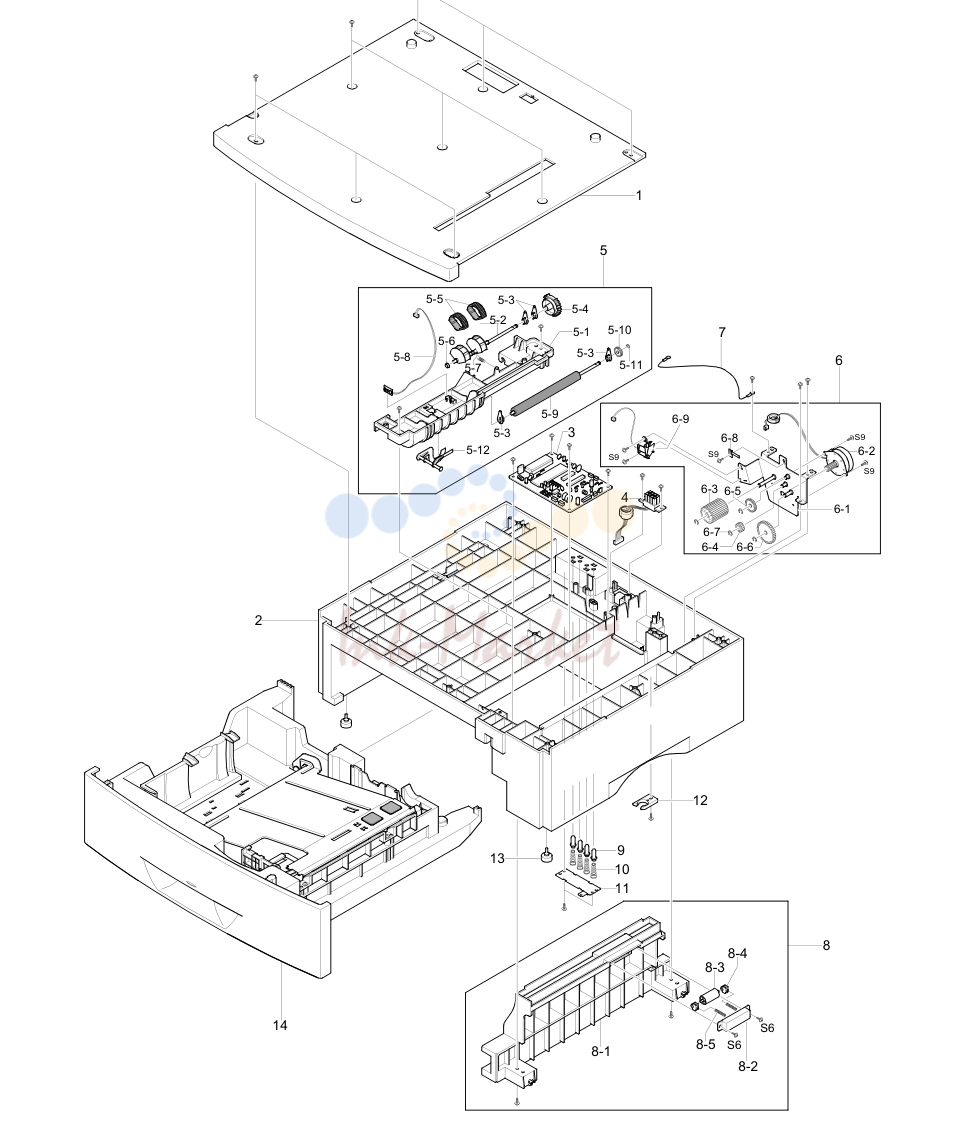

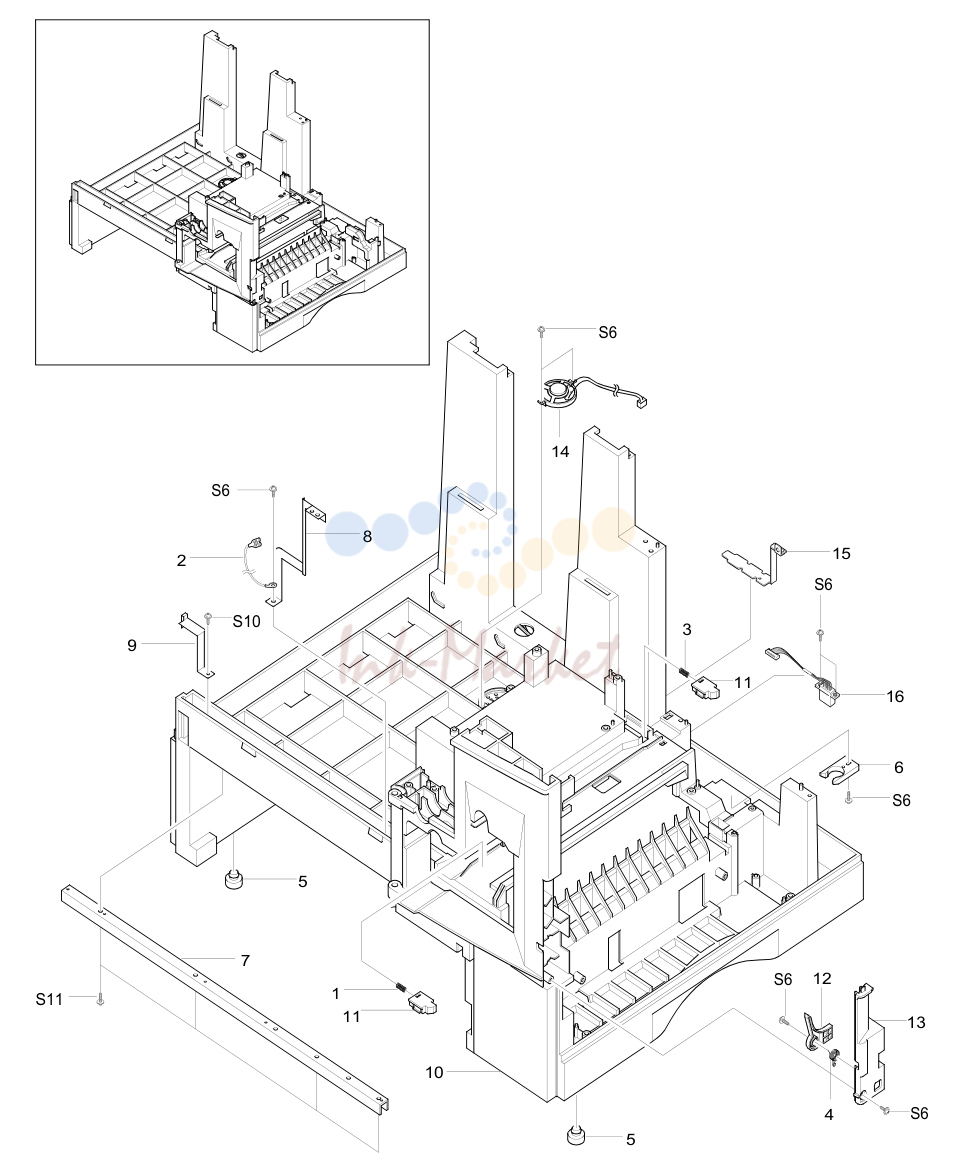

8. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
0			ELA UNIT-SCF ASS'Y 500N00099 1 ПО ВЫБОРУ
1			PMO-COVER TOP SCF 1 NOT SPARED
2			PMO-BASE FRAME-SCF 1 NOT SPARED
3			PBA MAIN-SCF 140N06059
4			CBF HARNESS-SCF_8P 152N01992
5			MEA ETC-GUIDE PAPERUPPER SCF 038N00381
5-1			PMO-GUIDE PAPER UPPERSCF 1 NOT SPARED
5-2			PMO-SHAFT PICK UP 1 NOT SPARED
5-3			PMO-BEARING SHAFT 4 NOT SPARED
5-4			GEAR-PICK UP 1 NOT SPARED
5-5			RPR-RUBBER PICK UP 2 NOT SPARED
5-6			PMO-BUSHING_P/U,MP 1 NOT SPARED
5-7			SPRING ETC-PICKUP 1 NOT SPARED
5-8			PBA SUB-BIN_FULL_SEN. 1 NOT SPARED
5-9			RPR-ROLLER FEED SCF 1 NOT SPARED
5-10			GEAR-FEED (SCF) 1 NOT SPARED
5-11			RING-E 1 NOT SPARED
5-12			PMO-ACTUATOR EMPTY 1 NOT SPARED
6			ELA HOU-MOTOR SCF 127N01420
6-1			IPR-BRKT GEAR 1 NOT SPARED
6-2			MOTOR-SCF 1 NOT SPARED
6-3			GEAR-P/UP DRV SCF 1 NOT SPARED
6-4			GEAR-IDLER OPTION 1 NOT SPARED
6-5			GEAR-IDLE(Z=30) 1 NOT SPARED
6-6			GEAR-IDLE(SCF) 1 NOT SPARED
6-7			RING-E 4 NOT SPARED
6-8			IPR-GROUND_ROLLER 1 NOT SPARED
6-9			SOLENOID-PICK UP 1 NOT SPARED
7			CBF HARNESS-GND 1 NOT SPARED
8			ELA HOU-GUIDE PAPER LOWERSCF 038N00382
8-1			PMO-GUIDE PAPER LOWER 1 NOT SPARED
8-2			PMO-HOLDER IDLE ROLL16 1 NOT SPARED
8-3			PMO-IDLE ROLLER SCF16 1 NOT SPARED
8-4			PMO-BUSH IDLE ROLL-SCF16 2 NOT SPARED
8-5			SPRING ETC-PAD 2 NOT SPARED
9			ICT-SHAFT HV LARGE 006N01184
10			SPRING ETC-HV LARGE 009N01410
11			IPR-PLATE GROUND(A) 015N00486
12			CAM-CATCH 003N00867
13	FOOT-ML80 запросить цену →		2 NOT SPARED
14			MEC-CASSETTE ASS'Y 050N00393
8-52			7/03 WorkCentre Pro 412, FaxCentre F12 &

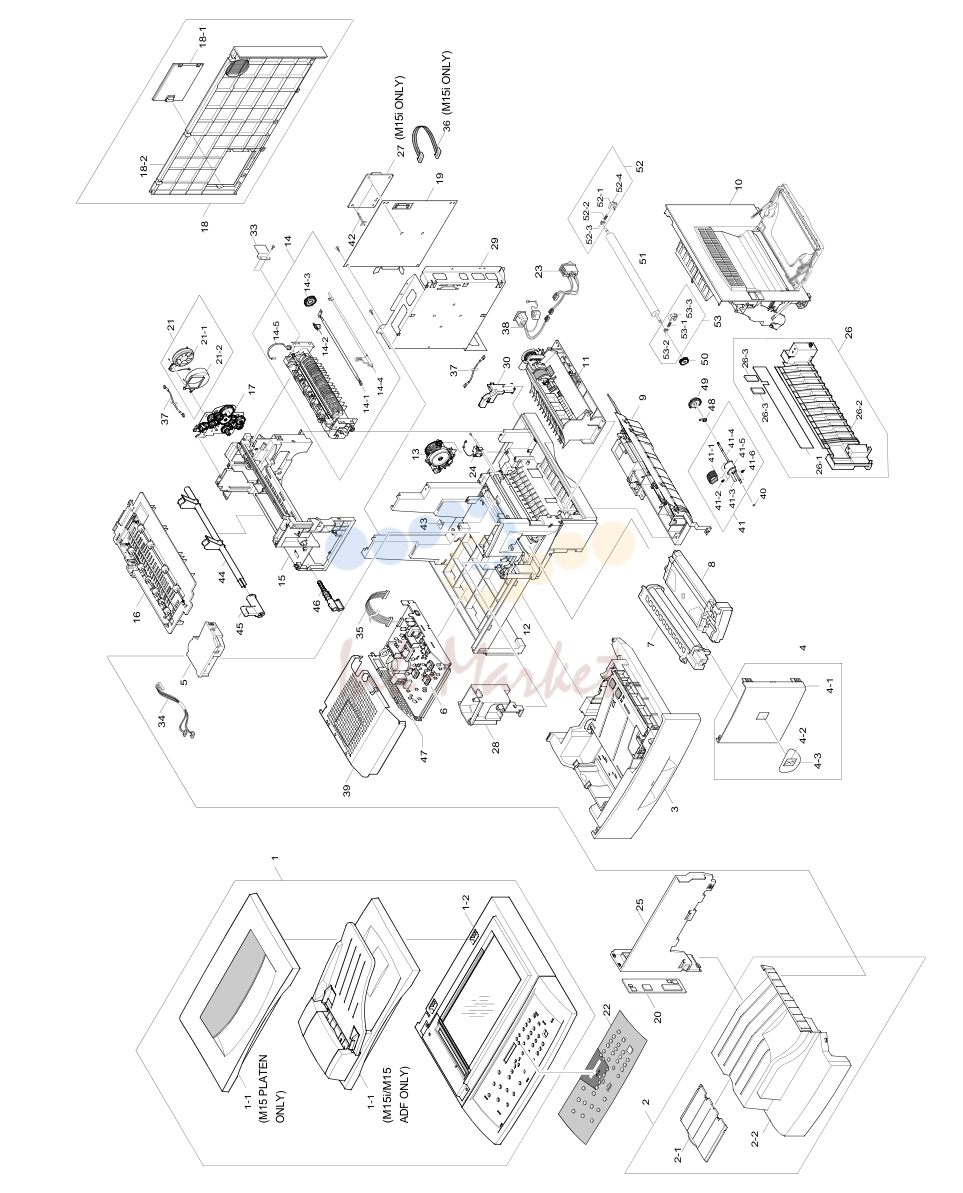

9. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
1			SCANNER ASS’Y 002N02158 1 WORKCENTRE M15i
1			SCANNER ASS’Y 002N02159 1 WORKCENTRE M15
1			SCANNER ASS’Y 002N02160 1 WORKCENTRE M15
2			MEA UNIT-COVER PA EXIT ASS’Y 002N02107
2-1			PMO-TRAY EXTENTION MP NE 050N00392
3			MEC-CASSETTE ASS’Y (LETTER) 050N00418
4			MEA UNIT-COVER FRONT ASS’Y 002N02161
4-2			MPR-NAME/PLATE (XRX) 091N00699
5			UNIT-LSU 062N00245
6			SMPS-SMPS(V1)+HVPS 105N01464 1 110V
6			SMPS-SMPS(V2)+HVPS 105N01465 1 220V
9			ELA HOU-PICKUP ASS’Y 002N02162
10			ELA HOU-SIDE COVER ASS’Y 002N02163
14			ELA HOU-FUSER(110V)ASS’Y 108N00515 1 110V
14-1			LAMP-HALOGEN (110V) 122N00222 1 110V
17			ELA HOU-DRIVE ASS’Y 002N02164
19			PBA MAIN-MAIN 140N06087 1 WORKCENTRE M15i
8-54			7/03 WorkCentre Pro 412, FaxCentre F12 &
22			SHEET-OVERLAY(ENGLISH) 096P11700 1 WORKCENTRE M15i
41			MEA UNIT-PICKUP ROLLER 022N01599
41-1			RUBBER-ROLLER PICKUP 022N01600
41-5			HOUSING-PICK_UP 022N02165

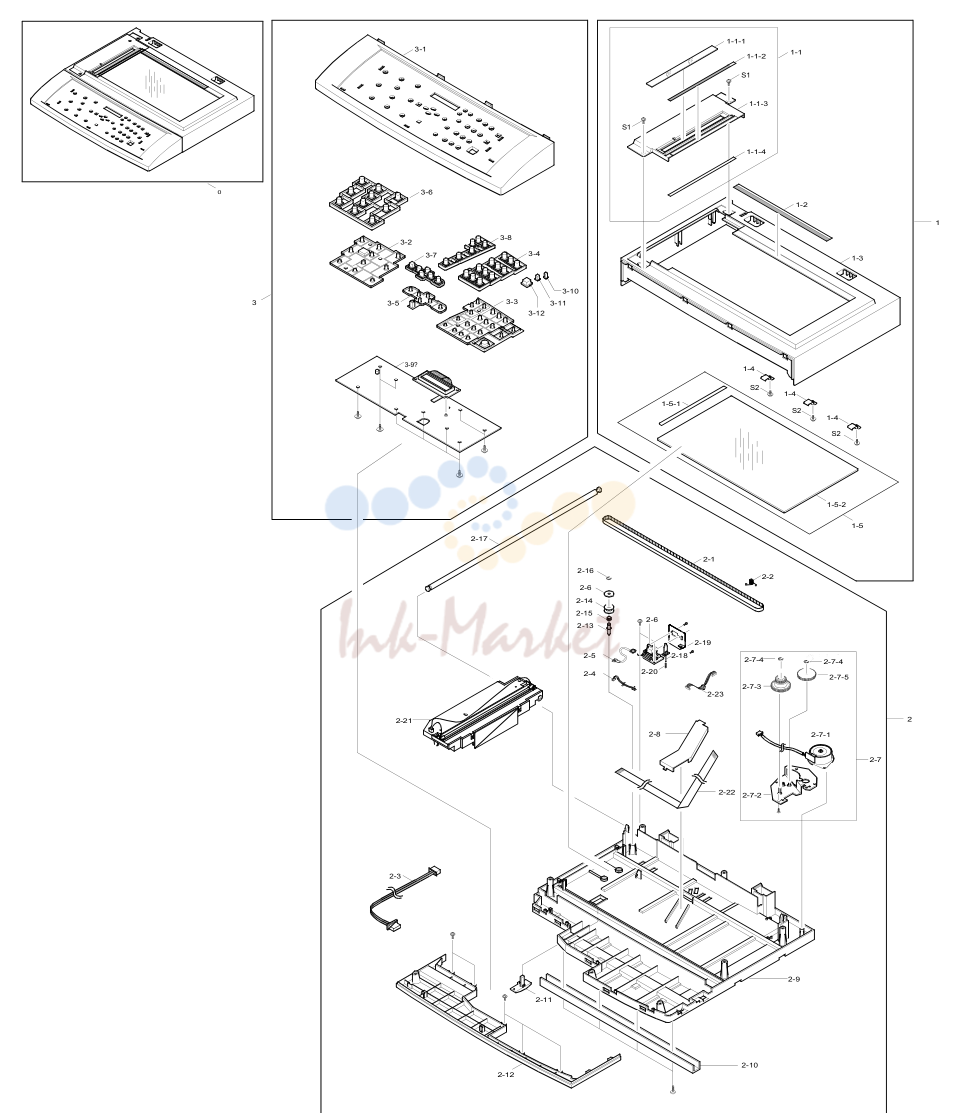

10. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
1			MEA UNIT-SCAN UPPER ASS’Y 002N02175
2-6			PBA SUB-D_SUB 1 NOT SPARED
2-7			ELA HOU-SCAN MOTOR 002N02176
2-8			COVER-M-CCD CABLE 1 NOT SPARED
2-18			PMO-LEVER SENSOR 011N00473
2-20			SPRING ETC-EXIT 1 NOT SPARED
21			ELA HOU-CCD MODULE 002N02166
2-22			CBF SIGNAL-CCD FFC 117N01605
3			ELA HOU-OPE CVER ASS’Y 002N02167 WORKCENTRE M15i
3-4			PMO-KEY TEL 029N00327
3-6			PMO-KEY FUNCTION(A) 029N00328 1 NOT SPARED
3-7			PMO-KEY SCROLL 029N00330
3-8			PMO-KEY FUNCTION(B) 029N00331 1 WORKCENTRE M15i
3-11			PMO-KEY STOP 029N00332
3-12			PMO-KEY START 029N00333
8-58			7/03 WorkCentre Pro 412, FaxCentre F12 &

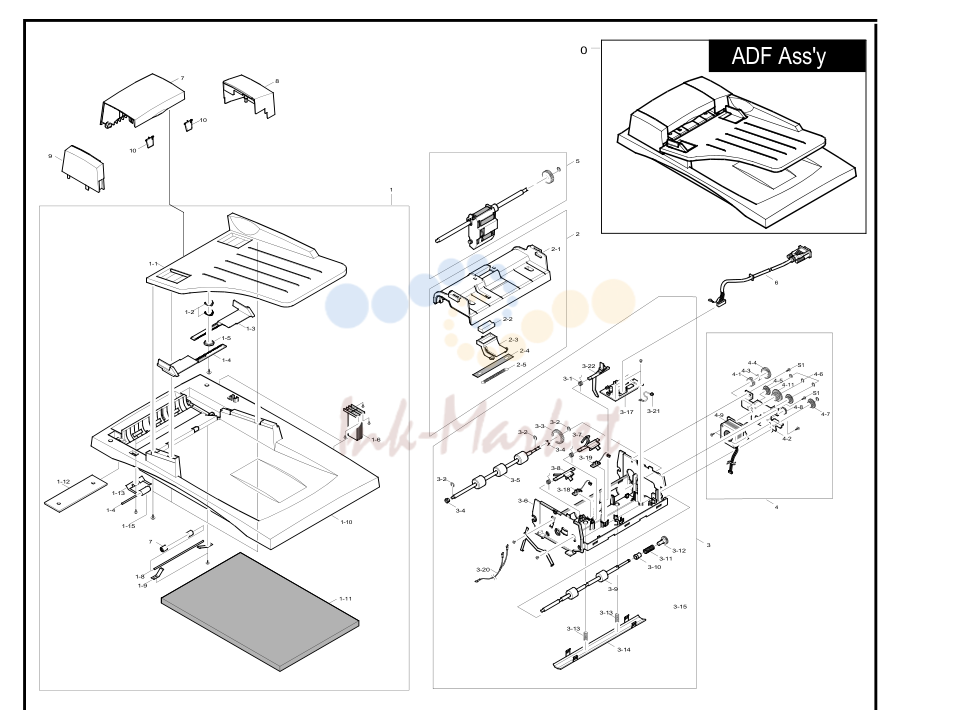

11. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
1			MEC UNIT-PLATEN COVER ASS’Y 002N02169
1-3			PMO-DOC GUIDE L 038N00398
1-4			PMO-DOC GUIDE R 038N00397
1-6			MEA UNIT-HINGE 003N00882
11			MEA UNIT-PLATEN COVER ASS’Y(C) 002N02170 1 WORKCENTER M15
12			PMO-COVER PLATEN(C)
13			PMO-COVER DUMMY PLATEN 090N00154
14			PPR-SPONG SHEET
15			MEA UNIT-HINES ASS’Y(C) 003N00880
8-60			7/03 WorkCentre Pro 412, FaxCentre F12 &

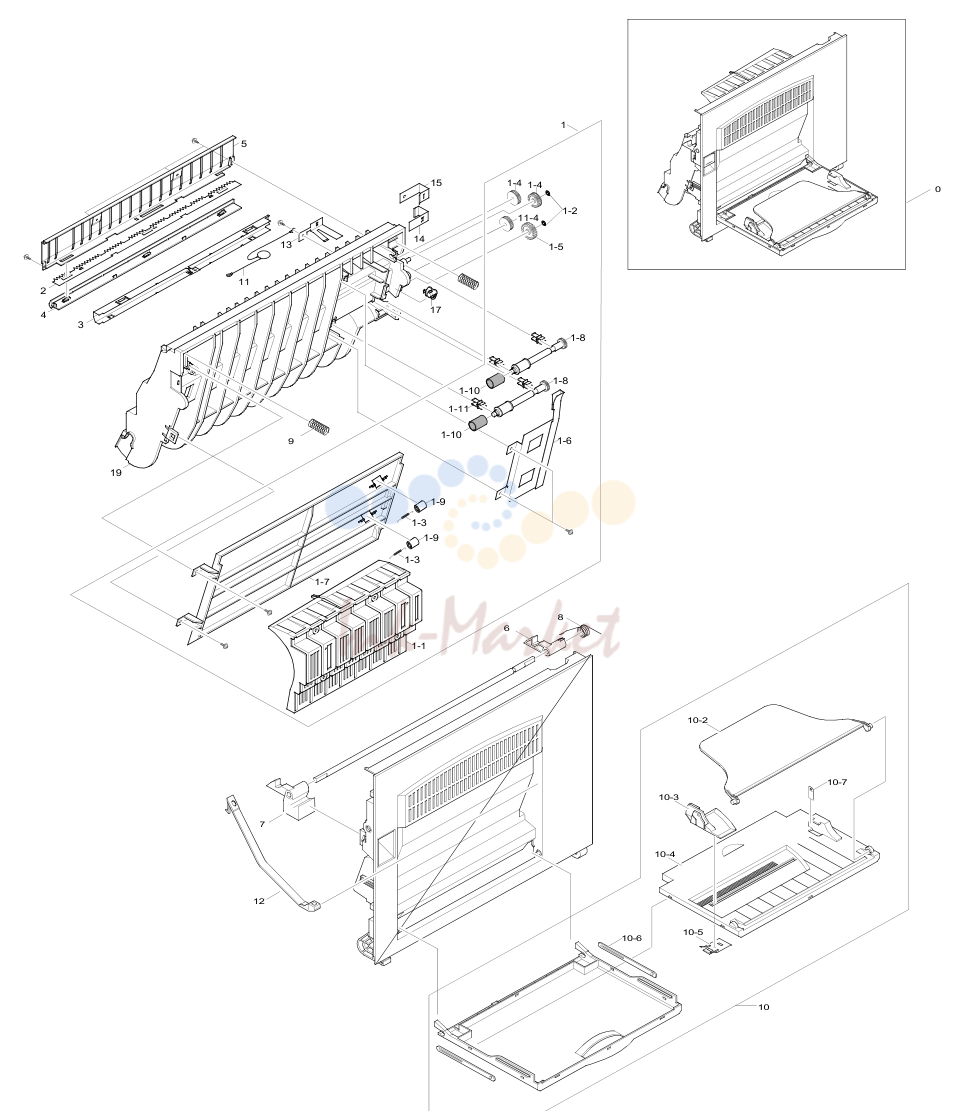

12. Перечень запасных частей

№	Артикул	Альт. артикул	Описание
0			ELA HOU-DRIVE ASS'Y 002N02177
2			MOTOR-STEP 127N01443
8-64			7/03 WorkCentre Pro 412, FaxCentre F12 &
