Xerox WC C2424 — каталог запчастей со схемами

Содержание

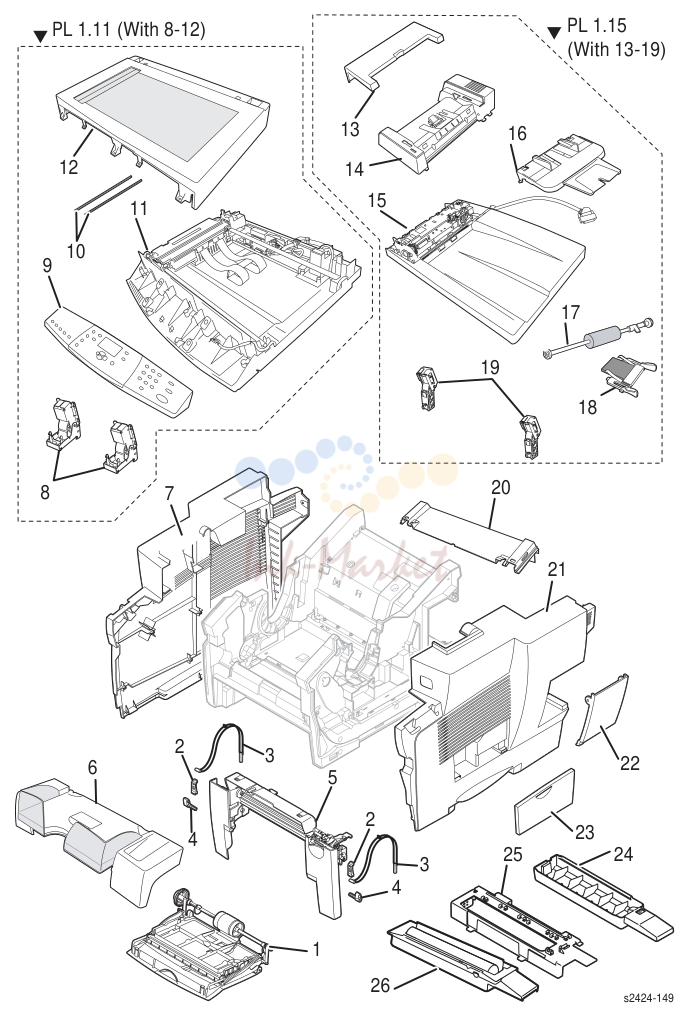

№	Артикул	Альт. артикул	Описание
1			Front Door MPT ASM
2			Front Door Stay Retainer (w/Clip)
3			Clip (part of PL 1.2)
4			Hinge Pins, Front Door
5			Front Door Stay with Spring
6			Lower Paper Tray (Output Paper Tray) 1 050K59710
7			Left Side Cover ASM 1 802E82540
8			Scanner Hinge 1 003K19510
9			Control Panel (Control Panel Overlays not included) 1 802K82540
10			ASM, Lamp 1 122K02530
11			Scanner Assembly (includes PL 1.8, 1.9, 1.10, 1.11, 1.12) 1 109K01870
12			Upper Housing (including platen glass) 1 802K87650
13			DADF Front Cover 1 802K87660
14			DADF Upper Cover 1 802K87820
15			Duplex Automatic Document Feeder Assembly (includes 1 004K07270
16			DADF Input Tray 1 050K59960
17			DADF Pick Roller and Pad Kit 1 604K30540
18			Separator Pad (part of PL 1.17)
19			DADF Hinge 1 003K19520
20			Rear Cover 1 802E82550
21			Right Side Cover ASM 1 802K82080
22			I/O Access Cover (Interface Cover) 1 802E82520
23			DM Access Cover (Maintenance Kit / Side Door) 1 802E82530
24			Waste Tray 1 109R00736
25			Waste Tray Cover
26			Maintenance Kit (Drum) Standard Capacity 1 108R00656
27			Scanner Calibration Page 1 109K01910

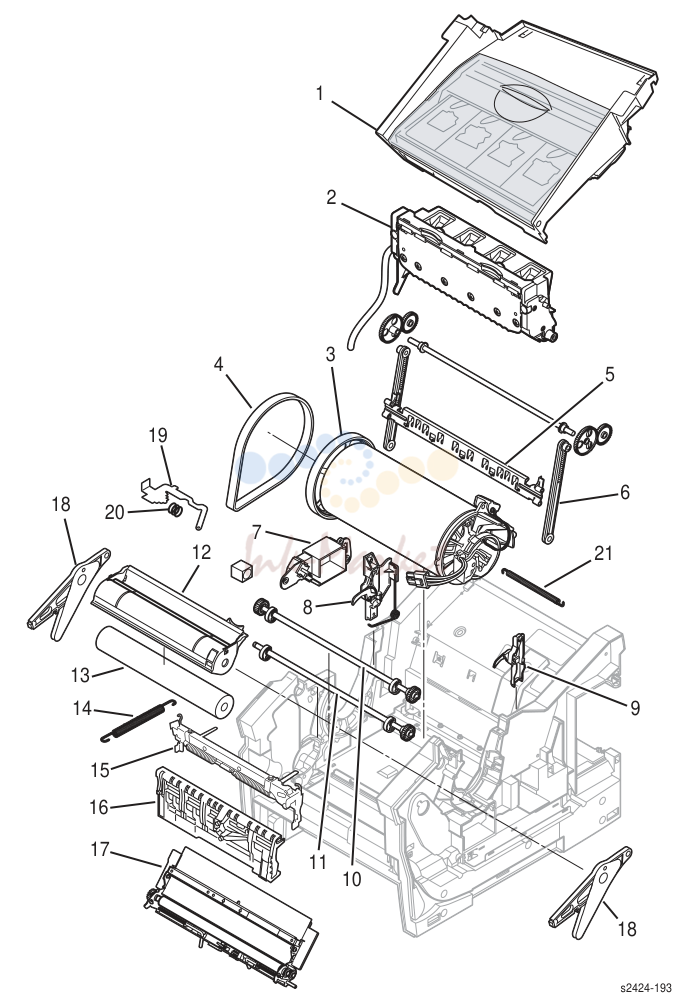

№	Артикул	Альт. артикул	Описание
1			Ink Loader Assembly and Door
2			Printhead Assembly
3			Drum Assembly
4			Belt, Y-Axis Drum
5			Printhead Wiper
6			Belt, Wiper Drive
7			Purge Pressure Pump
8			Left Printhead Restraint
9			Right Printhead Restraint
10			Transfix Camshaft Assembly
11			Drum Maintenance Camshaft Assembly
12			Stripper Carriage Assembly
13			Transfix Roller 1 022E32290
14			Y-Axis Tension Spring
15			Transfix Load Module
16			Drum Maintenance Pivot Plate Assembly
17			Preheater and Deskew Assembly
18			Transfix Arm Assembly
19			X-Axis Bias Spring Hook
20			X-Axis Roll Adjuster Spring
21			X-Axis Bias Spring, (Printhead)

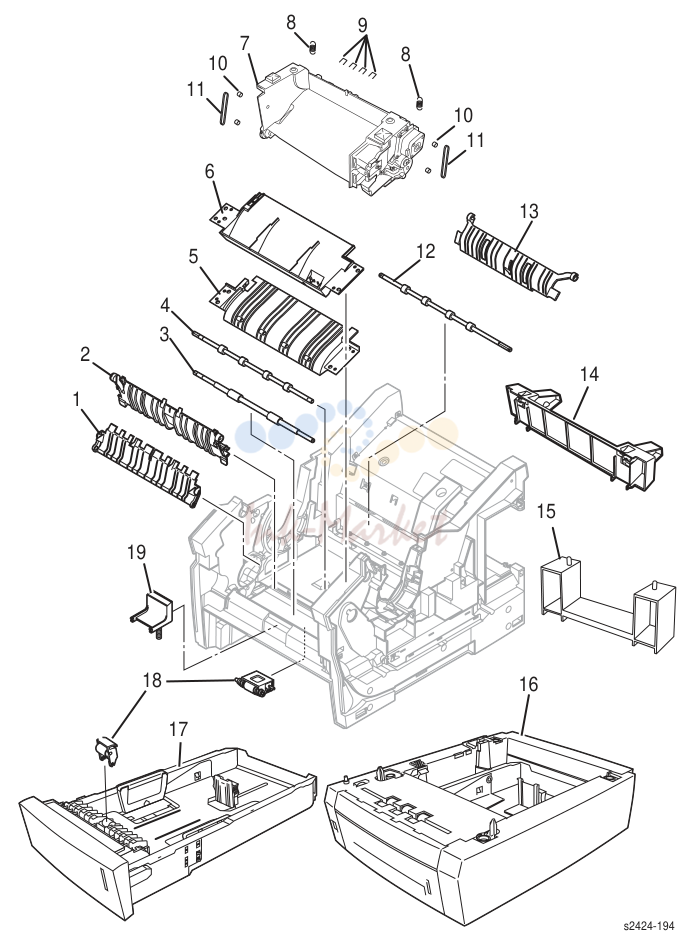

№	Артикул	Описание
1		Inner Simplex Guide
2		Lower Inner Duplex Guide
3		Take Away Roller
4		Duplex Roller
5		Upper Duplex Paper Guide with Solenoid
6		Outer Duplex Paper Guide with Sensors (Safety
7		Exit Module Assembly (MEP)
8		Spring, Carriage 2 809E68760
9		Spring, Carriage Roller 4 809E68750
10		Pulley, MEP (Exit Module) 4 020E47770
11		Belt, MEP (Exit Module) 2 023E30530
12		Roller, Idler, Exit 1 022E32230
13		Lower Exit Guide Assembly 1 038K16410
14		Printer Stabilizer 1 674E00750
15	525-Sheet запросить цену →	Feeder (HCF) Stabilizer 1 674E00760
16	525-Sheet запросить цену →	Feeder (HCF) with Tray
17	525-Sheet запросить цену →	Tray, Adjustable to Legal
18		Pick Assembly and Retard Roller Kit
19		Separator Pad Kit

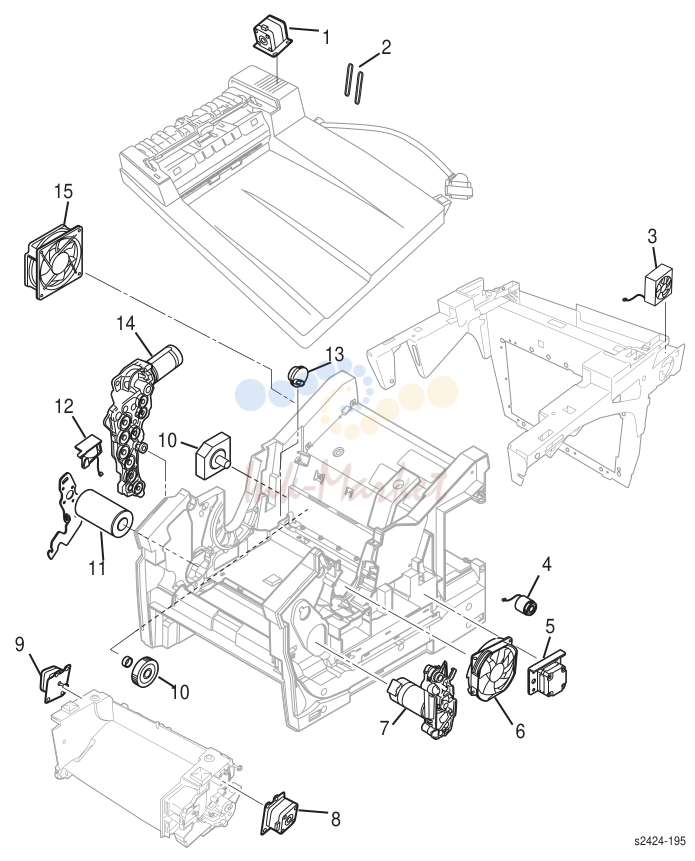

№	Артикул	Альт. артикул	Описание
1			ASM, Motor (DADF) 1 127K53220
2			DADF Belt Kit 1 604K31090
3			Fan, (Scanner) Power Supply, Cooling 1 105E18240
4			Electric Clutch, Wiper
5			X-Axis Motor Assembly
6			Drum Cooling Fan
7			Gearbox and Motor, Process Drive
8			MEP (Drive) Motor 1 127K53270
9			MEP (Elevator) Motor 127E14830
10			Tray Lift Motor Kit
11			Motor Assembly, Y-Axis (Drive)
12			Pick Solenoid, Tray
13			Compound Gear, Head Tilt
14			Gearbox, Media Drive with 2 Clutches
15			(Electronics Module) E-Can Cooling Fan 1 127E15010

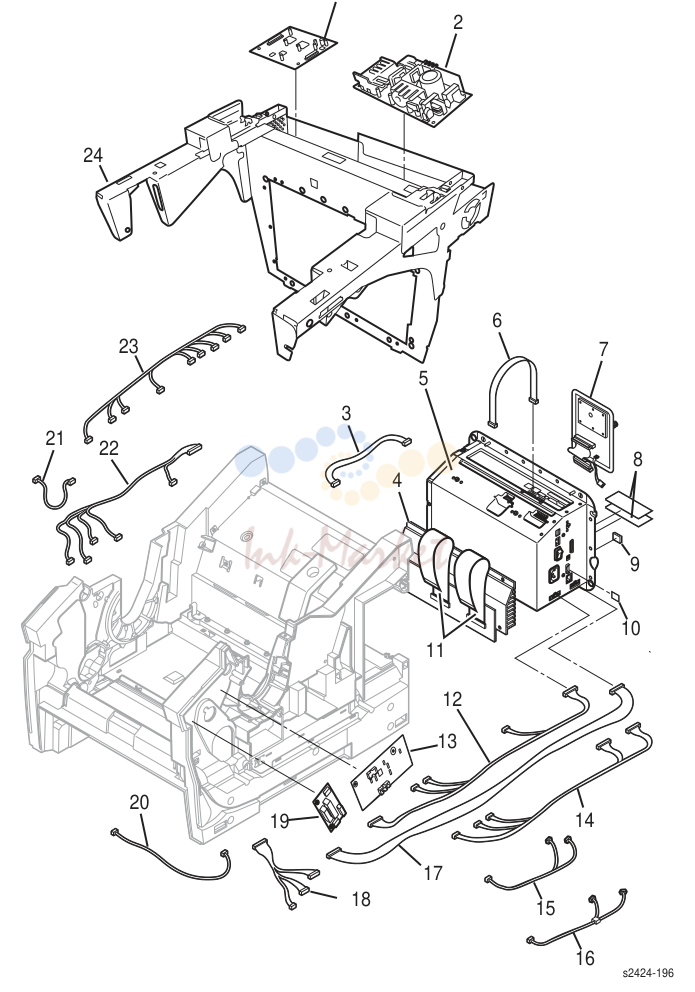

№	Артикул	Описание
1		PCBA, Malibu MEP (Exit Module Board) 1 960K19990
2		Power Supply, Scanner 1 105E18250
3		Cable, Wave Amp Signal
4		Wave Amp Board
5		Electronics Module Stripped (no RAM, NVRAM, or 1 133K25000
6		Cable, Printhead Interface
7		Hard Drive Assembly 1 121K39240
8		256 MB SDRAM
512		MB SDRAM
9	8-pin запросить цену →	NVRAM
10		Configuration Card Programmed 1 537E65920
11		Cable, ZIF, Wave Amp Drive
12		Cable, Right Side Power Control
13		I/O Board
14		Cable, Combined Right
15		Cable, Scanner PSU to Printer PSU 1 117E28380
16		Cable, Scanner PSU TI IP, MEP and FAN 1 117E28390
17		Cable, I/O Board Data
18		Cable, Right Umbilical
19		Drum Heater Relay Board
20		Cable, Front Door
21		Cable, Y-Axis Motor Ground
22		Wiring Harness, Left Side Power Control
23		Cable, Back Frame Assembly - MEP 1 117E28400
24		Back Frame Assembly (Mechanical) 1 001E79170

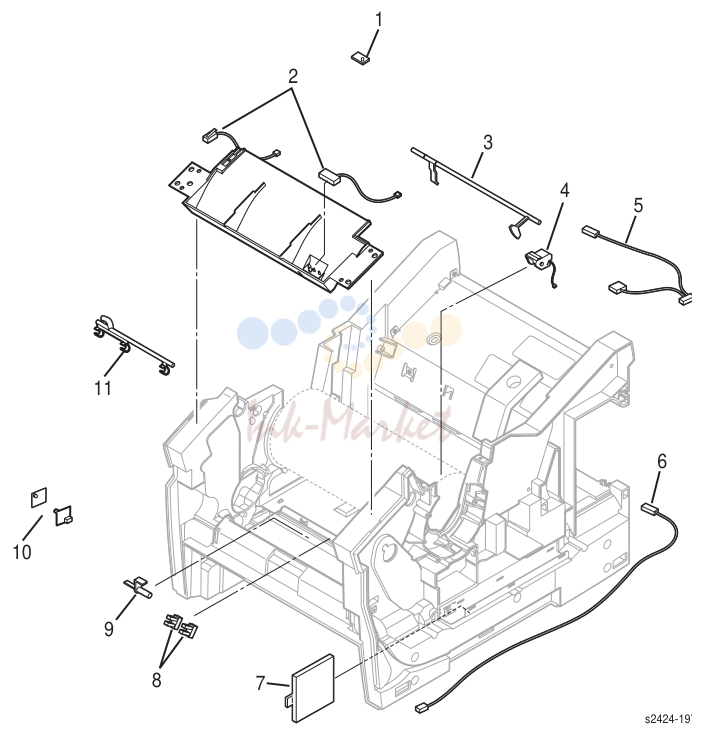

№	Артикул	Альт. артикул	Описание
1			PCBA, IIT Sensor 1 960K20680
2			Safety Interlock Switch (Mech)
3			Engine Exit Flag 1 137E11880
4			Drum Temperature Sensor Assembly
5			Exit Module (MEP) Sensor Assembly
6			Waste Tray Sensor (optical)
7			Sensor Assembly, Paper Tray
8			Optical Sensor (Generic Snap-In)
9			Paper Present Flag
10			Paper Full Sensor Kit 604K30550
11			Flag, MEP (Exit Module) 1 137E11890
