Xerox Phaser-8400 8500 8550 — каталог запчастей со схемами

Содержание

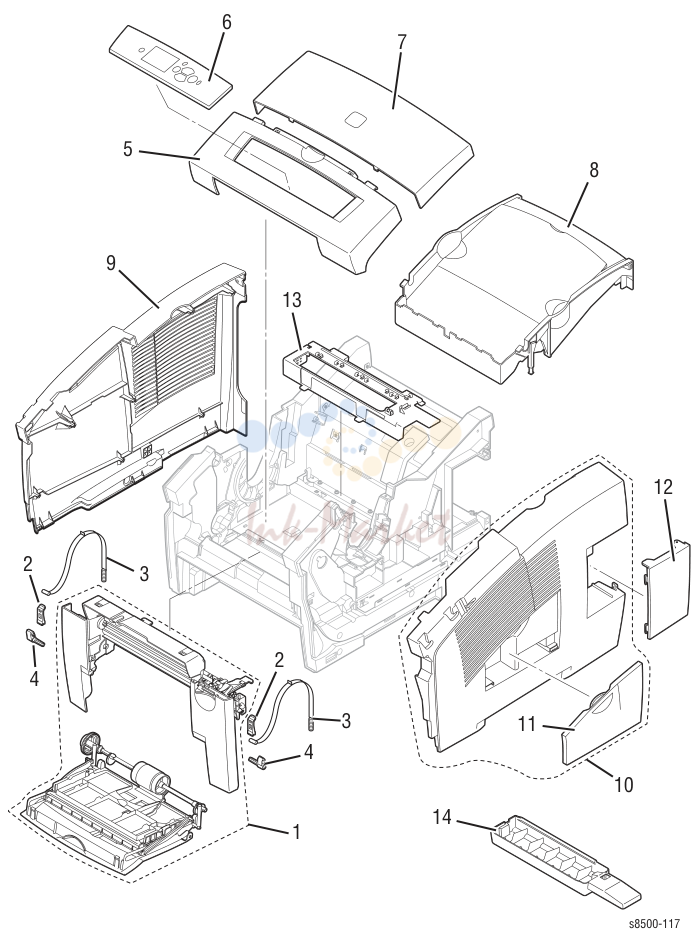

№	Артикул	Альт. артикул	Описание
1			Front Door (MPT) Assembly 1 200467880 (8400)
2			Front Door Stay Retainer Clip
3			Front Door Stay with Spring
4			Hinge Pins, Front Door
5			Control Panel Cover 1 200467380 (8400)
6			Control Panel with Bezel 1 657012880 (8400)
7			Exit Cover Assembly 1 200469380 (8400)
8			Ink Loader Door (part of PL 2.1) 1 200469880 (8400)
9			Left Side Cover 1 200467680 (8400)
10			Right Side Cover Assembly with Doors 1 200467580 (8400)
11			Drum Maintenance Door (Side) 1 200469480 (8400)
12			I/O Access Door 1 200468480 (8400)
13			Waste Tray Cover
14			Waste Tray 1 109R00736

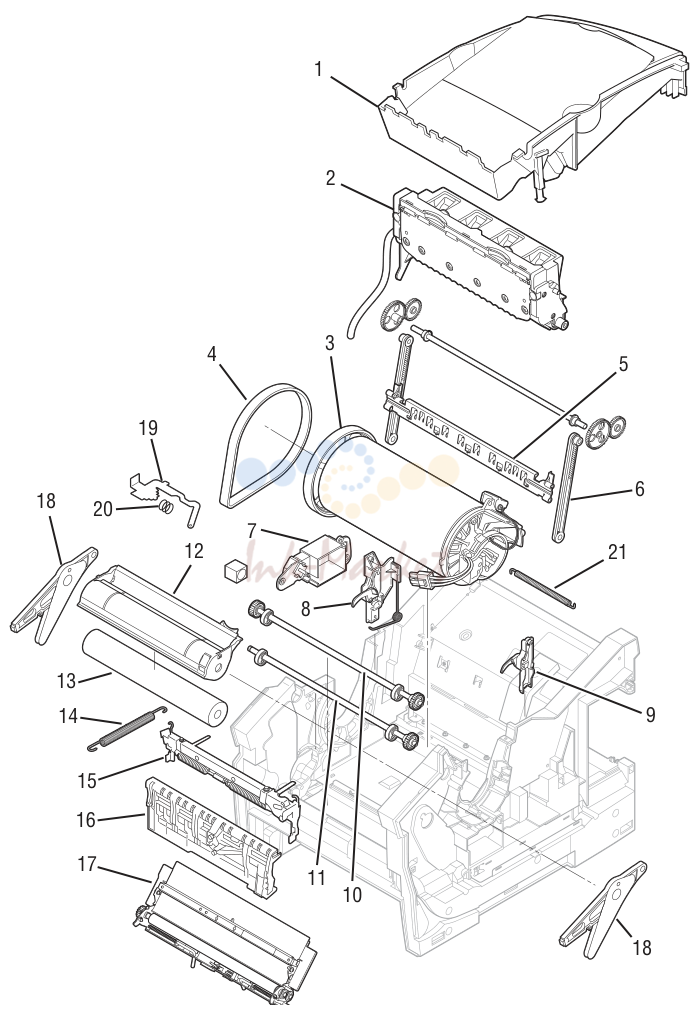

№	Артикул	Альт. артикул	Описание
1			Ink Loader Assembly and Door 1 200469880 (8400)
2			Printhead Assembly 1 650430300 (8400)
3			Drum Assembly 1 105115080 (8400)
4			Belt, Y-Axis Drum 1 214498780 (8400)
5			Printhead Wiper 1 367053480 (8400)
6			Belt, Wiper Drive 1 214501280 (8400)
7			Purge Pressure Pump 1 604K31120
8			Left Printhead Restraint
9			Right Printhead Restraint
10			Transfix Camshaft Assembly 1 384187480 (8400)
11			Drum Maintenance Camshaft Assembly 1 401100380 (8400)
12			Stripper Carriage Assembly 1 386735280 (8400)
13			Transfix Roller 1 401102780 (8400)
14			Y-Axis Tension Spring
15			Transfix Load Arm Module Assembly 1 386739380 (8400)
16			Drum Maintenance Pivot Plate Assembly
17			Preheater and Deskew Assembly 1 119641980 (8400)
18			Transfix Arm Assembly 1 401101280 (8400)
19			X-Axis Bias Spring Hook
20			X-Axis Roll Adjuster Spring
21			Printhead X-Axis Bias Spring

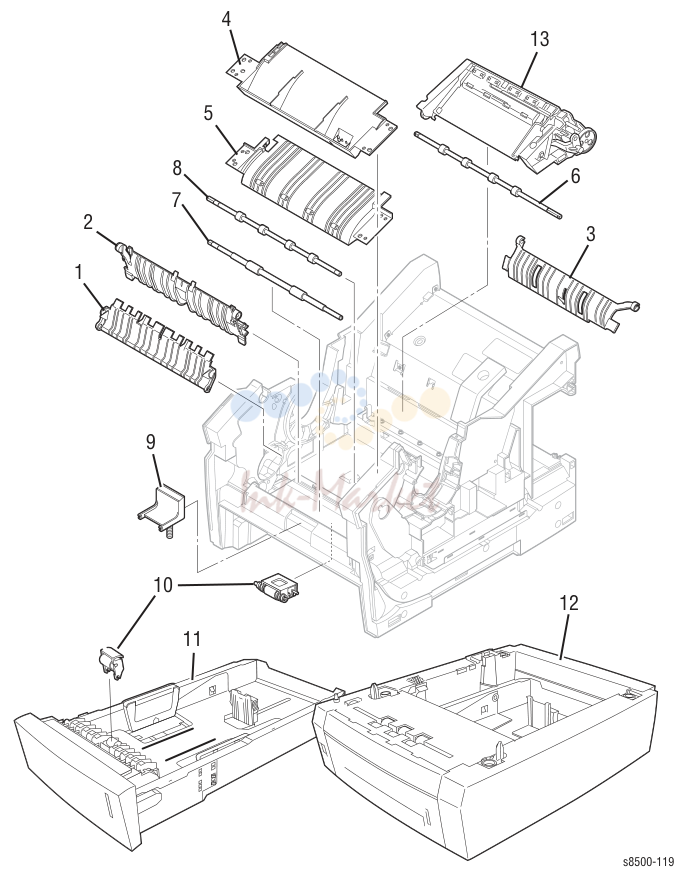

№	Артикул	Описание
1		Inner Simplex Guide 1 351111480 (8400)
2		Lower Inner Duplex Guide 1 038K16870
3		Lower Exit Guide Assembly with Strip Flag 1 038K16880
4		Outer Duplex Paper Guide with Sensors (Safety
5		Upper Duplex Paper Guide with Solenoid 1 351113280 (8400)
6		Exit Roller
7		Take Away Roller
8		Duplex Roller
9		Separator Pad Kit 1 650429300 (8400)
10		Pick Assembly and Retard Roller Kit 1 650429200 (8400)
11		Main Tray (Tray 2) 1 097S03195 (8400)
12	525-Sheet запросить цену →	Feeder and Tray 1 059K50530
13		Exit Module Assembly 1 441223980 (8400)

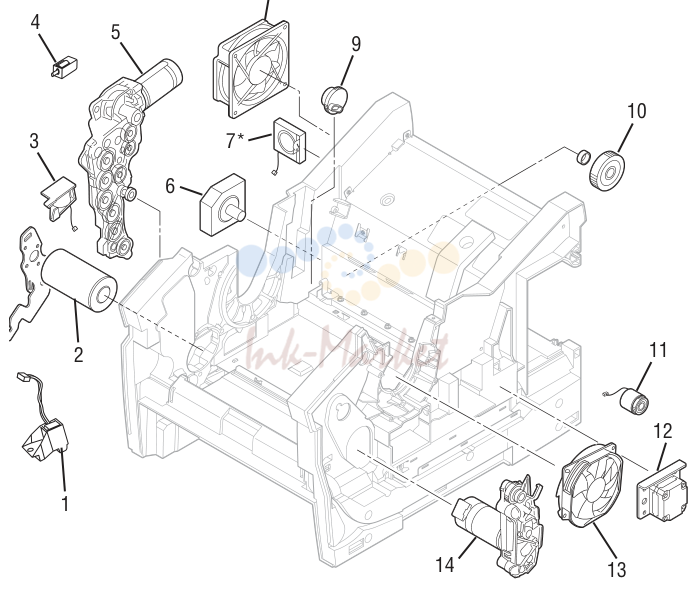

№	Артикул	Альт. артикул	Описание
1			Pre-heater Lift Solenoid 1 121K44430 (8500/8550)
2			Motor, Y-Axis Drive
3			Pick Solenoid, Tray
4			Head Tilt Solenoid 1 121K44480 (8500/8550)
5			Gearbox, Media Drive with 2 Clutches, Solenoid 1 401098480 (8400)
6			Tray Lift Motor Kit and Gear (plus item 10)
7			Paper Path Cooling fan 1 119650580 (8400)
8			Electronics Module System Fan 1 119642680 (8400)
9			Compound Gear, Head Tilt
10			Tray Lift Motor Kit and Gear (plus item 6)
11			Electric Clutch, Wiper
12			X-Axis Motor Assembly
13			Drum Cooling Fan 1 119641780 (8400)
14			Gearbox and Motor, Process Drive 1 401100080 (8400)

№	Артикул	Описание
1		Cable, Y-Axis Motor Ground 1 117E28740
2		Wiring Harness, Left Side Power Control 1 174449480 (8400)
3		Cable, Wave Amp Signal 1 174446580 (8400)
4		Wave Amp Assembly 1 671522380 (8400)
5		Electronics Module (no RAM, NVRAM, or 1 119649580 (8400)
6		Cable, Printhead Interface
7		Hard Drive Assembly 1 097S03172 (8400)
8		128 MB SDRAM 1 156486100 (8400)
256		MB SDRAM 156466300 (8400)
128		MB SDRAM 856000200 (8500)
256		MB SDRAM 856000300 (8500/8550)
512		MB SDRAM 856000400 (8500/8550)
9	8-pin запросить цену →	NVRAM
10		Configuration Card-B, Prog. 1 650431200 (8400)
11		Cable, Flex, Wave Amp Drive 1 174448680 (8400)
12		Cable, Right Side Power Control
13		I/O Board 1 671536080 (8400)
14		Cable, Combined Right 1 174451180 (8400)
15		Cable, I/O Board Data
16		Cable, Right Umbilical

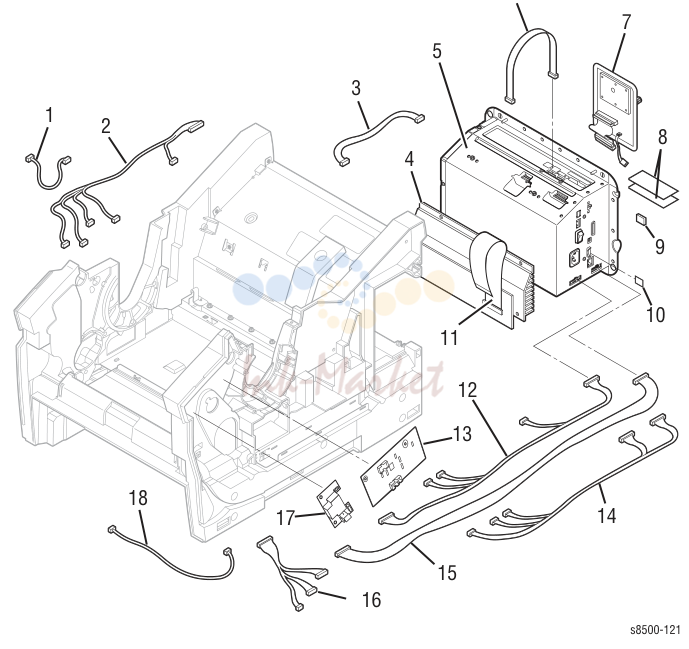

17		Drum Heater Relay Board
18		Cable, Front Door

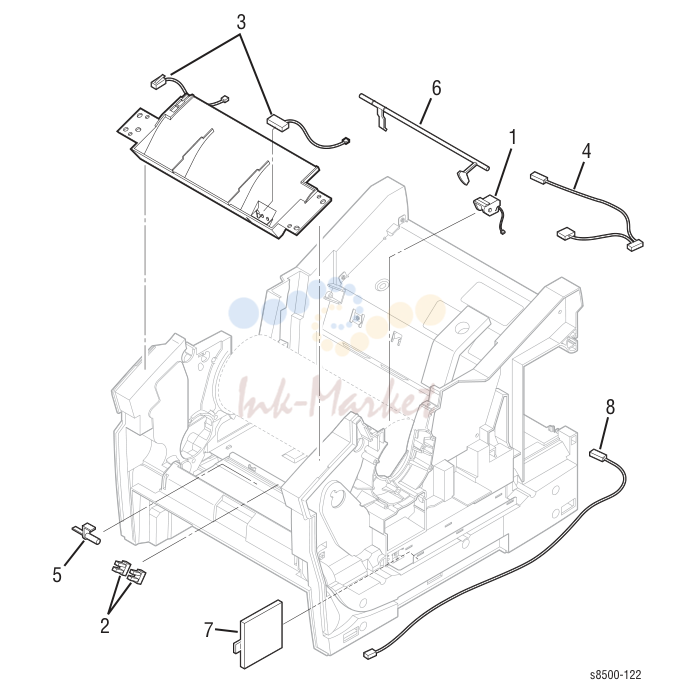

№	Артикул	Альт. артикул	Описание
1			Drum Temperature Sensor Assembly
2			Optical Sensor (Generic Snap-In)
3			Safety Interlock Switch (Mech)
4			Exit Module Sensor Assembly
5			Paper Present Flag
6			Exit Flag
7			Sensor Assembly, Paper Tray
8			Waste Tray Sensor
128			MB, 16M x 64, PC133; Memory DIMM ZMD128
256			MB, 32M x 64, PC133; Memory DIMM ZMD256
128			MB, SDRAM 097S03380
256			MB, SDRAM 097S03381
256			MB, SDRAM 097S03381
512			MB, SDRAM 097S03382
