Xerox Phaser-5500 — каталог запчастей со схемами

Содержание

• 1. Print Engine Parts
• 2. Parts List 1.2 Covers 2/2
• 3. Parts List 2.1 Tray 1/2 and Feeder 1/2
• 4. Parts List 2.2 Tray 2/2
• 5. Parts List 3.1 Tray 1/MPT Assembly
• 6. Parts List 3.2 Tray 1/MPT Lower Frame Assembly
• 7. Parts List 3.3 Tray 1/MPT Assembly
• 8. Parts List 4.1 Transportation and Registration L/H Lower
• 9. Parts List 4.2 L/H Upper Assembly
• 10. Parts List 4.3 L/H Chute Assembly
• 11. Parts List 5.1 Laser, CRU and Toner Dispense
• 12. Parts List 6.1 Fuser and Exit 1 Unit
• 13. Parts List 7.1 Drive

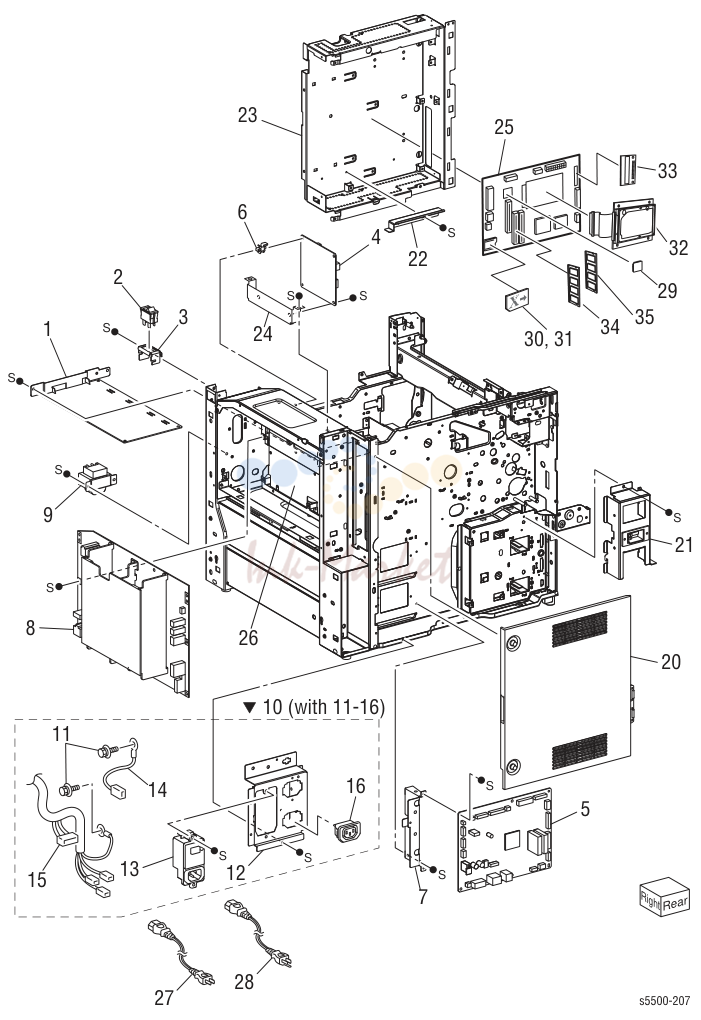

• 14. Parts List 8.1 Electrical

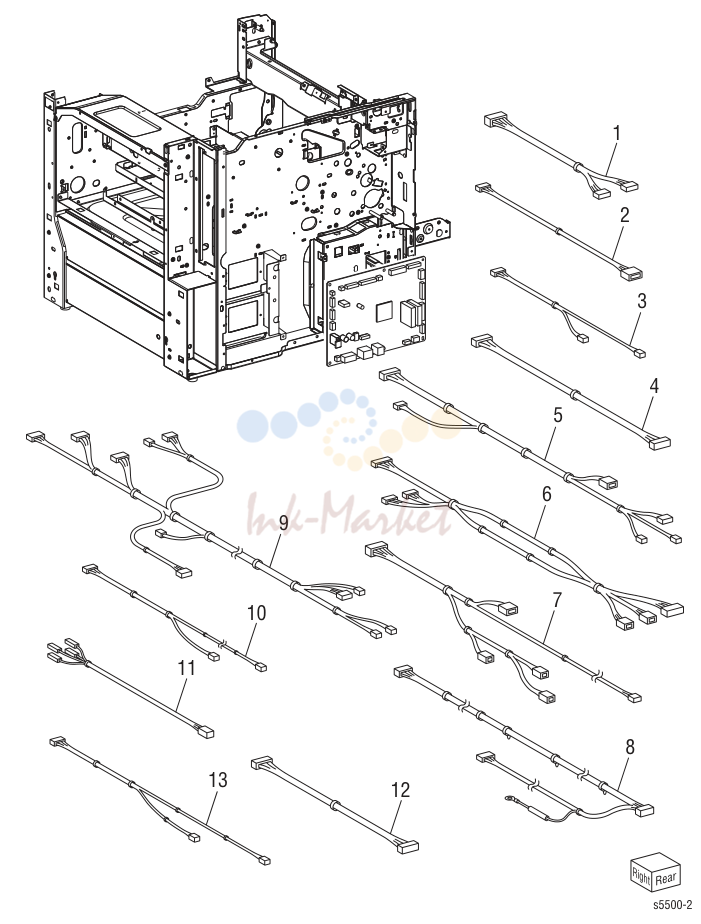

• 15. Parts List 8.2 Harness

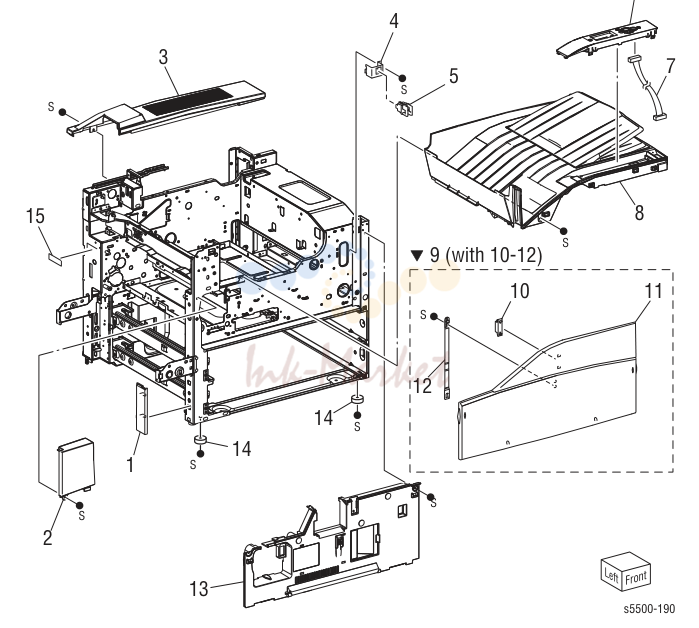

1. Print Engine Parts

№	Артикул	Альт. артикул	Описание
1			COVER LEFT FR 802K74110
2			COVER-FRS FR, PR (Front Left Cover) 802E55371
3			COVER-TOP RR, PR (Top Rear Cover) 802E55361
4			BRACKET ILSW
5			SWITCH (Front Door Interlock Switch) 110E94770
6			CONSOLE PANEL (Front Panel) 802E64160
7			HARN ASSY CONPANEL 962K24041
8			COVER ASSY TOP PR (Top Cover) 802K74170
9			COVER ASSY FRONT (with 10~12) (Front Door) 802K74080
10			MAGNET CATCH
11			COVER-FRONT
12			STRIP (Stopper) 802E55351
13			COVER ASSY INNER,MAIN (Inner Main Cover) 802K58180
14			FOOT FRONT
15			PLATE SER

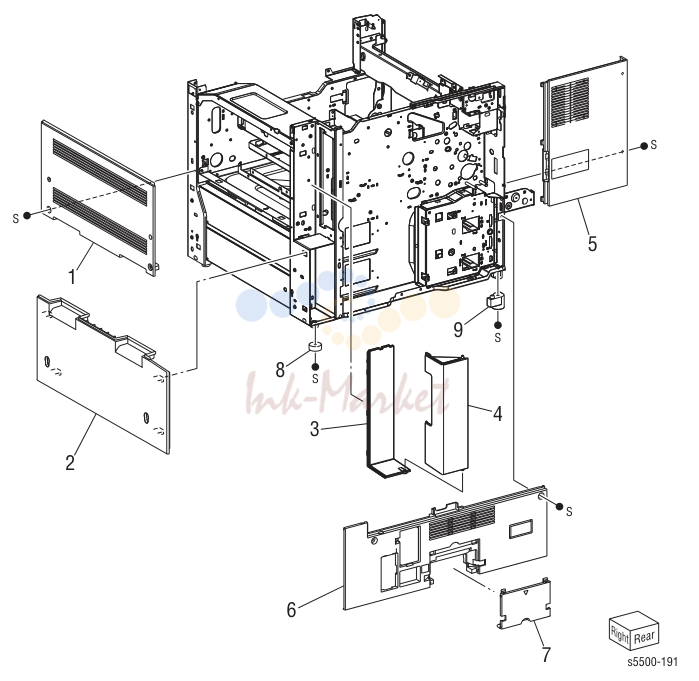

2. Parts List 1.2 Covers 2/2

№	Артикул	Альт. артикул	Описание
1			COVER RIGHT UPR (Upper Right Cover) 802E55230
2			COVER RIGHT LOW] (Lower Right Cover) 802E55241
3			COVER ESS RH 802E55260
4			COVER-CAP ESS,PR (Rear Panel Cover) 802E55381
5			COVER REAR UPR (Upper Rear Cover) 802E55271
6			COVER REAR LOW PR (Lower Rear Cover 110V) 802K74120
7			COVER-CAP MCU (Option Interface Cover) 802E55292
8			FOOT FRONT
9			FOOT REAR LEFT

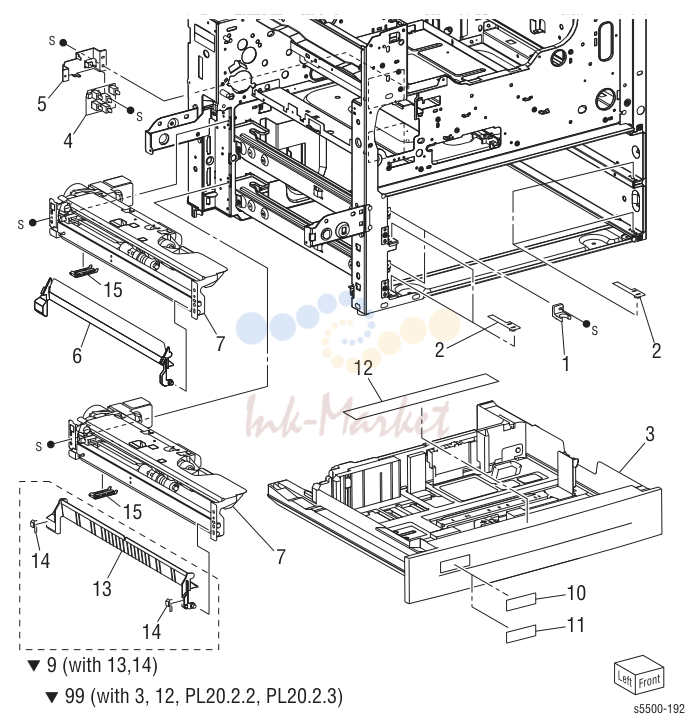

3. Parts List 2.1 Tray 1/2 and Feeder 1/2

№	Артикул	Альт. артикул	Описание
9			(with 13,14)
99			(with 3, 12, PL20.2.2, PL20.2.3)
9-8			Phaser 5500 Printer Service Manual
1			STOPPER-TRAY 003E58700
2			SPACER TRAY G 014E44710
3			TRAY ASSY (PL 2.2, included with 99)
4			SWITCH ASSY P S (Paper Size Switch) 110K11680
5			BRACKET-SW
6			CHUTE ASSY FEEDER 054K24091
7			FEEDER ASSY (PL2.3.2.1) 059K26934
9			CHUTE FEED OUT (with 13, 14) 054K27550
10			LABEL, TRAY NO1 (included with 97)
11			LABEL, TRAY NO2 (included with 97)
12			LABEL INST,M/N
13			CHUTE FEED OUT
14			PAD ASSY LH LOW
15			COVER SENSOR
97			KIT LABEL (with 10, 11, PL20.2.2, PL20.2.3) 604K23370
98			TRAY, ENVELOPE (as option, not shown) 604K24320
99			500 TRAY 109R00733

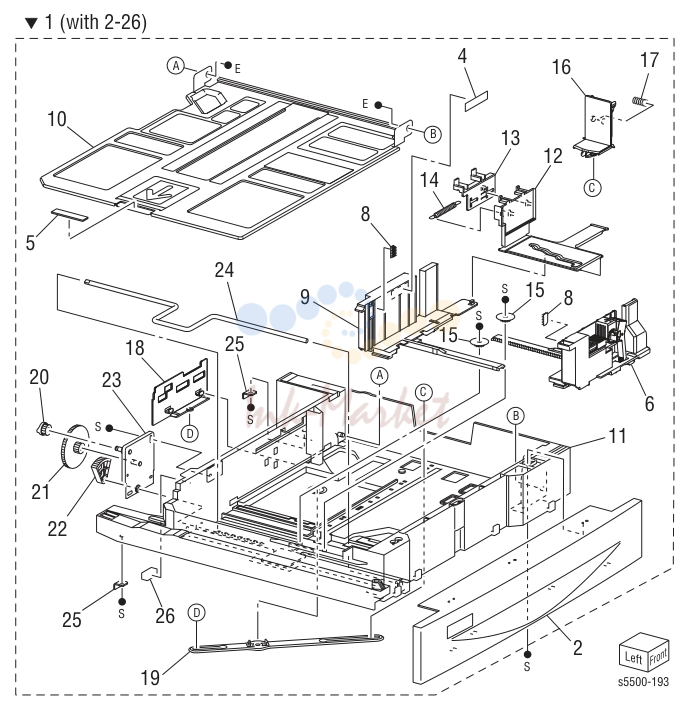

4. Parts List 2.2 Tray 2/2

№	Артикул	Альт. артикул	Описание
1			TRAY ASSEMBLY (with 2~26) 109R00733
2			TRAY COVER
4			LABEL (MAX)
5			BOTTOM PAD
6			FRONT SIDE GUIDE
8			TRAY PAD
9			REAR SIDE GUIDE
10			BOTTOM PLATE
11			TRAY
12			SIDE GUIDE ACTUATOR
13			GUIDE ACTUATOR
14			SPRING
15			PINION GEAR
16			END GUIDE
17			SPRING
18			END GUIDE ACTUATOR
19			LINK
20			COUPLING GEAR (13T)
21			GEAR (13T/60T)
22			SECTOR GEAR (60T)
23			BRACKET
24			LIFT UP SHAFT
25			STOPPER
26			SEAL
99			KIT, LABEL
1			(with 2-50) 15P S r e e n s F o e r ed 43 44 2 S
42			14 Level Sensor
99			(with 20x3Pcs.)
9-12			Phaser 5500 Printer Service Manual
1			FEEDER ASSEMBLY (with 2~50) 059K26934
2			TRAY FEED LIFT UP MOTOR 127K38170
3			BRACKET
4			SPACER
5			GEAR (31T)
6			SPRING
7			ONEWAY CLUTCH
8			ONEWAY GEAR
9			GEAR (13T)
10			BEARING
11			SHAFT
12			FRONT CHUTE
13			ACTUATOR (No Paper Sensor Actuator) 120E22481
14			SENSOR (No Paper or Level Sensor) 930W00113
15			SENSOR (Pre-Feed Sensor) 930W00211
16			WIRE HARNESS
17			GEAR (28T/21T)
18			GEAR (29T)
19			SPRING 809E51070
20			ROLLER ASSY--Periodic replacement part per 300k prints (included
21			ONEWAY CLUTCH
22			ONEWAY GEAR (22T)
23			SHAFT
24			CHUTE
25			SPRING
26			FRICTION CLUTH
27			SHAFT-RETARD
29			SPACER
30			GEAR (33T)
31			SHAFT-NUDGER
33			GEAR (25T)
34			LOWER FRAME
35			BEARING
36			GEAR (27T)
37			LEVER
38			BEARING
39			WASHER
40			UPPER FRAME
42			HOLDER HARNESS CTR
43			HOLDER HARNESS REAR
44			HOLDER HARNESS UPPER
45			HOLDER HARNESS PS1 (ALT)
46			RAIL
47			SUPPORT RETARD
48			SUPPORT NUDGER
49			HOLDER
50			SPRING
99			KIT ROLLS (with 20 x 3 pcs.)Periodic replacement (per 300k print) 604K20530
9-14			Phaser 5500 Printer Service Manual

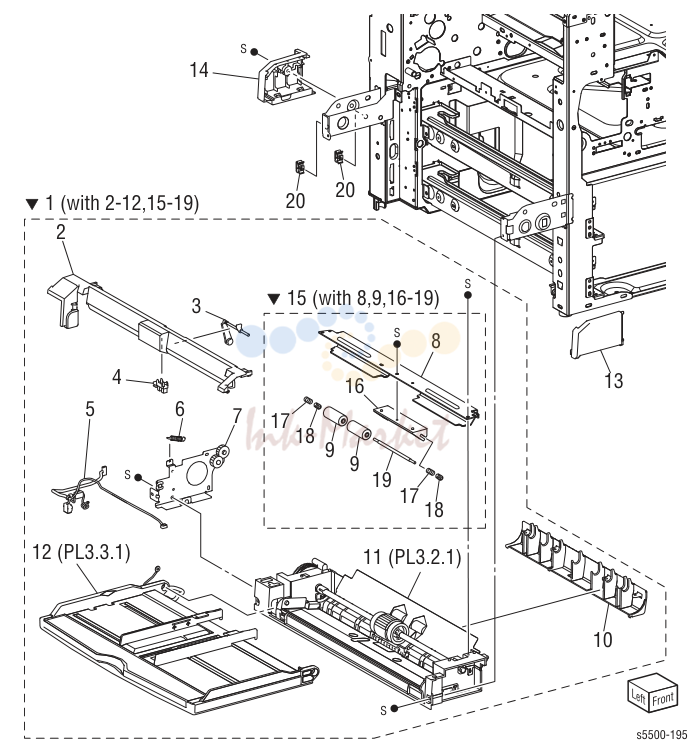

5. Parts List 3.1 Tray 1/MPT Assembly

№	Артикул	Альт. артикул	Описание
1			(with 2-12,15-19)
15			(with 8,9,16-19)
9-16			Phaser 5500 Printer Service Manual
1			FEEDER ASSEMBLY MSI (with 2~12, 15~19) (Tray 1/MPT Feeder) 059K31460
2			FRAME UPPER
3			ACTUATOR (No Paper Sensor Acutator) 120E22230
4			SENSOR-PHOTO IN (No Paper Sensor) 930W00113
5			HARNESS ASSY MSI
6			SPRING MSI (Pick-Up Gear Spring) 809E38160
7			BRKT ASSY-GEAR
8			CHUTE PINCH
9			ROLL ASSY-PINCH
10			CHUTE LOW
11			FRAME ASSY LOWER (PL3.2)
12			TRAY ASSY-MSI (PL3.3)
13			COVER MSI FR (Tray 1/MPT Front Cover) 802K74140
14			COVER MSI RR (Tray 1/MPT Rear Cover) 802E55211
15			CHUTE ASSY PINCH
16			GUIDE PINCH
17			SPRING PINCH
18			SPACER SPRING PINCH
19			SHAFT PINCH
20			WIRE SADDLE

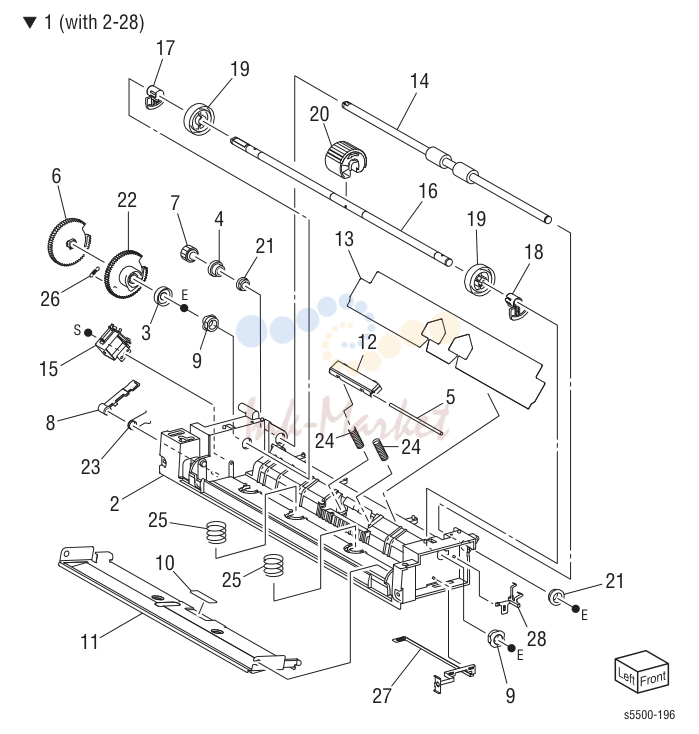

6. Parts List 3.2 Tray 1/MPT Lower Frame Assembly

№	Артикул	Альт. артикул	Описание
1			FRAME ASSY LOWER (with 2~28)
2			FRAME LOWER MSI
3			STOPPER LEVER
4			COLLAR
5			SHAFT-RETARD
6			GEAR PICK UP
7			GEAR 18T
8			LEVER-GEAR
9			BEARING
10			PAD BOTTOM 019E56551
11			PLATE BOTTOM
12			PAD ASSY-RETARD 019K07085
13			GUIDE PAPER MSI
14			ROLL ASSY-DRIVE
15			SOLENOID PICK UP 121E92780
16			SHAFT ASSY PICK UP
17			CAM PICK UP 2 008E93831
18			CAM PICK UP FRONT 008E94270
19			ROLL CORE
20			ROLLER ASSY-FEED (Feed Roller with installation instructions) 604K23380
21			BEARING SLEEVE
22			GEAR CAM
23			SPRING LEVER GE
24			SPRING PAD (Retard Pad Spring) 809E27650
25			SPRING N F
26			SPRING-GEAR CAM 809E54530
27			PLATE EARTH BOTTOM
28			PLATE EARTH FRONT

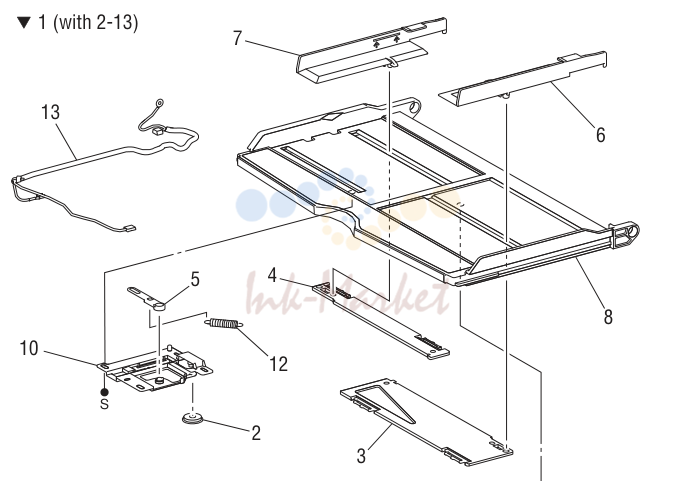

7. Parts List 3.3 Tray 1/MPT Assembly

№	Артикул	Альт. артикул	Описание
1			TRAY ASSY MSI (with 2~13)] 050K49741
2			GEAR-PINION
3			RACK-FRONT
4			RACK-REAR
5			LINK-SENSOR
6			GUIDE-SIDE FRONT
7			GUIDE-SIDE REAR
8			TRAY MSI
9			TRAY EXT
10			SENSOR ASSY-MSI (Paper Size Sensor)
11			COVER TRAY
12			SPRING-SENSOR
13			HARNESS ASSY SIZE

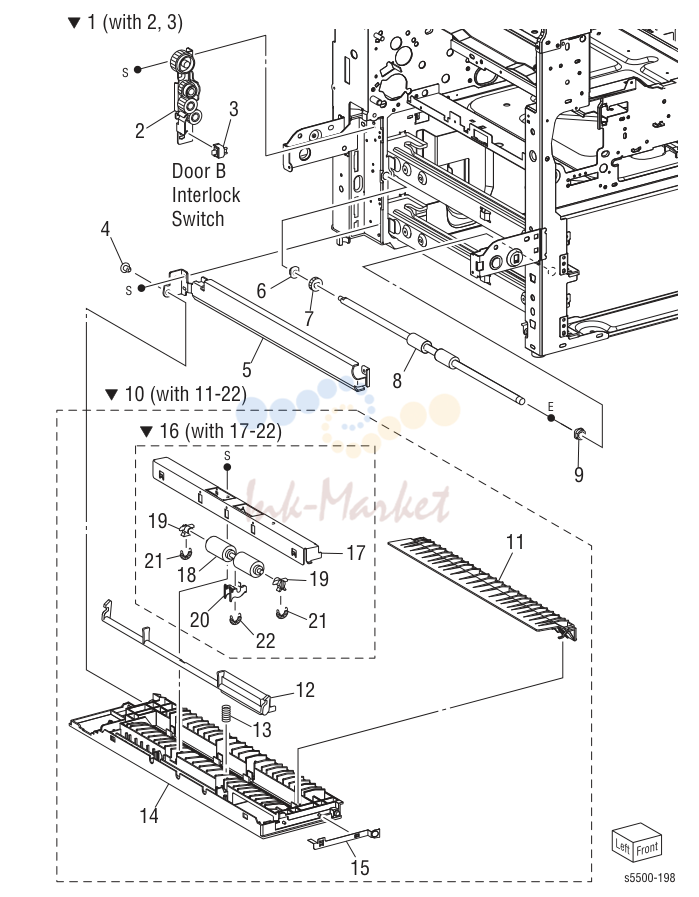

8. Parts List 4.1 Transportation and Registration L/H Lower

№	Артикул	Альт. артикул	Описание
1			(with 2, 3)
10			(with 11-22)
16			(with 17-22)
9-22			Phaser 5500 Printer Service Manual
1			BRKT ASSY TA (with 2,3) (Take Away Bracket) 015K61010
2			BRACKET ASSY IDLER
3			SWITCH-I/L, CAB (Door B Interlock Switch) 110E11580
4			RIVET 029E31600
5			CHUTE-LOWER
6			BEARING TA 013E26990
7			GEAR - 18T 007E79270
8			ROLLER ASSY-TA (Take Away Roller) 059K26840
9			BEARING SLEEVE 413W77559
10			COVER ASSY LH LOW C (with 11~22) (Door B) 802K58280
11			CHUTE LH LOW C
12			HANDLE LH LOW
13			SPRING-COMP LH LOW
14			COVER LH LOW C
15			PLATE-EARTH
16			BRKT ASSY LH LOW C (with 17~22)
17			BRKT LH LOW
18			ROLLER-TA PINCH
19			BEARING-OUT
20			BEARING-IN
21			SPRING LH LOW
22			SPRING

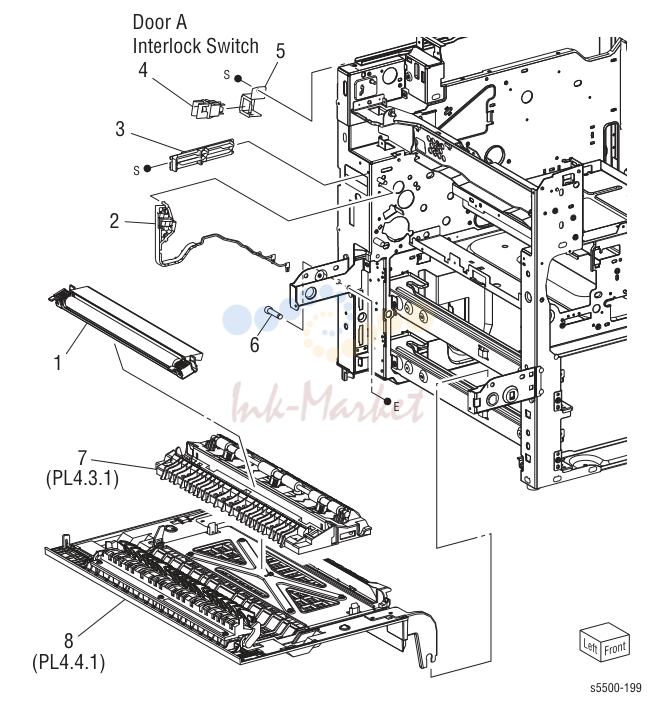

9. Parts List 4.2 L/H Upper Assembly

№	Артикул	Альт. артикул	Описание
1			HSG ASSY-BTR -- Periodic replacement part (per 300k prints) 802K56094
2			COVER ASSY-CONTACT 802K49240
3			LINK ASSY-SHUTTER 012K94341
4			SWITCH (Door A Interlock Switch) 110E94770
5			BRACKET ILSW
6			STUD 826E08440
7			CHUTE ASSY LH (PL4.3.1)
8			COVER ASSY-LH (PL4.4.1)

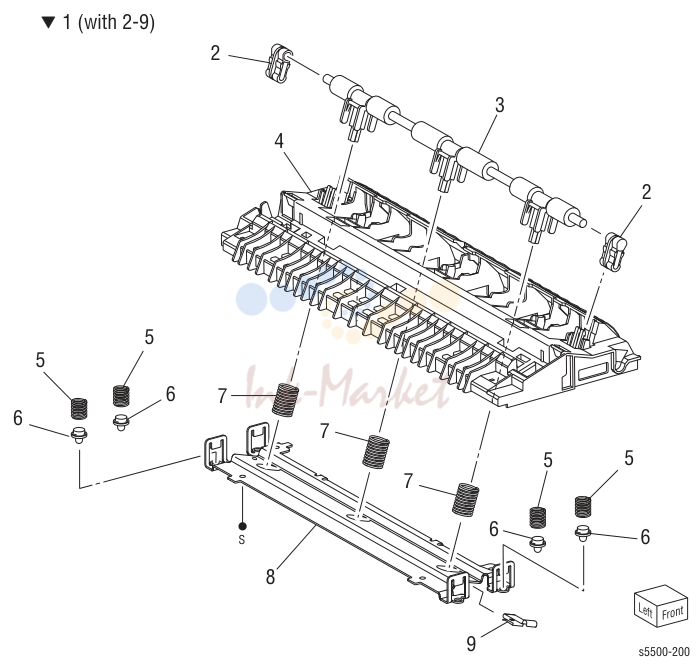

10. Parts List 4.3 L/H Chute Assembly

№	Артикул	Альт. артикул	Описание
1			CHUTE ASSY LH (with 2~9 054K24051
2			BEARING-PINCH OUT
3			ROLLER ASSY-REGI-P
4			CHUTE-ASSY
5			SPRING COMP FL
6			GUIDE
7			SPRING COMP PINCH
8			PLATE-TIE
9			PLATE-EARTH
1			(with 2-10)
8			Left Front
9-28			Phaser 5500 Printer Service Manual
1			COVER ASSY-L/H (with 2~10) (Door A) 802K58260
2			HANDLE L/H 003E59832
3			ROD CRU SHUTTER 024E03250
4			CHUTE LHCOV
6			CHUTE ASSY-DUP 054K24060
7			FRAME ASSY LH
8			COVER-LH
9			SPRING COMP LH 809E42460
10			SUPPORT - LH COVER (Door A Stopper) 849E13981
1			(with 2-8)
17			(with 9, 18, 19) S
9-30			Phaser 5500 Printer Service Manual
1			TRANS ASSY REGI (with 2~8) (Registration Transport Assembly) 059K26820
2			CLUTCH ASSY REGI H (Registration Clutch) 121K32660
3			CHUTE-REGI
4			ROLLER REGI IDLER
5			ROLLER ASSY REGI
6			BEARING REGI E
7			SNR ASSY REGI (Registration Sensor) 130K64270
8			PLATE-EARTH F G
9			CHUTE-TA 054E23910
10			CHUTE ASSY-R 054K23940
11			BEARING 013E26090
12			SHAFT TA
14			CLUTCH ASSY-TA (Take Away Clutch) 121K31640
15			BRACKET-TA
16			BEARING 013E26060
17			CHUTE-TA (with 9, 18, 19) (Take Away Chute)
18			SENSOR (Feed Out Sensor #3) 930W00211
19			HARNESS
20			PUSH TIE

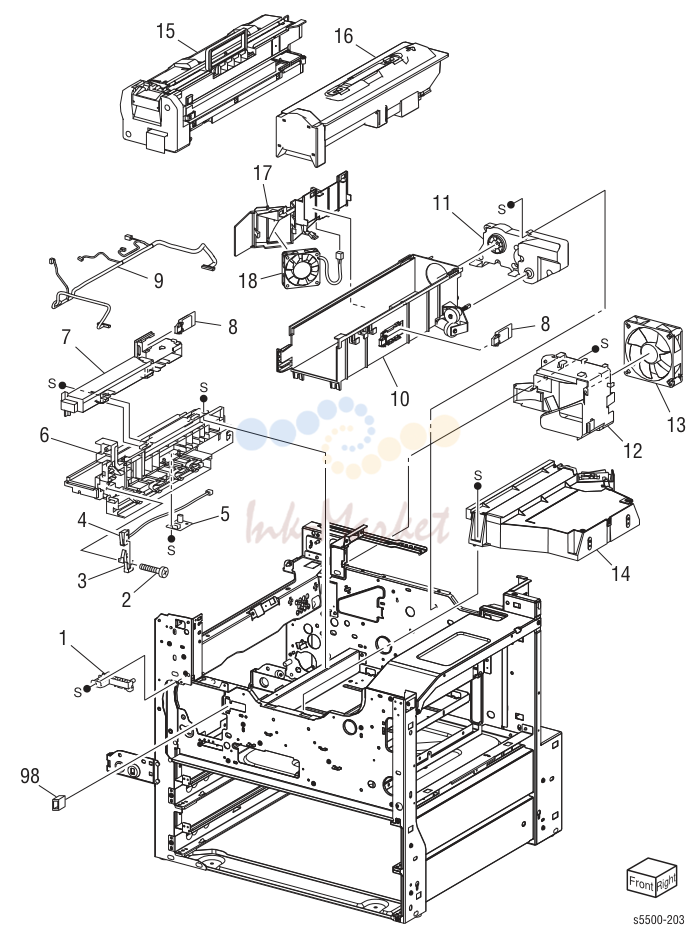

11. Parts List 5.1 Laser, CRU and Toner Dispense

№	Артикул	Альт. артикул	Описание
1			BLOCK STOPPER CRU ] 014E44733
2			SCREW
3			PLATE-SW-INTLK 815E05030
4			SWITCH ASSY XERO INTLK (Drum Cartridge Detect Switch) 110K11810
5			SENSOR HUM & TE (Environmental Sensor Temp/Humidity PWB) 130K87980
6			GUIDE ASSY SUB 032K96910
7			HSG ASSY LASER C 802K73190
8			PWBA CRUM CP1 (Drum Cartridge/Toner Cartridge CRUM) 160K95830
9			HARN ASSY FRONT A
10			GUIDE ASSY CTG30 SUB (Toner Dispense Assembly) 032K96951
11			MOTOR ASSY-DISP 30K (Toner Dispense Motor) 127K38040
12			DUCT FUSER
13			FAN FUSER 127K37880
14			ROS ASSY-12 (Laser Assembly) 062K13614
15			CRU DRUM CARTRIDGE 113R00670
16			TONER CARTRIDGE 113R00668
17			DUCT INTAKE
18			CRU FAN (Drum Cartridge Fan 927W00112
98			DRUM CARTRIDGE CONN (Drum Cartridge Connector) 114E14880

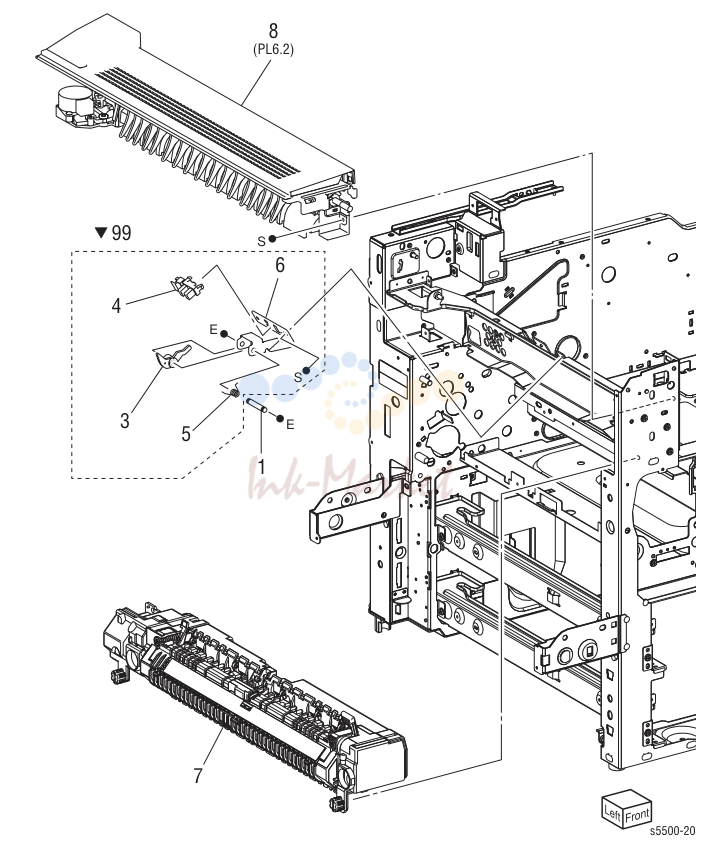

12. Parts List 6.1 Fuser and Exit 1 Unit

№	Артикул	Альт. артикул	Описание
1			SHAFT-ACTUATOR
3			ACTUATOR-EXIT (included with 99)
4			SENSOR PHOTO (Fuser Exit Sensor included with 99)
5			SPRING-ACTUATOR (included with 99)
6			BRKT-SENSOR, EXIT (included with 99)
7			FUSER ASSY 120V --- Periodic replacement part (per 300k prints) 126K18300
7			FUSER ASSY 220V --- Periodic replacement part (per 300k prints) 126K18310
8			TRANS ASSY EXIT (PL6.2)
99			KIT EXIT SENSOR (with 3~6) (Fuser Exit Sensor Kit) 015K60900
1			(with 2-21,34,35)
12			FrontRight
9-36			Phaser 5500 Printer Service Manual
1			TRANS ASSY EXIT (with 2~21, 34, 35) (Exit Transport Assembly) 059K31550
2			HARN ASSY EXIT 1 C
3			MOTOR ASSY-OFFSET (Offset Motor) 127K37951
4			PLATE-EARTH MOTOR
5			SENSOR-PHOTO IN (Offset Home Position or Full Stack Sensor) 930W00113
6			BEARING
8			CAP
9			GEAR-EXIT
10			BEARING ROLL
12			SPRING-PINCH EXIT
13			RLR-PINCH EXIT
14			ROLL ASSTY OCT
15			CHUTE-LOW
16			BRACKET SENSOR
17			GEAR-OFFSET
18			SPRING-GATE 809E42370
19			GATE-EXIT 1 (Exit Gate) 050E19802
20			BEARING
21			PLATE-EARTH
22			COVER-TOP, EXIT 1 802E55151
23			BRKT-EXIT
24			ELIMINATOR EXIT
25			GUIDE-TRAY EXIT
26			ACTUATOR FULLSTACK 120E22171
27			ACTUATOR 120E24670
28			WEIGHT-ASSY PAPER 036K91600
29			PAD EXIT A
30			PAD EXIT B
31			PAD EXIT C
32			LABEL EXIT 1 XC
33			LABEL CAUTION XC
34			SEAL A
35			SEAL B

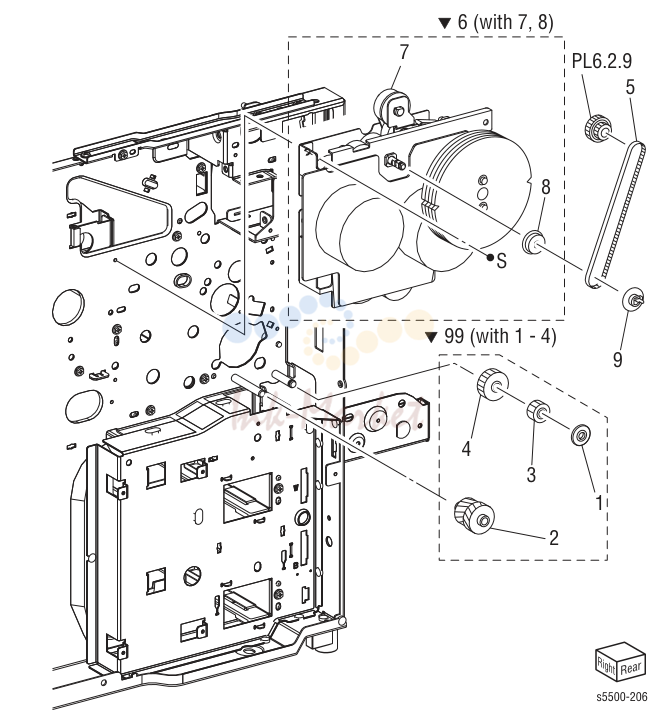

13. Parts List 7.1 Drive

№	Артикул	Альт. артикул	Описание
6			(with 7, 8)
99			(with 1 - 4)
9-38			Phaser 5500 Printer Service Manual
1			COLLAR
2			GEAR 21/21T MSI
3			GEAR 18T MSI
4			GEAR 28T TA
5			BELT-SYNCHRONOUS BAN (Main Drive Belt) 423W13155
6			DRIVE ASSY 242 (with 7, 8number) (Motor Assembly) 007K88596
7			MOTOR ASSY
8			PULLEY 25T 020E36600
9			FLANGE EXIT 005E17860
99			KIT, GEAR (with 1, 2, 3, 4) 604K23270

14. Parts List 8.1 Electrical

№	Артикул	Альт. артикул	Описание
10			(with 11-16)
7			RightRear
9-40			Phaser 5500 Printer Service Manual
1	PSHV-Y2 запросить цену →		High-Voltage Power Supply (HVPS) 105E11420
2			SWITCH-POWER 110E11320
3			BRACKET-SW CPR
4			PWB A EXIT (Exit PWB) 160K94216
5			PWBA MCU F 110V/220V (Engine Logic Board) 960K06080
6			PWB SUPP EDGE
7			BRACKET MCU
8			POWER UNIT-C1(100/127) Low-Voltage Power Supply (LVPS) 105E11390
9			CHOKE COIL (220/240) 104E94080
10			CHAS ASSY AC XC (with 11~16) (AC Accessory Panel)
11			SCREW
12			BRACKET-CONN AC
13			BREAKER GFI INL (GFI Breaker) 908W01201
14			HARNESS ASSY F/G,E
15			HARN ASSY AC US EU
16			OUTLET MN
20			COVER ASSY ESS (I/P Board Cover) 802K73070
21			PANEL ASSY CONN HCF
22			BRKT GUIDE PRX
23			CHASSIS ASSY ESS PRX
24			BRKT-EXIT LOW
25			IMAGE PROCESSOR BOARD (with NVRAM) 650-4341-00
26			PLATE ASSY LVPS
27			PKG POWER CORD (110V) 673K44480
28			PKG POWER CORD (220V) 673K55640
29			NVRAM DEVICE (I/P Board NVRAM) 163-1459-00
30			BASE CONFIG CARD (Networking disabled) 163-1518-00
31			NETWORK CONFIG CARD (Networking enabled) 163-1519-00
32			HARD DRIVE 650-4343-00
33			FLASH RAM (Optional flash memory) 671-5338-0A
34			128 MB DIMM 156-4860-00
35			256 MB DIMM 156-4663-00

15. Parts List 8.2 Harness

№	Артикул	Альт. артикул	Описание
1			HARN ASSY FEEDER C
2			HARN ASSY MSI A
3			HARN ASSY SIZE A
4			HARN ASSY ESS C
5			HARN ASSY ROS C
6			HARN ASSY EXIT C
7			HARN ASSY PH C
8			HARN ASSY FUSER AC C 962K18991
9			HARN ASSY LV PWR C
10			HARN ASSY INTLK A
11			HARN ASSY MAIN SW C
12			HARN ASSY DRIVE A
13			WIRE HARNESS CRUM B
128			MB Memory Option 097S03123
256			MB Memory Option 097S03225
16			MB Flash Memory DIMM 097S03125
20			GB Hard Drive Option 097S03227
