Xerox Phaser 3330/ WC 3335/ WC 3345 — каталог запчастей со схемами

Содержание

• 1. Parts Lists
• 2. Parts Lists
• 3. Parts Lists
• 4. Parts Lists
• 5. Parts Lists
• 6. Parts Lists
• 7. Parts Lists
• 8. Parts Lists
• 9. Parts Lists
• 10. Parts Lists
• 11. Parts Lists
• 12. Parts Lists
• 13. Parts Lists
• 14. Parts Lists
• 15. Parts Lists
• 16. Parts Lists
• 17. Parts Lists
• 18. Parts Lists
• 19. Parts Lists
• 20. Parts Lists
• 21. Parts Lists
• 22. Parts Lists
• 23. Parts Lists
• 24. Parts Lists
• 25. Parts Lists
• 26. Parts Lists
• 27. Parts Lists
• 28. Parts Lists
• 29. Maintenance
• 30. Maintenance

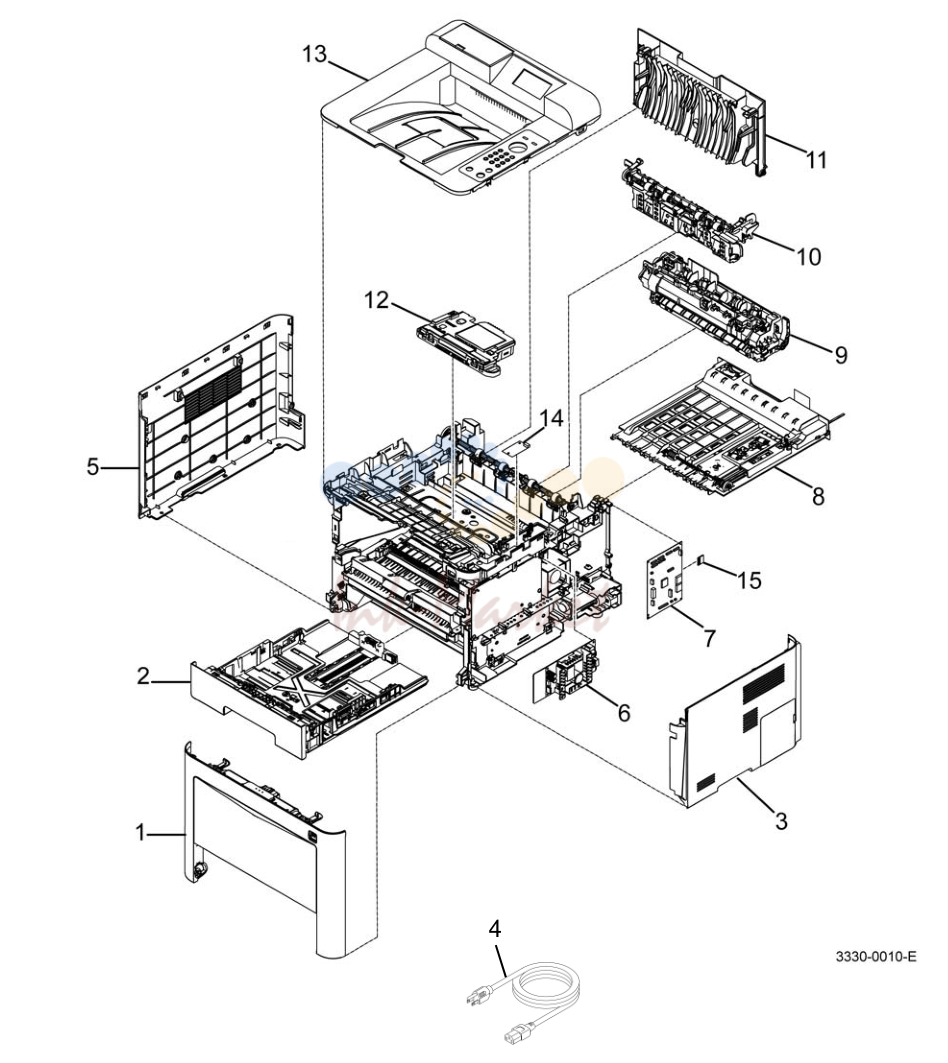

1. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Front Cover Assembly (REF: PL 1.3) 002N03326
2			Tray 1 Cassette Assembly (REF: PL 5.1) 050N00694
3			Right Cover Assembly 002N03325
4			Power Cord See Power Cords -
5			Left Cover 002N03324
6			SMPS (110V) 105N02330
7			Main PWB (See Note) 140N63796
8			Duplex Assembly (REF: PL 4.1) 022N02856
9			Fuser (110V) (REF: PL 3.3) 126N00410
10			Rear Frame (REF: PL 3.4) 001N00534
11			Rear Door 095N00415
12			LSU (Laser Unit) 130N01853
13			Top Cover 002N03323
14			Wireless Board 140N63805
15			SD Card 091N80340

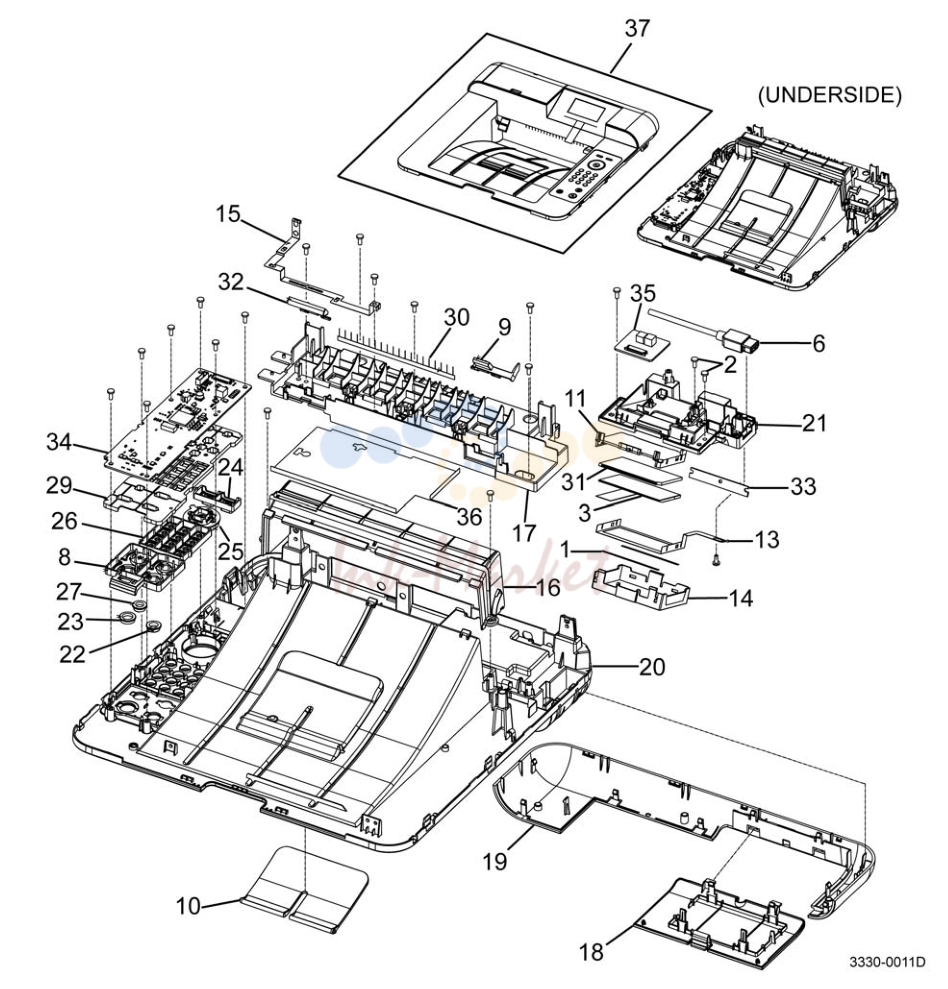

2. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Tape -
2			Screw -
3			LCD 144N00219
4			CBF Harness -
5			LCD Flat Cable -
6			Wire Harness-SPF NFC Host -
7			Wire Harness-SFP OPE -
8			Wire Harness-BLU -
9			Bin Full Stacker -
10			Main Stacker -
11			LCD Holder
12			Key Holder -
13			LCD Ground -
14			LCD Cover -
15			Exit Ground -
16			Exit Cover -
17			Path Cover -
18			Card Reader Cover -
19			Top DECO Cover -
20			Top Cover -
21			LCD Cover Lower -
22			WPS Key -
23			Power Key -
24			Navigation Key -
25			OK Key -
26			Numerical Key -
27			Stop Key -
28			Menu Key -
29			OPE Pad Key -
30			Antistatic Brush -
31			Backlight Lens -
32			Sub M Stacker PMO -
33			BLU PBA 140N63803
34			OPE PBA 140N63802
35			OPE Joint PBA Sub 140N63804
36			Protect Sheet -
37			Top Cover 002N03323
5-8			Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only

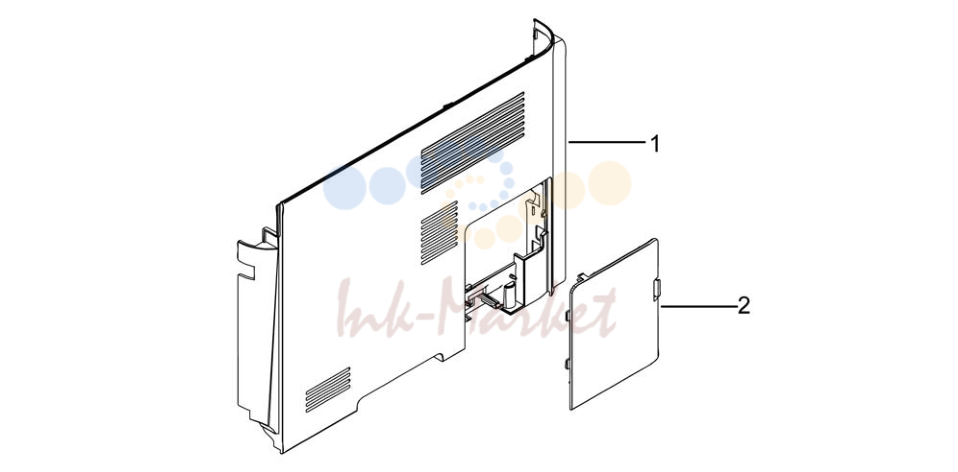

3. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Right Cover -
2			SCF Cover -
5-10			Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only

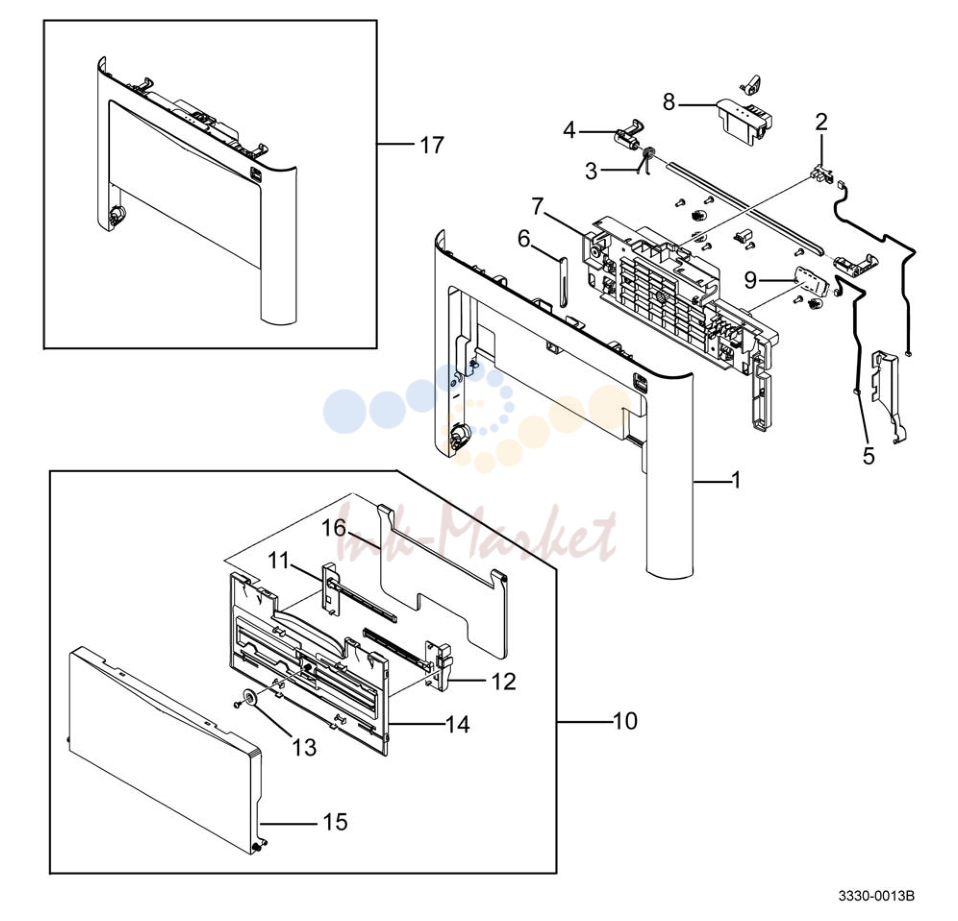

4. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Front Cover -
2			Front Door Sensor 130N01601
3			TS Spring -
4			Front Locker -
5			Zcrum Harness -
6			Cover Link -
7			Front Cover Inner -
8			Front Button -
9			Crum PWB 140N63808
10			Front Door -
11			MP Left Adjust -
12			MP Right Adjust -
13			Rack Pinion Gear (FX) -
14			MP Lower Tray -
15			Upper Tray -
16			MP Extension Tray -
17			Front Cover Assembly 002N03326
5-12			Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only

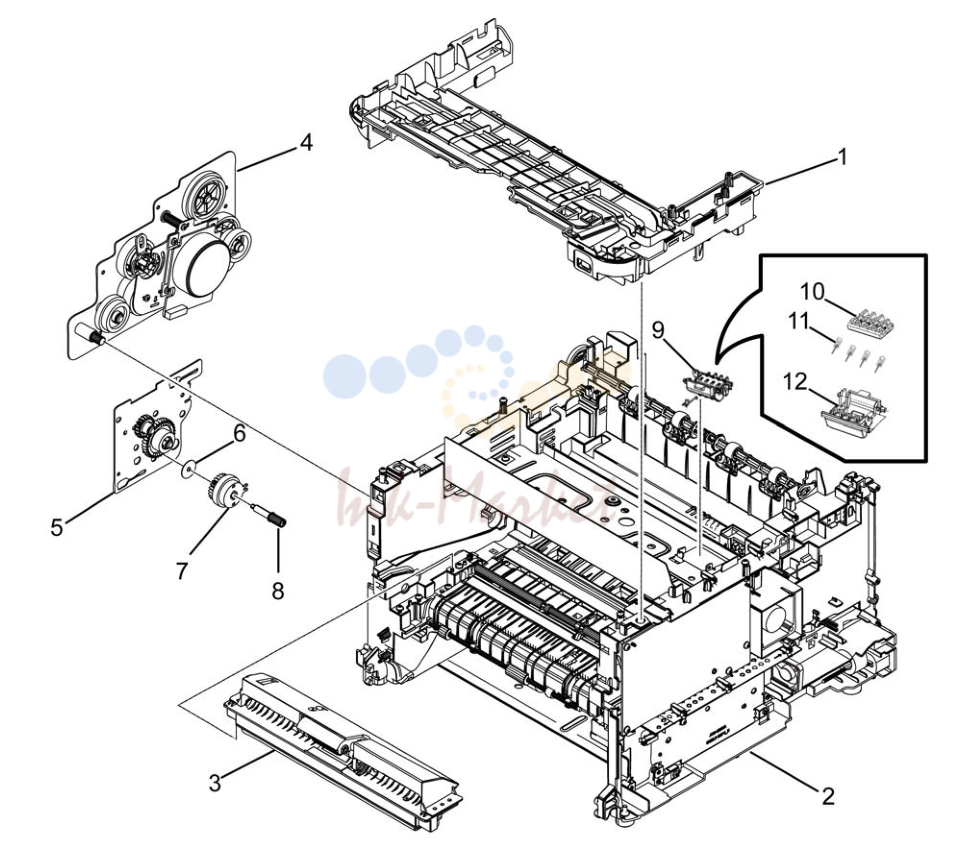

5. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Top Cover Inner -
2			Frame-ETC (REF: PL 3.1A) -
3			MP (Bypass Tray) (REF: PL 3.2) 130N01676
4			Drive (REF: PL 3.5) 007N01826
5			Feed Drive (REF: PL 3.6) 022N02858
6			Clutch Spacer -
7			Electric Clutch (Bypass Tray Clutch) 121N01219
8			Regi Feed Shaft -
9			Crum -
10			Holder- Crum Upper 019N01077
11			Terminal-Crum 116N00276
12			Holder-Crum Lower 019N01076
5-14			Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only

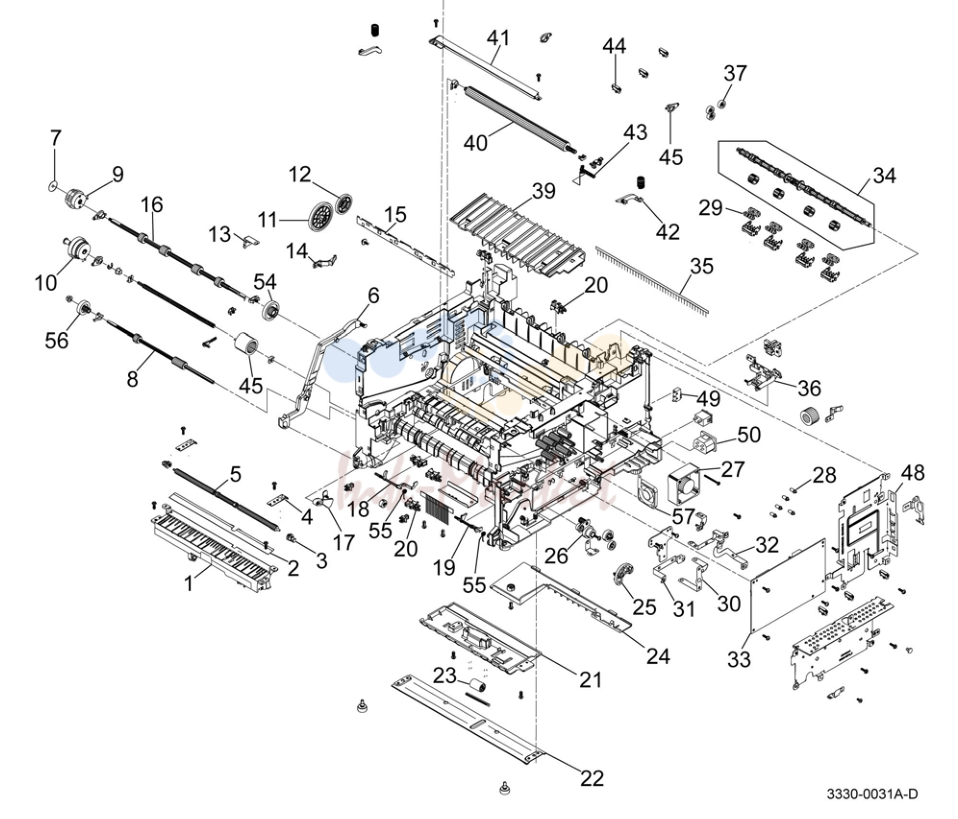

6. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Duplex Frame Guide -
2			Path Duplex Sheet -
3			Idle Feed M Bush -
4			Bushing Push P Plate -
5			Idle Feed Shaft -
6			Bar Coupling Lever 005N01146
7			Clutch Spacer -
8			Feed Roller 022N02673
9			Electric Clutch (Registration Clutch) 121N01219
10			Electric Clutch (Pickup Clutch) 121N01265
11			96 Idle Exit Gear 007N01707
12			65 Exit Gear -
13			Gear BRKT Ground -
14			CST Locker PMO -
15			SAW P Plate -
16			Regi Feed Shaft -
17			Empty Actuator 120N00552
18			Regi Actuator -
19			Feed Actuator -
20			Regis Sensor, Exit Sensor 130N01574 130N01574
21			Path EX Duplex Frame -
22			Bottom Frame Plate -
23			SCF M Idle Roller -
24			Harness Cap -
25			Duplex Swing Bracket -
26			23/23 RDCN Gear 35 Feed Actuator 007N01706
27			Exhaust Fan -
28			Shaft -
29			Decurler Roller Frame -
30			Paper BRKT Ground -
31			HVPS Ground -
32			LSU Bracket Ground -
33			HVPS 105N02248
34			Exit Roller Frame -
35			Antistatic Brush -
5-16			Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
36			Exit Sensor Holder 130N01669
37			19 DR Swing Gear 007N01705
38			LSU Bracket -
39			RIB TR Guide -
40			Bias Transfer Roller (BTR) 108R01469
41			Transfer Earth Plate -
42			Rotor Core -
43			TR Terminal -
44			Cable Clamp -
45			Pick Up Roller Part of Tray 1 Feed Roll Maintenance Kit
48			Controller Shield -
49			Rear Door & Bin Full Sensor Harness -
50	Inlet-1 запросить цену →		AC Harness -
51			Right LSU Holder BRKT -
52			Left LSU Holder BRKT -
53			Extension Ground BRKT -
54			29 Idle Feed Gear 007N01827
55			Spring-TS 009N01653
56			Gear-Feed 20 022N02672
57	Fan-Type1 запросить цену →		(SMPS Fan) 127N07834

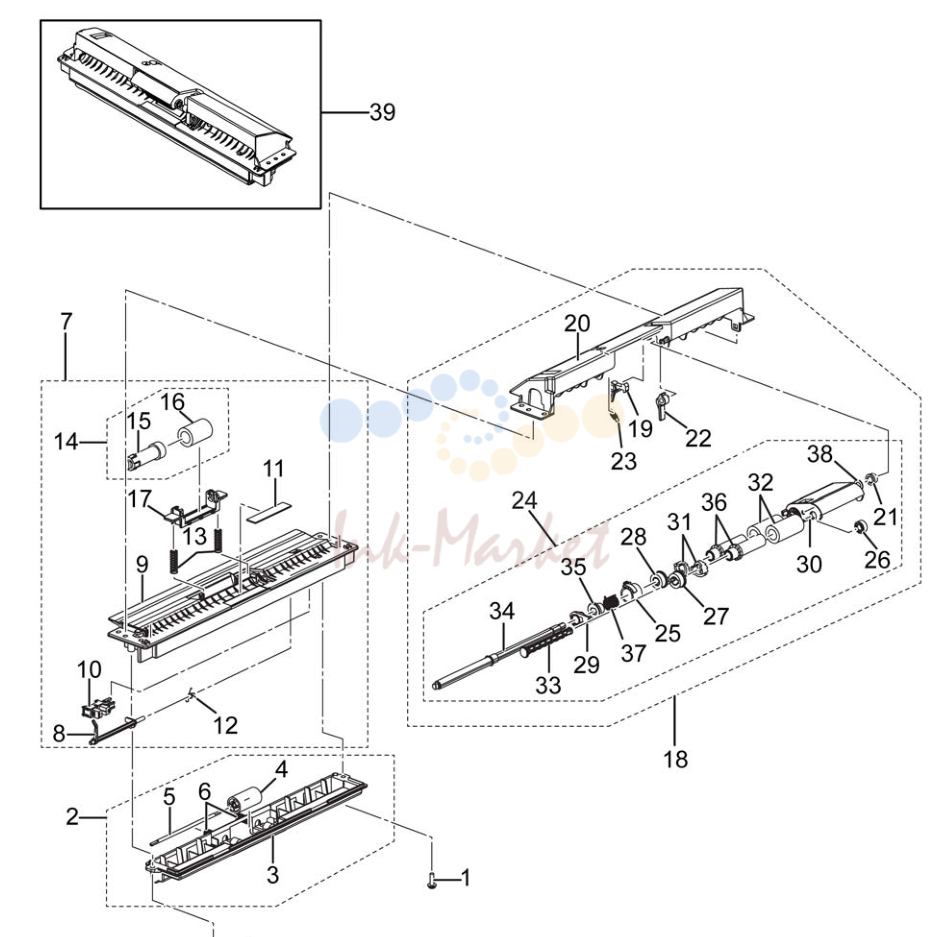

7. Parts Lists

№	Артикул	Альт. артикул	Описание
1			MP Taptype Screw -
2			Idle Holder MP -
3			Roller Cover -
4			Idler Roller -
5			ETC Pin -
6			CS Spring -
7			Lower MP -
8			Empty MP Actuator -
9			Lower MP Guide -
10			Bypass Tray Paper Entry Sensor 130N01574
11			Cassette Pad RPR -
12			TS Spring -
13			CS Spring -
14			Retard Roller Cassette (Retard Roller) (Includes 15, 16) 022N02677
15			Torque Limiter Coupler -
16			TL Rubber -
17			Retard Shaft Holder 006N01347
18			Upper MP -
19			Arm MP Actuator -
20			Upper MP Guide -
21			Brush PMO -
22			MP Stopper -
23			ES Spring -
24			Pick Up MP (Bypass Tray Pick Up Assembly) 130N01675
25			MP Collar -
26			Idle Pick Up Gear -
27			Joint Gear -
28	Joint2 запросить цену →		MP Gear -
29			Shaft Holder -
30			Pick Up MP Housing -
31			Pick Up Clutch Sub PMO -
32			Pick Up Rubber -
33			Pick Up Sub Shaft -
34			Pick Up MP Shaft -
35			MP Clutch Sleeve -
36			MP Sleeve -
37			TS Spring -
38			Plain Washer -
39			MP (Bypass Tray) 130N01676

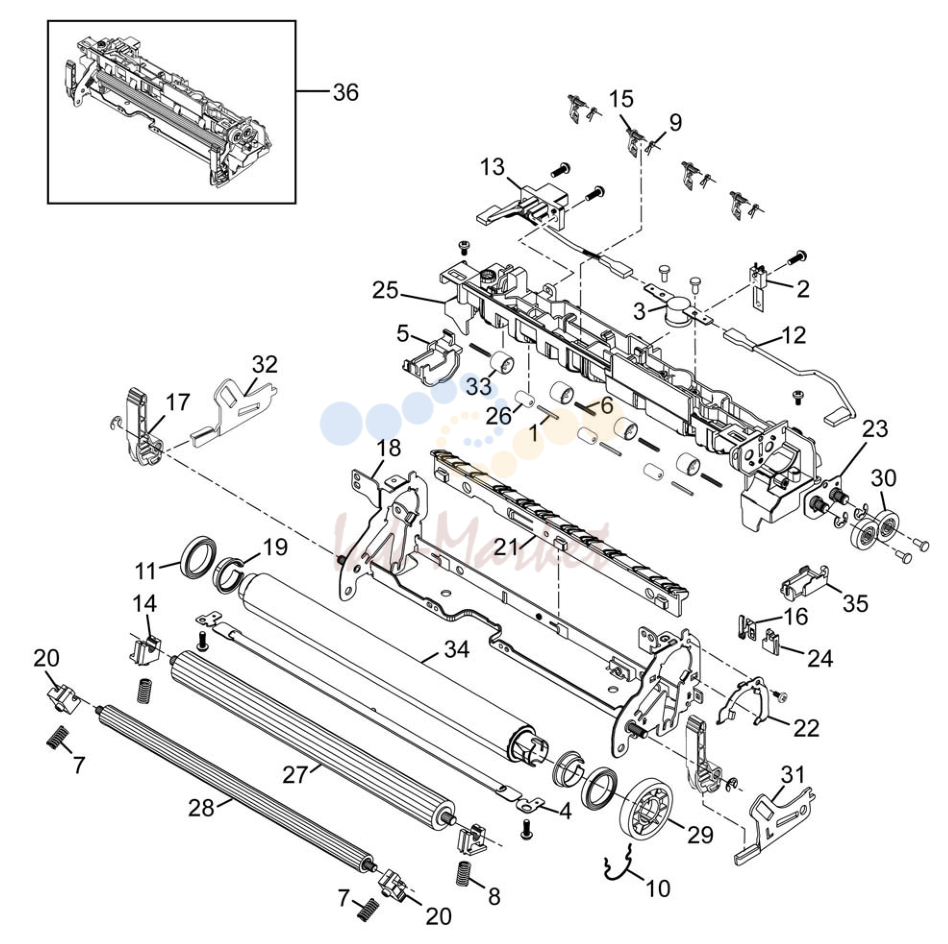

8. Parts Lists

№	Артикул	Альт. артикул	Описание
1			F/UP Idle Shaft IEX -
2			NTC Assy Thermistor 130N01668
3			Thermostat -
4			Halogen Lamp (110V/220V) -
5			R Lamp Cap -
6			ETC Spring -
7			CS Spring -
8			CS Spring -
9			ETC Spring -
10			ETC Spring -
11			Ball Bearing -
12			Joint Fuser Harness -
13			Con Fuser Harness -
14			PR 1st Bush -
15			Claw Guide -
16			Ground PR Guide -
17			Jam Holder -
18			Fuser Frame -
19			HR Bush -
20			2nd PR Bush -
21			Input Guide -
22			Bearing Bracket -
23			Gear Bracket -
24			PR M Ground -
25			Fuser Cover -
26			Idle Roller -
27			Pressure Roller -
28			2nd Pressure Roller -
29			Fuser Gear -
30			Exit Idle Gear -
31			L Jam Link Lever -
32			R Jam Link Lever -
33			Exit Idle Roller -
34			Heat Roller -
35			L Lamp Cap -
36			Fuser (110V) 126N00410

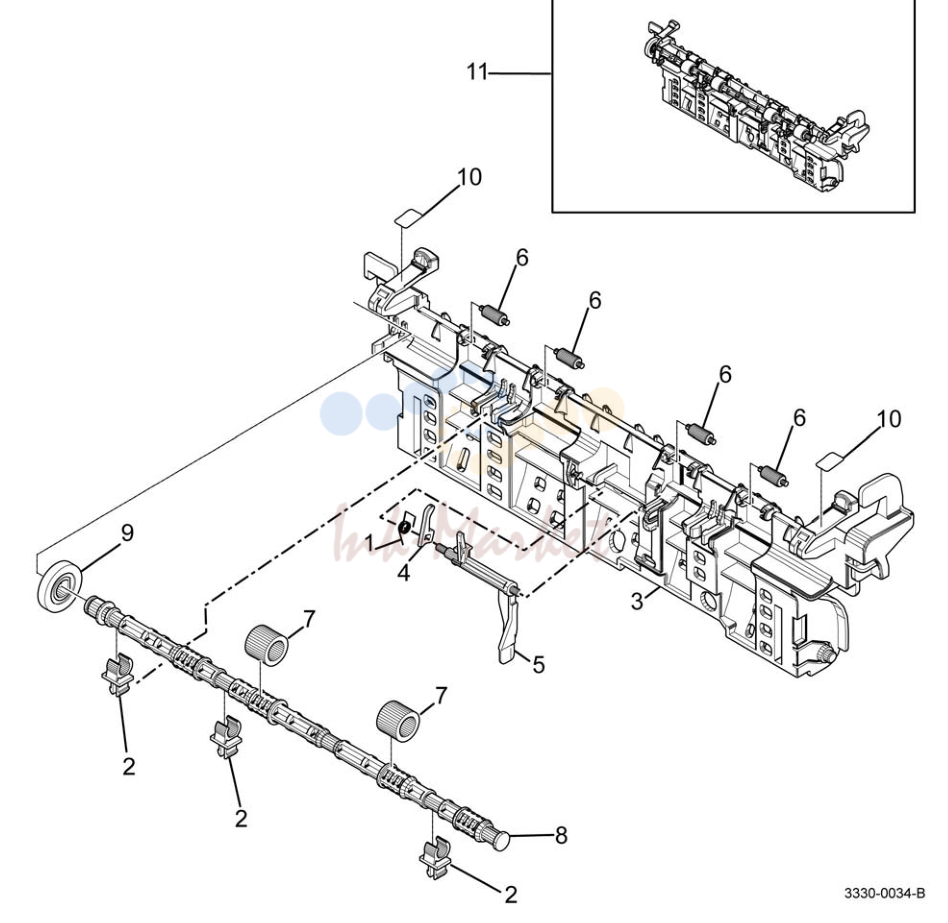

9. Parts Lists

№	Артикул	Альт. артикул	Описание
1			ETC Spring -
2			TX Bush -
3			Rear Guide -
4			Actuator Holder -
5			Exit Actuator -
6			Idle Exit Roller -
7			Silicon Exit Roller (1 pc) 022N02675
8			Exit F/UP Shaft (Exit Roller) -
9			Exit Z19 Gear -
10			One Touch Label -
11			Rear Frame 001N00534

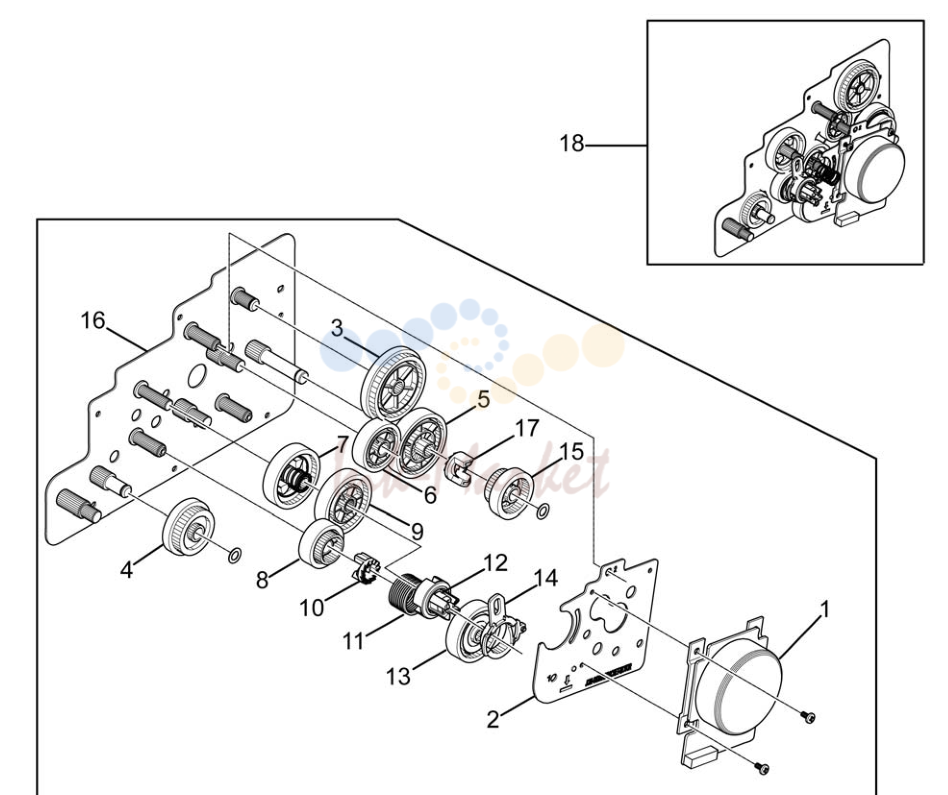

10. Parts Lists

№	Артикул	Альт. артикул	Описание
1			BLDC Motor (Main Drive Motor) 127N07912
2			Motor Bracket -
3	95-81 запросить цену →		Exit Gear -
4	65-28 запросить цену →		Feed Gear 022N02857
5			79 IN DR Fuser Gear -
6			59 Idle Gear -
7			73 Coupler Gear -
8			53 Out DR OPC Gear -
9			73 Idle Gear -
10			Clutch Hub -
11			CS Spring -
12			Coupler -
13			69 IN DR OPC Gear -
14			Cam Coupler -
15			29 DR Fuser Gear -
16			Gear Bracket -
17			Clutch Hub Gear -
18			Drive 007N01826

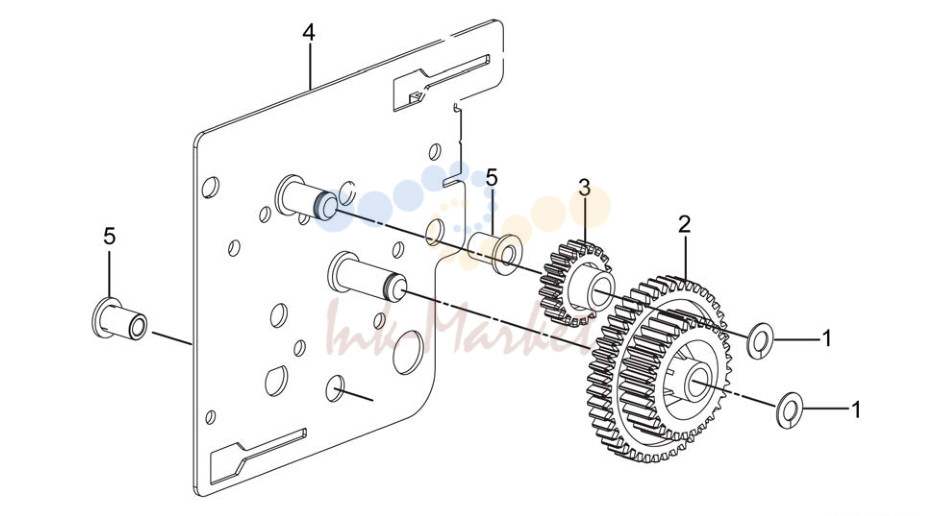

11. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Plain Washer -
2	44-29 запросить цену →		Feed Gear -
3			19 Idle MP Gear 007N01709
4			Feed Bracket -
5			Shaft Bush -
6			Drive Feed 022N02858

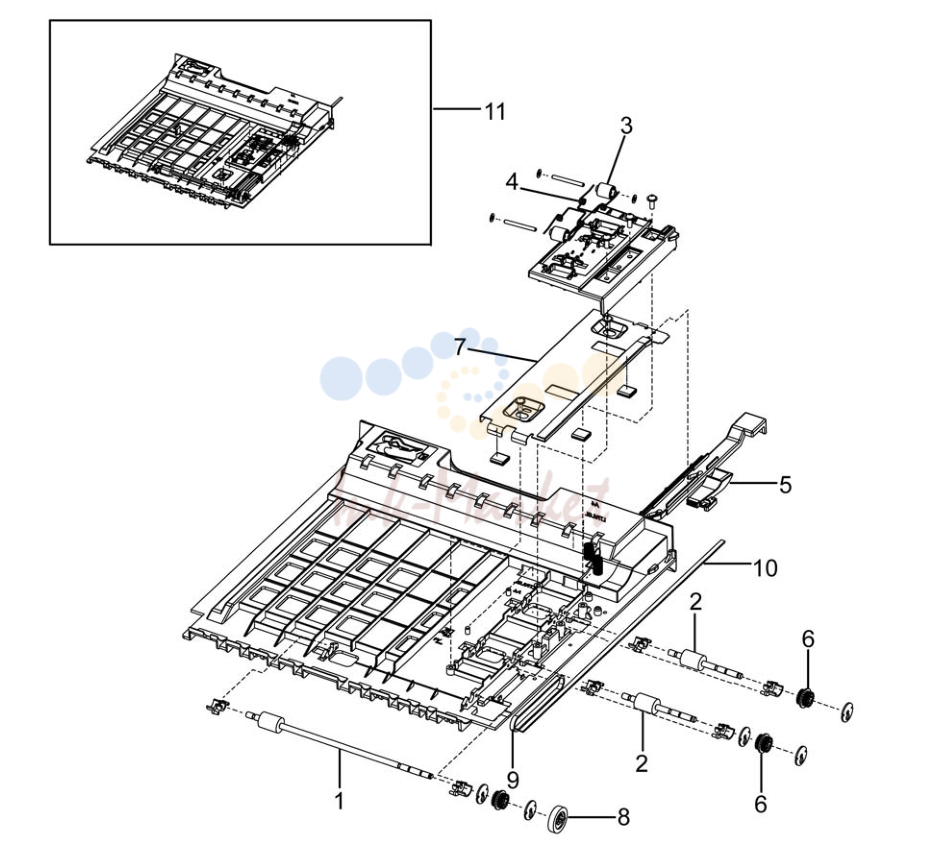

12. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Feed DUP2 Roller -
2			Feed Dup Roller -
3			Idle Dup M Roller -
4			TS Spring -
5			Paper Duplex Guide -
6			18 Dup Pulley -
7			Duplex Align Bracket -
8			F/Down Exit Gear -
9			Gear Timing Belt -
10			Timing Belt -
11			Duplex 022N02856

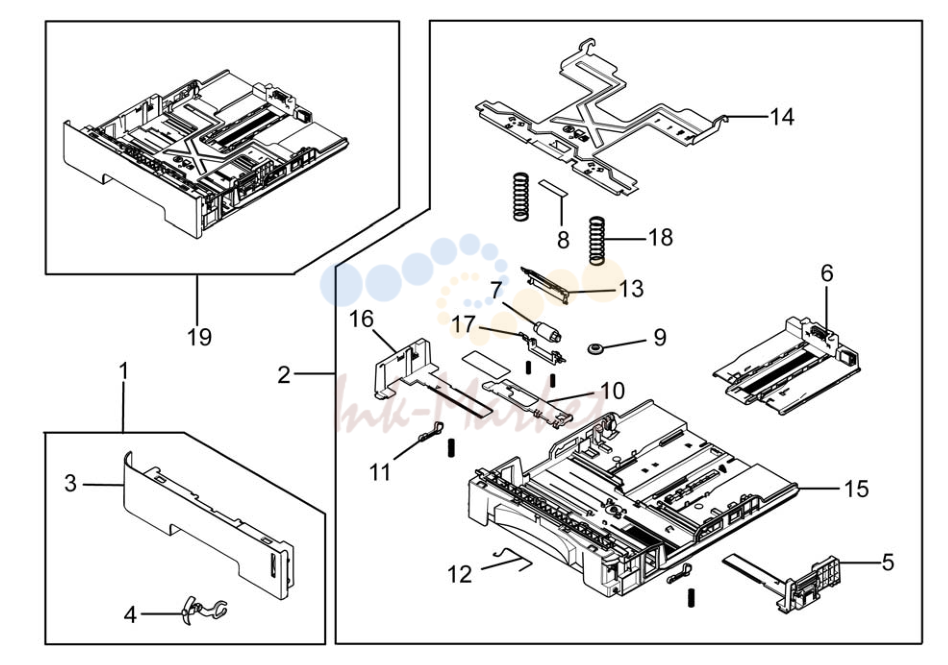

13. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Cassette Cover Handle -
2			Cassette Frame Assembly -
3			Cassette Handle -
4			Paper Indicator -
5			Right Cassette Guide -
6			Rear Guide Cassette -
7			Retard Roller Cassette P art of Tray 1 Feed Roll Maintenance Kit
8			Cassette Pad RPR (Base Plate Pad) 050N00646
9			Pinion Gear -
10			Locker Plate -
11			Cassette Locker -
12			Cassette Ground -
13			Cassette Cover -
14			Knock Up Plate P -
15			Cassette Frame -
16			Left Guide Cassette -
17			Retard Shaft Holder -
18			CS Spring -
19			Tray 1 Cassette Assembly 050N00694

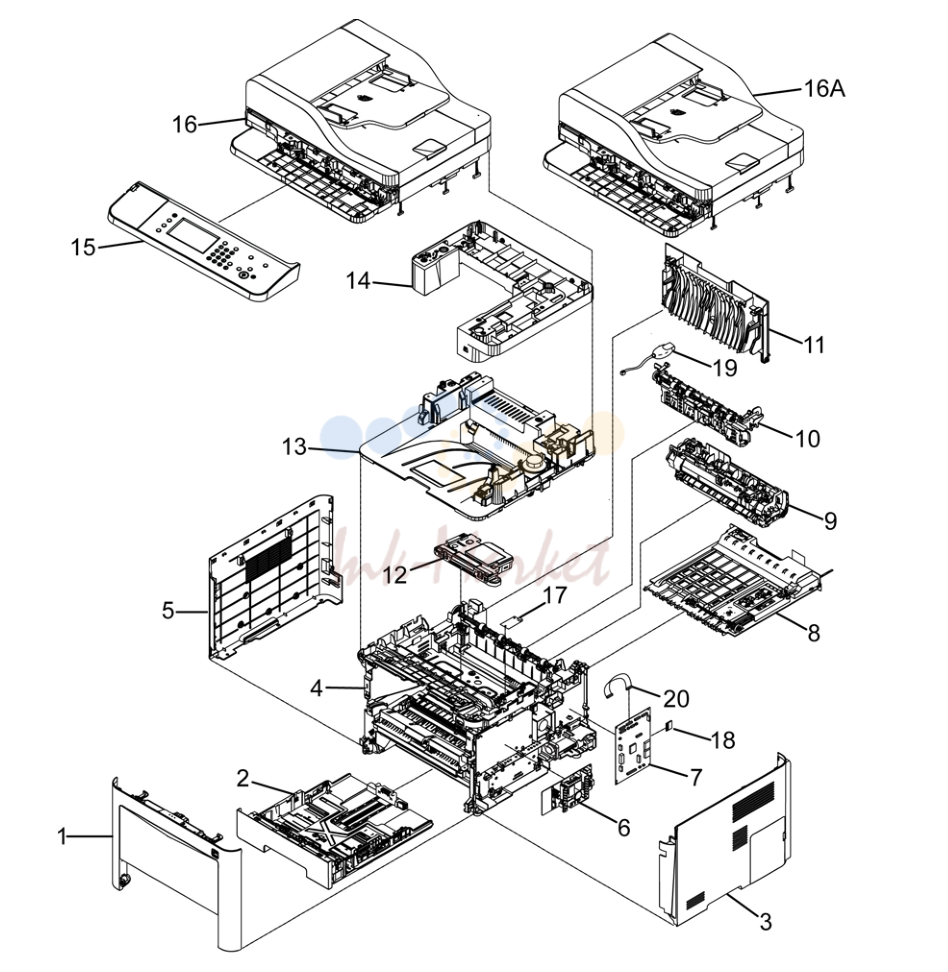

14. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Front Cover Assembly (REF: PL 1.3) 002N03326
2			Tray 1 (REF:PL 5.1) 050N00694
3			Right Cover (REF:PL.1.2) 002N03333
4			Main Frame (REF: PL 3.1) -
5			Left Cover 002N03332
6			SMPS (110V) 105N02330
7			Main PWB (3335) (See Note) 140N63797
8			Duplex Assembly (REF: PL 4.1) 022N02856
9			Fuser (110V) (REF: PL 3.3) 126N00410
10			Rear Frame (REF: PL 3.4) 001N00534
11			Rear Door 095N00415
12			LSU (Laser Unit) 130N01853
13			Lower Middle Cover 002N03336
14			Upper Middle Cover -
15			Control Panel Assy Refer to Parts List 10.1 WorkCentre
16			WorkCentre 3335 ADF (REF: PL 7.1) -
17			Wireless Board 140N63805
18			SD Card 091N80340
19			Surge Protector (South Africa Only) 005N01172
20			Flat Cable (Modem Cable) 117N02065

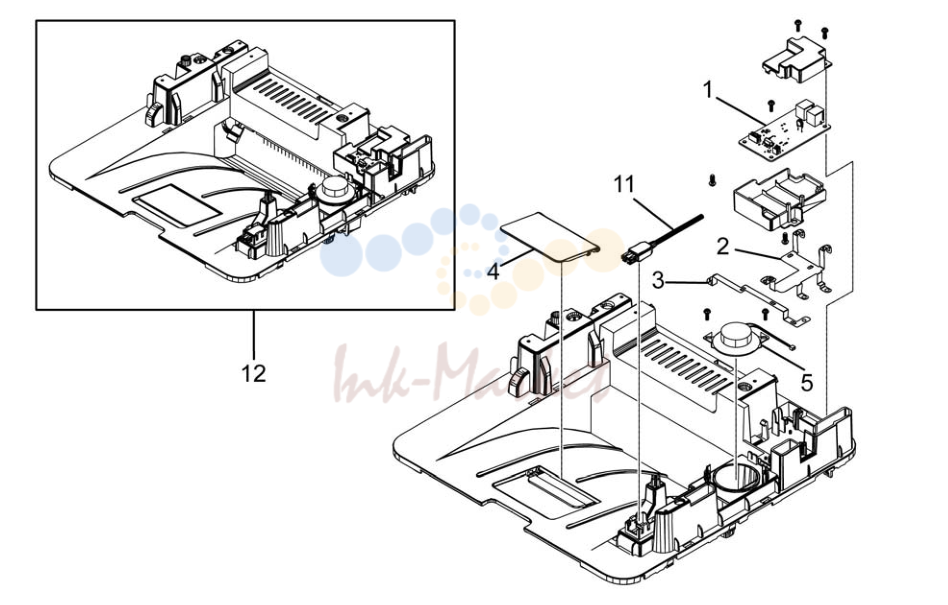

15. Parts Lists

№	Артикул	Альт. артикул	Описание
1			PBA Sub-Modem (Fax PBA) 140N63726
2			FAX Ground -
3			Exit Ground -
4			Main Stacker -
5			Speaker 130N01532
6			Bin Full Stacker -
7			Sub M Stacker PMO -
8			Path Cover -
9			Exit Cover -
10			Antistatic Brush -
11			USB Harness -
12			Lower Middle Cover 095N00460

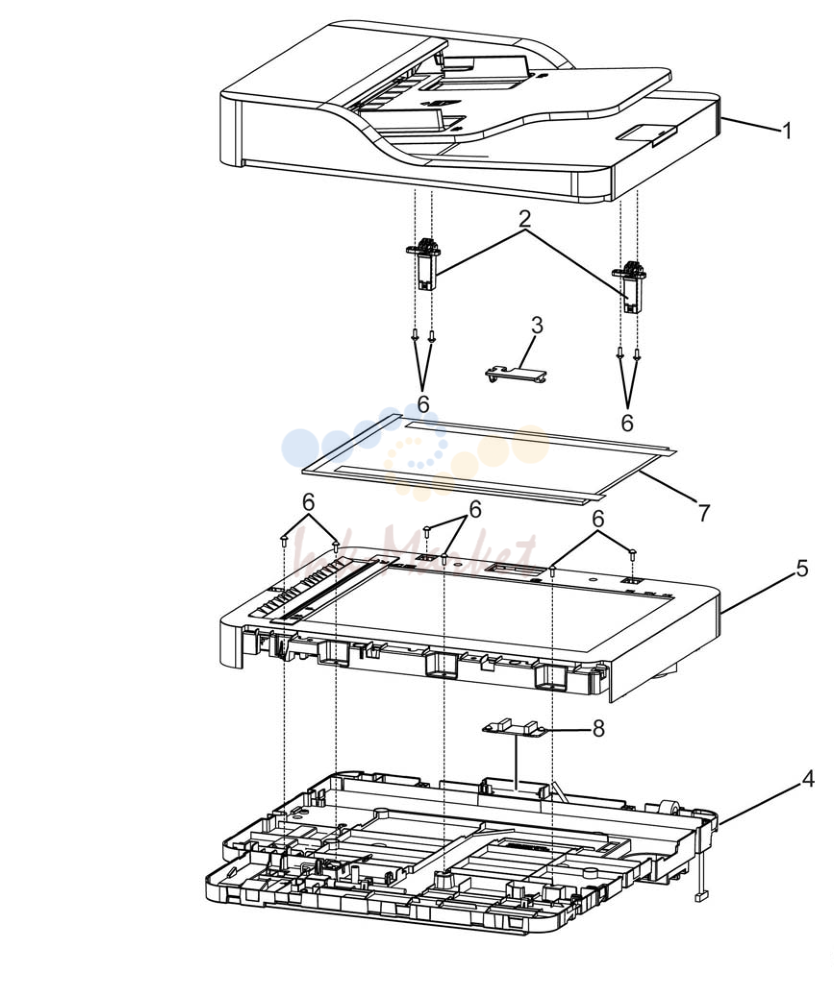

16. Parts Lists

№	Артикул	Альт. артикул	Описание
1			ADF (REF:PL 7.3) 022N02859
2			Hinge 003N01117
3			Connector Cover -
4			Lower ADF Platen 090N00187
5			Platen (REF: PL.9.2) 090N00186
6			Screw -
7			White Sheet 055N00320
8			ADF PWB 140N63806

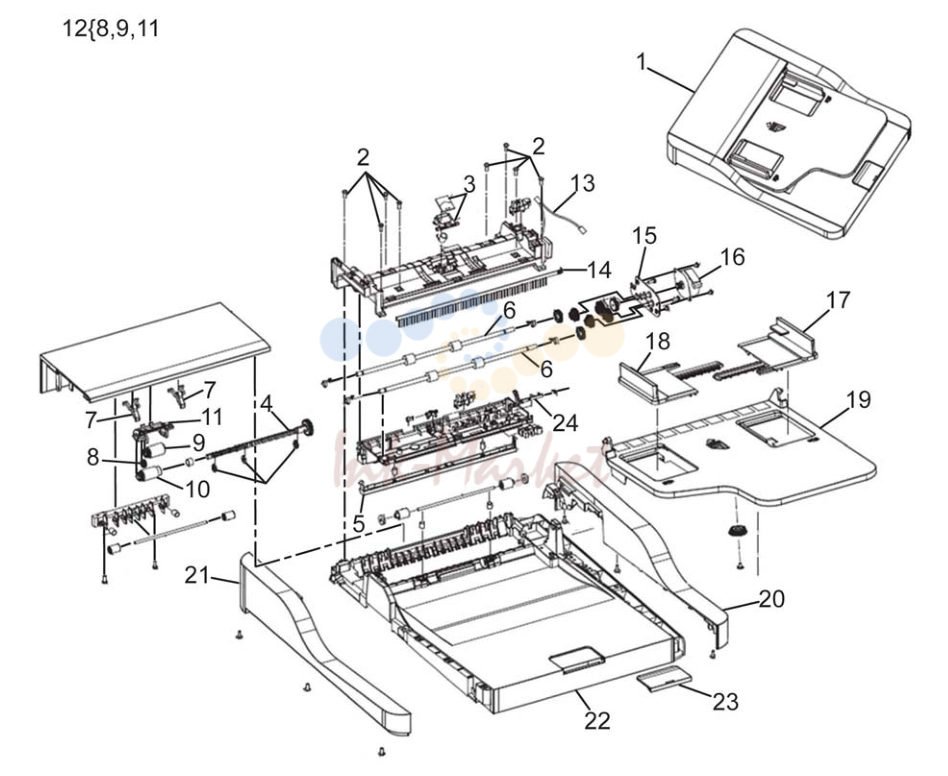

17. Parts Lists

№	Артикул	Альт. артикул	Описание
1			ADF 022N02859
2			Screw -
3			Rubber Pad 108R01472
4			Drive Gear -
5			White Bar 025N00104
6			Roller -
7			Paper Stopper -
8			Idle Gear -
9			Gear Separate Roller -
10			Roller Pickup 130N01673
11			Pick up Housing 130N01854
12			Housing Pickup Assembly -
13			Sensor Harness -
14			Antistatic Brush -
15			Motor Bracket -
16			ADF Motor 127N07781
17			Front Edge Guide -
18			Rear Edge Guide -
19			Stacker -
20			Rear ADF Cover -
21			Front ADF Cover -
22			Cover Platen -
23			Slide Stopper -
24			Position Paper Actuator -

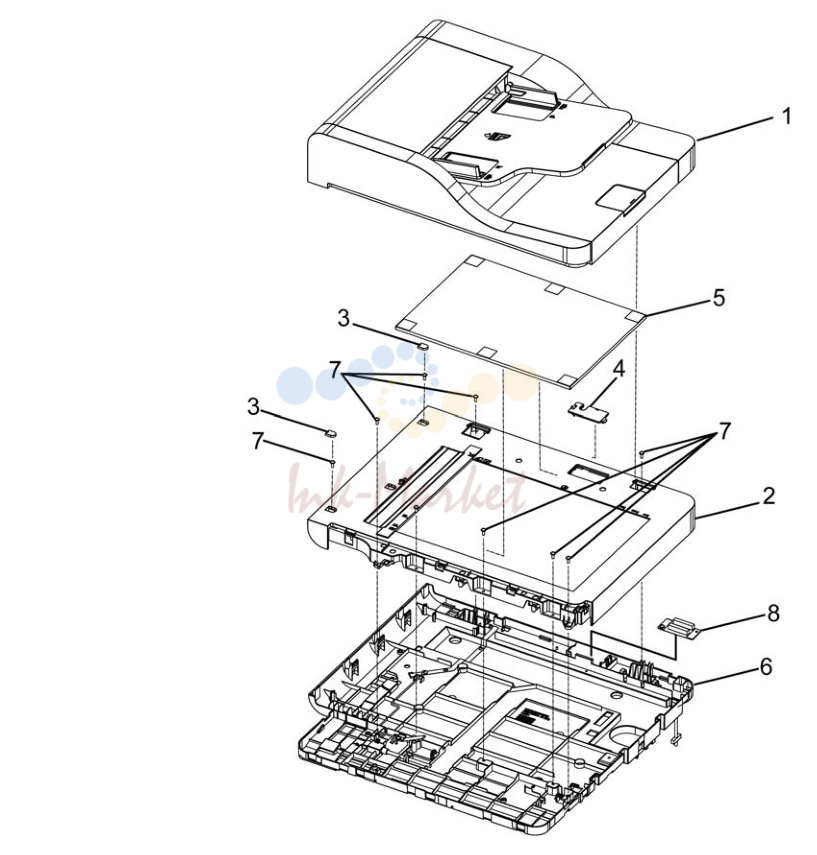

18. Parts Lists

№	Артикул	Альт. артикул	Описание
1			DADF (REF:PL 8.1A) 022N02860
2			Platen 090N00189
3			Scan Cover -
4			Connector Cover -
5			White Sheet 019N00810
6			Lower DADF Platen 090N00188
7			Screw -
8			DADF PWB -

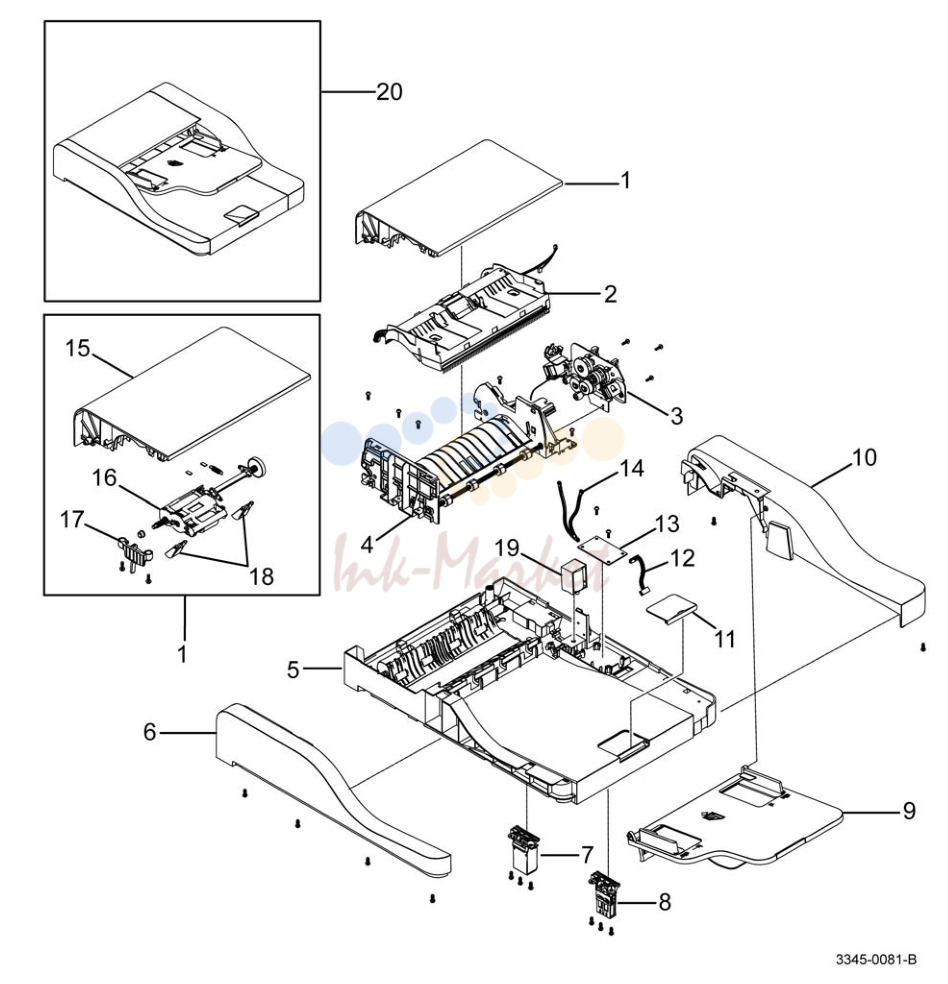

19. Parts Lists

№	Артикул	Альт. артикул	Описание
1			DADF Top Cover 002N03327
2			Upper DADF (REF:PL 8.3) -
3			DADF Drive (REF:PL 8.5) 007N01829
4			Lower DADF (REF:PL 8.2) -
5			Platen DADF -
6			DADF Front Cover -
7			DADF Hinge R 003N01145
8			DADF Hinge L 003N01146
9			DADF Stacker -
10			DADF Rear Cover -
11			Slide Stopper -
12			DADF Harness -
13			DADF Board 140N63807
14			Zener GND CBF Harness -
15			Open Cover -
16			DADF Up Pick MEA Unit 130N01855
17			Stopper MEA Unit -
18			Sensor M DOC Guide -
19			Lifting Solenoid 121N01160
20			DADF 022N02860

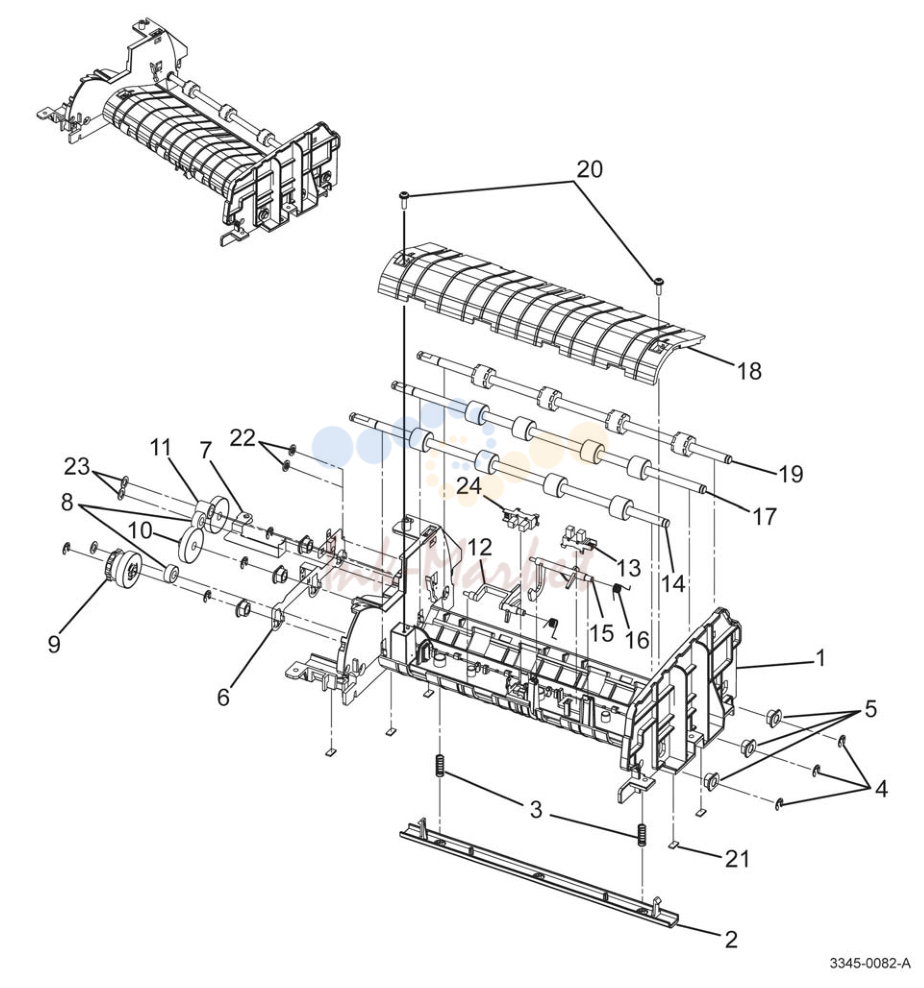

20. Parts Lists

№	Артикул	Альт. артикул	Описание
1			DADF Lower Cover -
2			White Bar Plate 025N00105
3			P/UP Separate ETC Spring -
4			E Ring -
5			6 D Bush -
6			Exit Feed Ground -
7			DADF Ground -
8			D Idle Feed Gear -
9			Feed Gear MEA -
10			Exit Gear -
11			C Idle Feed Gear -
12			Feed Actuator -
13			DADF Registration Sensor 130N01574
14			Feed Roller 022N02681
15			Regi Actuator -
16			Doc Torsion Etc. Spring -
17			Middle Roller -
18			DADF Middle Roller -
19			Exit Roller -
20			Taptype Screw -
21			Upper DADF Damper -
22			CS Ring -
23			Plain Washer -
24			DADF Feed Sensor 130N01574

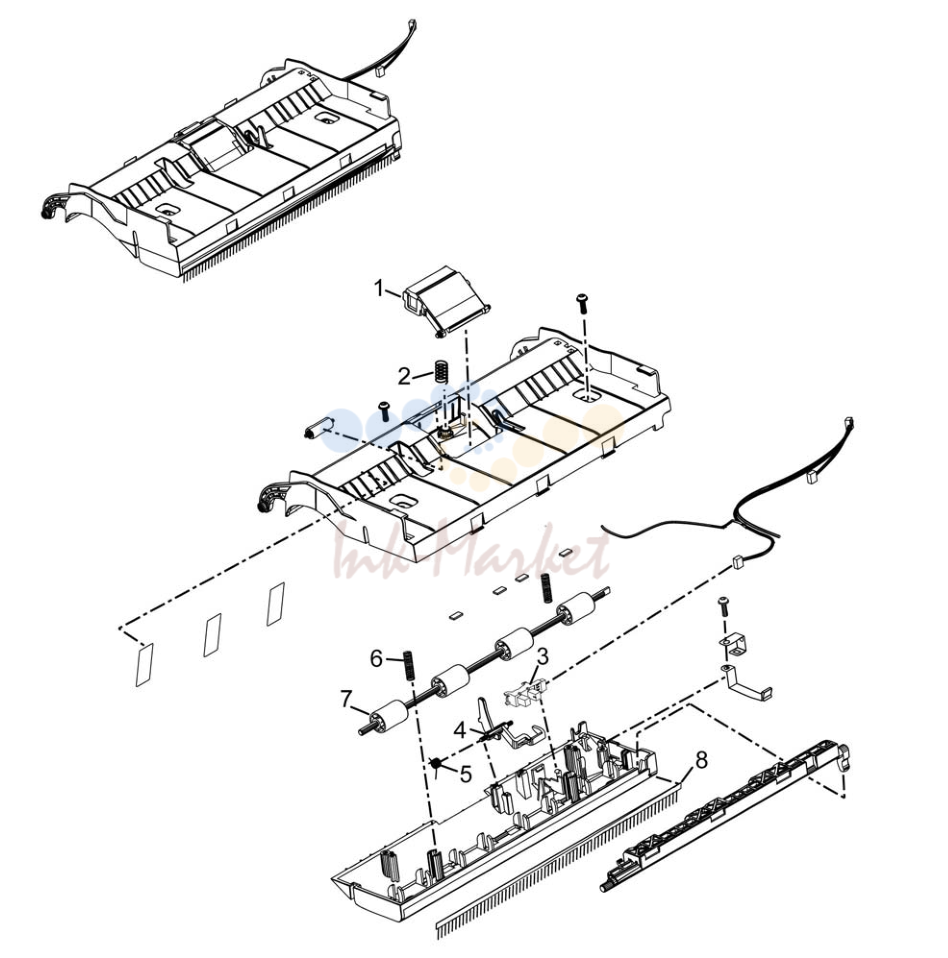

21. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Rubber DADF MEA Unit (Separator Pad) 108R01473
2			Pad ETC Spring -
3			Paper Empty Sensor 130N01601
4			Paper Empty Actuator -
5			Torsion Doc (CC2-F) Sprint ETC -
6			Exit ETC Spring -
7			SCF M Idle Roller -
8			Antistatic Brush MEC -

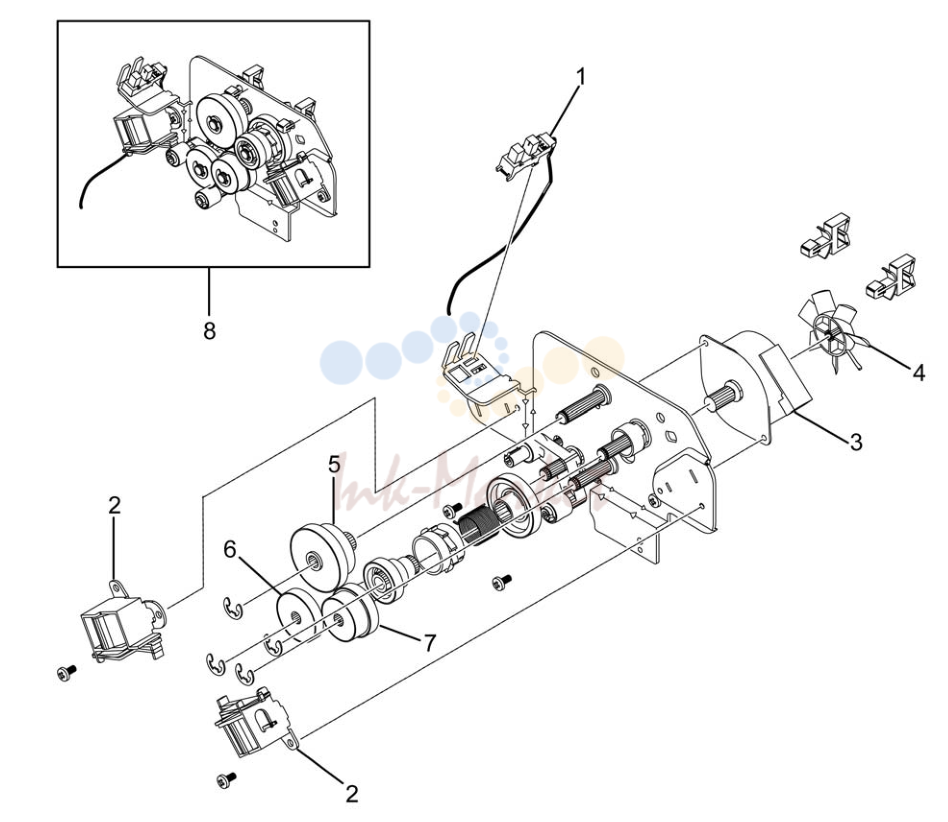

22. Parts Lists

№	Артикул	Альт. артикул	Описание
1			DADF Solenoid Sensor -
2			DADF Solenoid -
3			Step Motor -
4			ADF Impeller -
5			Pickup Idle Gear -
6			Feed Idle Gear B -
7			Feed Idle Gear A -
8			DADF Drive 007N01829

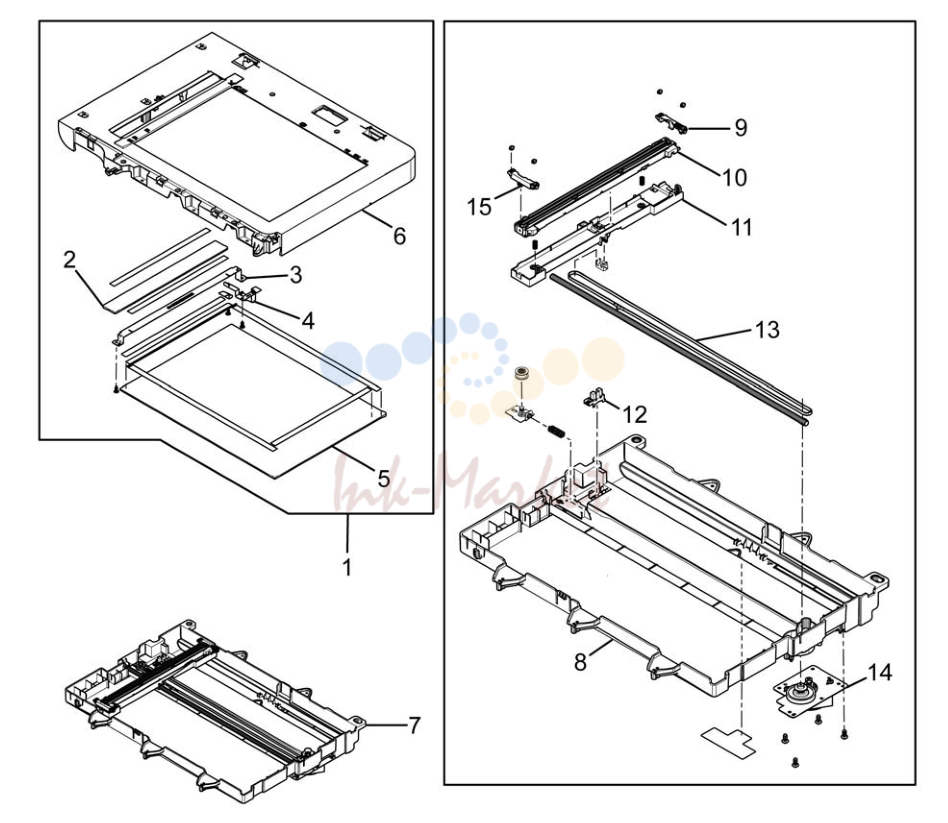

23. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Upper Platen -
2			CVT Glass -
3			Scan Bracket -
4			Upper Platen Ground -
5			Platen Glass -
6			Upper Scan Cover -
7			Middle Platen -
8			Lower Scan Frame -
9			Rear CIS Guide -
10			Image Sensor 130N01679
11			CIS Bracket -
12			Carriage Home Sensor 130N01574
13			Gear Timing Belt 007N01704
14			Scan Motor 007N01828
15			Front CIS Guide -

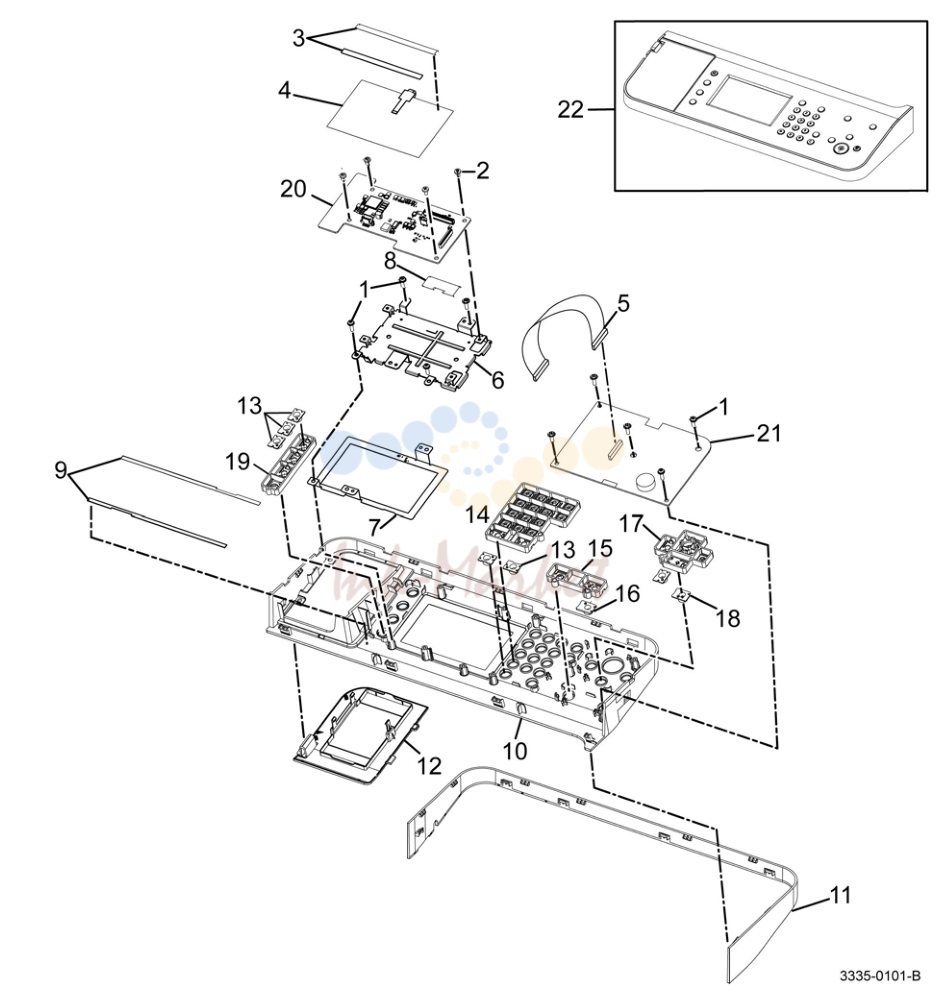

24. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Screw -
2			Screw -
3			Double Face Tape -
4			LCD -
5			Flat Cable -
6			Plate -
7			LSD Plate -
8			Connector Insulation -
9			LSD Seal -
10			Control Panel Cover -
11			DECO Control Panel Cover -
12			Card Reader Cover -
13			Function Key -
14			Numerical Key -
15			Extra Key -
16			Power Save Key -
17			Start Key -
18			Clear Key -
19			Home Key -
20			Control Panel Board -
21			Key PWB 140N63799
22			Control Panel Assy (3335) 140N63801

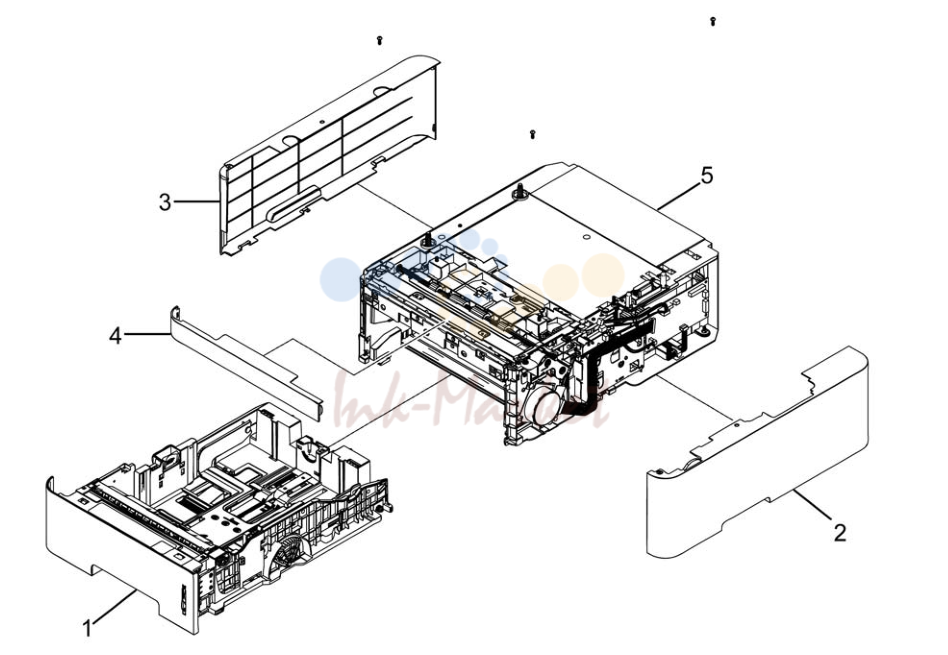

25. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Cassette A/S Assy 050N00695
2			Right Cover Optional Tray 2 Feeder 002N03328
3			Left Cover Optional Tray 2 Feeder 002N03329
4			Front Dummy Cover Optional Tray 2 Feeder -
5			Frame-ETC -

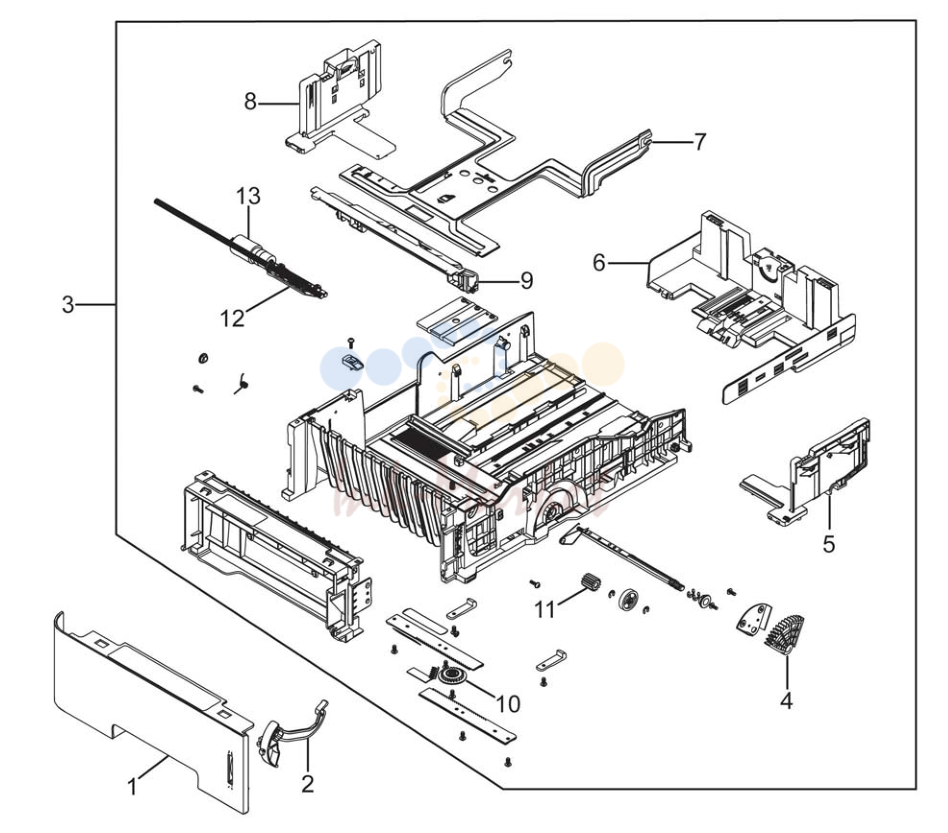

26. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Cassette Handle -
2			Paper Indicator CSP -
3			Cassette Frame -
4			Lifting Gear CSP -
5			Right Cassette Side -
6			Rear Cassette Paper Guide -
7			Knock up Plate CSP -
8			Left Cassette Side -
9			Retard Cap CSP -
10			M Pinion Gear -
11			Idle Retard Gear CSP -
12			Cassette Retard Part of Tray 2 Feed Roll Maintenance Kit
13			MEA Unit-Roller PU Part of Tray 2 Feed Roll Maintenance Kit

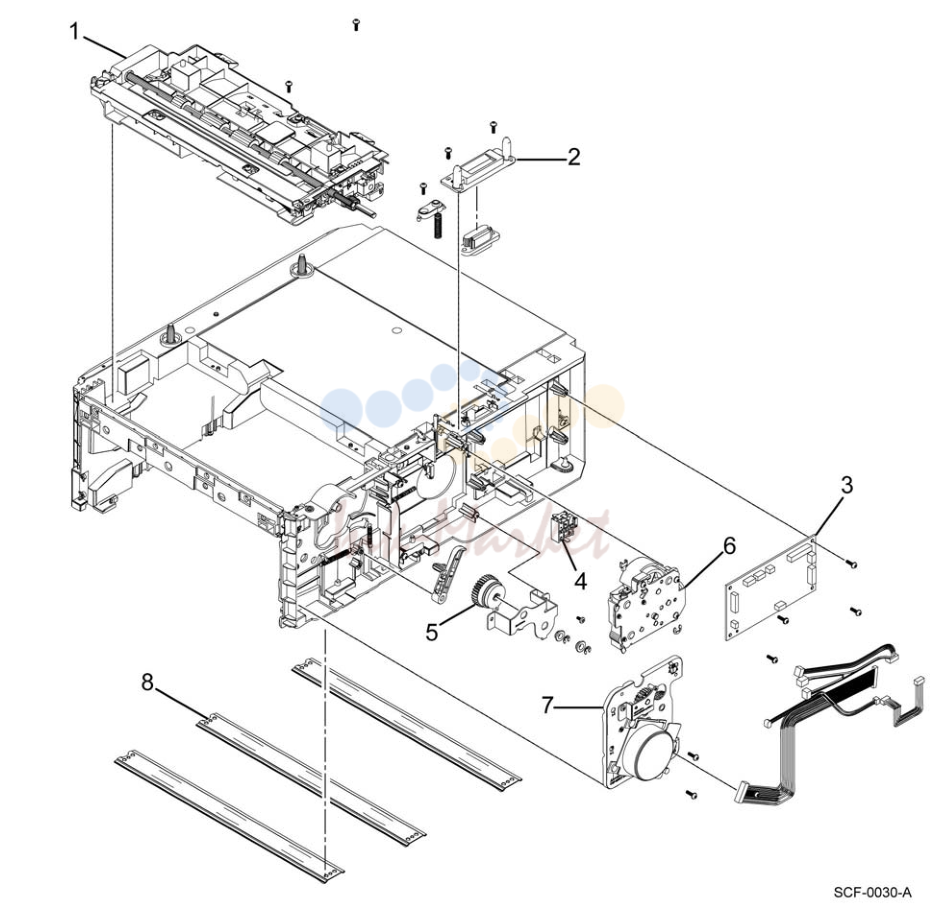

27. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Pick Up Unit Assembly 130N01856
2			Connector Holder Optional Tray 2 Feeder -
3			Main PWB A/S (Optional Tray Feeder Board) 140N63809
4			Signal Switch 110N01524
5			Electric Clutch 121N01220
6			Feed Drive 120N00559
7			Drive Unit A/S Assy 007N01710
8			Bottom Frame Plate -

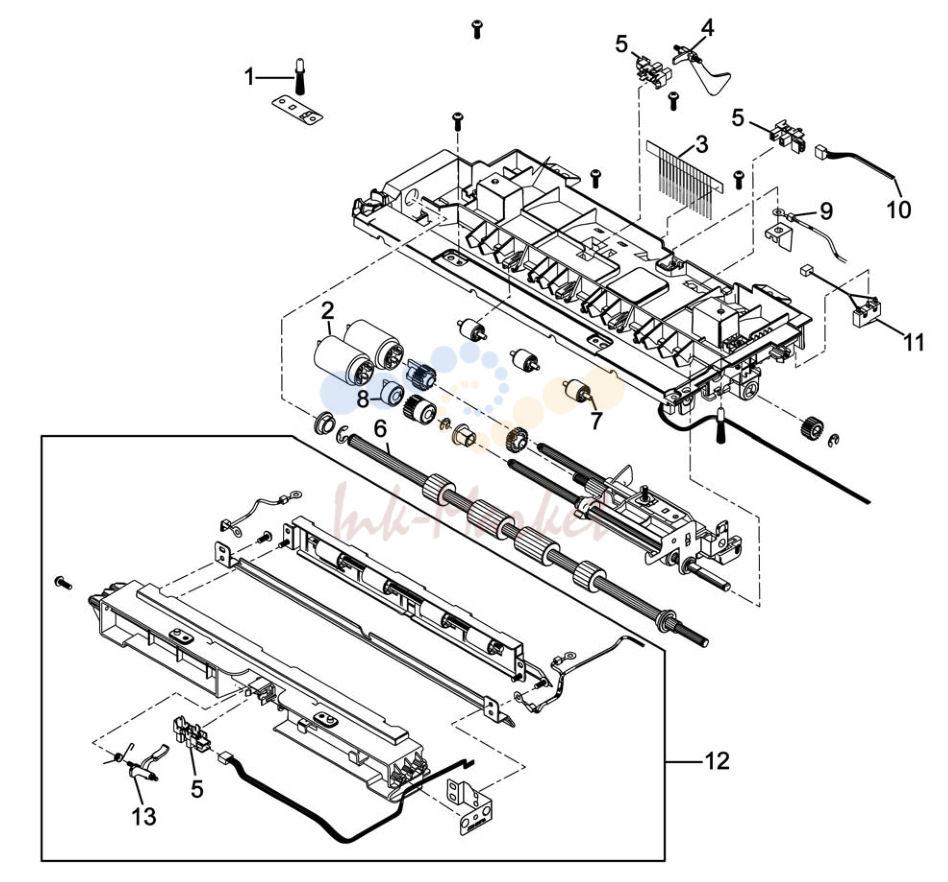

28. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Terminal MEA Unit -
2			Roller MEA Unit 108R01471
3			Pick Brush -
4			Paper Empty Actuator -
5			Paper Empty Sensor -
6			REGI Roller -
7			Idle Roller-M -
8			Idle One Way Holder-M -
9			Harness-GND -
10			Feed Sensor Harness -
11			Motor SW Harness -
12			A/S Com-Frame Feed -
13			CSP-SCF Actuator Feed -

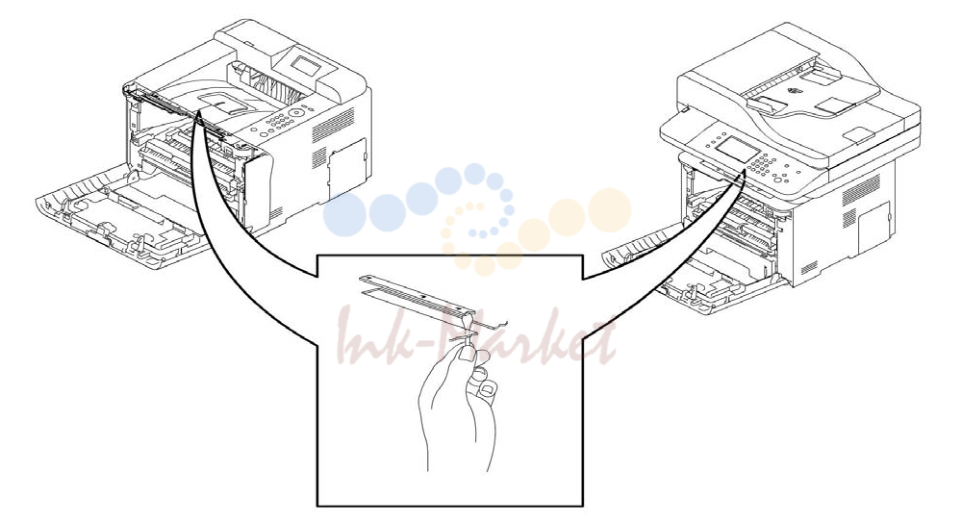

29. Maintenance

№	Артикул	Альт. артикул	Описание
1			High
2			High
3			High

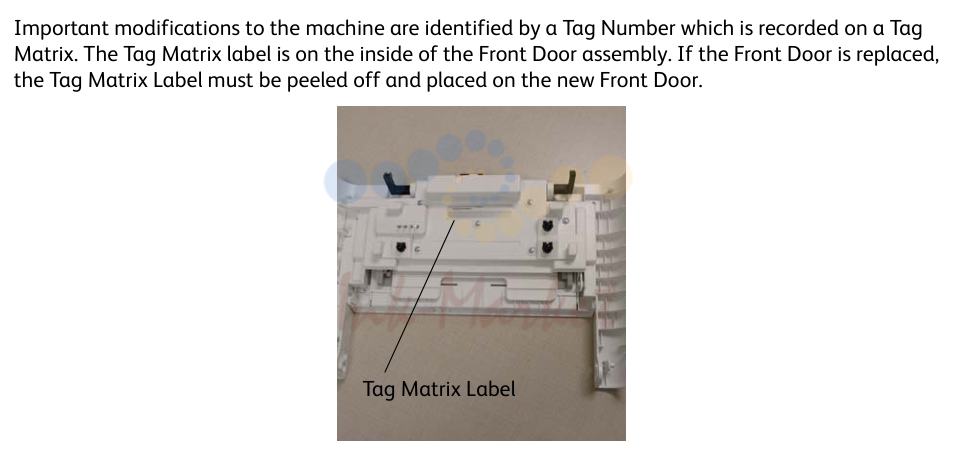

30. Maintenance

№	Артикул	Альт. артикул	Описание
1			Safety
6			Refurbishing
6-10			Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
