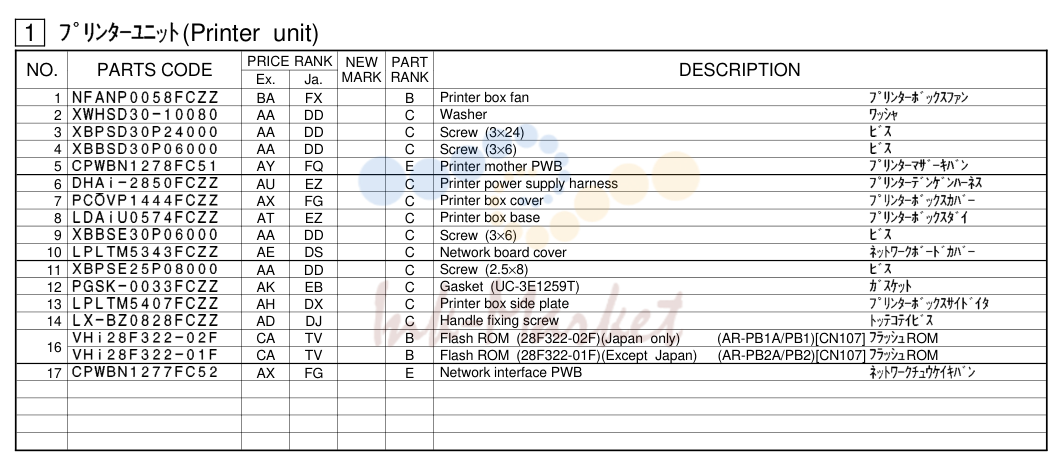

| 1 | | | (Printer unit) |
| 1 | | | BA FX B Printer box fan |
| 2 | | | AA DD C Washer |
| 3 | | | AA DD C Screw (3· 24) |
| 4 | | | AA DD C Screw (3· 6) |
| 5 | | | AY FQ E Printer mother PWB |
| 6 | | | AU EZ C Printer power supply harness |
| 7 | | | AX FG C Printer box cover |
| 8 | | | AT EZ C Printer box base |
| 9 | | | AA DD C Screw (3· 6) |
| 10 | | | AE DS C Network board cover |
| 11 | | | AA DD C Screw (2.5· 8) |
| 12 | | | AK EB C Gasket (UC-3E1259T) |
| 13 | | | AH DX C Printer box side plate |
| 14 | | | AD DJ C Handle fixing screw |
| 17 | | | AX FG E Network interface PWB |
| 1 | | | (Printer unit) |
| 2 | | | (Printer PWB) |
| 1 | | | AD DJ C PWB holder (SRF5U) |
| 2 | | | AD DJ C Cap (JM-2W-96) [JP109] |
| 3 | | | AG DS C Heat sink (PUG16-25) [IC166] |
| 4 | | | AC DJ C Sheet (2067B) [IC166] |
| 5 | | | AH DX C Connector (53319-0200)(20pin) [CN116] |
| 6 | | | AQ EG C Connector (DHB-PB60)(60pin) [CN105] |
| 7 | | | AH DX C Connector (36pin) [CN101]36PIN - |
| 8 | | | AP EQ C Connector (PCSXE50LFDT)(40pin) [CN102] |
| 9 | | | AC DJ C Pin (T3B-SQ) [JP109] |
| 10 | | | Push memory socket (93674-51872) |
| 11 | | | AL EB C SIMM socket (917970-1) [CN109,113]SIMM |
| 12 | | | AE DS C IC socket (28pin) [IC142]IC |
| 13 | | | AQ EQ B Crystal (40MHz) [X103] |
| 14 | | | AR EQ B Crystal (74.9MHz) [X101] |
| 15 | | | AC DD B Block resistor (4.7K·W 8) [BR217,220] |
| 16 | | | AC DD B Block resistor (10K·W 8) [BR202,203,205~ 216,218,219,221~ 245] |
| 17 | | | AC DD B Block resister (2K·W 8) [BR201] |
| 18 | | | AC DD B Block resister (2.2K·W 8) [BR204] |
| 19 | | | AA DD C Capacitor (50WV 100pF) [C281] |
| 20 | | | AB DD C Capacitor (50WV 30PF) [C376] |
| 21 | | | AC DD C Capacitor (10WV 1.0m F) [C302,303,315,316] |
| 22 | | | AC DD C Capacitor (6.3WV 100m F) [C107] |
| 23 | | | AC DD C Capacitor (16WV 10m F) [C102,103,109] |
| 24 | | | AC DJ C Capacitor (16WV 47m F) [C104,106] |
| 25 | | | AC DD C Capacitor (25WV 35m F) [C105] |
| 26 | | | AD DD C Capacitor (50WV 10m F) [C101,108] |
| 27 | | | Capacitor (25WV 0.10m F) |
| 28 | | | AA DD C Capacitor (50WV 1000pF) [C300,230] |
| 29 | | | AA DD C Capacitor (50WV 0.010m F) [C301] |
| 30 | | | AA DD C Capacitor (50WV 2200pF) [C207~ 214] |
| 31 | | | AB DJ B Diode (1N4005) [D101~ 104,106] |
| 32 | | | AA DD B Diode (1SS133) [D107] |
| 33 | | | AF DS B Diode (SB140) [D105] |
| 34 | | | AR EQ B IC (162244ATPV) [IC136]IC |
| 35 | | | AS EQ B IC (162245ATPV) [IC123,124,133,135]IC |
| 36 | | | AS EQ B IC (162373ATPV) [IC105,120,122,129,134,143,144,145,146]IC |
| 37 | | | AV FG B IC (162511ATPV) [IC138,139,140,141]IC |
| 42 | | | AR EQ B IC (74LVT244NS) [IC104]IC |
| 43 | | | AZ FQ B EEP ROM (AT28C64B) [IC142]EEP ROM |
| 44 | | | BF GN B IC (CLCD1283QC) [IC106]IC |
| 2 | | | (Printer PWB) |
| 45 | | | AN EG B IC (FCT244ATS0) [IC101,148]IC |
| 52 | | | AR EQ B IC (T16244ATPV) [IC147]IC |
| 55 | | | AP EQ B IC (UPD71051G) [IC127,130]IC |
| 56 | | | AA DD B LED (GL3PR8)(red) [D109~ 114] |
| 57 | | | Resistor (1/16W 0W - 5%) |
| 58 | | | AA DD C Resistor (1/16W 10W - 5%) [R103,104,344,347] |
| 59 | | | AA DD C Resistor (1/16W 100W - 5%) [R384,385,386,387] |
| 62 | | | AA DD C Resistor (1/16W 1.2KW - 5%) [R265] |
| 63 | | | AA DD C Resistor (1/16W 15OW - 5%) [R210] |
| 64 | | | AA DD C Resistor (1/16W 22W - 5%) [R292,327,330,365,373,375,397,264] |
| 66 | | | AA DD C Resistor (1/16W 3.3KW - 5%) [R279] |
| 67 | | | AA DD C Resistor (1/16W 33KW - 5%) [R403] |
| 68 | | | AA DD C Resistor (1/16W 47W - 5%) [R366~ 369,376~ 379,381,382] |
| 69 | | | AA DD C Resistor (1/16W 470W - 5%) [R345,346,417,422~ 425] |
| 70 | | | AA DD C Resistor (1/16W 4.7KW - 5%) [R305,324] |
| 71 | | | AA DD C Resistor (1/16W 47KW - 5%) [R402] |
| 72 | | | AA DD C Resistor (1/16W 5.6KW - 5%) [R396] |
| 73 | | | AA DD C Resistor (1/4W 220W - 5%) [R219~ 236] |
| 74 | | | AA DD C Resistor (1/4W 330W - 5%) [R245~ 262] |
| 75 | | | AA DD C Screw (3· 6) [IC166] |
| 901 | | | ** Printer PWB unit (Except japan AR-PB2A/PB2) |
| 3 | | | (Packing material & Accessories) |
| 1 | | | AC DJ C Wire holder (LWS3S2W) |
| 2 | | | AB DJ C Wire band (CV-150) |
| 3 | | | AA DD C Screw (3· 4) |
| 4 | | | AG DX C Connector caution label (Except USA,CANADA) (AR-PB2A/PB2) |
| 5 | | | AA DD D Vinyl bag (120· 180mm) |
| 7 | | | BC GJ C FAX interface cable FAX |
| 8 | | | AA DD D Vinyl bag (140· 260mm) |
| 10 | | | AG DS D Accessories sleeve |
| 12 | | | AL EB D Spacer |
| 3 | | | (Packing material & Accessories) |
| 14 | | | AA DD D Vinyl bag (230· 340mm) |
| 15 | | | AE DS D Vinyl bag (460· 500mm) |
| 16 | | | AF DS D Protection packing cushion B B |
| 17 | | | AH DX D Packing cushion |
| 18 | | | AD DJ D Protection packing cushion A A |
| 19 | | | AF DS D Spacer |
| 3 | | | (Packing material & Accessories) |
