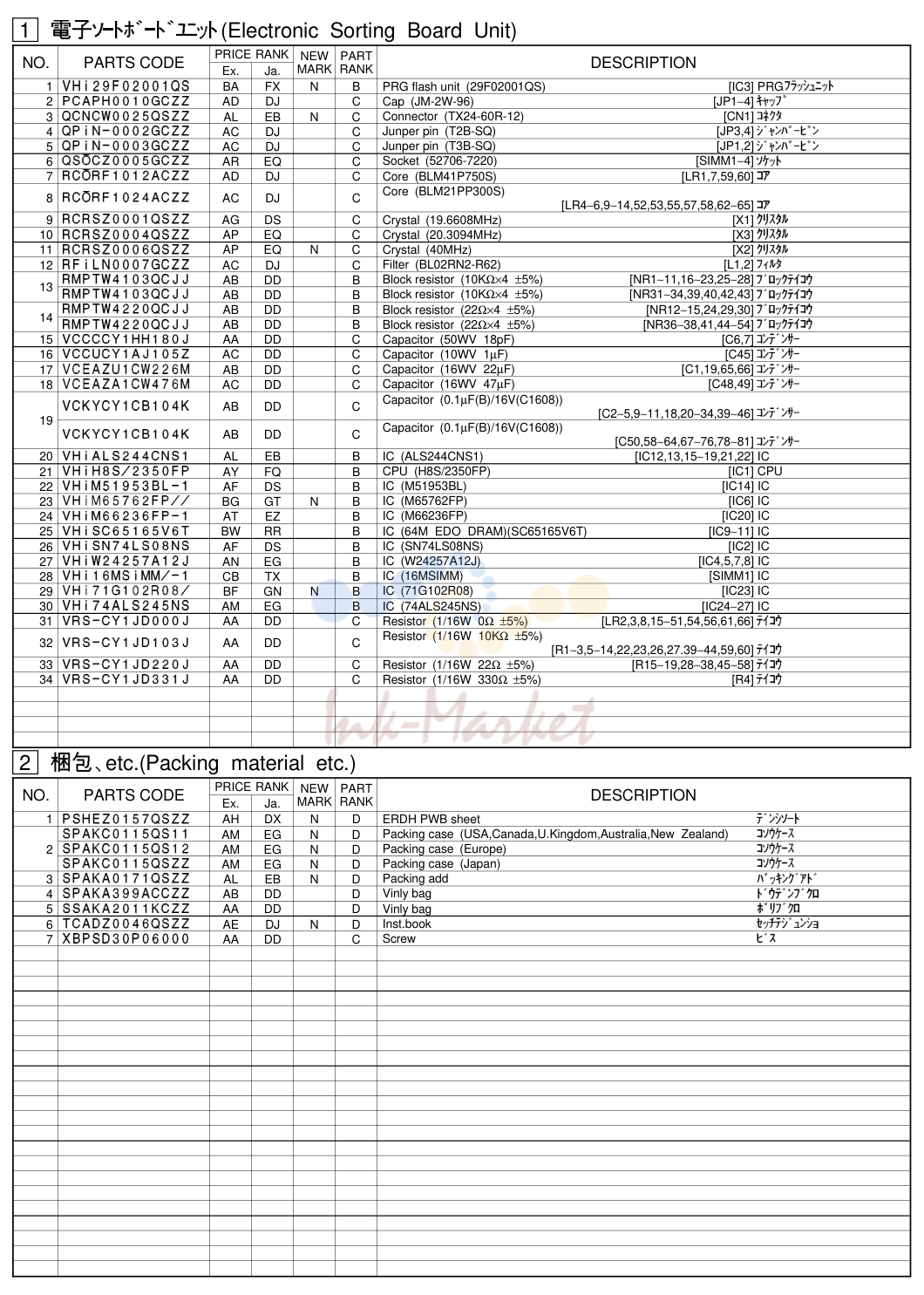

| 1 | | | (Electronic Sorting Board Unit) |
| 1 | | | BA FX N B PRG flash unit (29F02001QS) [IC3]PRG |
| 2 | | | AD DJ C Cap (JM-2W-96) [JP1~ 4] |
| 3 | | | AL EB N C Connector (TX24-60R-12) [CN1] |
| 4 | | | AC DJ C Junper pin (T2B-SQ) [JP3,4] |
| 5 | | | AC DJ C Junper pin (T3B-SQ) [JP1,2] |
| 6 | | | AR EQ C Socket (52706-7220) [SIMM1~ 4] |
| 7 | | | AD DJ C Core (BLM41P750S) [LR1,7,59,60] |
| 9 | | | AG DS C Crystal (19.6608MHz) [X1] |
| 10 | | | AP EQ C Crystal (20.3094MHz) [X3] |
| 11 | | | AP EQ N C Crystal (40MHz) [X2] |
| 12 | | | AC DJ C Filter (BL02RN2-R62) [L1,2] |
| 13 | | | AB DD B Block resistor (10KW· 4 - 5%) [NR31~ 34,39,40,42,43] |
| 14 | | | AB DD B Block resistor (22·W 4 - 5%) [NR36~ 38,41,44~ 54] |
| 15 | | | AA DD C Capacitor (50WV 18pF) [C6,7] |
| 16 | | | AC DD C Capacitor (10WV 1m F) [C45] |
| 17 | | | AB DD C Capacitor (16WV 22m F) [C1,19,65,66] |
| 18 | | | AC DD C Capacitor (16WV 47m F) [C48,49] |
| 19 | | | Capacitor (0.1m F(B)/16V(C1608)) |
| 20 | | | AL EB B IC (ALS244CNS1) [IC12,13,15~ 19,21,22]IC |
| 21 | | | AY FQ B CPU (H8S/2350FP) [IC1]CPU |
| 25 | | | BW RR B IC (64M EDO DRAM)(SC65165V6T) [IC9~ 11]IC |
| 28 | | | CB TX B IC (16MSIMM) [SIMM1]IC |
| 30 | | | AM EG B IC (74ALS245NS) [IC24~ 27]IC |
| 31 | | | AA DD C Resistor (1/16W 0W - 5%) [LR2,3,8,15~ 51,54,56,61,66] |
| 33 | | | AA DD C Resistor (1/16W 22W - 5%) [R15~ 19,28~ 38,45~ 58] |
| 34 | | | AA DD C Resistor (1/16W 330W - 5%) [R4] |
| 2 | | | etc.(Packing material etc.) |
| 1 | | | AH DX N D ERDH PWB sheet |
| 2 | | | AM EG N D Packing case (Europe) |
| 3 | | | AL EB N D Packing add |
| 4 | | | AB DD D Vinly bag |
| 5 | | | AA DD D Vinly bag |
| 6 | | | AE DJ N D Inst.book |
| 7 | | | AA DD C Screw |
