Samsung SCX-4x16F xeroxPe16 — каталог запчастей со схемами

Содержание

1. Exploded Views and Parts List
2. 3 ADF Assembly
3. 4 OPE Unit Assembly(SCX-4216F)
4. 5 OPE Unit Assembly(SCX-4116/4016)
5. 6 Scanner Assembly
6. 8 Frame Assembly
7. 9 Fuser Assembly

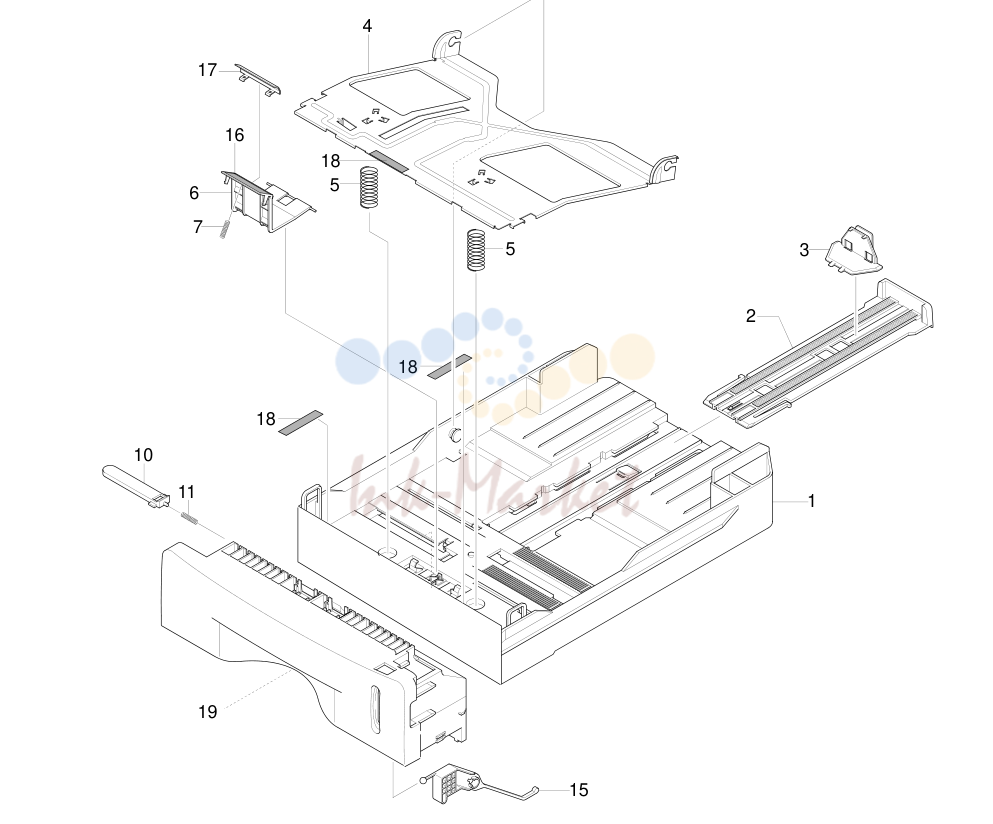

8. 9 Cassette Assembly

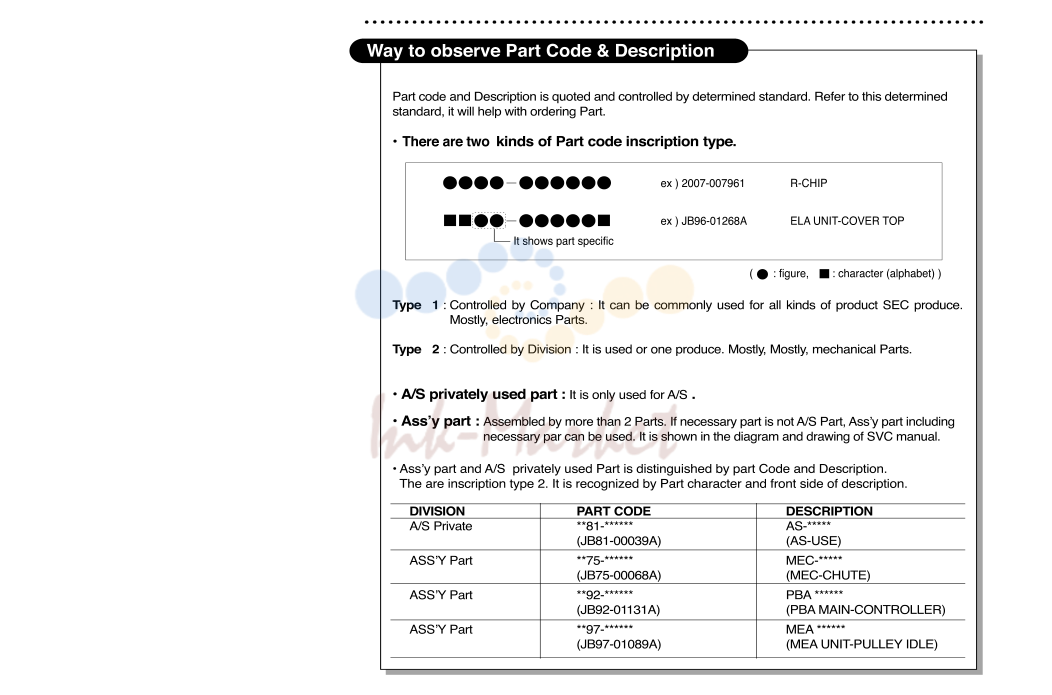

1. Exploded Views and Parts List

№	Артикул	Описание
0	SCX-4216F запросить цену →	/ SCX-4116 / SCX-4016
1		ELAHOU-UNITSCAN Refer to Info. 1 O SCX-4216F
1-1		COVER-LCD WINDOW JC63-00251A 1 O
1-2		ELAHOU-ADF JC81-01700A 1 O
1-3		ELAHOU-OPE Refer to Info. 1 O SCX-4216F
1-4		ELAHOU-PLATEN JC81-01703A 1 O
3		ELAUNIT-RX DRIVE JC96-02733A 1 O
4		UNIT-HUMMINGBIRD LSU JC59-00018A 1 O
5		CBF HARNESS-LSU JC39-00242A 1 O
7		SMPS-SMPS(V2)+HVPS JC44-00043A 1 O 220V
8		PBAMAIN-MAIN JC92-01431A 1 O SCX-4216F
9		MEAUNIT-COVER MIDDLE JC97-01723A 1 O
10		MEAUNIT-COVER FRONT(SEC) JC97-01746F 1 O
10-1		ADJUST-M-MANUAL_R * 1 X
10-2		ADJUSTRACK-M-MANUAL * 2 X
10-3		COVER-M_FRONT(ROCKY) * 1 X
10-4		ADJUST-M-MANUAL_L * 1 X
10-5		GEAR-RACK_PINION * 1 X
11		MEAUNIT-CASSETTE, USA JC97-01750A 1 O
12		ELAHOU-COVER SIDE L JC96-02709A 1 O SCX-4216F
12-1		COVER-M-SIDE L * 1 X
12-2		SPEAKER * 1 X
12-3		SCREW-TAPTITE * 2 X
12		COVER-M-SIDE L JC63-00137A 1 O SCX-4116 /
13		COVER-M-SIDE R JC63-00138A 1 O
14		MEAUNIT-COVER REAR JC97-01724A 1 O SCX-4216F
14-1		COVER-M-REAR JC63-00140D 1 O SCX-4216F
14-2		COVER-M-FACE UP JC63-00142A 1 O
15		FAN-DC_HUMMINGBIRD JC31-00027A 1 O
16		CBF HARNESS-MOTOR JC39-00241A 1 O
17		MEAETC-TR JC97-01793A 1 O
17-1		ROLLER-TRANSFER ROLLER JC66-00528A 1 O
17-2		GEAR-TRANSFER JC66-00395A 1 O
17-3		PPR-SPACER_TR JC72-00851A 1 X
18		CBF SIGNAL-LIU JC39-00270A 1 O SCX-4216F Only
19		PBASUB-LIU_USA_EXT Refer to Info. 1 O SCX-4216F Only
20		ELA-TONER UNIT * 1 X
21		PLATE-P-CHANNEL JC61-00606A 1 O
22		PBASUB-CONN JC81-01718A 1 O
23		CBF HARNESS-ENGINE JC39-00240B 1 O
24		BRACKET-P-INLET, ROCKY JC61-00693A 1 O
25		MEAUNIT-SHIELD ENGINE JC97-01794A 1 O
25-1		SHIELD-ENGINE, ROCKY JC63-00144A 1 O
25-2		SUPPORTER 6103-001056 2 X
26		CBF HARNESS-SCAN JC39-00268A 1 O
27		SUPPORTER 6103-001048 1 O
28		CBF-HARNESS-DUPLEX GND JC39-00090A 1 O
0		ELAUNIT-RX DRIVE JC96-02733A 1 O
1		BRACKET-P-GEAR 1400 * 1 X
2		GEAR-RDCN 53/26 JC66-00388A 1 O
3		GEAR-RDCN 113/33 JC66-00391A 1 O
4		GEAR-RDCN 57/18 JC66-00389A 2 O
5		WASHER-PLAIN * 2 X
6		BRACKET-P-MOTOR 1400 * 1 X
7		GEAR-RDCN 103/41 JC66-00390A 1 O
8		GEAR-RDCN 90/31 JC66-00392A 1 O
9		MOTOR STEP-HUMMINGBIRD JC31-00028A 1 O
10		PMO-IMPELLER_DRV * 1 X

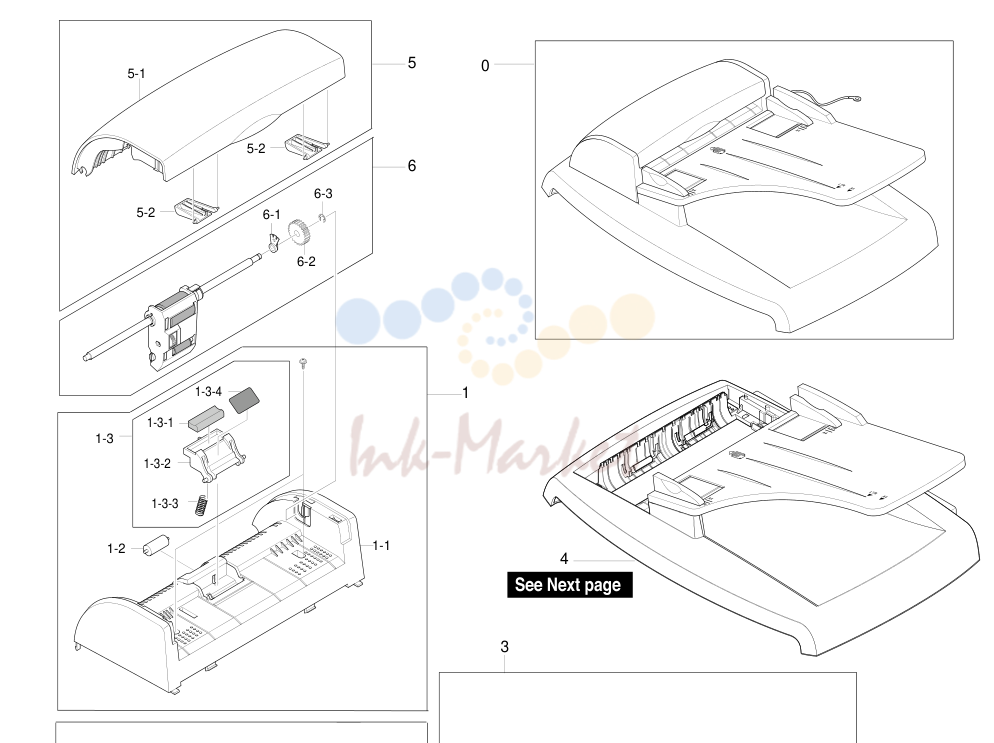

2. 3 ADF Assembly

№	Артикул	Альт. артикул	Описание
0			ELAHOU-ADF JC96-02654A 1 X
1			MEAUNIT-ADF UPPER JC97-01710A 1 O
1-1			COVER-M-ADF UPPER JC63-00145A 1 O
1-2			ROLLER-M-ADF IDLE JC66-00461A 1 O
1-3			MEAUNIT-HOLDER ADF JC97-01709A 1 O
2			ELAHOU-ADF LOWER JC81-01702A 1 O
2-1			COVER-M-ADF LOWER JC63-00148A 1 O
2-2			PBASUB-ADF JC81-01717A 1 O
2-3			GROUND-P-ADF JC63-00149A 1 O
2-4			SHAFT-M-FEED GEAR 38 JC66-00460A 1 O
2-5			ROLLER-DRIVE JC66-00560A 1 O
2-6			PMO-ACTUATOR DOC SENSOR JC72-01009A 1 O
2-7			PMO-ACTUATOR REGI SENSOR JC72-01010A 1 O
2-8			PMO-ACTUATOR SCAN SENSOR JC72-01011A 1 O
2-9			SPRING ETC-TORSION DOC (CC2-F) JB61-00076A 3 O
2-10			IPR-GROUND_ROLLER JC70-10467A 1 X
2-11			SHAFT-IDLE FEED JC66-00558A 2 O
2-12			ROLLER-EXIT JC66-00559A 1 O
2-13			MEC-BRUSH ANTISTATIC JC75-00161A 1 O
2-14			SHEET-WHITE BAR JC63-00154A 1 O
2-15			PMO-BUSH JB72-00819A 4 O
2-16			CBF HARNESS-ADR JC39-00278A 1 O
2-18			RING-C * 1 X
2-19			GUIDE-STACKER SUB JC61-00712A 2 O
3			ELAHOU-ADF MOTOR JC81-01701A 1 O
3-1			BRACKET-GEAR JC61-00776A 1 O
3-2			MOTOR BLOWER-ADF JC31-00023A 1 O
3-3			GEAR-CLUTCH 29 JB66-00101A 1 O
3-4			PMO-WHITE CLUTCH SUB 29 JB72-00844A 1 O
3-5			GEAR-CLUTCH 39 JC66-00322A 1 O
3-6			RING-C 6044-000159 1 O
3-7			GEAR-IDLE 35 ADF JC66-00458A 3 O
3-8			GEAR-40/21 ADF JC66-00456A 3 O
3-9			GEAR-SWING 31/20 ADF JC66-00457A 1 O
3-10			LINK-M-SWING ADF JC66-00454A 1 O
3-11			GEAR-58/25 ADF JC66-00455A 1 O
3-12			IMPELLER-ADF JC66-00556A 1 O
3-13			GEAR-REMOVE ADF JC66-00557A 1 O
3-14			WASHER-PLAIN 6031-000023 2 X
3-15			IPR-WASHER WAVE JB70-00070A 1 O
3-16			WASHER-PLAIN 6031-000019 3 X
3-17			CBF HARNESS-MOTOR GND JB39-00105A 1 O
3-18			RING-E 6044-000125 6 O
3-19			SCREW-TAPTITE 6003-000269 3 X
3-20			SPRING ETC PAD JC61-00387A 1 O
4			MEAUNIT-COVER PLATEN JC97-01708A 1 O
4-1			COVER-M-PLATEN(4IN1) JC63-00146A 1 O
4-2			SHEET-WHITE SPONGE * 1 X
4-3			MEA-TX STACKER(SEC) * 1 X
4-4			SPRING ETC-FEED * 6 X
4-5			PMO-ROLLPINCH JG72-40663A 2 O
4-6			SHAFT-STACKER JC66-00594A 2 O
4-7			MEAUNIT-HINGE JC97-01707A 2 O
4-8			RPR-ROLLER EXITIDLE JC73-00091A 2 O
4-9			ICT-SHAFTPINCH JF70-40521B 1 O
5			MEAUNIT-COVER OPEN(LEX) JC97-01706A 1 O
5-1			COVER-M-OPEN(LEX) JC63-00147A 1 O
5-2			PMO-GUIDE PAPER JB72-00843A 2 O
6			MEAUNIT-PICKUP JC97-01705A 1 O
6-1			PMO-BUSHING WHITE JF72-41306A 1 O
6-2			GEAR-ADF 38 JB66-00103A 1 O
6-3			RING-C 6044-000159 1 O

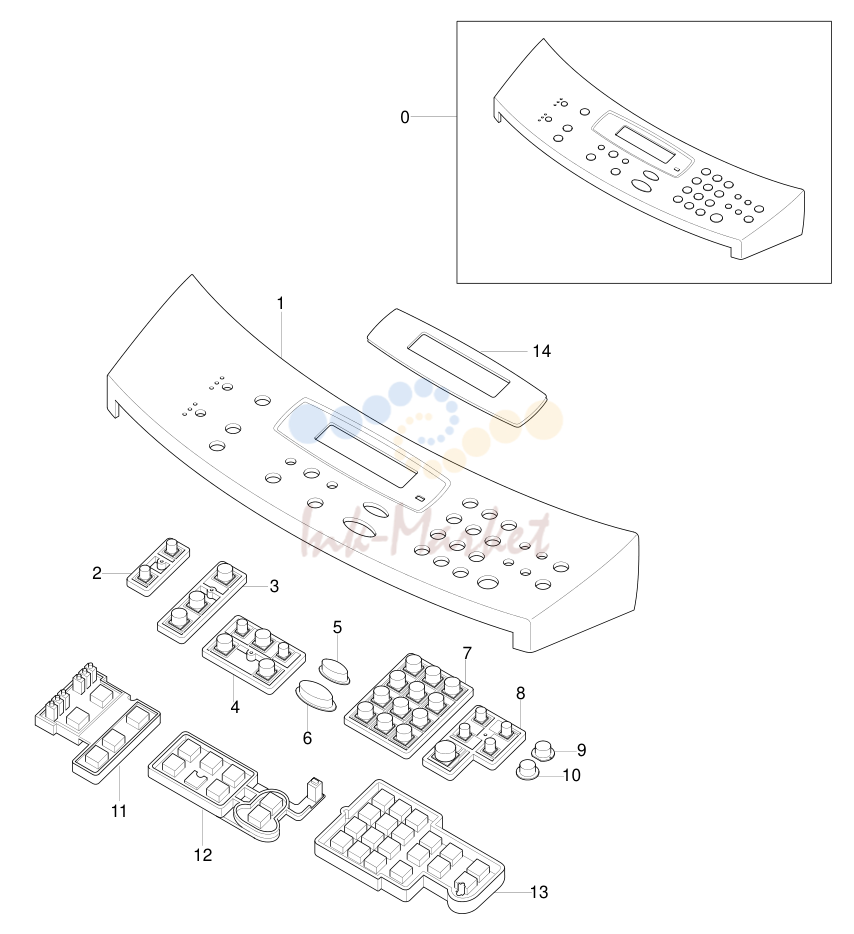

3. 4 OPE Unit Assembly(SCX-4216F)

№	Артикул	Альт. артикул	Описание
0			ELAHOU-OPE Refer to Info. 1 O
1			COVER-M-OPE(4IN1) JC63-00153A 1 O
2			KEY-M-RESOLUTION JC64-00059A 1 O
3			KEY-M-COPY JC64-00054A 1 O
4			KEY-M-SCROLL JC64-00056A 1 O
5			KEY-M-STOP JC64-00055A 1 O
6			KEY-M-START JC64-00057A 1 O
7			KEY-M-TEL JC64-00053A 1 O
8			KEY-M-FAX JC64-00060A 1 O
9			KEY-M-TONER SAVE JC64-00058A 1 O
10			KEY-M-TOLLSAVE JC64-00061A 1 O
11			RUBBER-COPY JC73-00139A 1 O
12			RUBBER-SCROLL JC73-00137A 1 O
13			RUBBER-TEL/FAX JC73-00138A 1 O
14			SHEET-LCD JC63-00155A 1 X
15			PBASUB-OPE JC81-01720A 1 O

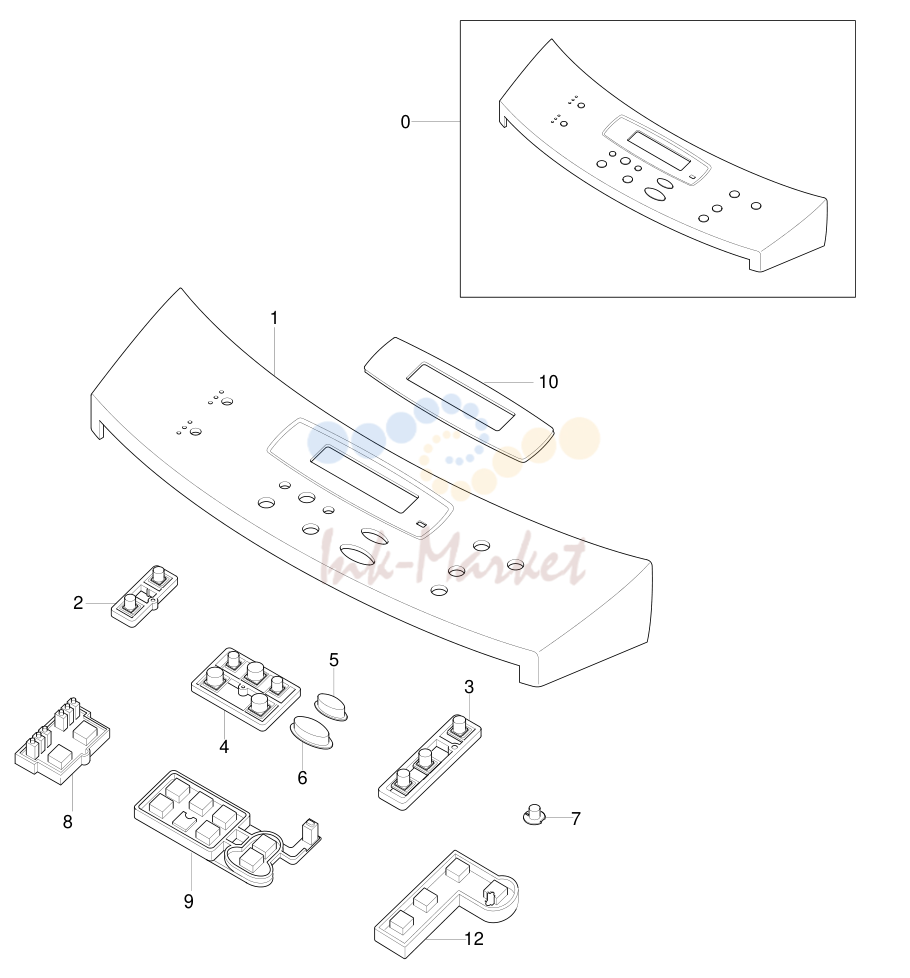

4. 5 OPE Unit Assembly(SCX-4116/4016)

№	Артикул	Альт. артикул	Описание
0			ELAHOU-OPE(3IN1) Refer to Info. 1 O SCX-4116
1			COVER-M-OPE(3IN1) JC63-00135A 1 O
2			KEY-M-RESOLUTION(3IN1) JC64-00059A 1 O
3			KEY-M-COPY(3IN1) JC64-00054A 1 O
4			KEY-M-SCROLL JC64-00056A 1 O
5			KEY-M-STOP JC64-00055A 1 O
6			KEY-M-START(3IN1) JC64-00057B 1 O
7			KEY-M-TONER SAVE(3IN1) JC64-00058A 1 O
8			RUBBER-COPY(3IN1) JC73-00139A 1 O
9			RUBBER-SCROLL JC73-00137A 1 O
10			SHEET-LCD(4116) JC63-00155D 1 O SCX-4116
11			PBASUB-OPE JC92-01503A 1 X
12			RUBBER-IMAGE(3IN1) JC73-00135A 1 O

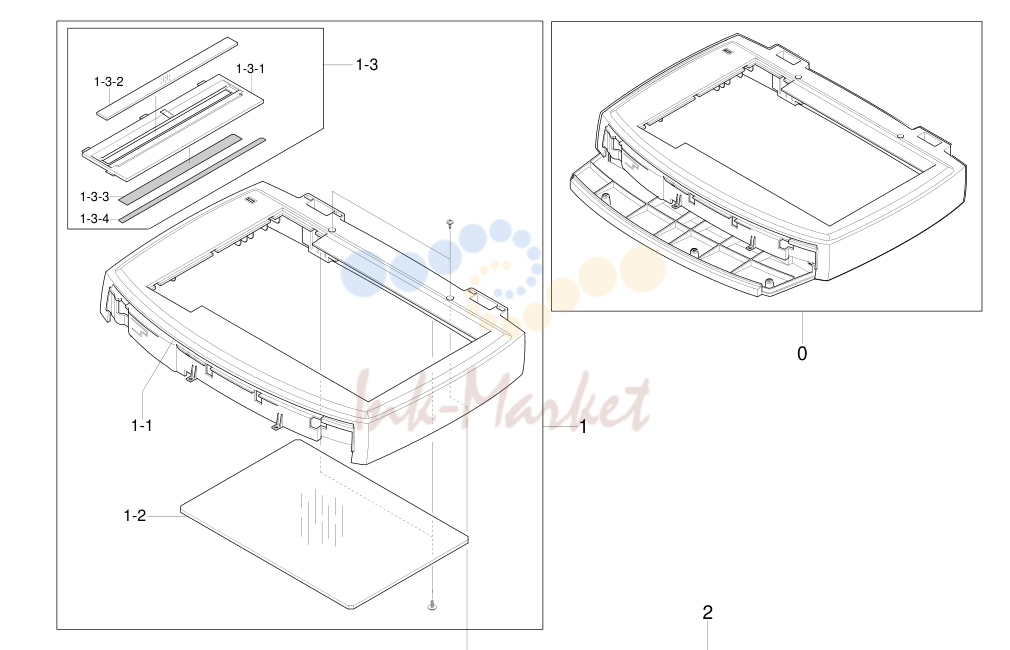

5. 6 Scanner Assembly

№	Артикул	Альт. артикул	Описание
0			ELAHOU-PLATEN JC81-01703A 1 O
1			MEAUNIT-SCAN UPPER JC97-01712A 1 O
1-1			COVER-M-SCAN UPPER JC63-00151A 1 O
1-2			GLASS-SCAN JC01-00001A 1 O
1-3			MEAUNIT-SCAN DUMMY JC97-01711A 1 O
2			ELAHOU-SCAN LOWER JC81-01704A 1 O
2-1			COVER-M-SCAN LOWER JC63-00150A 1 O
2-2			ELAHOU-CCD MODULE JC96-02821A 1 O
2-3			CBF SIGNAL-CCD FFC JC39-00269A 1 O
2-4			ELAUNIT-CORE 3301-001413 2 O
2-5			ICT-SHAFTCCD JB70-00145A 1 O
2-6			PMO-HOLDER BELT JB72-00764A 1 O
2-7			PMO-PULLEY JB72-00763A 1 O
2-8			PMO-HOLDER BELT JB72-01136A 1 O
2-9			SPRING ETC-BELT JB61-00109A 1 O
2-10			SPRING-CS 6107-001135 1 O
2-11			PMO-LEVER SENSOR JC72-00755A 1 O
2-12			PHOTO-INTERRUPTER 0604-001095 1 O
2-13			CBF HARNESS-OPE/FLAT_COVER JC39-00267A 1 O
2-14			BELT-TIMING GEAR 6602-001067 1 O
2-15			ELAHOU-SCAN MOTOR JC81-01705A 1 O
2-16			DUMPER-CCD JC66-00665A 2 X
0			MEAUNIT-COVER MIDDLE JC97-01723A 1 O
1			COVER-M-MIDDLE * 1 X
2			PMO-STACKER_RX(SEC) * 1 X
3			RING-CS * 2 X
4			GEAR-IDLE 23 * 1 X
6			GEAR-EXITF/DOWN * 1 X
7			MEC-BEARING,EXIT JC75-10529A 2 O
8			ROLLER-EXITF/DOWN * 1 X
9			RMO-RUBBER EXIT * 4 X
10			PMO-BUSHING_F/DOWN * 1 X
11			SPRING-CS * 4 X
12			HOLDER-M-EXITF/DOWN * 4 X
13			PMO-ROLLER_EXIT,MAIN * 4 X
14			PMO-ROLLER_EXIT,FR * 4 X
15			WASHER-PLAIN * 2 X
16			COVER-M-REAR UPPER * 1 X
17			ROLLER-M_DECURL * 6 X

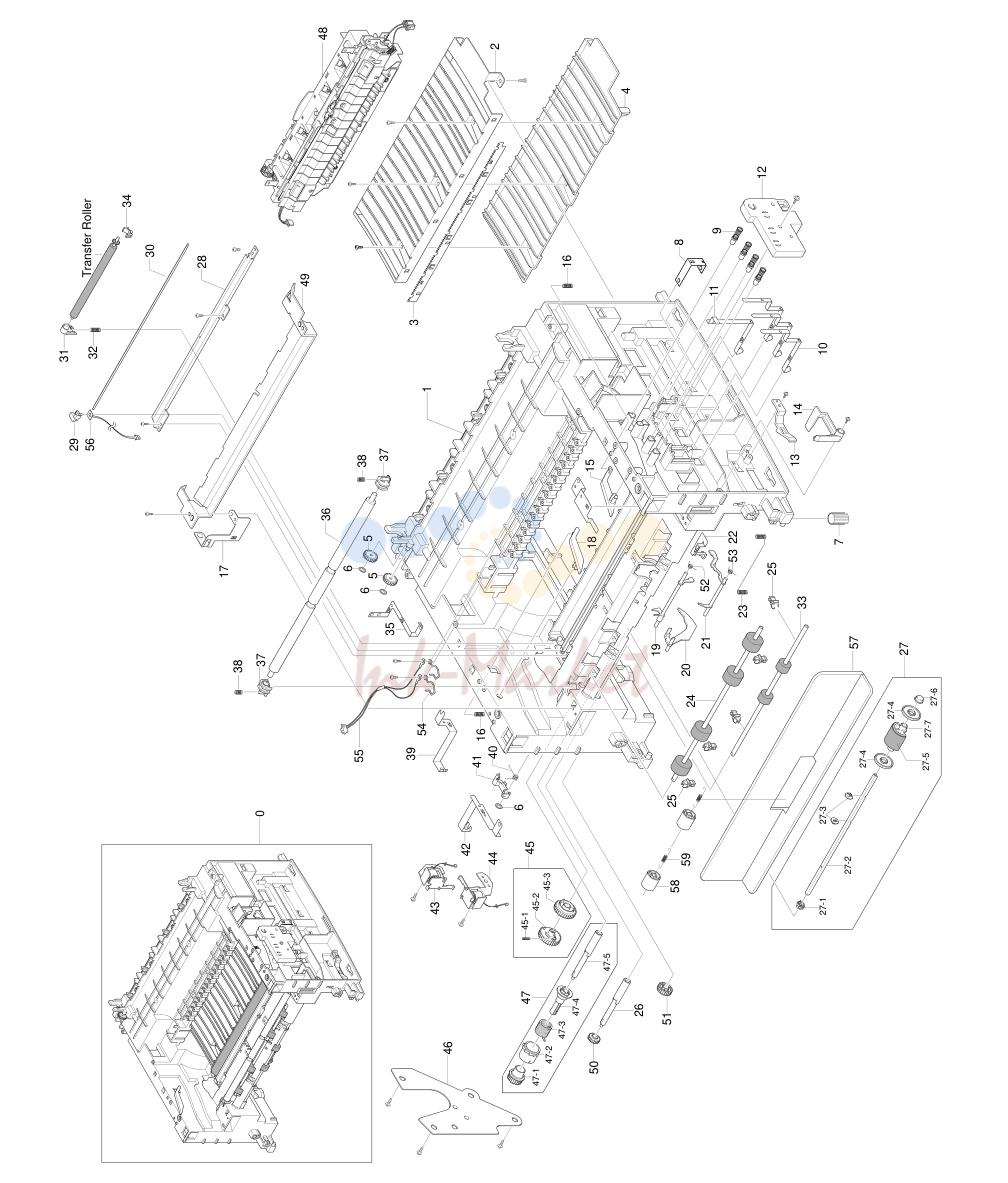

6. 8 Frame Assembly

№	Артикул	Альт. артикул	Описание
1			FRAME-M-BASE JC61-00579A 1 O
2			GUIDE-P-TR JC61-00607A 1 O
3			PLATE-P-SAW JC61-00604A 1 O
4			GUIDE-M-TR RIB JC61-00594A 1 O
6			RING-CS * 3 X
7			RMO-RUBBER_FOOT * 2 X
8			IPR-P-GROUND_TR * 1 X
9			MEC-TERMINAL JC75-00049A 4 O
10			IPR-P-TERMINALCON JC70-00312A 3 O
11			IPR-P-TERMINALCR JC70-00313A 1 O
12			HOUSING-TERMINAL JC61-00592A 1 O
13			PMO-LOCKER CST JC72-00983A 2 O
14			PMO-ACTUATOR CVR OPEN JC72-00974A 1 O
15			PMO-PLATE GUIDE DEVE_R JC72-00985A 1 O
16			SPRING ETC-GUIDE DEVE * 2 X
17			IPR-P-GROUND_GUIDE PAPER JC70-00458A 1 X
18			PMO-PLATE GUIDE DEVE_L JC72-00984A 1 O
19			PMO-ACTUATOR FEED JC72-00976A 1 O
20			PMO-ACTUATOR EMPTY JC72-00975A 1 O
21			PMO-ACTUATOR MANUAL JC72-00977A 1 O
22			IPR-P-GROUND_EARTH TR * 1 X
23			SPRING-ETC 6107-001162 1 O
24			ROLLER-FEED ROLLER 1 * 1 X
25			PMO-BUSHING FEED * 5 X
26			SHAFT-FEED * 1 X
27			AS-PICK UP JC81-01693A 1 O
27-1			BUSH-M-PICK_UPL * 1 X
27-2			SHAFT-P-PICK_UP * 1 X
27-3			STOPPER-PICK_UP * 2 X
27-4			PMO-IDLE PICK_UP JC72-00982A 2 X
27-5			SPONGE-ROLLER PICK_UP JC72-01231A 1 O
27-6			BUSH-M-PICK_UPR JC61-00587A 1 O
27-7			HOUSING-M-PICK_UP JC61-00591A 1 O
28			IPR-P-EARTH TRANSFER JC70-00307A 1 O
29			HOLDER-PTL JC61-00583A 1 O
30			LENS-PTL JC67-00027A 1 O
31			BUSH-M-TR L JC61-00588A 1 O
32			SPRING ETC-TR LHAWK * 1 X
33			ROLLER-FEED JC66-00598A 1 O
34			PMO-BUSHING_TR(L) JC72-00102A 1 O
35			IPR-P-GROUND_FUSER JC70-00310A 1 X
36			SHAFT-FEED IDLE JC66-00527A 1 O
37			BUSH-M-FEED IDLE * 2 X
38			SPRING ETC-TR * 2 X
40			SPRING-TS 6107-001170 1 O
41			CAM-M-PICK_UP JC66-00377A 1 O
42			IPR-P-GROUND_DRIVE JC70-00308A 1 X
43			SOLENOID-HB (PICK-UP) JC33-00009A 1 O
44			SOLENOID-HB (MANUAL) JC33-00010A 1 O
45			AS-GEAR PICK_UP JC81-01692A 1 O
45-1			PMO-GEAR PICK_UPB JC72-00980A 1 O
45-2			PMO-GEAR PICK_UPA JC72-00979A 1 O
45-3			SPRING-CS * 1 X
46			BRACKET-P-FEED JC61-00602A 1 O
47			MEAUNIT-CLUTCH JC97-01788A 1 O
47-1			GEAR-FEED 1 JC66-00393A 1 O
47-2			PMO-COLLAR_SPRING JC72-00978A 1 O
47-3			SPRING-TS * 1 X
47-4			PMO-HUB CLUTCH JC72-00981A 1 X
47-5			SHAFT-FEED * 1 X
48			ELAHOU-FUSER 220V, ROCKY JC81-01696B 1 O 220V
49			GUIDE-P-PAPER JC61-00718A 1 O
50			GEAR-FEED 2 JC66-00394A 1 O
51			GEAR-IDLE 23 JC66-00396A 1 O
52			SPRING-TS * 1 X
53			SPRING-TS * 1 X
54			IPR-P-TERMINALDEVE KEY * 2 X
55			CBF HARNESS-OPC_FUSE * 1 X
56			PBAMAIN-PTL JC92-01440B 1 O

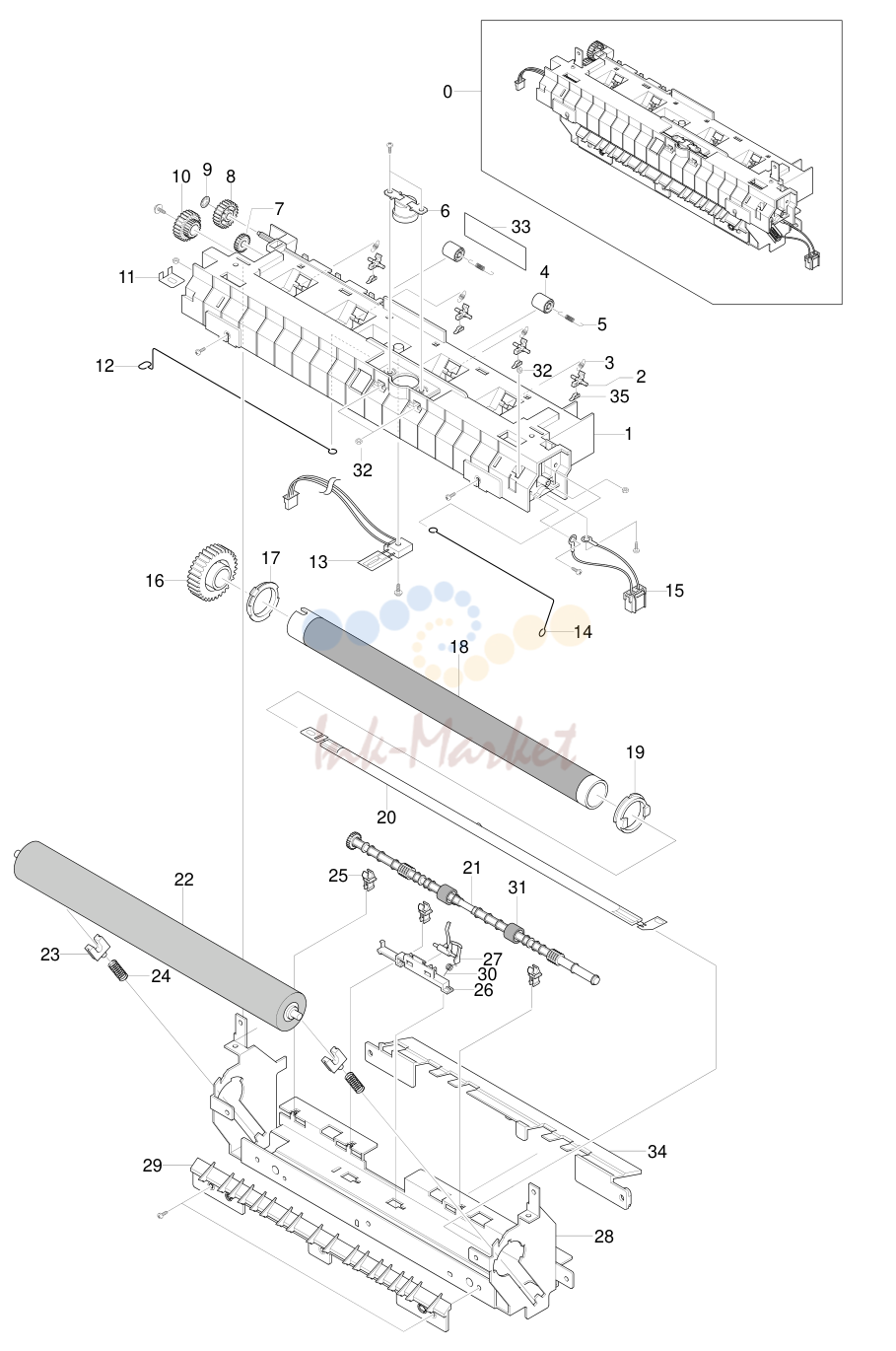

7. 9 Fuser Assembly

№	Артикул	Альт. артикул	Описание
0			AS-FUSER 220V JC81-01696B 1 O 220V
1			COVER-M-FUSER * 1 X
2			HOLDER-M-PLATE CLAW * 4 X
3			SPRING ETC-CLAW * 4 X
4			PMO-ROLLER EXIT * 2 X
5			SPRING ETC-FUSER EXIT * 2 X
8			GEAR-IDLE 23 * 1 X
9			RING-CS * 1 X
10			GEAR-RDCN 25/15 JC66-00397A 1 O
11			IPR-ELECTRODE_LAMP * 1 X
12			ELECTRODE-WIRE_L * 1 X
13			THERMISTOR-NTC 1404-001298 1 O
14			ELECTRODE-WIRE_R * 1 X
15			CBF HARNESS-FUSER 220V JC39-00238A 1 O 220V (BLACK)
16			GEAR-FUSER, Z37 JC66-00564A 1 X
17			BUSH-M-HR L * 1 X
18			ROLLER-HEAT JC66-00601A 1 O
19			BUSH-M-HR R JC61-00590A 1 O
20			LAMP-HALOGEN 4713-001183 1 O 220V
21			ROLLER-M-EXITF/UP * 1 X
22			ROLLER-PRESSURE JC66-00600A 1 O
23			BEARING-PRESSURE/R * 2 X
24			SPRING-CS * 2 X
25			PMO-BUSHING TX * 3 X
26			HOLDER-ACTUATOR * 1 X
27			PMO-ACTUATOR_EXIT JC72-00987A 1 O
28			IPR-P-FRAME_FUSER * 1 X
29			GUIDE-M-INPUT * 1 X
30			SPRING-TS * 1 X
31			RMO-RUBBER_EXIT * 2 X
32			NUT-HEXAGON * 5 X
33			LABEL(P)-CAUTION, HOT_FUSER * 1 X
34			COVER-M-EXITLOWER * 1 X
35			PLATE-P-CLAW * 4 X

8. 9 Cassette Assembly

№	Артикул	Альт. артикул	Описание
0			MEAUNIT-CASSETTE, USA JC97-01750A 1 O
1			FRAME-M_CASSETTE * 1 X
2			PMO-EXTENSION LARGE JC72-00970A 1 O
3			PMO-EXTENSION SMALL JC72-00971A 1 O
4			PLATE-P-KNOCK_UP * 1 X
5			SPRING-CS * 2 X Spring-Knock_up
6			HOLDER-M-PAD * 1 X
7			SPRING ETC-EXITROLLFD * 1 X
8			ROLLER-M-IDLE FEED * 2 X
9			SPRING-ES * 2 X Spring-Feed
10			PMO-PLATE_LOCKER * 1 X
11			SPRING ETC-LOCKER,PLATE * 1 X
12			ADJUST-M-CASSETTE_L JC70-00300A 1 O
13			ADJUST-M-CASSETTE_R JC70-00301A 1 O
14			GEAR-PINION * 1 X
15			INDICATOR-M-LEVER INDICATOR JC64-00040A 1 O
16			RPR-FRICTION PAD JC73-00140A 1 O
17			IPR-PLATE PAD * 1 X
18			RPR-PAD CASSETTE * 3 X

Источник: Инк-Маркет.ру.

← Все статьи
