Samsung SCX-4520 — каталог запчастей со схемами

Содержание

1. Exploded View & Parts List
2. Exploded View & Parts List
3. Exploded View & Parts List
4. Exploded View & Parts List
5. Exploded View & Parts List
6. Exploded View & Parts List
7. Exploded View & Parts List
8. Exploded View & Parts List
9. Exploded View & Parts List
10. Exploded View & Parts List

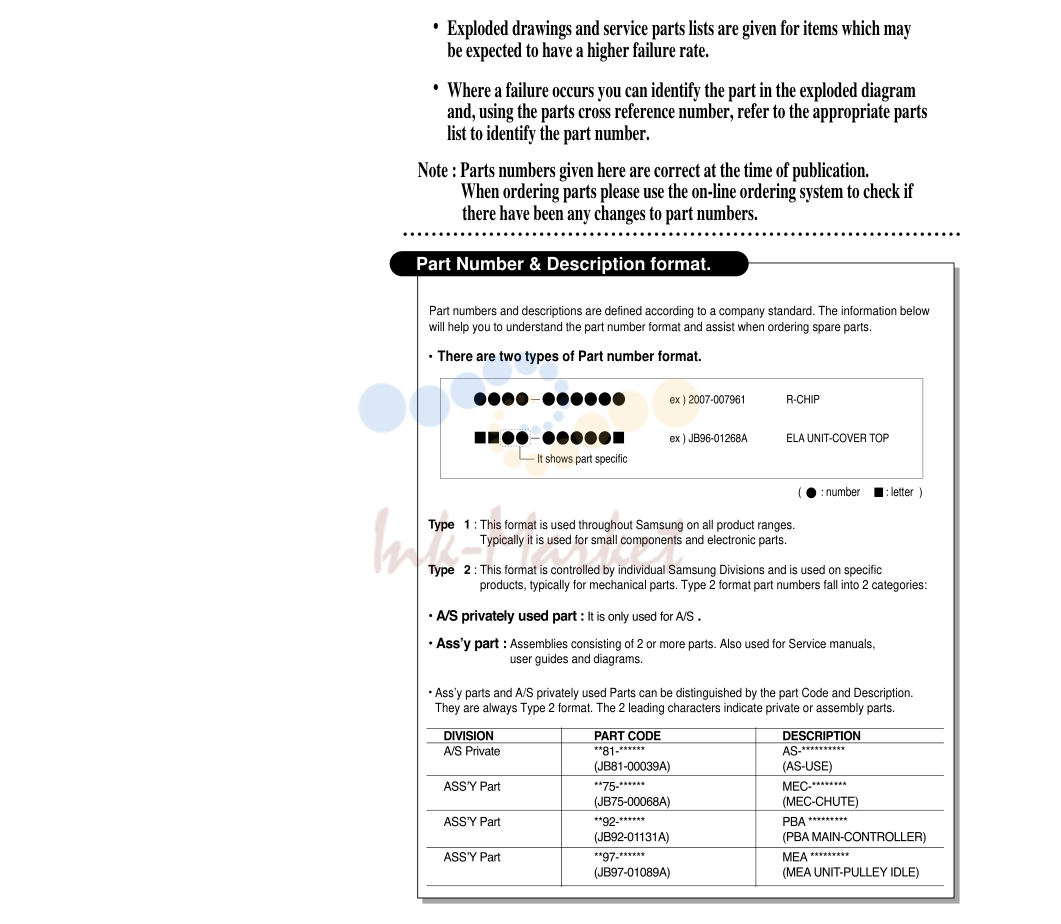

1. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
1			ELAHOU-SCAN JC96-03181A 1 X SCX-4520
1-1			ELAHOU-ADF JC96-03169A 1 O
1-2			ELAHOU-OPE JC96-03183A 1 O SCX-4520
1-3			COVER-M-OPE FRONT JC63-00496A 1 O
1-4			ELAHOU PLATEN JC96-03172A 1 O
2			FRAME-M-BASE JC61-00906A 1 X
3			ELAUNIT-RX DRIVE JC96-03078A 1 O
4			UNIT-HUMMINGBIRD LSU JC59-00018B 1 O
5			CBF HARNESS-LSU JC39-00395A 1 O
7			PBAMAIN-MAIN CONTROLLER JC92-01597A 1 O SCX-4720F
8			SHIELD-P-CONTROLLER JC63-00508A 1 X
9			BRACKET-P-DUMMYCTRL JC61-00679A 1 X
10			MEAUNIT-SHIELD ENGINE JC97-01943A 1 X
11			BRACKET-P-INLET JC61-00693A 1 X
12			CBF HARNESS-HIGH LIU JC39-00325A 1 O
13			PBASUB-LIU JC92-01599A 1 O RUSSIA
14			COVER-M-SIDE R JC63-00499A 1 O
15			ELAUNIT-MP JC96-03132B 1 O
16			CBF HARNESS-MOTOR JC39-00355A 1 O
17			MEAETC TR JC97-01917A 1 O
17-1			ROLLER-TRANSFER R2 JC66-00703A 1 X
17-2			GEAR-TRANSFER JC66-00395A 1 X
18			ELAHOU-COVER MIDDLE JC96-03247A 1 O
19			MEA-COVER MID FRONT JC97-02043A 1 O
19-1			COVER-M-MID FRONT JC63-00497A 1 O
19-2			CAP-M-SUB ACTUATOR JC67-00068A 1 X
19-3			PMO-M-SUB ACTUATOR JC72-01339A 1 X
19-4			SCREW-TAPTITE 6003-000196 1 X
20			MEAUNIT-CASSETTE JC97-02020A 1 O
21			ELAHOU-COVER SIDE L JC96-03185A 1 O
21-1			COVER-SIDE L JC63-00500A 1 X
21-2			COVER-DIMM JC63-00501A 1 X
21-3			SPEAKER 3001-001591 1 O
21-4			SCREW-TAPTITE 6003-000264 2 X
22			MEA-COVER FRONT JC97-02019A 1 O
22-1			COVER-M-FRONT JC63-00505A 1 O
22-2			KNOB-M-LOCKER JC64-00154A 1 X
22-3			HOLDER-M-LOCKER JC61-00953A 1 O
22-4			TRAY-M-EXIT-MP JC63-00447A 1 X
22-5			ADJUST-M-MPL JC70-00478A 1 X
22-6			ADJUST-M-MPR JC70-00479A 1 X
22-7			TRAY-M-COVER_MP JC63-00446A 1 X
22-8			GEAR-PINION JG66-40003A 1 O
22-9			TRAY-M-CASE_MP JC63-00506A 1 X
22-10			TRAY-M-LINK_MP JC63-00444A 2 X
22-11			SPRING-CIS(2) JG61-70549A 1 X
22-12			SCREW-TAPTITE 6003-000196 2 X
22-13			SCREW-TAPTITE 6003-000264 1 X
23			MEA-COVER REAR JC97-02018A 1 O
23-1			COVER-M-REAR JC63-00503A 1 O
23-2			COVER-FACE UP JC63-00504A 1 O
24			CBF HARNESS ENGINE JC39-00240C 1 O
25			CBF HARNESS-LSU GND JC39-00375A 1 O
26			ELAHOU-FUSER 110V JC96-03210A 1 O 110V
27			FAN-DC JC31-00025A 1 O

2. Exploded View & Parts List

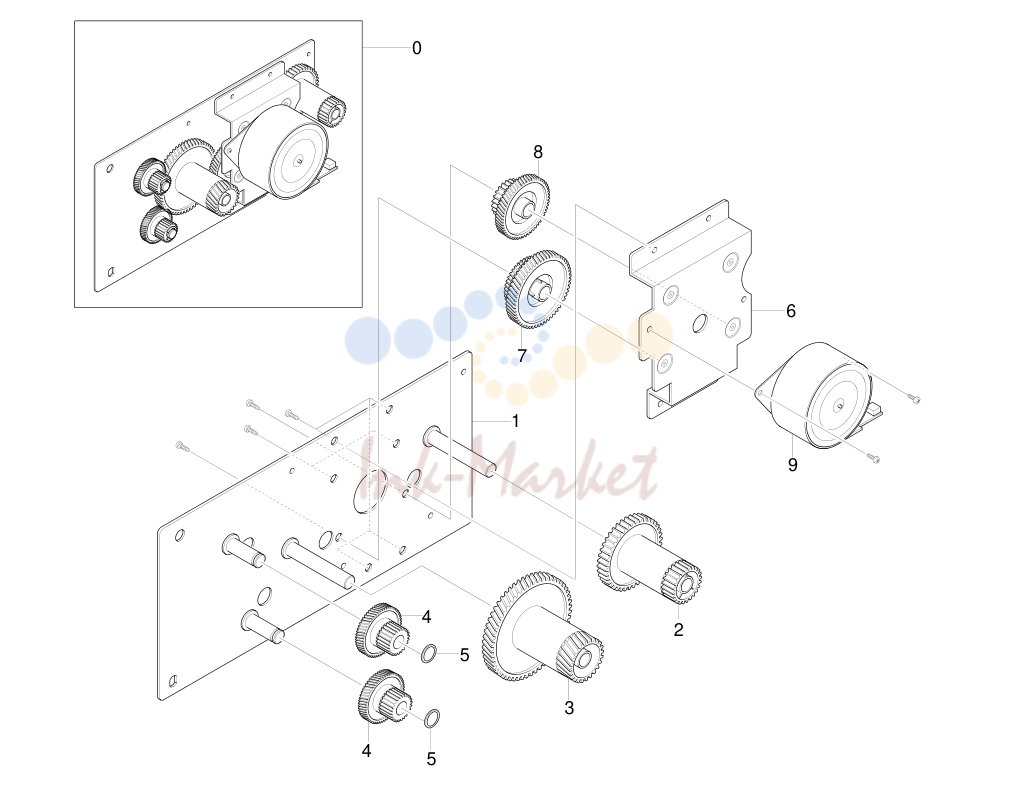

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-RX DRIVE JC96-03078A 1 O
1			BRACKET-GEAR MAIN JC61-00891A 1 X
2			GEAR-RDCN 53/26 JC66-00388A 1 O
3			GEAR-RDCN 113/33 JC66-00706A 1 X
4			GEAR-RDCN 57/18 JC66-00389A 2 O
5			WASHER-PLAIN 6031-000023 2 X
6			BRACKET-MOTOR MAIN R2 JC61-00916A 1 X
7			GEAR-RDCN 103/41 JC66-00390A 1 O
8			GEAR-RDCN 90/31 JC66-00392A 1 O
9			MOTOR STEP-MAIN JC31-00037A 1 O

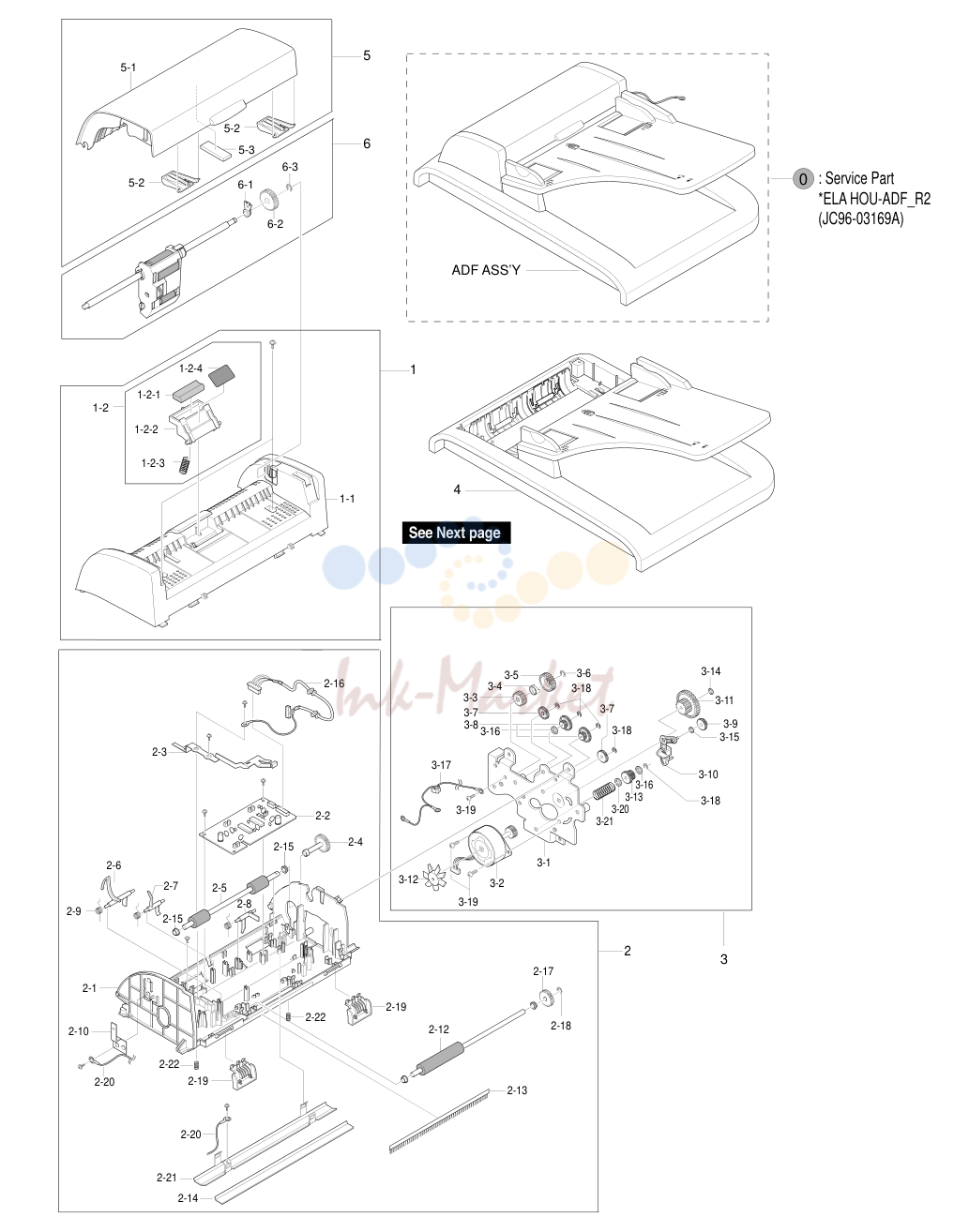

3. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
1			MEAUNIT-ADF UPPER JC97-02022A 1 X
1-1			COVER-ADF UPPER R2 JC63-00450A 1 O
1-2			MEA-HOLDER PAD ADF JC97-02137B 1 O
2			ELAHOU-ADF LOWER JC96-03171A 1 X
2-1			COVER-M-ADF LOWER R2 JC63-00370B 1 O
2-2			PBASUB-ADF JC92-01618A 1 O
2-3			GROUND-P-ADF R2 JC63-00372A 1 X
2-4			SHAFT-M-FEED GEAR 38 JC66-00460A 1 X
2-5			ROLLER-DRIVE JC66-00560A 1 X
2-6			PMO-ACTEMPTYADF JC72-01320A 1 O
2-7			PMO-ACTUATOR REGI SENSOR JC72-01010A 1 O
2-8			PMO-ACTUATOR SCAN SENSOR JC72-01011A 1 O
2-9			SPRING ETC-TORSION DOC (CC2-F) JB61-00076A 3 X
2-10			IPR-GROUND_ROLLER JC70-10467A 1 X
2-12			ROLLER-EXIT JC66-00559A 1 X
2-13			MEC-BRUSH ANTISTATIC JC75-00095A 1 X
2-14			PPR-WHITE BAR SHEET JC72-00752A 1 X
2-15			PMO-BUSH JB72-00819A 4 X
2-16			CBF HARNESS-ADF JC39-00351A 1 O
2-18			RING-C 6044-000159 1 X
2-19			GUIDE-STACKER SUB JC61-00712A 2 X
2-20			CBF HARNESS ADF ROLLER GND JC39-00187A 1 X
2-21			IPR-BRKTWHITE BAR JC70-00225A 1 X
2-22			SPRING ETC WHITE BAR JC61-00548A 2 X
3			ELAHOU-ADF MOTOR JC96-03065A 1 O
3-1			BRACKET-GEAR ADF JC61-00892A 1 X
3-2			MOTOR STEP-ADF JC31-00036A 1 X
3-3			GEAR-CLUTCH 29 JB66-00101A 1 X
3-4			PMO-WHITE CLUTCH SUB 29 JB72-00844A 1 X
3-5			GEAR-CLUTCH 39 JC66-00322A 1 X
3-6			RING-C 6044-000159 1 X
3-7			GEAR-IDLE 35 ADF JC66-00458A 2 X
3-8			GEAR-40/21 ADF JC66-00456A 1 X
3-9			GEAR-SWING 31/20 ADF JC66-00457A 1 X
3-10			LINK-M-SWING ADF JC66-00454A 1 X
3-11			GEAR-58/25 ADF JC66-00455A 1 X
3-12			IMPELLER-ADF JC66-00556A 1 X
3-13			GEAR-REMOVE ADF JC66-00557B 1 X
3-14			WASHER PLAIN 6031-000023 1 X
3-15			IPR-WASHER WAVE JB70-00070A 1 O
3-16			WASHER-PLAIN 6031-000019 2 X
3-17			CBF HARNESS-ADF GND JC39-00363A 1 X
3-18			RING-E 6044-000125 6 X
3-19			SCREW-TAPTITE 6003-000269 3 X
3-20			WASHER-PLAIN 6031-001511 1 X
3-21			SPRING ETC PAD JC61-00387A 1 X
4			MEA-COVER PLATEN JC97-02024A 1 O
4-1			COVER-M-PLATEN R2 JC63-00374B 1 O
4-2			SHEET-WHITE SPONGE JC63-00209A 1 O
4-3			MEA-TX STACKER JC97-01544B 1 O
4-4			SPRING ETC-FEED JC61-00011A 6 X
4-5			PMO-ROLLPINCH JG72-40663A 2 X
4-6			ICT-SHAFTPINCH JF70-40521B 1 X
4-7			MEAUNIT-HINGE JC97-01707A 2 O
4-8			RPR-ROLLER EXITIDLE JC73-00091A 2 O
4-9			SHAFT-IDLE FEED JC66-00558A 2 O
5			MEA-COVER OPEN R2 JC97-02023A 1 X
5-1			COVER-M-ADF OPEN JC63-00498A 1 O
5-2			PMO-GUIDE PAPER JB72-00843A 2 X
5-3			DAMPER-PICKUPADF JC66-00726A 1 X
6			MEAUNIT-PICKUP JC97-01962A 1 O
6-1			STOPPER-M-PICKUPADF JC61-00963A 1 X
6-2			GEAR-ADF 38 JB66-00103A 1 X
6-3			RING-C 6044-000159 1 X

4. Exploded View & Parts List

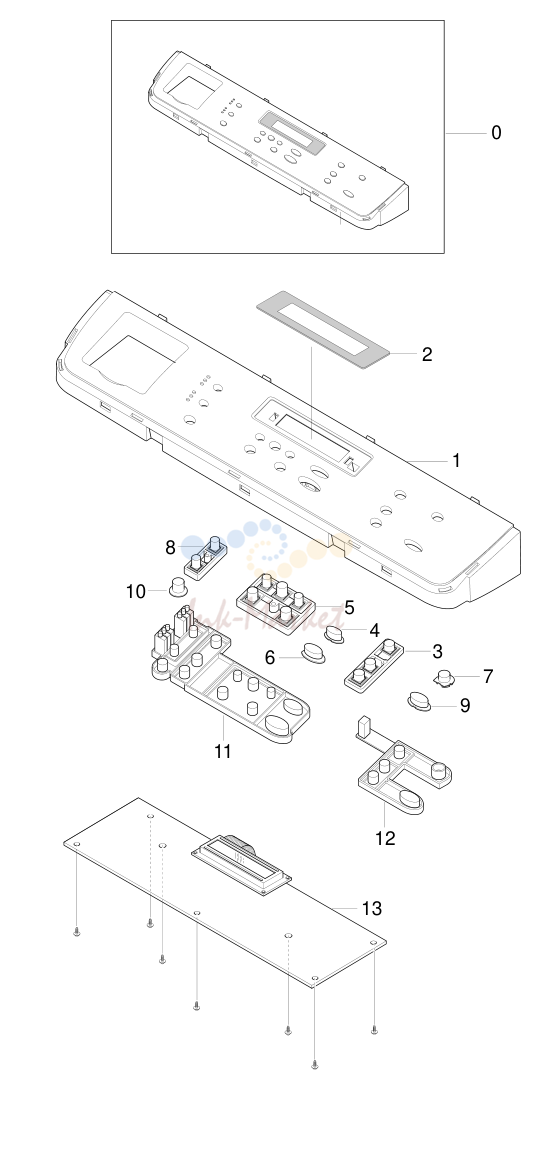

№	Артикул	Альт. артикул	Описание
0			ELAHOU-OPE 3IN1 JC96-03174A 1 O
1			COVER-M-OPE (3IN1) JC63-00496A 1 O
3			KEY-M_COPY(3IN1) JC64-00054C 1 X
4			KEY-M-STOP JC64-00055A 1 X
6			KEY-M-START(3IN1) JC64-00057B 1 X
7			KEY-M-TONER SAVE JC64-00058A 1 X
9			KEY-M-DIRECTPRINT JC64-00155A 1 X
10			KEY-M-SCAN TO JC64-00157A 1 X
11			RUBBER-COPY/SCROLL JC73-00189A 1 X
13			PBASUB-OPE JC92-01625A 1 O
0			ELAHOU-OPE 4IN1 JC96-03174A 1 O
1			COVER-M-OPE SEC JC63-00495A 1 X
4			KEY-M-STOP JC64-00055A 1 X
6			KEY-M-START JC64-00057E 1 X
7			KEY-M-TOLLSAVE JC64-00061A 1 X
9			KEY-M-DIRECTPRINT JC64-00155A 1 X
10			KEY-M-SCAN TO JC64-00157A 1 X
11			RUBBER-COPY/SCROLL JC73-00189A 1 X
12			RUBBER-TELL/FAX_SEC JC73-00191A 1 X
14			RUBBER-ONE TOUCH JC73-00190A 1 X
15			KEY-M-TONER SAVE JC64-00058A 1 X
17			KEY-M-SHIFT JC64-00156A 1 X
19			PMO KEYOT JC72-00275B 1 X
20			LABEL(P)-ONE TOUCH JC68-00651G 1 X
21			MPR-COVER ADDRESS JG74-10543A 1 X

5. Exploded View & Parts List

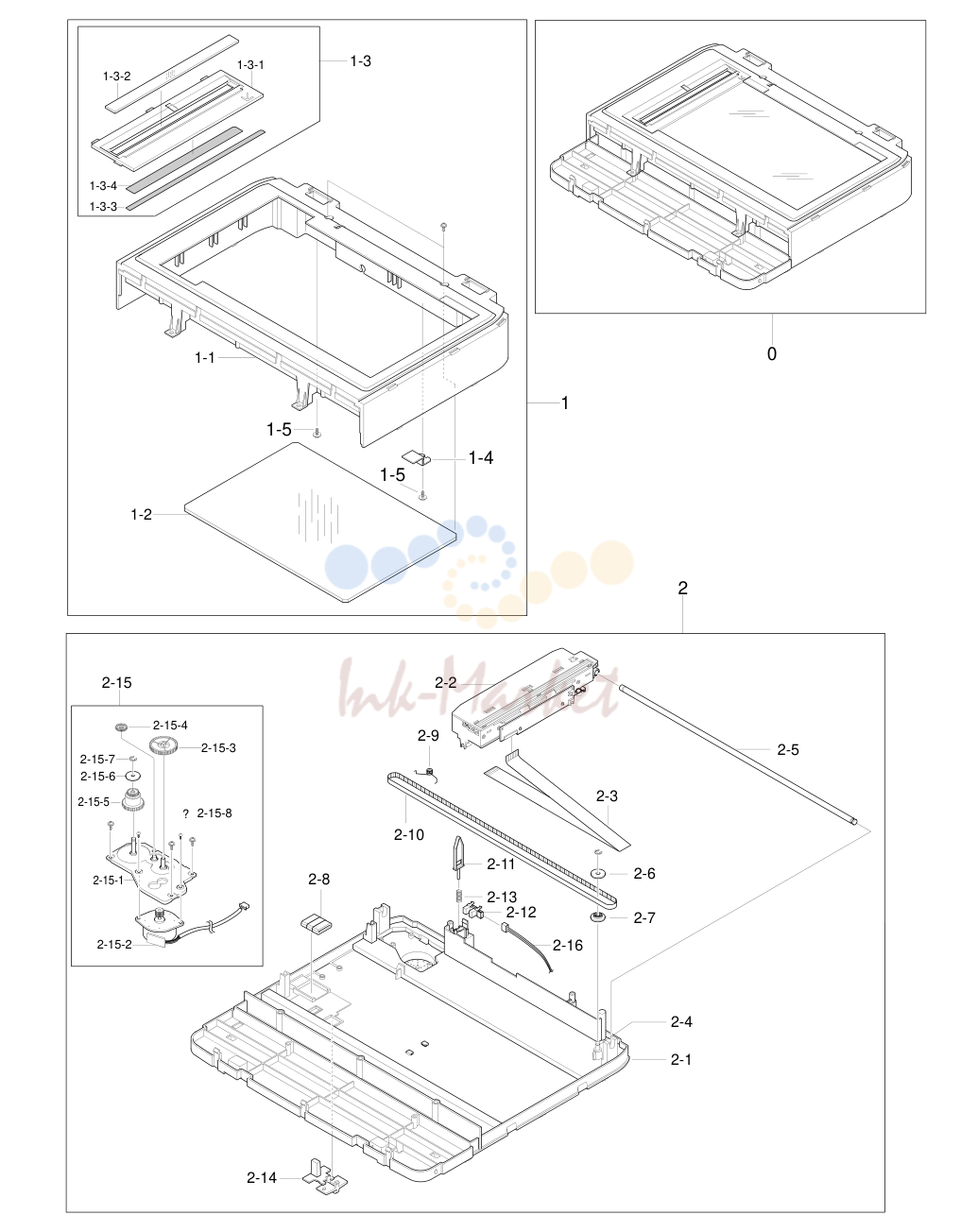

№	Артикул	Альт. артикул	Описание
0			ELAHOU-PLATEN JC96-03172A 1 O
1			MEAUNIT-SCAN UPPER JC97-02025A 1 O
1-1			COVER-SCAN UPPER JC63-00494A 1 X
1-2			GLASS-SCAN JC01-00001A 1 O
1-3			MEA-SCAN DUMMY JC97-02026A 1 X
1-4			IPR-HOLDER GLASS JB70-00148A 2 X
1-5			SCREW-TAPPING 6002-00175 2 X
2			ELAHOU-SCAN LOWER JC96-03173A 1 X
2-1			COVER-SCAN LOWER JC63-00493A 1 O
2-2			ELAHOU-CCD MODULE JC96-02759B 1 O
2-3			CBF SIGNAL-CCD FFC JC39-00367A 1 X
2-4			ICT-INSERTSHAFT JB70-00154A 1 X
2-5			ICT-SHAFTCCD JB70-00145A 1 X
2-6			PMO-HOLDER BELT JB72-00764A 1 X
2-7			PMO-PULLEY JB72-00763A 1 X
2-8			ELAUNIT-CORE JB96-01381A 3 X
2-9			SPRING ETC-BELT JB61-00059A 1 X
2-10			BELT-TIMING GEAR 6602-001067 1 O
2-11			PMO-LEVER SENSOR JC72-00755A 1 X
2-12			PHOTO-INTERRUPTER 0604-001095 1 O
2-13			SPRING-CS 6107-001135 1 X
2-14			HOLDER-CCD JC61-00894A 1 X
2-15			ELAHOU-SCAN MOTOR JC96-03069A 1 O
2-16			CBF-HARNESS-PLATEN JC39-00362A 1 X
0			ELAHOU-COVER MIDDLE JC96-03247A 1 O
1			COVER-M-MIDDLE R2 JC63-00502A 1 O
2			COVER-REAR UPPER JC63-00388B 1 O
3			PMO-STACKE_RX JC72-00973A 1 O
4			BUSH-F/DOWN R2 JC61-00902A 1 X
5			CBF HARNESS-OPE JC39-00350A 1 O
6			PBASUB-USB HOST JC92-01636A 1 O

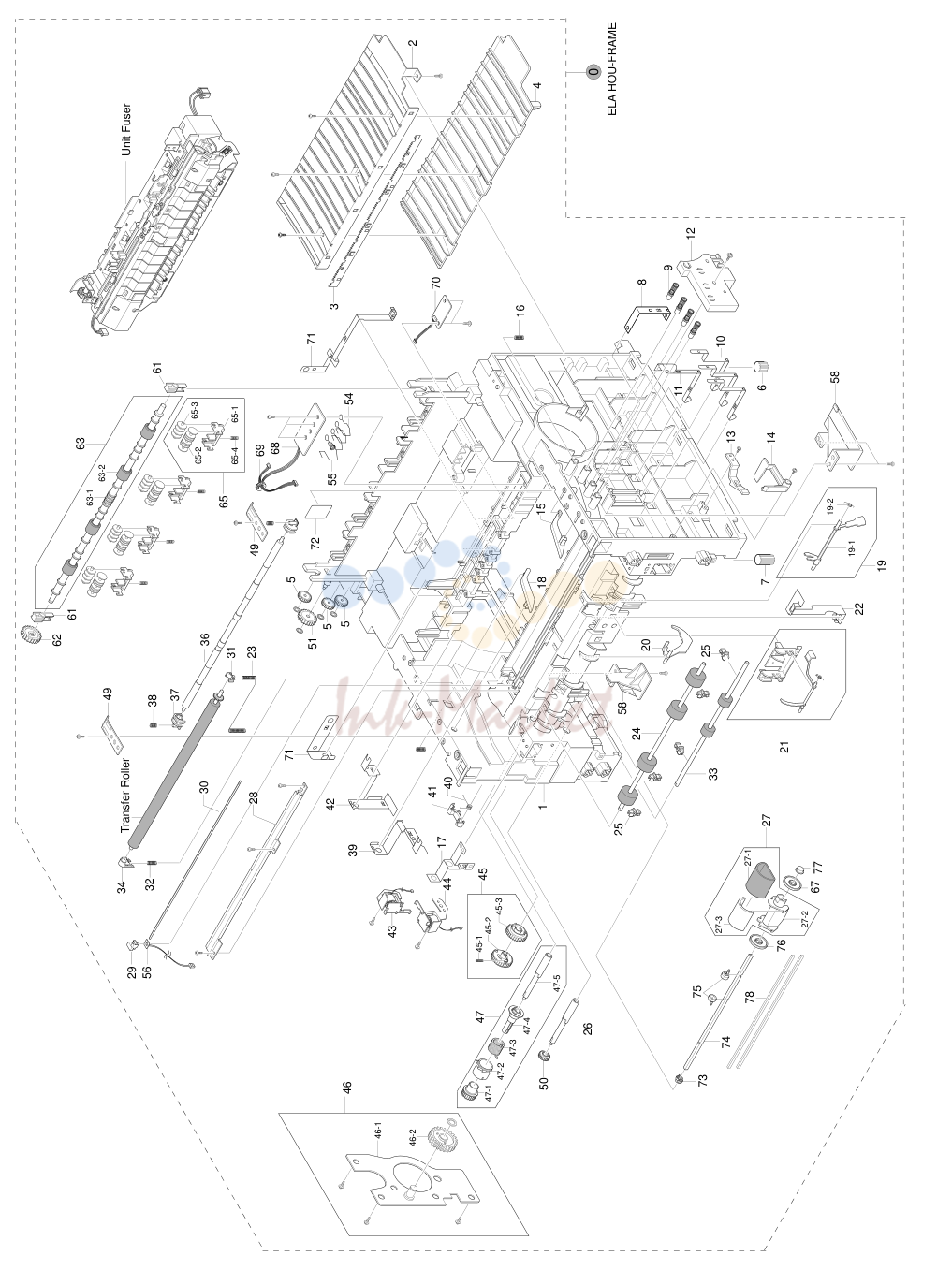

6. Exploded View & Parts List

№	Артикул	Описание
0		ELAHOU-FRAME 110V JC96-03186A 1 X 110V
1		FRAME-BASE R2 JC61-00906A 1 X
2		GUIDE-P-TR JC61-00607A 1 O
3		PLATE-P-SAW JC61-00604B 1 X
4		GUIDE-M-TR RIB JC61-00594A 1 O
6		FOOT-BACK JC61-00835A 2 X
7		FOOT-FRONT JC61-00836A 2 O
8		GROUND-GUDIE TR R2 JC63-00397A 1 X
9		MEC-TERMINAL JC75-00049A 4 O
10		PLATE-TERMINALCON R2 JC61-00903A 3 X
11		PLATE-TERMINALCR R2 JC61-00904A 1 X
13		PMO-LOCKER CST JC72-00983A 2 O
14		PMO-ACTUATOR CVR OPEN JC72-00974A 1 O
15		PMO-PLATE GUIDE DEVE_R JC72-00985A 1 O
16		SPRING ETC-GUIDE DEVE JC61-70932A 2 O
17		GROUND-PUSH BUSHING JC63-00401A 1 X
18		PMO-PLATE GUIDE DEVE_L JC72-00984A 1 O
19		PMO-ACTFEED R2 JC72-01323A 1 X
20		PMO-ACTUATOR EMPTY JC72-00975A 1 O
22		GROUND-EARTH TR R2 JC63-00395A 1 X
23		GROUND-TERMINALTR JC63-00403A 1 X
24		ROLLER-FEED ROLLER 1 JC66-00526A 1 O
25		PMO-BUSHING FEED JC72-00382B 5 X
26		SHAFT-FEED JC66-00398A 1 O
27		MEAUNIT-PICKUP JC97-01926A 1 O
27-1		SPONGE-ROLLER PICK_UP JC72-01231A 1 O
27-2		HOUSING-PICK UP_R2 JC61-00909A 1 O
27-3		HOUSING-PICK UP2_R2 JC61-00910A 1 O
28		IPR-P-EARTH TRANSFER JC70-00307A 1 O
30		LENS-PTL JC67-00027A 1 O
31		PMO-BUSHING_TR(L) JC72-00102A 1 O
32		SPRING ETC-TR LHAWK JC61-00047A 1 O
33		ROLLER-FEED JC66-00598A 1 O
34		BUSH-M-TR L JC61-00588A 1 O
36		SHAFT-FEED IDLE JC66-00527A 1 O
37		BUSH-M-FEED IDLE JC61-00585A 2 O
38		SPRING ETC-TR JC61-70958A 2 X
40		SPRING-TS 6107-001170 1 X
41		CAM-M-PICK_UP JC66-00377A 1 O
42		GROUND-DRIVE R2 JC63-00394A 1 O
43		SOLENOID-FEED ROCKY2 JC33-00014A 1 O
44		SOLENOID-HB (MANUAL) JC33-00010A 1 O
45		MEAUNIT-GEAR PICKUP JC97-01929A 1 O
45-1		GEAR-PICK UPB_R2 JC66-00705A 1 X
45-2		GEAR-PICK UPA_R2 JC66-00704A 1 X
45-3		SPRING-CS 6107-001167 1 X
46		MEAUNIT-BRACKETFEED JC97-01925A 1 O
46-1		BRACKET-FEED R2 JC61-00913A 1 O
46-2	GEAR-Z35 запросить цену →	IDLE JC66-00690A 1 X
47		MEAUNIT-CLUTCH JC97-01788A 1 O
47-1		GEAR-FEED 1 JC66-00393A 1 O
47-2		PMO-COLLAR_SPRING JC72-00978A 1 O
47-3		SPRING-TS 6107-001171 1 O
47-4		PMO-HUB CLUTCH JC72-00981A 1 X
47-5		SHAFT-FEED JC66-00398A 1 O
49		PLATE-PUSH BUSHING JC61-00914A 2 X
50		GEAR-FEED 2 JC66-00394A 1 O
51		GEAR-IDLE 23 JC66-00396A 1 O
52		SPRING-TS 6107-001164 1 X
53		SPRING-TS 6107-001165 1 X
54		IPR-P-TERMINALDEVE KEY JC70-00340A 3 X
55		GROUND-TERMINALDEVE JC63-00458A 1 X
56		PBASUB-PTL JC92-01620A 1 O
61		HOLDER-BEARING EXITF/DOWN JC61-00829A 2 X
62		GEAR-EXITF/DOWN JC66-00038A 1 O
63		ROLLER-EXITF/DOWN JC66-00378A 1 O
64		RMO-RUBBER EXIT JC73-40915A 4 O
65		MEARACK-EXITROLLER JC97-01034A 4 X
65-1		PMO-HOLDER EXITROLL JC72-41006A 1 X
65-2		PMO-ROLLER FD F JC72-41007A 1 X
65-3		PMO-ROLLER FD R JC72-41008A 1 X
65-4		SPRING ETC-EXITROLLFD JC61-70911A 1 X
66		GUIDE-SUB FRONT JC61-00917A 1 X
68		PBA-SUB-CRUM JC92-01605A 1 O
69		CBF HARNESS CRUM2 JC39-00356A 1 X
70		PBASUB-EXITSENSOR JC92-01604A 1 O
71		GROUND-SHIELD R2 JC63-00402A 1 X
72		LABEL(R)-HOTCAUTION,KME JC68-00317A 1 X
73		BUSH-M-PICK_UPL JC61-00586A 1 O
74		SHAFT-P-PICK_UP JC66-00399A 1 O
75		STOPPER-PICK UP_R2 JC61-00915A 2 X
76		PMO-IDLE PICK_UP JC72-00982A 2 X
77		BUSH-M-PICK_UPR JC61-00587A 1 O
78		SHAFT-CORE JC66-00720A 2 X

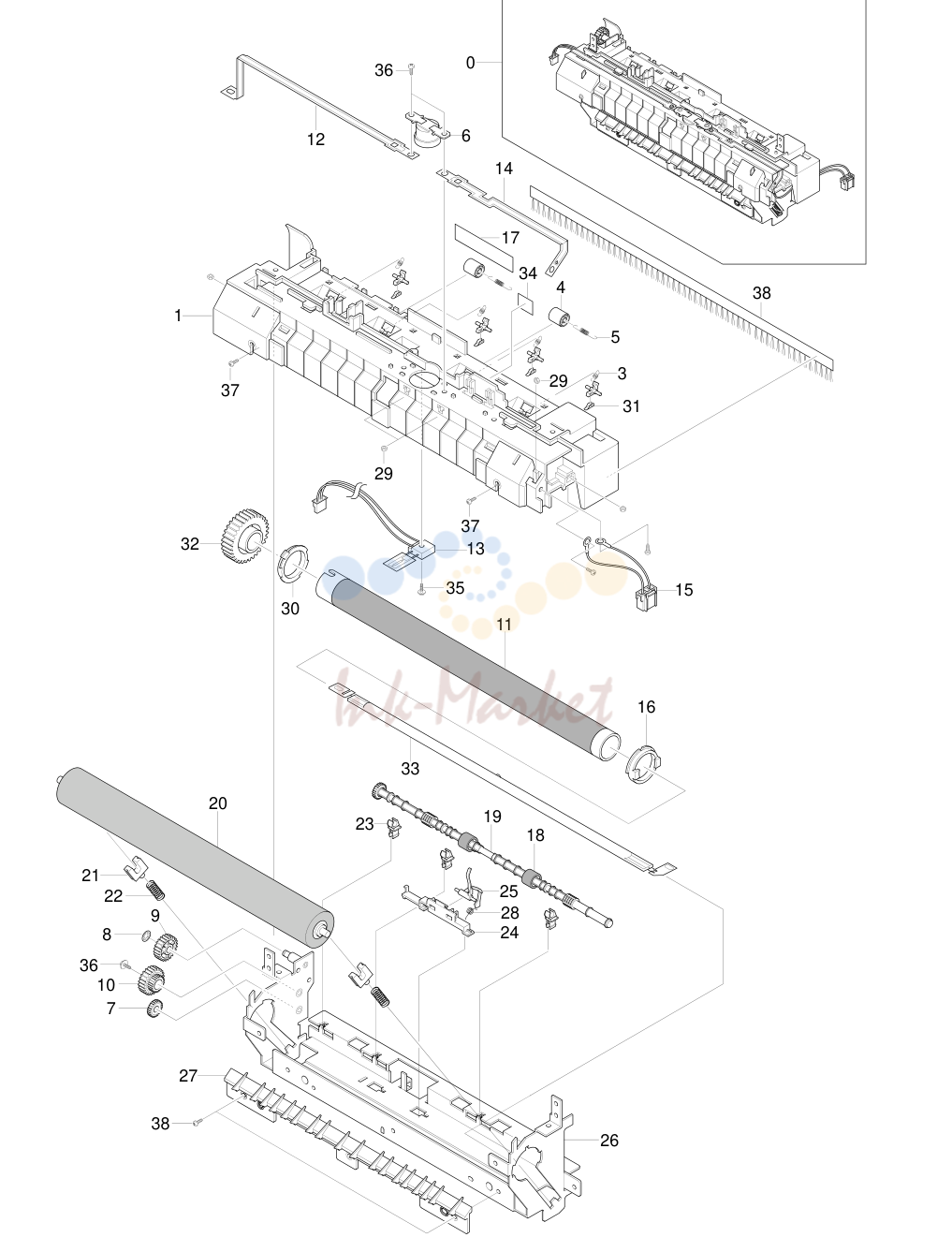

7. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-FUSER 110V JC96-03210A 1 O 110V
1			COVER-FUSER R2 JC63-00363A 1 X
2			HOLDER-PLATE CLAW R2 JC61-00886A 4 X
3			SPRING ETC-CLAW JC61-00064A 4 X
4			PMO-ROLLER_EXIT JC72-40361A 2 X
5			SPRING ETC-FUSER EXIT JC61-70976A 2 X
8			GEAR-IDLE 23 JC66-00396A 1 O
9			RING-E 6044-000125 1 X
10			GEAR-RDCN 25/15 JC66-00397A 1 O
13			THERMISTOR-NTC 1404-001337 1 X
15			CBF HARNESS-FUSER 110V JC39-00353A 1 X WHITE
16			BUSH-HR R_R2 JC61-00887A 1 X
17			LABEL(P)-CAUTION, HOT_FUSER JC68-30928D 1 X
18			RMO-RUBBER_EXIT JC73-00017A 2 X
19			ROLLER-M-EXITF/UP JC66-00380A 1 O
20			ROLLER-PRESSURE JC66-00600B 1 O
21			BEARING-PRESSURE/R JC66-10901A 2 X
22			SPRING-CS 6107-001168 2 X
23			PMO-BUSHING TX JC72-00382A 3 X
24			HOLDER-ACTUATOR JC61-00581A 1 X
25			PMO-ACTUATOR EXITR2 JC72-01319A 1 X
26			FRAME-FUSER R2 JC61-00890A 1 X
28			SPRING-TS 6107-001165 1 X
29			NUT-HEXAGON 6021-000222 5 X
30			BUSH-HR L_R2 JC61-00888A 1 X
31			PLATE-P-CLAW JC61-00605A 4 X
32			GEAR-FUSER R2 JC66-00695A 1 X
33			LAMP-HALOGEN 110V 4713-001182 1 O 110V
34			LABEL(R)-LV FUSER JC68-00408A 1 X
35			SCREW-TAPTIEE 6003-000196 1 X
36			SCREW-ASS'YMACH 6006-001193 6 X
37			SCREW-TAPTIEE 6003-000269 6 X
38			BRUSH-ANTISTAIC JC75-00095A 1 X

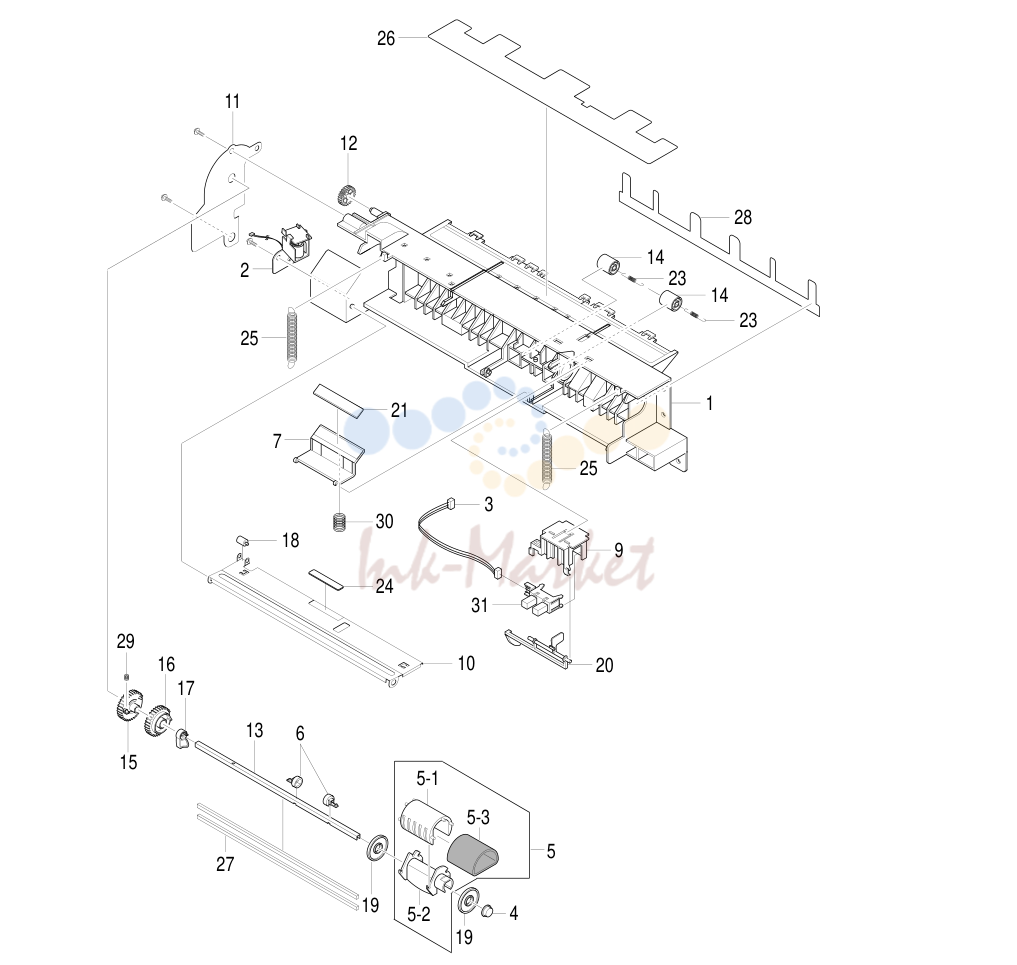

8. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-MP JC96-03132B 1 O
2			SOLENOID-MP JC33-00015B 1 X
3			CBF HARNESS-MPF SEN JC39-00365B 1 X
4			BUSH-M-PICK-UPR JC61-00587A 1 O
5			MEAUNIT-PICK UP JC97-02034A 1 O
5-1			HOUSING-M-PICK UP2_R2 JC61-00909A 1 O
5-2			HOUSING-M-PICK UP_MP JC61-00925A 1 X
5-3			RUBBER-PICK UP_MP JC73-00194A 1 X
6			STOPPER-M-PICK UP_R2 JC61-00915A 2 X
7			HOLDER-M-PAD_MP JC61-00924A 1 O
9			HOLDER-M-SENSOR_MP JC61-00926A 1 X
10			PLATE-P-KNOCK UP_MP JC61-00927A 1 X
11			BRACKET-P-PICK UP_MP JC61-00932A 1 X
12			GEAR-IDLE 23 JC66-00396A 1 O
13			SHAFT-P-PICK_UP JC66-00399A 1 O
14			ROLLER-M-IDLE FEED JC66-00529A 2 O
15			GEAR-M-PICK UP_MP JC66-00710A 1 X
16			GEAR-M-HOLDER_MP JC66-00709A 1 X
17			CAM-M-PICK UP_MP JC66-00711A 1 X
18			PMO-ROLLER CAM_MP JC72-00761A 1 X
19			PMO-IDLE PICK UP JC72-00982A 2 X
20			PMO-M-ACTEMPTYMP JC72-01338A 1 X
21			RPR-FRICTION PAD JC73-00140A 1 O
23			SPRING-ETC-EXITROLLFD JC61-70911A 2 X
24			RPR-PAD CASSETTE JC73-00141A 1 X
25			SPRING-ES 6107-001237 2 X
26			SHEETGUIDE PAPER R2 JC63-00545A 1 X
27			SHAFT-P-CORE JC66-00720A 2 X
28			SHEETGUIDE MP JC63-00448A 1 X
29			SPRING-CS 6107-001167 1 X
30			SPRING-ES 6107-001047 1 X
31			PHOTO INTERRUPTER 0604-001095 1 O

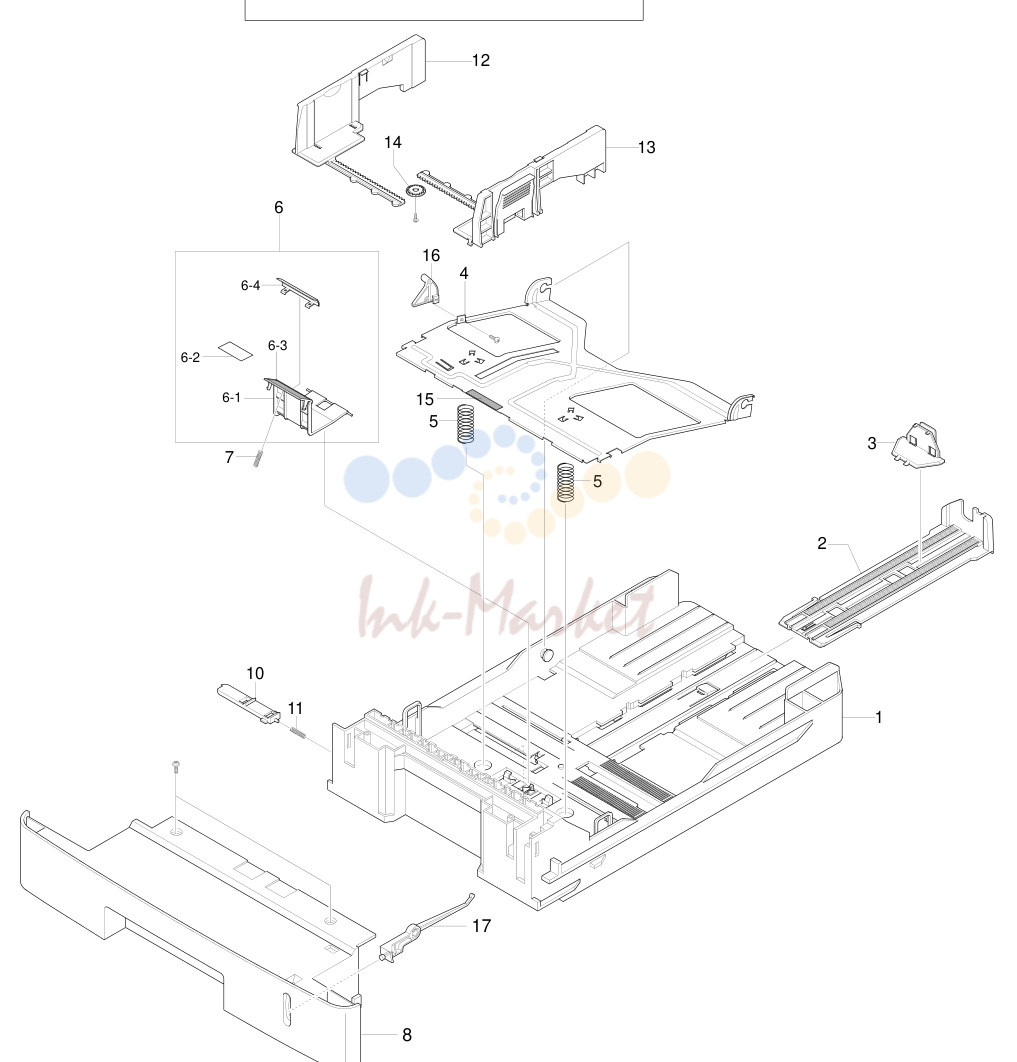

9. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEA-CASSETTE JC97-02020A 1 O
1			FRAME-M-CASSETTE JC61-00876D 1 O
2			GUIDE-M-EXTENSION LARGE JC61-00918B 1 X
3			PMO-EXTENSION SMALL JC72-00971A 1 O
4			PLATE-P-KNOCK_UP JC61-00603A 1 X
5			SPRING-CS 6107-001166 2 X
6			MEAUNIT-HOLDER PAD JC97-01931A 1 O
6-1			HOLDER-M-PAD JC61-00580A 1 O
6-2			SHEET-HOLDER PAD R2 JC63-00407A 1 X
6-3			RPR-FRICTION PAD JC73-00140A 1 O
6-4			IPR-PLATE PAD JC70-00314A 1 O
7			SPRING ETC-EXITROLLFD JC61-70911A 1 X
8			COVER-M-SUB CASSETTE R2 JC63-00490A 1 X
10			PMO-PLATE_LOCKER JC72-00972A 1 O
11			SPRING ETC-LOCKER,PLATE JG61-70531A 1 O
12			ADJUST-M-CASSETTE_L JC70-00300A 1 O
13			ADJUST-M-CASSETTE_R JC70-00301A 1 O
14			GEAR-PINION JG66-40003A 1 O
15			RPR-PAD CASSETTE JC73-00141A 1 X
16			CAM-KNOCK UP JC66-00719A 1 X
17			INDICATOR-CSTPAPER JC64-00143A 1 X

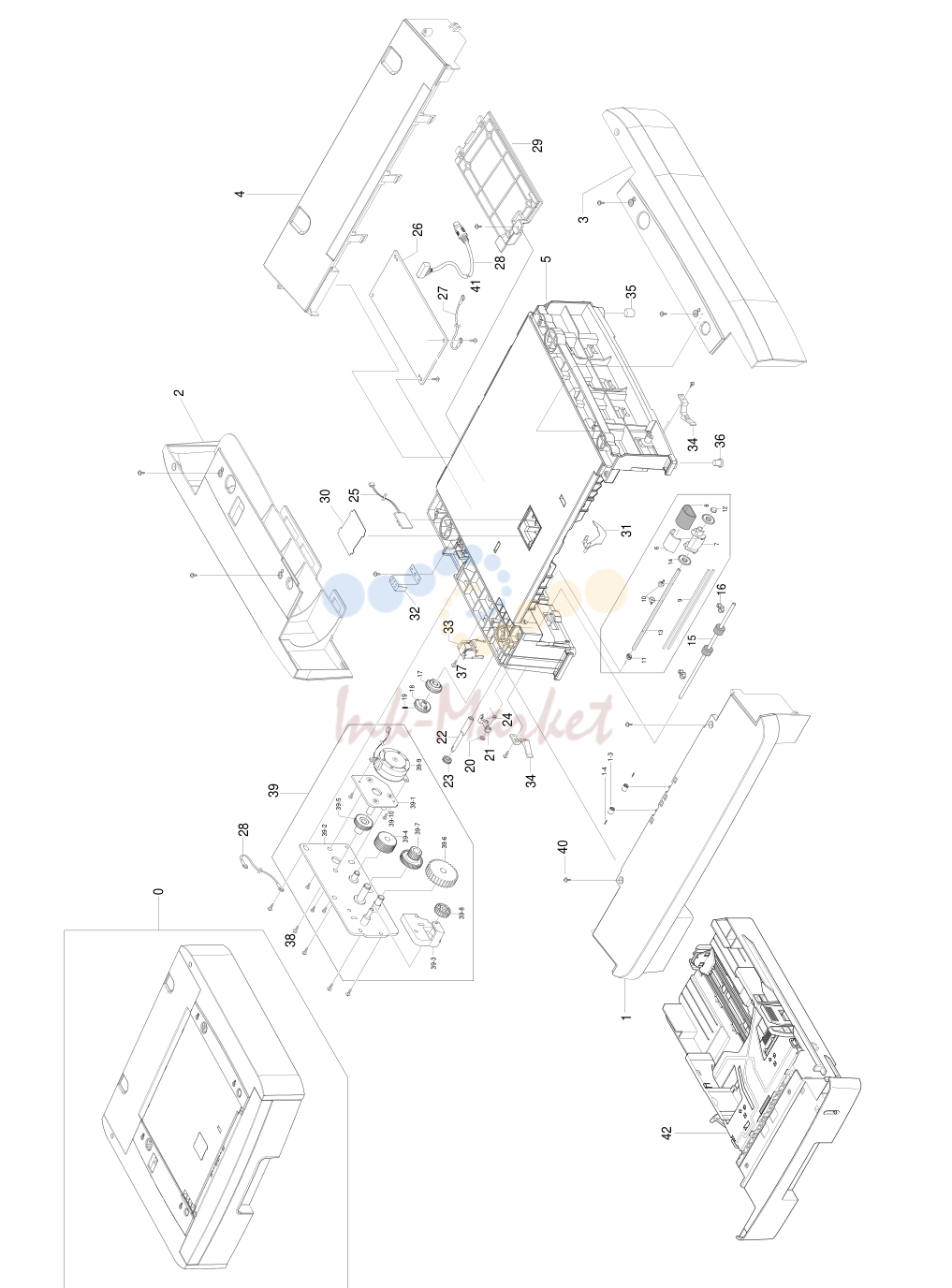

10. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-SCF R2 JC96-03132B 1 O
1			COVER-M-FRONTSCF R2 JC63-00505A 1 O
2			COVER-M-SIDE LSCF JC63-00500A 1 X
3			COVER-M-SIDE R SCF JC63-00499A 1 O
4			COVER-M-REAR SCF R2 JC63-00503A 1 O
5			FRAME-M_SCF JC61-00877A 1 X
8			SPONGE -ROLLER PICK_UP JC72-01231A 1 O
9			SHAFT-P-CORE JC66-00720A 2 X
10			PMO-BUSHING FEED JC72-00382B 2 O
11			BUSH-M-PICK_UPL JC61-00586A 1 O
12			BUSH-M-PICK_UPR JC61-00587A 1 O
13			SHAFT-P-PICK_UP JC66-00399A 1 O
14			PMO-IDLE PICK_UP JC72-00982A 2 X
15			ROLLER -FEED JC66-00598A 1 O
16			PMO-BUSHING TX JC72-00382B 2 O
17			PMO-GEAR PICK_UPA JC72-00979A 1 X
18			PMO-GEAR PICK_UPB JC72-00980A 1 X
19			SPRING-CS 6107-001167 1 X
20			RING-CS 6044-000001 1 X
21			CAM-M-PICK_UP JC66-00377A 1 O
22			SHAFT-FEED JC66-00527A 1 O
23			GEAR -FEED 2 JC66-00394A 1 O
24			SPRING-TS 6107-001170 1 X
25			PCB-SENSOR JC41-00247A 1 X
26			PBASUB-SCF JC92-01614A 1 O
27			CBF HARNESS -SCF GND JC39-00366A 1 X
28			CBF HARNESS -SCF JC39-00357A 1 X
29			COVER-M-SIMM R2 JC63-00492A 1 X
30			SHEET-COVER SENSOR JC63-00369A 1 X
31			PMO-ACTUATOR EMPTY JC72-00975A 1 O
32			IPR-GND TOP JC70-11028A 1 X
33			SOLENOID-HB(MANUAL) JC33-00010A 1 X
34			PMO-LOCKER CST JC72-00983A 1 O
35			FOOT-BACK JC61-00835A 1 O
36			FOOT-FRONT JC61-00836A 2 O
37			SCREW-ASS’YTAPT 6006-001078 1 X
38			SCREW-TAPTITE 6003-000196 10 X
39			ELAHOU-MOTOR SCF JC96-03003A 1 O
39-1			BRKT-P-MOTOR SCF JC61-00879A 1 X
39-2			BRKT-P-GEAR SCF JC61-00881A 1 X
39-3			BRKT-M-FEED SCF JC61-00878A 1 X
39-4			GEAR 61/47 IDLE JC66-00688A 1 X
39-5			GEAR 59 IDLE JC66-00689A 1 X
39-6			GEAR 35 IDLE JC66-00690A 1 X
39-7			GEAR-RDCN 57/18 JC66-00389A 1 X
39-8			GEAR-IDLE 23 JC66-00396A 1 X
39-9			MOTOR STEP(SCF) JC31-00009A 1 O
39-10			SCREW-MACHINE 6001-000131 5 X
39-11			CORE-FERRITE 3301-001635 1 X
39-12			CABLE TIE 6501-000004 1 x
40			BUSH CABLE JC61-00804A 1 X
41			SCREW-TAPTITE 6003-000196 1 X
42			MEC-CASSETTE JC97-02020A 1 X

Источник: Инк-Маркет.ру.

← Все статьи
