Dell 1600n — каталог запчастей со схемами

Содержание

1. Exploded View & Parts List
2. Exploded View & Parts List
3. Exploded View & Parts List
4. Exploded View & Parts List
5. Exploded View & Parts List
6. Exploded View & Parts List
7. Exploded View & Parts List
8. Exploded View & Parts List
9. Exploded View & Parts List

1. Exploded View & Parts List

№	Артикул	Описание
0	MFP1600n запросить цену →	SCX-4920N/DEH
1		ELAHOU-UNITSCAN JC96-03080A 1 X
1-1		ELAHOU-ADF JC96-03604A 1 O
1-2		COVER-OPE DUMMYR2 JC63-00377A 1 O
1-3		COVER-OPE POCKET JC63-00378A 1 O
1-4		ELAHOU-OPE JC96-03070A 1 O
1-5		ELAHOU-PLATEN JC96-03067A 1 O
2		ELAUNIT-FRAME DELL JC96-03098A 1 O
3		ELAUNIT-RX DRIVE JC96-03078A 1 O
4		UNIT-HUMMINGBIRD LSU JC59-00018B 1 O
5		CBF HARNESS-LSU JC39-00321A 1 O
6		ELAHOU-SHIELD ASS’YLV, 110V JC96-03107A 1 O 110V
6-1		SMPS-SMPS(V1)+HVPS, 110V JC44-00070A 1 O 110V
6-2		MEAUNIT-SHIELD ENGINE JC97-01794A 1 O
6-3		SHIELD-ENGINE R2 JC63-00399A 1 X
6-4		SUPPORTER 6103-001056 2 X
7		PBAMAIN-MAIN CONTROLLER JC92-01601A 1 O
8-2		BRACKET-NPC JC61-00809A 1 X
9		MODULAR JACK ASSY JC92-01607A 1 O
10		MEAUNIT-COVER FRONT JC97-01933A 1 O
10-2		ADJUSTRACK-M-MANUAL JC70-00304A 2 X
10-5		GEAR-RACK_PINION JC66-00387A 1 X
11		MEAUNIT-COVER MIDDLE JC97-01932A 1 O
12		ELAHOU-COVER SIDE L JC96-09079A 1 O
12-1		COVER-SIDE L_R2 JC96-03079A 1 X
12-2		COVER-DIMM R2 JC63-00390A 1 X
12-3		SPEAKER 3001-001293 1 X
13		COVER-SIDE R_R2 JC63-00384A 1 O
14		MEAUNIT-COVER REAR JC97-01934A 1 O
14-1		COVER-REAR R2 JC63-00392A 1 X
14-2		COVER-FACE UPR2 JC63-00393A 1 O
14-3		MAGNETIC CATCH JC61-00961A 1 X
14-4		COUNTER PART JC61-00962A 1 X
14-5		LABEL-PORT(REAR-COVER)/330 JC68-01345A 1 X
15		BADGE-DELL JC64-00131A 1 O
16		CBF HARNESS-MOTOR JC39-00241A 1 O
17		MEAETC TR JC97-01917A 1 O
17-1		ROLLER-TRANSFER R2 JC66-00703A 1 X
17-2		GEAR-TRANSFER JC66-00395A 1 X
18		COVER-MIDDLE FRONTL JC63-00386A 1 O
19		COVER-MIDDLE FRONTR JC63-00387A 1 O
20		PBASUB-LIU JC96-01607A 1 O
22		MEAUNIT-CASSETTE, USA JC97-01919A 1 O
23		CBF HARNESS-ENGINE JC39-00240C 1 O
24		BRACKET-P-INLET, ROCKY JC61-00693A 1 O
26		CBF HARNESS MODULAJACK JC39-00144A 1 O
27		SHIELD-CONTROLLER R2 JC63-00400A 1 O
28		COVER-DUMMYJACK JC63-00509A 1 O

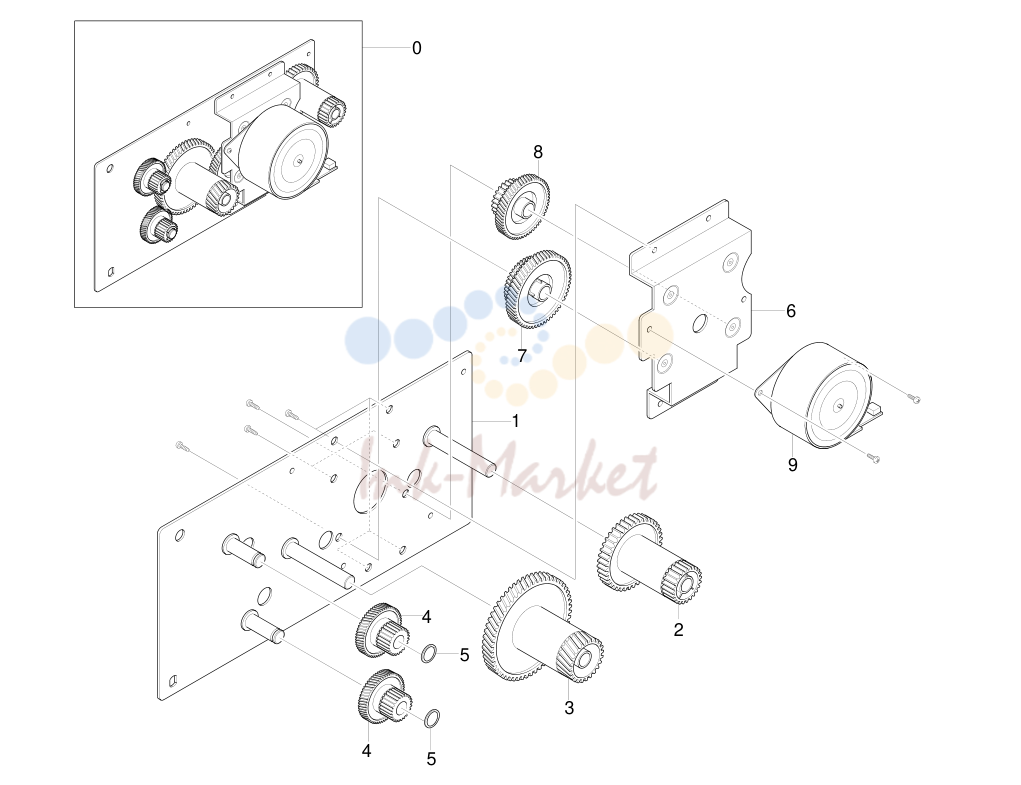

2. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-RX DRIVE JC96-03078A 1 O
1			BRACKET-GEAR MAIN JC61-00891A 1 X
2			GEAR-RDCN 53/26 JC66-00388A 1 X
3			GEAR-RDCN 113/33 JC66-00706A 1 X
4			GEAR-RDCN 57/18 JC66-00389A 2 X
5			WASHER-PLAIN 6031-000023 2 X
6			BRACKET-MOTOR MAIN R2 JC61-00916A 1 X
7			GEAR-RDCN 103/41 JC66-00390A 1 X
8			GEAR-RDCN 90/31 JC66-00392A 1 X
9			MOTOR STEP-MAIN JC31-00037A 1 O

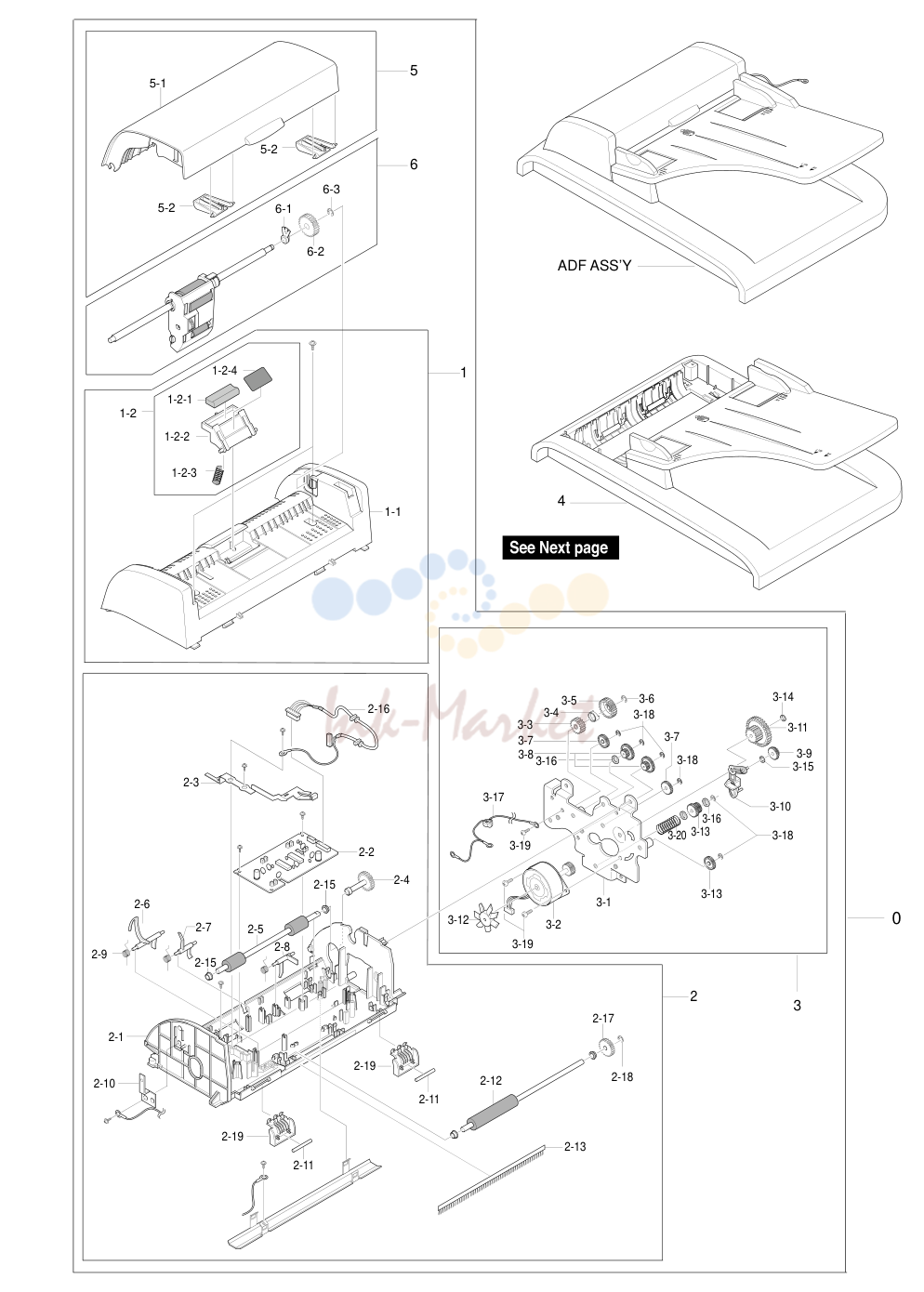

3. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-ADF-ENGINE JC96-03133A 1 O
1			MEAUNIT-ADF UPPER JC97-01939A 1 O
1-1			COVER-ADF UPPER R2 JC63-00450A 1 X
1-2			MEAUNIT-HOLDER ADF JC97-01940A 1 O
2			ELAHOU-ADF LOWER JC96-03066A 1 X
2-1			COVER-ADF LOWER R2 JC63-00370A 1 X
2-2			PBASUB-ADF JC92-01618A 1 O
2-3			GROUND-ADF R2 JC63-00372A 1 X
2-4			SHAFT-M-FEED GEAR 38 JC66-00460A 1 X
2-5			ROLLER-DRIVE JC66-00560A 1 X
2-6			PMO-ACTEMPTYADF JC72-01320A 1 O
2-7			PMO-ACTUATOR REGI SENSOR JC72-01010A 1 O
2-8			PMO-ACTUATOR SCAN SENSOR JC72-01011A 1 O
2-9			SPRING ETC-TORSION DOC (CC2-F) JB61-00076A 3 X
2-10			IPR-GROUND_ROLLER JC70-10467A 1 X
2-12			ROLLER-EXIT JC66-00559A 1 X
2-13			MEC-BRUSH ANTISTATIC JC75-00095A 1 X
2-14			PPR-WHITE BAR SHEET JC72-00752A 1 X
2-15			PMO-BUSH JB72-00819A 4 X
2-16			CBF HARNESS-ADF JC39-00278A 1 X
2-18			RING-C 6044-000159 1 X
2-19			GUIDE-STACKER SUB JC61-00712A 2 X
2-20			CBF HARNESS ADF ROLLER GND JC39-00187A 1 X
2-21			IPR-BRKTWHITE BAR JC70-00225A 1 X
2-22			SPRING ETC WHITE BAR JC61-00548A 2 X
3			ELAHOU-ADF MOTOR JC96-03065A 1 O
3-1			BRACKET-GEAR ADF JC61-00892A 1 X
3-2			MOTOR BLOWER-ADF JC31-00023A 1 X
3-3			GEAR-CLUTCH 29 JB66-00101A 1 O
3-4			PMO-WHITE CLUTCH SUB 29 JB72-00844A 1 X
3-5			GEAR-CLUTCH 39 JC66-00322A 1 X
3-6			RING-C 6044-000159 1 X
3-7			GEAR-IDLE 35 ADF JC66-00458A 2 X
3-8			GEAR-40/21 ADF JC66-00456A 1 X
3-9			GEAR-SWING 31/20 ADF JC66-00457A 1 X
3-10			LINK-M-SWING ADF JC66-00454A 1 X
3-11			GEAR-58/25 ADF JC66-00455A 1 X
3-12			IMPELLER-ADF JC66-00556A 1 X
3-13			GEAR-REMOVE ADF JC66-00557A 1 X
3-15			IPR-WASHER WAVE JB70-00070A 1 X
3-16			WASHER-PLAIN 6031-000019 3 X
3-17			CBF HARNESS-MOTOR GROUND JC39-00355A 1 X
3-18			RING-E 6044-000125 6 X
3-19			SCREW-TAPTITE 6003-000269 3 X
4			MEAUNIT-COVER PLATEN JC97-01937A 1 O
4-1			COVER-PLATEN R2 JC63-00374A 1 O
4-2			SHEET-WHITE SPONGE JC63-00209A 1 O
4-3			MEA-TX STACKER JC97-01938A 1 O
4-4			SPRING ETC-FEED JC61-00011A 6 O
4-5			PMO-ROLLPINCH JG72-40663A 2 O
4-6			ICT-SHAFTPINCH JF70-40521B 1 O
4-7			MEAUNIT-HINGE JC97-01707A 2 O
4-8			RPR-ROLLER EXITIDLE JC66-00728A 2 O
4-9			SHAFT-IDLE FEED JC66-00558A 2 O
5			MEAUNIT-COVER OPEN JC97-01936A 1 O
5-1			COVER-ADF OPEN R2 JC63-00498A 1 X
5-2			PMO-GUIDE PAPER JB72-00843A 2 X
5-3			DAMPER-PICKUPADF JC66-00726A 1 X
6			MEAUNIT-PICKUP JC97-01962A 1 O
6-1			PMO-BUSHING WHITE JF72-41306A 1 X
6-2			GEAR-ADF 38 JB66-00103A 1 X
6-3			RING-C 6044-000159 1 X

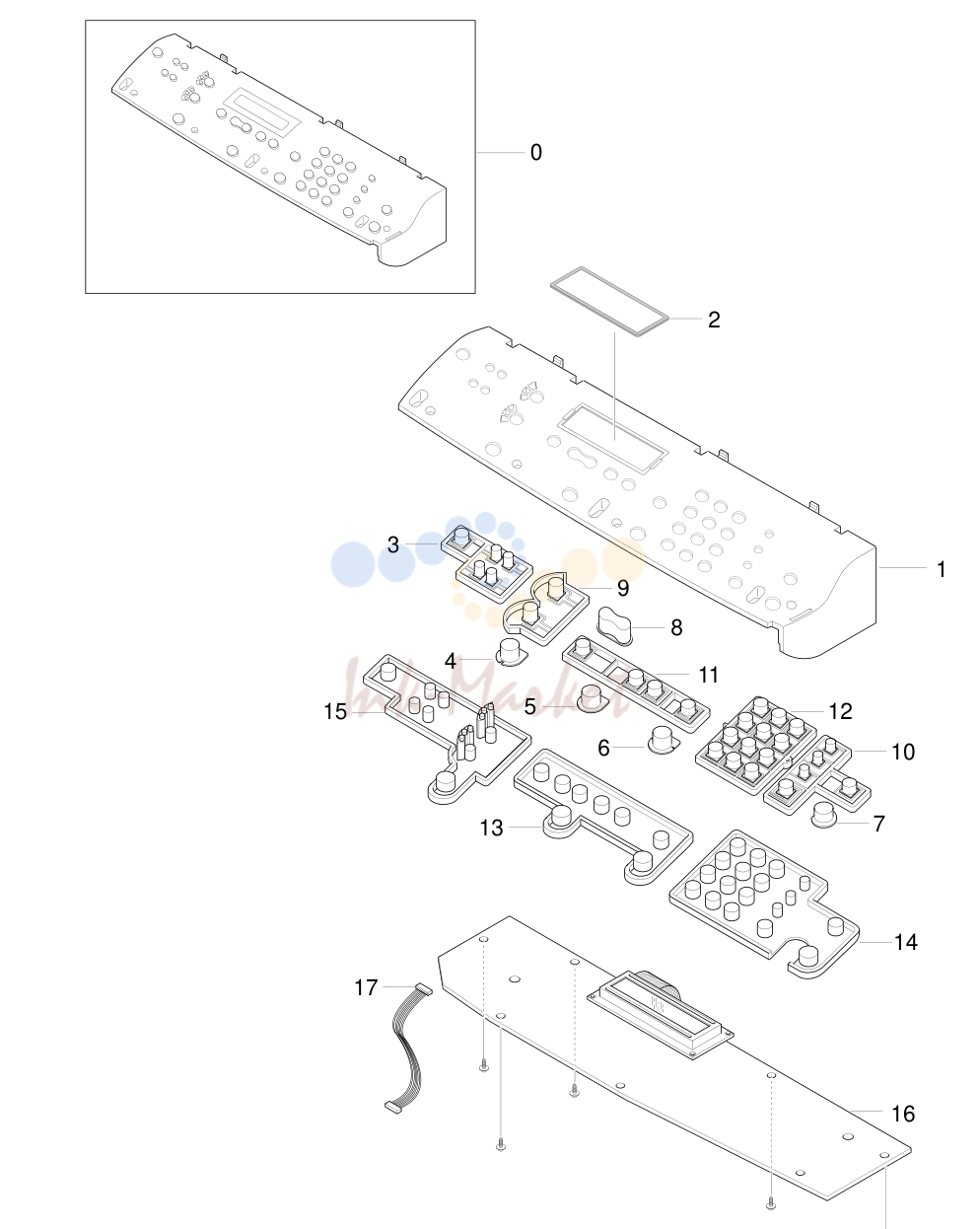

4. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-OPE JC96-03070A 1 O
1			COVER-OPE R2_DELL JC63-00376A 1 O
2			WINDOW-LCD JC64-00130A 1 O
3			KEY-COPY_DELL JC64-00120A 1 O
4			KEY-STARTCOPY JC64-00126A 1 O
5			KEY-CANCEL JC64-00127A 1 O
6			KEY-SEND FAX JC64-00128A 1 O
7			KEY-STARTSCAN JC64-00129A 1 O
8			KEY-SCROLL_DELL JC64-00123A 1 O
9			KEY-QUALTY JC64-00121A 1 O
10			KEY-FAX_DELL JC64-00125A 1 O
11			KEY-MENU JC64-00122A 1 O
12			KEY-TEL_DELL JC64-00124A 1 O
13			RUBBER-SCROLL_DELL JC73-00176A 1 O
14			RUBBER-TEL/FAX_DELL JC73-00177A 1 O
15			RUBBER-COPY_DELL JC73-00178A 1 O
16			PBASUB-OPE JC92-01503A 1 O

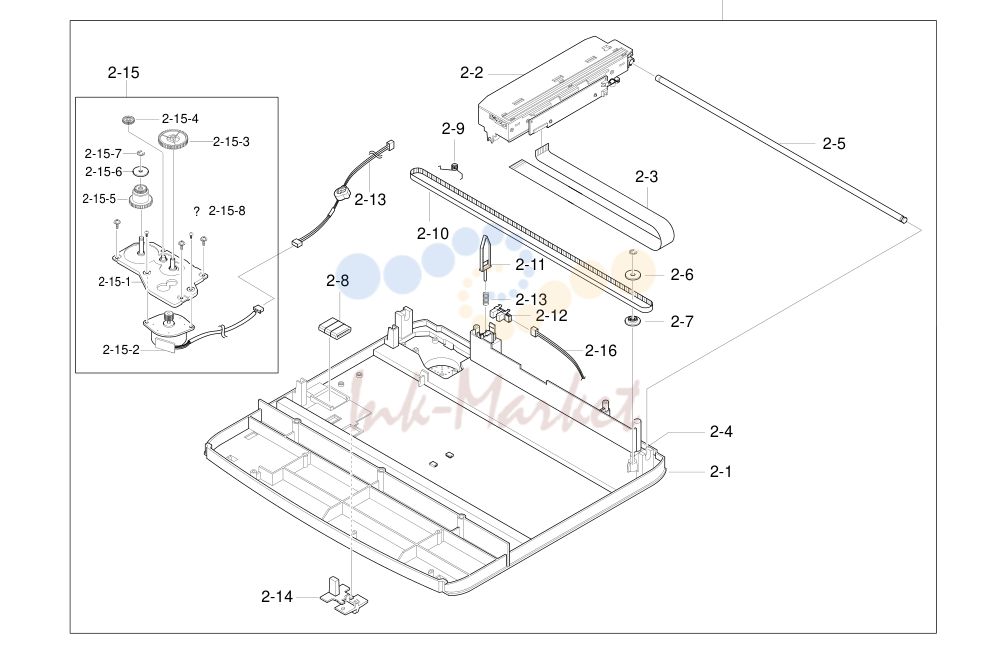

5. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-PLATEN JC96-03067A 1 O
1			MEAUNIT-SCAN UPPER JC97-01942A 1 O
1-1			COVER-SCAN UPPER DELL JC63-00380A 1 O
1-2			GLASS-SCAN JC01-00001A 1 O
1-3			MEAUNIT-SCAN DUMMY JC97-01941A 1 O
1-4			IPR-HOLDER GLASS JB70-00148A 2 O
2			ELAHOU-SCAN LOWER JC96-03068A 1 O
2-1			COVER-SCAN LOWER DELL JC63-00379A 1 X
2-2			ELAHOU-CCD MODULE JC96-02759A 1 O
2-3			CBF SIGNAL-CCD FFC JC39-00269A 1 O
2-4			ICT-INSERTSHAFT JB70-00154A 1 X
2-5			ICT-SHAFTCCD JB70-00145A 1 X
2-6			PMO-HOLDER BELT JB72-00764A 1 X
2-7			PMO-PULLEY JB72-00763A 1 X
2-8			ELAUNIT-CORE JB96-01381A 3 X
2-9			SPRING ETC-BELT JB61-00059A 1 X
2-10			BELT-TIMING GEAR 6602-001067 1 O
2-11			PMO-LEVER SENSOR JC72-00755A 1 X
2-12			PHOTO-INTERRUPTER 0604-001095 1 X
2-13			SPRING-CS 6107-001135 1 X
2-14			HOLDER-CCD JC61-00894A 1 X
2-15			ELAHOU-SCAN MOTOR JC96-03069A 1 O
2-16			CBF-HARNESS-OPE JC39-00348A 1 X
0			MEAUNIT-COVER MIDDLE JC97-01932A 1 O
1			COVER-MIDDLE R2 JC63-00385A 1 X
2			COVER-REAR UPPER JC63-00388A 1 X
3			COVER-STACKEPRX JC63-00513A 1 X
4			BUSH-F/DOWN R2 JC61-00902A 1 X

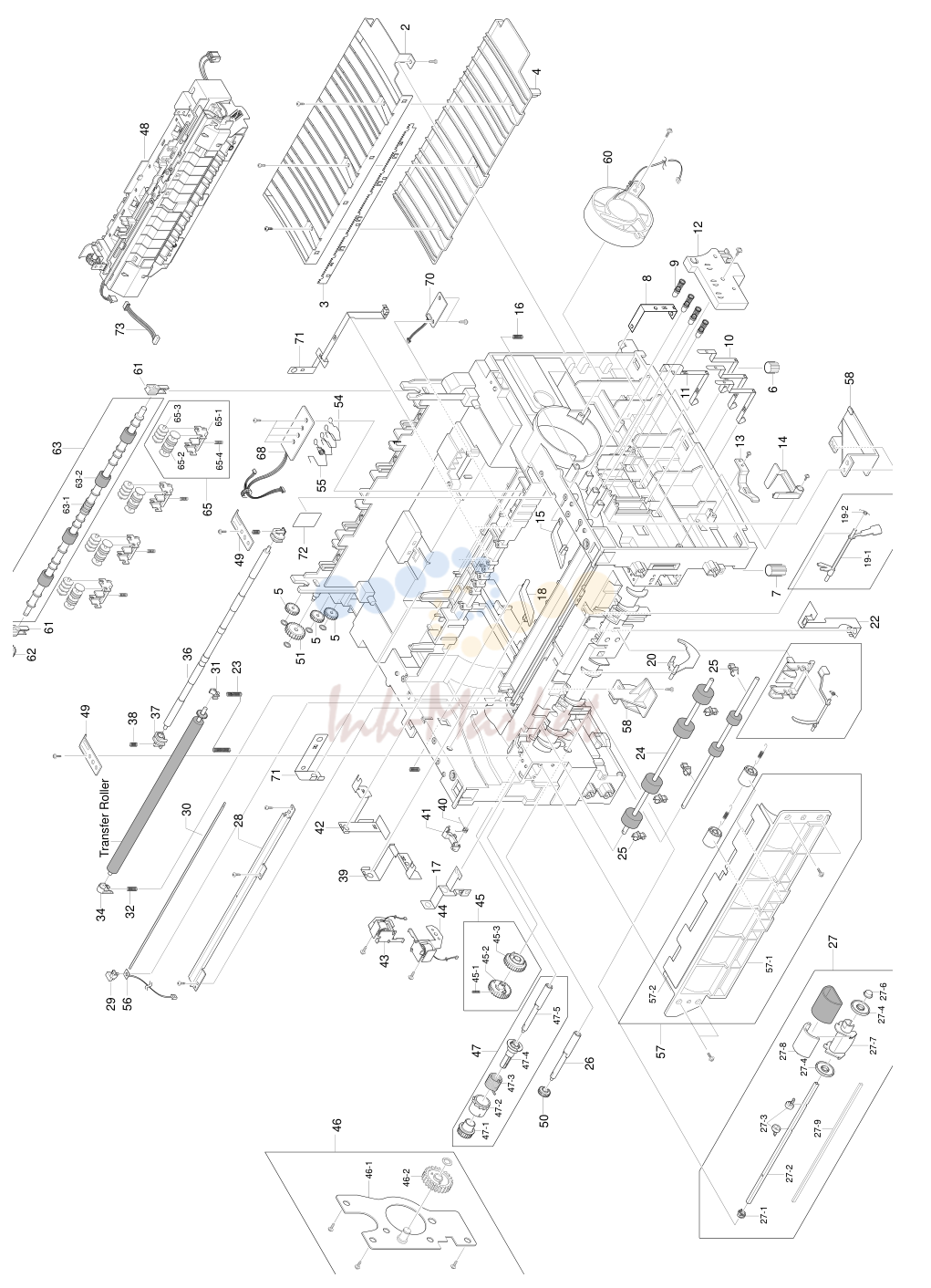

6. Exploded View & Parts List

№	Артикул	Описание
0		ELAUNIT-FRAME DELL JC96-03098A 1 O
1		FRAME-BASE R2 JC61-00906A 1 X
2		GUIDE-P-TR JC61-00607A 1 X
3		PLATE-P-SAW JC61-00604A 1 X
4		GUIDE-M-TR RIB JC61-00594A 1 X
6		FOOT-BACK JC61-00835A 2 X
7		FOOT-FRONT JC61-00836A 2 O
8		GROUND-GUDIE TR R2 JC63-00397A 1 X
9		MEC-TERMINAL JC75-00049A 4 O
10		PLATE-TERMINALCON R2 JC61-00903A 3 X
11		PLATE-TERMINALCR R2 JC61-00904A 1 X
13		PMO-LOCKER CST JC72-00983A 2 X
14		PMO-ACTUATOR CVR OPEN JC72-00974A 1 X
15		PMO-PLATE GUIDE DEVE_R JC72-00985A 1 X
16		SPRING ETC-GUIDE DEVE JC61-70932A 2 X
17		GROUND-PUSH BUSHING JC63-00401A 1 X
18		PMO-PLATE GUIDE DEVE_L JC72-00984A 1 X
19		PMO-ACTFEED R2 JC72-01323A 1 X
20		PMO-ACTUATOR EMPTY JC72-00975A 1 O
22		GROUND-EARTH TR R2 JC63-00395A 1 X
23		GROUND-TERMINALTR JC63-00403A 1 X
24		ROLLER-FEED ROLLER 1 JC66-00526A 1 O
25		PMO-BUSHING FEED JC72-00382B 5 O
26		SHAFT-FEED JC66-00398A 1 O
27		MEAUNIT-PICKUP JC97-01926A 1 O
27-1		BUSH-M-PICK_UPL JC61-00586A 1 X
27-2		SHAFT-P-PICK_UP JC66-00399A 1 X
27-3		STOPPER-PICK UP_R2 JC61-00915A 2 X
27-4		PMO-IDLE PICK_UP JC72-00982A 2 X
27-5		SPONGE-ROLLER PICK_UP JC72-01231A 1 X
27-6		BUSH-M-PICK_UPR JC61-00587A 1 X
27-7		HOUSING-PICK UP_R2 JC61-00909A 1 X
27-8		HOUSING-PICK UP2_R2 JC61-00910A 1 X
27-9		SHAFT-CORE JC65-00720A 2 X
28		IPR-P-EARTH TRANSFER JC70-00307A 1 O
30		LENS-PTL JC67-00027A 1 O
31		PMO-BUSHING_TR(L) JC72-00102A 1 X
32		SPRING ETC-TR LHAWK JC61-00047A 1 X
33		ROLLER-FEED JC66-00598A 1 X
34		BUSH-M-TR L JC61-00588A 1 X
35		GROUND-FUSER R2 JC63-00396A 1 X
36		SHAFT-FEED IDLE JC66-00527A 1 X
37		BUSH-M-FEED IDLE JC61-00585A 2 X
38		SPRING ETC-TR JC61-70958A 2 X
40		SPRING-TS 6107-001170 1 X
41		CAM-M-PICK_UP JC66-00377A 1 X
42		GROUND-DRIVE R2 JC63-00394A 1 X
43		SOLENOID-FEED ROCKY2 JC33-00014A 1 O
44		SOLENOID-HB (MANUAL) JC33-00010A 1 O
45		MEAUNIT-GEAR PICKUP JC97-01929A 1 O
45-1		GEAR-PICK UPB_R2 JC66-00705A 1 X
45-2		GEAR-PICK UPA_R2 JC66-00704A 1 X
45-3		SPRING-CS 6107-001167 1 X
46		MEAUNIT-BRACKETFEED JC97-01925A 1 O
46-1		BRACKET-FEED R2 JC61-00913A 1 O
46-2	GEAR-Z35 запросить цену →	IDLE JC66-00690A 1 X
47		MEAUNIT-CLUTCH JC97-01788A 1 O
47-1		GEAR-FEED 1 JC66-00393A 1 X
47-2		PMO-COLLAR_SPRING JC72-00978A 1 X
47-3		SPRING-TS 6107-001171 1 X
47-4		PMO-HUB CLUTCH JC72-00981A 1 X
47-5		SHAFT-FEED JC66-00398A 1 X
48		ELAHOU-FUSER 110V JC96-03061A 1 O 110V
49		PLATE-PUSH BUSHING JC61-00914A 2 X
50		GEAR-FEED 2 JC66-00394A 1 X
51		GEAR-IDLE 23 JC66-00396A 1 X
52		SPRING-TS 6107-001164 1 X
53		SPRING-TS 6107-001165 1 X
54		IPR-P-TERMINALDEVE KEY JC70-00340A 3 X
55		GROUND-TERMINALDEVE JC63-00458A 1 X
56		PBASUB-PTL JC92-01620A 1 O
57		MEAUNIT-GUIDE PAPER JC97-01924A 1 O
57-1		GUIDE-PAPER FRONT JC61-00905A 1 X
57-2		SHEET-GUIDE PAPER JC63-00470A 1 X
57-3		ROLLER-M-IDLE FEED JC66-00529A 2 X
57-4		SPRING-ES 6107-001047 2 X
61		MEC-BEARING,EXIT JC75-10529A 2 X
62		GEAR-EXITF/DOWN JC66-00038A 1 X
63		ROLLER-EXITF/DOWN JC66-00378A 1 X
64		RMO-RUBBER EXIT JC73-40915A 4 X
65		MEARACK-EXITROLLER JC97-01034A 4 O
65-1		PMO-HOLDER EXITROLL JC72-41006A 1 X
65-2		PMO-ROLLER FD F JC72-41007A 1 X
65-3		PMO-ROLLER FD R JC72-41008A 1 X
65-4		SPRING ETC-EXITROLLFD JC61-70911A 1 X
66		GUIDE-SUB FRONT JC61-00917A 1 X
68		PBA-SUB-CRUM JC92-01605A 1 O
69		CBF HARNESS CRUM2 JC39-00356A 1 O
70		PBASUB-EXITSENSOR JC92-01604A 1 O
71		GROUND-SHIELD R2 JC63-00402A 1 X
72		LABEL(R)-HOTCAUTION,KME JC68-00317A 1 X
73		FAN-DC JC31-00025A 1 O

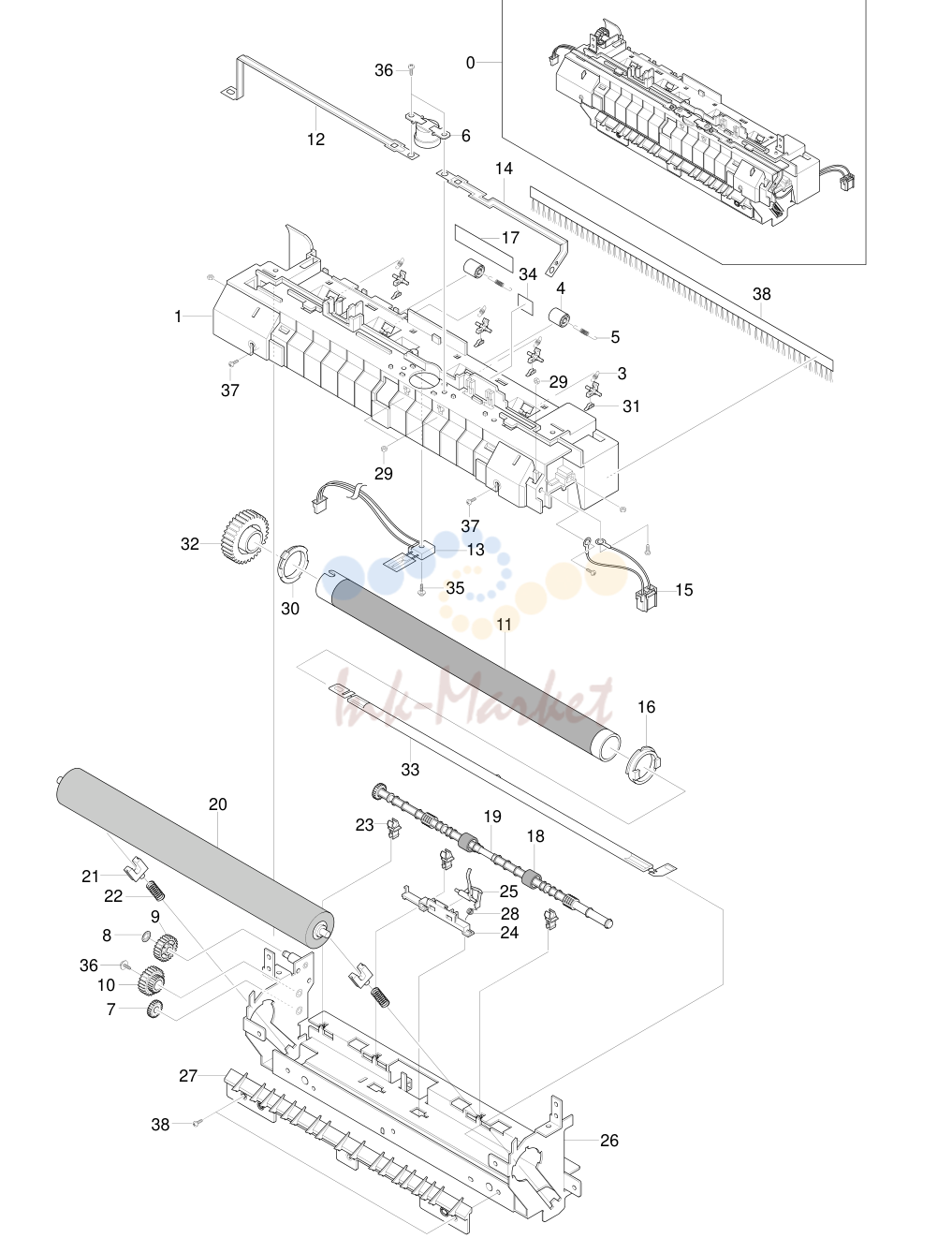

7. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-FUSER 110V JC96-03061A 1 O 110V
1			COVER-FUSER R2 JC63-00363A 1 X
2			HOLDER-PLATE CLAW R2 JC61-00886A 4 X
3			SPRING ETC-CLAW JC61-00064A 4 X
4			PMO-ROLLER_EXIT JC72-40361A 2 X
5			SPRING ETC-FUSER EXIT JC61-70976A 2 X
8			GEAR-IDLE 23 JC66-00396A 1 X
9			RING-E 6044-000125 1 X
10			GEAR-RDCN 25/15 JC66-00397A 1 X
11			ROLLER-HEATER JC66-00729A 1 O
13			THERMISTOR-NTC 1404-001337 1 O
15			CBF HARNESS-FUSER 110V JC39-00353A 1 X WHITE
16			BUSH-HR R_R2 JC61-00887A 1 X
17			LABEL(P)-CAUTION, HOT_FUSER JC68-30928D 1 X
18			RMO-RUBBER_EXIT JC73-00017A 2 X
19			ROLLER-M-EXITF/UP JC66-00380A 1 X
20			ROLLER-PRESSURE JC66-00600B 1 O
21			BEARING-PRESSURE/R JC66-10901A 2 X
22			SPRING-CS 6107-001168 2 X
23			PMO-BUSHING TX JC72-00382A 3 X
24			HOLDER-ACTUATOR JC61-00581A 1 X
25			PMO-ACTUATOR EXITR2 JC72-01319A 1 X
26			FRAME-FUSER R2 JC61-00890A 1 X
28			SPRING-TS 6107-001165 1 X
29			NUT-HEXAGON 6021-000222 5 X
30			BUSH-HR L_R2 JC61-00888A 1 X
31			PLATE-P-CLAW JC61-00605A 4 X
32			GEAR-FUSER R2 JC66-00695A 1 X
33			LAMP-HALOGEN 110V 4713-001182 1 O 110V
34			LABEL(R)-LV FUSER JC68-00408A 1 X
35			SCREW-TAPTIEE 6003-000196 1 X
36			SCREW-ASS'YMACH 6006-001193 6 X
37			SCREW-TAPTIEE 6003-000269 6 X
38			BRUSH-ANTISTAIC JC75-00095A 1 X

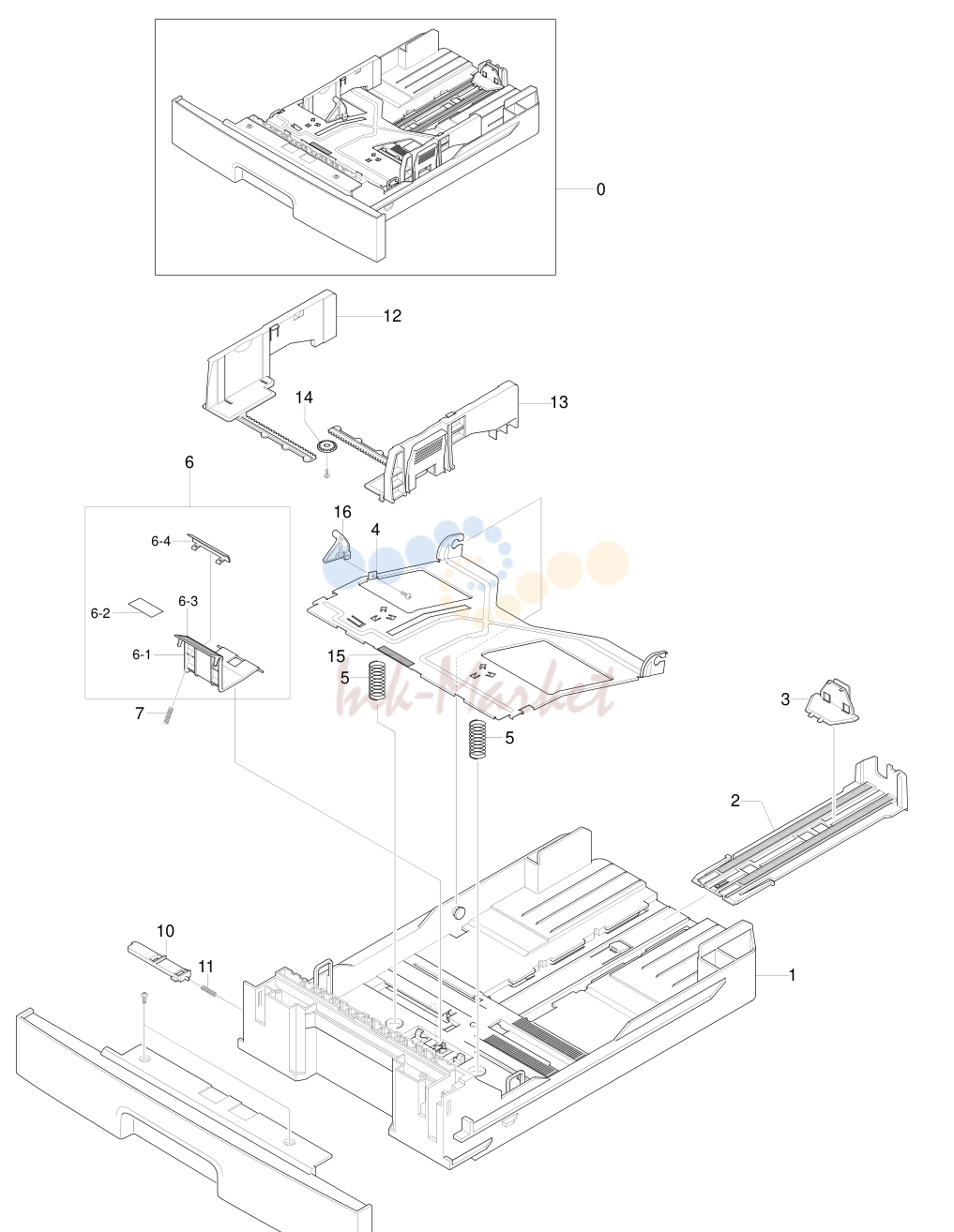

8. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEAUNIT-CASSETTE, USA JC97-01919A 1 O
1			FRAME-M-CASSETTE JC61-00876A 1 X
2			GUIDE-M-EXTENSION LARGE JC61-00918A 1 X
3			GUIDE-EXTENSION SMALL JC61-00960A 1 X
4			PLATE-P-KNOCK_UP JC61-00603A 1 X
5			SPRING-CS 6107-001166 2 X
6			MEAUNIT-HOLDER PAD JC97-01931A 1 O
6-1			HOLDER-M-PAD JC61-00580A 1 X
6-2			SHEET-HOLDER PAD R2 JC63-00407A 1 X
6-3			RPR-FRICTION PAD JC73-00140A 1 X
6-4			IPR-PLATE PAD JC70-00314A 1 X
7			SPRING ETC-EXITROLLFD JC61-70911A 1 X
8			COVER-SUB CASSETTE R2 JC63-00368A 1 X
10			PMO-PLATE_LOCKER JC72-00972A 1 X
11			SPRING ETC-LOCKER,PLATE JG61-70531A 1 X
12			ADJUST-M-CASSETTE_L JC70-00300G 1 X
13			ADJUST-M-CASSETTE_R JC70-00301G 1 X
14			GEAR-PINION JG66-40003A 1 X
15			RPR-PAD CASSETTE JC73-00141A 1 X
16			CAM-KNOCK UP JC66-00719A 1 X

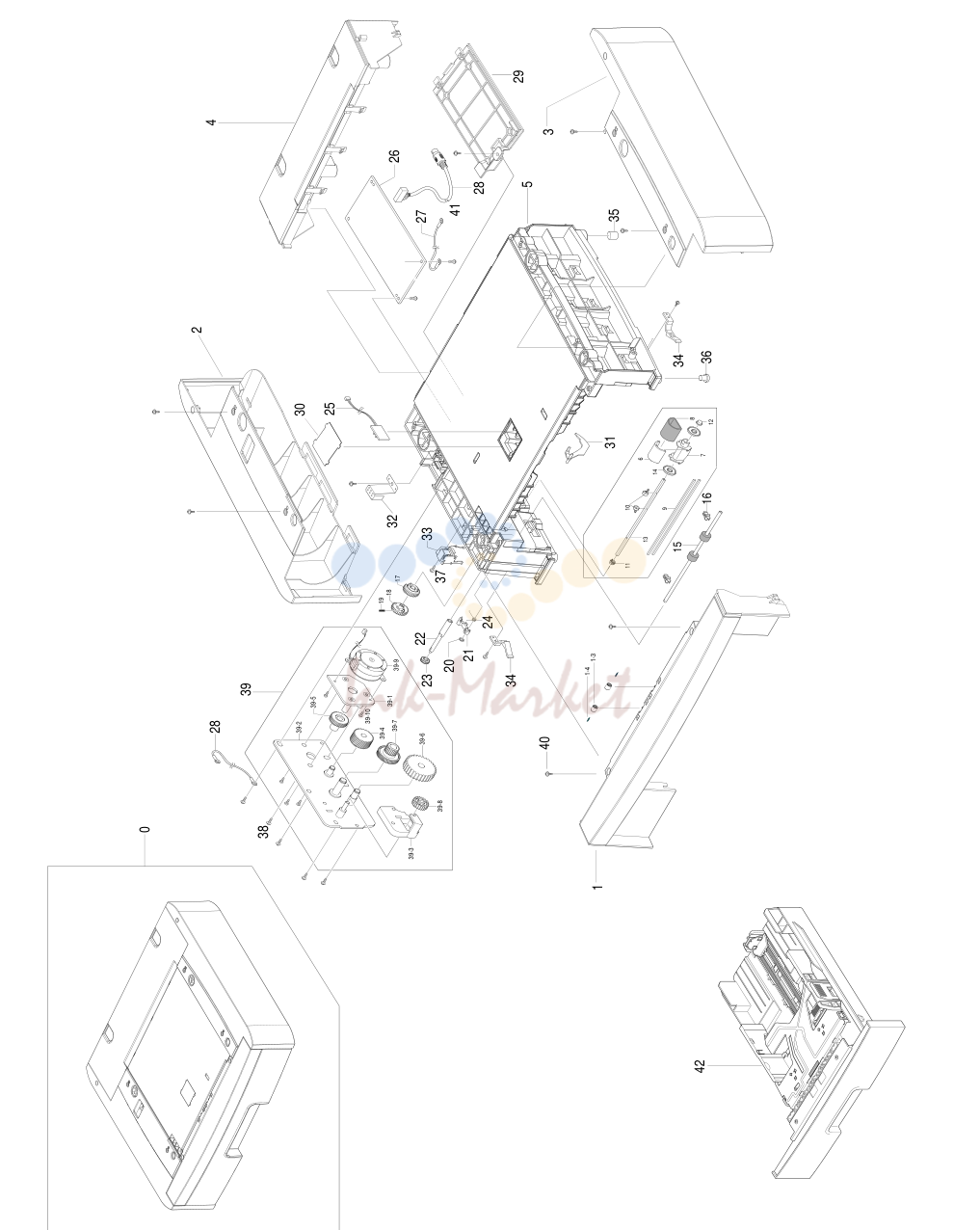

9. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-SCF R2 JC96-03096A 1 X
1			COVER-M-FRONTSCF R2 JC63-00364A 1 X
2			COVER-M-LEFTSCF R2 JC63-00365A 1 O
3			COVER-M-RIGHTSCF R2 JC63-00366A 1 O
4			COVER-M-REAR SCF R2 JC63-00367A 1 O
5			FRAME JC61-00877C 1 X
8			SPONGE -ROLLER PICK_UP JC72-01231A 1 O
9			SHAFT-P-CORE JC66-00720A 2 X
10			BUSHING-PICK_UP JC61-00593A 2 X
11			BUSH-M-PICK_UPL JC61-00586A 1 X
12			BUSH-M-PICK_UPR JC61-00587A 1 X
13			SHAFT-P-PICK_UP JC66-00399A 1 X
14			PMO-IDLE PICK_UP JC72-00982A 2 X
15			ROLLER -FEED JC66-00598A 1 X
16			PMO-BUSHING TX JC72-00382A 2 X
17			PMO-GEAR PICK_UPA JC72-00979A 1 X
18			PMO-GEAR PICK_UPB JC72-00980A 1 X
19			SPRING-CS 6107-001167 1 X
20			RING-CS 6044-000001 1 X
21			CAM-M-PICK_UP JC66-00377A 1 X
22			SHAFT-FEED JC66-00527A 1 X
23			GEAR -FEED 2 JC66-00394A 1 X
24			SPRING-TS 6107-001170 1 X
25			PCB-SENSOR JC92-01364B 1 X
26			PBASUB-SCF JC92-01614A 1 O
27			CBF HARNESS -SCF GND JC39-00366A 1 X
28			CBF HARNESS -SCF JC39-00357A 1 O
29			COVER-M-SIMM R2 JC63-00492A 1 X
30			SHEET-COVER SENSOR JC63-00369A 1 X
31			PMO-ACTUATOR EMPTY JC72-00975A 1 X
32			IPR-GND TOP JC70-11028A 1 X
33			SOLENOID-HB(MANUAL) JC33-00010A 1 X
34			PMO-LOCKER CST JC72-00983A 1 X
35			FOOT-BACK JC61-00835A 1 X
36			FOOT-FRONT JC61-00836A 2 X
37			SCREW-ASS’YTAPT 6006-001078 1 X
38			SCREW-TAPTITE 6003-000196 10 X
39			ELAHOU-MOTOR SCF JC96-03003A 1 O
39-1			BRKT-P-MOTOR SCF JC61-00879A 1 X
39-2			BRKT-P-GEAR SCF JC61-00881A 1 X
39-3			BRKT-M-FEED SCF JC61-00878A 1 X
39-4			GEAR 61/47 IDLE JC66-00688A 1 X
39-5			GEAR 59 IDLE JC66-00689A 1 X
39-6			GEAR 35 IDLE JC66-00690A 1 X
39-7			GEAR-RDCN 57/18 JC66-00389A 1 X
39-8			GEAR-IDLE 23 JC66-00396A 1 X
39-9			MOTOR STEP(SCF) JC31-00009A 1 O
39-10			SCREW-MACHINE 6001-000131 5 X
39-11			CORE-FERRITE 3301-001635 1 X
39-12			CABLE TIE 6501-000004 1 x
40			BUSH CABLE JC61-00804A 1 X
41			SCREW-TAPTITE 6003-000196 1 X
42			MEAUNIT-CASSETTE JC97-01919A 1 X

Источник: Инк-Маркет.ру.

← Все статьи
