Samsung ML-5000A — каталог запчастей со схемами

Содержание

№	Артикул	Альт. артикул	Описание
5-1			Main Exploded View
5-2			Main Parts List
5-3			Front Cover Exploded View
5-4			Front Cover Parts List
5-5			Top Cover Exploded View
5-6			Top Cover Parts List
5-7			Fuser Exploded View
5-8			Fuser Parts List
5-9			Frame Exploded View
5-10			Frame Parts List
5-11			Feeder (1/2) Exploded View
5-12			Feeder (1/2) Parts List
5-13			Feeder (2/2) Exploded View
5-14			Feeder (2/2) Parts List

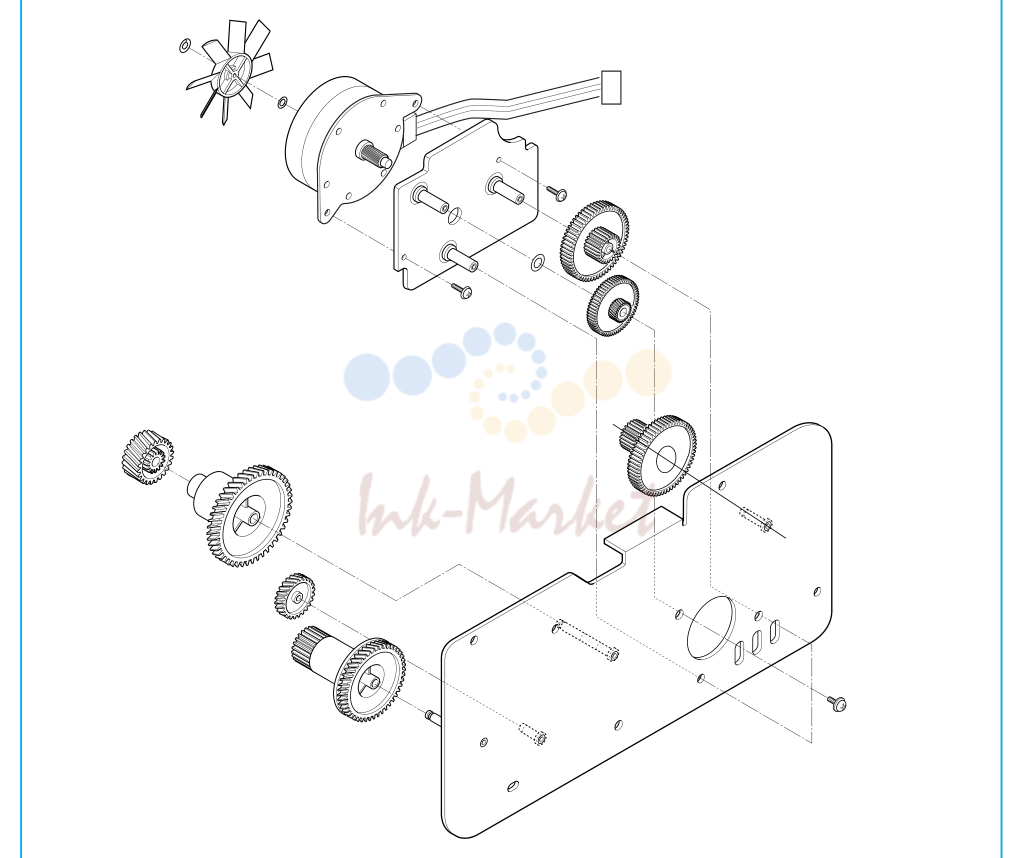

5-15			Motor Exploded View
5-16			Motor Parts List
5-17			PCB Exploded View
5-18			PCB Parts List

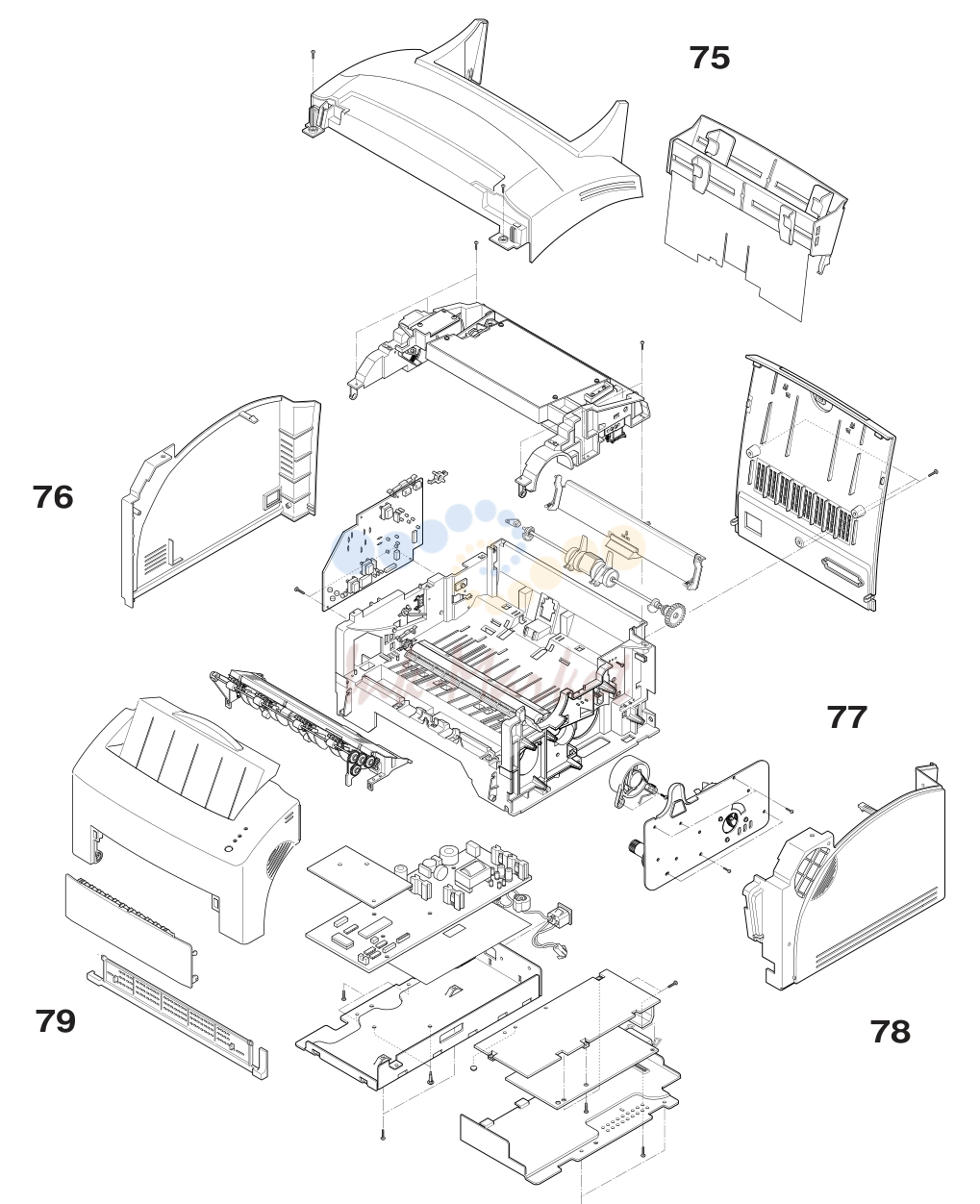

№	Артикул	Альт. артикул	Описание
5-2			Main Parts List
75			COVER TOP JC72-41279A
76			COVER SIDE,L JC72-41086C
77			DC FAN MOTOR JC31-30502A
78			COVER SIDE,R JC72-41087C
79			COVER-BOTTOM JC72-41089C

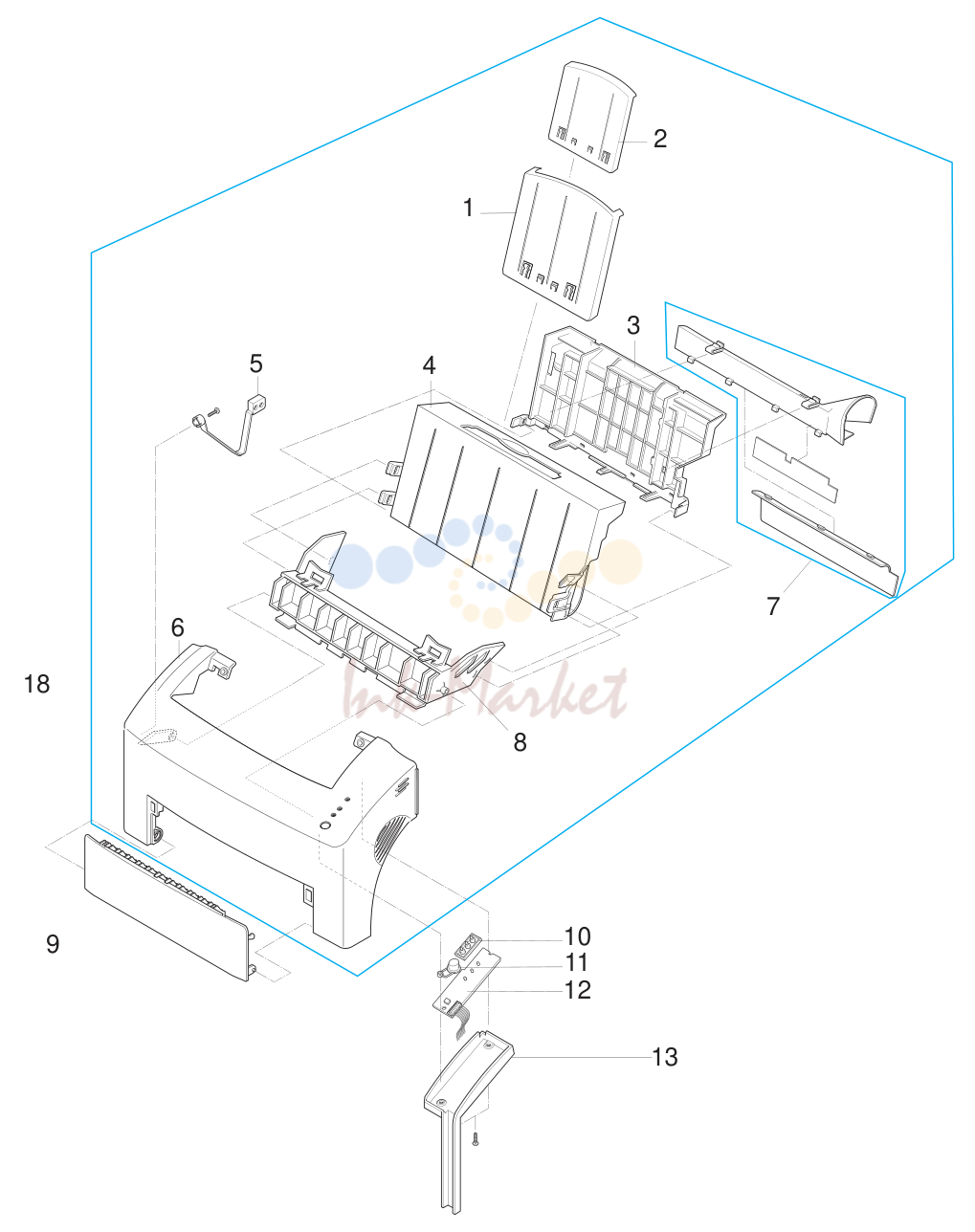

№	Артикул	Описание
5-4		Front Cover Parts List
1		STACKER(RX) JC72-41270A
2		STACKER-EXTEND JC72-41278A
3		COVER-STACKER JC72-41267A
4		FRAME-STACKER JC72-41268A
5		STOPPER JC72-41170A
6	JC72-41265A запросить цену →	COVER-FRONT
6	JC72-41265C запросить цену →	COVER-FRONT
7		DUCT JC97-01219B
8		GUIDE-STACKER JC72-41269A
9		COVER-EXIT JC72-41276A
10		LED JC72-41263A
11		KEY JC72-41262A
12		PBA-PANEL JC92-01059A
13		COVER-PCB JC72-41275A
18		ASSY-COVER FRONT JC96-01214A

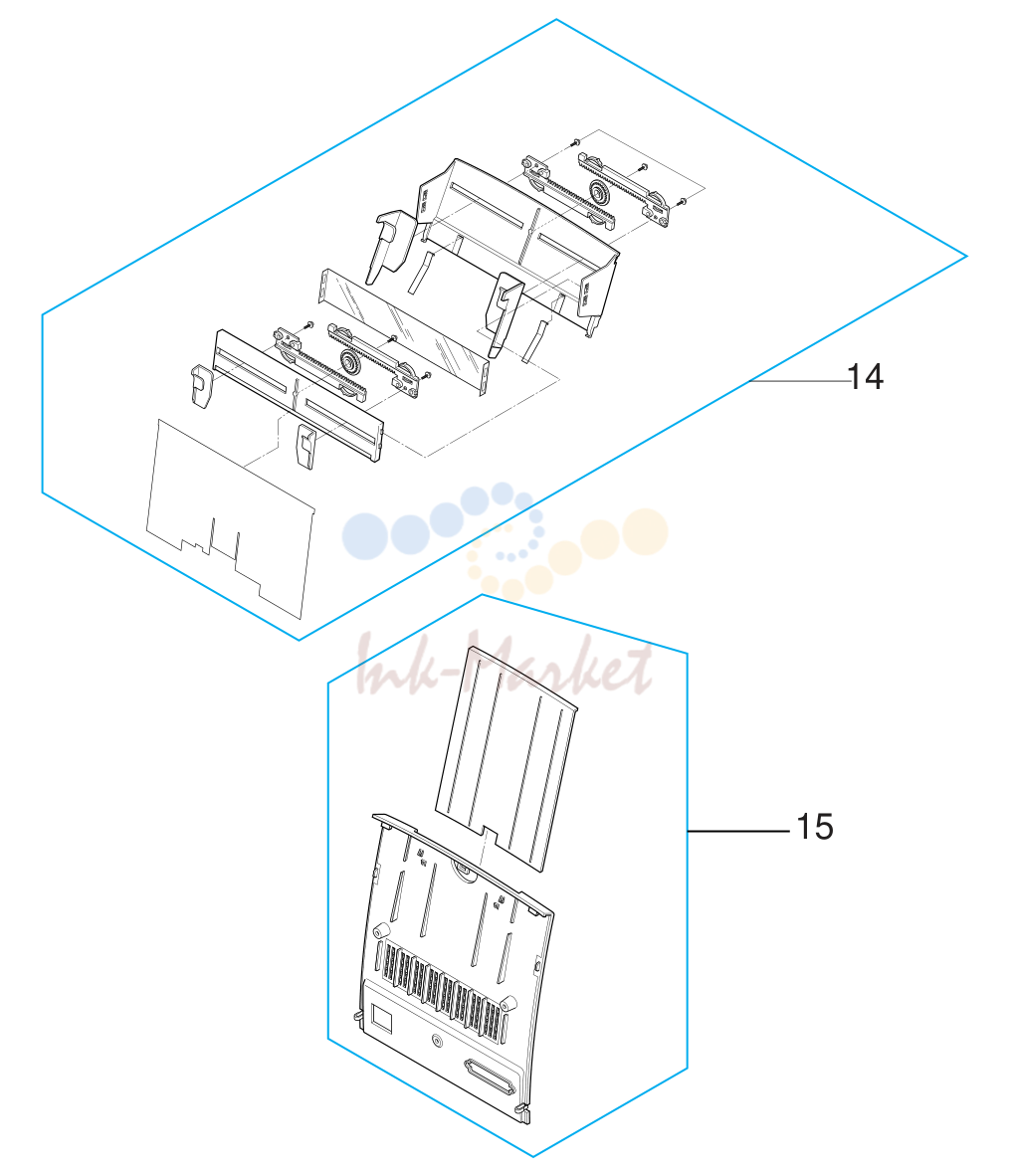

№	Артикул	Альт. артикул	Описание
5-6			Top Cover Parts List
14			MEA-UNITTRAY JC97-01135C
15			MEAUNIT-COVER REAR JC97-01154A

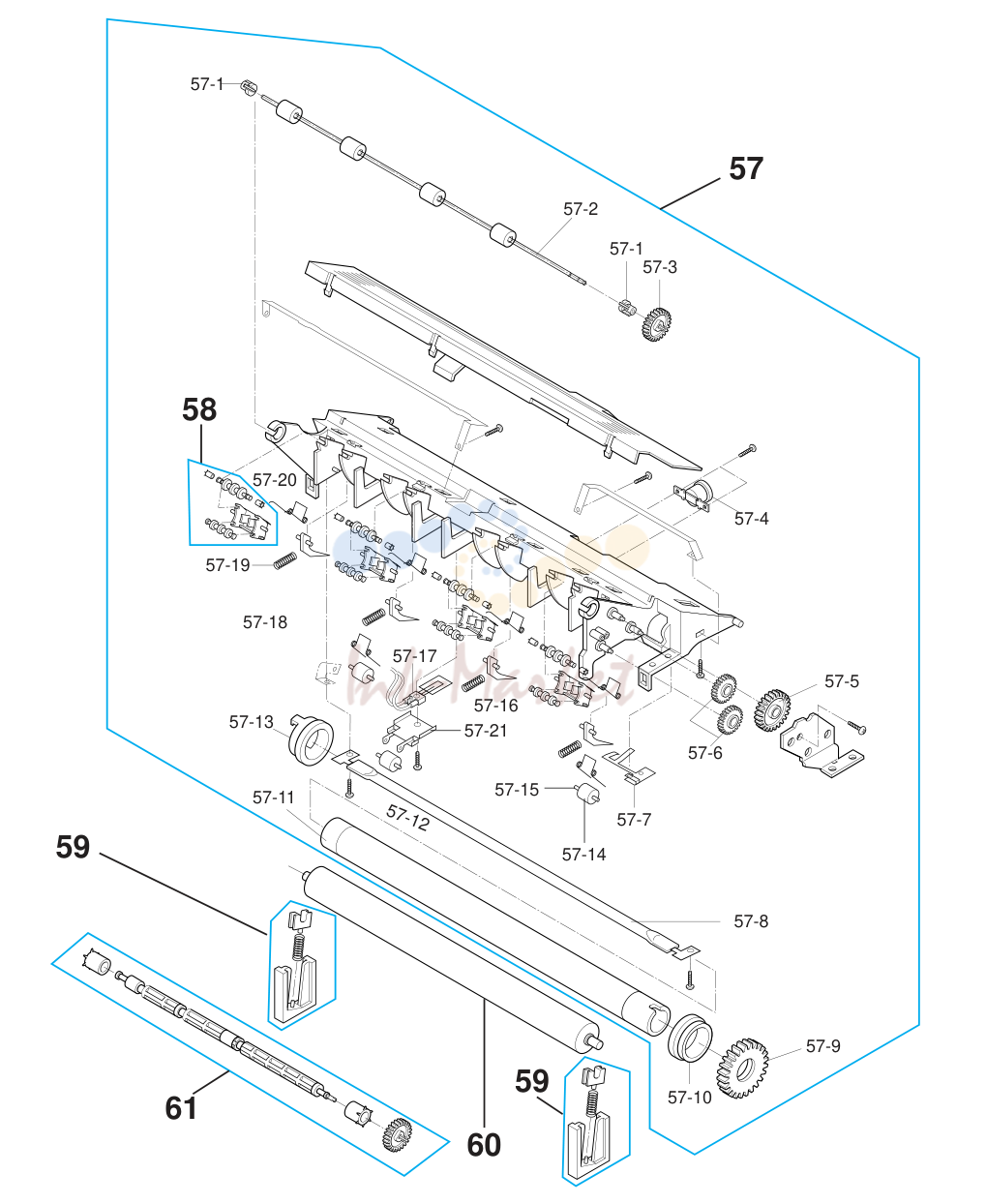

№	Артикул	Описание
5-8		Fuser Parts List
57	JC96-01202A запросить цену →	ELA-UNITFUSER
57-1		BEARING-EXIT JC75-10968A
57-2		UNITEXITF/DOWN JC66-10200A
57-3		GEAR-EXIT(18) JC66-40956A
57-4		THERMOSTAT 4712-000001
57-5		GEAR-IDLE2(Z19) JC66-40945A
57-6		GEAR-IDLE3(Z14) JC66-40946A
57-7		GROUND-PLATE,FU JC70-11003A
57-8	4713-001080 запросить цену →	LAMP-HALOGEN
57-9		GEAR-FUSER JC66-40379A
57-10		BEARING-H/R,L JC66-10203A
57-11		HEAT-ROLLER JC71-20903A
57-12		ROLLER-EXIT,F/UP JC72-20901A
57-13		BEARING-H/R,R JC66-10207A
57-14		ROLLER-F/UP(2) JC72-20902A
57-15		SHAFT-IDLE, F/UP JC70-20901A
57-16		GUIDE-CLAW JC72-41128A
57-17		THERMISTOR 1404-001128
57-18		SPRING-EXIT,F/UP JC61-70936A
57-19		SPRING-ES JC61-70962A
57-20		SPRING-EXIT,F/DOWN JC61-70937A
57-21		SPRING-IDLE FU JC70-11066A
58		REDRIVE JC97-01223A
59		MEAETC-HOLDER P/R JC97-01204A
60		ROLLER-PRESSURE JC75-10981A
61		MEAETC-ROLLER EXIT JC97-01126A

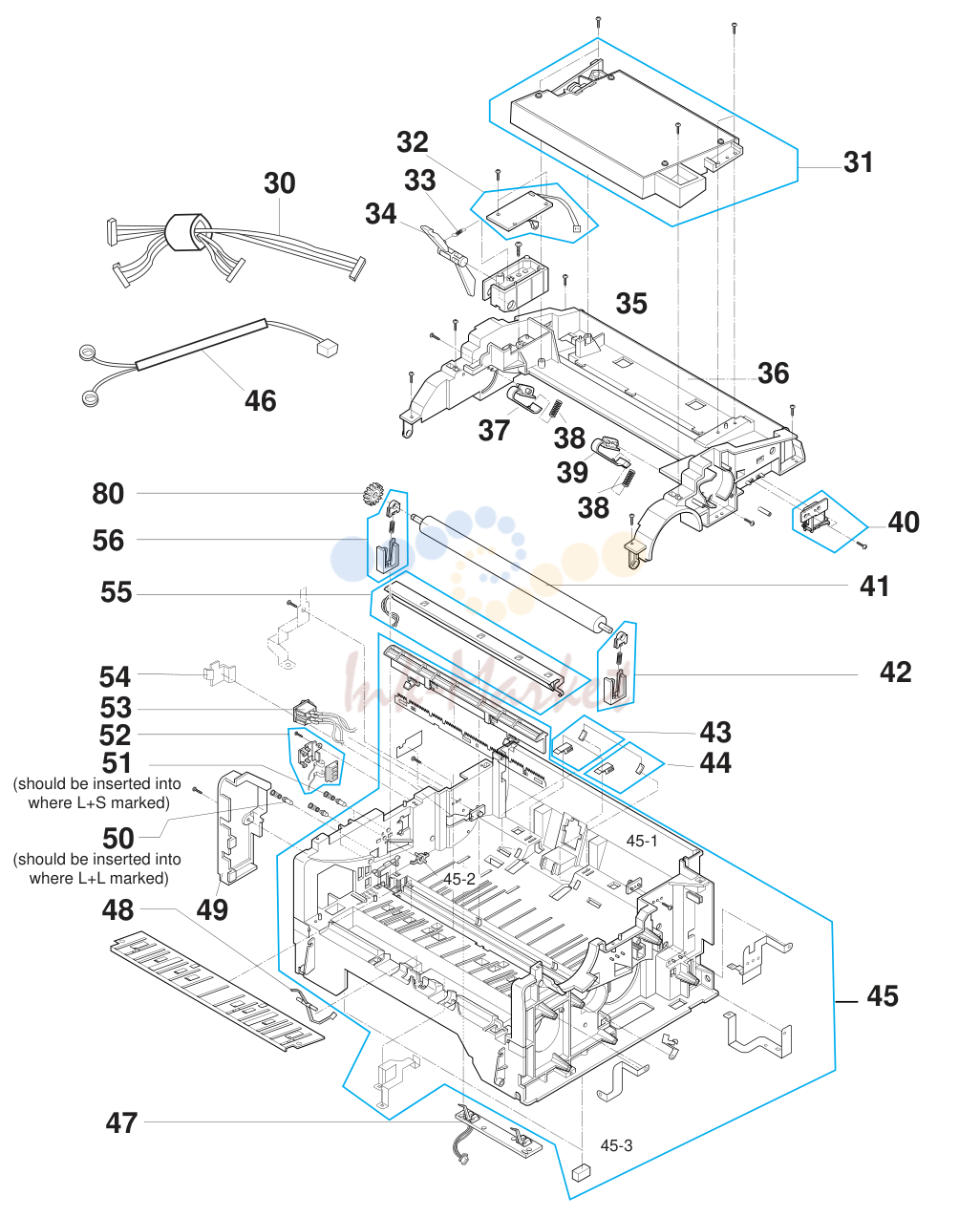

№	Артикул	Альт. артикул	Описание
5-10			Frame Parts List
30			PRINTHEAD TO HVPS JC39-40583A
31			UNIT-LSU JC59-10505A
32			COVER OPEN SENSOR JC92-01081A
33			SPRING-C/O JC61-70931A
34			ACTUATOR-C/O JC72-41134A
35			COVER-C/O JC72-41139A
36			FRAME BASE UPPER JC72-41141A
37			CAPPLATE,G/DEVE L JC72-41173A
38			SPRING-G/DEVE JC61-70932A
39			CAPPLATE,G/DEVE R JC72-41135A
40			SOLENOID JC33-10004A
41			ROLLER-TRANSFER JC75-10963A
42			MEAUNIT-HOLDER TR R JC97-01112A
43			MEA-UNITSEPARATE(L) JC97-01133A
44			MEA-UNITSEPARATE(R) JC97-01134A
45			MEA-UNITFRAME LOWER JC97-01123A
45-1			HOLDER SPRING JC72-41156A
45-2			GUIDE BOSS DEVE JC72-41243A
45-3			RUBBER FOOT JC73-10926A
46			FUSER LAMP JC39-40550A
47			ASSY-FEED SENSOR JC92-01017A
48			ACTUATOR-EXIT JC72-41130A
49			COVER WIRE FU JC72-41138A
50			MEAUNIT-TERMINALTR JC97-01113A
51			MEAUNIT-TERMINALL JC97-01114A
52			ELAUNITFUSE DEVE JC96-01117A
53			POWER SWITCH JC39-40585A
54			PICK ROLLER ACCESS JC72-41244A
55			ELAUNIT-PTL JC96-01190A
56			MEAUNIT-HOLDER TR L JC97-01160A
80			TRANSFER GEAR JC66-40943A

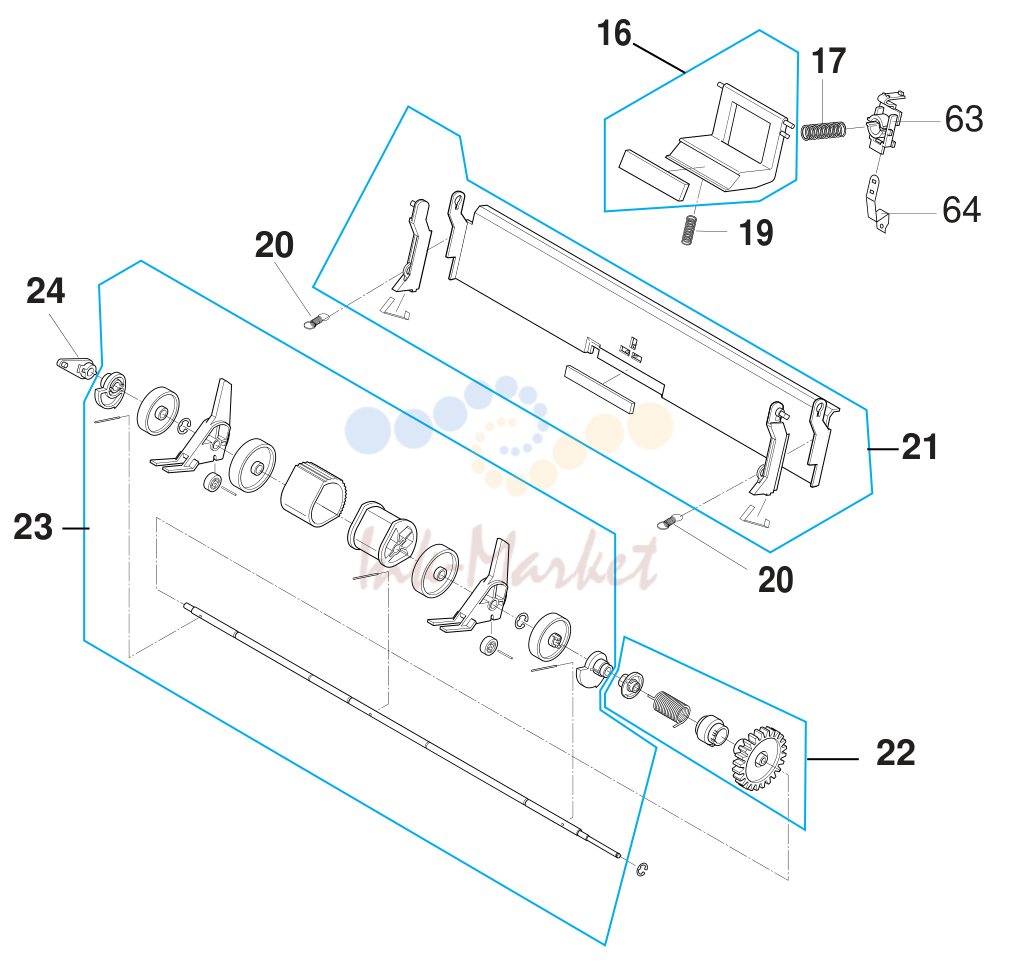

№	Артикул	Альт. артикул	Описание
5-12			Feeder (1/2) Parts List
16			MEAUNIT-SEPARATE JC97-01132A
17			SPRING-KNOCK UP JC61-70934A
18			HOLDER K/SPRING ASS’Y JC97-01169A
19			SPRING-SEPARATE JC61-70935A
20			SPRING-EXTENSION JC61-70950A
21			MEAUNIT-KNOCK UP JC97-01127A
22			MEAUNIT-CLUTCH JC97-01129A
23			MEAUNIT-PICK UP JC97-01130A
24			BUSHING SHAFTLOCK JG72-40849A
63			HOLDER SPRING K-UP JC72-41153A
64			GROUND K-UP JC70-11016A

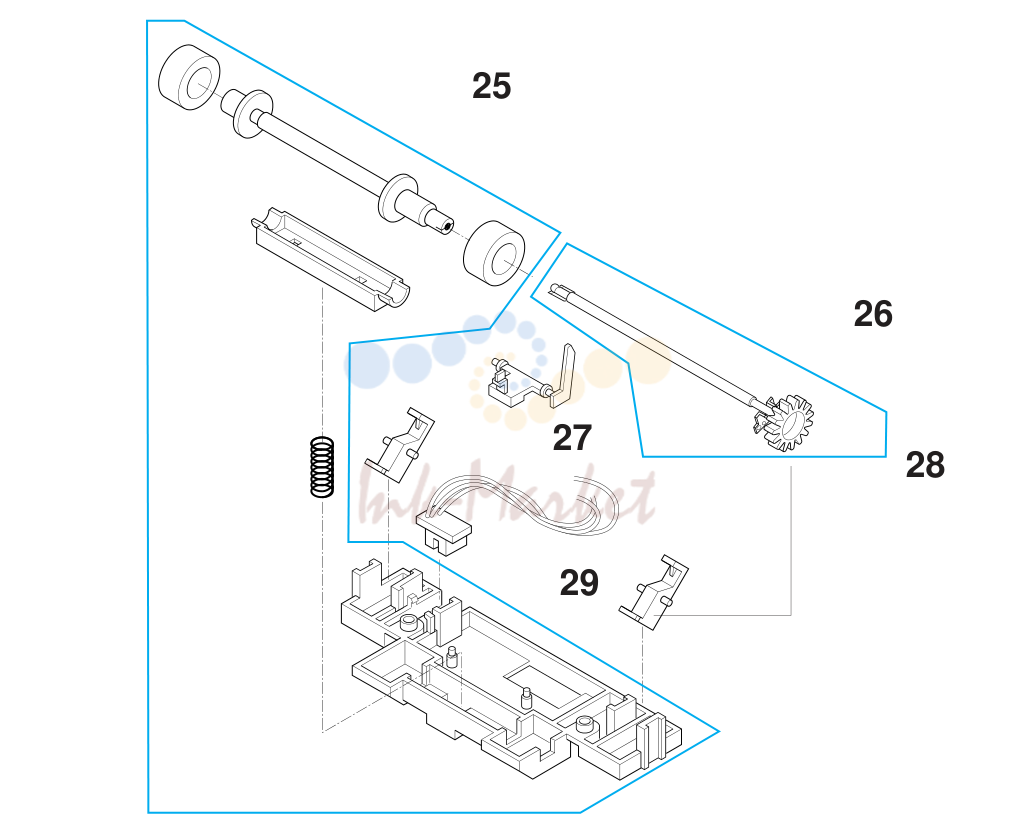

№	Артикул	Альт. артикул	Описание
5-14			Feeder (2/2) Parts List
25			MEAUNIT-FRAME SUP JC97-01128A
26			MEA-UNITGEAR FEED JC97-01131A
27			ACTUATOR EMPTY JC72-41151A
28			SEPARATE PAPER JC72-41155A
29			ASSY-P.EMPTY JC92-01044A

№	Артикул	Описание
5-18		PCB Parts List
65		PBASUB-HVPS JC92-01002A
66		ENGINE TO HVPS JC39-40558A
67		JOINT-B/D JC92-01001A
68	3601-000002 запросить цену →	FUSE(V2) 250VAC T5A
69		ENGINE TO JOINT JC39-40564A
70	JC92-01000A запросить цену →	PBAMAIN-ENGINE
71	JC96-01222A запросить цену →	CONTROLLER
72		SIMM ACCESS JC70-11015A
73		OPERATOR PANEL JC39-40579A
74	JC39-40548A запросить цену →	ENGINE TO CONTROLLER
74	JC39-40599A запросить цену →	ENGINE TO CONTROLLER
