Samsung ML-2250 — каталог запчастей со схемами

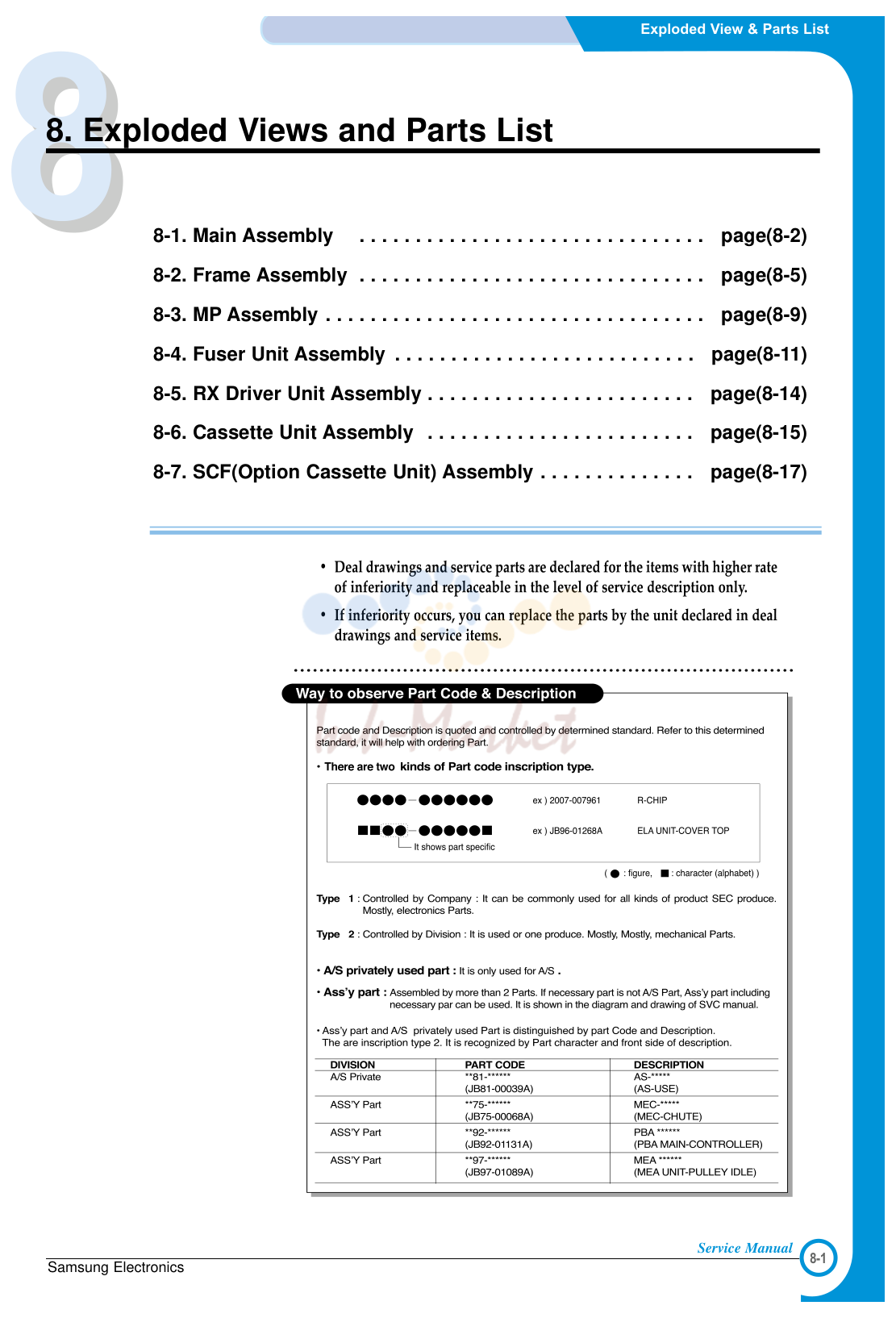

Содержание

1. Exploded View & Parts List
2. Exploded View & Parts List
3. Exploded View & Parts List
4. Exploded View & Parts List
5. Exploded View & Parts List
6. Exploded View & Parts List
7. Exploded View & Parts List

1. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			SET ML-2250
1			ELAHOU-FRAME-220V, HB2 JC96-03129A 1 X
1			ELAHOU-FRAME-110V, HB2 JC96-03129B 1 X
2			MEAUNIT-COVER TOP JC97-01953A 1 O
2-1			COVER-M-TOP JC63-00437A 1 O
2-2			PMO-STACKER RX JC72-01325B 1 X
2-3			KEY-M-ON LINE JC64-00039A 1 X
2-4			SPRING-CS 6107-001169 1 X
2-5			LENS LED-M-LED JC67-00026A 1 X
2-6			BUSH-M-F/DOWN JC61-00902A 1 X
3			COVER-M-SIDE L JC63-00432A 1 O
4			COVER-M-SIDE R JC63-00430A 1 O
5			MEAUNIT-COVER REAR JC97-01954A 1 O
5-1			COVER-M-REAR JC63-00438A 1 X
5-2			COVER-FACE UP JC63-00439A 1 X
5-3			COVER-M-REAR OPEN JC63-00431A 1 X
6			MEAUNIT-COVER FRONT JC97-01950A 1 O
6-1			COVER-M-FRONT JC63-00433A 1 X
6-2			KNOB-M-LOCKER JC64-00148A 1 X
6-3			HOLDER-M-LOCKER JC61-00936A 1 X
6-4			TRAY-EXIT-MP JC63-00447A 1 X
6-5			ADJUST-M-MPL JC70-00478A 1 X
6-6			ADJUST-M-MPR JC70-00479A 1 X
6-7			TRAY-M-COVER-MP JC63-00446A 1 X
6-8			GEAR-PINION JG66-40003A 1 X
6-9			TRAY-M-CASE-MP JC63-00445A 1 X
6-10			TRAY-M-LINK-MP JC63-00444A 2 X
6-11			SPRING-CIS(C2) JG61-70549A 1 X
7			MEAUNIT-COVER MID JC97-01952A 1 O
7-1			COVER-M-MIDDLE JC63-00436A 1 X
7-2			PMO-M-SUB ACTUATOR JC72-01339A 1 X
7-3			CAP-M-SUB ACTUATOR JC67-00068A 1 X
8			COVER-M-SMPS REAR JC63-00434A 1 O
9			PBAMAIN-PANEL JC92-01439A 1 O
10			PBAMAIN-CONTROLLER JC92-01595A 1 O
12			MEAUNIT-SHIELD JC97-01966A 1 O
13			BRACKET-P-INLET JC61-00601A 1 O
14	ELAHOU-NPC3_PRT запросить цену →	JC96-02699D	1 X ML-2251N Only
14-1			BRACKET-NPC JC61-00809A 1 X
14			ELAHOU-WLAN NPC JC96-03074A 1 X ML-2252W Only
14-1			ANTENNA-WLAN JC42-00001A 1 X
14-2			BRACKET-P_NETWORK WIRELESS JC61-00809B 1 X
14-3			COVER-M-NON WIRE NET JC63-00126A 1 X
14-5			CBF COAXIALCABLE-WLAN JC39-00231A 1 X
14-6			ELAMODUL-WLAN FOR_EU JC96-02701A 1 X
15			MEAETC-TR JC97-01917A 1 O
16			UNIT-LSU HUMMINGBIRD2 JC59-00018B 1 O
17			ELAUNIT-RX-DRIVE JC96-03078A 1 O
18			CBF HARNESS-LSU JC39-00242A 1 O
19			CBF HARNESS-ENG INE JC39-00240A 1 O
20			MEAUNIT-CASSETTE HB2 JC97-01955A 1 O
21			PLATE CHANNEL JC61-00606A 1 X

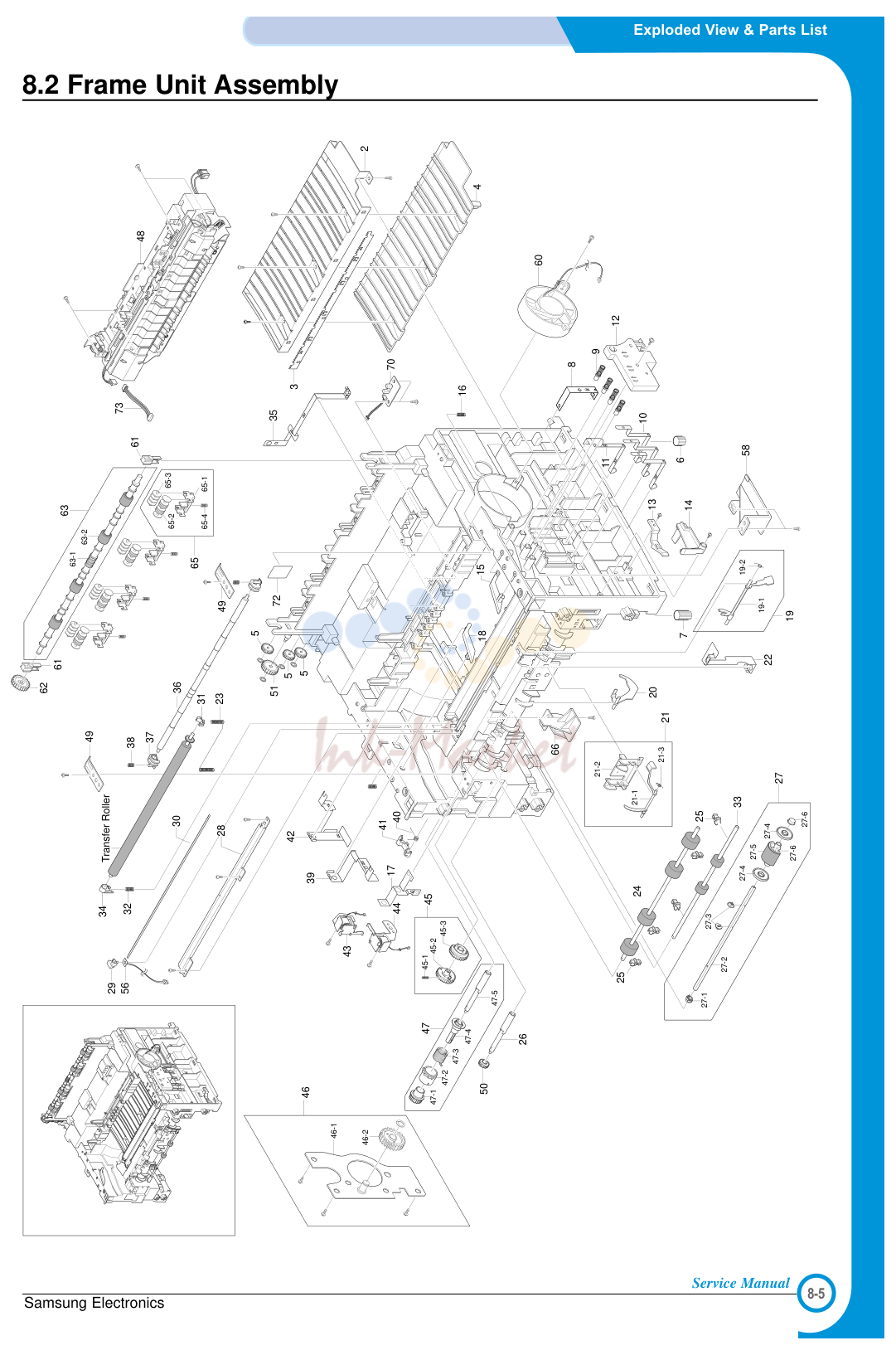

2. Exploded View & Parts List

№	Артикул	Описание
0		ELAUNIT-FRAME 110V JC96-03129B 1 X 110V
1		FRAME-BASE R2 JC61-00906A 1 X
2		GUIDE-P-TR JC61-00607A 1 X
3		PLATE-P-SAW JC61-00604B 1 X
4		GUIDE-M-TR RIB JC61-00594A 1 X
6		FOOT-BACK JC61-00835A 2 X
7		FOOT-FRONT JC61-00836A 2 O
8		GROUND-GUDIE TR R2 JC63-00397A 1 X
9		MEC-TERMINAL JC75-00049A 4 O
10		PLATE-TERMINALCON R2 JC61-00903A 3 X
11		PLATE-TERMINALCR R2 JC61-00904A 1 X
13		PMO-LOCKER CST JC72-00983A 2 X
14		PMO-ACTUATOR CVR OPEN JC72-00974A 1 X
15		PMO-PLATE GUIDE DEVE_R JC72-00985A 1 X
16		SPRING ETC-GUIDE DEVE JC61-70932A 2 X
17		GROUND-PUSH BUSHING JC63-00401A 1 X
18		PMO-PLATE GUIDE DEVE_L JC72-00984A 1 X
19		MEAUNIT-ACTFEED JC97-01927A 1 X
19-1		PMO-ACTFEED R2 JC72-01323A 1 X
19-2		SPRING-TS 6107-001164 1 X
20		PMO-ACTUATOR EMPTY JC72-00975A 1 O
21		MEAUNIT-ACTMANUAL JC97-01928A 1 X
21-3		SPRING-TS 6107-001165 1 X
22		GROUND-EARTH TR R2 JC63-00395A 1 X
23		GROUND-TERMINALTR JC63-00403A 1 X
24		ROLLER-FEED ROLLER 1 JC66-00526A 1 O
25		PMO-BUSHING FEED JC72-00382B 5 O
26		SHAFT-FEED JC66-00398A 1 O
27		MEAUNIT-PICKUP JC97-01926A 1 O
27-1		BUSH-M-PICK_UPL JC61-00586A 1 X
27-2		SHAFT-P-PICK_UP JC66-00399A 1 X
27-3		STOPPER-PICK UP_R2 JC61-00915A 2 X
27-4		PMO-IDLE PICK_UP JC72-00982A 2 X
27-5		SPONGE-ROLLER PICK_UP JC72-01231A 1 X
27-6		BUSH-M-PICK_UPR JC61-00587A 1 X
27-7		HOUSING-PICK UP_R2 JC61-00909A 1 X
27-8		HOUSING-PICK UP2_R2 JC61-00910A 1 X
27-9		SHAFT-CORE JC65-00720A 2 X
28		IPR-P-EARTH TRANSFER JC70-00307A 1 O
30		LENS-PTL JC67-00027A 1 O
31		PMO-BUSHING_TR(L) JC72-00102A 1 X
32		SPRING ETC-TR LHAWK JC61-00047A 1 X
33		ROLLER-FEED JC66-00598A 1 O
34		BUSH-M-TR L JC61-00588A 1 X
35		GROUND-FUSER R2 JC63-00396A 1 X
36		SHAFT-FEED IDLE JC66-00527A 1 X
37		BUSH-M-FEED IDLE JC61-00585A 2 X
38		SPRING ETC-TR JC61-70958A 2 X
40		SPRING-TS 6107-001170 1 X
41		CAM-M-PICK_UP JC66-00377A 1 X
42		GROUND-DRIVE R2 JC63-00394A 1 X
43		SOLENOID-FEED ROCKY2 JC33-00014A 1 O
44		SOLENOID-HB (MANUAL) JC33-00010A 1 O
45		MEAUNIT-GEAR PICKUP JC97-01929A 1 O
45-1		GEAR-PICK UPB_R2 JC66-00705A 1 X
45-2		GEAR-PICK UPA_R2 JC66-00704A 1 X
45-3		SPRING-CS 6107-001167 1 X
46		MEAUNIT-BRACKETFEED JC97-01925A 1 O
46-1		BRACKET-FEED R2 JC61-00913A 1 O
46-2	GEAR-Z35 запросить цену →	IDLE JC66-00690A 1 X
47		MEAUNIT-CLUTCH JC97-01788A 1 O
47-1		GEAR-FEED 1 JC66-00393A 1 X
47-2		PMO-COLLAR_SPRING JC72-00978A 1 X
47-3		SPRING-TS 6107-001171 1 X
47-4		PMO-HUB CLUTCH JC72-00981A 1 X
47-5		SHAFT-FEED JC66-00398A 1 X
48		ELAHOU-FUSER 110V JC96-03105A 1 O 110V
49		PLATE-PUSH BUSHING JC61-00914A 2 X
50		GEAR-FEED 2 JC66-00394A 1 X
51		GEAR-IDLE 23 JC66-00396A 1 X
52		SPRING-TS 6107-001164 1 X
54		IPR-P-TERMINALDEVE KEY JC70-00340A 3 X
56		PBASUB-PTL JC92-01621A 1 O
61		MEC-BEARING,EXIT JC61-00829A 2 X
62		GEAR-EXITF/DOWN JC66-00038A 1 X
63		ROLLER-EXITF/DOWN JC66-00378A 1 X
64		RMO-RUBBER EXIT JC73-40915A 4 X
65		MEARACK-EXITROLLER JC97-01034A 4 O
65-1		PMO-HOLDER EXITROLL JC72-41006A 1 X
65-2		PMO-ROLLER FD F JC72-41007A 1 X
65-3		PMO-ROLLER FD R JC72-41008A 1 X
65-4		SPRING ETC-EXITROLLFD JC61-70911A 1 X
66		GUIDE-SUB FRONT JC61-00917A 1 X
70		PBASUB-EXITSENSOR JC92-01604A 1 O
72		LABEL(R)-HOTCAUTION,KME JC68-00317A 1 X
73		FAN-DC JC31-00025A 1 O

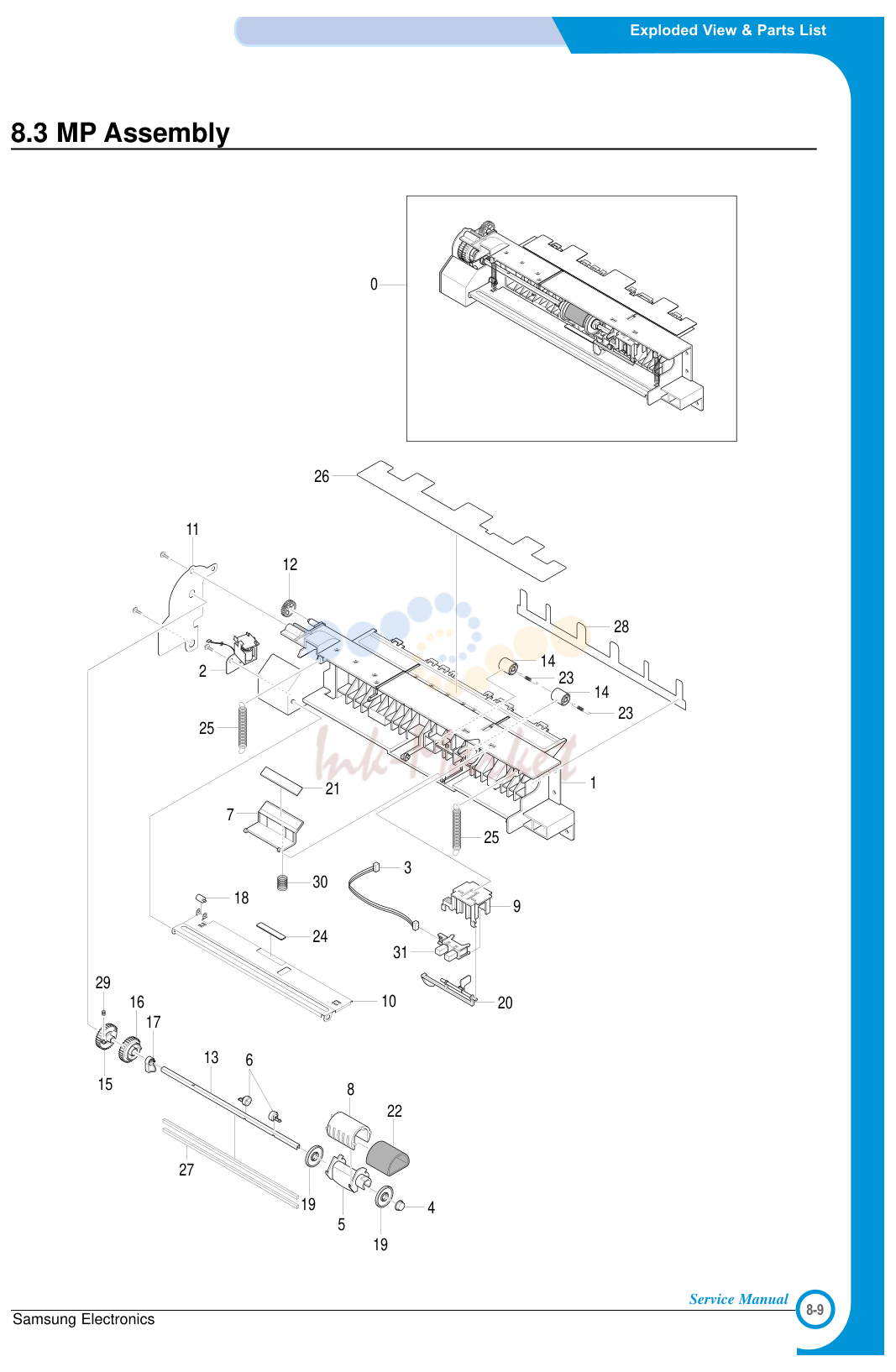

3. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-MP JC96-03132A 1 O
2			SOLENOID-MP JC33-00015A 1 O
3			CBF HARNESS-MPF SEN JC39-00365A 1 X
4			BUSH-M-PICK-UPR JC61-00587A 1 X
5			HOUSING-M-PICK UP2_R2 JC61-00910A 1 X
6			STOPPER-M-PICK UP_R2 JC61-00915A 2 X
7			HOLDER-M-PAD_MP JC61-00924A 1 O
8			HOUSING-M-PICK UP_MP JC61-00925A 1 X
9			HOLDER-M-SENSOR_MP JC61-00926A 1 X
10			PLATE-P-KNOCK UP_MP JC61-00927A 1 X
11			BRACKET-P-PICK UP_MP JC61-00932A 1 X
12			GEAR-IDLE 23 JC66-00396A 1 X
13			SHAFT-P-PICK_UP JC66-00399A 1 X
14			ROLLER-M-IDLE FEED JC66-00529A 2 X
15			GEAR-M-PICK UP_MP JC66-00710A 1 X
16			GEAR-M-HOLDER_MP JC66-00709A 1 X
17			CAM-M-PICK UP_MP JC66-00711A 1 X
18			PMO-ROLLER CAM_MP JC72-00761A 1 X
19			PMO-IDLE PICK UP JC72-00982A 2 X
20			PMO-M-ACTEMPTYMP JC72-01338A 1 X
21			RPR-FRICTION PAD JC73-00140A 1 O
22			RUBBER-PICK UP_MP JC73-00194A 1 O
23			SPRING-ETC-EXITROLLFD JC61-70911A 2 X
24			RPR-PAD CASSETTE JC73-00141A 1 X
25			SPRING-ES 6107-001237 2 X
26			SHEETGUIDE PAPER R2 JC63-00470A 1 X
27			SHAFT-P-CORE JC66-00720A 2 X
28			SHEETGUIDE MP JC63-00448A 1 X
29			SPRING-CS 6107-001167 1 X
30			SPRING-ES 6107-001047 1 X
31			PHOTO INTERRUPTER 0604-001095 1 X

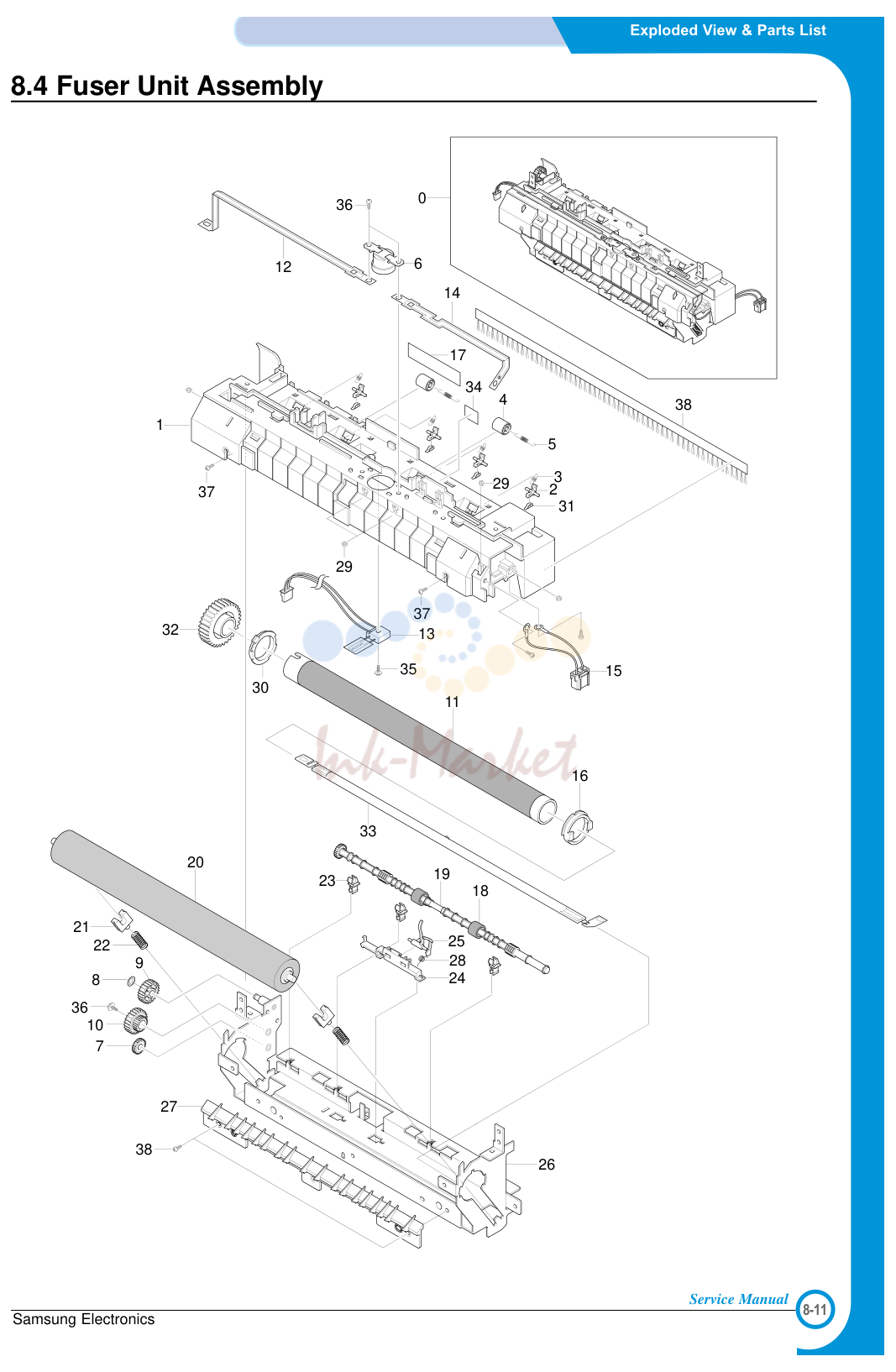

4. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-FUSER 110V JC96-03105A 1 O 110V
1			COVER-FUSER R2 JC63-00363A 1 X
2			HOLDER-PLATE CLAW R2 JC61-00886A 4 X
3			SPRING ETC-CLAW JC61-00064A 4 X
4			PMO-ROLLER_EXIT JC72-40361A 2 X
5			SPRING ETC-FUSER EXIT JC61-70976A 2 X
8			GEAR-IDLE 23 JC66-00396A 1 X
9			RING-E 6044-000125 1 X
10			GEAR-RDCN 25/15 JC66-00397A 1 X
11			ROLLER-HEATER JC66-00729A 1 O
13			THERMISTOR-NTC 1404-001298 1 O
15			CBF HARNESS-FUSER 110V JC39-00353A 1 X WHITE
16			BUSH-HR R_R2 JC61-00887A 1 X
17			LABEL(P)-CAUTION, HOT_FUSER JC68-30928D 1 X
18			RMO-RUBBER_EXIT JC73-00017A 2 X
19			ROLLER-M-EXITF/UP JC66-00380A 1 X
20			ROLLER-PRESSURE JC66-00600B 1 O
21			BEARING-PRESSURE/R JC66-10901A 2 X
22			SPRING-CS 6107-001168 2 X
23			PMO-BUSHING TX JC72-00382A 3 X
24			HOLDER-ACTUATOR JC61-00581A 1 X
25			PMO-ACTUATOR EXITR2 JC72-01319A 1 X
26			FRAME-FUSER R2 JC61-00890A 1 X
28			SPRING-TS 6107-001165 1 X
29			NUT-HEXAGON 6021-000222 5 X
30			BUSH-HR L_R2 JC61-00888A 1 X
31			PLATE-P-CLAW JC61-00605A 4 X
32			GEAR-FUSER R2 JC66-00695A 1 X
33			LAMP-HALOGEN 110V 4713-001182 1 O 110V
34			LABEL(R)-HV FUSER JC68-00407A 1 X
35			SCREW-TAPTIEE 6003-000196 1 X
36			SCREW-ASS'YMACH 6006-001193 6 X
37			SCREW-TAPTIEE 6003-000269 6 X
38			BRUSH-ANTISTAIC JC75-00095A 1 X

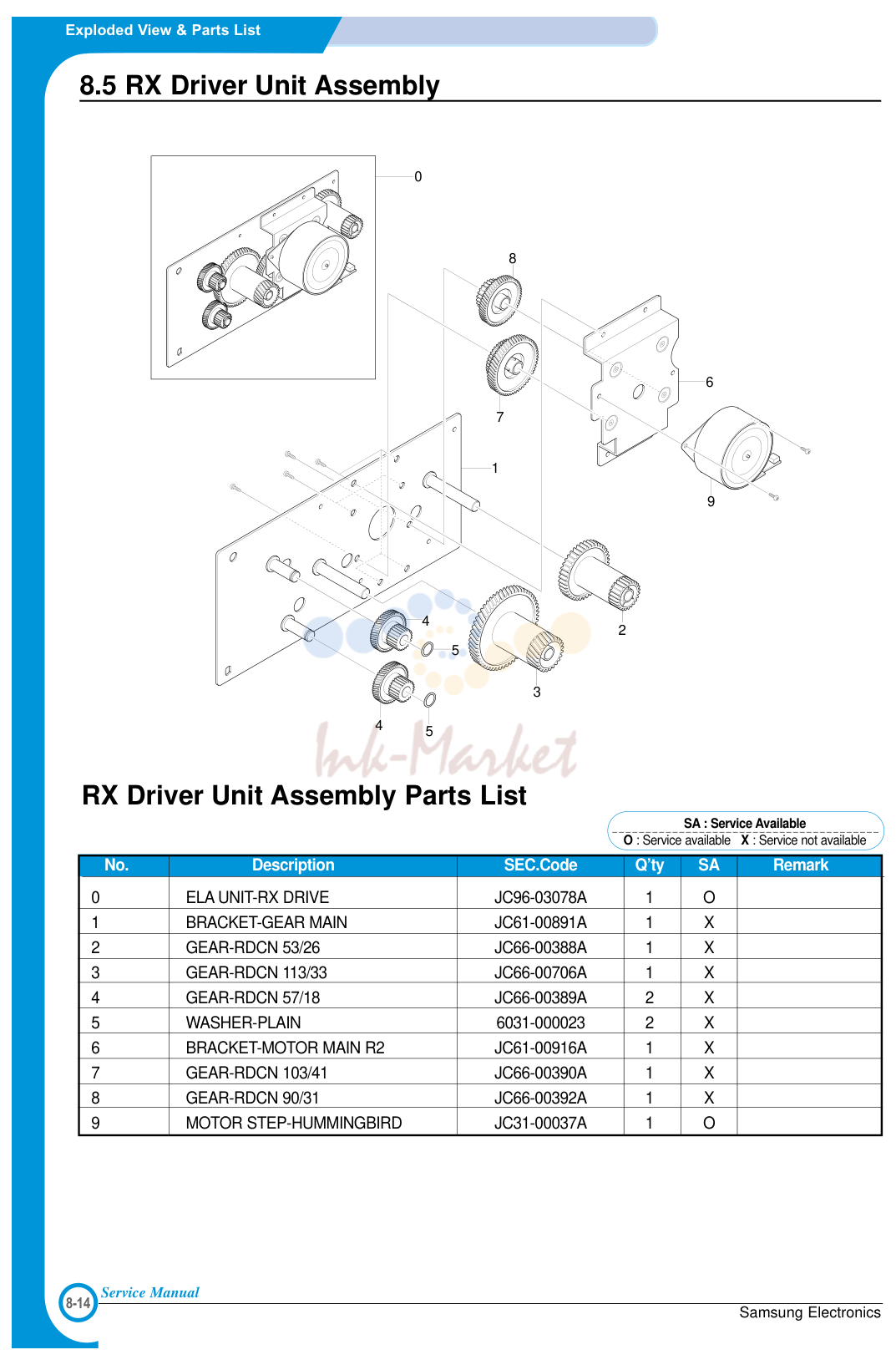

5. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-RX DRIVE JC96-03078A 1 O
1			BRACKET-GEAR MAIN JC61-00891A 1 X
2			GEAR-RDCN 53/26 JC66-00388A 1 X
3			GEAR-RDCN 113/33 JC66-00706A 1 X
4			GEAR-RDCN 57/18 JC66-00389A 2 X
5			WASHER-PLAIN 6031-000023 2 X
6			BRACKET-MOTOR MAIN R2 JC61-00916A 1 X
7			GEAR-RDCN 103/41 JC66-00390A 1 X
8			GEAR-RDCN 90/31 JC66-00392A 1 X
9			MOTOR STEP-HUMMINGBIRD JC31-00037A 1 O

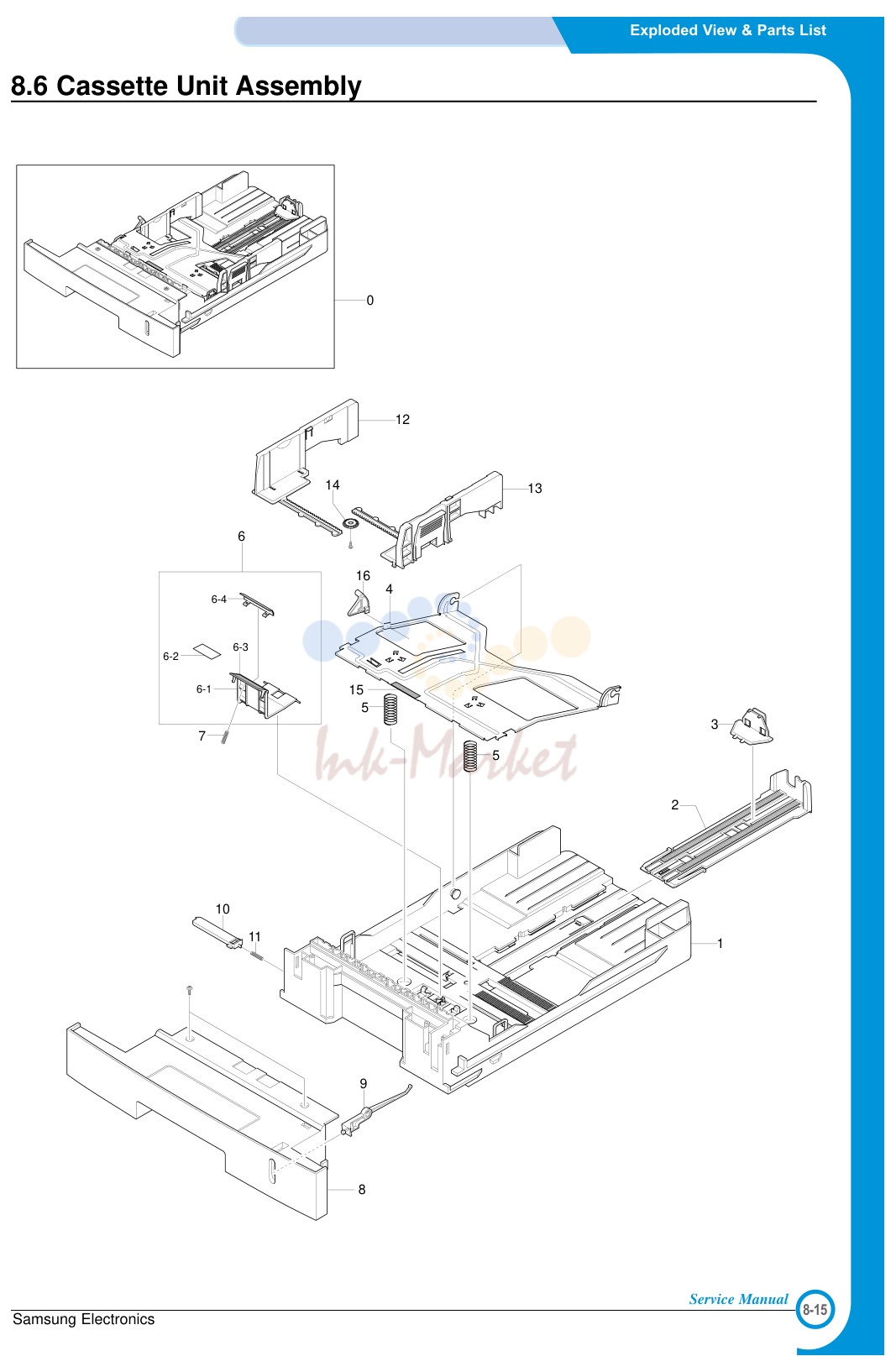

6. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEAUNIT-CASSETTE, USA JC97-01955A 1 O
1			FRAME-M-CASSETTE JC61-00876A 1 X
2			GUIDE-M-EXTENSION LARGE JC61-00918B 1 X
3			GUIDE-EXTENSION SMALL SC72-00971A 1 X
4			PLATE-P-KNOCK_UP JC61-00603A 1 X
5			SPRING-CS 6107-001166 2 X
6			MEAUNIT-HOLDER PAD JC97-01931A 1 O
6-1			HOLDER-M-PAD JC61-00580A 1 X
6-2			SHEET-HOLDER PAD R2 JC63-00407A 1 X
6-3			RPR-FRICTION PAD JC73-00140A 1 X
6-4			IPR-PLATE PAD JC70-00314A 1 X
7			SPRING ETC-EXITROLLFD JC61-70911A 1 X
8			COVER-SUB CASSETTE R2 SC63-00441A 1 X
9			INDICATOR-M-CSTPAPER JC64-00143A 1 X
10			PMO-PLATE_LOCKER JC72-00972A 1 X
11			SPRING ETC-LOCKER,PLATE JG61-70531A 1 X
12			ADJUST-M-CASSETTE_L JC70-00300A 1 X
13			ADJUST-M-CASSETTE_R JC70-00301A 1 X
14			GEAR-PINION JG66-40003A 1 X
15			RPR-PAD CASSETTE JC73-00141A 1 X
16			CAM-KNOCK UP JC66-00719A 1 X

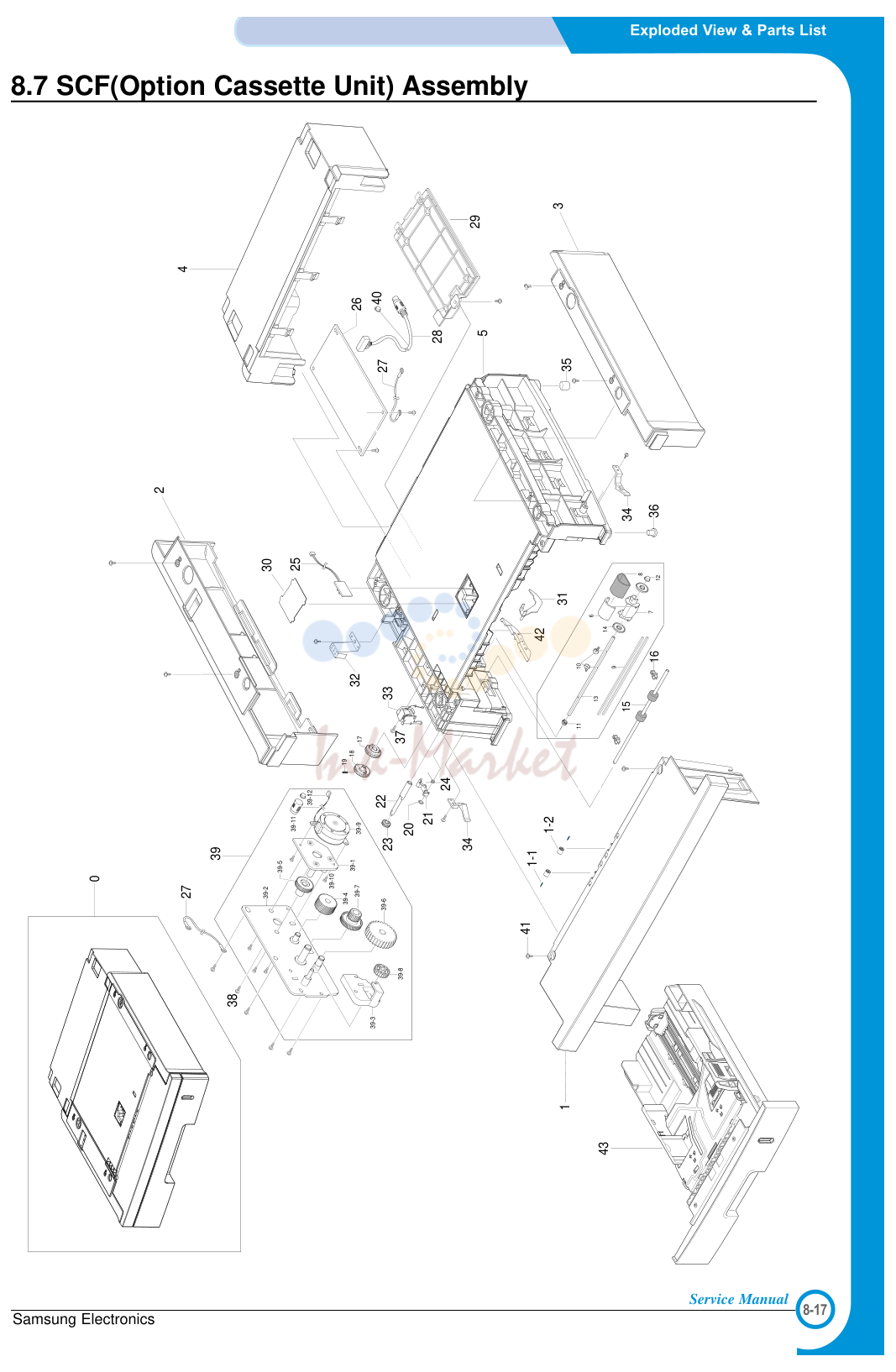

7. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-SCF H2 JC96-03131A 1 O
1			COVER-M-FRONTSCF H2 JC63-00466A 1 X
1-1			SPRING-ES 6107-001047 2 X
1-2			ROLLER-IDLE FEED JC66-00529A 2 X
2			COVER-M-LEFTSCF H2 JC63-00467A 1 X
3			COVER-M-RIGHTSCF H2 JC63-00468A 1 X
4			COVER-M-REAR SCF H2 JC63-00469A 1 X
5			FRAME-M-SCF JC61-00877A 1 X
8			SPONGE-ROLLER PICK_UP JC72-01231A 1 O
9			SHAFT-P-CORE JC66-00720A 2 X
11			BUSHING-PICK_UPL JC61-00586A 1 X
12			BUSHING-PICK_UPR JC61-00587A 1 X
13			SHAFT-P-PICK_UP JC66-00399A 1 X
14			PMO-IDLE PICK_UP JC72-00982A 2 X
15			ROLLER-FEED JC66-00598A 1 X
16			PMO-BUSHING FEED JC72-00382B 2 X
17			PMO-GEAR PICK_UPA JC72-00979A 1 X
18			PMO-GEAR PICK_UPB JC72-00980A 1 X
19			SPRING-CS 6107-001167 1 X
20			RING-CS 6044-000001 1 X
21			CAM-M-PICK_UP JC66-00377A 1 X
22			SHAFT-FEED JC66-00398A 1 X
23			GEAR-FEED 2 JC66-00394A 1 X
24			SPRING-TS 6107-001170 1 X
25			PCB-SENSOR JC92-01364B 1 X
26			PBASUB-SCF JC92-01614A 1 X
27			CBF HARNESS-SCF GND JC39-00366A 2 X
28			CBF HARNESS-SCF JC39-00357A 1 X
29			COVER-M-SIMM R2 JC63-00492A 1 X
30			SHEET-COVER SENSOR JC63-00369A 1 X
31			PMO-ACTUATOR EMPTY JC72-00975A 1 X
32			IPR-GND TOP JC70-11028A 1 X
33			SOLENOID-HB (MANUAL) JC33-00010A 1 X
34			PMO-LOCKER CST JC72-00983A 2 X
35			FOOT-BACK JC61-00835A 2 X
36			FOOT-FRONT JC61-00836A 2 X
37			SCREW-ASS’YTAPT 6006-001078 1 X
38			SCREW-TAPTITE 6003-000196 4 X
39			ELAHOU-MOTOR SCF JC96-03003A 1 X
39-1			BRKT-P-MOTOR SCF JC6100879A 1 X
39-2			BRKT-P-GEAR SCF JC61-00881A 1 X
39-3			BRKT-M-FEED SCF JC61-00878A 1 X
39-4			GEAR 61/47 IDLE JC66-00688A 1 X
39-5			GEAR 59 IDLE JC66-00689A 1 X
39-6			GEAR 35 IDLE JC66-00690A 1 X
39-7			GEAR-RDCN 57/18 JC66-00389A 1 X
39-8			GEAR-IDLE 23 JC66-00396A 1 X
39-9			MOTOR STEP(SCF) JC31-00009A 1 X
39-10			SCREW-MACHINE 6001-000131 5 X
39-11			CORE-FERRITE 3301-001635 1 X
39-12			CABLE TIE 6501-000004 1 X
40			BUSH CABLE JC61-00804A 1 X
41			SCREW-TAPTITE 6003-000196 14 X
42			GUIDE-M-KNOCKUP JC61-00937A 1 X
43			MEAUNIT-CASSETTE JC97-01955A 1 X
44			CBF HARNESS-DRIVER GND JB39-00065A 1 X
45			MEC-BRUSH ANTISTATIC JC75-00095A 0.25 X

Источник: Инк-Маркет.ру.

← Все статьи
