Содержание
- 1. Assembly 1: Covers
- 2. Assembly 2: Control panel (MX421, MX521, and MX522)
- 3. Assembly 3: Control panel (MX321)
- 4. Assembly 4: Electronics 1
- 5. Assembly 5: Electronics 2
- 6. Assembly 6: Electronics 3
- 7. Assembly 7: Electronics 4
- 8. Assembly 8: Paper transport 1
- 9. Assembly 9: Paper transport 2
- 10. Assembly 10: MPF and standard tray
- 11. Assembly 11: Optional trays
- 12. Assembly 12: Imaging (MX321, MX421, and MX521) 1
- 13. Assembly 13: Imaging (MX321, MX421, and MX521) 2
- 14. Assembly 14: Imaging (MX522)
1. Assembly 1: Covers
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1341 запросить цену → | 1 1 Top cover (MX321 and “Top cover removal” on page | |
| 1 | 41X1342 запросить цену → | 1 1 Top cover (MX521 and “Top cover removal” on page | |
| 2 | 40X9075 | 1 1 Output extender -- | |
| 3 | 41X1169 запросить цену → | 1 1 Rear door and cover -- | |
| 4 | 41X2263 запросить цену → | 1 1 Rear access door -- | |
| 5 | 40X8520 запросить цену → | 1 1 Dust cover -- | |
| 6 | 41X1165 запросить цену → | 1 1 Right cover (MX321 and “Right cover removal” on | |
| 6 | 41X2272 запросить цену → | 1 1 Right cover (MX521 and “Right cover removal” on | |
| 7 | 41X1233 | 1 1 Right access cover -- | |
| 8 | 41X1163 запросить цену → | 1 1 Nameplate (MX321) “Nameplate removal” on | |
| 8 | 41X2273 запросить цену → | 1 1 Nameplate (MX421, MX521, “Nameplate removal” on | |
| 9 | 41X1167 запросить цену → | 1 1 Left cover “Left cover removal” on page | |
| 10 | 41X1355 запросить цену → | 1 1 Top access cover “Top access cover removal” on |

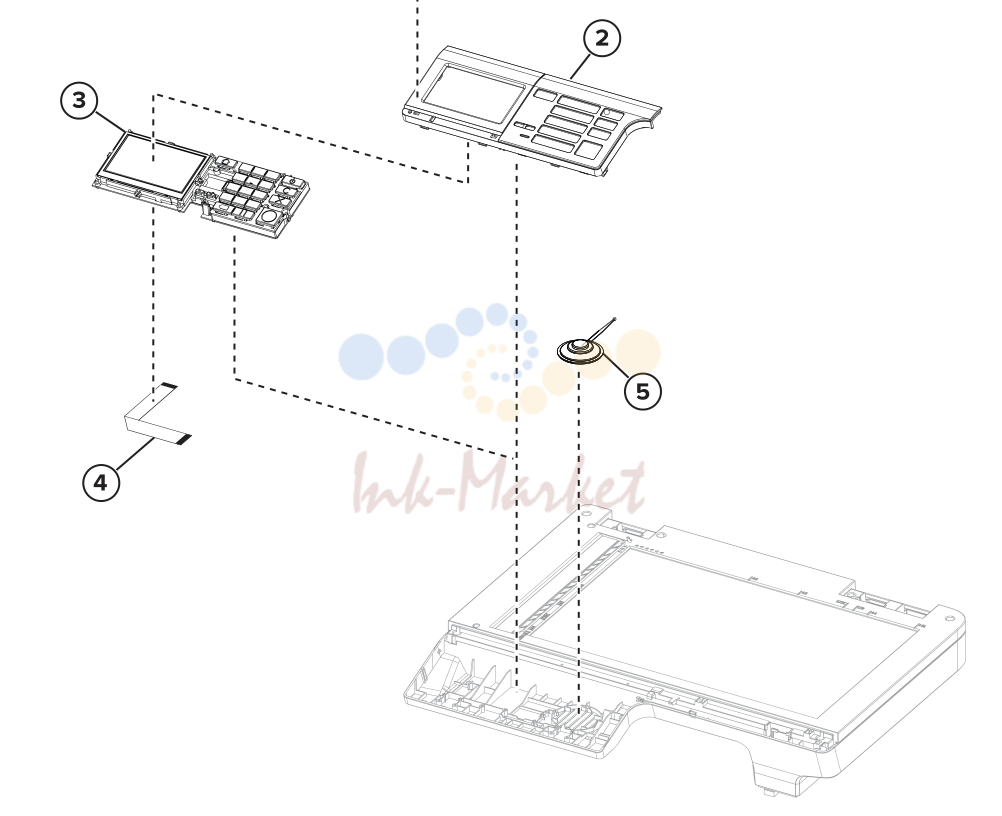

2. Assembly 2: Control panel (MX421, MX521, and MX522)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X2540 запросить цену → | 1 1 Bezel (MX421) -- | |
| 1 | 41X2500 запросить цену → | 1 1 Bezel (MX521) -- | |
| 1 | 41X2445 запросить цену → | 1 1 Bezel (MX522) -- | |
| 2 | 41X1353 | 1 1 Control panel cover (MX421, “Control panel (MX421, MX521, | |
| 3 | 41X1359 | 1 1 Control panel (MX421, -- | |
| 4 | 41X2524 запросить цену → | 1 1 Control panel flat cable -- | |
| 4 | 41X2525 запросить цену → | 1 1 Control panel flat cable -- | |
| 5 | 41X2529 запросить цену → | 1 1 Speaker “Speaker (MX421, MX521, and |

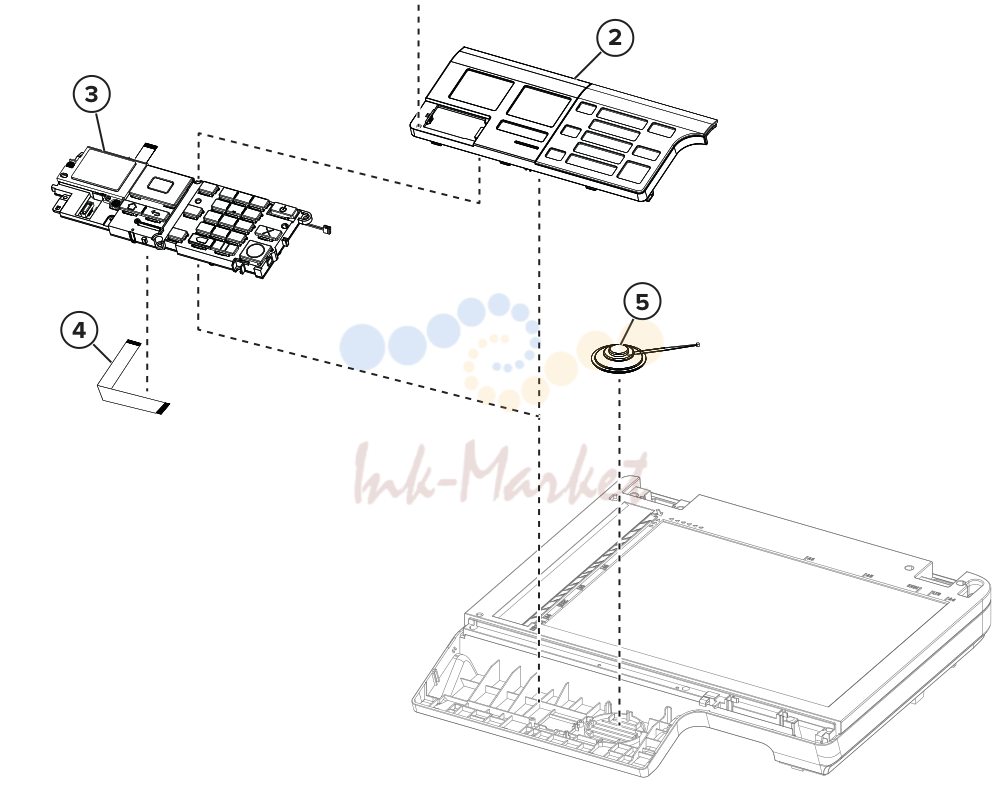

3. Assembly 3: Control panel (MX321)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1346 запросить цену → | 1 1 Bezel (MX321) “Bezel (MX321) removal” on page | |
| 2 | 41X1352 запросить цену → | 1 1 Control panel cover “Control panel (MX321) cover and | |
| 3 | 41X1368 | 1 1 Control panel (MX321) -- | |
| 4 | 41X2524 запросить цену → | 1 1 Control panel flat cable -- | |
| 5 | 41X2529 запросить цену → | 1 1 Speaker “Speaker (MX321) removal” on |

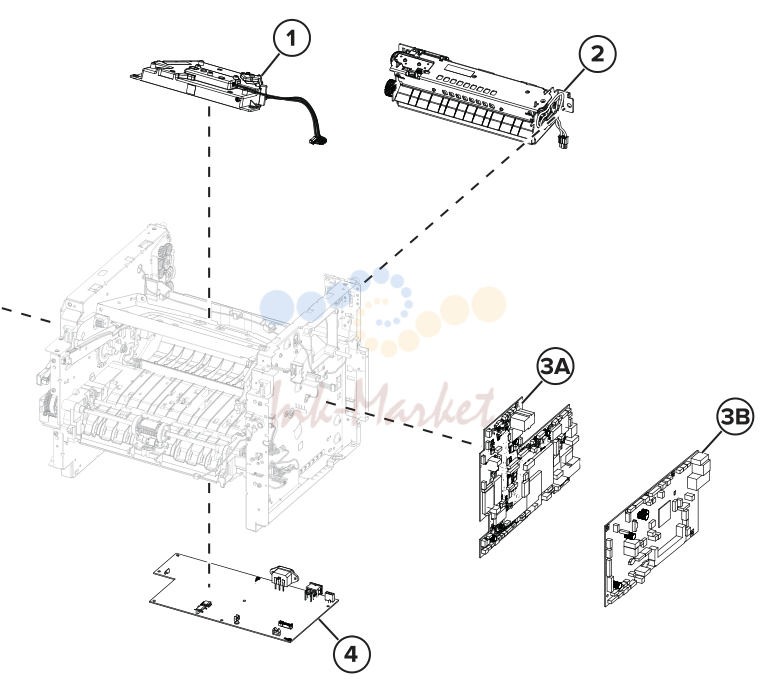

4. Assembly 4: Electronics 1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1185 ✓ в наличии | 1 1 Printhead “Printhead removal” on | |
| 2 | 41X1178 запросить цену → | 1 1 Fuser, 110V “Fuser removal” on | |
| 2 | 41X1179 ✓ в наличии | 1 1 Fuser, 220V “Fuser removal” on | |
| 2 | 41X1180 запросить цену → | 1 1 Fuser, 100V “Fuser removal” on | |
| 4 | 41X1201 запросить цену → | 1 1 Power supply, 100V/110V “Power supply removal” | |
| 4 | 41X1202 ✓ в наличии | 1 1 Power supply, 220V “Power supply removal” | |
| 5 | 41X1224 ✓ в наличии | 1 1 Main drive gearbox “Main drive gearbox |

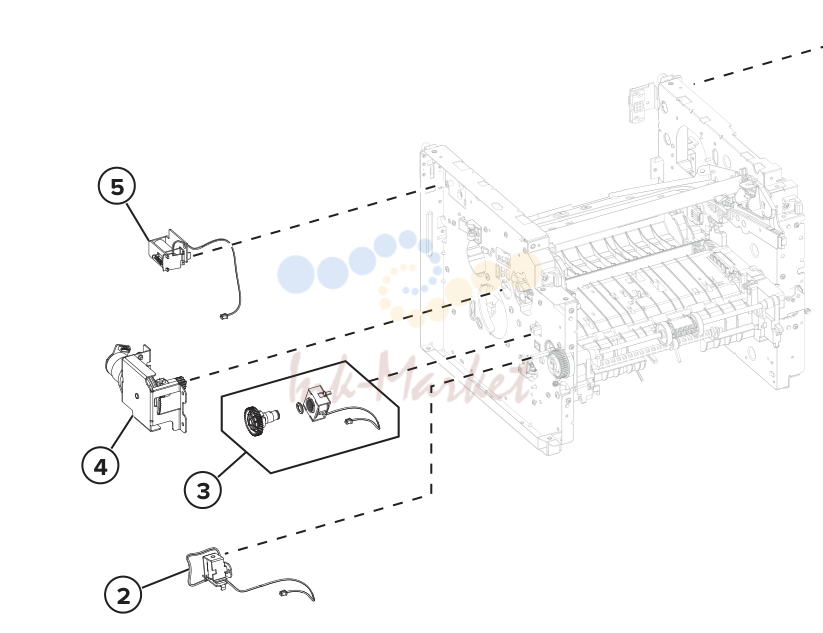

5. Assembly 5: Electronics 2
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X2259 запросить цену → | 1 1 Cooling fan “Cooling fan removal” on page | |
| 2 | 41X1213 запросить цену → | 1 1 MPF solenoid “MPF solenoid removal” on page | |
| 3 | 41X2391 | 1 1 Pick roller clutch “Pick roller clutch removal” on page | |
| 4 | 41X1237 | 1 1 Motor (cartridge) “Cartridge gearbox removal” on page | |
| 5 | 41X1214 ✓ в наличии | 1 1 Reverse solenoid “Reverse solenoid removal” on page |

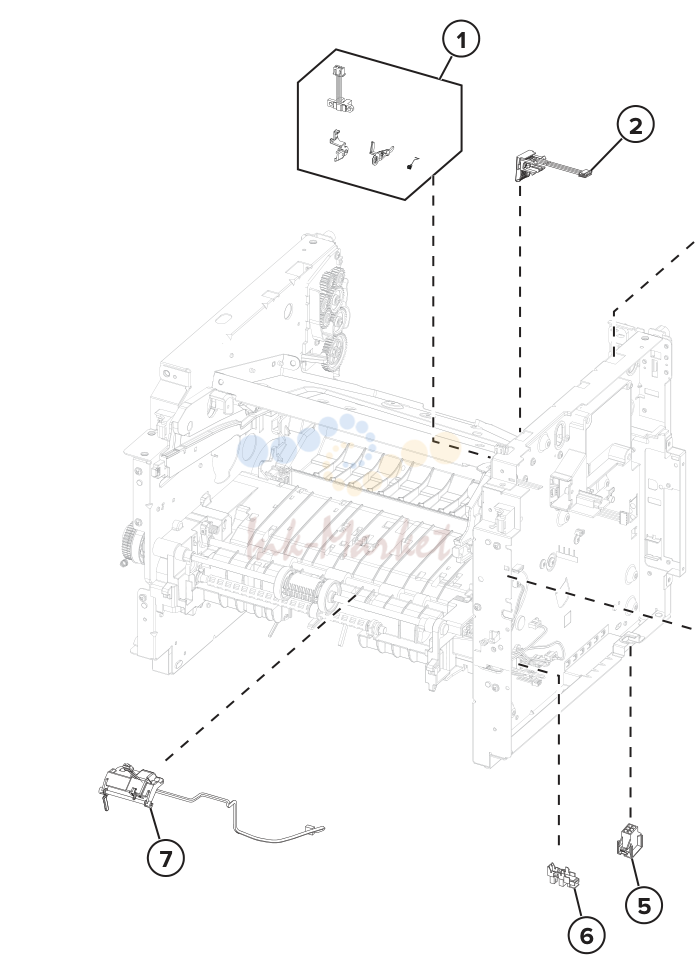

6. Assembly 6: Electronics 3
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1988 | 1 1 Sensor (cartridge “Cartridge barrel shutter sensor kit | |
| 2 | 41X1162 ✓ в наличии | 1 1 Toner cartridge smart “Toner cartridge smart chip contact | |
| 3 | 41X2260 запросить цену → | 1 1 Sensor (bin full) -- | |
| 4 | 41X1209 ✓ в наличии | 1 1 Sensor (front door) “Sensor (front door) removal” on | |
| 5 | 41X1236 запросить цену → | 1 1 Interconnect cable “Interconnect cable removal” on | |
| 6 | 41X1238 запросить цену → | 1 1 Sensor (tray present) “Sensor (tray present) removal” on | |
| 7 | 41X1210 ✓ в наличии | 1 1 Sensor (MPF paper “Sensor (MPF paper present) removal” |

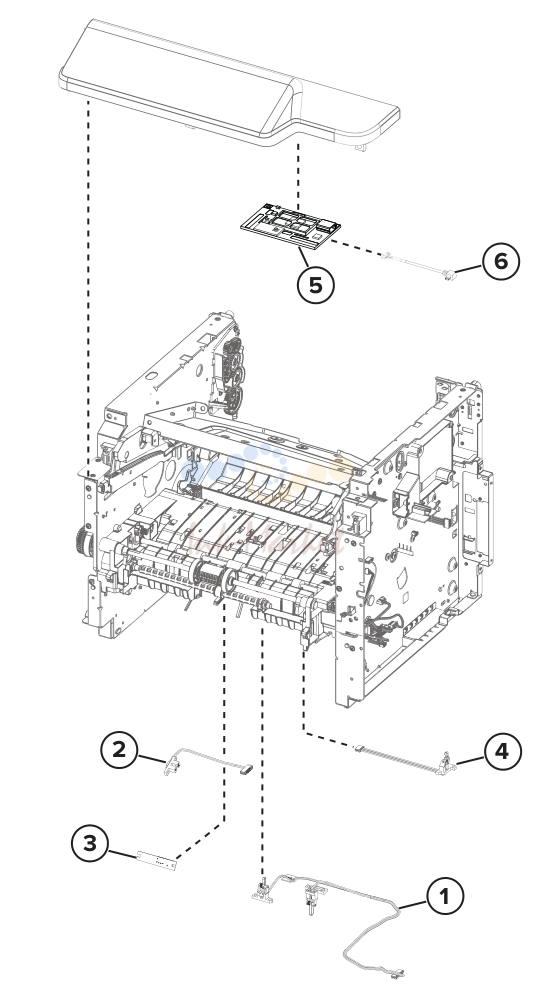

7. Assembly 7: Electronics 4
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1206 | 1 1 Sensor (duplex and input) “Sensors (duplex and input) | |
| 2 | 41X1240 запросить цену → | 1 1 Sensor (trailing edge) “Sensor (trailing edge) removal” on | |
| 3 | 40X8046 запросить цену → | 1 1 Sensor (toner density) “Sensor (toner density) removal” on | |
| 4 | 41X1241 запросить цену → | 1 1 Sensor (narrow media) -- | |
| 5 | 41X1873 запросить цену → | 1 1 Wireless module -- | |
| 6 | 41X2270 запросить цену → | 1 1 Wireless module cable -- |

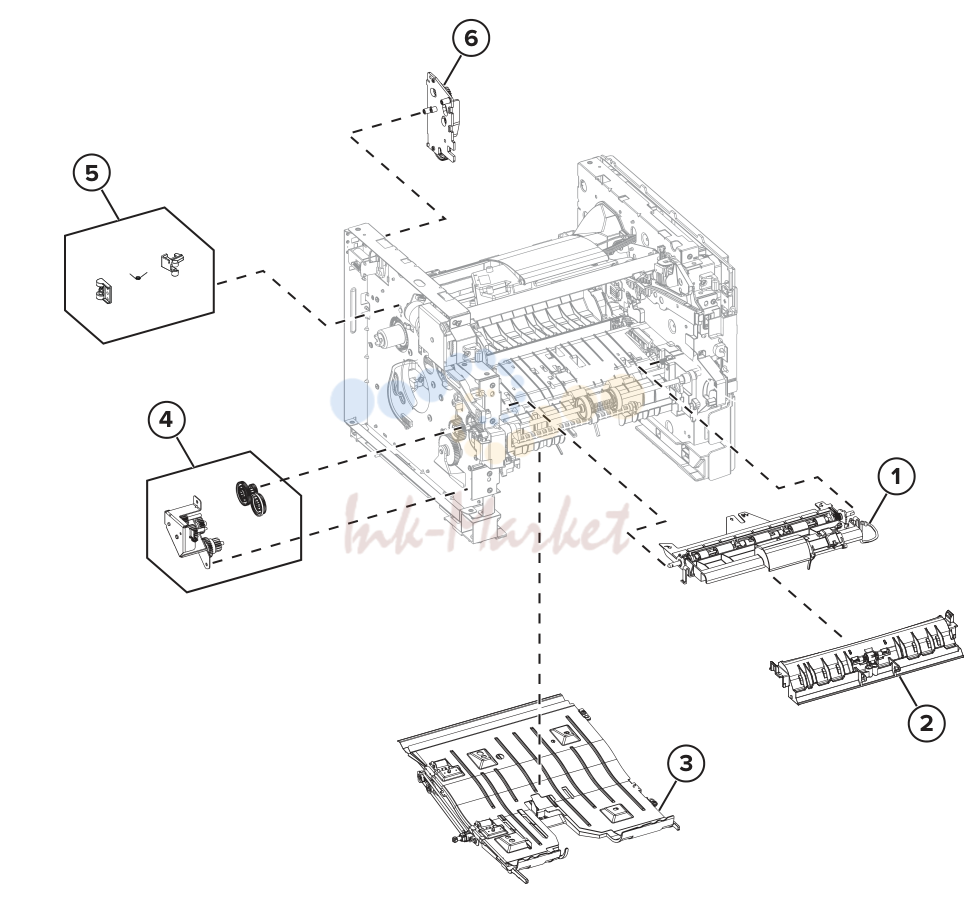

8. Assembly 8: Paper transport 1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1183 запросить цену → | 1 1 Jam access cover -- | |
| 2 | 41X1184 | 1 1 Front input guide “Front input guide removal” on | |
| 3 | 41X1176 | 1 1 Duplex assembly “Duplex assembly removal” on | |
| 4 | 41X1182 запросить цену → | 1 1 MPF gearbox (MX521 and “MPF gearbox removal” on page | |
| 4 | 41X2271 запросить цену → | 1 1 MPF gearbox (MX321 and “MPF gearbox removal” on page | |
| 5 | 41X2255 запросить цену → | 1 1 Fuser actuator “Fuser actuator removal” on | |
| 6 | 41X2268 запросить цену → | 1 1 Redrive gear plate -- |

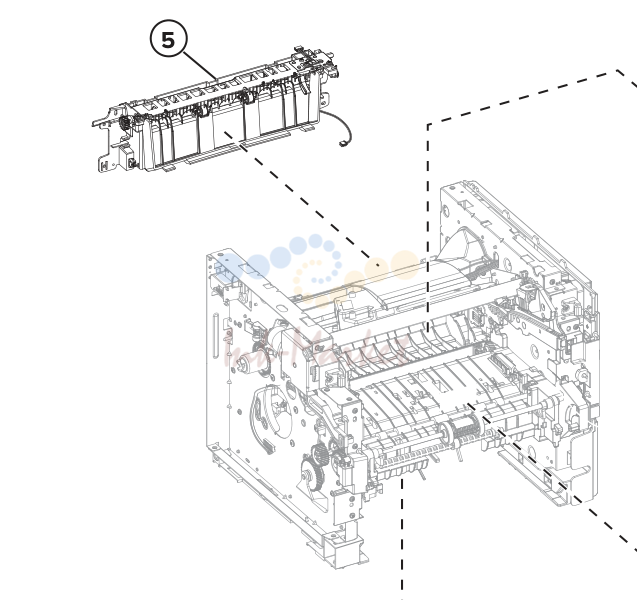

9. Assembly 9: Paper transport 2
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 40X8393 ✓ в наличии | 1 1 Transfer roller “Transfer roller removal” on page | |
| 2 | 41X1197 ✓ в наличии | 1 1 MPF pick roller and “MPF pick roller and separator pad | |
| 3 | 41X1223 ✓ в наличии | 1 1 Pick roller assembly “Pick roller assembly removal” on | |
| 4 | 41X0918 ✓ в наличии | 2 2 Pick tire -- | |
| 5 | 41X1349 ✓ в наличии | 1 1 Redrive assembly -- |

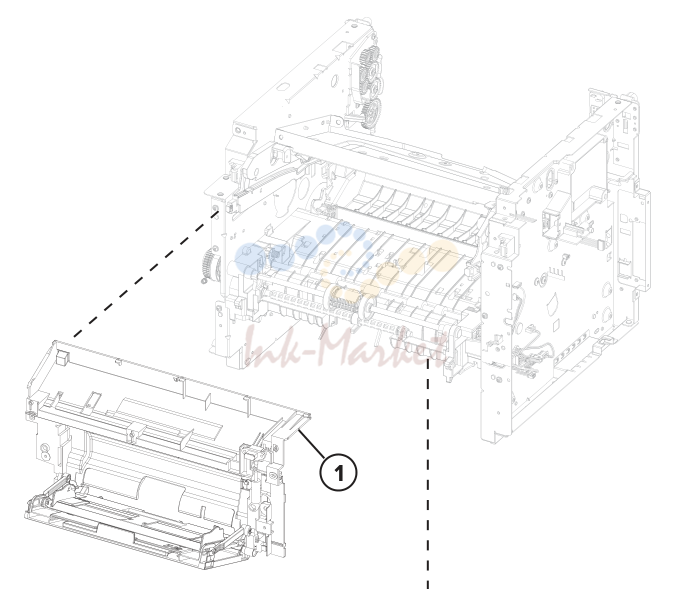

10. Assembly 10: MPF and standard tray
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1218 | 1 1 MPF with front access cover “MPF with front access cover | |
| 1 | 41X1366 запросить цену → | 1 1 MPF with front access cover “MPF with front access cover | |
| 2 | 41X2125 | 1 1 Standard 250-sheet tray insert -- | |
| 2 | 41X1220 | 1 1 Standard 250-sheet tray insert -- |

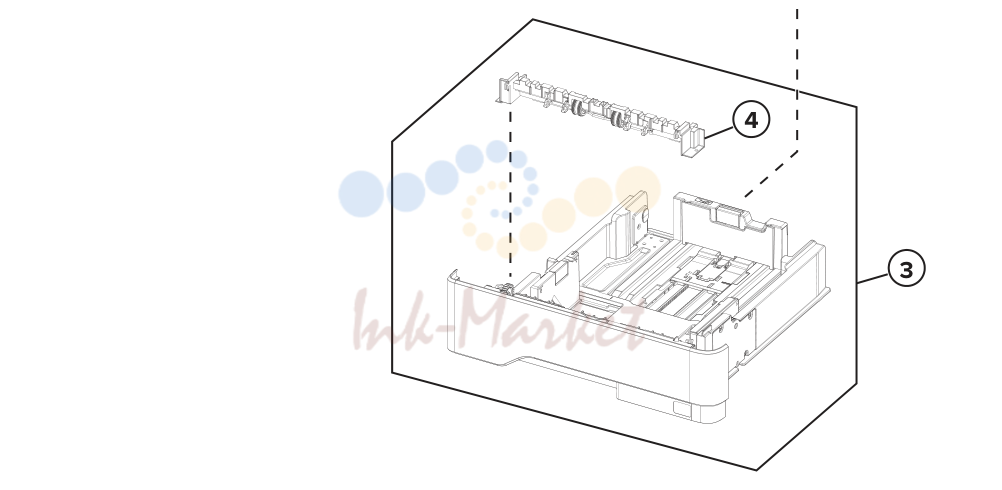

11. Assembly 11: Optional trays
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1216 запросить цену → | 1 1 Optional 550-sheet tray -- | |
| 1 | 41X1217 запросить цену → | 1 1 Optional 250-sheet tray -- | |
| 2 | 41X1239 ✓ в наличии | 1 1 Pick roller -- | |
| 3 | 41X1222 запросить цену → | 1 1 550-sheet tray insert (optional tray) -- | |
| 3 | 41X1221 запросить цену → | 1 1 250-sheet tray insert (optional tray) -- | |
| 4 | 41X1212 ✓ в наличии | 1 1 Separator roller assembly “Separator roller assembly |

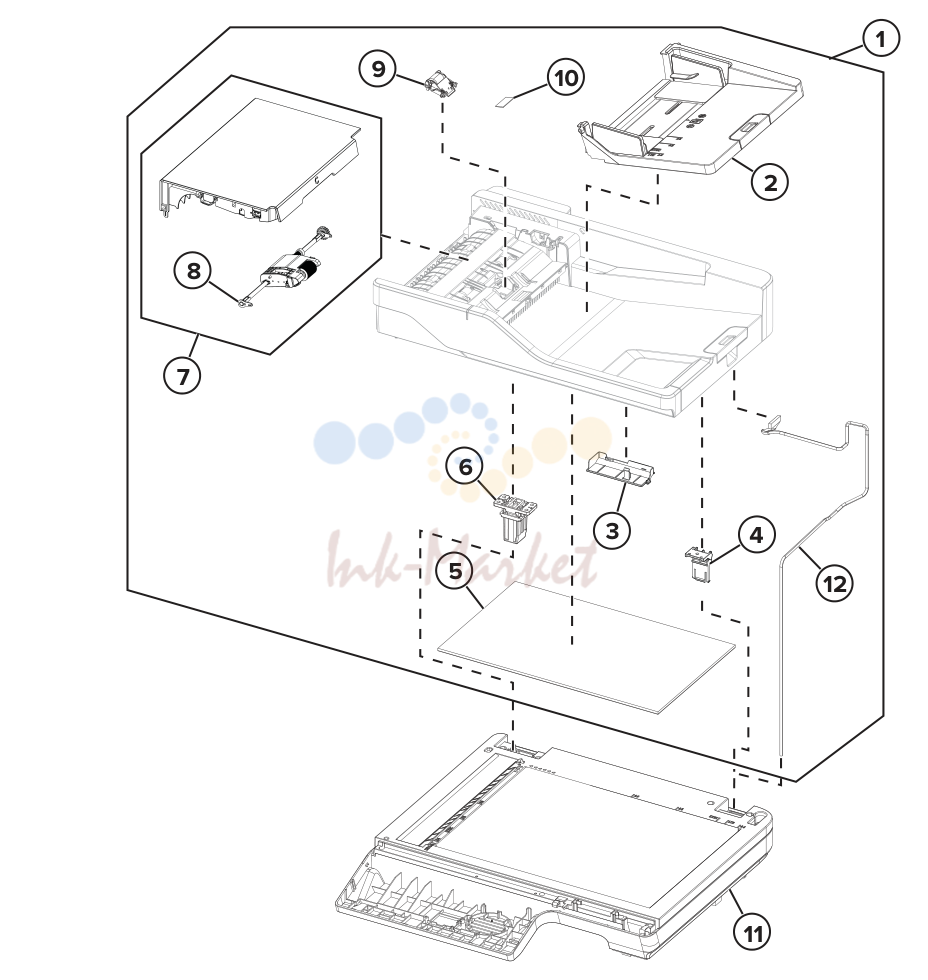

12. Assembly 12: Imaging (MX321, MX421, and MX521) 1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1327 запросить цену → | 1 1 ADF assembly (MX321) “ADF assembly removal” | |
| 1 | 41X2519 | 1 1 ADF assembly (MX321) “ADF assembly removal” | |
| 1 | 41X2218 запросить цену → | 1 1 ADF assembly (MX421) “ADF assembly removal” | |
| 1 | 41X2520 | 1 1 ADF assembly (MX421) “ADF assembly removal” | |
| 1 | 41X2219 запросить цену → | 1 1 ADF assembly (MX521) “ADF assembly removal” | |
| 2 | 41X1333 | 1 1 ADF tray (MX321, MX421, and MX521) “ADF tray removal” on | |
| 3 | 41X2220 запросить цену → | 1 1 ADF cable cover (MX321, MX421, and -- | |
| 4 | 41X1320 ✓ в наличии | 1 1 ADF right hinge (MX321 and MX421) “ADF hinge removal” on | |
| 4 | 41X1321 | 1 1 ADF right hinge (MX521) “ADF hinge removal” on | |
| 5 | 41X1323 запросить цену → | 1 1 ADF cushion (MX321 and MX421) -- | |
| 5 | 41X1324 запросить цену → | 1 1 ADF cushion (MX521) -- | |
| 6 | 40X8735 ✓ в наличии | 1 1 ADF left hinge (MX321, MX421, and “ADF hinge removal” on |

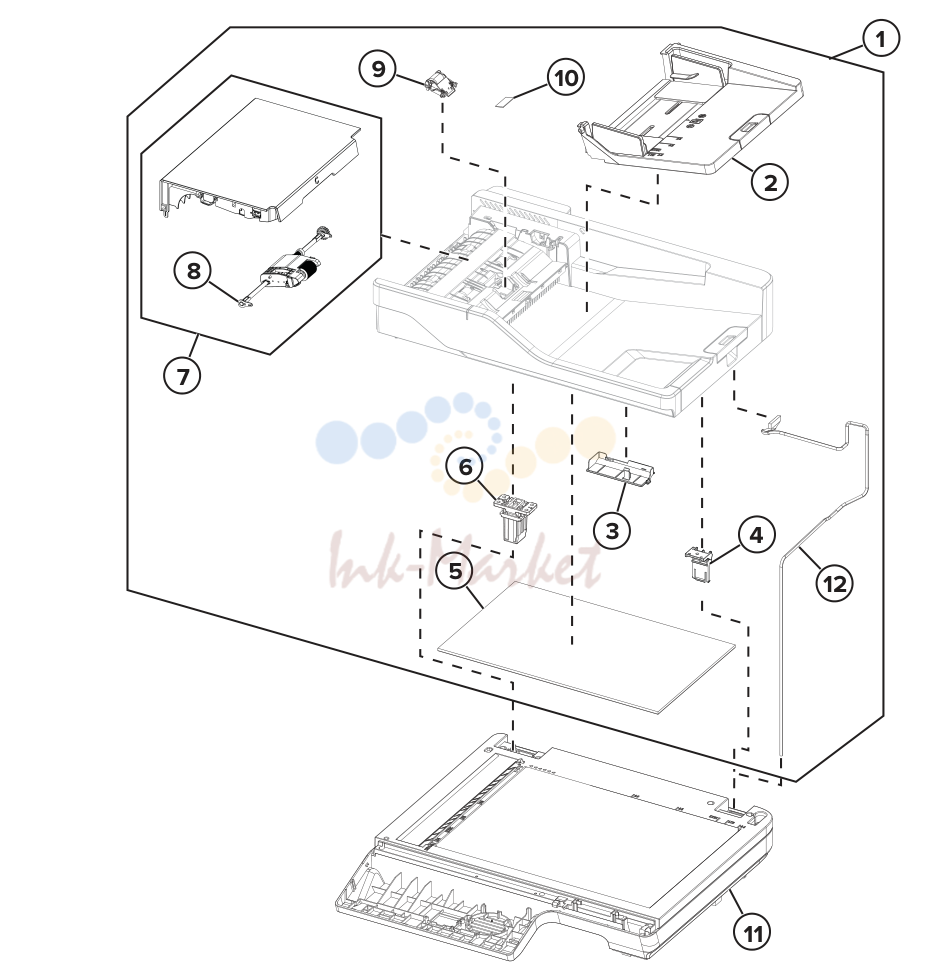

13. Assembly 13: Imaging (MX321, MX421, and MX521) 2
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 7 | 41X2222 запросить цену → | 1 1 ADF access door (MX321) “ADF access door | |
| 7 | 41X1317 | 1 1 ADF access door (MX421) “ADF access door | |
| 7 | 41X2228 запросить цену → | 1 1 ADF access door (MX521) “ADF access door | |
| 8 | 41X2223 | 1 1 ADF roller (MX321, MX421, and “ADF roller removal” on | |
| 9 | 41X2224 | 1 1 ADF separator roller (MX421 and -- | |
| 9 | 40X6247 | 1 1 ADF separator roller (MX321) -- | |
| 10 | 40X9110 ✓ в наличии | 1 1 ADF restraint pad (MX321, MX421, “ADF restraint pad | |
| 11 | 41X1330 запросить цену → | 1 1 Flatbed scanner (MX321 and MX421) “Flatbed scanner | |
| 11 | 41X2522 ✓ в наличии | 1 1 Flatbed scanner (MX321 and MX421) “Flatbed scanner | |
| 11 | 41X2227 запросить цену → | 1 1 Flatbed scanner (MX521) “Flatbed scanner | |
| 11 | 41X2523 | 1 1 Flatbed scanner (MX521) “Flatbed scanner | |
| 12 | 41X2225 запросить цену → | 1 1 ADF cable (MX521) “ADF cable removal” on | |
| 12 | 41X2528 запросить цену → | 1 1 ADF cable (MX321 and MX421) “ADF cable removal” on |

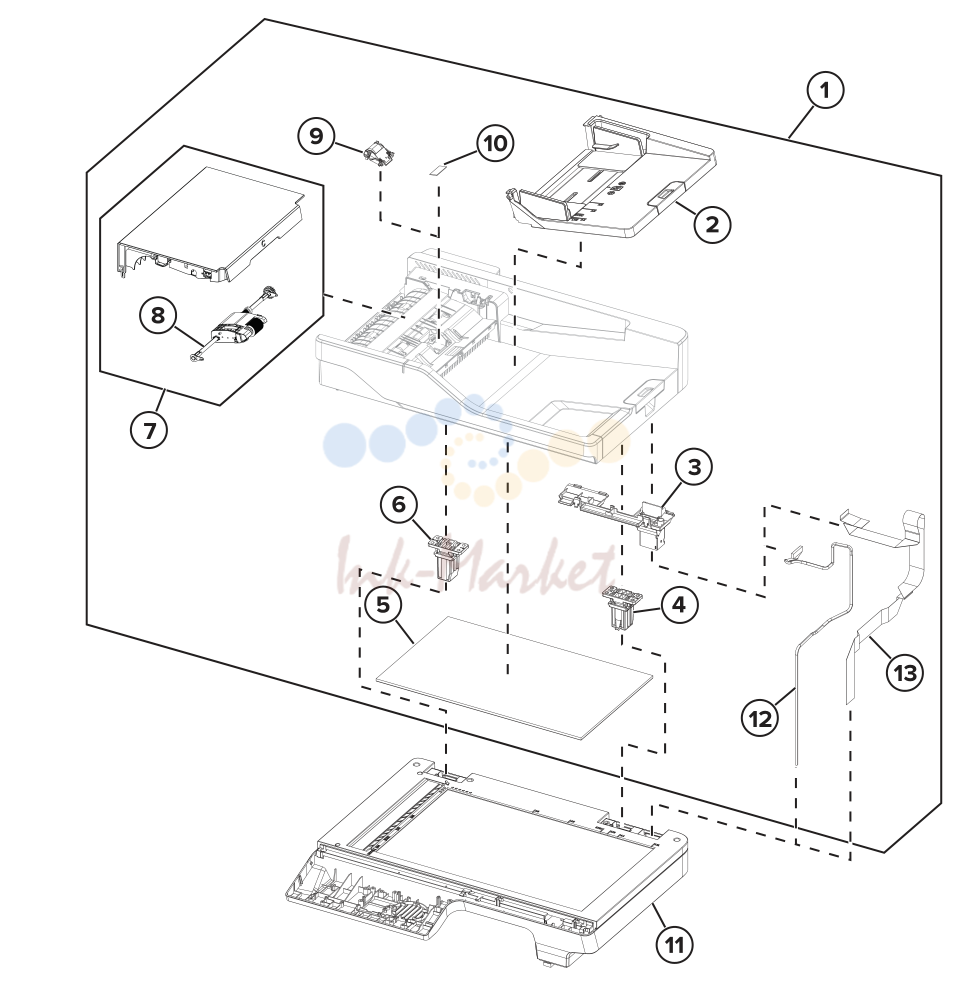

14. Assembly 14: Imaging (MX522)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 41X1328 | 1 1 ADF assembly (MX522) “ADF assembly removal” on | |
| 2 | 41X1334 запросить цену → | 1 1 ADF tray (MX522) “ADF tray removal” on page | |
| 3 | 41X2221 запросить цену → | 1 1 ADF cable cover (MX522) -- | |
| 4 | 41X1321 | 1 1 ADF right hinge (MX522) “ADF hinge removal” on page | |
| 5 | 41X1324 запросить цену → | 1 1 ADF cushion (MX522) -- | |
| 6 | 40X9129 ✓ в наличии | 1 1 ADF left hinge (MX522) “ADF hinge removal” on page | |
| 7 | 41X1318 ✓ в наличии | 1 1 ADF access door (MX522) “ADF access door removal” on | |
| 8 | 41X1326 ✓ в наличии | 1 1 ADF roller (MX522) “ADF roller removal” on page | |
| 9 | 41X1325 | 1 1 ADF separator roller -- | |
| 10 | 41X1322 ✓ в наличии | 1 1 ADF restraint pad “ADF restraint pad removal ” on | |
| 11 | 41X1331 | 1 1 Flatbed scanner (MX522) “Flatbed scanner removal” on | |
| 12 | 41X1315 запросить цену → | 1 1 ADF cable (MX522) “ADF cable removal” on page | |
| 13 | 41X1316 запросить цену → | 1 1 ADF flat cable (MX522) “ADF flat cable removal” on |
