Содержание
- 1. External panels and covers
- 2. Figure 7-2 Cartridge door unit
- 3. SEE FUSER ASSEMBLY
- 4. Figure 7-5 Internal components (3 of 3)
- 5. Paper-feed assembly
- 6. Fuser
- 7. 500-sheet feeder cassette (tray 3)
- 8. 500-sheet feeder, cassette, external panels and covers
- 9. 500-sheet feeder internal components
- 10. 500-sheet feeder paper-pickup assembly
- 11. 500-sheet feeder drive assembly
- 12. Figure 7-21 Duplexer (2 of 2)

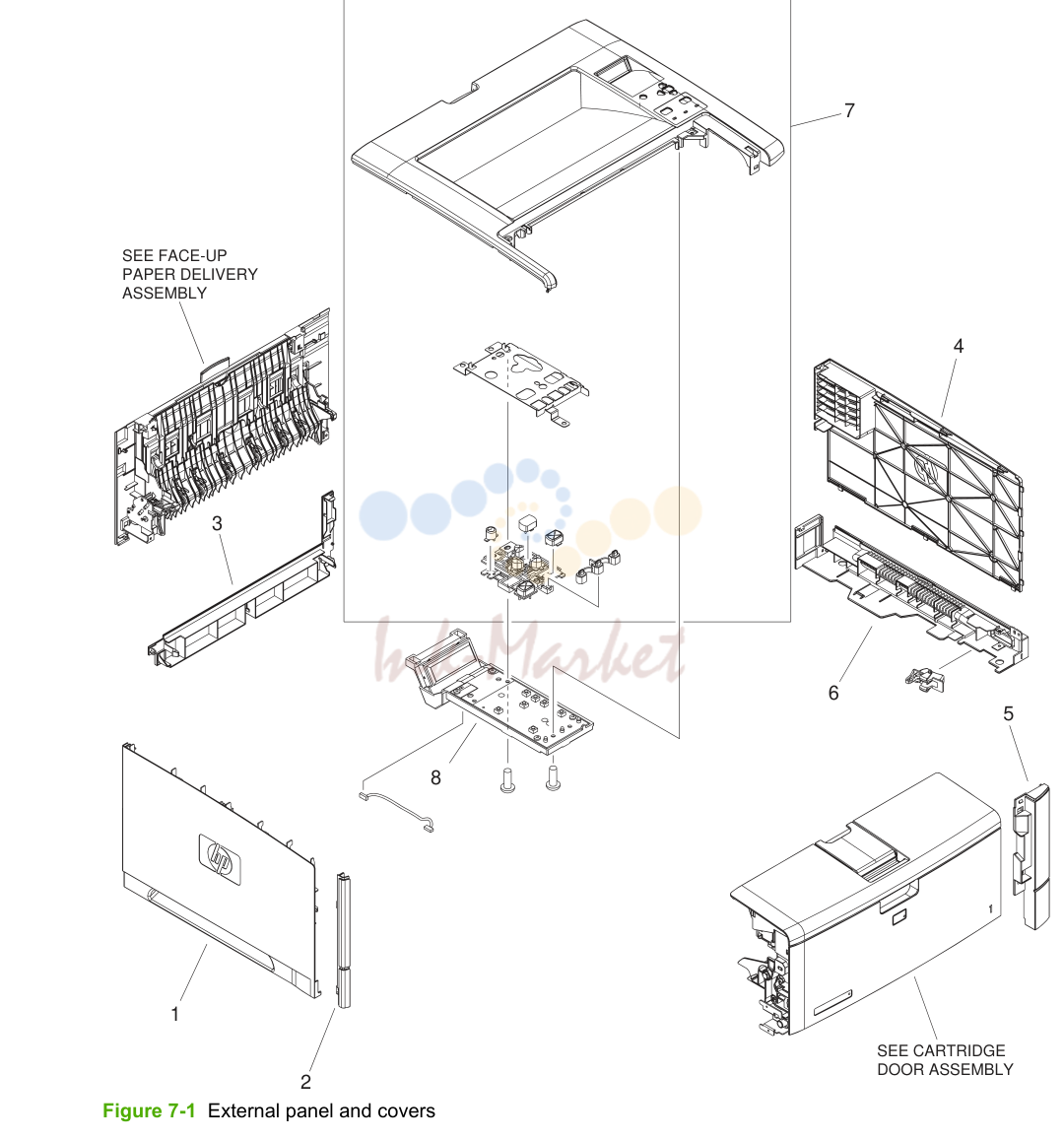

1. External panels and covers
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, left RC1-7051-000CN | ||
| 2 | Cover, left front RC1-7052-000CN | ||
| 3 | Cover, rear lower RC1-7174-000CN | ||
| 4 | Cover, right RC1-7211-000CN | ||
| 5 | Cover, right front RC1-7212-000CN | ||
| 6 | Cover, right lower RC1-7210-000CN | ||
| 7 | Top cover assembly RM1-2471-000CN | ||
| 8 | PCB, operation panel RK2-1097-000CN |

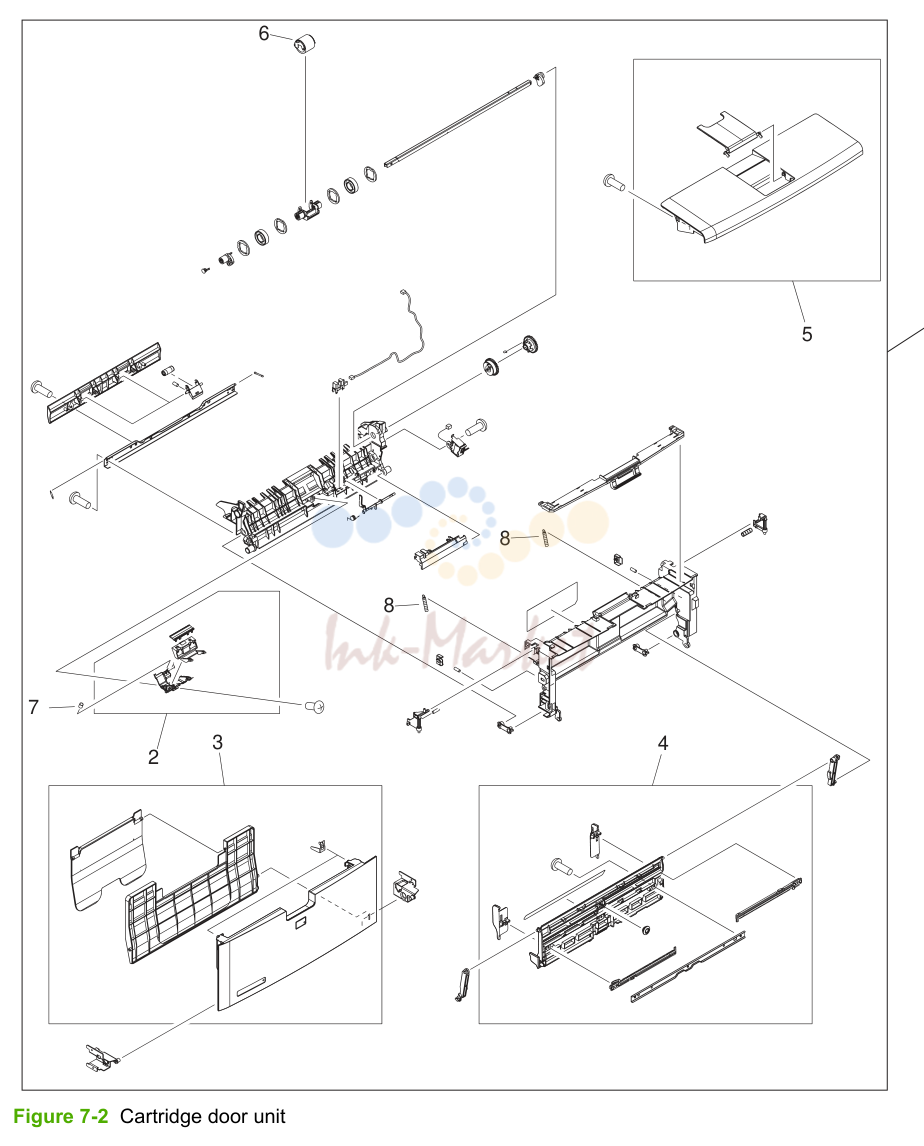

2. Figure 7-2 Cartridge door unit
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cartridge door unit RM1-2458-000CN | ||
| 2 | Multipurpose pad assembly RM1-2462-000CN | ||
| 3 | Multipurpose cover assembly RM1-2463-000CN | ||
| 4 | Multipurpose tray assembly RM1-2465-000CN | ||
| 5 | Cartridge cover assembly RM1-2470-000CN | ||
| 6 | Roller, multipurpose paper pickup RL1-0915-000CN | ||
| 7 | Spring, compression RU5-2553-000CN | ||
| 8 | Spring, tension RU5-2548-000CN | ||
| 7 | SEE | ||
| 6 | REGISTRATION | ||
| 6 | ASSEMBLY | ||
| 320 | Chapter 7 Parts and diagrams ENWW | ||
| 1 | Cover, paper-delivery roller RC1-7047-000CN | ||
| 2 | Flag, face-down RC1-7460-000CN | ||
| 3 | Flag, paper-full detect RC1-7459-000CN | ||
| 4 | Cover, face-down RC1-7192-000CN | ||
| 5 | Solenoid RK2-1096-000CN | ||
| 6 | Sheet, flag RC1-7461-000CN | ||
| 7 | Sheet, face-down RC1-7462-000CN | ||
| 8 | Spring, torsion RU5-2584-000CN | ||
| 9 | Switch, cassette-size detect RK2-1103-000CN | ||
| 10 | Connector, drawer VS1-7258-007CN | ||
| 11 | Holder, top sensor RC1-7268-000CN | ||
| 12 | Guide, cartridge, left RC1-7121-000CN | ||
| 13 | Bushing RC1-7249-000CN | ||
| 14 | Flag, top sensor RC1-7261-000CN | ||
| 15 | Gear, 13T RU5-0536-000CN | ||
| 16 | Spring, torsion RU5-2596-000CN | ||
| 17 | Paper-pickup roller-gear assembly RM1-2474-000CN | ||
| 18 | DC controller assembly RM1-4098-000CN | ||
| 19 | Shutter, fusing RC1-7163-000CN | ||
| 20 | Roller, transfer RM1-2485-000CN | ||
| 21 | Cable, flexible flat, 21P RK2-1053-000CN | ||
| 22 | Cable, flexible flat, 23P RK2-1055-000CN |

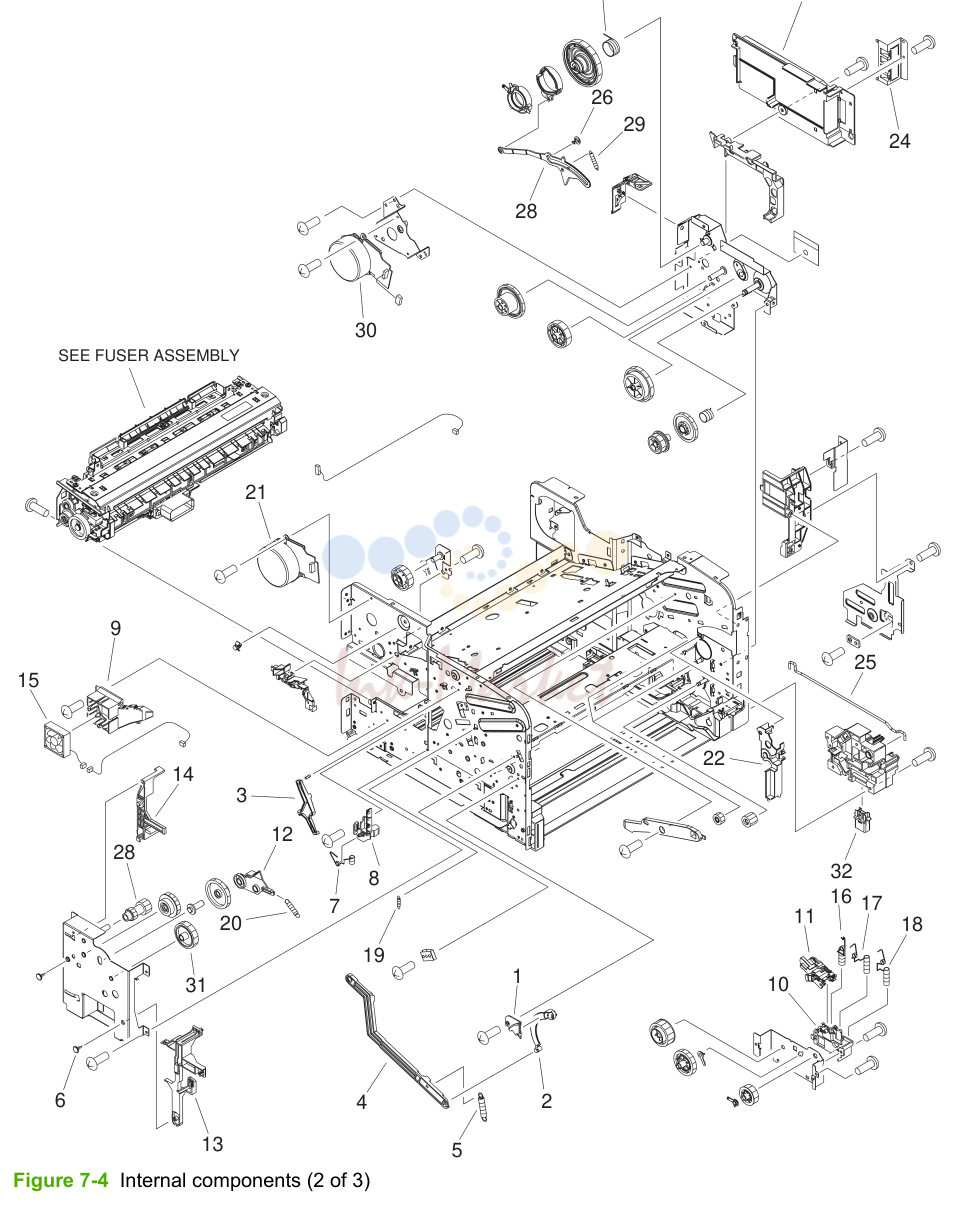

3. SEE FUSER ASSEMBLY
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Guide, cartridge door stopper RC1-7022-000CN | ||
| 2 | Stopper, cartridge door RC1-7023-000CN | ||
| 3 | Arm, lock RC1-7244-000CN | ||
| 4 | Lever, fuser release RC1-7405-000CN | ||
| 5 | Spring, tension RU5-2550-000CN | ||
| 6 | Stopper, bushing arm RC1-3090-000CN | ||
| 7 | Spring, compression RC1-7127-000CN | ||
| 8 | Holder, fusing bias contact RC1-7128-000CN | ||
| 9 | Holder, fan RC1-7169-000CN | ||
| 10 | Holder, contact RC1-7241-000CN | ||
| 11 | Cover RC1-7265-000CN | ||
| 12 | Plate, fuser swing RC1-7403-000CN | ||
| 13 | Lever, fuser release RC1-7406-000CN | ||
| 14 | Lever, paper-delivery release RC1-7408-000CN | ||
| 15 | Fan, sub RK2-1091-000CN | ||
| 16 | Spring, compression RU5-2587-000CN | ||
| 17 | Spring, compression RU5-2588-000CN | ||
| 18 | Spring, compression RU5-2589-000CN | ||
| 19 | Spring, tension RU5-2591-000CN | ||
| 20 | Spring, tension RU5-2644-000CN | ||
| 21 | Fuser motor assembly RM1-2538-000CN | ||
| 22 | Cover, gear, lower right RC1-7020-000CN | ||
| 23 | Cover, DC controller RC1-7217-000CN | ||
| 24 | Plate, connector grounding RC1-7220-000CN | ||
| 25 | Rod, power-supply switch RC1-7226-000CN | ||
| 26 | Stopper, link RC1-7288-000CN | ||
| 27 | Spring, compression RU5-2630-000CN | ||
| 28 | Lever, coupling RC1-7285-000CN | ||
| 29 | Spring, tension RU5-2632-000CN | ||
| 30 | Main motor assembly RM1-2516-000CN | ||
| 31 | Connector, drawer VS1-7258-007CN |

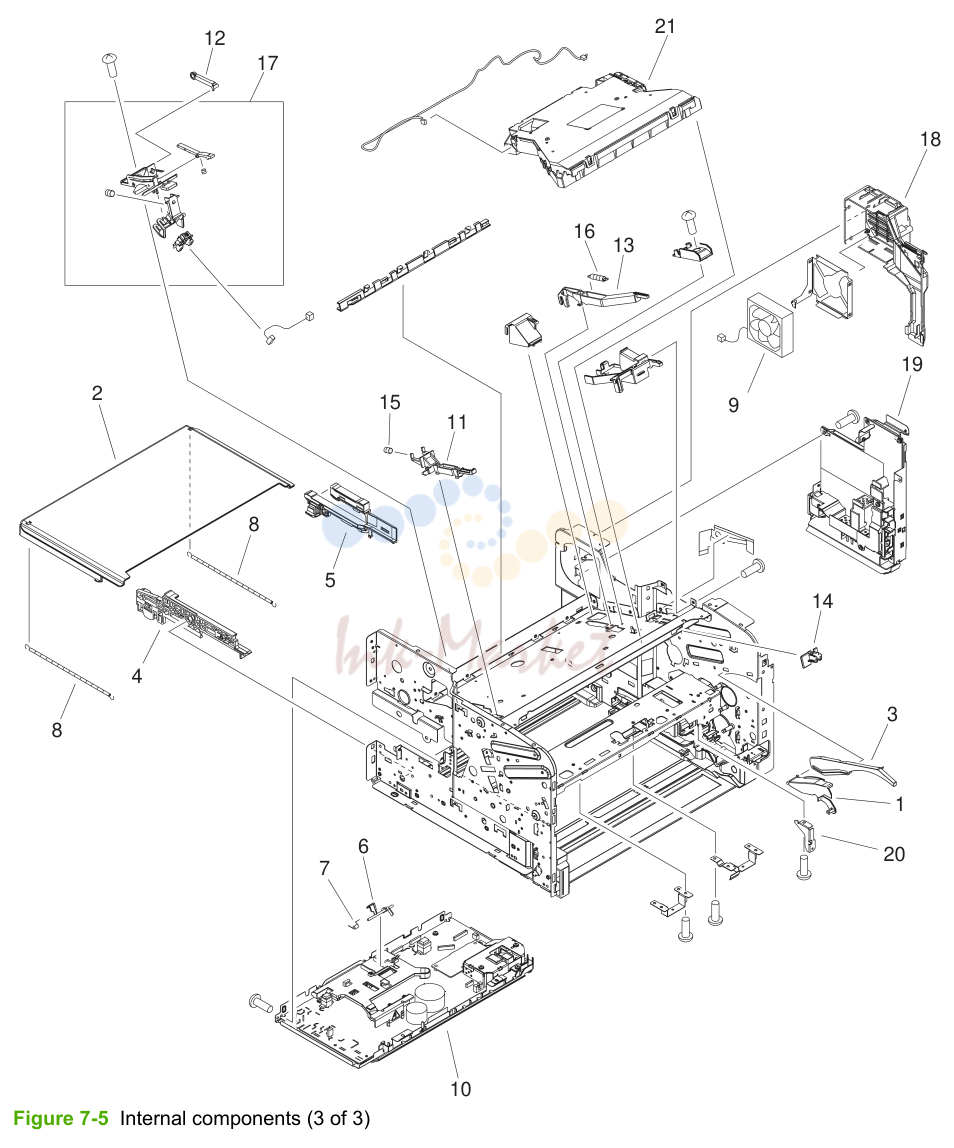

4. Figure 7-5 Internal components (3 of 3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, gear, upper right RC1-7209-000CN | ||
| 2 | Cover, dust RC1-7118-000CN | ||
| 3 | Guide, cartridge, lower right RC1-7286-000CN | ||
| 4 | Guide, duplexer, left RC1-7379-000CN | ||
| 5 | Guide, duplexer, right RC1-7380-000CN | ||
| 6 | Flag, loop sensor RC1-7144-000CN | ||
| 7 | Spring, torsion RC1-7145-000CN | ||
| 8 | Spring, tension RU5-2563-000CN | ||
| 9 | Fan RK2-1089-000CN | ||
| 10 | High-voltage power supply (110V-127V) RM1-2957-000CN | ||
| 10 | High-voltage power supply (220V-240V) RM1-2958-000CN | ||
| 11 | Link, tag RC1-7289-000CN | ||
| 12 | Link, tag lock RC1-7294-000CN | ||
| 13 | Lever, shutter RC1-7451-000CN | ||
| 14 | Cover, shutter lever RC1-7452-000CN | ||
| 15 | Spring, compression RU5-2633-000CN | ||
| 16 | Spring, tension RU5-2651-000CN | ||
| 17 | Tag holder assembly RM1-2514-000CN | ||
| 18 | Holder, fan RC1-7434-000CN | ||
| 19 | Low-voltage power supply (110V-127V) RM1-2926-000CN | ||
| 19 | Low-voltage power supply (220V-240V) RM1-2951-000CN | ||
| 20 | Plate, cross member auxiliary RC1-7264-000CN | ||
| 21 | Laser/scanner assembly RM1-2555-000CN |

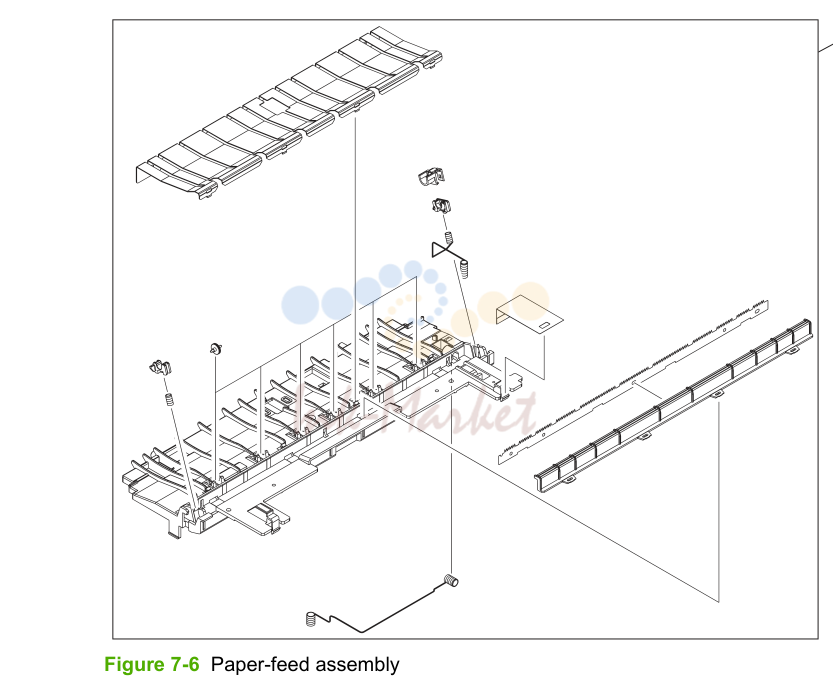

5. Paper-feed assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | DC controller PCA assembly RM1-4098-000CN | ||
| 2 | High-voltage PCA assembly (110V-127V) RM1-2957-000CN | ||
| 2 | High-voltage PCA assembly (220V-240V) RM1-2958-000CN | ||
| 3 | Low-voltage PCA assembly (110V-127V) RM1-2926-000CN | ||
| 3 | Low-voltage PCA assembly (220V-240V) RM1-2951-000CN |

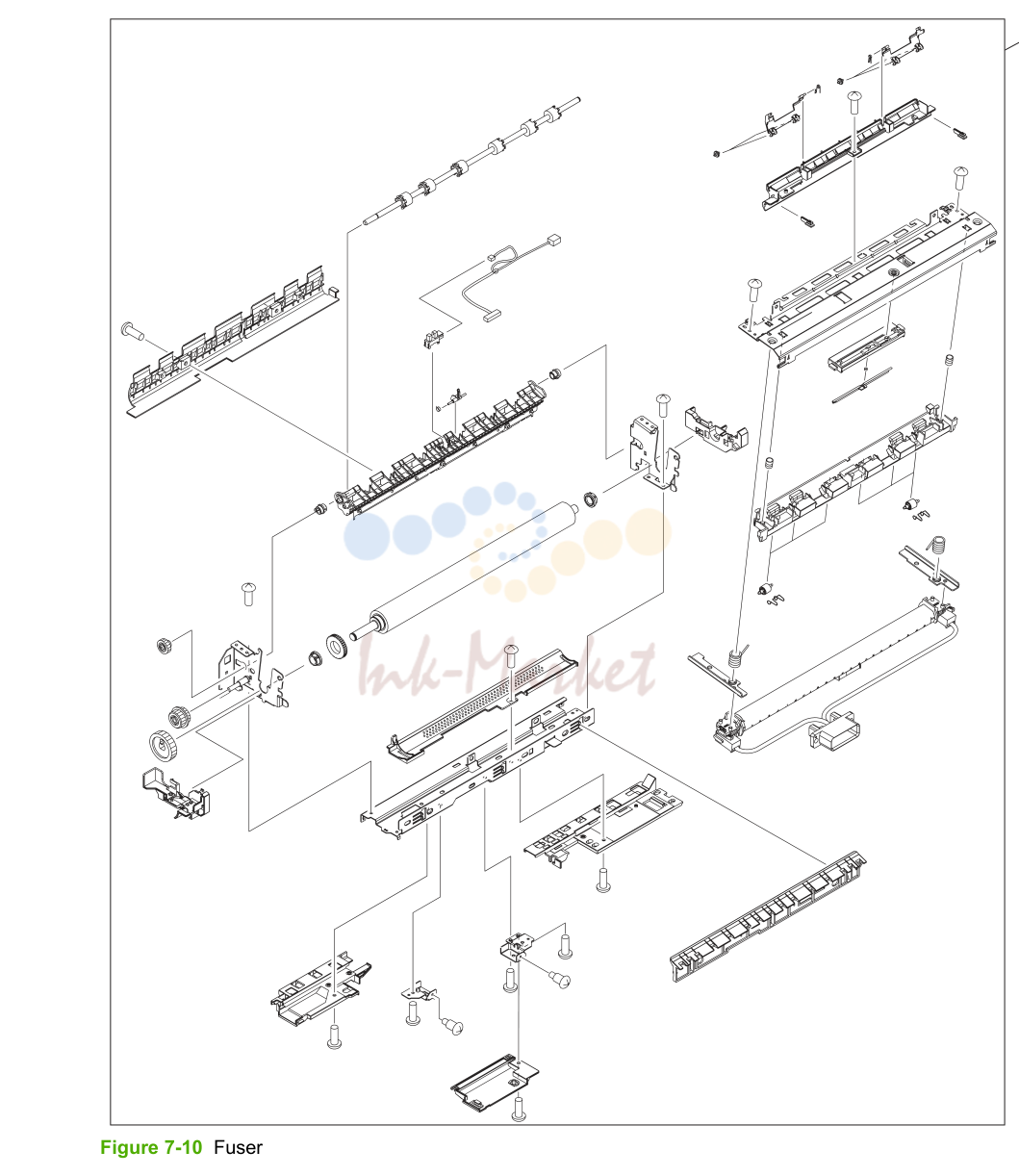

6. Fuser
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Paper-pickup assembly, cassette RM1-2530-000CN | ||
| 2 | Paper-pickup-roller assembly, cassette RM1-0731-030CN | ||
| 3 | Photointerruptor WG8-5696-000CN | ||
| 4 | Cover, sensor, 250-sheet cassette RC1-7080-000CN | ||
| 5 | Lever, paper sensor, 250-sheet cassette RC1-7410-000CN |

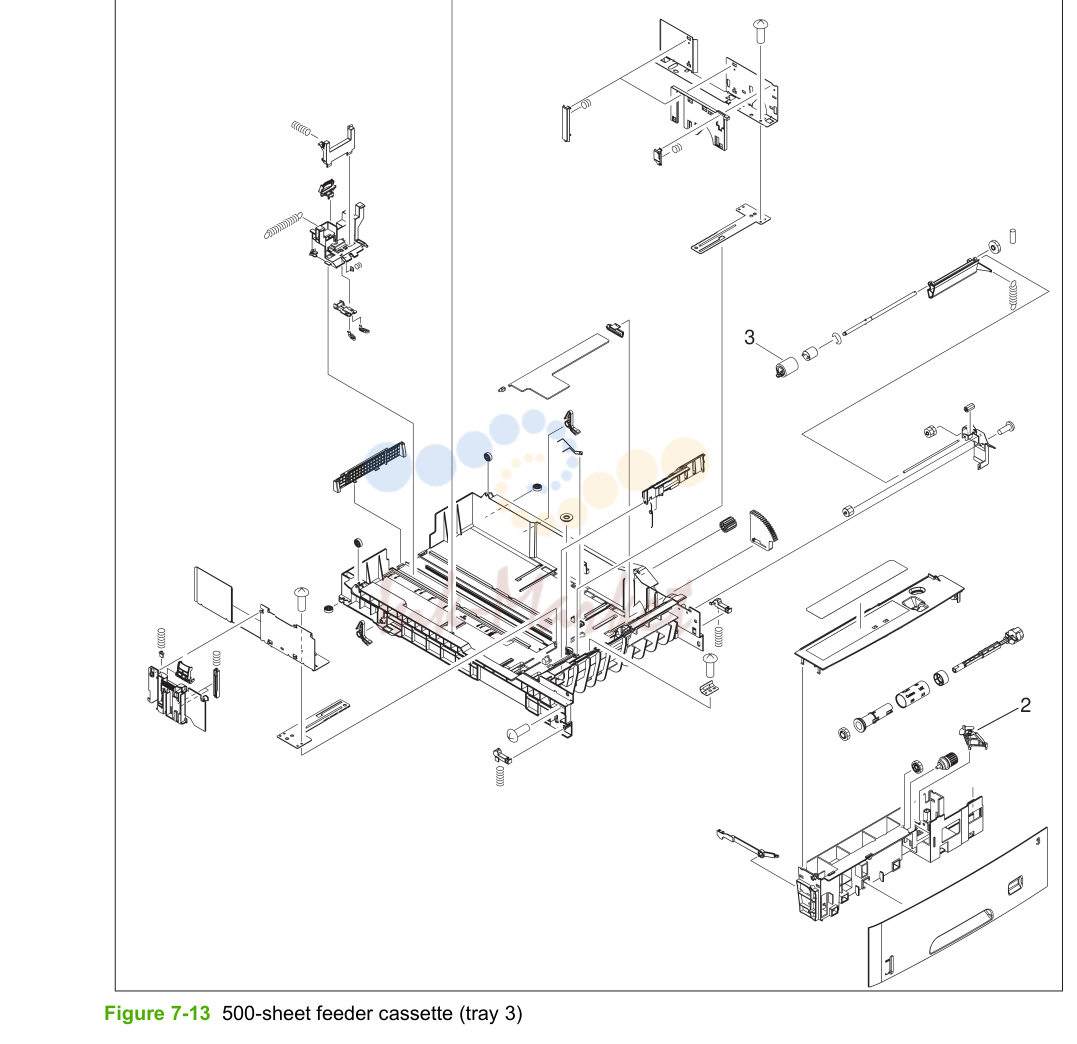

7. 500-sheet feeder cassette (tray 3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 500-sheet запросить цену → | cassette (only), tray 3 RM1-2900-000CN | |
| 2 | Flag, size sensing RC1-7877-000CN | ||
| 3 | Paper-feed roller assembly RM1-0037-020CN |

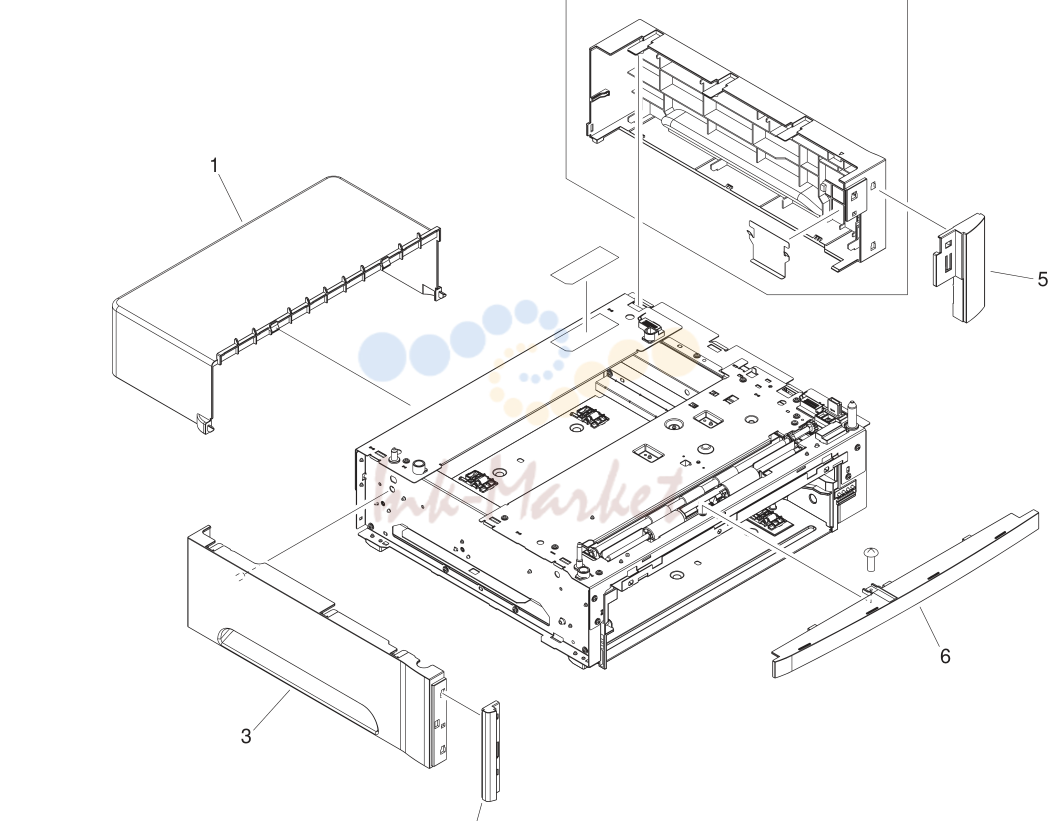

8. 500-sheet feeder, cassette, external panels and covers
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, rear, 500-sheet cassette RC1-7808-000CN | ||
| 2 | Cover, right, 500-sheet cassette RM1-2899-000CN | ||
| 3 | Cover, left, 500-sheet cassette RC1-7803-000CN | ||
| 4 | Cover, left front, 500-sheet cassette RK2-1062-000CN | ||
| 5 | Cover, right front, 500-sheet cassette RC1-7806-000CN | ||
| 6 | Cover, front lower, 500-sheet cassette RC1-7807-000CN |

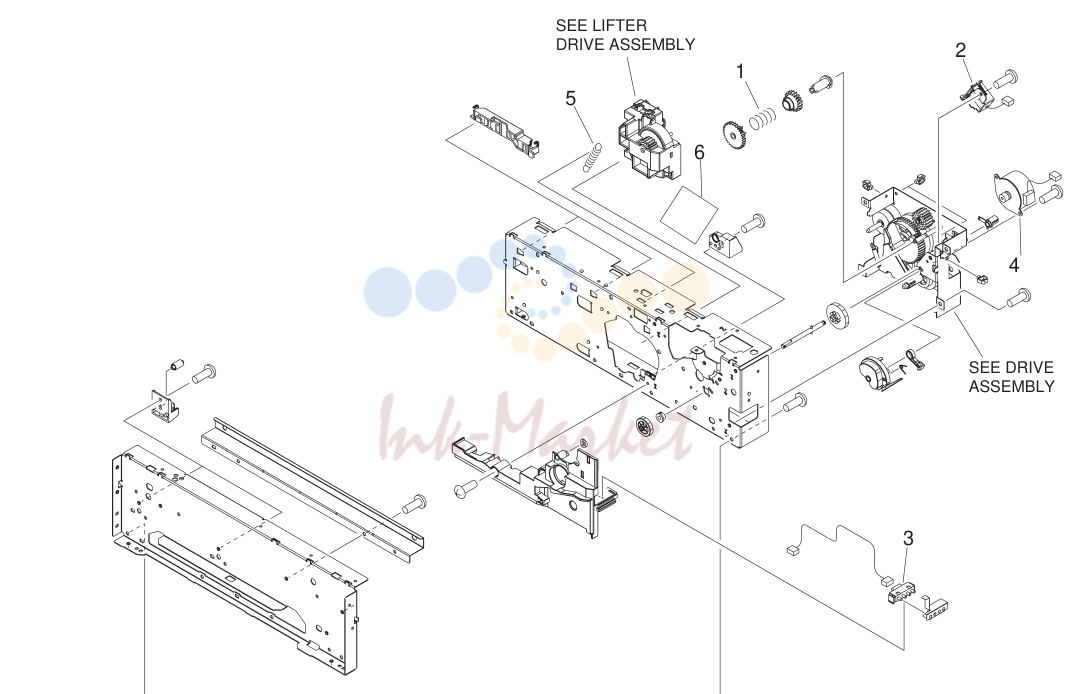

9. 500-sheet feeder internal components
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Spring, compression RU5-2061-000CN | ||
| 2 | Solenoid RK2-0269-000CN | ||
| 3 | Switch, cassette-size detect RK2-1103-000CN | ||
| 4 | Motor, stepping, DC RC1-7804-000CN | ||
| 5 | Spring, tension RC1-0198-000CN | ||
| 6 | Paper-feeder driver PCA assembly RM1-4292-000CN |

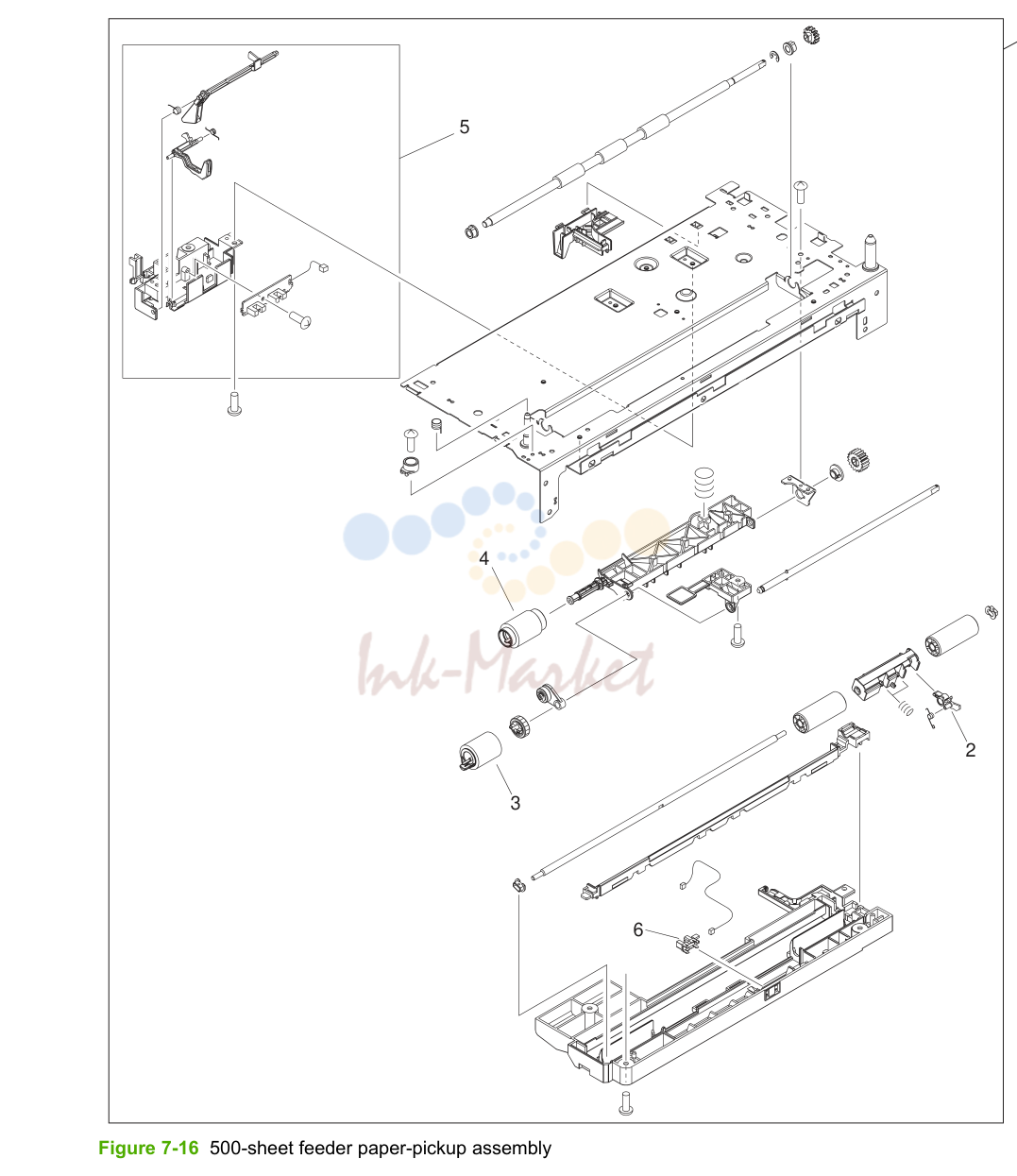

10. 500-sheet feeder paper-pickup assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 500-sheet запросить цену → | feeder paper-pickup assembly RM1-2896-000CN | |
| 2 | Flag, sensor, top RC1-7836-000CN | ||
| 3 | Paper-pickup-roller assembly (500-sheet feeder) RM1-0036-020CN | ||
| 4 | Paper-feed-roller assembly (500-sheet feeder) RM1-0037-000CN | ||
| 5 | Sensor assembly RM1-2897-000CN | ||
| 6 | Photo interrupter, TLP1243 WG8-5696-000CN |

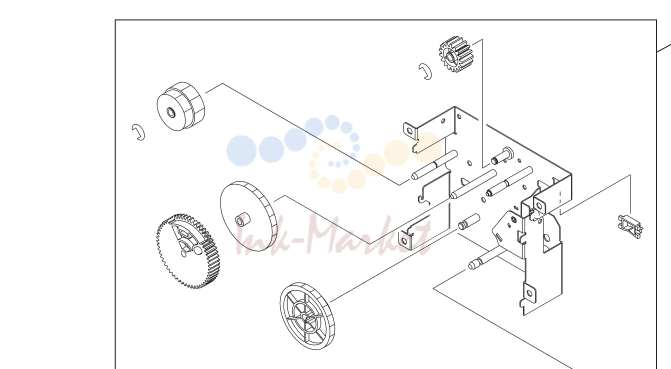

11. 500-sheet feeder drive assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Duplexer Q7549-67901 | ||
| 2 | Flag, duplexing jam detect RC1-7770-000CN | ||
| 3 | IC, photo interrupter WG8-5624-000CN |

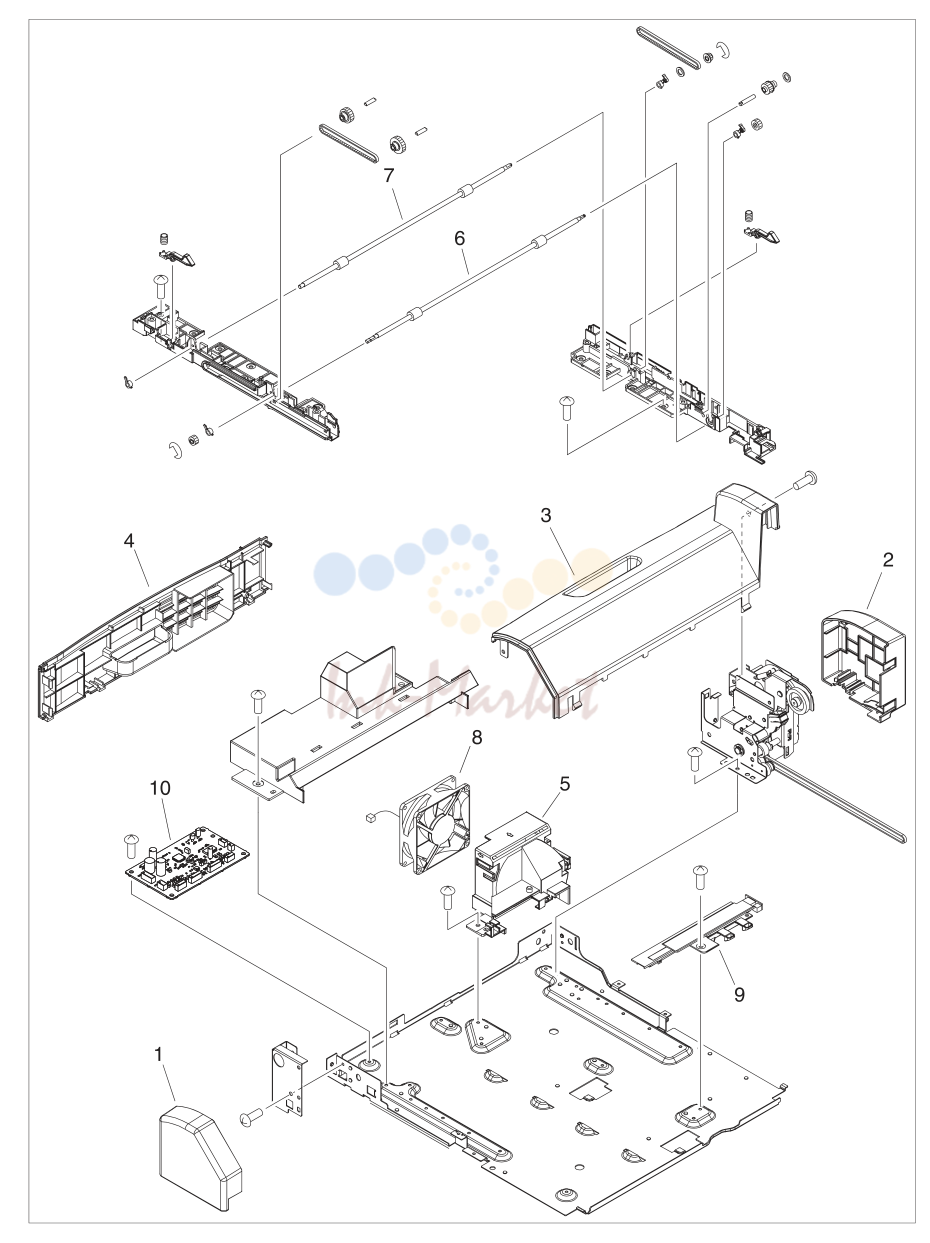

12. Figure 7-21 Duplexer (2 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, left RC1-7754-000CN | ||
| 2 | Cover, right RC1-7755-000CN | ||
| 3 | Cover, top RC1-7756-000CN | ||
| 4 | Cover, rear RC1-7757-000CN | ||
| 5 | Holder, fan RC1-7760-000CN | ||
| 6 | Roller, paper feed RC1-7783-000CN | ||
| 7 | Roller, paper feed, rear RC1-7790-000CN | ||
| 8 | Fan RK2-1067-000CN | ||
| 9 | Module, light guide RK2-1069-000CN | ||
| 10 | Duplexing controller PCB assembly RM1-4291-000CN |
