Содержание
- 1. Customer-replaceable parts and accessories
- 2. Customer-replaceable components (print engine)
- 3. Customer-replaceable components (ADF and scanner)
- 4. Print cartridge and maintenance kits
- 5. Documentation, software, and training material
- 6. Assembly locations
- 7. Figure 8-10 Print-engine assemblies (2 of 2)
- 8. External components
- 9. Print-engine internal components
- 10. Internal components (1 of 5)

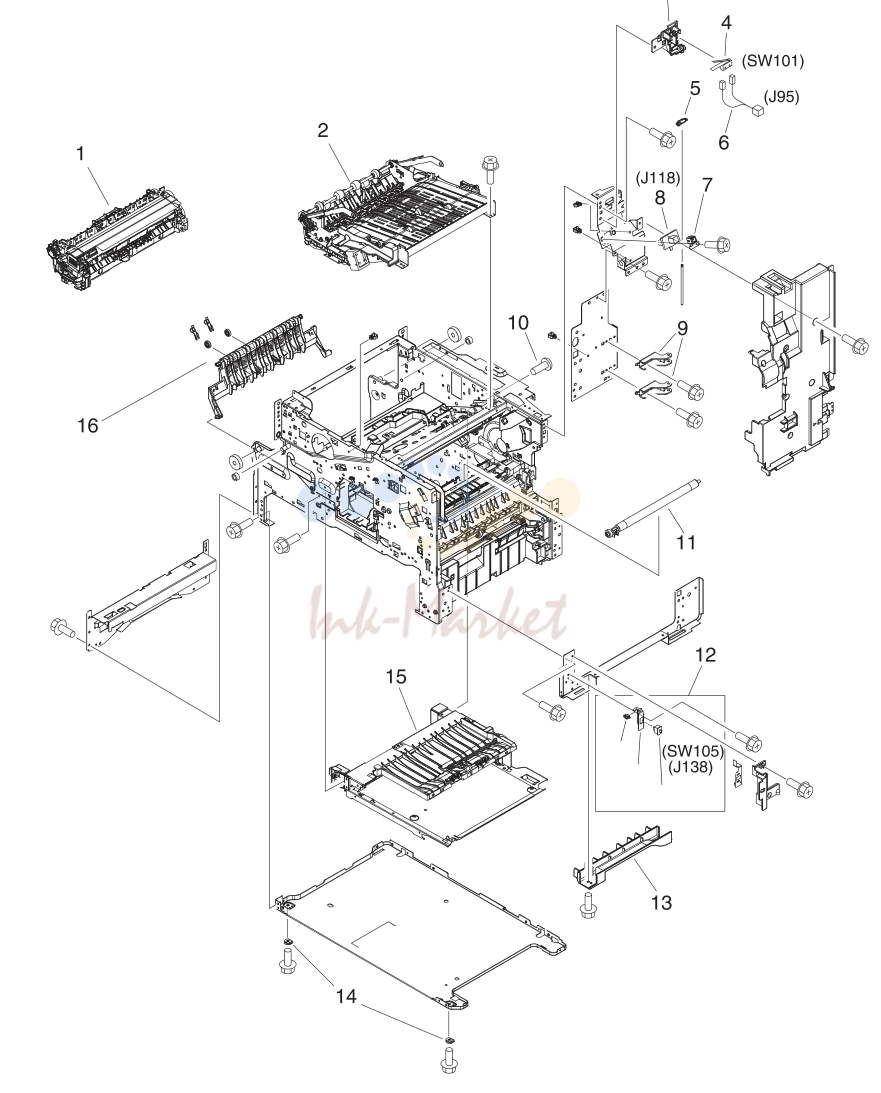

- 11. Internal components (2 of 5)

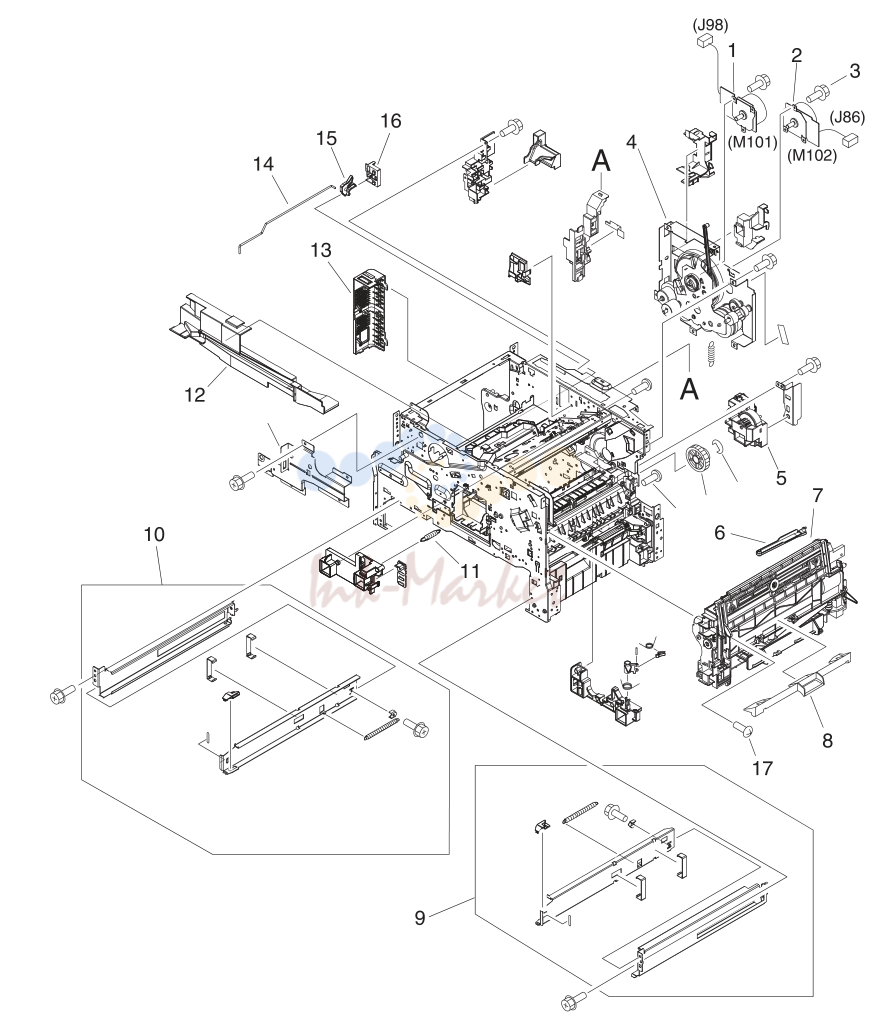

- 12. Internal components (3 of 5)

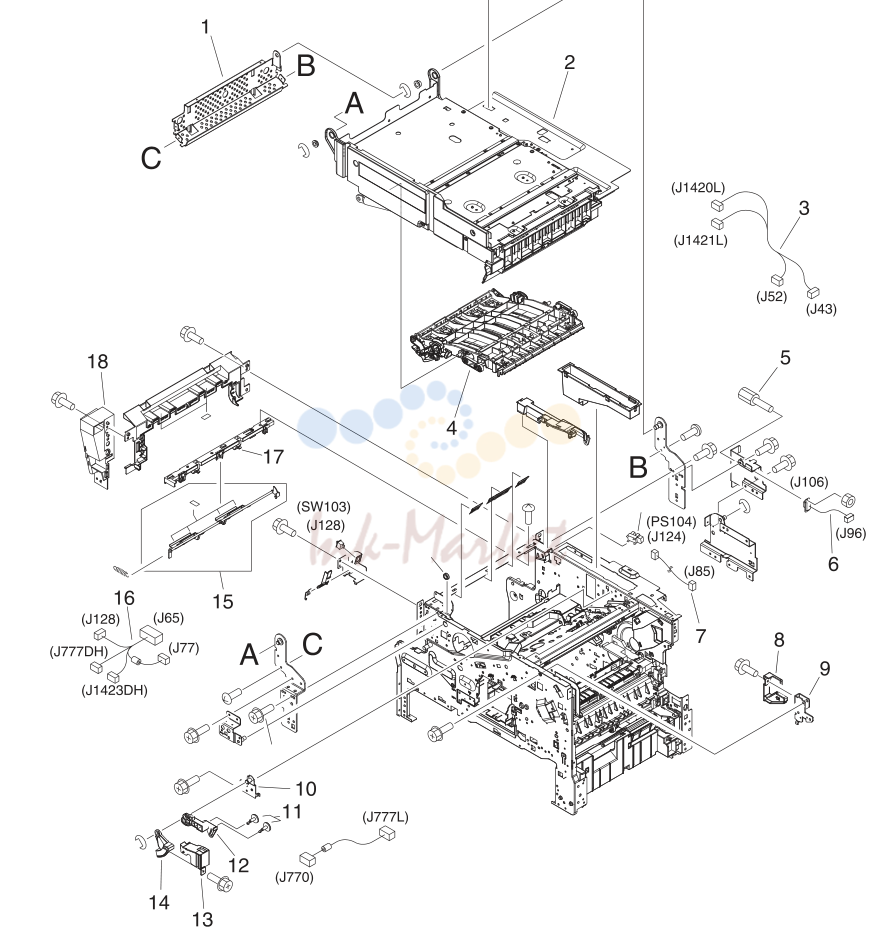

- 13. Internal components (4 of 5)

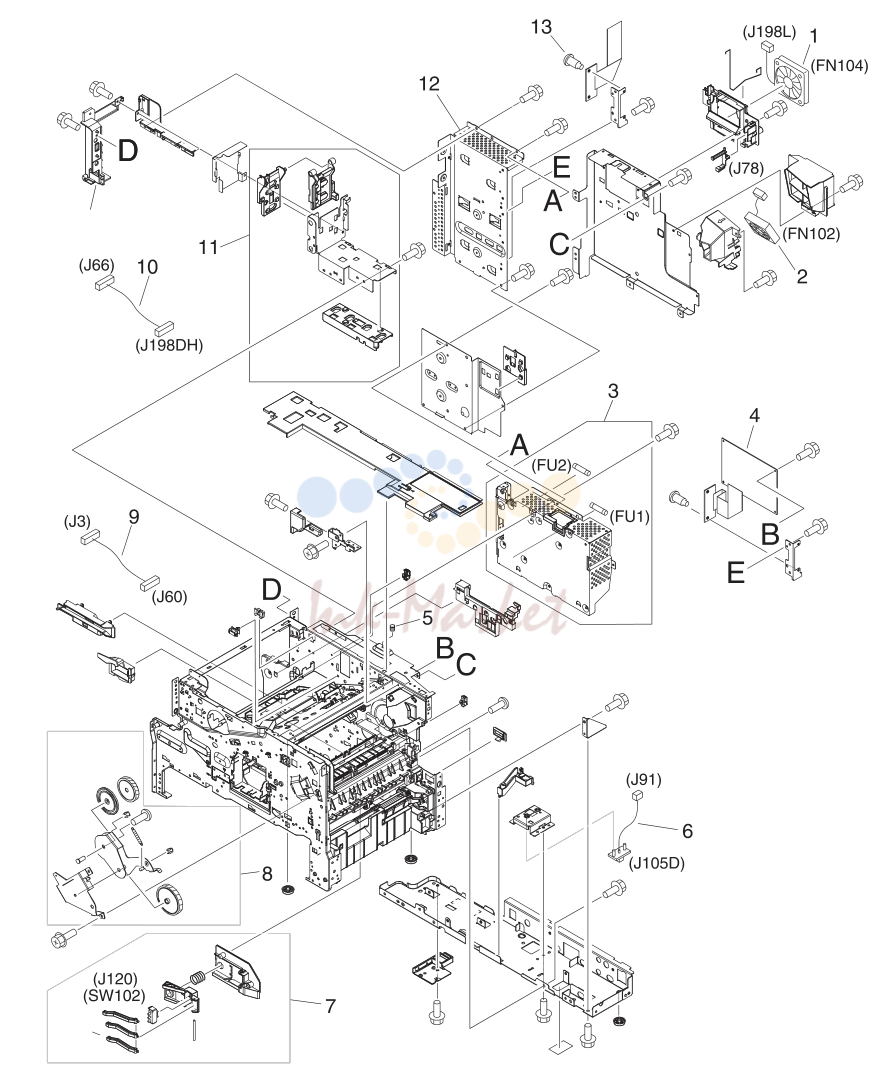

- 14. Internal components (5 of 5)

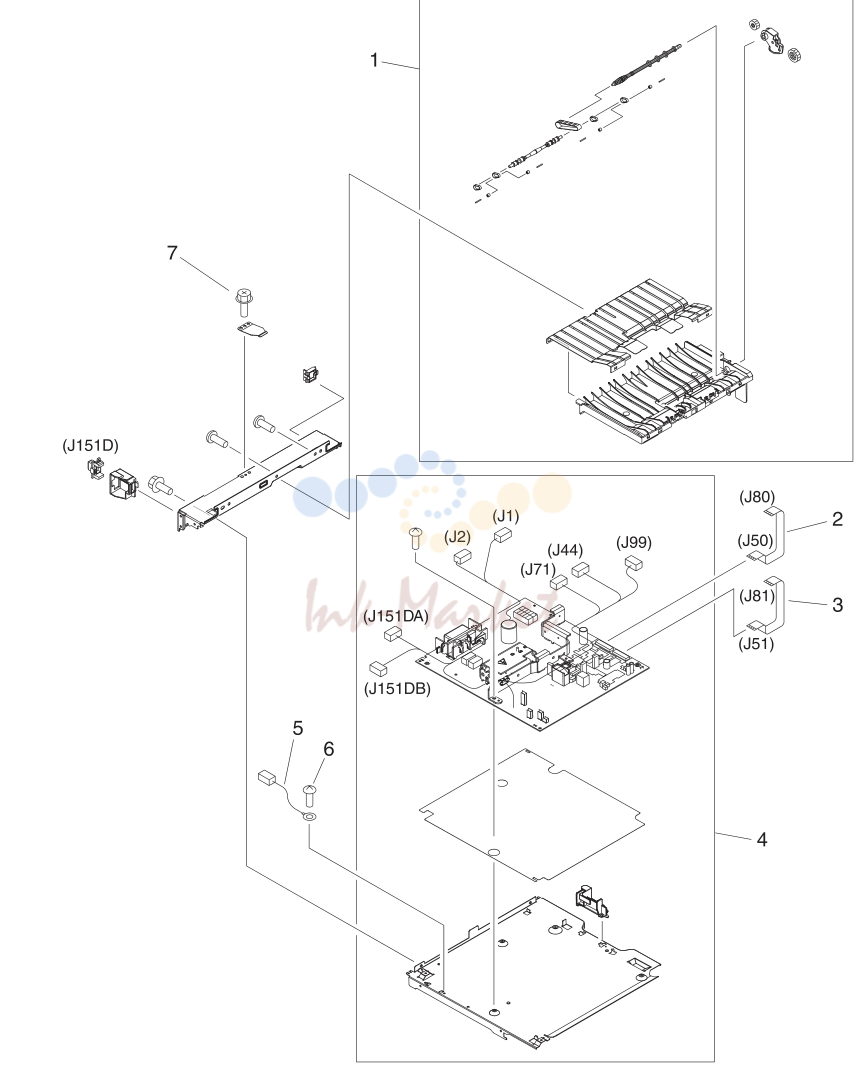

- 15. Electrical/forward assembly

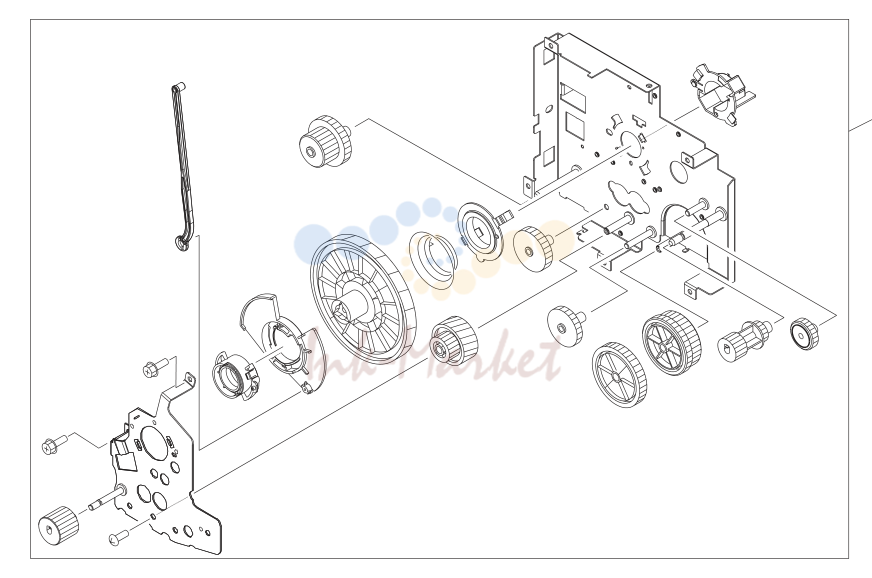

- 16. Main drive assembly

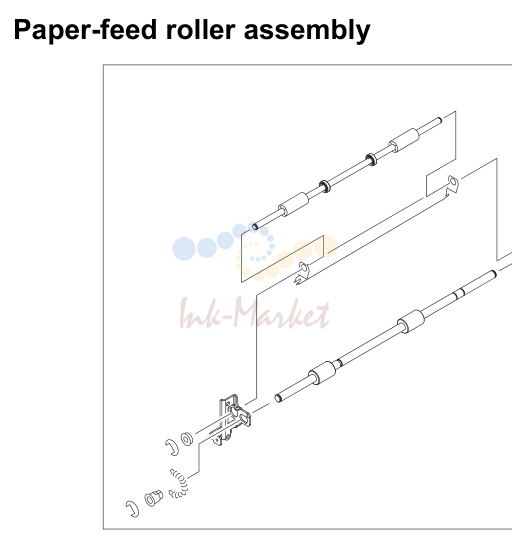

- 17. Paper-feed roller assembly

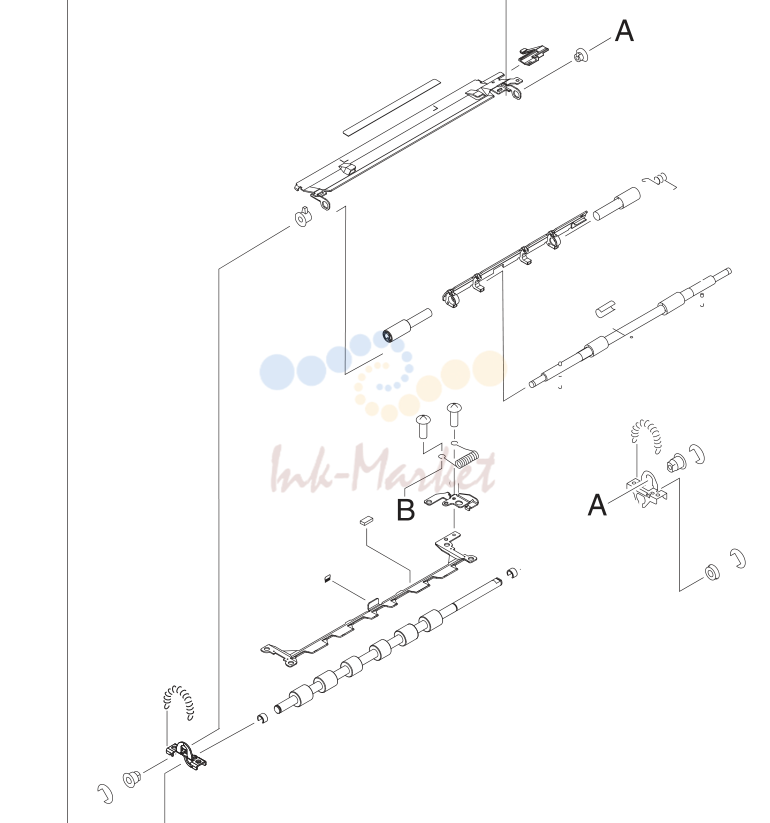

- 18. Registration assembly
- 19. Reverse assembly

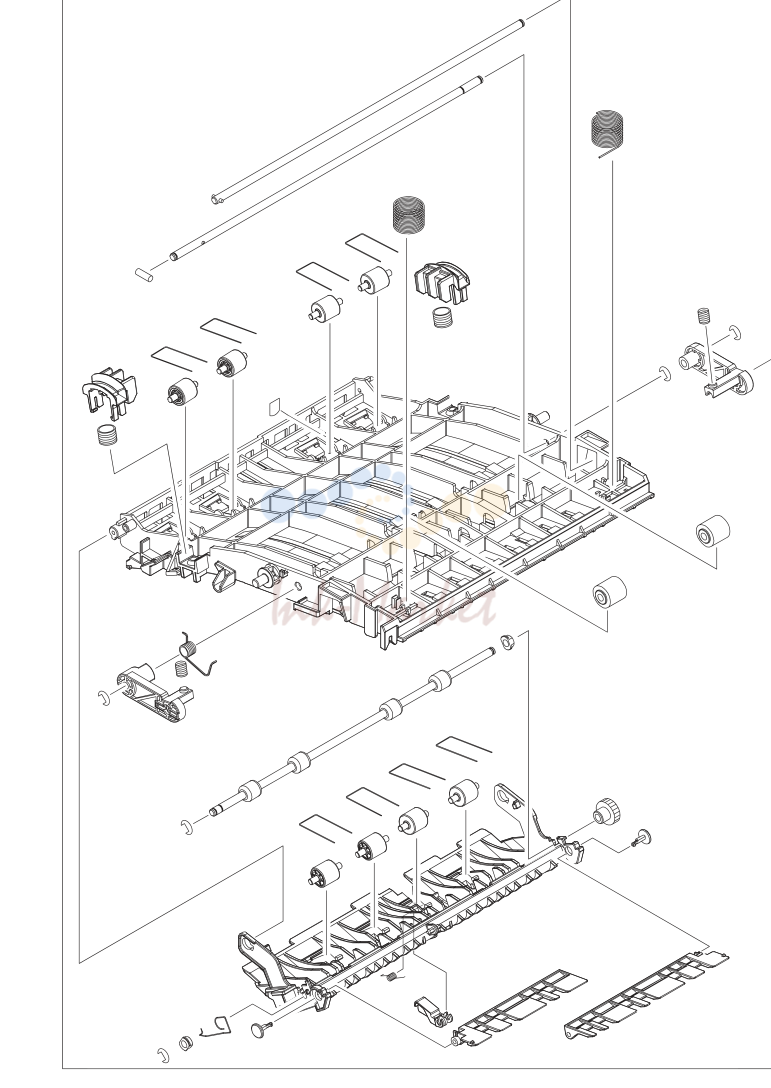

- 20. Reverse-separation-guide assembly

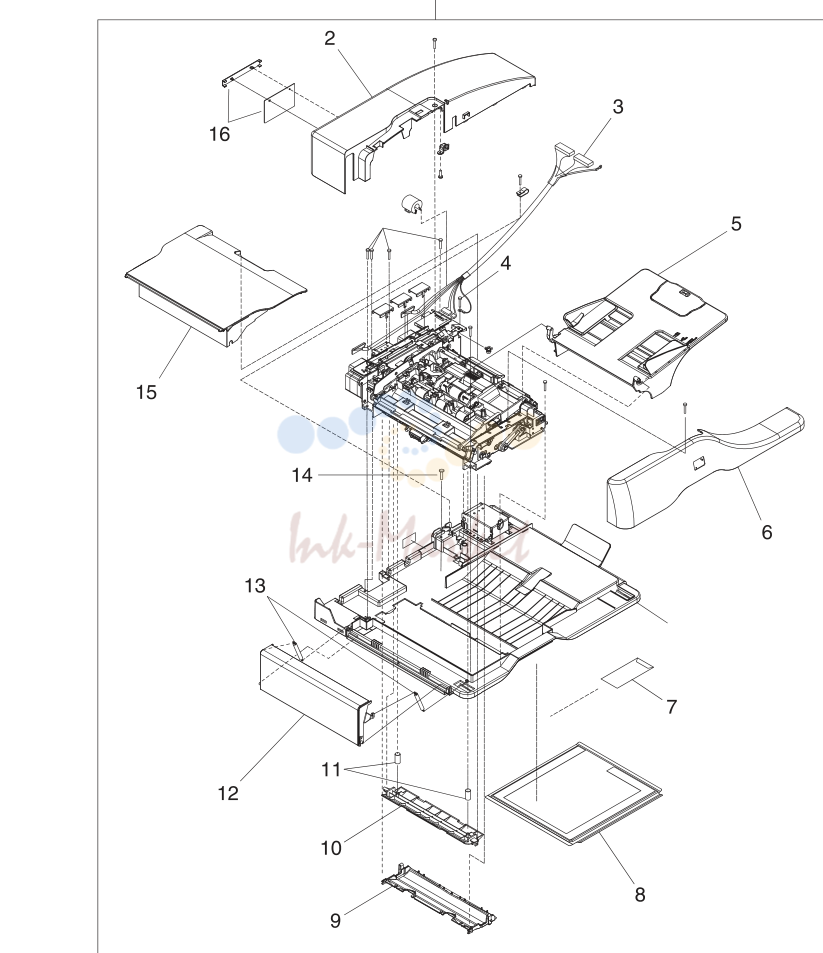

- 21. ADF components

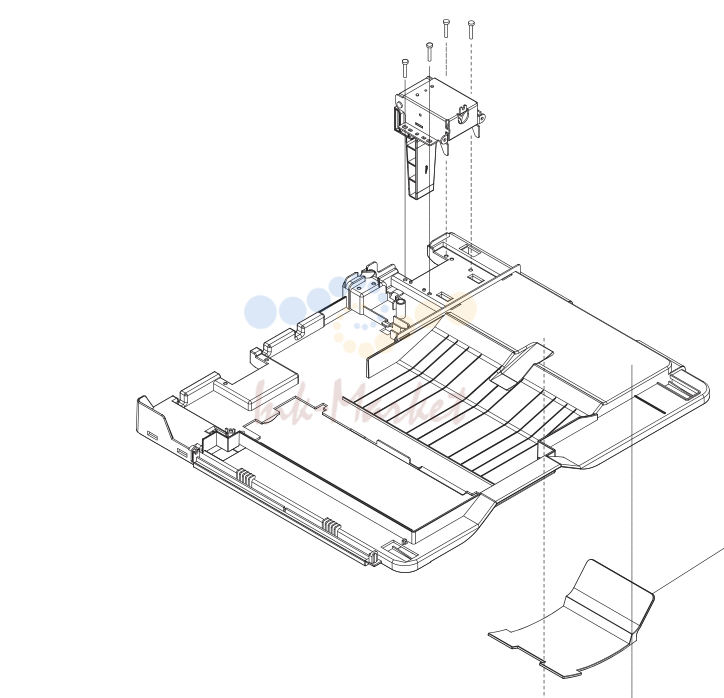

- 22. ADF internal components (1 of 3)
- 23. ADF internal components (2 of 3)
- 24. ADF input tray

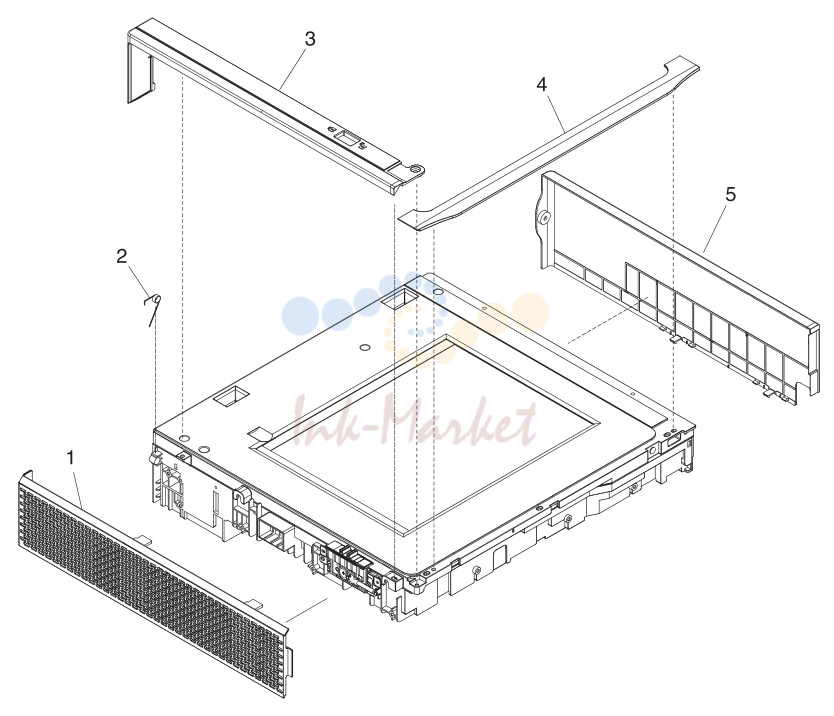

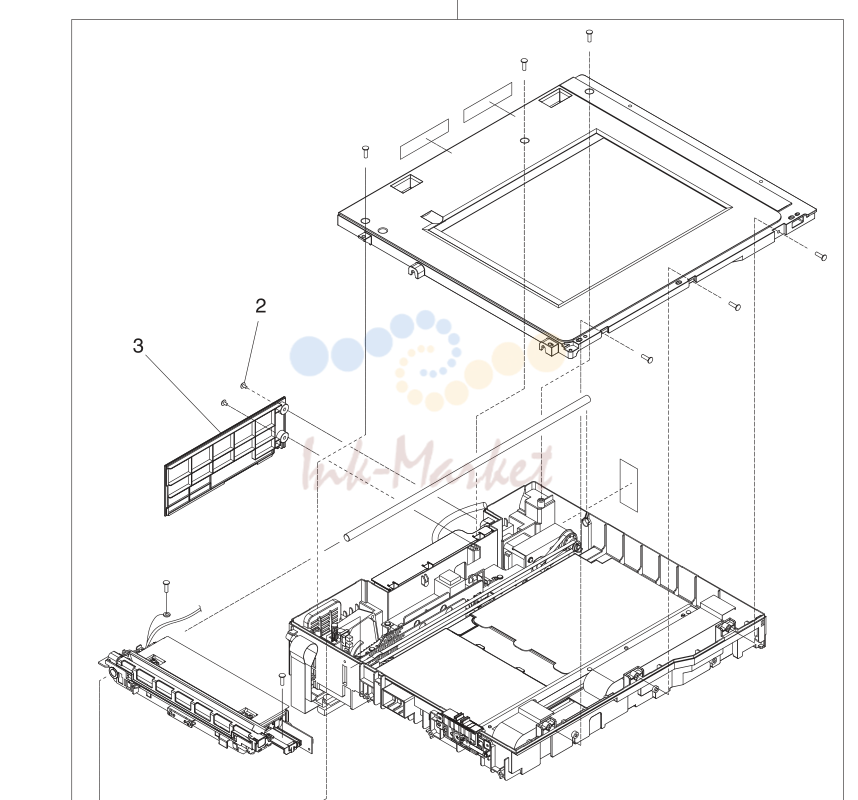

- 25. Scanner flatbed-unit assembly
- 26. Scanner covers

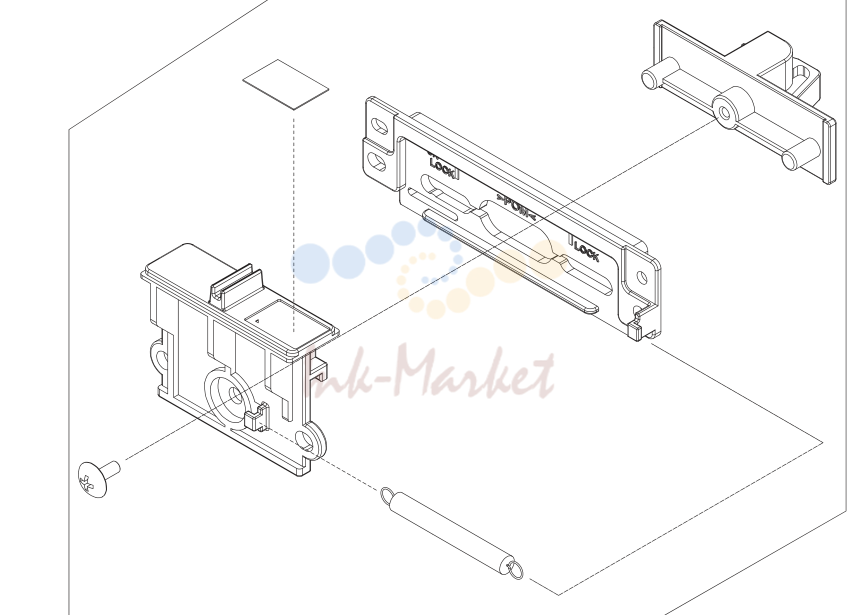

- 27. Scanner-carriage-lock assembly

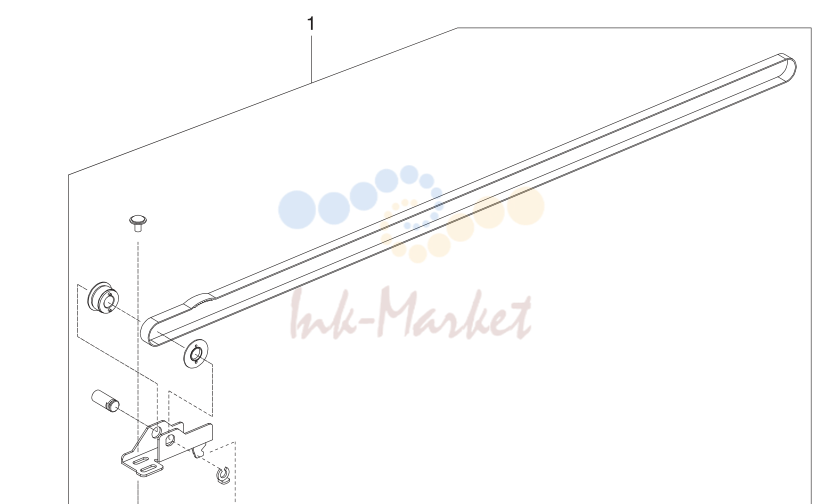

- 28. Scanner-belt assembly
- 29. 500-sheet feeder components

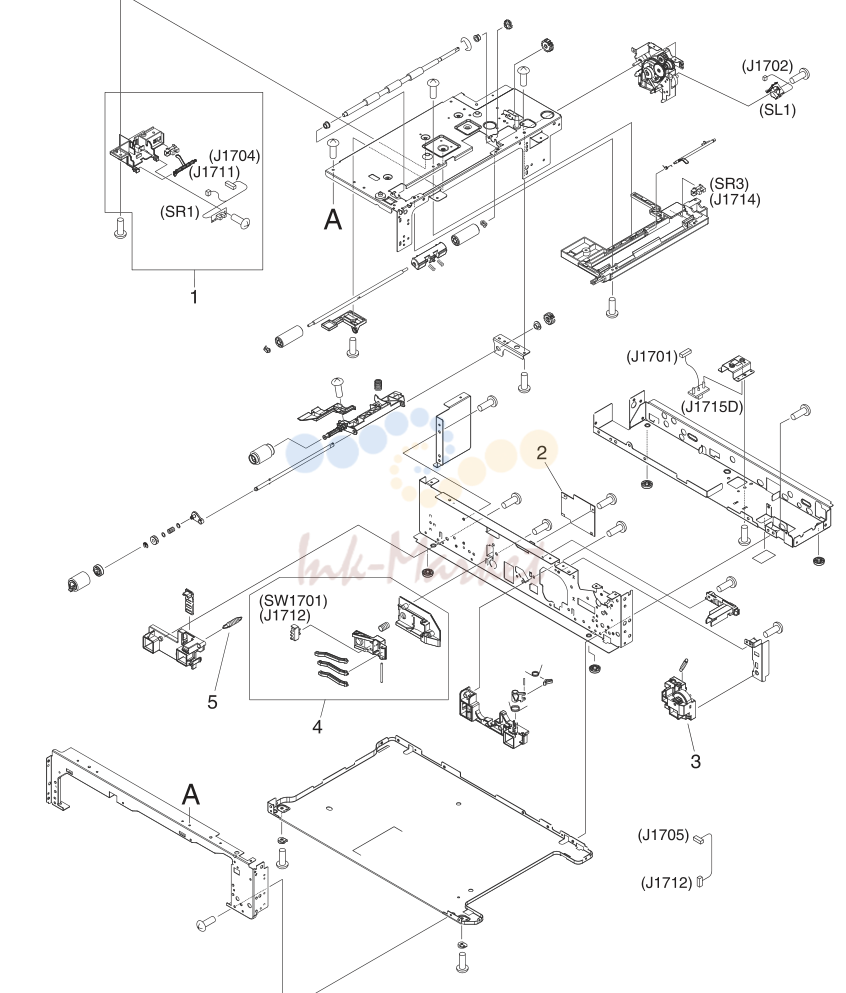

- 30. 500-sheet feeder main body (1 of 2)

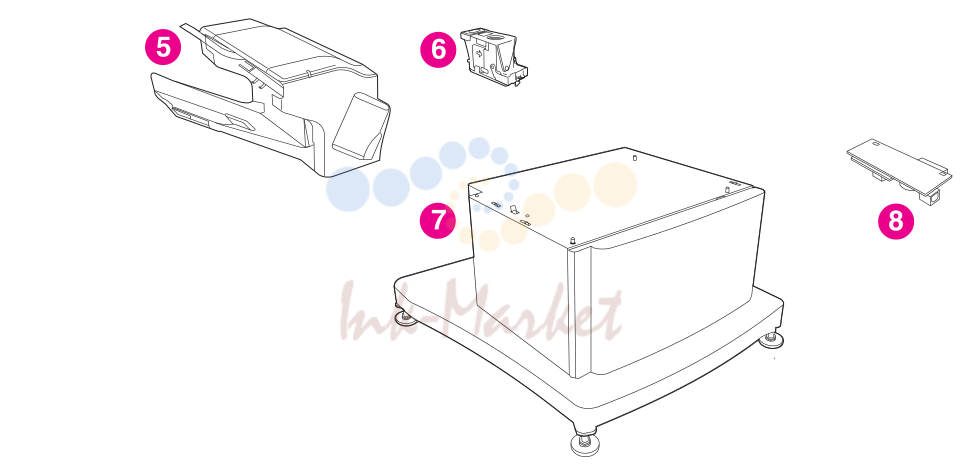

1. Customer-replaceable parts and accessories
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Optional 500-sheet tray and feeder unit Q5968-67901 | ||
| 2 | Envelope feeder Q2438-67902 | ||
| 3 | Duplexer (duplex printing accessory) Q5969-69001 | ||
| 4 | 3-bin запросить цену → | mailbox RM1-0981-000CN | |
| 5 | 500-sheet запросить цену → | stapler/stacker RC1-2597-000CN | |
| 6 | 5,000-staple cartridge C8085-60541 | ||
| 7 | Storage cabinet Q5970A | ||
| 8 | HP LaserJet analog fax accessory 300 Q3701-60002 |

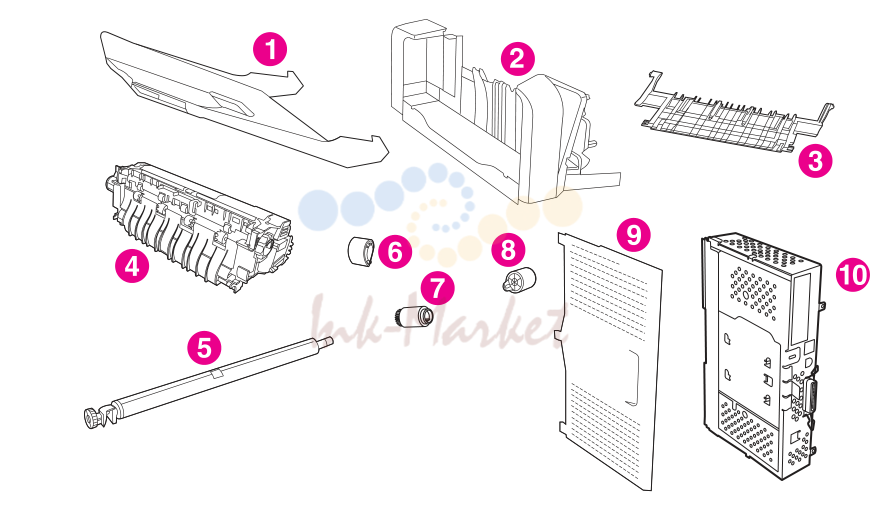

2. Customer-replaceable components (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Output bin RM1-0940-000CN | ||
| 2 | Delivery tray assembly RM1-1047-000CN | ||
| 3 | Fuser entrance guide RM1-1046-000CN | ||
| 4 | Fuser, 110-volt, new RM1-1043-000CN | ||
| 4 | Fuser, 2210-volt, new RM1-1044-000CN | ||
| 5 | Roller assembly, transfer RM1-1110-000CN | ||
| 6 | Roller, pickup, multipurpose assembly RL1-0019-000CN | ||
| 7 | Roller, paper-feed (cassette) RM1-0037-000CN | ||
| 8 | Roller, paper-pickup (cassette) RM1-0036-000CN | ||
| 9 | Cover, formatter RC1-3035-000CN | ||
| 10 | Formatter assembly, new Q3942-67901 | ||
| 10 | Formatter assembly, exchange Q3942-69001 |

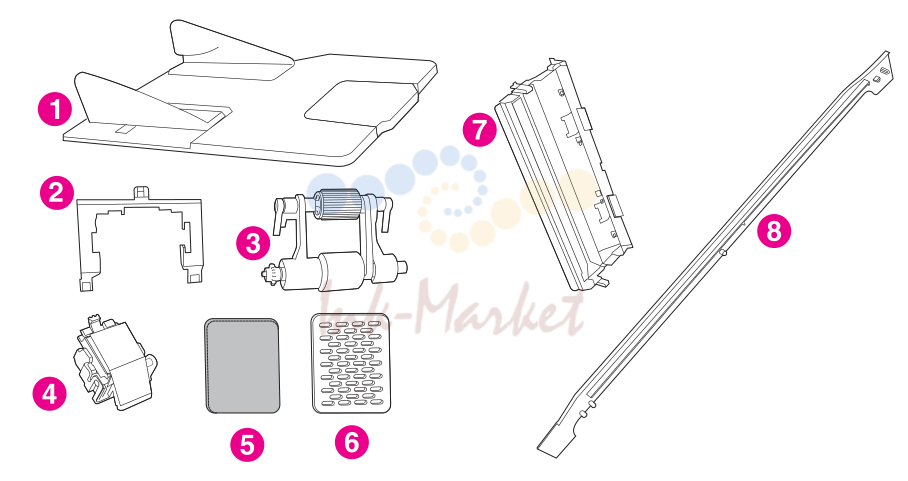

3. Customer-replaceable components (ADF and scanner)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ADF input tray PF2282K042NI | ||
| 2 | ADF pickup-roller cover PF2282K040NI | ||
| 3 | ADF pickup-roller assembly PF2282K039NI | ||
| 4 | ADF separation-pad assembly PF2282K035NI | ||
| 5 | ADF fan filter IR4041P007NI | ||
| 6 | ADF fan-filter cover IR4041P217NI | ||
| 7 | ADF mylar-holder assembly PF2282K043NI | ||
| 8 | ADF front-cover flange IR4041P215NI | ||
| 1 | HP Jetdirect 620n Fast Ethernet (10/100Base-TX) print server J7934A | ||
| 1 | HP Jetdirect connectivity card for USB, serial, and LocalTalk J4135A | ||
| 2 | Parallel cable, 2-meter IEEE 1284-B compliant C2950A | ||
| 2 | Parallel cable, 3-meter IEEE 1284-B compliant C2951A | ||
| 3 | Power cord, OPT-918 3-COND 2.3-M-LG 8120-6798 | ||
| 3 | Power cord, OPT-903 3-COND 2.25-M-LG 8120-6812 | ||
| 3 | Power cord, OPT-917 3-COND 2.25-M-LG 8120-6813 | ||
| 3 | Power cord, OPT-912 3-COND 2.25-M-LG 8120-6814 | ||
| 3 | Power cord, OPT-906 3-COND 2.25-M-LG 8120-6815 | ||
| 3 | Power cord, OPT-920 3-CON 2.3-M-LG 8120-6869 | ||
| 3 | Power cord, OPT-921 3-COND 2.3-M-LG 8120-6980 | ||
| 3 | Power cord, OPT-900 3-COND 2.3-M-LG 8120-8706 | ||
| 3 | Power cord, OPT-922 3-COND 2.3-M-LG 8120-8707 | ||
| 3 | Power cord, OPT-901 3-COND 2.3-M-LG 8121-0834 | ||
| 4 | Phone cord, MOD-PHONE-ASSY 6-COND 118-IN-LG 8121-0811 | ||
| 4 | Phone cord, cable-modem-facsimile, Korean 8120-8908 | ||
| 4 | Phone cord, United Kingdom 8120-8921 | ||
| 4 | Phone cord, Germany and Eastern Europe 8120-8912 | ||
| 4 | Phone cord, Netherlands 8120-8915 | ||
| 4 | Phone cord, France 8120-8923 | ||
| 4 | Phone cord, Norway 8120-8916 | ||
| 4 | Phone cord, Switzerland 8120-8919 | ||
| 4 | Phone cord, Turkey 8120-8920 | ||
| 4 | Phone cord, Denmark 8120-8911 | ||
| 4 | Phone cord, Italy 8120-8914 | ||
| 4 | Phone cord, South Africa 8120-8917 | ||
| 4 | Phone cord, Czech Republic/SK 8120-8922 | ||
| 4 | Phone cord, Australia 8120-8907 | ||
| 1 | Control-panel assembly Q3942-60102 | ||
| 2 | Control-panel overlays, English Q3942-60103 | ||
| 2 | Control-panel overlays, French Q3942-60104 | ||
| 2 | Control-panel overlays, Italian Q3942-60105 | ||
| 2 | Control-panel overlays, German Q3942-60106 | ||
| 2 | Control-panel overlays, Spanish Q3942-60107 | ||
| 2 | Control-panel overlays, Dutch Q3942-60108 | ||
| 2 | Control-panel overlays, Portuguese Q3942-60109 | ||
| 2 | Control-panel overlays, Norwegian Q3942-60110 | ||
| 2 | Control-panel overlays, Swedish Q3942-60111 | ||
| 2 | Control-panel overlays, Finnish Q3942-60112 | ||
| 2 | Control-panel overlays, Danish Q3942-60113 | ||
| 2 | Control-panel overlays, Polish Q3942-60114 | ||
| 2 | Control-panel overlays, Russian Q3942-60115 | ||
| 2 | Control-panel overlays, Czech Q3942-60116 | ||
| 2 | Control-panel overlays, Hungarian Q3942-60117 | ||
| 2 | Control-panel overlays, Simplified Chinese Q3942-60119 | ||
| 2 | Control-panel overlays, Traditional Chinese Q3942-60118 | ||
| 2 | Control-panel overlays, Korean Q3942-60120 | ||
| 2 | Control-panel overlays, Japanese Q3942-60121 | ||
| 2 | Control-panel overlays, Turkish Q3942-60122 | ||
| 2 | Control-panel overlays, Greek Q3942-60123 | ||
| 2 | Control-panel overlays, Hebrew Q3942-60124 | ||
| 2 | Control-panel overlays, Arabic Q3942-60125 | ||
| 2 | Control-panel overlays, Thai Q3942-60132 | ||
| 1 | 100-pin запросить цену → | DDR memory DIMM (dual inline memory module), Q2625A | |
| 1 | 100-pin запросить цену → | DDR memory DIMM, 128 MB Q2626A | |
| 1 | 100-pin запросить цену → | DDR memory DIMM, 256 MB Q2627-67951 | |
| 2 | Hard disk, 20 GB J7948-61003 | ||
| 3 | Cable for hard disk, flat-flexible 5851-1827 | ||
| 4 | Flash memory card, 32 MB Q2635-67907 |

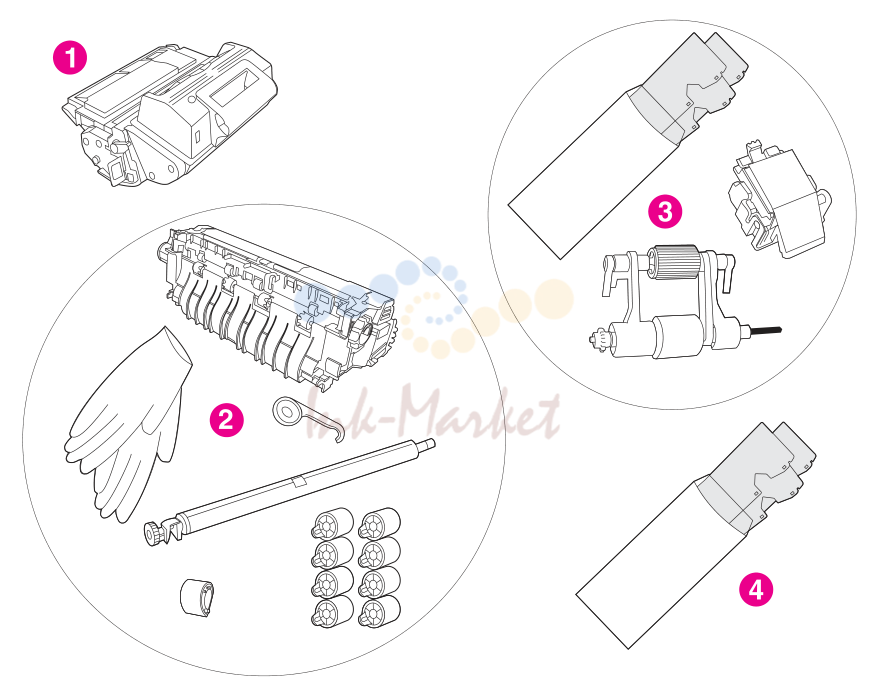

4. Print cartridge and maintenance kits
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | HP LaserJet print cartridge Q5945-67901 | ||
| 2 | Printer maintenance kit, 110-volt Q5998-67901 | ||
| 2 | Printer maintenance kit, 220-volt Q5999-67901 | ||
| 3 | ADF maintenance kit Q5997-67901 | ||
| 4 | ADF mylar replacement kit Q6496-67901 |

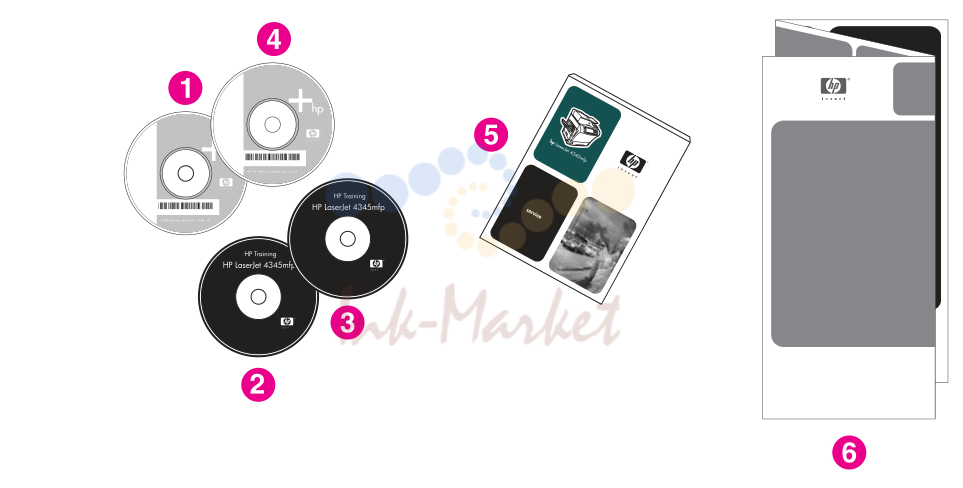

5. Documentation, software, and training material
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | HP LaserJet 4345mfp Series software CD, America and Q3942-60135 | ||
| 1 | HP LaserJet 4345mfp Series software CD, Western Europe Q3942-60136 | ||
| 1 | HP LaserJet 4345mfp Series software CD, Northern Europe Q3942-60137 | ||
| 1 | HP LaserJet 4345mfp Series software CD, Eastern Europe Q3942-60138 | ||
| 1 | HP LaserJet 4345mfp Series software CD, Asia Q3942-60139 | ||
| 2 | Customer in-box training CD, English only MKTNG-00473 | ||
| 3 | Service and support training CD C3942-60133 | ||
| 4 | HP Digital Sending Software CD (trial version) MKTNG-00472 | ||
| 5 | HP LaserJet 4345mfp Series service manual Q3942-90950 | ||
| 6 | Wall poster, quick reference, English and French Q3942-90925 | ||
| 6 | Wall poster, quick reference, Italian and German Q3942-90926 | ||
| 6 | Wall poster, quick reference, Spanish and Portuguese Q3942-90927 | ||
| 6 | Wall poster, quick reference, Dutch and Swedish Q3942-90928 | ||
| 6 | Wall poster, quick reference, Danish and Norwegian Q3942-90929 | ||
| 6 | Wall poster, quick reference, Finnish and Russian Q3942-90930 | ||
| 6 | Wall poster, quick reference, Czech and Polish Q3942-90931 | ||
| 6 | Wall poster, quick reference, Hungarian and Turkish Q3942-90932 | ||
| 6 | Wall poster, quick reference, Simplified Chinese and Korean Q3942-90933 | ||
| 6 | Wall poster, quick reference, Traditional Chinese and English Q3942-90934 |

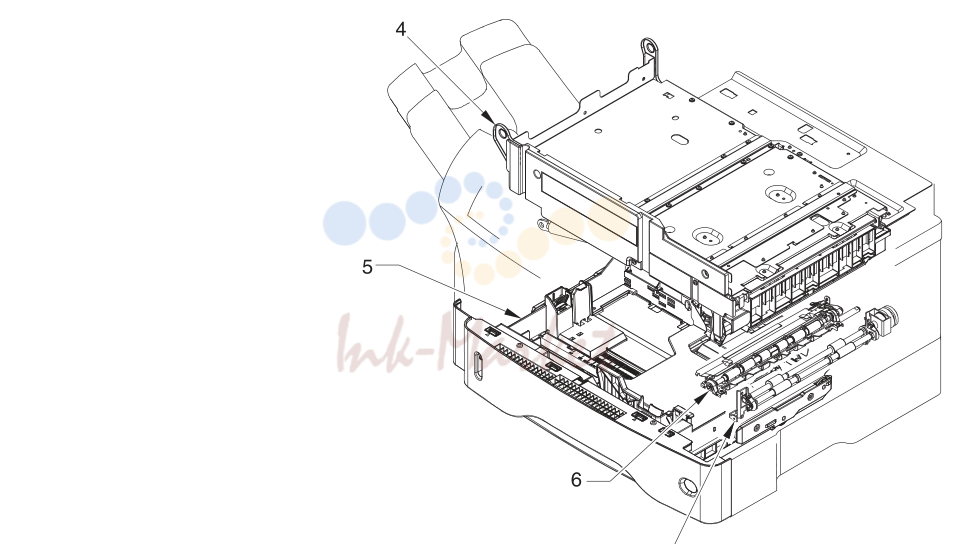

6. Assembly locations
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fuser See Figure 8-29 Fuser. | ||
| 2 | Electrical/forward assembly See Figure 8-18 Electrical/forward assembly. | ||
| 3 | Multipurpose assembly See Figure 8-25 Multipurpose assembly. | ||
| 4 | Upper-plate assembly See Figure 8-12 Upper-plate assembly. | ||
| 5 | Cassette See Figure 8-22 Cassette. | ||
| 6 | Registration assembly See Figure 8-24 Registration assembly. | ||
| 7 | Paper-feed-roller assembly See Figure 8-23 Paper-feed roller assembly. |

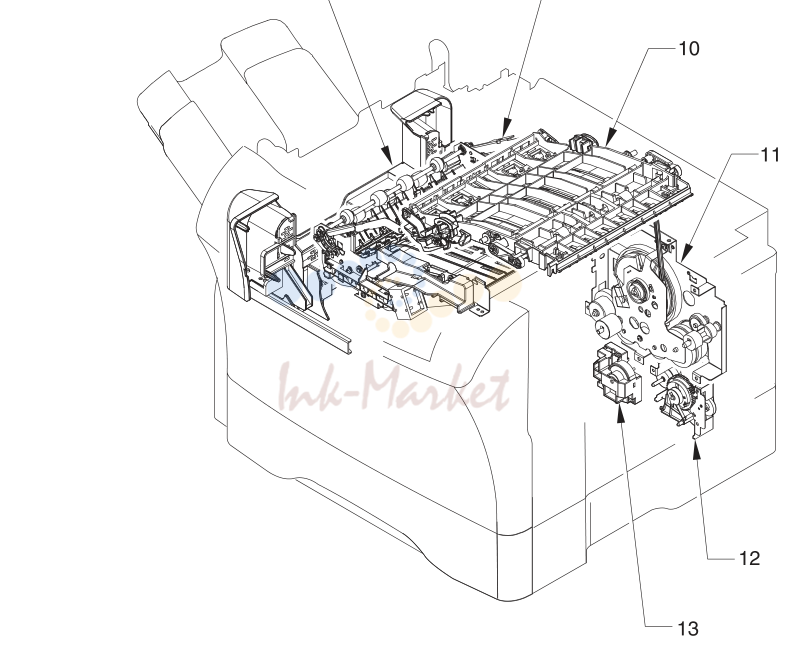

7. Figure 8-10 Print-engine assemblies (2 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 8 | Delivery assembly See Figure 8-28 Delivery assembly. | ||
| 9 | Reverse assembly See Figure 8-26 Reverse assembly. | ||
| 10 | Reverse-separation-guide assembly See Figure 8-27 Reverse-separation-guide assembly. | ||
| 11 | Main drive assembly See Figure 8-19 Main drive assembly. | ||
| 12 | Paper-pickup-drive assembly See Figure 8-20 Paper-pickup-drive assembly. | ||
| 13 | Lifter-drive assembly See Figure 8-21 Lifter-drive assembly. |

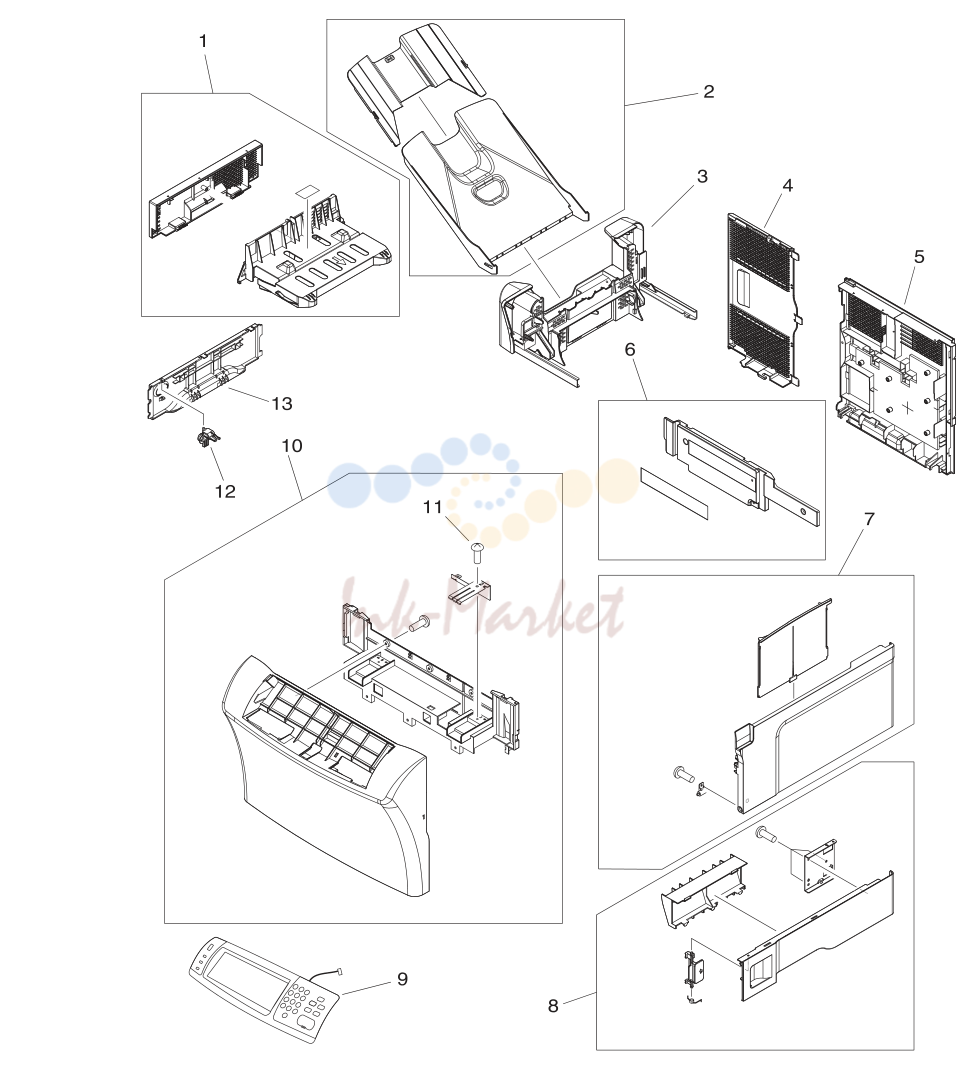

8. External components
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, duplexing-unit assembly RM1-1018-000CN | ||
| 2 | Output-bin assembly RM1-0940-000CN | ||
| 3 | Delivery assembly RM1-1047-000CN | ||
| 4 | Cover, formatter RC1-3035-000CN | ||
| 5 | Cover, rear RM1-1017-000CN | ||
| 6 | Cover, front corner RL1-0457-000CN | ||
| 7 | Cover, right assembly RM1-1016-000CN | ||
| 8 | Cover, right lower assembly RM1-1033-000CN | ||
| 9 | Control-panel assembly Q3942-60102 | ||
| 10 | Cover, front assembly RM1-1015-000CN | ||
| 11 | Screw, tapping, pan-head, M4x10 XB4-7401-0007CN | ||
| 12 | Switch, power RC1-3044-000CN | ||
| 13 | Cover, cassette, left side RC1-3043-000CN |

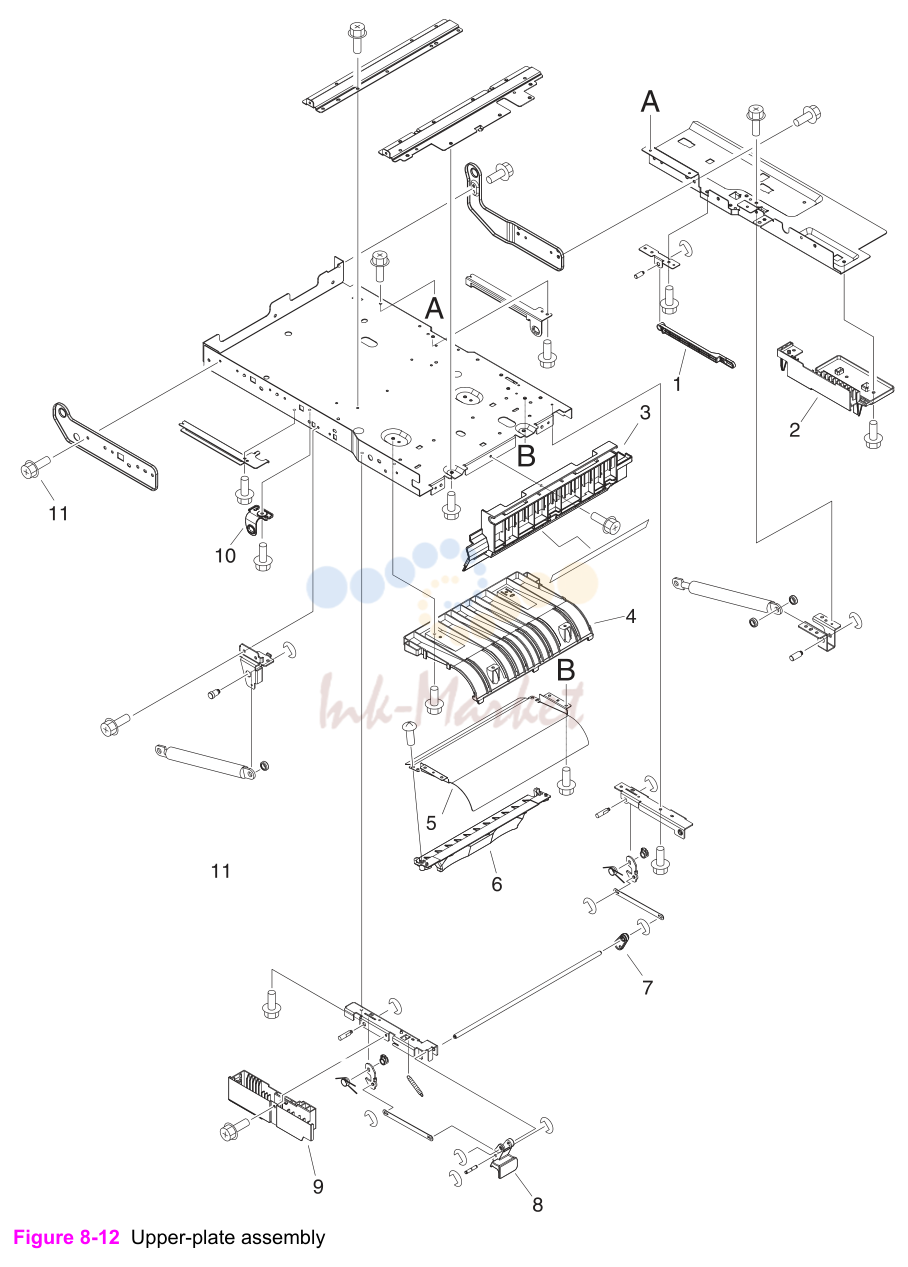

9. Print-engine internal components
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Rod, link (upper plate) RC1-2830-000CN | ||
| 2 | Cover, rear lock (upper plate) RC1-2821-000CN | ||
| 3 | Holder, right shutter (upper plate) RC1-2855-000CN | ||
| 4 | Guide, legal-size (upper plate) RC1-2854-000CN | ||
| 5 | Guide, cartridge (upper plate) RC1-2853-000CN | ||
| 6 | Support, cartridge (upper plate) RC1-2856-000CN | ||
| 7 | Link, handle (upper plate) RC1-2822-000CN | ||
| 8 | Handle, lock (upper plate) RC1-2818-000CN | ||
| 9 | Cover, lock, front (upper plate) RC1-2820-000CN | ||
| 10 | Block, guide support (upper plate) RC1-3102-000CN | ||
| 11 | Screw, RS, M3x6 XA9-1495-000CN |

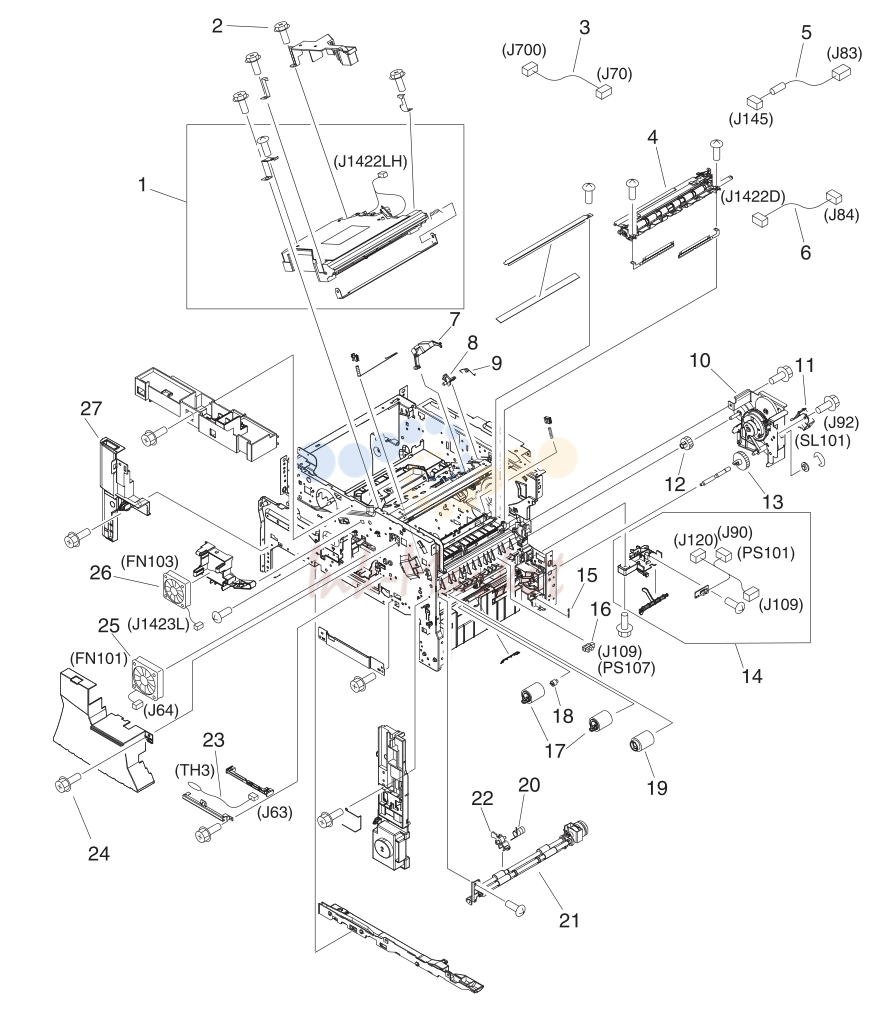

10. Internal components (1 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Laser/scanner assembly RM1-1573-000CN | ||
| 2 | Screw, RS, M3x12 XA9-1447-000CN | ||
| 3 | Cable, image scanner (print engine) RM1-1398-000CN | ||
| 4 | Registration assembly RM1-0011-060CN | ||
| 5 | Cable, laser (print engine) RM1-1367-000CN | ||
| 6 | Cable, beam-detect to scanner (print engine) RM1-1372-000CN | ||
| 7 | Lever, shutter RC1-3106-000CN | ||
| 8 | Flag, shutter RC1-0378-000CN | ||
| 9 | Spring, torsion RC1-0379-000CN | ||
| 10 | Paper-pickup-drive assembly RM1-0034-070CN | ||
| 11 | Solenoid (SL101) RK2-0269-000CN | ||
| 12 | Gear, 18T RU5-0045-020CN | ||
| 13 | Gear, 23T RU5-0256-000CN | ||
| 14 | Guide, paper sensing (PS101) RM1-1010-000CN | ||
| 15 | Spring, tension RC1-0167-000CN | ||
| 16 | Photointerrupter (PS107) WG8-5624-000CN | ||
| 17 | Roller, paper-feed (cassette) RM1-0037-020CN | ||
| 18 | Limiter, torque RC1-2758-000CN | ||
| 19 | Roller, paper-pickup (cassette) RM1-0036-000CN | ||
| 20 | Spring, torsion RC1-0061-000CN | ||
| 21 | Roller, paper-feed assembly RM1-0012-020CN | ||
| 22 | Flag, paper-feed sensor RC1-0060-000CN | ||
| 23 | Thermistor (TH3) RK2-0359-000CN | ||
| 24 | Screw, S, M3x8 XA9-1500-000CN | ||
| 25 | Fan, main cooling (FN101) RK2-0278-000CN | ||
| 26 | Fan, reversing unit (FN103) RK2-0280-000CN | ||
| 27 | Cover, left-side, front RC1-3052-000CN |
11. Internal components (2 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fuser (100-127 volt) RM1-1043-000CN | ||
| 1 | Fuser (220-240 volt) RM1-1044-000CN | ||
| 2 | Reverse assembly RM1-1022-000CN | ||
| 3 | Holder, door switch RC1-3063-000CN | ||
| 4 | Microswitch (SW101) WC4-5139-000CN | ||
| 5 | Stopper, hinge shaft RC1-3124-000CN | ||
| 6 | Cable, door switch RM1-1397-000CN | ||
| 7 | Case, envelope-feeder connector RC1-0245-000CN | ||
| 8 | Cable, envelope-feeder connector RM1-1193-000CN | ||
| 9 | Hinge, door, right-side RC1-2901-000CN | ||
| 10 | Screw, with washer, M3x6 XB2-7300-607CN | ||
| 11 | Roller assembly, transfer RM1-1110-000CN | ||
| 12 | Sensor assembly, right door RM1-1045-000CN | ||
| 13 | Cover, handle, lower right RC1-2881-000CN | ||
| 14 | Spacer, screw RC1-0392-000CN | ||
| 15 | Electrical/forward assembly For reference only | ||
| 16 | Fuser entrance guide RM1-1046-000CN |
12. Internal components (3 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Motor, dc 24-volt, (M101) RK2-0272-000CN | ||
| 2 | Motor, dc 24-volt, (M102) RK2-0274-000CN | ||
| 3 | Screw, tapping, M3x6 XA9-1503-000CN | ||
| 4 | Main drive assembly RM1-1049-000CN | ||
| 5 | Lifter drive assembly RM1-1029-000CN | ||
| 6 | Rod, link RC1-2902-000CN | ||
| 7 | Multipurpose tray assembly RM1-1572-000CN | ||
| 8 | Cover, envelope-feeder slot RL1-0455-000CN | ||
| 9 | Cassette rail assembly, right RM1-1012-000CN | ||
| 10 | Cassette rail assembly, left RM1-1011-000CN | ||
| 11 | Spring, grounding RU5-2251-000CN | ||
| 12 | Guide, rear RC1-2884-000CN | ||
| 13 | Cover, side, rear RC1-3042-000CN | ||
| 14 | Rod, switch, front RC1-2980-000CN | ||
| 15 | Link, switch RC1-3003-000CN | ||
| 16 | Holder, link RC1-3002-000CN | ||
| 17 | Screw, tapping, truss-head, M4x16 XB4-7401-605CN |
13. Internal components (4 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cross-member, support RC1-2911-000CN | ||
| 2 | Upper plate assembly For reference only | ||
| 3 | Cable, reverse unit RM1-1380-000CN | ||
| 4 | Reverse-separation guide assembly RM1-1019-000CN | ||
| 5 | Bolt, hex-head WS9-0255-000CN | ||
| 6 | Cable, output device connection RM1-1371-000CN | ||
| 7 | Cable, output-bin full sensor RM1-1368-000CN | ||
| 8 | Cover, front stopper RC1-2823-000CN | ||
| 9 | Stopper, front lock RL1-0434-000CN | ||
| 10 | Support, gas damper RL1-0436-000CN | ||
| 11 | Stopper, bushing arm RC1-3090-000CN | ||
| 12 | Arm, door, 1 (top cover) RC1-2827-000CN | ||
| 13 | Cover, door arm (top cover) RC1-2833-000CN | ||
| 14 | Arm, door, 2 (top cover) RC1-2828-000CN | ||
| 15 | Flag, full-detect (output bin) RC1-2863-000CN | ||
| 16 | Cable, control panel RM1-1381-000CN | ||
| 17 | Holder, output-device-full sensor flag RC1-2864-000CN | ||
| 18 | Cover, inner front RC1-3041-000CN |
14. Internal components (5 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fan, dc controller (FN104) RK2-0472-000CN | ||
| 2 | Fan, print cartridge (FN102) RK2-0280-000CN | ||
| 3 | Power supply, PFC (100-127 volt) RM1-1013-000CN | ||
| 3 | Power supply, PFC (220-240 volt) RM1-1014-000CN | ||
| 4 | DC controller PCA RM1-1354-000CN | ||
| 5 | Spring, compression RU5-2265-000CN | ||
| 6 | Cable, optional 500-sheet feeder connection RM1-1370-000CN | ||
| 7 | Sensor assembly, paper size (SW102) RM1-0041-020CN | ||
| 8 | Swing-plate assembly RM1-0043-020CN | ||
| 9 | Cable, power RM1-1375-000CN | ||
| 10 | Cable, fan docking (for dc-controller fan) RM1-1376-000CN | ||
| 11 | Guide assembly, flat-flexible cable RM1-1027-000CN | ||
| 12 | Formatter assembly Q3942-67901 | ||
| 13 | Screw, stepped, M3 RC1-0266-020CN |
15. Electrical/forward assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Paper-feed assembly RM1-0025-040CN | ||
| 2 | Cable, flat-flexible (engine power supply) RK2-0470-000CN | ||
| 3 | Cable, flat-flexible (engine power supply) RK2-0469-000CN | ||
| 4 | Engine power supply assembly (100-127 volt) RM1-1041-000CN | ||
| 4 | Engine power supply assembly (220-240 volt) RM1-1042-000CN | ||
| 5 | Cable, duplexing-unit grounding RM1-1400-000CN | ||
| 6 | Screw, with washer, M3x6 XA9-1420-000CN | ||
| 7 | Screw, flathead, RS, M3x6 XA9-1464-000CN |
16. Main drive assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cassette (tray 2, 3, 4 or 5) RM1-1001-000CN | ||
| 2 | Gear, 20T (cassette) RC1-0331-000CN | ||
| 3 | Lever, paper-size-sensing (cassette) RC1-2782-000CN | ||
| 4 | Gear, 14T (cassette) RU5-0254-000CN | ||
| 5 | Gear, 80T (cassette) RU5-0253-000CN | ||
| 6 | Guide, cassette, front RC1-3020-000CN |
17. Paper-feed roller assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Paper-feed roller assembly RM1-0012-020CN | ||
| 2 | Clutch, paper feed, electromagnetic (CL101) RK2-0349-000CN | ||
| 3 | Gear, 30T (paper-feed roller assembly) RU5-0050-000CN | ||
| 4 | E-ring (paper-feed roller assembly) XD9-0132-020CN |
18. Registration assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Multipurpose assembly RM1-1572-000CN | ||
| 2 | Solenoid, multipurpose assembly (SL102) RK2-0276-000CN | ||
| 3 | Plate, main pad support (multipurpose assembly) RL1-0007-000CN | ||
| 4 | Roller, pickup, multipurpose assembly RL1-0019-000CN | ||
| 5 | Multipurpose tray assembly RM1-0005-020CN | ||
| 6 | Screw, tapping, truss-head, M3x8 XB4-7300-809CN |

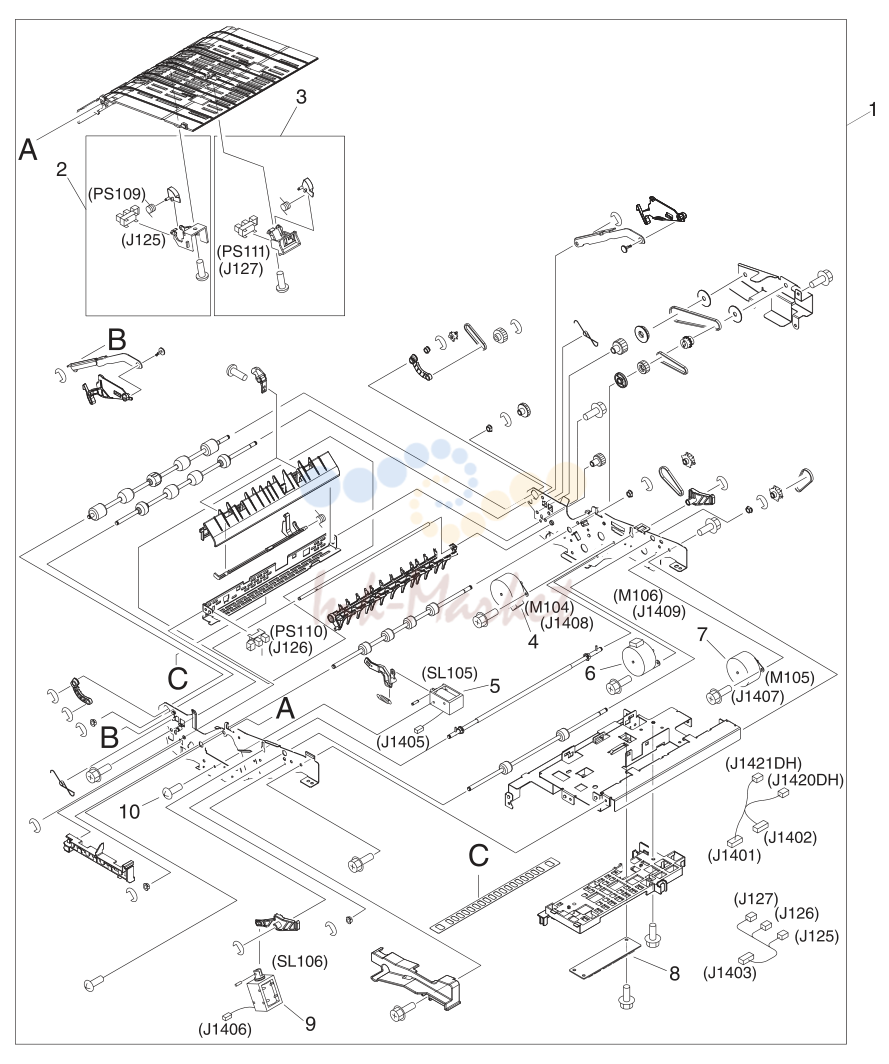

19. Reverse assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Reverse assembly RM1-1022-000CN | ||
| 2 | Sensor, reverse-unit (PS109) RM1-1570-000CN | ||
| 3 | Sensor, reverse-unit jam (PS111) RM1-1571-000CN | ||
| 4 | Motor, crossing, (stepping) (M104) RK2-0473-000CN | ||
| 5 | Solenoid, reverse-unit (SL105) RK2-0485-000CN | ||
| 6 | Motor, delivery (stepping) (M106) RK2-0475-000CN | ||
| 7 | Motor, reverse-unit (stepping) (M105) RK2-0474-000CN | ||
| 8 | Reverse-unit PCA RM1-1379-000CN | ||
| 9 | Solenoid, reversing-roller separation (SL106) RK2-0486-000CN | ||
| 10 | Screw, TP, M3x4 XB6-7300-406CN |
20. Reverse-separation-guide assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fuser (100-127 volt) RM1-1043-000CN | ||
| 1 | Fuser (220-240 volt) RM1-1044-000CN | ||
| 2 | Screw, stepped RS1-9004-020CN | ||
| 3 | Screw, M3x8 XA9-0650-000CN | ||
| 4 | Screw, RS, M3x8 XA9-1449-000CN |
21. ADF components
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ADF assembly PF2282K006NI | ||
| 2 | ADF rear cover PF2282P044NI | ||
| 3 | ADF cable PF2282K165NI | ||
| 4 | Screw, ADF 030080FWWSNI | ||
| 5 | ADF input tray PF2282K042NI | ||
| 6 | ADF front cover PF2282P059NI | ||
| 7 | ADF mylar replacement kit Q6496-67901 | ||
| 8 | ADF white scan background PF2282P339NI | ||
| 9 | ADF mylar holder assembly PF2282K043NI | ||
| 10 | ADF white mylar backing PF2282P025NI | ||
| 11 | ADF, springs for white mylar backing PF2282P343NI | ||
| 12 | ADF left cover PF2282P058NI | ||
| 13 | ADF, springs for left cover PF2282P352NI | ||
| 14 | Screw, ADF, wave 4x10 PF2245P369NI | ||
| 15 | ADF jam-access cover PF2282P041NI | ||
| 16 | ADF hinge flaps (ESD) PF2282K166NI |
22. ADF internal components (1 of 3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ADF output-bin paper stop PF2282P061NI | ||
| 2 | Screw, ADF NS-SCR00029NI | ||
| 3 | ADF output-bin-base cover PF2282P060NI |

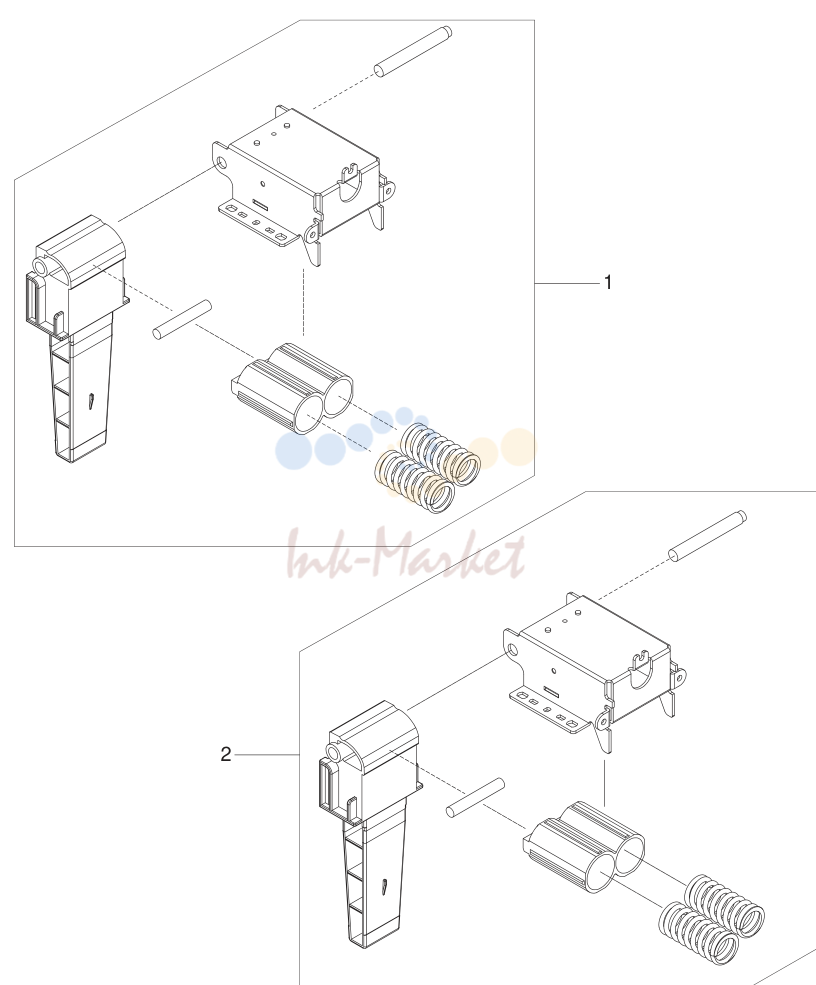

23. ADF internal components (2 of 3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ADF jam-access latch PF2282K164NI | ||
| 2 | ADF clear plastic paper guide PF2282P353NI | ||
| 3 | ADF pickup-roller assembly PF2282K039NI | ||
| 4 | ADF pickup-roller cover PF2282K040NI |

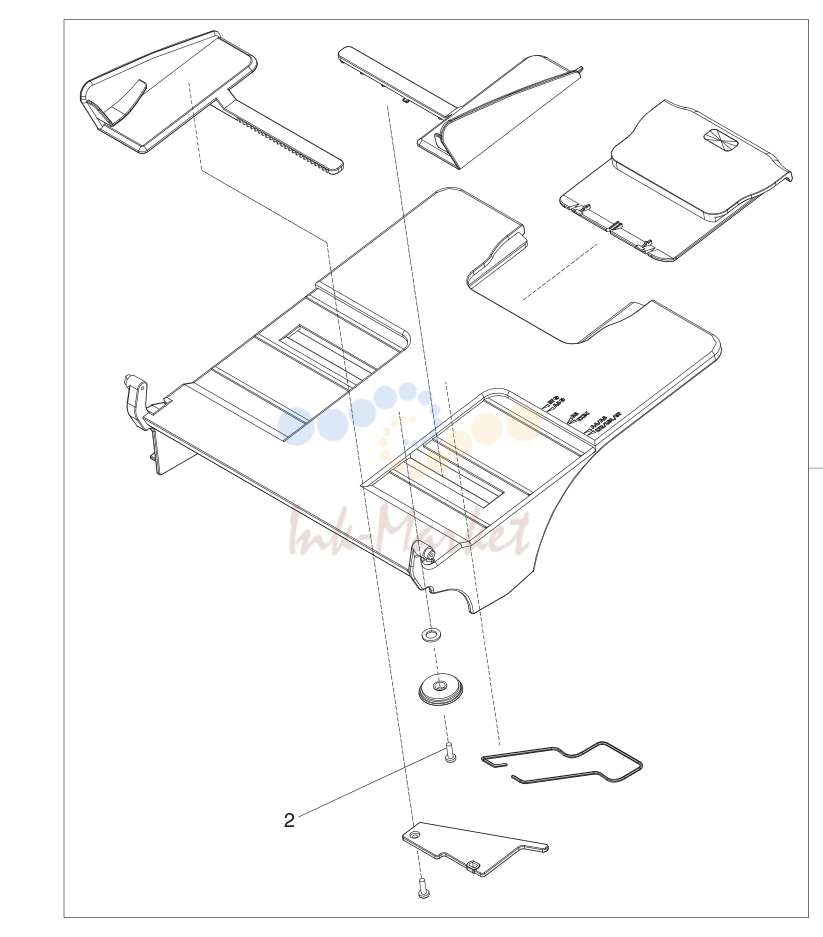

24. ADF input tray
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Scanner controller PCA IR4041K512NI | ||
| 2 | Scanner fan-filter cover IR4041P217NI | ||
| 3 | Scanner-fan filter IR4041P007NI |
25. Scanner flatbed-unit assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Scanner flatbed-unit assembly IR4041K081NI | ||
| 2 | Screw, scanner flatbed 040100FNBBNI | ||
| 3 | Scanner rear cover IR4041P216NI |
26. Scanner covers
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Scanner left cover IR4041K114NI | ||
| 2 | Scanner, spring for left cover IR4041P041NI | ||
| 3 | Scanner-carriage-lock cover IR4041P214NI | ||
| 4 | Scanner top-cover flatbed flange IR4041P125NI | ||
| 5 | Scanner right cover IR4041P213NI |
27. Scanner-carriage-lock assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Screw, scanner motor 030060FNITNI | ||
| 2 | Scanner motor IR4041K250NI | ||
| 3 | Scanner-motor belt NS-BLT00290NI | ||
| 4 | Scanner motor inverter IR4041P522NI |
28. Scanner-belt assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Scanner optical assembly IR4041K121NI | ||
| 2 | Lamp, scanner IR4041K151NI | ||
| 3 | Screw, optical assembly 030080FBBBNI |
29. 500-sheet feeder components
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, left-upper, 500-sheet feeder RC1-3200-000CN | ||
| 2 | Cover, rear, 500-sheet feeder RC1-3197-000CN | ||
| 3 | Cover, right, 500-sheet feeder RC1-3198-000CN | ||
| 4 | Number-plate assembly RM1-1456-000CN | ||
| 5 | Cover, front, 500-sheet feeder RC1-3196-000CN | ||
| 6 | Cover, left, 500-sheet feeder RC1-3199-000CN |
30. 500-sheet feeder main body (1 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Paper-present sensing assembly (500-sheet feeder) RM1-1455-000CN | ||
| 2 | 500-sheet запросить цену → | feeder driver PCA RM1-1122-000CN | |
| 3 | Lifter-drive assembly (500-sheet feeder) RM1-1094-000CN | ||
| 4 | Sensor, paper-size assembly (500-sheet feeder) RM1-0041-000CN | ||
| 5 | Spring, grounding (500-sheet feeder) RU5-2251-000CN |
