| Производитель | Cudy |
Beamforming: True
WPS: True
Mesh: Cudy Mesh
DHCP: Address Reservation DHCP Client List Server
IPTV/VLAN: Bridge Tag VLAN VoIP VLAN IPTV VLAN
IGMP: IGMP Proxy IGMP Snooping
Model Version: WR3600E 1.0
CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR3L
5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
FEM or PA/LNA: 5 GHz: 2× External 2.4 GHz: 2× Internal
Range Performance: Max: 220 m (722 ft)Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance: Two wooden walls with thickness < 10 cm (4'')One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

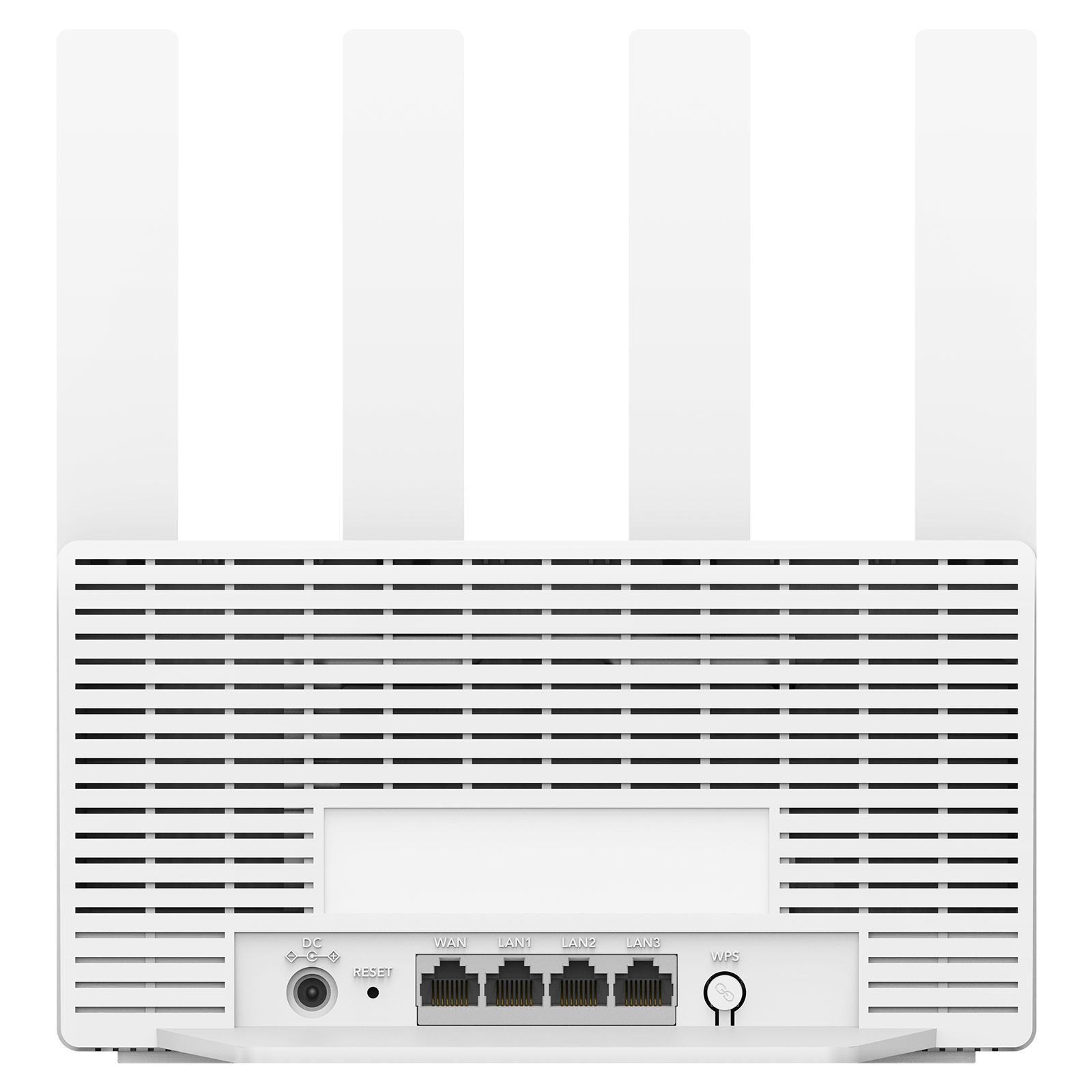

Gigabit RJ45 Ports: 4
Ethernet Notes: 1× WAN port, the rest are LAN ports
LED: System Internet 2.4 GHz Wi-Fi 5 GHz Wi-Fi WAN LAN
Physical Buttons: WPS Button Reset Button
Power Input: DC Jack
Power Methods: DC
DC Input: 12V 1A
Power Adapter: Input: 100 ~ 240 V, 50/60 Hz ACOutput: 12V 1A DC
Max Power Consumption (W): 8.5W
Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications: FCC, CE
Installation: Desktop
Dimension: 209×48×220.4 mm8.23×1.89×8.68 inches
Product Weight: 339.8 g (11.99 oz.)

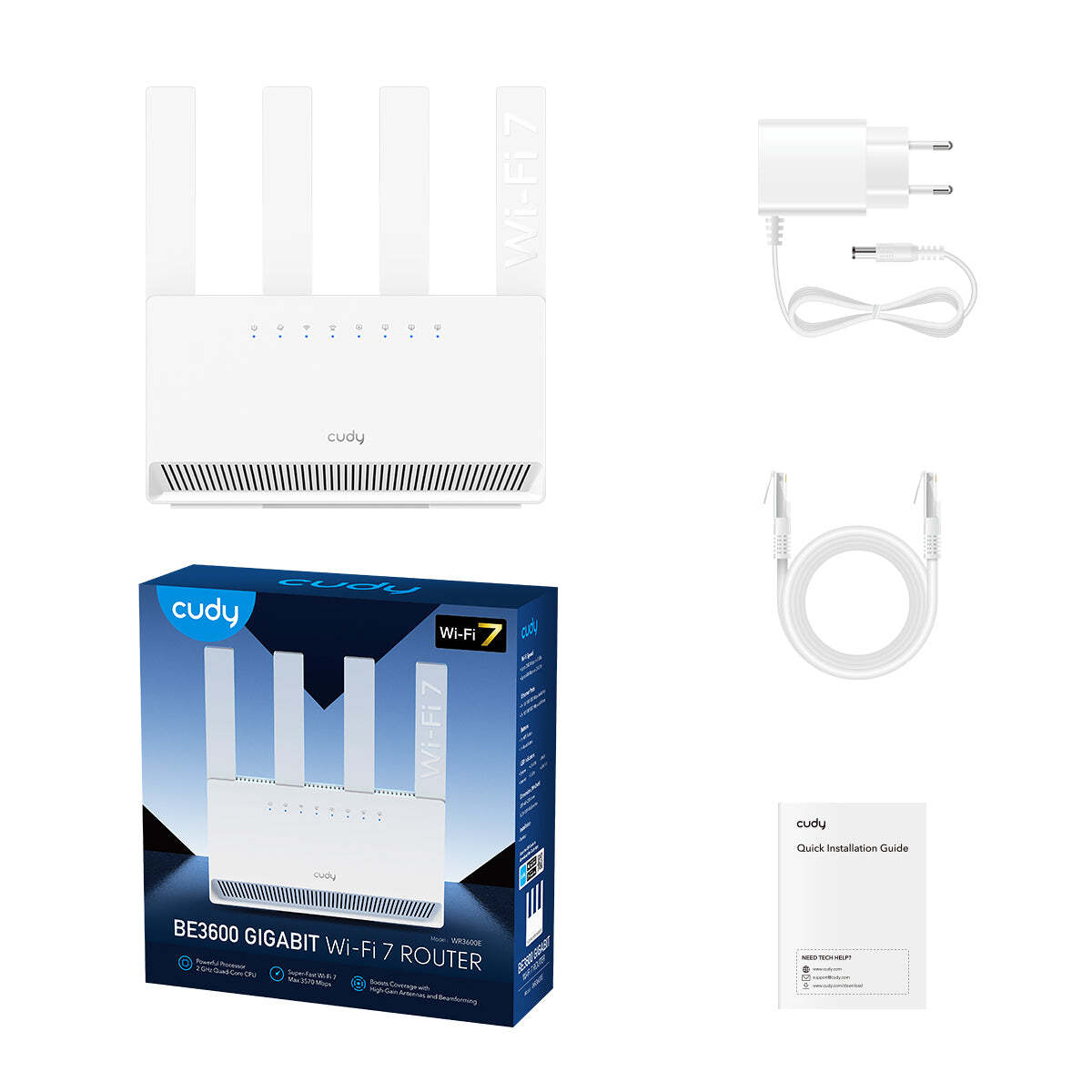

Package Content: WR3600E Power Adapter Ethernet Cable Installation Guide
Retail Package Weight: EU: 736.8 g (25.99 oz.)
Retail Package Dimension: 221×231.5×73 mm8.7×9.11×2.87 inches
Units per Carton: 20
Carton Dimension: 47.7×39.1×47 cm18.78×15.39×18.5 inches
Carton Gross Weight: EU: 15.7 kg (34.61 lbs)
Carton Net Weight: EU: 14.7 kg (32.41 lbs)
Wi-Fi Standards: Wi-Fi 7
Max Wi-Fi Modulation: 4K-QAM
Wi-Fi Efficiency: MLO MRU Puncturing OFDMA MU-MIMO BSS Color
Max Capacity: 512
Recommended Client Upper Limit: 200
Max Wi-Fi Channel Width: 160 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
Operation Modes: Wi-Fi Router Access Point Range Extender
Mesh Backhaul: Wireless Backhaul Wired Backhaul
Multi-Band Backhaul: True
WAN Mode: DHCP Static IP PPPOE PPTP L2TP
Notes: The Range Extender/WISP/Client modes will be available with later firmware upgrade.
QoS: Per-User Rate Limiting
IP Versions: IPv4/IPv6
IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
TTL Customization: Extend Spoof Custom
Forwarding: Port Forwarding Port Triggering UPnP DMZ
Firewall: SPI Firewall DoS Protection Block PING
Application Layer Gateway: IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
VPN Server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP
VPN Client: WireGuard OpenVPN IPsec Zerotier PPTP L2TP
DNS Options: DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
DNS over TLS Providers: Cloudflare Google Quad9 Custom
Wake on LAN: True
Online Detection: True
Parental Controls: Profiles Settings Offline Time Online Time Pause the Internet Web Filter
All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding
Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename
Content Management: Domain Filter IP Filter
LED Control: True
Local Control Method: Config Web Page App Control
Remote Control Method: Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
Firmware Upgrade: Local Update App (Over the Air) Online Update
Reliability: Timed Reboot Backup and Restore
Diagnostic Tools: Diagnosis Ping Traceroute NSLookup System Log
Langu
