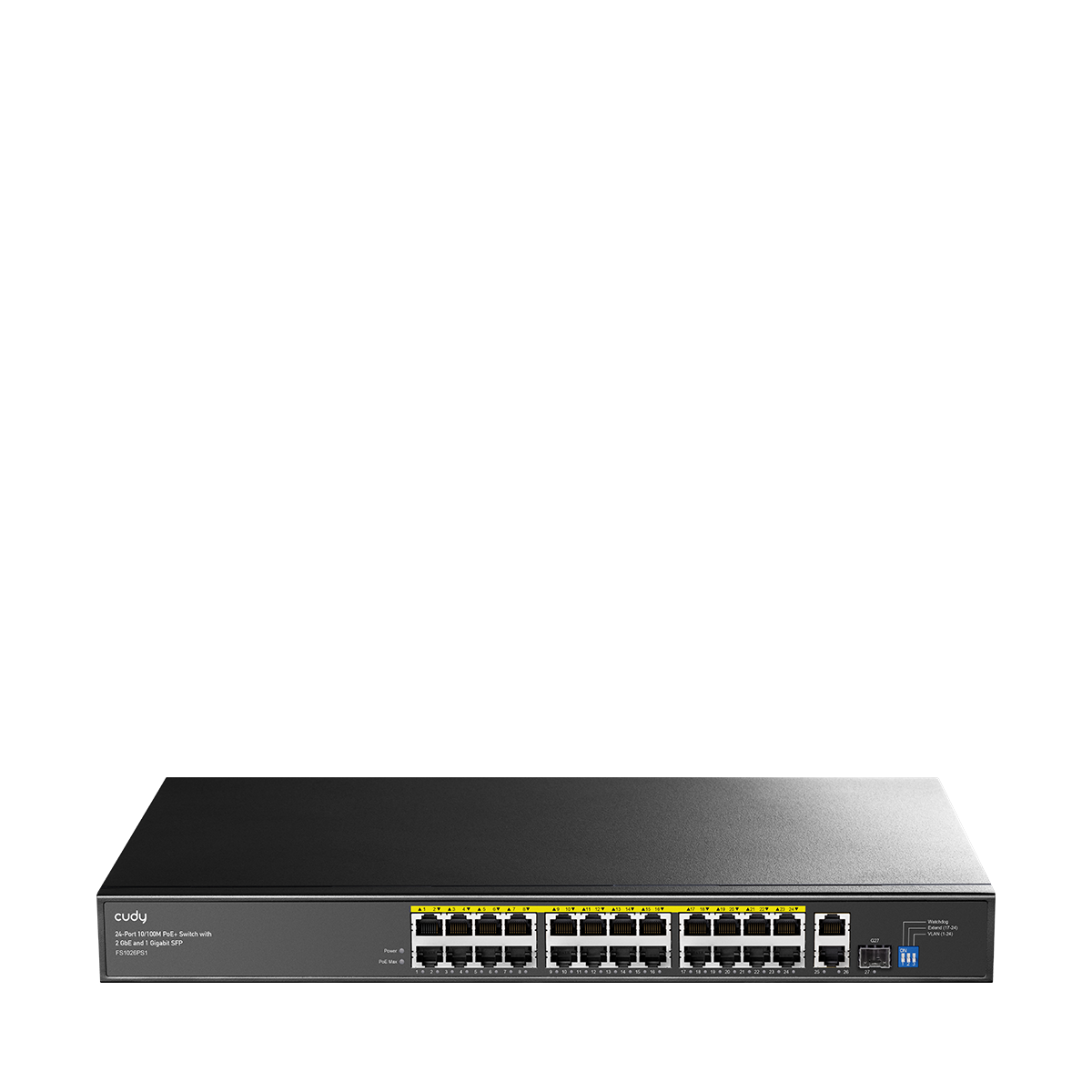

Cudy - 24-Port 10/100M PoE+ Switch with 2 GbE and 1 Gigabit SFP FS1026PS1
Model Version: FS1026PS1 4.0
Gigabit RJ45 Ports: 2
LED: Power Link/ACT of Each Ethernet Port PoE Max Status
Physical Buttons: Extend On/Off VLAN On/Off PoE Watchdog On/Off
Power Input: AC Inlet
Power Methods: AC
Environment: Operating Temperature: 0~40 ℃ (32~104 ℉)Storage Temperature: -40~70℃ (-40~158 ℉)Operating Humidity: 10~90% non-condensingStorage Humidity: 10~95% non-condensing
Installation: Desktop Rackmount via Brackets
Dimension: 440×180×44 mm17.32×7.09×1.73 inches
Product Weight: 2208.9 g (77.92 oz.)

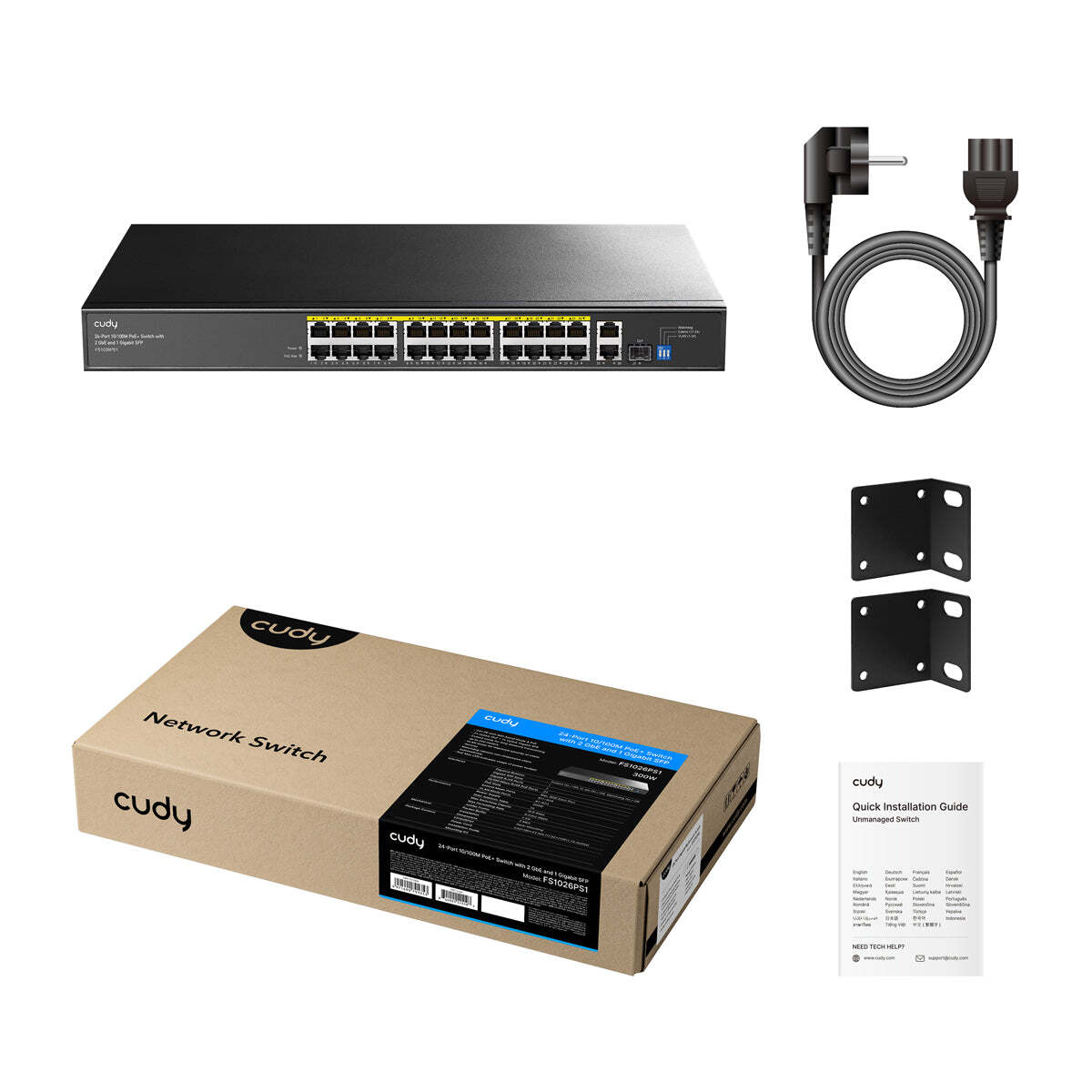

Package Content: FS1026PS1 Power Cord Mounting Kit Installation Guide
Retail Package Weight: EU: 2888.6 g (101.89 oz.)
Retail Package Dimension: 487×267×84 mm19.17×10.51×3.31 inches
Units per Carton: 5
Carton Dimension: 50×44×28.5 cm19.69×17.32×11.22 inches
Carton Gross Weight: EU: 15.5 kg (34.17 lbs)
Carton Net Weight: EU: 14.4 kg (31.75 lbs)
10/100 Mbps RJ45 Ports: 24
1.25G SFP Slots: 1
10/100 Mbps RJ45 PoE Ports: #1~#24
Max Power on a Single PoE Port: 30W
PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority: Intelligent Power Management:Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port: True
Extend Mode Ports: #17~#24
VLAN Mode Ports: #1~#24
Watchdog Note: The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note: Gigabit speed is only available on the uplink ports. 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Optical Spec and Distance: Depends on the Installed Optical Module
MAC Address Table: 2048
Max Switching Capacity: 10.8 Gbps
Max Forwarding Rate: 8 Mpps
Jumbo Frame: 2 KB
Packet Buffer: 2 Mbit
AC: 100-240V~, 50/60Hz
Power Supply: 300W
Max Power Excluding PoE: 7W
802.3 Protocols: 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3z 1000BASE-X 802.3x Flow Control 802.3af PoE 802.3at PoE
PoE Management: Intelligent Power Management
Fans: 1
Fan Note: Smart Cooling: The fan speed adjusts in real time based on power consumption.
Grounding Methods: Three-Prong Plug Grounding Point
EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kVIEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Casing Material: Metal
A rack-mounted PoE+ switch with a 300W power supply and active cooling system, featuring independant control switch for Extend, VLAN, Watchdog feature.
