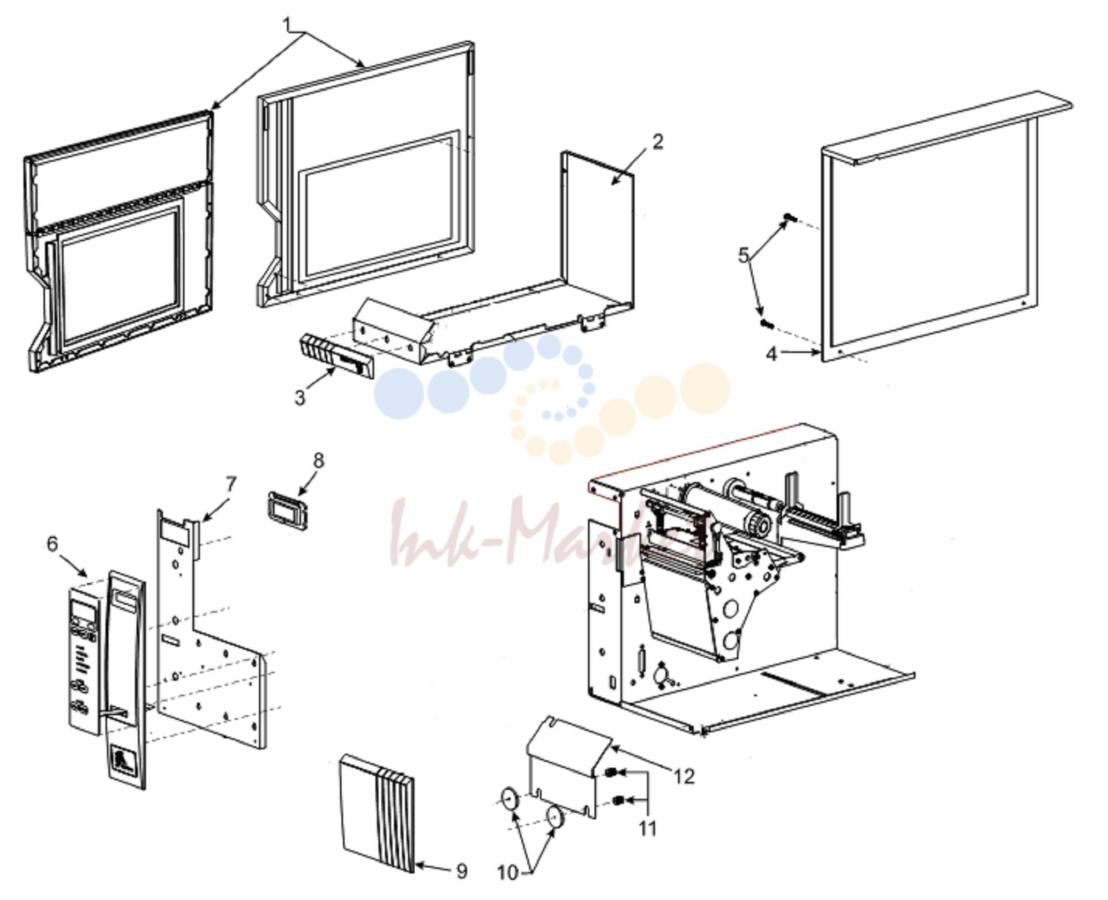

| 1 | | | 090, 096, 140, 170, 220 Clear Media Door Panel |
| 1 | | | 090, 096, 140, 170, 220 Kit Bi-Fold Clear Media Door Panel G47077M |
| 2 | | | 090 & 096 Kit Media Cover 47721M |
| 2 | | | 140 Kit Media Cover G48721M |
| 2 | | | 170 Kit Media Cover G46721M |
| 2 | | | 220 Kit Media Cover G22721M |
| 3 | 90XiIII запросить цену → | | Plus 300 dpi Product Name Plate 33150-1 |
| 3 | 96XiIII запросить цену → | | Plus 600 dpi Product Name Plate 33150-6 |
| 3 | 140XiIII запросить цену → | | Plus 203 dpi Product Name Plate 33310-8 |
| 3 | 170XiIII запросить цену → | | Plus 203 dpi Product Name Plate 33310-4 |
| 3 | 170XiIII запросить цену → | | Plus 300 dpi Product Name Plate 33310-5 |
| 3 | 220XiIII запросить цену → | | Plus 203 dpi Product Name Plate 33310-6 |
| 3 | 220XiIII запросить цену → | | Plus 300 dpi Product Name Plate 33310-7 |
| 4 | | | 090, 096, 140, 170, 220 Kit Electronics Cover G32036M |
| 5 | | | Screw 6-32 0.37, Qty of 100 HW32413-006 |
| 6 | | | 090, 096, 140, 170, 220 Kit Switch Panel and Membrane G22492M |
| 7 | | | 090 & 096 Front Cover 33036-1 |
| 7 | | | 140 Front Cover 33036-2 |
| 7 | | | 170 Front Cover 33036-3 |
| 7 | | | 220 Front Cover 33036-4 |
| 8 | | | 090, 096, 140, 170, 220 Kit Maint LCD G32043M |
| 9 | | | 090 & 096 Lower Media Trim Panel 46491-3 |
| 9 | | | 140 Lower Media Trim Panel 46491-2 |
| 9 | | | 170 Lower Media Trim Panel 46491-1 |
| 9 | | | 220 Lower Media Trim Panel |
| 10 | | | 090 & 096 Spacer |
| 11 | | | Thumb Nut 6-32 x .50 Brass, Qty of 25 HW01815 |
| 12 | | | 090 & 096 Front Cover Bracket |
| 12 | | | 140 Front Cover Bracket |
| 12 | | | 170 Cover Front Bracket |
| 12 | | | 220 Front Cover Bracket |
| 1 | | | 090 & 096 Ribbon Supply Spindle Assembly 47151M |
| 1 | | | 140 Ribbon Supply Spindle Assembly G48151M |
| 1 | | | 170 Ribbon Supply Spindle Assembly G46151M |
| 1 | | | 220 Ribbon Supply Spindle Assembly G22151M |
| 2 | | | 090 & 096 Kit Ribbon Take Up Spindle |
| 2 | | | 140 Kit Ribbon Take Up Spindle G48250 |
| 2 | | | 170 Kit Ribbon Take Up Spindle G46350 |
| 2 | | | 220 Kit Ribbon Take Up Spindle G22250 |
| 3 | | | 090 Kit Media Supply Hanger 47153M |
| 3 | | | 140 Kit Media Supply Hanger G48153-4M |
| 3 | | | 170 Kit Media Supply Hanger G46153M |
| 3 | | | 220 Kit Media Supply Hanger G22153M |
| 4 | | | 090 & 096 Media Supply Spindle 3 inch ID Media Core 47253M |
| 4 | | | 090 & 096 Media Supply Spindle 40mm ID Media Core 47044M |
| 4 | | | 140 Media Supply Spindle 3 inch ID Media Core G48253M |
| 4 | | | 140 Media Supply Spindle 40mm ID Media Core G48044M |
| 4 | | | 170 Media Supply Spindle 3 inch ID Media Core G46253M |
| 4 | | | 170 Media Supply Spindle 40mm ID Media Core G46044M |
| 4 | | | 220 Media Supply Spindle 3 inch ID Media Core G22253M |
| 5 | | | 090 & 096 Media Rewind Spindle Maintenance Kit 47155M |
| 5 | | | 140 Media Rewind Spindle Maintenance Kit G48155M |
| 5 | | | 170 Media Rewind Spindle Maintenance Kit G46249M |
| 5 | | | 220 Media Rewind Spindle Maintenance Kit G22155M |
| 1 | | | 090 Printhead 90XiIIIPlus 300 dpi 47000M |
| 1 | | | 096 Printhead 96XiIIIPlus 600 dpi G47500M |
| 1 | | | 140 Printhead 140XiIIIPlus 203 dpi G48000M |
| 1 | | | 170 Printhead 170XiIIIPlus 203 dpi G38000M |
| 1 | | | 170 Printhead 170XiIIIPlus 300 dpi 46500-1M |
| 1 | | | 220 Printhead 220XiIIIPlus 203 dpi G22000M |
| 1 | | | 220 Printhead 220XiIIIPlus 300 dpi G47426M |
| 2 | | | 090 & 096 Printhead Power Cable |
| 2 | | | 140 Printhead Power Cable 37852-021 |
| 2 | | | 170 Printhead Power Cable 37852-023 |
| 2 | | | 220 Printhead Power Cable (220Xi3+ printers use two different power 37825-020 |
| 2 | | | 220 Printhead Power Cable (220Xi3+ printers use two different power 37825-025 |
| 3 | | | 090 Printhead Data Cable |
| 3 | | | 096, 140, 170 Printhead Data Cable |
| 3 | | | 220 Printhead Data Cable |
| 1 | | | 090, 096 Kit Platen Roller 47601M |
| 1 | | | 140 Kit Platen Roller G40038M |
| 1 | | | 170 Kit Platen Roller G46278M |
| 1 | | | 220 Kit Platen Roller G22101M |
| 1 | | | 090 & 096 Kit Pivot Bar (includes toggle assemblies) 47202M |
| 1 | | | 140 Kit Pivot Bar (includes toggle assemblies) G48202M |
| 1 | | | 170 Kit Pivot Bar (includes toggle assemblies) 38202M |
| 1 | | | 220 Kit Pivot Bar (includes toggle assemblies) G22222M |
| 2 | | | 090, 096, 140, 170, 220 Kit Toggle Assembly Only (Qty of 1) 35099M |
| 1 | | | 090 (300 dpi), 140 (203 dpi), 170 (203 & 300 dpi), 220 (203 dpi only) Main Drive 45189-5 |
| 1 | | | 220 300 dpi Main Drive Belt 45189-21 |
| 1 | | | 096 600 dpi Main Drive Belt 45189-12 |
| 2 | | | 090, 140, 170, 220 Kit Pulley for Ribbon Take Up and Media Take Up 31336M |
| 2 | | | 096 Kit Pulley for Ribbon Take Up and Media Take Up G33094-6M |
| 3 | | | 090, 140, 170, 220 Kit Platen Pulley 40355M |
| 3 | | | 096 Kit Platen Pully G33079-6M |
| 4 | | | 140, 170 Kit DC Stepper Motor and Pulley 203 dpi G46198M |
| 4 | | | 220 Kit DC Stepper Motor and Pulley 203 dpi 31197M |
| 4 | | | 090, 170 Kit DC Stepper Motor and Pulley 300 dpi G46199M |
| 4 | | | 220 Kit Stepper Motor and Pulley 300dpi G31199M |
| 4 | | | 096 Kit Stepper Motor and Pulley 600 dpi G33084M |
| 5 | | | 090, 140, 170, 220 Media Rewind Belt 45189-2 |
| 5 | | | 096 Media Rewind Belt 600 DPI 45189-13 |
| 6 | | | 090, 140, 170, 220 Kit Peel Roller Pulley 30914M |
| 6 | | | 096 Kit Peel Roller Pulley G47915M |
| 1 | | | 090, 096 Kit Dancer Assy 46691-1M |
| 1 | | | 140 Kit Dancer Assy 46691-2M |
| 1 | | | 170 Kit Dancer Assy 46691-3M |
| 1 | | | 220 Kit Dancer Assy 22391M |
| 1 | | | 090, 096, 140, 170, 220 Kit Main Logic Board XiIII Plus 4MB 34901-030M |
| 1 | | | 090, 096, 140, 170, 220 Kit Main Logic Board XiIII Plus 64MB 34901-032M |
| 2 | | | 090, 096, 140, 170, 220 Kit Maint PCMCIA Board Assy G33037M |
| 3 | | | 090, 096, 140, 170, 220 Kit AC Power Supply 49566M |
| 4 | | | 090, 096, 140, 170, 220 Kit DC Power Supply G49790M |
| 5 | | | 090, 096, 140, 170, 220 Power Entry Module w/Fuse and Ground Wire |
| 6 | | | 090, 096, 140, 170, 220 Kit PCB Cutter G49730M |
| 1 | | | 090, 096, 140, 170, 220 Kit Head Open Sensor G22613M |
| 2 | | | 090, 096, 140, 170, 220 Kit Reflective Media (Black Mark) Sensor G38226M |
| 3 | | | 090, 096, 140, 170, 220 Kit Ribbon Sensor G46665M |
| 4 | | | 090, 096, 140, 170, 220 Kit Take Label Sensor (Upper and Lower) G46609-4M |
| 5 | | | 090, 096 Kit Media Sensor Assembly (Upper and Lower) 47302-4M |
| 5 | | | 140 Kit Media Sensor Assembly (Upper and Lower) G48302-4M |
| 5 | | | 170 Kit Media Sensor Assembly (Upper and Lower) G46302-4M |
| 5 | | | 220 Kit Media Sensor Assembly (Upper and Lower) G22302M |
| 1 | | | 090 & 096 Ribbon Strip Plate |
| 1 | | | 140 Ribbon Strip Plate |
| 1 | | | 170 Ribbon Strip Plate |
| 1 | | | 220 Ribbon Strip Plate |
| 2 | | | 090 & 096 Ribbon Static Brush |
| 2 | | | 140 Ribbon Static Brush |
| 2 | | | 170 Ribbon Static Brush |
| 2 | | | 220 Ribbon Static Brush |
| 1 | | | 090 Kit Media Guide 30305M |
| 1 | | | 140 Kit Media Guide G40305RM |
| 1 | | | 170 Kit Media Guide G46305M |
| 1 | | | 220 Kit Media Guide G22305M |
| 2 | | | 090 & 096 Upper Media Guide Plate |
| 2 | | | 170 Upper Media Guide Plate 48043-1 |
| 2 | | | 140 Upper Media Guide Plate 48043-2 |
| 2 | | | 220 Upper Media Guide Plate 48043-4 |
| 3 | | | 090 & 096 Peel/Tear-Off Bar |
| 3 | | | 140 Peel/Tear Bar |
| 3 | | | 170 Bar Peel / Tear Off |
| 3 | | | 220 Peel/Tear-Off Bar |
| 090 | | | Media Rewind Upgrade Kit (enables rewind and peel-off option) |
| 096 | | | Media Rewind Upgrade Kit (enables rewind and peel-off option) 47355-6 |
| 140 | | | Media Rewind Upgrade Kit (enables rewind and peel-off option) G48355 |
| 170 | | | Media Rewind Upgrade Kit (enables rewind and peel-off option) G46355 |
| 220 | | | Media Rewind Upgrade Kit (enables rewind and peel-off option) G22455 |
| 1 | | | 090, 096 Kit Media Rewind Plate 47383M |
| 1 | | | 140 Kit Media Rewind Plate G48383M |
| 1 | | | 170 Kit Media Rewind Plate G46383M |
| 1 | | | 220 Kit Media Rewind Plate G22383M |
| 1 | | | 090, 096 Kit Media Rewind Plate to be used with Cutter Option 30382RM |
| 1 | | | 140 Kit Media Rewind Plate to be used with Cutter Option G40382RM |
| 1 | | | 170 Kit Media Rewind Plate to be used with Cutter Option G46382M |
| 1 | | | 220 Kit Media Rewind Plate to be used with Cutter Option G22382M |
| 090 | | | & 096 Kit Rewind Platen Roller (same as main platen roller) 47601M |
| 140 | | | Kit Rewind Platen Roller (same as main platen roller) G40038M |
| 170 | | | Kit Rewind Platen Roller (same as main platen roller) G46278M |
| 220 | | | Kit Rewind Platen Roller (same as main platen roller) G22101M |
| 2 | | | 090 & 096 J-Hook Media Rewind 47062-3 |
| 2 | | | 140 J-Hook Media Rewind 47062-2 |
| 2 | | | 170 J-Hook Media Rewind 47062-1 |
| 2 | | | 220 J-Hook Media Rewind 47062-4 |
| 090 | | | Kit Cutter Option Includes Catch Tray |
| 140 | | | Kit Cutter Option Includes Catch Tray G48353 |
| 170 | | | Kit Cutter Option Includes Catch Tray G46353 |
| 220 | | | Kit Cutter Option Includes Catch Tray G22453 |
| 090 | | | Kit Cutter & Rewind Option Combined includes Cutter Catch Tray |
| 140 | | | Kit Cutter & Rewind Option Combined includes Cutter Catch Tray G48154 |
| 170 | | | Cutter & Rewind Option Combined includes Cutter Catch Tray G46154 |
| 220 | | | Cutter & Rewind Option Combined includes Cutter Catch Tray G22454 |
| 140 | | | Cutter Static Brush 6.50 x .50 |
| 170 | | | Cutter Static Brush 8.50 x .50 |
| 220 | | | Cutter Static Brush 10.47 x .50 |
| 090 | | | Cutter Catch Tray |
| 140 | | | Cutter Catch Tray G48459 |
| 170 | | | Cutter Catch Tray |
| 220 | | | Cutter Catch Tray G22459 |
| 090 | | | & 096 Kit Packing Material 47311PM |
| 090 | | | & 096 Kit Packing Materials Qty of 10 47311PBM |
| 140 | | | Kit Packing Material G48311PM |
| 140 | | | Kit Packing Materials Qty of 10 G48311PBM |
| 170 | | | Kit Packing Material 46311PM |
| 170 | | | Kit Packing Materials Qty of 10 G46311PBM |
| 220 | | | Kit Packing Material 22311PM |
| 220 | | | Kit Packing Materials Qty of 10 G22311PBM |
