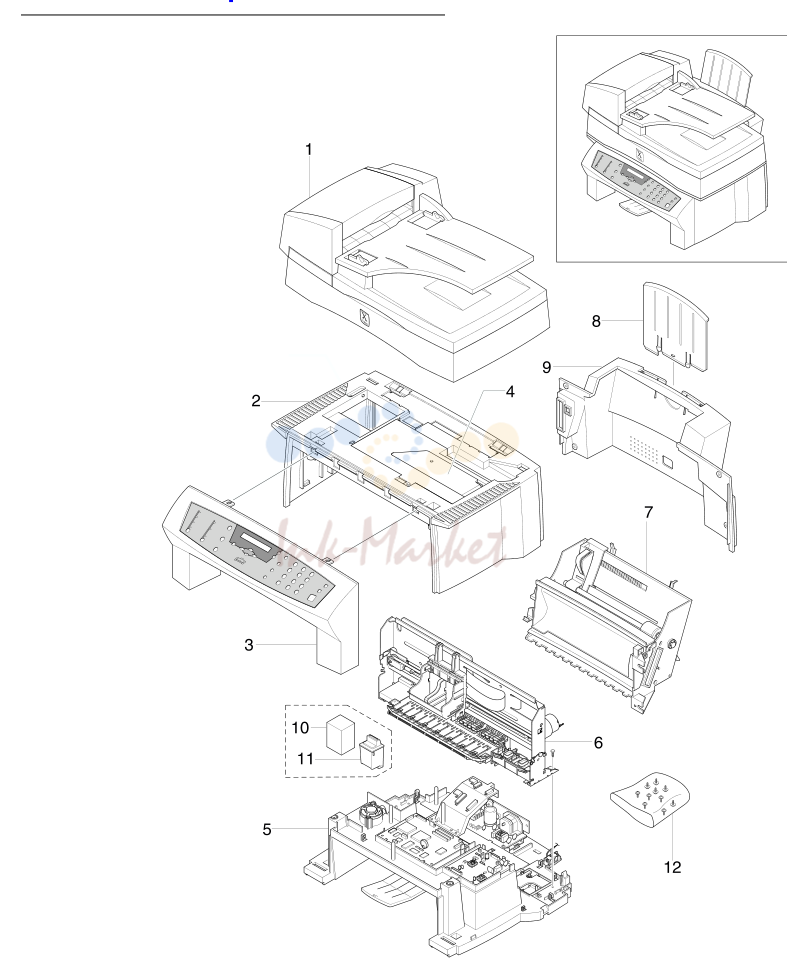

| 1 | 062N00215 запросить цену → | | UNIT-ADF and SCANNER |
| 2 | 002N01917 запросить цену → | | Main Cover |
| 3 | 122N00181 запросить цену → | | Control Panel Assembly |
| 4 | | | Not spared SCANNER SUPPORT |
| 5 | | | Not spared COVER, BOTTOM |
| 6 | 127N01281 запросить цену → | | Engine Unit |
| 7 | 022N01366 запросить цену → | | Automatic Paper Feeder |
| 8 | 038N00360 запросить цену → | | Extension Guide |
| 9 | 002N01918 запросить цену → | | COVER REAR |
| 10 | 8R12591 запросить цену → | | PRINT HEAD INK-COLOR |
| 11 | 8R7881 запросить цену → | | PRINT HEAD INK-MONO |
| 12 | 600K82440 запросить цену → | | HARDWARE-KIT |
| 1 | | | Not spared COVER MAIN |
| 2 | | | Not spared SUPPORT, SCANNER |
| 3 | | | Not spared COVER, PWB |
| 4 | | | Not spared E-RING |
| 5 | | | Not spared SHAFT |
| 6 | | | Not spared SPRING |
| 7 | | | Not spared SCREW (B) |
| 8 | | | Not spared SCREW (MX310) |
| 9 | 130N01145 запросить цену → | | Cover Interlock Switch |
| 1 | | | See PL 1.1 UNIT - ADF and Scanner |
| 2 | | | Not spared COVER PLATEN ASS’Y |
| 3 | | | Not spared HINGE-PLATEN |
| 4 | | | Not spared COVER PLATEN |
| 5 | | | Not spared SHEET W/ SPONGE |
| 6 | | | Hardware SCREW-TAPPING |
| 7 | | | Not spared TX STACKER |
| 8 | | | Not spared TX COVER |
| 9 | | | Not spared GUIDE DOC(L) |
| 10 | | | Not spared GUIDE DOC(R) |
| 11 | | | Not spared WASHER SPRING CU |
| 12 | | | Not spared GEAR-PINION |
| 13 | | | Not spared ELA ETC-MOTOR ASS’Y |
| 14 | | | Not spared SCREW-TAPTITE |
| 15 | | | Not spared RING-C |
| 16 | | | Not spared MOTOR-STEP 3.75 |
| 17 | | | Not spared GEAR-IDLE SWING12(0.8) |
| 18 | | | Not spared GEAR-DOUBLE 13/36 |
| 19 | | | Not spared GEAR-DOUBLE 20/54 |
| 20 | | | Not spared IPR-BRKT MOTOR ADF |
| 21 | | | Not spared PMO-ARM SWING GEAR 43 022N01367 White Roller Assembly 64 Not spared PMO-HOLDER GLASS(R) |
| 44 | | | Not spared MEC-ROLLER EXIT ASS’Y 65 Not spared RMO-BADGE LOGO |
| 22 | | | Not spared PMO-CLUTCH ARM PIN |
| 45 | | | Not spared GEAR-CLUTCH 29 66 Not spared LABEL(R)-REGISTRATION |
| 23 | | | Not spared GEAR-IDLE20/33 EDGE(R) |
| 46 | | | Not spared PMO-WHITE CLUTCH SUB |
| 24 | | | Not spared GEAR-IDLE17/35 29 67 Not spared LABEL(R)-REGISTRATION |
| 25 | | | Not spared PMO-COVER SIDE(L) 47 Not spared GEAR-CLUTCH IDLE |
| 68 | 062N00217 запросить цену → | | OPTICAL GLASS |
| 26 | | | Not spared PMO-COVER SIDE(R) 48 Not spared PMO-ARM(SWING |
| 27 | | | Not spared PMO-COVER OPEN |
| 49 | | | Not spared IPR-WASHER WAVE 70 Not spared MCT-GLASS SCANNER |
| 28 | | | Not spared PMO-GUIDE PAPER |
| 50 | | | Not spared GEAR-IDLE SWING12(0.8) 71 Not spared ICT-SHAFT CCD |
| 29 | 022N01368 запросить цену → | | PICK UP ASS’Y |
| 51 | | | Not spared PMO-CLUTCH ARM PIN 72 Not spared ELEC/MECH-SCANNER |
| 30 | | | Not spared PMO-ADF UPPER MODULE |
| 51-1 | | | Not spared GEAR-DOUBLE 20/14(0.8) |
| 31 | 019N00566 ✓ в наличии | | ADF RUBBER 73 Not spared IPR-HOLDER GLASS |
| 52 | | | Not spared PMO-COVER DUMMY |
| 32 | | | Not spared PMO-HOLDER ADF 74 Not spared SCREW-TAPPING |
| 53 | | | Not spared ICT-SHAFT PINCH |
| 33 | | | Not spared RPR-SPONGE ADF 75 Not spared PMO-COVER MOTOR |
| 54 | | | Not spared PMO-ROLL PINCH |
| 34 | | | Not spared SPRING-ADF 76 109N00542 BELT-SCANNER |
| 55 | | | Not spared SPRING-SHAFT PINCH EXIT |
| 35 | | | Not spared MEC-ROLLER DRIVE ASS’Y 77 Not spared SPRING-BELT |
| 56 | | | Not spared MEC-ROLLER PINCH EXIT |
| 36 | | | Not spared PMO-ACTUATOR SENSOR 78 Not spared PMO-COVER HARNESS |
| 57 | | | Not spared PMO-STOPPER ADF 79 Not spared ICT-SHAFT PIN |
| 37 | | | Not spared PMO-ACTUATOR SENSOR |
| 38 | | | Not spared SPRING-TORSION 59 Not spared NPR-SPRING LOCK 81 Not spared CBF SIGNAL-CCD MODULE |
| 60 | | | Hardware SCREW-TAPPING 82 Not spared RING-E 6044-000125 |
| 39 | | | Not spared CBF HARNESS-SCAN GND Kit |
| 83 | | | Not spared PMO-HOLDER BELT |
| 40 | 130N01144 запросить цену → | | Doc in and Scan Position 61 Not spared NPR-SPRING PINCH DRIVE |
| 62 | | | Not spared NPR-SPRING ADF GLASS JB72-00763A |
| 41 | | | Not spared NPR-SPRING GND |
| 63 | | | Not spared PMO-HOLDER GLASS(L) 85 Not spared PMO-COVER SCAN LOWER |
| 42 | | | Not spared PMO-ADF LOWER |
| 86 | | | Not spared PMO-TIE STOPPER |
| 87 | | | Hardware SCREW-TAPPING |
| 88 | | | Not spared PMO-HOLDER CCD |
| 89 | | | Not spared MEA UNIT-MOTOR |
| 90 | | | Not spared RING-E |
| 91 | | | Not spared PMO-HOLDER BELT |
| 92 | | | Not spared GEAR-TIMING |
| 93 | | | Not spared GEAR-IDLE |
| 94 | | | Not spared RING-E |
| 95 | | | Not spared GEAR-REDUCTION |
| 96 | | | Not spared IPR-BRACKET MOTOR |
| 97 | | | Not spared MOTOR-SCAN |
| 98 | | | Hardware SCREW-TAPPING |
| 99 | | | Not spared SCREW-TAPTITE |
| 1 | | | Not spared IPR-FRAME MAIN |
| 2 | | | Not spared MOTOR-DC CARRIAGE |
| 3 | 009N01070 запросить цену → | | SPRING-CARR |
| 4 | | | Not spared SCREW-MACHINE |
| 5 | | | Not spared VEARING-FEEDR |
| 6 | 006N00931 запросить цену → | | SHAFT CR |
| 7 | 146N00109 запросить цену → | | ENCODER STRIP |
| 8 | | | Not spared SPRING-PS ENCODER |
| 9 | | | Not spared PULLY IDLE ASS’Y |
| 9-1 | | | Not spared PMO-STOPPER PULLEY |
| 9-1 | | | Not spared SPRING-CS PULLEY |
| 9-3 | | | Not spared PMO-HOLDER IDLE |
| 9-4 | | | Not spared PMO-PULLEY IDLE |
| 9-5 | | | Not spared MEL PULLEY IDLE |
| 10 | 140N05814 запросить цену → | | PBA DRIVER |
| 11 | | | Not spared SCREW-TAPTITE |
| 12 | | | Not spared MEL-ROLLER FEED |
| 13 | | | Not spared HOLDER ROLLER ASS’Y |
| 13-1 | | | Not spared IPR-DEFLECTOR |
| 13-2 | | | Not spared ICT-FRICTION ROLLER |
| 13-3 | | | Not spared PMO-HOLDER F/R |
| 13-4 | | | Not spared SPRING-ES FRICTION |
| 13-5 | | | Not spared PMO-HOLDER ROLLER 17-5 Not spared PMO-KEY HEAD G 19-6 Not spared RPR-RUBBER CAP HEAD |
| 13-6 | | | Not spared PMO-ACTUATOR FEED 17-6 Not spared PBA MAIN-ENCODER PBA 19-7 Not spared PMO-HOLDER CAP |
| 13-7 | | | Not spared SPRING-ES ACTUATOR 17-7 Not spared SCREW-TAPPING 19-8 Not spared SPRING-CS |
| 14 | | | Not spared BELT-CARRIER 17-8 Not spared PMO-CRADDLE HEAD 19-9 Not spared RPR-RUBBER WIPE HEAD |
| 15 | 127N01280 запросить цену → | | MOTOR, CARRIAGE 17-9 Not spared BEARING-CLAMP S1 Not spared SCREW-TAPPING |
| 16 | 127N01286 запросить цену → | | PAPER FEED MOTOR 17-10 Not spared IPR-BEARING CLAMP |
| 16-1 | | | Not spared MOTOR-STEP LF(V) 17-11 Not spared RPR-RUBBER CONTACT |
| 16-2 | | | Not spared MEA UNIT-BRKT LF 17-12 Not spared PMO-LATCH HEAD |
| 16-3 | | | Not spared SCREW-TAPTITE 17-13 Not spared SPRING-LATCH HEAD |
| 16-4 | | | Not spared SCREW-TAPTITE 18 Not spared FRAME BASE PRT |
| 16-5 | | | Not spared GEAR-LF IDLE 75 18-1 Not spared PMO-HOLDER WHEEL |
| 16-6 | | | Not spared GEAT-LF IDLE 51 18-2 Not spared PMO-HOLDER WHEEL |
| 16-7 | | | Not spared GEAT-CLUTCH 18-3 Not spared IPR-SPRING WHEEL |
| 16-8 | | | Not spared PMO-CLUTCH ARM 18-4 Not spared MEA UNIT-WHEEL STAR |
| 16-9 | | | Not spared SPRING-CLUTCH 18-5 Not spared PMO-ROLLER PINCH |
| 16-10 | | | Not spared PMO-CLUTCH ARM PIN 18-6 Not spared BELT-EXIT |
| 16-11 | | | Not spared PMO-RETAINER GEAR 18-7 Not spared REX-EXIT ROLLER |
| 16-12 | | | Not spared BEARING-FEED L 18-8 Not spared PMO-ROLLER EXIT |
| 17 | 041N00214 запросить цену → | | UNIT, CARRIAGE 19 094N00227 Maintenance Station |
| 17-1 | | | Not spared PMO-FRAME CARRIER 19-1 Not spared SPRING-CS PULLEY |
| 17-2 | | | Not spared PCB-FPC 19-2 Not spared PMO-HOLDER PULLEY |
| 17-3 | | | Not spared PMO-HOLDER FPC 19-3 Not spared PMO-FRAME HOME |
| 17-4 | | | Not spared PMO-KEY HEAD COLOR 19-4 Not spared PMO-PULLEY IDLE |
| 19-5 | | | Not spared ICT-SHAFT PULLEY IDLE |
| 1 | | | Not spared PMO-CAP LEFT EDGE |
| 2 | | | Not spared PMO-GUIDE SIDE |
| 3 | | | Not spared PMO-FRAME ASF |
| 4 | | | Not spared PMO-SHAFT PICKUP |
| 5 | | | Not spared GEAR-IDLER ASF |
| 6 | | | Not spared GEAR-DRIVER ASF |
| 7 | | | Not spared PMO-HOUSING R |
| 8 | | | Not spared PMO-MOUSING L |
| 9 | | | Not spared GEAR-drive PICKUP |
| 10 | | | Not spared GEAR-PICKUP IDLER |
| 11 | | | Not spared RMO-PICKUP RUBBER |
| 12 | | | Not spared PMO-PICKUP ROLL |
| 13 | | | Not spared PMO-PAPER |
| 14 | | | Not spared SPRING-TORSION AC |
| 15 | | | Not spared SCREW-TAPPING |
| 16 | | | Not spared RING-E |
| 17 | | | Not spared SCREW-TAPTITE |
| 18 | | | Not spared PMO-ROLLER IDLER |
| 19 | | | Not spared MPR-PAD FRICTION |
| 20 | | | Not spared RMO-BUCKLER |
| 21 | | | Not spared PR-BRKT RIB |
| 22 | | | Not spared IPR-BRKT BUCKLER |
| 23 | | | Not spared PMO-DAM FRICTION |
| 24 | | | Not spared PMO-COVER ASF |
| 25 | 120N00378 запросить цену → | | APF sensor actuator |
| 26 | 064N00027 запросить цену → | | APF paper sensor |
| 27 | 152N01864 запросить цену → | | CBF HARNESS-PES |
| 1 | | | Not spared PMO-COVER BOTTOM |
| 2 | 050N00366 запросить цену → | | Exit tray stacker |
| 2-1 | | | Not spared PMO-STACKER R¥1 |
| 2-2 | | | Not spared PMO-STACKER R¥2 |
| 3 | 019N00567 запросить цену → | | MPR-FELT LOWER |
| 4 | 019N00568 запросить цену → | | MPR-FELT UPPER |
| 5 | 105N01389 запросить цену → | | Power supply |
| 6 | | | Not spared PMO-HOLDER |
| 7 | 140N05815 запросить цену → | | PBA Main Note: need |
| 8 | | | PBA LIU (see table on |
| 9 | | | Not spared CBF HARNESS USB |
| 10 | | | Not spared CBF HARNESS-LIU |
| 11 | | | Not spared SCREW-TAPPING |
| 12 | | | Not spared CBF SIGNAL-MAIN |
| 13 | 017N00173 запросить цену → | | FOOT |
| 14 | 152N01860 запросить цену → | | LIU harness for use |
| 1 | | | Not spared COVER FRONT |
| 2 | | | Control Panel overlay - |
| 3 | | | Not spared PMO-OPE PANEL |
| 4 | | | Not spared SCREW, M3XL8 |
| 5 | | | Not spared PMO-KEY |
| 6 | | | Not spared PMO-KEY SCROLL |
| 7 | | | Not spared PMO-KEY |
| 8 | | | Not spared PMO-KEY TEL |
| 9 | | | Not spared PMO-KEY START |
| 10 | | | Not spared PMO-KEY STOP |
| 11 | | | Not spared PMO-KEY REPORT |
| 12 | | | Not spared RMO-RUBBER TEL |
| 13 | | | Not spared RMO-RUBBER SCROLL |
| 14 | | | Not spared R,MO-RUBBER |
| 15 | | | Not spared PBA OPE |
| 16 | | | Not spared SCREW, M3XL5 |
| 17 | | | Not spared SCREW, M3XL8 |
| 1 | | | Not spared BAG-PE SET |
| 2 | | | Not spared CUSHION-L |
| 3 | | | Not spared CUSHION-R |
| 4 | | | Not spared BOX(P)-MAIN |
| 5 | | | Not spared BAG-PE(ACCESSORY) |
| 6 | | | Not spared User Guide |
| 7 | | | Not spared Warrantor Card |
| 8 | | | Not spared Install Guide |
| 9 | | | Not spared S/W - UTILITY CD-ROM |
| 10 | | | Supply items PRINT HEAD INK-COLOR |
| 11 | | | Supply items PRINT HEAD INK-MONO |
| 12 | 117N01313 запросить цену → | | Cable USB 6-foot |
| 13 | 117E13660 запросить цену → | | POWER CORD |
| 14 | 162K06530 запросить цену → | | Telephone Line Cord (for |
