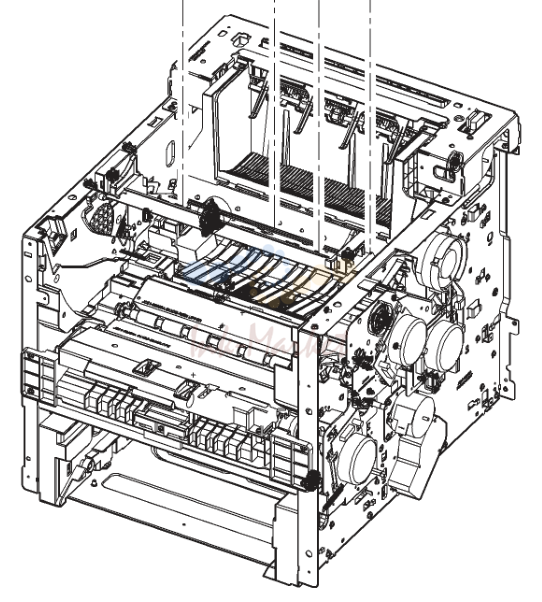

| 1 | | | - Front cover (P/O PL 7.10 Item 23) |
| 2 | | | - Tray frame (P/O PL 7.10 Item 23) |
| 3 | | | - Tray lift plate (P/O PL 7.10 Item 23) |
| 4 | | | - Left width paper guide (P/O PL 7.10 |
| 5 | | | - Right width paper guide (P/O PL |
| 6 | | | - Separator roller (P/O PL 7.10 Item |
| 7 | 022N02231 запросить цену → | | Separator clutch (REP 7.21) |
| 8 | 017N00259 запросить цену → | | Torque limiter |
| 9 | | | - Shaft (P/O PL 7.10 Item 23) |
| 10 | | | - Bearing (P/O PL 7.10 Item 23) |
| 11 | | | - Idle shaft (P/O PL 7.10 Item 23) |
| 12 | | | - Lift plate shaft (P/O PL 7.10 Item |
| 13 | | | - Lift shaft plate (P/O PL 7.10 Item |
| 14 | | | - Pad (P/O PL 7.10 Item 23) |
| 15 | | | - Pick-up mounting bracket (P/O PL |
| 16 | | | - Rack guide (P/O PL 7.10 Item 23) |
| 17 | | | - Rack drive gear (P/O PL 7.10 Item |
| 18 | | | - Sector gear (P/O PL 7.10 Item 23) |
| 19 | | | - Pick-up gear (P/O PL 7.10 Item 23) |
| 20 | | | - Pick-up idle gear (P/O PL 7.10 Item |
| 21 | | | - Tray guide roller (P/O PL 7.10 Item |
| 22 | | | - Media level indicator (P/O PL 7.10 |
| 23 | 050N00562 запросить цену → | | Tray assembly |
| 5 | | | Parts List Revised |
| 1 | | | - Left cover (Not Spared) (REP 7.26) |
| 2 | | | - Left side frame (Not Spared) (REP |
| 3 | | | - Front cover (Not Spared) (REP |
| 4 | | | - Rear tray cover (Not Spared) |
| 5 | | | - Rear cover (Not Spared) (REP |
| 6 | | | - Right side frame (Not Spared) (REP |
| 7 | | | - Right cover (Not Spared) (REP |
| 8 | | | - Clutch cover (Not Spared) |
| 1 | | | - Paper feed assembly (Not Spared) |
| 2 | | | - Rear cover (Not Spared) (REP |
| 3 | | | - Right cover (Not Spared) (REP |
| 4 | | | - Front cover assembly (Not Spared) |
| 5 | | | - Left cover (Not Spared) (REP 7.40) |
| 6 | 002N02988 запросить цену → | | Front cover dummy |
| 7 | | | - Retard cover (Not Spared) |
| 5 | | | Parts List Revised |
| 1 | | | - Base unit (P/O PL 7.25 Item 26) |
| 2 | 017N00295 запросить цену → | | Caster (REP 7.41) |
| 3 | 017N00294 запросить цену → | | Locking caster |
| 4 | | | - Sensor bracket (P/O PL 7.25 Item 26) |
| 5 | 110K14300 запросить цену → | | Size 1 sensor / Size 2 sensor / Size |
| 6 | | | - Safety cover (P/O PL 7.25 Item 26) |
| 7 | 007N01669 запросить цену → | | Reduction gear assembly (REP 7.42) |
| 8 | | | - Lift plate housing (P/O PL 7.25 Item |
| 9 | | | - Left side plate (P/O PL 7.25 Item 26) |
| 10 | 022N02481 запросить цену → | | Paper feeder |
| 11 | | | - Lift plate (lower) (P/O PL 7.25 Item |
| 12 | | | - Lift plate (upper) (P/O PL 7.25 Item |
| 13 | | | - Top plate (P/O PL 7.25 Item 26) (REP |
| 14 | | | - Harness mount (P/O PL 7.25 Item 26) |
| 15 | | | - Harness (P/O PL 7.25 Item 26) |
| 16 | | | - Rear plate (P/O PL 7.25 Item 26) |
| 17 | | | - Right side plate (P/O PL 7.25 Item 26) |
| 18 | 140N63469 запросить цену → | | HCF control board (REP 7.44) |
| 19 | 127N07669 запросить цену → | | Lift motor (see NOTE) (REP 7.45) |
| 20 | 127N07588 запросить цену → | | Feed motor (see NOTE) (REP 7.48) |
| 21 | | | - Feed motor gear bracket (P/O PL |
| 22 | | | - Clutch bracket assembly (P/O PL 7.25 |
| 23 | | | - Bearing (P/O PL 7.25 Item 27) |
| 24 | 121N01206 запросить цену → | | Feed clutch (see NOTE) (REP 7.46) |
| 25 | | | - Clutch shaft (P/O PL 7.25 Item 27) |
| 26 | 059K77920 запросить цену → | | HCF assembly |
| 27 | 121N01205 запросить цену → | | Clutch assembly |
| 28 | 007N01667 запросить цену → | | Feed drive assembly (REP 7.47) |
| 29 | 110N01452 запросить цену → | | Front door interlock switch (see |
| 30 | 140N63395 запросить цену → | | Jumper board |
| 31 | | | - Feed sensor (P/O PL 7.25 Item 26) |
| 1 | | | - Bottom frame (P/O PL 8.10 Item |
| 2 | | | - Top frame (P/O PL 8.10 Item 14) |
| 3 | 022N02480 запросить цену → | | Pick assembly (REP 7.3) |
| 4 | 022N02479 ✓ в наличии | | Seperator roller assembly (REP |
| 5 | | | - Envelope guide (P/O PL 8.10 Item |
| 6 | | | - Release guide (P/O PL 8.10 Item |
| 7 | | | - Top ground (P/O PL 8.10 Item 14) |
| 8 | | | - Ground (P/O PL 8.10 Item 14) |
| 9 | | | - Release ground (P/O PL 8.10 Item |
| 10 | 130N01628 запросить цену → | | No paper sensor (Q07-110) (REP |
| 11 | | | - Feed clutch (CL08-810) (P/O PL |
| 12 | | | - Bearing (P/O PL 8.10 Item 14) |
| 13 | | | - Actuator arm (P/O PL 8.10 Item 14) |
| 14 | 038N00539 запросить цену → | | Tray 1 feeder assembly (REP 7.0) |
| 5 | | | Parts List Revised |
| 1 | | | - Baseplate (P/O PL 8.15 Item 21) |
| 2 | | | - Holder (P/O PL 8.15 Item 21) |
| 3 | | | - Housing (P/O PL 8.15 Item 21) |
| 4 | 120N00541 запросить цену → | | No paper sensor actuator |
| 5 | | | - Duplex feed sensor actuator (P/O |
| 6 | | | - Drive gear (P/O PL 8.15 Item 21) |
| 7 | | | - Paper guide (P/O PL 8.15 Item 21) |
| 8 | | | - Shaft (P/O PL 8.15 Item 21) |
| 9 | | | - Static eliminator (P/O PL 8.15 Item |
| 10 | 022N02232 ✓ в наличии | | Feed roller |
| 11 | | | - Idle forward roller (P/O PL 8.15 |
| 12 | | | - One way gear (P/O PL 8.15 Item |
| 13 | | | - Feed idle gear (P/O PL 8.15 Item |
| 14 | | | - Feed joint gear (P/O PL 8.15 Item |
| 15 | | | - Spring (P/O PL 8.15 Item 21) |
| 16 | | | - Bearing (P/O PL 8.15 Item 21) |
| 17 | | | - Bearing (P/O PL 8.15 Item 21) |
| 18 | | | - Tray up limit switch (P/O PL 8.15 |
| 19 | 130N01628 запросить цену → | | Duplex feed sensor (Q08-700)/ |
| 20 | | | - Not Used |
| 21 | 001N00527 запросить цену → | | Feed assembly |
| 1 | | | - Feed roll frame (P/O PL 8.20 Item |
| 2 | 130N01628 запросить цену → | | Tray 3 no paper sensor (Q07-310), |
| 3 | | | level sensor (Q07-350), Tray |
| 3 | | | - No paper sensor actuator (P/O PL |
| 4 | 022N02232 ✓ в наличии | | Feed roller |
| 5 | | | - Idle gear (P/O PL 8.20 Item 17) |
| 6 | | | - One way gear (P/O PL 8.20 Item |
| 7 | | | - Bearing (P/O PL 8.20 Item 17) |
| 8 | | | - Feed roll shaft (P/O PL 8.20 Item |
| 9 | | | - Static eliminator (P/O PL 8.20 Item |
| 10 | | | - Ground strip (P/O PL 8.20 Item 17) |
| 11 | | | - Feed joint gear (P/O PL 8.20 Item |
| 12 | | | - Idle gear (P/O PL 8.20 Item 17) |
| 13 | | | - Not used |
| 14 | | | - Housing (P/O PL 8.20 Item 17) |
| 15 | | | - Tray up limit switch (P/O PL 8.20 |
| 16 | | | - Bearing (P/O PL 8.20 Item 17) |
| 17 | | | - Feed assembly |
| 5 | | | Parts List Revised |
| 1 | | | - Feed roll frame (P/O PL 8.25 Item |
| 2 | 130N01628 запросить цену → | | No paper sensor (A)(REP 8.50)/ |
| 3 | 120N00541 запросить цену → | | No paper sensor actuator (P/O PL |
| 4 | 022N02232 ✓ в наличии | | Feed roller |
| 5 | | | - Idle gear (P/O PL 8.25 Item 16) |
| 6 | | | - One way gear (P/O PL 8.25 Item |
| 7 | | | - Bearing (P/O PL 8.25 Item 16) |
| 8 | | | - Feed roll shaft (P/O PL 8.25 Item |
| 9 | | | - Static eliminator (P/O PL 8.25 Item |
| 10 | | | - Ground strip (P/O PL 8.25 Item 16) |
| 11 | | | - Feed joint gear (P/O PL 8.25 Item |
| 12 | | | - Idle gear (P/O PL 8.25 Item 16) |
| 13 | | | - Housing (P/O PL 8.25 Item 16) |
| 14 | | | - Tray up limit switch (P/O PL 8.25 |
| 15 | | | - Bearing (P/O PL 8.25 Item 16) |
| 16 | | | - Feed assembly (REP 8.47) |
| 1 | 007N01666 запросить цену → | | Feed drive assembly (REP 8.42) |
| 2 | 005N01116 запросить цену → | | Tray 3 feed clutch (CL08-830), Tray |
| 4 | | | feed clutch (CL08-840), Tray |
| 3 | | | - Bracket (Not Spared) |
| 4 | | | - Bearing (Not Spared) |
| 5 | 005N01085 запросить цену → | | Take away clutch (see NOTE) (REP |
| 6 | | | - Bracket (Not Spared) |
| 7 | 140N63468 запросить цену → | | Feeder board (REP 7.28) |
| 8 | | | - Take away roller (Not Spared) (REP |
| 9 | | | - Size switch (Not Spared) (see |
| 10 | | | - Upper option harness (Not Spared) |
| 11 | | | - Lower option harness (Not Spared) |
| 5 | | | Parts List Revised |
| 1 | 120N00537 запросить цену → | | Lift motor (see NOTE) (REP 7.29) |
| 2 | | | - Lift motor bracket (Not Spared) |
| 3 | | | - Swing housing (Not Spared) |
| 4 | | | - Lift gear (Not Spared) |
| 1 | | | - Feed guide frame (P/O PL 8.40 |
| 2 | | | - Idle roller assembly (P/O PL 8.40 |
| 3 | | | - Feed guide plate (P/O PL 8.40 Item |
| 4 | | | - Paper guide plate (P/O PL 8.40 |
| 5 | | | - Mylar guide (P/O PL 8.40 Item 10) |
| 6 | | | - Ground strip (P/O PL 8.40 Item 10) |
| 7 | 130N01628 запросить цену → | | Tray 3 take away sensor (Q08- |
| 8 | | | - Spring (P/O PL 8.40 Item 10) |
| 9 | | | - Take away sensor actuator (P/O PL |
| 10 | | | - Feed assembly (Not Spared) (REP |
| 5 | | | Parts List Revised |
| 1 | | | - Registration drive roller (P/O PL |
| 2 | | | - Registration idle roller (P/O PL 8.45 |
| 3 | | | - Not Used |
| 4 | | | - Right registration bracket (P/O PL |
| 5 | | | - Left registration bracket (P/O PL |
| 6 | | | - Spring (P/O PL 8.45 Item 12) |
| 7 | | | - Not Used |
| 8 | | | - Not Used |
| 9 | | | - Spring (P/O PL 8.45 Item 12) |
| 10 | | | - Bearing (P/O PL 8.45 Item 12) |
| 11 | | | - Bearing (bronze) (P/O PL 8.45 Item |
| 12 | 105N02192 запросить цену → | | Registration roller assembly (REP |
| 1 | | | - Base frame (P/O PL 8.50 Item 28) |
| 2 | | | - Actuator frame (P/O PL 8.50 Item 28) |
| 3 | | | - Connector board (P/O PL 8.50 Item |
| 4 | | | - Rear transfer ground (P/O PL 8.50 |
| 5 | | | - Saw side ground (P/O PL 8.50 Item |
| 6 | | | - Earth ground (P/O PL 8.50 Item 28) |
| 7 | | | - Spring (P/O PL 8.50 Item 28) |
| 8 | | | - Ground (P/O PL 8.50 Item 28) |
| 9 | | | - ADC sensor holder (P/O PL 8.50 Item |
| 10 | | | - Guide plate (P/O PL 8.50 Item 28) |
| 11 | | | - Shaft (P/O PL 8.50 Item 28) |
| 12 | | | - PMO Bearing (P/O PL 8.50 Item 28) |
| 13 | | | - Exit gear (P/O PL 8.50 Item 28) |
| 14 | | | - Rear transfer guide (P/O PL 8.50 Item |
| 15 | 001N00526 запросить цену → | | Shaft frame assembly (REP 8.16) |
| 16 | | | - Feed sheet (P/O PL 8.50 Item 28) |
| 17 | | | - Registration ground (P/O PL 8.50 |
| 18 | 022N02670 запросить цену → | | Take away roller |
| 19 | | | - Bearing (P/O PL 8.50 Item 28) |
| 20 | | | - Feed frame assembly (P/O PL 8.50 |
| 21 | | | - Feed gear (P/O PL 8.50 Item 28) |
| 22 | | | - Drum cartridge CRUM connector (P/O |
| 23 | | | - Actuator cover (P/O PL 8.50 Item 28) |
| 24 | | | - Harness connector (P/O PL 8.50 Item |
| 25 | 130N01628 запросить цену → | | Registration sensor (Q08-500)(REP |
| 26 | 120N00550 запросить цену → | | Feed sensor actuator (P/O PL 8.50 |
| 27 | 120N00551 запросить цену → | | Registration sensor actuator (P/O PL |
| 28 | | | - Middle frame assembly (Not Spared) |
| 29 | | | - ADC sensor (Not Spared) (REP 9.2) |
| 5 | | | Parts List Revised |
| 1 | | | - Lower LSU frame |
| 2 | | | - Upper fuser frame (P/O PL 8.55 |
| 3 | | | - Left registration bracket (P/O PL |
| 4 | | | - Right registration bracket (P/O PL |
| 5 | | | - LED holder (P/O PL 8.55 Item 9) |
| 6 | | | - Eraser board (P/O PL 8.55 Item 9) |
| 7 | | | - Slide B roller (P/O PL 8.55 Item 9) |
| 8 | | | - Spring (P/O PL 8.55 Item 9) |
| 9 | | | - Upper frame assembly (Not |
| 1 | 113R00762 ✓ в наличии | | Drum cartridge (80K) |
| 2 | 022N02478 ✓ в наличии | | Transfer roller (REP 9.1) |
| 3 | | | - Holder (Not Spared) |
| 4 | | | - Spring (Not Spared) |
| 5 | | | - Retaining clip (Not Spared) |
| 6 | 106R01533 запросить цену → | | NA/XE standard toner cartridge |
| 5 | | | Parts List Revised |
| 1 | | | - Bias contact cover (Not Spared) |
| 2 | 001N00528 запросить цену → | | Pipe assembly (REP 9.7) |
| 3 | 127N07668 запросить цену → | | Left side chassis fan (MOT04-120) |
| 4 | 093N01732 запросить цену → | | Waste toner cartridge |
| 5 | | | - Waste toner full sensor (Not |
| 6 | 130N01628 запросить цену → | | Waste toner cartridge detect sensor |
| 7 | 140N63465 запросить цену → | | Joint board (REP 9.8) |
| 8 | | | - Environmental sensor (Not Spared) |
| 9 | | | - Sensor holder (Not Spared) |
| 1 | 126N00339 запросить цену → | | Fuser assembly (110V) (REP |
| 2 | | | - Thumbscrew (Not Spared) |
| 5 | | | Parts List Revised |
| 1 | | | - Lower bracket (P/O PL 10.10 Item |
| 2 | | | - Cleaning roller assembly (P/O PL |
| 3 | 022N02476 запросить цену → | | Pressure roller (REP 10.16) |
| 4 | 013N13847 запросить цену → | | Roller bearing |
| 5 | | | - Right bracket (P/O PL 10.10 Item 1) |
| 6 | | | - Left bracket (P/O PL 10.10 Item 1) |
| 7 | | | - Cam shaft assembly (P/O PL 10.10 |
| 8 | | | - Bush (P/O PL 10.10 Item 1) |
| 9 | | | - Release cam (P/O PL 10.10 Item 1) |
| 10 | | | - Shaft holder (P/O PL 10.10 Item 1) |
| 11 | | | - Spring (P/O PL 10.10 Item 1) |
| 12 | 022N02477 запросить цену → | | Heat roller (REP 10.15) |
| 13 | 013N13929 запросить цену → | | Heat roller bearing (REP 10.15) |
| 14 | 007N01657 запросить цену → | | Fuser gear (REP 10.14) |
| 15 | | | - Spring clamp (P/O PL 10.10 Item 1) |
| 16 | | | - Upper fuser bracket assembly |
| 17 | 122N00290 запросить цену → | | Heat lamp (110V) (REP 10.13) |
| 18 | | | - Lamp bracket (P/O PL 10.10 Item |
| 19 | | | - Gear bracket (P/O PL 10.10 Item 1) |
| 20 | | | - Upper exit guide (P/O PL 10.10 |
| 21 | | | - AC harness holder (P/O PL 10.10 |
| 22 | | | - Sub AC harness holder (P/O PL |
| 23 | | | - Right cover (P/O PL 10.10 Item 1) |
| 24 | | | - Left cover (P/O PL 10.10 Item 1) |
| 25 | | | - Duplex cover (P/O PL 10.10 Item 1) |
| 26 | | | - Upper cover (P/O PL 10.10 Item 1) |
| 27 | | | - Input guide (P/O PL 10.10 Item 1) |
| 28 | | | - Lower fuser exit guide assembly |
| 29 | | | - Connector (P/O PL 10.10 Item 1) |
| 30 | 130N01628 запросить цену → | | Fuser exit sensor (Q08-600)/ Fuser |
| 1 | | | - Upper bracket (Not Spared) |
| 2 | | | - Thermostat holder (Not Spared) |
| 3 | 130N01561 запросить цену → | | Thermistor NTC (REP 10.11) |
| 4 | | | - Thermostat (Not Spared) (REP |
| 5 | 130N01641 запросить цену → | | Thermistor NTC (side) |
| 6 | 130N01615 запросить цену → | | Thermistor NTC (center) |
| 5 | | | Parts List Revised |
| 1 | | | - Lower exit guide (Not Spared) |
| 2 | | | - Clip (Not Spared) |
| 3 | | | - Spring (Not Spared) |
| 4 | | | - Rear lever (Not Spared) |
| 5 | | | - Actuator holder (Not Spared) |
| 6 | | | - Fuser exit sensor actuator (Not |
| 7 | | | - Actuator spring (Not Spared) |
| 8 | | | - Upper fuser exit roller (Not Spared) |
| 9 | | | - Duplex exit gear (Not Spared) |
| 1 | | | - Duplex lower frame (P/O PL 10.25 |
| 2 | | | - Duplex upper frame (P/O PL 10.25 |
| 3 | | | - Duplex align guide (P/O PL 10.25 |
| 4 | | | - Bottom duplex ground (P/O PL |
| 5 | | | - Duplex feed brush ground (P/O PL |
| 6 | | | - Duplex gasket ground (P/O PL |
| 7 | | | - PTT label (P/O PL 10.25 Item 26) |
| 8 | | | - Information label (P/O PL 10.25 |
| 9 | | | - Cassette cover (P/O PL 10.25 Item |
| 10 | | | - Tension spring (P/O PL 10.25 Item |
| 11 | 023N01051 запросить цену → | | Timing belt (REP 10.19) |
| 12 | | | - M-feed bush (P/O PL 10.25 Item |
| 13 | | | - Conductive gasket (P/O PL 10.25 |
| 14 | | | - P terminal ground (P/O PL 10.25 |
| 15 | | | - Exit F gear (P/O PL 10.25 Item 26) |
| 16 | | | - Idle roll shaft (P/O PL 10.25 Item |
| 17 | | | - Pulley-18 (P/O PL 10.25 Item 26) |
| 18 | | | - Pulley-M-18-dummy (P/O PL 10.25 |
| 19 | | | - Idle roller (P/O PL 10.25 Item 26) |
| 20 | | | - Static eliminator (P/O PL 10.25 Item |
| 21 | | | - Paper guide stud (P/O PL 10.25 |
| 22 | | | - Sponge cover (P/O PL 10.25 Item |
| 23 | | | - ELA unit roller 1 (P/O PL 10.25 Item |
| 24 | | | - ELA unit roller 2 (P/O PL 10.25 Item |
| 25 | 130N01628 запросить цену → | | Duplex unit detect sensor (REP |
| 26 | 022N02484 запросить цену → | | Duplex unit assembly (REP 10.1) |
| 5 | | | Parts List Revised |
| 1 | | | - Exit frame (P/O PL 10.30 Item 25) |
| 2 | | | - Exit chute (P/O PL 10.30 Item 25) |
| 3 | | | - Stacking lever (P/O PL 10.30 Item |
| 4 | | | - Deflector guide (P/O PL 10.30 Item |
| 5 | | | - Exit roller ground (P/O PL 10.30 |
| 6 | | | - Exit ground (P/O PL 10.30 Item 25) |
| 7 | | | - Upper exit roller (P/O PL 10.30 Item |
| 8 | | | - Lower exit roller (P/O PL 10.30 Item |
| 9 | 130N01628 запросить цену → | | Stack full sensor (Q08-720) (REP |
| 10 | | | - Spring (P/O PL 10.30 Item 25) |
| 11 | | | - Bearing (P/O PL 10.30 Item 25) |
| 12 | | | - Bearing (P/O PL 10.30 Item 25) |
| 13 | | | - Bearing (P/O PL 10.30 Item 25) |
| 14 | | | - Rear bracket (P/O PL 10.30 Item |
| 15 | | | - Damper pad (P/O PL 10.30 Item |
| 16 | | | - Duplex exit gear (P/O PL 10.30 |
| 17 | | | - Upper exit gear (P/O PL 10.30 Item |
| 18 | | | - Lower exit gear (P/O PL 10.30 Item |
| 19 | | | - Static eliminator (P/O PL 10.30 Item |
| 20 | | | - Stacking lever sponge (P/O PL |
| 21 | | | - Exit roller cap (P/O PL 10.30 Item |
| 22 | | | - Duplex roller (P/O PL 10.30 Item |
| 23 | 007N01660 запросить цену → | | Exit drive assembly (REP 10.32) |
| 24 | | | - Upper option connector (Not |
| 25 | 022N02483 запросить цену → | | Exit assembly (REP 10.6) |
| 1 | | | - Left cover (Not Spared) (REP 11.2) |
| 2 | | | - Right cover (Not Spared) (REP |
| 3 | | | - Top cover (Not Spared) |
| 4 | | | - Output tray assembly (Not Spared) |
| 5 | | | - Rear door (Not Spared) (REP 11.4) |
| 6 | | | - Connector cover (Not Spared) |
| 7 | | | - Base plate (Not Spared) |
| 5 | | | Parts List Revised |
| 1 | 140N63470 запросить цену → | | Control board (REP 11.5) |
| 2 | | | - Control board bracket (Not Spared) |
| 3 | | | - Mounting bracket (Not Spared) |
| 4 | | | - Mailbox option harness (Not |
| 1 | 127N07670 запросить цену → | | Transport motor (MOT12-120) |
| 2 | | | - Grounding strip (Not Spared) |
| 3 | | | - Motor bracket (Not Spared) |
| 4 | 023N01282 запросить цену → | | Primary drive belt (REP 11.6) |
| 5 | 023N01281 запросить цену → | | Drive belt (REP 11.6) |
| 5 | | | Parts List Revised |
| 1 | 127N07671 запросить цену → | | Upper diverter drive assembly |
| 2 | | | - Upper diverter home position |
| 3 | | | - Not used |
| 4 | | | - Cam gear (Not Spared) |
| 5 | | | - Exit gate cam follower (Not Spared) |
| 6 | | | - Exit gate actuator (Not Spared) |
| 7 | | | - Mounting bracket (Not Spared) |
| 8 | | | - Bearing (Not Spared) |
| 9 | | | - Cam follower spring (Not Spared) |
| 1 | | | - Harness cover assembly (Not |
| 2 | | | - Harness cover (Not Spared) |
| 3 | | | - Magnet (Not Spared) |
| 4 | | | - Rear door interlock switch (S12- |
| 5 | | | - Top stacker shield (Not Spared) |
| 6 | | | - Static eliminator (Not Spared) |
| 7 | | | - Stacker full actuator (Not Spared) |
| 8 | | | - Idle feed roll assembly (Not Spared) |
| 9 | | | - Idle feed roll (Not Spared) |
| 10 | | | - Pin (Not Spared) |
| 11 | | | - Spring (Not Spared) |
| 12 | | | - Stack full sensor assembly (Not |
| 13 | | | - Output tray 1 stack full sensor |
| 14 | | | - Sensor bracket (Not Spared) |
| 5 | | | Parts List Revised |
| 1 | | | - Stacker shield (Not Spared) |
| 2 | | | - Tray 1 stacker empty sensor (Q12- |
| 3 | | | stacker full sensor (Q12-930), |
| 3 | | | - Actuator shaft (Not Spared) |
| 4 | | | - Spring (Not Spared) |
| 5 | | | - Stacker empty actuator (Not |
| 6 | | | - Exit feed actuator (Not Spared) |
| 7 | | | - Spring (Not Spared) |
| 8 | | | - Stacker sensor bracket (Not |
| 9 | | | - Idle feed roll assembly (Not Spared) |
| 10 | | | - Idle feed shaft (Not Spared) |
| 11 | | | - Idle feed roll (Not Spared) |
| 12 | | | - Spring guide (Not Spared) |
| 13 | | | - Feed guide (Not Spared) |
| 14 | | | - Static eliminator (Not Spared) |
| 15 | | | - Stacker full actuator (Not Spared) |
| 16 | | | - Harness (Not Spared) |
| 1 | | | - Bottom shield (Not Spared) |
| 2 | | | - Entrance feed sensor (Q12-905)/ |
| 3 | | | - Entrance actuator assembly (Not |
| 4 | | | - Shaft (Not Spared) |
| 5 | | | - Entrance feed actuator (Not |
| 6 | | | - Spring (Not Spared) |
| 7 | | | - Stacker actuator shaft (Not Spared) |
| 8 | | | - Spring (tray empty) (Not Spared) |
| 9 | | | - Stacker empty actuator (Not |
| 10 | | | - Exit feed actuator (Not Spared) |
| 11 | | | - Spring (paper path) (Not Spared) |
| 12 | | | - Harness (Not Spared) |
| 5 | | | Parts List Revised |
| 1 | | | - Left cover (Not Spared) (REP 12.1) |
| 2 | | | - Right cover (Not Spared) (REP |
| 3 | | | - Option connector cover (Not |
| 4 | | | - Rear door (Not Spared) (REP |
| 5 | | | - Bearing (Not Spared) |
| 6 | | | - Top cover (Not Spared) (REP |
| 1 | | | - Control board bracket (Not Spared) |
| 2 | 140N63471 запросить цену → | | Control board (REP 12.2) |
| 3 | | | - Stacker full sensor (Q12-845) (Not |
| 5 | | | Parts List Revised |
| 1 | 050N00559 запросить цену → | | Stacker shield assembly (REP |
| 2 | | | - Stacker tray (P/O PL 12.20 Item 1) |
| 3 | | | - Left guide (P/O PL 12.20 Item 1) |
| 4 | | | - Right guide (P/O PL 12.20 Item 1) |
| 5 | | | - Bearing (P/O PL 12.20 Item 1) |
| 6 | | | - Gear (P/O PL 12.20 Item 1) |
| 7 | | | - Shaft (P/O PL 12.20 Item 1) |
| 8 | | | - Guide roll (P/O PL 12.20 Item 1) |
| 1 | 007N01668 запросить цену → | | Stacker drive assembly (REP |
| 2 | | | - Bearing (P/O PL 12.25 Item 1) |
| 3 | | | - Collar (P/O PL 12.25 Item 1) |
| 4 | | | - Shaft (P/O PL 12.25 Item 1) |
| 5 | | | - Mounting bracket (P/O PL 12.25 |
| 6 | | | - Idle shaft (P/O PL 12.25 Item 1) |
| 7 | | | - Idle gear (P/O PL 12.25 Item 1) |
| 8 | | | - Transport motor (P/O PL 12.25 |
| 9 | | | - Drive gear (P/O PL 12.25 Item 1) |
| 10 | | | - Drive belt (P/O PL 12.25 Item 1) |
| 11 | | | - Securing bracket (P/O PL 12.25 |
| 5 | | | Parts List Revised |
| 1 | | | - Extension tray assembly (Not |
| 2 | | | - Clip (P/O PL 12.30 Item 1) |
| 3 | | | - Tray (P/O PL 12.30 Item 1) |
| 4 | | | - Right bracket (P/O PL 12.30 Item 1) |
| 5 | | | - Roller (P/O PL 12.30 Item 1) |
| 6 | | | - Link arm (P/O PL 12.30 Item 1) |
| 7 | | | - Idle gear (P/O PL 12.30 Item 1) |
| 8 | | | - Drive belt (P/O PL 12.30 Item 1) |
| 9 | | | - Drive gear (P/O PL 12.30 Item 1) |
| 10 | | | - Actuator (P/O PL 12.30 Item 1) |
| 11 | | | - Mounting plate (P/O PL 12.30 Item |
| 12 | | | - Drive motor (MOT12-400) (P/O PL |
| 13 | | | - Left bracket (P/O PL 12.30 Item 1) |
| 14 | | | - Support finger home sensor (Q12- |
| 1 | 022N02482 запросить цену → | | Compile tray assembly (REP |
| 2 | | | - Left guide (P/O PL 12.35 Item 1) |
| 3 | | | - Right guide (P/O PL 12.35 Item 1) |
| 4 | | | - Mylar guide (P/O PL 12.35 Item 1) |
| 5 | | | - Left rack (P/O PL 12.35 Item 1) |
| 6 | | | - Right rack (P/O PL 12.35 Item 1) |
| 7 | | | - Static eliminator (P/O PL 12.35 Item |
| 8 | | | - Compile tray (P/O PL 12.35 Item 1) |
| 9 | | | - Idle roll (P/O PL 12.35 Item 1) |
| 10 | 130N01628 запросить цену → | | Left tamper home position sensor |
| 11 | | | - Exit sensor actuator (P/O PL 12.35 |
| 12 | | | - Spring (P/O PL 12.35 Item 1) |
| 13 | | | - Drive gear (P/O PL 12.35 Item 1) |
| 14 | | | - Not used |
| 15 | | | - Tamper link arm (P/O PL 12.35 |
| 16 | | | - Shaft (P/O PL 12.35 Item 1) |
| 17 | | | - Not used |
| 18 | | | - Mounting bracket (P/O PL 12.35 |
| 19 | | | - Right tamper motor (MOT12-300)/ |
| 5 | | | Parts List Revised |
| 1 | | | - Transport drive assembly (Not |
| 2 | | | - Front frame (P/O PL 12.40 Item 1) |
| 3 | | | - Rear frame (P/O PL 12.40 Item 1) |
| 4 | | | - Feed roll 1 (P/O PL 12.40 Item 1) |
| 5 | | | - Feed roll 2 (P/O PL 12.40 Item 1) |
| 6 | | | - Feed roll 3 (P/O PL 12.40 Item 1) |
| 7 | | | - Feed roll 4 (P/O PL 12.40 Item 1) |
| 8 | | | - Transport motor (MOT12-110) (P/O |
| 9 | | | - Bracket (P/O PL 12.40 Item 1) |
| 10 | | | - Entrance motor (MOT12-100) (P/O |
| 11 | | | - Bearing (P/O PL 12.40 Item 1) |
| 12 | | | - Drive gear (P/O PL 12.40 Item 1) |
| 13 | | | - Idle pulley (P/O PL 12.40 Item 1) |
| 14 | | | - Idle gear (P/O PL 12.40 Item 1) |
| 15 | | | - Motor bracket (P/O PL 12.40 Item |
| 16 | 023N01283 запросить цену → | | Entrance drive belt (REP 12.8) |
| 17 | | | - Transport drive belt (P/O PL 12.40 |
| 18 | | | - Exit gate sensor (Q12-900)()/ |
| 19 | | | - Exit gate sensor actuator (P/O PL |
| 20 | | | - Actuator bearing (P/O PL 12.40 |
| 21 | | | - Plastic washer (P/O PL 12.40 Item |
| 22 | | | - Lower drive gear (P/O PL 12.40 |
| 23 | | | - Bearing (P/O PL 12.40 Item 1) |
| 24 | | | - Lower idle gear (P/O PL 12.40 Item |
| 25 | | | - Exit gate cam shaft (P/O PL 12.40 |
| 26 | | | - Cam (P/O PL 12.40 Item 1) |
| 27 | | | - Spring (P/O PL 12.40 Item 1) |
| 28 | | | - Lower frame (P/O PL 12.40 Item 1) |
| 29 | | | - Entrance sensor actuator (P/O PL |
| 30 | | | - Inner rear cover (P/O PL 12.40 Item |
| 31 | 023N01284 запросить цену → | | Rear drive belt |
| 32 | | | - Ground strip (P/O PL 12.40 Item 1) |
| 1 | 029N00417 запросить цену → | | Stapler assembly (REP 12.14) |
| 2 | | | - Stapler bracket (P/O PL 12.45 Item |
| 3 | | | - Stapler (P/O PL 12.45 Item 1) |
| 4 | | | - Staple cartridge door interlock |
| 5 | | | - Staple interlock switch (S12-890) |
| 5 | | | Parts List Revised |
| 1 | 002N02984 запросить цену → | | Left cover (REP 28.3) |
| 2 | 002N03024 запросить цену → | | Waste toner box cover |
| 3 | 002N02996 запросить цену → | | Rear door assembly (REP 28.1) |
| 4 | 002N02986 запросить цену → | | Right cover (REP 28.2) |
| 5 | 002N02995 запросить цену → | | Front cover assembly (REP 28.4) |
| 6 | 002N02985 запросить цену → | | MCU board cover (REP 28.1) |
| 7 | | | - Top cover (REF: PL 28.15) (REP |
| 8 | | | - Right fan cover (Not Spared) |
| 10 | 035N00428 запросить цену → | | Right seal filter |
| 11 | | | - Rear support bracket (Not Spared) |
| 1 | 002N02981 запросить цену → | | Top cover |
| 2 | 130N01558 запросить цену → | | Top door interlock switch (Q01-100) |
| 3 | | | - Hinge stopper (P/O PL 28.15 Item |
| 4 | | | - Harness cover (P/O PL 28.15 Item |
| 5 | | | - Control panel assembly (REF: PL |
| 6 | | | - Top door (P/O PL 28.15 Item 9) |
| 7 | | | - Exit gate actuator (P/O PL 28.15 |
| 8 | | | - Stacker guide (P/O PL 28.15 Item |
| 9 | 002N03100 запросить цену → | | Top cover assembly (4600) |
| 5 | | | Parts List Revised |
| 1 | | | - Front cover assembly (REF: PL |
| 2 | | | - Front cover |
| 3 | | | - Tray 1 cover (P/O PL 28.20 Item 1) |
| 4 | | | - Tray 1 paper guide asembly (P/O |
| 5 | 002N02991 запросить цену → | | Tray 1 stacker |
| 6 | | | - Tray 1 extension tray (P/O PL 28.20 |
| 7 | | | - USB host holder (P/O PL 28.20 |
| 8 | 140N63464 запросить цену → | | USB host board (4600/4620) (REP |
| 1 | | | - Rear door assembly (REF: PL |
| 2 | | | - Rear cover |
| 3 | | | - Rear guide (P/O PL 28.15 Item 1) |
| 4 | | | - Exit guide (P/O PL 28.15 Item 1) |
| 5 | | | - Rear left locker (P/O PL 28.15 Item |
| 6 | | | - Rear right locker (P/O PL 28.15 |
| 7 | | | - Spring (P/O PL 28.15 Item 1) |
| 8 | | | - Handle bracket (P/O PL 28.15 Item |
| 9 | | | - Rear cover handle (P/O PL 28.15 |
| 10 | | | - Handle sponge (P/O PL 28.15 Item |
| 11 | | | - Locker handle (P/O PL 28.15 Item |
| 12 | | | - Not Used |
| 13 | 127N07668 запросить цену → | | Rear door fan (MOT10-500) (REP |
| 14 | | | - Tension spring (P/O PL 28.15 Item |
| 15 | | | - Roller (P/O PL 28.15 Item 1) |
| 16 | | | - Idle shaft (P/O PL 28.15 Item 1) |
| 17 | | | - Damper pad (P/O PL 28.15 Item 1) |
| 18 | | | - Female bracket (P/O PL 28.15 Item |
| 19 | | | - Rear door switch (Q01-300) (P/O |
| 5 | | | Parts List Revised |
