Содержание
- 1. Symbology A Tag number within a circle having a shaded bar and pointing to an item number shows that
- 2. PL 2.9 Envelope Tray Assembly

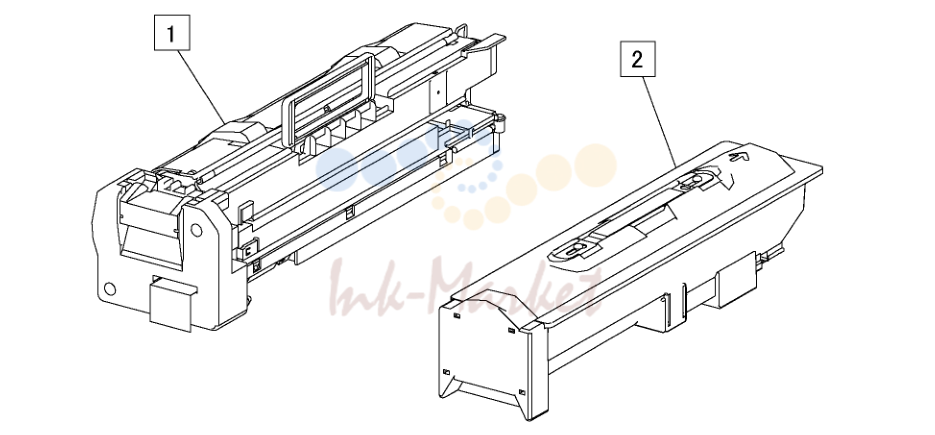

- 3. PL 4.1 CRU, Toner Cartridge

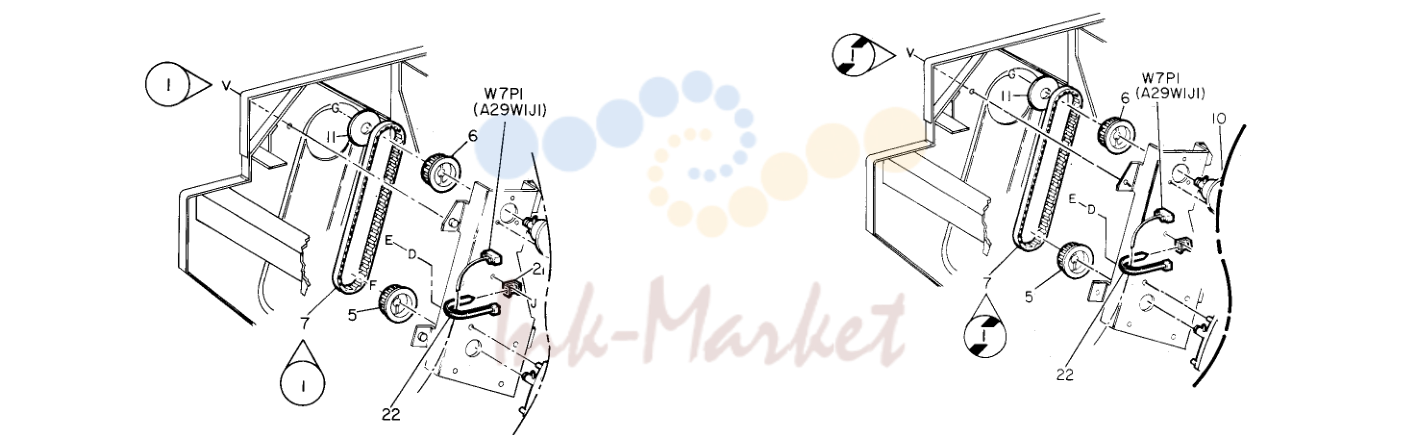

1. Symbology A Tag number within a circle having a shaded bar and pointing to an item number shows that
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Collar (P/O PL 1.1 Item 10) | ||
| 2 | - Gear (21/21T) (P/O PL 1.1 Item 10) | ||
| 3 | - Gear (18T) (P/O PL 1.1 Item 10) | ||
| 4 | - Gear (21T) (P/O PL 1.1 Item 10) | ||
| 5 | - Belt (P/O PL 1.1 Item 10) | ||
| 6 | 007K88585 запросить цену → | Main Drive Unit | |
| 7 | - Main Drive Assembly (P/O PL 1.1 | ||
| 8 | - Pulley (P/O PL 1.1 Item 6, 10) | ||
| 9 | 005E17860 запросить цену → | Flange | |
| 10 | 604K20500 запросить цену → | Drive Gear Kit | |
| 1 | 003E61510 запросить цену → | Stopper | |
| 2 | - Spacer (Not Spared) | ||
| 3 | 050K61180 запросить цену → | Tray Assembly | |
| 4 | 110K12100 запросить цену → | Tray 1 Paper Size Switch, Tray | |
| 5 | - Bracket (Not Spared) | ||
| 6 | 054K24091 запросить цену → | Feed Out Chute | |
| 7 | 059K42524 запросить цену → | Feeder 1 Assembly, Feeder | |
| 8 | - Slide Look (Not Spared) | ||
| 9 | 054E25722 запросить цену → | Feed Out Chute | |
| 10 | - Label Tray 1, Label Tray 2 (P/O PL | ||
| 11 | - Label Size (Not Spared) | ||
| 12 | - Label (Instruction) (P/O PL 2.1 Item | ||
| 13 | 604K20550 запросить цену → | Tray Label Kit | |
| 1 | - Stopper (P/O PL 2.1 Item 3) | ||
| 2 | - (SCC) Tray Cover (P/O PL 2.1 Item | ||
| 3 | - Seal (P/O PL 2.1 Item 3) | ||
| 4 | - Label (Max) (P/O PL 2.1 Item 3) | ||
| 5 | - Bottom Pad (P/O PL 2.1 Item 3) | ||
| 6 | - Front Side Guide (P/O PL 2.1 Item | ||
| 7 | 604K20541 запросить цену → | Tray Gear Kit | |
| 8 | - Tray Pad (P/O PL 2.1 Item 3) | ||
| 9 | - Rear Side Guide (P/O PL 2.1 Item | ||
| 10 | - Bottom Plate (P/O PL 2.1 Item 3) | ||
| 11 | - Tray (P/O PL 2.1 Item 3) | ||
| 12 | - Side Guide Actuator (P/O PL 2.1 | ||
| 13 | - Guide Actuator (P/O PL 2.1 Item 3) | ||
| 14 | - Spring (P/O PL 2.1 Item 3) | ||
| 15 | - Pinion Gear (P/O PL 2.1 Item 3) | ||
| 16 | - End Guide (P/O PL 2.1 Item 3) | ||
| 17 | - Spring (P/O PL 2.1 Item 3) | ||
| 18 | - End Guide Actuator (P/O PL 2.1 | ||
| 19 | - Link (P/O PL 2.1 Item 3) | ||
| 20 | - Coupling Gear (P/O PL 2.2 Item 7) | ||
| 21 | - Gear (13T/60T) (P/O PL 2.2 Item 7) | ||
| 22 | - Sector Gear (P/O PL 2.2 Item 7) | ||
| 23 | - Bracket (P/O PL 2.1 Item 3) | ||
| 24 | - Lift Up Shaft (P/O PL 2.1 Item 3) | ||
| 1 | - Upper Frame (P/O PL 2.1 Item 7) | ||
| 2 | 127K38171 запросить цену → | Tray 1/2 Feed/Lift Up Motor | |
| 3 | - Bracket (P/O PL 2.1 Item 7) | ||
| 4 | - Spacer (P/O PL 2.1 Item 7) | ||
| 5 | - Gear (31T) (P/O PL 2.1 Item 7) | ||
| 6 | - Spring (P/O PL 2.1 Item 7) | ||
| 7 | - Oneway Clutch (P/O PL 2.1 Item 7) | ||
| 8 | - Oneway Gear (P/O PL 2.1 Item 7) | ||
| 9 | - Gear (13T) (P/O PL 2.1 Item 7) | ||
| 10 | - Bearing (P/O PL 2.1 Item 7) | ||
| 11 | - Shaft (P/O PL 2.1 Item 7) | ||
| 12 | - Front Chute (P/O PL 2.1 Item 7) | ||
| 13 | 120E22481 запросить цену → | Actuator | |
| 14 | 930W00113 запросить цену → | Tray 1/2 Level Sensor, Tray 1/2 No | |
| 15 | 113E37571 запросить цену → | Harness Holder | |
| 16 | 962K19692 запросить цену → | Wire Harness | |
| 17 | - Gear (28T/21T) (P/O PL 2.1 Item 7) | ||
| 18 | - Gear (29T) (P/O PL 2.1 Item 7) | ||
| 19 | - Spring (P/O PL 2.1 Item 7) | ||
| 20 | - Feed Roll (P/O PL 2.3 Item 40) | ||
| 21 | 005K05890 ✓ в наличии | Oneway Clutch | |
| 22 | 005K06760 запросить цену → | Oneway Gear (22T) | |
| 23 | - Shaft (P/O PL 2.1 Item 7) | ||
| 24 | - Chute (P/O PL 2.1 Item 7) | ||
| 25 | - Spring (P/O PL 2.1 Item 7) | ||
| 26 | 005K81880 запросить цену → | Friction Clutch | |
| 27 | - Support (P/O PL 2.1 Item 7) | ||
| 28 | - Retard Roll (P/O PL 2.3 Item 40) | ||
| 29 | - Spacer (P/O PL 2.1 Item 7) | ||
| 30 | - Gear (33T) (P/O PL 2.1 Item 7) | ||
| 31 | - Support Assembly (P/O PL 2.1 Item | ||
| 32 | - Nudger Roll (P/O PL 2.3 Item 40) | ||
| 33 | - Gear (25T) (P/O PL 2.1 Item 7) | ||
| 34 | - Lower Frame (P/O PL 2.1 Item 7) | ||
| 35 | - Bearing (P/O PL 2.1 Item 7) | ||
| 36 | - Gear (34T) (P/O PL 2.1 Item 7) | ||
| 37 | - Lever (P/O PL 2.1 Item 7) | ||
| 38 | - Bearing (P/O PL 2.1 Item 7) | ||
| 39 | - Washer (P/O PL 2.1 Item 7) | ||
| 40 | 604K20360 ✓ в наличии | Tray Feed Roller Kit (3/Kit) (REP | |
| 1 | 054K35390 запросить цену → | Chute | |
| 2 | 013E26760 запросить цену → | Bearing | |
| 3 | 054E23940 запросить цену → | Registration Chute | |
| 4 | 059E98590 ✓ в наличии | Idler Roll | |
| 5 | 059K31021 ✓ в наличии | Registration Roll | |
| 6 | 121K32660 запросить цену → | Registration Roll | |
| 7 | 130K64270 ✓ в наличии | Registration Sensor | |
| 8 | - Earth Plate (Not Spared) | ||
| 9 | - Bracket (Not Spared) | ||
| 10 | 054K23940 ✓ в наличии | Chute Assembly | |
| 11 | 013E26060 запросить цену → | Bearing | |
| 12 | 013E26091 запросить цену → | Bearing | |
| 13 | - Shaft (Not Spared) | ||
| 14 | 121K32730 ✓ в наличии | Takeaway Roll Clutch (Alternate) | |
| 15 | 007E79320 запросить цену → | Gear (19T) (23/28CPM) | |
| 16 | - Wire Harness (Not Spared) | ||
| 1 | 015K73510 запросить цену → | Gear Assembly | |
| 2 | - Bracket Assembly (P/O PL 2.5 Item | ||
| 3 | - L/H Lower Cover Interlock Switch | ||
| 4 | - Cap (Not Spared) | ||
| 5 | - Lower Chute (Not Spared) | ||
| 6 | 059K26840 запросить цену → | Takeaway Roll (REP 2.5.1) | |
| 7 | - Handle (Not Spared) | ||
| 8 | - Bracket (Not Spared) | ||
| 9 | - Bearing (Not Spared) | ||
| 10 | - Bearing (Not Spared) | ||
| 11 | 059E98371 запросить цену → | Pinch Roller | |
| 12 | - Gear (31T) (P/O PL 2.5 Item 1) | ||
| 13 | - Spring (Not Spared) | ||
| 14 | - Spring (Not Spared) | ||
| 15 | - Gear (22T) (P/O PL 2.5 Item 1) | ||
| 16 | - Earth Plate (Not Spared) | ||
| 17 | 802E55701 запросить цену → | L/H Lower Cover | |
| 18 | - Spring (Not Spared) | ||
| 19 | 007E79270 запросить цену → | Gear (18T) | |
| 20 | 013E29830 запросить цену → | Bearing | |
| 21 | 013E30110 запросить цену → | Bearing | |
| 22 | - Gear (21T) (P/O PL 2.5 Item 1) | ||
| 23 | - Gear (23T) (P/O PL 2.5 Item 1) | ||
| 1 | 012K94341 ✓ в наличии | Link Assembly | |
| 2 | 802K81270 ✓ в наличии | BTR Roll Assembly | |
| 3 | - Lever (Rear) (P/O PL 2.6 Item 2) | ||
| 4 | - Lever (Front) (P/O PL 2.6 Item 2) | ||
| 5 | - Bearing (P/O PL 2.6 Item 2) | ||
| 6 | - BTR Roll (P/O PL 2.6 Item 2) (REP | ||
| 7 | - Housing (P/O PL 2.6 Item 2) | ||
| 8 | - Spring (P/O PL 2.6 Item 2) | ||
| 9 | - Spring (P/O PL 2.6 Item 2) | ||
| 10 | 054K24055 ✓ в наличии | L/H Upper Chute Assembly | |
| 11 | 802K88890 запросить цену → | L/H Upper Cover Assembly | |
| 12 | - Stud (Not Spared) | ||
| 13 | - Bracket (Not Spared) | ||
| 14 | 802K49240 запросить цену → | Wire Assembly | |
| 15 | 110E94770 запросить цену → | L/H Cover Inter Lock Switch | |
| 16 | - Label 220V (Not Spared) | ||
| 17 | - Label 110V (Not Spared) | ||
| 18 | - Screw (Not Spared) | ||
| 1 | - Bearing (P/O PL 2.6 Item 10) | ||
| 2 | - Earth Plate (P/O PL 2.6 Item 10) | ||
| 3 | - Guide (P/O PL 2.6 Item 10) | ||
| 4 | - L/H Chute (P/O PL 2.6 Item 10) | ||
| 5 | - Eliminator (P/O PL 2.6 Item 10) | ||
| 6 | - Spring Contact (P/O PL 2.6 Item | ||
| 7 | - Spring Chute (P/O PL 2.6 Item 10) | ||
| 8 | - Pinch Roll (P/O PL 2.6 Item 10) | ||
| 9 | - Spring (P/O PL 2.6 Item 10) | ||
| 10 | - Spring (P/O PL 2.6 Item 10) | ||
| 11 | - Plate (P/O PL 2.6 Item 10) | ||
| 12 | - Guide (P/O PL 2.6 Item 10) | ||
| 1 | 003E59833 запросить цену → | Handle | |
| 2 | - Xerographics/Developer Cartridge | ||
| 3 | - Handle Guide (P/O PL 2.6 Item 11) | ||
| 4 | 054E23950 запросить цену → | L/H Cover Chute | |
| 5 | 054K30770 запросить цену → | Chute Assembly | |
| 6 | - Frame (P/O PL 2.6 Item 11) | ||
| 7 | 802K86921 запросить цену → | L/H Upper Cover (P/O PL 2.6 Item | |
| 8 | - Spring (P/O PL 2.6 Item 11) | ||
| 9 | 849E13981 запросить цену → | Support |

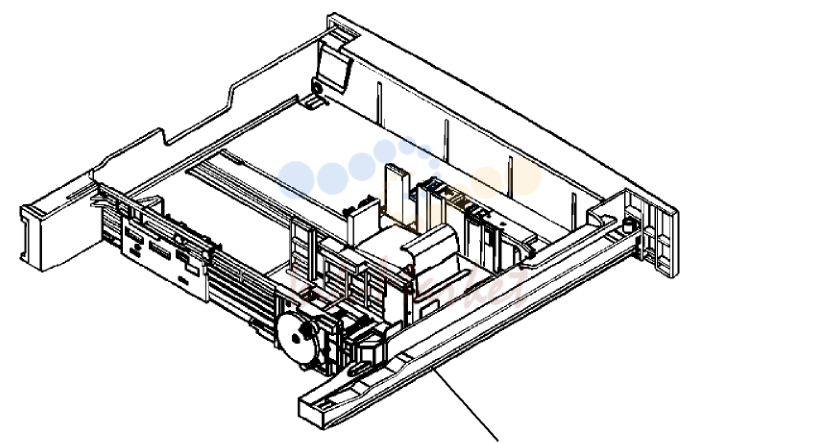

2. PL 2.9 Envelope Tray Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 062K13584 запросить цену → | ROS Unit (REP 3.1.1) | |
| 2 | 927W00111 запросить цену → | ROS Fan | |
| 3 | - Bracket (Not Spared) | ||
| 4 | - Connector (Not Spared) |
Каталог очень большой (1923 позиций). Показаны первые 2 узлов со схемами; полный список доступен по запросу.
