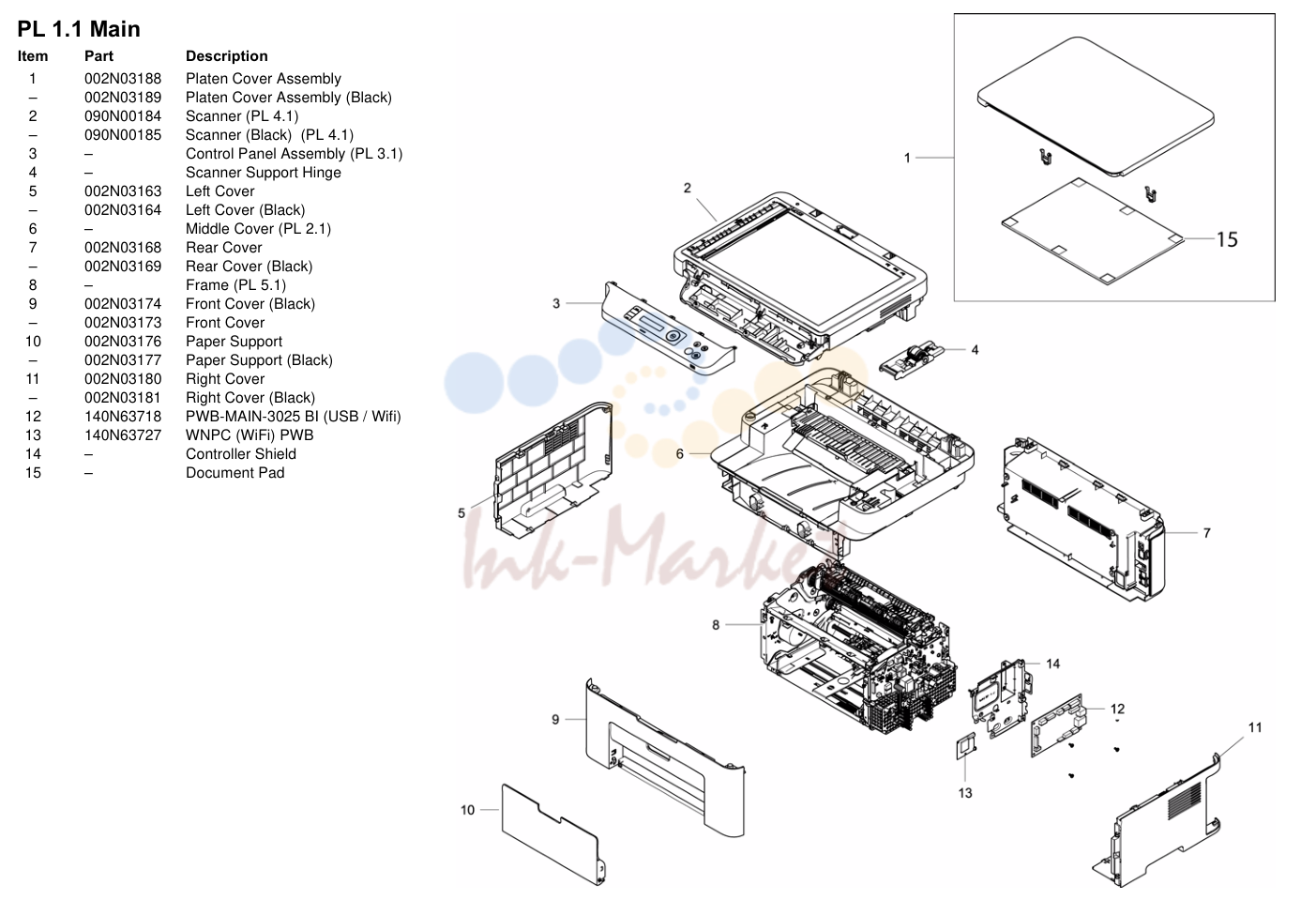

| 1 | 002N03188 запросить цену → | | Platen Cover Assembly |
| 2 | 090N00184 запросить цену → | | Scanner (PL 4.1) |
| 3 | | | - Control Panel Assembly (PL 3.1) |
| 4 | | | - Scanner Support Hinge |
| 5 | 002N03163 запросить цену → | | Left Cover |
| 6 | | | - Middle Cover (PL 2.1) |
| 7 | 002N03168 запросить цену → | | Rear Cover |
| 8 | | | - Frame (PL 5.1) |
| 9 | 002N03174 запросить цену → | | Front Cover (Black) |
| 10 | 002N03176 запросить цену → | | Paper Support |
| 11 | 002N03180 запросить цену → | | Right Cover |
| 12 | 140N63718 запросить цену → | PWB-MAIN-3025 | BI (USB / Wifi) |
| 13 | 140N63727 запросить цену → | | WNPC (WiFi) PWB |
| 14 | | | - Controller Shield |
| 15 | | | - Document Pad |
| 1 | 022N02799 запросить цену → | | ADF (PL 1.3) |
| 2 | 050N00680 запросить цену → | | Document Pad |
| 3 | 003N01117 запросить цену → | | Hinge |
| 4 | 090N00183 запросить цену → | | Scanner (PL4.2) |
| 5 | | | - Control Panel (PL 3.2) |
| 6 | | | - Scanner Support Hinge |
| 7 | 002N03163 запросить цену → | | Left Cover |
| 8 | | | - Middle Cover (PL 2.1) |
| 9 | 002N03168 запросить цену → | | Rear Cover |
| 10 | | | - Frame (PL 5.1) |
| 11 | 002N03173 запросить цену → | | Front Cover |
| 12 | 002N03176 запросить цену → | | Paper Support |
| 13 | 002N03180 запросить цену → | | Right Cover |
| 14 | | | - FAX Board Cover |
| 15 | 140N63726 запросить цену → | | Fax PWB |
| 16 | 140N63717 запросить цену → | PWB-MAIN-3025 | NI (NW / Wifi) |
| 17 | 140N63727 запросить цену → | | WNPC (WiFi) PWB |
| 18 | | | - Speaker |
| 19 | | | - Controller Shield |
| 20 | 005N01172 запросить цену → | | Surge Protector (South Africa Only) |
| 1 | 022N02801 ✓ в наличии | | ADF Feed Roll Assembly |
| 2 | 127N07864 запросить цену → | | ADF Drive Motor |
| 3 | 022N02800 ✓ в наличии | | ADF Separation Pad |
| 1 | | | - Jam Clearance Cover Assembly |
| 2 | | | - Exit Jam Clearance Cover |
| 3 | | | - Top Cover Closed Switch Actuator |
| 4 | | | - Spring |
| 5 | | | - Latch |
| 6 | | | - Spring |
| 7 | | | - Middle Cover |
| 8 | 002N03185 запросить цену → | | Middle Cover Assembly |
| 9 | | | - Output Tray |
| 10 | | | - Output Support |
| 1 | | | - Cover |
| 2 | 140N63724 запросить цену → | | Control Panel PWB |
| 3 | | | - Key Holder Cover |
| 4 | | | - LCD Cover |
| 5 | | | - LED Status Indicator |
| 6 | | | - Power Key |
| 7 | | | - Stop Key |
| 8 | | | - Power Saver Key |
| 9 | | | - Start Key |
| 10 | 140N63732 запросить цену → | | Control Panel Assembly |
| 1 | | | - Control Panel Cover |
| 2 | | | - Function Key |
| 3 | | | - FAX Key |
| 4 | | | - Tel Key |
| 5 | | | - LCD Cover |
| 6 | 140N63722 запросить цену → | | Control Panel PWB |
| 7 | | | - Key Holder Cover |
| 8 | 140N63731 запросить цену → | | Control Panel Assembly |
| 1 | | | - Upper Scanner Frame |
| 2 | | | - Lower Scanner Frame |
| 3 | | | - Sensor |
| 4 | | | - Flat Cable |
| 5 | | | - Platen Scanner |
| 6 | | | - Scanner Drive Motor |
| 7 | | | - Drive Belt |
| 8 | | | - Contact Image Sensor (CIS) |
| 1 | | | - Paper Guide |
| 2 | | | - Upper Scanner Frame |
| 3 | | | - Lower Scanner Frame |
| 4 | | | - Scanner PWB |
| 5 | | | - Flat Cable |
| 6 | | | - Sensor |
| 7 | | | - Platen Scanner |
| 8 | | | - Platen Drive |
| 9 | | | - Drive Belt |
| 10 | | | - Contact Image Sensor |
| 1 | | | - Paper Tray |
| 2 | | | - Middle Frame |
| 3 | | | - Left Frame |
| 4 | | | - Feed Frame |
| 5 | | | - Paper Path Frame |
| 6 | 022N02794 запросить цену → | | Transfer Roller |
| 7 | | | - Fuser (PL 5.2) |
| 8 | | | - LSU Cover |
| 9 | | | - Right Frame |
| 10 | | | - HVPS Insulator |
| 11 | | | - HVPS Contacts |
| 12 | 105N02303 запросить цену → | | LVPS/HVPS 220V |
| 13 | | | - Input Guide |
| 14 | | | - HVPS/SMPS Cover |
| 1 | | | - Exit Cover |
| 2 | | | - Screw |
| 3 | | | - Exit Drive Gear |
| 4 | | | - Exit Gear |
| 5 | | | - Exit Shaft Bushing |
| 6 | | | - Spring |
| 7 | | | - Upper Fuser |
| 8 | | | - Exit Roller |
| 9 | | | - Lower Fuser |
| 10 | | | - Fuser Cover |
| 11 | | | - Gear |
| 12 | | | - Jam Lever |
| 13 | | | - Lamp Cover |
| 14 | | | - Gear |
| 15 | | | - Heat Roll |
| 16 | | | - Claw Guide |
| 17 | | | - Spring |
| 18 | | | - Thermostat |
| 19 | | | - Thermistor |
| 20 | | | - Fuser Cover |
| 21 | | | - Bushing |
| 22 | | | - Fuser Lamp |
| 23 | | | - Right Jam Lever |
| 24 | | | - Lamp Cover |
| 25 | | | - Bracket |
| 26 | | | - Bushing |
| 27 | | | - Pressure Roll |
| 28 | | | - Frame |
| 29 | | | - Bracket |
| 30 | | | - Exit Shaft |
| 31 | | | - Rubber Rolls |
| 32 | | | - Exit Roll |
| 33 | | | - Exit Holder |
| 34 | | | - Exit Roll |
| 35 | | | - Spring |
| 36 | 126N00432 запросить цену → | | FUSER Module 110V |
| 1 | 130N01759 запросить цену → | | Paper Feed Sensor PWB |
| 2 | 120N00546 запросить цену → | | Feed Sensor Actuator |
| 3 | | | - Spring |
| 4 | 120N00547 запросить цену → | | Width Sensor Actuator |
| 5 | | | - Spring |
| 6 | 022N02798 запросить цену → | | Paper Drive Roll |
| 7 | | | - Plate |
| 8 | | | - Ground Clip |
| 9 | | | - Ground Clip |
| 10 | | | - Paper Path Guide |
| 11 | | | - Feed Roll Shaft |
| 12 | 121N01246 запросить цену → | | Feed Clutch |
| 13 | 007N01801 запросить цену → | | Feed Gear |
| 14 | | | - Left Bushing |
| 15 | | | - Spring |
| 16 | | | - Right Bushing |
| 17 | 001N00547 ✓ в наличии | | Retard Pad |
| 18 | | | - Path Frame |
| 1 | | | - Left Frame |
| 2 | | | - Feed Drive Gear |
| 3 | | | - RDCN OPC Gear |
| 4 | | | - Drive Out Gear |
| 5 | | | - Feed Gear |
| 6 | | | - Drive In Gear |
| 7 | | | - Fuser Drive Gear |
| 8 | | | - RDCN Fuser Gear |
| 9 | | | - RDCN A Gear |
| 10 | | | - Drive Motor |
| 11 | | | - Left Main Frame |
| 12 | | | - Drive Mounting Plate |
| 13 | 001N00548 запросить цену → | | Drive Gear Assembly |
| 1 | | | - Right Frame |
| 2 | | | - CRUM Contacts |
| 3 | | | - Spring |
| 4 | | | - Ground Clip |
| 5 | | | - Washer |
| 6 | | | - Screw |
| 7 | | | - CRUM Cover |
| 8 | | | - Print Cartridge Guide |
| 9 | | | - Main Right Frame Assembly |
| 1 | 001N00549 запросить цену → | | Paper Tray |
| 2 | | | - LSU Frame |
| 3 | | | - Right Guide |
| 4 | | | - Left Guide |
| 5 | | | - Rubber Friction Pad |
| 6 | | | - Bottom Plate |
| 7 | | | - Pinion Gear |
| 8 | | | - Sponge Damper |
| 9 | 062N00293 запросить цену → | | LSU |
| 10 | | | - Motor Cover |
| 11 | | | - LSU Frame |
| 12 | 117N01971 запросить цену → | | LSU Flat Cable |
| 1 | | | - Paper Feed Holder |
| 2 | | | - Feed Roller |
| 3 | | | - Spring |
| 4 | | | - Guide Plate |
| 5 | | | - Left Latch |
| 6 | | | - Paper Stop |
| 7 | 130N01757 ✓ в наличии | | Feed Rolls Assembly |
| 8 | | | - Feed Rolls Housing |
| 9 | | | - Feed Rolls Shaft |
| 10 | | | - Shaft Holder |
| 11 | | | - Bushing |
| 12 | | | - Spring |
| 13 | | | - Collar |
| 14 | | | - Joint Gear |
| 15 | | | - Pickup Clutch |
| 16 | | | - Bushing |
| 17 | | | - Pickup Roller |
| 18 | | | - Washer |
| 19 | | | - Bushing |
| 20 | | | - Sleeve |
| 21 | | | - Spring |
| 22 | | | - Pickup Gear |
| 23 | | | - Feed Gear |
| 24 | | | - Shaft Drive Roller |
| 25 | | | - Right Latch |
| 26 | | | - Sponge Damper |
