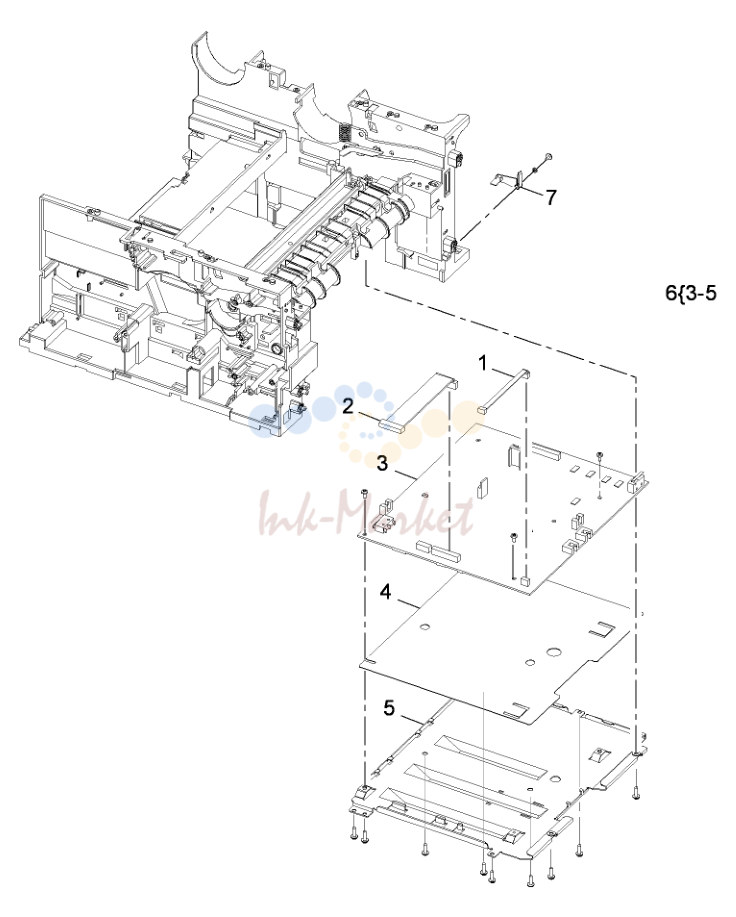

| 1 | | | - Tray 1 paper empty sensor harness |
| 2 | | | - HVPS harness (Not Spared) |
| 3 | 105N02141 ✓ в наличии | | HVPS (REP 1.2) |
| 4 | | | - HVPS insulation sheet (Not |
| 5 | | | - HVPS shield (Not Spared) |
| 6 | | | - HVPS assembly (Not Spared) |
| 7 | | | - Intermediate actuator (Not Spared) |
| 1 | 127N07584 запросить цену → | | SMPS fan |
| 2 | | | - SMPS cover (Not Spared) |
| 3 | 105N02151 запросить цену → | | SMPS (110V) (3635) (REP 1.1) |
| 4 | | | - SMPS harness (Not Spared) |
| 5 | | | - SMPS insulation sheet (Not |
| 6 | | | - Main power socket (Not Spared) |
| 7 | | | - SMPS shield (Not Spared) |
| 8 | | | - SMPS assembly (Not Spared) |
| 9 | 127N07559 запросить цену → | | Main fan |
| 5-4 | | | Phaser 3635MFP/WorkCentre |
| 1 | 140N63296 запросить цену → | | Front cover panel |
| 2 | 152N11749 запросить цену → | | Key harness |
| 3 | | | - Sub-key harness (P/O PL 2.10 Item |
| 4 | 091N80272 запросить цену → | | Start button label (English) |
| 5 | | | - Housing (P/O PL 2.10 Item 27) |
| 6 | 029N00398 запросить цену → | | Language key |
| 7 | 029N00385 запросить цену → | | Machine status key |
| 8 | 029N00386 запросить цену → | | Login/out key |
| 9 | 029N00387 запросить цену → | | Help key |
| 10 | 029N00388 запросить цену → | | Numerical keys |
| 11 | 029N00389 запросить цену → | | Power key |
| 12 | 029N00390 запросить цену → | | Power key holder |
| 13 | 029N00391 запросить цену → | | Interrupt key |
| 14 | 029N00392 запросить цену → | | Job interrupt key |
| 15 | 029N00393 запросить цену → | | Stop key |
| 16 | 029N00394 запросить цену → | | Start key |
| 17 | 029N00396 запросить цену → | | Rubber key mat (left hand sid)e |
| 18 | 029N00397 запросить цену → | | Rubber key mat (right hand sid)e |
| 19 | 140N63295 запросить цену → | | Right keys PWB |
| 20 | | | - Left keys PWB (P/O PL 2.10 Item |
| 21 | 091N80273 запросить цену → | | Services label (English) |
| 22 | 091N80274 запросить цену → | | Numeric key pad label (English) |
| 23 | 015N00618 запросить цену → | | Name label |
| 24 | 140N63347 запросить цену → | | UI PWB (REP 2.2) |
| 25 | 123N00250 запросить цену → | | Touch screen (REP 2.2) |
| 26 | | | - Touchscreen housing (P/O PL 2.10 |
| 27 | 123N00251 запросить цену → | | UI assembly (Complet)e (REP 2.1) |
| 1 | | | - Front cover panel (Not Spared) |
| 2 | | | - Housing (P/O PL 2.11 Item 23) |
| 3 | 140N63455 запросить цену → | | UI PWB |
| 4 | | | - Key harness (P/O PL 2.11 Item 23) |
| 5 | 140N63454 ✓ в наличии | | Right keys PWB |
| 6 | 029N00413 запросить цену → | | Rubber key mat (right hand sid)e |
| 7 | 029N00411 запросить цену → | | Start key |
| 8 | 029N00408 запросить цену → | | Job interrupt key |
| 9 | 029N00416 запросить цену → | | Clear all key |
| 10 | 029N00407 запросить цену → | | Power saver key housing |
| 11 | 029N00406 запросить цену → | | Power saver key |
| 12 | 029N00405 запросить цену → | | Numerical keys |
| 13 | 029N00409 запросить цену → | | Address book, Manual Dial key, |
| 14 | | | - LCD screen housing (P/O PL 2.11 |
| 15 | | | - LCD screen (P/O PL 2.11 Item 23) |
| 16 | | | - LCD screen cover (P/O PL 2.11 |
| 17 | 029N00415 запросить цену → | | Job Status, Machine Status keys |
| 18 | | | - Job Status, Machine Status keys |
| 19 | 700N00205 запросить цену → | | Label (French) |
| 20 | 029N00410 ✓ в наличии | | Navigation keys |
| 21 | 029N00414 запросить цену → | | Copy, E-mail, FAX, Scan keys |
| 22 | 029N00412 запросить цену → | | Rubber key mat (left hand sid)e |
| 23 | 123N00255 запросить цену → | | UI assembly (Complet)e (110V) |
| 24 | | | - Label (French) (Not Spared) |
| 5-6 | | | Phaser 3635MFP/WorkCentre |
| 1 | | | - Main drive assembly (REF: PL 4.10 |
| 2 | 130N01532 запросить цену → | | Speaker |
| 3 | 140N63305 запросить цену → | | FAX PWB (Serial) (3635) |
| 4 | | | - FAX harness (Not Spared) |
| 5 | | | - FAX cover (Not Spared) |
| 6 | 140N63297 запросить цену → | | Main PWB (3635) (REP 3.1) |
| 7 | 140N63346 запросить цену → | | Foreign device interface PWB |
| 8 | 113N01312 запросить цену → | | SIM card holder |
| 9 | | | - Main PWB bracket (Not Spared) |
| 10 | 140N63298 запросить цену → | | Memory DIMM |
| 11 | 140N63299 запросить цену → | | USB host PWB (REP 3.2) |
| 12 | | | - Ground strip (Not Spared) |
| 13 | 117N01789 запросить цену → | | USB harness (REP 3.2) |
| 14 | | | - MSOK (Not Spared) |
| 15 | | | - Hard drive cover (Not Spared) |
| 16 | 007N01651 запросить цену → | | Hard disk drive (3635) |
| 17 | 140N63303 запросить цену → | | Connection PWB (3635) |
| 18 | 152N11762 запросить цену → | | Foreign device interface PWB |
| 1 | 127N07557 запросить цену → | | Main BLDC motor (MOT04-100) |
| 2 | | | - Gear bracket (P/O PL 4.10 Item 7) |
| 3 | | | - Motor bracket (P/O PL 4.10 Item 7) |
| 4 | | | - Gear (92/61) (P/O PL 4.10 Item 7) |
| 5 | | | - Gear (113/33) (P/O PL 4.10 Item 7) |
| 6 | | | - Gear (55/18) (P/O PL 4.10 Item 7) |
| 7 | 007N01591 ✓ в наличии | | Main drive assembly (REP 4.1) |
| 5-8 | | | Phaser 3635MFP/WorkCentre |
| 1 | 101N01421 запросить цену → | | DADF (Complet)e (3635) |
| 2 | | | - DADF lower cover assembly (P/O |
| 3 | | | - DADF door assembly (REF: PL |
| 4 | | | - Feed assembly (REF: PL 5.30 Item |
| 5 | | | - Drive assembly (REF: PL 5.40 Item |
| 6 | | | - Transport assembly (REF: PL 5.35 |
| 7 | 003N01031 запросить цену → | | Left counterbalance |
| 8 | 003N00967 ✓ в наличии | | Right counterbalance (3550) |
| 9 | | | - Rear cover (P/O PL 5.10 Item 1) |
| 10 | | | - Front cover (P/O PL 5.10 Item 1) |
| 11 | 002N02720 запросить цену → | | Connector cover |
| 12 | 152N11751 запросить цену → | | DADF harness |
| 13 | | | - Screw (Not Spared) (3550) |
| 1 | | | - Lower cover (P/O PL 5.10 Item 1) |
| 2 | | | - Input tray assembly (P/O PL 5.10 |
| 3 | | | - Solenoid damper (P/O PL 5.10 Item |
| 4 | 121N01160 запросить цену → | | DADF lift solenoid (SOL05-320) |
| 5 | | | - Tray extension (P/O PL 5.10 Item |
| 6 | | | - Ground strip (P/O PL 5.10 Item 1) |
| 7 | 019N00810 запросить цену → | | Document pad (3635) |
| 8 | | | - Registration roll idler (P/O PL 5.10 |
| 9 | | | - Scan idler (P/O PL 5.10 Item 1) |
| 10 | | | - Scan idler spring (P/O PL 5.10 Item |
| 11 | | | - Registration roll shaft (P/O PL 5.10 |
| 12 | | | - Nip release lever (P/O PL 5.10 Item |
| 13 | | | - Nip release lever spring (P/O PL |
| 14 | | | - CVT pad (P/O PL 5.10 Item 1) |
| 15 | | | - Lifting exit lever (P/O PL 5.10 Item |
| 16 | 140N63301 ✓ в наличии | | DADF PWB |
| 17 | | | - DADF PWB harness (P/O PL 5.10 |
| 5-10 | | | Phaser 3635MFP/WorkCentre |
| 1 | | | - Input tray (P/O PL 5.10 Item 1) |
| 2 | | | - Document guide (rear) (P/O PL |
| 3 | | | - Document guide (front) (P/O PL |
| 4 | | | - Document guide rack (P/O PL 5.10 |
| 5 | | | - Pinion gear (P/O PL 5.10 Item 1) |
| 6 | | | - Guide rack cover (P/O PL 5.10 Item |
| 7 | | | - Document guide (P/O PL 5.10 Item |
| 8 | | | - Document guide wire (P/O PL 5.10 |
| 9 | | | - DADF paper length sensor actuator |
| 10 | | | - DADF paper length sensor spring |
| 11 | 130N01601 запросить цену → | | DADF paper length sensor (Q05- |
| 12 | | | - Sensor assembly cover (P/O PL |
| 13 | 002N02741 запросить цену → | | Input tray assembly (Complet)e |
| 1 | | | - DADF door assembly (Complet)e |
| 2 | 130N01533 ✓ в наличии | | Pickup roll assembly (REP 5.7) |
| 3 | | | - Bush (P/O PL 5.10 Item 1) |
| 4 | | | - Document gate (P/O PL 5.10 Item |
| 5 | | | - DADF door (P/O PL 5.10 Item 1) |
| 6 | | | - Guide fingers (P/O PL 5.10 Item 1) |
| 7 | | | - Pickup spring (P/O PL 5.10 Item 1) |
| 8 | | | - Pickup damper (P/O PL 5.10 Item |
| 5-12 | | | Phaser 3635MFP/WorkCentre |
| 1 | 022N02359 запросить цену → | | Feed assembly (Complet)e (REP |
| 2 | 003N01042 ✓ в наличии | | Retard pad assembly (NOTE) |
| 3 | | | - Retard pad spring (P/O PL 5.10 |
| 4 | | | - Feed roll idler (P/O PL 5.10 Item 1) |
| 5 | | | - Upper cover (P/O PL 5.10 Item 1) |
| 6 | | | - Mylar (P/O PL 5.10 Item 1) |
| 7 | | | - Exit idler spring (P/O PL 5.10 Item |
| 8 | | | - Exit idler (P/O PL 5.10 Item 1) |
| 9 | | | - Exit idler shaft (P/O PL 5.10 Item 1) |
| 10 | | | - Exit idler lifting bracket (P/O PL |
| 11 | | | - Upper damper (P/O PL 5.10 Item 1) |
| 12 | | | - Static eliminator (P/O PL 5.10 Item |
| 13 | | | - Lower cover (P/O PL 5.10 Item 1) |
| 14 | | | - Ground strip (P/O PL 5.10 Item 1) |
| 15 | | | - Ground strip (P/O PL 5.10 Item 1) |
| 16 | | | - Document detect sensor harness |
| 17 | 130N01601 запросить цену → | | Document detect sensor (Q05-100) |
| 18 | | | - Document detect sensor actuator |
| 19 | | | - Document detect sensor actuator |
| 1 | | | - Transport assembly frame (P/O PL |
| 2 | | | - White bar plate (P/O PL 5.10 Item |
| 3 | | | - White bar plate spring (P/O PL 5.10 |
| 4 | | | - Bearing (P/O PL 5.10 Item 1) |
| 5 | | | - Ground strip (P/O PL 5.10 Item 1) |
| 6 | | | - Scan sensor actuator (P/O PL 5.10 |
| 7 | 130N01601 запросить цену → | | Registration sensor (Q05-130) |
| 8 | | | - Exit roll (P/O PL 5.10 Item 1) |
| 9 | | | - Registration roll (P/O PL 5.10 Item |
| 10 | | | - Registration sensor actuator (P/O |
| 11 | | | - Registration sensor actuator spring |
| 12 | | | - Scan roll (P/O PL 5.10 Item 1) |
| 13 | | | - Upper cover (P/O PL 5.10 Item 1) |
| 14 | 022N02360 запросить цену → | | Document transport assembly |
| 5-14 | | | Phaser 3635MFP/WorkCentre |
| 1 | 007N01595 запросить цену → | | Drive assembly (Complet)e (REP |
| 2 | 127N07562 запросить цену → | | Scan motor (MOT05-200) (REP |
| 3 | 121N01161 ✓ в наличии | | Registration solenoid (SOL05-310) |
| 4 | | | - Pickup idler gear (P/O PL 5.40 Item |
| 5 | | | - Swing bracket (P/O PL 5.40 Item 1) |
| 6 | | | - Swing bracket feed gear idler (P/O |
| 7 | | | - Swing bracket pickup gear idler (P/ |
| 8 | | | - Feed gear idler (P/O PL 5.40 Item |
| 9 | | | - Lower pickup gear idler (P/O PL |
| 10 | | | - Pickup collar (P/O PL 5.40 Item 1) |
| 11 | | | - Spring (P/O PL 5.40 Item 1) |
| 12 | | | - Upper pickup gear idler (P/O PL |
| 13 | | | - DADF door open sensor (Q05-160) |
| 14 | | | - Motor harness (P/O PL 5.40 Item 1) |
| 15 | | | - Drive bracket (P/O PL 5.40 Item 1) |
| 1 | 122N00259 запросить цену → | | LSU (REP 6.1) |
| 2 | 152N11753 запросить цену → | | LSU interlock switch (REP 6.2) |
| 5-16 | | | Phaser 3635MFP/WorkCentre |
| 1 | 130N01601 запросить цену → | | Bypass paper empty sensor (Q07- |
| 2 | | | - Clutch spring (Not Spared) |
| 3 | | | - Baffle lift spring (Not Spared) |
| 4 | | | - Bypass feed solenoid (SOL08-800) |
| 5 | | | - Bypass paper empty sensor |
| 6 | | | - Bush (Not Spared) |
| 7 | | | - Locking collar (Not Spared) |
| 8 | | | - Retard pad holder (Not Spared) |
| 9 | | | - Sensor bracket (Not Spared) |
| 10 | | | - Baffle (Not Spared) |
| 11 | | | - Pickup bracket (Not Spared) |
| 12 | | | - Frame (Not Spared) |
| 13 | | | - Spring (Not Spared) |
| 14 | | | - Guide mylar (Not Spared) |
| 15 | | | - Idler gear (Not Spared) |
| 16 | | | - Pickup shaft (Not Spared) |
| 17 | | | - Clutch (rear) (Not Spared) |
| 18 | | | - Clutch (front) (Not Spared) |
| 19 | | | - Pickup cam (Not Spared) |
| 20 | | | - Cam roll (Not Spared) |
| 21 | | | - Pickup idler (Not Spared) |
| 22 | | | - Bypass paper empty sensor |
| 23 | | | - Lower retard pad (Not Spared) |
| 24 | | | - Pickup rubber outer shaft (Not |
| 25 | | | - Pickup rubber inner shaft (Not |
| 26 | 130N01534 ✓ в наличии | | Pickup rubber (NOTE) (REP 7.3) |
| 27 | | | - Retard pad (Not Spared) |
| 28 | | | - Bypass pickup roll assembly (Not |
| 29 | 050N00520 запросить цену → | | Bypass feed assembly (Complet)e |
| 1 | | | - Feed idler holder (Not Spared) |
| 2 | | | - Lower exit idler spring (Not Spared) |
| 3 | | | - Feed idler shaft (Not Spared) |
| 4 | | | - Feed idler shaft holder (Not Spared) |
| 5 | | | - Feed idler cover (Not Spared) |
| 6 | | | - Feed roll idler (Not Spared) |
| 7 | | | - Bypass feed assembly (REF: PL |
| 5-18 | | | Phaser 3635MFP/WorkCentre |
| 1 | | | - Front cover (P/O PL 7.15 Item 15) |
| 2 | | | - Lower bypass tray cover (P/O PL |
| 3 | | | - Front document guide (P/O PL 7.15 |
| 4 | | | - Rear document guide (P/O PL 7.15 |
| 5 | | | - Release latch (P/O PL 7.15 Item |
| 6 | | | - Link arm (P/O PL 7.15 Item 15) |
| 7 | | | - Upper bypass tray cover (P/O PL |
| 8 | | | - Tray extension (P/O PL 7.15 Item |
| 9 | | | - Front catch (P/O PL 7.15 Item 15) |
| 10 | | | - Rear catch (P/O PL 7.15 Item 15) |
| 11 | | | - Pinion gear (P/O PL 7.15 Item 15) |
| 12 | | | - Front catch spring (P/O PL 7.15 |
| 13 | | | - Rear catch spring (P/O PL 7.15 |
| 14 | | | - Bypass tray (P/O PL 7.15 Item 15) |
| 15 | 002N02718 запросить цену → | | Front cover assembly (Complet)e |
| 1 | 050N00518 запросить цену → | | Paper tray (Complet)e |
| 2 | | | - Tray empty indicator (P/O PL 8.10 Item 1) |
| 3 | | | - Right width paper guide (P/O PL 8.10 Item 1) |
| 4 | | | - Right width paper guide lock assembly (P/O PL 8.10 Item 1) |
| 5 | | | - Right tray down lever (P/O PL 8.10 Item 1) |
| 6 | | | - Tray down lever spring (P/O PL 8.10 Item 1) |
| 7 | | | - Tray frame (P/O PL 8.10 Item 1) |
| 8 | | | - Paper length guide spring (P/O PL 8.10 Item 1) |
| 9 | | | - Paper length guide (P/O PL 8.10 Item 1) |
| 10 | | | - Paper length guide lower lock (P/O PL 8.10 Item 1) |
| 11 | | | - Paper length guide spring (P/O PL 8.10 Item 1) |
| 12 | | | - Paper length guide upper lock (P/O PL 8.10 Item 1) |
| 13 | | | - Tray extension (P/O PL 8.10 Item 1) |
| 14 | | | - Tray extension bracket (P/O PL 8.10 Item 1) |
| 15 | | | - Left tray down lever spring (P/O PL 8.10 Item 1) |
| 16 | | | - Lift plate actuator spring (P/O PL 8.10 Item 1) |
| 17 | | | - Pinion gear (P/O PL 8.10 Item 1) |
| 18 | | | - Left width paper guide (P/O PL 8.10 Item 1) |
| 19 | | | - Lift plate actuator (P/O PL 8.10 Item 1) |
| 20 | 019N00947 ✓ в наличии | | Retard pad assembly |
| 21 | | | - Retard pad holder spring (P/O PL 8.10 Item 1) |
| 22 | | | - Retard pad holder housing (P/O PL 8.10 Item 1) |
| 23 | | | - Ground strip (P/O PL 8.10 Item 1) |
| 24 | | | - Paper exit frame (P/O PL 8.10 Item 1) |
| 25 | 055N00297 запросить цену → | | Lead edge guide |
| 26 | 009N01604 запросить цену → | | Lead edge guide spring |
| 27 | | | - Lift plate spring (P/O PL 8.10 Item 1) |
| 28 | | | - Lift plate (P/O PL 8.10 Item 1) |
| 29 | | | - Pad (P/O PL 8.10 Item 1) |
| 30 | | | - Label (P/O PL 8.10 Item 1) |
| 31 | | | - Front cover (P/O PL 8.10 Item 1) |
| 5-20 | | | Phaser 3635MFP/WorkCentre |
| 1 | | | - Front cover (P/O PL 8.15 Item 28) |
| 2 | | | - Bottom cross bar (P/O PL 8.15 Item |
| 3 | | | - Feed roll idler (P/O PL 8.15 Item |
| 4 | | | - Feed roll idler spring (P/O PL 8.15 |
| 5 | | | - Left cover (P/O PL 8.15 Item 28) |
| 6 | | | - Left lower noise insulation (P/O PL |
| 7 | | | - Left cover noise insulation (P/O PL |
| 8 | | | - Ground strip (P/O PL 8.15 Item 28) |
| 9 | | | - Tray 2 connector (P/O PL 8.15 Item |
| 10 | | | - Tray 2 connector holder (P/O PL |
| 11 | | | - Tray 2 paper empty sensor cover |
| 12 | | | - Rear noise insulation cover (P/O PL |
| 13 | | | - Rear noise insulation (P/O PL 8.15 |
| 14 | | | - Rear cover (P/O PL 8.15 Item 28) |
| 15 | | | - Catch (P/O PL 8.15 Item 28) |
| 16 | | | - Right cover (P/O PL 8.15 Item 28) |
| 17 | | | - Right lower noise insulation (P/O |
| 18 | | | - Idler gear 1 (P/O PL 8.15 Item 27) |
| 19 | | | - Idler gear clip (P/O PL 8.15 Item |
| 20 | | | - Drive assembly bracket (P/O PL |
| 21 | | | - Idler gear 2 (P/O PL 8.15 Item 27) |
| 22 | | | - Idler gear 3 (P/O PL 8.15 Item 27) |
| 23 | | | - Tray 2 feed motor (MOT07-210) (P/ |
| 24 | | | - Tray 2 feed motor bracket (P/O PL |
| 25 | | | - Idler gear 4 (P/O PL 8.15 Item 27) |
| 26 | | | - Idler gear 5 (P/O PL 8.15 Item 27) |
| 27 | 127N07563 запросить цену → | | Tray 2 drive assembly |
| 28 | 050N00537 запросить цену → | | Tray 2 assembly (Complet)e |
| 1 | 130N01601 запросить цену → | | Tray 2 paper empty sensor (Q07- |
| 2 | 120N00531 ✓ в наличии | | Tray 2 paper empty sensor actuator |
| 3 | | | - Static eliminator fixing (P/O PL 8.15 |
| 4 | | | - Left underside cover (P/O PL 8.15 |
| 5 | | | - Right underside cover (P/O PL 8.15 |
| 6 | | | - Pickup idler (P/O PL 8.17 Item 31) |
| 7 | | | - Pickup rubber (P/O PL 8.17 Item |
| 8 | | | - Pickup roll shaft (P/O PL 8.15 Item |
| 9 | | | - Static eliminator (P/O PL 8.15 Item |
| 10 | | | - Pickup roll (P/O PL 8.17 Item 31) |
| 11 | | | - Feed roll holder (P/O PL 8.15 Item |
| 12 | | | - Feed roll (P/O PL 8.15 Item 28) |
| 13 | | | - KL-clip (P/O PL 8.15 Item 28) |
| 14 | | | - Bearing (P/O PL 8.15 Item 28) |
| 15 | | | - Pickup roll cam (P/O PL 8.15 Item |
| 16 | | | - Ground strip (P/O PL 8.15 Item 28) |
| 17 | | | - Feed shaft (P/O PL 8.15 Item 28) |
| 18 | | | - Feed gear (P/O PL 8.15 Item 28) |
| 19 | | | - Snap on washer (P/O PL 8.15 Item |
| 20 | | | - Outer pickup gear spring (P/O PL |
| 21 | | | - Pickup cam spring (P/O PL 8.15 |
| 22 | | | - Outer pickup gear (P/O PL 8.17 |
| 23 | | | - Inner pickup gear (P/O PL 8.17 |
| 24 | 121N01162 ✓ в наличии | | Tray 2 pickup solenoid (SOL08- |
| 25 | 140N63374 запросить цену → | | Tray 2 PWB |
| 26 | | | - PWB cover (P/O PL 8.15 Item 28) |
| 27 | | | - Pickup cam (P/O PL 8.15 Item 28) |
| 28 | | | - Pick up gear core (P/O PL 8.15 |
| 29 | 152N11752 запросить цену → | | Tray 2 harness |
| 30 | 007N01593 ✓ в наличии | | Clutch assembly |
| 31 | 022N02413 ✓ в наличии | | Tray 2 pickup roll (NOTE) |
| 5-22 | | | Phaser 3635MFP/WorkCentre |
| 1 | | | - Magnet (P/O PL 8.20 Item 11) |
| 2 | | | - Rear cover (P/O PL 8.20 Item 11) |
| 3 | | | - Sub panel cover (P/O PL 8.20 Item |
| 4 | | | - Magnet catch (P/O PL 8.20 Item |
| 5 | | | - Face up cover (P/O PL 8.20 Item |
| 6 | | | - Label (P/O PL 8.20 Item 11) |
| 7 | | | - Fuser output guide (P/O PL 8.20 |
| 8 | | | - Rear stacker (P/O PL 8.20 Item 11) |
| 9 | | | - Duplex gate (P/O PL 8.20 Item 11) |
| 10 | | | - Idler (P/O PL 8.20 Item 11) |
| 11 | 002N02716 запросить цену → | | Rear cover assembly (Complet)e |
| 1 | | | - Grounding plate (Not Spared) |
| 2 | | | - Grounding plate block (Not Spared) |
| 3 | | | - Registration roll (Not Spared) |
| 4 | | | - Feed roll holder (Not Spared) |
| 5 | | | - Rear feed roll holder (Not Spared) |
| 6 | | | - Front feed roll holder (Not Spared) |
| 7 | | | - Feed roll spring (Not Spared) |
| 8 | | | - Idler roll securing bracket (Not |
| 9 | | | - Release latch (Not Spared) |
| 10 | | | - Ground strip (Not Spared) |
| 11 | | | - Feed sensor actuator (Not Spared) |
| 12 | | | - Feed sensor actuator housing (Not |
| 13 | | | - Duplex jam 1 sensor actuator (Not |
| 14 | | | - Registration sensor actuator (Not |
| 15 | | | - Actuator spring (Not Spared) |
| 16 | | | - Actuator housing (Not Spared) |
| 17 | | | - Registration roll idler (Not Spared) |
| 18 | 121N01162 ✓ в наличии | | Registration solenoid (SOL08-850) |
| 19 | 121N01163 запросить цену → | | Tray 1 pickup solenoid (SOL08- |
| 20 | | | - Feed bracket (Not Spared) |
| 21 | 005N01031 ✓ в наличии | | Registration roll clutch (REP 8.1) |
| 22 | | | - Tray 2 connector (Not Spared) |
| 23 | 130N01531 запросить цену → | | Thermistor |
| 5-24 | | | Phaser 3635MFP/WorkCentre |
| 1 | | | - Print cartridge (See below for |
| 2 | 002N02788 ✓ в наличии | | Transfer roll (NOTE) |
| 3 | | | - Spring contacts (Not Spared) |
| 4 | | | - Print cartridge power strip (Supply, |
| 5 | | | - Print cartridge power strip (MHV) |
| 6 | | | - Terminal cover (Not Spared) (REP |
| 7 | 140N63302 запросить цену → | | CRUM PWB |
