Xerox VersaLink C500/C600/C505 MFP/C605 MFP — каталог запчастей со схемами

Содержание

1. 5 Parts Lists
2. PL 10.1 Option Feeder (1/3)
3. PL 11.2 HCF Left

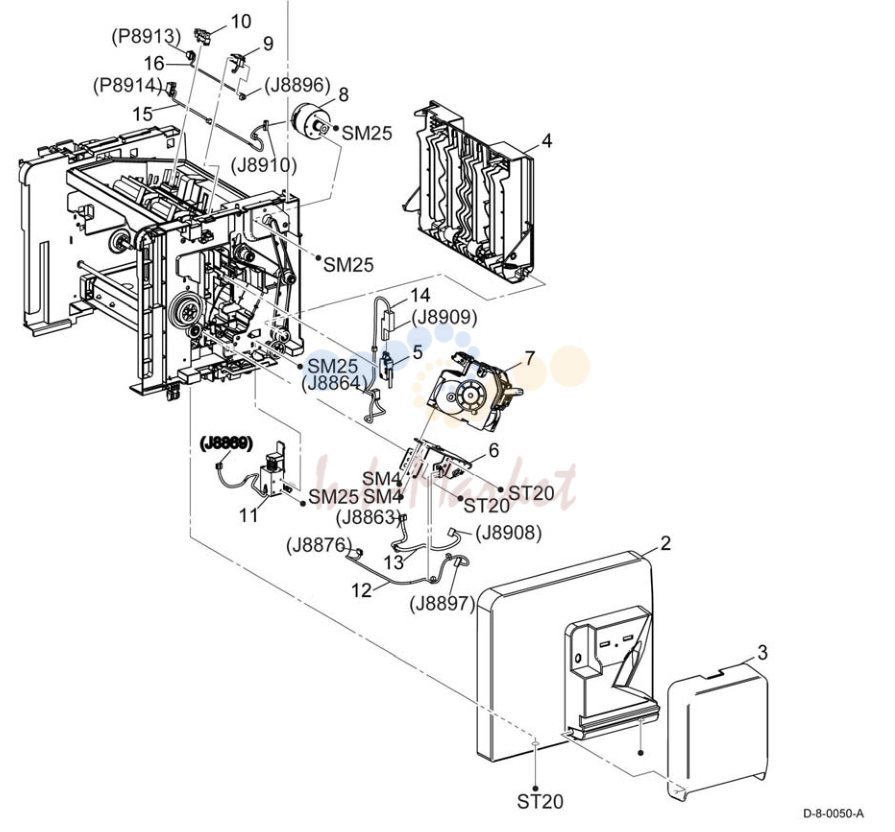

4. Item Part Description

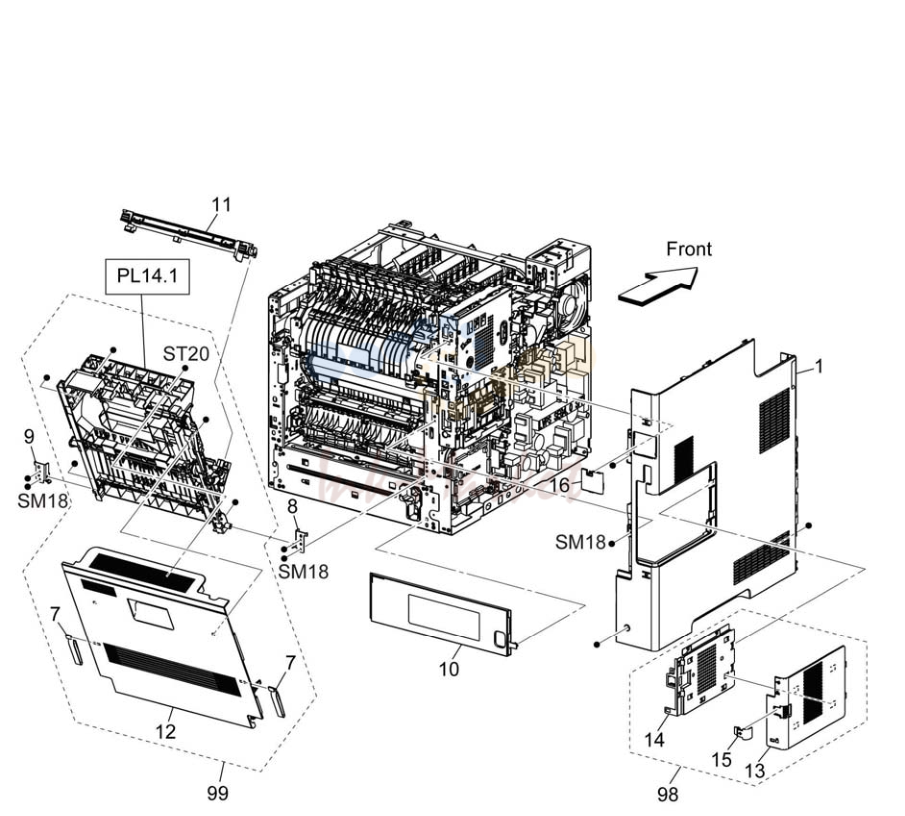

5. PL 19.2 Cover (C505/C605) (2/2)

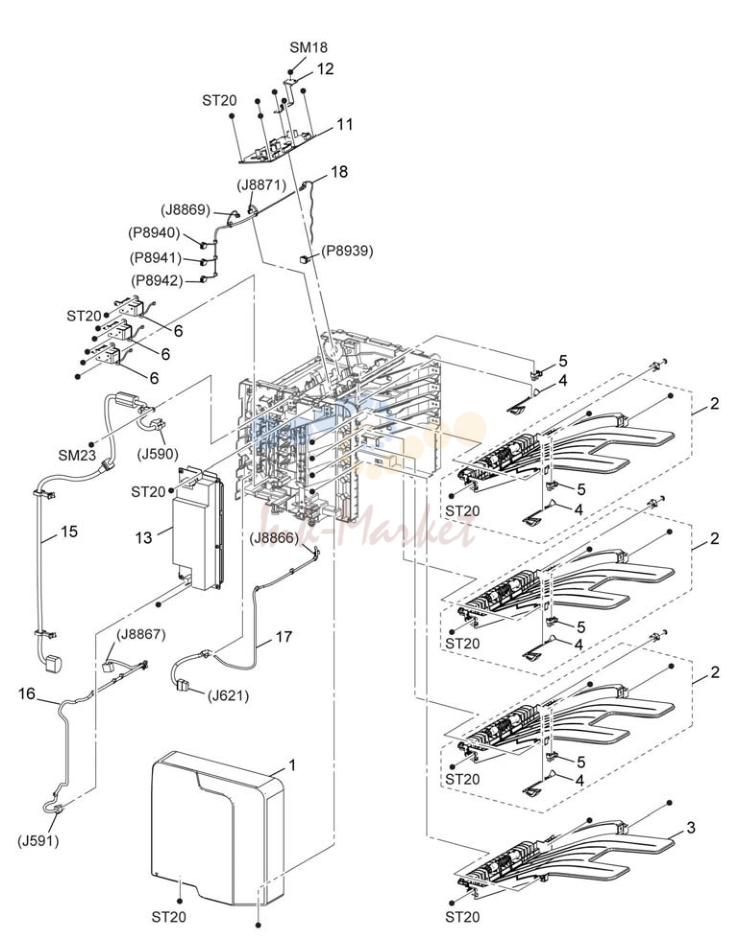

6. PL 20.1 Mailbox
7. PL 21.2 Finisher

1. 5 Parts Lists

№	Артикул	Описание
5		Parts Lists
1		- UI 17 - Exit
2		- LPH 18 - Electrical
3		- Drive
4		- NOHAD PL 18.6 Electrical (C605_Tall) (2/4)................................................................................ 5-34
5		- Dispenser PL 18.9 Electrical (C500/C600) (1/4).............................................................................. 5-37
6		Transfer
7		- Fusing
8		- Xerographic
9		- Tray
20		Mailbox
10		- Option Feeder PL 20.2 Mailbox............................................................................................................... 5-48
21		Finisher
11		HCF
13		- MSI
14		- Duplex
15		- Registration
1	948K02982 запросить цену →	Console assembly UI AIO (REP
2	822E18611 запросить цену →	UI inner cover (REP 1.2)
3	822E18601 запросить цену →	UI frame cover (REP 1.3)
4		- UI frame plate (Not spared)
5	952K35720 запросить цену →	UI harness (Tall) (REP 1.4)
6		- Speaker main (Not spared)
7	822E30280 запросить цену →	UI access door (hatch) (REP 1.5)
8		- UI frame bracket (Not spared)
9		- Not used
10		- ICCR card (Not spared)
99		- Kit UI frame assembly (with 2-4)
1	848K95746 запросить цену →	Console assembly UI C500/C600
2	822E32330 запросить цену →	UI inner cover (REP 1.7)
3		- Not used
4		- UI frame (Not spared) (REP 1.3)
5	952K37020 запросить цену →	UI harness (REP 1.8)
6		- Speaker main (Not spared)
7	822E32001 запросить цену →	UI access door (hatch) (REP 1.5)
8		- Not used
9		- Not spared
10		- ICCR card (Not spared)
5-4		Xerox® VersaLink® C605F Family Printer
1	930K03100 запросить цену →	Head assembly LPH color (REP
2		- FFC assembly color LPH Y (Not
3		- FFC assembly color LPH M (Not
4		- FFC assembly color LPH C (Not
5		- FFC assembly color LPH K (Not
6		- Core ferrite LPH (Not spared)
7		- Guide xero CRU (Not spared)
8		- Cover core (Not spared)
9		- Harness assembly deve/xero C
10		- Holder CRUM xero (Not spared)
11	604K98080 запросить цену →	Cover assembly guide (REP 2.2)
12		- Harness assembly RAD HUM (Not
13		- Core ferrite LPH (Not spared)
99	607K04960 запросить цену →	Kit xero CRUM LPH FFC (REP 2.3)
1	007K23040 запросить цену →	Drive assembly main H (REP 3.1)
2	007K23050 запросить цену →	Drive assembly main 2 (REP 3.2)
3	007K23060 запросить цену →	Drive assembly main 3 (REP 3.3)
4	005K84490 запросить цену →	Drive assembly waste (REP 3.4)
5	007K21981 запросить цену →	Drive assembly MSI (REP 3.5)
6	007K21990 запросить цену →	Coupling assembly link (REP 3.6)
7	607K04730 запросить цену →	Drive assembly motor (REP 3.7)
8		- Harness assembly MOT PWR-CF
9		- Harness assembly MCU-MOT1/2-
10		- Harness assembly MCU-MOT3-CF
11		- Harness assembly MCU-MOT4-CF
5-6		Xerox® VersaLink® C605F Family Printer
1	007K22843 запросить цену →	Drive assembly main L (REP 3.8)
2	007K23050 запросить цену →	Drive assembly main 2 (REP 3.9)
3	007K23060 запросить цену →	Drive assembly main 3 (REP 3.10)
4	005K84490 запросить цену →	Drive assembly waste (REP 3.11)
5	007K21981 запросить цену →	Drive assembly MSI (REP 3.12)
6	007K21990 запросить цену →	Coupling assembly link (REP 3.13)
7		- Not used
8		- Harness assembly MOT PWR-CF
9		- Harness assembly MCU-MOT1/2-
10		- Harness assembly MCU-MOT3-CF
11		- Not used
12		- Harness assembly SNR deve/xero-
1	127K74220 запросить цену →	Fan main and sub (REP 4.1, REP
2		- Duct fan main (Not spared)
3		- Not used
4		- Duct fan sub (Not spared)
5	127K74160 запросить цену →	Rear fan (REP 4.3)
6		- Rear fan bracket (Not spared)
7	017K94350 запросить цену →	Rubber foot (REP 4.4)
99	604K77650 запросить цену →	Kit foot assembly (with7x3 pcs)
5-8		Xerox® VersaLink® C605F Family Printer
1		- Drive assembly dispenser H (Not
2	094K94480 запросить цену →	Disp assembly Y (with 6-7) (REP
3	094K94490 запросить цену →	Disp assembly M (with 6-7) (REP
4	094K94500 запросить цену →	Disp assembly C (with 6-7) (REP
5	094K94510 запросить цену →	Disp assembly K (with 6-7) (REP
6	113K84020 запросить цену →	Connector assembly CRUM toner
7		- PWBA CRUM toner (Not spared)
8		- Not used
9	930W00511 запросить цену →	Sensor toner full (REP 5.3)
10		- Harness assembly toner CRUM
11		- Toner cartridge starter Y (Not
12		- Toner cartridge starter M (Not
13		- Toner cartridge starter C (Not
14		- Toner cartridge starter K (Not
15		- Clear cover (Not spared)
16		- Harness assembly disp YC (Not
17		- Harness assembly disp MK (Not
99	607K04900 запросить цену →	Harness assembly disp H (with 1,
1		- Drive assembly dispenser M (Not
2	094K94480 запросить цену →	Dispenser assembly Y (with 6-7)
3	094K94490 запросить цену →	Dispenser assembly M (with 6-7)
4	094K94500 запросить цену →	Dispenser assembly C (with 6-7)
5	094K94510 запросить цену →	Dispenser assembly K (with 6-7)
6	113K83840 запросить цену →	Connector assembly CRUM toner
7		- PWBA CRUM toner (Not spared)
8		- Not used
9	930W00511 запросить цену →	Sensor toner full (REP 5.3)
10		- Harness assembly toner CRUM
11		- Toner cartridge starter Y (Not
12		- Toner cartridge starter M (Not
13		- Toner cartridge starter C (Not
14		- Toner cartridge starter K (Not
15		- Clear cover (Not spared)
16		- Harness assembly disp M (Not
99	607K04910 запросить цену →	Kit drive assembly dispenser M
5-10		Xerox® VersaLink® C605F Family Printer
1	607K04921 запросить цену →	IBT unit (REP 6.1)
2		- Chute upper CTD (Not spared)
3		- Plate CTD (Not spared)
4		- Cover sensor (Not spared)
5		- Sensor R-RAD A (Not Spared)
6		- Sensor R-RAD low A (Not Spared)
7		- Sensor hum and temp (Not Spared)
8	930K00210 запросить цену →	Sensor assembly CTD (with 2-3, 5-
9		- Harness assembly CTD (Not
10		- Harness assembly HUM (Not
11	930W00123 запросить цену →	K mode sensor (REP 6.3)
12		- Harness assembly K-SNR-CF (Not
1	115R00134 ✓ в наличии	Fusing assembly 220V (C500/
2		- Bracket (Not Spared)
3		- Bracket nip retract (Not Spared)
4		- Motor assembly envelope (Not
5		- C sensor photo (envelope mode)
6		- Not used
7		- Gear shaft retraction (Not Spared)
8		- Block CRU (Not Spared)
9		- Block CRU D (Not Spared)
98	607K05100 запросить цену →	Nip retract drive assembly (with 3-
99	607K05110 запросить цену →	Nip retract shaft assembly (with 6-
5-12		Xerox® VersaLink® C605F Family Printer
1		- Xero deve CRU assembly Y (Not
2		- Xero deve CRU assembly M (Not
3		- Xero deve CRU assembly C (Not
4		- Xero deve CRU assembly K (Not
5		- Box assembly waste (Not Spared)
6	042K94970 запросить цену →	LPH cleaner assembly (REP 8.1)
7		- Cover CLN (Not Spared)
8		- Holder assembly xero (with 9) (Not
9		- PWBA erase (Not Spared)
10		- Harness assembly erase-CF (Not
99	607K04930 запросить цену →	Erase lamp assembly (with 8-9)
1	050K75820 запросить цену →	Cassette assembly 550 IOT (with 2-
2	019K17070 запросить цену →	Holder assembly separator CST
3		- Roll assembly (P/O PL 9.1 Item 2)
4		- Holder separator (P/O PL 9.1 Item
5		- Shaft separator CST (P/O PL 9.1
6		- Clutch assembly friction (P/O PL
7		- Handle CST 550 (P/O PL 9.1 Item
8		- Gear assembly (P/O PL 9.1 Item 1)
9		- Plate assembly bottom (P/O PL 9.1
10		- Housing assembly end 550 (P/O PL
11	948K11521 запросить цену →	Dust cover 550 (REP 9.3)
98	607K00050 запросить цену →	Feed and sparator roll kit (REP 9.4)
5-14		Xerox® VersaLink® C605F Family Printer

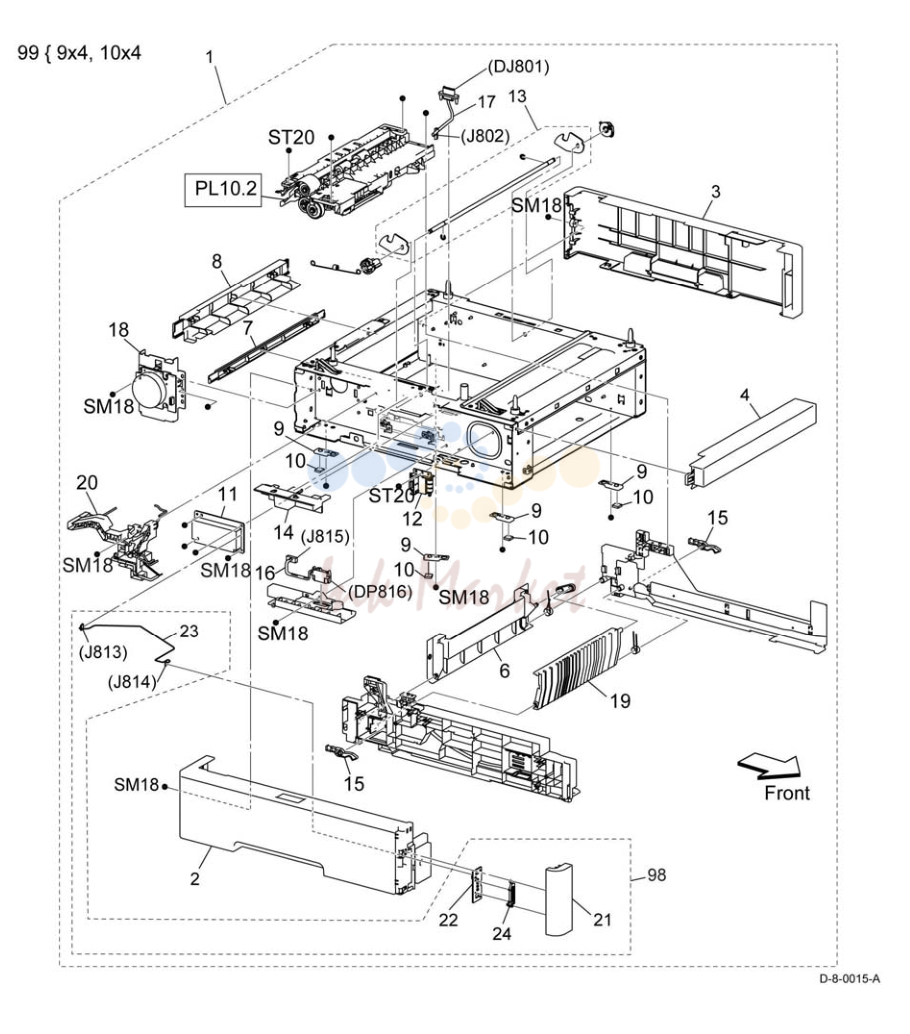

2. PL 10.1 Option Feeder (1/3)

№	Артикул	Описание
1		- Feeder assembly OPF 550 (with 2-
2		- Frame feeder top (P/O PL 10.2 Item
3		- Gear P24-P27 (P/O PL 10.2 Item 1)
4		- Clutch assembly PH OPF 550 (P/O
5		- Support nudger (P/O PL 10.2 Item
6	054E60150 запросить цену →	Chute upper feed (REP 10.5)
7	859K00100 ✓ в наличии	Roll assembly (REP 10.6)
8	120E35551 запросить цену →	Actuator no paper (REP 10.7)
9		- Opt. feeder no paper sensor (P/O
10		- Shaft feed OPF 550 (P/O PL 10.2
11		- Shaft nudger OPF 550 (P/O PL
12		- Cover harness OPF 550 (P/O PL
13		- Chute feeder (P/O PL 10.2 Item 1)
14		- Roll assembly TA pinch OPF
15		- Roller assembly TA OPF 550 (P/O
16		- Clutch assembly PH OPF
17		- OPT path paper sensor (P/O PL
5-16		Xerox® VersaLink® C605F Family Printer
1	050K75820 запросить цену →	Cassette assembly OPF 550 (with
2	019K17070 запросить цену →	Holder assembly separator CST
3		- Roll assembly (P/O PL 10.3 Item 2)
4		- Holder separator (P/O PL 10.3 Item
5		- Shaft separator (P/O PL 10.3 Item
6		- Clutch assembly friction (P/O PL
7	948K11521 запросить цену →	Dust cover 550 (REP 10.10)
98	607K00050 запросить цену →	Feed and sparater roll kit (REP
1		- Cover right (Not Spared) (REP
2		- Cover front L (Not Spared) (REP
3		- Cover shade tray LED (P/O PL 11.1
4		- PWBA LED (P/O PL 11.1 Item 7)
5	859K09990 запросить цену →	Feeder assembly (HCF) (REP
6		- Harness assembly LED (P/O PL
7	607K05000 запросить цену →	LED assembly W/I wire (with 3, 4,
5-18		Xerox® VersaLink® C605F Family Printer

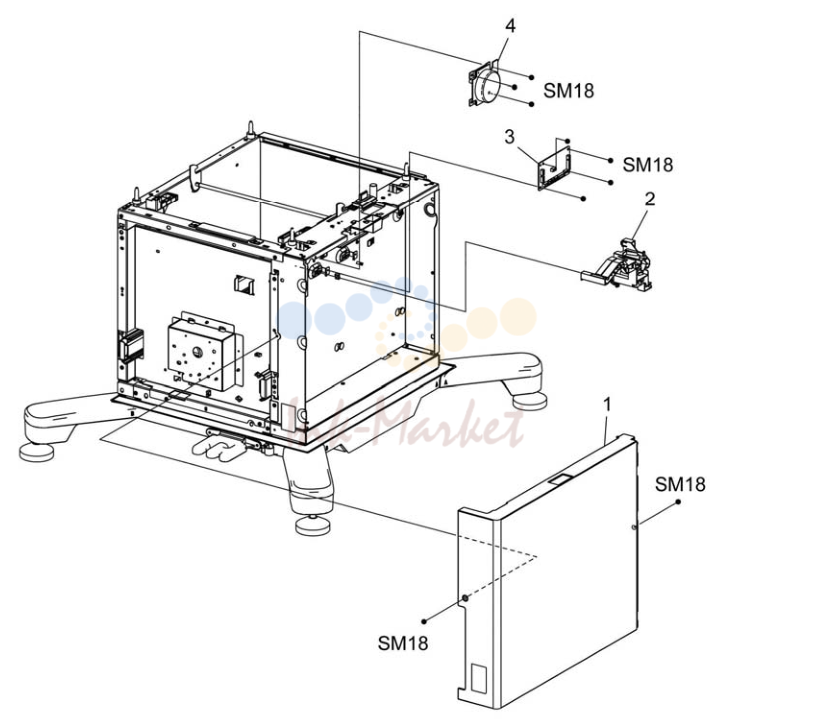

3. PL 11.2 HCF Left

№	Артикул	Описание
1		- Cover rear (REP 11.4)
2	127K73200 запросить цену →	Motor assembly main P1 (REP
3		- Braket actuator sensor
4	952K24820 запросить цену →	SW interlck (REP 11.10)
5		- Guide SW SUB
6		- Open tray sensor
7	012E18960 запросить цену →	Actuator link sensor end (REP
5-20		Xerox® VersaLink® C605F Family Printer
1	859K00100 ✓ в наличии	Shaft assembly feed
2	019K17070 запросить цену →	Holder separator
98	607K00050 запросить цену →	Feed and sparater roll kit (with 1, 2)

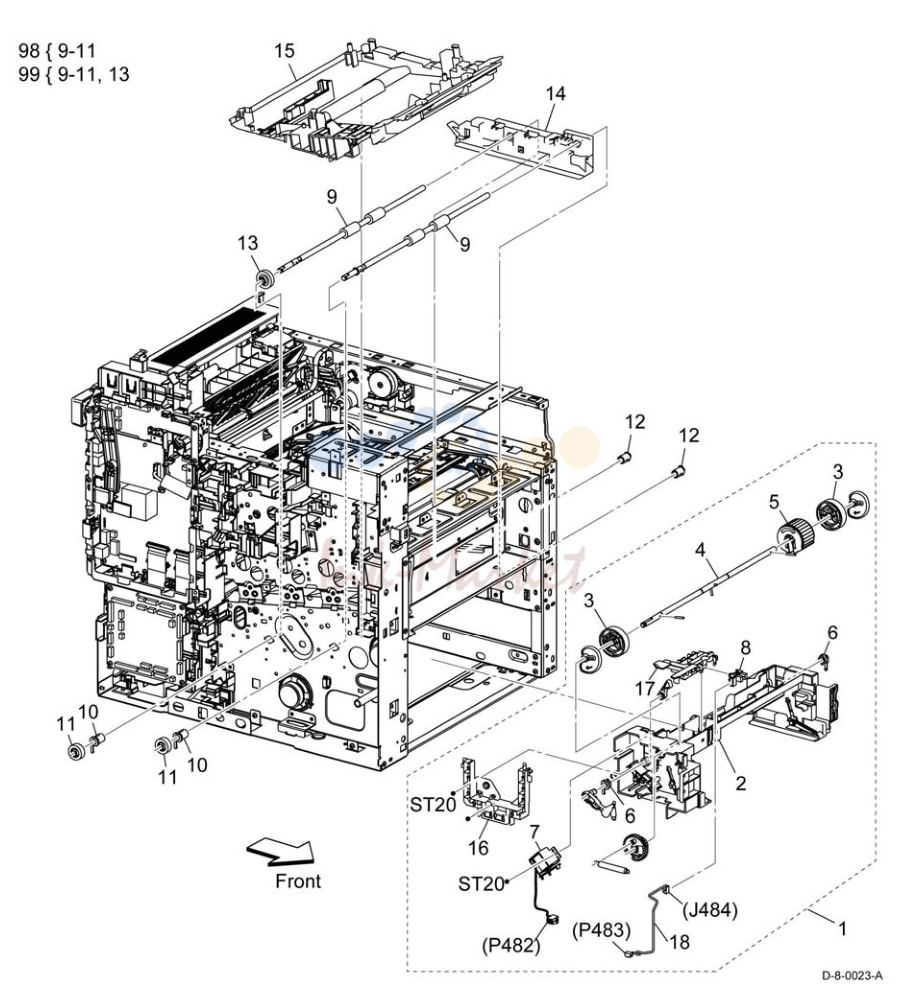

4. Item Part Description

№	Артикул	Описание
1	050K73491 запросить цену →	Tray assembly MSI main (with 2-3)
2		- Cover assembly MSI (P/O PL 13.2
3		- Chute assembly MSI (with 4-15)
4		- Chute MSI (P/O PL 13.2 Item 3)
5	019K17360 запросить цену →	Holder assembly separator MSI
6		- Bar MSI front (P/O PL 13.2 Item 3)
7		- Actuator no paper MSI (P/O PL
8		- Spring no paper MSI (P/O PL 13.2
9		- Shaft pinch TA (P/O PL 13.2 Item 3)
10		- Roll pinch MSI (P/O PL 13.2 Item 3)
11		- Spring Pinch MSI (P/O PL 13.2
12		- Latch MSI L (P/O PL 13.2 Item 3)
13		- Latch MSI R (P/O PL 13.2 Item 3)
14		- Spring latch MSI (P/O PL 13.2 Item
15		- Plate assembly bottom MSI (P/O
1		- Duplex assembly
2	127K74160 запросить цену →	Rear fan
3		- Rear fan bracket (Not Spared)
4		- Cover rear fan harness (Not
5	822E37420 запросить цену →	Cover relay (REP 14.1, REP 14.2)
6		- Harness assembly rear fan 1-MV
5-24		Xerox® VersaLink® C605F Family Printer
1	054E56471 запросить цену →	Chute opt 550 (REP 15.1)
2		- Label jam chute (Not Spared)
3		- Chute dup lower (Not Spared)
4		- Chute feeder (Not Spared)
5		- Cover dup gear (Not Spared)
6		- Harness assembly CLT regi/dup-C
7		- Gear CLT registration (P/O PL 15.1
8		- Clutch assembly registration (P/O
9		- Gear assembly one way (P/O PL
10		- Chute duplex upper (Not Spared)
11		- Bracket assembly registration D (P/
12		- Bearing registration pinch AD (P/O
13		- Bearing registration AD (P/O PL
14		- Roll assembly registration (P/O PL
15		- Bearing registration D (P/O PL 15.1
16		- Spring registration (P/O PL 15.1
17		- Bracket assembly registration AD
18		- Bearing registration pinch D (P/O
19		- Roll registration pinch out (P/O PL
20		- Spacer registration pinch (P/O PL
21		- Roll registration pinch in (P/O PL
22		- Shaft registration pinch (P/O PL
99	607K04980 ✓ в наличии	Kit roll aassembly duplex
1	054K58700 запросить цену →	Chute assembly registration feeder
2	120E35551 запросить цену →	Actuator no paper (REP 15.4)
3		- Chute registration (P/O PL 15.2
4		- Roll Pinch TA (P/O PL 15.2 Item 1)
5		- Spring Pinch TA (P/O PL 15.2 Item
6		- Shaft Pinch TA (P/O PL 15.2 Item
7		- Roll Assy TA3 (P/O PL 15.2 Item 1)
8		- Bearing TA3 D (P/O PL 15.2 Item 1)
9		- Bearing TA3 AD (P/O PL 15.2 Item
10		- Gear TA3 (P/O PL 15.2 Item 1)
11	120E35530 запросить цену →	Actuator registration (with 12)
12		- Spring actuator registration (P/O PL
13	930W00123 запросить цену →	Sensor registration (P/O PL 15.2
14		- Chute registration upper (P/O PL
15		- Clutch assembly PH (P/O PL 15.2
16	859K00100 ✓ в наличии	Roll assembly (REP 15.7)
17	054E60150 запросить цену →	Chute upper feed (REP 15.8)
18		- Harness assembly SNR registra-
19		- Harness assembly clutch feed (P/O
20		- Plate earth feed (P/O PL 15.2 Item
21		- Plate earth TA3 (P/O PL 15.2 Item
22		- Sensor no paper (P/O PL 15.2 Item
98	607K00050 запросить цену →	Feed and sparator roll kit (REP
5-26		Xerox® VersaLink® C605F Family Printer
1	054K58741 запросить цену →	Chute assembly exit C505/C605
2		- Roll pinch (P/O PL 17.1 Item 1)
3		- Cover pinch (P/O PL 17.1 Item 1)
4	007K22120 запросить цену →	Drive assembly exit main H (REP
5		- Not used
6	930W00123 запросить цену →	Full stack sensor and exit sensor
7	120E35590 запросить цену →	Actuator full stack C605 (REP 17.4)
8		- Harness assembly exit (Not
9		- Harness assembly deve-CF (Not
10		- Harness assembly finisher-CF (P/O
1	054K58841 запросить цену →	Chute assembly exit (with 2-3, 6-7,
2		- Roll pinch (P/O PL 17.2 Item 1)
3		- Cover pinch (P/O PL 17.2 Item 1)
4	007K22150 запросить цену →	Drive assembly exit main M (REP
5		- Gear assembly idle exit (Not
6	930W00123 запросить цену →	Full stack sensor and exit sensor
7	120E35590 запросить цену →	Actuator full stack C600 (REP 17.9)
8		- Harness assembly exit T (Not
9		- Harness assembly deve-CF (Not
10		- Harness assembly finisher-CF (Not
5-28		Xerox® VersaLink® C605F Family Printer
1	960K79934 запросить цену →	PWBA MCU C600/C605 (REP
2	952K22010 запросить цену →	FFC MCU ESS (REP 18.2)
3		- Guide FFC color MCU (Not Spared)
4		- Core MCU (Not Spared)
5	960K89970 запросить цену →	PWBA ESS C505/C605/C605_Tall
6		- Plate FAX (Not Spared)
7		- Guide FFC color LPH (Not Spared)
8		- Plate ESS lower (Not Spared)
9	960K80761 ✓ в наличии	PWBA FAX (REP 18.4)
10		- Harness assembly FAX (Not
11		- Wireless module (Not Spared)
12		- Not used
13	952K39990 запросить цену →	Harness assembly ICCR USB
14	952K40000 запросить цену →	Harness assembly front USB (REP
15		- Speaker assembly A4 fax
16	105K32760 запросить цену →	PWBA LVPS C505 (REP 18.7)
18		- Plate ESS top (Not Spared) (REP
19		- Box ESS AIO (Not Spared)
20		- Plate LVPS (Not Spared)
21		- Plate MCU (Not Spared)
22		- Not used
23		- Guide harness ESS (Not Spared)
24		- Not used
25		- Core FAX (Not Spared)
26		- Link WIFI (Not Spared)
27	101K73410 запросить цену →	HDD assembly
28		- Bracket HDD (Not Spared)
29		- Speaker main (Not Spared)
30		- EMMC card (Not Spared)
31		- Bracket USB ICCR (Not Spared)
32		- Bracket USB (Not Spared)
33		- Guide harness MCU (Not Spared)
34		- Shaft support LVPS (Not Spared)
35		- Guide harness IIT (Not Spared)
1	032K09641 запросить цену →	Guide assembly HVPS (with 2)
2		- PWBA HVPS (P/O PL 18.2 Item 1)
3	822E21972 запросить цену →	Cover toner HVPS (REP 18.9)
4		- Housing 2nd BTR (P/O PL 18.2
5		- Plate bias 2nd BTR (P/O PL 18.2
6		- Harness assembly supply 1st YMC
7		- Harness assembly supply 1st K
8		- Harness assembly supply trans
9		- Harness assembly MCU-HVPS-CF
99	604K97511 запросить цену →	Kit housing 2nd BTR (with 4-5)
5-30		Xerox® VersaLink® C605F Family Printer
1		- Kit harness assembly inlet (Not
2		- Harness assembly fusing DC-CF
3	952K24420 запросить цену →	Harness fusing AC 200V-CF (REP
4	952K24490 запросить цену →	Harness assembly I/L rear-CF
5	952K24480 запросить цену →	Harness assembly I/L side-CF
6	952K24690 запросить цену →	Harness assembly OPF-CF (REP
7		- Power cord 100V (Not Spared)
8		- Not used
9		- Guide harness DC (Not Spared)
10		- Guide harness duct (Not Spared)
11		- Guide harness rear IL (Not Spared)
12		- Guide fusing AC (Not Spared)
13		- Guide harness top (Not Spared)
14		- Guide harness sensor 2 (Not
15		- Guide harness MCU2 (Not Spared)
16		- Guide harness AC (Not Spared)
17		- Guide FFC color LPH lower (Not
18		- Not used
19		- Not used
20		- Not used
21	110K16610 запросить цену →	Switch assembly size (REP 18.15)
22		- Harness assembly sw size (Not
1		- Harness assembly ESS-PWR-CF
2		- Harness assembly 24V-MCU-CF
3		- Harness assembly LV-MCU-CF
4		- Harness assembly XPRO-CF (Not
5		- Harness assembly MSI CL (Not
6		- Harness assembly Gate SOL-CF
7		- Harness assembly REGI-CF (Not
8		- Harness assembly SUB fan-CF
9		- Harness assembly rear Fan2-CF
5-32		Xerox® VersaLink® C605F Family Printer
1	960K79930 запросить цену →	PWBA MCU (REP 18.1)
2	952K22010 запросить цену →	FFC MCU ESS (REP 18.2)
3		- Guide FFC color MCU (Not Spared)
4		- Core MCU (Not Spared)
5	960K89970 запросить цену →	PWBA ESS tall (REP 18.3)
6		- Plate FAX (Not Spared)
7		- Guide FFC color R LPH (Not
8		- Plate ESS lower (Not Spared) (REP
9	960K80761 ✓ в наличии	PWBA FAX (REP 18.4)
10		- Harness assembly FAX (Not
11		- Wireless module (Not Spared)
12		- Not used
13	952K40010 запросить цену →	Harness assembly ICCR USB
14	952K40000 запросить цену →	Harness assembly Front USB (REP
15		- Speaker assembly A4 FAX
16	105K32780 запросить цену →	PWBA LVPS 110V (REP 18.7)
17		- PWBA LVPS 220V (Not Spared)
18		- Plate ESS top (Not Spared) (REP
19		- Box ESS AIO (Not Spared) (REP
20		- Plate LVPS (Not Spared)
21		- Plate MCU (Not Spared)
22		- Not used
23		- Guide harness ESS (Not Spared)
24		- Not used
25		- Core FAX (Not Spared)
26		- Link WIFI (Not Spared)
27	101K73410 запросить цену →	HDD assembly (REP 18.16)
28		- Bracket HDD (Not Spared) (REP
29		- Speaker main (Not Spared)
30		- EMMC card (Not Spared)
31		- Not used
32		- Bracket USB (Not Spared)
33		- Guide harness MCU (Not Spared)
34		- Shaft support LVPS (Not Spared)
1	032K09640 запросить цену →	Guide assembly HVPS (with 2)
2		- PWBA HVPS (P/O PL 18.6 Item 1)
3	822E21972 запросить цену →	Cover toner HVPS (REP 18.9)
4		- Housing 2nd BTR (P/O PL 18.6
5		- Plate BIAS 2nd BTR (P/O PL 18.6
6		- Harness assembly supply 1ST
7		- Harness assembly supply 1ST K
8		- Harness assembly supply trans
9		- Harness assembly MCU-HVPS-CF
99	604K97510 запросить цену →	Kit housing 2nd BTR (with 4-5)
5-34		Xerox® VersaLink® C605F Family Printer
1		- Kit harness assembly inlet (Not
2		- Harness assembly fusing DC-CF
3	952K24420 запросить цену →	Harness assembly fusing AC 200V-
4	952K24490 запросить цену →	Harness assembly I/L rear-CF
5	952K24480 запросить цену →	Harness assembly I/L side-CF
6	952K24690 запросить цену →	Harness assembly OPF-CF (REP
7		- Power cord 100V (Not Spared)
8		- Power cord 200V (Not Spared)
9		- Guide harness DC (Not Spared)
10		- Guide harness duct (Not Spared)
11		- Guide harness rear IL (Not Spared)
12		- Guide fusing AC (Not Spared)
13		- Guide harness top (Not Spared)
14		- Guide harness sensor 2 (Not
15		- Guide harness MCU2 (Not Spared)
16		- Guide harness AC (Not Spared)
17		- Guide FFC color LPH lower (Not
18		- Guide harness IIT (Not Spared)
19		- Guide harness UI FIN (Not Spared)
20		- Not used
21	110K16610 запросить цену →	Switch assembly size (REP 18.15)
22		- Harness assembly SW size (Not
1		- Harness assembly ESS-PWR-CF
2		- Harness assembly 24V-MCU-CF
3		- Harness assembly LV-MCU-CF
4		- Harness assembly XPRO-CF (Not
5		- Harness assembly MSI CL (Not
6		- Harness assembly gate SOL-CF
7		- Harness assembly REGI-CF (Not
8		- Harness assembly sub fan-CF (Not
9		- Harness assembly rear Fan2-CF
10		- Harness assembly FIN-MCU-CF
5-36		Xerox® VersaLink® C605F Family Printer
1	960K79920 запросить цену →	PWBA MCU C500 (REP 18.31)
2	952K22010 запросить цену →	FFC MCU ESS (REP 18.32)
3		- Guide FFC color MCU (Not Spared)
4		- Core MCU (Not Spared)
5	960K89980 запросить цену →	PWBA ESS SFP (REP 18.33)
6		- Not used
7		- Guide FFC color LPH (Not Spared)
8		- Plate ESS lower (Not Spared) (REP
9		- Not used
10		- Not used
11		- Wireless module (Not Spared)
12		- Not used
13		- Not used
14	952K39980 запросить цену →	Harness assembly front USB (REP
15		- Not used
16	105K32780 запросить цену →	PWBA LVPS C600/C605/C605_Tall
18		- Plate ESS top (Not Spared) (REP
19		- Box ESS SFP (Not Spared) (REP
20		- Plate LVPS (Not Spared)
21		- Plate MCU (Not Spared)
22		- Not used
23		- Not used
24		- Not used
25		- Not used
26		- Link WIFI (Not Spared)
27	101K73410 запросить цену →	HDD assembly
28		- Bracket HDD (Not Spared) (REP
29		- Speaker main (Not Spared)
30		- EMMC card (Not Spared)
31		- Not used
32		- Not used
33		- Guide harness MCU (Not Spared)
34		- Shaft support LVPS (Not Spared)
1	032K09641 запросить цену →	Guide assembly HVPS (with 2)
2		- PWBA HVPS (P/O PL 18.10 Item
3	822E21972 запросить цену →	Cover toner HVPS (REP 18.37)
4		- Housing 2nd BTR (P/O PL 18.10
5		- Plate BIAS 2nd BTR (P/O PL 18.10
6		- Harness assembly supply 1ST
7		- Harness assembly supply 1ST K
8		- Harness assembly supply trans
9		- Harness assembly MCU-HVPS-CF
99	604K97510 запросить цену →	Kit housing 2nd BTR (with 4-5)
5-38		Xerox® VersaLink® C605F Family Printer
1		- Kit harness assembly inlet (Not
2		- Harness assembly fusing DC-CF
3	952K23920 запросить цену →	Harness assembly fusing AC 200V-
4		- Harness assembly I/L rear-CF
5	952K23980 запросить цену →	Harness assembly I/L side-CF
6	952K24690 запросить цену →	Harness assembly OPF-CF (REP
7		- Power cord 100V (Not Spared)
8		- Power cord 200V (Not Spared)
9		- Guide harness DC (Not Spared)
10		- Guide harness duct (Not Spared)
11		- Guide harness rear IL (Not Spared)
12		- Guide fusing AC (Not Spared)
13		- Guide harness top (Not Spared)
14		- Guide harness sensor 2 (Not
15		- Guide harness MCU2 (Not Spared)
16		- Guide harness AC (Not Spared)
17		- Guide FFC color LPH lower (Not
18		- Not used
19		- Not used
20		- Guide harness front USB (Not
21	110K16610 запросить цену →	Switch assembly size (REP 18.43)
22		- Harness assembly Sw size (Not
1		- Harness assembly ESS-PWR-CF
2		- Harness assembly 24V-MCU-CF
3		- Harness assembly LV-MCU-CF
4		- Harness assembly XPRO-CF (Not
5		- Harness assembly MSI CL (Not
6		- Harness assembly gate SOL-CF
7		- Harness assembly REGI-CF (Not
8		- Harness assembly SUB fan-CF
9		- Harness assembly rear fan 2-CF
10		- Harness assembly FIN-MCU-CF
5-40		Xerox® VersaLink® C605F Family Printer
1		- Cover toner (P/O PL 19.1 Item 96)
4		- Logo (P/O PL 19.1 Item 96)
13		- Link waste (P/O PL 19.1 Item 97)
14		- Spring link waste (P/O PL 19.1 Item
15		- Cover top (P/O PL 19.1 Item 99)
16		- Cover exit (P/O PL 19.1 Item 99)
17		- Tray extension (P/O PL 19.1 Item 99)
18		- Not used
19		- Holder IL (P/O PL 19.1 Item 98)
20		- Actuator IL (P/O PL 19.1 Item 98)
21		- Spring IL (P/O PL 19.1 Item 98)
22		- Cover front L (P/O PL 19.1 Item 95)
23	822E33132 запросить цену →	Cover front R (REP 19.2)
24		- Tray LED PWBA (P/O PL 19.1 Item
25		- Cover shade tray (P/O PL 19.1 Item
26		- Harness assembly LED (P/O PL 19.1
30	822E32660 запросить цену →	Cover IIT inner R (REP 19.3)
31	822E32700 запросить цену →	Cover IIT inner R REAR (REP 19.4)
32	822E32741 запросить цену →	Cover IIT side R (REP 19.5)
40	822E32623 запросить цену →	Cover ICCR (REP 19.6)
41	822E32640 запросить цену →	Cover IIT Inner L (REP 19.7)
42	822E32681 запросить цену →	Cover IIT inner L rear (REP 19.8)
43	822E32783 запросить цену →	Cover IIT side L (REP 19.9)
95	948K16080 запросить цену →	Cover assembly front L (with 22, 24-
96	948K16131 запросить цену →	Cover assembly toner (with 1, 4)
97	948K16141 запросить цену →	Cover assembly side R (with 8, 13-
98		- Cover assembly waste (with 11, 12x2,
99	948K16111 запросить цену →	Cover assembly top (with 15-17)

5. PL 19.2 Cover (C505/C605) (2/2)

№	Артикул	Описание
1		- Cover toner (P/O PL 19.3 Item 96)
4		- Logo (P/O PL 19.3 Item 96)
5	822E33610 запросить цену →	Cover front inner (REP 19.19)
6		- Toner cover sensor (Not Spared)
8		- Cover side R (P/O PL 19.3 Item 97)
11		- Cover waste (P/O PL 19.3 Item 98)
12		- Strap cover waste (P/O PL 19.3
13		- Link waste (P/O PL 19.3 Item 97)
14		- Spring link waste (P/O PL 19.3 Item
15		- Cover top (P/O PL 19.3 Item 99)
16		- Cover exit (P/O PL 19.3 Item 99)
17		- Tray extension (P/O PL 19.3 Item
18	822E32391 запросить цену →	OPT blind cover (REP 19.20)
19		- Holder IL (P/O PL 19.3 Item 98)
20		- Actuator IL (P/O PL 19.3 Item 98)
21		- Spring IL (P/O PL 19.3 Item 98)
22		- Cover front L (P/O PL 19.3 Item 95)
23	822E33131 запросить цену →	Cover front R (REP 19.21)
24		- Tray LED PWBA (P/O PL 19.3 Item
25		- Cover shade tray (P/O PL 19.3 Item
26		- Harness assembly LED (P/O PL
30		- Cover fin inner R (Not Spared)
31	822E34823 запросить цену →	Cover fin inner rear (REP 19.22)
32	822E32940 запросить цену →	Cover fin side R (REP 19.23)
40	822E32843 запросить цену →	Cover ICCR fin (REP 19.24)
41	822E32922 запросить цену →	Cover fin inner L (REP 19.25)
42	822E34800 запросить цену →	Cover fin inner side L (REP 19.26)
43	822E32901 запросить цену →	Cover fin side L sub (REP 19.27)
44	822E32861 запросить цену →	Cover fin front (REP 19.28)
50	822E34782 запросить цену →	Cover fin top exit (REP 19.29)
51	822E37762 запросить цену →	Cover fin side R cap (REP 19.30)
52	801E35940 запросить цену →	Frame fin (REP 19.31)
95	948K16080 запросить цену →	Cover assembly front L (with 22,
96	948K16131 запросить цену →	Cover assembly toner (with 1, 4)
97	948K16140 запросить цену →	Cover assembly side R (with 8, 13-
98		- Cover assembly waste (with 11,
99	948K04220 запросить цену →	Cover assembly top (with 15-17)
1	822E33673 запросить цену →	Cover side L (REP 19.36)
2	822E32882 запросить цену →	Cover fin side L (REP 19.37)
3	822E33001 запросить цену →	Cover fin rear (REP 19.38)
4		- Not used
5		- Not used
6		- Not used
7		- Strap cover rear (P/O PL 19.4 Item
8		- Hinge assembly rear L (Not
9		- Hinge assembly rear R (Not
10		- Cover rear bottom (Not Spared)
11	859K00610 запросить цену →	2nd BTR roll assembly (REP 19.39)
12		- Cover assembly rear AIO (P/O PL
13		- ESS window (P/O PL 19.4 Item 98)
14		- Plate ESS window (P/O PL 19.4
15		- Lever ESS window (P/O PL 19.4
16	822E27572 запросить цену →	WIFI cap (REP 19.40)
98	815K21540 запросить цену →	Kit ESS window assembly (with 13-
99	607K04940 запросить цену →	Kit cover assembly rear AIO (with
5-44		Xerox® VersaLink® C605F Family Printer
3		- Not used
4		- Logo (P/O PL 19.5 Item 96)
5	948K16042 запросить цену →	Cover front inner C600 (REP 19.43)
6		- Toner cover sensor (Not Spared)
7		- Not used
8		- Cover side R (P/O PL 19.5 Item 97)
9		- Cover top rear L (Not Spared)
10	822E32383 запросить цену →	Cover top rear R (REP 19.44)
11		- Cover waste (P/O PL 19.5 Item 98)
12		- Strap cover waste (P/O PL 19.5
13		- Link waste (P/O PL 19.5 Item 97)
14		- Spring link waste (P/O PL 19.5 Item
15		- Cover top (P/O PL 19.5 Item 99)
16		- Cover exit (P/O PL 19.5 Item 99)
17		- Tray extension (P/O PL 19.5 Item
18		- OPT blind cover (Not Spared)
19		- Holder IL (P/O PL 19.5 Item 98)
20		- Actuator IL (P/O PL 19.5 Item 98)
21		- Spring IL (P/O PL 19.5 Item 98)
22		- Cover front L (P/O PL 19.5 Item 95)
23	822E33131 запросить цену →	Cover front R (REP 19.45)
24		- Tray LED PWBA (P/O PL 19.5 Item
25		- Cover shade tray (P/O PL 19.5 Item
26		- Harness assembly (P/O PL 19.5
27		- Not used
28	822E32353 запросить цену →	Cover top exit (REP 19.46)
95	948K16080 запросить цену →	Cover assembly front L (with 22,
96	948K16051 запросить цену →	Cover assembly toner (with 1, 2, 4)
97	948K16061 запросить цену →	Cover assembly side R (with 8, 13-
98		- Cover assembly waste (with 11,
99	948K04203 запросить цену →	Cover assembly top C500/C600
1	822E33545 запросить цену →	Cover side L (REP 19.51)
2		- Not used
3		- Not used
4		- Not used
5	822E32391 запросить цену →	OPT blind cover (REP 19.52)
6		- Not used
7		- Strap cover rear (P/O PL 19.6 Item
8		- Hinge assembly rear L (Not
9		- Hinge assembly rear R (Not
10		- Cover rear bottom (Not Spared)
11	859K00610 запросить цену →	2nd BTR roll assembly (REP 19.53)
12		- Cover assembly rear C500/C600
13		- ESS window (P/O PL 19.6 Item 98)
14		- Plate ESS window (P/O PL 19.6
15		- Lever ESS window (P/O PL 19.6
16	822E27572 запросить цену →	WIFI cap (REP 19.54)
98	815K21540 запросить цену →	Kit ESS window assembly (with 13-
99	607K04950 запросить цену →	Kit cover assembly rear C500/C600
5-46		Xerox® VersaLink® C605F Family Printer

6. PL 20.1 Mailbox

№	Артикул	Описание
3		- Tray assembly compile (Not
4		- Sub paddle home sensor (Not
5	049K34570 запросить цену →	Motor assembly stepping (REP
6	050K75450 запросить цену →	Tray assembly base (REP 21.11)
7		- Tray guide C (Not Spared)
8		- Gear assembly rack R (Not Spared)
9		- Gear assembly rack L (Not Spared)
10		- Spring - lift (Not Spared)
11		- Stacker tray no-paper & full sensor
12	960K90036 запросить цену →	PWBA GPF A4Fin (REP 21.4)
13	105E22590 запросить цену →	LVPS (REP 21.5)
14		- Not used
15		- Harn assembly AC (Not Spared)
16		- Harness assembly fin DC (Not
17		- Harness assembly fin IF (Not
18		- Harness assembly fin SNR1 (Not
19		- Harness assembly fin mot (Not
20		- Plate ground LH (Not Spared)
21		- Gear-Z50 Z20 (Not Spared)

7. PL 21.2 Finisher

№	Артикул	Описание
1		- Caster (with lock) (Not Spared)
2		- Caster (without lock) (Not Spared)
5-52		Xerox® VersaLink® C605F Family Printer
1	607K04880 ✓ в наличии	DADF assembly C505/C605 (with
2	607K05161 запросить цену →	IIT assembly C505 (with 14-15, 19)
3	036K92351 запросить цену →	Counterbalance assembly L (REP
4	036K92331 запросить цену →	Counterbalance assembly R (REP
5		- Feeder roll DADF (P/O PL 50.1
6		- Cover assembly separator (P/O PL
7		- Roll assembly separator DADF (P/
8		- Feeder assembly upper (P/O PL
9		- Cover DADF front (P/O PL 50.1
10		- Cover DADF rear (P/O PL 50.1 Item
11		- Tray assembly DADF (P/O PL 50.1
12	004K03660 запросить цену →	Cushon assembly platen (REP
13		- Scanner assembly (with 1-2)
14	822E35271 запросить цену →	Cover IIT left (REP 50.5)
15	822E35341 запросить цену →	Cover IIT left cap (REP 50.6)
16	120E35681 ✓ в наличии	DADF actuator (REP 50.7)
17		- Holder separator DADF (P/O PL
18		- Spring separator DADF (Not
19	822E35311 запросить цену →	Cover front IIT (REP 50.8)
99		- Kit DADF feed roll (with 5-7) (P/O
40		Supplies and Accessories.

Источник: Инк-Маркет.ру.

← Все статьи
