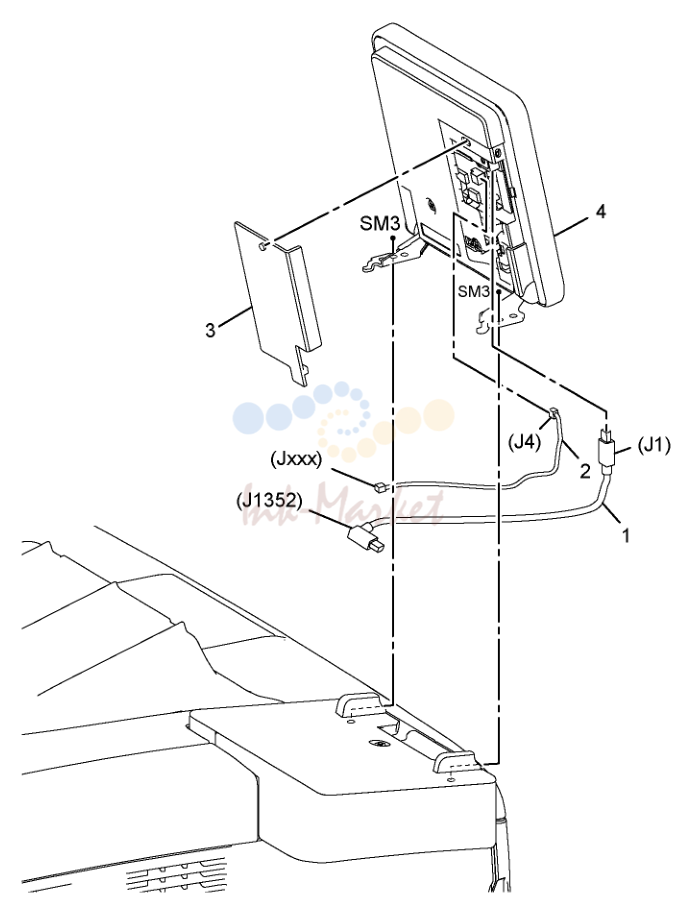

| 1 | 952K38420 запросить цену → | | UI harness assembly C400 (REP |
| 2 | | | - Speaker harness (Not Spared) |
| 3 | 822E32001 запросить цену → | | UI access door |
| 4 | 948K20152 запросить цену → | | UI console assembly C400 (REP |
| 1 | 952K38760 запросить цену → | | UI harness assembly C405 (REP |
| 2 | | | - UI Speaker (Not Spared) |
| 3 | 822E32001 запросить цену → | | UI access door |
| 4 | 948K20152 запросить цену → | | UI console assembly C405 (REP |
| 1 | | | - UI top cover (Not Spared) |
| 2 | 822E29781 запросить цену → | | UI bottom left cover (REP 1.5) |
| 3 | | | - UI bottom right cover (Not Spared) |
| 1 | 822E31951 запросить цену → | | ICCR top cover |
| 2 | | | - ICCR inner cover (Not Spared) |
| 3 | | | - UI base top cover (Not Spared) |
| 4 | | | - Bottom plate (P/O PL 1.2B Item 99) |
| 5 | | | - UI bottom base cover (P/O PL 1.2B |
| 6 | | | - ICCR USB harness assembly (Not |
| 7 | | | - Not Used |
| 8 | | | - Not Used |
| 9 | | | - Not Used |
| 10 | 822E34292 запросить цену → | | IIT front cover |
| 11 | | | - IIT front under cover (Not Spared) |
| 99 | 607K03890 запросить цену → | | UI bottom base kit |
| 1 | 062K24638 запросить цену → | | ROS assembly (110V) (REP 2.1) |
| 2 | | | - Video harness assembly (P/O PL |
| 3 | | | - ROS sub assembly (P/O PL 2.1 |
| 1 | 007K98851 запросить цену → | | Main drive assembly (REP 3.1) |
| 2 | 007K17963 запросить цену → | | Waste drive assembly (REP 3.2) |
| 3 | | | - Waste gear 2 (P/O PL 3.1 Item 8) |
| 4 | | | - Waste bearing 1 (P/O PL 3.1 Item |
| 5 | | | - Drive shaft (P/O PL 3.1 Item 8) |
| 6 | | | - Waste bearing 2 (P/O PL 3.1 Item |
| 7 | | | - Waste gear 3 (P/O PL 3.1 Item 8) |
| 8 | 007K17971 запросить цену → | | Drive shaft assembly (REP 3.3) |
| 9 | 604K90781 запросить цену → | | Waste bearing kit |
| 1 | | | - Frame duct (Not Spared) |
| 2 | | | - Base duct (Not Spared) |
| 3 | | | - Latch spring (P/O PL 4.1 Item 97) |
| 4 | | | - Right rear latch (P/O PL 4.1 Item |
| 5 | | | - Left latch bracket (Not Spared) |
| 6 | | | - S3 rear frame (Not Spared) |
| 7 | | | - Right interlock belt actuator (Not |
| 8 | | | - Interlock belt holder (Not Spared) |
| 9 | | | - Interlock belt spring (Not Spared) |
| 10 | | | - Interlock belt actuator (Not Spared) |
| 11 | | | - Waste sensor cover (Not Spared) |
| 12 | | | - Fan screw (not shown) (Not |
| 13 | 127E86480 запросить цену → | | Main fan (REP 4.1) |
| 14 | | | - Rear foot (P/O PL 4.1 Item 98) |
| 15 | | | - Front base foot (P/O PL 4.1 Item |
| 16 | | | - Foot (P/O PL 4.1 Item 98) |
| 17 | 930W00511 запросить цену → | | Toner full sensor (REP 4.2) |
| 18 | | | - Left rear latch (P/O PL 4.1 Item 97) |
| 97 | 604K73980 запросить цену → | | Left rear latch |
| 98 | 607K00880 запросить цену → | | Foot assembly (Kit contains Rear |
| 99 | 604K76350 запросить цену → | | Right rear latch |
| 1 | 127K64252 запросить цену → | | Upper dispenser motor assembly |
| 2 | 127K64260 запросить цену → | | Dispenser motor (REP 5.2) |
| 3 | | | - Gear motor assembly (P/O PL 5.1 |
| 4 | 094K93433 запросить цену → | | Dispenser assembly - Y (REP 5.3) |
| 5 | 094K93423 запросить цену → | | Dispenser assembly - M (REP 5.3) |
| 6 | 094K93413 запросить цену → | | Dispenser assembly - C (REP 5.3) |
| 7 | 094K93403 запросить цену → | | Dispenser assembly - K (REP 5.3) |
| 8 | | | - Toner cartridge - Y (variants below) |
| 9 | | | - Toner cartridge - M (variants below) |
| 10 | | | - Toner cartridge - C (variants below) |
| 11 | | | - Toner cartridge - K (variants below) |
| 1 | | | - Transfer belt assembly (P/O PL 6.1 |
| 2 | | | - Transfer front latch (P/O PL 6.1 |
| 3 | | | - Transfer front right spring (Not |
| 4 | | | - Coupling actuator (Not Spared) |
| 5 | 803E15100 запросить цену → | | Waste box lock |
| 6 | 032K07422 запросить цену → | | Left transfer belt guide assembly |
| 7 | | | - Housing (P/O PL 6.1 Item 98) |
| 8 | | | - Transfer latch spring (P/O PL 6.1 |
| 9 | | | - Transfer rear right spring (P/O PL |
| 10 | | | - Transfer latch plate (P/O PL 6.1 |
| 11 | | | - Transfer right latch arm (P/O PL 6.1 |
| 12 | | | - Color toner density (CTD) right |
| 13 | 809E96300 запросить цену → | | Color toner density (CTD) spring |
| 14 | 130K77830 запросить цену → | | Color toner density (CTD) sensor |
| 15 | | | - Dowel pin (P/O PL 6.1 Item 99) |
| 16 | | | - Coupling shaft (P/O PL 6.1 Item 99) |
| 17 | | | - Tansfer retract coupling (P/O PL 6.1 |
| 18 | | | - Coupling spring (P/O PL 6.1 Item |
| 19 | | | - Transfer harness cover (Not |
| 20 | | | - Left belt guide (P/O PL 6.1 Item 6) |
| 21 | | | - Transfer front left spring (ACO) |
| 22 | | | - Transfer rear left spring (P/O PL 6.1 |
| 23 | | | - Transfer left latch housing (P/O PL |
| 24 | | | - Transfer left latch arm (P/O PL 6.1 |
| 25 | | | - Not used |
| 26 | | | - Spring (P/O PL 6.1 Item 6) |
| 97 | 604K77533 ✓ в наличии | | Transfer belt assembly (see NOTE) |
| 98 | 604K76280 запросить цену → | | Transfer belt right latch kit (REP |
| 99 | 604K76290 запросить цену → | | Coupling kit (REP 6.5) |
| 1 | 115R00088 запросить цену → | | Fuser assembly (110V) (REP 7.1) |
| 2 | | | - Not used |
| 3 | | | - Not used |
| 4 | | | - Not used |
| 5 | | | - Harness assembly (Not Spared) |
| 1 | 019K12700 запросить цену → | | Transfer CRUM connector |
| 2 | | | - CRU xerographic development |
| 3 | | | - CRU xerographic development |
| 4 | | | - CRU Xerographic Development |
| 5 | | | - CRU Xerographic Development |
| 6 | 042K94440 запросить цену → | | Lens cleaner assembly |
| 7 | 108R01124 ✓ в наличии | | Waste box assembly |
| 8 | | | - CRUM xerographic harness |
| 9 | | | - Cleaner assembly base (P/O PL |
| 10 | | | - Cleaner rod (P/O PL 8.1 Item 6) |
| 95 | 604K77585 запросить цену → | | CRU Xerographic development |
| 96 | 604K77575 ✓ в наличии | | CRU Xerographic development |
| 97 | 604K77565 запросить цену → | | CRU Xerographic development |
| 98 | 604K77555 запросить цену → | | CRU Xerographic development |
| 99 | | | - Cleaner assembly base |
| 1 | 050K66497 запросить цену → | | IOT 550 cassette assembly |
| 2 | | | - Bottom plate assembly (P/O PL 9.1 |
| 3 | | | - Cassette retard holder assembly |
| 4 | | | - Retard roller assembly (P/O PL 9.1 |
| 5 | | | - Retard friction clutch (P/O PL 9.1 |
| 6 | | | - Cassette retard shaft (P/O PL 9.1 |
| 7 | | | - Cassette retard holder (P/O PL 9.1 |
| 8 | | | - Left side guide assembly (P/O PL |
| 9 | | | - Right side guide assembly (P/O PL |
| 10 | | | - Pinion gear (P/O PL 9.1 Item 1) |
| 11 | | | - Bottom lock cover (P/O PL 9.1 Item |
| 12 | | | - Bottom lock rack (P/O PL 9.1 Item |
| 13 | | | - Bottom lock pinion gear (P/O PL |
| 14 | | | - Bottom lock lever gear (P/O PL 9.1 |
| 15 | | | - Bottom lock lever (P/O PL 9.1 Item 1) |
| 16 | | | - Bottom lock gear (P/O PL 9.1 Item 1) |
| 17 | | | - Bottom lock spring (P/O PL 9.1 |
| 18 | | | - Lock spring (P/O PL 9.1 Item 1) |
| 19 | | | - Left lock actuator (P/O PL 9.1 Item |
| 20 | | | - Not used |
| 21 | | | - Upper bottom spring (P/O PL 9.1 |
| 22 | | | - MSI retard spring holder (P/O PL |
| 23 | | | - Cassette retard spring (P/O PL 9.1 |
| 24 | | | - Upper lift rack (P/O PL 9.1 Item 1) |
| 25 | | | - Base housing (P/O PL 9.1 Item 1) |
| 26 | | | - End extension lever (P/O PL 9.1 |
| 27 | | | - End guide assembly (P/O PL 9.1 |
| 28 | | | - End housing (P/O PL 9.1 Item 1) |
| 29 | | | - Not used |
| 30 | | | - Cassette handle (P/O PL 9.1 Item |
| 96 | 675K47673 ✓ в наличии | | Feed roller assembly (Kit Contains |
| 3 | | | Feed Roller assembly and |
| 97 | 604K77661 ✓ в наличии | | Cassette retard holder assembly |
| 1 | 604K77500 запросить цену → | | Optional 550-sheet feeder (REP |
| 2 | | | - 550 Option left side cover (P/O PL |
| 3 | | | - Not used |
| 4 | | | - Not used |
| 5 | | | - 550 Option right side cover (P/O PL |
| 6 | 803E10840 запросить цену → | | 550 Option cassette stopper |
| 7 | | | - Foot assembly (P/O PL 10.1 Item |
| 8 | 005K83210 запросить цену → | | 550 Option feed clutch assembly |
| 9 | 007K18020 запросить цену → | | 550 Option drive assembly (REP |
| 10 | 960K62142 запросить цену → | | 550 Option feeder PWBA (REP |
| 11 | 110K16610 запросить цену → | | 550 Option size switch assembly |
| 12 | | | - Not used |
| 13 | | | - 550 Option drawer1 feeder harness |
| 14 | | | - C2 size harness assembly (P/O PL |
| 15 | | | - C2 turn harness assembly (P/O PL |
| 16 | | | - Feeder motor harness assembly |
| 17 | | | - Joint screw (Not Spared) |
| 18 | | | - Front base foot (P/O PL 10.1 Item |
| 19 | | | - Foot (P/O PL 10.1 Item 1) |
| 20 | | | - Rear foot (Not Spared) |
| 1 | 059K71760 ✓ в наличии | | 550 Option main feed assembly |
| 2 | 121K48670 запросить цену → | | 550 Option registration clutch |
| 3 | 675K47673 ✓ в наличии | | 550 Option feed roller assembly |
| 4 | | | - 550 Option feeder gear (P/O PL |
| 5 | | | - Nudger spring bracket (P/O PL 10.2 |
| 6 | | | - Sub feeder assembly (P/O PL 10.2 |
| 1 | 050K66517 запросить цену → | | 550 Option cassette assembly |
| 2 | | | - Bottom plate assembly (P/O PL |
| 3 | | | - Cassette retard holder assembly |
| 4 | | | - Retard roller assembly (P/O PL |
| 5 | | | - Retard friction clutch (P/O PL 10.3 |
| 6 | | | - Cassette retard shaft (P/O PL 10.3 |
| 7 | | | - Cassette retard holder (P/O PL |
| 8 | | | - Left side guide assembly (P/O PL |
| 9 | | | - Right side guide assembly (P/O PL |
| 10 | | | - Pinion gear (P/O PL 10.3 Item 1) |
| 11 | | | - Bottom lock cover (P/O PL 10.3 |
| 12 | | | - Bottom lock rack (P/O PL 10.3 Item |
| 13 | | | - Bottom lock pinion gear (P/O PL |
| 14 | | | - Bottom lock lever gear (P/O PL |
| 15 | | | - Bottom lock lever (P/O PL 10.3 |
| 16 | | | - Bottom lock gear (P/O PL 10.3 Item |
| 17 | | | - Bottom lock spring (P/O PL 10.3 |
| 18 | | | - Lock spring (P/O PL 10.3 Item 1) |
| 19 | | | - Left lock actuator (P/O PL 10.3 Item |
| 20 | | | - Size actuator (P/O PL 10.3 Item 1) |
| 21 | | | - Upper bottom spring (P/O PL 10.3 |
| 22 | | | - MSI retard spring holder (P/O PL |
| 23 | | | - Cassette retard spring (P/O PL 10.3 |
| 24 | | | - Upper lift rack (P/O PL 10.3 Item 1) |
| 25 | | | - Base housing (P/O PL 10.3 Item 1) |
| 26 | | | - End extension lever (P/O PL 10.3 |
| 27 | | | - End guide assembly (P/O PL 10.3 |
| 28 | | | - End housing (P/O PL 10.3 Item 1) |
| 29 | | | - Size slot plate (P/O PL 10.3 Item 1) |
| 30 | | | - Cassette handle (P/O PL 10.3 Item |
| 96 | 675K47673 ✓ в наличии | | Feed roller assembly (Kit Contains |
| 3 | | | Feed Roller assembly and |
| 1 | | | - Duplex bearing (P/O PL 13.1 Item |
| 2 | | | - TA1 roller assembly (P/O PL 13.1 |
| 3 | | | - TA2 roller assembly (P/O PL 13.1 |
| 4 | | | - TA1 gear (P/O PL 13.1 Item 99) |
| 5 | | | - TA2 spacer (P/O PL 13.1 Item 99) |
| 6 | | | - Bearing TA (P/O PL 13.1 Item 98) |
| 7 | | | - Turn gear (P/O PL 13.1 Item 98) |
| 8 | | | - MSI right guide (Not Spared) |
| 9 | | | - MSI left guide (Not Spared) |
| 98 | 604K73890 запросить цену → | | TA1 roller assembly kit |
| 99 | 604K73900 запросить цену → | | TA2 roller assembly kit |
| 1 | 801K47623 запросить цену → | | MSI tray frame assembly (REP |
| 2 | | | - MSI frame (P/O PL 13.2 Item 1) |
| 3 | | | - MSI no paper sensor bracket (P/O |
| 4 | 930W00123 запросить цену → | | MSI no paper sensor, (P212) (REP |
| 5 | | | - MSI harness assembly (P/O PL |
| 6 | | | - MSI harness guide (P/O PL 13.2 |
| 7 | | | - Feed spring (P/O PL 13.2 Item 99) |
| 8 | | | - MSI feed gear (P/O PL 13.2 Item |
| 9 | | | - MSI feed solenoid (P/O PL 13.2 |
| 10 | 059K78701 ✓ в наличии | | MSI tray feed roller assembly (See |
| 11 | | | - MSI left cam (P/O PL 13.2 Item 98) |
| 12 | | | - Core roller (P/O PL 13.2 Item 98) |
| 13 | | | - Feed holder (P/O PL 13.2 Item 98) |
| 14 | | | - MSI feed shaft (P/O PL 13.2 Item |
| 15 | | | - MSI right cam (P/O PL 13.2 Item |
| 16 | | | - Right support guide (P/O PL 13.2 |
| 17 | | | - Left support guide (P/O PL 13.2 |
| 18 | | | - Right arm (P/O PL 13.2 Item 1) |
| 19 | | | - Spring (P/O PL 13.2 Item 1) |
| 20 | | | - Left arm (P/O PL 13.2 Item 1) |
| 21 | | | - Gear bracket (P/O PL 13.2 Item 1) |
| 22 | | | - Right follower (P/O PL 13.2 Item 1) |
| 23 | | | - Left follower (P/O PL 13.2 Item 1) |
| 24 | | | - Right bottom guide (P/O PL 13.2 |
| 25 | | | - Bottom side (P/O PL 13.2 Item 1) |
| 26 | | | - Left bottom guide (P/O PL 13.2 |
| 98 | 604K73910 запросить цену → | | MSI tray feed roller assembly kit |
| 99 | 604K73921 запросить цену → | | MSI feed solenoid assembly kit |
| 1 | 050K66575 запросить цену → | | MSI tray assembly (REP 13.9) |
| 2 | 848K51105 запросить цену → | | MSI tray cover assembly (REP |
| 3 | | | - Damper spring (P/O PL 13.3 Item |
| 4 | | | - MSI tray lower cover (P/O PL 13.3 |
| 5 | 054K46615 запросить цену → | | MSI tray chute assembly (REP |
| 6 | | | - Front MSI bar (P/O PL 13.3 Item 5) |
| 7 | | | - No paper spring (P/O PL 13.3 Item |
| 8 | | | - No paper actuator (P/O PL 13.3 |
| 9 | | | - MSI pinch roll (P/O PL 13.3 Item 5) |
| 10 | | | - TA1 pinch spring (P/O PL 13.3 Item |
| 11 | | | - TA2 pinch spring (P/O PL 13.3 Item |
| 12 | | | - Retard chute (P/O PL 13.3 Item 5) |
| 13 | | | - MSI retard spring (P/O PL 13.3 |
| 14 | | | - Retard holder assembly (P/O PL |
| 15 | | | - Bottom plate assembly (P/O PL |
| 16 | | | - Left MSI latch (P/O PL 13.3 Item 5) |
| 17 | | | - Right MSI latch (P/O PL 13.3 Item |
| 18 | | | - MSI latch spring (P/O PL 13.3 Item |
| 19 | | | - MSI chute (P/O PL 13.3 Item 5) |
| 20 | | | - Plate assembly retard MSI (Not |
| 98 | 604K74442 запросить цену → | | MSI tray separator roller assembly |
| 99 | 604K73940 запросить цену → | | MSI tray pinch roller assembly kit |
| 1 | 054K46665 запросить цену → | | Duplex assembly (REP 14.1) |
| 2 | | | - CRU transfer roller assembly (P/O |
| 3 | | | - Rear interlock switch harness |
| 4 | 868E68951 запросить цену → | | Rear hinge bracket (REP 14.2) |
| 5 | | | - Not used |
| 6 | | | - Right hinge plate (Not Spared) |
| 7 | | | - Left hinge shaft (Not Spared) |
| 99 | 604K77540 ✓ в наличии | | CRU transfer roller assembly (see |
| 1 | | | - Not used |
| 2 | | | - Upper duplex chute (P/O PL 15.1 |
| 3 | | | - Lower duplex chute (P/O PL 15.1 |
| 4 | | | - Lower registration chute (P/O PL |
| 5 | | | - Opt 550 registration chute (P/O PL |
| 6 | 054K46650 запросить цену → | | Upper transfer belt chute assembly |
| 7 | | | - Not used |
| 8 | 121K48670 запросить цену → | | Registration clutch assembly (REP |
| 9 | | | - Left tray guide (Not Spared) |
| 10 | | | - Cassette stopper (Not Spared) |
| 11 | | | - Idle gear 28 (Not Spared) |
| 12 | | | - Idle gear 25 (Not Spared) |
| 13 | | | - MSI gear cover (Not Spared) |
| 14 | | | - Right tray guide (Not Spared) |
| 98 | 054K46641 запросить цену → | | Duplex chute assembly (REP 15.5) |
| 99 | 604K77761 запросить цену → | | Upper registration chute assembly |
| 1 | 054K47996 запросить цену → | | Registration chute assembly DN |
| 2 | | | - Right registration bearing (P/O PL |
| 3 | | | - Duplex gear cover (P/O PL 15.2 |
| 4 | | | - Bearing (P/O PL 15.2 Item 1) |
| 5 | 121K48680 запросить цену → | | Duplex clutch assembly (REP 15.9) |
| 6 | | | - Tray 1 feed clutch (P/O PL 15.2 |
| 7 | | | - Feed roller assembly (P/O PL 15.2 |
| 8 | | | - Registration harness assembly |
| 9 | | | - Registration chute sub assembly |
| 10 | 120E33762 ✓ в наличии | | No paper sensor actuator |
| 11 | | | - Registration sensor actuator (Not |
| 96 | 675K47673 ✓ в наличии | | Feed roller assembly (Kit Contains |
| 3 | | | Feed Roller assembly and |
| 1 | 054K58160 запросить цену → | | Exit assembly (REP 17.1) |
| 2 | | | - Exit B earth plate (P/O PL 17.1 Item |
| 3 | | | - Exit A earth plate (P/O PL 17.1 Item |
| 4 | | | - Exit B actuator (P/O PL 17.1 Item 1) |
| 5 | | | - Actuator B spring (P/O PL 17.1 |
| 6 | | | - Exit A actuator (P/O PL 17.1 Item 1) |
| 7 | | | - Actuator A spring (P/O PL 17.1 |
| 8 | | | - S3 upper exit chute (P/O PL 17.1 |
| 9 | | | - Exit eliminator (P/O PL 17.1 Item 1) |
| 10 | | | - Stack full actuator (P/O PL 17.1 |
| 11 | | | - Exit sensor (P155) Full stack |
| 12 | | | - S3 lower exit chute (P/O PL 17.1 |
| 13 | | | - Exit bearing (P/O PL 17.1 Item 1) |
| 14 | | | - Exit roller assembly (P/O PL 17.1 |
| 15 | | | - Exit gear (P/O PL 17.1 Item 1) |
| 16 | | | - Pinch roll (P/O PL 17.1 Item 1) |
| 17 | | | - Pinch spring (P/O PL 17.1 Item 1) |
| 18 | | | - Exit sensor harness assembly (P/O |
| 19 | | | - Not used |
| 20 | | | - Tray exit cover (P/O PL 17.1 Item |
| 21 | 007K18766 запросить цену → | | Exit drive assembly (For DN model |
| 22 | | | - Exit flapper chute (P/O PL 17.1 |
| 23 | | | - Sensor harness assembly (Not |
| 1 | | | - Top harness guide (Not Spared) |
| 2 | | | - Exit harness guide (Not Spared) |
| 3 | | | - Top harness cover (Not Spared) |
| 4 | | | - Left top harness guide (Not Spared) |
| 5 | | | - CRM erase harness guide (Not |
| 6 | | | - Development charge housing |
| 7 | | | - Not used |
| 8 | | | - Not used |
| 9 | | | - Not used |
| 10 | 952K33352 запросить цену → | | Inlet harness assembly (REP 18.1) |
| 11 | | | - Switch cover (Not Spared) |
| 12 | | | - AC LV harness guide (Not Spared) |
| 13 | | | - LV bottom cap (Not Spared) |
| 14 | 105K30573 запросить цену → | | LVPS PWBA 220V |
| 15 | | | - Right harness guide (Not Spared) |
| 16 | | | - Drawer holder (Not Spared) |
| 17 | | | - Transfer wire cover (Not Spared) |
| 18 | | | - Upper LVPS duct (Not Spared) |
| 19 | | | - Not used |
| 20 | | | - Right side interlock bracket (P/O PL |
| 21 | | | - Interlock swing actuator (P/O PL |
| 22 | | | - Interlock WC spring (P/O PL 18.1 |
| 23 | | | - Interlock door harness assembly |
| 99 | 110K16891 запросить цену → | | Right interlock switch assembly |
| 1 | | | - ESS top plate (Not Spared) |
| 2 | | | - ESS bottom plate (Not Spared) |
| 3 | | | - Not used |
| 4 | | | - ESS PWBA (P/O PL 18.2 Item 98) |
| 5 | | | - ESS front plate (Not Spared) |
| 6 | | | - ESS rear plate (Not Spared) |
| 7 | 960K80762 запросить цену → | | Fax PWBA C405 (REP 18.6) |
| 8 | | | - Fax plate (Not Spared) |
| 9 | | | - Not used |
| 10 | | | - ESS cover plate (Not Spared) |
| 11 | | | - WiFi lever release (Not Spared) |
| 12 | 952K33410 запросить цену → | | Front USB harness C400 (REP 18.7) |
| 13 | | | - Hard disk drive bracket (Not Spared) |
| 20 | | | - Outer development charge housing |
| 21 | | | - Video harness guide (Not Spared) |
| 22 | | | - Left harness guide (Not Spared) |
| 23 | | | - MCU plate (Not Spared) |
| 24 | 960K87313 запросить цену → | | MCU PWBA (See NOTE 2) (REP |
| 25 | 105K26098 запросить цену → | | Development HVPS XD PWBA (REP |
| 26 | | | - HV earth plate (Not Spared) |
| 27 | 960K84720 запросить цену → | | EEPROM XPRO board |
| 28 | 930W00123 запросить цену → | | Front cover interlock sensor |
| 29 | | | - Speaker assembly (Not Spared) |
| 30 | 105K26108 запросить цену → | | Transfer HVPS PWBA (REP 18.12) |
| 31 | | | - Photo guide harness (Not Spared) |
| 32 | | | - Interlock transfer wire housing |
| 33 | | | - BTR harness assembly (Not Spared) |
| 34 | | | - Ground fuser housing assembly (P/O |
| 35 | | | - Resistor assembly (P/O PL 18.2 Item |
| 36 | 913W12104 запросить цену → | | Drawer 1 feeder |
| 37 | | | - EMMC card (Not Spared) (REP 18.5) |
| 38 | | | - Front cover interlock sensor harness |
| 90 | | | - Wireless adaptor optional (Not |
| 91 | | | - Hard disk drive optional (Not Spared) |
| 98 | 607K11250 запросить цену → | | ESS Kit C405 (See NOTE 1 and 2) |
| 99 | 848K69222 запросить цену → | | Varistor assembly kit (REP 18.15) |
| 1 | | | - Drive harness assembly (Not |
| 2 | | | - Main harness assembly (Not |
| 3 | | | - Not used |
| 4 | | | - Top harness assembly (Not |
| 5 | | | - HVPS harness assembly (Not |
| 6 | | | - MCU-HVPS flat flex connector |
| 7 | | | - Power cord (Not Spared) |
| 1 | 948K02920 запросить цену → | | Front cover assembly C400 (REP |
| 2 | | | - Front strap (P/O PL 19.1A Item 1) |
| 3 | | | - Front latch spring (P/O PL 19.1A |
| 4 | | | - Front latch (P/O PL 19.1A Item 1) |
| 5 | | | - Latch bracket (P/O PL 19.1A Item |
| 6 | | | - Lower front cover C400 (P/O PL |
| 7 | | | - Upper front cover C400 (P/O PL |
| 8 | | | - Logo plate (P/O PL 19.1A Item 1) |
| 9 | | | - Front cover extension (P/O PL |
| 10 | 948K02960 запросить цену → | | Top cover assembly (REP 19.2) |
| 11 | | | - Transfer link holder (P/O PL 19.1A |
| 12 | | | - Transfer 1 link (P/O PL 19.1A Item |
| 13 | | | - Transfer 2 link (P/O PL 19.1A Item |
| 14 | | | - Upper top cover C400 (P/O PL |
| 15 | | | - Interlink actuator spring (P/O PL |
| 16 | | | - Interlink turn actuator (P/O PL |
| 17 | | | - Interlink actuator holder (P/O PL |
| 18 | | | - Bottom top cover (P/O PL 19.1A |
| 19 | | | - Left under top cover (Not Spared) |
| 20 | 822E30230 запросить цену → | | Exit cover C400 (REP 19.3) |
| 21 | | | - Support transfer link holder (P/O PL |
| 22 | | | - Left hinge bracket (Not Spared) |
| 23 | | | - Left top hinge (Not Spared) |
| 24 | | | - Top cover stopper (Not Spared) |
| 25 | | | - Right top hinge (Not Spared) |
| 26 | | | - Right hinge bracket (Not Spared) |
| 30 | | | - Top right cover C400 (Not Spared) |
| 31 | 822E14490 запросить цену → | | Right side cover assembly C400 |
| 32 | | | - Front right cover C400 (P/O PL |
| 33 | | | - Right cover (P/O PL 19.1B Item 31) |
| 34 | | | - Not used |
| 35 | 948K02950 запросить цену → | | Waste door cover assembly |
| 36 | | | - Right door upper cover C400 (P/O |
| 37 | | | - Right door cover C400 (P/O PL |
| 38 | | | - Right side cover strap (P/O PL |
| 1 | 948K03310 запросить цену → | | Front cover assembly C405 (REP |
| 2 | | | - Front strap (P/O PL 19.1C Item 1) |
| 3 | | | - Front latch spring (P/O PL 19.1C |
| 4 | | | - Front latch (P/O PL 19.1C Item 1) |
| 5 | | | - Latch bracket (P/O PL 19.1C Item |
| 6 | | | - Front cover extension (P/O PL |
| 7 | | | - Lower front cover (P/O PL 19.1C |
| 8 | | | - Top front cover (P/O PL 19.1C Item |
| 9 | | | - Logo plate (P/O PL 19.1C Item 1) |
| 10 | 948K03380 запросить цену → | | Top cover assembly C405 (REP |
| 11 | | | - Transfer link holder (P/O PL 19.1C |
| 12 | | | - Transfer 1 link (P/O PL 19.1C Item |
| 13 | | | - Transfer 2 link (P/O PL 19.1C Item |
| 14 | | | - Upper top cover (P/O PL 19.1C |
| 15 | | | - Interlink actuator spring (P/O PL |
| 16 | | | - Interlink turn actuator (P/O PL |
| 17 | | | - Interlink actuator holder (P/O PL |
| 18 | | | - Bottom top cover (P/O PL 19.1C |
| 19 | | | - Support transfer link holder (P/O PL |
| 20 | 822E30360 запросить цену → | | Exit cover C405 (REP 19.8) |
| 21 | | | - Left hinge bracket (Not Spared) |
| 22 | | | - Left top hinge (Not Spared) |
| 23 | | | - Top cover stopper (Not Spared) |
| 24 | | | - Right top hinge (Not Spared) |
| 25 | | | - Right hinge bracket (Not Spared) |
| 30 | 822E30992 запросить цену → | | Upper right cover C405 (REP 19.9) |
| 31 | 948K03351 запросить цену → | | Right side cover assembly C405 |
| 32 | | | - Front right cover (P/O PL 19.1D |
| 33 | | | - Right Cover (P/O PL 19.1D Item |
| 34 | | | - Not Used |
| 35 | 948K03370 запросить цену → | | Waste door cover assembly |
| 36 | | | - Right door upper cover (P/O PL |
| 37 | | | - Right door cover (P/O PL 19.1D |
| 38 | | | - Right side cover strap (P/O PL |
| 39 | | | - Inner upper right cover C405 (Not |
| 1 | | | - Top left cover C400 (Not Spared) |
| 2 | | | - Left cover C400 (P/O PL 19.2A |
| 3 | | | - ESS window cover assembly (P/O |
| 4 | | | - ESS window cover C400 (P/O PL |
| 5 | | | - ESS window plate (P/O PL 19.2A |
| 6 | | | - Thumb screw (P/O PL 19.2A Item |
| 7 | | | - E ring (P/O PL 19.2A Item 3) |
| 8 | | | - Not used |
| 9 | | | - Not used |
| 10 | 607K03760 запросить цену → | | Rear cover assembly C400 (REP |
| 11 | | | - Rear cover (P/O PL 19.2A Item 10) |
| 12 | | | - Rear cover link (P/O PL 19.2A Item |
| 13 | 822E30260 запросить цену → | | WiFi cap cover |
| 98 | | | - Rear cover assembly (Not Spared) |
| 99 | 948K02540 запросить цену → | | Left side cover assembly C400 |
| 1 | 822E30971 запросить цену → | | IIT Left outer base C405 (REP |
| 2 | | | - IIT Left inner base C405 (Not |
| 3 | | | - IIT inner base (Not Spared) |
| 4 | | | - IIT bottom cover (Not Spared) |
| 5 | | | - Left cover (P/O PL 19.2B Item 99) |
| 6 | | | - ESS window cover assembly (P/O |
| 7 | | | - ESS window cover (P/O PL 19.2B |
| 8 | | | - ESS window plate (P/O PL 19.2B |
| 9 | | | - Thumb screw (P/O PL 19.2B Item |
| 10 | | | - E ring (P/O PL 19.2B Item 6) |
| 11 | 822E30260 запросить цену → | | WiFi cap cover |
| 12 | | | - Not used |
| 13 | | | - Not used |
| 14 | | | - Not used |
| 15 | 607K03760 запросить цену → | | Rear cover assembly |
| 16 | | | - Rear cover assembly C405 (P/O PL |
| 17 | | | - Rear cover link (P/O PL 19.2B Item |
| 18 | | | - Left rear lower cover C405 (Not |
| 19 | | | - IIT bottom base cap (Not Spared) |
| 99 | 948K03330 запросить цену → | | Left side cover assembly C405 |
| 1 | 607K12151 запросить цену → | | DADF assembly (REP 50.1) |
| 2 | 607K04243 запросить цену → | | IIT assembly (REP 50.1) |
| 3 | 036K92343 запросить цену → | | Left counter balance assembly |
| 4 | 036K92323 запросить цену → | | Right counter balance assembly |
| 5 | | | - DADF roller feeder (P/O PL 50.1 |
| 6 | | | - Separator cover assembly (P/O PL |
| 7 | | | - DADF separator spring (P/O PL |
| 8 | | | - Upper feeder assembly (P/O PL |
| 9 | | | - DADF front cover (P/O PL 50.1 |
| 10 | | | - DADF rear cover (P/O PL 50.1 Item |
| 11 | 050K73592 запросить цену → | | DADF Input tray assembly (REP |
| 12 | | | - Platen cushion assembly (P/O PL |
| 13 | | | - Scanner assembly (Not Spared) |
| 14 | | | - IIT left cover (P/O PL 50.1 Item 2) |
| 15 | | | - IIT Left cover cap (P/O PL 50.1 |
| 16 | 120E35671 запросить цену → | | DADF actuator (P/O PL 50.1 Item |
| 17 | | | - IIT assembly (P/O PL 50.1 Item 2) |
| 99 | 607K00132 запросить цену → | | DADF feed roll kit (REP 50.6) |
