Xerox Versalink B600/B610/B605 MFP/B615 MFP — каталог запчастей со схемами

Содержание

1. 5 Parts Lists
2. PL 6.1 Transfer
3. PL 8.1 Xerographic
4. PL 30.1 Cabinet

1. 5 Parts Lists

№	Артикул	Описание
5		Parts Lists
1		- UI PL 17.1 Exit..................................................................................................................... 5-25
18		- Electrical
3		- Drive
4		- NOHAD
5		- Dispenser PL 18.10 Electrical (B600/B610) (2/4)............................................................................. 5-35
6		- Transfer
19		- Cover
7		- Fusing PL 19.2 Cover (B605/B615) (2/2).................................................................................... 5-39
8		- Xerographic
9		- Tray
20		- Mailbox
10		- Option Feeder PL 20.2 Mailbox............................................................................................................... 5-45
11		- HCF
30		- Cabinet
13		- MSI
14		- Duplex
15		- Registration
17		- Exit
1	948K02982 запросить цену →	Console assembly UI AIO REP 1.1
2	822E18611 запросить цену →	UI inner cover REP 1.2
3	822E18601 запросить цену →	UI frame cover REP 1.3
4		- UI frame plate (Not spared)
5	952K35720 запросить цену →	UI harness (tall) REP 1.4
6		- Speaker main
7	822E30280 запросить цену →	UI access door (hatch) REP 1.5
8		- UI frame bracket (Not spared)
9		- Not used
10		- ICCR card (Not spared)
1	848K95746 запросить цену →	Console assembly UI SFP REP 1.6
2	822E32330 запросить цену →	UI inner cover REP 1.7
3		- Not used
4		- UI frame (Not spared)
5	952K37020 запросить цену →	UI harness REP 1.8
6		- Speaker main
7	822E32001 запросить цену →	UI access door REP 1.9
8		- Not used
9		- Not used
10		- ICCR card (Not spared)
5-4		Xerox® VersaLink® B600 Family MFP
1	930K00760 запросить цену →	Head assembly LPH mono REP 2.1
2	117E41970 запросить цену →	FFC LPH REP 2.2
3		- Cover LPH (guide cleaner) (Not
4		- Cover LPH ESD (Not spared)
5		- Holder LPH RT (Not spared) REP
6		- Core ferrite LPH (Not spared)
7		- Guide FFC mono LPH (Not spared)
8		- Guide toner (Not spared) REP 2.4
9		- Not used
10		- Not used
11		- Not used
12		- Not used
13		- Core ferrite LPH (Not spared)
1	007K22820 запросить цену →	Drive assembly main REP 3.1
2		- Not used
3		- Not used
4		- Not used
5	007K21981 запросить цену →	Drive assembly MSI REP 3.2
6		- Plate MCU (Not spared)
7		- Harness assembly motor PWR-MV
8		- Harness assembly motor - MV (Not
5-6		Xerox® VersaLink® B600 Family MFP
1	127K74220 запросить цену →	Fan main REP 4.1
2		- Duct fan main (Not spared)
3	127K74200 запросить цену →	Fan sub REP 4.2
4		- Not used
5		- Not used
6		- Not used
7	017K94350 запросить цену →	Rubber foot
99	604K77650 запросить цену →	Kit foot assembly REP 4.3
1	127K64260 запросить цену →	Motor assembly DISP/ENV
2	007K23091 запросить цену →	Drive assembly DISP/ENV (with 3)
3		- Photo sensor (Q94-200) (nip
4		- Not used
5		- Not used
6		- Connector assembly CRUM toner
7		- Toner CRUM PWB (Not spared)
8		- Harness assembly DISP/ENV-MV
9		- Housing CRUM dispenser (Not
10		- Harness assembly toner
11		- Toner cartridge (Not spared)
12		- Latch CTRG (Not spared)
13		- Link latch CTRG (Not spared)
14		- Spring latch CTRG (Not spared)
15		- Guide CRU R (Not spared)
16		- Guide CRU L2 (Not spared)
17		- Frame top mono (Not spared)
18		- Guide harness top (Not spared)
19		- Assembly coupling (Not spared)
20		- Gear idler dispenser (Not spared)
21		- Gear out CRU (Not spared)

2. PL 6.1 Transfer

№	Артикул	Описание
1	115R00139 запросить цену →	110V fuser REP 7.1 GP
2		- Bracket nip retract (not spared)
3		- Not used
4		- Not used
5		- Not used
6		- Shaft retract (P/O PL 7.1 Item 99)
7		- Gear shaft retraction (P/O PL 7.1
8		- Block CRU (not spared)
9		- Block CRU D (not spared)
10		- Nip retraction shaft damper (not
99	607K05110 запросить цену →	Nip retraction shaft assembly (with

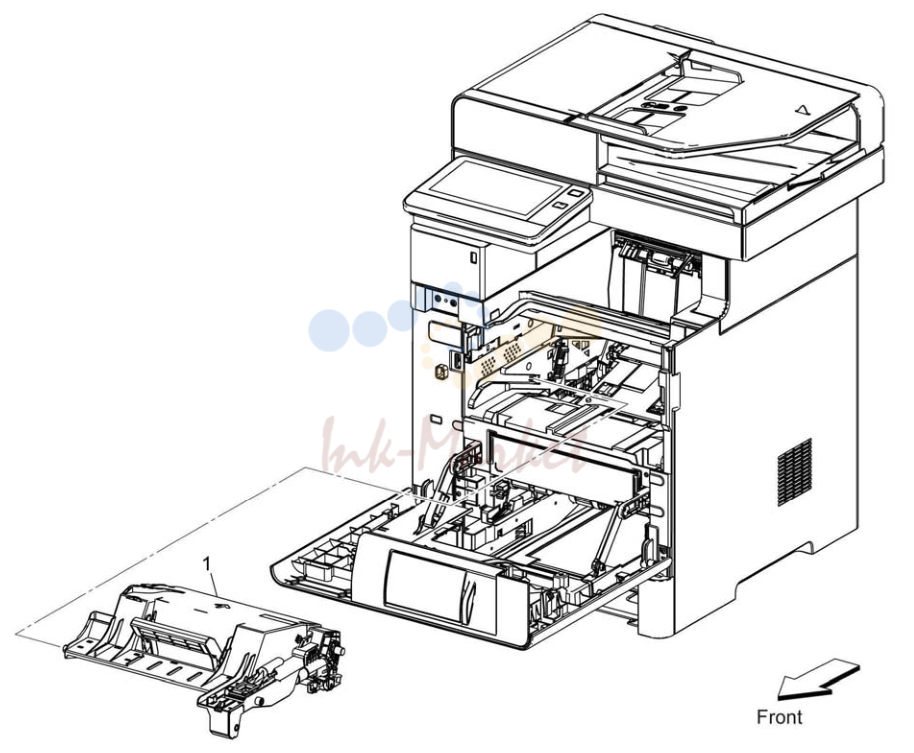

3. PL 8.1 Xerographic

№	Артикул	Описание
1	050K75820 запросить цену →	Cassette assembly 550 IOT (with
2	019K17070 запросить цену →	Holder assembly separator CST
3		- Roll assembly (not spared)
4		- Holder separator (not spared)
5		- Shaft separator CST (not spared)
6		- Clutch assembly friction (not
7		- Handle CST 550 (not spared)
8		- Gear assembly (not spared)
9		- Plate assembly bottom (not spared)
10		- Housing assembly end 550 (not
11	948K11521 запросить цену →	Dust cover
12	859K00100 ✓ в наличии	Roll assembly
98	607K00050 запросить цену →	Feed and separator roll kit (with 2,
12		x 2 pcs) REP 9.3
1	859K09980 запросить цену →	Kit feeder assembly OPF
2		- Cover side l OPF 550 (not spared)
3		- Cover side r OPF 550 (not spared)
4		- Cover lip top OPF 550 (not spared)
5		- Not used
6		- Cover rear OPF 550 (not spared)
7		- Cover rear under OPF 550 (not
8		- Cover rear top OPF 550 (not
9		- Foot base OPF 550 (not spared)
10	017K94350 запросить цену →	Foot OPF 550 REP 10.2
11		- PWB assembly OPF 550 (not
12	110K16610 запросить цену →	Switch assembly size OPF
13		- Lock assembly OPF 550 (not
14		- Gear rack lock OPF 550 (not
15		- Latch tray OPF 550 (not spared)
16		- Harness assembly FDR drawer (not
17		- Harness assembly OPF 2C (not
18		- Motor assembly drive OPF 550 (not
19		- Chute rear OPF 550 (not spared)
20		- Guide harness OPF 550 (not
21		- CVR front l OPF (not spared)
22		- Tray LED assembly (not spared)
23		- Harness assembly LED
24		- Cover shade tray (not spared)
98	607K00450 запросить цену →	Kit OPF FDR LED (with 21, 22, 23,
1		- Feeder assembly OPF 550 (with
2		- Frame feeder top (not spared)
3		- Gear P24-P27 (not spared)
4		- Clutch assembly PH OPF 550 (not
5		- Support nudger (not spared)
6	054E60150 запросить цену →	Chute upper feed
7	859K00100 ✓ в наличии	Roll assembly REP 10.6
8	120E35551 запросить цену →	Actuator no paper REP 10.7
9		- Sensor photo (opt. feeder no paper
10		- Shaft feed OPF 550 (not spared)
11		- Shaft nudger OPF 550 (not spared)
12		- Cover harness OPF 550 (not
13		- Chute feeder (not spared)
14		- Roll assembly TA pinch OPF
15		- Roller assembly TA OPF 550 (not
16		- Clutch assembly PH OPF
17		- Sensor photo (OPT path paper
5-14		Xerox® VersaLink® B600 Family MFP
1	050K75820 запросить цену →	Cassette assembly OPF 550 (with
2	019K17070 запросить цену →	Holder assembly separator CST
3		- Roll assembly (not spared)
4		- Holder separator (not spared)
5		- Shaft separator (not spared)
6		- Clutch assembly friction (not
7	948K11521 запросить цену →	Dust cover 550 REP 10.10
8	859K00100 ✓ в наличии	Roll assembly
98	607K00050 запросить цену →	Feed and separator roll kit (with 2,
1		- Cover right (not spared) REP 11.1
2		- Cover front L (not spared) REP
3		- Cover shade tray LED (not spared)
4		- LED PWB (not spared) REP 11.2
5	859K09990 запросить цену →	Feeder assembly (HCF) REP 11.5
6		- Harness assembly LED (not
7	607K05000 запросить цену →	LED assembly W/I wire (with 3, 4,
1		- Cover left (not spared)
2		- Guide harness (not spared)
3	960K89873 запросить цену →	OPF PWB REP 11.7
4	127K73200 запросить цену →	Motor assembly main REP 11.8
5-17		Xerox® VersaLink® B600 Family MFP
1		- Cover rear (not spared) REP 11.4
2	127K73200 запросить цену →	Motor assembly main P1 REP 11.9
3		- Bracket actuator sensor (not
4	952K24820 запросить цену →	SW interlock REP 11.10
5		- Guide SW SUB (not spared)
6		- Open tray sensor
7	012E18960 запросить цену →	Actuator link sensor end
1	859K00100 ✓ в наличии	Shaft assembly feed
2	019K17070 запросить цену →	Holder separator
98	607K00050 запросить цену →	Feed and separator roll kit (with 1,
5-19		Xerox® VersaLink® B600 Family MFP
1	801K71230 запросить цену →	Frame assembly MSI (with2-8,
2		- Frame MSI (not spared)
3		- Roll core MSI (not spared)
4		- Shaft assembly feed MSI (not
5	059K89701 запросить цену →	Feed roll MSI REP 13.2
6		- Bearing dup MSI (not spared)
7		- Solenoid feed MSI (not spared)
8	930W00123 запросить цену →	Sensor-photo int (MSI No Paper
9		- Roll assembly TA 1 (not spared)
10		- Bearing TA L (not spared)
11		- Gear turn (not spared)
12		- Bearing TA3 AD (not spared)
13		- Gear TA 2 (not spared)
14		- Guide MSI R (not spared)
15		- Upper chute MSI (not spared)
16		- Guide harness MSI (not spared)
17		- Bracket no paper MSI (not spared)
18		- Harness assembly no paper MSI
98		- Kit MSI roll assembly TA 1 (with
99	604K97990 запросить цену →	Kit MSI roll assembly TA 1 / 2 (with
1	050K73491 запросить цену →	Tray assembly MSI main (with 2-3)
2		- Cover assembly MSI (not spared)
3		- Chute assembly MSI (with 4-15)
4		- Chute MSI (not spared)
5	105K33341 запросить цену →	Holder assembly separator MSI
6		- Bar MSI Front (not spared)
7		- Actuator no paper MSI (not spared)
8		- Spring no paper MSI (not spared)
9		- Shaft pinch TA (not spared)
10		- Roll pinch MSI (not spared)
11		- Spring pinch MSI (not spared)
12		- Latch MSI L (not spared)
13		- Latch MSI R
14		- Spring latch MSI (not spared)
15		- Plate assembly bottom MSI (not
5-21		Xerox® VersaLink® B600 Family MFP
1		- Duplex assembly (not spared)
2		- Not used
3		- Not used
4		- Cover rear fan harness (not spared)
5	822E37420 запросить цену →	Cover relay REP 14.1
1	054E56471 запросить цену →	Chute OPT 550 REP 15.1
2		- Label jam chute (not spared)
3		- Chute dup lower (not spared)
4		- Chute feeder (not spared)
5		- Cover dup gear (not spared)
6		- Harness assembly CLT
7		- Gear CLT registration (not spared)
8		- Clutch assembly registration (not
9		- Gear assembly one way (not
10		- Chute DUP upper (not spared)
11		- Bracket assembly registration D
12		- Bearing registration pinch AD (not
13		- Bearing registration AD (not
14		- Roll assembly registration (not
15		- Bearing registration D (not spared)
16		- Spring registration
17		- Bracket assembly registration AD
18		- Bearing registration pinch D (not
19		- Roll registration pinch out (not
20		- Spacer registration pinch (not
21		- Roll registration pinch in (not
22		- Shaft registration pinch (not
23		- Chute assembly upper (not spared)
99	607K04980 ✓ в наличии	Kit roll assembly DUP registration
1	054K58700 запросить цену →	Chute assembly registration feeder
2	120E35551 запросить цену →	Actuator no paper REP 15.4
3		- Chute registration (not spared)
4		- Roll pinch TA (not spared)
5		- Spring pinch TA (not spared)
6		- Shaft pinch TA (not spared)
7		- Roll assembly TA3 (not spared)
8		- Bearing TA3 D (not spared)
9		- Bearing TA3 AD (not spared)
10		- Gear TA3 (not spared)
11		- Actuator registration (with 12) (not
12		- Spring actuator registration (not
13	930W00123 запросить цену →	Sensor photo int (registration
14		- Chute registration upper (not
15		- Clutch assembly PH
16	859K00100 ✓ в наличии	Feed roll assembly REP 15.7
17	054E60150 запросить цену →	Chute upper feed
18		- Harness assembly SNR
19		- Harness assembly clutch feed (not
20		- Plate earth feed (not spared)
21		- Plate earth TA3
22		- Sensor photo int (no paper sensor)
98	607K00050 запросить цену →	Feed and separator roll kit (with
5-24		Xerox® VersaLink® B600 Family MFP
1	054K58740 запросить цену →	Chute assembly exit (with 2-3, 6-7,
2		- Roll pinch (Not spared)
3		- Cover pinch (Not spared)
4	007K22150 запросить цену →	Drive assembly exit main REP 17.2
5	007K21430 запросить цену →	Gear assembly idle exit REP 17.3
6	930W00123 запросить цену →	Full stack sensor, C sensor
7	120E38230 запросить цену →	Actuator full stack REP 17.4
8		- Harness assembly full stack - MV
9		- Harness assembly developer - MV
10		- Harness assembly finisher - MV
11		- Not used
12		- Cover top exit lower (Not spared)
13		- Chute flapper exit (Not spared)
1	960K81100 запросить цену →	MCU PWB REP 18.1
2	952K25540 запросить цену →	FFC MCU ESS REP 18.2
3		- Guide FFC MCU
4		- Not used
5	960K90833 запросить цену →	ESS PWB MFP REP 18.3
6		- PLATE FAX (Not spared)
7		- Not used
8		- Plate ESS low (Not spared)
9	960K80761 ✓ в наличии	FAX PWB REP 18.4
10		- Harness assembly fax (Not spared)
11		- Wireless module (Not spared)
12		- Not used
13	952K40000 запросить цену →	Harness assembly ICCR USB REP
14	952K39990 запросить цену →	Harness assembly front USB REP
15		- Speaker assembly A4 fax (not
16	105K33370 запросить цену →	LVPS PWB 220V REP 18.7
17		- Not used
18		- Plate ESS top (not spared)
19		- Box ESS AIO (not spared)
20		- Plate LVPS (not spared)
21		- Not used
22		- Not used
23		- Guide harness ESS (not spared)
24		- Not used
25		- Core fax (not spared)
26		- Link WIFI (not spared)
27	101K73410 запросить цену →	HDD assembly
28		- Bracket HDD (not spared)
29		- Speaker main (not spared)
30		- EMMC card (not spared)
31		- Bracket USB ICCR (not spared)
32		- Bracket USB (not spared)
1		- Cover HVPS (not spared) REP 18.9
2	105K33120 запросить цену →	HVPS PWB REP 18.8
3		- Not used
4		- Housing 2ND BTR (not spared)
5		- Plate BIAS 2nd BTR (not spared)
6		- Harness 2nd BTR (T401) (not
7		- Not used
8		- Not used
9		- Harness assembly MCU-HVPS-MV
99		- Kit housing 2nd BTR (with 4-5) (not
5-27		Xerox® VersaLink® B600 Family MFP
1		- Kit harness assembly inlet (not
2		- Harness assembly fusing DC-MV
3	952K25320 запросить цену →	Harness fusing AC 220V REP
4	952K25390 запросить цену →	Harness assembly I/L rear-MV REP
5	952K25380 запросить цену →	Harness assembly I/L FRONT-MV
6	952K25490 запросить цену →	Harness assembly OPF-MV REP
7		- Power cord 110V (not spared)
8		- Not used
9		- Guide harness rear IL (not spared)
10		- Guide harness MCU (not spared)
11		- Guide harness AC (not spared)
12		- Guide harness F USB (not spared)
13		- Not used
14		- Not used
15		- Not used
16		- Not used
17		- Not used
18		- Not used
19		- Not used
20		- Not used
21	110K16610 запросить цену →	Switch assembly size REP 18.15
22		- Harness assembly switch size (not
1		- Harness assembly ESS-PWR-MV
2		- Harness assembly 24V-MCU-MV
3		- Harness assembly LV-MCU-MV
4		- Harness assembly CRUM-MV (not
5		- Harness assembly MSI-MV (not
6		- Harness assembly XERO
7		- Harness assembly REGI-MV (not
8		- Harness assembly SUB FAN-MV
5-29		Xerox® VersaLink® B600 Family MFP
1	960K81100 запросить цену →	MCU PWB
2	952K25540 запросить цену →	FFC MCU ESS
3		- Guide FFC MCU (not spared)
4		- Not used
5	960K90833 запросить цену →	ESS PWB tall
6		- Plate FAX (not spared)
7		- Not used
8		- Plate ESS low (not spared)
9	960K80761 ✓ в наличии	FAX PWB
10		- Harness assembly FAX (not
11		- Wireless module (not spared)
12		- Not used
13	952K40000 запросить цену →	Harness assembly ICCR USB
14	952K40010 запросить цену →	Harness assembly front USB
15		- Speaker assembly A4 FAX (not
16	105K33360 запросить цену →	LVPS PWB 110V
17		- Not used
18		- Plate ESS top (not spared)
19		- Box ESS AIO (not spared)
20		- Plate LVPS (not spared)
21		- Not used
22		- Not used
23		- Guide harness ESS (not spared)
24		- Not used
25		- Core FAX (not spared)
26		- Link WIFI
27	101K73410 запросить цену →	HDD assembly
28		- Bracket HDD (not spared)
29		- Speaker main (not spared)
30		- EMMC card (not spared)
31		- Not used
32		- Bracket USB (not spared)
1		- COVER HVPS
2	105K33121 запросить цену →	HVPS PWB REP 18.8
3		- Not used
4		- Housing 2nd BTR (not spared)
5		- Plate BIAS 2nd BTR (not spared)
6		- Harness 2nd BTR
7		- Not used
8		- Not used
9		- Harness assembly MCU-HVPS-MV
99		- Kit housing 2nd BTR (with 4-5) (not
5-31		Xerox® VersaLink® B600 Family MFP
1		- Kit harness assembly inlet (not
2		- Harness assembly fusing DC-MV
3	952K25320 запросить цену →	Harness fusing AC 220V
4	952K25390 запросить цену →	Harness assembly I/L rear-MV
5	952K25380 запросить цену →	Harness assembly I/L front-MV
6	952K25490 запросить цену →	Harness assembly OPF-MV
7		- Power cord 110V (not spared)
8		- Power cord 220V (not spared)
9		- Guide harness rear IL (not spared)
10		- Guide harness MCU (not spared)
11		- Guide harness AC (not spared)
12		- Guide harness F USB (not spared)
13		- Not used
14		- Not used
15		- Not used
16		- Not used
17		- Not used
18		- Guide harness IIT (not spared)
19		- Guide harness UI FIN (not spared)
20		- Not used
21	110K16610 запросить цену →	Switch assembly size
22		- Harness assembly SW size (not
1		- Harness assembly ESS-PWR-MV
2		- Harness assembly 24V-MCU-MV
3		- Harness assembly LV-MCU-MV
4		- Harness assembly CRUM-MV (not
5		- Harness assembly MSI-MV (not
6		- Harness assembly XERO
7		- Harness assembly REGI-MV (not
8		- Harness assembly SUB fan-MV
9		- Not used
10		- Harness assembly FIN-MCU-MV
5-33		Xerox® VersaLink® B600 Family MFP
1	960K81100 запросить цену →	MCU PWB REP 18.31
2	952K25540 запросить цену →	FFC MCU ESS REP 18.32
3		- Guide FFC MCU (not spared)
4		- Not used
5	960K90843 запросить цену →	ESS PWB SFP REP 18.33
6		- Not used
7		- Not used
8		- Plate ESS low (not spared)
9		- Not used
10		- Not used
11		- Wireless module (not spared)
12		- Not used
13		- Not used
14	952K39980 запросить цену →	Harness assembly front USB REP
15		- Not used
16	105K33360 запросить цену →	LVPS PWB 110V REP 18.35
17		- Not used
18		- Plate ESS top (not spared)
19		- Box ESS SFP (not spared)
20		- Plate LVPS (not spared)
21		- Not used
22		- Not used
23		- Not used
24		- Not used
25		- Not used
26		- Link WIFI (not spared)
27	101K73410 запросить цену →	HDD assembly
28		- Bracket HDD (not spared)
29		- Speaker main (not spared)
30		- EMMC card (not spared)
31		- Not used
32		- Not used
1		- Cover HVPS (not spared)
2	105K33121 запросить цену →	HVPS PWB REP 18.8
3		- Not used
4		- Housing 2nd BTR (not spared)
5		- Plate bias 2nd BTR (not spared)
6		- Harness 2nd BTR (not spared)
7		- Not used
8		- Not used
9		- Harness assembly MCU-HVPS-MV
99		- Kit housing 2nd BTR (with 4-5) (not
5-35		Xerox® VersaLink® B600 Family MFP
1		- Kit harness assembly inlet (not
2		- Harness assembly fusing DC-MV
3	952K25320 запросить цену →	Harness fusing AC 220V
4	952K25390 запросить цену →	Harness assembly I/L rear-MV
5	952K25380 запросить цену →	Harness assembly I/L front-MV
6	952K25490 запросить цену →	Harness assembly OPF-MV
7		- Power cord 110V (not spared)
8		- Power cord 220V (not spared)
9		- Guide harness rear IL (not spared)
10		- Guide harness MCU (not spared)
11		- Guide harness AC (not spared)
12		- Guide harness F USB (not spared)
13		- Not used
14		- Not used
15		- Not used
16		- Not used
17		- Not used
18		- Not used
19		- Not used
20		- Not used
21	110K16610 запросить цену →	Switch assembly size
22		- Harness assembly SW size (not
1		- Harness assembly ESS-PWR-MV
2		- Harness assembly 24V-MCU-MV
3		- Harness assembly LV-MCU-MV
4		- Harness assembly CRUM-MV (not
5		- Harness assembly MSI-MV (not
6		- Harness assembly XERO
7		- Harness assembly REGI-MV (not
8		- Harness assembly SUB fan-MV
9		- Not used
10		- Harness assembly FIN-MCU-MV
5-37		Xerox® VersaLink® B600 Family MFP
1		- Cover front (not spared)
2		- Cover top front (not spared)
3		- Tray extension (not spared)
4		- Logo (not spared)
5		- Cover front IN (not spared)
6	042K95900 запросить цену →	LPH cleaner assembly
7		- Not used
8	822E32721 запросить цену →	Cover side R REP 19.12
9		- Not used
10		- Not used
11		- Not used
12		- Not used
13		- Not used
14		- Not used
15		- Cover top (not spared)
16		- Cover exit (not spared)
17		- Not used
18		- Not used
19		- Holder IL (not spared)
20		- Actuator IL (not spared)
21		- Spring IL (not spared)
22		- Cover front L (not spared)
23	822E32421 запросить цену →	Cover front R REP 19.2
24		- Tray LED HVPS PWB (not spared)
25		- Cover shade tray (not spared)
26		- Harness assembly LED (not
27		- Spring cover front (not spared)
28		- Not used
30	822E32660 запросить цену →	Cover IIT inner R
31	822E32700 запросить цену →	Cover IIT inner R rear
32	822E32740 запросить цену →	Cover IIT side R
33		- Not used
40	822E32622 запросить цену →	Cover ICCR
41	822E32640 запросить цену →	Cover IIT inner L
42	822E32681 запросить цену →	Cover IIT inner L rear
43	822E32782 запросить цену →	Cover IIT side L REP 19.8
95	948K16200 запросить цену →	Cover assembly front L (with 22,
96	948K16230 запросить цену →	Cover assembly front (with 1-4, 6,
97		- Not used
98		- Not used
99	948K16220 запросить цену →	Cover assembly top (with 15, 16)
1	822E46590 запросить цену →	Cover side L (non-FAX) REP 19.7
2		- Not used
3		- Not used
4		- Not used
5		- Not used
6		- Not used
7		- Strap cover rear (not spared)
8		- Hinge assembly rear L (not spared)
9		- Hinge assembly rear R (not spared)
10		- Cover rear bottom (not spared)
11		- 2nd BTR roll assembly (not spared)
12		- Cover assembly rear AIO (not
13		- ESS window (not spared)
14		- Plate ESS window (not spared)
15		- Lever ESS window (not spared)
16	822E27572 запросить цену →	WIFI cap REP 19.16
17		- Spring cover rear (not spared)
98	815K21540 запросить цену →	Kit ESS window assembly (with
99		- Kit cover assembly rear AIO (with
5-39		Xerox® VersaLink® B600 Family MFP
1		- Cover front (not spared)
2		- Cover front top (not spared)
3		- Tray extension (not spared)
4		- Logo (not spared)
5		- Cover front IN (not spared)
6	042K95900 запросить цену →	LPH cleaner assembly
7		- Not used
8	822E32721 запросить цену →	Cover side R REP 19.12
9		- not used
10		- Not used
11		- Cover waste (not spared)
12		- Not used
13		- Not used
14		- Not used
15		- Cover top (not spared)
16		- Cover exit (not spared)
18	822E32391 запросить цену →	OPT blind cover
19		- Holder IL (not spared)
20		- Actuator IL (not spared)
21		- Spring IL (not spared)
22		- Cover front L (not spared) REP
23	822E32421 запросить цену →	Cover front R REP 19.2
24		- Tray LED HVPS PWB (not spared)
25		- Cover shade tray (not spared)
26		- Harness assembly LED
27		- Spring cover front (not spared)
30	822E32960 запросить цену →	Cover FIN inner R
31		- Cover FIN inner right
32	822E32940 запросить цену →	Cover FIN side R
40	822E32842 запросить цену →	Cover ICCR FIN
41	822E32921 запросить цену →	Cover FIN inner L
42	822E34800 запросить цену →	Cover FIN inner side L
43	822E32901 запросить цену →	Cover FIN side L SUB
44	822E32860 запросить цену →	Cover FIN front REP 19.19
50	822E34782 запросить цену →	Cover FIN top exit
51	822E37761 запросить цену →	Cover FIN side R cap
52	801E35940 запросить цену →	Frame FIN
53		- Not used
95	948K16200 запросить цену →	Cover assembly front L (with 22,
96	948K16230 запросить цену →	Cover assembly front (with 1-4, 6,
97		- Not used
98		- Not used
99	948K04190 запросить цену →	Cover assembly top (with 15, 16)
1	822E46600 запросить цену →	Cover side L (non-FAX) REP 19.14
2	822E32882 запросить цену →	Cover FIN side L
3	822E33001 запросить цену →	Cover FIN rear
4		- Not used
5		- Not used
6		- Not used
7		- Strap cover rear (not spared)
8		- Hinge assembly rear L (not spared)
9		- Hinge assembly rear R (not spared)
10		- Cover rear bottom (not spared)
11		- 2nd BTR roll assembly (not spared)
12		- Cover assembly rear AIO (not
13		- ESS window (not spared)
14		- Plate ESS window (not spared)
15		- Lever ESS window (not spared)
16	822E27572 запросить цену →	WIFI cap REP 19.16
17		- Spring cover rear (not spared)
98	815K21540 запросить цену →	Kit ESS window assembly (with
99		- Kit cover assembly rear AIO (with
5-41		Xerox® VersaLink® B600 Family MFP
1		- Cover front (not spared)
2		- Cover front top (not spared)
3		- Tray extension (not spared)
4		- Logo (not spared)
5		- Cover front IN
6		- Not used
7		- Not used
8	822E32401 запросить цену →	Cover side R REP 19.15
9		- Cover top rear L (not spared)
10	822E32383 запросить цену →	Cover top rear R
11		- Not used
12		- Not used
13		- Not used
14		- Not used
15		- Cover top (not spared)
16		- Cover exit (not spared)
17		- Not used
18		- OPT blind cover (not spared)
19		- Holder IL (not spared)
20		- Actuator IL (not spared)
21		- Spring IL (not spared)
22		- Cover front L (not spared)
23	822E32421 запросить цену →	Cover front R
24		- Tray LED HVPS PWB (not spared)
25		- Cover shade tray (not spared)
26		- Harness assembly LED (not
27		- Spring cover front
28		- Cover top exit
95	948K16200 запросить цену →	Cover assembly front L (with 22,
96	948K16180 запросить цену →	Cover assembly front (with 1-4, 6,
97		- Not used
98		- Not used
99	948K04170 запросить цену →	Cover assembly top SFP (with 15,
1		- Cover side L (not spared)
2		- Not used
3		- Not used
4		- Not used
5		- Not used
6		- Not used
7		- Strap cover rear (not spared)
8		- Hinge assembly rear L (not spared)
9		- Hinge assembly right R (not
10		- Cover rear bottom (not spared)
11		- 2nd BTR roll assembly REP 19.22
12		- Cover assembly rear SFP (not
13		- ESS window (not spared)
14		- Plate ESS window (not spared)
15		- Lever ESS window (not spared)
16	822E27572 запросить цену →	WIFI cap REP 19.24
17		- Spring cover rear (not spared)
98	815K21540 запросить цену →	Kit ESS window assembly (with
99		- Kit cover assembly rear SFP (with
5-43		Xerox® VersaLink® B600 Family MFP
1		- Cover LH C
2	607K05020 запросить цену →	Tray assembly (with label) (with 4,
3	607K05030 запросить цену →	Tray assembly bottom (with label)
4		- Actuator tray full
5		- Sensor photo int (1/2/3/4-bin full
6	049K34930 запросить цену →	Bracket assembly gate solenoid
7		- Not used
8		- Not used
9		- Not used
10		- Not used
11	960K90041 запросить цену →	GPF A4MBX PWB
12	960K90043 запросить цену →	Bracket earth RH
13	105E22590 запросить цену →	LVPS W/I bracket
14		- Not used
15		- Harness assembly MBX AC
16		- Harness assembly MBX DC
17		- Harness assembly MBX IF
18		- Harness assembly trans S
1		- Cover Top C (Not Spared) (REP
2		- Cover RH C (Not Spared) (REP
3		- Cover assembly staple (Not
4		- Cover assembly rear (Not Spared)
5		- Bracket vertical sensor MBX (Not
6		- Vertical sensor rev PWB (Not
7		- Vertical sensor LED PWB (Not
8	127K72241 запросить цену →	Motor assembly (REP 20.6)
9		- Chute low MBX (Not Spared)
10		- Rear cover interlock sensor (Not
11	121K58300 запросить цену →	Solenoid assembly gate (REP 20.7)
12		- Harness assembly MBX trans M
13		- Harness assembly MBX sensor
14		- Harness assembly vertical sensor
15		- Harness assembly vertical LED
16		- Spring tension (Not Spared)
17		- Bracket tension (Not Spared)
18		- Plate ground RH (Not Spared)
5-45		Xerox® VersaLink® B600 Family MFP
1		- Cover LH C
2		- Cover Lower C
3		- Tray assembly compile
4		- Sensor photo int (sub paddle home
5	049K34570 запросить цену →	Motor assembly stepping
6	050K75450 запросить цену →	Tray assembly base
7		- Tray guide C
8		- Gear assembly Rack R
9		- Gear assembly rack L
10		- Spring-lift
11		- Sensor photo int (stacker tray
12	960K90034 запросить цену →	GPF A4fin PWB
13	105E22590 запросить цену →	LVPS
14		- Not Used
15		- Harness assembly AC
16		- Harness assembly fin DC
17		- Harness assembly fin IF
18		- Harness assembly fin SNR1
19		- Harness assembly fin mot
20		- Plate ground LH
21		- Gear-Z50 Z20
1		- Cover top C (Not Spared) (REP
2		- Cover RH C (Not Spared)
3	948K04650 запросить цену →	Cover assembly staple
4		- Cover assembly rear (Not Spared)
5		- Switch safety IL (Not Spared)
6		- Bracket stapler (Not Spared)
7	029K93260 запросить цену →	Stapler assembly (REP 21.10)
8	127K72241 запросить цену →	Motor assembly (REP 21.6)
9		- Compile exit sensor (Not Spared)
10		- Rear cover interlock sensor (Not
11	121K58300 запросить цену →	Solenoid assembly gate (REP 21.7)
12		- Harness assembly staple unit (Not
13		- Harness assembly stapler M (Not
14		- Harness assembly fin IL (Not
15		- Harness assembly fin trans M1 (Not
16		- Harness assembly fin compile
99	006K35670 запросить цену →	Shaft assembly - paddle sub
5-47		Xerox® VersaLink® B600 Family MFP

4. PL 30.1 Cabinet

№	Артикул	Описание
1		- Caster (with lock)
2		- Caster (without lock)
5-49		Xerox® VersaLink® B600 Family MFP
1	607K04880 ✓ в наличии	DADF assembly (with 3-12, 16, 17)
2	607K05161 запросить цену →	IIT assembly MFP low (with 14-15,
3	036K92351 запросить цену →	Counterbalance assembly L REP
4	036K92331 запросить цену →	Counterbalance assembly R REP
5		- Feeder roll DADF (see NOTE) (P/O
6		- Cover assembly separator (P/O PL
7		- Roll assembly separator DADF
8		- Feeder assembly upper (P/O PL
9		- Cover DADF front (P/O PL 50.1
10		- Cover DADF rear (P/O PL 50.1 Item
11		- Tray assembly DADF (P/O PL 50.1
12	004K03660 запросить цену →	Cushion assembly platen REP 50.4
13		- Scanner assembly (with 1-2)
14	822E35271 запросить цену →	Cover IIT left REP 50.5
15	822E35341 запросить цену →	Cover IIT left cap REP 50.6
16	120E35681 ✓ в наличии	DADF actuator REP 50.7
17		- Holder separator DADF (P/O PL
18		- Spring separator DADF (Not
19	822E35311 запросить цену →	Cover front IIT REP 50.8
99		- Kit DADF feed roll (with 5-7) (P/O

Источник: Инк-Маркет.ру.

← Все статьи
