Xerox Versalink B400/B405 — каталог запчастей со схемами

Содержание

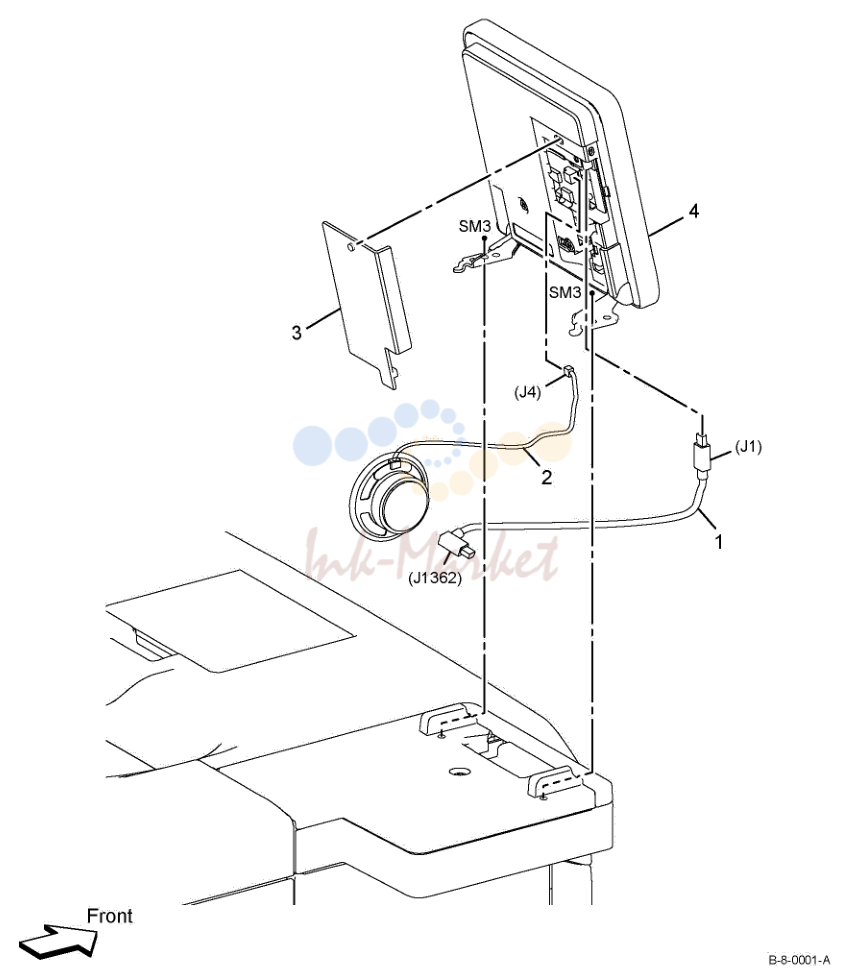

1. Item Part Description

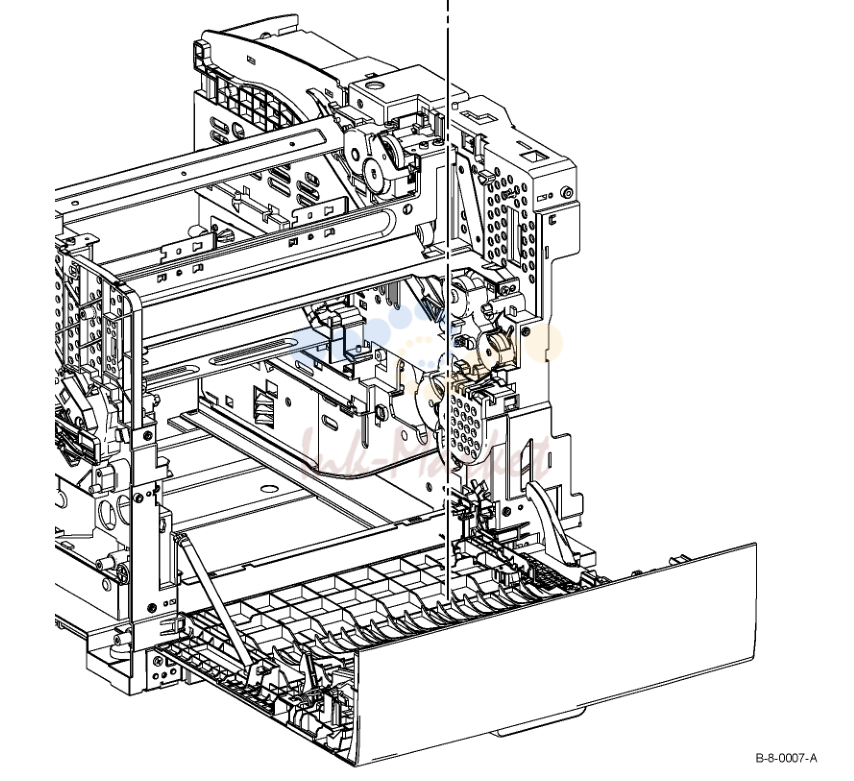

2. PL 6.1 Transfer

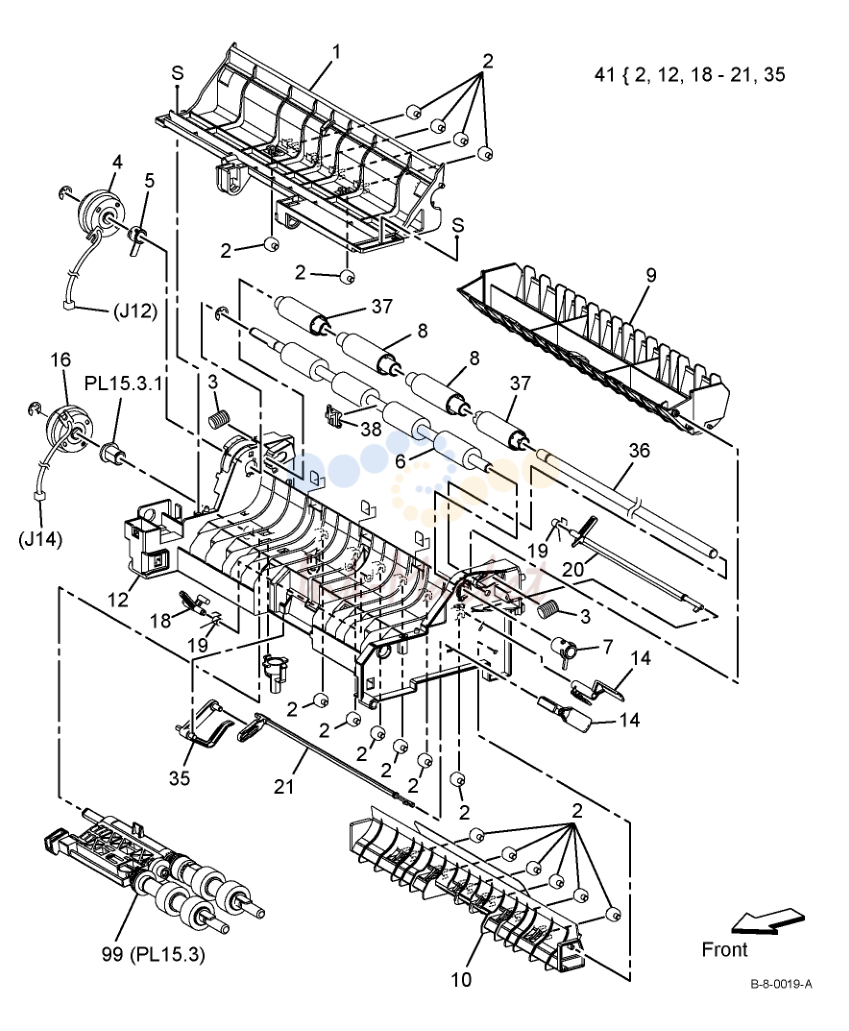

3. PL 15.2 Registration (2 of 3)

1. Item Part Description

№	Артикул	Описание
1	952K38390 запросить цену →	UI harness assembly B400 (REP
2		- UI speaker B400 (Not Spared)
3	822E32001 запросить цену →	UI access door
4	948K20152 запросить цену →	UI console assembly B400 (REP
1	952K38760 запросить цену →	UI harness assembly B405 (REP
2		- UI speaker (Not Spared) (REP 1.2)
3	822E32001 запросить цену →	UI access door (REP 1.1)
4	948K20152 запросить цену →	UI console assembly (REP 1.1)
1		- UI top cover (Not Spared)
2	822E29410 запросить цену →	UI left cover (REP 1.4)
3		- UI front cover (Not Spared) (REP
1	822E31951 запросить цену →	ICCR cover (REP 1.1)
2		- ICCR inner cover (Not Spared)
3	822E31941 ✓ в наличии	UI top cover (REP 1.1)
4		- Bottom plate (P/O PL 1.2B Item 99)
5		- UI base bottom cover (P/O PL 1.2B
6		- ICCR USB harness (Not Spared)
7		- Not used
8		- Not used
9		- Not used
10	822E31980 ✓ в наличии	Scanner front top cover (REP 1.1)
11	822E31992 запросить цену →	Scanner front bottom cover (REP
12	822E31971 ✓ в наличии	Scanner left cover (REP 1.1)
99	607K03900 ✓ в наличии	UI bottom frame kit (REP 1.2)
1	062K28821 запросить цену →	ROS assembly B400 (REP 2.2) /
2		- ROS-MCU harness (P/O PL 2.1
3		- Video harness (P/O PL 2.1 Item 1)
4		- ROS unit (P/O PL 2.1 Item 1)
1	007K18903 ✓ в наличии	Main drive assembly B400 (REP
2	007K18912 ✓ в наличии	Exit out drive holder assembly
3	007K18931 ✓ в наличии	Exit in drive S3 holder assembly
4	019E83450 ✓ в наличии	Duplex gear holder
5	604K80770 ✓ в наличии	Duplex in gear B400 (REP 3.8) /
6		- T21 exit clutch assembly B400
7		- T24 inverter clutch assembly B400
8		- E3 Z gear (P/O PL 3.1 Item 2)
9		- E3 gear (P/O PL 3.1 Item 2)
10		- Exit out drive holder (P/O PL 3.1
11		- Exit in drive S3 holder (P/O PL 3.1
1	127K66001 запросить цену →	LVPS fan (Main fan assembly)
2		- Cable band (P/O PL 4.1A Item 1)
3	012E18133 ✓ в наличии	Front right link (REP 4.2)
4	012E18143 ✓ в наличии	Front left link (REP 4.4)
5		- Right link shaft (Not Spared) (REP
6		- Left link shaft (Not Spared) (REP
7	012E18172 ✓ в наличии	Connector link (REP 4.2)
8		- CRU interlock link
9		- Right xerographic stopper
10		- Left xerographic stopper assembly
11		- CRU interlock spring (Not Spared)
12		- Foot (P/O PL 4.1A Item 97)
13		- LVPS fan (P/O PL 4.1A Item 1)
97	604K77650 запросить цену →	Foot assembly
1	127K75190 ✓ в наличии	LVPS fan (main fan assembly)
2		- Band cable (P/O PL 4.1B Item 1)
3	012E18133 ✓ в наличии	Front right link (REP 4.1)
4	012E18143 ✓ в наличии	Front left link (REP 4.3)
5		- Right link shaft (Not Spared) (REP
6		- Left link shaft (Not Spared) (REP
7	012E18172 ✓ в наличии	Connector link (REP 4.1)
8		- CRU interlock link (Not Spared)
9		- Right xero stopper assembly (Not
10		- Left xero stopper assembly (Not
11		- CRU interlock spring (Not Spared)
12		- Foot (P/O PL 4.1B Item 97)
13		- LVPS fan harness assembly (Not
14		- LVPS fan (P/O PL 4.1B Item 1)
97	604K77650 запросить цену →	Foot assembly
1		- CRUM housing assembly B400
2		- Toner CRUM connector assembly
3		- Swing CRUM housing (P/O PL 5.1
4		- Swing CRUM spring (P/O PL 5.1
5	007K18414 запросить цену →	Dispenser drive assembly B400
6		- Drive dispenser housing (P/O PL
7		- Idler motor gear (P/O PL 5.1 Item 5)
8		- Output gear (P/O PL 5.1 Item 5)
9	127K52160 ✓ в наличии	Dispenser motor (B400) (REP 5.6)/
10	116K91041 ✓ в наличии	Xerographic connector assembly
99	604K77290 ✓ в наличии	CRUM assembly kit

2. PL 6.1 Transfer

№	Артикул	Описание
1	050K77850 ✓ в наличии	Option tray assembly
2		- Bottom Plate assembly (P/O PL 9.2
3		- Retard holder assembly B400 (REP
4		- Feed roll assembly B400 (REP 9.4) /
5		- Retard friction clutch (P/O PL 9.2 Item
6		- Option tray retard shaft (P/O PL 9.2
7		- Option tray retard holder (P/O PL 9.2
8		- Right side guide assembly (P/O PL 9.2
9		- Left side guide assembly (P/O PL 9.2
10		- Pinion gear (P/O PL 9.2 Item 1)
11		- Bottom lock cover (P/O PL 9.2 Item 1)
12		- Bottom lock rack (P/O PL 9.2 Item 1)
13		- Bottom lock pinion gear (P/O PL 9.2
14		- Bottom lock lever gear (P/O PL 9.2
15		- Bottom lock lever (P/O PL 9.2 Item 1)
16		- Bottom lock gear (P/O PL 9.2 Item 1)
17		- Bottom lock spring (P/O PL 9.2 Item 1)
18		- Lock spring (P/O PL 9.2 Item 1)
19		- Left lock actuator (P/O PL 9.2 Item 1)
20		- Not used
21		- Upper bottom spring (P/O PL 9.2 Item
22		- MSI retard spring holder (P/O PL 9.2
23		- Option tray retard spring (P/O PL 9.2
24		- Upper lift rack (P/O PL 9.2 Item 1)
25		- Base housing (P/O PL 9.2 Item 1)
26		- End extension lever (P/O PL 9.2 Item
27		- End guide assembly (P/O PL 9.2 Item
28		- End housing (P/O PL 9.2 Item 1)
29		- Not used
30		- Tray handle (P/O PL 9.2 Item 1)
31		- Pad (P/O PL 9.2 Item 1)
32		- Label (P/O PL 9.2 Item 1)
33		- Label (P/O PL 9.2 Item 1)
34		- Traceability label (P/O PL 9.2 Item 1)
35		- Label (P/O PL 9.2 Item 1)
36		- GD handle (P/O PL 9.2 Item 1)
37		- Roll retard assembly (with instruction)
38		- End guide handle (P/O PL 9.2 Item 1)
39	848E93660 ✓ в наличии	Dust cover
98	604K11192 ✓ в наличии	Feed roller assembly kit (Kit Contains
3		Feed Roller assembly and
99	604K78360 ✓ в наличии	Option tray retard holder assembly kit
1		- Option feeder assembly (P/O PL
2		- Left side cover (P/O PL 11.1A Item
3		- Not used
4		- Not used
5	960K67514 запросить цену →	Option feeder PWBA assembly
6		- Not used
7	007K18020 запросить цену →	Option feeder drive assembly
8	005K83210 запросить цену →	Option feeder clutch assembly
9		- Not used
10		- Option feeder gear (P/O PL 11.1A
11		- Tray motor harness assembly (P/O
12		- Not used
13		- Right side cover (P/O PL 11.1A
14		- Foot (P/O PL 11.1A Item 99)
15	050K71211 запросить цену →	Option feeder tray assembly (REF:
16		- Top cover - LIP (P/O PL 11.1A Item
17		- Rear cover (P/O PL 11.1A Item 99)
18		- Feeder harness assembly 1 (P/O
19		- Motor assembly (MOT - Motor)
20	059K86170 запросить цену →	Option feeder (REF: PL 11.2) (REP
21		- Not used
22		- Not used
23		- Not used
24		- Not used
25		- Not used
26		- Lock screw (P/O PL 11.1A Item 99)
27		- Option tray stopper (P/O PL 11.1A
28		- Not used
29		- Not used
30		- Rear cover spring (P/O PL 11.1A
31		- Not used
32		- Not used
33		- C2 turn harness assembly (P/O PL
34		- Pin relocate bracket (P/O PL 11.1A
35		- Option feeder rear under cover
99	059K82011 запросить цену →	Option feeder assembly
1		- Option feeder assembly (P/O PL
2		- Option feeder left side cover (P/O
3		- Not used
4		- Not used
5	960K67514 запросить цену →	Option tray PWBA assembly (REP
6		- Not used
7	007K18020 запросить цену →	Option feeder drive assembly
8	005K83210 запросить цену →	Option feeder clutch assembly
9		- Not used
10		- Option feeder gear (P/O PL 11.1B
11		- Tray motor harness assembly (P/O
12		- Not used
13		- Option feeder right side cover (P/O
14		- Foot (P/O PL 11.1B Item 99)
15	050K71211 запросить цену →	Option feeder tray assembly (REF:
16		- Top cover - LIP (P/O PL 11.1B Item
17		- Option feeder rear cover (P/O PL
18		- Feeder harness assembly 1 (P/O
19		- Motor assembly (P/O PL 11.1B
20	059K86170 запросить цену →	Option feeder (REF: PL 11.2) (REP
21		- Not used
22		- Not used
23		- Not used
24		- Not used
25		- Not used
26		- Lock screw (P/O PL 11.1B Item 99)
27	803E10840 запросить цену →	CST stopper
28		- Not used
29		- Not used
30		- Rear cover spring (P/O PL 11.1B
31		- Feeder drawer 2 harness assembly
32		- Not used
33		- C2 turn harness assembly (P/O PL
34		- Option feeder bracket locate pin
35		- Option feeder rear under cover
99	059K82021 запросить цену →	Option feeder assembly
1		- No paper sensor cover (Not
2	930W00123 запросить цену →	No paper sensor B400 (REP 11.22)
3		- No paper sensor harness assembly
4		- Upper chute (Not Spared)
5		- Nudger bearing (Not Spared)
6		- Nudger support assembly (Not
7		- Oneway feed clutch (Not Spared)
8		- Feed gear (Not Spared)
9		- Not used
10		- Nudger idler gear (Not Spared)
11		- No paper actuator B400 (REP
12		- Nudger shaft (Not Spared)
13		- Feed roller assembly B400 (REP
14		- Nudger gear (Not Spared)
15		- Lower chute (Not Spared)
16		- Feed shaft assembly (Not Spared)
17		- Not used
18		- Not used
19		- Pinch chute assembly (Not Spared)
20	121K48670 запросить цену →	Takeaway clutch Assembly B400
21	059K71770 запросить цену →	Takeaway roll assembly B400 (REP
22		- Earth Plate
23		- Nudger spring bracket (Not Spared)
24		- Harness cover
25		- Gear shaft
26		- Option feeder gear
27		- Nudger spring
98	604K11192 ✓ в наличии	Feed roller assembly kit (Kit
1	050K71211 запросить цену →	Option feeder tray assembly
2		- Bottom Plate assembly (P/O PL 11.3
3		- Option tray retard holder assembly
4		- Feed roller assembly (P/O PL 11.3
5		- Retard friction clutch (P/O PL 11.3 Item
6		- Option tray retard shaft (P/O PL 11.3
7		- Option tray retard holder (P/O PL 11.3
8		- Right side guide assembly (P/O PL
9		- Left side guide assembly (P/O PL 11.3
10		- Pinion gear (P/O PL 11.3 Item 1)
11		- Bottom lock cover (P/O PL 11.3 Item 1)
12		- Bottom lock rack (P/O PL 11.3 Item 1)
13		- Bottom lock pinion gear (P/O PL 11.3
14		- Bottom lock lever gear (P/O PL 11.3
15		- Bottom lock lever (P/O PL 11.3 Item 1)
16		- Bottom lock gear (P/O PL 11.3 Item 1)
17		- Bottom lock spring (P/O PL 11.3 Item
18		- Lock spring (P/O PL 11.3 Item 1)
19		- Left lock actuator (P/O PL 11.3 Item 1)
20		- Not used
21		- Upper bottom spring (P/O PL 11.3 Item
22		- MSI retard spring holder (P/O PL 11.3
23		- Option tray retard spring (P/O PL 11.3
24		- Upper lift rack (P/O PL 11.3 Item 1)
25		- Base housing (P/O PL 11.3 Item 1)
26		- End extension lever (P/O PL 11.3 Item
27		- End guide assembly (P/O PL 11.3 Item
28		- End housing (P/O PL 11.3 Item 1)
29		- Not used
30		- Tray handle (P/O PL 11.3 Item 1)
31		- Pad (P/O PL 11.3 Item 1)
32		- Label (P/O PL 11.3 Item 1)
33		- Label (P/O PL 11.3 Item 1)
34		- Traceability label (P/O PL 11.3 Item 1)
35		- Label (P/O PL 11.3 Item 1)
36		- GD handle (P/O PL 11.3 Item 1)
37		- Roll retard assembly (with instruction)
38		- End guide handle (P/O PL 11.3 Item 1)
39	848E93660 ✓ в наличии	Dust cover
98	604K11192 ✓ в наличии	Feed roller assembly kit (Kit Contains
99	604K78360 ✓ в наличии	Option tray retard holder assembly kit
1		- Pinch chute (Not Spared)
2		- Pinch roller (Not Spared)
3		- Chute cover (Not Spared)
4	930W00123 запросить цену →	Path sensor B400 (REP 11.24) /
5		- Registration pre-actuator (Not
6		- Registration pre-sensor spring (Not
7		- Option feeder registration harness
8		- Pinch spring (Not Spared)
1		- MSI In stopper (P/O PL 13.1 Item
2		- MSI In lock (P/O PL 13.1 Item 97)
3		- MSI top frame (P/O PL 13.1 Item
4		- MSI no paper actuator (P/O PL
5	121E23570 ✓ в наличии	MSI feed solenoid B400 (REP 13.4)
6		- MSI segment gear 1 (P/O PL 13.1
7		- MSI segment gear 2 (P/O PL 13.1
8		- MSI feed bearing (Not Spared)
9		- MSI lifter arm (Not Spared)
10		- MSI lifter stopper (Not Spared)
11		- MSI feed spring (Not Spared)
12		- MSI feed gear (Not Spared)
13		- MSI lifter lever (Not Spared)
14		- MSI NF spring (Not Spared)
15	059K78790 ✓ в наличии	Pick up holder assembly B400
16		- Pick up holder (P/O PL 13.1 Item
17		- Feeder idler gear (P/O PL 13.1 Item
18		- Feed roll assembly (P/O PL 13.1
19		- Rubber roll (P/O PL 13.1 Item 18)
20		- Core roll (P/O PL 13.1 Item 18)
21		- MSI feed shaft (Not Spared)
22		- MSI feed bearing (Not Spared)
23		- Pickup flange (Not Spared)
95		- MSI solenoid assembly kit (Not
97	801K57914 ✓ в наличии	MSI top frame assembly
1		- MSI base tray (P/O PL 13.2 Item
2		- MSI end guide (P/O PL 13.2 Item
3		- MSI cover B400 (REP 13.2) / B405
4		- MSI end holder (P/O PL 13.2 Item
5		- Pad (P/O PL 13.2 Item 96)
6		- Left side guide (P/O PL 13.2 Item
7		- Right side guide (P/O PL 13.2 Item
8		- Paper feeding label (P/O PL 13.2
9	050K77860 ✓ в наличии	MSI tray assembly
10		- Roller retard spring (P/O PL 13.2
11		- 150 sheet stopper spring (P/O PL
12		- 150 sheet lock (P/O PL 13.2 Item
13		- MSI retard guide (P/O PL 13.2 Item
14		- 150 sheet stopper (P/O PL 13.2
15		- Roll retard holder (P/O PL 13.2
16		- Roll retard roll assembly B400
17		- Friction clutch assembly (P/O PL
18		- MSI Mid paper stopper spring (P/O
19		- Side guide rack (P/O PL 13.2 Item
20		- Pinion gear (P/O PL 13.2 Item 96)
96		- MSI frame assembly kit (Not
98	604K78371 запросить цену →	MSI retard roll assembly kit
99		- MSI cover kit (Not Spared)
1		- Duplex bearing (P/O PL 14.1 Item
2		- Duplex roll assembly (P/O PL 14.1
3		- DTS Earth spring (P/O PL 14.1
4		- Duplex gear (P/O PL 14.1 Item 12)
5		- Duplex pinch roll (P/O PL 14.1 Item
6		- Duplex pinch spring (P/O PL 14.1
7		- In duplex chute (P/O PL 14.1 Item
8		- Transfer chute (P/O PL 14.1 Item
9		- Not used
10		- Not used
11		- Not used
12	054K48100 запросить цену →	Duplex chute assembly B400 (REP
13		- BTR spring cap (P/O PL 14.1 Item
14		- BTR spring (P/O PL 14.1 Item 12)
1		- Duplex lower chute assembly (P/O
2		- Duplex lower chute (P/O PL 15.1A
3		- Interlock spring (P/O PL 15.1A Item
4		- Interlock harness assembly (P/O
5		- Not used
6	059K79334 ✓ в наличии	Registration transport assembly
7		- Not used
8		- Registration out earth plate (Not
9		- Rear fan connector holder (Not
10		- Not used
11	803E13351 запросить цену →	Cassette stopper
97	604K85740 запросить цену →	Rear interlock switch assembly
1		- Duplex lower chute assembly (Not
2		- Duplex lower chute (P/O PL 15.1B
3		- Not used
4		- Interlock harness assembly (P/O
5		- Interlock spring (P/O PL 15.1B Item
6	059K79334 ✓ в наличии	Registration transport assembly
7		- Tray lock (not shown) (Not Spared)
8		- Registration out earth plate (Not
9		- Rear fan connector holder (Not
10		- Not used
11	803E13351 запросить цену →	Cassette stopper
97	604K85750 запросить цену →	Rear interlock switch assembly

3. PL 15.2 Registration (2 of 3)

№	Артикул	Описание
1		- Nudger bearing (Not Spared)
2		- Feeder assembly B400 (REP 15.8)
3		- Feed gear (Not Spared)
4		- Oneway feed clutch (Not Spared)
5		- Feed roll assembly B400 (REP
6		- Feed shaft assembly (Not Spared)
7		- Nudger plate (P/O PL 15.3 Item 2)
8		- Nudger idler gear (P/O PL 15.3
9		- Nudger gear (P/O PL 15.3 Item 2)
10		- Nudger shaft (P/O PL 15.3 Item 2)
11		- Nudger bearing (Not Spared)
98	604K11192 ✓ в наличии	Feed roller assembly kit (Kit
1		- Exit sensor (P/O PL 17.1 Item 99)
2		- Exit gear (P/O PL 17.1 Item 99)
3		- Sensor Earth spring (P/O PL 17.1
4		- Exit bearing (P/O PL 17.1 Item 99)
5		- Exit roll assembly B400 (REP 17.2)
6	604K77510 ✓ в наличии	Left pinch assembly B400 (REP
7	604K77520 ✓ в наличии	Right pinch assembly B400 (REP
8		- Full stack actuator (P/O PL 17.1
9	930W00123 запросить цену →	Full stack sensor
99	054K48381 ✓ в наличии	Exit chute assembly B400 (REP
1		- Lower window plate (Not Spared)
2		- Wifi release lever (Not Spared)
3		- Top plate (Not Spared)
4		- HDD bracket (Not Spared)
5	607K11340 запросить цену →	ESS PWBA (Never replace both
6		- EMMC card (Not Spared)
7		- ESS housing (Not Spared)
8		- Not used
9		- Not used
10		- LVPS PWBA 110V/220V (P/O PL
11		- LVPS plate (P/O PL 18.1A Item 99)
12		- Front interlock switch assembly
13	952K33420 запросить цену →	Front USB harness (REP 18.10)
14		- Interlock switch bracket (Not
90		- Wireless adaptor (Not Spared)
91		- 16GB SSD memory (Optional) (Not
99	607K03910 запросить цену →	LVPS PWBA kit 110V
1		- ESS lower window plate (Not
2		- Wifi release lever (Not Spared)
3		- ESS top plate (Not Spared)
4		- HDD bracket (Not Spared)
5	607K11460 запросить цену →	ESS PWBA (Never replace both
6		- EMMC card (Not Spared)
7		- ESS housing (Not Spared)
8		- Not used
9		- Not used
10	105K32960 запросить цену →	LVPS PWBA 110V (REP 18.7)
11		- LVPS plate (Not Spared)
12		- Not used
13		- Not used
14		- Not used
15	960K80762 запросить цену →	Fax PWBA
16		- Fax plate (Not Spared)
17	952K33430 ✓ в наличии	Front USB harness (REP 18.1)
18		- Not used
19		- Speaker assembly (Not Spared)
20		- Speaker cover (Not Spared)
21		- Fax harness assembly (Not
22		- Fax clamp (Not Spared)
23		- Front interlock switch assembly
24		- Interlock switch bracket (P/O PL
90		- Wireless adaptor (Not Spared)
91		- 16GB SSD memory (Optional) (Not
98	604K90560 ✓ в наличии	Front interlock switch assembly
1		- MCU cover (Not Spared)
2	960K91315 запросить цену →	MCU PWBA B400 (REP 18.4) /
3		- MCU bracket (Not Spared)
4		- MCU housing (Not Spared)
5	105K30958 ✓ в наличии	HVPS B400 (REP 18.6) / B405
1	952K13403 запросить цену →	Inlet harness assembly 220V (REP
2		- Switch bracket (Not Spared)
3		- ESS harness assembly (Not
4		- ESS power harness assembly (Not
5		- LV harness assembly (Not Spared)
6		- MCU 24V harness assembly (Not
7		- Not used
8		- Option feeder harness assembly
9		- FSR harness assembly (Not
10		- Dispenser motor harness assembly
11		- Main motor harness assembly (Not
12		- Xerographics CRUM harness
13		- HV harness assembly (Not Spared)
14		- Test rely harness assembly (Not
15		- Exit sensor harness assembly (Not
16		- Rear fan harness assembly (Not
17		- Harness assembly (Not Spared)
18		- Drawer harness assembly (Not
1	952K33312 запросить цену →	Inlet harness assembly 220V (REP
2		- Switch bracket (Not Spared)
3		- ESS harness assembly (Not
4		- ESS power harness assembly (Not
5		- LV harness assembly (Not Spared)
6		- MCU 24V harness assembly (Not
7		- Not used
8		- Option feeder harness assembly
9		- FSR harness assembly (Not
10		- Dispenser motor harness assembly
11		- Main motor harness assembly (Not
12		- Xerographics CRUM harness
13		- HV harness assembly (Not Spared)
14		- Test rely harness assembly (Not
15		- Exit sensor harness assembly (Not
16		- Rear fan harness assembly (Not
17		- Harness assembly (Not Spared)
18		- Drawer harness assembly
1		- Top front cover (P/O PL 19.1A Item
2		- Front cover (P/O PL 19.1A Item 98)
3		- Interlock actuator (P/O PL 19.1A
4		- Interlock spring (P/O PL 19.1A Item
5		- Interlock holder (P/O PL 19.1A Item
6		- MSI instruction label (P/O PL 19.1A
7		- Logo - plate assembly (P/O PL
8		- Cover extension (P/O PL 19.1A
9		- 2nd cover extension (P/O PL 19.1A
10	948K02680 запросить цену →	Top exit cover assembly (REP
11		- Exit top cover (P/O PL 19.1A Item
12		- Bottom exit cover (P/O PL 19.1A
13	848E82654 запросить цену →	Right cover (REP 19.8)
98	948K02611 запросить цену →	Front cover assembly kit
99	948K02600 запросить цену →	Cover extension assembly
1		- Front top cover (P/O PL 19.1B Item
2		- Front cover (P/O PL 19.1B Item 98)
3		- Interlock actuator (P/O PL 19.1B
4		- Interlock spring (P/O PL 19.1B Item
5		- Interlock holder (P/O PL 19.1B Item
6		- MSI instruction label (P/O PL 19.1B
7		- XC logo plate assembly (P/O PL
8		- Cover extension (P/O PL 19.1B
9		- 2nd cover extension (P/O PL 19.1B
10	948K02670 ✓ в наличии	Exit top cover assembly
11		- Exit top cover (P/O PL 19.1B Item
12		- Exit bottom cover (P/O PL 19.1B
13		- Not used
14		- Not used
15	822E29580 запросить цену →	Scanner outer right cover
16	822E29570 запросить цену →	Scanner inner right cover
17	848K68342 ✓ в наличии	Right cover assembly (REP 19.7)
98	948K02640 ✓ в наличии	Front cover assembly kit
99	948K02600 запросить цену →	Cover extension assembly
1	822E29340 запросить цену →	Wifi cap cover (REP 19.20)
2	822E29390 запросить цену →	Left cover (REP 19.12)
3	948K02220 запросить цену →	ESS window cover assembly (REP
4		- ESS window cover (P/O PL 19.2A
5		- Knurling screw (P/O PL 19.2A Item
6		- E-ring (P/O PL 19.2A Item 3)
7		- Window plate (P/O PL 19.2A Item
8	848E82672 ✓ в наличии	Rear under cover (REP 19.18)
9		- Not used
10		- Rear cover assembly (P/O PL
11		- DTS out earth spring (P/O PL
12		- Duplex chute assembly (P/O PL
99	848K70060 запросить цену →	Rear cover assembly
1	822E29340 запросить цену →	Wifi cap cover (REP 19.19)
2	848E89214 запросить цену →	Scanner left cover
3	822E29521 ✓ в наличии	Left cover (REP 19.11)
4	948K02210 запросить цену →	ESS window cover assembly (REP
5		- ESS window cover (P/O PL 19.2B
6		- Knurling screw (P/O PL 19.2B Item
7		- E-ring (P/O PL 19.2B Item 4)
8		- Window plate (P/O PL 19.2B Item
9	848E82672 ✓ в наличии	Rear under cover (REP 19.17)
10		- Rear cover assembly (P/O PL
11		- DTS out earth spring (P/O PL
12		- Duplex chute assembly (P/O PL
99	948K02690 ✓ в наличии	Rear cover assembly
1		- Rear cover (Not Spared)
2		- Top rear cover (Not Spared)
3		- Rear latch cover (Not Spared)
4		- Rear latch (Not Spared)
5		- Duplex out chute (Not Spared)
6		- Rear latch spring (Not Spared)
7	868E76893 запросить цену →	Rear strap
8		- Rear guide harness (Not Spared)
9	127E86632 ✓ в наличии	Rear fan (REP 19.16)
10		- Screw (Not Spared)
1		- Rear cover (Not Spared)
2		- Top rear cover
3		- Rear latch cover (Not Spared)
4		- Rear latch (Not Spared)
5		- Duplex out chute (Not Spared)
6		- Rear latch spring (Not Spared)
7	868E76893 запросить цену →	Rear strap
8		- Rear guide harness (Not Spared)
9	127E86632 ✓ в наличии	Rear fan (REP 19.15)
10		- Screw (Not Spared)
1	059K81533 ✓ в наличии	Scanner assembly (REP 21.1)
2		- DADF top cover (P/O PL 21.1 Item
3		- DADF roller assembly (P/O PL 21.1
4		- Separation pad (P/O PL 21.1 Item
5		- DADF frame assembly (P/O PL
7		- Not used
8		- Not used
9	003K89860 ✓ в наличии	Right hinge assembly (REP 21.2)
10	003K89140 запросить цену →	Left hinge assembly (REP 21.2)
11	050K71060 запросить цену →	DADF tray assembly (REP 21.6)
12		- Not used
13		- Not used
14	062K25595 ✓ в наличии	IIT Assembly (REP 21.1)
15		- Not used
16		- Not used
17		- Left stopper plate (P/O PL 21.1
18		- Right stopper plate (P/O PL 21.1
19		- Idle spring (P/O PL 21.1 Item 96)
20		- Idle roll assembly (P/O PL 21.1
21		- Not used
22		- Sensor (P/O PL 21.1 Item 11)
23		- Not used
24		- Not used
25		- Harness (P/O PL 21.1 Item 11)
27		- DADF tray (P/O PL 21.1 Item 11)
95	604K85850 ✓ в наличии	DADF pick up module kit (mid)
96	604K85860 запросить цену →	DADF top cover assembly (mid)
97		- DADF top cover kit (P/O PL 21.1

Источник: Инк-Маркет.ру.

← Все статьи
