| 1 | 802K18401 запросить цену → | | Front Cover Assembly (REP 14.1) |
| 2 | | | - Front Cover (P/O PL 1.1 Item 1) |
| 3 | | | - Cover Support (P/O PL 1.1 Item 1) |
| 4 | | | - Hinge Plate (Not Spared) |
| 5 | 048E52291 запросить цену → | | Front Lower Cover (REP 14.3) |
| 6 | 802K11970 запросить цену → | | Front Middle Cover (REP 14.2) |
| 7 | 802K17141 запросить цену → | | Left Inner Cover Assembly (REP |
| 8 | | | - Left Inner Cover (P/O PL 1.1 Item |
| 9 | | | - Rotary Latch Lever (P/O PL 1.1 |
| 10 | | | - Rotary Latch Spring (P/O PL 1.1 |
| 11 | 802K12480 запросить цену → | | IBT Inner Cover (REP 14.5) |
| 12 | 802K17151 запросить цену → | | Right Inner Cover (REP 14.5) |
| 13 | 802E05350 запросить цену → | | Left Lower Cover (REP 14.8) |
| 14 | 600K85500 запросить цену → | | LP Name Plate |
| 15 | 600K85510 запросить цену → | | CP Name Plate |
| 1 | 802K25830 запросить цену → | | Right Cover (REP 14.9) |
| 2 | 802E05370 запросить цену → | | Right Lower Cover (REP 14.11) |
| 3 | | | - Rear Cover Assembly (Not Spared) |
| 4 | 802E05291 запросить цену → | | Rear Cover (REP 14.6) |
| 5 | 053K91391 запросить цену → | | Filter (REP 14.7) |
| 6 | 802E05311 запросить цену → | | Option Hinge Cover |
| 7 | 802K17122 запросить цену → | | Top Cover Assembly (REP 14.4) |
| 8 | | | - Top Cover (P/O PL 1.2 Item 7) |
| 9 | | | - Stopper Cover (P/O PL 1.2 Item 7) |
| 10 | 802K16990 запросить цену → | | Control Panel (IOT) (REP 14.10) |
| 11 | | | - Right Hand Cover (Not Spared) |
| 12 | 802E05331 запросить цену → | | Left Option Hinge Cover |
| 1 | | | - Base Frame Hi Assembly (Not |
| 2 | | | - Base Frame Assembly (Not |
| 3 | | | - Developer Tie Plate (Not Spared) |
| 4 | | | - Clamp (Not Spared) |
| 5 | | | - Developer Outer Seal (Not Spared) |
| 6 | | | - DL Bracket (Not Spared) |
| 7 | | | - DL Bracket Assembly (Not Spared) |
| 8 | | | - PWB Support (Not Spared) |
| 9 | | | - Developer Seal (Not Spared) |
| 10 | | | - Connector-5P (Not Spared) |
| 11 | | | - Connector-3P (Not Spared) |
| 12 | | | - Connector-8P (Not Spared) |
| 13 | | | - Connector-4P (Not Spared) |
| 14 | | | - Bushing (Not Spared) |
| 15 | | | - Bushing (Not Spared) |
| 16 | | | - Frame Clamp-L (Not Spared) |
| 17 | | | - Frame Clamp-M (Not Spared) |
| 18 | | | - Frame Clamp-U (Not Spared) |
| 19 | | | - Clamp (Not Spared) |
| 20 | | | - Rear Plate (Not Spared) |
| 1 | | | - Duplex Connector Bracket (Not |
| 2 | | | - Base Frame (Not Spared) |
| 3 | | | - Saddle (Not Spared) |
| 4 | | | - Cover Bracket (Not Spared) |
| 5 | | | - Clamp (Not Spared) |
| 6 | | | - Right Hand Lower Bracket (Not |
| 7 | | | - Paper Handling Guide Bracket |
| 8 | | | - Bracket (Not Spared) |
| 9 | | | - Clamp (Not Spared) |
| 10 | | | - Frame Foot (Not Spared) |
| 11 | | | - Feeder Frame (Not Spared) |
| 12 | | | - Bushing (Not Spared) |
| 13 | | | - Fuser Rear Guide (Not Spared) |
| 14 | | | - Fuser Front Guide (Not Spared) |
| 15 | | | - Fuser Rear Spring (Not Spared) |
| 16 | | | - Fuser Front Spring (Not Spared) |
| 17 | | | - Edge Saddle-U (Not Spared) |
| 18 | | | - Lower Chute (Not Spared) |

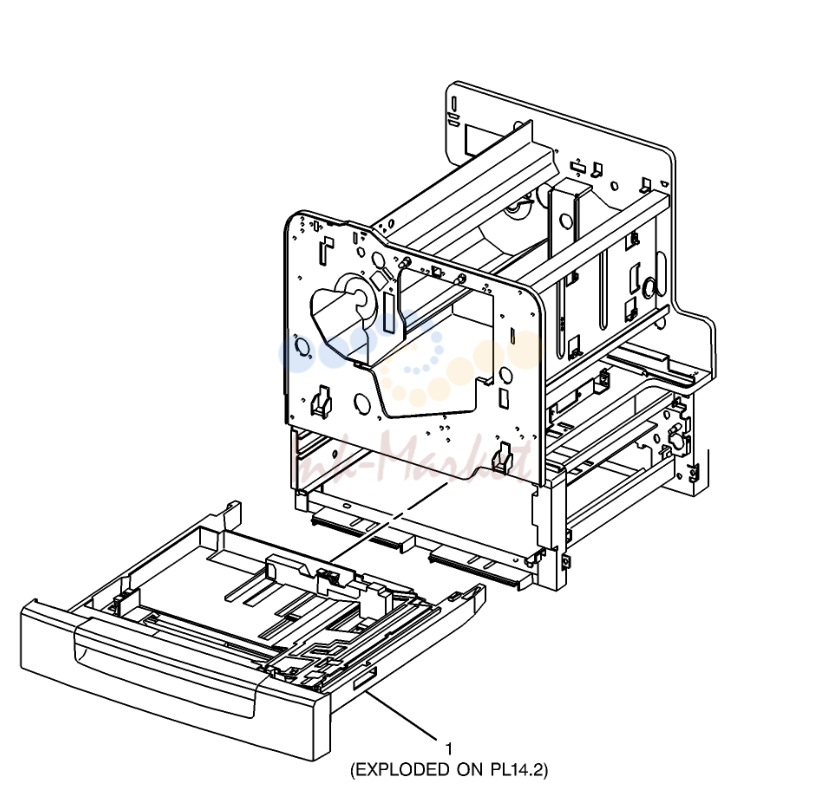

| 1 | 050K42472 запросить цену → | | Tray 1 Assembly (REP 7.6) |
| 2 | | | - Lift Plate (P/O PL 2.1 Item 1) |
| 3 | | | - Tray Spring (P/O PL 2.1 Item 1) |
| 4 | | | - Front Guide Assembly (P/O PL 2.1 |
| 5 | | | - Front Guide (P/O PL 2.1 Item 1) |
| 6 | | | - Snubber Stopper (P/O PL 2.1 Item |
| 7 | 019K94190 запросить цену → | | Tray 1 Front Snubber (REP 7.7) |
| 8 | | | - Rear Guide (P/O PL 2.1 Item 1) |
| 9 | | | - Guide Spring (P/O PL 2.1 Item 1) |
| 10 | | | - Lock Plate (P/O PL 2.1 Item 1) |
| 11 | | | - Right Rear Guide Plate (P/O PL 2.1 |
| 12 | | | - Left Rear Guide Plate (P/O PL 2.1 |
| 13 | | | - Plate Link (P/O PL 2.1 Item 1) |
| 14 | | | - Plate Link Spring (P/O PL 2.1 Item |
| 15 | 038K85700 запросить цену → | | End Guide |
| 16 | | | - Tray Size Actuator (P/O PL 2.1 Item |
| 17 | | | - Tray Housing (P/O PL 2.1 Item 1) |
| 18 | | | - Sector Gear (P/O PL 2.1 Item 1) |
| 19 | | | - Sector Gear Spring (P/O PL 2.1 |
| 20 | | | - Tray Bottom Cover (P/O PL 2.1 |
| 1 | | | - Bracket Clamp (Not Spared) |
| 2 | | | - Harness (Not Spared) |
| 3 | | | - Size Bracket Assembly (Not |
| 4 | | | - Size Switch Bracket (Not Spared) |
| 5 | 110K07770 запросить цену → | | Size Switch PWB (REP 7.1) |
| 6 | | | - Sensor Bracket (Not Spared) (REP |
| 7 | | | - No Paper Sensor Assembly (Not |
| 8 | | | - No Paper Bracket (Not Spared) |
| 9 | 130E81970 запросить цену → | | No Paper Sensor (REP 7.4) |
| 10 | | | - No Paper Actuator (Not Spared) |
| 11 | | | - Stopper (Not Spared) |
| 12 | | | - Feed Shaft Guide (Not Spared) |
| 13 | | | - Feed Idler Gear (Not Spared) |
| 14 | 121E84500 запросить цену → | | Feed Solenoid (REP 8.5) |
| 15 | | | - Feed Bearing (Not Spared) |
| 16 | | | - Turn Gear D (Not Spared) |
| 17 | | | - Turn Gear L (Not Spared) |
| 18 | 110E97970 запросить цену → | | Low Paper Sensor (REP 7.5) |
| 1 | | | - Upper Turn Chute Assembly (Not |
| 2 | | | - Upper Turn Chute (Not Spared) |
| 3 | | | - Pinch Roll (Not Spared) |
| 4 | | | - Pinch Spring (Not Spared) |
| 5 | | | - Pinch Spring Housing (Not Spared) |
| 6 | | | - Magnet Catch (Not Spared) |
| 7 | 802E05560 запросить цену → | | Turn Chute Cover |
| 8 | | | - Outer Turn Chute (Not Spared) |
| 9 | | | - Inner Turn Chute (Not Spared) |
| 10 | 830E19490 запросить цену → | | Turn Cover Stopper |
| 1 | | | - Feeder Assembly (Not Spared) |
| 2 | | | - Turn In Chute (Not Spared) |
| 3 | | | - Harness (Not Spared) |
| 4 | 059K14390 запросить цену → | | Turn Roll (REP 8.1) |
| 5 | | | - Turn Front Bearing (Not Spared) |
| 6 | | | - Turn Gear Cover (Not Spared) |
| 7 | | | - Turn Gear S (Not Spared) |
| 8 | | | - Turn Gear M (Not Spared) |
| 9 | | | - Turn Gear D (Not Spared) |
| 10 | 059K04840 запросить цену → | | Feed Roll Assembly (REP 8.3) |
| 11 | | | - Feed Shaft (P/O PL 3.3 Item 10) |
| 12 | | | _ Feed Roll Kit (REP 8.2) |
| 13 | | | - Feed Core Roll (P/O PL 3.3 Item |
| 14 | | | - Feed Roll Guide (P/O PL 3.3 Item |
| 15 | | | - Bearing (Not Spared) |
| 16 | | | - Feed Gear (Not Spared) |
| 17 | 009E71750 запросить цену → | | Feed Spring |
| 18 | 110E93440 запросить цену → | | Turn Chute Interlock |
| 19 | 121K23790 запросить цену → | | Turn Clutch (REP 8.4) |
| 20 | | | - Turn Gear Shaft (Not Spared) |
| 21 | | | - Bearing (Not Spared) |
| 1 | | | - Latch Arm (Not Spared) |
| 2 | | | - Paper Handling Bracket (Not |
| 3 | 110E93440 запросить цену → | | Bypass Tray Interlock |
| 4 | 001K73550 запросить цену → | | Main Paper Handling Frame |
| 5 | | | - Bypass Tray/Registration Assembly |
| 6 | 050K42570 запросить цену → | | Bypass Tray Assembly |
| 7 | | | - Nylon Washer (P/O PL 4.1 Item 5, |
| 8 | | | - Bypass Tray Feed Assembly (P/O |
| 9 | | | - Base Assembly (P/O PL 4.1 Item 5, |
| 10 | | | - Tray Bottom (P/O PL 4.1 Item 5, |
| 11 | | | - Tray Extension (P/O PL 4.1 Item 5, |
| 12 | | | - Tray Housing (P/O PL 4.1 Item 5, |
| 13 | | | - Guide Holder (P/O PL 4.1 Item 5, |
| 14 | | | - Guide Gear (P/O PL 4.1 Item 5, PL |
| 15 | | | - Registration Guide (P/O PL 4.1 |
| 16 | | | - Guide Spring (P/O PL 4.1 Item 5, |
| 17 | | | - Spring Washer (P/O PL 4.1 Item 5, |
| 18 | | | - Bypass Tray Guide Switch (P/O PL |
| 19 | | | - Harness (P/O PL 4.1 Item 5, PL 4.1 |
| 1 | | | - Bypass Tray Base Assembly (Not |
| 2 | | | - Bypass Frame (Not Spared) |
| 3 | | | - Bottom Plate (Not Spared) |
| 4 | | | - Pad (Not Spared) |
| 5 | | | - Sleeve Bearing (Not Spared) |
| 6 | | | - Lift Shaft (Not Spared) |
| 7 | | | - Lift Down Actuator (Not Spared) |
| 8 | 162K53330 запросить цену → | | Bypass Tray Harness |
| 9 | | | - Gear 28 (Not Spared) |
| 10 | 130E82190 запросить цену → | | Lift Plate Sensor (REP 8.10) |
| 11 | | | - Damper (Not Spared) |
| 12 | | | - Tray Bracket (Not Spared) |
| 13 | | | - Lift Plate (Not Spared) |
| 14 | | | - Clamp (Not Spared) |
| 15 | 001K69770 запросить цену → | | Lift Frame Assembly (REP 8.11) |
| 16 | | | - Gear 12/28-2 (P/O PL 4.2 Item 15) |
| 17 | | | - Gear 12/28-1 (P/O PL 4.2 Item 15) |
| 18 | | | - Gear 12/44 (P/O PL 4.2 Item 15) |
| 19 | | | - Gear 10/20 (P/O PL 4.2 Item 15) |
| 20 | | | - Lift Motor (P/O PL 4.2 Item 15) |
| 21 | | | - Motor Frame (P/O PL 4.2 Item 15) |
| 22 | | | - Clamp (Not Spared) |
| 1 | | | - Feed Assembly (Not Spared) |
| 2 | | | - Preregistration Chute (Not Spared) |
| 3 | | | - Preregistration Spring Housing (Not |
| 4 | | | - Pinch Roll (Not Spared) |
| 5 | 130E81970 запросить цену → | | Tray Empty Sensor (REP 8.12) |
| 6 | 130E82650 запросить цену → | | Pitch Sensor (REP 8.13) |
| 7 | 120E17680 запросить цену → | | Tray Empty Actuator |
| 8 | | | - Preregistration Spring 2 (Not |
| 9 | | | - Preregistration Spring 1 (Not |
| 10 | | | - Lock Pin (Not Spared) |
| 11 | | | - Tray Spring (Not Spared) |
| 12 | | | - Top Frame (Not Spared) |
| 13 | | | - Clamp (Not Spared) |
| 1 | 001K69743 запросить цену → | | Feed Frame Assembly |
| 2 | | | - Stack Height Sensor Bracket (P/O |
| 3 | 130E82190 запросить цену → | | Stack Height Sensor (REP 8.14) |
| 4 | | | - Bearing (P/O PL 4.4 Item 1) |
| 5 | | | - Friction Clutch (P/O PL 4.4 Item 1) |
| 6 | | | - Feed Roll (P/O PL 4.4 Item 1) |
| 7 | | | - Nudger Support (P/O PL 4.4 Item |
| 8 | | | - Retard Shaft (P/O PL 4.4 Item 1) |
| 9 | | | - Support Shaft (P/O PL 4.4 Item 1) |
| 10 | | | - Retard Spring (P/O PL 4.4 Item 1) |
| 11 | | | - Friction Clutch (P/O PL 4.4 Item 1) |
| 12 | | | - Top Frame (P/O PL 4.4 Item 1) |
| 13 | | | - Bearing (P/O PL 4.4 Item 1) |
| 14 | | | - Retard Roll (P/O PL 4.4 Item 1) |
| 1 | | | - Nudger Support (P/O PL 4.4 Item |
| 2 | | | - Bearing (P/O PL 4.4 Item 1) |
| 3 | | | - Nudger Shaft (P/O PL 4.4 Item 1) |
| 4 | | | - Feed Shaft (P/O PL 4.4 Item 1) |
| 5 | | | - Nudger/Retard Roll (P/O PL 4.4 |
| 6 | | | - Nudger Gear-17 (P/O PL 4.4 Item |
| 7 | | | - Idler Gear-20 (P/O PL 4.4 Item 1) |
| 8 | | | - Feed Gear-14 (P/O PL 4.4 Item 1) |
| 9 | | | - Nudger Clutch (P/O PL 4.4 Item 1) |
| 10 | | | - Nudger Spring (P/O PL 4.4 Item 1) |
| 11 | | | - Feed Clutch (P/O PL 4.4 Item 1) |
| 12 | | | - Top Frame (P/O PL 4.4 Item 1) |
| 13 | | | - Preregistration Idler Gear (P/O PL |
| 14 | | | - Bearing (P/O PL 4.4 Item 1) |
| 15 | | | - Bearing (P/O PL 4.4 Item 1) |
| 1 | 001K73550 запросить цену → | | Main Paper Handling Frame |
| 2 | | | - Registration Frame (P/O PL 4.6 |
| 3 | 162K53280 запросить цену → | | Registration Harness |
| 4 | 121K23430 запросить цену → | | Preregistration Clutch (REP 8.15) |
| 5 | | | - Paper Handler (P/O PL 4.6 Item 1) |
| 6 | | | - Bearing (P/O PL 4.6 Item 1) |
| 7 | | | - Rear Rail (P/O PL 4.6 Item 1) |
| 8 | | | - Paper Handling Sensor Assembly |
| 9 | | | - Sensor Bracket (P/O PL 4.6 Item 1, |
| 10 | 130E82650 запросить цену → | | Registration Sensor, OHP Sensor |
| 11 | | | - Gear (P/O PL 4.6 Item 1, PL 4.6 |
| 1 | | | - Gear W-20 (P/O PL 4.6 Item 1) |
| 2 | | | - Registration Frame (P/O PL 4.6 |
| 3 | 059K14400 запросить цену → | | Preregistration Roll (REP 8.16) |
| 4 | | | - Gear (P/O PL 4.6 Item 1) |
| 5 | 121K23430 запросить цену → | | Registration Clutch (REP 8.17) |
| 6 | | | - Bearing (P/O PL 4.6 Item 1) |
| 7 | 059K14380 запросить цену → | | Registration Rubber Roll (REP |
| 8 | | | - Registration Metal Roll |
| 9 | | | - Gear (P/O PL 4.6 Item 1) |
| 10 | | | - Bearing (P/O PL 4.6 Item 1) |
| 11 | | | - Bearing (P/O PL 4.6 Item 1) |
| 12 | | | - Front Spring (P/O PL 4.6 Item 1, PL |
| 13 | | | - Rear Spring (P/O PL 4.6 Item 1, PL |
| 14 | 054E15200 запросить цену → | | Upper Registration Chute |
| 15 | 054E15670 запросить цену → | | Lower Registration Chute |
| 16 | | | - Gear 16 (P/O PL 4.6 Item 1) |
| 17 | | | - Gear 24 (P/O PL 4.6 Item 1) |
| 18 | | | - Gear 26 (P/O PL 4.6 Item 1) |
| 19 | 600K68610 запросить цену → | | Registration Spring Kit |
| 1 | 062K09722 запросить цену → | | ROS (REP 9.3) |
| 2 | | | - ROS Cover Assembly (Not Spared) |
| 3 | | | - ROS Cover (Not Spared) |
| 4 | | | - Saddle Bushing (Not Spared) |
| 5 | 113K81450 запросить цену → | | Customer Replaceable Unit Module |
| 6 | 026K80571 запросить цену → | | Receptacle |
| 7 | | | - Bias Charge Roll Connector (Not |
| 8 | | | - Rail Clamp-2 (Not Spared) |
| 9 | | | - Rail Clamp-1 (Not Spared) |
| 10 | | | - Copy/Print Cartridge (REF: Section |
| 11 | | | - Xerographics Cartridge (P/O PL 5.1 |
| 12 | | | - Waste Container (REF: Section 6) |
| 13 | 160K81230 запросить цену → | | CRUM (P/O PL 5.1 Item 10) |
| 14 | | | - Harness (Not Spared) |
| 15 | 130E82980 запросить цену → | | Toner Box Sensor (REP 9.7) |
| 16 | 130E91010 запросить цену → | | Waste Toner Sensor (REP 9.6) |
| 17 | | | - Locating Rail (Not Spared) (REP |
| 18 | | | - Locating Rail Assembly (Not |
| 19 | 122K93100 запросить цену → | | Erase Lamp (REP 9.8) |
| 20 | 130K60440 запросить цену → | | ADC Sensor (REP 9.4) |
| 21 | 600K68620 запросить цену → | | BCR Connecter Kit |
| 1 | 003K84303 запросить цену → | | Rotary Knob |
| 2 | | | - Rotary Frame (Not Spared) (REP |
| 3 | | | - Rotary Front Bearing (Not Spared) |
| 4 | | | - Rotary Rear Bearing (Not Spared) |
| 5 | 600K69091 запросить цену → | | Rotary Latch |
| 6 | | | - Rotary Sensor Assembly (Not |
| 7 | | | - Rotary Sensor Plate (Not Spared) |
| 8 | 130E83060 запросить цену → | | Rotary Sensor (REP 9.11) |
| 9 | | | - Cartridge Sensor Assembly (Not |
| 10 | | | - Developer Discharge Holder (Not |
| 11 | 600K85301 запросить цену → | | Developer Contact Plate |
| 12 | | | - Cartridge Sensor Plate (Not |
| 13 | 130E82830 запросить цену → | | Cartridge Sensor (REP 9.13) |
| 1 | | | - Dry Ink Cartridge Y (REF: Section |
| 2 | | | - Dry Ink Cartridge M (REF: Section |
| 3 | | | - Dry Ink Cartridge C (REF: Section |
| 4 | | | - Dry Ink Cartridge K (REF: Section |
| 5 | 600K87140 запросить цену → | | Developer Housing K (REP 9.10 |
| 6 | 600K12112 запросить цену → | | Developer Housing C (REP 9.10 |
| 7 | 600K87160 запросить цену → | | Developer Housing M (REP 9.10 |
| 8 | 600K87310 запросить цену → | | Developer Housing Y (REP 9.10 |
| 1 | 008K91550 запросить цену → | | BTR 2 Cam Assembly (REP 9.19) |
| 2 | | | - BTR Rear Bracket Assembly (Not |
| 3 | | | - Rear Bracket (Not Spared) |
| 4 | | | - Rear Bearing (Not Spared) |
| 5 | | | - Clamp (Not Spared) |
| 6 | 006K85500 запросить цену → | | Auger (REP 9.20) |
| 7 | 802K12301 запросить цену → | | Panel |
| 8 | 042K92160 запросить цену → | | Belt Cleaner (REP 9.17) |
| 9 | 802K14462 запросить цену → | | BTR 2 Assembly (REP 9.18) |
| 10 | 011E09640 запросить цену → | | Tension Lever (REP 9.15) |
| 11 | 015K43080 запросить цену → | | IBT Rear Bracket Assembly |
| 12 | | | - Rear Bracket (P/O PL 7.1 Item 11) |
| 13 | | | - Contact Spring (P/O PL 7.1 Item |
| 14 | | | - BTR 1 Contact Wire (P/O PL 7.1 |
| 15 | | | - BTR 2 Contact Wire (P/O PL 7.1 |
| 16 | 015K43090 запросить цену → | | IBT Front Bracket |
| 17 | 802K12990 запросить цену → | | IBT Assembly (REP 9.16) |
| 1 | 802K25990 запросить цену → | | IBT Assembly (REP 9.16) |
| 2 | 064K91350 запросить цену → | | IBT Belt (REP 9.21) |
| 3 | | | - Transfer Mechanism Assembly |
| 4 | | | - IBT Frame (P/O PL 7.2 Item 1 ) |
| 5 | | | - IBT Idler Roll (P/O PL 7.2 Item 1) |
| 6 | | | - Bearing (P/O PL 7.2 Item 1) |
| 7 | | | - Idler Roll Flange (P/O PL 7.2 Item |
| 8 | | | - Backup Roll (P/O PL 7.2 Item 1) |
| 9 | | | - Contact Roll Bearing (P/O PL 7.2 |
| 10 | | | - Front Bearing Holder (P/O PL 7.2 |
| 11 | | | - Rear Bearing Holder (P/O PL 7.2 |
| 12 | | | - Contact Roll (P/O PL 7.2 Item 1) |
| 13 | | | - Bearing Holder (P/O PL 7.2 Item 1) |
| 14 | | | - Contact Roll Spring (P/O PL 7.2 |
| 15 | | | - Spacer (P/O PL 7.2 Item 1) |
| 16 | | | - Shaft (P/O PL 7.2 Item 1) |
| 17 | | | - Rail (P/O PL 7.2 Item 1) |
| 18 | | | - Retard Spring (P/O PL 7.2 Item 1) |
| 1 | 064K91350 запросить цену → | | IBT Belt |
| 2 | | | - IBT Frame (P/O PL 7.2 Item 1) |
| 3 | | | - BTR 1 Plate Wire (P/O PL 7.2 Item |
| 4 | | | - Drive Roll Flange (P/O PL 7.2 Item |
| 5 | | | - Drive Roll Bearing (P/O PL 7.2 Item |
| 6 | | | - Tension Roll Bearing (P/O PL 7.2 |
| 7 | | | - IBT Tension Roll (P/O PL 7.2 Item |
| 8 | | | - Tension Roll Flange (P/O PL 7.2 |
| 9 | 130E84270 запросить цену → | | TR0 Sensor (REP 9.22) |
| 10 | | | - BTR 1 (P/O PL 7.2 Item 1) |
| 11 | | | - BTR 1 Bearings (P/O PL 7.2 Item 1) |
| 12 | | | - Spring (P/O PL 7.2 Item 1) |
| 13 | | | - IBT Drive Roll (P/O PL 7.2 Item 1) |
| 14 | | | - Rail (P/O PL 7.2 Item 1) |
| 15 | | | - Collar (P/O PL 7.2 Item 1) |
| 16 | | | - Clamp (P/O PL 7.2 Item 1) |
| 17 | | | - Harness (P/O PL 7.2 Item 1) |
| 18 | | | - Retard Spring (Not Spared) |
| 1 | 008K91550 запросить цену → | | BTR 2 Cam Assembly |
| 2 | 121K22730 запросить цену → | | BTR 2 Cam Clutch (REP 9.23) |
| 3 | | | - Cam Assembly (P/O PL 7.4 Item 1) |
| 4 | | | - BTR 2 Cam Sensor (P/O PL 7.4 |
| 5 | | | - Gear Shaft (P/O PL 7.4 Item 1) |
| 6 | | | - Gear (P/O PL 7.4 Item 1) |
| 7 | | | - Bearing (P/O PL 7.4 Item 1) |
| 8 | | | - BTR Cam Assembly (P/O PL 7.4 |
| 9 | | | - BTR Actuator (P/O PL 7.4 Item 1) |
| 10 | | | - Cam Shaft (P/O PL 7.4 Item 1) |
| 11 | | | - Outer BTR Cam (P/O PL 7.4 Item |
| 12 | | | - Inner BTR Cam (P/O PL 7.4 Item |
| 13 | | | - Pin (P/O PL 7.4 Item 1) |
| 14 | | | - Bearing (P/O PL 7.4 Item 1) |
| 15 | | | - Gear (P/O PL 7.4 Item 1) |
| 16 | | | - Bracket (P/O PL 7.4 Item 1) |
| 17 | | | - Torque Gear Assembly (P/O PL 7.4 |
| 18 | | | - Gear Shaft (P/O PL 7.4 Item 1) |
| 19 | | | - Torque Gear (P/O PL 7.4 Item 1) |
| 20 | | | - Gear (P/O PL 7.4 Item 1) |
| 1 | 802K14462 запросить цену → | | BTR 2 Assembly |
| 2 | | | - BTR 2 (P/O PL 7.5 Item 1) |
| 3 | | | - Bearing (P/O PL 7.5 Item 1) |
| 4 | | | - BTR Housing (P/O PL 7.5 Item 1) |
| 5 | | | - Front Arm (P/O PL 7.5 Item 1) |
| 6 | | | - Rear Arm (P/O PL 7.5 Item 1) |
| 7 | | | - BTR 2 Cleaner (P/O PL 7.5 Item 1) |
| 8 | | | - Support Bearing (P/O PL 7.5 Item |
| 9 | | | - Support Plate (P/O PL 7.5 Item 1) |
| 10 | | | - BTR Spring (P/O PL 7.5 Item 1) |
| 11 | | | - Cleaner Spring (P/O PL 7.5 Item 1) |
| 12 | | | - Ground Contact Spring (P/O PL 7.5 |
| 13 | | | - Ground Contact Plate (P/O PL 7.5 |
| 14 | | | - Gear (P/O PL 7.5 Item 1) |
| 15 | | | - Gear (P/O PL 7.5 Item 1) |
| 16 | | | - Gear (P/O PL 7.5 Item 1) |
| 17 | | | - Insulator (P/O PL 7.5 Item 1) |
| 1 | | | - Fuser Assembly (Not Spared) (REP |
| 2 | 600K85412 запросить цену → | | Main Fuser 110v |
| 3 | 050K43340 запросить цену → | | Fuser Tray 220v |
| 4 | | | - Jam Removal Label (Not Spared) |
| 5 | | | - Caution Label (Not Spared) |
| 6 | 695E84762 запросить цену → | | Shipping Spacer/ Pad (Not Shown) |
| 1 | 600K85412 запросить цену → | | Main Fuser Assembly 110v (REP |
| 2 | | | - Bottom Plate (P/O PL 8.2 Item 1) |
| 3 | 130E81970 запросить цену → | | Front Fuser Exit Sensor, Rear |
| 4 | | | - Heater Seal (P/O PL 8.2 Item 1) |
| 5 | | | - Washer (P/O PL 8.2 Item 1) |
| 6 | 130K60721 запросить цену → | | Temperature Sensor (REP 10.12) |
| 7 | | | - Fuser Front Frame (P/O PL 8.2 |
| 8 | | | - Fuser Rear Frame (P/O PL 8.2 |
| 9 | | | - Nip Spring (P/O PL 8.2 Item 1) |
| 10 | 003E53300 запросить цену → | | Fuser Nip Handle |
| 11 | | | - Nip Plate (P/O PL 8.2 Item 1) |
| 12 | | | - Nut (P/O PL 8.2 Item 1) |
| 13 | 038K85073 запросить цену → | | Lower Guide Assembly (REP 10.7) |
| 14 | | | - Exit Lower Guide (P/O PL 8.2 Item |
| 15 | | | - Actuator Stopper (P/O PL 8.2 Item |
| 16 | | | - Fuser Exit Actuator (P/O PL 8.2 |
| 17 | | | - Fuser Exit Spring (P/O PL 8.2 Item |
| 18 | | | - Fuser Rear Cover (P/O PL 8.2 Item |
| 19 | | | - Fuser Front Cover (P/O PL 8.2 Item |
| 20 | 038K85081 запросить цену → | | Upper Guide Assembly (REP 10.3) |
| 21 | | | - Upper Guide Sub (P/O PL 8.2 Item |
| 22 | 059K15021 запросить цену → | | Pinch Rolls |
| 23 | | | - Seal (P/O PL 8.2 Item 1) |
| 24 | 600K85430 запросить цену → | | Upper Plate (REP 10.4) |
| 25 | | | - Heater Wire (P/O PL 8.2 Item 1) |
| 26 | | | - Adjusting Screw (P/O PL 8.2 Item |
| 1 | | | - Heater Wire (P/O PL 8.2 Item 1) |
| 2 | | | - Fuser Front Frame (P/O PL 8.2 |
| 3 | | | - Fuser Rear Frame (P/O PL 8.2 Item |
| 4 | 059K15010 запросить цену → | | Pressure Roll (REP 10.11 ADJ |
| 5 | 013E87470 запросить цену → | | Bearing (2/Kit) (ADJ 10.1) |
| 6 | | | - Fuser Entry Plate (P/O PL 8.2 Item |
| 7 | 059K15030 запросить цену → | | Heat Roll (ADJ 10.1) |
| 8 | | | - Fuser Nip Bearing (P/O PL 8.2 Item |
| 9 | | | - Gear (P/O PL 8.2 Item 20) |
| 10 | | | - Ring (P/O PL 8.2 Item 20) (2/Kit) |
| 11 | 007E58991 запросить цену → | | Gear |
| 12 | 007E60321 запросить цену → | | Gear |
| 13 | 126K11330 запросить цену → | | Heat Roll Heat Lamp 220v (REP |
| 14 | 126K11340 запросить цену → | | Pressure Roll Heat Lamp 220v |
| 15 | | | - Fuser Baffle (P/O PL 8.2 Item 1) |
| 16 | | | - Tie Bracket (P/O PL 8.2 Item 1) |
| 17 | | | - Shaft (P/O PL 8.2 Item 1) |
| 18 | | | - Front Cam (P/O PL 8.2 Item 1) |
| 19 | | | - Rear Cam (P/O PL 8.2 Item 1) |
| 20 | 600K85480 запросить цену → | | Heat Roll Hardware Kit (REP 10.10 |
| 1 | 050K43340 запросить цену → | | Fuser Tray Assembly 220v (ADJ |
| 2 | | | - Fuser Tray Subassmebly (P/O PL |
| 3 | 004E09760 запросить цену → | | Damper |
| 4 | 011E10200 запросить цену → | | Fuser Tray Handle |
| 5 | | | - Fuser Tray Cap (P/O PL 8.4 Item 1) |
| 6 | | | - Connector (P/O PL 8.4 Item 1) |
| 7 | | | - Rear Exchange Stopper (P/O PL |
| 8 | 003E39791 запросить цену → | | Fuser Knob |
| 9 | | | - Fuser Knob Bearing (P/O PL 8.4 |
| 10 | | | - Fuser Knob Bearing (P/O PL 8.4 |
| 11 | 007E51650 запросить цену → | | Fuser Knob Gear |
| 12 | 007E51660 запросить цену → | | Exit Knob Gear |
| 13 | | | - Exit Roll Pin (P/O PL 8.4 Item 1) |
| 14 | 059K14430 запросить цену → | | Exit Roll (REP 10.17) |
| 15 | 007E60300 запросить цену → | | Exit Gear |
| 16 | | | - Exit Bearing (P/O PL 8.4 Item 1) |
| 17 | 054E10561 запросить цену → | | Exchange Chute (REP 10.13) |
| 1 | | | - Front Exchange Stopper (P/O PL |
| 2 | | | - Fuser Tray Subassembly (P/O PL |
| 3 | | | - Fuser Front Rail (P/O PL 8.4 Item |
| 4 | | | - Fuser Rear Rail (P/O PL 8.4 Item 1) |
| 5 | 121K21821 запросить цену → | | Exchanged Solenoid Assembly |
| 6 | | | - Exchange Bracket (P/O PL 8.4 Item |
| 7 | | | - Exchange Solenoid |
| 8 | | | - Idler Gear (P/O PL8.5 Item 5) |
| 9 | | | - Idler Gear (P/O PL8.5 Item 5) |
| 10 | | | - Idler Gear (P/O PL8.5 Item 5) |
| 11 | | | - Clamp (P/O PL 8.5 Item 5) |
| 12 | | | - Ground Contact Spring (P/O PL 8.4 |
| 13 | | | - Gear Cover (P/O PL 8.4 Item 1) |
| 14 | 162K53250 запросить цену → | | Fuser Harness |
| 1 | | | - Fuser Tray Subassembly (Not |
| 2 | | | - Fuser Tray (Not Spared) |
| 3 | | | - Fuser Tray Cap (Not Spared) |
| 4 | 130E81970 запросить цену → | | Fuser Entrance Sensor (REP |
| 5 | | | - Harness (Not Spared) |
| 6 | | | - Sensor Bracket (Not Spared) |
| 7 | | | - Actuator (Not Spared) |
| 8 | | | - Spring (Not Spared) |
| 9 | | | - Bottom Cover (Not Spared) |
| 10 | 127E81620 запросить цену → | | Fuser Chute Fan (REP 10.19) |
| 11 | | | - Fuser Paper Guide (Not Spared) |
| 12 | | | - Horizontal Chute (Not Spared) |
| 13 | 029E30560 запросить цену → | | Cleaner Cam Follower |
| 14 | 019E33881 запросить цену → | | Holder |
| 15 | | | - Ground Contact Spring (Not |
| 1 | | | - Ground Contact Spring (Not |
| 2 | | | - Fuser Tray (Not Spared) |
| 3 | 015K49580 запросить цену → | | Input Bracket Assembly |
| 4 | | | - Front Bracket (P/O PL 8.7 Item 3) |
| 5 | | | - Clamp (P/O PL 8.7 Item 3) |
| 6 | | | - Gear (P/O PL 8.7 Item 3) |
| 7 | | | - Gear (P/O PL 8.7 Item 3) |
| 8 | | | - Bearing (P/O PL 8.7 Item 3) |
| 9 | | | - Shaft (P/O PL 8.7 Item 3) |
| 10 | | | - Gear (P/O PL 8.7 Item 3) |
| 11 | | | - Cleaner Cam Gear (P/O PL 8.7 |
| 12 | | | - Rear Bearing (P/O PL 8.7 Item 3) |
| 13 | 121E87040 запросить цену → | | Cleaner Cam Solenoid (REP 10.15) |
| 14 | | | - Cleaner Cam Shaft (Not Spared) |
| 15 | | | - Pin (Not Spared) |
| 16 | | | - Cleaner Cam (Not Spared) |
| 17 | | | - Front Bearing (Not Spared) |
| 1 | | | - Exit Transport Assembly (Not |
| 2 | 054K17770 запросить цену → | | Exit Transport Cover |
| 3 | 050K27592 запросить цену → | | Lower Exit Tray |
| 1 | | | - Exit Transport Assembly (Not |
| 2 | | | - Exit Chute (Not Spared) |
| 3 | | | - Catch Magnet (Not Spared) |
| 4 | | | - Pinch Roll (Not Spared) |
| 5 | | | - Lower Exit Roll (P/O PL 9.2 Item |
| 6 | | | - Upper Exit Roll (P/O PL 9.2 Item |
| 7 | | | - Bearing (P/O PL 9.2 Item 18) (2/Kit) |
| 8 | | | - Bearing (P/O PL 9.2 Item 18) (2/Kit) |
| 9 | | | - Gear (P/O PL 9.2 Item 18) (3/Kit) |
| 10 | | | - Gear (P/O PL 9.2 Item 18) (8/Kit) |
| 11 | | | - Front Plate (Not Spared) |
| 12 | 130E82730 запросить цену → | | Top Exit Sensor (REP 8.43) |
| 13 | 110E93440 запросить цену → | | Exit Chute Interlock (REP 8.42) |
| 14 | | | - Harness (Not Spared) |
| 15 | 127E81940 запросить цену → | | Fuser Fan |
| 16 | 127E81951 запросить цену → | | Exit Chute Fan |
| 17 | 130K61311 запросить цену → | | Full Stack Sensor (REP 8.41) |
| 18 | 600K68750 запросить цену → | | Exit Upper Roller Kit |
| 1 | 007K85070 запросить цену → | | Paper Handling Drive Unit (REP |
| 2 | 007K85080 запросить цену → | | Fuser Drive Unit (REP 4.2) |
| 3 | | | - Drive Motor Assembly (Not Spared) |
| 4 | 127K25400 запросить цену → | | Fuser Motor (REP 4.3) |
| 5 | 127K25410 запросить цену → | | Paper Handling Motor (REP 4.4) |
| 6 | 160K56510 запросить цену → | | Drive Motor PWB (REP 4.5) |
| 7 | | | - Motor PWB Bracket (Not Spared) |
| 8 | | | - Motor PWB Support (Not Spared) |
| 9 | | | - Clamp (Not Spared) |
| 10 | 127K27450 запросить цену → | | Process Drive Unit (REP 4.6) |
| 11 | 121K21141 запросить цену → | | Developer Clutch (REP 4.10) |
| 12 | 121K23260 запросить цену → | | Dispense Clutch (REP 4.9) |
| 13 | 160K61490 запросить цену → | | Rotary Motor PWB (REP 4.8) |
| 14 | 127K28300 запросить цену → | | Rotary Motor 110V (REP 4.7) |
| 1 | 105K15680 запросить цену → | | Low Voltage Power Supply (LVPS) |
| 2 | 105K15690 запросить цену → | | High Voltage Power Supply (HVPS) |
| 3 | 110K07831 запросить цену → | | Top Cover Interlock (REP 1.3) |
| 4 | | | - Duct (Not Spared) |
| 5 | | | - Developer Fan (Not Spared) (REP |
| 6 | | | - Bracket (Not Spared) |
| 7 | | | - Clamp (Not Spared) |
| 8 | | | - Bracket (Not Spared) |
| 9 | | | - Clamp (Not Spared) |
| 10 | | | - Bias Charge Roll (BCR) Wire (Not |
| 11 | | | - Developer Wire (Not Spared) |
| 12 | 162K53100 запросить цену → | | Main Harness |
| 13 | 162K53130 запросить цену → | | Fuser Connector Harness |
| 14 | 117K31400 запросить цену → | | Power Cord 110v |
| 15 | 162K55490 запросить цену → | | Sorter Harness |
| 1 | 160K75041 запросить цену → | | MCU PWB (REP 1.5) |
| 2 | 160K61500 запросить цену → | | Communication PWB (REP 1.12) |
| 3 | 110K98810 запросить цену → | | Right Front Cover Interlock (REP |
| 4 | 110E94380 запросить цену → | | Left Front Cover Interlock (REP |
| 5 | 130K60530 запросить цену → | | Environment Sensor (REP 1.8) |
| 6 | 162K53120 запросить цену → | | Paper Handling Contactor Harness |
| 7 | 162K61050 запросить цену → | | ROS Harness |
| 1 | | | - Controller Chassis (Not Spared) |
| 2 | 127E81670 запросить цену → | | ESS Fan (REP 1.10) |
| 3 | 162K42090 запросить цену → | | Panel Harness |
| 4 | 160K74642 запросить цену → | | ESS Rev 8 PWB (REP 1.9) |
| 5 | 144E00440 запросить цену → | | Memory (256MB) |
| 6 | 121K26500 запросить цену → | | Hard Disk Drive Assembly (REP |
| 7 | | | - IDE Cable (P/O PL 12.1 Item 6) |
| 8 | | | - Hard Disk Drive (P/O PL 12.1 Item |
| 9 | | | - Bracket (Not Spared) |
| 10 | | | - Plate (P/O PL 12.1 Item 12) |
| 11 | | | - Cover (P/O PL 12.1 Item 12) |
| 12 | 015K48720 запросить цену → | | Plate Assembly |
| 13 | 160K69652 запросить цену → | | 1394 PWBA |
| 1 | | | - Optional Feeder Assembly (Not |
| 2 | | | - Optional Feeder Chassis Assembly |
| 3 | 050K42600 запросить цену → | | Paper Tray Assembly (REP 7.6) |
| 1 | 802E05130 запросить цену → | | Feeder Front Cover |
| 2 | 802E15720 запросить цену → | | Feeder Rear Cover |
| 3 | | | - Feeder Rear Harness Cover (Not |
| 4 | | | - Shaft (Not Spared) |
| 5 | 802E05191 запросить цену → | | Feeder Left Cover |
| 6 | 802E15530 запросить цену → | | Feeder Right Cover |
| 7 | 110E93440 запросить цену → | | Feeder Right Cover Interlock 1, |
| 8 | 162K54131 запросить цену → | | Cover Interlock Harness |
| 9 | | | - Clamp (Not Spared) |
| 10 | | | - Feeder Chute (Not Spared) |
| 11 | 830E19490 запросить цену → | | Feeder Chute Support |
| 12 | 017K92350 запросить цену → | | Caster |
| 1 | 059K18770 запросить цену → | | Paper Feeder Assembly |
| 2 | | | - Size Switch Assembly (Not Spared) |
| 3 | | | - Bracket (Not Spared) |
| 4 | 110K07040 запросить цену → | | Size Switch PWB (REP 8.19) |
| 5 | | | - Feeder Frame (Not Spared) |
| 6 | | | - Bracket (Not Spared) |
| 7 | | | - Clamp (Not Spared) |
| 8 | | | - Clamp (Not Spared) |
| 9 | | | - Ground Contact Spring (Not |
| 1 | | | - Feeder Frame (Not Spared) |
| 2 | | | - Clamp (Not Spared) |
| 3 | 127K28260 запросить цену → | | Feeder Motor (REP 8.20) |
| 4 | 007K85422 запросить цену → | | Feeder Drive Unit (REP 8.22) |
| 5 | | | - Bracket (Not Spared) |
| 6 | | | - Stopper (Not Spared) |
| 7 | | | - Stopper (Not Spared) |
| 8 | | | - Harness (Not Spared) |
| 9 | 160K74520 запросить цену → | | Feeder PWB (REP 8.21) |
| 10 | | | - Bracket (Not Spared) |
| 11 | | | - Shaft (Not Spared) |
| 12 | | | - Bracket (Not Spared) |
| 13 | 162K54090 запросить цену → | | Feeder Harness |
| 14 | 162K54120 запросить цену → | | Size Harness |
| 15 | 130E81970 запросить цену → | | Low Paper Sensor (REP 8.22) |
| 16 | 162K54140 запросить цену → | | Upper Feeder Harness |
| 17 | 162K54150 запросить цену → | | Lower Feeder Harness |
| 18 | | | - Lift Clutch (P/O PL 13.4) |
| 1 | 059K18770 запросить цену → | | Paper Feeder Assembly (REP |
| 2 | | | - Sheet Clamp (P/O PL 13.5 Item 1) |
| 3 | | | - Upper Feeder Frame (P/O PL 13.5 |
| 4 | | | - Rear Frame (P/O PL 13.5 Item 1) |
| 5 | | | - Support (P/O PL 13.5 Item 1) |
| 6 | 059K14300 запросить цену → | | Nudger Roll |
| 7 | | | - No Paper Sensor Actuator (P/O PL |
| 8 | | | - Rear Upper Chute (P/O PL 13.5 |
| 9 | | | - Front Upper Chute (P/O PL 13.5 |
| 10 | | | - Spacer (P/O PL 13.5 Item 1) |
| 11 | | | - Nudger Sensor (P/O PL 13.5 Item |
| 12 | 059K17250 запросить цену → | | Feed Roll |
| 13 | 130E82650 запросить цену → | | Feed Out Sensor |
| 14 | | | - Spring (P/O PL 13.5 Item 1) |
| 15 | | | - Bearing (P/O PL 13.5 Item 1) |
| 16 | | | - Bearing (P/O PL 13.5 Item 1) |
| 17 | | | - Bushing (P/O PL 13.5 Item 1) |
| 18 | | | - Clamp (P/O PL 13.5 Item 1) |
| 19 | | | - Clamp (P/O PL 13.5 Item 1) |
| 20 | | | - Harness (P/O PL 13.5 Item 1) |
| 21 | 130E81600 запросить цену → | | No Paper Sensor |
| 22 | | | - Front Frame (P/O PL 13.5 Item 1) |
| 1 | | | - Feed Bracket (P/O PL 13.5 Item 1) |
| 2 | | | - Rear Frame (P/O PL 13.5 Item 1) |
| 3 | 121K23790 запросить цену → | | Takeaway Clutch (REP 8.24) |
| 4 | | | - Nudger Lever (P/O PL 13.5 Item 1) |
| 5 | | | - Lever Plate (P/O PL 13.5 Item 1) |
| 6 | | | - Gear (P/O PL 13.5 Item 1) |
| 7 | | | - Stopper (P/O PL 13.5 Item 1) |
| 8 | | | - Link (P/O PL 13.5 Item 1) |
| 9 | | | - Front Frame (P/O PL 13.5 Item 1) |
| 10 | | | - Takeaway Roll (P/O PL 13.5 Item |
| 11 | 121K21560 запросить цену → | | Nudger Solenoid (REP 8.25) |
| 12 | | | - Spring (P/O PL 13.5 Item 1) |
| 13 | | | - Clamp (P/O PL 13.5 Item 1) |
| 14 | | | - Bearing (P/O PL 13.5 Item 1) |
| 15 | | | - Turn Clutch (P/O PL 13.5 Item 1) |
| 16 | | | - Clamp (P/O PL 13.5 Item 1) |
| 17 | | | - Gear (P/O PL 13.5 Item 1) |
| 18 | | | - Gear (P/O PL 13.5 Item 1) |
| 19 | | | - Bearing (P/O PL 13.5 Item 1) |
| 1 | | | - Front Frame (P/O PL 13.5 Item 1) |
| 2 | | | - Spring (P/O PL 13.5 Item 1) |
| 3 | | | - Lower Chute (P/O PL 13.5 Item 1) |
| 4 | | | - Lower Frame Assembly (P/O PL |
| 5 | | | - Lower Frame (P/O PL 13.5 Item 1) |
| 6 | | | - Retard Lever (P/O PL 13.5 Item 1) |
| 7 | | | - Spring (P/O PL 13.5 Item 1) |
| 8 | | | - Retard Assembly (P/O PL 13.5 Item |
| 9 | | | - Retard Shaft (P/O PL 13.5 Item 1) |
| 10 | | | - Retard Support (P/O PL 13.5 Item |
| 11 | 059K08840 запросить цену → | | Retard Roll |
| 12 | | | - Shaft (P/O PL 13.5 Item 1) |
| 13 | | | - Friction Clutch (P/O PL 13.5 Item |
| 14 | | | - Gear (P/O PL 13.5 Item 1) |
| 15 | | | - Gear (P/O PL 13.5 Item 1) |
| 16 | | | - Collar (P/O PL 13.5 Item 1) |
| 17 | | | - Bearing (P/O PL 13.5 Item 1) |
| 18 | | | - Bearing (P/O PL 13.5 Item 1) |
| 19 | | | - Gear (P/O PL 13.5 Item 1) |
| 20 | | | - Bearing (P/O PL 13.5 Item 1) |
| 21 | | | - Nylon Washer (P/O PL 13.5 Item 1) |
| 22 | | | - E-Ring (P/O PL 13.5 Item 1) |
| 1 | 050K42600 запросить цену → | | Paper Tray Assembly |
| 2 | | | - Tray Housing (P/O PL 13.8 Item 1) |
| 3 | | | - Paper Guide (P/O PL 13.8 Item 1) |
| 4 | | | - Lift Shaft (P/O PL 13.8 Item 1) |
| 5 | | | - Gear (P/O PL 13.8 Item 1) |
| 6 | | | - Gear (P/O PL 13.8 Item 1) |
| 7 | | | - Gear (P/O PL 13.8 Item 1) |
| 8 | | | - Gear (P/O PL 13.8 Item 1) |
| 9 | | | - Extension Spring (P/O PL 13.8 Item |
| 10 | | | - Side End Label (P/O PL 13.8 Item |
| 11 | | | - Label (P/O PL 13.8 Item 1) |
| 12 | | | - Bearing (P/O PL 13.8 Item 1) |
| 13 | | | - Spring (P/O PL 13.8 Item 1) |
| 14 | | | - Spring (P/O PL 13.8 Item 1) |
| 15 | | | - Rail (P/O PL 13.8 Item 1) |
| 16 | | | - Rear Plate (P/O PL 13.8 Item 1) |
| 17 | | | - Tray Front Cover (P/O PL 13.8 Item |
| 18 | | | - Pad (P/O PL 13.8 Item 1) |
| 19 | | | - Gear Drive Pin (P/O PL 13.8 Item |
| 1 | | | - Paper Guide (P/O PL 13.8 Item 1) |
| 2 | | | - Tray Housing (P/O PL 13.8 Item 1) |
| 3 | | | - Side Guide Lock Knob (P/O PL |
| 4 | | | - Max Label (P/O PL 13.8 Item 1) |
| 5 | | | - Lift Plate (P/O PL 13.8 Item 1) |
| 6 | | | - Guide Spring (P/O PL 13.8 Item 1) |
| 7 | | | - End Guide Actuator (P/O PL 13.8 |
| 8 | | | - Side Guide Actuator (P/O PL 13.8 |
| 9 | | | - Spring (P/O PL 13.8 Item 1) |
| 10 | | | - Level (P/O PL 13.8 Item 1) |
| 11 | | | - End Guide Link (P/O PL 13.8 Item |
| 12 | | | - End Guide (P/O PL 13.8 Item 1) |
| 13 | | | - End Guide Plate (P/O PL 13.8 Item |
| 14 | | | - Side Guide Plate (P/O PL 13.8 Item |
| 15 | | | - Side Guide (P/O PL 13.8 Item 1) |
| 16 | | | - Bottom Pad (P/O PL 13.8 Item 1) |
| 17 | | | - Guide Plate (P/O PL 13.8 Item 1) |
