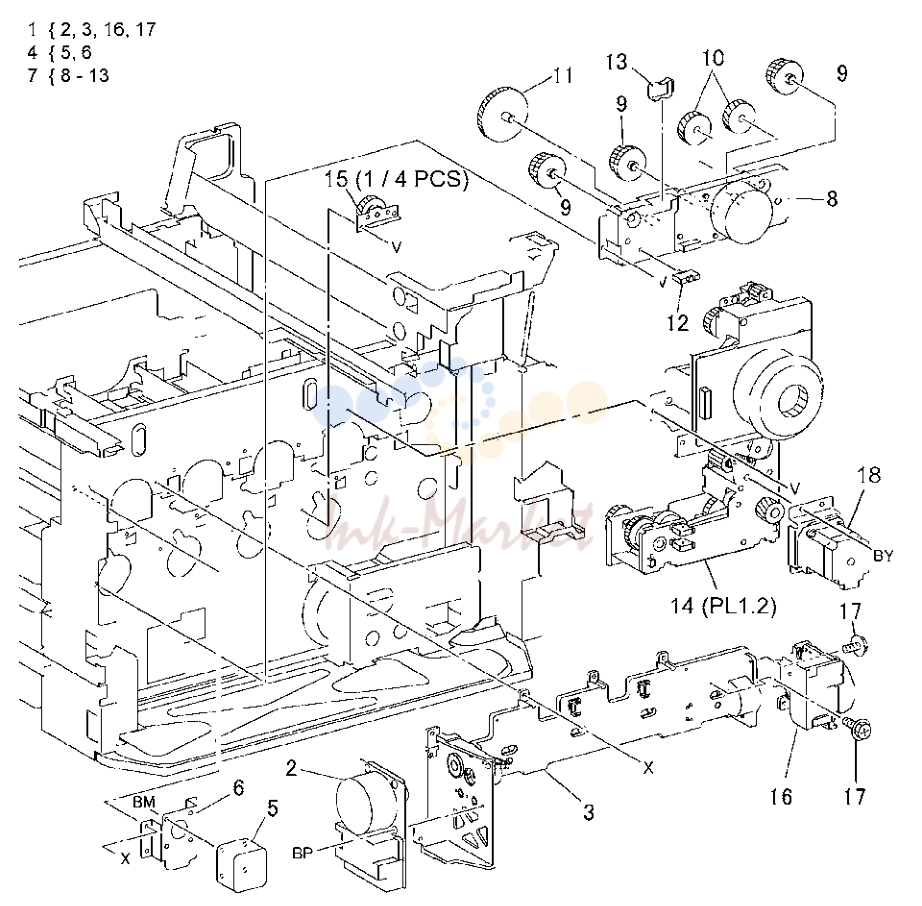

1. PL 1.1 Drive Unit
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 007K88603 запросить цену → | Drive Assy Drum FT (REP 4.4) | |
| 2 | - Imaging Unit Motor (P/O PL 1.1 | ||
| 3 | - Gear Bracket (P/O PL 1.1 Item 1) | ||
| 4 | 007K87600 запросить цену → | Drive Assy - IBT (REP 4.2) | |
| 5 | - IBT Motor (P/O PL 1.1 Item 4) | ||
| 6 | - Gear Bracket (P/O PL 1.1 Item 4) | ||
| 7 | 007K88661 запросить цену → | Drive Assy - Developer FT (REP | |
| 8 | - Developer Drive Motor (P/O PL 1.1 | ||
| 9 | - Gear (47/38T) (P/O PL 1.1 Item 7) | ||
| 10 | - Gear (51/25T) (P/O PL 1.1 Item 7) | ||
| 11 | - Gear (P/O PL 1.1 Item 7) (76T) | ||
| 12 | - Clamp (P/O PL 1.1 Item 7) | ||
| 13 | - Edge Saddle (P/O PL 1.1 Item 7) | ||
| 14 | 007K88114 запросить цену → | Drive Assy - Main FT (REP 4.1) | |
| 15 | 007K87221 запросить цену → | Gear Assy Developer | |
| 16 | - Imaging Unit Motor (P/O PL 1.1 | ||
| 17 | - Screw (P/O PL 1.1 Item 1) | ||
| 18 | - Take Away Motor | ||
| 1 | - Friction Clutch (P/O PL 1.1 Item 14) | ||
| 2 | - Shaft (P/O PL 1.1 Item 14) | ||
| 3 | - Gear (32T) (P/O PL 1.1 Item 14) | ||
| 4 | - Gear (28T) (P/O PL 1.1 Item 14) | ||
| 5 | - Bearing (P/O PL 1.1 Item 14) | ||
| 6 | - Shaft (P/O PL 1.1 Item 14) | ||
| 7 | - Gear (20T) (P/O PL 1.1 Item 14) | ||
| 8 | - Gear (25T) (Not Spared) | ||
| 9 | - Bearing (P/O PL 1.1 Item 14) | ||
| 10 | - Shaft (P/O PL 1.1 Item 14) | ||
| 11 | - Gear (39T) (P/O PL 1.1 Item 14) | ||
| 12 | - Bearing (P/O PL 1.1 Item 14) | ||
| 13 | 121K23270 запросить цену → | Clutch Assy - Developer | |
| 14 | - Gear (69/27T) (P/O PL 1.1 Item 14) | ||
| 15 | - Gear (23T) (P/O PL 1.1 Item 14) | ||
| 16 | - Gear (28/22T) (P/O PL 1.1 Item 14) | ||
| 17 | - Gear (45/30T) (P/O PL 1.1 Item 14) | ||
| 18 | - Gear (41/25T) (P/O PL 1.1 Item 14) | ||
| 19 | - Gear (24/20T) (P/O PL 1.1 Item 14) | ||
| 20 | - Gear (19T) (P/O PL 1.1 Item 14) | ||
| 21 | - Gear (18T) (P/O PL 1.1 Item 14) | ||
| 22 | - Gear (73/23T) (P/O PL 1.1 Item 14) | ||
| 23 | - Spring (P/O PL 1.1 Item 14) | ||
| 24 | - Tension Bracket (P/O PL 1.1 Item | ||
| 25 | - Bracket (P/O PL 1.1 Item 14) | ||
| 26 | - Pulley (P/O PL 1.1 Item 14) | ||
| 27 | - Screw (P/O PL 1.1 Item 14) | ||
| 28 | - Main Motor (P/O PL 1.1 Item 14) | ||
| 29 | - Belt (P/O PL 1.1 Item 14) | ||
| 30 | - Clamp (P/O PL 1.1 Item 14) | ||
| 31 | - Clamp (P/O PL 1.1 Item 14) | ||
| 32 | - Connector (P/O PL 1.1 Item 14) | ||
| 33 | - Pulley (P/O PL 1.1 Item 14) | ||
| 34 | - Gear (30T) (Not Spared) | ||
| 1 | 007K85582 запросить цену → | Drive Assy - Steering (REP 9.12) | |
| 2 | - IBT Steering Motor (P/O PL 1.3 | ||
| 3 | - Plate (P/O PL 1.3 Item 1) | ||
| 4 | 130K60866 запросить цену → | Sensor Assy - MOB (REP 9.14) | |
| 5 | - MOB Sensor (P/O PL 1.3 Item 4) | ||
| 6 | - Environment Sensor (P/O PL 1.3 | ||
| 7 | - Wire Harness (P/O PL 1.3 Item 4) | ||
| 8 | - Cover (P/O PL 1.3 Item 4) | ||
| 9 | - ADC Sensor (P/O PL 1.3 Item 4) | ||
| 10 | - Shutter (P/O PL 1.3 Item 4) | ||
| 11 | - Spring (P/O PL 1.3 Item 4) | ||
| 12 | - Link (P/O PL 1.3 Item 4) | ||
| 13 | - Spacer (P/O PL 1.3 Item 4) | ||
| 14 | - MOB Bracket (P/O PL 1.3 Item 4) | ||
| 15 | - Slide (P/O PL 1.3 Item 4) | ||
| 1 | 003E23672 запросить цену → | Stopper Tray | |
| 2 | - Spacer | ||
| 3 | 110K12990 запросить цену → | Switch Assy - P.S. (Tray 2 Paper | |
| 4 | 050K56361 запросить цену → | Tray 2/3/4/5 (Universal Tray) (REP | |
| 5 | - Cover (Not Spared) | ||
| 6 | - Label (1) | ||
| 7 | - Bracket (Not Spared) | ||
| 1 | 059K15577 запросить цену → | Feeder Assy (Tray 2 Feeder) (REP | |
| 2 | 802K56394 запросить цену → | Cover Assy - LH Low (Left Lower | |
| 3 | - Left Lower Cover (P/O PL 2.3 Item | ||
| 4 | 029E31600 запросить цену → | Rivet | |
| 5 | - Bracket (P/O PL 2.3 Item 2) | ||
| 6 | - Spring (P/O PL 2.3 Item 2) | ||
| 7 | - Pinch Roll (P/O PL 2.3 Item 2) | ||
| 8 | - Bearing (P/O PL 2.3 Item 2) | ||
| 9 | - Bearing (P/O PL 2.3 Item 2) | ||
| 10 | - Bearing (P/O PL 2.3 Item 2) | ||
| 11 | 130K60851 запросить цену → | Tray 2 Feed Out Sensor | |
| 12 | - Wire Harness (P/O PL 2.3 Item 2) | ||
| 13 | - Ground Plate (P/O PL 2.3 Item 2) | ||
| 14 | - Magnet (P/O PL 2.3 Item 2) | ||
| 15 | - LH Lower Cover Interlock Switch | ||
| 16 | 054E16060 запросить цену → | Chute Lower | |
| 17 | - Pinch Roll Assembly | ||
| 18 | - Seal (Not Spared) | ||
| 19 | - Seal (Not Spared) | ||
| 1 | 127K23231 запросить цену → | Motor Assy (Tray 2/3/4/5 Feed/Lift | |
| 2 | - Bracket (P/O PL 2.3 Item 1) | ||
| 3 | - One-way Clutch | ||
| 4 | - One-way Gear | ||
| 5 | - Gear (13T) (P/O PL 2.3 Item 1) | ||
| 6 | - Bearing (P/O PL 2.3 Item 1) | ||
| 7 | - Shaft (P/O PL 2.3 Item 1) | ||
| 8 | - Front Frame (P/O PL 2.3 Item 1) | ||
| 9 | - Upper Frame (P/O PL 2.3 Item 1) | ||
| 10 | - Front Chute (P/O PL 2.3 Item 1) | ||
| 11 | - Actuator | ||
| 12 | 604K16630 запросить цену → | Tray 2 Level / No Paper Sensor | |
| 13 | - Wire Harness (P/O PL 2.3 Item 1) | ||
| 14 | - Support (P/O PL 2.3 Item 1) | ||
| 15 | - Gear (15T) (P/O PL 2.3 Item 1) | ||
| 16 | - Washer (P/O PL 2.3 Item 1) | ||
| 1 | - Spring (P/O PL 2.3 Item 1) | ||
| 2 | 600K78460 ✓ в наличии | Roll Kit (3 Rolls/Kit) | |
| 3 | _ One-way Clutch | ||
| 4 | - Gear (P/O PL 2.3 Item 1) | ||
| 5 | - Shaft (P/O PL 2.3 Item 1) | ||
| 6 | - Chute (P/O PL 2.3 Item 1) | ||
| 7 | - Spring (P/O PL 2.3 Item 1) | ||
| 8 | - Friction Clutch (P/O PL 2.3 Item 1) | ||
| 9 | - Support (P/O PL 2.3 Item 1) | ||
| 10 | - Holder (P/O PL 2.3 Item 1) | ||
| 11 | - Spacer (P/O PL 2.3 Item 1) | ||
| 12 | - Gear (31T) (P/O PL 2.3 Item 1) | ||
| 13 | - Support (P/O PL 2.3 Item 1) | ||
| 14 | - Bearing (P/O PL 2.3 Item 1) | ||
| 15 | - Gear (P/O PL 2.3 Item 1) | ||
| 16 | - Support (P/O PL 2.3 Item 1) | ||
| 17 | - Screw (P/O PL 2.3 Item 1) | ||
| 18 | - Bearing (P/O PL 2.3 Item 1) | ||
| 19 | - Gear (35T) (P/O PL 2.3 Item 1) | ||
| 20 | - Spring (P/O PL 2.3 Item 1) | ||
| 21 | - Lever (P/O PL 2.3 Item 1) | ||
| 1 | 059K26794 запросить цену → | Registration Transport Assembly | |
| 2 | - Bearing (P/O PL 2.6 Item 1) | ||
| 3 | - Bearing (P/O PL 2.6 Item 1) | ||
| 4 | - Takeaway Roll (Not Spared) | ||
| 5 | - Gear (22T) (P/O PL 2.6 Item 1) | ||
| 6 | - Paper Guide (P/O PL 2.6 Item 1) | ||
| 7 | - Registration Chute (P/O PL 2.6 | ||
| 8 | - Registration Clutch | ||
| 9 | - Bearing (P/O PL 2.6 Item 1) | ||
| 10 | - Ground Plate (P/O PL 2.6 Item 1) | ||
| 11 | - Registration Roll (P/O PL 2.6 Item | ||
| 12 | 604K16630 запросить цену → | Registration Sensor (part of Sensor | |
| 13 | - Screw (P/O PL 2.6 Item 1) | ||
| 14 | 604K16630 запросить цену → | OHP Sensor (part of Sensor Kit) | |
| 15 | - Registration Support (P/O PL 2.6 | ||
| 16 | - Wire Harness (P/O PL 2.6 Item 1) | ||
| 17 | - Ground Plate (P/O PL 2.6 Item 1) | ||
| 1 | 007E64740 ✓ в наличии | Gear Damper (11/23T) | |
| 2 | - Stud (Not Spared) | ||
| 3 | 004E11831 запросить цену → | Damper-LH (White) | |
| 4 | - Left Upper Cover (Not Spared) | ||
| 5 | 802K89430 запросить цену → | Cover Assy-LH OPB 3 (Left Cover | |
| 6 | - Left Cover (P/O PL 2.7 Item 5) | ||
| 7 | - Screw (Not Spared) | ||
| 8 | - Label (P/O PL 2.7 Item 5) | ||
| 9 | - Cover (Not Spared) | ||
| 10 | - Lower Cover (Left Hand Door B) | ||
| 11 | - Label (Not Spared) | ||
| 1 | - Registration Chute | ||
| 2 | - Holder (Not Spared) | ||
| 3 | 108R00579 ✓ в наличии | 2nd BTR | |
| 4 | - Spring | ||
| 5 | - Support | ||
| 6 | - Left Cover (Left Hand Door A) (Not | ||
| 7 | 007E62630 запросить цену → | Gear (22T) | |
| 8 | 059K15613 запросить цену → | Roll Assy - Exit | |
| 9 | 007E79480 запросить цену → | Gear (22T) | |
| 10 | - Bearing (Not Spared) | ||
| 11 | - Holder (Not Spared) | ||
| 12 | 110K10651 запросить цену → | Switch Assy-Exit (Fuser Exit | |
| 13 | - Holder (Not Spared) | ||
| 14 | 054K16131 запросить цену → | Duplex Chute Assy (REP 8.2) | |
| 15 | - Stop (Not Spared) | ||
| 16 | - Fuser Exit Switch Assembly | ||
| 17 | - Extension Spring | ||
| 1 | - Bearing (Not Spared) | ||
| 2 | - Gear Assembly | ||
| 3 | 127K29513 запросить цену → | Motor Assy (2nd BTR Retract | |
| 4 | 604K16630 запросить цену → | 2nd BTR Retract Sensor (part of | |
| 5 | - Bracket (Not Spared) | ||
| 6 | 130E84300 запросить цену → | Sensor - APS, Long (POB Sensor ) | |
| 7 | 830E62811 запросить цену → | Bracket Sensor | |
| 8 | - Spring (Not Spared) | ||
| 9 | - Bracket (Not Spared) | ||
| 10 | 802K27076 запросить цену → | Cover Assy-LH PH2 (Left Cover | |
| 11 | - Left Cover (Left Hand Door A) (P/O | ||
| 12 | - Lever (P/O PL 2.9 Item 10) | ||
| 13 | - Bracket (P/O PL 2.9 Item 10) | ||
| 14 | - Gear (21T) (P/O PL 2.9 Item 10) | ||
| 15 | - Connector Assembly (Not Spared) | ||
| 16 | - Spring (P/O PL 2.9 Item 10) | ||
| 17 | 007K86932 запросить цену → | Gear Assy - Gear (45T) | |
| 1 | 059K45940 запросить цену → | Exit Transport Assembly (REP 8.7) | |
| 2 | 802E12772 запросить цену → | Cover Exit (Exit Transport Cover ) | |
| 3 | - Bearing (P/O PL 2.10 Item 1) | ||
| 4 | - Pin (P/O PL 2.10 Item 1) | ||
| 5 | - Exit Roll (P/O PL 2.10 Item 1) | ||
| 6 | - Actuator | ||
| 7 | - Bracket (P/O PL 2.10 Item 1) | ||
| 8 | 604K16630 запросить цену → | Full Paper Stack Sensor (part of | |
| 9 | - Latch (P/O PL 2.10 Item 1) | ||
| 10 | - Spring (P/O PL 2.10 Item 1) | ||
| 11 | - Pinch Roll (P/O PL 2.10 Item 1) | ||
| 12 | - Pinch Roll (P/O PL 2.10 Item 1) | ||
| 13 | - LH Cover Interlock Switch (P/O PL | ||
| 14 | - Bracket (P/O PL 2.10 Item 1) | ||
| 15 | - Static Eliminator (P/O PL 2.10 Item | ||
| 16 | - Offset Motor (P/O PL 2.10 Item 1) | ||
| 17 | - Wire Harness (P/O PL 2.10 Item 1) | ||
| 18 | - Screw (P/O PL 2.10 Item 1) | ||
| 19 | - Front Bracket (P/O PL 2.10 Item 1) | ||
| 20 | - Frame (P/O PL 2.10 Item 1) | ||
| 21 | - Label (Not Spared) |

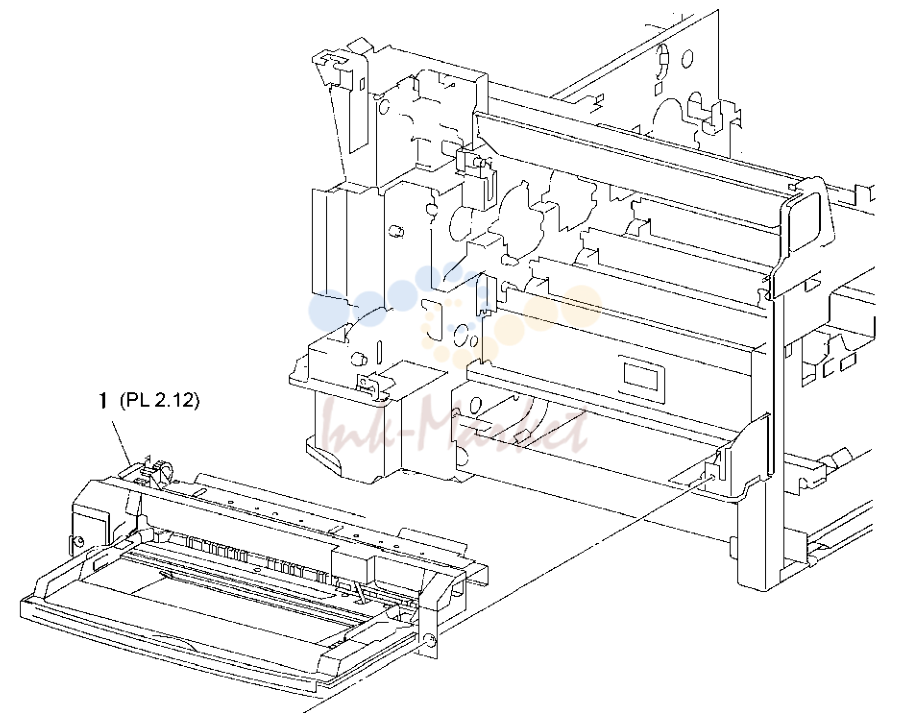

2. PL 2.11 Tray 1 (MPT): 1 of 2
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Spring (P/O PL 2.11 Item 1) | ||
| 2 | - Bracket (P/O PL 2.11 Item 1) | ||
| 3 | - Gear (P/O PL 2.11 Item 1) | ||
| 4 | - Spring (P/O PL 2.11 Item 1) | ||
| 5 | 050K56372 запросить цену → | Tray 1 (MPT) Assembly | |
| 6 | - Upper Frame (P/O PL 2.11 Item 1) | ||
| 7 | 600K87510 запросить цену → | Actuator (part of Sensor Flag Kit) | |
| 8 | 604K16630 запросить цену → | Tray 1 (MPT) No Paper Sensor | |
| 9 | - Tray 1 (MPT) Feed Assembly (P/O | ||
| 10 | - Spring (P/O PL 2.11 Item 1) | ||
| 11 | - Pinch Roll 1/2 (P/O PL 2.11 Item 1) | ||
| 12 | - Chute (P/O PL 2.11 Item 1) | ||
| 13 | - Guide (P/O PL 2.11 Item 1) | ||
| 14 | - Shaft (P/O PL 2.11 Item 1) | ||
| 15 | - Spring (P/O PL 2.11 Item 1) | ||
| 16 | - Spacer (P/O PL 2.11 Item 1) | ||
| 17 | - Pinch Roll 3 (P/O PL 2.11 Item 1) | ||
| 1 | - Paper Guide | ||
| 2 | - Takeaway Roll (Not Spared) | ||
| 3 | - Bearing (Not Spared) | ||
| 4 | - Gear (Not Spared) | ||
| 5 | - Pick-up Gear (Not Spared) | ||
| 6 | - Cam Gear (Not Spared) | ||
| 7 | - Stop Lever (Not Spared) | ||
| 8 | - Gear Lever (Not Spared) | ||
| 9 | - Tray 1 Feed Solenoid | ||
| 10 | - Screw (Not Spared) | ||
| 11 | - Spring (Not Spared) | ||
| 12 | - Ground Plate (Not Spared) | ||
| 13 | - Spring (Not Spared) | ||
| 14 | - Feed Roll Assembly | ||
| 15 | 059K24010 ✓ в наличии | Roller Assy - Feed (Feed Roll) | |
| 16 | - Cam (P/O PL 2.13 Item 14) | ||
| 17 | - Cam (P/O PL 2.13 Item 14) | ||
| 18 | - Shaft (P/O PL 2.13 Item 14) | ||
| 19 | 019K08650 запросить цену → | Retard Pad | |
| 20 | - Spring (Not Spared) | ||
| 21 | - Bottom Plate (Not Spared) | ||
| 22 | 809E07520 запросить цену → | Spring N/F Rear (90) | |
| 23 | - Lower Frame (Not Spared) | ||
| 24 | 809E27640 запросить цену → | Spring-N_F | |
| 1 | - Bracket (Not Spared) | ||
| 2 | 062K16910 запросить цену → | ROS Assy FT (REP 6.1) | |
| 3 | - Seal Glass (Y) (Not Spared) | ||
| 4 | - Seal Glass (M) (Not Spared) | ||
| 5 | - Seal Glass (C) (Not Spared) | ||
| 6 | - Seal Glass (K) (Not Spared) | ||
| 7 | - M/C Heater (Not Spared) | ||
| 1 | - Waste Toner Cartridge Cover (REP | ||
| 2 | 108R00579 ✓ в наличии | Waste Toner Cartridge | |
| 3 | 003K86123 запросить цену → | Sensor Holder Assembly | |
| 4 | - Lever (P/O PL 4.1 Item 3) | ||
| 5 | - Waste Toner Cartridge Interlock | ||
| 6 | - Holder (P/O PL 4.1 Item 3) | ||
| 7 | 108R00713 ✓ в наличии | Imaging Unit | |
| 8 | 127K29244 запросить цену → | Motor Assembly Agitator (REP | |
| 9 | - Bracket (P/O PL 4.1 Item 8) | ||
| 10 | - Agitator Motor (P/O PL 4.1 Item 8) | ||
| 11 | 604K16630 запросить цену → | Full Toner Sensor (REP 9.5) (part | |
| 12 | - Wire Harness (P/O PL 4.1 Item 3) | ||
| 13 | - Damper (P/O PL 4.1 Item 8) | ||
| 14 | - Screw (P/O PL 4.1 Item 8) | ||
| 15 | - Inner Cover (Not Spared) | ||
| 16 | - Bracket (Not Spared) | ||
| 1 | 015K65012 запросить цену → | Plate Assy XERO (Imaging Unit | |
| 2 | - Wire Harness (P/O PL 4.2 Item 1) | ||
| 3 | Xero PLate (P/O PL 4.2 Item 1) | ||
| 4 | - Block (M, C, K) (P/O PL 4.2 Item 1) | ||
| 5 | - Block (Y) (P/O PL 4.2 Item 1) | ||
| 6 | 122K93331 запросить цену → | Erase Asst Rail (Erase Lamp | |
| 7 | 122K93341 запросить цену → | Erase Asst Rail (Erase Lamp | |
| 8 | - Bracket (Not Spared) | ||
| 9 | - Screw (Not Spared) | ||
| 1 | 001K70543 запросить цену → | Frame Assy-Lift LH (Left Lift Assy) | |
| 2 | 001K70552 запросить цену → | Frame Assy-Lift RH (Right Lift | |
| 3 | 413W66150 запросить цену → | Bearing | |
| 4 | 028E93620 запросить цену → | Washer | |
| 5 | - Plate (Not Spared) | ||
| 6 | 003K11672 запросить цену → | Latch Assy-AST | |
| 7 | 003E52291 запросить цену → | Hinge-Handle LH (Left Hinge) (REP | |
| 8 | 003E52301 запросить цену → | Hinge-Handle RH (Right Hinge) | |
| 9 | 006E71740 запросить цену → | Shaft-Main | |
| 10 | 011K94970 запросить цену → | Lever Assy-Main (REP 9.18) | |
| 11 | - IBT Cam Lever (P/O PL 5.1 Item | ||
| 12 | - Bearing (P/O PL 5.1 Item 10) | ||
| 13 | - Left Cap (P/O PL 5.1 Item 10) | ||
| 14 | - Right Cap (P/O PL 5.1 Item 10) | ||
| 15 | - Grip (P/O PL 5.1 Item 10) | ||
| 16 | 003K12910 запросить цену → | Stoper Assy-Label | |
| 1 | 604K15322 запросить цену → | Kit IBT-Unit OPB (Accumulator Belt | |
| 2 | 802K12951 запросить цену → | Auger Assembly (REP 9.17) | |
| 3 | - Bearing (Not Spared) | ||
| 4 | 007E61910 запросить цену → | Gear (14T) | |
| 5 | 007E61890 запросить цену → | Gear (18T) | |
| 6 | - Shaft (Not Spared) | ||
| 7 | 108R00580 ✓ в наличии | IBT Belt Cleaner Assembly | |
| 8 | - Removal Support | ||
| 1 | 064K91451 ✓ в наличии | Transfer Belt (REP 9.22) | |
| 2 | - Blade (P/O PL 5.2 Item 7) | ||
| 3 | - Seal (P/O PL 5.2 Item 7) | ||
| 4 | - Screw (P/O PL 5.2 Item 7) | ||
| 5 | - Spring (P/O PL 5.2 Item 7) | ||
| 6 | - Housing (P/O PL 5.2 Item 7) | ||
| 7 | - Screw (P/O PL 5.2 Item 1) | ||
| 8 | - Support (P/O PL 5.2 Item 1) | ||
| 9 | - IBT Frame (P/O PL 5.2 Item 1) | ||
| 10 | - Right Handle (P/O PL 5.2 Item 1) | ||
| 11 | - Left Handle (P/O PL 5.2 Item 1) | ||
| 12 | - Bracket (P/O PL 5.2 Item 1) | ||
| 13 | - Housing (P/O PL 5.2 Item 1) | ||
| 14 | - Housing (P/O PL 5.2 Item 1) | ||
| 15 | - Backup Roll | ||
| 16 | - Bearing (P/O PL 5.2 Item 1) | ||
| 17 | - Pre Roll (P/O PL 5.2 Item 1) | ||
| 18 | - Bearing | ||
| 1 | - Spring | ||
| 2 | - Rear Plunger | ||
| 3 | - Front Plunger | ||
| 4 | 001K70083 запросить цену → | IBT Elevator Frame | |
| 1 | 802K63551 запросить цену → | Disp Assy Y KU (Toner Dispenser) | |
| 2 | 106R01162 ✓ в наличии | Toner Cartridge (Y) | |
| 3 | 802K63561 запросить цену → | Disp Assy M KU (Toner Dispenser) | |
| 4 | 106R01161 ✓ в наличии | Toner Cartridge (M) | |
| 5 | 802K63571 запросить цену → | Disp Assy C KU (Toner Dispenser) | |
| 6 | 106R01160 ✓ в наличии | Toner Cartridge (C) | |
| 7 | 802K63581 запросить цену → | Disp Assy K KU (Toner Dispenser) | |
| 8 | 106R01163 ✓ в наличии | Toner Cartridge (K) | |
| 9 | 802K86531 запросить цену → | Toner Dispenser Base Assembly | |
| 10 | - Toner Dispenser Base (P/O PL 6.1 | ||
| 11 | - Gear (P/O PL 6.1 Item 9) | ||
| 12 | - Toner Dispenser Motor (Y, M, C) | ||
| 13 | - Toner Dispenser Motor (K) | ||
| 14 | - Shaft (P/O PL 6.1 Item 9) | ||
| 15 | - CRUM Antenna PWB | ||
| 1 | 802K60194 ✓ в наличии | HSG Assy Deve (Developer | |
| 2 | - Developer Housing (P/O PL 6.2 | ||
| 3 | - ATC Sensor (Y, M, K, C) (REP 9.26) | ||
| 4 | - Seal | ||
| 5 | 675K09680 запросить цену → | Developer (K) (REP 9.10) | |
| 6 | 675K09650 запросить цену → | Developer (Y) (REP 9.10) | |
| 7 | 675K09660 запросить цену → | Developer (M) (REP 9.10) | |
| 8 | 675K09670 запросить цену → | Developer (C) (REP 9.10) |

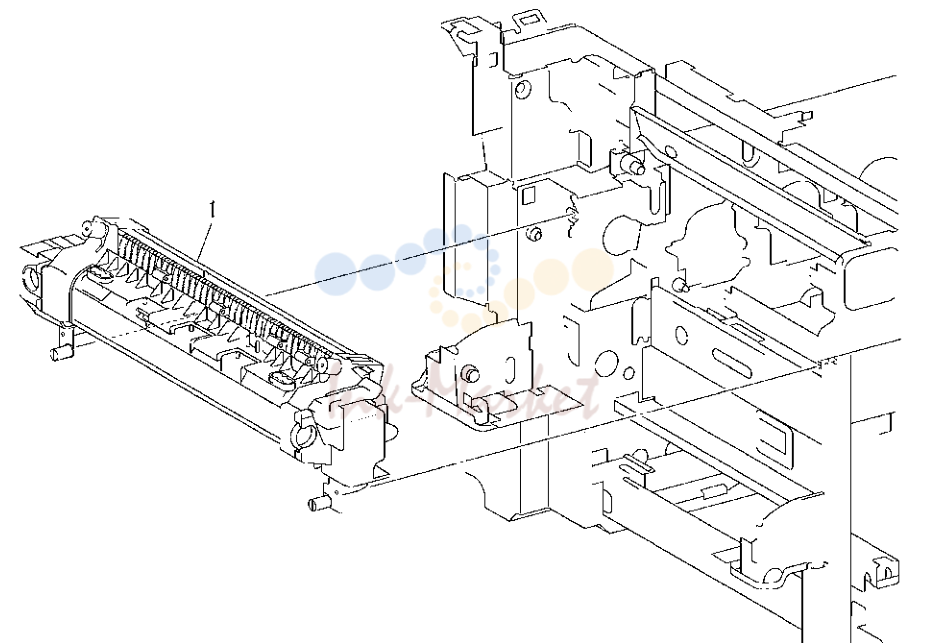

3. PL 7.1 Fuser Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 127K32731 запросить цену → | Solenoid Assy-Shut (ROS Shutter | |
| 2 | - Link (Not Spared) | ||
| 3 | - Spring (Not Spared) | ||
| 4 | 802E16971 запросить цену → | Cover-Inner, L/H, Low (REP 14.10) | |
| 5 | - Duct (Not Spared) | ||
| 6 | 127K29341 запросить цену → | Fan Assy Fuser (REP 10.2) | |
| 7 | - Duct (Not Spared) | ||
| 8 | 127K50250 запросить цену → | Fan Rear Assy (ROS Fan) | |
| 9 | - BCR Cleaning CAM | ||
| 10 | 054K26141 запросить цену → | Fan & Duct Assy-Bottom (Bottom | |
| 11 | - Duct (Not Spared) | ||
| 12 | - Screw (Not Spared) | ||
| 1 | 105K22140 запросить цену → | PSHV-T10F | (DEV/BTR2/DTS |
| 2 | 105E11972 запросить цену → | PSHV-T11 | (BCR HVPS T11) (REP |
| 3 | - LVPS Bracket (Not Spared) (REP | ||
| 4 | 127K49040 запросить цену → | Developer Fan | |
| 5 | 105E16270 запросить цену → | PSLV-LF506QR | 110V (5V LVPS |
| 6 | 960K15800 запросить цену → | PWBA MDD (Interface PWB) (REP | |
| 7 | - Bracket (Not Spared) | ||
| 8 | - Screw (Not Spared) | ||
| 9 | 105E15190 запросить цену → | 24V LVPS (120V/220V) (REP 1.5) | |
| 10 | - 24V LVPS Chassis (Not Spared) | ||
| 11 | 127K50280 запросить цену → | Fan Assy PSLV (LVPS Fan) | |
| 12 | - Screw (Not Spared) | ||
| 13 | - HVPS Control PWB (P/O PL 9.1 | ||
| 14 | 105E11982 запросить цену → | PSHV-T12 | (BTR1 HVPS T12) (REP |
| 15 | - Connector Chassis (Not Spared) | ||
| 16 | - HVPS Chassis (P/O PL 9.1 Item 1) | ||
| 17 | - Choke Coil (110V) | ||
| 18 | - Mounting Bracket | ||
| 19 | - Plate (Not Spared) | ||
| 20 | 160K88292 запросить цену → | LD Power Relay (Interlock Relay | |
| 21 | - Plate | ||
| 22 | - Wire Harness | ||
| 1 | 101K52401 запросить цену → | Chasis Assy AC Power (110V) | |
| 2 | - Bracket (P/O PL 9.2 Item 1) | ||
| 3 | - AC Drive PWB (110V) (REP 1.11) | ||
| 4 | - Clamp (P/O PL 9.2 Item 1) | ||
| 5 | - Noise Filter PWB (110V) | ||
| 6 | - GFI Breaker | ||
| 7 | - AC Power Chassis (P/O PL 9.2 | ||
| 8 | - Wire Harness (P/O PL 9.2 Item 1) | ||
| 9 | - Wire Harness (P/O PL 9.2 Item 1) | ||
| 10 | - Wire Harness (P/O PL 9.2 Item 1) | ||
| 11 | - Screw (P/O PL 9.2 Item 1) | ||
| 12 | - Bracket (P/O PL 9.2 Item 1) | ||
| 13 | 074K97791 запросить цену → | Outlet Panel Assy | |
| 14 | 117K31400 запросить цену → | Power Cord (110V) | |
| 15 | - Wire Harness | ||
| 16 | - Outlet | ||
| 1 | 014K81604 запросить цену → | Block Assembly (Deve) | |
| 2 | 162K62112 запросить цену → | Wire Harness (XERO) | |
| 3 | 162K55941 запросить цену → | Deve Wire Harness (Y, M) | |
| 4 | 162K55971 запросить цену → | Deve Wire Harness (C, K) | |
| 5 | 162K56520 запросить цену → | Wire Harness (2nd) | |
| 6 | 113K82310 запросить цену → | DTS Connector | |
| 7 | 162K56031 запросить цену → | Wire Harness (DTS) | |
| 8 | 962K37973 запросить цену → | Harness Assy Main Front | |
| 1 | - Logo Plate | ||
| 2 | - Hinge (Not Spared) | ||
| 3 | 802K97800 запросить цену → | Cover Assy Front MN (with 2-10) | |
| 4 | - Front Cover (P/O PL 10.1 Item 3) | ||
| 5 | - Magnet (P/O PL 10.1 Item 3) | ||
| 6 | 830E57230 запросить цену → | Strap | |
| 7 | 042K93270 запросить цену → | Cleaner Assembly (ROS) | |
| 8 | - ROS Cleaner (P/O PL 10.1 Item 7) | ||
| 9 | 042K92010 ✓ в наличии | Cleaner Assy Base | |
| 10 | - Right Interlock Switch | ||
| 11 | - Front Interlock Switch | ||
| 12 | 802K59860 запросить цену → | Cover Assy Right MN (Right Cover) | |
| 1 | 802K89970 запросить цену → | Top Cover (with 2-3) (REP 14.1) | |
| 2 | - Top Cover (P/O PL 10.2 Item 1) | ||
| 3 | - Stop (P/O PL 10.2 Item 1) | ||
| 4 | - Connector Cover | ||
| 5 | 802K90821 запросить цену → | Control Panel (P/O PL 10.2 Item 1) | |
| 6 | 110K11211 запросить цену → | Main Power Switch | |
| 7 | 802K59881 запросить цену → | Fuser Cover (REP 14.8) | |
| 8 | - Dispenser Cover (REP 9.6) | ||
| 9 | 012K94261 запросить цену → | Link Assy | |
| 10 | - Pallet Bracket | ||
| 11 | 962K41710 запросить цену → | Wire Harness (Not Shown) | |
| 1 | - Data Plate (Not Spared) | ||
| 2 | 802E12490 запросить цену → | Cover Blind TM | |
| 3 | 802K90000 запросить цену → | Cover Assy Rear | |
| 4 | - Rear Cover (P/O PL 10.3 Item 3) | ||
| 5 | 802E12490 запросить цену → | Blind Cover | |
| 6 | 802E12501 запросить цену → | Cover-L/H R, Mid (Rear Left Middle | |
| 7 | 802E14351 запросить цену → | Cover-L/H R, Low (Rear Left | |
| 8 | 802K59890 запросить цену → | Cover AY-L/H F, Low MN (Front Left | |
| 9 | 802E27861 запросить цену → | Cover-Top, Rear (Rear Left Upper |
Каталог очень большой (1172 позиций). Показаны первые 3 узлов со схемами; полный список доступен по запросу.
