1. Phaser ® 6600 and WorkCentre® 6605
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | (with 2) | ||
| 1 | ROS Assy (with 2) (Laser Unit) 062K24630 | ||
| 2 | Harness Assy ROS Video (Laser Unit Video - |

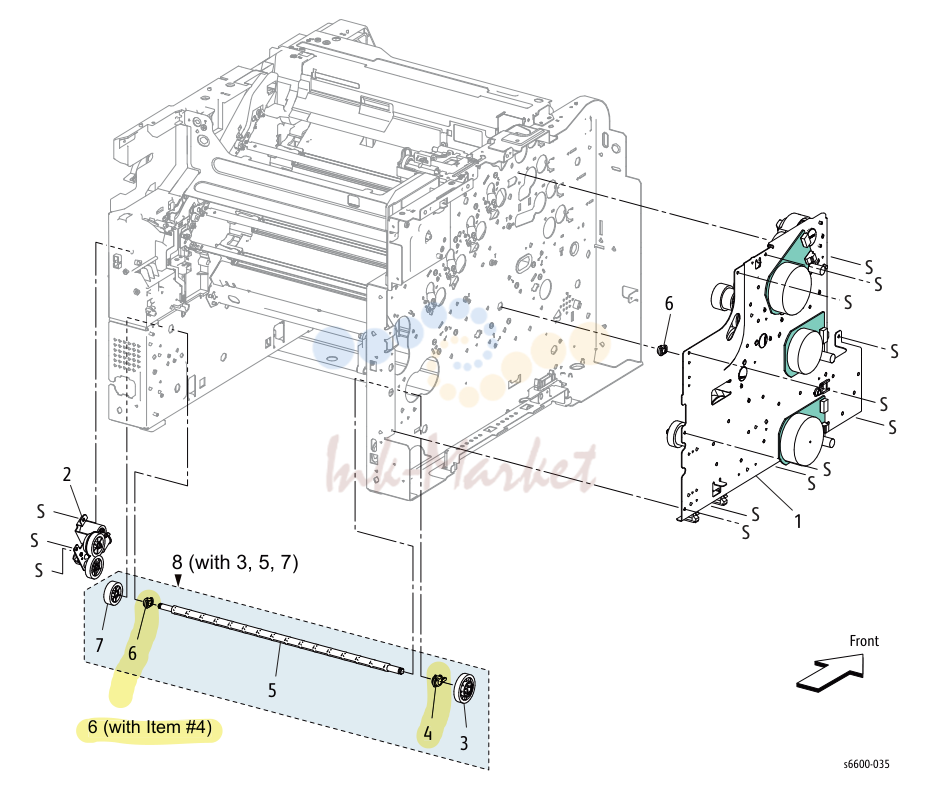

2. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 7 | Front | ||
| 66 | ((wwiitthh IItteemm ##44)) | ||
| 1 | Drive Assy Seg3 (Drive Assembly) 007K17954 | ||
| 2 | Drive Assy Waste (Waste Drive Assembly) 007K17960 | ||
| 3 | Gear Waste 2 (Waste Gear 2) - | ||
| 4 | Bearing Waste 1(Waste Bearing 1; part of item 6) - | ||
| 5 | Shaft Idler Waste (Waste Idler Shaft) - | ||
| 6 | Bearing Waste 2 (Waste Bearing 2, includes item 4) 604K90781 | ||
| 7 | Gear Waste 3 (Waste Gear 3) - | ||
| 8 | Drive Shaft Assembly Kit (with 3, 5, 7) 007K17971 | ||
| 5-14 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |

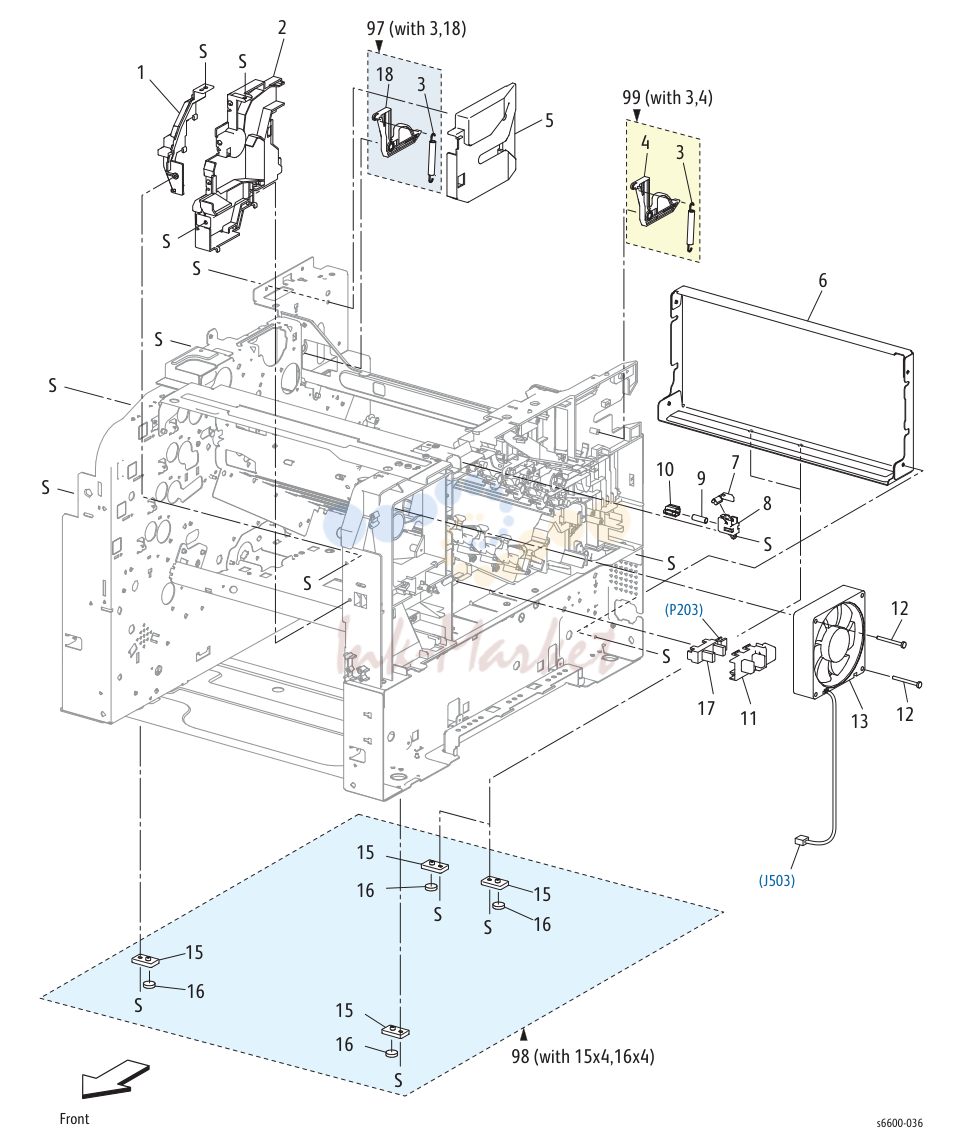

3. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 97 (with 3,18) | ||
| 99 | (with 3,4) | ||
| 98 | (with 15x4,16x4) | ||
| 1 | Duct_frame_seg3 запросить цену → | (Frame Duct) - | |
| 2 | Duct_base_seg3 запросить цену → | (Base Duct) - | |
| 3 | Spring Latch (Latch Spring) - | ||
| 4 | Latch Rear R (Right Rear Latch) - | ||
| 5 | Bracket Latch L (Left Latch Bracket) - | ||
| 6 | Frame Rear S3 - | ||
| 7 | Actuator-Belt IL RT - | ||
| 8 | Holder-Belt IL - | ||
| 9 | Spring-Belt IL - | ||
| 10 | Actuator-Belt IL LN - | ||
| 11 | Cover-Sensor Waste (Waste Sensor Cover) - | ||
| 12 | Screw Fan - | ||
| 13 | Fan Main (Main Fan) 127E86480 | ||
| 15 | Foot Base Front (Front Base Foot) - | ||
| 16 | Foot - | ||
| 17 | Sensor Toner Full (Toner Full Sensor) 930W00511 | ||
| 18 | Latch Rear L (Left Rear Latch) - | ||
| 97 | Kit Latch L (with3,18) (Left Latch Kit) 604K73980 | ||
| 98 | Kit Foot Assy (with15x4,16x4) (Foot Assembly Kit) 604K76341 | ||
| 99 | Kit Latch R (with3,4) (Right Latch Kit) 604K76350 | ||
| 5-16 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |

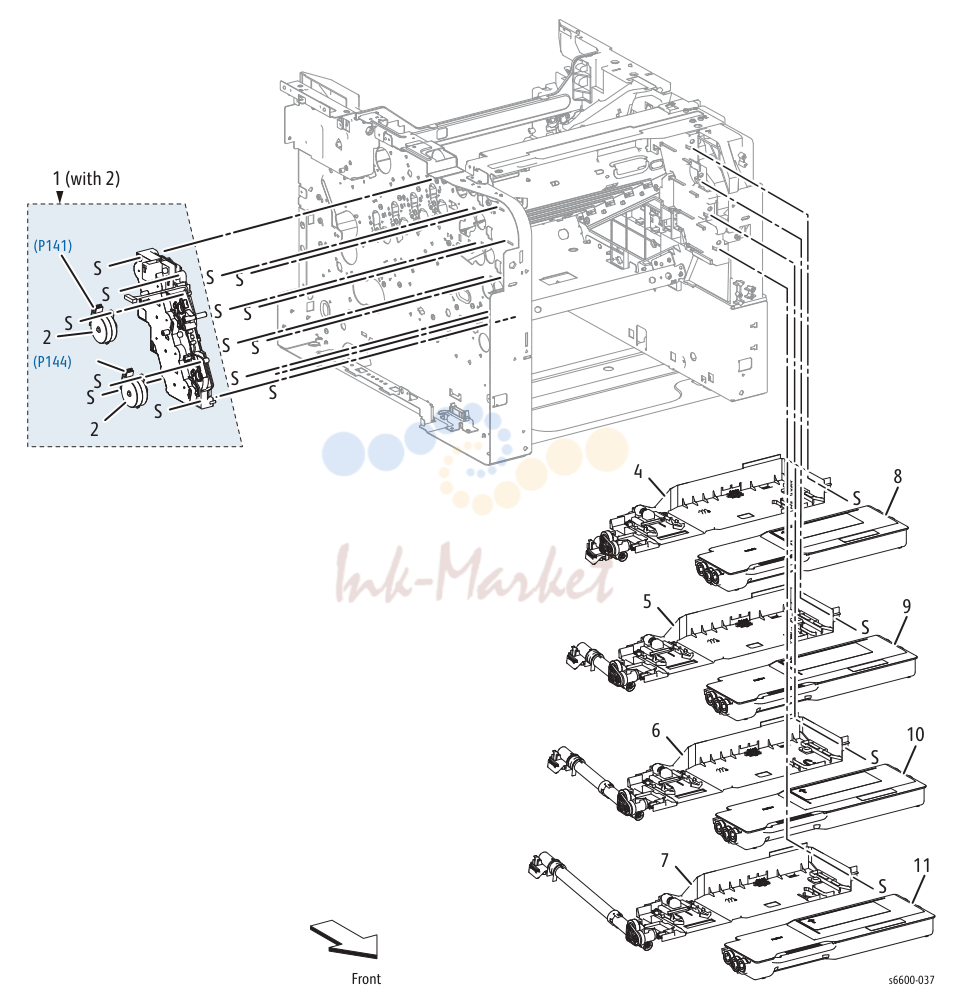

4. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Motor High Assy Disp (Upper Dispenser 127K64252 | ||
| 2 | Motor Assy Disp (Dispenser Motor) 127K64260 | ||
| 4 | Disp Assy- Y (Dispenser Assembly - Y) 094K93432 | ||
| 5 | Disp Assy- M (Dispenser Assembly - M) 094K93422 | ||
| 6 | Disp Assy- C (Dispenser Assembly - C) 094K93412 | ||
| 7 | Disp Assy- K (Dispenser Assembly - K) 094K93402 | ||
| 8 | Toner Cartridge Y - | ||
| 9 | Toner Cartridge M - | ||
| 10 | Toner Cartridge C - | ||
| 11 | Toner Cartridge K - | ||
| 5-18 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |
5. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 99 | (with 15-18) | ||
| 6 | (with 2,8,10,20-24,26) | ||
| 98 | (with 7-11) S | ||

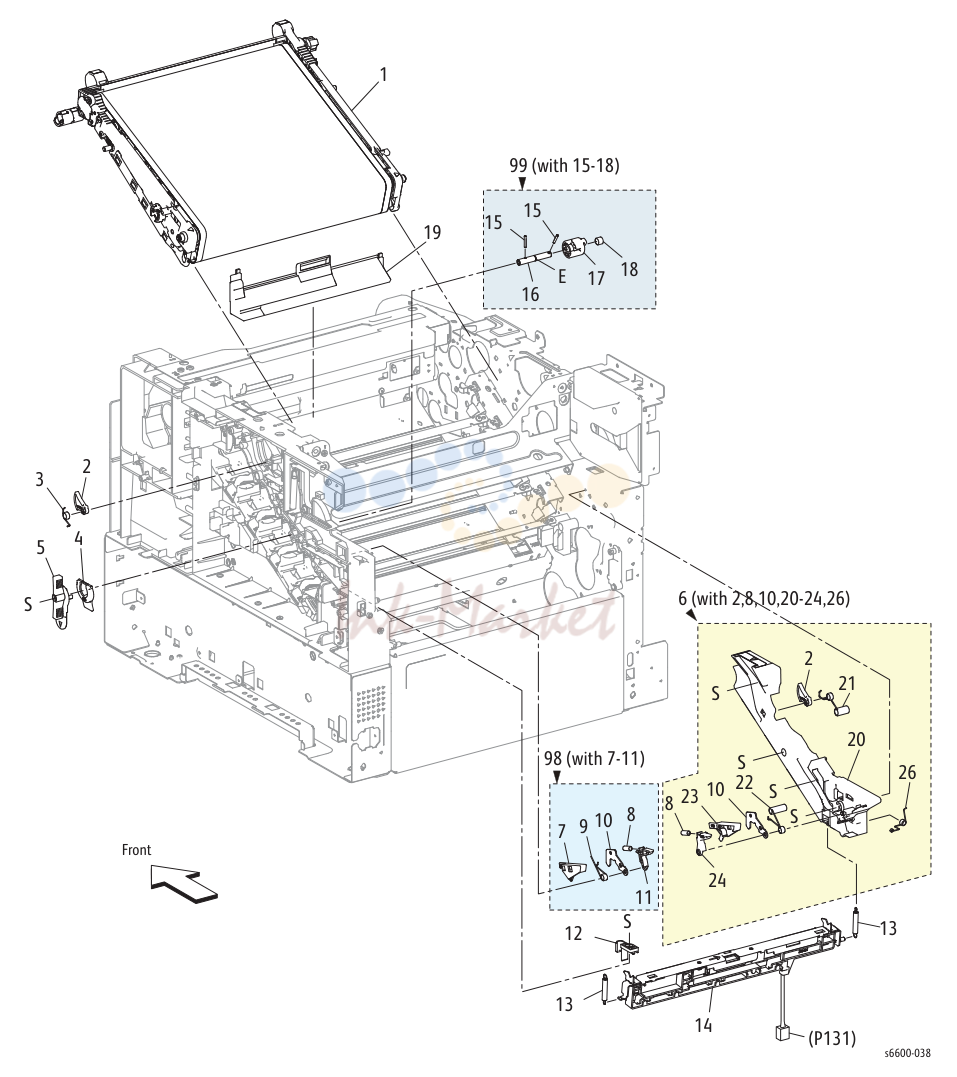

| 1 | Belt Assy-IBT, Unit (Transfer Belt Assembly) See Item #97 | ||
| 2 | Latch-IBT Front (Front Transfer Belt Latch) - | ||
| 3 | Spring-IBT Front R (Right Front Transfer Belt Spring) - | ||
| 4 | Actuator-Coupling (Coupling Actuator) - | ||
| 5 | Handle-IBT (Waste Cartridge Lock) 803E15100 | ||
| 6 | Guide Assy-IBT L (with 2, 8, 10, 20-24, 26) (Left Transfer Belt Guide Assembly) 032K07420 | ||
| 7 | Housing-Latch IBT R (Transfer Belt Right Latch Housing) - | ||
| 8 | Spring-Latch IBT (Transfer Belt Latch Spring) - | ||
| 9 | Spring-IBT Rear R (Transfer Belt Right Rear Spring) - | ||
| 10 | Plate-Latch IBT (Transfer Belt Latch Plate) - | ||
| 11 | Arm-Latch IBT R (Transfer Belt Right Latch Arm) - | ||
| 12 | Guide-CTD R (Right CTD Guide) - | ||
| 13 | Spring-CTD (CTD Spring) 809E96300 | ||
| 14 | Sensor Assy CTD (CTD Sensor Assembly) 130K77830 | ||
| 15 | Pin-Dowel (Dowel Pin) - | ||
| 16 | Shaft-Coupling (Coupling Shaft) - | ||
| 17 | Coupling-Retract IBT (Transfer Belt Retract Coupling) - | ||
| 18 | Spring-Coupling (Coupling Spring) - | ||
| 19 | Cover-Harness IBT(Transfer Belt Harness Cover) - | ||
| 20 | Guide-Belt L (Left Belt Guide) - | ||
| 21 | Spring-IBT Front L (Left Front Transfer Belt Spring) - | ||
| 22 | Spring-IBT Rear L (Left Rear Transfer Belt Spring) - | ||
| 23 | Housing-Latch IBT L (Left Transfer Belt Latch Housing) - | ||
| 24 | Arm-Latch IBT L (Left Transfer Belt Latch Arm - | ||
| 26 | Spring-Gnd ADC - | ||
| 97 | Kit Belt Assy-IBT, Unit (with1) (Transfer Belt Assembly Kit) 604K77530 | ||
| 98 | Kit Latch R (with7-11) (Transfer Belt Right Latch Kit) 604K76280 | ||
| 99 | Kit Coupling (with15-18) (Coupling Kit) 604K76290 | ||
| 5-20 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |

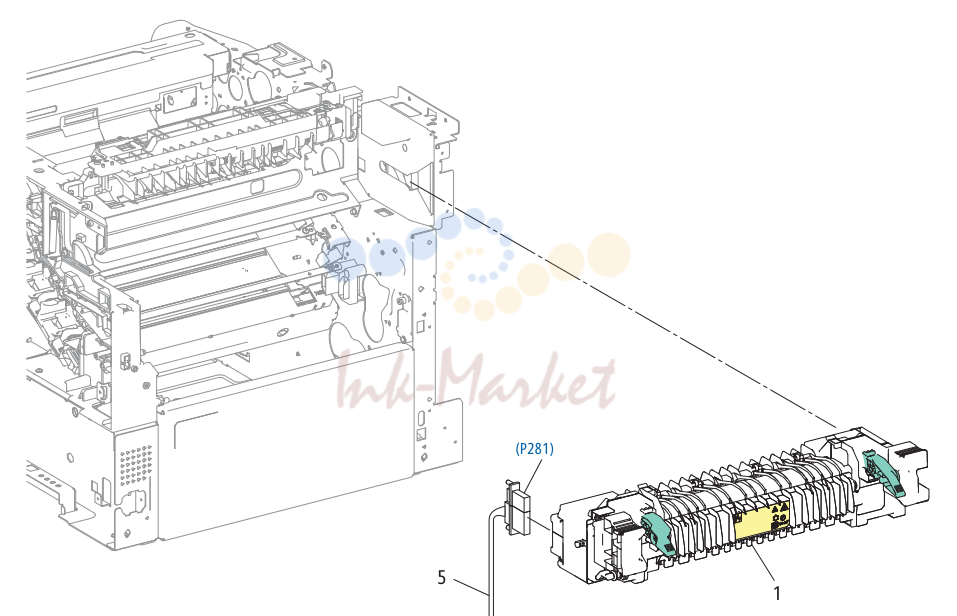

6. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | CRUM Connector Assembly 019K12700 | ||
| 2 | Xero Deve CRU Assy (Imaging Unit)-Y - | ||
| 3 | Xero Deve CRU Assy (Imaging Unit)-M - | ||
| 4 | Xero Deve CRU Assy (Imaging Unit)-C - | ||
| 5 | Xero Deve CRU Assy (Imaging Unit)-K - | ||
| 6 | Cleaner Assembly (with9,10) - | ||
| 7 | Box Assy-Waste (Waste Cartridge) - | ||
| 8 | Connector Assy-Crum Trans (Transfer CRUM - | ||
| 9 | Cleaner Assembly Base - | ||
| 10 | Rod Cleaner - | ||
| 95 | Kit Xero Deve CRU Assy (Imaging Unit)-Y 604K77581 | ||
| 96 | Kit Xero Deve CRU Assy (Imaging Unit)-M 604K77571 | ||
| 97 | Kit Xero Deve CRU Assy (Imaging Unit)-C 604K77561 | ||
| 98 | Kit Xero Deve CRU Assy (Imaging Unit)-K 604K77551 |
7. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | (with 2-30) | ||
| 33 | ((wwiitthh 44--77)) | ||
| 5-24 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||

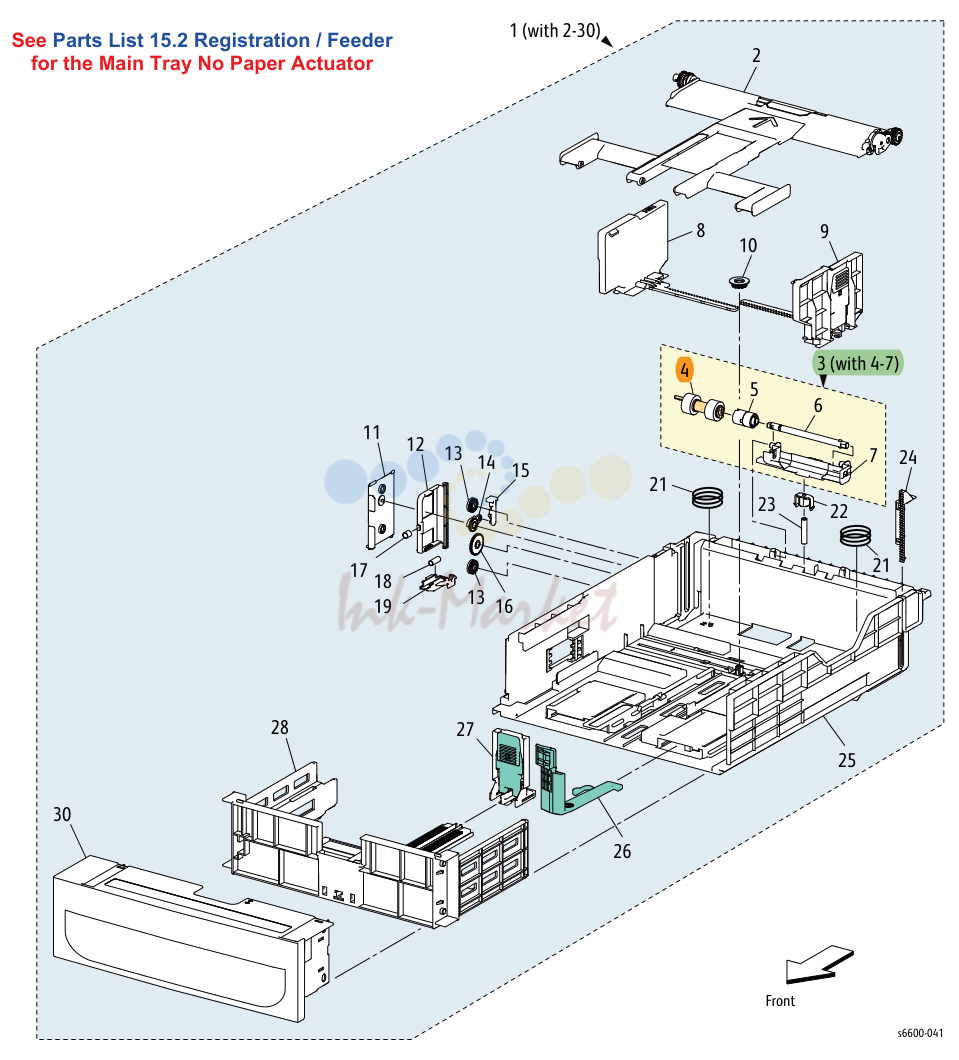

| 1 | Cassette Assy 550 IOT (with2-30) (550-sheet Main Tray) 050K66496 | ||
| 2 | Plate Assy Bottom (Bottom Plate Assembly) - | ||
| 333 | HHHooollldddeeerrr AAAssssssyyy RRReeetttaaarrrddd CCCSSSTTT (((wwwiiittthhh 44--77)) ((TTrraayy RReettaarrdd HHoollddeerr AAsssseemmbbllyy))(cid:3)(cid:3)(cid:3)(cid:3)(cid:3)(cid:3) 660044KK7777666600 | ||
| 44 | RR oollll AAssssyy FFeeeedd ((FFeeeedd RRoolllleerr KKiitt,, wwiitthh 22 FFFFeeeeeeeedddd RRRRoooollllllllssss)))) 675K47673 | ||
| 5 | Clutch Friction RTD Z - | ||
| 6 | Shaft Retard CST (Tray Retard Shaft) - | ||
| 7 | Holder Retard CST - | ||
| 8 | Guide Assy Side L 550 (Left Side Guide Assembly) - | ||
| 9 | Guide Assy Side R 550 (Right Side Guide Assembly) - | ||
| 10 | Gear Pinion - | ||
| 11 | Cover BTM Lock 550 - | ||
| 12 | Rack BTM Lock 550 - | ||
| 13 | Gear BTM Lock Pinion - | ||
| 14 | Gear Lever BTM Lock - | ||
| 15 | Lever BTM Lock - | ||
| 16 | Gear 40 BTM Lock - | ||
| 17 | Spring BTM Lock - | ||
| 18 | Spring Lock PB - | ||
| 19 | Actuator Lock PB L - | ||
| 21 | Spring BTM UP 550 A4 - | ||
| 22 | Holder Spring Retard MSI (Bypass Tray Retard Spring Holder) - | ||
| 23 | Spring Retard CST - | ||
| 24 | Rack Lift UP PB 550 - | ||
| 25 | Housing Base 550 - | ||
| 26 | Lever Ext End 550 - | ||
| 27 | Guide Assy End 550 Opt (550 Option End Guide Assembly) - | ||
| 28 | Housing End 550 - | ||
| 30 | Handle CST 550 - | ||
| 96 | Kit Roll Assy Feed (Feed Roller Assembly Kit) (with 4 x3 parts) 675K47673 | ||
| 97 | Kit Holder Assy Retard CST (with3) 604K77660 | ||
| 5-26 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |

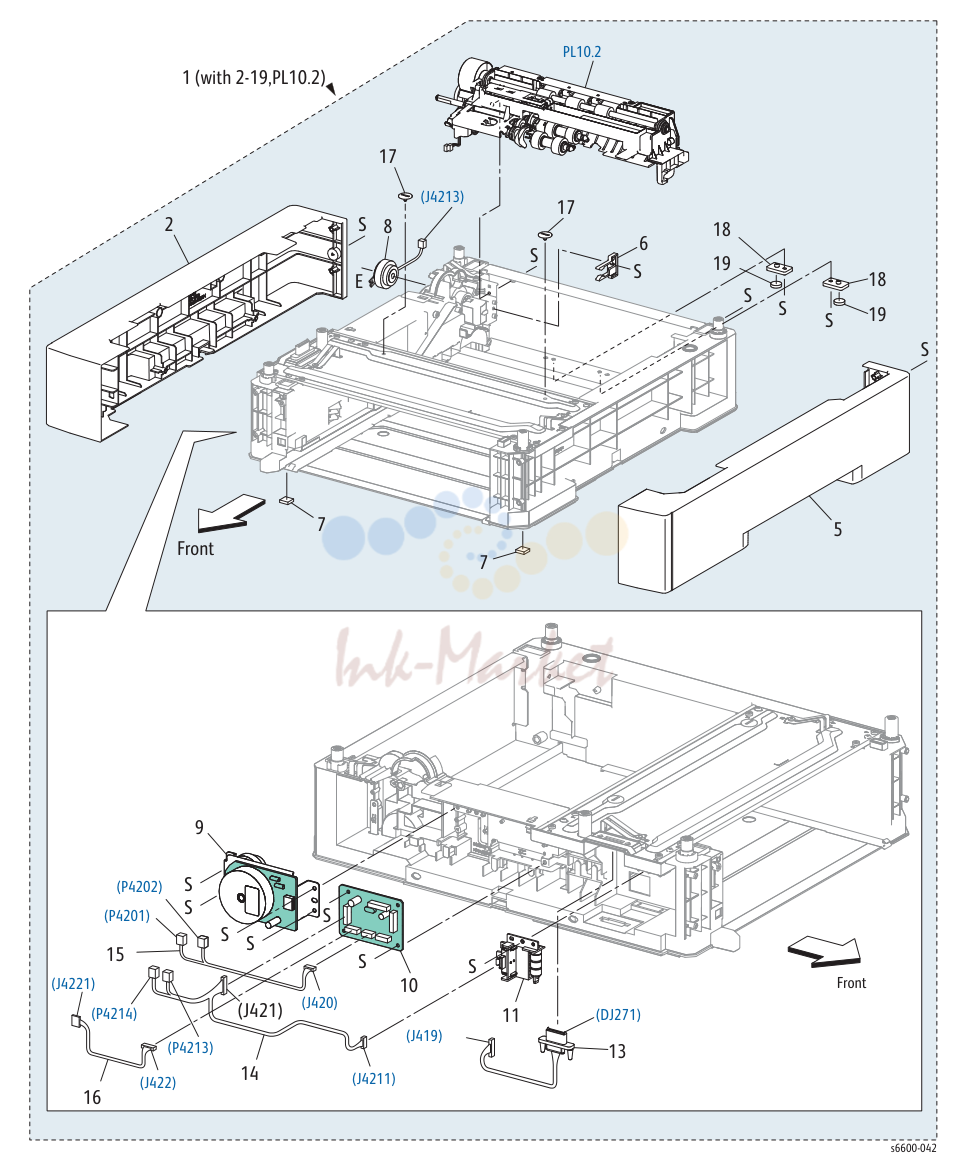

8. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Feeder Assy Opt 550 (with2-19,PL10.2) (Optional 550- 604K77500 | ||
| 2 | Cover Side L 550 Opt (550 Option Left-Side Cover) - | ||
| 5 | Cover Side R 550 Opt (550 Option Right Side Cover) - | ||
| 6 | Stopper CST (Cassette Stopper) 803E10840 | ||
| 7 | Foot Assembly - | ||
| 8 | Clutch Assy Opt Feed (550 Option Feed Clutch 005K83210 | ||
| 9 | Drive Assy Opt 550 (550 Option Drive Assembly) 007K18020 | ||
| 10 | PWBA Feed-H (550 Option Feeder Board) 960K62140 | ||
| 11 | Switch Assy Size 550 (550 Size Switch Assembly) 110K16610 | ||
| 13 | Harness Assy Fdr Drawer1 (Drawer 1 Feeder Harness - | ||
| 14 | Harness Assy C2 Size (C2 Size Harness Assembly) - | ||
| 15 | Harness Assy C2 Turn (C2 Turn Harness Assembly) - | ||
| 16 | Harness Assy Fdr Mot (Feeder Motor Harness Assembly) - | ||
| 17 | Screw Joint (Joint Screw) - | ||
| 18 | Foot Base Front - | ||
| 19 | Foot - | ||
| 5-28 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 1 | (with 2,3) | ||
| 1 | Feed Assy Opt 550 Main (with2,3) (550 Option Main Feed Assembly) 059K71760 | ||
| 2 | Clutch Assy Regi (550 Option Regi Clutch Assembly) - | ||
| 3 | Roll Assy Feed (Feed Roller Kit, with 2 Feed Rolls) 675K47673 | ||
| 4 | Gear Opt Feeder (550 Option Feeder Gear) - | ||
| 5 | Bracket Spring Nudger - | ||
| 6 | Feed Sub Assy - | ||
| 1 | (with 2-30) | ||
| 3 | (with 4-7) | ||
| 5-30 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 1 | Cassette Assy 550 Opt (with2-30) (550 Option Cassette Tray) 050K66516 | ||
| 2 | Plate Assy Bottom - | ||
| 3 | Holder Assy Retard Cst (with4-7) - | ||
| 4 | Roll Assy Feed (Feed Roller Kit, with 2 Feed Rolls) 675K47673 | ||
| 5 | Clutch Friction Rtd Z - | ||
| 6 | Shaft Retard Cst - | ||
| 7 | Holder Retard Cst - | ||
| 8 | Guide Assy Side L 550 (Left Side Guide Assembly) - | ||
| 9 | Guide Assy Side R 550 (Right Side Guide Assembly) - | ||
| 10 | Gear Pinion - | ||
| 11 | Cover Btm Lock 550 - | ||
| 12 | Rack Btm Lock 550 - | ||
| 13 | Gear Btm Lock Pinion - | ||
| 14 | Gear Lever Btm Lock - | ||
| 15 | Lever Btm Lock - | ||
| 16 | Gear 40 Btm Lock - | ||
| 17 | Spring Btm Lock - | ||
| 18 | Spring Lock PB - | ||
| 19 | Actuator Lock PB L - | ||
| 20 | Actuator Size - | ||
| 21 | Spring Btm Up 550 A4 - | ||
| 22 | Holder Spring Retard MSI (Bypass Tray Retard Spring Holder) - | ||
| 23 | Spring Retard Cst - | ||
| 24 | Rack Lift Up PB 550 - | ||
| 25 | Housing Base 550 - | ||
| 26 | Lever Ext End 550 - | ||
| 27 | Guide Assy End 550 Opt (550 Option End Guide Assembly) - | ||
| 28 | Housing End 550 - | ||
| 29 | Plate Slot Size - | ||
| 30 | Handle Cst 550 Opt (550 Option Cassette Handle) - |

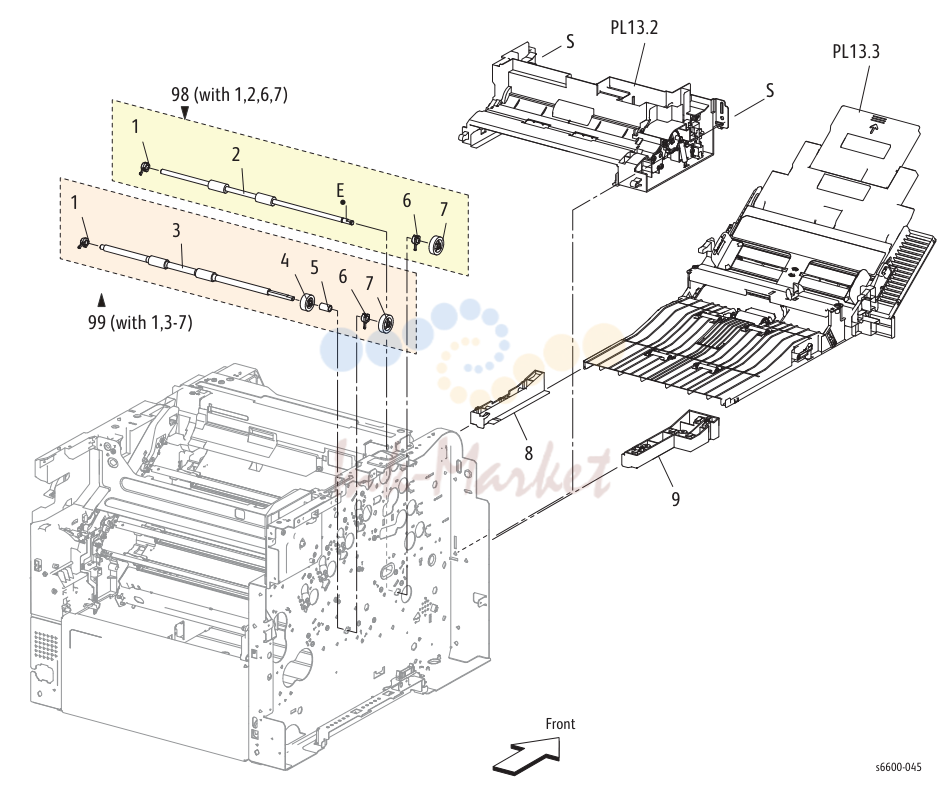

9. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 98 | (with 1,2,6,7) S | ||
| 99 | (with 1,3-7) | ||
| 5-32 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 1 | Bearing Dup (Duplex Bearing) - | ||
| 2 | Roll Assy TA1 (TA1 Roller Assembly) - | ||
| 3 | Roll Assy TA2 (TA2 Roller Assembly) - | ||
| 4 | Gear TA 1 - | ||
| 5 | Spacer TA2 - | ||
| 6 | Bearing TA - | ||
| 7 | Gear Turn - | ||
| 8 | Guide MSI R (Right Bypass Tray Guide) - | ||
| 9 | Guide MSI L (Left Bypass Tray Guide) - | ||
| 98 | Kit Roll Assy 1 (with1,2,6,7) (Roller Assembly Kit 1) 604K73890 | ||
| 99 | Kit Roll Assy 2 (with1,3-7) (Roller Assembly Kit 2) 604K73900 | ||
| 1 | (with 2-26) | ||
| 15 | 99 (with 7-9) | ||
| 98 | (with 10-15) | ||
| 5-34 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 1 | Frame Assy MSI (with2-26) (Bypass Tray Frame Assembly) 801K47622 | ||
| 2 | Frame MSI (Bypass Tray Frame) - | ||
| 3 | Bracket No Paper MSI (Bypass Tray No Paper Bracket) - | ||
| 4 | MSI Detect Sensor (Bypass Tray No Paper Sensor) 930W00123 | ||
| 5 | Harness Assy MSI (Bypass Tray Harness Assembly) - | ||
| 6 | Guide Harness MSI (Bypass Tray Harness Guide) - | ||
| 7 | Spring Feed - | ||
| 8 | Gear Feed MSI (Bypass Tray Feed Gear) - | ||
| 9 | Solenoid Feed MSI (Bypass Tray Feed Solenoid) - | ||
| 11 | Cam MSI L (Left Bypass Tray Cam) - | ||
| 12 | Roll Core - | ||
| 13 | Holder Feed - | ||
| 14 | Shaft Feed MSI (Bypass Tray Feed Shaft) - | ||
| 15 | Cam MSI R (Right Bypass Tray Cam) - | ||
| 16 | Guide Support R (Right Support Guide) - | ||
| 17 | Guide Support L (Left Support Guide) - | ||
| 18 | Arm R (Right Arm) - | ||
| 19 | Spring NF (NF Spring) - | ||
| 20 | Arm L (Left Arm) - | ||
| 21 | Bracket Gear (Gear Bracket) - | ||
| 22 | Follower R (Right Follower) - | ||
| 23 | Follower L (Left Follower) - | ||
| 24 | Guide Bottom R (Right Bottom Guide) - | ||
| 25 | Slide Bottom (Bottom Slide) - | ||
| 26 | Guide Bottom L (Left Bottom Guide) - | ||
| 98 | Kit Roll Assy (with10-15) (Roller Kit Assembly) 604K73910 | ||
| 99 | Kit Solenoid Assy (with7-9) (Solenoid Kit Assembly) 604K73921 | ||
| 1 | (with 2-19) | ||
| 5 | (with 6-19) | ||
| 99 | (with 9-11) | ||
| 13 | 98 (with 13,14) | ||
| 5-36 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 1 | Tray Assy MSI Main (with2-19) (Bypass Tray Assembly) 050K66572 | ||
| 2 | Cover Assy MSI (Bypass Tray Cover Assembly) 848K51102 | ||
| 3 | Spring Damper (Damper Spring) - | ||
| 4 | Cover MSI Under (Bypass Tray Lower Cover) - | ||
| 5 | Chute Assy MSI (with6-19) (Bypass Tray Chute Assembly) 054K46612 | ||
| 6 | Bar MSI Front (Bypass Tray Front Bar) - | ||
| 7 | Spring No Paper (No Paper Spring) - | ||
| 8 | Actuator No Paper (No Paper Actuator) - | ||
| 9 | Roll Pinch MSI (Bypass Tray Pinch Roller) - | ||
| 10 | Spring Pinch TA1 (TA1 Pinch Spring) - | ||
| 11 | Spring Pinch TA2 (TA2 Pinch Spring) - | ||
| 12 | Chute Retard (Retard Chute) - | ||
| 13 | Spring Retard MSI (Bypass Tray Retard Spring) - | ||
| 14 | Holder Assy Retard (Retard Holder Assembly) - | ||
| 15 | Plate Assy Bottom (Bottom Plate Assembly) - | ||
| 16 | Latch MSI L (Left Bypass Tray Latch) - | ||
| 17 | Latch MSI R (Right Bypass Tray Latch) - | ||
| 18 | Spring Latch MSI (Bypass Tray Latch Spring) - | ||
| 19 | Chute MSI (Bypass Tray Chute) - | ||
| 98 | Kit Roll Assy Separater (with13,14) (Separator Roller Assembly Kit) 604K74440 | ||
| 99 | Kit Roll Pinch (with9-11) (Pinch Roller Kit) 604K73940 |
10. Parts Lists

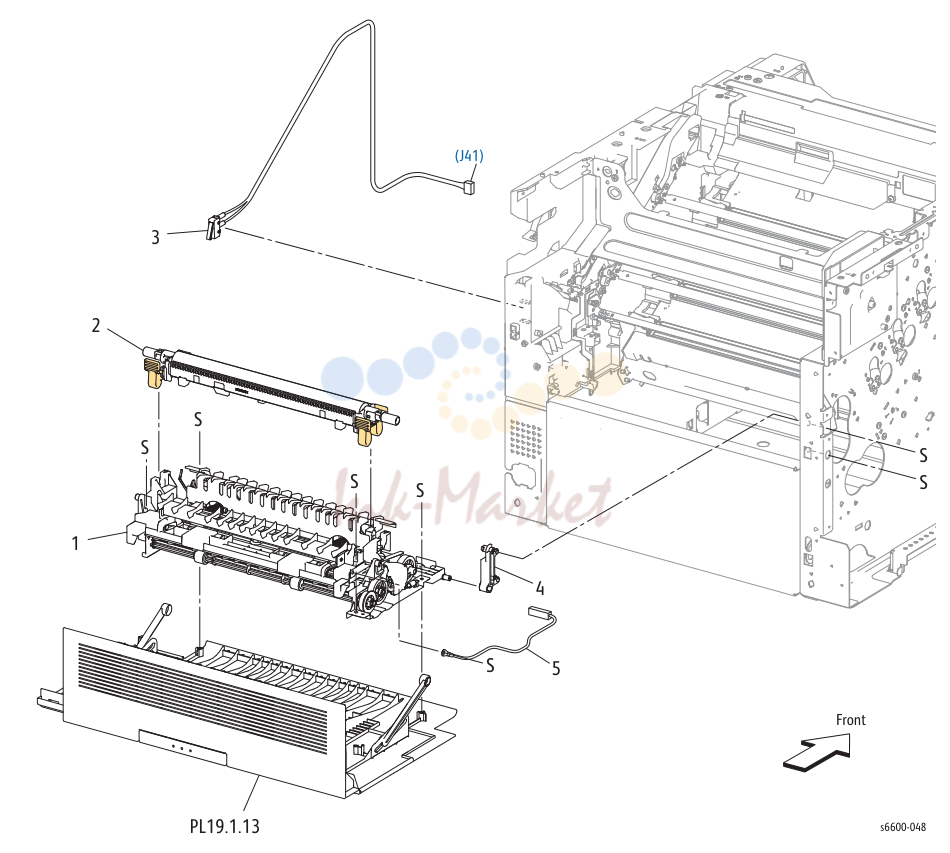

| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Kit Duplex Assembly 054K46661 | ||
| 2 | Roll Assy-2ND CRU (Transfer Roller) - | ||
| 3 | Harness Assy Rear SW(Rear Interlock Switch) - | ||
| 4 | Bracket Hinge Rear 868E68951 | ||
| 5 | Harness Assembly 110K16891 | ||
| 99 | Kit Roll Assy-2ND CRU (with2) (Transfer Roller) 604K77540 | ||
| 5-38 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |
11. Parts Lists

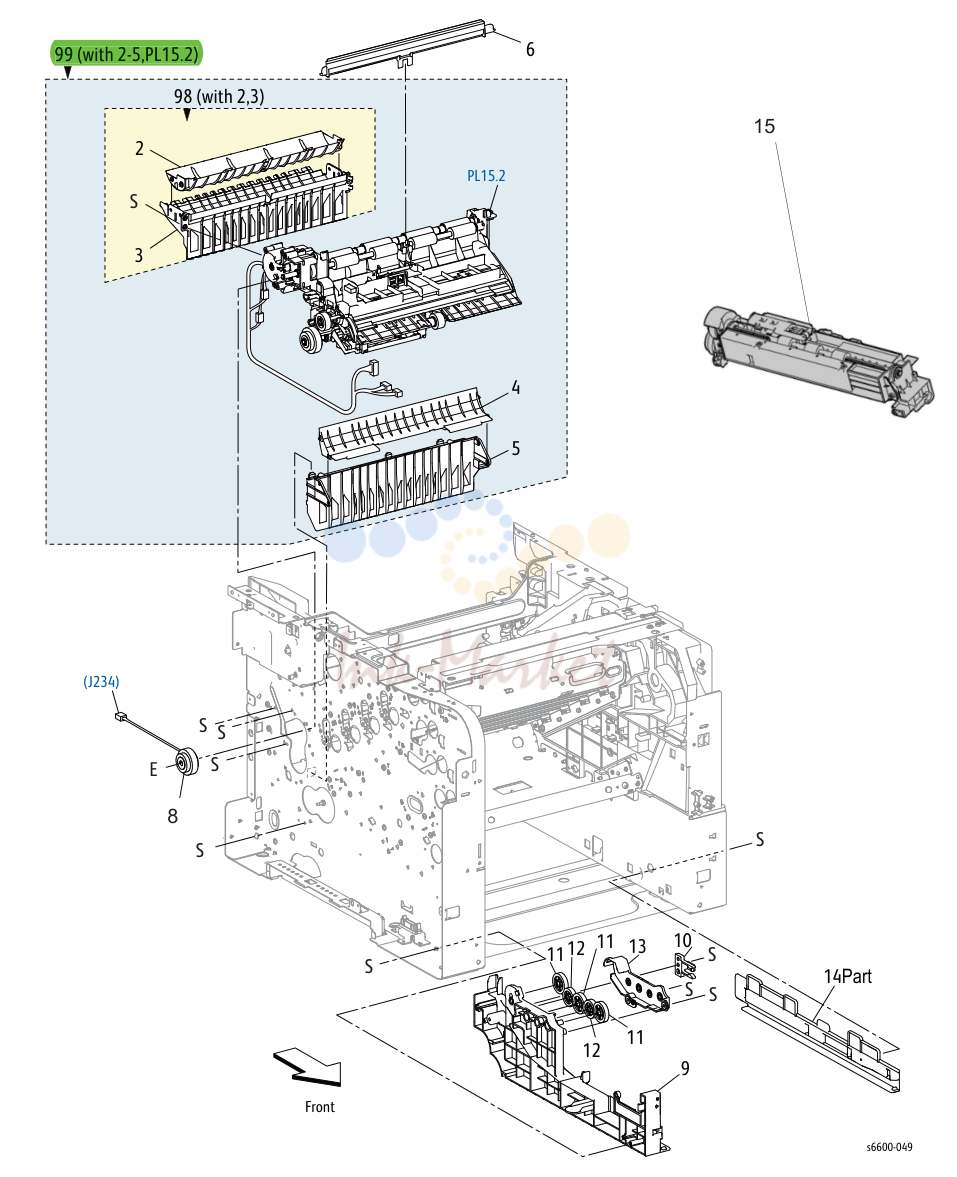

| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Chute Dup Upper (Upper Duplex Chute) - | ||
| 3 | Chute Assy Dup Regi (Regi Duplex Chute Assembly) - | ||
| 4 | Chute Regi Lower - | ||
| 5 | Chute Regi Opt 550 - | ||
| 6 | Chute Assy Upper IBT (Upper Transfer Belt Chute Assembly) 054K46650 | ||
| 8 | Registration Clutch (part of Item #15) - | ||
| 9 | Guide Tray L (Left Tray Guide) - | ||
| 10 | Stopper CST (Cassette Stopper) - | ||
| 11 | Gear Idle 28 - | ||
| 12 | Gear Idle 25 - | ||
| 13 | Cover Gear MSI - | ||
| 14 | Guide Tray R (Right Tray Guide) - | ||
| 15 | Feed Assy with Registration Clutch 059K71760 | ||
| 98 | Kit Chute Dup Assy (with2,3) (Duplex Chute Assembly Kit) 054K46640 | ||
| 5-40 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |

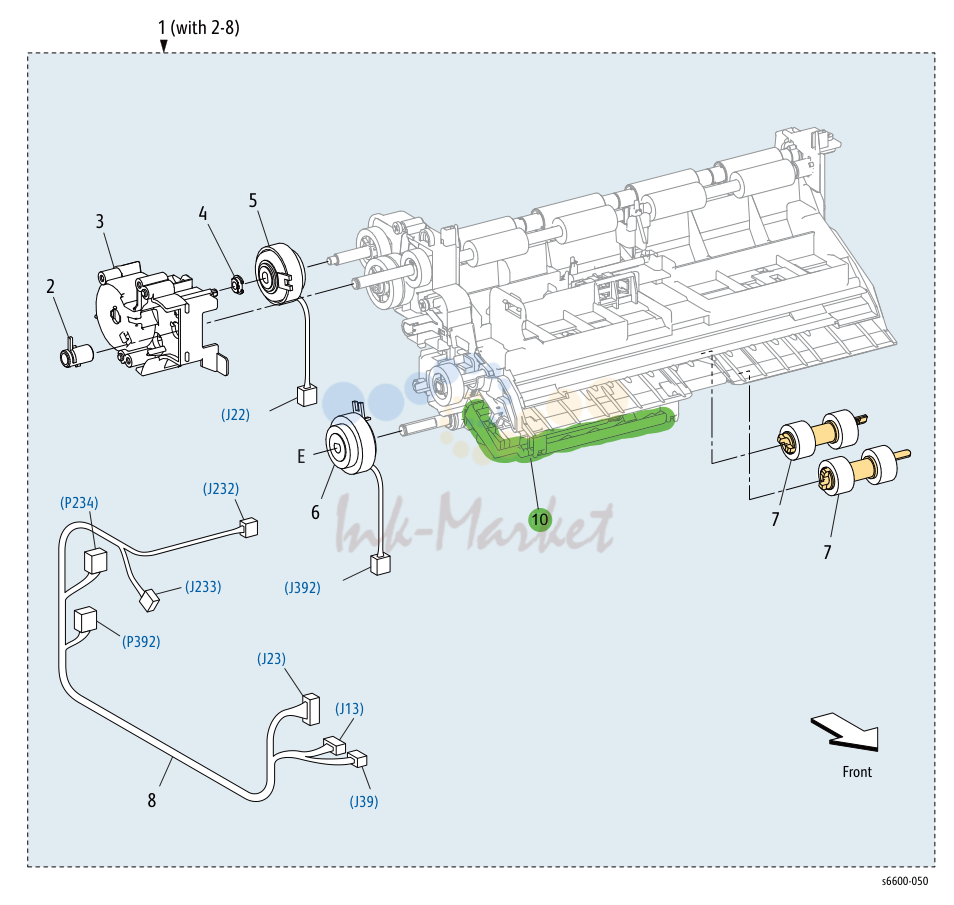

12. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 11 | SSSiiimmmpppllleeexxx---ooonnnlllyyy RReeggiissttrraattiioonn CCCChhhhuuuutttteeee AAAAsssssssseeeemmmmbbbbllllyyyy 005544KK4477999900 | ||
| 2 | Bearing Regi R (Right Regi Bearing) - | ||
| 3 | Cover Dup Gear (Duplex Gear Cover) - | ||
| 4 | Bearing CLH AD - | ||
| 5 | Clutch Assy Dup (Duplex Clutch Assembly) 121K48680 | ||
| 6 | Clutch Assy Opt Feed (Feed Clutch Assembly) - | ||
| 8 | Harness Assy Regi (Regi Harness Assembly) - | ||
| 9 | Chute Sub Assy Regi (Regi Chute Sub-Assembly) - | ||
| 5-42 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |
13. Parts Lists

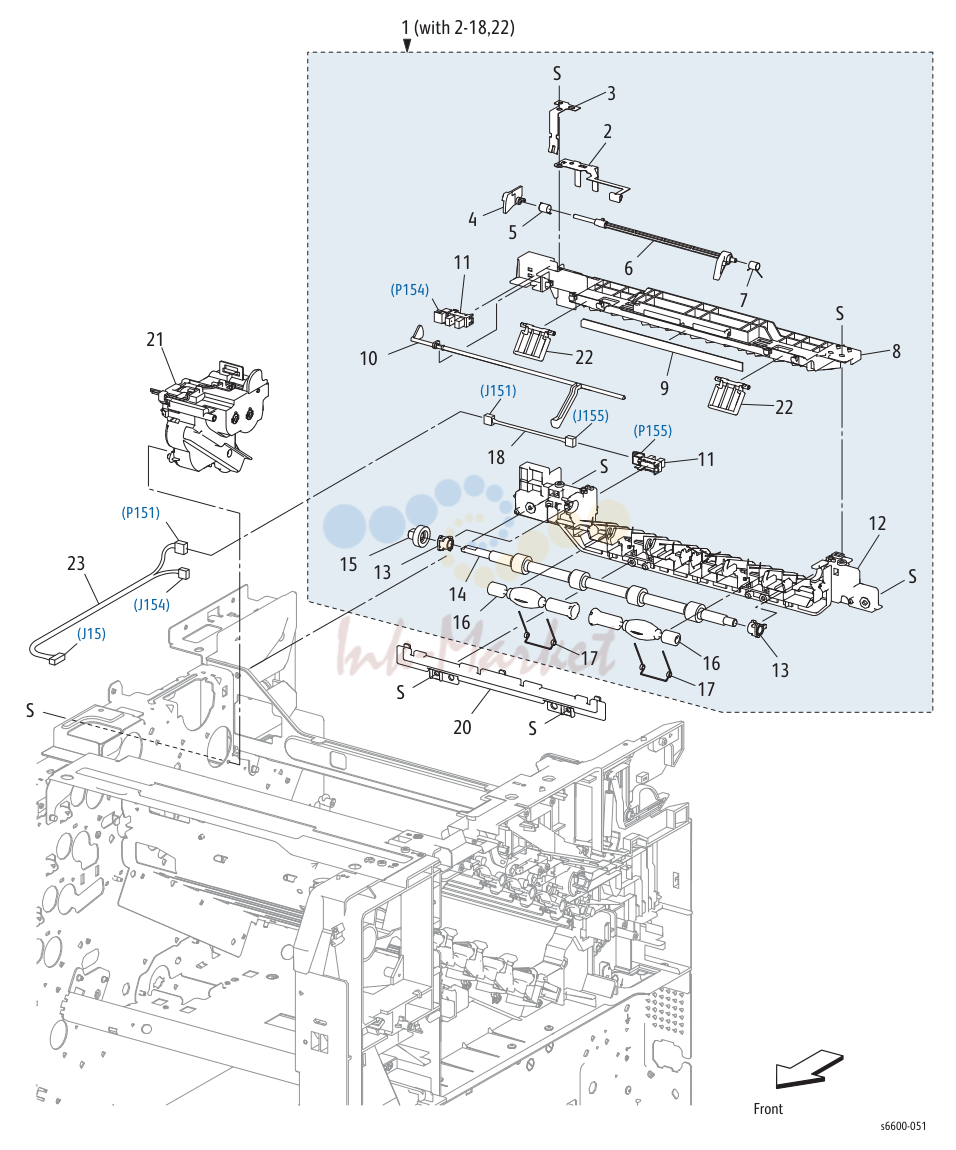

| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Kit Assy Exit (with2-18,22) (Exit Kit Assembly) 054K49180(cid:3)(cid:11)(cid:68)(cid:79)(cid:87)(cid:3)(cid:19)(cid:24)(cid:23)(cid:46)(cid:23)(cid:28)(cid:21)(cid:22)(cid:20)(cid:12) | ||
| 2 | Plate Earth Exit B - | ||
| 3 | Plate Earth Exit A - | ||
| 4 | Actuator Exit B - | ||
| 5 | Spring Actuator B - | ||
| 6 | Actuator Exit A - | ||
| 7 | Spring Actuator A - | ||
| 8 | Chute Exit Upper S3 - | ||
| 9 | Eliminator Exit - | ||
| 10 | Actuator Full Stack - | ||
| 11 | Sensor-Photo Int (Interlock Photo Sensor) 930W00123 | ||
| 12 | Chute Exit Lower S3 - | ||
| 13 | Bearing-Exit - | ||
| 14 | Roll Assy Exit (Exit Roller Assembly) - | ||
| 15 | Gear Exit - | ||
| 16 | Roll-Pinch - | ||
| 17 | Spring-Pinch - | ||
| 18 | Harness Assy Exit Snr (Exit Sensor Harness Assembly) - | ||
| 20 | Cover Exit Tray (Exit Tray Cover) - | ||
| 22 | Flapper Exit - | ||
| 23 | Harness Assy Snr (Sensor Harness Assembly) - | ||
| 5-44 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |
14. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Guide_ Harnness_ Top - | ||
| 4 | Guide_ Harnness_ Exit - | ||
| 5 | Cover Harness Top - | ||
| 6 | Guide Harness Top L (Left Top Harness Guide) - | ||
| 7 | Guide_ Harness_ Erase_ CRM - | ||
| 8 | Housing _ Assy_ Charge_ Deve (Developer Charge Housing Assembly) - | ||
| 9 | Housing_ Assy_ Charge_ Deve_ Out (Outer Developer Charge Housing Assembly) - | ||
| 10 | Guide Harness Video (Video Harness Guide) - | ||
| 11 | Guide Harness L (Left Harness Guide) - | ||
| 12 | Plate MCU (MCU Plate) - | ||
| 13 | PWBA MCU (MCU Board) 960K67961 | ||
| 14 | PWBA HVPS XD (Development HVPS Board) 105K26092 | ||
| 15 | Plate Earth HV (HV Ground Plate) - | ||
| 16 | Housing Assy Gnd Fusing (Fuser Ground Housing Assembly) - | ||
| 17 | Varistor, NVD10UCD1100 - | ||
| 18 | Plate Window - | ||
| 19 | Plate ESS Top - | ||

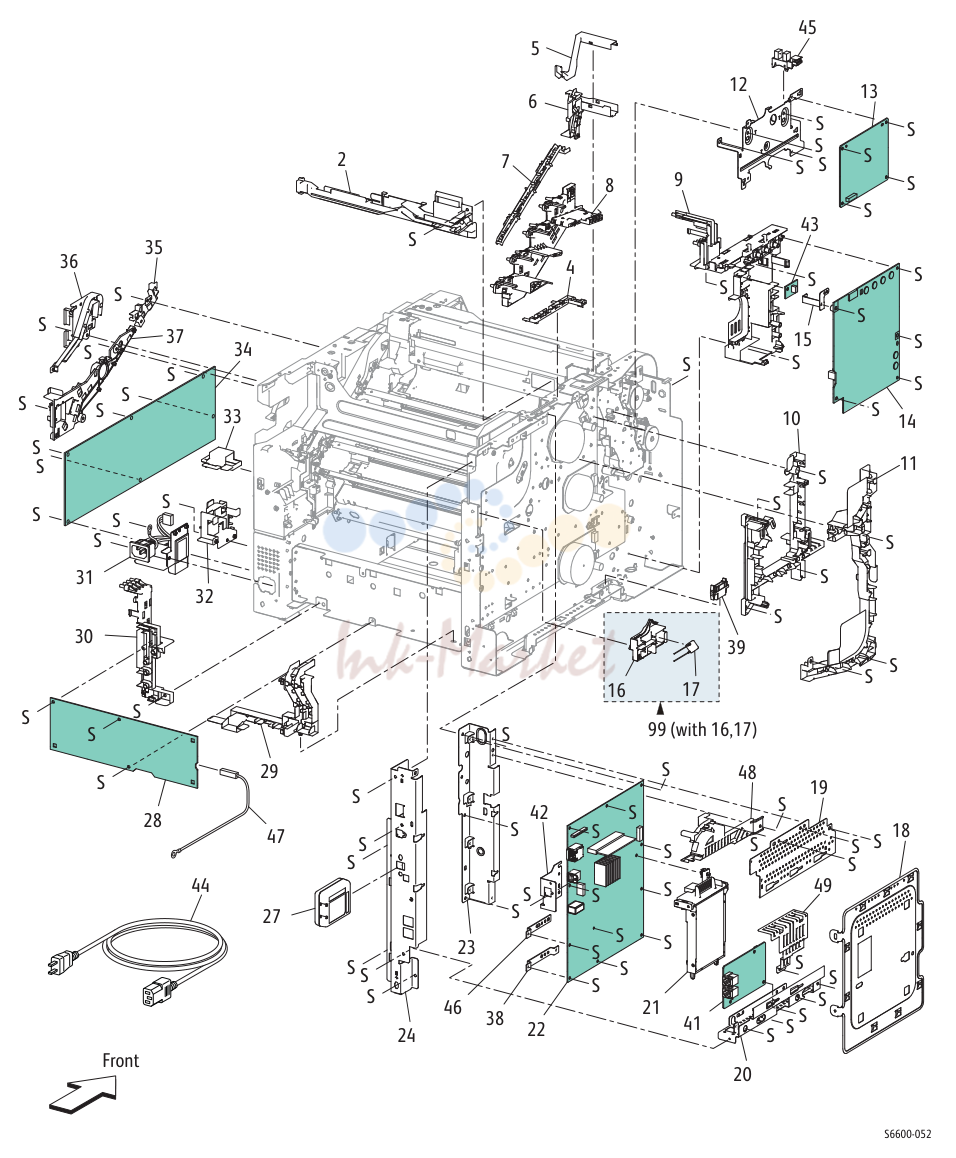

| 20 | Plate_ ESS_ Bottom - | ||
| 21 | 160 GB HDD Productivity Kit 604K84810 | ||
| 22 | PWBA ESS (IP Board) 960K60494 | ||
| 23 | Plate ESS Front (Front IP Board Plate) - | ||
| 24 | Plate ESS Rear (Rear IP Board Plate) - | ||
| 27 | WKKiiittr ePPlaaeccskksaa Kggiiitnn gg (WWDiirrroeepllee-Sssssh i((pWW oiirrneelyllee; ssnsso KKt aiitt s-- eDDrrrvooicppe--SS phhaiirppt )oonnllyy;; nnoott aa sseerrvviiccee ppaarrtt)) 001166EE2211330000 | ||
| 28 | PWBA HVPS TR (Transfer HVPS Board) 105K26102 | ||
| 29 | Guide_ Harness_ PH - | ||
| 30 | Housing_ Assy_ Wire_ TR_IN (Inner Transfer Wire Housing Assembly) - | ||
| 5-46 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 31 | AC In (AC Inlet) 604K76361 | ||
| 32 | Guide Harness LV AC - | ||
| 33 | Cap LV Bottom - | ||
| 35 | Guide Harness R (Right Harness Guide) - | ||
| 36 | Holder Drower - | ||
| 37 | Housing Assy Wire TR Out - | ||
| 38 | Bracket ESS SFP (IP Board Bracket) - | ||
| 39 | Fdr Drawer1 913W12104 | ||
| 43 | PWBA EEPROM XPRO (EEPROM Board) - | ||
| 45 | Sensor-Photo INT (Interlock Photo Sensor) 930W00123 | ||
| 47 | Harness Assy BTR - | ||
| 99 | Varistor Assy (with16,17) 848K69221 |
15. Parts Lists

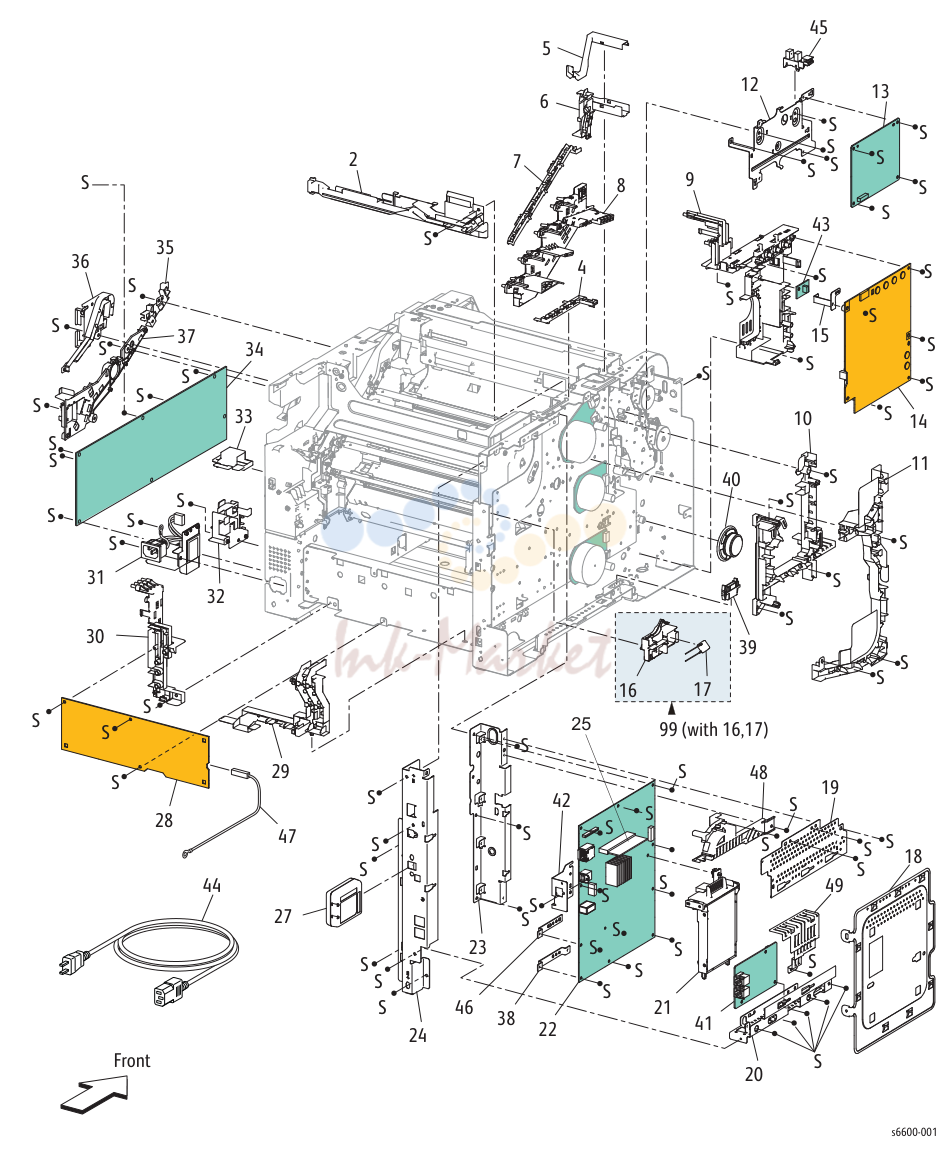

| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Guide Harnness Top (Top Harness Guide) - | ||
| 4 | Guide Harnness Exit (Exit Harness Guide) - | ||
| 5 | Cover Harness Top (Top Harness Cover) - | ||
| 6 | Guide Harness Top L (Top Left Harness Guide) - | ||
| 7 | Guide Harness Erase CRM (CRM Erase Harness Guide) - | ||
| 8 | Housing Assy Charge Deve (Developer Charge Housing Assembly) - | ||
| 9 | Housing Assy Charge Deve Out (Outer Developer Charge Housing Assembly) - | ||
| 10 | Guide Harness Video (Video Harness Guide) - | ||
| 11 | Guide Harness L (Left Harness Guide) - | ||
| 12 | Plate MCU (MCU Plate) - | ||
| 13 | PWBA MCU (MCU Board) 960K67961 | ||
| 14 | PWBA HVPS XD (Development HVPS Board) 105K26092 | ||
| 15 | Plate Earth HV (HV Ground Plate) - | ||
| 16 | Housing Assy Gnd Fusing (Fuser Ground Housing Assembly) - | ||
| 17 | Varistor, NVD10UCD1100 - | ||
| 18 | Plate Window AIO - | ||
| 19 | Plate ESS Top AIO (MFP Top IP Board Plate) - | ||
| 20 | Plate ESS Bottom AIO (MFP Bottom IP Board Plate) - | ||
| 21 | 160 GB HDD Productivity Kit 604K84810 | ||
| 22 | PWBA ESS AIO (IP Board) 960K69200 | ||
| 23 | Plate ESS Front AIO (MFP Front IP Board Plate) - | ||
| 24 | Plate ESS Rear AIO (MFP Rear IP Board Plate) - | ||
| 25 | Optional 512MB RAM (Productivity Kit) 237E25990 | ||
| 27 | Wireless Kit (Drop-Ship only; not a service part) 016E21300 | ||
| 28 | TR HVPS Board 105K26102 | ||
| 29 | Guide_ Harness_ PH - | ||
| 30 | Housing_ Assy_ Wire_ TR_IN - | ||
| 31 | AC In (AC Inlet) 604K76361 | ||
| 32 | Guide_ Harness_ LV_AC - | ||
| 33 | Cap LV Bottom - | ||
| 35 | Guide Harness R (Right Harness Guide) - | ||
| 36 | Holder_ Drower - | ||
| 37 | Housing_ Assy_ Wire_ TR_ Out - | ||
| 38 | Bracket ESS SFP (IP Board Bracket) - | ||
| 39 | Fdr Drawer1 913W12104 | ||
| 40 | Speaker Assembly AIO - | ||
| 41 | PWBA FAX 960K53602 | ||
| 42 | Bracket USB (USB BrackeMCUt) - | ||
| 43 | PWBA EEPROM XPRO (EEPROM Board) - | ||
| 44 | Power Cord US 110V 675K43778 | ||
| 45 | Sensor-Photo INT (Interlock Photo Sensor) 930W00123 | ||
| 46 | Bracket ESS AIO (MFP IP Board Bracket) 674E04131 | ||
| 47 | Harness Assy BTR - | ||
| 48 | Guard ESS Top AIO (Guide Harness Bypass Tray) (Top IP Board Guard - | ||
| 49 | Guard ESS Bottom AIO (Bottom IP Board Guard) - | ||
| 99 | Varistor Assy (with16,17) 848K69221 | ||
| 5-50 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |
16. Parts Lists

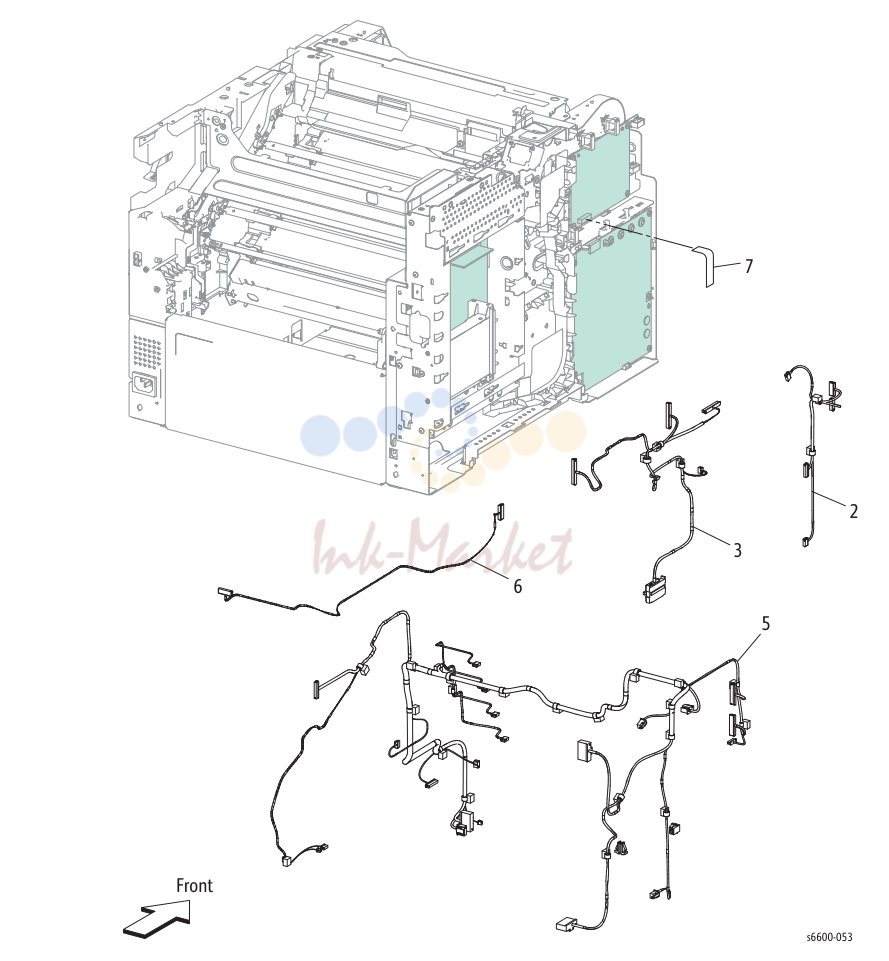

| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Harness Assy Drive (Drive Harness Assembly) - | ||
| 3 | Harness Assy Main (Main Harness Assembly) - | ||
| 5 | Harness Assy Top SFP (Top Harness Assembly) - | ||
| 6 | Harness Assy HVPS (HVPS Harness Assembly) - | ||
| 7 | FFC MCU-HVPS (MCU-HVPS Flat Flex Cable) - | ||
| 5-52 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only |
17. Parts Lists

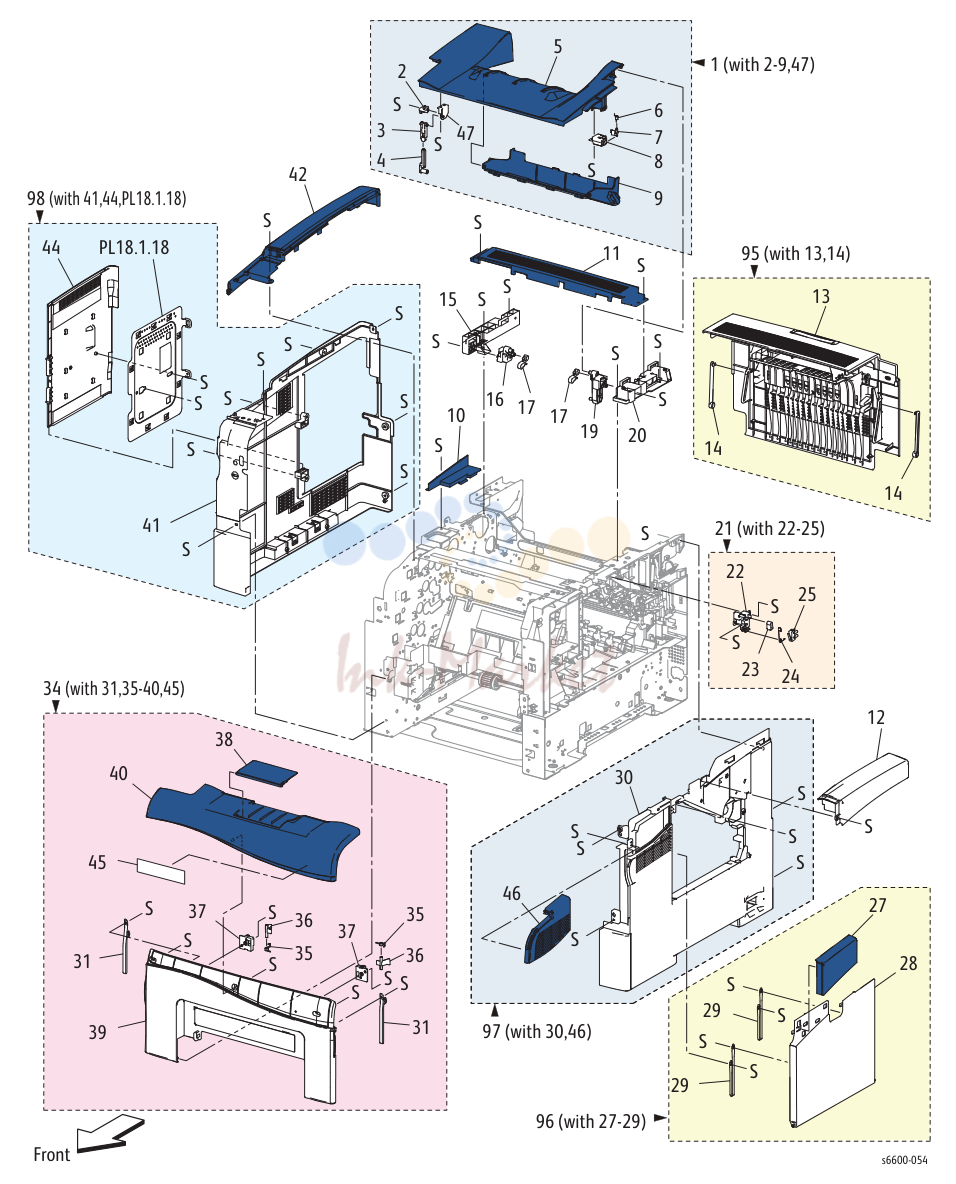

| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | (with 2-9,47) | ||
| 98 | (with 41,44,PL18.1.18) | ||
| 44 | PL18.1.18 запросить цену → | 11 95 (with 13,14) | |
| 41 | S 21 (with 22-25) | ||
| 34 | (with 31,35-40,45) | ||
| 39 | 31 97 (with 30,46) | ||
| 96 | (with 27-29) | ||
| 1 | Cover Assy Top SFP (with2-9,47) (Top Cover Assembly) 848K59082 | ||
| 2 | Holder Link Trans - | ||
| 3 | Link Trans 1 - | ||
| 4 | Link Trans 2 - | ||
| 5 | Cover Top SFP - | ||
| 6 | Spring Actuator Intlk - | ||
| 7 | Actuator Turn Intlk - | ||
| 8 | Holder Actuator Intlk - | ||
| 9 | Cover Tray Bottom (Bottom Tray Cover) - | ||
| 10 | Cover Top Under L (Left Sub-top Cover) - | ||
| 11 | Cover Exit (Exit Cover) 848E69601 | ||
| 12 | Cover Top R (Right Top Cover) - | ||
| 13 | Cover Assy Rear (Rear Cover Assembly) - | ||
| 14 | Link Rear Cover - | ||
| 15 | Bracket Hinge L (Left Hinge Bracket) - | ||
| 16 | Hinge Top L (Left Top Hinge) - | ||
| 17 | Stopper Cover Top (Top Cover Stopper) - | ||
| 19 | Hinge Top R (Right Top Hinge) - | ||
| 20 | Bracket Hinge R (Right Hinge Bracket) - | ||
| 21 | Switch Assy Interlock R (with22-25) (Right Interlock Switch Assembly) 110K16891 | ||
| 22 | Bracket Intlk Side R (Right Side Interlock Bracket) - | ||
| 23 | Actuator Swing Intlk - | ||
| 24 | Spring WC IL - | ||
| 25 | Harness Assy Door I/L - | ||
| 27 | Cover Side R Door Upper SFP (Right-Side Door Upper Cover) - | ||
| 28 | Cover Side R Door SFP (Right Side Door Cover) - | ||
| 29 | Strap Cover Side R (Right Side Cover Strap) - | ||
| 30 | Cover Side R (Right Side Cover) - | ||
| 5-54 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 31 | Strap Front (Front Strap) - | ||
| 34 | Cover Assy Front SFP (with31,35-40,45) (SFP Front Cover Assembly) 848K73070 | ||
| 35 | Spring Latch Front (Front Latch Spring) - | ||
| 36 | Latch Front - | ||
| 37 | Bracket Latch - | ||
| 38 | Cover Front Ext - | ||
| 39 | Cover Front SFP - | ||
| 40 | Cover Front Band SFP - | ||
| 41 | Cover Side L SFP (SFP Left Side Cover) - | ||
| 42 | Cover Top L (Top Left Cover) - | ||
| 44 | Cover ESS SFP - | ||
| 45 | Plate Logo - | ||
| 46 | Cover Side R Front SFP (Front Right Side Cover) - | ||
| 47 | Holder Link Trans Support - | ||
| 95 | Kit Cover Assy Rear(with13,14) (Rear Door Assembly) 604K77700 | ||
| 96 | Cover Assy Waste Door(with27-29) (Right Side Door) 848K73742 | ||
| 98 | Left Cover Assy(with41,44,PL18.1.18) (Left Cover Assembly) 848K73050 | ||
| 99 | Kit Plate Logo x100P (with 45 x 100) 604K77710 | ||
| 1 | (with 2-9,53) | ||
| 95 | (with 21,22) | ||
| 30 | (with 31-34) | ||
| 98 | (with 49,51,PL18.1.18) | ||
| 97 | (with 38,63) S | ||
| 5-56 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 1 | Cover Assy Top AIO (with2-9,53) (Top Cover Assembly) 848K59102 | ||
| 2 | Holder Link Trans - | ||
| 3 | Link Trans 1 - | ||
| 4 | Link Trans 2 - | ||
| 5 | Cover Top AIO - | ||
| 6 | Spring Actuator Intlk - | ||
| 7 | Actuator Turn Intlk - | ||
| 8 | Holder Actuator Intlk - | ||
| 9 | Cover Tray Bottom - | ||
| 11 | Core FFC - | ||
| 12 | Holder FFC Core - | ||
| 13 | Bracket Guide FFC (FFC Guide Bracket) - | ||
| 14 | Cover-Pole in LH AIO (MFP Left Hand Inner Pole Cover) - | ||
| 15 | PWBA USB Hub (USB Hub Board) 960K57396 | ||
| 16 | Bracket USB (USB Bracket) - | ||
| 19 | Cover Pole in RH Upper AIO (Upper Right Hand Inner Pole Cover) - | ||
| 20 | Cover Pole in RH AIO (Right Hand Inner Pole Cover - | ||
| 21 | Cover Assy Rear (Rear Cover Assembly) 848K51190 | ||
| 22 | Link Rear Cover - | ||
| 23 | Cover-Rear Lower LH (Lower Left Hand Rear Cover) - | ||
| 24 | Cover Exit (Exit Cover) - | ||
| 25 | Bracket Hinge L (Left Hinge Bracket) - | ||
| 26 | Hinge Top L (Left Top Hinge) - | ||
| 27 | Stopper Cover Top (Top Cover Stopper) - | ||
| 28 | Hinge Top R (Right Top Hinge) - | ||
| 29 | Bracket Hinge R (Right Hinge Bracket) - | ||
| 30 | Switch Assy Interlock R (with31-34) (Right Interlock Switch Assembly) 110K16891 | ||
| 31 | Actuator Swing Intlk - | ||
| 32 | Bracket Intlk Side R (Right Side Interlock Bracket) - | ||
| 33 | Spring WC IL - | ||
| 34 | Harness Assy Door I/L - | ||
| 35 | Strap Cover Side R (Rear Right Pole Cover) - | ||
| 36 | Cover Side R Door SFP (Right-Side Door Cover) - | ||
| 37 | Strap Cover Side R (Right Side Door Strap) - | ||
| 38 | Cover-Side R (Right Side Cover) - | ||
| 39 | Strap Front (Front Strap) - | ||
| 42 | Cover Assy Front AIO (with39,43-47,52,60) (MFP Front Door Assembly) 848K73110 | ||
| 43 | Spring Latch Front (Front Latch Spring) - | ||
| 44 | Latch Front - | ||
| 45 | Bracket Latch - | ||
| 46 | Cover Front Ext - | ||
| 47 | Cover-Front AIO - | ||
| 49 | Cover ESS AIO (IP Board Cover) - | ||
| 51 | Cover-Side L AIO (Left Side Cover) - | ||
| 52 | Plate Logo - | ||
| 53 | Holder Link Trans Support - | ||
| 54 | Holder Dumper UI (Control Panel Damper Holder) - | ||
| 55 | Spring Tilt Button - | ||
| 56 | Lever Lock UI - | ||
| 57 | Link Stopper UI - | ||
| 58 | Holder UI Pivot (Control Panel Pivot Holder) - | ||
| 59 | Cover Hinge UI (Control Panel Hinge Cover) - | ||
| 60 | Cover Front Top AIO - | ||
| 5-58 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||
| 61 | Cover Base Front (Front Right Pole Cover) - | ||
| 62 | Cover Side Door Upr AIO - | ||
| 63 | Cover Side R Front Top AIO (Top Front Right Side Cover) - | ||
| 64 | Cover Base L Out IIT (Outer Left Pole Cover) - | ||
| 95 | Kit Cover Assy Rear (with 21,22) (Rear Door Assembly) 604K77700 | ||
| 96 | Cover Assy Waste Door (with 36,37,62) (Right Side Door) 848K73752 | ||
| 98 | Left Cover Assembly(with 49,51,PL18.1.18) 848K73090 |
18. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | (with 2-8) | ||
| 4 | (with 5,6) | ||
| 2 | (with 5-8) | ||
| 5-60 | Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only | ||

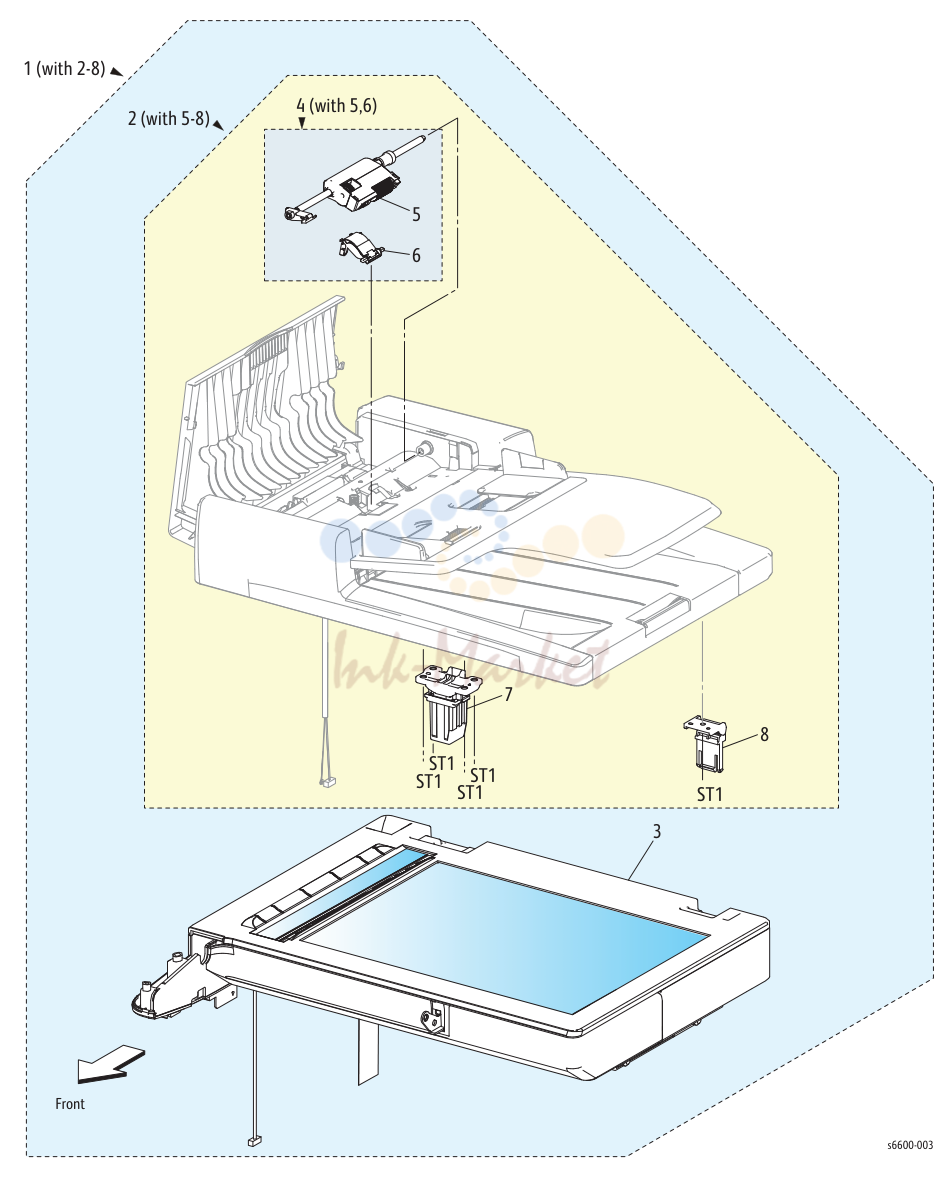

| 1 | Scanner Assembly (With2-8) - | ||
| 2 | DADF Assembly (with5-8) 059K74113 | ||
| 3 | IIT Assembly 062K24012 | ||
| 4 | IIT Pick-up Module Kit (With5,6) 604K77980 | ||
| 5 | IIT Pick-up - | ||
| 6 | IIT Separation pad - | ||
| 7 | Hinge L (Left Hinge) 003K89090 | ||
| 8 | Hinge R (Right Hinge) 003K89100 |
