Xerox Phaser-6500 WC6505 — каталог запчастей со схемами

Содержание

1. Parts Lists
2. Parts Lists
3. Parts Lists
4. Parts Lists
5. Parts Lists
6. Parts Lists
7. Parts Lists
8. Parts Lists
9. Parts Lists
10. Parts Lists
11. Parts Lists
12. Parts Lists
13. Parts Lists
14. Parts Lists
15. Parts Lists
16. Parts Lists
17. Parts Lists
18. Parts Lists
19. Parts Lists
20. Parts Lists
21. Parts Lists
22. Parts Lists
23. Parts Lists
24. Parts Lists
25. Parts Lists

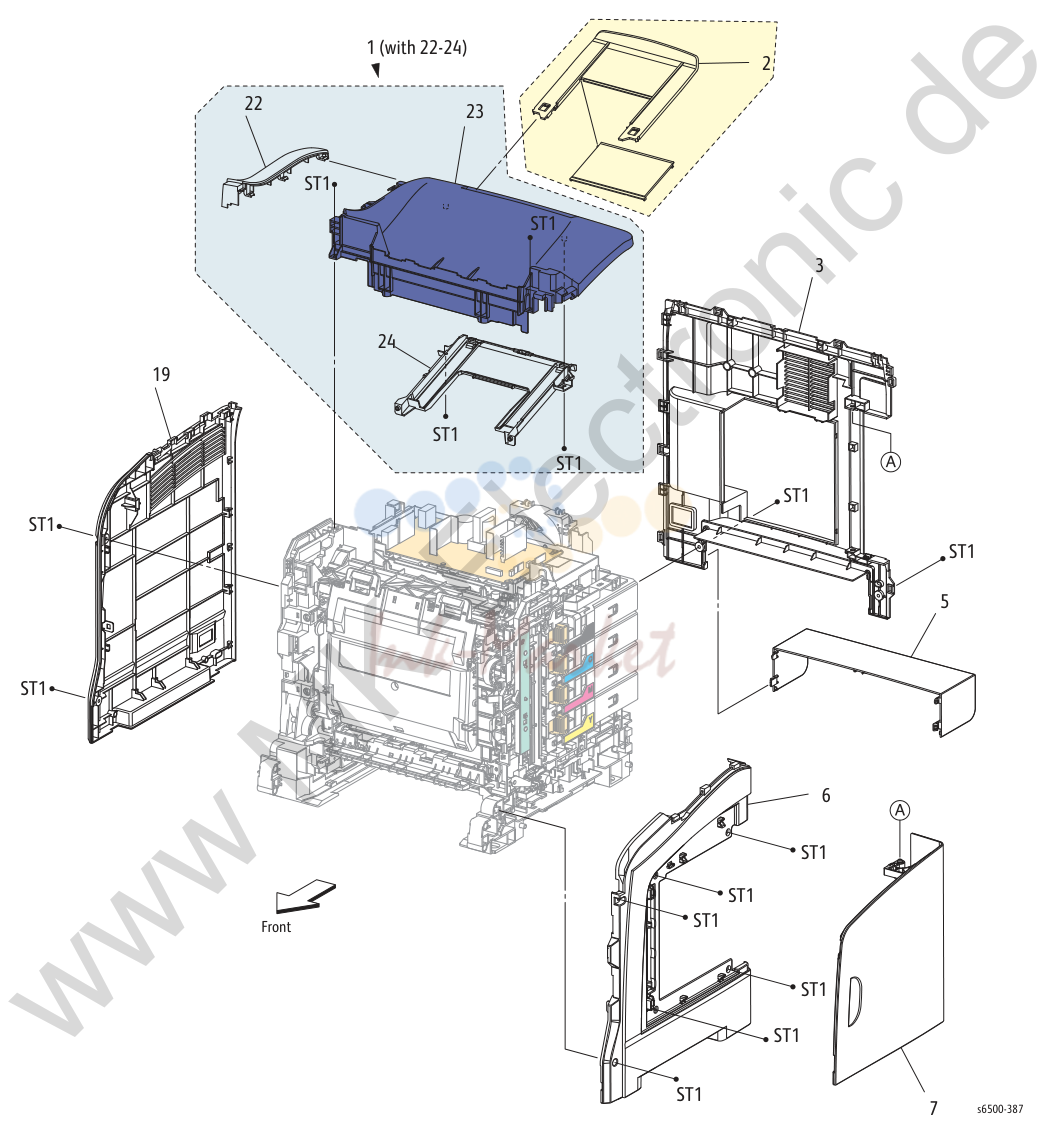

1. Parts Lists

№	Артикул	Описание
1	848K52942 запросить цену →	Cover Assy Top (With 22-24)
2	050K66881 запросить цену →	Tray Ext (Output Tray Extension)
3	848E61690 запросить цену →	Cover Rear
5	848E38130 запросить цену →	Cover CST (Rear Tray Cover)
6	848E61650 запросить цену →	Cover Side R
7	848K53091 запросить цену →	Cover Assy Window TNR (Toner Door)
19	848E61660 запросить цену →	Cover Side L
22		Cover Top Sub
23		Cover Top Main
24		Guide Tray
9-6		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

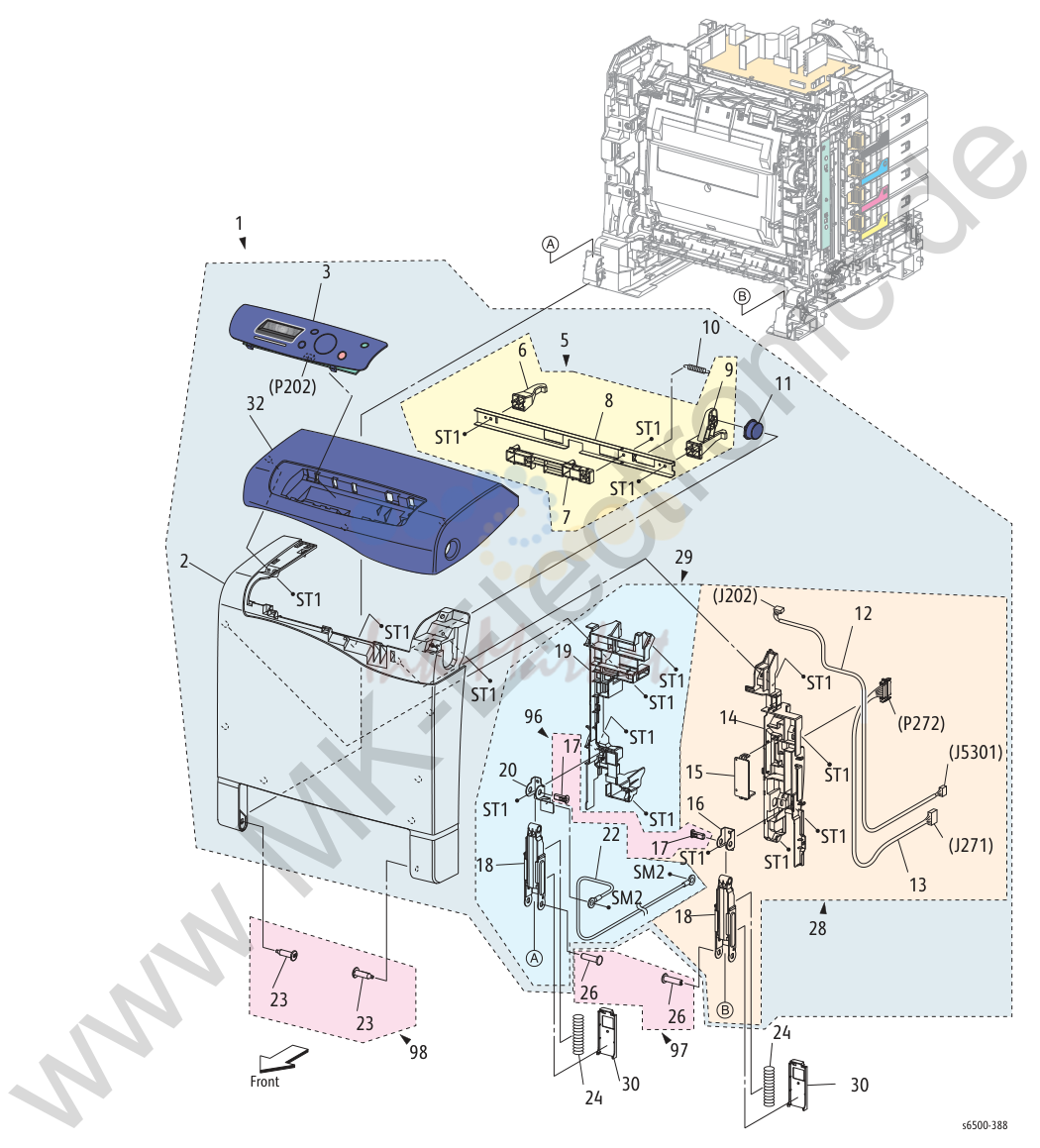

2. Parts Lists

№	Артикул	Описание
1	848K53921 запросить цену →	Cover Assy Front (with 2,3,5,10,11,28,29,32)
2		Cover Front Lower
3	848K53033 запросить цену →	Console Assy Panel (Control Panel)
5		Latch Assy Front (with 6-9)
6		Latch Front L
7		Latch Front Dup
8		Plate Latch i
9		Latch Front R
10		Spring Latch Front o
11		Button Latch Front
12	962K73100 запросить цену →	Harness Assy A (J202-J5301) (Control Panel Harness)
13	962K73400 запросить цену →	Harn Assy Dup Relay (J271-P272)
14		Holder Front R
15		Cover Drawer
16		Bracket Holder R
17		Shaft Link Front
18		Link Assy Front
19		Holder Front L
20		Bracket Holder L
22		Harn Assy Gnd
23		Shaft Pivot
24		Spring Link Front
26		Shaft Link Front Fdr
28		Holder Assy Front R (with 13-18)
29		Holder Assy Front L (with 17-20, 22)
30		Cover Link Front
32		Cover Front Upper
96	604K53040 запросить цену →	Kit Shaft Link Front (with 17 x 2 pcs) (Upper)
97	604K53050 запросить цену →	Kit Shaft Link Front FDR (with 26 x 2 pcs) (Lower)
98	675K54051 запросить цену →	Kit Shaft Pivot (with 23 x 2 pcs) (Front Cover)
9-8		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

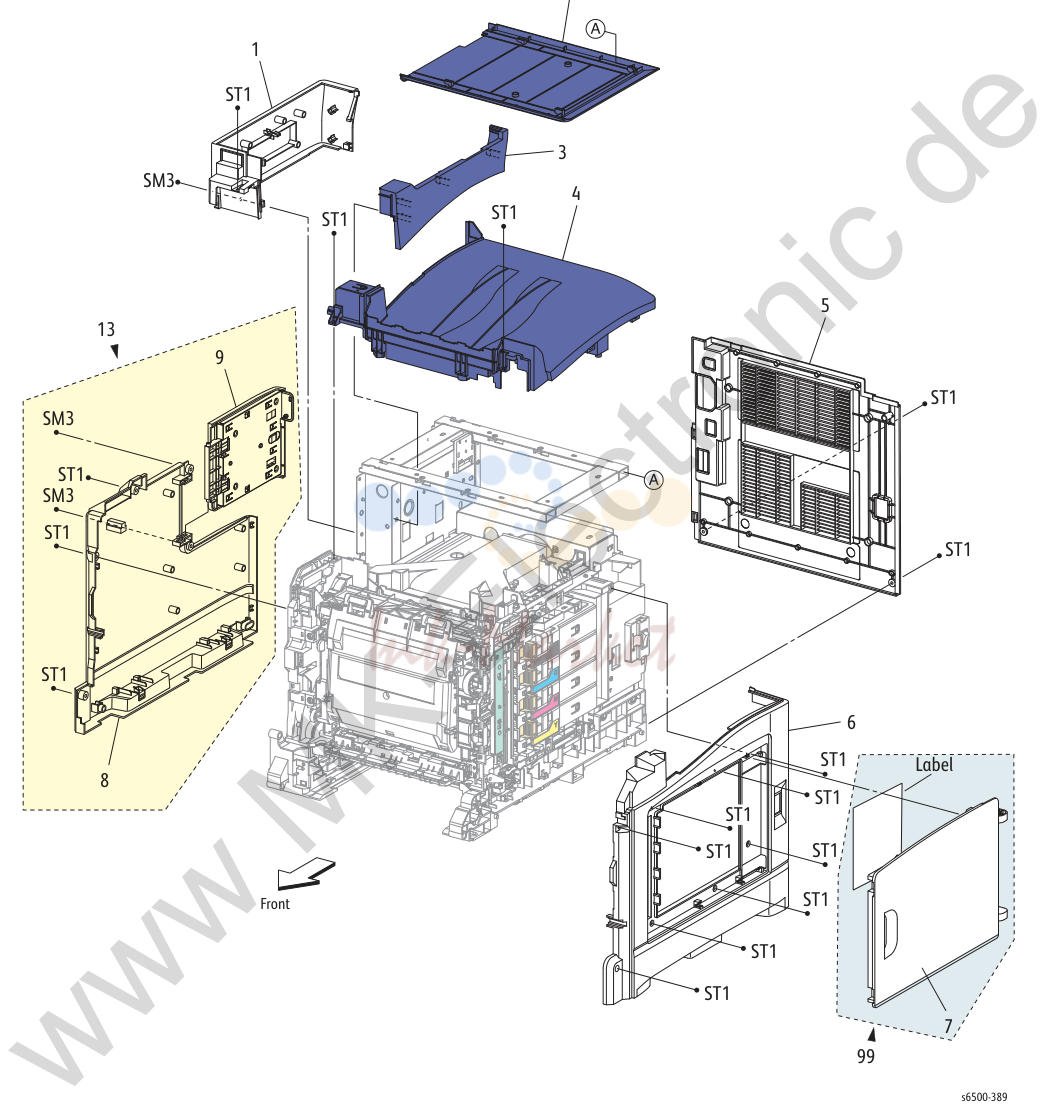

3. Parts Lists

№	Артикул	Описание
1	848E61421 запросить цену →	Cover Pole Outer
2	848E60080 запросить цену →	Cover Scanner Lower
3	848E61462 запросить цену →	Cover Pole Inner
4	848E61452 запросить цену →	Cover Top
5	848E61040 запросить цену →	Cover Rear
6	848E61432 запросить цену →	Cover Side R
7		Cover Window Tnr
8		Cover Side L i
9		Cover Assy ESS
13	848K50521 запросить цену →	Cover Assy Side L (with 8, 9)
99	604K64501 запросить цену →	Kit, Cover,-Window Tnr AIO (Toner Door with label)
9-10		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

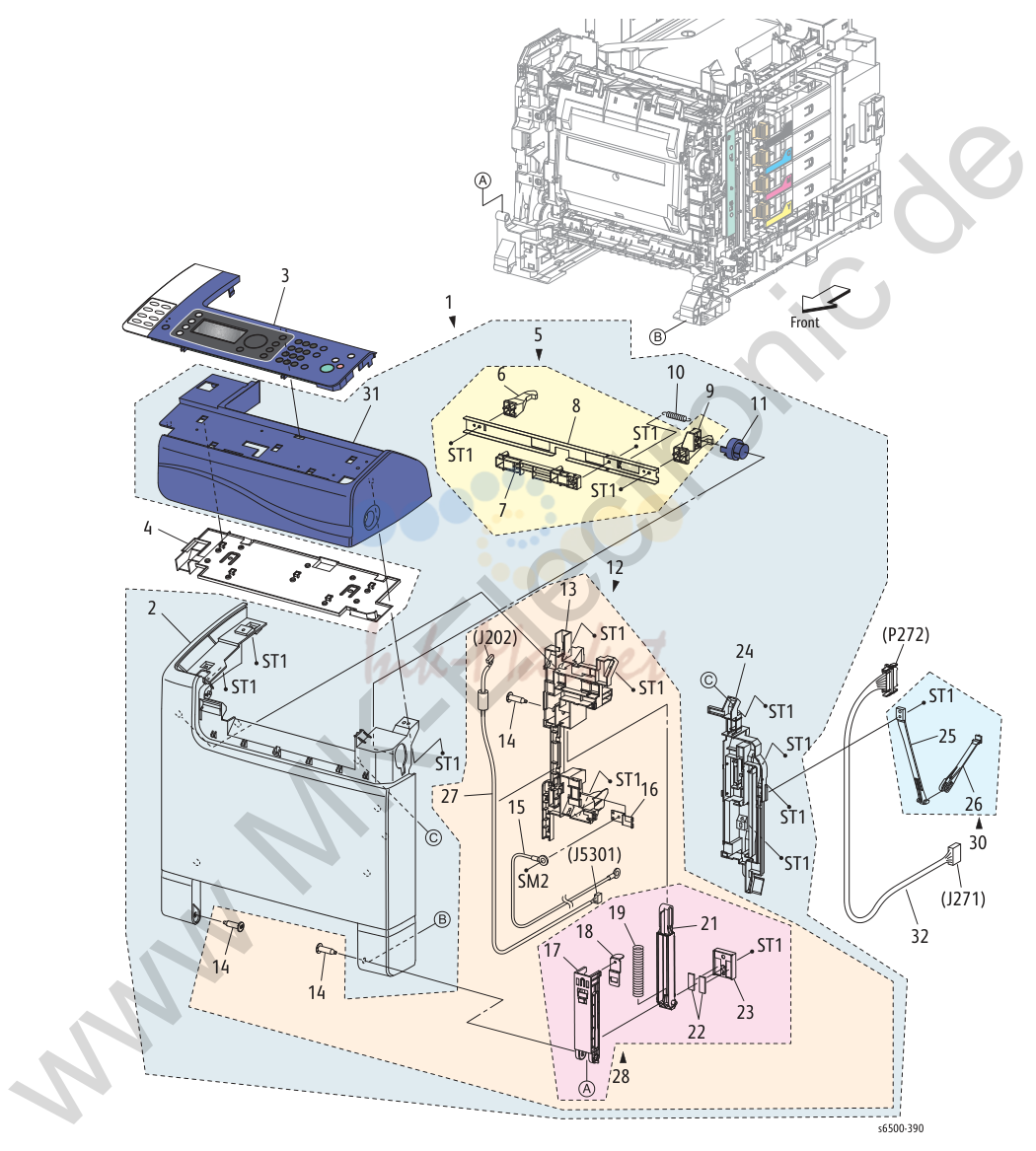

4. Parts Lists

№	Артикул	Описание
1	848K51394 запросить цену →	Cover Assy Front (with 2, 5, 10-12, 24,29)
2		Cover Front Lower
3	848K46336 запросить цену →	Console Assy Panel (Control Panel)
4		Cover Inner Front
5		Latch Assy Front (with 6-9)
6		Latch Front L
7		Latch Front Dup
8		Plate Latch i
9		Latch Front R
10		Spring Latch Front o
11		Button Latch Front
12		Holder Assy Front L (with 13-16, 27, 28)
13		Holder Front L
14		Shaft Pivot
15		Harness Assy Dup Gnd
16		Plate Earth
17		Holder Link Lower
18		Plate Link
19		Spring Link
21		Holder Link Upper
22		Pad L
23		Holder Slider
24		Holder Front R
25		Strap B
26		Strap A
27	962K73540 запросить цену →	Harness A-OP-OPP (J202-P5301)
28		Link Assy Front AIO (with 17-19,21-23)
30	801K45121 запросить цену →	Strap Assy (with 25,26)
31		Cover Front Upper)
32		Harn Assy Dup Relay (J271-P272)
99	675K54051 запросить цену →	Kit Shaft (14x2pcs)
9-12		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

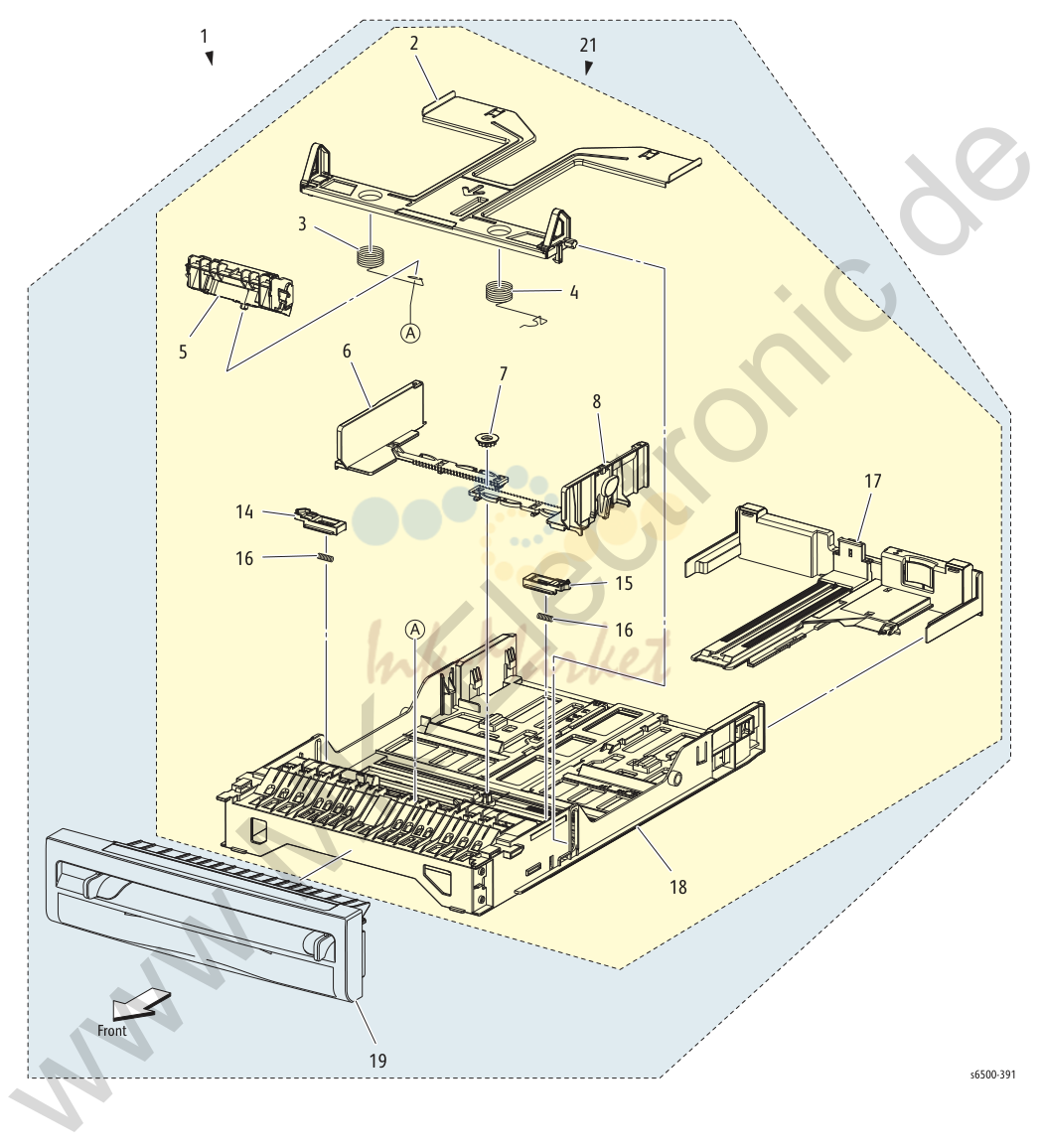

5. Parts Lists

№	Артикул	Описание
1	050K64160 запросить цену →	Cassette Assy 250 (With 19, 21)
2		Plate Assy Bottom
3		Spring N/f L
4		Spring N/f R
5	675K81221 запросить цену →	Holder Assy Separator
6		Guide Side L
7		Gear Pinion
8		Guide Side Assy R i
14		Latch Bottom L
15		Latch Bottom R
16		Spring Latch B
17		Tray Assy Extension
18		Housing Cst
19		Handle Assy Cst
21		Tray Assy Cst 250 (With 2-8,14-18)
9-14		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

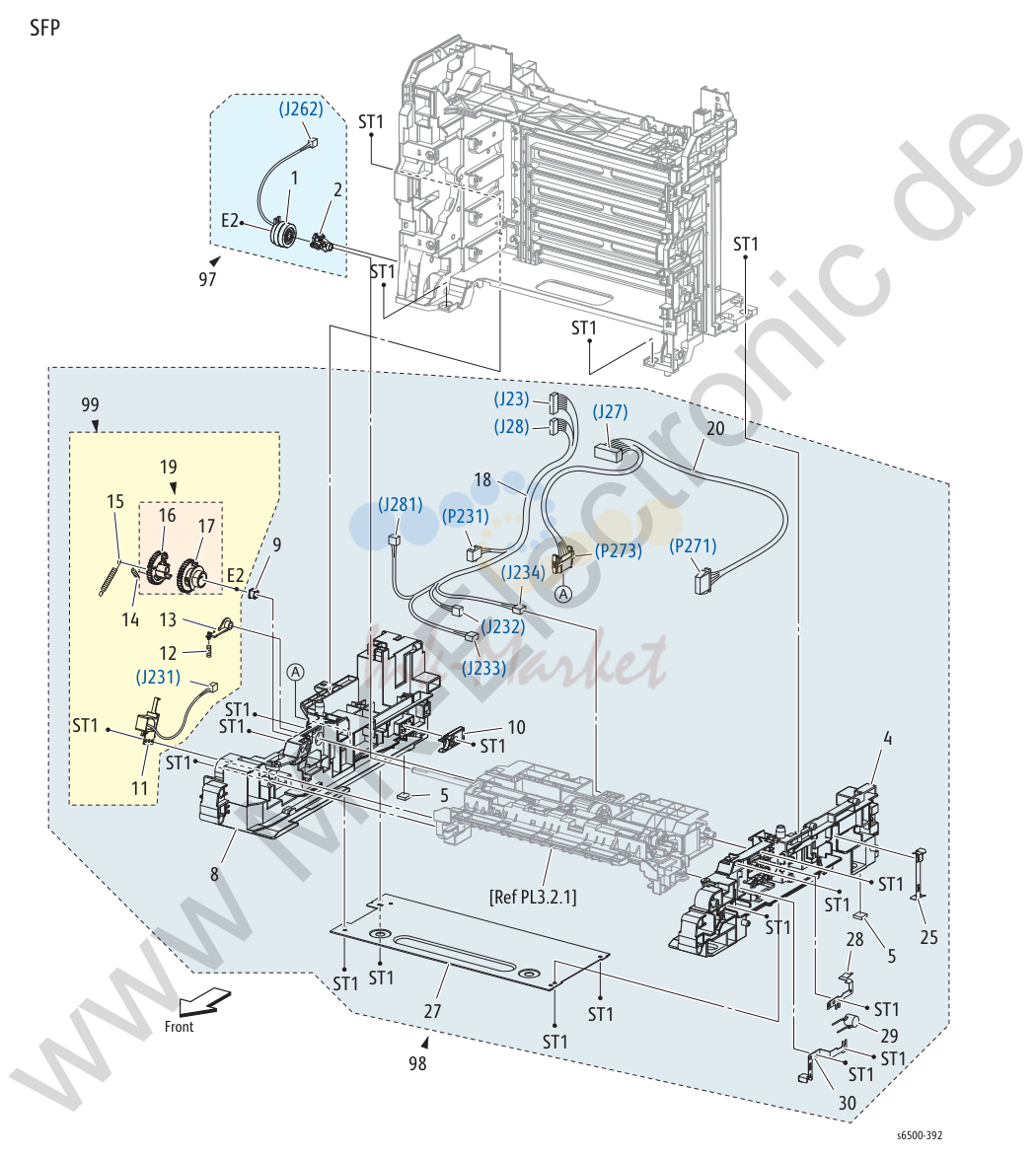

6. Parts Lists

№	Артикул	Описание
1		Clutch Assy Drv
2		Bearing Regi
9-16		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
4		Chassis FDR R
5		Foot
8		Chassis FDR L d
9		Bearing
10	003E73341 запросить цену →	Stopper CST
11		Solenoid Feed MSI (Manual Feed Solenoid)
12		Spring Lever i
13		Lever Feed
14		Spring Feed In
15		Spring Feed Out
16		Gear Feed Out r
17		Gear Feed In t
18	962K57541 запросить цену →	SFP Harn Assy L Scide (J23,J28-P231,J232,J233,J234,
19		Gear Assly Feed (With 16,17)
20	962K68772 запросить цену →	SFP Harn Assy Option Dup (J27-P273, P271)
25		Plate Earth Fdr R
27		Plate Tie
28		Plate Earth Fdr L (MFP only)
31		Plate Earth Fdr (SFP only)
33		Plate Earth CST
97	675K54231 запросить цену →	Kit Clutch Assy Drv (with 1, 2)
98	059K72250 запросить цену →	SFP Feeder Assy (with 4,5, 8-15, 18-20, 25, 27, 31-33,
99	604K51880 запросить цену →	Kit Solenoid Feed (with 11-15, 19)

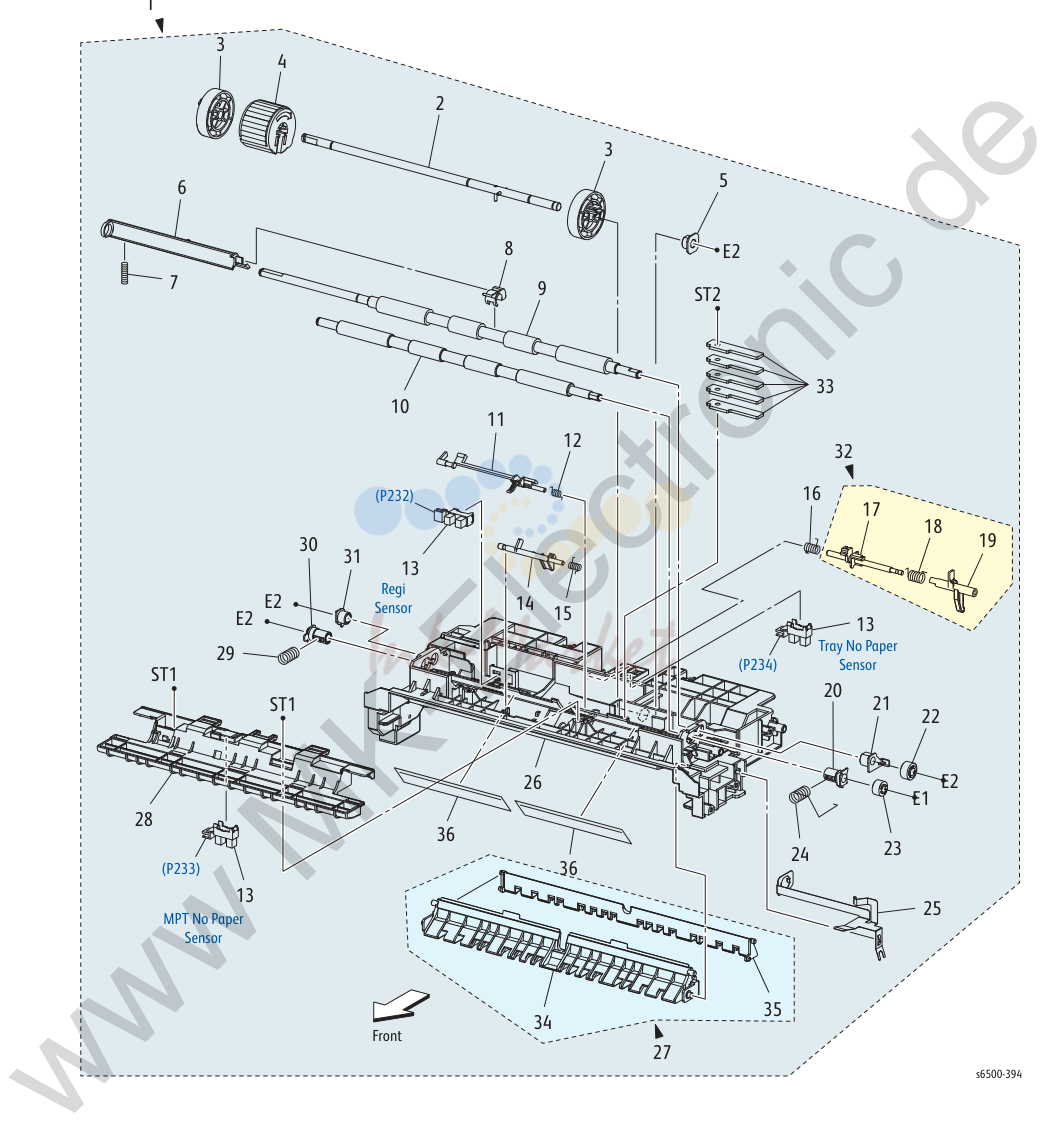

7. Parts Lists

№	Артикул	Описание
1		Chute Assy FDR Regi (With 2-16,20-33, 36)
2		Shaft Assy Feed
3		Roll Core MSI e
4	059K60140 запросить цену →	Roll Assy Feed
5		Bearing Earth
6		Actuator Regi Out
7		Spring Regi Out c
8		Actuator Regi Roll
9		Roll Assy Regi n
10		Roll Regi Metal
11	120E30270 запросить цену →	Actuator Regi In (Registration Input Actuator)
12		Spring Act Regi
13	930W00113 запросить цену →	Sensor Photo
14	120E27850 запросить цену →	Actuator SSI c
15		Spring Act SSI
16		Spring Stp
17		Stopperl Act
18		Spring Act Np
19		Actuator No Paper
20		Bearing M Earth
21		Bearing Earth Regi
22		Gear Regi R
23		Gear Regi M
24		Spring Regi R M
25		Plate Earth Regi
26		Chute Up (Upper Feeder Chute)
27		Chute Assy Low (With 34,35) (Lower Chute
28		Bracket Sns
29		Spring Regi L M
30		Bearing M
31		Bearing R
32	120K92294 запросить цену →	Actuator Assy No Paper (With 17-19)
33		Plate Weight
34		Chute Assy Low SSI
35		Chute Low CST
36		Film Chute Up

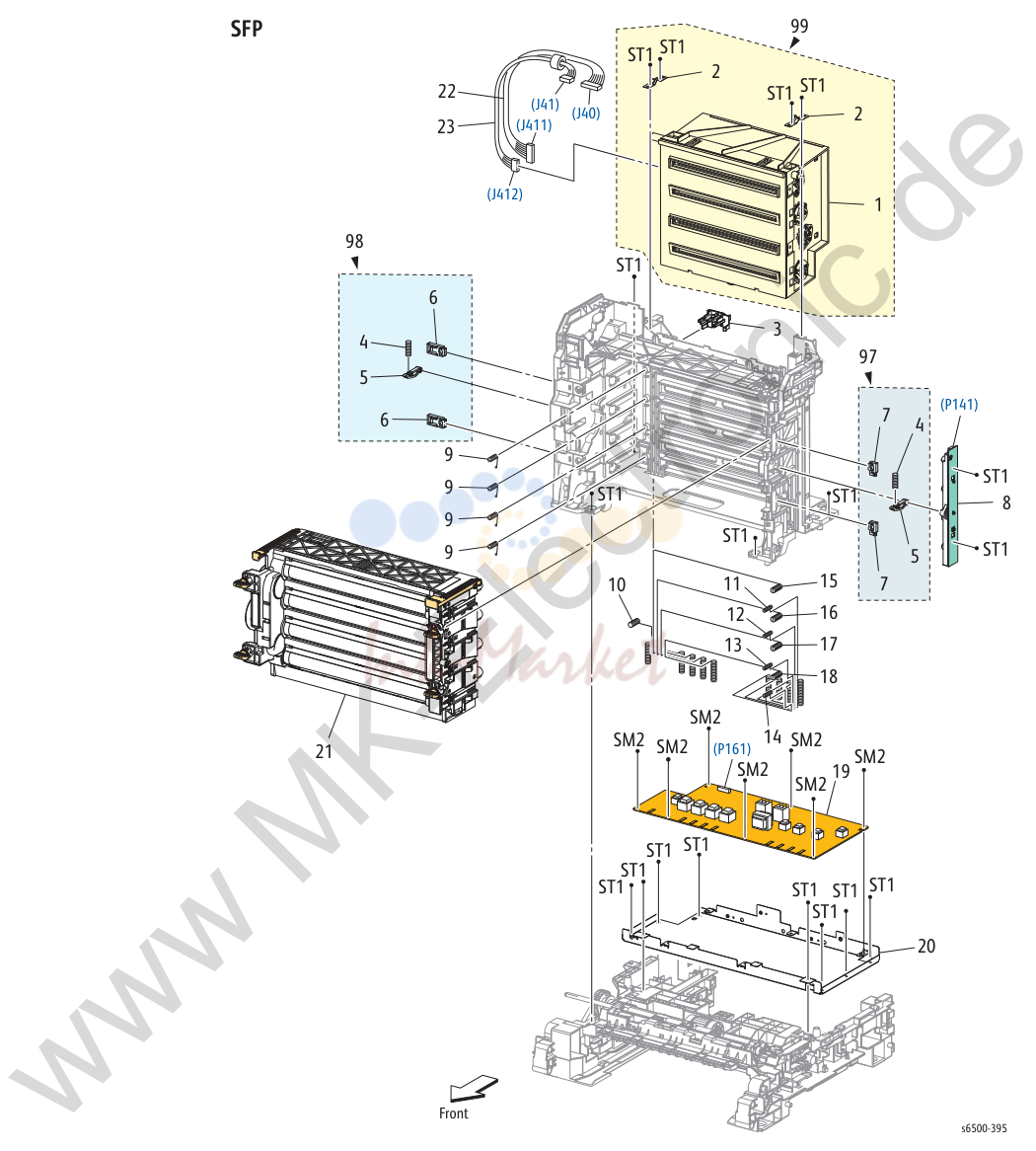

8. Parts Lists

№	Артикул	Описание
1		ROS Assy (Laser Unit)
2		Spring ROS
3		Holder CRUM
4		Spring PHD
5		Lever PHD
6		Block Stopper PHD D
7		Block Stopper PHD AD
8		LED Assy Erase i122K94041
9		Spring Tracking
10		Spring CF o
11		Spring TR4
12		Spring TR3
13		Spring TR2
14		Spring TR1
15		Spring D4
16		Spring D3
17		Spring D2
18		Spring D1
19	105K24390 запросить цену →	PWBA HVPS
20	801E01504 запросить цену →	Frame HVPS (SFP only)
21	676K05360 запросить цену →	Imaging Unit
22		Harn Assy ROS RE (J40-J411)
23		Harn Assy ROS Video (J41-J412)
97	675K54241 запросить цену →	Kit Block PHD Right (with 4, 5, 7 x 2 pcs)
98	675K54251 запросить цену →	Kit Block PHD Left (with 4, 5, 6 x 2 pcs)
99	604K64550 запросить цену →	Kit ROS Assy (with 1, 2 x 2 pcs) (Laser Unit)
9-22		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

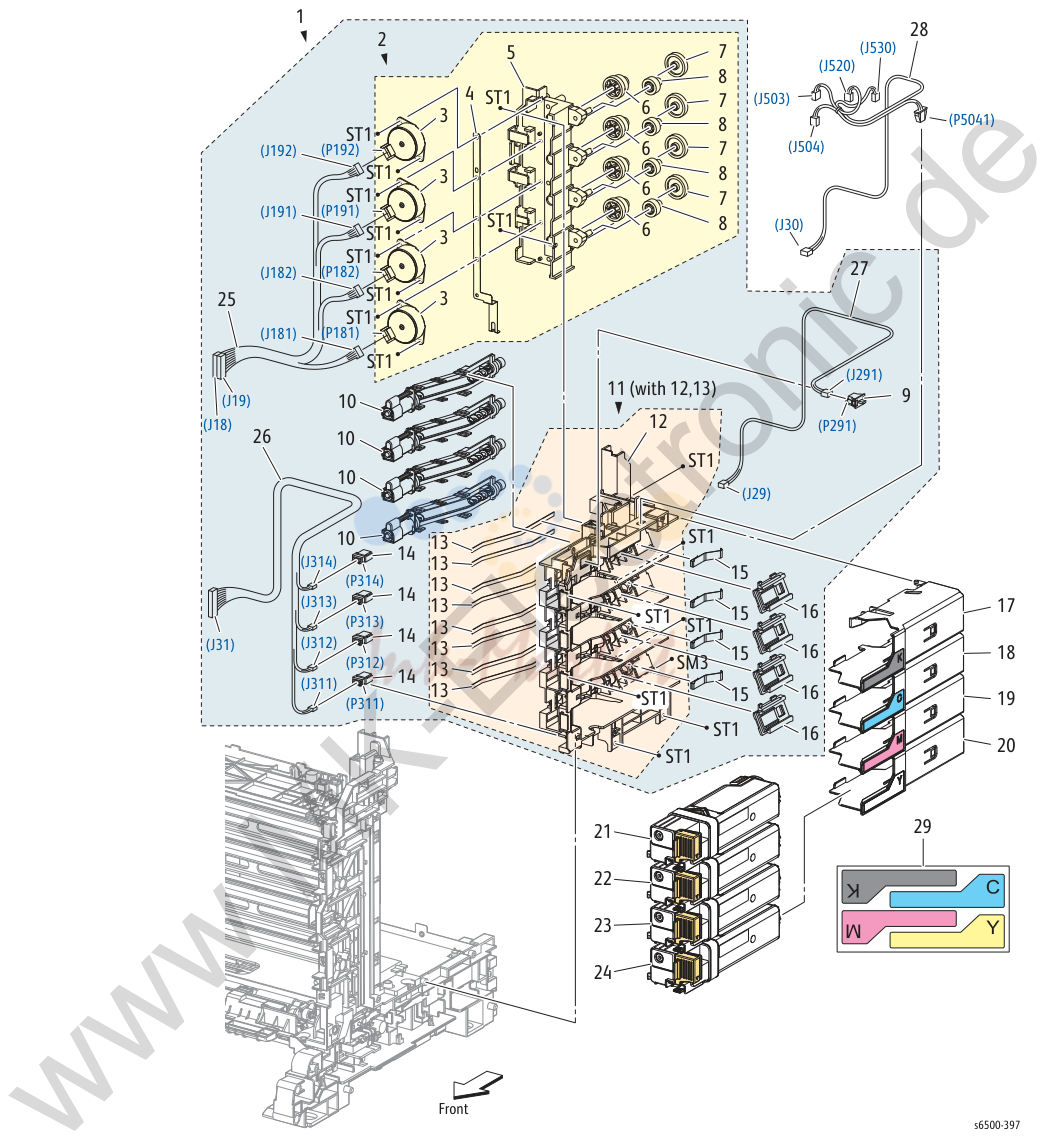

9. Parts Lists

№	Артикул	Описание
1	094K92290 запросить цену →	Dispenser Assy (with 2, 9~11,14~16, 25~27)
2		Frame Assy Mot (with 3~8)
3		Motor Assy Disp e
4		Conductor Motor
5		Frame Motor
6		Gear Idler
7		Gear Idler Aug c
8		Gear Idler Agi
9		Switch n110E10200
10		Housing Assy Auger
11		Frame Assy Disp (with 12, 13)
12		Frame Disp
13		Seal Disp Aug
14		Connector CRUMc
15		Spring Disp
16		Joint Assy Disp
17	604K64510 запросить цену →	Kit Holdler Assy TCRU K (with 29)
18	604K64520 запросить цену →	Kit Holder Assy TCRU C (with 29)
19	604K64530 запросить цену →	Kit Holder Assy TCRU M (with 29)
20	604K64540 запросить цену →	Kit Holder Assy TCRU Y (with 29)
25		Harn Assy TNR MOT (J18, J19-J181, J182, J191,
26		Harn Assy Toner CRUM (J31-J311, J312, J313, J314)
27		Harn Assy Side SW (J29-J291) (Toner Door Sw. Harn.)
28		Harn Assy MCU HAN (J503, J504, J530-J30, J520,
29		Label Holder (included with 17, 18, 19, and 20)
9-24		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

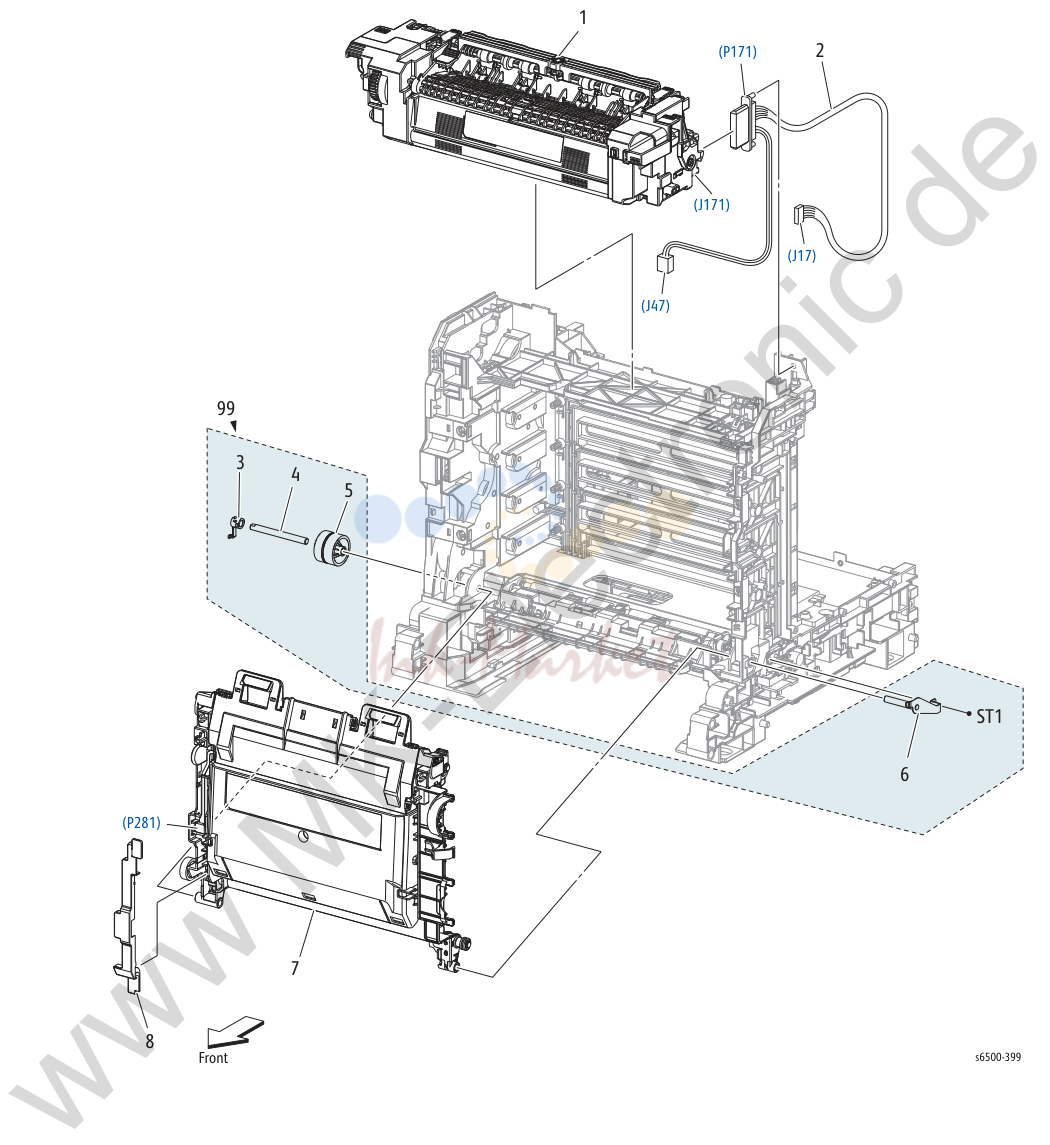

10. Parts Lists

№	Артикул	Описание
2		Harn Assy Fuser (J17, J47-P171) e
3		Stopper Pivot
4		Pivot Trans L
5		Gear T4
6		Shaft Assy Pivot c
7	848K52580 ✓ в наличии	Transfer Belt
8		Cover Harness 2 n
99	675K54121 запросить цену →	Kit Pivot (with 3-6)
9-26		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

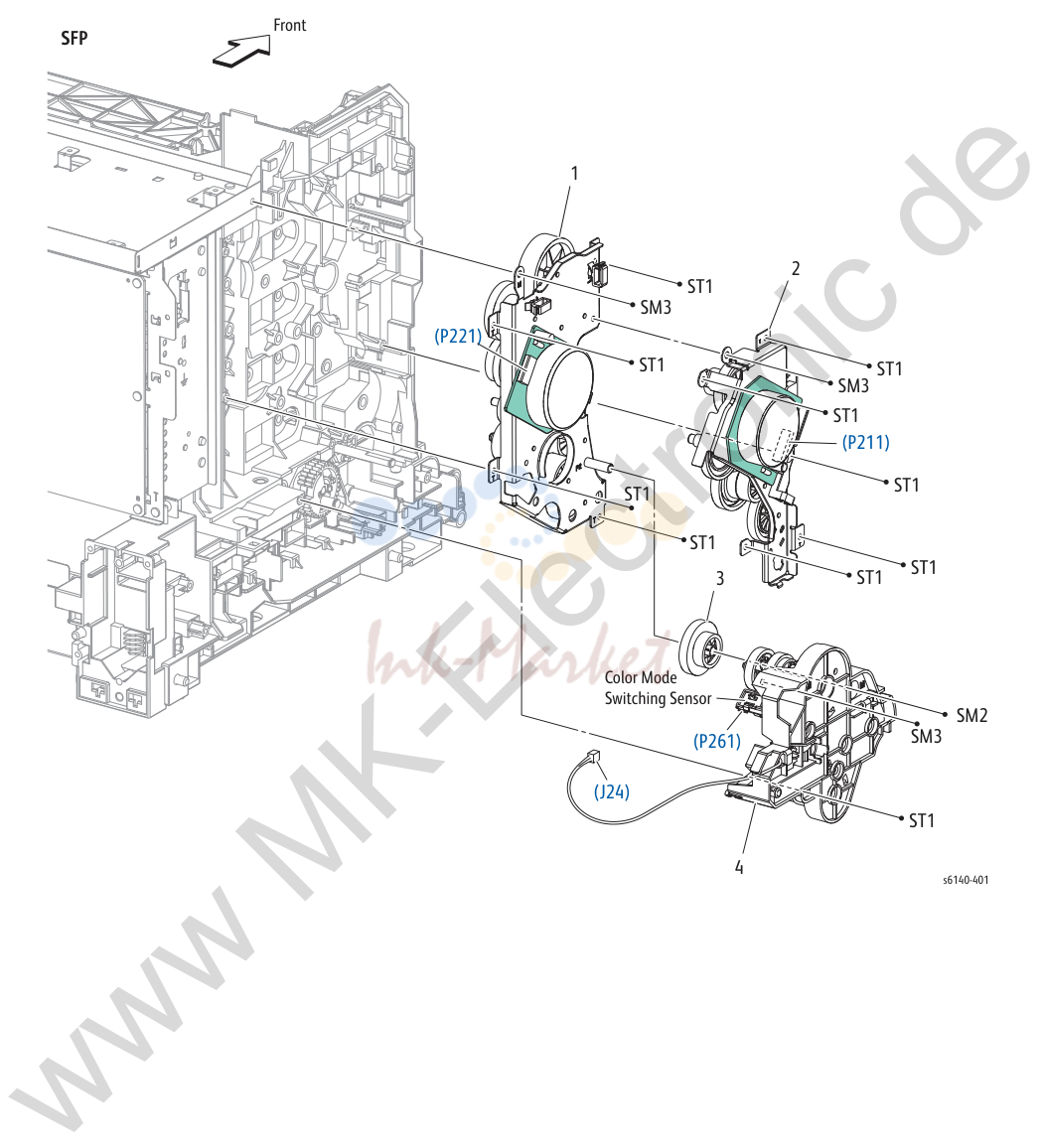

11. Parts Lists

№	Артикул	Описание
1	007K17400 запросить цену →	Drive Assy Sub (Sub Drive Assembly)
2	007K17390 запросить цену →	Drive Assy Main (Main Drive Assembly)
3	807E15100 запросить цену →	Gear P2
4	007K94706 запросить цену →	Drive Assy PH (Feed Drive Assembly)
5		Harness Assy KSOL MG AIO (J24-P241) (MFP only)
9-28		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

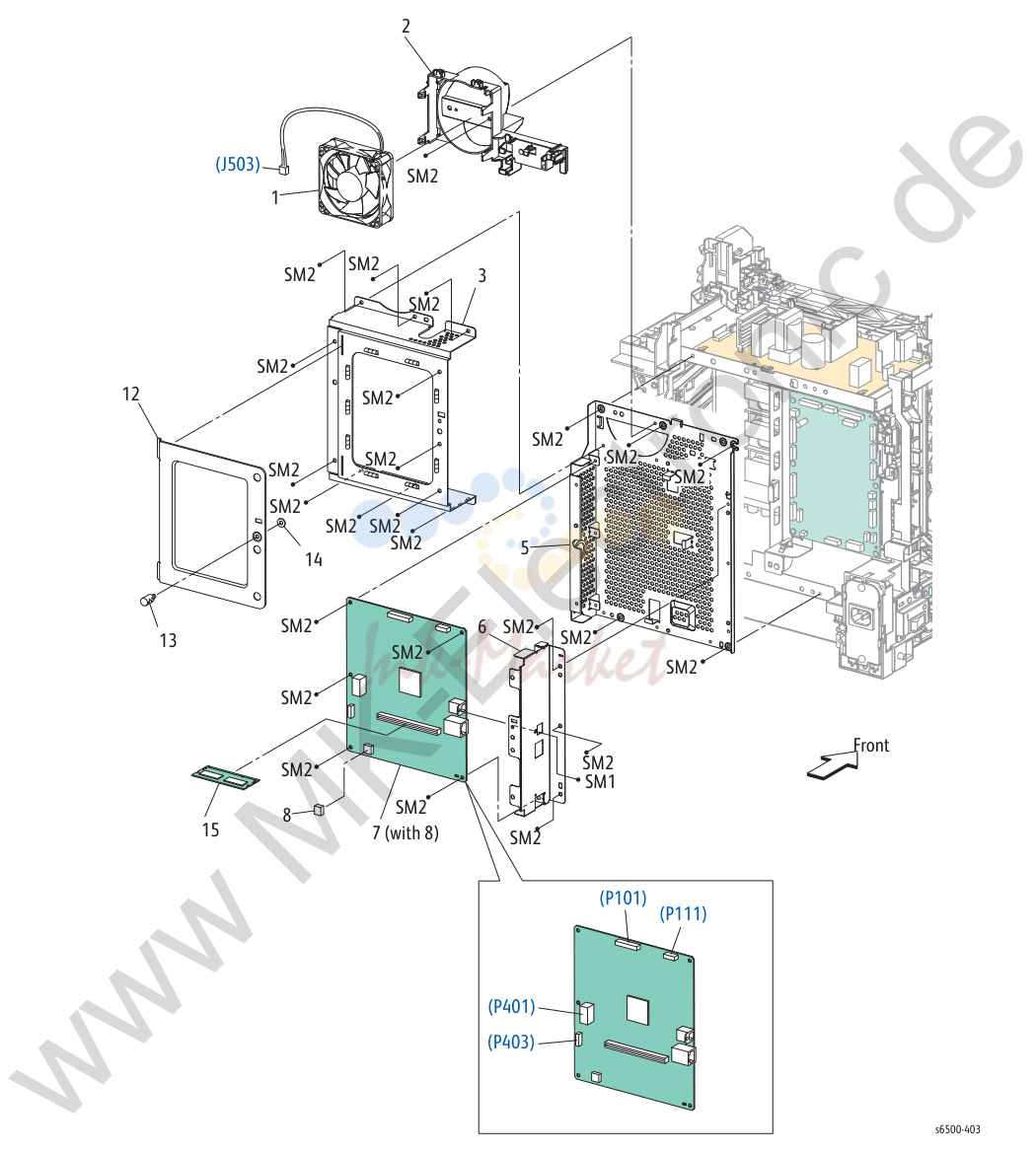

12. Parts Lists

№	Артикул	Описание
1	127E86270 запросить цену →	Fan
2		Duct Fan
3		Shield Assy ESS
5		Frame ESS
6		Plate IF
7	960K56232 запросить цену →	PWBA ESS (with 8) (IP Board)
8		NVM ROM i
12		Plate ESS
13		Screw Knurling
14		Washer
15	237E25990 запросить цену →	Memory Card (512 MB)
9-30		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

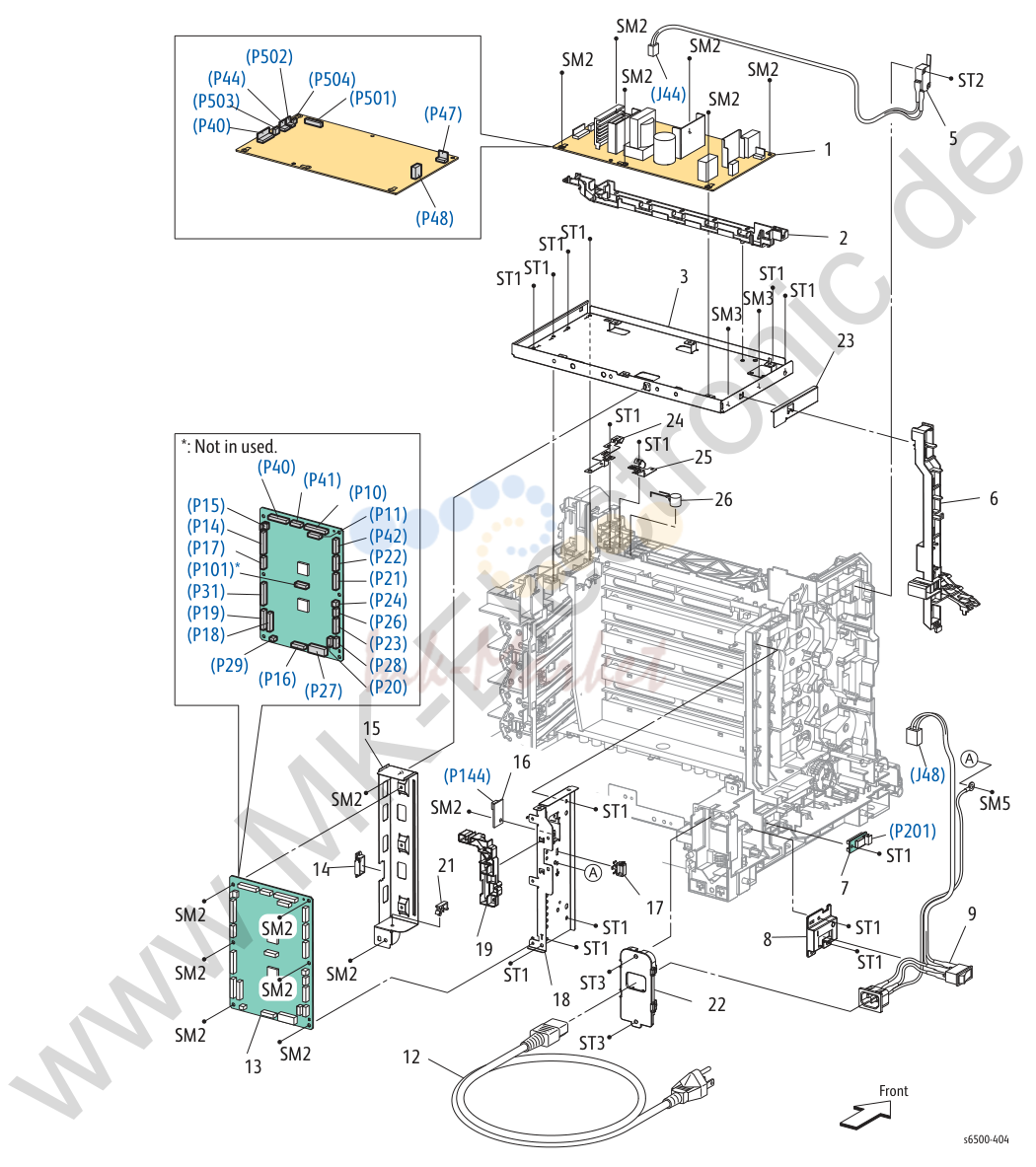

13. Parts Lists

№	Артикул	Описание
2		Guide Harness FSR e
3		Frame Assy LVPS
5	962K68760 запросить цену →	Harn Assy Interlock (SW-J44)
6		Guide Harness AC c
7	130E93460 запросить цену →	Sensor HUM
8		Bracket SW n
12		Power Cord c
13	960K56363 запросить цену →	PWBA MCU (MCU Board)
14		Edging Saddle
15		Bracket lMCU R
16	960K32640 запросить цену →	PWBA EEPROM (XPRO) (EEPROM Board)
17		Clamp
18		Bracket MCU L
19		Guide Harness MCU
21		Clamp MST-10V0
22		Cover Inlet
24		Plate Earth Drum
26		Arrester ENE112D-10A
9-32		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

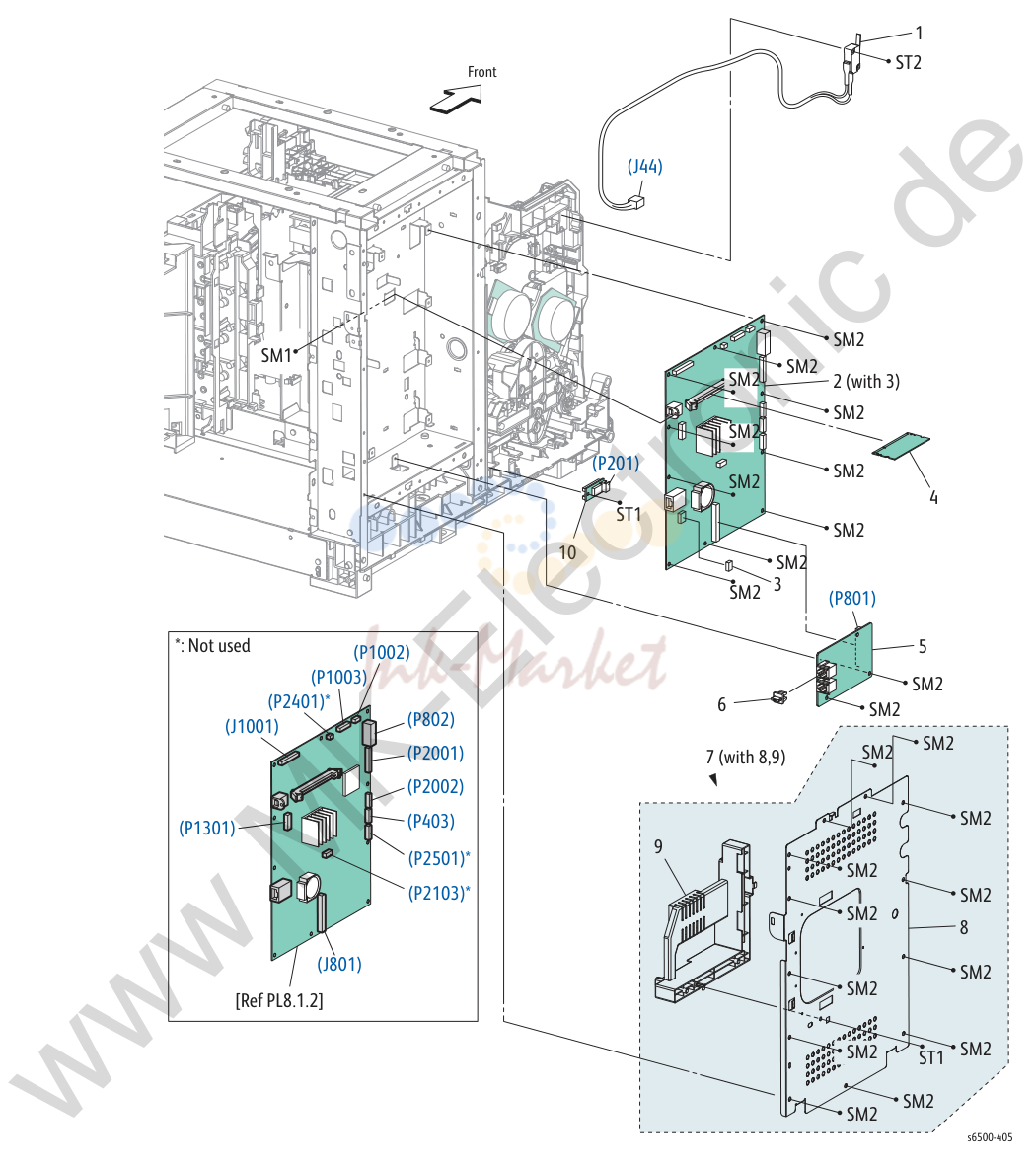

14. Parts Lists

№	Артикул	Описание
1	962K65360 запросить цену →	Harn Assy Interlock AIO (SW-J44)
2	960K51502 запросить цену →	PWBA ESS AIO (with 3) (MFP IP Board)
3		NVM ROM
4	237E25990 запросить цену →	Memory Card (Option)
5	960K53600 запросить цену →	PWBA Fax
6		Cap Plug Rubber
7		Shield Assy ESS AIO (with 8,9)
8		Shield ESS AIO i
9		Cover Inner
10	130E93460 запросить цену →	Sensor HUM (Humidity Sensoro)
9-34		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

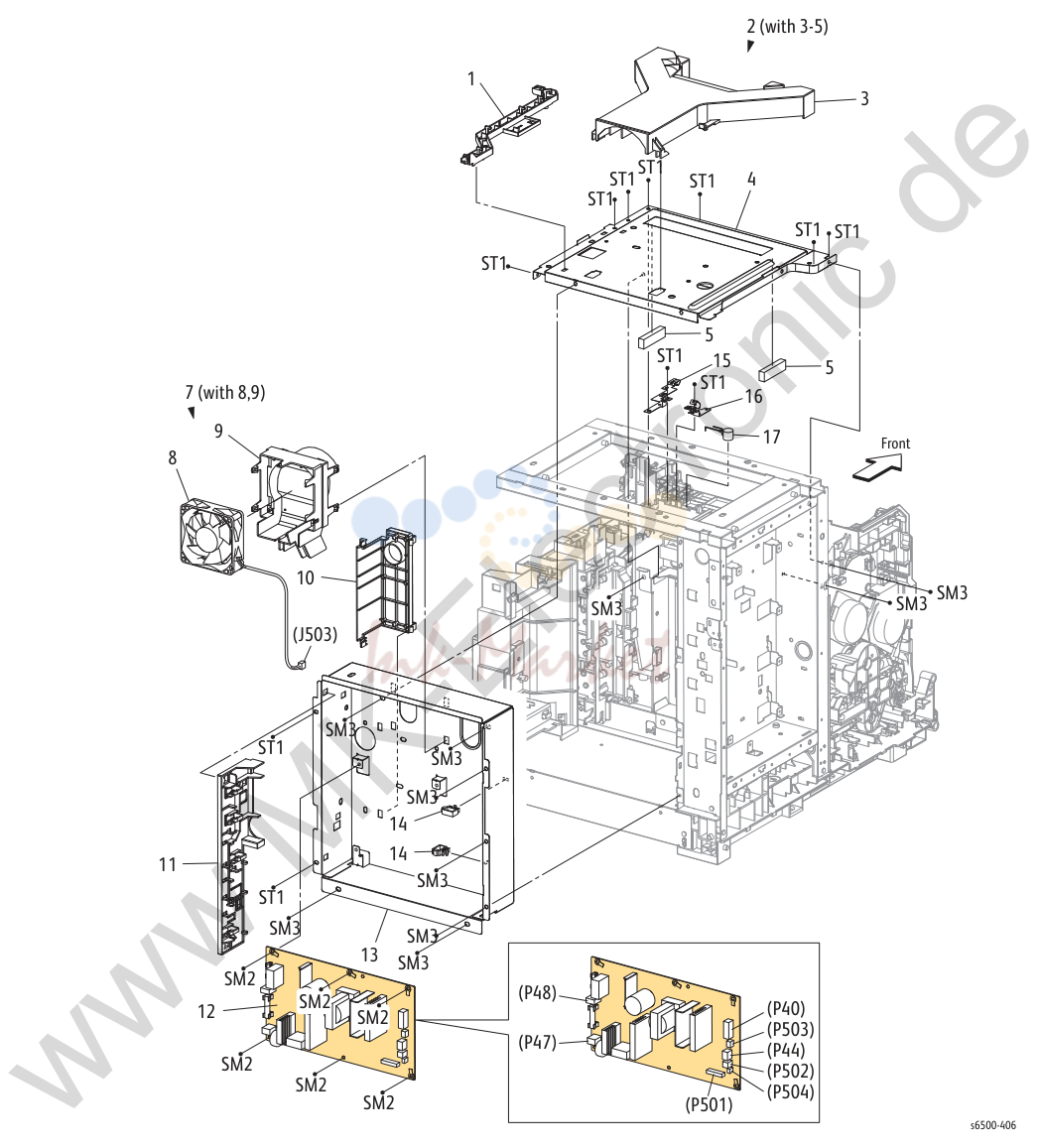

15. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Guide Harness FSR AIO (Fuser Harness Guide)
2			Plate Assy Top (with 3-5)
3			Duct Plate
4			Plate Assy Duct
5			Seal Plate
7			Duct Fan Assy AIO (with 8,9)
8			Fan i127E85360
9			Duct Fan AIO
10			Shield Harness LVPS o
11			Guide Harness LVPS
13			Chassis LVPS
14			Clamp RLWeT-2V0
15			Plate Earth Drum
16			EPlate Earth FSR
17			Arrester ENE112D-10A
9-36			Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

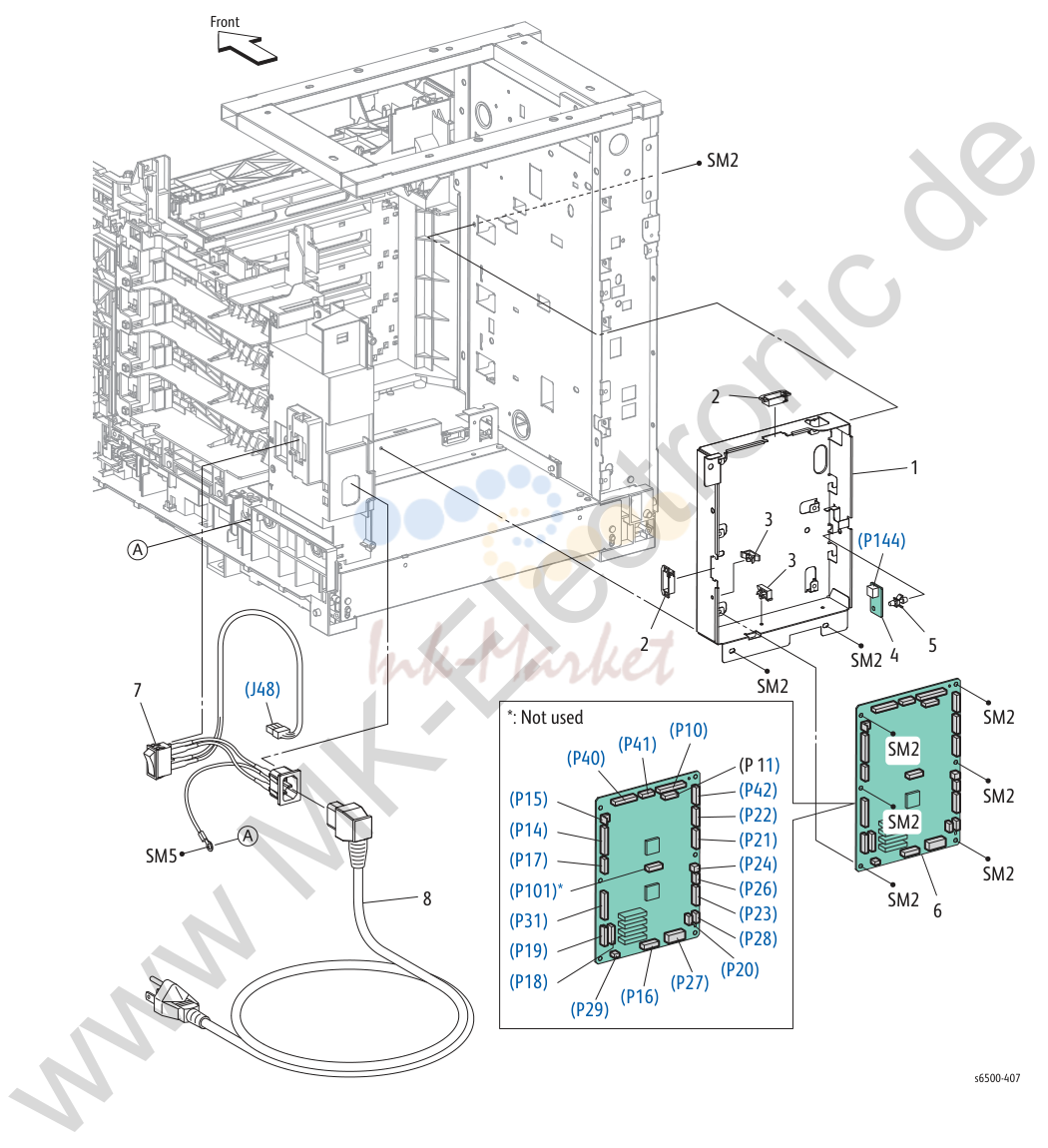

16. Parts Lists

№	Артикул	Описание
1		Chassis MCU
2		Edge Saddle
3		Clamp MST-10V0
4	960K32640 запросить цену →	PWBA EEPROM (XPRO) (EEPROM Board)
5		Support PWB
6	960K56363 запросить цену →	PWBA MCU
8		Power Cord n
9-38		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

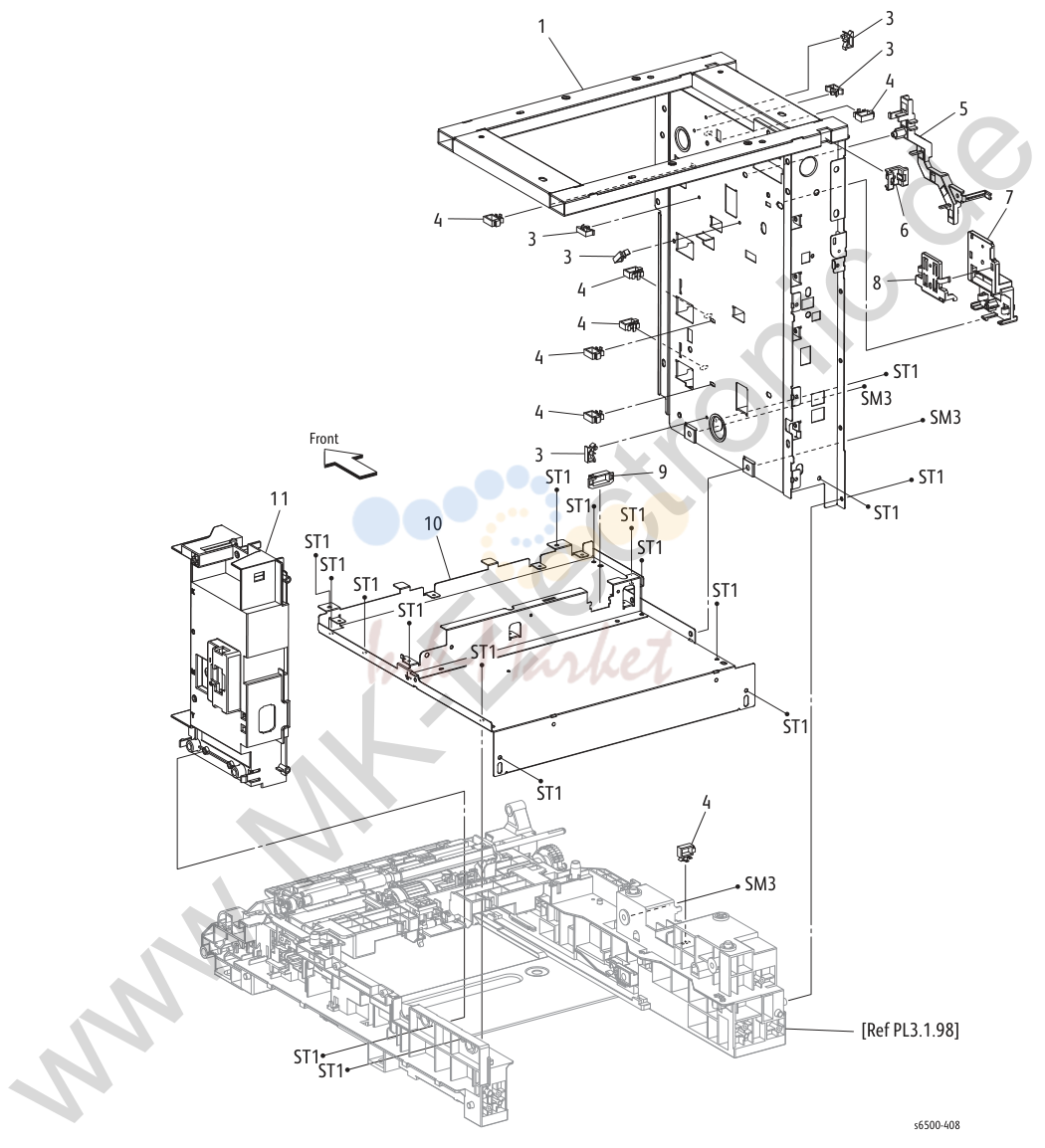

17. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Frame Assy AIO
3			Clamp MST-10V0
4			Clamp RLWT-2V0
5			Guide Harness USB
6			Bushing Edge
7			Holder FFC
8			Cover FFC i
9			Edge Saddle
10			Chassis Assy HVPS o
11			Chassis Inlet
9-40			Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

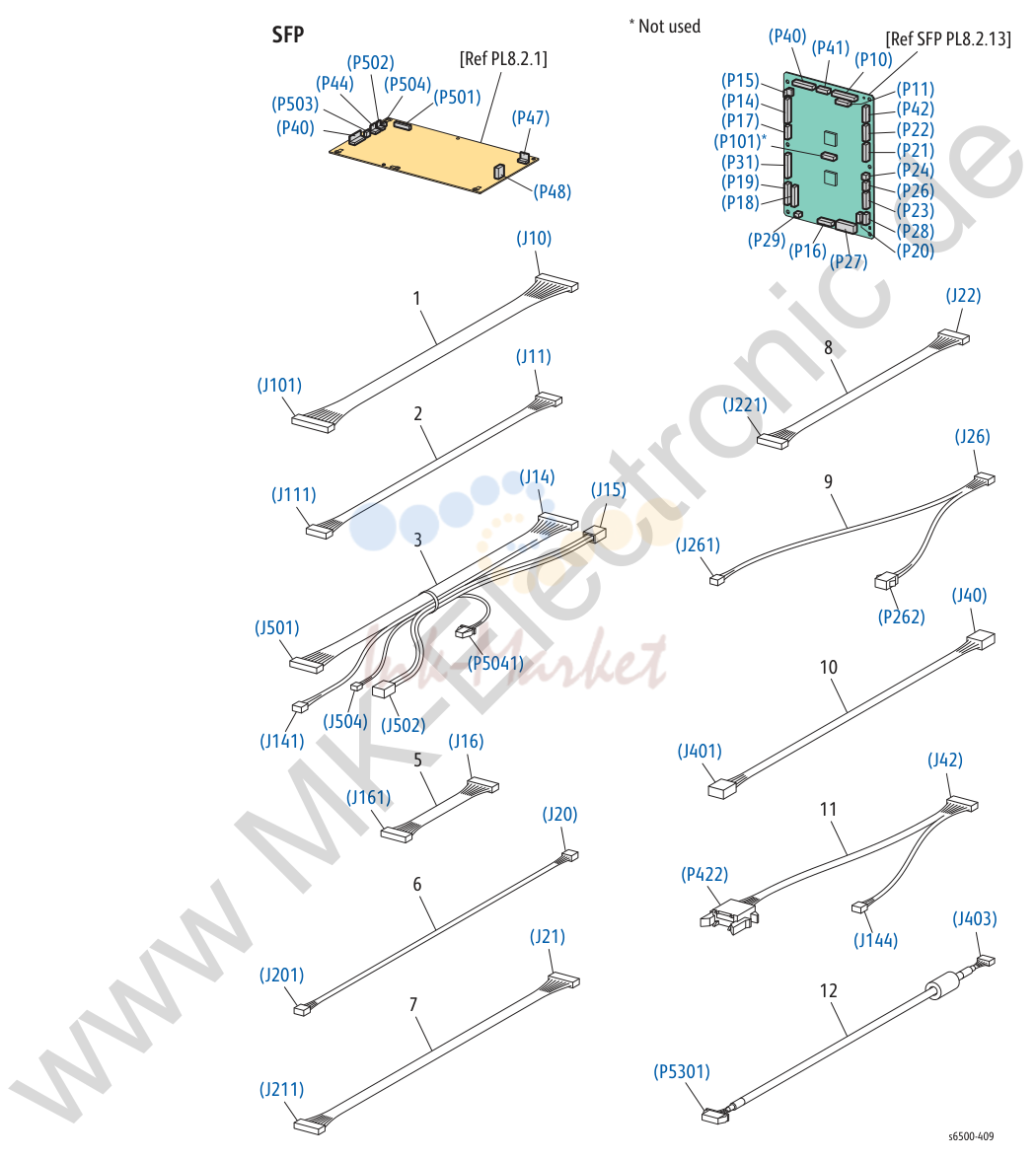

18. Parts Lists

№	Артикул	Описание
1		SFP Harness Assy ESS (J10-J101)
2		SFP Harness Assy ESS Video (J11-J111) e
3		SFP Harness Assy LVPS2 (J14, J15-J141, J501, J502) d
5		Harness Assy HVPS (J16-J161)
6		Harness Assy Humidity (J20-J201) (SFnP only)
7		Harness Assy Main Motor (J21-J211)
8		Harness Assy Sub Motor (J22-J221)
9		Harness Assy KSNR Regcl (rJ26-J261,P262)
10		SFP Harness Assy ESS Ptower (J40-J401)
11	962K52000 запросить цену →	Harness Assy PHD XPRO (J42-J144,P422)
12		SFP Harness Assy B (J29-P5301)

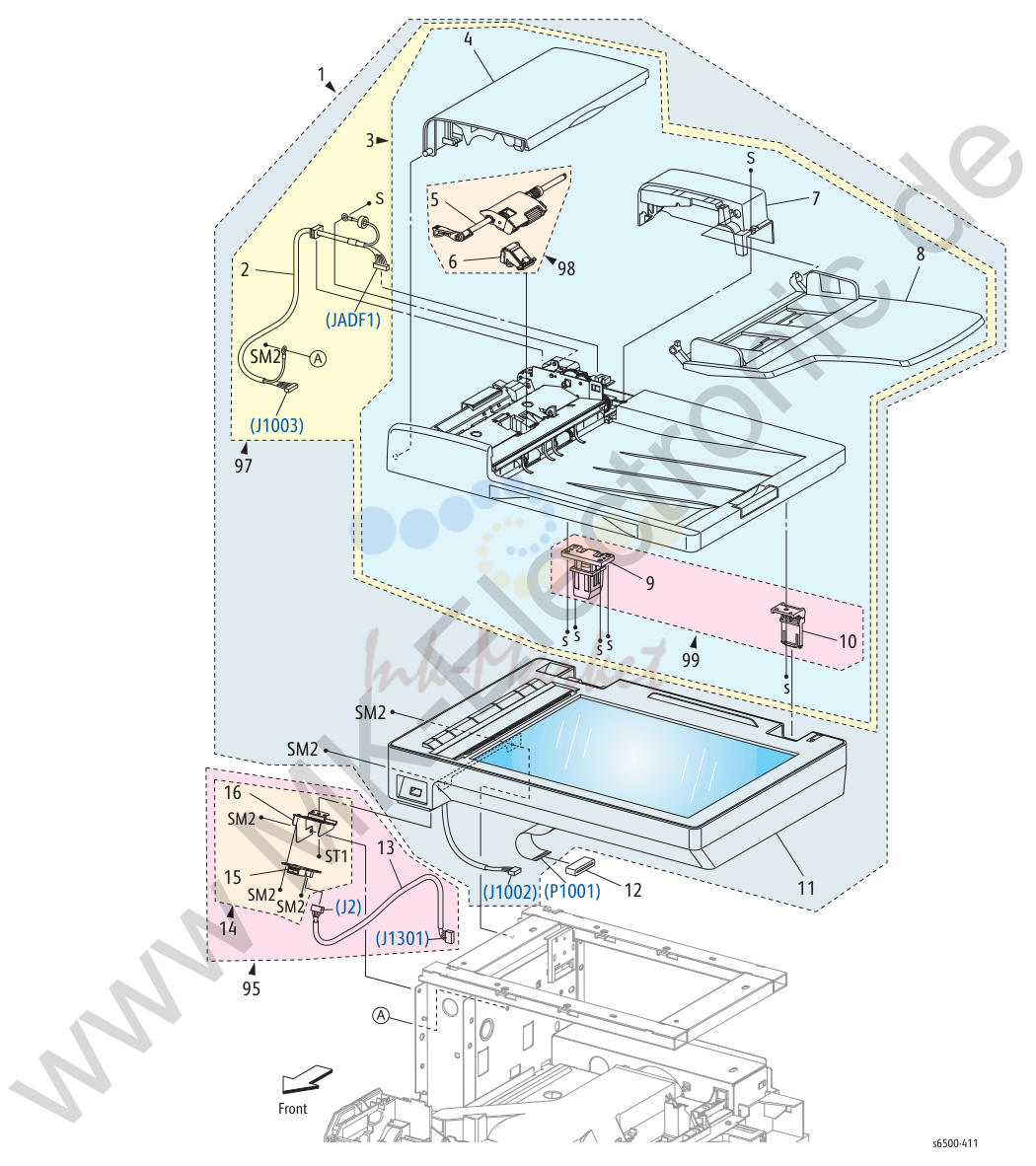

19. Parts Lists

№	Артикул	Описание
1		Scanner Assy (with 2,3,11)
2		Harn Assy ADF (J1003-JADF1)
3		ADF Assy (with 4-10)
4		Cover Top ADF
5		Roll Assy Feed
6		Pad Assy Separator
7		Cover Assy Rear ADF
8		Tray Assy i050K63721
9		Counter Balance L
10		Counter Balance R o
11	604K66320 запросить цену →	IIT Assy Sub (IIT Subassembly)
12	121E22020 запросить цену →	Core Ferr FFC
13		Harness Assy Front USB (J2-J1301)
14		Bracket Assy USB (with 15,16)
15		PWB Assy Front USB
16		Bracket Front USB
95	675K99680 запросить цену →	Kit PWB Assy Front USB (with 13,14)
97	675K99690 запросить цену →	Kit ADF Assy (with 2,3)
98	604K52222 запросить цену →	ADF Feed Roll & Separator Roll Kit (with 5-6, Instruction)
99	604K49540 ✓ в наличии	Kit Counter Balance (with 9,10)

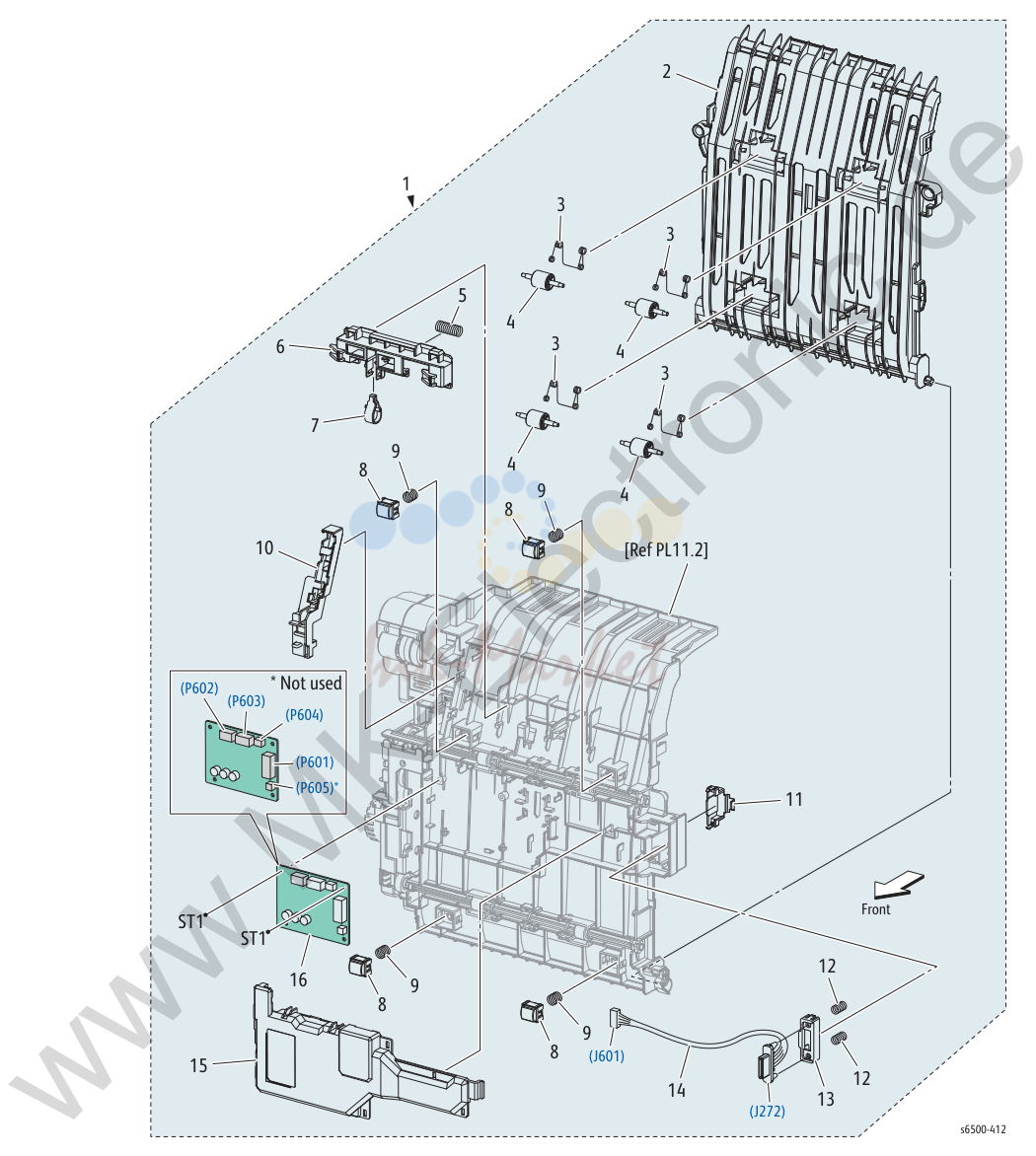

20. Parts Lists

№	Артикул	Описание
1	059K65450 запросить цену →	Feeder Assy Dup (With 2-16, PL11.2)
2		Chute Dup In
3		Spring Pinch Dup
4		Roll Pinch Dup
5		Spring Latch Dup
6		Latch Dup
7		Follower Latch Dup (SFP only)
8		Holder Chute Dup i
9		Spring Chute Dup
10		Holder Harness Dup o
11		Cover Connect Dup (SFP only)
12		Spring Connect Dup (SFP only)
13		Holder Connect Dup (SFP only)
14	962K68790 запросить цену →	Harness Assy Dup (J272-J601)
15		Cover PWBA Dup
16	960K43081 запросить цену →	PWBA Dup

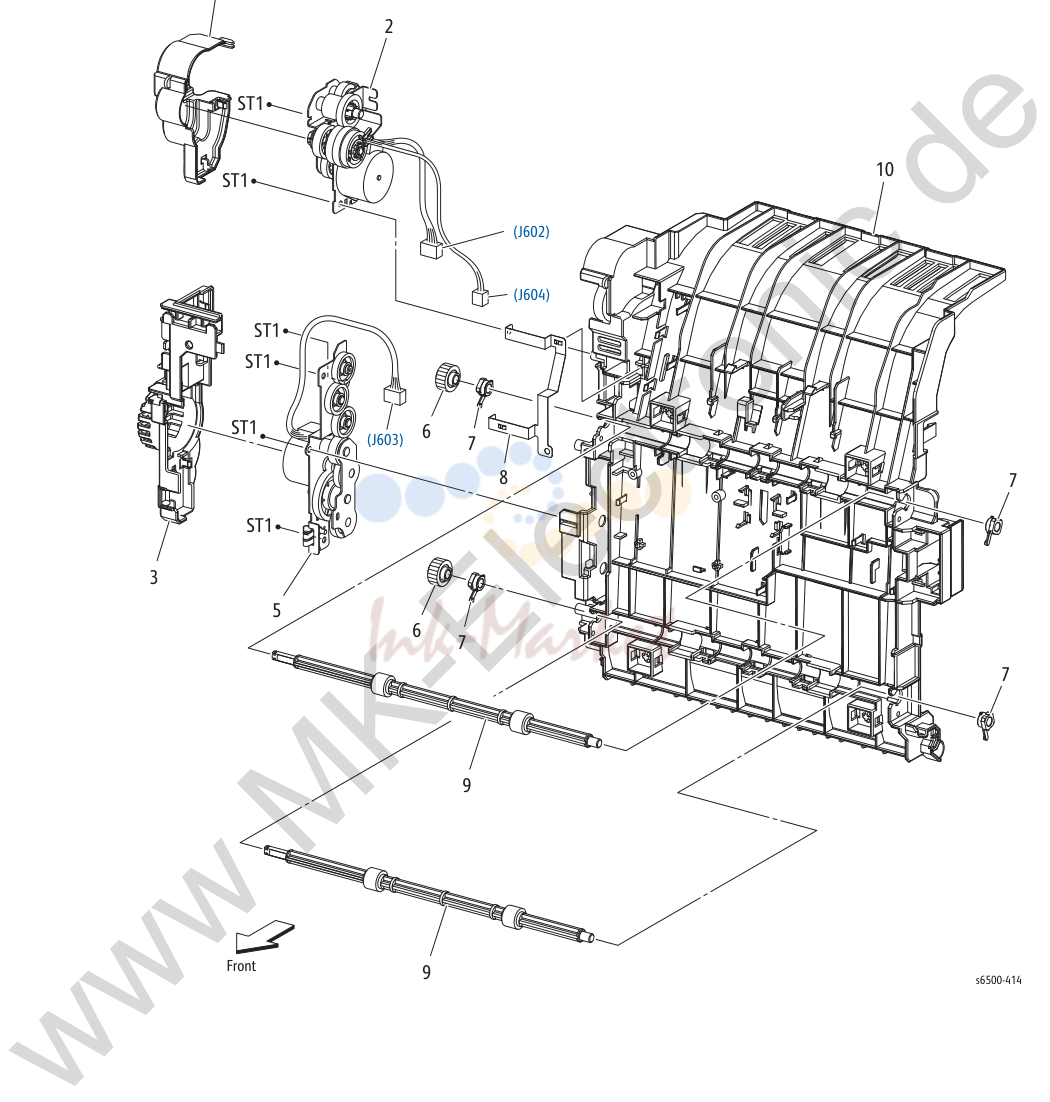

21. Parts Lists

№	Артикул	Альт. артикул	Описание
1			Cover Drive Exit
2			Drive Assy Exit
3			Cover Drive Dup
5			Drive Assy Dup
6			Gear Roll Dup
7			Bearing Dup
8			Plate Earth PWBA i
9			Roller Assy Dup
10			Chute Dup Frame o

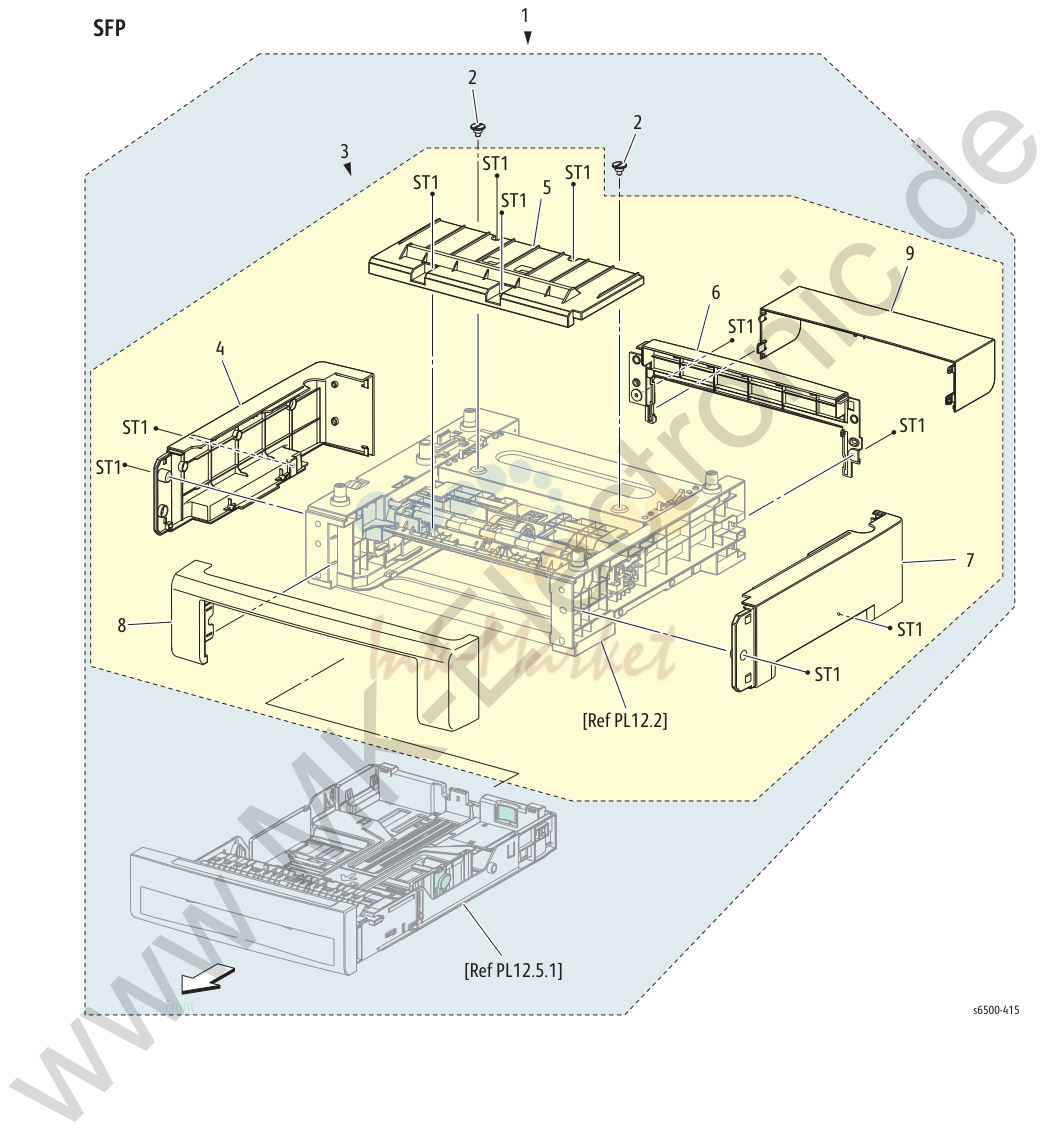

22. Parts Lists

№	Артикул	Описание
1	675K81131 запросить цену →	SFP 250 Option Feeder (With 2,3, PL12.5.1)
2		Screw Joint e
3		Feeder Assy Opt (With 4-9, PL12.2-12.4)
4		Cover Side L Opt
5		Cover Chute
6		Cover Rear Opt c
7		Cover Side R Opt
8		Cover Front Opt n
9		Cover CST
9-52		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
98		(with 16-18) 1e9
18		ST1 10 (with 11,12)
12		Front
1	960K43091 запросить цену →	SFP PWBA Feed (Optional Feeder Board)
2		Harn Assy Tray Mot (J422-J211) e
6	675K54231 запросить цену →	Clutch Assy Drv (with PL12.3.16) (Same as PL3c.1.97)
8		Spring Feed Out (Same as PL3.1.15) n
9		Spring Feed In (Same as PL3.1.14)
10		Gear Assy Feed (With 11,12) (Same as PL3.1.19)
11		Gear Feed Out (Same as PLr3.1.16)
12		Gear Feed In (Same as tPL3.1.17)
13		Lever Feed (Same as PL3.1.13)
14		Spring Leveer (Same as PL3.1.12)
15		Solenoid Feed MSI (Same as PL3.1.11)
16		EMotor Assy Sub
17		Gear Idle 40z
20		Harn Assy Tray Comp (J420, J421-P4201. J4202,
21		Cover Harness CL
22		Plate Assy Idler
24		Gear Idle 28-20z
26		Gear Idle 25z
97	604K51880 запросить цену →	Kit Solenoid Feed (with 8-10, 13-15)
98	604K52890 запросить цену →	Kit Assy Motor Opt (with 16-18) (Feed Motor Kit)
99	604K51900 запросить цену →	Kit Assy Feeder Gear (with 21-25, 26 x 2pcs, 27)
9-54		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

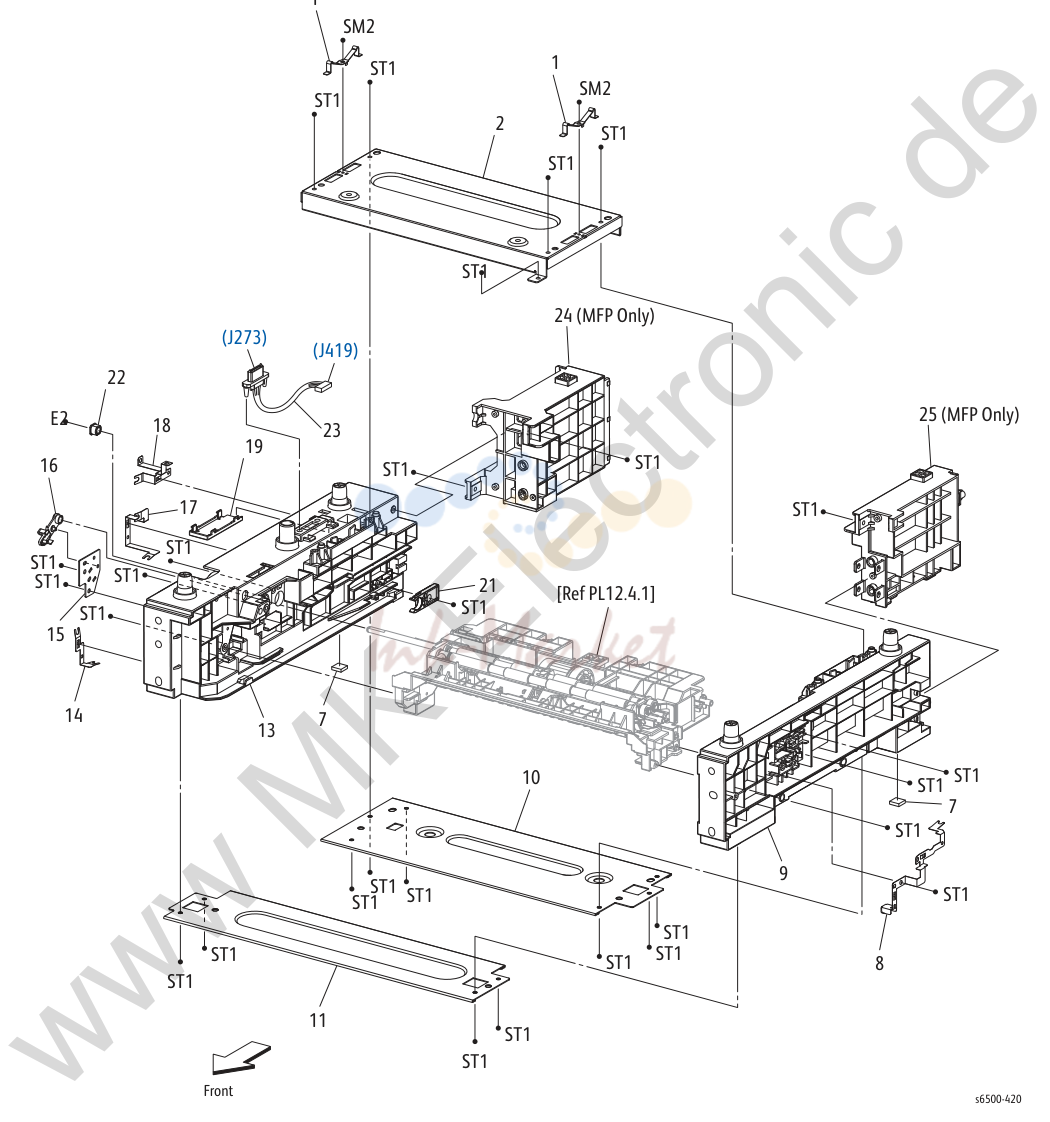

23. Parts Lists

№	Артикул	Описание
1		Spring Earth Opt
2		Plate Rear Top
7		Foot (Same as PL3.1.5)
8		Plate Earth Ph i
9		Chassis FDR R Opt
10		Plate Rear Bottom o
11		Plate Front Bottom
13		Chassis FDR L Opt
14		Plate Earth Front Bottom
15		Bracket Sup Regi
16	675K54231 запросить цену →	Bearing Regi (with PL12.2.6) (Same as PL3.1.97)
17		Plate Earth Rear Bottom
18		Plate Earth Rear Top
19		Cover Harness Drawer
21	003E73341 запросить цену →	Stopper CST (Same as PL3.1.10)
22		Bearing
23	962K68800 запросить цену →	Harn Assy Tray (J273-J419)
24		Bracket Chassis FDR L (MFP only)
25		Bracket Chassis FDR R (MFP only)
9-56		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

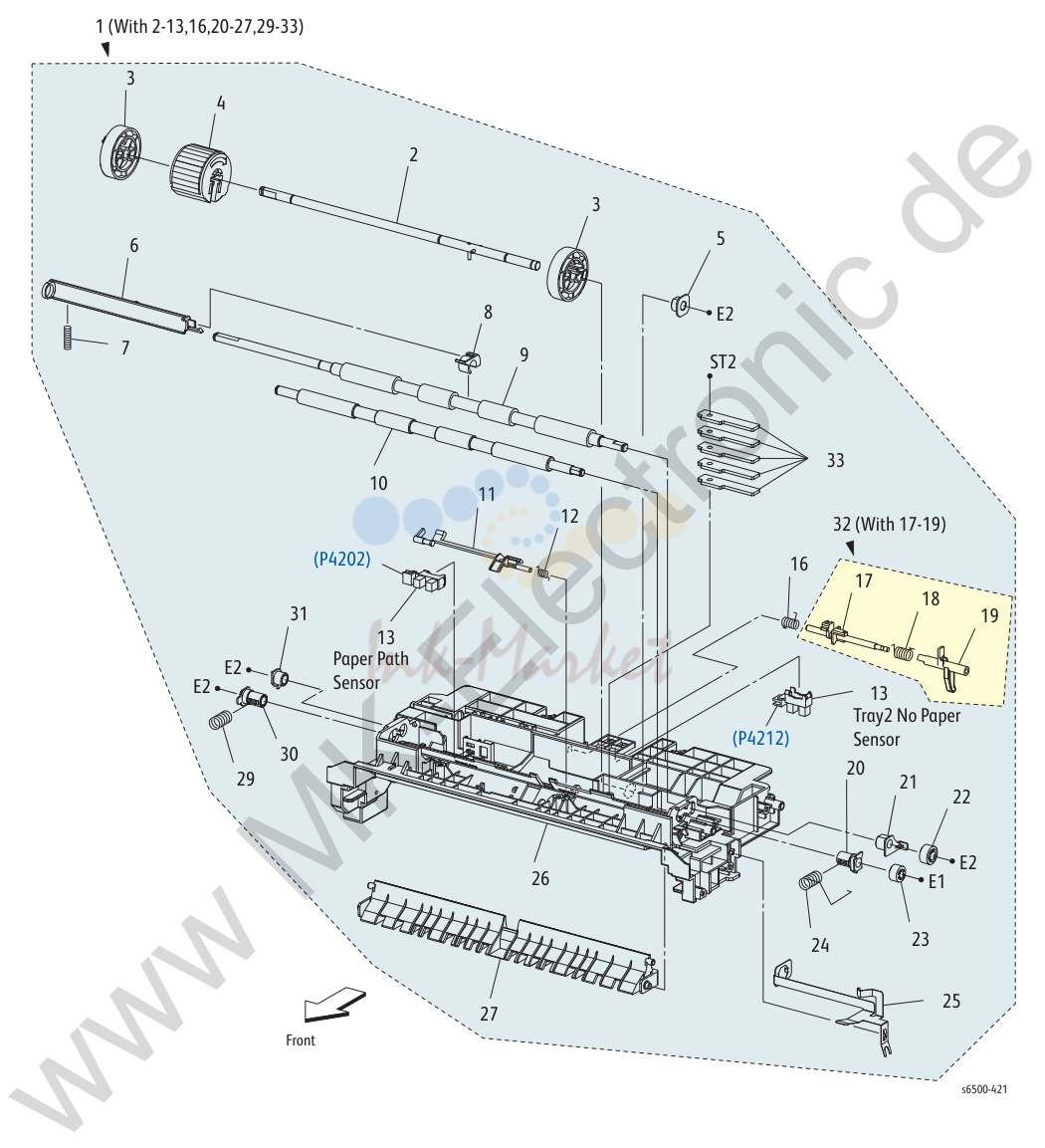

24. Parts Lists

№	Артикул	Описание
1		Chute Assy Turn (With 2-13, 16, 20-27, 29-33)
2		Shaft Assy Feed
3		Roll Core MSI
4	059K60140 запросить цену →	Roll Assy Feed
5		Bearing Earth
6		Actuator Regi Out
7		Spring Regi Out
8		Actuator Regi Roll i
9		Roll Assy Regi
10		Roll Regi Metal o
11	120E27820 запросить цену →	Actuator Regi In (Option Registration Input Actuator)
12		Spring Act Regi
13	930W00113 запросить цену →	Sensor Photo
16		Spring Stp
17		Stopper Act
18		Spring Act NP
19		Actuator No Paper
20		Bearing M Earth
21		Bearing Earth Regi
22		Gear Regi R
23		Gear Regi M
24		Spring Regi R M
25		Plate Earth Regi
26		Chute Up
27		Chute Low
29		Spring Regi L M
30		Bearing M
31		Bearing R
32	120K92294 запросить цену →	Actuator Assy No Paper (With 17-19)
33		Plate Weight
9-58		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

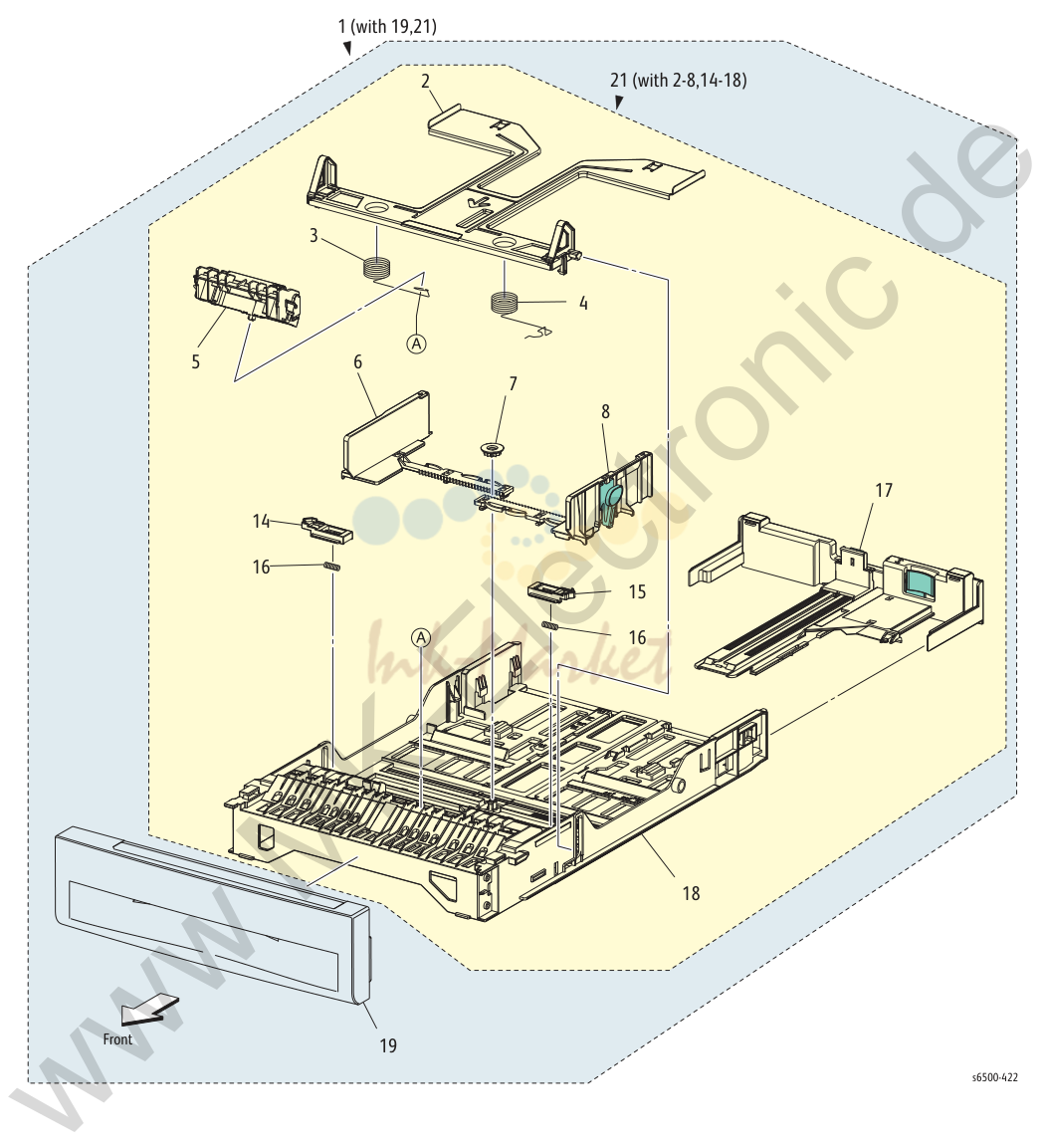

25. Parts Lists

№	Артикул	Описание
1	050K64180 запросить цену →	Cassette Assy 250 Opt (With 19,21)
2		Plate Assy Bottom
3		Spring N/F L
4		Spring N/F R
5	675K81221 запросить цену →	Holder Assy Separator
6		Guide Side L
7		Gear Pinion
8		Guide Side Assy R i
14		Latch Bottom L
15		Latch Bottom R
16		Spring Latch B
17		Tray Assy Extension
18		Housing CST
19		Handle Assy CST 250 Opt
21		Tray Assy CST 250 (With 2-8, 14-18)
9-60		Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

Источник: Инк-Маркет.ру.

← Все статьи
