Xerox Phaser-6121MFP — каталог запчастей со схемами
Содержание
1. Parts List
№ Артикул Альт. артикул Описание
1 Top Cover 848E56890 2 Tray Assembly - 3 Pick-up Roller 059E11000 4 Feed Roller 059E10990 5 Rear Cover - 6 ADF Unit 017E17020

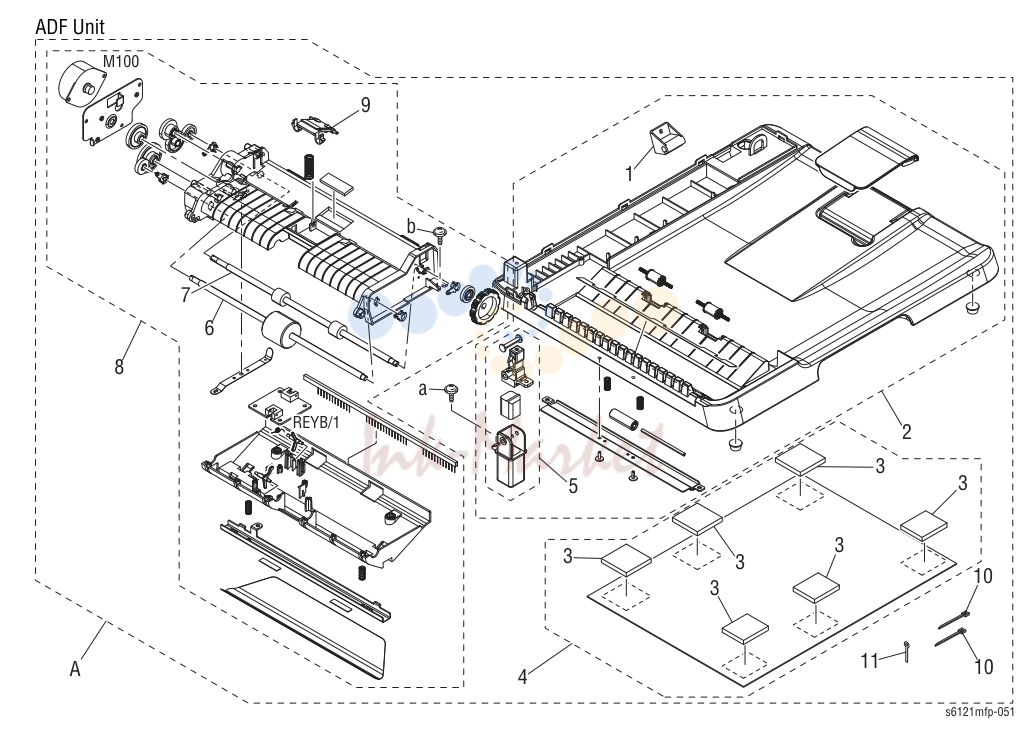

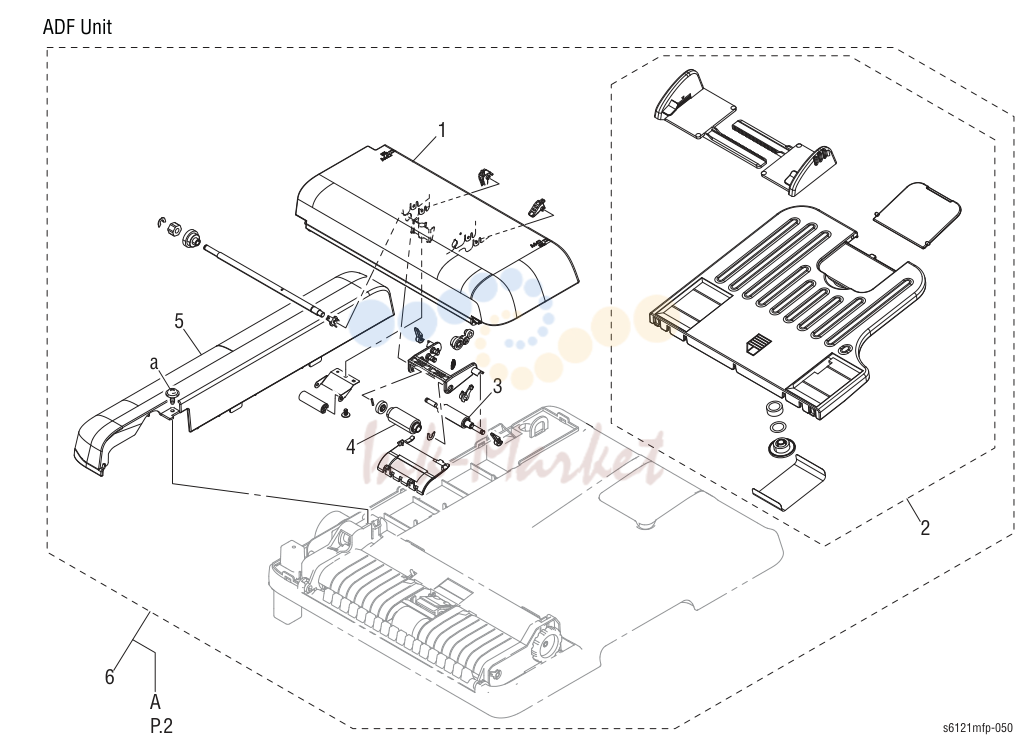

2. Parts List
№ Артикул Альт. артикул Описание
1 Hinge - 2 Cover Assembly - 3 Sponge - 4 Pad - 5 Hinge - 6 Roller - 7 Roller - 8 Paper Take-Up Assembly - 9 Pick Pad Assembly 019E81950 10 Cable Tie - 11 Clamp -

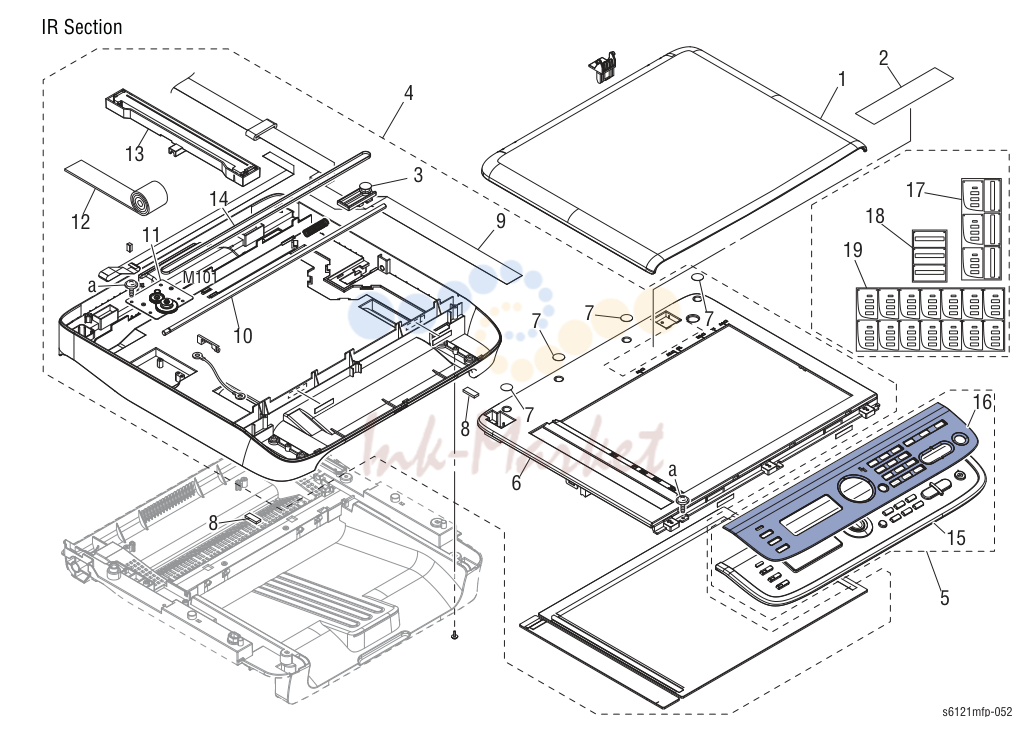

3. Parts List
№ Артикул Альт. артикул Описание
1 Cover (Original) XC - 2 Label Copy Prohibition - 3 Pulley Assembly - 4 Scanner Unit 4in1 109K02310 5 Control Panel (3in1) Assembly 848K42910 6 Cover Assembly XC - 7 Sheet XC - 8 Vibration Proof Part - 9 Flat Cable - 10 Shaft - 11 Driving Assembly - 12 Tape - 13 CIS Assembly - 14 Timing Belt - 15 Control Panel (3in1) - 16 4-in-1 запросить цену → Bezel 056E05460 17 Phaser 6121MFP/N Bezel, 110V (4-in-1) 897E31830 18 Phaser 6121MFP/S Bezel, 110V (3-in-1) 897E31880 19 Phaser 6121MFP/N Bezel, 220V (4-in-1) -

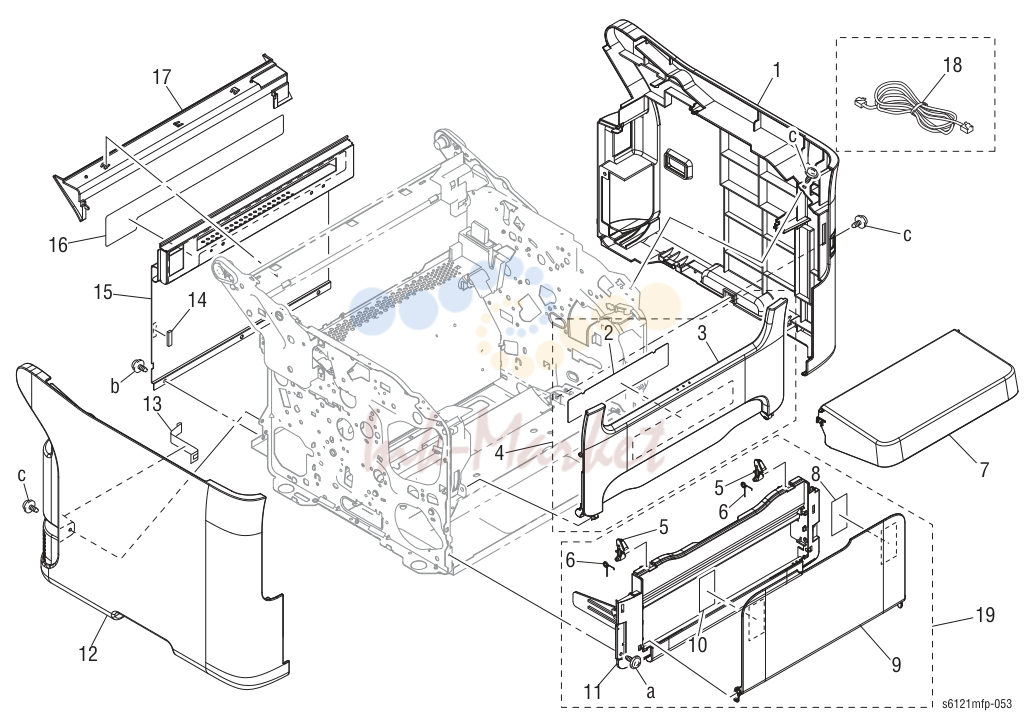

4. Parts List
№ Артикул Альт. артикул Описание
1 Right Cover 848E56900 2 Sheet - 3 Cover - 4 Cover F Upper Assembly - 6 Torsion Coil spring1 809E95490 7 Tray Cover 848E56940 8 Label - 9 Tray - 10 Label - 11 Cover, Front - 12 Left Cover 848E56930 13 Conductive Tape - 14 Gasket - 15 Cover Rear (Phaser 6121MFP/S) - 16 Seal - 17 Cover Rear - 18 Wire Harness Assembly - 19 Cover F Lower Assembly 848E56920
5. Parts List
№ Артикул Альт. артикул Описание
1 Cover - 2 Laser Unit 033K04760 3 Mounting Plate - 4 Mounting Plate - 6 Rubber Foot - 7 Frame /Lower - 8 Guide - 9 2nd Image Transfer Retraction Sensor (PS3)1 130E18330 10 Holder - 12 Cover - 13 Imaging Unit 108R00868

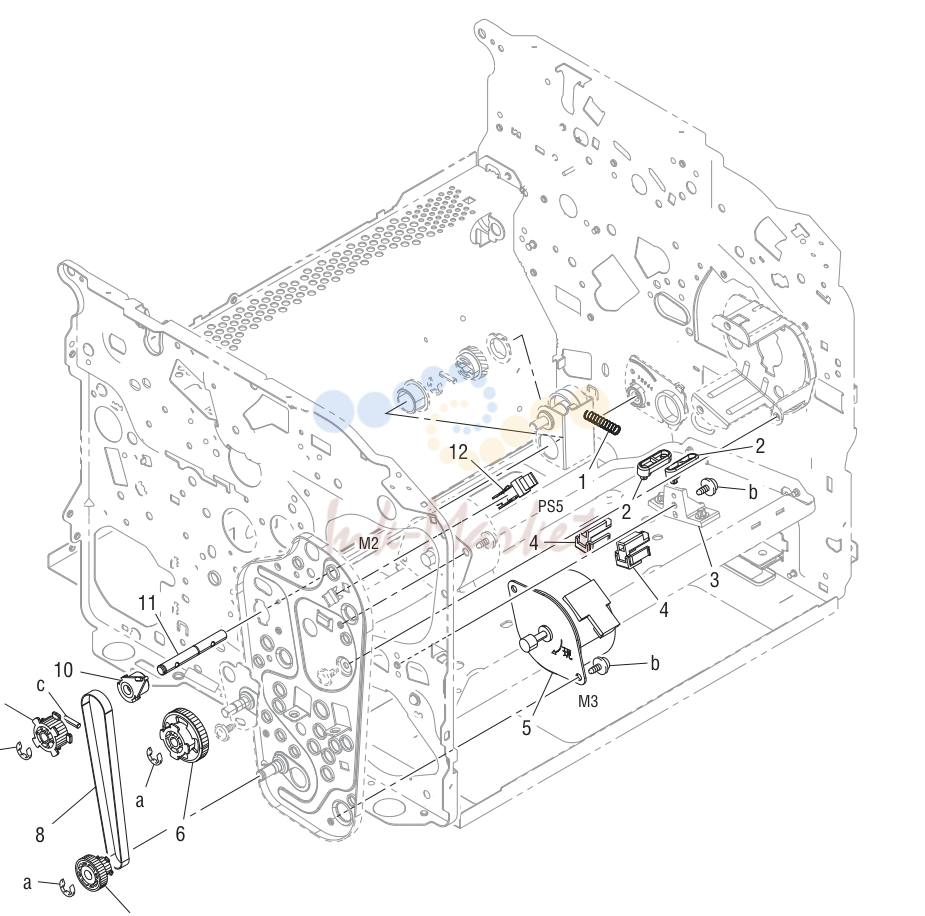

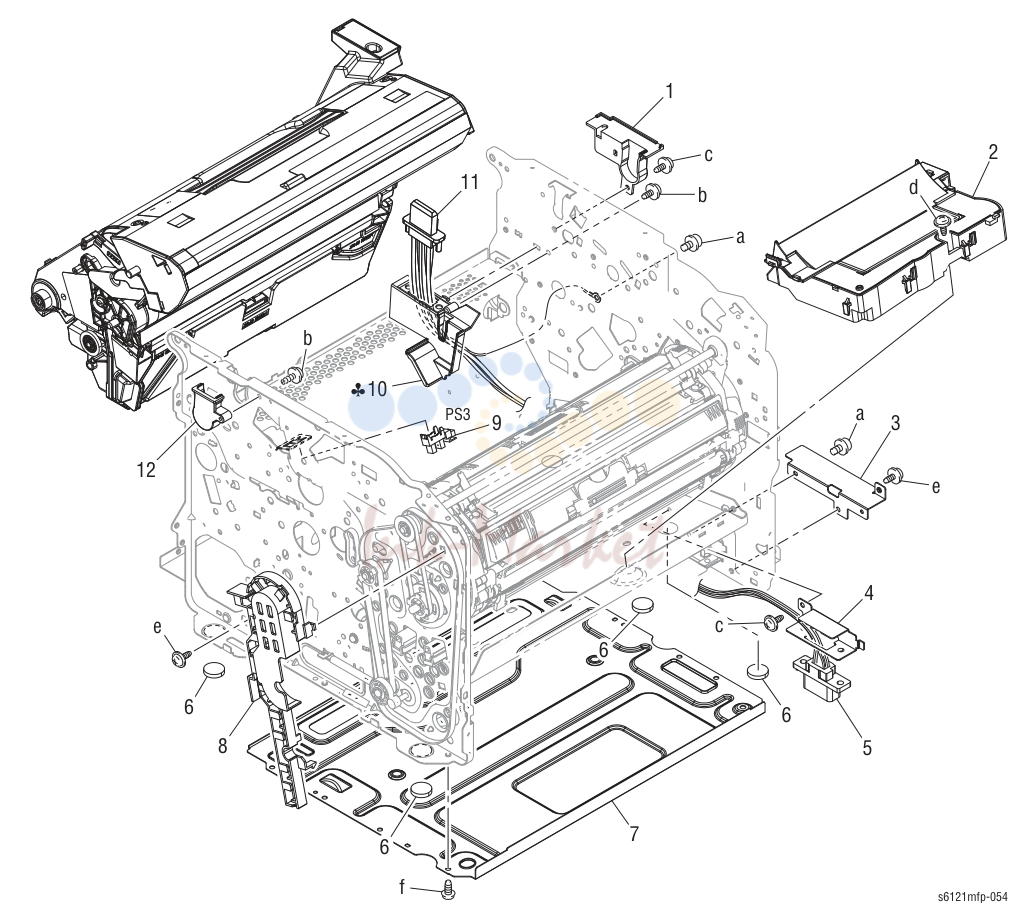

6. Parts List
№ Артикул Альт. артикул Описание
1 Torsion Coil spring - 3 Guide - 5 Developing Motor 127E16780 6 Gear 63T - 7 Gear 40/18T - 8 Timing belt 250L1 023E31780 9 Pulley 30T - 10 Bushing - 11 Shaft - 12 Rack Position Sensor1 130E18330

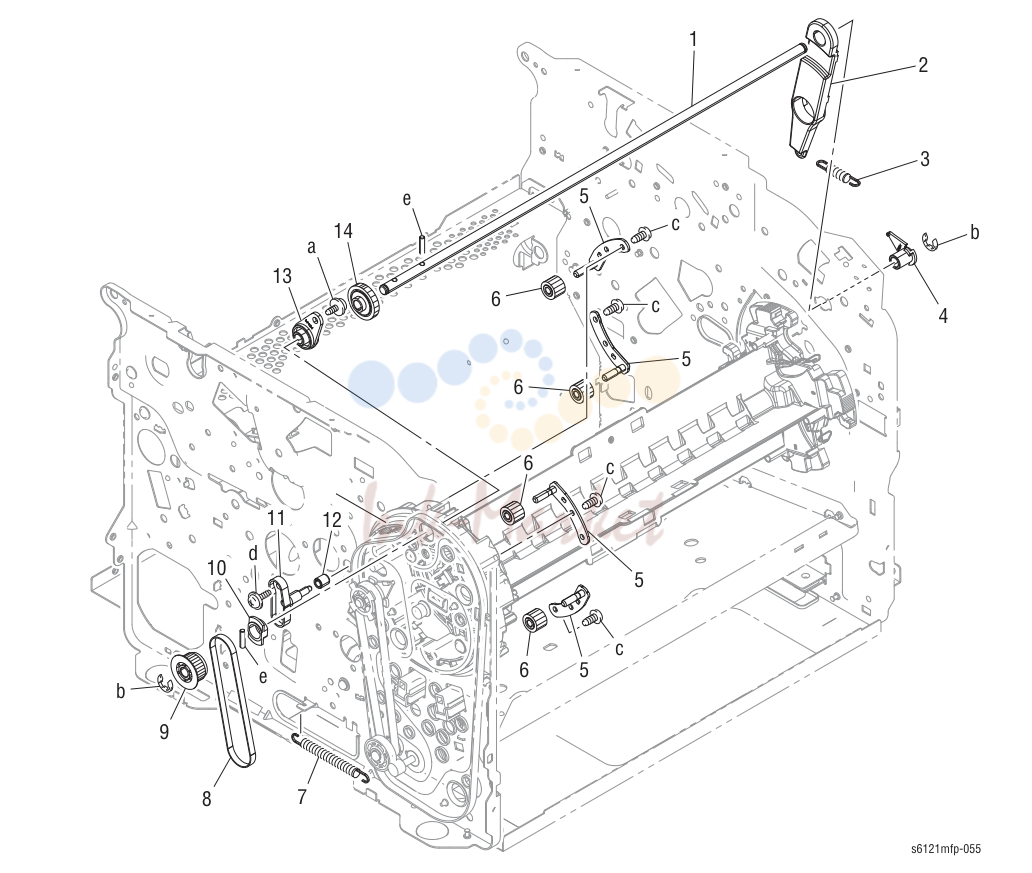

7. Parts List
№ Артикул Альт. артикул Описание
1 Shaft - 2 Hold Part /HK - 3 Pulling Coil Spring1 809E95500 5 Fixing Plate Assembly - 6 Gear 13T - 7 Pulling Coil Spring1 809E95510 8 Timing Belt 192L1 023E31770 9 Pulley 28T - 10 Bushing - 11 Mounting Guide - 14 Gear 20T -

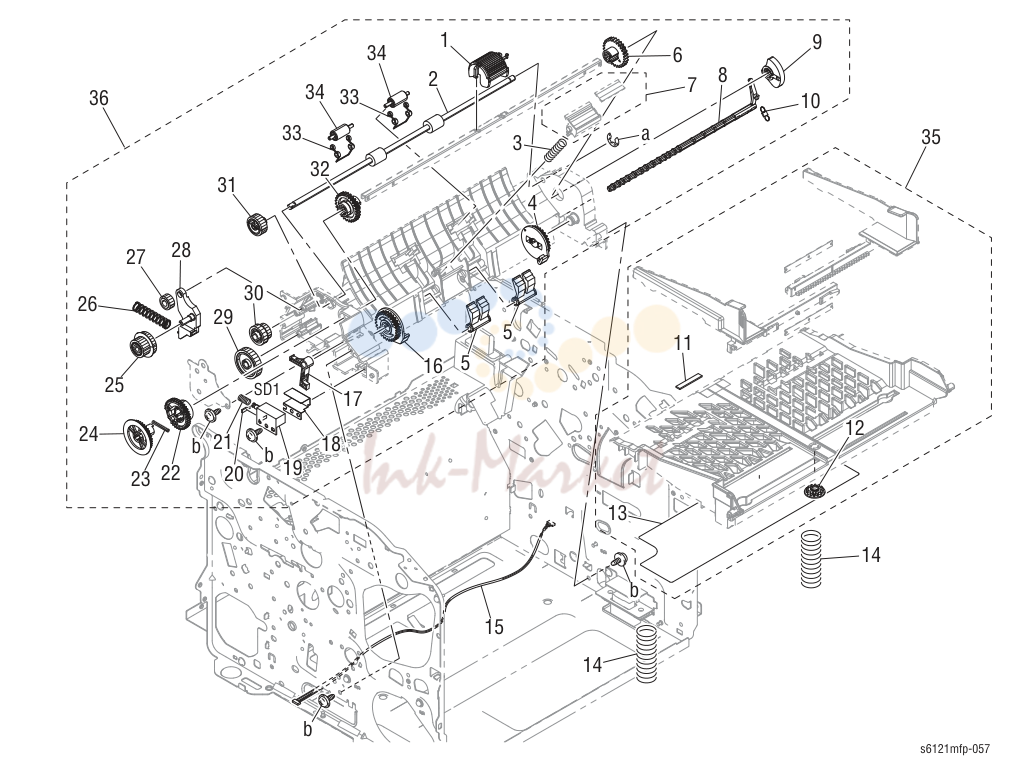

8. Parts List
№ Артикул Альт. артикул Описание
1 Feed Roller 059E05460 2 Roller - 3 Pressure Springs - 4 Cam - 5 Stopper - 6 Gear 27T - 7 Separation Pad 019E81920 8 Lever - 9 Cam - 10 Pulling Coil spring - 11 Friction Sheet - 12 Gear 14T - 13 Seal - 14 Compressing Spring1 809E95520 15 Wiring2 запросить цену → (see “Wiring Kit” on page9-55) - 16 Cam - 17 Lever - 18 Protection Part - 19 Tray 1 Paperfeed Solenoid (SD1) 604K61490 20 Seal - 21 Compressing Spring - 22 Gear 36T - 23 Compressing Spring - 24 Gear 36T - 25 Gear 26/20T - 26 Compressing Coil Spring - 27 Gear 15T - 28 Lever - 29 Gear 27T - 30 Gear 17/17T - 31 Gear 22T - 32 Gear 27T - 33 Conveyance Spring - 34 Conveyance Roll - 35 Lifting Plate Assembly 815K12690 36 Feed Assembly 059K70800

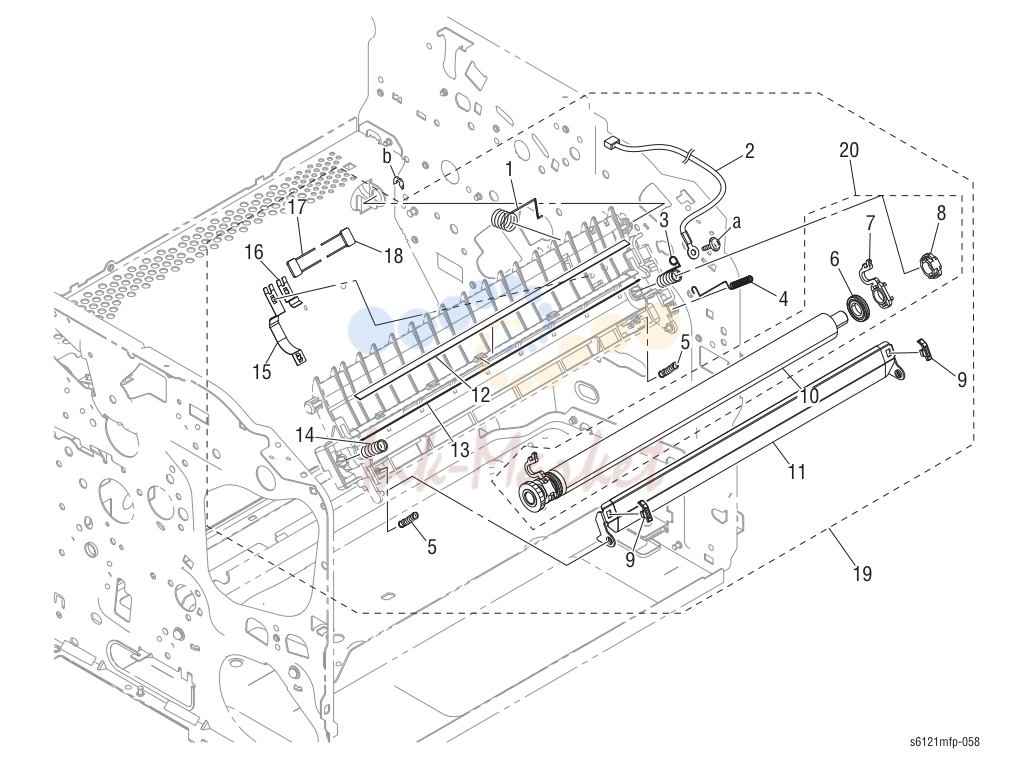

9. Parts List
№ Артикул Альт. артикул Описание
1 Contact - 2 Wiring - 3 Contact - 4 Contact - 5 Pressure Spring - 6 Roll - 7 Holder - 8 Bushing - 9 Spacer - 10 Transfer Roller - 11 Guide Plate - 12 Neutralizing Member - 13 Contact - 14 Contact - 15 Contact - 16 Contact - 17 Resistor - 18 Fixed Power Resistors - 19 2nd Transfer Assembly - 20 Transfer Roller Assembly 604K61470

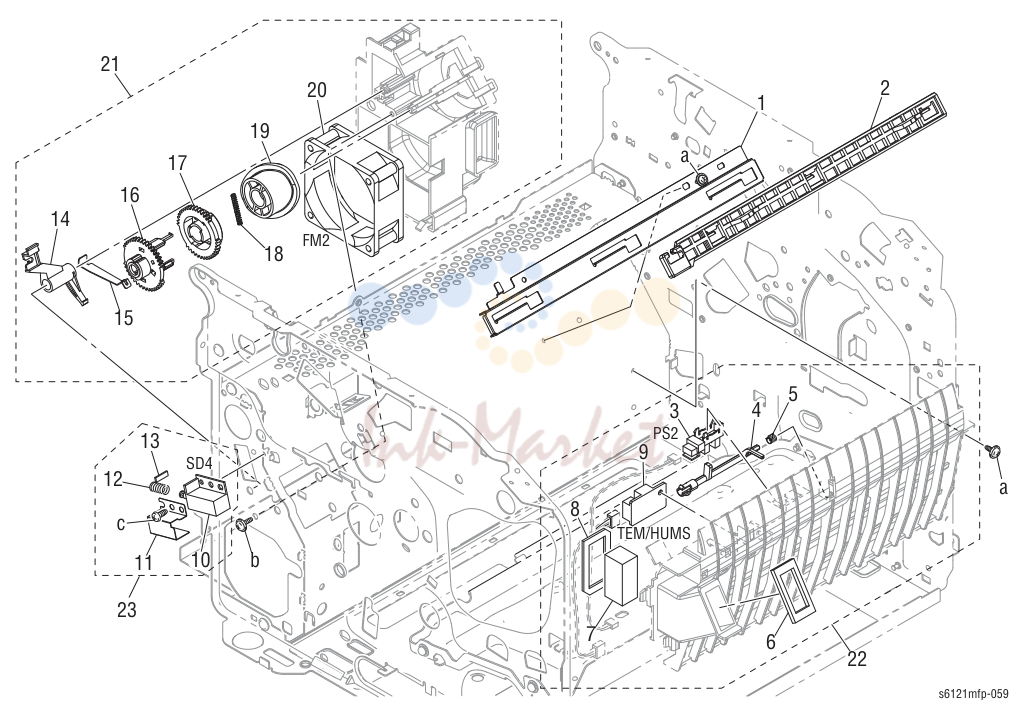

10. Parts List
№ Артикул Альт. артикул Описание
1 Mounting Plate - 2 Slide Plate - 3 Registration Sensor1 130E18330 4 Actuator - 5 Torsion Coil Spring - 6 Seal /Front - 7 Filter - 8 Seal /Rear - 9 Humidity Sensor 130E18300 10 2nd Image Transfer Solenoid See #23 11 Protection Part - 12 Compressing Spring - 13 Seal - 14 Lever - 15 Plate Spring - 16 Gear 42T - 17 Gear 42T - 18 Compressing Spring - 19 Cam - 20 Ventilation Fan Motor 127E16790 21 Guide Assembly, Fan Duct 032K09830 22 Guide Assembly, Paper Path 032K09840 23 2nd Image Transfer Solenoid Assembly 604K61490

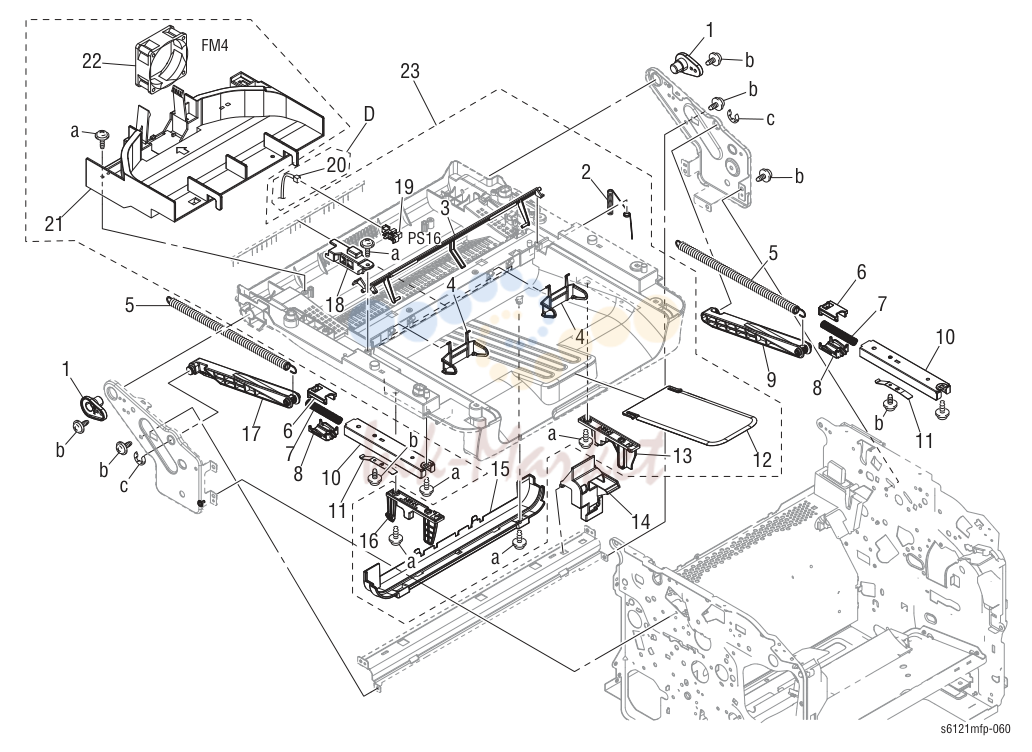

11. Parts List
№ Артикул Альт. артикул Описание
1 Bushing /Right1 016E20270 2 Ground Spring - 3 Actuator - 4 Holding Guide - 5 Pulling Coil spring - 6 Holder - 7 Compressing Coil Spring - 8 Holder - 9 Balancer /Right - 10 Rail - 11 Plate Spring - 12 Paper Exit Tray - 13 Lever /Right - 14 Guide - 15 Cover - 16 Lever /Left - 17 Balancer /Right - 18 Cover - 19 Media Full Sensor2 130E18330 20 Wiring2 запросить цену → (see “Wiring Kit” on page9-55) - 21 Duct - 22 Exit Tray Cooling Fan - 23 Upper Cover -

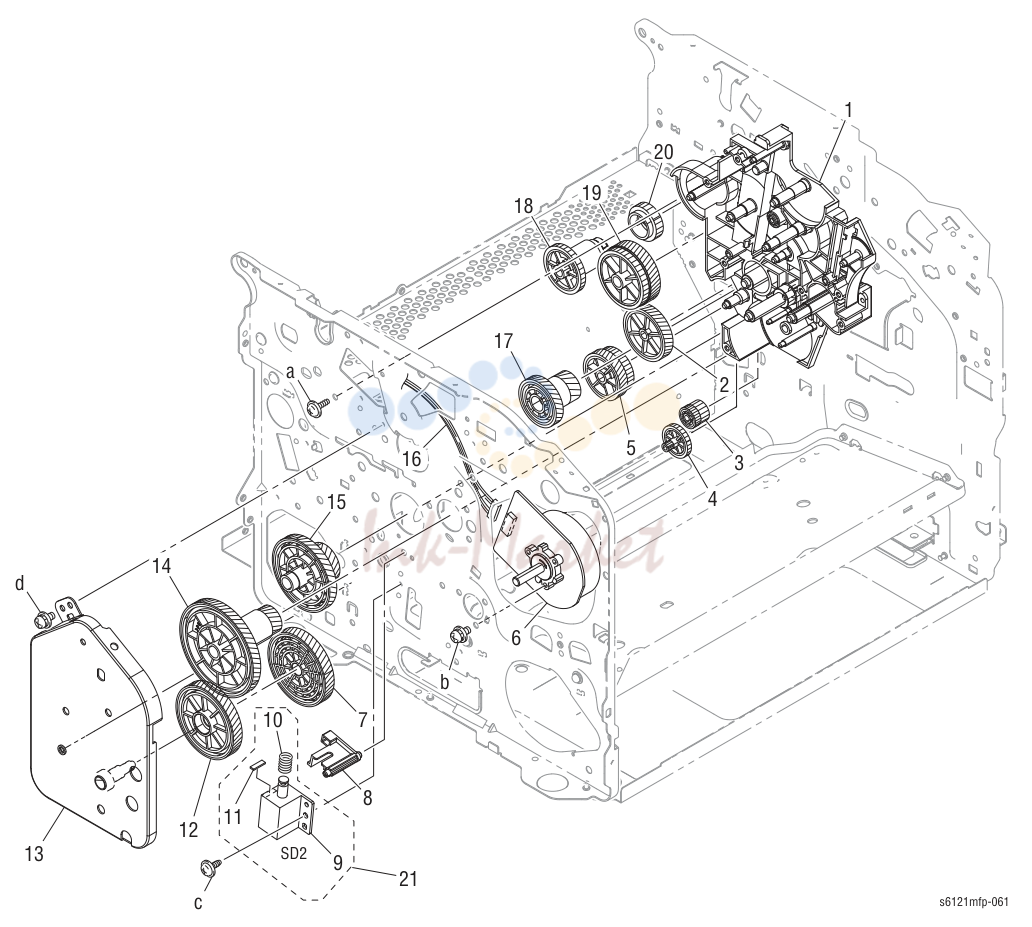

12. Parts List
№ Артикул Альт. артикул Описание
1 Holder - 2 Gear 40T - 3 Gear 15/26T - 4 Gear 13/25T - 5 Gear 34/35T - 6 Main Motor 127E16800 7 Gear 91T - 8 Lever - 9 Registration Roller Solenoid - 10 Compressing Coil spring - 11 Seal - 12 Gear 91T - 13 Mounting Plate Assembly - 14 Gear 20/117T - 15 Gear 28/91T - 17 Gear 36/20T - 18 Gear 30T - 19 Gear 37/45T - 20 Gear 21T - 21 Registration Roller Solenoid Assembly 604K61480

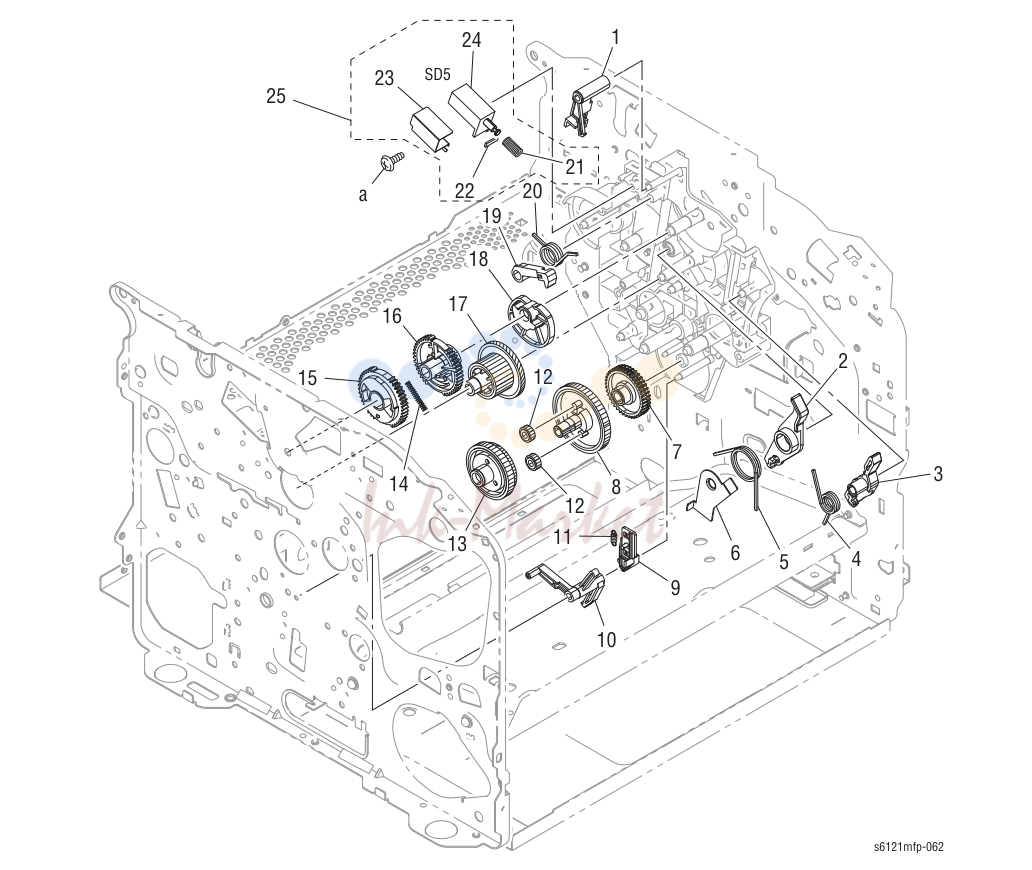

13. Parts List
№ Артикул Альт. артикул Описание
1 Lever - 2 Lever - 3 Lever - 4 Torsion Coil Spring /Left - 5 Torsion Coil Spring - 6 Mounting Plate - 7 Ratchet - 8 Gear 52T - 9 Lever - 10 Lever - 11 Pulling Spring - 12 Gear 17T - 13 Gear 54/42T - 14 Compressing Spring - 15 Gear 45T - 16 Gear 45T - 17 Gear 27/40T - 18 Cam - 19 Lever - 20 Torsion Coil Spring - 21 Compressing Spring - 22 Seal - 23 Protection Part - 24 Cleaning Blade Solenoid - 25 Cleaning Blade Solenoid Assembly 604K61490

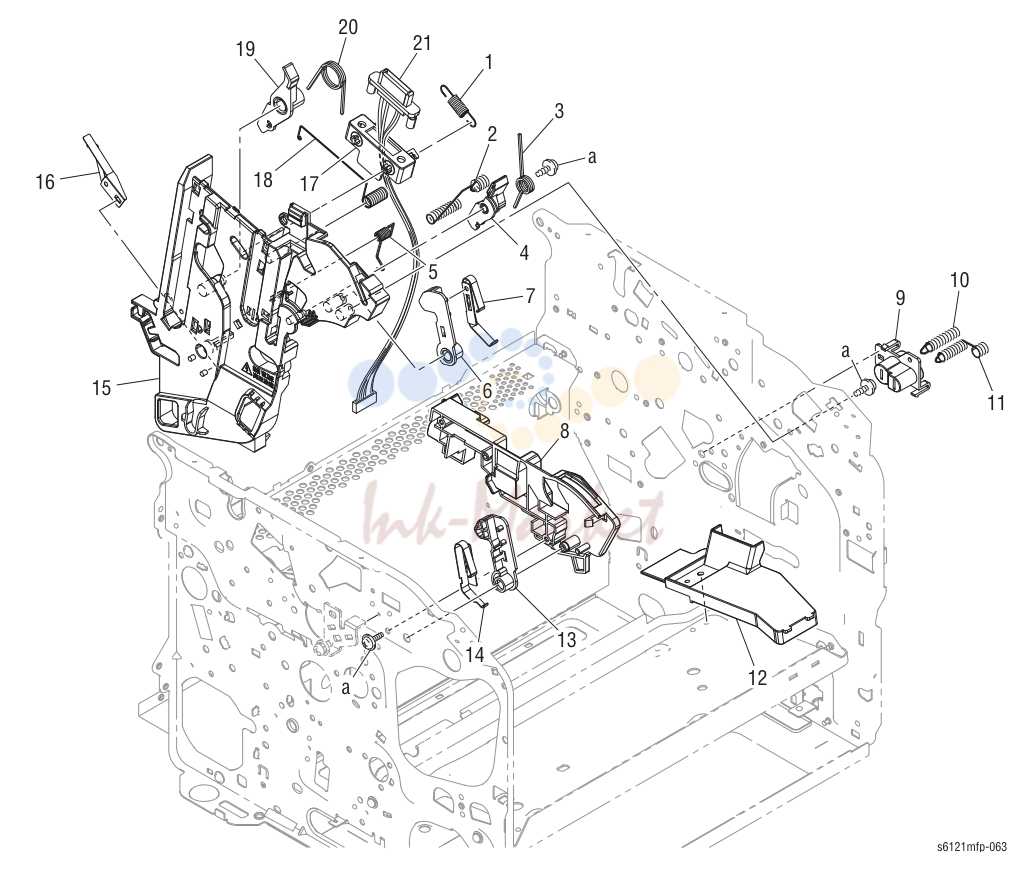

14. Parts List
№ Артикул Альт. артикул Описание
1 Pulling Coil Spring 809E95470 2 Contact - 3 Torsion Coil spring /Right - 4 Lever - 5 Contact - 6 Fixing Lever /Right - 7 Plate Spring /Right - 8 Guide /Left - 9 Holder - 11 Contact - 12 Guide - 13 Fixing Lever /Left - 14 Spring - 15 Guide /Right - 16 Spring - 17 Mounting Plate - 18 Contact - 19 Lever - 20 Torsion Coil Spring -

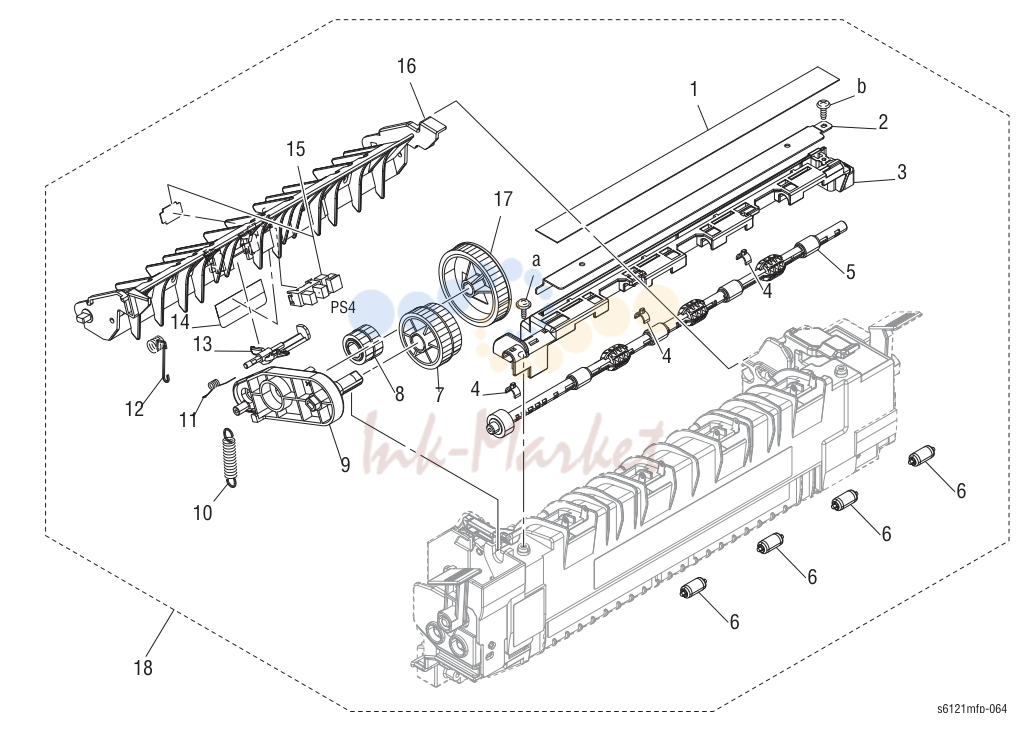

15. Parts List
№ Артикул Альт. артикул Описание
1 Seal - 2 Reinforce Plate - 3 Holder - 4 Bushing - 5 Paper Exit Roller - 6 Roll - 7 Gear 32/29T - 8 Gear 16/16T - 9 Lever - 10 Pulling Coil spring - 11 Spring - 12 Torsion Coil spring - 13 Actuator - 14 Seal - 15 Exit Sensor - 16 Guide Part - 17 Gear 44T - 18 Fuser, 110V 126E02770

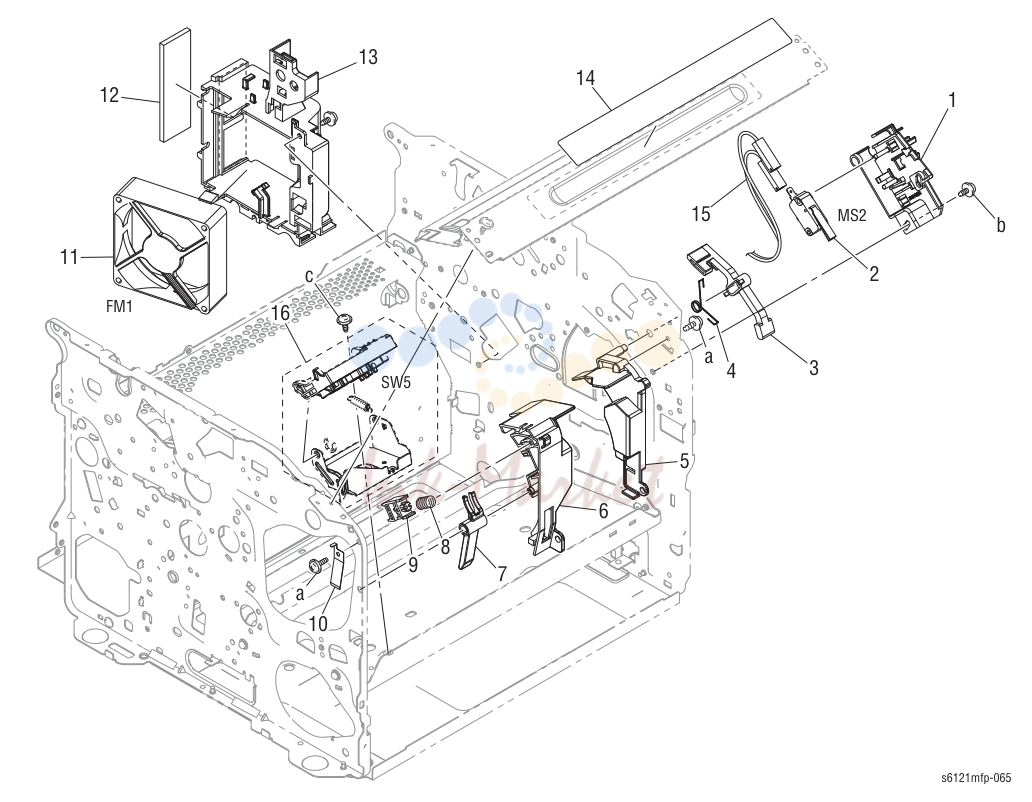

16. Parts List
№ Артикул Альт. артикул Описание
1 Mounting Plate - 2 Front Door Switch 110E21120 3 Lever - 4 Torsion Coil Spring - 5 Guide - 6 Guide - 7 Lock Lever - 8 Compressing Coil Spring - 9 Lock Claw - 10 Ground Plate - 11 Power Supply Fan Motor 127E16810 12 Filter - 13 Duct - 14 Label Jam Remove - 15 Wiring1 запросить цену → (see “Wiring Kit” on page9-55) - 16 CSIC Contact Assembly 115K02550

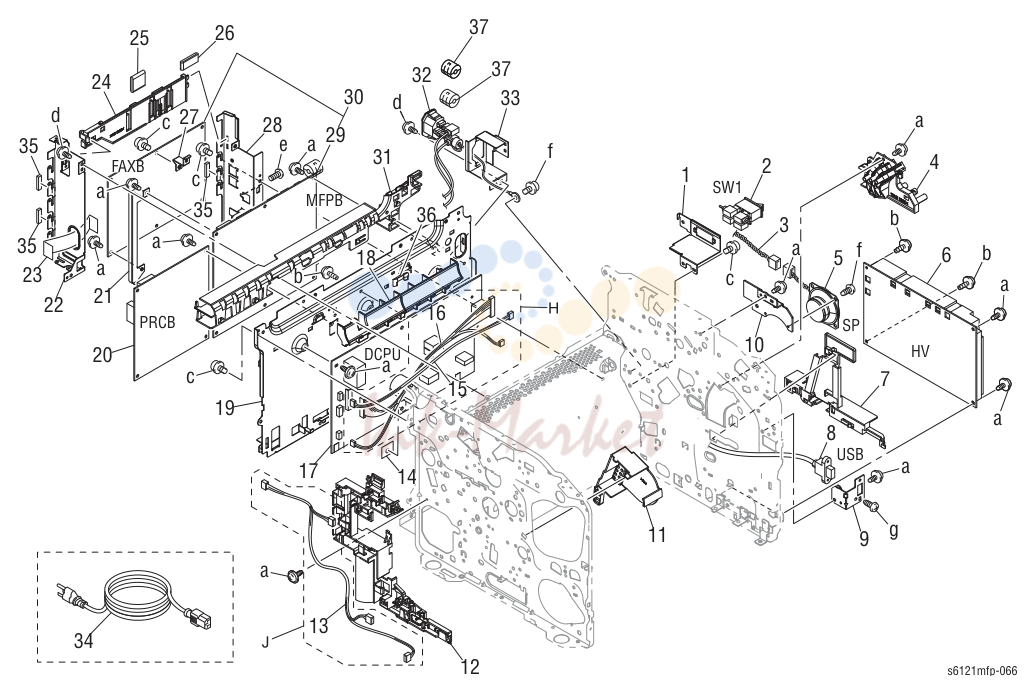

17. Parts List
№ Артикул Альт. артикул Описание
35 FAXB e a 31 f 20 DCPU HV 9-38 Phaser 6121MFP Service Manual 1 Mounting Plate - 2 Rocker Switch 110E21130 3 Relay Harness - 4 Rack Contact Assembly - 5 Speaker 130E18310 6 High Voltage Board 105K36180 7 Guide - 8 USB Cable - 9 Mounting Plate - 10 Mounting Plate - 11 Cover - 12 Guide - 14 Insulating Seal - 17 110V Power Supply 105E24470 18 Duct - 19 Mounting Plate - 20 Engine Control Board 960K58870 21 Mounting Plate - 22 Shield Plate - 23 Wiring - 24 Guide - 25 Ferrite Core - 26 Ferrite Core - 27 Mounting Plate - 28 Mounting Plate - 29 Image/Fax Processor Board (Phaser 6121MFP/N/D) 960K58880 30 Image Processor Board (Phaser 6121MFP/S) 3-in-1 960K58890 31 Guide Plate - 32 Wiring - 33 Mounting Plate - 34 Power Cord - 35 Gasket - 36 Duct - 37 Ferrite Core -

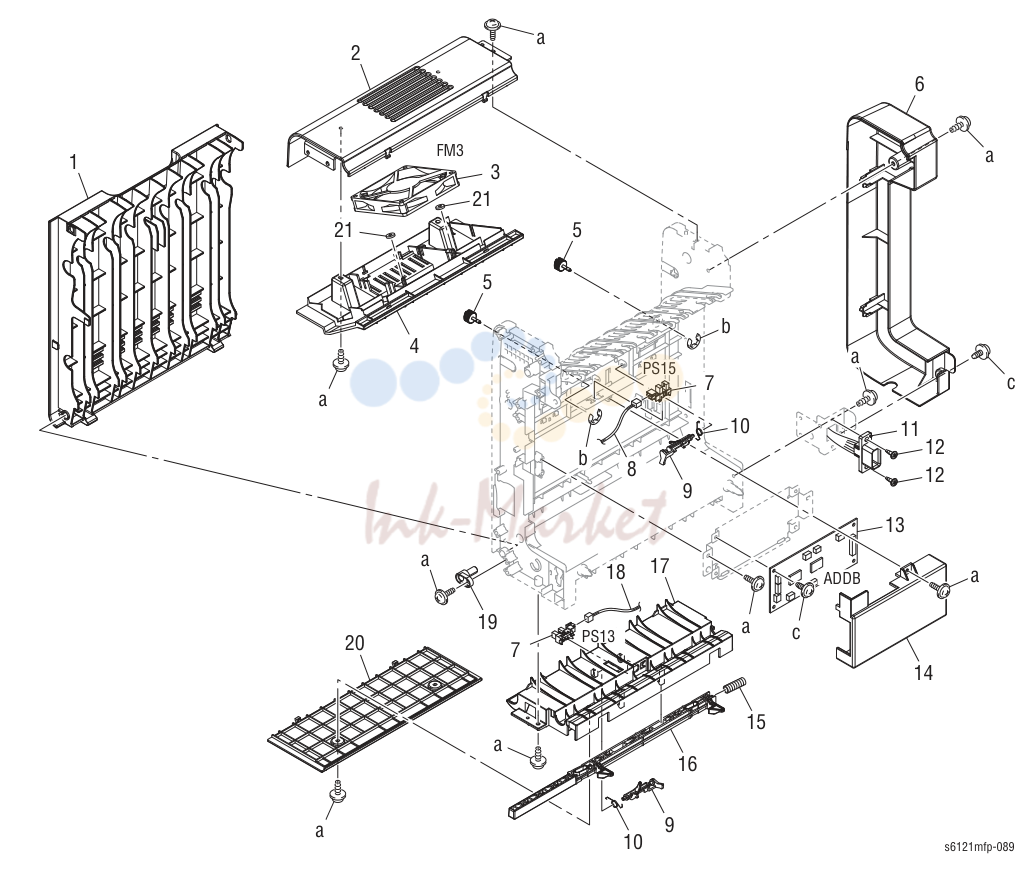

18. Parts List
№ Артикул Альт. артикул Описание
1 Cover - 2 Cover - 3 Fan - 4 Upper Cover - 5 Screw - 6 Left Cover - 7 PS15 - Transport Sensor 130E18330 8 Wire Harness Assembly - 9 Actuator - 10 Torsion Spring - 11 Wire Harness Assembly - 12 Shoulder Screw - 13 PWB Assembly( - 14 Cover - 15 Compressing Spring - 16 Lever - 17 Lower Cover - 18 Wire Harness Assembly - 19 Guide Part - 20 Cover - 21 Cushion -

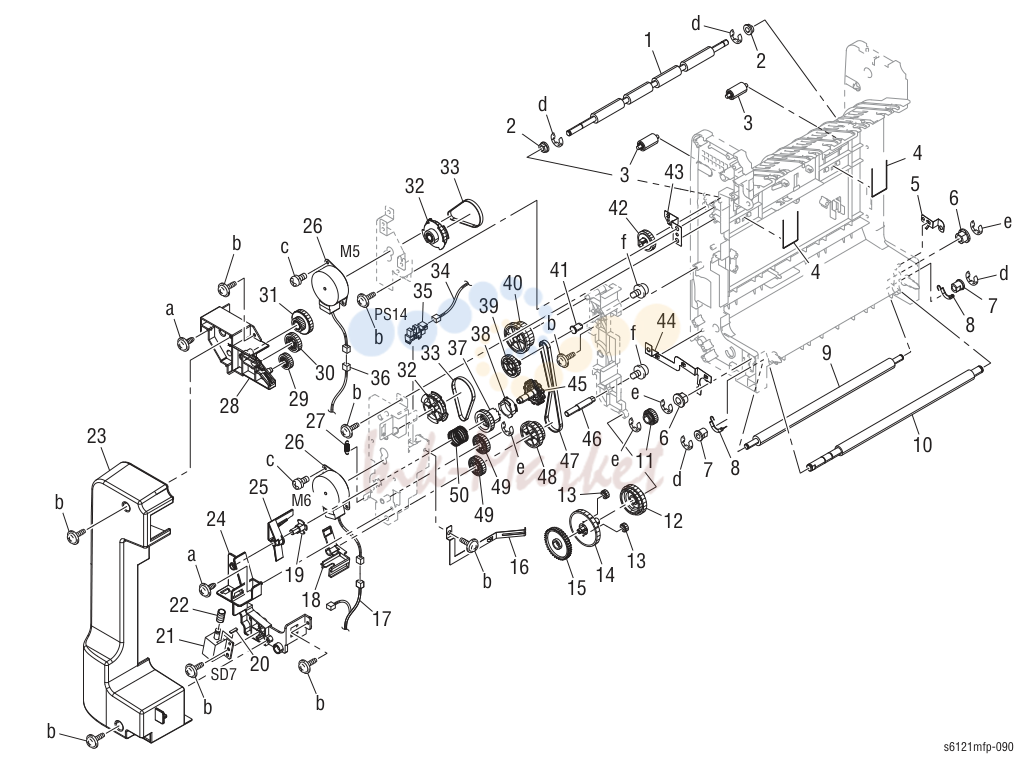

19. Parts List
№ Артикул Альт. артикул Описание
1 Roller - 2 Bushing - 3 Roll - 4 Spring - 5 Ground Plate, Right - 6 Bushing - 7 Bushing - 8 Tension Spring - 9 Roller - 10 Roller - 11 Gear 20T - 12 Gear 54/42T - 13 Gear 17T - 14 Gear 52T - 15 Ratchet - 16 Ground Spring - 17 Wire Harness Assembly - 18 Lever - 19 Shaft - 20 Seal - 21 Conveyance Solenoid - 22 Compressing Coil Spring - 23 Right Cover - 24 Registration Holder - 25 Lever - 26 Motor - 27 Pulling Coil - 28 Holder - 29 Gear 16T - 30 Gear 20T - 31 Gear14/26T - 32 Pulley 14T - 33 Timing Belt 138L - 34 Wire Harness Assembly - 35 Photo Interrupter - 36 Wire Harness Assembly - 37 Gear 30T - 38 Pulley - 39 Gear 20/24T - 40 Gear 28/34T - 41 Shaft - 42 Gear 22T - 43 Ground Plate - 44 Ground Plate - 45 Knob - 46 Shaft - 47 Timing Belt 254L - 48 Gear 36/37T - 49 Gear 26T - 50 Compressing Coil Spring - 9-44 Phaser 6121MFP Service Manual

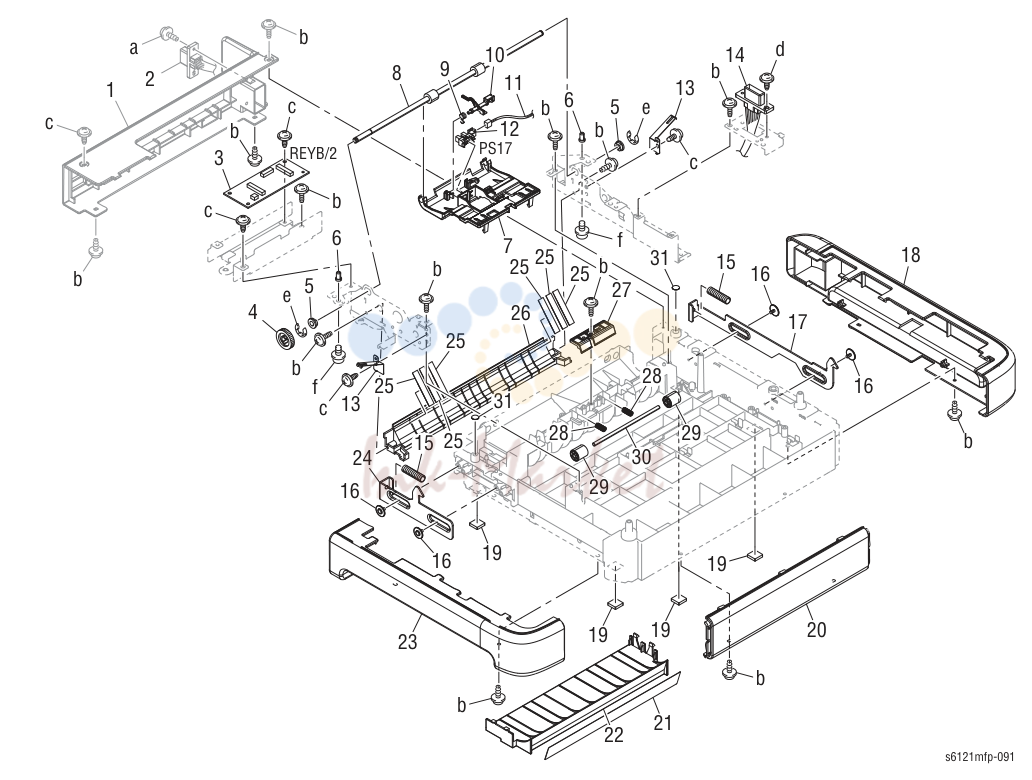

20. Parts List
№ Артикул Альт. артикул Описание
1 Rear Cover - 2 Wire Harness Assembly - 3 PWB Assembly - 4 Gear 22T - 5 Bushing - 6 Positioning Shaft - 7 Guide Part - 8 Roller - 9 Torsion Spring - 10 Actuator - 11 Wire Harness Assembly - 12 Photo Interrupter1 - 13 Earth Ground - 14 Wire Harness Assembly - 15 Compressing Spring - 16 Screw - 17 Lever - 18 Right Cover - 19 Rubber Foot - 20 Front Cover - 21 Guide - 22 Guide Plate - 23 Left Cover - 24 Lever - 25 Guide - 26 Guide - 27 Guide - 28 Pressure Spring - 29 Roll - 30 Shaft - 31 Spacer -

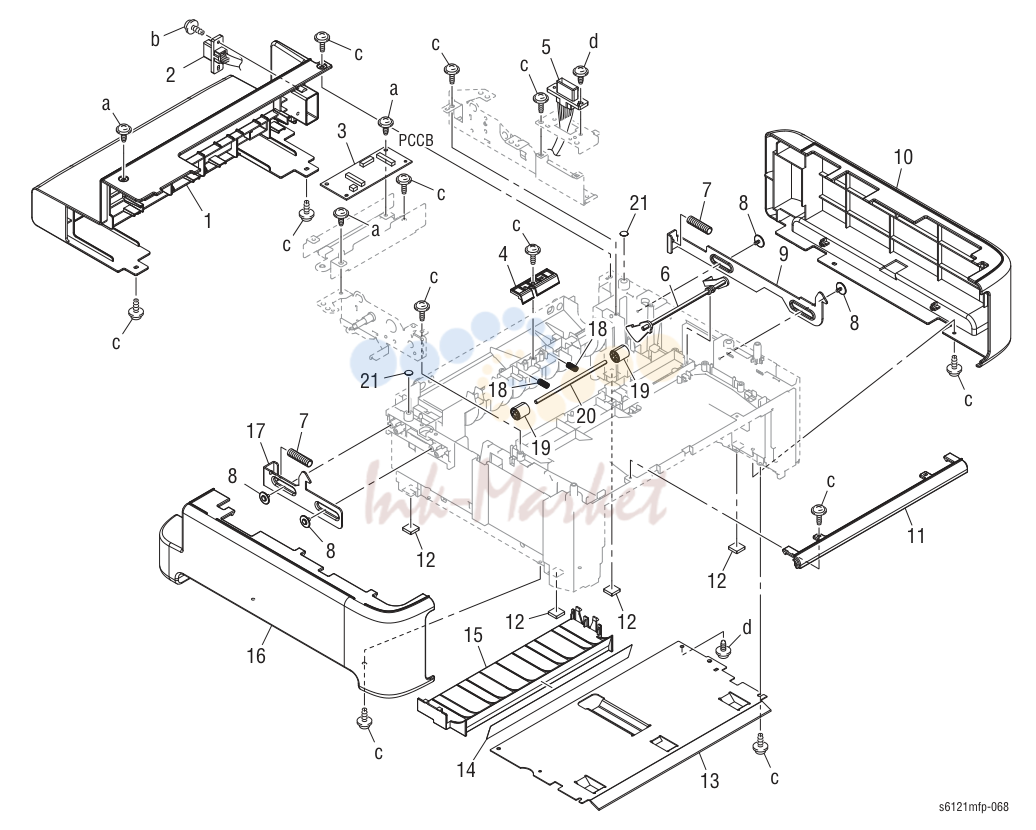

21. Parts List
№ Артикул Альт. артикул Описание
500 Sheet Tray (A4) 050E29010 500 Sheet Tray (Letter) 050E29020 1 Rear Cover - 2 Wire Harness Assembly - 3 PWB Assembly - 4 Guide - 5 Wire Harness Assembly - 6 Actuator - 7 Compressing Spring - 8 Screw - 9 Lever - 10 Right Cover - 11 Front Cover - 12 Rubber Foot - 13 Reinforce Plate - 14 Guide - 15 Guide Plate - 16 Left Cover - 17 Lever - 18 Pressure Spring - 19 Roll - 20 Shaft - 21 Spacer -

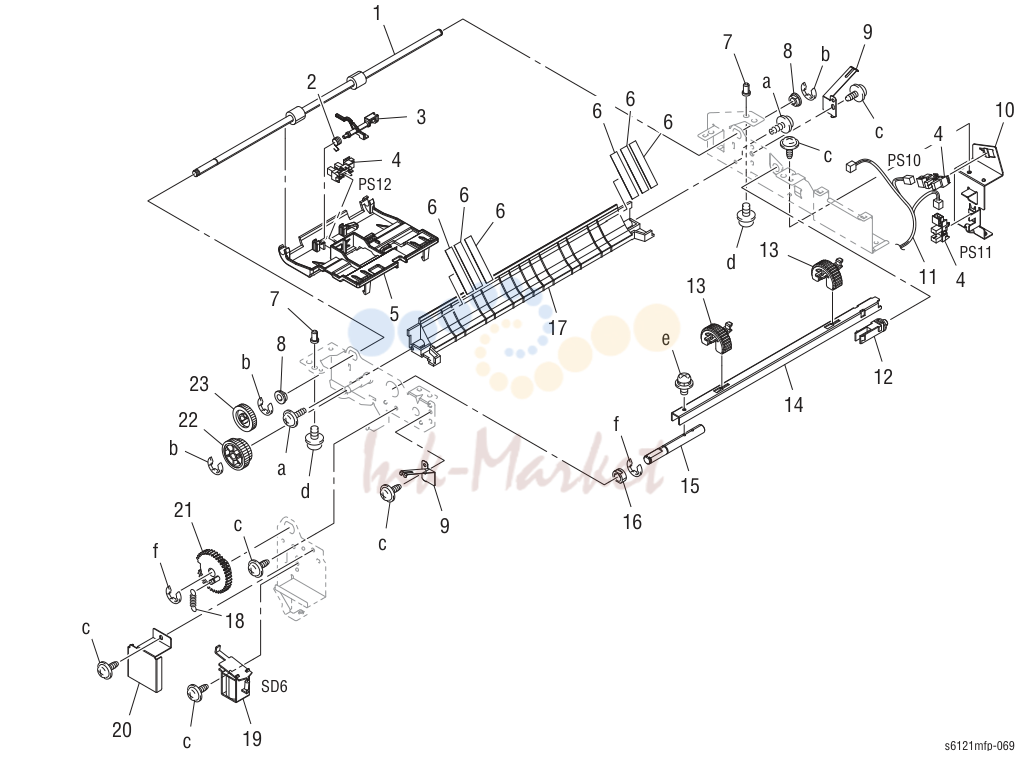

22. Parts List
№ Артикул Альт. артикул Описание
1 Roller - 2 Torsion Spring - 3 Actuator - 4 Transport Sensor 130E18330 5 Guide Part - 6 Guide - 7 Positioning Shaft - 8 Bushing - 9 Earth Ground - 10 Mounting Plate - 11 Wire Harness Assembly - 12 Shaft - 1 Roller - 14 Bracket - 15 Shaft - 16 Bushing - 17 Guide - 18 Tension Spring - 19 Solenoid - 20 Cover - 21 Gear 38T - 22 Gear 20/26T - 23 Gear 22T -

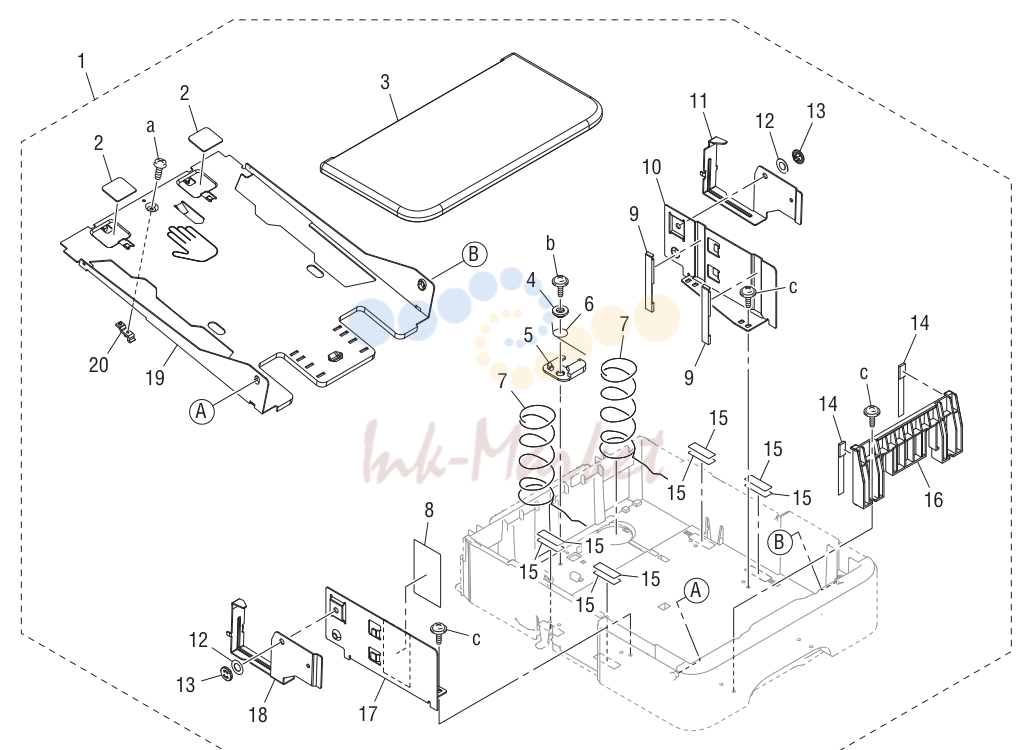

23. Parts List
№ Артикул Альт. артикул Описание
1 Cassette Assembly - 2 Friction Plate - 3 Cover - 4 Collar - 5 Cam - 6 Torsion Spring - 7 Pressure Spring - 8 Label - 9 Cushion - 10 Regulating Plate - 11 Separator - 12 Washer - 13 Pin - 14 Cushion - 15 Spacer - 16 Regulating Plate, Rear - 17 Regulating Spring - 18 Separator - 19 Lifting Plate - 20 Lock Lever -
